Toshiba TECRA S5, TECRA P5, S200 User Manual

User’s Manual

TECRA A9/ TECRA S5/ TECRA P5/
Satellite Pro S200

Table of Contents

Copyright. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vi

Disclaimer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vi

Trademarks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vi

FCC information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vii

EU Declaration of Conformity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . viii

VCCI Class B Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . viii

How to confirm Modem Module Label . . . . . . . . . . . . . . . . . . . . . . . . viii

Modem warning notice. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . viii

Japan regulations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ix

Instructions for IC CS-03 certified equipment . . . . . . . . . . . . . . . . . . . xi

Notes for Users in Australia and New Zealand . . . . . . . . . . . . . . . . . . xii

Following information is only for EU-member states: . . . . . . . . . . . . xv

Optical disc drive safety instructions. . . . . . . . . . . . . . . . . . . . . . . . . xvi

International precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xxi

Preface

Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xxiii

General Precautions

Creating a computer-friendly environment . . . . . . . . . . . . . . . . . . . xxvi

Stress injury . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xxvi

Heat injury . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xxvii

Pressure or impact damage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xxvii

PC Card overheating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xxvii

Mobile phones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xxvii

Instruction Manual for Safety and Comfort . . . . . . . . . . . . . . . . . . . xxvii

Chapter 1 Getting Started

Equipment checklist. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

System Recovery Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-12

System Recovery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-13

Chapter 2 The Grand Tour

Front with the display closed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

Left side. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3

User’s Manual ii

TECRA A9/ TECRA S5/ TECRA P5/ Satellite Pro S200

Right side . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4

Back . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5

Underside . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7

Front with the display open. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8

Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-11

Optical disc drives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-13

AC adaptor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-15

Chapter 3 Hardware, Utilities and Options

Hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

Special features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5

TOSHIBA Value Added Package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-8

Utilities and Applications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-10

Optional devices. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-13

Optional accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-30

Chapter 4 Operating Basics

TOSHIBA Dual Pointing Device. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1

Using the Fingerprint Sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3

Using optical disc drives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-10

Writing CDs on DVD-ROM&CD-R/RW drive . . . . . . . . . . . . . . . . . . . 4-14

Writing CD/DVDs on DVD Super Multi drives . . . . . . . . . . . . . . . . . 4-16

Media care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-22

Sound System. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-23

Modem . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-25

Wireless communications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-29

LAN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-32

Computer Handling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-34

Using the Hard Disk Drive (HDD) Protection . . . . . . . . . . . . . . . . . . 4-35

Heat dispersal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-37

Chapter 5 The Keyboard

Typewriter keys. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1

Function keys: F1 … F12 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2

Soft keys: FN key combinations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2

Hot keys. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-3

Windows special keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-5

Keypad overlay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-5

Generating ASCII characters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-7

Chapter 6 Power and Power-Up Modes

Power conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1

Monitoring of power condition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-2

Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-3

TOSHIBA Password Utility. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-10

Power-up modes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-13

Panel power on/off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-13

User’s Manual iii

TECRA A9/ TECRA S5/ TECRA P5/ Satellite Pro S200

System Auto Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-13

Chapter 7 HW Setup & BIOS Setup

Accessing HW Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1

HW Setup window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1

BIOS Setup Program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-8

Chapter 8 Troubleshooting

Problem solving process. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-1

Hardware and system checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-3

TOSHIBA support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-24

Appendix A Specifications

Physical Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1

Environmental Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1

Appendix B Display Controller and Video mode

Display controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-1

Video mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-1

Appendix C AT Comman ds

Appendix D S-registers

S-register values. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D-1

AT command set result codes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D-5

Appendix E V.90

V.90 mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E-1

AT Command. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E-3

Appendix F Wireless LAN

Card Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . F-1

Radio Characteristics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . F-2

Supported Frequency Sub-bands. . . . . . . . . . . . . . . . . . . . . . . . . . . . F-2

Appendix G Intel® Matrix Storage Manager

Manually Setting up Windows (Windows Vista™). . . . . . . . . . . . . . . G-1

Manually Setting up Windows Manually (Windows XP) . . . . . . . . . . G-2

How to install Intel® Matrix Storage Manager on Windows XP or

Windows Vista™: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . G-3

Appendix H Bluetooth wireless technology Interoperability

Bluetooth wireless technology and your Health . . . . . . . . . . . . . . . . H-3

Regulatory statements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . H-3

Using Bluetooth® Adaptor from TOSHIBA equipment in Japan . . . H-6

Appendix I AC Power Cord and Connectors

Certification agencies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . I-1

Appendix J TOSHIBA Anti-theft Protection Timer

Appendix K Legal Footnotes

User’s Manual iv

TECRA A9/ TECRA S5/ TECRA P5/ Satellite Pro S200

Non-applicable Icons*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . K-1

CPU*2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . K-1

Memory (Main System)*3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . K-2

Battery Life*4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . K-3

Hard Disk Drive (HDD) Capacity*5 . . . . . . . . . . . . . . . . . . . . . . . . . . . K-3

LCD*6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . K-3

Graphics Processor Unit ("GPU")*7 . . . . . . . . . . . . . . . . . . . . . . . . . . K-3

Wireless LAN*8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . K-4

Copy Protection*9 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . K-4

Images*10 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . K-4

Glossary

Index

User’s Manual v

Copyright

Disclaimer

TECRA A9/ TECRA S5/ TECRA P5/ Satellite Pro S200

© 2007 by TOSHIBA Corporation. All rights reserved. Under the copyright
laws, this manual cannot be reproduced in any form without the prior
written permission of TOSHIBA. No patent liability is assumed, with respect
to the use of the information contained herein.

TOSHIBA TECRA A9/ TECRA S5/ TECRA P5/ Satellite Pro S200 Portable
Personal Computer User’s Manual

First edition May 2007
Copyright authority for music, movies, computer programs, databases and

other intellectual property covered by copyright laws belongs to the author
or to the copyright owner. Copyrighted material can be reproduced only for
personal use or use within the home. Any other use beyond that stipulated
above (including conversion to digital format, alteration, transfer of copied
material and distribution on a network) without the permission of the
copyright owner is a violation of copyright or author's rights and is subject to
civil damages or criminal action. Please comply with copyright laws in
making any reproduction from this manual.

This manual has been validated and reviewed for accuracy. The
instructions and descriptions it contains are accurate for the TOSHIBA
TECRA A9/ TECRA S5/ TECRA P5/ Satellite Pro S200 Portable Personal
Computer at the time of this manual’s production. However, succeeding
computers and manuals are subject to change without notice. TOSHIBA
assumes no liability for damages incurred directly or indirectly from errors,
omissions or discrepancies between the computer and the manual.

Trademarks

IBM is a registered trademark and IBM PC is a trademark of International
Business Machines Corporation.

Intel, Intel SpeedStep, Intel Core, Centrino and Celeron are trademarks or
registered trademarks of Intel Corporation.

Windows and Microsoft are registered trademarks and Windows Vista is a
trademark of Microsoft Corporation.

Bluetooth is a trademark or registered trademark owned by its proprietor
and used by TOSHIBA under license.

InterVideo and WinDVD are registered trademarks of InterVideo Inc.
Photo CD is a trademark of Eastman Kodak.
i.LINK is trademark and registered trademark of Sony Corporation.
Other trademarks and registered trademarks not listed above may be used

in this manual.

User’s Manual vi

TECRA A9/ TECRA S5/ TECRA P5/ Satellite Pro S200

FCC information

FCC notice "Declaration of Conformity Information"

This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:

■ Reorient or relocate the receiving antenna.

■ Increase the separation between the equipment and receiver.

■ Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

■ Consult the dealer or an experienced radio/TV technician for help.

Only peripherals complying with the FCC class B limits may be attached to
this equipment. Operation with non-compliant peripherals or peripherals
not recommended by TOSHIBA is likely to result in interference to radio
and TV reception. Shielded cables must be used between the external
devices and the computer’s external monitor port, Universal Serial Bus
(USB 2.0) ports, i.LINK (IEEE1394) port, serial port and microphone jack.
Changes or modifications made to this equipment, not expressly approved
by TOSHIBA or parties authorized by TOSHIBA could void the user’s
authority to operate the equipment.

FCC conditions

This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including
interference that may cause undesired operation.

Contact

Address: TOSHIBA America Information Systems, Inc.

9740 Irvine Boulevard
Irvine, California 92618-1697

Telephone: [phone]

User’s Manual vii

TECRA A9/ TECRA S5/ TECRA P5/ Satellite Pro S200

EU Declaration of Conformity

TOSHIBA declares, that this product conforms to the following Standards:

Supplementary
Information:

This product is carrying the CE-Mark in accordance with the related
European Directives. The party responsible for CE-Marking is TOSHIBA
Europe GmbH, Hammfelddamm 8, 41460 Neuss, Germany.

“The product complies with the requirements of
the Low Voltage Directive 73/23/EEC, the EMC
Directive 89/336/EEC and/or the R&TTE
Directive 1999/5/EC.”

VCCI Class B Information

How to confirm Modem Module Label

The modem module is located next to memory slots. To confirm the
modem’s label, refer to "Installing a memory module (Slot A and Slot B)" in
this manual.

Modem warning notice

Conformity Statement

The equipment has been approved to [Commission Decision "CTR21"] for
pan-European single terminal connection to the Public Switched Telephone
Network (PSTN).

However, due to differences between the individual PSTNs provided in
different countries/regions the approval does not, of itself, give an
unconditional assurance of successful operation on every PSTN network
termination point.

In the event of problems, you should contact your equipment supplier in the
first instance.

User’s Manual viii

Network Compatibility Statement

This product is designed to work with, and is compatible with the following
networks. It has been tested to and found to conform with the additional
requirements conditional in EG 201 121.

Germany ATAAB AN005,AN006,AN007,AN009,AN010 and

Greece ATAAB AN005,AN006 and GR01,02,03,04
Portugal ATAAB AN001,005,006,007,011 and P03,04,08,10
Spain ATAAB AN005,007,012, and ES01
Switzerland ATAAB AN002
All other countries/regions ATAAB AN003,004
Specific switch settings or software setup are required for each network,

please refer to the relevant sections of the user guide for more details.
The hookflash (timed break register recall) function is subject to separate

national type approvals. It has not been tested for conformity to national
type regulations, and no guarantee of successful operation of that specific
function on specific national networks can be given.

Japan regulations

Region selection

If you are using the computer in Japan, technical regulations described in
the Telecommunications Business Law require that you select the Japan
region mode. It is illegal to use the modem in Japan with any other
selection.

TECRA A9/ TECRA S5/ TECRA P5/ Satellite Pro S200

DE03,04,05,08,09,12,14,17

Redial

Up to two redial attempts can be made. If more than two redial attempts are
made, the modem will return Black Listed. If you are experiencing
problems with the Black Listed code, set the interval between redials at one
minute or longer.

Japan’s Telecommunications Business Law permits up to two redials on
analogue telephones, but the redials must be made within a total of three
minutes.

The internal modem is approved by Japan Approvals Institute for
Telecommunications Equipment.

A04-0609001 or A05-0413001

User’s Manual ix

TECRA A9/ TECRA S5/ TECRA P5/ Satellite Pro S200

Pursuant to FCC CFR 47, Part 68:

When you are ready to install or use the modem, call your local telephone
company and give them the following information:

■ The telephone number of the line to which you will connect the modem

■ The registration number that is located on the device

The FCC registration number of the modem will be found on either the
device which is to be installed, or, if already installed, on the bottom of the
computer outside of the main system label.

■ The Ringer Equivalence Number (REN) of the modem, which can vary.

For the REN of your modem, refer to your modem’s label.

The modem connects to the telephone line by means of a standard jack
called the USOC RJ11C.

Type of service

Your modem is designed to be used on standard-device telephone lines.
Connection to telephone company-provided coin service (central office
implemented systems) is prohibited. Connection to party lines service is
subject to state tariffs. If you have any questions about your telephone line,
such as how many pieces of equipment you can connect to it, the
telephone company will provide this information upon request.

Telephone company procedures

The goal of the telephone company is to provide you with the best service it
can. In order to do this, it may occasionally be necessary for them to make
changes in their equipment, operations, or procedures. If these changes
might affect your service or the operation of your equipment, the telephone
company will give you notice in writing to allow you to make any changes
necessary to maintain uninterrupted service.

If problems arise

If any of your telephone equipment is not operating properly, you should
immediately remove it from your telephone line, as it may cause harm to
the telephone network. If the telephone company notes a problem, they
may temporarily discontinue service. When practical, they will notify you in
advance of this disconnection. If advance notice is not feasible, you will be
notified as soon as possible. When you are notified, you will be given the
opportunity to correct the problem and informed of your right to file a
complaint with the FCC. In the event repairs are ever needed on your
modem, they should be performed by TOSHIBA Corporation or an
authorized representative of TOSHIBA Corporation.

Disconnection

If you should ever decide to permanently disconnect your modem from its
present line, please call the telephone company and let them know of this
change.

User’s Manual x

TECRA A9/ TECRA S5/ TECRA P5/ Satellite Pro S200

Fax branding

The Telephone Consumer Protection Act of 1991 makes it unlawful for any
person to use a computer or other electronic device to send any message
via a telephone fax machine unless such message clearly contains in a
margin at the top or bottom of each transmitted page or on the first page of
the transmission, the date and time it is sent and an identification of the
business, other entity or individual sending the message and the telephone
number of the sending machine or such business, other entity or individual.
In order to program this information into your fax modem, you should
complete the setup of your fax software before sending messages.

Instructions for IC CS-03 certified equipment

1. The Industry Canada label identifies certified equipment. This
certification means that the equipment meets certain
telecommunications network protective, operational and safety
requirements as prescribed in the appropriate Terminal Equipment
Technical Requirements document(s). The Department does not
guarantee the equipment will operate to the user’s satisfaction.

Before installing this equipment, users should ensure that it is
permissible to be connected to the facilities of the local
telecommunications company. The equipment must also be installed
using an acceptable method of connection.

The customer should be aware that compliance with the above
conditions may not prevent degradation of service in some situations.
Repairs to certified equipment should be coordinated by a
representative designated by the supplier. Any repairs or alterations
made by the user to this equipment, or equipment malfunctions, may
give the telecommunications company cause to request the user to
disconnect the equipment.

Users should ensure for their own protection that the electrical ground
connections of the power utility, telephone lines and internal metallic
water pipe systems, if present, are connected together. This precaution
may be particularly important in rural areas.

Users should not attempt to make such connections themselves, but
should contact the appropriate electric inspection authority, or electrician,
as appropriate.

2. The user manual of analog equipment must contain the equipment’s
Ringer Equivalence Number (REN) and an explanation notice similar to
the following:

The Ringer Equivalence Number (REN) of the modem, which can vary.
For the REN of your modem, refer to your modem’s label.

User’s Manual xi

TECRA A9/ TECRA S5/ TECRA P5/ Satellite Pro S200

The Ringer Equivalence Number (REN) assigned to each terminal device
provides an indication of the maximum number of terminals allowed to be
connected to a telephone interface. The termination on an interface may
consist of any combination of devices subject only to the requirement that
the sum of the Ringer Equivalence Numbers of all the devices does not
exceed 5.

3. The standard connecting arrangement (telephone jack type) for this
equipment is jack type(s): USOC RJ11C.
The IC registration number of the modem is shown below.

Canada: 4005B-ATHENS or 4005B-DELPHI

Notes for Users in Australia and New Zealand

Modem warning notice for Australia

Modems connected to the Australian telecoms network must have a valid
Austel permit. This modem has been designed to specifically configure to
ensure compliance with Austel standards when the country/region selection
is set to Australia. The use of other country/region setting while the modem
is attached to the Australian PSTN would result in you modem being
operated in a non-compliant manner. To verify that the country/region is
correctly set, enter the command ATI which displays the currently active
setting.

To set the country/region permanently to Australia, enter the following
command sequence:

AT%T E=1
ATS133=1
AT&F
AT&W
AT%T E=0
ATZ

Failure to set the modem to the Australia country/region setting as shown
above will result in the modem being operated in a non-compliant manner.
Consequently, there would be no permit in force for this equipment and the
Telecoms Act 1991 prescribes a penalty of $12,000 for the connection of
non-permitted equipment.

User’s Manual xii

TECRA A9/ TECRA S5/ TECRA P5/ Satellite Pro S200

Notes for use of this device in New Zealand

■ The grant of a Telepermit for a device in no way indicates Telecom

acceptance of responsibility for the correct operation of that device
under all operating conditions. In particular the higher speeds at which
this modem is capable of operating depend on a specific network
implementation which is only one of many ways of delivering high
quality voice telephony to customers. Failure to operate should not be
reported as a fault to Telecom.

■ In addition to satisfactory line conditions a modem can only work

properly if:
a/ it is compatible with the modem at the other end of the call and.
b/ the application using the modem is compatible with the application

at the other end of the call - e.g., accessing the Internet requires
suitable software in addition to a modem.

■ This equipment shall not be used in any manner which could constitute

a nuisance to other Telecom customers.

■ Some parameters required for compliance with Telecom’s PTC

Specifications are dependent on the equipment (PC) associated with
this modem. The associated equipment shall be set to operate within
the following limits for compliance with Telecom Specifications:

a/ There shall be no more than 10 call attempts to the same number

within any 30 minute period for any single manual call initiation, and

b/ The equipment shall go on-hook for a period of not less than 30

seconds between the end of one attempt and the beginning of the
next.

c/ Automatic calls to different numbers shall be not less than 5

seconds apart.

■ Immediately disconnect this equipment should it become physically

damaged, and arrange for its disposal or repair.

■ The correct settings for use with this modem in New Zealand are as

follows:

ATB0 (CCITT operation)
AT&G2 (1800 Hz guard tone)
AT&P1 (Decadic dialing make-break ratio =33%/67%)
ATS0=0 (not auto answer)
ATS6=4 (Blind dial delay)
ATS7=less than 90 (Time to wait to carrier after dialing)
ATS10=less than 150 (loss of carrier to hangup delay, factory

default of 15 recommended)
ATS11=90 (DTMF dialing on/off duration=90 ms)
ATX2 (Dial tone detect, but not (U.S.A.) call progress detect)

User’s Manual xiii

TECRA A9/ TECRA S5/ TECRA P5/ Satellite Pro S200

■ When used in the Auto Answer mode, the S0 register must be set with a

value of 3 or 4. This ensures:

■ a person calling your modem will hear a short burst of ringing before

the modem answers. This confirms that the call has been
successfully switched through the network.

■ caller identification information (which occurs between the first and

second ring cadences) is not destroyed.

■ The preferred method of dialing is to use DTMF tones (ATDT...) as this

is faster and more reliable than pulse (decadic) dialing. If for some
reason you must use decadic dialing, your communications program
must be set up to record numbers using the following translation table
as this modem does not implement the New Zealand “Reverse Dialing”
standard.

Number to be dialed: 0 1 2 3 4 5 6 7 8 9
Number to program into computer: 0 9 8 7 6 5 4 3 2 1
Note that where DTMF dialing is used, the numbers should be

entered normally.

■ The transmit level from this device is set at a fixed level and because of

this there may be circumstances where the performance is less than
optimal. Before reporting such occurrences as faults, please check the
line with a standard Telepermitted telephone, and only report a fault if
the phone performance is impaired.

■ It is recommended that this equipment be disconnected from the

Telecom line during electrical storms.

■ When relocating the equipment, always disconnect the Telecom line

connection before the power connection, and reconnect the power first.

■ This equipment may not be compatible with Telecom Distinctive Alert

cadences and services such as FaxAbility.

NOTE THAT FAULT CALLOUTS CAUSED BY ANY OF THE ABOVE
CAUSES MAY INCUR A CHARGE FROM TELECOM

General conditions

As required by PTC 100, please ensure that this office is advised of any
changes to the specifications of these products which might affect
compliance with the relevant PTC Specifications.

The grant of this Telepermit is specific to the above products with the
marketing description as stated on the Telepermit label artwork. The
Telepermit may not be assigned to other parties or other products without
Telecom approval.

A Telepermit artwork for each device is included from which you may
prepare any number of Telepermit labels subject to the general instructions
on format, size and color on the attached sheet.

The Telepermit label must be displayed on the product at all times as proof
to purchasers and service personnel that the product is able to be
legitimately connected to the Telecom network.

User’s Manual xiv

TECRA A9/ TECRA S5/ TECRA P5/ Satellite Pro S200

The Telepermit label may also be shown on the packaging of the product
and in the sales literature, as required in PTC 100.

The charge for a Telepermit assessment is $337.50. An additional charge
of $337.50 is payable where an assessment is based on reports against
non-Telecom New Zealand Specifications. $112.50 is charged for each
variation when submitted at the same time as the original.

An invoice for $NZ1237.50 will be sent under separate cover.

Following information is only for EU-member states:

The use of the symbol indicates that this product may not be treated as
household waste. By ensuring this product is disposed of correctly, you will
help prevent potential negative consequences for the environment and
human health, which could otherwise be caused by inappropriate waste
handling of this product. For more detailed information about recycling of
this product, please contact your local city office, your household waste
disposal service or the shop where you purchased the product.

This symbol may not stick depending on the country and region where you
purchased.

User’s Manual xv

TECRA A9/ TECRA S5/ TECRA P5/ Satellite Pro S200

Optical disc drive safety instructions

Be sure to check the international precautions at the end of this section.

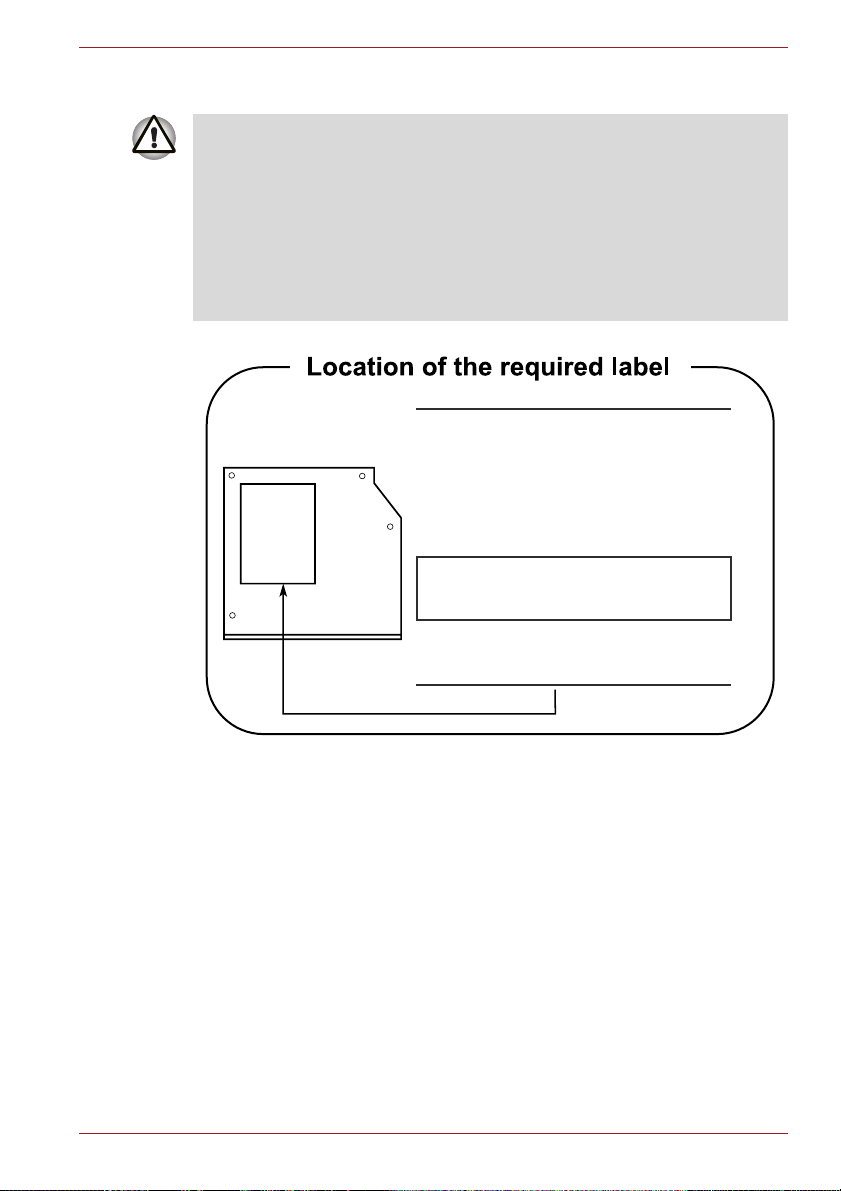

Panasonic

DVD-ROM&CD-R/RW UJDA780

■ The DVD-ROM&CD-R/RW drive employs a laser system. To ensure

proper use of this product, please read this instruction manual carefully
and retain for future reference. Should the unit ever require
maintenance, contact an authorized service location.

■ Use of controls, adjustments or the performance of procedures other

than those specified may result in hazardous radiation exposure.

■ To prevent direct exposure to the laser beam, do not try to open the

enclosure.

User’s Manual xvi

TECRA A9/ TECRA S5/ TECRA P5/ Satellite Pro S200

DVD Super Multi with Double Layer Recording UJ-860

■ The DVD Super Multi drive with Double Layer Recording model

employs a laser system. To ensure proper use of this product, please
read this instruction manual carefully and retain for future reference.
Should the unit ever require maintenance, contact an authorized
service location.

■ Use of controls, adjustments or the performance of procedures other

than those specified may result in hazardous radiation exposure.

■ To prevent direct exposure to the laser beam, do not try to open the

enclosure.

User’s Manual xvii

TECRA A9/ TECRA S5/ TECRA P5/ Satellite Pro S200

TEAC

CD-ROM CD-224E

■ The CD-ROM drive employs a laser system. To ensure proper use of

this product, please read this instruction manual carefully and retain for
future reference. Should the unit ever require maintenance, contact an
authorized service location.

■ Use of controls, adjustments or the performance of procedures other

than those specified may result in hazardous radiation exposure.

■ To prevent direct exposure to the laser beam, do not try to open the

enclosure.

SERIAL NO.
MANUFATURED:

THIS PRODUCT COMPLIES WITH 21 CFR

1040.10 AND 1040.11 EXCEPT FOR
DEVIATIONS PURSUANT TO LASER
NOTICE NO.50, DATED JULY 26, 2001.

CLASS 1 LASER PRODUCT

LASER KLASSE 1

TEAC Corporation
3-7-3 Naka-cho, Musashino-shi,

Tokyo, Japan

User’s Manual xviii

TECRA A9/ TECRA S5/ TECRA P5/ Satellite Pro S200

DVD-ROM&CD-R/RW drive DW-224E

■ The DVD-ROM&CD-R/RW drive employs a laser system. To ensure

proper use of this product, please read this instruction manual carefully
and retain for future reference. Should the unit ever require
maintenance, contact an authorized service location.

■ Use of controls, adjustments or the performance of procedures other

than those specified may result in hazardous radiation exposure.

■ To prevent direct exposure to the laser beam, do not try to open the

enclosure.

SERIAL NO.
MANUFATURED:

THIS PRODUCT COMPLIES WITH 21 CFR

1040.10 AND 1040.11 EXCEPT FOR
DEVIATIONS PURSUANT TO LASER
NOTICE NO.50, DATED JULY 26, 2001.

CLASS 1 LASER PRODUCT

LASER KLASSE 1

TEAC Corporation

3-7-3 Naka-cho, Musashino-shi,

Tokyo, Japan

User’s Manual xix

TECRA A9/ TECRA S5/ TECRA P5/ Satellite Pro S200

DVD Super Multi with Double Layer Recording DV-W28EC

■ The DVD Super Multi drive with Double Layer Recording model

employs a laser system. To ensure proper use of this product, please
read this instruction manual carefully and retain for future reference.
Should the unit ever require maintenance, contact an authorized
service location.

■ Use of controls, adjustments or the performance of procedures other

than those specified may result in hazardous radiation exposure.

■ To prevent direct exposure to the laser beam, do not try to open the

enclosure.

SERIAL NO.
MANUFATURED:

THIS PRODUCT COMPLIES WITH 21 CFR

1040.10 AND 1040.11 EXCEPT FOR
DEVIATIONS PURSUANT TO LASER
NOTICE NO.50, DATED JULY 26, 2001.

CLASS 1 LASER PRODUCT

LASER KLASSE 1

TEAC Corporation

3-7-3 Naka-cho, Musashino-shi,

Tokyo, Japan

User’s Manual xx

International precautions

CLASS 1 LASER PRODUCT
LASERSCHUTZKLASSE 1
PRODUKT
TO EN 60825-1

TECRA A9/ TECRA S5/ TECRA P5/ Satellite Pro S200

CAUTION: This appliance contains a
laser system and is classified as a
“CLASS 1 LASER PRODUCT.” To use
this model properly, read the instruction
manual carefully and keep this manual
for your future reference. In case of any
trouble with this model, please contact
your nearest “AUTHORIZED service
station.” To prevent direct exposure to the
laser beam, do not try to open the
enclosure.

VORSICHT: Dieses Gerät enthält ein
Laser-System und ist als
“LASERSCHUTZKLASSE 1 PRODUKT”
klassifiziert. Für den richtigen Gebrauch
dieses Modells lesen Sie bitte die
Bedienungsanleitung sorgfältig durch
und bewahren diese bitte als Referenz
auf. Falls Probleme mit diesem Modell
auftreten, benachrichtigen Sie bitte die
nächste “autorisierte Service-Vertretung”.
Um einen direkten Kontakt mit dem
Laserstrahl zu vermeiden darf das Gerät
nicht geöffnet werden.

ADVERSEL:USYNLIG
LASERSTRÅLING VED
ÅBNING, NÅR
SIKKERHEDSAF-BRYDER

ER UDE AF FUNKTION.
UNDGÅ UDSÆTTSLSE
FOR STRÅLING

udvendigt på apparatet og indikerer, at
apparatet arbejder med laserstråler af
klasse 1, hviket betyder, at der anvendes
laserstrlier af svageste klasse, og at man
ikke på apparatets yderside kan bilve
udsat for utilladellg kraftig stråling.

APPARATET BOR KUN ÅBNES AF
FAGFOLK MED SÆRLIGT KENDSKAB
TIL APPARATER MED
LASERSTRÅLER!

Indvendigt i apparatet er anbragt den her
gengivne advarselsmækning, som
advarer imod at foretage sådanne
indgreb i apparatet, at man kan komme til
at udsatte sig for laserstråling.

User’s Manual xxi

ADVARSEL: Denne mærking er anbragt

TECRA A9/ TECRA S5/ TECRA P5/ Satellite Pro S200

OBS! Apparaten innehåller
laserkomponent som avger laserstråining
överstigande gränsen för laserklass 1.

VAROITUS. Suojakoteloa si saa avata.
Laite sisältää laserdiodin, joka lähetää
näkymätöntä silmilie vaarallista
lasersäteilyä.

CAUTION: USE OF CONTROLS OR
ADJUSTMENTS OR PERFORMANCE
OF PROCEDURES OTHER THAN
THOSE SPECIFIED IN THE OWNER’S
MANUAL MAY RESULT IN
HAZARDOUS RADIATION EXPOSURE.

VORSICHT: DIE VERWENDUNG VON
ANDEREN STEURUNGEN ODER
EINSTELLUNGEN ODER DAS
DURCHFÜHREN VON ANDEREN
VORGÄNGEN ALS IN DER
BEDIENUNGSANLEITUNG
BESCHRIEBEN KÖNNEN
GEFÄHRLICHE
STRAHLENEXPOSITIONEN ZUR
FOLGE HABEN.

User’s Manual xxii

Preface

Congratulations on your purchase of the TECRA A9/ TECRA S5/ TECRA
P5/ Satellite Pro S200 series computer. This powerful notebook computer
provides excellent expansion capability, includes multimedia functionality,
and is designed to provide years of reliable, high-performance computing.

This manual tells how to set up and begin using your TECRA A9/ TECRA
S5/ TECRA P5/ Satellite Pro S200 computer. It also provides detailed
information on configuring your computer, basic operations and care, using
optional devices and troubleshooting.

If you are a new user of computers or if you’re new to portable computing,
first read over the Chapter 1, Getting Started and Chapter 3, Hardware,

Utilities and Options chapters to familiarize yourself with the computer’s

features, components and accessory devices. Then read Chapter 1,

Getting Started for step-by-step instructions on setting up your computer.

If you are an experienced computer user, please continue reading the
preface to learn how this manual is organized, then become acquainted
with this manual by browsing through its pages. Be sure to read the Special

features section in Chapter 3, Hardware, Utilities and Options to learn

about features that are uncommon or unique to this computer, as well as
the section on Chapter 7, HW Setup & BIOS Setup, to understand how to
setup and configure these features.

Read Chapter 3, Hardware, Utilities and Options if connecting optional
products or external devices.

Conventions

This manual uses the following formats to describe, identify, and highlight
terms and operating procedures.

Abbreviations

On first appearance, and whenever necessary for clarity, abbreviations are
enclosed in parentheses following their definition. For example: Read Only
Memory (ROM). Acronyms are also defined in the Glossary.

User’s Manual xxiii

TECRA A9/ TECRA S5/ TECRA P5/ Satellite Pro S200

Icons

Icons identify ports, dials, and other parts of your computer. The indicator
panel also uses icons to identify the components it is providing information
on.

Keys

The keyboard keys are used in the text to describe many computer
operations. A distinctive typeface identifies the key top symbols as they
appear on the keyboard. For example, ENTER identifies the ENTER key.

Key operation

Some operations require you to simultaneously use two or more keys. We
identify such operations by the key top symbols separated by a plus sign
(+). For example, CTRL + C means you must hold down CTRL and at the
same time press C. If three keys are used, hold down the first two and at
the same time press the third.

ABC

When procedures require an action such as
clicking an icon or entering text, the icon's name
or the text you are to type in is represented in the
typeface you see to the left.

Display

S ABC

Names of windows or icons or text generated by
the computer that appear on its display screen
are presented in the type face you see to the left.

Messages

Messages are used in this manual to bring important information to your
attention. Each type of message is identified as shown below.

Pay attention! A caution informs you that improper use of equipment or
failure to follow instructions may cause data loss or damage your
equipment.

Please read. A note is a hint or advice that helps you make best use of
your equipment.

Indicates a potentially hazardous situation, which could result in death or
serious injury, if you do not follow instructions.

User’s Manual xxiv

TECRA A9/ TECRA S5/ TECRA P5/ Satellite Pro S200

Terminology

This term is defined in this document as follows:

Start The word "Start" refers to the " " button in

Microsoft® Windows VistaTM.

User’s Manual xxv

General Precautions

TOSHIBA computers are designed to optimize safety, minimize strain and
withstand the rigors of portability. However, certain precautions should be
observed to further reduce the risk of personal injury or damage to the
computer.

Be certain to read the general precautions below and to note the cautions
included in the text of the manual.

Creating a computer-friendly environment

Place the computer on a flat surface that is large enough for the computer
and any other items you are using, such as a printer.

Leave enough space around the computer and other equipment to provide
adequate ventilation. Otherwise, they may overheat.

To keep your computer in prime operating condition, protect your work area
from:

■ Dust, moisture, and direct sunlight.

■ Equipment that generates a strong electromagnetic field, such as

stereo speakers (other than speakers that are connected to the
computer) or speakerphones.

■ Rapid changes in temperature or humidity and sources of temperature

change such as air conditioner vents or heaters.

■ Extreme heat, cold, or humidity.

■ Liquids and corrosive chemicals.

Stress injury

Carefully read the Instruction Manual for Safety and Comfort. It contains
information on the prevention of stress injuries to your hands and wrists
that can be caused by extensive keyboard use. Instruction Manual for
Safety and Comfort also includes information on work space design,
posture and lighting that can help reduce physical stress.

User’s Manual xxvi

Heat injury

■ Avoid prolonged physical contact with the computer. If the computer is

used for long periods, its surface can become very warm. While the
temperature will not feel hot to the touch, if you maintain physical
contact with the computer for a long time, for example if you rest the
computer on your lap or if you keep your hands on the palm rest, your
skin might suffer a low-heat injury.

■ If the computer has been used for a long time, avoid direct contact with

the metal plate supporting the various interface ports as this can
become hot.

■ The surface of the AC adaptor can become hot when in use but this

condition does not indicate a malfunction. If you need to transport the
AC adaptor, you should disconnect it and let it cool before moving it.

■ Do not lay the AC adaptor on a material that is sensitive to heat as the

material could become damaged.

Pressure or impact damage

Do not apply heavy pressure to the computer or subject it to any form of
strong impact as this can damage the computer's components or otherwise
cause it to malfunction.

PC Card overheating

TECRA A9/ TECRA S5/ TECRA P5/ Satellite Pro S200

Some PC Cards can become hot during prolonged use which may result in
errors or instability in the operation of the device in question. In addition,
you should also be careful when you remove a PC Card that has been
used for a long time.

Mobile phones

Please be aware that the use of mobile phones can interfere with the audio
system. The operation of the computer will not be impaired in any way, but
it is recommended that a minimum distance of 30cm is maintained between
the computer and a mobile phone that is in use.

Instruction Manual for Safety and Comfort

All important information on the safe and proper use of this computer is
described in the enclosed Instruction Manual for Safety and Comfort. Be
sure to read it before using the computer.

User’s Manual xxvii

Getting Started

This chapter provides an equipment checklist, and basic information to start
using your computer.

Some of the features described in this manual may not function properly if
you use an operating system that was not pre-installed by TOSHIBA.

Equipment checklist

Carefully unpack your computer, taking care to save the box and packaging
materials for future use.

Hardware

Check to make sure you have all the following items:

■ TECRA A9/ TECRA S5/ TECRA P5/ Satellite Pro S200 Portable

Personal Computer

■ AC adaptor and power cord (2-pin plug or 3-pin plug)

■ Battery pack

■ USB floppy diskette drive (Is included with some models)

■ Spare AccuPoint (pointing device) cap (Is included with some models)

Chapter 1

Documentation

■ TECRA A9/ TECRA S5/ TECRA P5/ Satellite Pro S200 Portable

Personal Computer User's Manual

■ Instruction Manual for Safety and Comfort

■ End User License Agreement

If any of the items are missing or damaged, contact your dealer
immediately.

User’s Manual 1-1

Software

The following Windows® operating system and utility software are pre­installed.

■ Microsoft

■ TOSHIBA Value Added Package

■ Recovery Disc Creator

■ DVD Video Player

■ TOSHIBA SD Memory Utilities

■ TOSHIBA SD Memory Boot Utility

■ CD/DVD Drive Acoustic Silencer

■ TOSHIBA Assist

■ TOSHIBA ConfigFree

■ TOSHIBA HDD Protection

■ TOSHIBA Disc Creator

■ Fingerprint Utility (Is installed in some models)

■ Windows Mobility Center

■ Online Manual

■ TECRA A9/ TECRA S5/ TECRA P5/ Satellite Pro S200 User's

Manual (This manual)

■ Discs

■ Windows Anytime Upgrade DVD (Is included with some models)

®

Windows Vista

TM

Getting Started

User’s Manual 1-2

Getting Started

■ All users should be sure to read the section Starting up for the first time.

■ Be sure to read the enclosed Instruction Manual for Safety and Comfort

for information on the safe and proper use of this computer. It is
intended to help you be more comfortable and productive while using a
notebook computer. By following the recommendations in it you may
reduce your chance of developing a painful or disabling injury to your
hand, arms, shoulders or neck.

This section provides basic information to start using your computer. It
covers the following topics:

■ Connecting the AC adaptor

■ Opening the display

■ Turning on the power

■ Starting up for the first time

■ Turning off the power

■ Restarting the computer

■ System Recovery Options

■ Creating Optical Recovery Discs

■ Restoring the pre-installed software from the Recovery hard disk drive

■ Restoring the pre-installed software from your created Recovery Discs

Getting Started

■ Use a virus-check program and make sure it is updated regularly.

■ Never format storage media without checking its content - formatting

destroys all stored data.

■ It is a good idea to periodically back up the internal hard disk drive or

other main storage device to external media. General storage media is
not durable or stable over long periods of time and under certain
conditions may result in data loss.

■ Before you install a device or application, save any data in memory to

the hard disk drive or other storage media. Failure to do so may result
in the loss of data.

User’s Manual 1-3

Connecting the AC adaptor

Attach the AC adaptor when you need to charge the battery or you want to
operate from AC power. It is also the fastest way to get started, because
the battery pack will need to be charged before you can operate from
battery power.

The AC adaptor can be connected to any power source supplying from 100
to 240 volts and 50 or 60 hertz. For details on using the AC adaptor to
charge the battery pack, refer to Chapter 6, Power and Power-Up Modes.

■ Always use the TOSHIBA AC adaptor that was provided with your PC

and the TOSHIBA Battery Charger (that may have been provided with
your PC), or use TOSHIBA recommended alternate models to avoid
any risk of fire or other damage to the PC. Use of an incompatible AC
adaptor or Battery Charger could cause fire or damage to the PC
possibly resulting in serious injury.

■ Never plug the AC adaptor or Battery Charger into a power source that

does not correspond to both the voltage and the frequency specified on
the regulatory label of the unit. Failure to do so could result in a fire or
electric shock, possibly resulting in serious injury.

■ Always use or purchase power cables that comply with the legal

voltage and frequency specifications and requirements in the country of
use. Failure to do so could result in a fire or electric shock, possibly
resulting in serious injury.

■ The supplied power cord conforms to safety rules and regulations in

the region the product is bought and should not be used outside this
region. For use in other regions, please buy power cords that conform
to safety rules and regulations in the particular region.

■ Do not use a 3-pin to 2-pin conversion plug.

■ When you connect the AC adaptor to the computer, always follow the

steps in the exact order as described in the User’s Manual. Connecting
the power cable to a live electrical outlet should be the last step
otherwise the adaptor DC output plug could hold an electrical charge
and cause an electrical shock or minor bodily injury when touched. As
a general safety precaution, avoid touching any metal parts.

■ Never place your computer or AC adaptor on a wooden surface,

furniture, or any other surface that could be marred by exposure to heat
since the computer base and AC adaptor's surface increase in
temperature during normal use.

■ Always place your computer or AC adaptor on a flat and hard surface

that is resistant to heat damage.

Refer to the enclosed Instruction Manual for Safety and Comfort for
detailed precautions and handling instructions.

Getting Started

User’s Manual 1-4

Getting Started

1. Connect the power cord to the AC adaptor.

Figure 1-1 Connecting the power cord to the AC adaptor (2-pin plug)

Figure 1-2 Connecting the power cord to the AC adaptor (3-pin plug)

Either a 2-pin or 3-pin adaptor/cord will be included with the computer
depending on the model.

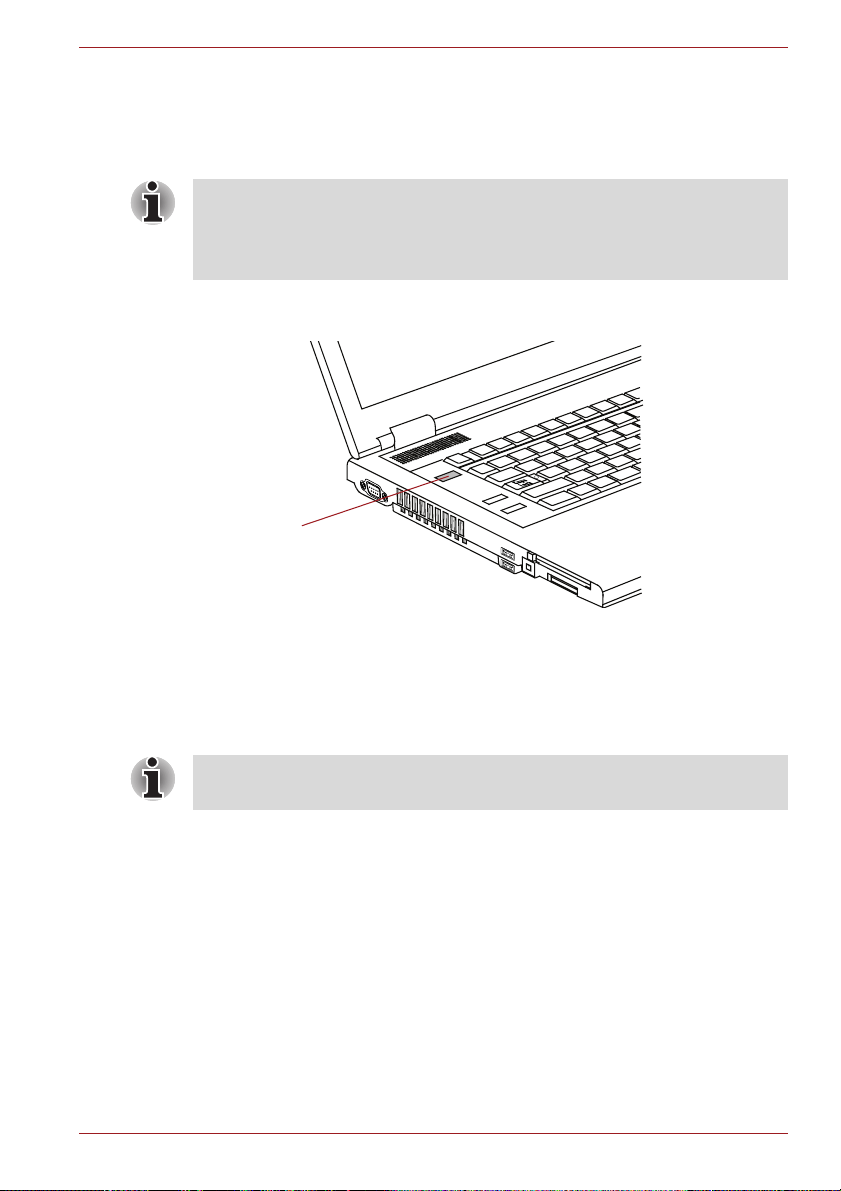

2. Connect the AC adaptor’s DC output plug to the DC IN 15V jack on the
back of the computer.

DC IN 15V jack

Figure 1-3 Connecting the adaptor to the computer

3. Plug the power cord into a live wall outlet - the Battery and DC IN
indicators on the front of the computer should glow.

User’s Manual 1-5

Opening the display

The display panel can be opened to a wide range of angles for optimal
viewing.

1. Slide the display latch on the front of the computer to unlatch the
display panel.

2. While holding down the palm rest with one hand so that the main body
of the computer is not raised, slowly lift the display panel - this will allow
the angle of the display panel to be adjusted to provide optimum clarity.

Display panel

Figure 1-4 Opening the display panel

Use reasonable care when opening and closing the display panel. Opening
it vigorously or slamming it shut could damage the computer.

■ Be careful not to open the display panel too far as this could put stress

on the display panel’s hinges and cause damage.

■ Do not press or push on the display panel.

■ Do not lift the computer by the display panel.

■ Do not close the display panel with pens or any other objects left in

between the display panel and the keyboard.

■ When opening or closing the display panel, place one hand on the

palm rest to hold the computer in place and use the other hand to
slowly open or close the display panel (Do not use excessive force
when opening or closing the display panel).

Getting Started

Display latch

User’s Manual 1-6

Turning on the power

This section describes how to turn on the power - the Power indicator will
then indicate the status. Please refer to the Monitoring of power condition
section in Chapter 6, Power and Power-Up Modes for more information.

■ After you turn on the power for the first time, do not turn it off until you

have set up the operating system. Please refer to the section Starting

up for the first time for more information.

■ Volume cannot be adjusted during Windows Setup.

1. Open the display panel.

2. Press and hold the computer's power button for two or three seconds.

Power button

Getting Started

Figure 1-5 Turning on the power

Starting up for the first time

The Microsoft Windows VistaTM Startup Screen will be the first screen
displayed when you turn on the power. Follow the on-screen instructions on
each screen in order to properly install the operating system.

When it is displayed, be sure to read the Software License Terms
carefully.

Turning off the power

The power can be turned off in one of three modes, either Shut Down
(Boot) Mode, Hibernation Mode or Sleep Mode.

Shut Down mode (Boot Mode)

When you turn off the power in Shut Down Mode no data will be saved and
the computer will boot to the operating system's main screen the next time
it is turned on.

1. If you have entered data, either save it to the hard disk drive or to other
storage media.

2. Make sure all disk/disc activity has stopped before removing the
CD/DVD or floppy diskette.

User’s Manual 1-7

Getting Started

■ Make sure the Hard Disk Drive indicator is off. If you turn off the power

while a disk (disc) is being accessed, you may lose data or damage the
disk.

■ Never turn off the power while an application is running. Doing so may

cause loss of data.

■ Never turn off the power, disconnect an external storage device or

remove storage media during data read/write. Doing so may cause
data loss.

3. Click Start.

4. Click the arrow button ( ) located in the power management buttons
( ) and select Shut Down from the menu.

5. Turn off any peripheral devices connected to your computer.

Do not turn the computer or peripheral devices back on immediately - wait
a short period to avoid any potential damage.

Sleep Mode

If you have to interrupt your work, you are able to turn off the power without
exiting from your software by placing the computer into Sleep Mode. In this
mode data is maintained in the computer's main memory so that when you
turn on the power again, you can continue working right where you left off.

■ When the AC adaptor is connected, the computer will go into Sleep

Mode according to the settings in the Power Options (to access it, Start

-> Control Panel -> System and Maintenance -> Power Options).

■ To restore the operation of the computer from Sleep Mode, press and

hold the power button or any key on the keyboard for a short amount of
time. Please note that keyboard keys can only be used if the Wake-up
on Keyboard option is enabled within the HW Setup utility.

■ If the computer enters Sleep Mode while a network application is

active, the application might not be restored when the computer is next
turned on and the system returns from Sleep Mode.

■ To prevent the computer from automatically entering Sleep Mode,

disable Sleep Mode within the Power Options (to access it, Start ->
Control Panel -> System and Maintenance -> Power Options).

■ To use the Hybrid Sleep function, configure it in the Power Options.

■ Before entering Sleep Mode, be sure to save your data.

■ Do not install or remove a memory module while the computer is in

Sleep Mode. The computer or the memory module could be damaged.

■ Do not remove the battery pack while the computer is in Sleep Mode

(unless the computer is connected to an AC power source). Data in
memory could be lost.

User’s Manual 1-8

Getting Started

Turning off your computer where electronic devices are regulated or
controlled.
When you have to turn off your computer aboard an aircraft or in places
where electronic devices are regulated or controlled, always shut down the
computer completely or put the computer into hibernation mode instead of
allowing it to go into Standby Mode (Sleep Mode) and turn off any wireless
communication switches or devices. While in Standby Mode (Sleep Mode),
the computer operating system may reactivate itself to run pre­programmed tasks or to preserve unsaved data, and might interfere with
aviation or other systems, possibly causing serious injury.

Benefits of Sleep Mode

The Sleep Mode feature provides the following benefits:

■ Restores the previous working environment more rapidly than does the

Hibernation Mode feature.

■ Saves power by shutting down the system when the computer receives

no input or hardware access for the time period set by the System
Sleep Mode feature.

■ Allows the use of the panel power off feature.

Executing Sleep Mode

You can also enable Sleep Mode by pressing FN + F3 - please refer to
Chapter 5, The Keyboard, for further details.

You can enter Sleep Mode in one of four ways:

■ Click Start then click the power button ( ) located in the power

management buttons ( ).
Please note that this feature must be enabled within the Power Options

(to access it, click Start -> Control Panel -> System and Maintenance

-> Power Options).

■ Click Start then click the arrow button ( ) and select Sleep from the

menu.

■ Close the display panel. Please note that this feature must be enabled

within the Power Options (to access it, click Start -> Control Panel ->
System and Maintenance -> Power Options).

■ Press the power button. Please note that this feature must be enabled

within the Power Options (to access it, click Start -> Control Panel ->
System and Maintenance -> Power Options).

User’s Manual 1-9

Getting Started

When you turn the power back on, you can continue where you left when
you shut down the computer.

■ When the computer is in Sleep Mode, the power indicator will blink

orange.

■ If you are operating the computer on battery power, you can lengthen

the overall operating time by turning it off with Hibernation Mode ­Sleep Mode will consume more power while the computer is off.

Sleep Mode limitations

Sleep Mode will not function under the following conditions:

■ Power is turned back on immediately after shutting down.

■ Memory circuits are exposed to static electricity or electrical noise.

Hibernation Mode

The Hibernation Mode feature saves the contents of memory to the hard
disk drive when the computer is turned off so that, the next time it is turned
on, the previous state is restored. Please note that the Hibernation Mode
feature does not save the status of any peripheral devices connected to the
computer.

■ Save your data. While entering Hibernation Mode, the computer saves

the contents of memory to the hard disk drive. However, for safety
sake, it is best to save your data manually.

■ Data will be lost if you remove the battery or disconnect the AC adaptor

before the save is completed. Wait for the Hard Disk Drive indicator to
go out.

■ Do not install or remove a memory module while the computer is in

Hibernation Mode. Data will be lost.

Benefits of Hibernation Mode

The Hibernation Mode feature provides the following benefits:

■ Saves data to the hard disk drive when the computer automatically

shuts down because of a low battery condition.

■ You can return to your previous working environment immediately when

you turn on the computer.

■ Saves power by shutting down the system when the computer receives

no input or hardware access for the time period set by the System
Hibernate feature.

■ Allows the use of the panel power off feature.

User’s Manual 1-10

Getting Started

Starting Hibernation Mode

You can also enable Hibernation Mode by pressing FN + F4 - please refer
to Chapter 5, The Keyboard, for further details.

To enter Hibernation Mode, follow the steps below.

1. Click Start.

2. Click the arrow button ( ) in the power management buttons

( ) and select Hibernate from the menu.

Automatic Hibernation Mode

The computer can be configured to enter Hibernation Mode automatically
when you press the power button or close the lid. In order to define these
settings, you can follow the steps as described below:

1. Click Start and click the Control Panel.

2. Click System and Maintenance and click Power Options.

3. Click Choose what the power button does or Choose what closing
the lid does.

4. Enable the desired Hibernation Mode settings for When I press the
power button and When I close the lid.

5. Click the Save changes button.

Data save in Hibernation Mode

When you turn off the power in Hibernation Mode, the computer will take a
moment to save the current data in memory to the hard disk drive. During
this time, the Hard Disk Drive indicator will glow.

After you turn off the computer, and the content of memory has been saved
to the hard disk drive, turn off the power to any peripheral devices.

Do not turn the computer or devices back on immediately. Wait a moment
to let all capacitors fully discharge.

Restarting the computer

Certain conditions require that you reset the computer, for example if:

■ You change certain computer settings.

■ An error occurs and the computer does not respond to your keyboard

commands.

If you need to restart the computer, there are three ways to achieve it:

■ Click Start then click the arrow button ( ) in the power management

buttons ( ) and select Restart from the menu.

■ Press CTRL, ALT and DEL simultaneously (once) to display the menu

window, then select Restart from the Shut down options.

User’s Manual 1-11

■ Press the power button and hold it down for five seconds. Once the

computer has turned itself off, wait between ten and fifteen seconds
before turning the power on again by pressing the power button.

System Recovery Options

About 1.5GB hidden partition is allocated on the hard disk drive for the
System Recovery Options.

This partition stores files which can be used to repair the system in the
event of a problem.

The System Recovery Options feature will be unusable if this partition is
deleted.

System Recovery Options

The System Recovery Options feature is installed on the hard disk when
shipped from the factory. The System Recovery Options menu includes
tools to repair startup problems, run diagnostics or restore the system.

See the Windows Help and Support content for more information about
Startup Repair.

The System Recovery Options can also be run manually to repair
problems.

The procedure is as follows. Follow the instructions shown on the on­screen menu.

1. Turn off the computer.

2. While holding the F8 key, turn on the computer.

3. The Advanced Boot Options menu will be displayed.
Use the arrow keys to select Repair Your Computer and press
ENTER.

4. Follow the on-screen instructions.

TM

The Windows Vista
Windows VistaTM Business Edition and Ultimate Edition.

CompletePC Backup feature can be used on

Getting Started

User’s Manual 1-12

System Recovery

This section describes the creation of Recovery Discs and their use.

Creating Optical Recovery Discs

This section describes how to create Recovery Discs.

■ Be sure to connect the AC adaptor when you create Recovery Discs.

■ Be sure to close all other software programs except the Recovery Disc

Creator.

■ Do not run software such as screen savers which can put a heavy load

on the CPU.

■ Operate the computer at full power.

■ Do not use power-saving features.

■ Do not write to the disc when the virus check software is running. Wait

for it to finish, then disable virus detection programs including any
software that checks files automatically in the background.

■ Do not use utilities, including those intended to enhance hard disk drive

access speed. They may cause unstable operation and damage data.

■ Do not shut down/log off or Sleep/Hibernate while writing or rewriting

the disc.

■ Set the computer on a level surface and avoid places subjected to

vibrations such as airplanes, trains, or cars.

■ Do not use on an unstable surface such as a stand.

Getting Started

A recovery image of the software on your computer is stored on the hard
disk drive, and can be copied to either CD or DVD media by using the
following steps:

1. Select either blank CD or DVD media.

2. The application will allow you to choose from a variety of different media
onto which the recovery image can be copied including CD-R, CD-RW,
DVD-R, DVD-R DL, DVD-RW, DVD+R, DVD+R DL and DVD+RW.

Please note that some of the above media may not be compatible with the
optical disc drive installed into your computer. You should therefore verify
the optical drive supports the blank media you have chosen before
proceeding.

3. Turn on your computer and allow it to load the Windows VistaTM
operating system from the hard disk drive as normal.

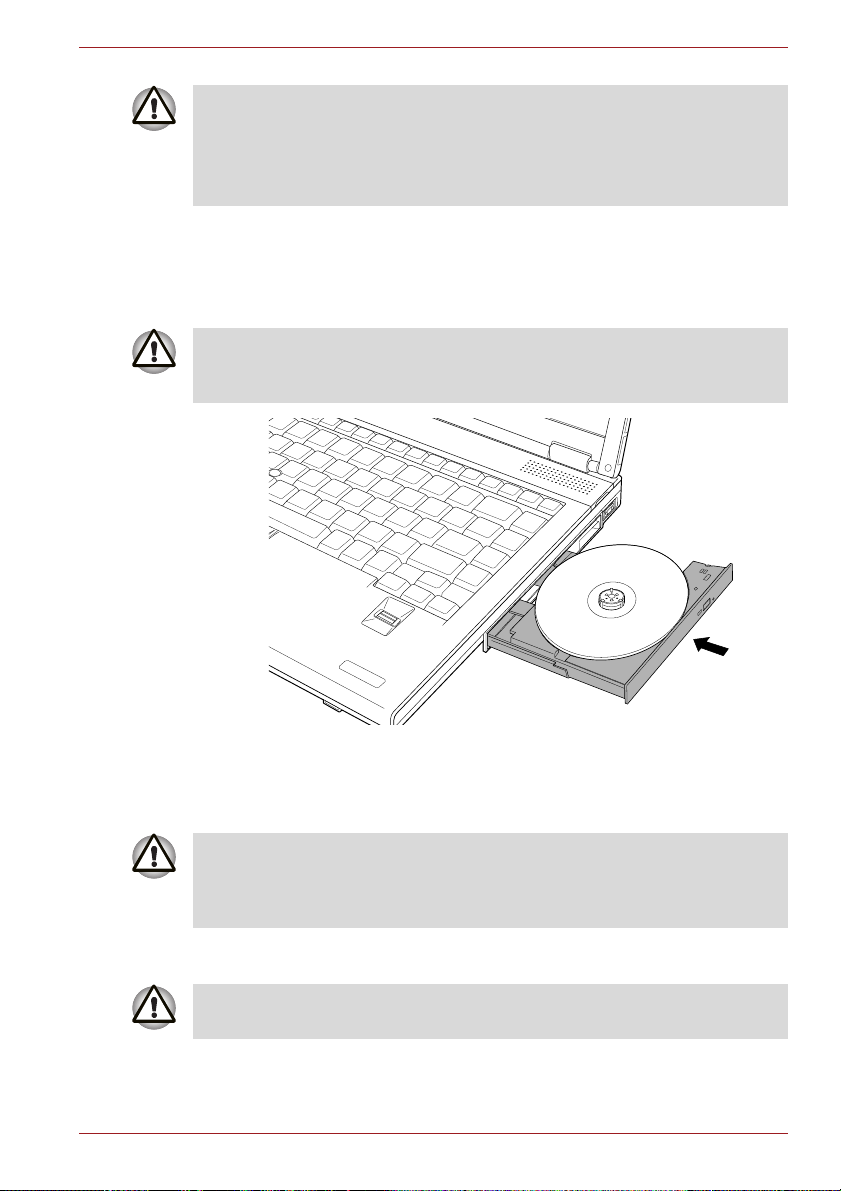

4. Insert the first blank media into the optical disc drive tray.

TM

5. Double click the Recovery Disc Creator icon on the Windows Vista
desktop, or select the application from Start Menu.

6. After Recovery Disc Creator starts, select the type of media and the title
you wish to copy, and then click the Create button.

User’s Manual 1-13

Getting Started

If your optical disc drive can only write CDs, select 'CD' as the 'Disc Set'
within the Recovery Disc Creator application. Otherwise, if your optical
disc drive can write both CDs and DVDs, select the type of media you wish
to create.

Restoring the pre-installed software from the Recovery hard disk
drive

A portion of the total hard disk drive space is configured as a hidden
recovery partition. This partition stores files which can be used to restore
pre-installed software in the event of a problem.

If you subsequently set up your hard disk drive again, do not change,
delete or add partitions in a manner other than specified in the manual,
otherwise you may find that space for the required software is not available.

In addition, if you use a third-party partitioning program to reconfigure the
partitions on your hard disk drive, you may find that it becomes impossible
to setup your computer.

When the sound mute feature has been activated by pressing the FN +
ESC key, be sure to disable this to allow sounds to be heard before starting

the restore process. Please refer to Chapter 5, The Keyboard, for further
details.

You can not use System Recovery Options if restoring the pre-installed
software without System Recovery Options.

When you reinstall the Windows operating system, the hard disk will be
reformatted and all data will be lost.

1. Turn off your computer.

2. While holding down 0 (zero) key on the keyboard, turn on your
computer.

3. A menu will be displayed from which you should follow the on-screen
instructions.

User’s Manual 1-14

Getting Started

Restoring the pre-installed software from your created Recovery
Discs

If the pre-installed files are damaged, you are able to either use the
Recovery Discs you have created or the hard disk drive recovery process
to restore the computer to the state it was in when you originally received it.
To perform this restoration, follow the steps below:

When the sound mute feature has been activated by pressing the FN +
ESC key, be sure to disable this to allow sounds to be heard before starting

the restore process. Please refer to Chapter 5, The Keyboard, for further
details.

You can not use System Recovery Options if restoring the pre-installed
software without System Recovery Options.

When you reinstall the Windows operating system, the hard disk will be
reformatted and all data will be lost.

1. Load the Recovery Discs into the optical disc drive and turn off the
computer's power.

2. While holding down F12 key on the keyboard, turn on your computer ­when the In Touch with Tomorrow TOSHIBA logo screen
appears, release the F12 key.

3. Use the left and right cursors key to select the CD-ROM icon from the
menu. Please refer to the Boot Priority section in Chapter 7, HW Setup
& BIOS Setup for further information.

4. A menu will be displayed from which you should follow the on-screen
instructions.

When removing pre-installed drivers / utilities or when installing, you can
setup the respective drivers / utilities from the following folder.
C:\TOSAPINS\***

User’s Manual 1-15

The Grand Tour

This chapter identifies the various components of the computer - it is
recommended that you become familiar with each before you operate the
computer.

Legal Footnote (Non-applicable Icons)*1

For more information regarding Non-applicable Icons, please refer to the
Legal Footnotes section in Appendix K or click the *1 above.

Front with the display closed

The following figure shows the computer’s front with its display panel in the
closed position.

System
indicators

Microphone

Headphone jack

Chapter 2

Display latch

Microphone jack

Figure 2-1 Front of the computer with display panel closed

User’s Manual 2-1

Volume control
dial

Wireless
communication switch

The Grand Tour

System indicators These LED indicators allow you to monitor the

status of various computer functions and are
described in more detail within the System

indicators section.

Microphone A built-in microphone allows you to record sound

into your applications - please refer to the Sound

System section in Chapter 4, Operating Basics

for more information.
Only some models are equipped with the built-in

microphone.

Microphone jack A 3.5 mm mini microphone jack enables

connection of a three-conductor mini jack for
monaural microphone input.

Headphone jack A 3.5 mm mini headphone jack enables

connection of stereo headphones.

Volume control dial Use this dial to adjust the volume of the internal

stereo speaker and optional external stereo
headphones (if connected).

Move the Volume control dial to the right to
increase the volume and to the left to decrease
the volume.

Display latch This latch secures the display panel in its closed

position. Slide the latch to open the display.

Wireless
communication
switch

Slide this switch to the left to turn off Wireless
LAN and Bluetooth functions. Slide it to the right
to turn on the functions.

Only some models are equipped with Bluetooth
and Wireless LAN functions.

■ Turn Wi-Fi® and Bluetooth functionalities off when near a person who

may have a cardiac pacemaker implant or other medical electric
device. Radio waves may affect pacemaker or medical device
operation, possibly resulting in serious injury. Follow the instruction of
your medical device when using any Wi-Fi or Bluetooth functionality.

■ Always turn off Wi-Fi or Bluetooth functionality if the computer is near

automatic control equipment or appliances such as automatic doors or
fire detectors. Radio waves can cause malfunction of such equipment,
possibly resulting in serious injury.

■ Do not use the Wi-Fi or Bluetooth functionalities near a microwave

oven or in areas subject to radio interference or magnetic fields.
Interference from a microwave oven or other source can disrupt Wi-Fi
or Bluetooth operation.

User’s Manual 2-2

Left side

The following figure shows the computer’s left side.

Serial port

Cooling vents

Universal Serial Bus
(USB 2.0)ports

PC Card eject
button

The Grand Tour

PC Card slot

i.LINK (IEEE1394)
port

Figure 2-2 The left side of the computer

Bridge media slot

Serial port Use this 9-pin port to connect serial devices such

as an external modem, serial mouse or serial
printer.

Only some models are equipped with the serial
port.

Cooling vents The cooling vents help keep the processor from

overheating.

Do not block the cooling vents. Keep foreign metal objects, such as
screws, staples and paper clips, out of the cooling vents. Foreign metal
objects can create a short circuit, which can cause damage and fire,
possibly resulting in serious injury.

Universal Serial Bus
(USB 2.0) ports

The Universal Serial Bus ports, which comply to
the USB 2.0 standard, are provided on the left
hand side of the computer. The port with the icon
( ) has USB Sleep and Charge function.

Keep foreign metal objects, such as screws, staples and paper clips, out of
the USB connectors. Foreign metal objects can create a short circuit,
which can cause damage and fire, possibly resulting in serious injury.

Please note that it is not possible to confirm the operation of all functions of
all USB devices that are available. In view of this it may be noted that some
functions associated with a specific device might not operate properly.

User’s Manual 2-3

The Grand Tour

Right side

i.LINK (IEEE1394)
port

This port allows you to connect an external
device, such as a digital video camera for high­speed data transfer.

Only some models are equipped with the iLINK
port.

Bridge media slot This slot lets you insert an SD/SDHC Card,

Mini/Micro SD Card, Memory Stick (PRO/PRO
Duo), xD picture card and MultiMediaCard. Refer
to Chapter 3, Hardware, Utilities and Options.

Keep foreign metal objects, such as screws, staples and paper clips, out of
the Bridge media slot. Foreign metal objects can create a short circuit,
which can cause damage and fire, possibly resulting in serious injury.

PC Card slot This slot can accommodate a single Type II, 16-

bit or 32-bit (CardBus) PC Card device.

PC Card eject button This button is used in order to remove a PC Card

from within the computer.

Keep foreign metal objects, such as screws, staples and paper clips, out of
the PC Card slot. Foreign metal objects can create a short circuit, which
can cause damage and fire, possibly resulting in serious injury.

The following figure shows the computer’s right side.

Optical disc drive

Figure 2-3 The right side of the computer

Universal Serial Bus
(USB 2.0) port

Optical disc drive A CD-ROM, DVD-ROM&CD-R/RW drive or DVD

Super Multi is installed.

Universal Serial Bus
(USB 2.0) port

One Universal Serial Bus port, which complies to
the USB 2.0 standard, is provided on the right
side of the computer.

User’s Manual 2-4

Back

The Grand Tour

The following figure shows the computer’s back.

Modem jack

Security lock slot

DC IN 15V jack

Figure 2-4 The back of the computer

LAN active indicator
(orange)

LAN jack

Link indicator
(green)

External monitor
port

Security lock slot A security cable can be attached to this slot and

then connected to a desk or other large object in
order to deter theft of the computer.

Modem jack The modem jack lets you use a modular cable to

connect the modem directly to a telephone line.

■ Connection to any communication line other than an analog phone line

could cause a PC system failure.

■ Connect the built-in modem only to ordinary analog phone lines.

■ Never connect the built-in modem to a digital line (ISDN).

■ Never connect the built-in modem to the digital connector on a

public telephone or to a digital private branch exchange (PBX).

■ Never connect the built-in modem to a key telephone system for

residences or offices.

■ Never operate your PC on AC power during a thunderstorm. If you see

lightning or hear thunder, immediately turn off the PC. An electric surge
caused by the storm, may result in a system failure, loss of data or
hardware damage.

User’s Manual 2-5

The Grand Tour

DC IN 15V jack The AC adaptor connects to this jack in order to

power the computer and charge its internal
batteries. Please note that you should only use
the model of AC adaptor supplied with the
computer at the time of purchase - using the
wrong AC adaptor can cause damage to the
computer.

LAN jack This jack lets you connect to a LAN. The adaptor

has built-in support for Ethernet LAN (10
megabits per second, 10BASE-T), Fast Ethernet
LAN (100 megabits per second, 100BASE-TX)
and Gigabit Ethernet LAN (1000 megabits per
second, 1000BASE-T). Refer to Chapter 4,

Operating Basics, for details.

■ Do not connect any cable other than a LAN cable to the LAN jack. It

could cause damage or malfunction.

■ Do not connect the LAN cable to a power supply. It could cause

damage or malfunction.

Link indicator
(green)

LAN active
indicator (orange)

External monitor
port

This indicator glows green when the computer is
connected to a LAN and the LAN is functioning
properly.

This indicator glows orange when data is being
exchanged between the computer and the LAN.

This port allows you to connect an external video
display to the computer.

User’s Manual 2-6

Underside

The following figure shows the underside of the computer. You should
ensure that the display is closed before the computer is turned over to
avoid causing any damage.

1

The Grand Tour

Battery lock

Notch

Figure 2-5 The underside of the computer

Battery pack

Memory module slot

Battery release
latch

Notch

Docking
port

Battery lock Slide the battery lock to release the battery pack

ready for removal.

Battery release latch Slide and hold this latch into its 'Unlock' position

in order to release the battery pack for removal.
For more detailed information on removing the
battery pack please refer to Chapter 6, Power

and Power-Up Modes.

Notches Notches on the computer engage hooks on the

TOSHIBA Express Port Replicator to ensure a
secure connection.

Docking port This port enables connection of an optional

TOSHIBA Express Port Replicator described in
Chapter 3, Hardware, Utilities and Options.

■ Only the TOSHIBA Express Port Replicator can be used with this

computer. Do not attempt to use any other Port Replicator.

■ Keep foreign objects out of the docking port. A pin or similar object can

damage the computer's circuitry. A plastic shutter protects the
connector.

User’s Manual 2-7

Memory module slot The Slot A and Slot B memory modules are

Battery pack The battery pack provides power to the computer

Front with the display open

This section shows the computer with the display panel open. In order to
open the display, simply slide the display latch on the front of the computer,
lift the display panel up and position it at a comfortable viewing angle for
you.

Display hinge

The Grand Tour

located here. The memory module slots allow for
the installation, replacement and removal of
memory modules.

Refer to the Additional memory module section in
Chapter 3, Hardware, Utilities and Options.

when the AC adaptor is not connected. For more
detailed information on the use and operation of
the battery pack please refer to Chapter 6, Power

and Power-Up Modes.

Display screen

Display hinge

Stereo speaker
(Right)

AccuPoint

AccuPoint
control buttons

Stereo speaker
(Left)

Power button

TOSHIBA Assist
button

LCD Sensor switch
(Not shown)

TOSHIBA
Presentation button

Keyboard

Touch Pad

Fingerprint
Sensor

Touch Pad
control buttons

Figure 2-6 The front of the computer with the display panel open

User’s Manual 2-8

The Grand Tour

Display hinges The display hinges allow the display panel to be

position at a variety of easy-to-view angles.

Display screen Please be aware that, when the computer is

operating on the AC adaptor, the image
displayed on the internal screen will be
somewhat brighter than when it operates on
battery power. This difference in brightness
levels is intended to save power when running on
batteries. For more information on the
computer's display, please refer to the Display

Controller and Video mode section in Appendix

B.

Touch Pad The Touch Pad mouse control device located in

the center of the palm rest is used to control the
movement of the on-screen pointer. For more
information, please refer to the Using the Touch

Pad section in Chapter 4, Operating Basics.

Touch Pad control
buttons

The control buttons located below the Touch Pad
allow you to select menu items or manipulate text
and graphics as designated by the on-screen
pointer.

AccuPoint control
buttons

Control buttons below the keyboard let you select
menu items or manipulate text and graphics
designated by the on-screen pointer. Refer to the

Using the AccuPoint section in Chapter 4,

Operating Basics.
Only some models are equipped with the

AccuPoint control buttons.

AccuPoint A pointer control device located in the center of

the keyboard is used to control the on-screen
pointer. Refer to the Using the AccuPoint section
in Chapter 4, Operating Basics.

Only some models are equipped with the
AccuPoint.

Keyboard The internal keyboard provides the embedded

numeric overlay keys, dedicated cursor control
overlay keys, and and Keys. The
keyboard is compatible with the IBM

®

enhanced
keyboard. Refer to Chapter 5, The Keyboard, for
details.

Stereo speakers The speakers emit sound generated by your

software as well as audio alarms, such as low
battery condition, generated by the system.

User’s Manual 2-9

The Grand Tour

Power button Press this button to turn the computer's power on

and off.

TOSHIBA Assist
button

Press this button to launch the program
automatically. When power-off, Sleep Mode and
Hibernation Mode, press this button to start the
computer and launch the program.

Only some models are equipped with TOSHIBA
Assist button.

TOSHIBA
Presentation button

The TOSHIBA Presentation button has the same
functionality as the Connect display button in the
Mobility Center. Pressing this button when an
external display is connected will open the

Windows Vista

TM

TMM (Transient Multimon

Manager) screen.
Only some models are equipped with TOSHIBA

Presentation button.

Fingerprint Sensor

This sensor enables you to enroll and recognize a
fingerprint.

For detailed information on Fingerprint Sensor,
refer to Chapter 4, Using the Fingerprint Sensor.

Only some models are equipped with Fingerprint
Sensor.

LCD Sensor switch This switch senses when the display panel is

either closed or opened and activates the Panel
Power Off/On feature as appropriate. For
example, when you close the display panel the
computer enters Hibernation Mode and shuts
itself down and then, when you next open the
display, the computer will automatically start up
and return you to the application you were
previously working on.

You can specify within the Power Options. To
access it, click Start -> Control Panel -> System
and Maintenance -> Power Options.

Do not put any magnetic objects close to this switch as they may cause the
computer to automatically enter Hibernation Mode and shut down even if
the Panel Power Off feature is disabled.

User’s Manual 2-10

Indicators

This section explains indicator functions.

System indicators

LED system indicators next to their respective icons, glow when specific
computer operations are in progress.

Media slot The Media slot indicator glows green when the

DC IN The DC IN indicator normally glows green when

The Grand Tour

Figure 2-7 System indicators

computer is accessing the Bridge media slot.

power is being correctly supplied from the AC
power adaptor. However, If the output voltage
from the adaptor is abnormal, or if the computer's
power supply malfunctions, this indicator will
flash orange.

Power The Power indicator normally glows green when

Battery The Battery indicator shows the condition of the

Hard Disk Drive The Hard Disk Drive indicator glows green when

Wireless
communication

User’s Manual 2-11

the computer is turned on. However, if you turn
the computer off into Sleep Mode, this indicator
will flash orange - approximately one second on,
two seconds off - both while the system is
shutting down and while it remains turned off.

battery's charge - green indicates the battery is
fully charged, orange indicates the battery is
charging, and flashing orange indicates a low
battery condition. Please refer to Chapter 6,

Power and Power-Up Modes for more

information on this feature.

the computer is accessing the built-in hard disk
drive.

The Wireless communication indicator blinks
orange when the Bluetooth and Wireless LAN
functions are turned on.

Only some models are equipped with Bluetooth
and Wireless LAN functions.

Keyboard indicators

The following figures show the positions of the CAPS LOCK indicator and
the keypad overlay indicators which show the following conditions:

■ When the CAPS LOCK indicator glows, the keyboard will produce

capitals when any letter is typed.

■ When the Arrow Mode indicator glows, the keypad overlay allows you to

use cursor functions.

■ When the Numeric Mode indicator glows, the keypad overlay allows

you to enter numbers.

CAPS LOCK indicator

Figure 2-8 CAPS LOCK indicator

The Grand Tour

CAPS LOCK This indicator glows green when letter keys are

locked into their uppercase format.

Arrow mode
indicator

Figure 2-9 Keypad overlay indicators

Numeric mode
indicator

Arrow mode When the Arrow mode indicator lights green,

you can use the gray labeled keys on the keypad
overlay as cursor keys. Please refer to the

Keypad overlay section in Chapter 5, The

Keyboard for more information.

Numeric mode When the Numeric mode indicator lights green,

you can use the gray labeled keys on the keypad
overlay for number entry. Please refer to the

Keypad overlay section in Chapter 5, The

Keyboard for more information.

User’s Manual 2-12

Optical disc drives

The computer is installed with either a CD-ROM, DVD-ROM&CD-R/RW or
DVD Super Multi drive. An ATAPI interface controller is used for CD/DVD­ROM operation. When the computer is accessing a CD/DVD, an indicator
on the drive glows.

For information on loading and unloading discs refer to the Using optical

disc drives section in Chapter 4, Operating Basics.

Region codes for DVD drives and media

DVD-ROM&CD-R/RW, DVD Super Multi drives and their associated media
are manufactured according to the specifications of six marketing regions.
When you purchase DVD-Video, make sure it matches your drive,
otherwise it will not play properly.

Code Region

1 Canada, United States

2 Japan, Europe, South Africa, Middle East

3 Southeast Asia, East Asia

4 Australia, New Zealand, Pacific Islands, Central

America, South America, Caribbean

The Grand Tour

5 Russia, Indian Subcontinent, Africa, North Korea,

Mongolia

6 China

Writable discs

This section describes the types of writable CD/DVD discs. Check the
specifications of your drive to see the types of discs it can write. Use
TOSHIBA Disc Creator to write compact discs. Refer to Chapter 4,

Operating Basics.

CDs

■ CD-R discs can be written only once. The recorded data cannot be

erased or changed.

■ CD-RW discs including multi speed CD-RW discs, high-speed CD-RW

discs and ultra-speed CD-RW discs can be recorded more than once.

User’s Manual 2-13

DVDs

■ DVD-R and DVD+R discs can be written only once. The recorded data

cannot be erased or changed.

■ DVD-RW, DVD+RW and DVD-RAM discs can be recorded more than

once.

Formats

The drives support the following formats.

CD-ROM drive

The drive supports the formats CD-DA, CD-Text, Photo CD™ (single/ multi­session), CD-ROM Mode1, Mode2, CD-ROM XA Mode2 (Form1, Form2),
Enhanced CD (CD-EXTRA) and Addressing Method 2.

DVD-ROM&CD-R/RW drive

The drive supports the formats CD-ROM, DVD-ROM, DVD-Video, CD-DA,
CD-Text, Photo CD™ (single/ multi-session), CD-ROM Mode1, Mode2,
CD-ROM XA Mode2 (Form1, Form2), Enhanced CD (CD-EXTRA),
Addressing Method 2, CD-R and CD-RW.

DVD Super Multi drive Double Layer

The drive supports the formats in addition to the DVD-ROM&CD-R/RW
drive, and DVD-R, DVD-RW, DVD+R, DVD+RW, DVD-RAM, DVD-R DL
(Format1), DVD+R DL.

The Grand Tour

Some types and formats of DVD-R DL and DVD+R DL discs may be
unreadable.

CD-ROM drive

The full-size CD-ROM drive module lets you run either 12 cm (4.72") or 8
cm (3.15") CD without using an adaptor.

The read speed is slower at the center of a disc and faster at the outer
edge.

CD read 24 speed (maximum)

DVD-ROM&CD-R/RW drive

The full-size DVD-ROM&CD-R/RW drive module lets you record data to
rewritable CDs as well as run either 12 cm (4.72") or 8 cm (3.15") CD/DVDs
without using an adaptor.

User’s Manual 2-14

The read speed is slower at the center of a disc and faster at the outer
edge.

DVD read 8 speed (maximum)
CD read 24 speed (maximum)
CD-R write 24 speed (maximum)
CD-RW write 24 speed (maximum, Ultra-speed media)

DVD Super Multi drive Double Layer

The full-size DVD Super Multi drive module lets you record data to
rewritable CD/DVDs as well as run either 12 cm (4.72") or 8cm (3.15")
CD/DVDs without using an adaptor.

The read speed is slower at the center of a disc and faster at the outer
edge.

DVD read 8 speed (maximum)
DVD-R write 8 speed (maximum)
DVD-R DL write 2 speed (maximum)
DVD-RW write 4 speed (maximum)
DVD+R write 8 speed (maximum)
DVD+R DL write 2.4 speed (maximum)
DVD+RW write 4 speed (maximum)
DVD-RAM write 5 speed (maximum)
CD read 24 speed (maximum)
CD-R write 24 speed (maximum)
CD-RW write 16 speed (maximum, Ultra-speed media)

The Grand Tour

AC adaptor

The AC adaptor can automatically adjust to any voltage ranging from 100 to
240 volts and to a frequency of either 50 or 60 hertz, enabling you to use
this computer in almost all country/region. The adaptor converts AC power
to DC power and reduces the voltage supplied to this computer.

To recharge the battery, simply connect the AC adaptor to a power source
and to the computer. Please refer to Chapter 6, Power and Power-Up

Modes for further information.

User’s Manual 2-15

The Grand Tour

Figure 2-10 The AC adaptor (2-pin plug)

Figure 2-11 The AC adaptor (3-pin plug)

■ Depending on the model in question, either a 2-pin or 3-pin

adaptor/power lead will be bundled with the computer.

■ Do not use a 3-pin to 2-pin conversion plug.

■ The supplied power cord conforms to safety rules and regulations in

the region the product is bought and should not be used outside of this
region. In order to use the adaptor/computer in other regions, you
should please buy a power cord that conforms to the safety rules and
regulations in that particular region.

Always use the TOSHIBA AC adaptor that was included with your
computer and the TOSHIBA Battery Charger (that may have been included
with your computer), or use AC adaptors and battery chargers specified by
TOSHIBA to avoid any risk of fire or other damage to the computer. Use of
an incompatible AC adaptor or Battery Charger could cause fire or damage
to the computer possibly resulting in serious injury. TOSHIBA assumes no
liability for any damage caused by use of an incompatible adaptor or
Battery Charger.

User’s Manual 2-16

Chapter 3

Hardware, Utilities and Options

Hardware

This section describes the hardware of your computer. The actual
specifications may vary depending on the model you purchased.

Processor

CPU The computer is equipped with one of the

following Intel

■ Intel® CoreTM 2 Duo Processor, which

incorporates a 2MB level2 cache memory. It
also supports Enhanced Intel
Technology.

■ Intel

incorporates a 4MB level2 cache memory. It
also supports Enhanced Intel

Technology.

■ Intel® Celeron® Processor, which incorporates

a 1MB level2 cache memory.

Some models in this series carry Intel® Centrino® Duo Processor
Technology, which is based on three separate technologies of Intel

TM

Core

2 Duo processor, Intel® PRO/Wireless Network Connection, and

Mobile Intel

®

965 Express Chipset Family.

®

processors.

®

SpeedStep®

®

CoreTM 2 Duo Processor, which

®

SpeedStep

®

®

Legal Footnote (CPU)*2

For more information on the CPU, please refer to the Legal Footnotes
section in Appendix K or Click the *2 above.

User’s Manual 3-1

Memory

Hardware, Utilities and Options

Slots 256, 512, 1,024 or 2,048MB memory modules

Video RAM The amount of Video RAM available is

can be installed in the computer's two memory
slots for a maximum of 4,096MB system memory.

dependent on the computer's system memory.

Start -> Control Panel -> Appearance and
Personalization -> Personalization -> Display
Settings.

The amount of Video RAM can be verified by
clicking the Advanced Settings... button in the
Display Settings window.

Legal Footnote (Memory (Main System))*3

For more information regarding Memory (Main System), please refer to the
Legal Footnotes section in Appendix K or click the *3 above.

Power

Battery pack The computer is powered by one rechargeable

lithium-ion battery pack.

Legal Footnote (Battery Life)*4

For more information regarding Battery Life, please refer to the Legal
Footnotes section in Appendix K or click the *4 above.

RTC battery The internal RTC battery backs up the Real Time

Clock (RTC) and calendar.

AC adaptor The AC adaptor provides power to the system

and recharges the batteries when they are low. It
comes with a detachable power cord which will
either have a 2-pin or 3-pin plug enclosure.

As the AC adaptor is universal, it can receive a
range of AC voltages from 100 to 240 volts,
however you should note that the output current
varies among different models. Using the wrong
adaptor can damage your computer. Refer to the

AC adaptor section in Chapter 2, The Grand

To ur .

User’s Manual 3-2

Disks

Hardware, Utilities and Options

Hard disk drive This computer is equipped with one of the

following hard disk drive types. The capacity of
each hard disk drive model is different.

■ 60.0 billion bytes (55.89 GB)

■ 80.0 billion bytes (74.53 GB)

■ 120.0 billion bytes (111.79 GB)

■ 160.0 billion bytes (149.05 GB)

Please note that part of the hard disk drive's
overall capacity is reserved as administration
space.

Legal Footnote (Hard Disk Drive (HDD) Capacity)*5

For more information regarding Hard Disk Drive (HDD) Capacity, please
refer to the Legal Footnotes section in Appendix K or click the *5 above.

Optical disc drive

Drive One of the following optical disc drives is pre-

installed in this computer.

■ CD-ROM drive

■ DVD-ROM&CD-R/RW drive

■ DVD Super Multi Double Layer drive

2.6GB and 5.2GB DVD-RAM media cannot be read from or written to.

Display

The computer's internal display panel supports high-resolution video
graphics and can be set to a wide range of viewing angles for maximum
comfort and readability.

Display panel 15.4” TFT LCD screen, 16 million colors, with

one of the following resolutions:

■ WXGA, 1280 horizontal x 800 vertical pixels

■ WSXGA+, 1680 horizontal x 1050 vertical

pixels

Legal Footnote (LCD)*6

For more information regarding the LCD, please refer to the Legal
Footnotes section in Appendix K or click the *6 above.

User’s Manual 3-3

Hardware, Utilities and Options

Graphics controller The graphics controller maximizes display

performance. Refer to Display Controller and

Video mode section in Appendix B for more

information.

Legal Footnote (Graphics Processor Unit ("GPU"))*7

For more information regarding the Graphics Processor Unit ("GPU"),
please refer to the Legal Footnotes section in Appendix K or click the *7
above.

Sound

Sound system The integrated sound system provides support

for the computer's internal speakers and
microphone, as allowing an external microphone
and headphones to be connected via the
appropriate jacks.

Communications

Modem An internal modem provides capability for data

and fax communication. It supports V.90 (V.92).
Refer to V.90 section in Appendix E. The speed
of data transfer and fax depends on analog
telephone line conditions. It has a modem jack
for connecting to a telephone line. It is
preinstalled as a standard device in some
markets. Both of V.90 and V.92 are supported
only in USA and Canada. Only V.90 is available
in other regions.

LAN The computer has built-in support for Ethernet

Bluetooth Some computers in this series offer Bluetooth

User’s Manual 3-4

LAN (10 megabits per second, 10BASE-T), Fast
Ethernet LAN (100 megabits per second,
100BASE-TX) and Gigabit Ethernet LAN (1000
megabits per second, 1000BASE-T).

It is pre-installed as a standard device in some
markets.

wireless communication functionality which
eliminates the need for cables between
electronic devices such as computers, printers
and mobile phones. When implemented,
Bluetooth provides a fast, reliable and secure
means to achieve wireless communication in a
small space.

Wireless LAN Some computers in this series are equipped with

Legal Footnote (Wireless LAN)*8

For more information regarding Wireless LAN, please refer to the Legal
Footnotes section in Appendix K or click the *8 above.

Special features

The following features are either unique to TOSHIBA computers or are
advanced features which make the computer more convenient to use.

Access each function using the following procedures.
*1 To access the Power Options, click Start -> Control Panel -> System

and Maintenance -> Power Options.

Hardware, Utilities and Options

a Wireless LAN card that is compatible with other
LAN systems based on Direct Sequence Spread
Spectrum/Orthogonal Frequency Division
Multiplexing radio technology that complies with
the IEEE 802.11 Standard (Revision A, B, G or N
Draft Ver. 1.0).

TOSHIBA Assist
button

Press this button to launch the program
automatically. When power-off, Sleep Mode and
Hibernation Mode, press this button to start the
computer and launch the program.

TOSHIBA
Presentation button

The TOSHIBA Presentation button has the same
functionality as the Connect display button in the
Mobility Center. Pressing this button when an
external display is connected will open the
Windows Vista

TM

TMM (Transient Multimon

Manager) screen.

Hot keys Hot keys are specific key combinations that let

you quickly change the system configuration
directly from the keyboard without running a
system program.

Display automatic
power off

*1

This feature automatically cuts off power to the
computer's display panel when there is no
keyboard input for a specified time, with power
being restored the next time a key is pressed.
This can be specified in the Power Options.

HDD automatic
power off

*1

This feature automatically cuts off power to the
hard disk drive when it is not accessed for a
specified time, with power being restored when
the hard disk drive is next accessed. This can be
specified in the Power Options.

User’s Manual 3-5

Hardware, Utilities and Options

System automatic
Sleep/Hibernation

*1

Mode

This feature automatically shuts down the system
into either Sleep Mode or Hibernation Mode when
there is no input or hardware access for a
specified time. This can be specified in the Power
Options.

Keypad overlay A ten-key numeric keypad is integrated into the

keyboard. Please refer to the Keypad overlay
section in Chapter 5, The Keyboard, for
information on using this feature.

Power on password Two levels of password security, supervisor and

user, are available to prevent unauthorized
access to your computer.

Instant security A specific hot key function automatically locks the

system providing data security.

Intelligent power
supply

*1

A microprocessor in the computer's intelligent
power supply detects the battery's charge,
automatically calculates the remaining battery
capacity and protects electronic components
from abnormal conditions such as a voltage
overload from the AC adaptor. This can be
specified in the Power Options.

*1

Battery save mode

This feature lets you configure the computer in
order to save battery power. This can be
specified in the Power Options.

Panel power on/off

*1

This feature automatically turns power to the
computer off when the display panel is closed,
and turns it back on when the display panel is
opened. This can be specified in the Power
Options.

Low battery
automatic

Hibernation Mode

When battery power is exhausted to the point that
computer operation cannot be continued, the

*1

system automatically enters Hibernation Mode
and shuts itself down. This can be specified in the
Power Options.

User’s Manual 3-6

Hardware, Utilities and Options

Heat dispersal

*1

To protect against overheating, the processor has
an internal temperature sensor so that, if the
computer's internal temperature rises to a certain
level, the cooling fan is turned on or the
processing speed is lowered. This can be
specified in the Power Options.

TOSHIBA HDD
Protection

This feature uses the acceleration sensor built in
the computer to detect vibration and shocks, and
automatically moves the hard disk drive's
read/write head to a safe position in order to
reduce the risk of damage that could be caused
by head-to-disk contact. Refer to the Using the

Hard Disk Drive (HDD) Protection section in

Chapter 4, Operating Basics, for more details.

The TOSHIBA HDD Protection function does not guarantee that the hard
disk drive will not be damaged.

Hibernation Mode This feature lets you turn off the power to the

computer without exiting from your software. The
contents of main memory are automatically
saved to the hard disk drive so that when you
next turn the power on again, you can continue
working right where you left off. Refer to the

Turning off the power section in Chapter 1,

Getting Started, for more details.

Sleep Mode If you have to interrupt your work, you can use

this feature to allow you to turn off power to the
computer without exiting from your software.
Data is maintained in the computer's main
memory so that when you next turn on the power,
you can continue working right where you left off.

User’s Manual 3-7

TOSHIBA Value Added Package

This section describes the TOSHIBA Component features pre-installed on
the computer.

Hardware, Utilities and Options

TOSHIBA Power
Saver

TOSHIBA Button
Support

TOSHIBA Button Support cannot be used in models that are not equipped
with TOSHIBA Assist/Presentation button.

TOSHIBA Zooming
Utility

TOSHIBA PC
Diagnostic Tool

TOSHIBA Password
Utility

TOSHIBA Flash
Cards

TOSHIBA Power Saver provides you with the
features of more various power supply
managements.

This utility controls the following computer button
functions.

■ TOSHIBA Assist

■ TOSHIBA Presentation

The starting application from the button can be
changed.

This utility allows you to enlarge or reduce the
icon size on the Windows Desktop, or the zoom
factor associated with specific supported
applications.

The TOSHIBA PC Diagnostic Tool will display
basic system configuration information and allow
the functionality of some of the computer's built­in hardware devices to be tested.

The TOSHIBA Password utility allows you to set
a password in order to restrict access to the
computer.

The TOSHIBA Flash Cards provide a quick way
to modify selected system functions and to
launch applications.

■ Hot key function

■ TOSHIBA utility launcher function

User’s Manual 3-8

Hardware, Utilities and Options

HW Setup This utility allows you to customize your

hardware settings according to the way you work
with the computer and the peripherals you use.

TOSHIBA
Accessibility

The TOSHIBA Accessibility utility provides
support to movement impaired users when they
need to use the TOSHIBA Hot-key functions. In
use, the utility allows you to make the FN key
'sticky', that is you can press it once, release it,
and they press one of the 'F' keys in order to
access its specific function. When set, the FN
key will remain active until another key is
pressed.

User’s Manual 3-9

Utilities and Applications

This section describes the pre-installed utilities that come with the
computer and details how to start them. For further information on their
operation, please refer to each utility's online manual, help files or
README.TXT file.

Fingerprint Utility This product has a fingerprint utility installed for

Hardware, Utilities and Options

the purpose of enrolling and recognizing
fingerprints which can then be linked to a
username and password in order to remove the
need to input these details from the keyboard.
Just by swiping an enrolled finger against the
fingerprint sensor, the following functions will be
enabled:

■ Logon to Windows and access a security

enabled homepage through Internet Explorer.

■ Files and folders can be encrypted/decrypted

and third party access to them is prevented.

■ Disable the password-protected screen-saver

when returning from a power-saving mode
such as Sleep Mode.

■ Authentication of the User Password (and, if

applicable, the HDD(Hard Disk Drive)
Password) when booting up the computer
(Power-on Security).

■ Single Sign-on feature

The Fingerprint function cannot be used in models that are not equipped
with a Fingerprint module.

DVD Video Player The DVD Video Player is used to play DVD-

Video. It has an on-screen interface and
functions. Click Start -> All Programs ->

InterVideo WinDVD -> InterVideo WinDVD for
TOSHIBA.

■ Frame dropping, audio skipping or out of synch audio and video may

occur during playback of some DVD Video titles.

■ Make sure to connect the computer’s AC adaptor when playing a DVD

Video. Power-saving features may interfere with smooth playback.

■ By using WinDVD, a horizontal white line may appear during playback

of a DVD media in VR-format. In such case, additional memory is
recommended.

User’s Manual 3-10

Hardware, Utilities and Options

Bluetooth Stack for
Windows by Toshiba

This software enables communication between
the computer and external Bluetooth devices
such as printers and mobile phones.

Bluetooth functions cannot be used in models that do not have a Bluetooth
module installed.

TOSHIBA SD
Memory Boot Utility

The TOSHIBA SD memory boot utility allows you
to create a bootable SD memory card to start the
system. You can boot TOSHIBA SD Memory
Boot Utility from the menu bar as follows. Click
Start -> All Programs -> TOSHIBA -> Utilities

-> SD Memory Boot Utility.

SD Memory Card Format Utility and other SD functions are packaged into
TOSHIBA SD Memory Utilities.

TOSHIBA SD
Memory Card Format

This utility allows you to format an SD/SDHC
memory card by the SD standard format.

TOSHIBA Assist TOSHIBA Assist is a graphical user interface that

provides access to specific tools, utilities and
applications that make the use and configuration
of the computer easier.

TOSHIBA ConfigFree TOSHIBA ConfigFree is a suite of utilities that

improve the ease and control of communication
devices and network connections, help in the
identification of communication problems and
allow the creation of profiles if you need to switch
between different locations and communication
networks. To access this utility, click Start -> All

Programs -> TOSHIBA -> Networking ->
ConfigFree.

TOSHIBA Disc
Creator

You can create CDs and DVDs in a number of
formats including audio CDs that can be played
on a standard CD player, and data CDs/DVDs
which can store copies of the files and folders on
your computer's hard disk drive. This software
can be used on models with a DVD Super Multi
drive.

To start this utility, click Start -> All Programs ->

TOSHIBA -> CD&DVD Applications -> Disc
Creator.

User’s Manual 3-11

Hardware, Utilities and Options

TOSHIBA DVD-RAM
Utility

CD/DVD Drive
Acoustic Silencer

Display Rotation
Settings

Windows Mobility
Center

This utility has the function of Physical Format
and Write-Protect to DVD-RAM. This utility is
contained the setup module of TOSHIBA Disc
Creator. To start this utility, click Start -> All

Programs -> TOSHIBA -> CD&DVD
Applications -> DVD-RAM Utility.

This utility allows you to configure the read speed
of the optical disc drive. You can either configure
Normal Mode, which operates the drive at its
maximum speed for quick data access, or Quiet
Mode which runs audio CDs at single speed and
which can lessen operational noise.

It is ineffective with DVDs.

This utility allows you to quickly rotate the
Windows Desktop by either 0 degrees and 180
degrees. In use you are able to perform a
rotation function by pressing either CTRL + ALT
+ Up Arrow ( ) to rotate 0 degrees or CTRL
+ ALT + Down Arrow ( ) to rotate 180
degrees - in a multi-monitor setup, the display
that contains the cursor will be affected by these
changes.

This section describes the Windows Mobility
Center. Mobility Center is a utility for accessing
several mobile PC settings quickly in one
window. A default maximum of eight tiles are
provided by the operating system, and the
additional two tiles are added to your Mobility
Center.

■ Lock Computer :

This can be used to lock your computer
without turning it off. This has the same
function as the Lock button at the bottom of
the right pane in the start menu.

■ TOSHIBA Assist :

This can be used to open TOSHIBA Assist if
it is already installed in your computer.

User’s Manual 3-12

Optional devices

Optional devices can expand the computer's capabilities and its versatility.
This section describes the connection or installation of the following
devices:

Cards/memory

■ PC Card

■ Bridge media slot

■ SD Card (SD memory card, SDHC card, Mini SD card, Micro SD

card)

■ Memory Stick/Memory Stick PRO/Memory Stick PRO Duo

■ xD picture card

■ MultiMediaCard

■ Additional memory module

Peripheral devices

■ Battery Charger

■ External monitor

■ USB FDD Kit

■ i.LINK (IEEE1394)

■ Serial port

■ TOSHIBA Express Port Replicator

Hardware, Utilities and Options

Other

■ Security lock

PC Card

The computer is equipped with a single PC Card slot that can
accommodate a Type II format card. Any PC Card that meets industry
standards, either manufactured by TOSHIBA or another vendor, can be
installed as the slot supports 16-bit PC Cards and 32-bit CardBus cards.
For reference, CardBus supports the newer standard of 32-bit PC Cards
and provides superior performance for the greater demands of applications
such as multimedia data transmission.

PC Cards can sometimes become hot during computer operation. Before
you remove a PC Card always wait for it to cool. You could get burned
removing a hot PC Card.

Inserting a PC Card

The Windows hot-install feature allows you to insert PC Cards while the
computer is turned on.

User’s Manual 3-13

Hardware, Utilities and Options

Do not insert a PC Card while the computer is in Sleep Mode or
Hibernation Mode as you may find that some cards do not work properly.

To insert a PC Card, follow the steps as detailed below:

1. Insert the PC Card into the PC Card slot on the side of the computer.

2. Press the PC Card gently to ensure a firm connection is made.

PC Card slot

PC Card

Figure 3-1 Inserting the PC Card

3. After inserting the PC Card you should refer to its documentation and
also check the configuration in Windows in order to ensure that it is
correct.

Removing a PC Card

To remove a PC Card, follow the steps as detailed below:

1. Open the Safely Remove Hardware icon on the Windows Task Bar.

2. Point to PC Card and click the left Touch Pad control button.

3. Press the PC Card eject button to partially extend it out of the computer.

If the PC Card is not inserted all the way into the computer, the eject button
may not cause it to pop out sufficiently to allows it to be grasped. In this
instance, simply push the PC Card firmly back into the computer and then
press the eject button again.

4. Press the extended PC Card eject button in order to eject the PC Card
partially out of the computer.

User’s Manual 3-14

Hardware, Utilities and Options

5. Grasp the PC Card and remove it.

PC Card
eject button

Figure 3-2 Removing the PC Card

Bridge media slot

The computer is equipped with a Bridge media slot that can accommodate
some kinds of memory media with various memory capacities so that you
can easily transfer data from devices, such as digital cameras and
Personal Digital Assistants.

■ This Bridge media slot supports the following memory media.

■ Secure Digital (SD) Card (SD memory card, SDHC card, Mini SD

card, Micro SD card)

■ Memory Stick

■ Memory Stick PRO

■ Memory Stick PRO Duo

■ xD picture card

■ MultiMediaCard (MMC)

Please note that an adaptor is required to use Mini/Micro SD card and
Memory Stick PRO Duo.

■ Please note that not all memory media have been tested and verified to

work correctly. Therefore, it is not possible to guarantee that all
memory media will operate properly.

■ The slot does not support Magic Gate functions.

PC Card

SD memory card Memory stick xD picture card MultiMedia Card

Figure 3-3 Samples of memory media

User’s Manual 3-15

Hardware, Utilities and Options

Keep foreign objects out of the Bridge media slot. Never allow metal
objects, such as screws, staples and paper clips, to enter the computer or
keyboard. Foreign metal objects can create a short circuit, which can
cause computer damage and fire, possibly resulting in serious injury.

Memory card care

■ Memory media have a limited lifespan, so it is important to backup

important data.

■ Do not write to memory media if the battery power is low. Low power

could affect writing accuracy.

■ Do not remove memory media while reading/writing is in progress.

■ Memory media is designed so that it can be inserted only one way. Do

not try to force the media into the slot.

■ Do not leave memory media partially inserted in the slot. Press the

memory media until you hear it click into place.

■ Do not twist or bend memory media.

■ Do not expose memory media to liquids or store in humid areas or lay

the media close to containers of liquid.

■ After using memory media, return it to its case.

■ Do not touch the metal part or expose it to liquids or let it get dirty.

For more details on using memory media, see manuals accompanying the
media.

SD/SDHC card

SD/SDHC memory cards comply with SDMI (Secure Digital Music
Initiative), which is a technology adopted to prevent unlawful copy or
playback of digital music. For this reason, you cannot copy or playback
protected material on another computer or other device, and you may not
reproduce any copyrighted material except for your personal enjoyment.

The Logo of SD memory card is ( ).
The Logo of SDHC memory card is ( ).

Card Type Capacities

SD 8MB, 16MB, 32MB, 64MB, 128MB, 256MB,

SDHC 4GB

The SDHC memory card is supported only with Windows Vista™.

User’s Manual 3-16

512MB, 1GB, 2GB

Hardware, Utilities and Options

Set the write-protect switch to the lock position, if you do not want to record
data.

Formatting an SD/SDHC memory card

SD/SDHC memory cards are sold already formatted in conformity to
specific standards. If you format the SD/SDHC Card again, be sure to
format it with the TOSHIBA SD Memory Card Format utility, not with the
format command provided within Windows.

In order to run the TOSHIBA SD Memory Card Format utility, click Start ->
All Programs -> TOSHIBA -> Utilities -> SD Memory Card Format.
Please note that the TOSHIBA SD Memory Card Format utility does not
format the protected area of the SD/SDHC memory card - should you need
to format all areas of the memory card, including the protected area, you
will need to obtain an appropriate application that applies the copy
protection system.

Memory Stick/Memory Stick PRO/Memory Stick PRO
Duo/MultiMediaCard

Set the write-protect switch to the lock position, if you do not want to record
data.

Inserting memory media

The following instructions apply to all types of supported media devices.

1. Turn the memory media so that the contacts (metal areas) are face
down.

2. Insert the media into the Bridge media slot on the side of the computer.

3. Press the media gently to ensure a firm connection is made.

Bridge media

Memory media

Figure 3-4 Inserting memory media

User’s Manual 3-17

slot

Hardware, Utilities and Options

■ Make sure memory media is oriented properly before you insert it. If

you insert the media in wrong direction, you may not be able to remove it.

■ Always use a Memory Stick Duo adaptor when inserting a Memory

Stick PRO Duo into the slot. If you insert a Memory Stick PRO Duo
without the adaptor, you may not be able to remove it.

■ When inserting memory media, do not touch the metal contacts. You

could expose the storage area to static electricity, which can destroy
data.

■ Do not turn the computer off or switch to Sleep Mode or Hibernation

Mode while files are being copied - doing so may cause data to be lost.

Removing memory media

To remove memory media, follow the steps as detailed below:

1. Open the Safely Remove Hardware icon on the Windows Task Bar.

2. Point to memory card and click the left Touch Pad control button.

3. Press the memory media to partially extend it out of the computer.

4. Grasp the media and remove it.

Bridge media
slot

Memory media

Figure 3-5 Removing memory media

■ Make sure the Media slot indicator is out before you remove the

memory media or turn off the computer’s power. If you remove the
memory media or turn off the power while the computer is accessing
the media, you may lose data or damage the media.

■ Do not remove the memory media while the computer is in Sleep or

Hibernation Mode. The computer could become unstable or data in the
media could be lost.

■ Do not remove only the Mini/Micro SD card or Memory Stick PRO Duo

while leaving the adaptor in the Bridge Media slot.

User’s Manual 3-18

Hardware, Utilities and Options

Additional memory module

This computer is equipped with two memory slots; Slot A and Slot B. Both
slots are located in the underside of the computer.

You can install additional memory into the computer in order to increase the
amount of system memory that is available. This section describes how to
install and remove optional memory modules.

■ You should place a mat beneath the computer in order to prevent the

computer's lid from becoming scratched or damaged when you are
installing/replacing the memory module. In this instance you should
avoid mats that are made of materials that hold or generate static
electricity.

■ When installing or removing a memory module, you must ensure that

you do not touch any other internal areas of the computer.

■ Insert the two memory modules into Slot A and Slot B respectively. The

computer will operate in dual channel mode.
You can access the inserted memory modules efficiently in dual
channel.

■ Use only memory modules approved by TOSHIBA.

■ Do not try to install or remove a memory module under the following

conditions.
a. The computer is turned on.
b. The computer was shut down in either Sleep or Hibernation Mode.
c. Wake-up on LAN is enabled.
d. Wake-up on Wireless LAN is enabled.
e. The wireless communication switch is turned on.

■ Be careful not to let screws or other foreign matter fall into the

computer. It could cause malfunction or electric shock.

■ Additional memory module is a precision electronic component that

may be fatally damaged by static electricity. Since the human body can
carry static electricity, it is important that you discharge yourself before
touching or installing any additional memory modules. To discharge
your body’s static electricity, simply touch any metal close to you with
bare hands.

Point to note about memory module error

If you install a memory module that is not compatible with the computer, the
Power indicator will flashes (on for 0.5 seconds, off for 0.5 seconds) in the
following ways;

■ If there is only an error in Slot A: repeatedly flashes orange twice, then

green.

■ If there is only an error in Slot B: repeatedly flashes orange, then green

twice.

■ If there is an error in Slot A and in Slot B: repeatedly flashes orange

twice, then green twice.

User’s Manual 3-19

Hardware, Utilities and Options

In all instances you should shut down the computer and remove the
incompatible module(s).

Use a point size 0 Phillips screwdriver to remove and fasten the screws ­the use of an incorrect screwdriver can damage the screw heads.

Installing a memory module (Slot A and Slot B)

The computer contains slots for two memory modules, one positioned
immediately over the other - the procedures are the same for installing
either module.

1. Set the computer to Boot Mode and turn its power off - make sure the
Power indicator is off (refer to the Turning off the power section in
Chapter 1, Getting Started if required).

2. Remove the AC adaptor and all cables and peripherals connected to
the computer.

3. Turn the computer upside down and remove the battery pack (refer to
the Replacing the battery pack section in Chapter 6, Power and Power­Up Modes, if required).

4. Loosen the screw securing the memory module cover in place - please
note that this screw is attached to the cover in order to prevent it from
being lost.

Use a point size 0 Phillips screwdriver.

5. Slide your fingernail or a thin object under the cover and lift it off.

Screw

Memory module

cover

Figure 3-6 Removing the memory module cover

User’s Manual 3-20

Hardware, Utilities and Options

6. Align the notch of the memory module with that of the memory slot and
gently insert the module into the slot at about a 45 degree angle before
holding it down until the latches on either side snap into place.

Slot B

Modem module

Figure 3-7 Seating the memory module

Slot A

■ Never allow metal objects, such as screws, staples and paper clips, to

enter the computer. Foreign metal objects can create a short circuit,
which can cause computer damage and fire, possibly resulting in
serious injury.

■ Do not touch the connectors on the memory module or on the

computer. Debris on the connectors may cause memory access
problems.

■ The slot A is reserved for the first memory module. Use the slot B for

expanded memory. If only one module is installed, use the slot A.
When inserting or removing memory modules, use the A and B marked
on the computer chassis to determine which slot is A and which is B.

■ Align the grooves along the edges of the memory module with the

locking tabs on the connector and insert the module into the connector
firmly - if you find it difficult to install the memory module, gently prise
the locking tabs outwards using the tip of your finger.

Please also ensure that you hold the memory module along its left and
right hand edges - the edges with the grooves in.

7. Seat the memory module cover in place and secure it with one screw.

Take care to ensure that the memory module cover is firmly closed.

User’s Manual 3-21

Hardware, Utilities and Options

Screw

Memory module
cover

Figure 3-8 Seating the memory module cover

8. Install the battery pack - refer to Replacing the battery pack section in
Chapter 6, Power and Power-Up Modes, if required.

9. Turn your computer over.

10. Turn the computer on and make sure the added memory is recognized ­to confirmed it, Start -> Control Panel -> System and Maintenance ->
System icon.

Removing a memory module (Slot A and Slot B)

To remove the memory module, follow the steps as detailed below:

1. Set the computer to Boot Mode and turn its power off - make sure the
Power indicator is off (refer to the Turning off the power section in
Chapter 1, Getting Started if required).

2. Remove the AC adaptor and all cables and peripherals connected to
the computer.

3. Turn the computer upside down and remove the battery pack (refer to

Replacing the battery pack section in Chapter 6, Power and Power-Up

Modes, if required).

4. Loosen the screw securing the memory module cover in place - please
note that this screw is attached to the cover in order to prevent it from
being lost.

5. Slide your fingernail or a thin object under the cover and lift it off.

6. Push the latches away from the module in order to release it - a spring
will force one end of the module up at an angle.

7. Grasp the module by its edges and remove it from the computer.

■ If you use the computer for a long time, the memory modules and the

circuits locating close to the memory modules will become hot. In this
case, let them cool to room temperature before you replace them. Or
you will get burnt if you touch any of them.

■ Do not touch the connectors on the memory module or on the

computer. Debris on the connectors may cause memory access
problems.

User’s Manual 3-22

Hardware, Utilities and Options

Latches

Slot B

Figure 3-9 Removing the memory module

8. Seat the memory module cover in place and secure it with one screw.

Take care to ensure that the memory module cover is firmly closed.

9. Install the battery pack - refer to Replacing the battery pack section in
Chapter 6, Power and Power-Up Modes, if required.

10. Turn your computer over.

Battery Charger

The battery charger provides a convenient way to charge battery packs
without requiring the use of your computer. The battery charger holds up to
two battery packs (lithium ion).

Slot A

External monitor

An external analog monitor can be connected to the external monitor port
on the computer. To connect a monitor, follow the steps as detailed below:

Connecting the monitor cable

1. Turn the computer's power off.

User’s Manual 3-23

Hardware, Utilities and Options

2. Connect the monitor cable to the external monitor port.

External monitor port

Monitor cable

Figure 3-10 Connecting the monitor cable to the external monitor port

3. Turn the external monitor's power on.

4. Turn the computer's power on.

When you turn on the power, the computer will automatically recognize the
monitor and determine whether it is a color or monochrome device. In the
event that you find that there are issues getting an image displayed on the
correct monitor, you should consider using the FN + F5 hot key to change
the display settings (if you then disconnect the external monitor before you
turn the computer's power off, be sure to press FN + F5 hot key again to
switch to the internal display).

Please refer to Chapter 5, The Keyboard, for further details on using hot
keys to change the display setting.

Do not disconnect the external monitor when in Sleep or Hibernation
Mode. Turn off the computer before disconnecting the external monitor.

USB FDD Kit

The USB floppy diskette drive accommodates either a 1.44MB or 720KB
floppy diskette and connects to one of the computer's USB ports.

USB connector

Disk-In-Use
Indicator

Floppy
diskette slot

User’s Manual 3-24

Eject button

Figure 3-11 The USB floppy diskette drive

Hardware, Utilities and Options

Connecting the USB floppy diskette drive

To connect the drive, plug the floppy diskette drive’s USB connector into a
computer’s USB port.

Make sure the connector is properly aligned with the socket. Do not try to
force the connection, doing so can damage the connecting pins.

USB connector

Figure 3-12 Connecting the USB floppy diskette drive

USB port

If you connect the USB floppy diskette drive after the computer has already
been turned on, it will take about ten seconds for it to be recognized by the
computer. Do not attempt to disconnect and reconnect the drive before this
period has elapsed.

Disconnecting the USB floppy diskette drive

When you have finished using the USB floppy diskette drive, you can follow
the procedures below in order to disconnect it:

1. Wait for the Disk-In-Use Indicator light to go out to make sure all floppy
diskette activity has stopped.

If you disconnect the USB floppy diskette drive or turn off the power while
the computer is accessing the drive you may lose data or damage the
floppy diskette or the drive.

2. Click the Safely Remove Hardware icon on the Windows Task Bar.

3. Click the USB floppy diskette drive device that you want to remove.

4. Carefully pull the floppy diskette drive's USB connector out from within
the computer's USB port.

User’s Manual 3-25

Hardware, Utilities and Options

i.LINK (IEEE1394)

i.LINK (IEEE1394) is used for high-speed data transfer for a range of
compatible devices such as:

■ Digital video cameras

■ Hard disk drives

■ MO drives

■ Writable optical disc drives

i.LINK uses a four-pin connector, which does not carry any electric current.
External devices will need their own power supply to operate.

Precautions

■ Make a back-up of your data before transferring it to the computer.

There is a possibility that the original data will be damaged. There is a
particular risk that some frames will be deleted in the case of digital
video transfer. TOSHIBA assumes no liability for such loss of data.

■ Do not transfer data in areas where static electricity is easily generated

or in areas subjected to electronic noise. Data can be destroyed.

■ If you are transferring data through an IEEE1394 hub, do not connect or

disconnect other devices from the hub during data transfer. There is a
likelihood that data will be damaged. Connect all devices to the hub
before you turn on the computer’s power.

■ You may not use any copyrighted video or music data copied from a

video camera except for your personal enjoyment.

■ If you connect/disconnect an i.LINK device to/from another i.LINK

device that is currently exchanging data with the computer, data frames
might be dropped.

■ Make sure data transfer has ended or turn off the computer, before you:

■ Connect/disconnect an i.LINK device to/from the computer.

■ Connect/disconnect an i.LINK device to/from another i.LINK device

that is connected to the computer.

User’s Manual 3-26

Hardware, Utilities and Options

Connecting

1. Make sure the connectors are properly aligned and plug the i.LINK
(IEEE1394) cable into the computer.

i.LINK (IEEE1394)
port

i.LINK (IEEE1394)
connector

Figure 3-13 Connecting the i.LINK (IEEE1394) cable into the computer

2. Plug the other end of the cable into the device.

Note the following when you use i.LINK:

■ You may need to install drivers for your i.LINK devices.

■ Not all i.LINK devices have been tested. Therefore, compatibility with all

i.LINK devices cannot be guaranteed.

■ Some devices might not support sleep or automatic off functions.

■ Do not connect or disconnect an i.LINK device while it is using an

application or when the computer is automatically shutting it down to
save power. Data might be destroyed.

Disconnecting

1. Open the Safely Remove Hardware icon on the Task Bar.

2. Point to i.LINK (IEEE1394) device and click.

3. Disconnect the cable from the computer then from the i.LINK device.

Refer also to the documentation that came with your i.LINK device.

User’s Manual 3-27

Hardware, Utilities and Options

Serial port

The serial connector can be used to connect to RS-232C compatible
devices.

RS-232C compatible devices include the following:

■ Modem

■ Mouse

■ Printer

To connect a serial port, follow the steps as detailed below:

1. Turn the computer’s power off.

2. Connect the serial connector to the serial port and tighten the screws on
the left and right hand side.

Serial port

Serial connector

Figure 3-14 Connecting the serial connector to the serial port

TOSHIBA Express Port Replicator

In addition to the ports available on the computer, the TOSHIBA Express
Port Replicator. The TOSHIBA Express Port Replicator connects directly to
the docking interface on the underside of the computer. The AC adaptor
connects the TOSHIBA Express Port Replicator to a power source.

The computer must be configured properly before connecting to a LAN.
Logging onto a LAN using the computer’s default settings could cause a
malfunction in LAN operation. Check with your LAN administrator
regarding set-up procedures

■ You must connect the AC adaptor before you connect to a TOSHIBA

Express Port Replicator.

■ When a TOSHIBA Express Port Replicator is connected to the

computer, you can not use the following computer’s ports: LAN jack,
DC IN 15V jack and External monitor port.

■ When connecting an AC Adaptor to the TOSHIBA Express Port

Replicator, use only the AC Adaptor included with TOSHIBA Express
Port Replicator. Do not use the computer’s AC Adaptor.

User’s Manual 3-28

.

Hardware, Utilities and Options

The following ports are available on the TOSHIBA Express Port Replicator.

■ RJ45 LAN jack

■ External monitor port

■ DC IN 15V jack

■ Security lock slot

■ Universal Serial Bus 2.0 port (four)

■ DVI port

■ Serial port

■ As the port operation of all DVI (Digital Visual Interface) monitors has

not been confirmed, some DVI monitors may not function properly.

■ Set the TOSHIBA Express Port Replicator's Slide Adjuster to SLIDE

position #3 when connecting this computer to the TOSHIBA Express
Port Replicator. Refer to the TOSHIBA Express Port Replicator User's
Manual for more details on connection methods.

Security lock

A security locks enable you to anchor your computer a desk or other heavy
object in order to help prevent unauthorized removal or theft. The computer
has a security lock slot on its left side into which you can attach one end of
the security cable, while the other end attaches to a desk or similar object.
The methods used for attaching security cables differ from product to
product. Please refer to the instructions for the product you are using for
more information.

Connecting the security lock

In order to connect a security cable to the computer, follow the steps as
detailed below:

1. Turn the computer so its left hand side faces you.

2. Align the security cable with the 'lock hole' and secure it in place.

Security lock slot

Figure 3-15 Security lock

User’s Manual 3-29

Optional accessories

You are able to add a number of options and accessories in order to make
your computer even more powerful and convenient to use. For reference,
the following list details some of the items that are available from your
reseller or TOSHIBA dealer:

Hardware, Utilities and Options

DDR2-667 Memory
Module

A 256MB, 512MB, 1,024MB or 2,048MB memory
module (DDR2-667) can be easily installed in the
computer.

Universal AC
Adaptor

If you frequently use your computer at more than
one site, it may be convenient to purchase an
additional AC adaptor to be kept at each site in
order to remove the need to always carry the
adaptor with you.

Battery Pack An additional battery pack can be purchased for

use as either a spare or replacement. Please
refer to Chapter 6, Power and Power-Up Modes
for further information.

High Capacity
Battery Pack

Extended Capacity
Battery Pack

An additional battery pack can be purchased for
use as either a spare or replacement.

An additional battery pack can be purchased for
use as either a spare or replacement.

Battery Charger The optional battery charger allows you to

charge extra battery packs outside of having to
use the computer.

USB FDD Kit The USB floppy diskette drive accommodates

either a 1.44MB or 720KB floppy diskette through
connection to one of the computer's USB ports.
In use, please be aware that, while you cannot
format 720KB floppy diskettes under Windows

TM

Vista

, you are able to read and write to

diskettes that have already been formatted.

TOSHIBA Express
Port Replicator

The TOSHIBA Express Port Replicator provides
the ports available on the computer in addition to
a digital visual interface (DVI) port, External
monitor port, four Universal Serial Bus ports
(USB 2.0) and a LAN jack.

User’s Manual 3-30

Operating Basics

This chapter describes the basic operations of your computer, highlights
the precautions that should be taken when using it.

TOSHIBA Dual Pointing Device

The computer is equipped with a dual point system: a Touch Pad and an
AccuPoint pointing stick.

Using the Touch Pad

To use the Touch Pad, simply touch and move your fingertip across it in the
direction you want the on-screen pointer to go.

AccuPoint

Chapter 4

AccuPoint
control buttons

Figure 4-1 Touch Pad and Touch Pad control buttons

The two buttons below the Touch Pad are used like the buttons on a
standard mouse - press the left button to select a menu item or to
manipulate text or graphics designated by the pointer, and press the right
button to display a menu or other function depending on the software you
are using.

User’s Manual 4-1

Touch Pad

Touch Pad
control buttons

You can also tap the Touch Pad to perform functions similar to those of the
left button on a standard mouse.

Click: Tap on ce
Double-click: Tap twice
Drag and drop: Tap twice to select the item(s) you want to move.

Move the item(s) to the new desitination and then leave your finger on
the Touch Pad.

Using the AccuPoint

To use the AccuPoint, simply push it with your finger tip in the direction you
want to move the on-screen pointer.

Two buttons above the Touch Pad work in the same way with the AccuPoint
as they do with the Touch Pad. Refer to the Using the Touch Pad section
for details.

Only some models are equipped with the AccuPoint.

AccuPoint precautions

Certain conditions can affect the on-screen pointer when using AccuPoint.
For example, the pointer may travel contrary to AccuPoint operation or an
error message may appear, if

■ You touch the AccuPoint during power-up.

■ You apply constant, soft pressure during power-up.

■ There is a sudden temperature change.

■ Strong stress is applied to the AccuPoint.

If an error message appears, reboot the computer. If an error message
does not appear, wait a moment for the pointer to stop, then continue
operation.

Operating Basics

User’s Manual 4-2

Operating Basics

Replacing the cap

The AccuPoint cap is an expendable item that should be replaced after
prolonged use. The spare AccuPoint cap is supplied with the computer.

1. To remove the AccuPoint cap, firmly pinch the cap and pull it straight
up.

AccuPoint cap

Figure 4-2 Removing the AccuPoint cap

2. Position a new cap on the peg and press it into place.

The peg is square, so be careful to align the cap’s square hole with the
peg.

Using the Fingerprint Sensor

This product has a fingerprint utility installed for the purpose of enrolling
and recognizing fingerprints. By enrolling the ID and password onto the
fingerprint authentication feature, it is no longer necessary to input the
password from the keyboard. Fingerprint feature enables you to:

■ Logon to Windows and access a security enabled homepage through

Internet Explorer.

■ Files and folders can be encrypted/decrypted and third party access to

them prevented.

■ Disable the password-protected screen-saver when returning from a

power-saving mode such as Sleep Mode.

■ Authentication of the User Password (and, if applicable, the HDD(Hard

Disk Drive) Password) when booting up the computer (Power-on
Security).

■ Single Sign-on facility

User’s Manual 4-3

How to Swipe your Finger

Using the following steps when swiping fingers for fingerprint registration or
authentication will help to minimize authentication failures:

Align the first joint of the finger at the center of the sensor, then lightly touch
the sensor and swipe finger horizontally towards you until the sensor
surface becomes visible. In performing this process, you should also take
care to ensure that the center of your fingerprint is on the sensor.

The following illustrations show the recommended way to swipe your finger
over the fingerprint sensor.

Sensor

Figure 4-3 Swipe the finger

■ Avoid swiping with your finger stiff or pressed too hard onto the sensor,

and take care to ensure that the center of the fingerprint is touching the
sensor before swiping. Either of these conditions may cause fingerprint
reading to fail.

■ Check the center of the fingerprint whirl before swiping and then

ensure this is swiped along the center line of the sensor.

■ There is a possibility of authentication failures if the finger is swiped too

quickly or too slowly - follow any on-screen instructions to adjust the
speed used during the swipe process.

Operating Basics

Sensor

Points to note about the Fingerprint Sensor

Please be aware of the following considerations when using the fingerprint
sensor. A failure to follow these guidelines might result in damage to the
sensor, sensor failure, fingerprint recognition problems or a lower
fingerprint recognition success rate.

■ Do not scratch or poke the sensor with your nails or any hard or sharp

objects.

■ Do not press the sensor strongly.

■ Do not touch the sensor with a wet finger or any wet objects - keep the

sensor surface dry and free from water vapor.

■ Do not touch the sensor with a soiled or dirty finger as minute foreign

particles of dust and dirt may scratch it.

■ Do not paste stickers or write on the sensor.

User’s Manual 4-4

Operating Basics

■ Do not touch the sensor with a finger or any other object which may

have a build-up of static electricity on it.

Observe the following before you place your finger on the sensor whether
for fingerprint enrollment/registration or recognition.

■ Wash and dry your hands thoroughly.

■ Remove static electricity from your fingers by touching any metal

surface. Static electricity is a common cause of sensor failures,
especially when the weather is dry.

■ Clean the sensor with a lint-free cloth - do not use detergent or any

other chemicals to clean the sensor.

■ Avoid the following finger conditions for enrollment or recognition as

they may result in fingerprint enrollment errors or a drop in the
fingerprint recognition success rate

■ Soaked or swollen finger, for example as may occur after taking a

bath.

■ Injured finger

■ Wet finger

■ Soiled or oily finger

■ Extremely dry skin condition on finger

Observe the following to improve the fingerprint recognition success rate.

■ Enroll two or more fingers.

■ Enroll additional fingers if a recognition failure often occurs when using

already enrolled fingers.

■ Check the condition of your finger - any conditions which have changed

since enrollment, such as injury, rough skin, and extremely dry, wet,
soiled, dirty, oily, soaked or swollen fingers, may lower the recognition
success rate. Also if the fingerprint is worn down or the finger becomes
thinner or fatter, the recognition success rate may be lowered.

■ As the fingerprint for each finger is different and unique you should

ensure that only the registered or enrolled fingerprint or fingerprints are
used for identification.

■ Check the position and speed at which you swipe your finger across the

sensor - please refer to the preceding drawing.

■ The fingerprint sensor compares and analyzes the unique

characteristics in a fingerprint. However, there may be instances where
certain users are unable to register their fingerprints due to insufficient
unique characteristics in their fingerprints.

■ The recognition success rate may differ from user to user.

User’s Manual 4-5

Operating Basics

How to Delete the Fingerprint Data

Saved fingerprint data is stored in special non-volatile memory inside the
fingerprint sensor. Therefore, if you give the computer to someone else, or
dispose of it in any way, the following process is recommended to delete
your fingerprint information:

1. To run this program, click Start -> All Programs -> Protector Suite QL

-> Control Center.

2. The Protector Suite Software screen is displayed.

3. Click Fingerprints and click Delete.

4. Click Settings and click Fingerprint Storage Inspector.

5. The Fingerprint Storage Inspector screen will be displayed. If
fingerprint data is displayed as part of the list, simply select all of this
information and then Remove.

6. Check whether all of the fingerprint data was deleted on the
Fingerprint Storage Inspector screen.

In use, please be aware of the following limitations of the fingerprint sensor:

■ A warning message will be displayed when recognition is abnormal or

recognition is not successful within a fixed duration.

■ The fingerprint sensor compares and analyzes the unique

characteristics in a fingerprint. However, there may be instances that
certain users are unable to register their fingerprints due to insufficient
unique characteristics in their fingerprints.

■ The recognition success rate may differ from user to user.

■ Toshiba does not guarantee that this fingerprint recognition technology

will be error-free.

■ Toshiba does not guarantee that the fingerprint sensor will recognize

the enrolled user or accurately screen out unauthorized users at all
times. Toshiba is not liable for any failure or damage that might arise out
of the use of this fingerprint recognition software or utility.

Points to note about the Fingerprint Utility software

You are able to backup saved fingerprint data and information within the
PasswordBank by using the Import or Export User Data facility under the
fingerprint management software. However, please be aware that any
encrypted files cannot be backup within FileSafe using this function - in
these instances it is recommended that you backup these files to external
media using standard file copy processes.

The Encrypting File System (EFS) is a Windows VistaTM feature.
If a file is encrypted using EFS, it cannot be encrypted further using the

fingerprint authentication function.

User’s Manual 4-6

If both the fingerprint sensor and Trusted Platform Module (TPM) security
are used as identification devices, you must install and configure the
Infineon TPM Professional package first before you setup and configure the
fingerprint utility. Please refer to the TPM (Trusted Platform Module)
Installation Guide for further information on the installation and
configuration considerations relating to TPM.

In the Help File, it is stated that this software's PasswordBank function can
be used for managing security relating to the Internet as well as for general
applications. However, please be aware that the Internet PasswordBank
function within the fingerprint utility provided on this computer can only be
used with Microsoft's Internet Explorer software.

Set Up Procedure

Please use the following procedure when first using fingerprint
authentication.

Fingerprint Registration

You should initially enroll the required authentication data using the User
Enrollment Wizard.

■ In use, the fingerprint authentication system will use the same

username and password as defined within the Windows operating
system. If no Windows password has been configured, you must do
this before starting the fingerprint registration process.

■ Up to twenty-one fingerprint patterns can be registered on this sensor.

Operating Basics

1. To run this program, click Start -> All Programs -> Protector Suite QL

-> User Enrollment.

You are also able to start the User Enrollment Wizard by using the
following methods.

■ Click the Protector Suite QL icon in the Task Bar.

■ Swipe your finger across the Fingerprint Sensor.

2. Click Next.

3. At the User's Password screen which is then displayed, you should
ensure that the same Windows username is displayed before entering
the appropriate password into the Enter your password field. Once
this has been done, click Next.

4. At the Hints for Fingerprint Enrollment screen, confirm the message
displayed and ensure that there is a check mark in the Run Interactive
Tut ori al box. Once this has been done, click Next.

5. At the Correct Swipe Procedure screen, confirm the message that is
displayed and then click Next.

6. At the Scanning Practice screen, you are able to practice swiping your
finger to ensure you use the correct method. Once you have finished
practicing, click Next.

User’s Manual 4-7

7. At the User's Fingers screen, select the finger that you wish to enroll
from the illustration and then click Next. On this screen please be
aware that any previously enrolled fingerprints would have green check
marks, while the fingerprint that you are about to enroll will have a red
check mark. If any of the previously enrolled fingerprints is selected
again, the latest information will be enrolled and any previous
information over-written.

8. At Advanced Security screen, select whether you wish to enable the
security function, and then click Next.

9. At Finalization screen, click Finish - this will complete the fingerprint
registration process.

Windows Logon via Fingerprint Authentication

If required, you are also able to use fingerprint authentication in place of the
usual Windows logon process using your username and password. This
method is especially useful where there are many users using the same
computer as it removes the need for actual user selection when the system
is started.

Fingerprint Authentication Procedure

1. Start up the computer.

2. At the Logon Authorization screen, choose any of the enrolled fingers
and swipe the fingerprint on the sensor - if the authentication process is
successful, the user will automatically be logged in to Windows.

Operating Basics

If the fingerprint authentication process fails you will need to log into
Windows using the appropriate username and password. In addition, you
should use this manual login process if fingerprint authentication fails for
three consecutive tries - a warning message will be displayed when
authentication is not normal or is not successful within a fixed duration.

Fingerprint Power-on Security

General

The fingerprint authentication system can be used to replace the keyboard
based password authentication system that is used when the computer is
turned on.

If you do not want to use the fingerprint authentication system for password
authentication when the computer is turned on, but instead prefer to use
the keyboard entry method instead, simply press the BkSP (backspace)
key when the Fingerprint Power-on Security screen is displayed. Using this
process will switch the password input screen across to the keyboard
based entry screen.

User’s Manual 4-8

Operating Basics

■ You must ensure that you use the TOSHIBA Password Utility to

register a User Password before using the Fingerprint Power-on
Security and its extended function to allow fingerprints to be used to
access the computer when it is turned on.

■ If the fingerprint authentication process fails five times, a preset time

limit is exceeded, or you press the BkSP (backspace) key, [Password
=] will be displayed on the screen and you will have to enter either the

User Password or Supervisor Password manually in order to start the
computer.

■ When swiping your finger, please ensure that you do it slowly and at a

constant speed. If you find that this does not improve the authentication
rate, you should try to adjust the speed at which the finger is swiped.

■ If there are any changes in the environment or settings related to

authorization, you will be required to provide authorization information
such as a User Password (and, if applicable, the HDD(Hard Disk Drive)
password).

How to Enable Fingerprint Power-on Security Settings

It is necessary to first enroll your fingerprint with the Protector Suite QL
application prior to enabling and configuring the Fingerprint Power-on
Security System. You should check that your fingerprint is enrolled before
configuring the settings (please refer to the Manual for Fingerprint
Registration/Enrollment for further instructions).

1. Swipe your finger across the fingerprint sensor.

2. MENU will appear in the lower right corner of the screen. Swipe your
finger on the fingerprint sensor and then select Control Center from the
items presented in this menu.

3. At the Fingerprint Software Management screen, click Settings and
then click Power-on Security.

4. At the Power-on Security screen, place a check mark in the Replace
the power-on and hard disk drive passwords with the fingerprint reader
setting and then click OK.

Fingerprint Single Sign-on Feature

General

This is a feature that allows the user to complete the authentication for both
the User/BIOS Password (and, if applicable, the HDD(Hard Disk Drive)
Password) and logging onto Windows using only one fingerprint
authentication when booting up. It is necessary to register the User/BIOS
Password and Windows Logon Password before using the Fingerprint
Power-on Security and this Fingerprint Single Sign-on Feature. Please use
the TOSHIBA Password Utility to register your User/BIOS Password. If
Windows Logon is not the default for your system, see Manual to register
your Windows Logon Password.

User’s Manual 4-9

Operating Basics

Only one fingerprint authentication is required to replace the User/BIOS
Password (and, if applicable, the HDD(Hard Disk Drive) Password) and the
Windows Logon Password.

How to Enable Fingerprint Single Sign-on Feature

It is necessary to first enroll your fingerprint with the Protector Suite QL
application prior to enabling and configuring the Fingerprint Single Sign-on
feature. You should check that your fingerprint is enrolled before
configuring the settings (please refer to the Manual for Fingerprint
Registration/Enrollment for further instructions).

1. Swipe your finger across the fingerprint sensor.

2. MENU will appear in the lower right corner of the screen. Swipe your
finger on the fingerprint sensor and then select Control Center from the
items presented in this menu.

3. At the Fingerprint Software Management screen, click Settings and
then click System Settings.

4. At the Protector Suite Settings screen, place a check mark in the
Allow power-on security single sign-on setting within Enable logon
support and then click OK.

Fingerprint utility limitations

TOSHIBA does not guarantee that the fingerprint utility technology will be
completely secure or error-free, or that it will accurately screen out
unauthorized users at all times. TOSHIBA is not liable for any failure or
damage that might arise out of the use of the fingerprint software.

■ The fingerprint sensor compares and analyzes the unique

characteristics in a fingerprint. However, there may be instances where
certain users are unable to register their fingerprints due to insufficient
unique characteristics in their fingerprints.

■ The recognition success rate may differ from user to user.

Using optical disc drives

The full-size drive provides high-performance execution of CD/DVD-ROM­based programs. You can run either 12 cm (4.72") or 8 cm (3.15")
CD/DVDs without an adaptor. An ATAPI interface controller is used for
CD/DVD-ROM operation. When the computer is accessing a CD/DVD­ROM, an indicator on the drive glows.

Use the WinDVD application to view DVD-Video discs.

If you have a DVD-ROM&CD-R/RW drive, refer also to the Writing CDs on

DVD-ROM&CD-R/RW drive section for precautions on writing to CDs.

If you have a DVD Super Multi drive, refer also to the Writing CD/DVDs on

DVD Super Multi drives section for precautions on writing to CDs/DVDs.

User’s Manual 4-10

Loading discs

To load CD/DVDs, follow the steps below.

1. When the computer’s power is on, press the eject button to open
the disc tray slightly.

2. Grasp the disc tray gently and pull until it is fully opened.

Figure 4-4 Pressing the eject button and pulling the disc tray open

3. Lay the CD/DVD, label side up, in the disc tray.

Operating Basics

Disc tray

Laser lens

Figure 4-5 Inserting a CD/DVD

When the disc tray is fully opened, the edge of the computer will extend
slightly over the CD/DVD tray. Therefore, you will need to turn the CD/DVD
at an angle when you place it in the disc tray. After seating the CD/DVD,
however, make sure it lies flat.

User’s Manual 4-11

Operating Basics

■ Do not touch the laser lens or any portion of its surrounding casing as

this could cause misalignment.

■ Prevent foreign objects from entering the drive. Check the surface of

the disc tray, especially the area behind the front edge of the disc tray,
to make sure there are no such objects before closing the drive.

4. Press gently at the center of the CD/DVD until you feel it click into
place. The CD/DVD should lie below the top of the spindle, flush with
the spindle base.

5. Push the center of the disc tray to close it. Press gently until it locks into
place.

If the CD/DVD is not seated properly when the disc tray is closed, the
CD/DVD might be damaged. Also, the disc tray might not open fully when
you press the eject button.

Figure 4-6 Closing the CD/DVD disc tray

Removing discs

To remove the CD/DVD, follow the steps below.

Do not press the eject button while the computer is accessing the media
drive. Wait for the optical disc drive indicator to go out before you open the
disc tray. Also, if the CD/DVD is spinning when you open the disc tray, wait
for it to stop before you remove it

1. To pop the disc tray partially open, press the eject button. Gently pull
the disc tray out until it is fully opened.

When the disc tray pops open slightly, wait a moment to make sure the
CD/DVD has stopped spinning before pulling the disc tray fully open.

User’s Manual 4-12

.
