TOSHIBA TECRA S1 User Guide

TOSHIBA TECRA S1 Series

Portable Personal Computer

User’s Manual

Copyright

© 2003 by TOSHIBA Corporation. All rights reserved. Under the copyright laws, this manual cannot be reproduced in any form without the prior written permission of TOSHIBA. No patent liability is assumed, with respect to the use of the information contained herein.

TOSHIBA TECRA S1series Portable Personal Computer User’s Manual

First edition March 2003

Copyright authority for music, movies, computer programs, data bases and other intellectual property covered by copyright laws belongs to the author or to the copyright owner. Copyrighted material can be reproduced only for personal use or use within the home. Any other use beyond that stipulated above (including conversion to digital format, alteration, transfer of copied material and distribution on a network) without the permission of the copyright owner is a violation of copyright or author’s rights and is subject to civil damages or criminal action. Please comply with copyright laws in making any reproduction from this manual.

Disclaimer

This manual has been validated and reviewed for accuracy. The instructions and descriptions it contains are accurate for the TOSHIBA TECRA S1series Portable Personal Computer at the time of this manual’s production. However, succeeding computers and manuals are subject to change without notice. TOSHIBA assumes no liability for damages incurred directly or indirectly from errors, omissions or discrepancies between the computer and the manual.

Trademarks

IBM is a registered trademark, and IBM PC and PS/2 are trademarks of International Business Machines Corporation. Intel, Intel SpeedStep and Pentium are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the United States and other countries/regions. Windows and Microsoft are registered trademarks of Microsoft Corporation. Photo CD is a trademark of Eastman Kodak. Bluetooth is a trademark owned by its proprietor and used by TOSHIBA under license. Memory Stick is a registered trademark and i.LINK is a trademark of Sony Corporation. CompactFlash is a trademark of SunDisk Corporation.

FCC information

Product Name : TECRA S1

Model number : PT831X

FCC notice “Declaration of Conformity Information”

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

❑ Reorient or relocate the receiving antenna. ❑ Increase the separation between the equipment and receiver. ❑ Connect the equipment into an outlet on a circuit different from that to which

the receiver is connected.

❑ Consult the dealer or an experienced radio/TV technician for help.

WARNING: Only peripherals complying with the FCC class B limits may be attached to this equipment. Operation with non-compliant peripherals or peripherals not recommended by TOSHIBA is likely to result in interference to radio and TV reception. Shielded cables must be used between the external devices and the computer’s external monitor port, USB port, serial port, parallel port, PS/2 mouse/keyboard port and microphone jack. Changes or modifications made to this equipment, not expressly approved by TOSHIBA or parties authorized by TOSHIBA could void the user’s authority to operate the equipment.

FCC conditions

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including interference that may cause undesired operation.

Contact

Address: TOSHIBA America Information Systems, Inc.

9740 Irvine Boulevard

Irvine, California 92618-1697

Telephone: (949) 583-3000

EU Declaration of Conformity

TOSHIBA declares, that the product: PT831* conforms to the following Standards:

Supplementary Information: “The product complies with the requirements

of the Low Voltage Directive 73/23/EEC, the EMC Directive 89/336/EEC and/or the R&TTE Directive 1999/05/EEC.”

This product is carrying the CE-Mark in accordance with the related European Directives. Responsible for CE-Marking is TOSHIBA Europe, Hammfelddamm 8, 41460 Neuss, Germany.

VCCI Class B Information

Modem warning notice

Conformity Statement

The equipment has been approved to [Commission Decision “CTR21”] for panEuropean single terminal connection to the Public Switched Telephone Network (PSTN).

However, due to differences between the individual PSTNs provided in different countries/regions the approval does not, of itself, give an unconditional assurance of successful operation on every PSTN network termination point.

In the event of problems, you should contact your equipment supplier in the first instance.

Network Compatibility Statement

This product is designed to work with, and is compatible with the following networks. It has been tested to and found to conform with the additional requirements conditional in EG 201 121.

Germany ATAAB AN005,AN006,AN007,AN009,AN010 and

DE03,04,05,08,09,12,14,17

Greece ATAAB AN005,AN006 and GR01,02,03,04

Portugal ATAAB AN001,005,006,007,011 and P03,04,08,10

Spain ATAAB AN005,007,012, and ES01

Switzerland ATAAB AN002

All other countries/regions ATAAB AN003,004

Specific switch settings or software setup are required for each network, please refer to the relevant sections of the user guide for more details.

The hookflash (timed break register recall) function is subject to separate national type approvals. It has not been tested for conformity to national type regulations, and no guarantee of successful operation of that specific function on specific national networks can be given.

Japan regulations

Region selection

If you are using the computer in Japan, technical regulations described in the Telecommunications Business Law require that you select the Japan region mode. It is illegal to use the modem in Japan with any other selection.

Redial

Up to two redial attempts can be made. If more than two redial attempts are made, the modem will return Black Listed. If you are experiencing problems with the Black Listed code, set the interval between redials at one minute or longer.

Japan’s Telecommunications Business Law permits up to two redials on analogue telephones, but the redials must be made within a total of three minutes.

The internal modem is approved by Japan Approvals Institute for Telecommunications Equipment.

A02-0604JP

Pursuant to FCC CFR 47, Part 68:

When you are ready to install or use the modem, call your local telephone company and give them the following information:

❑ The telephone number of the line to which you will connect the modem ❑ The registration number that is located on the device

The FCC registration number of the modem will be found on either the device which is to be installed, or, if already installed, on the bottom of the computer outside of the main system label.

❑ The Ringer Equivalence Number (REN) of the modem, which can vary. For the

REN of your modem, refer to your modem’s label.

The modem connects to the telephone line by means of a standard jack called the USOC RJ11C.

Type of service

Your modem is designed to be used on standard-device telephone lines. Connection to telephone company-provided coin service (central office implemented systems) is prohibited. Connection to party lines service is subject to state tariffs. If you have any questions about your telephone line, such as how many pieces of equipment you can connect to it, the telephone company will provide this information upon request.

Telephone company procedures

The goal of the telephone company is to provide you with the best service it can. In order to do this, it may occasionally be necessary for them to make changes in their equipment, operations, or procedures. If these changes might affect your service or the operation of your equipment, the telephone company will give you notice in writing to allow you to make any changes necessary to maintain uninterrupted service.

If problems arise

If any of your telephone equipment is not operating properly, you should immediately remove it from your telephone line, as it may cause harm to the telephone network. If the telephone company notes a problem, they may temporarily discontinue service. When practical, they will notify you in advance of this disconnection. If advance notice is not feasible, you will be notified as soon as possible. When you are notified, you will be given the opportunity to correct the problem and informed of your right to file a complaint with the FCC. In the event repairs are ever needed on your modem, they should be performed by TOSHIBA Corporation or an authorized representative of TOSHIBA Corporation.

Disconnection

If you should ever decide to permanently disconnect your modem from its present line, please call the telephone company and let them know of this change.

Fax branding

The Telephone Consumer Protection Act of 1991 makes it unlawful for any person to use a computer or other electronic device to send any message via a telephone fax machine unless such message clearly contains in a margin at the top or bottom of each transmitted page or on the first page of the transmission, the date and time it is sent and an identification of the business, other entity or individual sending the message and the telephone number of the sending machine or such business, other entity or individual. In order to program this information into your fax modem, you should complete the setup of your fax software before sending messages.

Instructions for IC CS-03 certified equipment

1 The Industry Canada label identifies certified equipment. This certification

means that the equipment meets certain telecommunications network protective,

operational and safety requirements as prescribed in the appropriate Terminal

Equipment Technical Requirements document(s). The Department does not

guarantee the equipment will operate to the user’s satisfaction.

Before installing this equipment, users should ensure that it is permissible to be

connected to the facilities of the local telecommunications company. The

equipment must also be installed using an acceptable method of connection.

The customer should be aware that compliance with the above conditions may

not prevent degradation of service in some situations. Repairs to certified

equipment should be coordinated by a representative designated by the

supplier. Any repairs or alterations made by the user to this equipment, or

equipment malfunctions, may give the telecommunications company cause to

request the user to disconnect the equipment.

Users should ensure for their own protection that the electrical ground connec-

tions of the power utility, telephone lines and internal metallic water pipe system,

if present, are connected together. This precaution may be particularly important

in rural areas.

CAUTION: Users should not attempt to make such connections

themselves, but should contact the appropriate electric inspection

authority, or electrician, as appropriate.

2 The user manual of analog equipment must contain the equipment’s Ringer

Equivalence Number (REN) and an explanation notice similar to the following:

The Ringer Equivalence Number (REN) of the modem, which can vary. For the

REN of your modem, refer to your modem’s label.

NOTICE: The Ringer Equivalence Number (REN) assigned to each

terminal device provides an indication of the maximum number of

terminals allowed to be connected to a telephone interface. The termina-

tion on an interface may consist of any combination of devices subject

only to the requirement that the sum of the Ringer Equivalence Numbers

of all the devices does not exceed 5.

3 The standard connecting arrangement (telephone jack type) for this equipment is

jack type(s): USOC RJ11C.

The IC registration number of the modem is shown below.

Canada: 1353 11026A

Notes for Users in Australia and New Zealand

Modem warning notice for Australia

Modems connected to the Australian telecoms network must have a valid Austel permit. This modem has been designed to specifically configure to ensure compliance with Austel standards when the country/region selection is set to Australia. The use of other country/region setting while the modem is attached to the Australian PSTN would result in you modem being operated in a non-compliant manner. To verify that the country/region is correctly set, enter the command ATI which displays the currently active setting.

To set the country/region permanently to Australia, enter the following command sequence:

AT%TE=1 ATS133=1 AT&F AT&W AT%TE=0 ATZ

Failure to set the modem to the Australia country/region setting as shown above will result in the modem being operated in a non-compliant manner. Consequently, there would be no permit in force for this equipment and the Telecoms Act 1991 prescribes a penalty of $12,000 for the connection of non-permitted equipment.

Notes for use of this device in New Zealand

❑ The grant of a Telepermit for a device in no way indicates Telecom acceptance

of responsibility for the correct operation of that device under all operating conditions. In particular the higher speeds at which this modem is capable of operating depend on a specific network implementation which is only one of many ways of delivering high quality voice telephony to customers. Failure to operate should not be reported as a fault to Telecom.

❑ In addition to satisfactory line conditions a modem can only work properly if:

a/ it is compatible with the modem at the other end of the call and

b/ the application using the modem is compatible with the application at the

other end of the call - e.g., accessing the Internet requires suitable software in addition to a modem.

❑ This equipment shall not be used in any manner which could constitute a

nuisance to other Telecom customers.

❑ Some parameters required for compliance with Telecom’s PTC Specifications

are dependent on the equipment (PC) associated with this modem. The associated equipment shall be set to operate within the following limits for compliance with Telecom Specifications:

a/ There shall be no more than 10 call attempts to the same number within

any 30 minute period for any single manual call initiation, and

b/ The equipment shall go on-hook for a period of not less than 30 seconds

between the end of one attempt and the beginning of the next.

c/ Automatic calls to different numbers shall be not less than 5 seconds

apart.

❑ Immediately disconnect this equipment should it become physically damaged,

and arrange for its disposal or repair.

❑ The correct settings for use with this modem in New Zealand are as follows:

ATB0 (CCITT operation)

AT&G2 (1800 Hz guard tone)

AT&P1 (Decadic dialing make-break ratio =33%/67%)

ATS0=0 (not auto answer)

ATS10=less than 150 (loss of carrier to hangup delay, factory default of 15 recommended)

ATS11=90 (DTMF dialing on/off duration=90 ms)

ATX2 (Dial tone detect, but not (U.S.A.) call progress detect)

❑ When used in the Auto Answer mode, the S0 register must be set with a value

of 3 or 4. This ensures:

(a) a person calling your modem will hear a short burst of ringing before the

modem answers. This confirms that the call has been successfully switched through the network.

(b) caller identification information (which occurs between the first and

second ring cadences) is not destroyed.

❑ The preferred method of dialing is to use DTMF tones (ATDT...) as this is

faster and more reliable than pulse (decadic) dialing. If for some reason you must use decadic dialing, your communications program must be set up to record numbers using the following translation table as this modem does not implement the New Zealand “Reverse Dialing” standard.

Number to be dialed: 0 1 2 3 4 5 6 7 8 9

Number to program into computer: 0 9 8 7 6 5 4 3 2 1

Note that where DTMF dialing is used, the numbers should be entered normally.

❑ The transmit level from this device is set at a fixed level and because of this

there may be circumstances where the performance is less than optimal. Before reporting such occurrences as faults, please check the line with a standard Telepermitted telephone, and only report a fault if the phone performance is impaired.

❑ It is recommended that this equipment be disconnected from the Telecom line

during electrical storms.

❑ When relocating the equipment, always disconnect the Telecom line connec-

tion before the power connection, and reconnect the power first.

❑ This equipment may not be compatible with Telecom Distinctive Alert ca-

dences and services such as FaxAbility.

NOTE THAT FAULT CALLOUTS CAUSED BY ANY OF THE ABOVE CAUSES MAY INCUR A CHARGE FROM TELECOM

General conditions

As required by PTC 100, please ensure that this office is advised of any changes to the specifications of these products which might affect compliance with the relevant PTC Specifications.

The grant of this Telepermit is specific to the above products with the marketing description as stated on the Telepermit label artwork. The Telepermit may not be assigned to other parties or other products without Telecom approval.

A Telepermit artwork for each device is included from which you may prepare any number of Telepermit labels subject to the general instructions on format, size and colour on the attached sheet.

The Telepermit label must be displayed on the product at all times as proof to purchasers and service personnel that the product is able to be legitimately connected to the Telecom network.

The Telepermit label may also be shown on the packaging of the product and in the sales literature, as required in PTC 100.

The charge for a Telepermit assessment is $337.50. An additional charge of $337.50 is payable where an assessment is based on reports against non-Telecom New Zealand Specifications. $112.50 is charged for each variation when submitted at the same time as the original.

An invoice for $NZ1237.50 will be sent under separate cover.

Optical disk drive standards

TOSHIBA TECRA S1 series computer is shipped with one of the following drives preinstalled : CD-ROM, DVD-ROM, CD-R/RW, CD-RW/DVD-ROM, DVD-R/RW or DVD Multi drive. The drive has one of the following labels :

CLASS 1 LASER PRODUCT

LASER KLASSE 1

LUOKAN 1 LASERLAITE

APPAREIL A LASER DE CLASSE1

KLASS 1 LASER APPARAT

Before it is shipped, the Class 1 Laser is certified to meet the United States

Chapter 21 Standards of the Department of Health and Human Services (DHHS 21

CFR).

For any other country, the drive is certified to meet the Class 1 Laser stan-

dards of IEC825 and EN60825.

Preface

Manual contents ..................................................................................xx

Conventions ........................................................................................xxi

Abbreviations...................................................................................... xxi

Icons ................................................................................................... xxi

Keys ................................................................................................... xxi

Key operation..................................................................................... xxii

Display............................................................................................... xxii

Messages .......................................................................................... xxii

General Precautions

Stress injury ......................................................................................xxiv

Heat injury.........................................................................................xxiv

Pressure or impact damage ............................................................xxiv

PC card overheating .........................................................................xxv

Mobil phone .......................................................................................xxv

Central Processing Unit("CPU") Performance Disclaimer ..............xxv

Chapter 1 Introduction

Equipment checklist ........................................................................... 1-1

Features .............................................................................................. 1-3

Special features.................................................................................. 1-9

Utilities............................................................................................... 1-11

Options .............................................................................................. 1-12

Chapter 2 The Grand T our

Front with the display closed ............................................................ 2-1

Left side............................................................................................... 2-2

Right side ............................................................................................ 2-3

Back side............................................................................................. 2-4

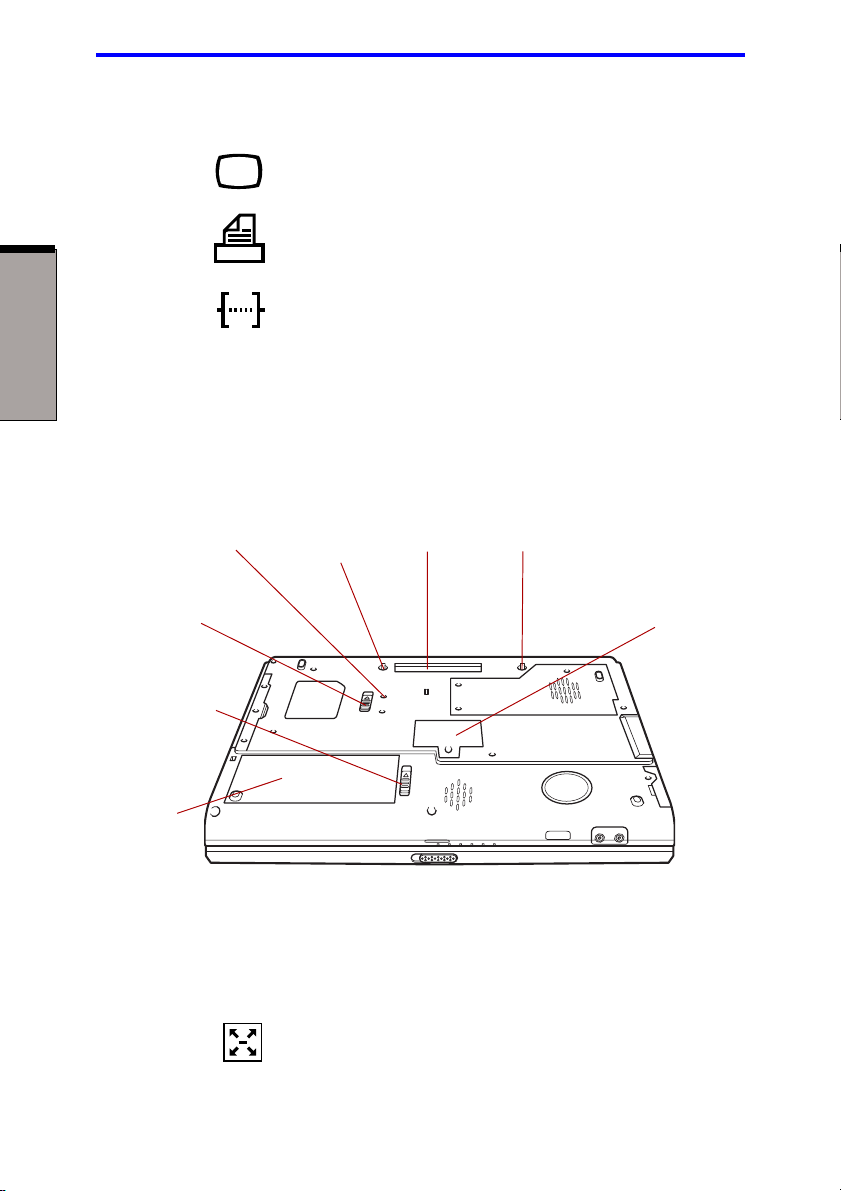

Underside ............................................................................................ 2-6

Front with the display open............................................................... 2-8

xiv

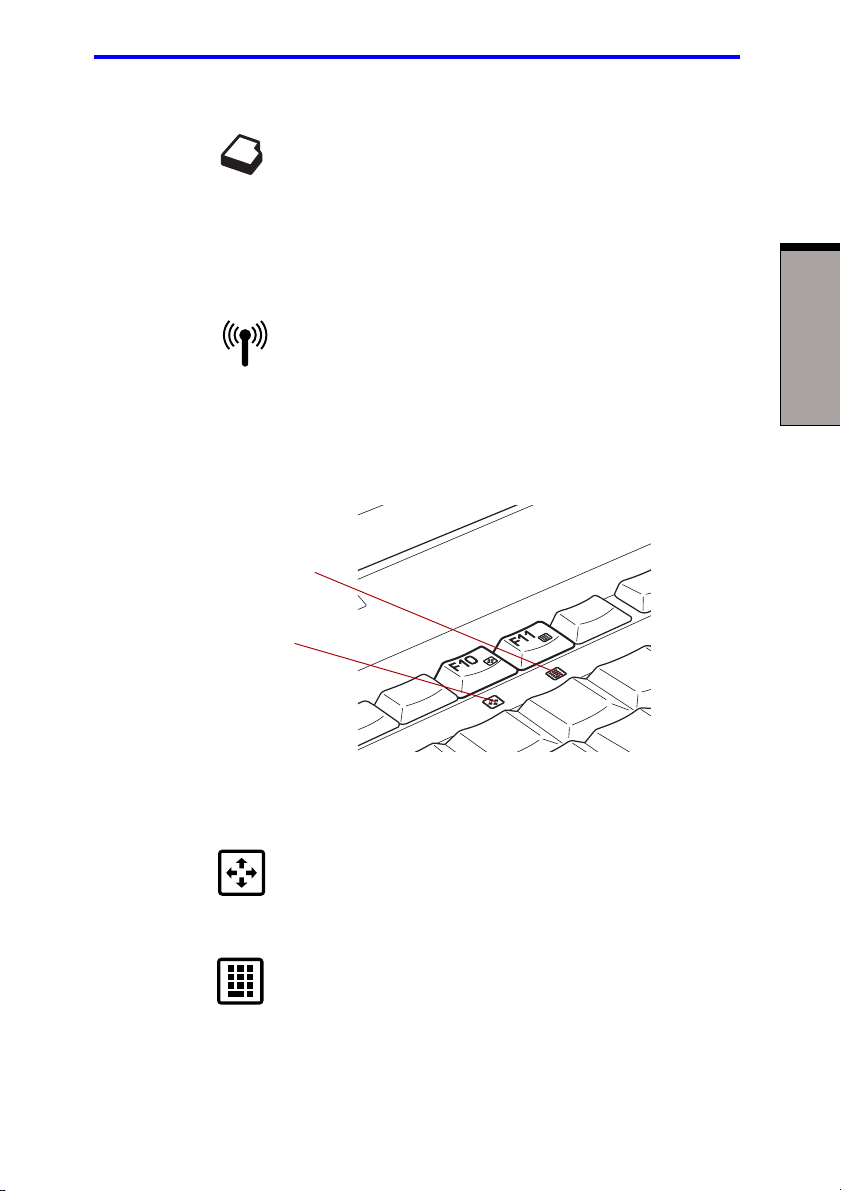

System indicators ............................................................................. 2-10

USB diskette drive ............................................................................ 2-12

Selim Select Bay modules .............................................................. 2-13

DVD-ROM drive(Black) .....................................................................2-13

CD-ROM drive(Black)........................................................................ 2-15

CD-RW/DVD-ROM drive(Black) ........................................................ 2-15

DVD Multi drive(Black)...................................................................... 2-17

Slim Select Bay HDD adaptor(Black) ............................................... 2-18

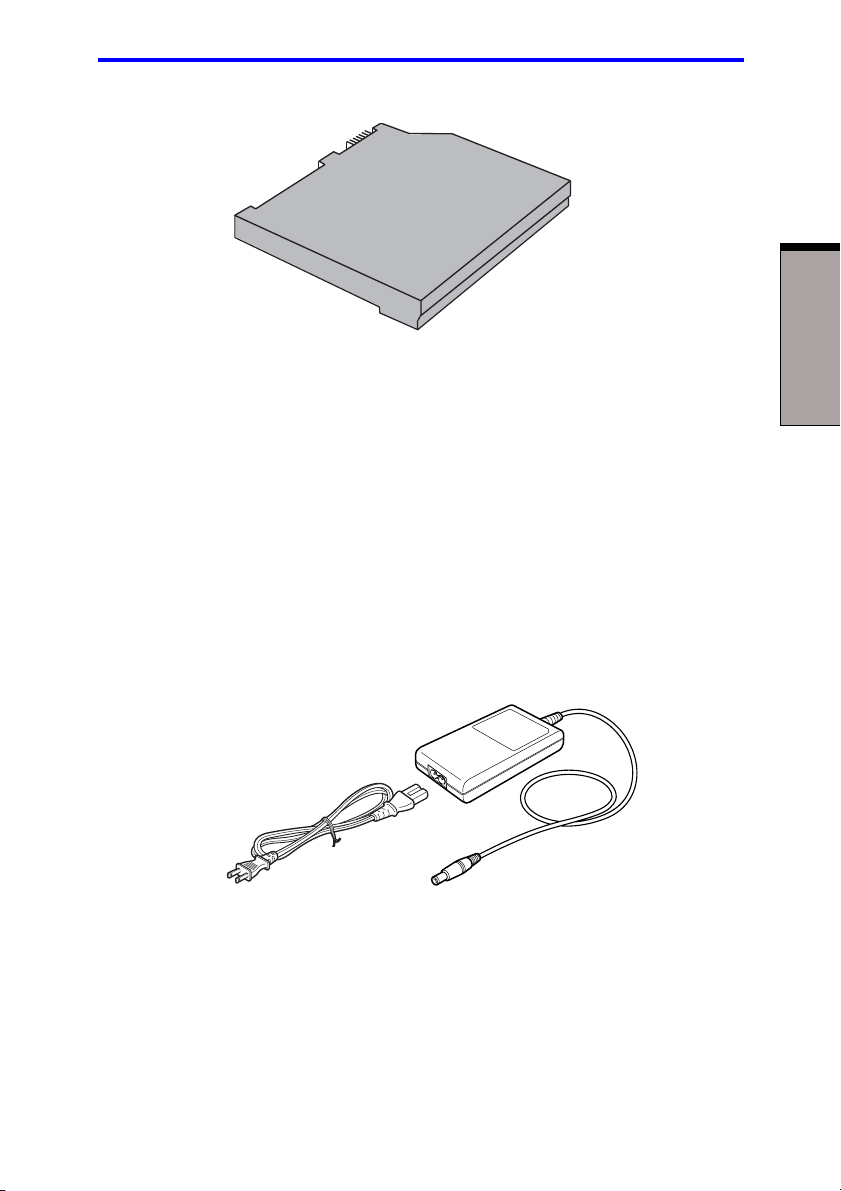

Slim Select Bay 2nd battery pack(Black) ......................................... 2-18

AC adaptor ........................................................................................ 2-19

Chapter 3 Getting Started

Setting up your work space............................................................... 3-2

General conditions .............................................................................. 3-2

Placement of computer ....................................................................... 3-2

Seating and posture ............................................................................ 3-3

Lighting ............................................................................................... 3-4

Work habits ........................................................................................ 3-4

Connecting the AC adaptor ............................................................... 3-5

Opening the display ........................................................................... 3-6

Turning on the power ........................................................................ 3-6

Starting up for the first time............................................................... 3-7

Turning off the power ........................................................................ 3-7

Shut Down mode (Boot mode) ............................................................ 3-7

Hibernation mode ................................................................................ 3-8

Standby mode .................................................................................. 3-10

Restarting the computer .................................................................. 3-12

Restoring the preinstalled software from the

Product Recovery CD-ROM .............................................................. 3-13

Chapter 4 Operating Basics

TOSHIBA Dual Pointing Device ......................................................... 4-1

Using the Touch Pad...........................................................................4-2

Using the AccuPoint ........................................................................... 4-2

AccuPoint precautions........................................................................4-2

Replacing the cap ............................................................................... 4-3

Using the USB diskette drive ............................................................. 4-3

Connecting 3 1/2" diskette drive.......................................................... 4-4

Disconnecting 3 1/2" diskette drive ..................................................... 4-4

Changing Slim Select Bay modules ................................................. 4-5

Removing a module ............................................................................. 4-5

Installing a module .............................................................................. 4-6

Using optical media drives ................................................................ 4-7

Loading discs......................................................................................4-7

Removing discs................................................................................. 4-10

Writing CDs on CD-RW/DVD-ROM drive .......................................... 4-11

Before writing or rewiting ................................................................... 4-12

When writing or rewiting .................................................................... 4-13

Writing CDs on DVD Multi drive....................................................... 4-13

Important message ........................................................................... 4-13

Disclaimer......................................................................................... 4-14

Before writing or rewiting ................................................................... 4-17

When writing or rewiting .................................................................... 4-18

Drag'n Drop CD ................................................................................. 4-18

Data Verification................................................................................ 4-19

Media care ........................................................................................ 4-20

CD/DVDs.......................................................................................... 4-20

Diskettes .......................................................................................... 4-20

Using the microphone ...................................................................... 4-21

Modem............................................................................................... 4-21

Region selection ............................................................................... 4-22

Properties menu................................................................................ 4-23

Connecting........................................................................................ 4-25

Disconnecting ................................................................................... 4-25

Wireless communications................................................................ 4-26

Wireless LAN.................................................................................... 4-26

Bluetooth wireless technology........................................................... 4-26

Wireless communication switch........................................................ 4-27

Wireless communication Indicator .................................................... 4-27

LAN .................................................................................................... 4-28

Connecting LAN cable ...................................................................... 4-28

Disconnecting LAN cable .................................................................. 4-29

Cleaning the computer .................................................................... 4-29

Moving the computer ....................................................................... 4-30

Heat dispersal ................................................................................... 4-30

Chapter 5 The Keyboard

Typewriter keys .................................................................................. 5-1

F1 … F12 function keys ...................................................................... 5-2

xvi

Soft keys: Fn key combinations......................................................... 5-2

Emulating keys on enhanced keyboard............................................... 5-2

Hotkeys .............................................................................................. 5-4

Emulating Fn key on external keyboard .............................................. 5-7

Fn Sticky key ..................................................................................... 5-7

Windows special keys ........................................................................ 5-8

Keypad overlay................................................................................... 5-8

Turning on the overlays ....................................................................... 5-8

Temporarily using normal keyboard (overlay on) .................................. 5-9

Temporarily using overlay (overlay off) ............................................... 5-10

Temporarily changing modes............................................................. 5-10

Generating ASCII characters ........................................................... 5-10

Chapter 6 Power and Power-Up Modes

Power conditions................................................................................ 6-1

Power indicators ................................................................................ 6-4

Battery indicators................................................................................ 6-4

DC IN indicator.................................................................................... 6-4

Power indicator ................................................................................... 6-5

Battery types ....................................................................................... 6-5

Main battery........................................................................................ 6-5

Secondary battery (option) .................................................................. 6-6

Real time clock battery ....................................................................... 6-6

Care and use of the battery pack ...................................................... 6-7

Safety precautions .............................................................................. 6-7

Charging the batteries ....................................................................... 6-10

Monitoring battery capacity ............................................................... 6-11

Maximizing battery operating time .................................................... 6-12

Retaining data with power off............................................................. 6-13

Extending battery life ........................................................................ 6-13

Replacing the battery pack.............................................................. 6-14

Removing the battery pack................................................................ 6-14

Installing the battery pack ................................................................. 6-15

Starting the computer by password ................................................ 6-16

Chapter 7 HW Setup and Passwords

HW Setup ............................................................................................ 7-1

Accessing HW Setup.......................................................................... 7-1

HW Setup window............................................................................... 7-2

xvii

Chapter 8 Optional Devices

PC cards .............................................................................................. 8-2

Installing a PC card............................................................................. 8-2

Removing a PC card ........................................................................... 8-3

SD cards .............................................................................................. 8-4

Installing an SD card........................................................................... 8-4

Removing an SD card.......................................................................... 8-5

Memory expansion............................................................................. 8-6

Installing memory module ................................................................... 8-6

Removing memory module .................................................................. 8-8

Additional battery pack(9Cell and 6 Cell)......................................... 8-9

Slim Select Bay 2nd battery pack ..................................................... 8-9

Additional AC adaptor........................................................................ 8-9

Slim Select Bay HDD adaptor(Black) ................................................ 8-9

USB FDD Kit ...................................................................................... 8-11

Advanced Port Replicator II............................................................. 8-11

Parallel printer ................................................................................. 8-12

External monitor............................................................................... 8-12

Television.......................................................................................... 8-13

PS/2 mouse ....................................................................................... 8-14

PS/2 keyboard .................................................................................. 8-14

Security lock ..................................................................................... 8-15

Chapter 9 Troubleshooting

Problem solving process.................................................................... 9-1

Preliminary checklist........................................................................... 9-1

Analyzing the problem ........................................................................ 9-2

Hardware and system checklist......................................................... 9-3

System start-up .................................................................................. 9-3

Self test .............................................................................................. 9-4

Power ................................................................................................. 9-4

Overheating power down .....................................................................9-5

AC power ............................................................................................ 9-5

Battery................................................................................................ 9-6

Password............................................................................................ 9-7

Keyboard ............................................................................................ 9-7

LCD panel ........................................................................................... 9-8

Hard disk drive .................................................................................... 9-9

CD-ROM drive(Black) .......................................................................... 9-9

DVD-ROM drive(Black)...................................................................... 9-10

xviii

CD-RW/DVD-ROM drive(Black)......................................................... 9-12

Diskette drive .................................................................................... 9-13

Infrared port....................................................................................... 9-14

Printer............................................................................................... 9-14

Pointing device.................................................................................. 9-15

Touch Pad/AccuPoint ....................................................................... 9-15

PS/2 mouse...................................................................................... 9-16

Serial mouse..................................................................................... 9-17

USB mouse ...................................................................................... 9-17

PC card ............................................................................................ 9-18

SD card ............................................................................................ 9-19

Monitor ............................................................................................. 9-19

Sound system .................................................................................. 9-20

TV output signal................................................................................ 9-20

USB.................................................................................................. 9-21

Modem ............................................................................................. 9-22

Standby/Hibernation.......................................................................... 9-23

LAN .................................................................................................. 9-24

Wireless LAN.................................................................................... 9-24

Bluetooth .......................................................................................... 9-25

TOSHIBA support .............................................................................. 9-26

Before you call .................................................................................. 9-26

Where to write .................................................................................. 9-26

Appendixes

Appendix A

Specifications .....................................................................................A-1

Appendix B

Display Controller and Modes ...........................................................B-1

Appendix C

AT Commands ....................................................................................C-1

Appendix D

S-registers ...........................................................................................D-1

Appendix E

V.90 ......................................................................................................E-1

Appendix F

Internal Modem Guide .......................................................................F-1

xix

Appendix G

Wireless LAN...................................................................................... G-1

Appendix H

AC Power Cord and Connectors........................................................H-1

Appendix I

Parts Numbers .....................................................................................I-1

Glossary

Index

Preface

Congratulations on your purchase of the TOSHIBA TECRA S1series computer. This powerful, lightweight notebook computer is designed to provide years of reliable, high-performance computing.

This manual tells how to set up and begin using your TECRA S1series computer. It also provides detailed information on configuring your computer, basic operations and care, using optional devices and troubleshooting.

If you are a new user of computers or if you’re new to portable computing, first read over the Introduction and The Grand Tour chapters to familiarize yourself with the computer’s features, components and accessory devices. Then read Getting Started for step-by-step instructions on setting up your computer.

If you are an experienced computer user, please continue reading the preface to learn how this manual is organized, then become acquainted with this manual by browsing through its pages. Be sure to look over the Special features section of the Introduction, to learn about features that are uncommon or unique to the computers and carefully read HW Setup and Passwords. If you are going to install PC cards or connect external devices such as a printer, be sure to read Chapter 8, Optional

Devices.

Manual contents

This manual is composed of nine chapters, nine appendixes, a glossary, and an index.

Chapter 1, Introduction, is an overview of the computer’s features, capabilities, and options.

Chapter 2, The Grand Tour, identifies the components of the computer and briefly explains how they function.

Chapter 3, Getting Started, provides a quick overview of how to begin operating your computer and gives tips on safety and designing your work area.

Chapter 4, Operating Basics, includes tips on care of the computer and on using the AccuPoint , Slim Select Bay modules, optical media drive, external diskette drive, Wireless LAN, LANs, microphone and internal modem.

Chapter 5, The Keyboard, describes special keyboard functions including the keypad overlay and hotkeys.

xxi

User's Manual

Chapter 6, Power and Power-Up Modes, gives details on the computer’s power resources and battery save modes.

Chapter 7, HW Setup and Passwords, explains how to configure the computer using the HW Setup program. It also tells how to set a password.

Chapter 8, Optional Devices, describes the optional hardware available. Chapter 9, Troubleshooting, provides helpful information on how to perform some

diagnostic tests, and suggests courses of action if the computer doesn’t seem to be working properly.

The Appendixes provide technical information about your computer. The Glossary defines general computer terminology and includes a list of acronyms

used in the text. The Index quickly directs you to the information contained in this manual.

Conventions

This manual uses the following formats to describe, identify, and highlight terms and operating procedures.

Abbreviations

On first appearance, and whenever necessary for clarity, abbreviations are enclosed in parentheses following their definition. For example: Read Only Memory (ROM). Acronyms are also defined in the Glossary.

Icons

Icons identify ports, dials, and other parts of your computer. The indicator panel also uses icons to identify the components it is providing information on.

Keys

The keyboard keys are used in the text to describe many computer operations. A distinctive typeface identifies the kejy top symbols as they appear on the keyboard. For example, Enter identifies the Enter key.

xxii

Conventions

Key operation

Some operations require you to simultaneously use two or more keys. We identify such operations by the key top symbols separated by a plus sign (+). For example, Ctrl + C means you must hold down Ctrl and at the same time press C. If three keys are used, hold down the first two and at the same time press the third.

ABC When procedures require an action such as clicking an icon or entering

text, the icon’s name or the text you are to type in is represented in the type face you see to the left.

Display

ABC Names of Windows or icons or text generated by the computer that

appears on its display screen is presented in the type face you see to the left.

Messages

Messages are used in this manual to bring important information to your attention. Each type of message is identified as shown below.

CAUTION: Pay attention! A caution informs you that improper use of equipment or failure to follow instructions may cause data loss or damage your equipment.

NOTE: Please read. A note is a hint or advice that helps you make best use of your equipment.

xxiii

User's Manual

General Precautions

TOSHIBA computers are designed to optimize safety, minimize strain and withstand the rigors of portability. However, certain precautions should be observed to further reduce the risk of personal injury, damage to the computer or impared performance. Be certain to read the general precautions below and to note the cautions included in the text of the manual.

Stress injury

Carefully read the Instruction Manual for Safety & Comfort. It contains information on prevention of stress injuries to your hands and wrists than can be caused by extensive keyboard use. Chapter 3, Getting Started, also includes information on work space design, posture and lighting that can help reduce physical stress.

Heat injury

◆ Avoid prolonged physical contact with the computer. If the computer is used

for long periods, its surface can become very warm. While the temperature will not feel hot to the touch, if you maintain physical contact with the computer for a long time (if you rest the computer on your lap, or if you keep your hands on the palm rest, for example) your skin might suffer low-heat injury.

◆ If the computer has been used for a long time, avoid direct contact with the

metal plate supporting the I/O ports. It can become hot.

◆ The surface of the AC adaptor can become hot when in use. This condition

does not indicate a malfunction. If you need to transport the AC adaptor, disconnect it and let it cool before moving it.

◆ Do not lay the AC adaptor on a material that is sensitive to heat. The material

could be damaged.

Pressure or impact damage

Do not apply heavy pressure to the computer or subject it to strong impact. Excessive pressure or impact can cause damage to computer components or otherwise cause malfunctions.

xxiv

PC card overheating

Some PC cards can become hot with prolonged use. Overheating of a PC card can result in errors or instability in the PC card operation. Also be careful when you remove a PC card that has been used for a long time.

Mobile phone

Use of mobile phones can interfere with the audio system. Computer opreation is not impaired but it is recommended that a distance of 30 cm be maintained between the computer and a mo-bile phone in use.

Central Processing Unit (“CPU”) Performance Disclaimer

CPU performance in your computer product may vary from specifications under the following conditions:

◆ Use of certain peripheral products

◆ Use of battery power instead of AC power

◆ Use of certain multimedia games or videos with special effects

◆ Use of standard telephone lines or low speed network connections

◆ Use of complex modeling software, such as high end computer aided design

applications

◆ Use of the computer in areas with low air pressure (high altitude > 1,000

meters or > 3,280 feet above sea level)

◆ Use of the computer at temperatures outside the range of 5°C to 35°C (41°F

to 95°F) or > 25°C (77°F) at high altitude (all temperature references are

approximate). CPU performance may also vary from specifications due to design configuration. Under some conditions, your computer product may automatically shut-down.

This is a normal protective feature designed to reduce the risk of lost data or damage to the product when used outside recommended conditions. To avoid risk of lost data, always make back-up copies of data by periodically storing it on an external storage medium. For optimum performance, use your computer product only under recommended conditions. Read additional restrictions in bundled documents. Contact TOSHIBA Service and Support for more information.

xxv

Chapter 1

Introduction

This chapter provides an equipment checklist, and it identifies the computer’s features, options and accessories.

CAUTION: Some of the features described in this manual may not function properly if you use an operating system that was not preinstalled by TOSHIBA.

Equipment checklist

Carefully unpack your computer. Save the box and packing materials for future use.

Hardware

Check to make sure you have all the following items:

❑ TECRA S1 series Portable Personal Computer ❑ Universal AC adaptor and power cord ❑ USB diskette drive (Provided with some models) ❑ Modular cable

NTRODUCTION

1-1

User's Manual

Software

Windows XP Professional Service Pack 1

◆ The following software is preinstalled:

INTRODUCTION

• Microsoft® Windows XP Professional

• Microsoft Internet Explorer

• Modem driver

• Display Drivers for Windows

• TOSHIBA Utilities

• Wireless LAN driver

• Bluetooth driver

• Sound Driver for Windows

• DVD Video Player

• LAN Drivers

• Infrared Device Driver

• TOSHIBA Dual Pointing Device utility

• TOSHIBA Power Saver

• TOSHIBA Console

• Online manual

◆ Documentation:

• TECRA S1 Resorce Guide

• Microsoft Windows XP manual package

• Instruction Manual for Safety & Comfort

• End User License Agreement

◆ Product Recovery CD-ROM

Windows 2000 Service Pack 3

◆ The following software is preinstalled:

• Microsoft® Windows 2000

• Microsoft Internet Explorer 6.0

• Modem driver

1-2

• Display Driver

• TOSHIBA Utilities

• Wireless LAN driver

• Bluetooth driver

• Sound Driver

• DVD Video Player

• LAN Drivers

• Infrared Device Driver

• TOSHIBA Dual Pointing Device utility

• TOSHIBA Power Saver

• TOSHIBA Console

• Online manual

◆ Documentation:

• Microsoft Windows 2000 manual package

• The same documentation that is supplied with Windows XP Professional.

◆ Product Recovery CD-ROM

If any of the items are missing or damaged, contact your dealer immediately.

Features

NTRODUCTION

Features

The computer uses TOSHIBA’s advanced Large Scale Integration (LSI), Complementary Metal-Oxide Semiconductor (CMOS) technology extensively to provide compact size, minimum weight, low power usage, and high reliability. This computer incorporates the following features and benefits:

Processor

Built-in The computer is equipped with an Intel®processor, on-die

32KB instruction L1 cache and 1MB L2 cache memory.

1.3 GHz Mobile Intel® Pentium® M Processor 1.3 GHz Support Enhanced Intel® SpeedStep™ technology

1.4 GHz Mobile Intel® Pentium® M Processor 1.4 GHz Support Enhanced Intel® SpeedStep™ technology

1-3

User's Manual

INTRODUCTION

Memory

Level 2 cache A 1MB level 2 cache is provided to maximize performance.

Disks

Hard disk drive The computer has an integrated, 2 1/2" hard disk drive

Diskette drive 3 1/2" 1.44-megabyte or 720-kilobyte connects to the USB

CD-ROM drive A maximum 24-speed CD-ROM drive supports the follow-

1.5 GHz Mobile Intel® Pentium® M Processor 1.5 GHz Support Enhanced Intel® SpeedStep™ technology

1.6 GHz Mobile Intel® Pentium® M Processor 1.6 GHz Support Enhanced Intel® SpeedStep™ technology

Slots PC2100 128 or 256 MB or 512MB memory modules can be

installed in the two memory slots for a maximum of 1GB system memory.

Video RAM 32 MB of RAM is provided for video display.

(HDD) for nonvolatile storage of data and software. It comes in the following sizes.

• 20.0GB(18.63 billion bytes)

• 30.0GB(27.94 billion bytes)

• 40.0GB(37.26 billion bytes)

• 60.0GB(55.89 billion bytes)

port. (Windows® XP does not support 720-kilobyte diskettes.)

(Black) ing formats:

• Photo CD™ • CD-R (read only)

• CD-ROM • CD-Rewritable (read only)

• CD-DA • CD-Text

• CD-ROM x A Mode 2 (Form1, Form2)

• Enhanced CD (CD-EXTRA)

1-4

Features

DVD-ROM drive A full-size, DVD-ROM drive module lets you run either

(Black) digital versatile or compact disks without using an adaptor.

It runs DVD-ROMs at maximum 8 speed and CD-ROMs at maximum 24 speed. This drive supports the same formats as the CD-ROM drive plus the following:

• DVD-ROM • DVD-Video

CD-RW/DVD-ROM Some models are equipped with a full-size, CD-RW/

drive(Black) DVD-ROM drive module that lets you run CD/DVDs

without using an adaptor. It reads DVD-ROMs at maximum 8 speed and CD-ROMs at maximum 24 speed. It writes CDR at up to 24 speed and CD-RW at up to 24 speed. See Chapter 4, Operating Basics, for details. For reading, this drive supports the same formats as the DVD-ROM drive.

DVD Multi drive A full-size DVD Multi drive lets you read/write DVD-R,

(Black) DVD-RW, DVD-RAM, CD-R and CD-RW discs. DVD

Multi media can be read, written and erased with random access like a diskette. Data can be rewritten hundreds of thousands of times over the life of a disc. For reading, this drive supports the same formats as the DVD-ROM drive. Refer to chapter 2, The Grand Tour, for details.

NTRODUCTION

Display

The computer’s LCD panel supports high-resolution video graphics. The screen can be set at a wide range of viewing angles for maximum comfort and readability.

Built-in Thin-film transistor color LCD is available in three sizes:

• 14.1" XGA-TFT, 1024 horizontal x 768 vertical pixels

• 15.0" XGA-TFT, 1024 horizontal x 768 vertical pixels

• 15.0" UXGA-TFT, 1600 horizontal x 1200 vertical pixels

Graphics controller A 64 bit graphics controller maximizes display performance.

Refer to Appendix B for more information.

1-5

User's Manual

Keyboard

Built-in 85 keys or 86 keys, compatible with IBM enhanced

keyboard, embedded numeric overlay, dedicated cursor

INTRODUCTION

control, and keys. See Chapter 5.The Keyboard, for details.

TOSHIBA Dual Pointing Device

Built-in A Touch Pad and control buttons in the palm rest enable

control of the on-screen pointer and scrolling of windows.

AccuPoint This pointer control stick, located in the center of the

keyboard, provides convenient control of the cursor.

Power

Battery pack The computer is powered by one rechargeable lithium-ion

battery pack.

RTC battery The internal RTC battery backs up the Real Time Clock

(RTC) and calendar.

AC adaptor The universal AC adaptor provides power to the system

and recharges the batteries when they are low. It comes with a detachable power cord. Because it is universal, it can receive a range of AC voltage between 100 and 240 volts.

Ports

Headphone Enables connection of a stereo headphone

Microphone Enables connection of a monaural microphone

Parallel Parallel printer or other parallel device (ECP compatible).

Serial RS-232C compatible port (16550 UART compatible)

Infrared This infrared port is compatible with Infrared Data

Association (IrDA 1.1) Fast InfraRed (FIR) standards. It enables cableless 4 Mbps data transfer with IrDA 1.1 compatible external devices.

External monitor A 15-pin, analog VGA port supports VESA DDC2B

compatible functions.

1-6

Features

PS/2 keyboard/ Connects an external PS/2 keyboard or PS/2 mouse.

mouse

Docking Special port for connecting an optional Port Replicator.

Universal Serial Bus Three Universal Serial Bus (USB) enables chain connec-

tion of a number of USB-equipped devices to one port on your computer.

Slots

PC card A PC card slot accommodates:

Two 5 mm Type II One 10.5 mm Type III Refer to Chapter 8, Optional Devices, for details

SD card An SD card slot accommodates :

SD card Refer to Chapter 8, Optional Devices, for details.

Multimedia

NTRODUCTION

Sound System Sound Blaster™ Pro™ and Windows Sound System

compatible sound system provides internal speaker as well as jacks for an external microphone and headphone. It also has a volume control dial.

Video-out jack This RCA jack lets you transfer NTSC or PAL data to

external devices.

Communications

Modem An internal modem provides capability for data and fax

communication. It supports V.92(US/Canda) and V.90 (other countries/regions). Refer to Appendix E for details on V.90. The speed of data transfer and fax depends on analog telephone line conditions. It has a modem jack for connecting to a telephone line.

LAN The computer is equipped with a LAN card that supports

Ethernet LAN (10 Mbit/s, 10BASE-T) and Fast Ethernet LAN (100 Mbit/s, 100BASE-Tx). It is preinstalled as a standard device in some markets.

1-7

User's Manual

Wireless LAN Some computers in this series are equipped with a wireless

INTRODUCTION

Bluetooth Bluetooth wireless technology eliminates the need for

Slim Select Bay

LAN mini-PCI card that is compatible with other LAN systems based on Direct Sequence Spread Spectrum radio technology that complies with the IEEE 802.11 Standard (Revision A or B). Revision-A supports data transfer up to 54 Mbit/s. Revision-B supports data transfer up to 11 Mbit/s. Turbo Mode (USA,Canada only) supports data transfer up to 108 Mbit/s. It has Frequency Channel Selection (5 GHz or 2.4 GHz) and allows roming overmultiple channels.

cables between electronic devices such as computers and printers. Bluetooth provides fast, reliable, and secure wireless communication in a small space.

Modules Slim Select Bay is a single-drive bay that accommodates a

DVD-ROM drive, CD-RW/DVD-ROM drive, CD-ROM drive, DVD Multi drive, optional CD-R/RW drive, optional Slim Select Bay HDD adaptor, optional Slim Select Bay 2nd battery pack . The TOSHIBA Mobile Extension enables hot insertion of modules when you are using a plug and play operating system.

Security

Security lock slot Connects an optional security lock to anchor the computer

to a desk or other large object

Software

Operating System Windows®XP Professional or Windows®2000 is available.

Refer to the preinstalled software section at the front of this chapter.

TOSHIBA Utilities A number of utilities and drivers are preinstalled to make

your computer more convenient to use. Refer to the Utilities section in this chapter.

Plug and Play When you connect an external device to the computer or

when you install a component, Plug and Play capability enables the system to recognize the connection and make the necessary configurations automatically.

1-8

Special features

The following features are either unique to TOSHIBA computers or are advanced features, which make the computer more convenient to use.

Hotkeys Key combinations let you quickly modify the system

configuration directly from the keyboard without running a system configuration program.

Keypad overlay Keys with gray lettering make up the keypad overlay,

which lets you use the keyboard for ten-key operations or cursor control.

Display automatic This feature automatically cuts off power to the internal

power off display when there is no keyboard input for a time

specified. Power is restored when any key is pressed. You can specify the time in the Turn off monitor item of the Power Save Mode window in Power Saver.

HDD automatic This feature automatically cuts off power to the hard disk

power off drive when it is not accessed for a time specified. Power is

restored when the hard disk is accessed. You can specify the time in the Turn off hard disks item of the Power Save Mode window in Power Saver.

NTRODUCTION

System automatic This feature automatically turns off power to the system

power off when there is no input for a time specified. You can specify

the time in the When the system standby time has passed item of the System Power Mode window in Power Saver.

Battery save mode This feature lets you save battery power. You can specify

the Power Save Mode in the Running on batteries item of the Power Save Modes window in Power Saver.

Power on password Three levels of password security are available: supervisor

and user. This feature prevents unauthorized access to your computer.

Instant security A hotkey function blanks the screen and disables the

computer providing quick and easy data security.

Panel power on/off This feature turns power to the computer off when the

display panel is closed and turns it back on when the panel is opened. You can specify the setting in the When I close the lid item of the System Power Mode window in Power Saver.

1-9

User's Manual

Auto power on This feature lets you set a time and date for the computer

INTRODUCTION

Heat dispersal To protect from overheating, the CPU has an internal

to turn on automatically. The feature is useful for receiving remote communications while you are asleep or away. You can specify the setting in Scheduled Tasks.

Standby If you have to interrupt your work, you can turn off the

power without exiting from your software. Data is maintained in the computer’s main memory. When you turn on the power again, you can continue working right where you left off.

Hibernation This feature lets you turn off the power without exiting

from your software. The contents of main memory is saved to the hard disk, when you turn on the power again, you can continue working right where you left off.

temperature sensor. If the computer’s internal temperature rises to a certain level, the cooling fan is turned on or the processing speed is lowered. Use the Fan item of the Power Save Modes window in Power Saver.

Maximum Turns on fan first, then if necessary Performance lowers CPU processing speed. Performance Uses a combination of fan and

lowering the CPU processing speed.

Battery optimized Lowers the CPU processing speed first,

then if necessary turns on the fan.

Utilities

This section describes preinstalled utilities and tells how to start them. For details on operations, refer to each utility’s online manual, help files or read.me files.

TOSHIBA Power Saver To access this power savings management program,

open the Control Panel and select the TOSHIBA Power Saver icon.

HW Setup This program lets you customize your hardware

settings according to the way you work with your computer and the peripherals you use. To start the utility, click the Windows Start button and click Control Panel. In the Control Panel, select the TOSHIBA HW Setup icon.

1-10

Utilities

TOSHIBA Controls This utility has four sections to let you do the following:

• Buttons: Assign applications to the Internet button (default setting is the browser) and to the TOSHIBA Console button (default setting is the TOSHIBA Console).

Fn-esse This Windows program lets you define your own

“shortcut” keys to quickly launch applications and speed your work in Windows. To start the utility, click the Windows Start button, point to All Programs, point to TOSHIBA Utilities and click Fn-esse.

DVD Video Player The DVD Video Player is used to play DVD-Video. It has

an on-screen interface and functions. Click Start, point to All Programs, point to InterVideo WinDVD 4, then click InterVideo WinDVD 4.

Bluetooth TOSHIBA This software enables communication between remote

Stack Bluetooth devices. Refer to the Quick Start Guide.

Drag’n Drop CD This easy-to-use software lets you record CDs with just a

few mouse clicks. You can create CDs in several formats including audio CDs that can be played on a standard stereo CD player and data CDs to store the files and folders on your hard drive. This software can be used only on model with CD-RW/DVD-ROM drive.

TOSHIBA Mobile This utility enables hot insertion of Slim Select Bay

Extension modules, that is, you can remove/insert Slim Select Bay

modules while the computer is on. To activate this utility, select TOSHIBA Mobile Extension from TOSHIBA Console.

ConfigFree ConfigFree is a suite of utilities to allow easy control of

communication device and network connections. ConfigFree also allows you to find communication probrems and create profiles for easy switching between location and communication networks.

You can boot ConfigFree from the menu bar as follows. Windows 2000: [Start] - [Programs] - [TOSHIBA ConfigFree] - [ConfigFree] Windows XP: [Start] - [All Programs] - [TOSHIBA ConfigFree] - [ConfigFree]

NTRODUCTION

TOSHIBA Dual This utility has the following functions:

Pointing Device utility To disable/enable TOSHIBA Dual Pointing Device with

Fn + F9 keys.To customize the functions of TOSHIBA

Dual Pointing Device easily.

1-11

User's Manual

Options

You can add a number of options to make your computer even more powerful and convenient to use. The following options are available:

INTRODUCTION

Memory expansion Two memory expansion slots are available for installing

128 or 256 or 512MB memory modules. The modules are PC2100, 200-pin, SO Dual In-line (SO-DIMM).

Main battery pack An additional battery pack 9 cells Type(PA3257*), 6 cells

(Black) Type(PA3248*) can be purchased from your TOSHIBA

dealer. The battery pack is identical to the one that came with your computer. Use it as a spare or replacement.

AC adaptor If you use your computer at more than one site, it may be

convenient to purchase an additional AC adaptor for each site so you will not have to carry the adaptor with you.

USB diskette drive A 3 1/2" diskette drive accommodates 1.44-megabyte or

720-kilobyte diskettes. It connects to a USB port. (Windows®XP does not support 720-kilobyte diskettes.)

Security lock A slot is available to attach a security cable to the com-

puter to deter theft.

Advanced Port The Port Replicator provides the ports available on the

Replicator II computer in addition to separate PS/2 mouse and PS/2

keyboard ports, a digital visual interface (DVI) port, i. LINK™ (IEEE1394) port, line-in jack and line-out jack.

NOTE: The TECRA S1 does not support the DVI and i.LINK ports on the Advanced Port ReplicatorII.

Slim Select Bay options

The following modules can be installed in the Slim Select Bay.

DVD-ROM drive (Black) Refer to the Features section for details.

CD-RW/DVD-ROM Refer to the Features section for details.

drive (Black) CD-ROM drive (Black) Refer to the Features section for details. DVD Multi drive (Black) Refer to the Features section for details.

1-12

Options

CD-R/RW drive (Black) A full-size, CD-R/RW drive module lets you record

CDs as well as run either digital versatile or compact discs without using an adaptor. It runs CDs and CDRs at maximum 24 speed and CD-RWs at maximum 14 speed. It writes CD-Rs at maximum 8 speed and CDRWs at maximum 8 speed.

This drive supports the following formats:

• Photo CD • CD-R

• CD-ROM • CD-Rewritable

• CD-DA • CD-Text

• CD-ROM XA Mode 2 (Form1, Form2)

• Enhanced CD (CD-EXTRA)

Slim Select Bay An adaptor lets you insert an optional HDD described in

HDD adaptor (Black) Chapter 8, Optional Devices.

Hard di sk drive You can increase your computer’s data storage capacity

with an additional 30 GB (27.94 billion bytes), 40 GB (37.26 billion bytes), and 60 GB (55.89 billion bytes) hard disk drive in the Slim Select Bay HDD adaptor.

Slim Select Bay 2nd The secondary battery increases your computer’s battery

battery pack power and operating time when a main battery is also

installed.

NTRODUCTION

1-13

Chapter 2

The Gra nd Tour

This chapter identifies the various components of your computer. Become familiar with each component before you operate the computer.

RAND

Front with the display closed

Figure 2-1 shows the computer’s front with its display panel in the closed position.

DISPLAY LATCH

WIRELESS

MICROPHONE

Display latch This latch secures the LCD panel in its closed position.

Microphone jack A standard 3.5 mm mini microphone jack enables connec-

HEADPHONE

Figure 2-1 Front of the computer with display closed

Slide the latch to open the display.

tion of a monaural microphone or other device for audio input.

COMMUNICATION SWITCH

INFRARED PORT

OUR

Headphone jack A standard 3.5 mm mini headphone jack enables connec-

tion of a stereo headphone (16 ohm minimum) or other device for audio output. When you connect headphones, the internal speaker is automatically disabled.

2-1

User's Manual

Infrared port This infrared port is compatible with Infrared Data Asso-

ciation (IrDA 1.1) standards. It enables cableless 4 Mbps,

1.152 Mbps, 115.2 Kbps, 57.6 Kbps, 38.4 Kbps, 19.2 Kbps or 9.6 Kbps data transfer with IrDA 1.1 compatible external devices.

Wireless Slide this switch toward the left of the computer to turn

communication on Wireless communication. Slide it toward the right of the

switch computer to turn off the functions.

On Off

THE GRAND TOUR

CAUTION: Set the switch to off in airplanes and hospitals. Check the Wireless communication indicator. It will stop glowing when the wireless communication.

Left side

Figure 2-2 shows the computer’s left side.

SECURITY LOCK SLOT

FAN VENT

Figure 2-2 The left side of the computer

VOLUME CONTROL

VIDEO-OUT

JACK

PC CARD

SLOT

SD CARD

SLOT

HARDDISK

SD CARD

INDICATOR

Security lock A security cable attaches to this slot. The optional security

slot cable anchors your computer to a desk or other large

object to deter theft.

Volume control Use this dial to adjust the volume of the system speaker

and headphones.

2-2

Right side

SD card slot This slot lets you transfer data from the device to your

computer.

SD card Indicator This LED glows green when the computer is accessing the

SD card Slot.

CAUTION: Keep foreign objects out of the SD card slot. A pin or similar object can damage the computer’s circuitry.

Fan vent Provides air flow for the fan.

CAUTION: Be careful not to block the fan vent. Also be careful to keep foreign objects out of the vents. A pin or similar object can damage the computer’s circuitry.

Video-out jack Plug an RCA video connector into this jack.

PC card slot A PC card slot can accommodate two 5 mm PC cards (Type

II) or one 10.5 mm PC card (Type III). The slot supports 16bit PC cards and CardBus PC cards.

CAUTION: Keep foreign objects out of the PC card slot. A pin or similar object can damage the computer’s circuitry.

Hard Disk Provides access to read and write.

Right side

RAND

OUR

Figure 2-3 shows the computer’s right side.

Figure 2-3 The right side of the computer

SLIM SELECT BAY USB

2-3

User's Manual

Slim Select Bay A CD-ROM drive, DVD-ROM drive, CD-R/RW drive, CD-

RW/DVD-ROM drive, DVD Multi drive, Slim Select Bay HDD adaptor, secondary battery pack can be installed in the Slim Select Bay.

Universal The Universal Serial Bus (USB) port comply with USB2.0

Serial Bus standards,which enables data transfer speeds 40 times faster

port than the USB1.1 standards.(The port also support USB1.1.)

CAUTION: Keep foreign objects out of the USB connectors. A pin or

THE GRAND TOUR

similar object can damage the computer’s circuitry. NOTE: Operation of all functions of all USB devices has not been

confirmed. some functions might not execute properly.

Back side

Figure 2-4 shows the computer’s back side.

USB PORTS

2-4

PS/2 KEYBOARD/

MOUSE PORT

DC IN 15V

LINK INDICATOR (GREEN)

EXTERNAL

MONITOR

Figure 2-4 The computer’s back side

PORT

PARALLEL

PORT

LAN ACTIVE INDICATOR (ORANGE)

LAN JACK

MODEM JACK

SERIAL PORT

Back side

Universal The Universal Serial Bus (USB) port comply with USB 2.0

Serial Bus standards, which enables data transfer speeds 40 times

Port faster than the USB 1.1 standards.(The port also support

USB 1.1)

CAUTION: Keep foreign objects out of the USB connectors. A pin or similar object can damage the computer’s circuitry.

NOTE: Operation of all functions of all USB devices has not been confirmed. some functions might not execute properly.

PS/2 keyboard/ Use this port to connect an external PS/2 compatible

mouse port keyboard or mouse. The computer automatically recog-

nizes which device you have connected when you turn on the power.

LAN jack This jack lets you connect to a LAN. The adaptor has

Ether

built-in support for Ethernet LAN (10 megabits per second, 10BASE-T) and Fast Ethernet LAN (100 megabits per second, 100BASE-Tx). The LAN has two indicators. See Chapter 4, Operating Basics, for detailes.

LAN active This indicator glows orange when data is being exchanged

indicator (orange) between the computer and the LAN.

Link indicator This indicator glows green when the computer is connect-

(green) ed to a LAN and the LAN is functioning properly.

Modem jack In areas where an internal modem is installed as standard

equipment, there is a modem jack that lets you use a modular cable to connect the modem directly to a telephone line. The modem is not supported in some marketing regions.

RAND

OUR

CAUTIONS:1. In case of a lightning storm, unplug the modem cable

from the telephone jack.

2. Do not connect the modem to a digital telephone line. A digital line will damage the modem.

DC IN 15V The AC adaptor connects to this socket. Use only the

model of AC adaptor that comes with the computer. Using the wrong adaptor can damage your computer.

2-5

User's Manual

External monitor This 15-pin port lets you connect an external monitor.

port

Parallel port This Centronics-compatible, 25-pin parallel port is used to

connect a parallel printer or other parallel device. This port supports Extended Capabilities Port (ECP) standard.

Serial port Use this 9-pin port to connect external serial devices such

as an external modem, a serial mouse or printer.

Underside

THE GRAND TOUR

Figure 2-5 shows the underside of the computer. Make sure the display is closed before turning over your computer.

SLIM SELECT BAY LOCK

DOCKING

HOLE

DOCKING

PORT

DOCKING

HOLE

MEMORY MODULE

SLIM SELECT

COVER

BAY LATCH

BATTERY PACK

LATCH

COVER

BATTERY

PACK

Figure 2-5 The underside of the computer

Docking holes These holes ensure a proper connection between the

computer and an optional Port Replicator.

Docking port Use this port to connect an optional Port Replicator.

CAUTION: Keep foreign objects out of the docking port. A pin or similar object can damage the computer’s circuitry.

2-6

Underside

Battery pack The battery pack powers the computer when the AC

adaptor is not connected. The Batteries section in Chapter 6, Power and Power-Up Modes, describes how to access the battery pack. Additional battery packs can be purchased from your TOSHIBA dealer to extend the computer’s battery operating time.

Battery pack Slide this latch to release or the battery pack.

cover latch This latch moves only when the computer is upside down.

RAND

Memory module This cover protects two memory module sockets. One

cover or two modules are preinstalled.

Slim Select Bay There are two screw holes next to the Slim Select Bay

lock latch. One screw is initially set in the front hole, which is

the unlock position. To lock the Slim Select Bay latch, set the screw in the back hole.

NOTE: Use a point size 0 Phillips screwdriver.

Slim Select Bay Slide this latch to free the Slim Select Bay for removal.

latch

OUR

2-7

User's Manual

Front with the display open

Figure 2-6 shows the front of the computer with the display open. To open the display, slide the display latch on the front of the computer and lift the display up. Position the display at a comfortable viewing angle.

DISPLAY SCREEN

STEREO SPEAKER (RIGHT)

THE GRAND TOUR

POWER

BUTTON

STEREO SPEAKER (LEFT)

ACCUPOINT

MIC

POWER SOURCE/

SYSTEM INDICATORS

ACCUPOINT CONTROL BUTTONS

Figure 2-6 The front with the display open

Display screen The full-color LCD displays high-contrast text and graphics

The computer's LCD consist of one of below: 14" XGA, LCD consists of up to 1024 × 768 pixels or dots. 15" XGA, LCD consists of up to 1024 × 768 pixels or dots. 15"UXGA, LCD consists of up to 1600 × 1200 pixels or dots. The computer has a Thin-Film Transistor (TFT) display. Refer to Appendix B.

When the computer operates on power through the AC adaptor, the display screen’s image will be somewhat brighter than when it operates on battery power. The lower brightness level is intended to save battery power.

TOUCH PAD

TOUCH PAD CONTROLBUTTONS

2-8

Front with the display open

Power button Press the power button to turn the computer’s power on

and off.

AccuPoint A pointer control device located in the center of the

keyboard is used to control the on-screen pointer. Refer to the AccuPoint section in Chapter 4, Operating Basics.

AccuPoint Control buttons below the keyboard let you select menu

control buttons items or manipulate text and graphics designated by the

on-screen pointer.

Power source/ LEDs let you monitor the status of various computer

system indicators functions. Details are given in the Indicators section.

Sensor switch This switch shuts down the computer when you close the

cover and the panel power on/off feature is enabled.

Stereo Speaker The speaker emits sound generated by your software as

well as audio alarms, such as low battery condition, generated by the system.

Touch Pad Moves the pointer and selects or activates items on the

screen. Can be set to perform other mouse functions, such as scrolling, selecting, and double-clicking.

Touch Pad Function like the left and right buttons on an external

Control Buttons mouse.

Microphone Input single-channel sound.Can be used whether the

notebook is open or closed.

RAND

OUR

2-9

User's Manual

System indicators

Figure 2-7 shows the system indicators, which light when various computer operations are in progress.

DC IN

THE GRAND TOUR

POWER

MAIN

BATTERY

DISK

SLIM SELECT BAY

Figure 2-7 System indicators

WIRELESS

COMMUNICATION

Power source/system indicators

DC IN The DC IN indicator glows green when DC power is

supplied from the AC power adaptor. If the adaptor’s output voltage is abnormal or if the power supply malfunctions, this indicator flashes orange.

Power The Power indicator glows green when the computer is

on. If you turn off the computer in Resume mode, this indicator blinks orange (one second on, two seconds off) while the computer shuts down.

Main battery The Main battery indicator shows the condition of the

charge. Green means fully charged and orange means being charged. Refer to Chapter 6, Power and Power-Up

Modes.

Disk The Disk indicator glows green when the computer is

accessing a disk drive.

2-10

System indicators

Slim Select Bay The Slim Select Bay indicator glows green when the

computer is accessing a CD-ROM drive, DVD-ROM drive, CD-R/RW drive, CD-RW/DVD-ROM drive, DVD multi drive, Slim Select Bay HDD adaptor or secondary battery pack in the Slim Select Bay. When the secondary battery is charging, the indicator glows orange.

Wireless The Wireless communication indicator glows orange

communication when the Wireless communication function is turned on.

The figures below show the positions of the keypad overlay indicators and the CapsLock indicator.

When the F10 key indicator glows the keypad overlay lets you enter numbers. When the F11 key indicator glows the keypad overlay lets you control the cursor.

NUMERIC MODE

RAND

OUR

ARROW MODE

Figure 2-8 Keypad overlay indicators

Arrow mode When the Arrow mode indicator lights green, you can

use the keypad overlay (white labeled keys) as cursor keys. Refer to the Keypad overlay section in Chapter 5,

The Keyboard.

Numeric mode You can use the keypad overlay (white labeled keys) for

numeric input when the Numeric mode indicator lights green. Refer to the Keypad overlay section in Chapter 5,

The Keyboard.

When the CapsLock indicator glows the keyboard is in all-caps mode.

2-11

User's Manual

CAPS LOCK

THE GRAND TOUR

Figure 2-9 CapsLock indicator

Keyboard indicator

Caps Lock This indicator glows green when the alphabet keys are

locked in uppercase.

USB diskette drive

A 3 1/2" diskette drive accommodates 1.44-megabyte or 720-kilobyte diskettes. It connects to the USB port.

DISK-IN-USE INDICATOR

DISKETTE SLOT

EJECT BUTTON

2-12

Figure 2-10 USB diskette drive

Slim Select Bay modules

Disk-In-Use This indicator lights when the diskette is being accessed.

Indicator

Diskette slot Insert diskette in this slot.

Eject button When a diskette is fully seated in the drive, the eject

button pops out. To remove a diskette, push in the eject button and the diskette pops out partially for removal.

CAUTION: Check the Disk-In-Use indicator when you use the diskette

drive. Do not press the eject button or turn off the computer while the light is glowing. Doing so could destroy data and damage the diskette or the drive.

NOTES: 1. The external diskette drive should be placed on a flat,

horizontal surface when in use. Do not set the drive on an incline greater than 20o while it is operating.

2. Do not set anything on top of the diskette drive.

Slim Select Bay modules

The Slim Select Bay can accommodate the following modules: DVD-ROM drive, CD-ROM drive, CD-RW/DVD-ROM drive, DVD multi drive, optional Slim Select Bay HDD adaptor and optional Slim Select Bay 2nd battery pack.

RAND

OUR

DVD-ROM drive (Black)

An optional full-size DVD-ROM drive module lets you run either 12 cm (4.72") or 8 cm (3.15") CD/DVDs without using an adaptor. It may be selected as a standard component or as an option.

NOTE: The read speed is slower at the center of a disk and faster at the outer edge. The maximum (outer edge) speeds for DVDs and CDs are:

DVD 8 speed (maximum) CD 24 speed (maximum)

This drive supports the following formats:

• DVD-ROM • DVD-Video

• Photo CD • CD-R (read only)

• CD-ROM • CD-Rewritable (read only)

• CD-ROM x A • CD-DA

• CD-EXTRA • CD-Text

2-13

User's Manual

DISC-IN-USE

INDICATOR

EJECT HOLE

EJECT BUTTON

THE GRAND TOUR

Figure 2-11 The optical media device

Disc-In-Use This indicator lights when the CD/DVD is being accessed.

Indicator

Eject button Press the eject button to open the drawer partially.

Eject hole Insert a slender object to open the drawer when the power

to the computer is off.

CAUTION: Check the Slim Select Bay indicator when you use the DVD-ROM drive. Do not press the eject button, disconnect a drive or turn off the computer while the light is glowing. Doing so could damage the DVD/CD or the drive.

DVD-ROM drives and media are manufactured according to the specifications of six marketing regions. When you purchase DVD media, make sure it matches your drive, otherwise it will not play properly.

Code Region 1 Canada, United States 2 Japan, Europe, South Africa, Middle East 3 Southeast Asia, East Asia 4 Australia, New Zealand, Pacific Islands, Central America, South

America, Caribbean 5 Russia, Indian Subcontinent, Africa, North Korea, Mongolia 6 China

2-14

Slim Select Bay modules

CD-ROM drive (Black)

An optional full-size, maximum 24-speed CD-ROM drive module lets you run either 12 cm (4.72") or 8 cm (3.15") compact discs without using an adaptor. It may be selected as a standard component or as an option.

This drive supports the following formats:

• Photo CD • CD-R (read only)

• CD-ROM • CD-Rewritable (read only)

• CD-DA • CD-Text

• CD-ROM x A Mode 2 (Form1, Form2)

• Enhanced CD (CD-EXTRA)

NOTE: The physical features of this drive are similar to those of the DVD-ROM drive. Refer to the illustration in the DVD-ROM drive section.

CAUTION: Check the Slim Select Bay indicator when you use the CD-ROM drive. Do not press the eject button, disconnect a drive or turn off the computer while the light is glowing. Doing so could damage the CD or the drive.

RAND

OUR

CD-RW/DVD-ROM drive (Black)

The full-size CD-RW/DVD-ROM drive module lets you record data to rewritable CDs as well as run either 12 cm (4.72") or 8 cm (3.15") CD/DVDs without using an adaptor. The computer is configured with either a DVD-ROM drive or CD-RW/ DVD-ROM drive.

NOTE: The read speed is slower at the center of a disc and faster at the outer edge.

DVD read 8 speed (maximum)

CD read 24 speed (maximum)

CD-R write 24 speed (maximum)

CD-RW write 10 speed (maximum)

2-15

User's Manual

This drive supports the following formats:

• DVD-ROM • DVD-Video

• Photo CD • CD-R

• CD-ROM • CD-Rewritable

• CD-DA • CD-Text

• CD-ROM x A Mode 2 (Form1, Form2)

• Enhanced CD (CD-EXTRA)

CD-R describes compact discs that can be written only once. The recorded data cannot be erased or changed. Use 24-speed CD-R discs.

CD-RW describes compact discs that can be recorded more than once. Use either 1,

THE GRAND TOUR

2, or 4 multi speed CD-RW disks or high-speed 4- to 24-speed discs. The write speed of the high-speed CD-RW discs i s maximum 24-speed.

Use Drag’n Drop CD to write compact discs.

NOTE: The physical features of this drive are similar to those of the DVD-ROM drive. Refer to the illustration in the DVD-ROM drive section.

CAUTION: Check the Slim Select Bay indicator when you use the CD-RW/DVD-ROM drive. Do not press the eject button, disconnect a drive or turn off the computer while the light is glowing. Doing so could damage the CD/DVD or the drive.

CD-RW/DVD-ROM drives and media are manufactured according to the specifications of six marketing regions. When you purchase DVD media, make sure it matches your drive, otherwise it will not play properly.

Code Region 1 Canada, United States 2 Japan, Europe, South Africa, Middle East 3 Southeast Asia, East Asia 4 Australia, New Zealand, Pacific Islands, Central America, South

America, Caribbean

5 Russia, Indian Subcontinent, Africa, North Korea, Mongolia 6 China

2-16

Slim Select Bay modules

DVD Multi drive (Black)

The full-size DVD Multi drive module lets you record data to rewritable CD/DVDs as well as run either 12 cm (4.72") or 8 cm (3.15") CD/DVDs without using an adaptor. An ATAPI interface controller is used for CD/DVD-ROM operation. When the computer is accessing a CD/DVD, an indicator on the drive glows and Slim Select Bay indicator glows.

NOTE: The read speed is slower at the center of a disc and faster at the outer edge.

DVD read 8 speed (maximum) DVD-R write 1 speed DVD-RW write 1 speed DVD-RAM write 2 speed CD read 24 speed (maximum) CD-R write 16 speed (maximum) CD-RW write 8 speed (maximum)

This drive supports the following formats:

RAND

OUR

• DVD-ROM • DVD-Video

• CD-DA • CD-Text

• Photo CD (single/multi-session) • CD-ROM Mode1, Mode2

• CD-ROM XA Mode2 (Form1, Form2) • Enhanced CD (CD-EXTRA)

• CD-G (Audio CD only) • Addressing Method 2

DVD Multi drives and disc are manufactured according to the specifications of six marketing regions. When you purchase DVD-Video, make sure it matches your drive, otherwise it will not play properly.

Code Region

1 Canada, United States 2 Japan, Europe, South Africa, Middle East 3 Southeast Asia, East Asia 4 Australia, New Zealand, Pacific Islands, Central America,South

America, Caribbean

5 Russia, Indian Subcontinent, Africa, North Korea, Mongolia 6 China

NOTE: Use the WinDVD 4 application to view DVD-Video discs.

2-17

User's Manual

CD-R and DVD-R discs can be written only once. The recorded data cannot be erased or changed. CD-RW discs can be recorded more than once. Use either 1, 2, or 4 multi speed CDRW discs or high-speed 4- to 10-speed discs. The write speed of the high-speed CD-RW discs is maximum 10-speed. DVD-RW/-RAM discs can be recorded more than once.

Slim Select Bay HDD adaptor (Black)

You can increase your computer’s data storage capacity by installing an optional, integrated, 2 1/2" HDD in the Slim Select Bay.

THE GRAND TOUR

Figure 2-12 The Slim Select Bay HDD adaptor

RELEASE LATCH

Slim Select Bay 2nd battery pack (Black)

An optional battery pack can be installed in the Slim Select Bay to increase the computer’s battery power and operating time. For details, refer to the documentation accompanying the secondary battery pack. Refer to Chapter 8, Optional

Devices, for details on installing a Slim Select Bay 2nd battery pack.

2-18

AC adaptor

Figure 2-13 The Slim Select Bay 2nd battery pack

AC adaptor

The AC adaptor converts AC power to DC power and reduces the voltage supplied to the computer. It can automatically adjust to any voltage from 100 to 240 volts and to a frequency of either 50 or 60 hertz, enabling you to use the computer in almost any region.

To recharge the battery, simply connect the AC adaptor to a power source and the computer. See Chapter 6 Power and Power-Up Modes for details.

RAND

OUR

Figure 2-14 The AC adaptor

CAUTION: Use of the wrong adaptor could damage your computer. TOSHIBA assumes no liability for any damage in such case. The current rating for the computer is 5.0 amperes.

2-19

Chapter 3

Getting Started

This chapter provides basic information to get you started using your computer. It covers the following topics:

❑ Setting up your work space — for your health and safety

NOTE: Be sure also to read Instruction Manual for Safety & Comfort. This guide, which is included with the computer, explains product liability.

❑ Opening the display ❑ Connecting the AC adaptor ❑ Turning on the power ❑ Windows®XP Professional/2000 setup ❑ Turning off the power ❑ Restarting the computer ❑ Restoring the Windows system

If you are a new user, follow the steps in each section of this chapter as you prepare to operate your computer.

ETTING

TARTED

NOTE: All users should be sure to carefully read the sections Windows®XP Professional/2000 setup , which describe actions to take when you turn on the power for the first time.

3-1

User's Manual

Setting up your work space

Establishing a comfortable work site is important for you and your computer. A poor work environment or stressful work habits can result in discomfort or serious injury from repetitive strain to your hands, wrists or other joints. Proper ambient conditions should also be maintained for the computer’s operation. This section discusses the following topics:

❑ General conditions ❑ Placement of the computer and peripheral devices ❑ Seating and posture ❑ Lighting ❑ Work habits

General conditions

In general, if you are comfortable, so is your computer, but read the following to make sure your work site provides a proper environment.

❑ Make sure there is adequate space around the computer for proper ventilation. ❑ Make sure the AC power cord connects to an outlet that is close to the

GETTING STARTED

computer and easily accessible.

❑ The temperature should be 5 to 35 degrees Centigrade (41 to 95 degrees

Fahrenheit) and the relative humidity should be 20 to 80 percent.

❑ Avoid areas where rapid or extreme changes in temperature or humidity may

occur.

❑ Keep the computer free of dust, moisture, and exposure to direct sunlight. ❑ Keep the computer away from heat sources, such as electric heaters. ❑ Do not use the computer near liquids or corrosive chemicals. ❑ Do not place the computer near objects that create strong magnetic fields (e.g.,

stereo speakers).

❑ Do not operate the computer in close proximity to a mobile phone. ❑ Leave ample ventilation room for the fan. Do not block the vents.

Placement of computer

Position the computer and peripheral devices to provide comfort and safety.

3-2

Setting up your work space

❑ Set the computer on a flat surface at a comfortable height and distance. The

display should be no higher than eye level to avoid eye strain.

❑ Place the computer so that it is directly in front of you when you work and

make sure you have adequate space to easily operate other devices.

❑ Allow adequate space behind the computer to let you freely adjust the display.

The display should be angled to reduce glare and maximize visibility.

❑ If you use a paper holder, set it at about the same height and distance as the

computer.

Seating and posture

The height of your chair in relation to the computer and keyboard as well as the support it gives your body are primary factors in reducing work strain. Refer to the following tips and to figure 3-1.

ETTING

BELOW EYE LEVEL

FOOT REST

Figure 3-1 Posture and positioning of the computer

❑ Place your chair so that the keyboard is at or slightly below the level of your

elbow. You should be able to type comfortably with your shoulders relaxed.

❑ Your knees should be slightly higher than your hips. If necessary, use a foot

rest to raise the level of your knees to ease pressure on the back of your thighs.

❑ Adjust the back of your chair so it supports the lower curve of your spine. ❑ Sit straight so that your knees, hips and elbows form approximately 90 degree

angles when you work. Do not slump forward or lean back too far.

90O ANGLES

TARTED

3-3

User's Manual

Lighting

Proper lighting can improve legibility of the display and reduce eye strain.

❑ Position the computer so that sunlight or bright indoor lighting does not reflect

off the screen. Use tinted windows, shades or other screen to eliminate sun glare.

❑ Avoid placing the computer in front of bright light that could shine directly in

your eyes.

❑ If possible, use soft, indirect lighting in your computer work area. Use a lamp to

illuminate your documents or desk, but be sure to position the lamp so that it does not reflect off the display or shine in your eyes.

Work habits

A key to avoiding discomfort or injury from repetitive strain is to vary your activities. If possible, schedule a variety of tasks into your work day. If you must spend long periods at the computer, finding ways to break up the routine can reduce stress and improve your efficiency.

❑ Sit in a relaxed posture. Good positioning of your chair and equipment as

described earlier can reduce tension in your shoulders or neck and ease back

GETTING STARTED

strain.

❑ Vary your posture frequently. ❑ Occasionally stand up and stretch or exercise briefly. ❑ Exercise and stretch your wrists and hands a number of times during the day. ❑ Frequently, look away from the computer and focus your eyes on a distant

object for several seconds, for example 30 seconds every 15 minutes.

❑ Take frequent short breaks instead of one or two long breaks, for example, two

or three minutes every half hour.

❑ Have your eyes examined regularly and visit a doctor promptly, if you suspect

you might be suffering from a repetitive strain injury.

A number of books are available on ergonomics and repetitive strain injury or repetitive stress syndrome. For more information on these topics or for pointers on exercises for such stress points as hands and wrists, please check with your library or book vendor. Also refer to the computer’s Instruction Manual for Safety & Comfort.

3-4

Connecting the AC adaptor

Attach the AC adaptor when you need to charge the battery or you want to operate from AC power. It is also the fastest way to get started, because the battery pack will need to be charged before you can operate from battery power.

The AC adaptor can be connected to any power source supplying from 100 to 240 volts and 50 or 60 hertz. For details on using the AC adaptor to charge the battery pack, refer to Chapter 6, Power and Power-Up Modes.

CAUTION: Use of the wrong adaptor could damage your computer. TOSHIBA assumes no liability for any damage in such case. The current rating for the computer is 5.0 amperes.

1 . Connect the power cord to the AC adaptor.

Figure 3-2 Connecting the power cord to the AC adaptor

2 . Connect the AC adaptor’s DC output plug to the DC IN port on the back side

of the computer.

ETTING

TARTED

Figure 3-3 Connecting the adaptor to the computer

3-5

User's Manual

3 . Plug the power cord into a live wall outlet. The Battery and DC IN indicator on

the front of the computer should glow.

Opening the display

The display panel can be rotated in a wide range of angles for optimal viewing.

1 . Slide the display latch on the front of the computer to the right to unlatch the

display panel.

2 . Lift the panel up and adjust it to the best viewing angle for you.

NOTE: When you open the display, hold it with both hands and lift up slowly.

GETTING STARTED

DISPLAY LATCH

Figure 3-4 Opening the display panel

Turning on the power

This section describes how to turn on the power.

NOTE: After you turn on the power for the first time, do not turn it off until you have set up the operating system (OS) and the OS has started up.

1 . If the external diskette drive is connected, make sure it is empty. If a diskette is

in the drive, press the eject button and remove the diskette.

2 . Open the display panel.

3. Press and hold the button for two or three seconds.

3-6

Turning off the power

Figure 3-5 Turning on the power

Starting up for the first time

When you first turn on the power, the computer’s initial screen is the Microsoft Windows®XP Professional or Windows®2000 Startup Screen Logo.

Follow the on-screen directions.

ETTING

TARTED

Turning off the power

The power can be turned off in one of the following modes: Shut down (Boot), Hibernation or Standby mode.

Shut Down mode (Boot mode)

When you turn off the power in Shut Down mode, no data is saved and the computer will boot to the operating system’s main screen.

1 . If you have entered data, save it to the hard disk or to a diskette. 2 . Make sure all disk(disc)activity has stopped, then remove any CD/DVDs or

diskette.

CAUTION: Make sure the Disk, Slim Select Bay and Slim Select Bay’s module indicators are off. If you turn off the power while a disk(disc) is being accessed, you can lose data or damage the disk(disc).

3-7

User's Manual

3 . a.If you are using Windows®XP, click start then click Turn off computer. From

the Turn off computer menu select Turn off.

b.If you are using Windows®2000, click Start and click Shut Down. From the

Shut Down menu select Shut Down.

4 . Turn off the power to any peripheral devices.

Caution: Do not turn the computer or devices back on immediately. Wait a moment to let all capacitors fully discharge.

Hibernation mode

The hibernation feature saves the contents of memory to the hard disk when the computer is turned off. The next time the computer is turned on, the previous state is restored. The hibernation feature does not save the status of peripheral devices.

CAUTIONS: 1. While entering hibernation mode, the computer saves

the contents of memory to the HDD. Data will be lost if you remove the battery or disconnect the AC adaptor before the save is completed. Wait for the Disk indicator to go out.

GETTING STARTED

2. Do not install or remove a memory module while the computer is in hibernation mode. Data will be lost.

Benefits of hibernation

The hibernation feature provides the following benefits:

❑ Saves data to the hard disk when the computer automatically shuts down

because of a low battery.

NOTE: For the computer to shut down in hibernation mode, the hibernation feature must be enabled in two places in TOSHIBA Power Saver: the Hibernate window and the Battery Alarm item of the Alarm window. Otherwise, the computer will shut down in Standby mode. If battery power becomes depleted, data saved in Standby will be lost.

❑ You can return to your previous working environment immediately when you

turn on the computer.

3-8

Turning off the power

❑ Saves power by shutting down the system when the computer receives no

input or hardware access for the duration set by the System hibernate feature.

❑ You can use the panel power off feature.

Starting Hibernation

To enter Hibernation mode, follow the steps below.

Windows®XP

1. Click Start. 2 . Select Turn Off Computer. 3 . Open the Turn Off Computer dialog box. Hibernate is not displayed. 4 . Press the Shift key. The Standby item will change to Hibernate. 5 . Select Hibernate.

ETTING

Windows®2000

1. Click Start and click Shut Down. 2 . In Shut Down Windows select Hibernate and click the OK button.

Automatic Hibernation

The computer will enter Hibernate mode automatically when you press the power button or close the lid. First, however, make the appropriate settings according to the steps below.

1 . Open the Control Panel.

2. a. In Windows®XP, open Performance and Maintenance and open

TOSHIBA Power Saver.

b. In Windows®2000, double-click the TOSHIBA Power Saver icon.

3 . Select the Hibernate window, select the Enable Hibernate support check

box and click the Apply button. 4 . Select the Power Save Modes window. 5 . Double-click Power Mode (Full Power, Normal, etc.) and open the

System Power Mode window. 6 . Enable the desired Hibernation settings for When I press the power

button and When I close the lid. 7 . Click the OK button.

TARTED

3-9

User's Manual

Data save in hibernation mode

When you turn off the power in hibernation mode, the computer takes a moment to save current memory data to the hard disk. During this time, the Built-in HDD indicator will light.

After you turn off the computer and memory is saved to the hard disk, turn off the power to any peripheral devices.

CAUTION: Do not turn the computer or devices back on immediately. Wait a moment to let all capacitors fully discharge.

Standby mode

In standby mode the power remains on, but the CPU and all other devices are in sleep mode.

CAUTIONS: 1. Before entering Standby mode, be sure to save your data.

2. Do not install or remove a memory module while the computer is in standby mode. The computer or the module could be damaged.

GETTING STARTED

3. Do not remove the battery pack while the computer is in standby mode (unless the computer is connected to an AC power source). Data in memory will be lost.

4. If you carry the computer on board an aircraft or into a hospital, be sure to shut down the computer in hibernation mode or in shutdown mode to avoid radio signal interference.

Benefits of standby

The standby feature provides the following benefits:

❑ Restores the previous working environment more rapidly than does

hibernation.

❑ Saves power by shutting down the system when the computer receives no

input or hardware access for the duration set by the System Standby feature.

❑ You can use the panel power off feature.

3-10

Turning off the power

Executing standby

NOTE: You can also enable Standby by pressing Fn + F3. See Chapter 5, Keyboard, for details.

You can enter standby mode in one of three ways:

1 . In Windows®XP, click Start, click Turn Off Computer and click Stand by.

In Windows®2000, click Start, click Shut Down, select Stand by and click OK.

2 . Close the display panel. This feature must be enabled. Refer to the System

Power Mode item in Power Saver Utility described in the Control Panel. a.In Windows®XP,open Performance and Maintenance and open

TOSHIBA Power Saver.

b.In Windows®2000, double-click the TOSHIBA Power Saver icon.

3 . Press the power button. This feature must be enabled. Refer to the System

Power Mode item in Power Saver Utility described in the Control Panel. a.In Windows®XP, open Performance and Maintenance and open

TOSHIBA Power Saver.

b.In Windows®2000, double-click the TOSHIBA Power Saver icon.

When you turn the power back on, you can continue where you left when you shut down the computer.

ETTING

TARTED

NOTES: 1. When the computer is shut down in standby mode, the

power indicator glows orange.

2. If you are operating the computer on battery power, you can lengthen the operating time by shutting down in hibernation mode. Standby mode consumes more power.

Standby limitations

Standby will not function under the following conditions:

❑ Power is turned back on immediately after shutting down. ❑ Memory circuits are exposed to static electricity or electrical noise.

3-11

User's Manual

Restarting the computer

Certain conditions require that you restart the computer system. For example, if:

❑ You change certain computer settings. ❑ An error occurs and the computer does not respond to your keyboard

commands.

There are three ways to restart the computer system:

1 . If you are using Windows®XP, click start then click Turn off computer.

From the Turn off computer menu select Restart. If you are using Windows®2000, click Start and click Shut Down. From the

Shut Down menu select Restart.

2 . Press the power button and hold it down for five seconds. Wait 10 to 15

seconds, then turn the power on again by pressing the power button.

Restoring the preinstalled software from the Product Recovery CD-ROM

GETTING STARTED

If preinstalled files are damaged, use the Product Recovery CD-ROM to restore them. To restore the operating system and all preinstalled software, follow the steps below.

CAUTION: When you reinstall the Windows operating system, the hard disk will be reformatted and all data will be lost.

1 . Load the Product Recovery CD-ROM in the drive and turn off the computer’s

power.

2 . Hold down the F12 key and turn on the power. When In Touch with

Tomorrow TOSHIBA appears, release the F12 key.

3 . Use the up or down cursor key to select the CD-ROM drive in the display

menu. For details, refer to the Boot priority section in Chapter 7, HW Setup.

4 . Follow the on-screen instructions.

3-12

Chapter 4

Operating Basics

This chapter gives information on basic operations including using the TOSHIBA Dual Pointing Device, USB diskette drive, optical media drives, the microphone, the internal modem, wireless communication, LAN and changing Slim Select Bay modules. It also provides tips on caring for your computer, diskettes and CD/DVDs.

TOSHIBA Dual Pointing Device

The computer is equipped with a dual point system: a Touch Pad and an AccuPoint pointing stick.

TOUCH PAD

ACCUPOINT

CONTROL BUTTONS

Figure 4-1 Touch Pad, AccuPoint and control buttons

TOUCH PAD

CONTROL BUTTONS

PERATING

ASICS

4-1

User's Manual

Using the Touch Pad

To use the Touch Pad, simply touch and move your finger tip across it in the direction you want the on-screen pointer to go. Two buttons below the Touch Pad are used like the buttons on a mouse pointer. Press the left button to select a menu item or to manipulate text or graphics designated by the pointer. Press the right button to display a menu or other function depending on the software you are using.

NOTE: You can also tap the Touch Pad to perform functions similar to those of the left button.

Click: Tap the Touch Pad once Double click: Tap twice Drag and drop: Tap to select the material you want to move. Leave your

finger on the Touch Pad after the second tap and move the material.

Using the AccuPoint

To use the AccuPoint, simply push it with your finger tip in the direction you want to move the on-screen pointer.

Two buttons above the Touch Pad work in the same way with the AccuPoint as they do with the Touch Pad. Refer to the Using the Touch Pad section for details.

AccuPoint precautions

Certain conditions can affect the on-screen pointer when using AccuPoint . For example, the pointer may travel contrary to AccuPoint operation or an error

OPERATING BASICS

message may appear, if

◆ You touch the AccuPoint during power-up.

◆ You apply constant, soft pressure during power-up.

◆ There is a sudden temperature change.

◆ Strong stress is applied to the AccuPoint.

If an error message appears, reboot the computer. If an error message does not appear, wait a moment for the pointer to stop, then continue operation.

4-2

Using the USB diskette drive

Replacing the cap

The AccuPoint cap is an expendable item that should be replaced after prolonged use.

1 . To remove the AccuPoint cap, firmly grasp the cap and pull it straight up.

ACCUPOINT CAP

PEG

Figure 4-2 Removing the AccuPoint cap

2 . Position a new cap on the peg and press it into place.

NOTE: The peg is square, so be careful to align the cap’s square hole with the peg.

Using the USB diskette drive

A 3 1/2" diskette drive connects to the computer’s USB port. It accommodates 1.44megabyte or 720-kilobyte diskettes. Refer to Chapter 2, The Grand Tour, for more information.

4-3

PERATING

ASICS

User's Manual

Connecting 3 1/2" diskette drive

To connect the drive, plug the diskette drive connector into a USB port. Refer to Figure 4-3.

NOTE: Make sure the connector is right side up and properly aligned with the socket. Do not try to force the connection, doing so can damage the connecting pins.

Figure 4-3 Connecting the USB diskette drive

NOTE: If you connect the diskette drive after turning on the computer, it will take about 10 seconds for the computer to recognize the drive. Do not disconnect and reconnect before 10 seconds has elapsed.

Disconnecting 3 1/2" diskette drive

OPERATING BASICS

When you have finished using the diskette drive, follow the procedures below to disconnect it:

1 . Wait for the indicator light to go out to make sure all diskette activity has

stopped.

CAUTION: If you disconnect the diskette drive or turn off the power while the computer is accessing the drive you may lose data or damage the diskette or the drive.

2 . a. In Windows XP, open the Safety Remove Hardware icon on the

system tray.

b. In Windows 2000, open the Unplug or Eject Hardware icon on the

system tray.

4-4

Changing Slim Select Bay modules

3. Click Diskette drive. 4 . Pull the diskette drive connector out of the USB port.

Changing Slim Select Bay modules

This section explains how to change modules in the Slim Select Bay. The illustrations show replacement of the DVD-ROM drive with the Slim Select Bay HDD adaptor. Therefore, the text refers to those modules. However, the procedures are the same for any of the modules: CD-RW/DVD-ROM drive, CD-ROM drive, DVD Multi drive, CD-R/RW drive, Slim Select Bay 2nd battery pack.

CAUTION: 1. To avoid injury, do not put your hand into the Slim

Select Bay slot.

2. Before removing or inserting a second battery pack, turn off the computer’s power.

NOTE: The TOSHIBA Mobile Extension is preinstalled to support hot swapping under Windows. Refer to Chapter 1, Introduction, for information on using this utility to change modules while the computer’s power is on.

Removing a module

Remove the DVD-ROM drive as described below.

1 . Check all disk indicators to make sure no disks are operating. 2 . Turn the computer upside down.

CAUTION: Wait for all disc indicators to go out before you turn over the computer and be careful to lay the computer down gently. Shock can damage the HDD or other components.

3 . Be sure the screw near the icon securing the Slim Select Bay. 4 . Make sure the screw in the Slim Select Bay lock is set in the hole for the unlock

position.

5 . Slide the Slim Select Bay latch to the unlock position.

PERATING

ASICS

4-5

User's Manual

6. Graps the DVD-ROM drive and Slide it out.

CAUTION: The DVD-ROM drive and other Slim Select Bay modules can become hot with use. Be careful when removing the module.

SLIM SELECT BAY

LATCH

SLIM SELECT BAY

MODULE

Figure 4-4 Removing the DVD-ROM drive

Installing a module

Install the Slim Select Bay HDD adaptor as described below.

1 . Insert the Slim Select Bay HDD adaptor in the computer as shown below and

press until the ejector clicks.

2 . If you want to lock the Slim Select Bay module, set the screw of the Slim Select

Bay lock in the back hole.

OPERATING BASICS

SCREW

SLIM SELECT BAY

LATCH

SLIM SELECT BAY

MODULE

4-6

Figure 4-5 Installing the Slim Select Bay HDD adaptor

Using optical media drives

The text and illustrations in this section refer primarily to the DVD-ROM drive. However, operation is the same for the CD-RW/DVD-ROM,CD-ROM,DVD Multi and optional CD-R/RW drives. The full-size drive provides high-performance execution of CD/DVD-ROM-based programs. You can run either 12 cm (4.72") or 8 cm (3.15") CD/DVDs without an adaptor. An ATAPI interface controller is used for CD/DVD-ROM operation. When the computer is accessing a CD/DVD-ROM, an indicator on the drive glows and the Slim Select Bay indicator glows.

NOTE: Use the WinDVD 4 application to view DVD-Video discs.

If you have a CD-RW/DVD-ROM drive, refer also to the Writing CDs section for precautions on writing to CDs.

Loading discs

To load CD/DVDs, follow the steps below and refer to figures 4-6 to 4-10.

1 . a. When the power is on, press the DVD-ROM eject button to open the

drawer slightly.

EJECT BUTTON

Figure 4-6 Pressing the DVD-ROM eject button

PERATING

ASICS

4-7

User's Manual

b. Pressing the eject button will not open the drawer when the DVD-ROM

drive’s power is off. If the power is off, you can open the drawer by inserting a slender object (about 1.5 mm) such as a straightened paper clip into the eject hole just to the right of the eject button.

Figure 4-7 Manual release with the eject hole

2 . Grasp the drawer gently and pull until it is fully opened.

OPERATING BASICS

Figure 4-8 Pulling the drawer open

4-8

Using optical media drives

3 . Lay the CD/DVD, label side up, in the drawer.

Figure 4-9 Inserting a CD/DVD

NOTE: When the drawer is fully opened, the edge of the computer will extend slightly over the CD/DVD tray. Therefore, you will need to turn the CD/DVD at an angle when you place it in the tray. After seating the CD/DVD, however, make sure it lies flat, as shown in figure 4-9.

CAUTIONS: 1. Do not touch the laser lens. Doing so could cause

misalignment.

2. Be careful to keep foreign matter from entering the drive. Check the back edge of the tray to make sure it carries no debris before closing the drive.

4 . Press gently at the center of the CD/DVD until you feel it click into place. The

CD/DVD should lie below the top of the spindle, flush with the spindle base.

PERATING

ASICS

4-9

User's Manual

5 . Push the center of the drawer to closd it. Press gently until it locks into place.

CAUTION: If the CD/DVD is not seated properly when the drawer is closed, the CD/DVD might be damaged. Also, the drawer might not open fully when you press the eject button.

Figure 4-10 Closing the DVD-ROM drawer

Removing discs

To remove the CD/DVD, follow the steps below and refer to figure 4-11.

OPERATING BASICS

CAUTION: Do not press the eject button while the computer is accessing the DVD-ROM drive. Wait for the DVD-In-Use indicator to go out before you open the drawer. Also, if the CD/DVD is spinning when you open the drawer, wait for it to stop before you remove it.

1 . To pop the drawer partially open, press the eject button. Gently pull the

drawer out until it is fully opened.

CAUTIONS: 1. When the drawer pops open slightly, wait a moment to

make sure the CD/DVD has stopped spinning before pulling the drawer fully open.

2. Turn off the power before you use the eject hole. If the CD/DVD is spinning when you open the drawer, the CD/DVD could fly off the spindle and cause injury.

4-10

Writing CDs on CD-RW/DVD-ROM drive

2 . The CD/DVD extends slightly over the sides of the drawer so you can grasp

it. Hold the CD/DVD gently and lift it out.

Figure 4-11 Removing a CD/DVD

3 . Push the center of the drawer to close it. Press gently until it locks into

place.

Writing CDs on CD-RW/DVD-ROM drive

Depending on the type of drive installed, you may be able to write CDs. The CD-RW/DVD-ROM drive lets you write as well as read CD-ROMs. Observe the precautions in this section to ensure the best performance for writing CDs. For information on loading and unloading CDs refer to the Using optical media drive section.

NOTE: CD-R discs can be written to only once. CD-RW discs can be rewritten many times.

4-11

PERATING

ASICS

User's Manual

Before writing or rewriting

Please observe the following points when you write or rewrite the data.

◆ We recommend the following manufacturers of CD-R and CD-RW media.

Media quality can affect write or rewrite success rates.

CD-R: TAIYOYUDENCO.,LTD.

Mitsui Chemicals Inc. MITSUBISHI CHEMICAL CORPORATION RICOH Co., Ltd. Hitachi Maxell Ltd.

CD-RW: MITSUBISHI CHEMICAL CORPORATION

RICOH Co., Ltd.

TOSHIBA has confirmed the operation of CD-R and CD-RW media of the manufacturers above. Operation of other media cannot be guaranteed.

◆ CD-RW can generally be rewritten about 1,000 times. However, the actual

number of rewrites is affected by the quality of the media and the way it is used.

◆ Be sure to connect the AC adaptor when you write or rewrite.

◆ Be sure to close all other software programs except the writing software.

◆ Do not run software such as a screen saver which can put a heavy load on the

CPU.

◆ Operate the computer at full power. Do not use power-saving features.

◆ Do not write while virus check software is running. Wait for it to finish, then

disable virus detection programs including any software that checks files automatically in the background.

OPERATING BASICS

◆ Do not use hard disk utilities, including those intended to enhance HDD

access speed. They may cause unstable operation and damage data.

◆ Write from the computer’s HDD to the CD. Do not try to write from shared

devices such as a LAN server or any other network device.

◆ Writing with software other than Drag’n Drop CD has not been confirmed.

Therefore, operation with other software cannot be guaranteed.

4-12

Writing CD/DVDs on DVD Multi drive

When writing or rewriting

Note the following when you write or rewrite a CD-R or CD-RW.

◆ Always copy data from the HDD to the CD. Do not use cut-and-paste. The

original data will be lost if there is a write error.

◆ Do not perform any of the following actions:

• Operate the computer for any other function, including use of a mouse or Touch Pad, closing/opening the LCD panel.

• Start a communication application such as a modem.

• Apply impact or vibration to the PC.

• Install, remove or connect external devices, including the following: PC card, SD card, USB devices, external display, i.LINK devices, optical digital devices.

• Use the CD/MP3 control buttons to reproduce music and voice.

• Open the optical media drive.

◆ If the media is poor in quality, dirty or damaged, writing or rewriting errors may

occur.

◆ Set the computer on a level surface and avoid places subject to vibration such

as airplanes trains, or cars. Do not use an unstable surface such as a stand.

◆ Keep mobile phones and other wireless communication devices away from the

computer.

PERATING

Writing CD/DVDs on DVD Multi drive

You can use the DVD Multi drive to write data to either CD-R/-RW or DVD-R/-RW/RAM discs. The following application for writing are supplied on CD-ROM: Drag’n Drop CD, licensed by Easy Systems Japan Ltd., and DigiOn Inc..

Important message

Before you write or rewrite to CD-R/-RW or DVD-R/-RW/-RAM disc, read and follow all set-up and operating instructions in this section. If you fail to do so, the DVD Multi drive may not function properly, and you may fail to write or rewrite, lose data or incur other damage.

4-13

ASICS

User's Manual

Disclaimer

TOSHIBA does not bear responsibility for the following:

◆ Damage to any CD-R/-RW or DVD-R/-RW/-RAM disc that may be caused by

writing or rewriting with this product.

◆ Any change or loss of the recorded contents of CD-R/-RW or DVD-R/-RW/-

RAM disc that may be caused by writing or rewriting with this product, or for any business profit loss or business interruption that may be caused by the change or loss of the recorded contents.

◆ Damage that may be caused by using third party equipment or software.

Given the technological limitations of current optical disc writing drives, you may experience unexpected writing or rewriting errors due to disc quality or problems with hardware devices. Also, it is a good idea to make two or more copies of important data, in case of undesired change or loss of the recorded contents.

OPERATING BASICS

4-14

Writing CD/DVDs on DVD Multi drive

O : Yes ´ : No

Read/write function chart

Disc type CD-R CD-RW DVD-R DVD-RW DVD-RAM DVD+R DVD+RW

Read O O O O O ´´

Write O O O O O ´´

Drag’n Drop CD*1 O O O O ´´ ´

*1 Software supplied with the product can be used for writing to a disc.

PERATING

ASICS

4-15

User's Manual

◆ Based on TOSHIBA’s limited compatibility testing, we suggest the following

manufacturers of CD-R/-RW and DVD-R/-RW/-RAM disc. However, in no event does TOSHIBA guarantee the operation, quality or performance of any disc. Disc quality can affect write or rewrite success rates.

CD-R: TAIYOYUDEN CO., LTD.

Mitsui Chemicals Inc. MITSUBISHI CHEMICAL CORPORATION RICOH Co., Ltd. Hitachi Maxell Ltd.

CD-RW: MITSUBISHI CHEMICAL CORPORATION

RICOH Co., Ltd.

DVD-R: DVD Specifications for Recordable Disc for General

Version 2.0

TAIYOYUDEN CO., LTD. PIONEER VIDEO CORPORATION MITSUBISHI CHEMICAL CORPORATION

DVD-RW: DVD Specifications for Re-recordable Disc for Version 1.1

VICTOR COMPANY OF JAPAN.LIMITED TDK Corporation

DVD-RAM: DVD Specifications for DVD-RAM Disc for Version 2.0 or

Version 2.1

Matsushita Electric Industrial Co., Ltd.

◆ If the disc is poor in quality, dirty or damaged, writing or rewriting errors may

occur. Be careful to check the disc for dirt or damage before you use it.

◆ The actual number of rewrites to CD-RW or DVD-RW/-RAM is affected by the

quality of the disc and the way it is used.

◆ There are two types of DVD discs: authoring and general use discs. Do not use

OPERATING BASICS

authoring discs. Only general use discs can be written to by a computer drive.

◆ You can use DVD-RAM discs that can be removed from a cartridge and

DVDRAM discs designed without a cartridge. You cannot use a disc with a 2.6 GH single-sided capacity or 5.2 GB double-sided capacity.

◆ Other DVD-ROM drives for computers or other DVD players may not be able

to read DVD-R/-RW discs.

4-16

Writing CD/DVDs on DVD Multi drive

◆ You cannot partially delete any data written to a DVD-RW disc.

◆ Data written to a CD-R/DVD-R disc cannot be deleted either in whole or in part.

◆ Data deleted (Erase) from a CD-RW and DVD-RW/-RAM disc cannot be

recovered. Check the content of the disc carefully before you delete it. If multiple drives that can be written to are connected, be careful not to delete data from the wrong drive.

◆ In writing to a DVD-R/-RW disc, some disc space is required for file

management, so you may not be able to write the full capacity of the disc.

◆ Since the disc is based on the DVD standard, it will be filled with dummy data if

the written data is less than about 1 GB. Even if you write only a small amount of data, it might take time to fill in the dummy data.

◆ DVD-RAM formatted by FAT32 cannot be read in Windows 2000 without

DVD-RAM Driver Software.

Before writing or rewriting

Please observe the following points when you write or rewrite data.

◆ When multiple drives that can be written are connected, be careful not to write

to the wrong drive.

◆ Be sure to connect the AC adaptor before you write or rewrite.

◆ Before you enter standby/hibernation mode, be sure to finish DVD-RAM

writing. Writing is finished if you can eject DVD-RAM media.

◆ Be sure to close all other software programs except the writing software.

◆ Do not run software such as a screen saver, which can put a heavy load on the

CPU.

◆ Operate the computer in the full-power mode. Do not use power-saving

features.

◆ Do not write while virus check software is running. Wait for it to finish, then

disable virus detection programs including any software that checks files automatically in the background.

◆ Do not use hard disk utilities, including those intended to enhance HDD

access speed. They may cause unstable operation and data damage.

PERATING

ASICS

4-17

User's Manual

◆ Write from the computer’s HDD to the CD/DVD. Do not try to write from

shared devices such as a LAN server or any other network device.

◆ Writing with software other than Drag’n Drop CD is not recommended.

When writing or rewriting

Please observe/consider the following when you write or rewrite to a CD-R/-RW or DVD-R/-RW/-RAM disc.

◆ Do not perform any of the following actions when writing or rewriting:

• Operate the computer for any other function, including using a mouse or TouchPad/cPad or closing/opening the LCD panel.

• Start a communication application such as a modem.

• Apply impact or vibration to the computer.

• Install, remove or connect external devices, including the following: PC card, SD card, USB devices, external display, i.LINK devices, optical digital devices.

• Use the Audio/Video control button to reproduce music or voice.

• Open the DVD Multi drive

◆ Do not use standby/hibernation while you write or rewrite.

◆ Make sure writing or rewriting is completed before going into standby/

hibernation. Writing is completed if you can open the DVD Multi drive tray.

◆ Set the computer on a level surface and avoid places subject to vibration such

as airplanes, trains, or cars. Do not use an unstable surface such as a stand.

◆ Keep mobile phones and other wireless communication devices away from the

computer.

◆ Always copy data from the HDD to the DVD-RAM. Do not use cut-and-paste.

The original data will be lost if there is a write error.

OPERATING BASICS

Drag’n Drop CD

Note the following limitations when you use Drag’n Drop CD:

◆ DVD-Video cannot be created using Drag’n Drop CD.

◆ DVD-Audio cannot be created using Drag’n Drop CD.

◆ You cannot use Drag’n Drop CD’s music CD function to record music to a

DVD-R/-RW disc.

4-18

Writing CD/DVDs on DVD Multi drive

◆ Do not use the DISC Backup function of Drag’n Drop CD to copy DVD-Video

and DVD-ROM with copyright protection, because the copy will not play correctly.

◆ DVD-RAM disc cannot be backed up with the DISC Backup function of

Drag’n Drop CD.

◆ You cannot backup a CD-ROM or CD-R/-RW to DVD-R/-RW using the DISC

Backup function of Drag’n Drop CD.

◆ You cannot back up DVD-ROM, DVD-Video or DVD-R/-RW to CD-R/-RW

using the DISC Backup function of Drag’n Drop CD.

◆ Drag’n Drop CD cannot record in packet format.

◆ You might not be able to use the DISC backup function of Drag’n Drop CD to

back up a DVD-R/-RW disc that was made with other software on a different DVD-R/-RW recorder.

Data Verification

To verify that data is written or rewritten correctly, follow the steps below before you write or rewrite a Data CD/DVD.

1 . Right-click Data BOX and select Options to display the DATA DISC

Option window. 2 . Mark the Record and Verify check box and select Byte compare. 3 . Click the OK button.

The “Record and Verify” function automatically checks whether data has been correctly recorded onto a CD/DVD. “Byte compare” compares the original data file with the data recorded on the CD/DVD and checks that the data completely matches.

PERATING

ASICS

4-19

User's Manual

Media care

This section provides tips on protecting data stored on your CD/DVDs and diskettes.

Handle your media with care. The following simple precautions will increase the lifetime of your media and protect the data stored on them:

CD/DVDs

1. Store your CD/DVDs in the container they came in to protect them and keep them clean.

2. Do not bend the CD/DVD.

3. Do not write on, apply a sticker to, or otherwise mar the surface of the CD/DVD that contains data.

4. Hold the CD/DVD by its outside edge or the edge on the center hole. Fingerprints on the surface can prevent the drive from properly reading data.

5. Do not expose to direct sunlight, extreme heat or cold. Do not place heavy objects on your CD/DVDs.

6. If your CD/DVDs become dusty or dirty, wipe them with a clean dry cloth. Wipe from the center out, do not wipe in a circular direction around the CD/ DVD. If necessary, use a cloth dampened in water or a neutral cleaner. Do not use benzine, thinner or similar cleaner.

Diskettes

1 . Store your diskettes in the container they came in to protect them and keep

OPERATING BASICS

them clean. If a diskette is dirty, do not use cleaning fluid. Clean it with a soft damp cloth.

2 . Do not slide back the diskette’s protective metal covering or touch the

diskette’s magnetic surface. Fingerprints may prevent the diskette drive from reading data from the diskette.

3 . Data may be lost if the diskette is twisted; bent; or exposed to direct sunlight,

extreme heat or cold.

4. Do not place heavy objects on your diskettes.

5 . Do not eat, smoke, or use erasers near your diskettes. Foreign particles inside

the diskette’s jacket can damage the magnetic surface.

4-20

Modem

6. Magnetic energy can destroy the data on your diskettes. Keep your diskettes

away from speakers, radios, television sets and other sources of magnetic fields.

Using the microphone

Your computer has a built-in microphone that can be used to record monaural sounds into your applications. It can also be used to issue voice commands to applications that support such functions.

Since your computer has a built-in microphone and speaker, “feedback” may be heard under certain conditions. Feedback occurs when sound from the speaker is picked up in the microphone and amplified back to the speaker, which amplifies it again to the microphone.

This feedback occurs repeatedly and causes a very loud, high-pitched noise. It is a common phenomenon that occurs in any sound system when the microphone input is output to the speaker (throughput) and the speaker volume is too loud or too close to the microphone. You can control throughput by adjusting the volume of your speaker or through the Mute function in the Master Volume panel. Refer to your Windows documentation for details on using the Master Volume panel.

Modem

This section describes how to connect and disconnect the internal modem to and from a telephone jack.

NOTE: The internal modem does not support voice functions. All data and fax functions are supported.

CAUTIONS: 1. In case of a lightning storm, unplug the modem cable

from the telephone jack.

2. Do not connect the modem to a digital telephone line. A digital line will damage the modem.

4-21

PERATING

ASICS

User's Manual

Region selection

Telecommunication regulations vary from one region to another, so you will need to make sure the internal modem’s settings are correct for the region in which it will be used.

To select a region, follow the steps below.

1 . a. In Windows XP, click start, point to All Programs, point to TOSHIBA

Internal Modem and click Region Select Utility.

NOTE: Do not use the Country/Region Select function in the Modem setup utility in the Control Panel if the function is available. If you

change the Country/Region in the Control Panel, the change may not take effect.

b. In Windows 2000, click Start, point to Programs, point to TOSHIBA

Internal Modem and click Region Select Utility.

2 . The Region Selection icon will appear in the Windows Task Bar.

Figure 4-12 The Region Selection icon (Windows XP)

OPERATING BASICS

3 . Click the icon with the primary mouse button to display a list of regions that

the modem supports. A sub menu for telephony location information will also be displayed. A check will appear next to the currently selected region and telephony location.

4 . Select a region from the region menu or a telephony location from the submenu.

• When you click a region it becomes the modem’s region selection, and the New Location for telephony will be set automatically.

• When you select a telephony location, the corresponding region is auto matically selected and it becomes the modem’s current region setting.

4-22

Figure 4-13 The Region Selection icon (Windows 2000)

Modem

Properties menu

Click the icon with the secondary mouse button to display the following menu.

Figure 4-14 The menu list (Windows XP)

Figure 4-15 The menu list (Windows 2000)

PERATING

ASICS

4-23

User's Manual

Setting

You can enable or disable the following settings:

AutoRun Mode

The Region Select utility starts automatically when you start up the operating system.

Open the Dialing Properties dialog box after selecting region.

The dialing properties dialog box will be displayed automatically after you select the region.

Location list for region selection.

A submenu appears displaying location information for telephony.

Open dialog box, if the modem and Telephony Current Location region code do not match.

A warning dialog box is displayed if current settings for region code and telephony location are incorrect.

Modem Selection

If the computer cannot recognize the internal modem, a dialog box is displayed. Select the COM port for your modem to use.

Dialing Properties

Select this item to display the dialing properties.

CAUTION: If you are using the computer in Japan, the Telecommunications Business Law requires that you select Japan region mode. It is

OPERATING BASICS

illegal to use the modem in Japan with any other selection.

4-24

Connecting

To connect the internal modem cable, follow the steps below.

1 . Plug one end of the modular cable into the modem jack. 2 . Plug the other end of the modular cable into a telephone jack.

Figure 4-16 Connecting the internal modem

CAUTION: Do not pull on the cable or move the computer while the cable is connected. NOTE: If you use a storage device such as a DVD-ROM drive, CD-RW/DVD-ROM drive or HDD connected to a 16-bit PC card, you might experience the following modem problems:

1. Modem speed is slow or communication is interrupted.

2. Skips may occur in sound.

Modem

PERATING

Disconnecting

To disconnect the internal modem cable, follow the steps below.

1. Pinch the lever on the connector in the telephone jack and pull out the connector.

2. Disconnect the cable from the computer in the same manner.

ASICS

4-25

User's Manual

Wireless communications

The computer’s wireless communication function supports both Wireless LAN and Bluetooth devices.

Wireless LAN

The Wireless LAN is compatible with other LAN systems based on Direct Sequence Spread Spectrum radio technology that complies with IEEE 802.11 Wireless LAN standard (Revision A or B) and Turbo Mode. It supports the following features:

◆ Automatic Transmit Rate Select mechanism in the transmit range of 54, 48, 36,

24, 18, 12, 9 and 6 Mbit/s. (Revision A)

◆ Automatic Transmit Rate Select mechanism in the transmit range of 11, 5.5, 2

and 1 Mbit/s. (Revision B)

◆ Automatic Transmit Rate Select mechanism in the transmit range of 108, 96,72,

48, 36, 24, 18 and 12 Mbit/s. (Turbo Mode)

◆ Frequency Channel Selection (Revision A/Turbo Mode: 5 GHz, Revision B: 2.4

GHz)

◆ Roaming over multiple channels

◆ Card Power Management

◆ Wired Equivalent Privacy (WEP) data encryption, based on the 152 bit RC4

encryption algorithm.

◆ Advanced Encryption Standard (AES) data encryption, based on the 256 bit

encryption algorithm.

Wake-up on LAN does not function on a Wireless LAN.

Bluetooth wireless technology

OPERATING BASICS

Bluetooth™ wireless technology eliminates the need for cables between electronic devices such as desktop computers, printers and mobile phones. You cannot use the built-in Bluetooth functions and an optional Bluetooth PC card simultaneously.

Bluetooth wireless technology has the following features:

Worldwide operation

The Bluetooth radio transmitter and receiver operates in the 2.45 GHz band, which is license-free and compatible with radio systems in most countries in the world.

4-26

Wireless communcations

Radio links

You can easily establish links between two or more devices. The link is maintained even if the devices are not within line of sight.

Security

Two advanced security mechanisms ensure a high level of security:

◆ Authentication prevents access to critical data and makes it impossible to

falsify the origin of a message.

◆ Encryption prevents eavesdropping and maintains link privacy.

Wireless communication switch

You can enable or disable Wireless LAN and Bluetooth functions, with the on/off switch. No transmissions are sent or received when the switch is off. Slide the switch toward the left of the computer to turn it on and toward the right of the computer to turn it off.

CAUTION: Set the switch to off in airplanes and hospitals. Check the indicator. It will stop glowing when the wireless communication function is off.

Wireless communication Indicator

PERATING

The wireless communication indicator indicates the status of the wireless communication functions.

Indicator status Indication

Indicator off Wireless communication switch is set to off.

Automatic power down because of overheating. Power malfunction

Indicator glows Wireless communication switch is on.

Wireless LAN or Bluetooth is turned on by an application.

If you used the Task Bar to disable W-LAN, restart the computer or follow the procedures below to enable the system to recognize W-LAN. Open or click the following: start, Control Panel, System, Hardware Device Manager, Network adapters, TOSHIBA Wireless LAN Mini PCI Card and enable.

4-27

ASICS

User's Manual

LAN

The computer has built-in support for Ethernet LAN (10 megabits per second, 10BASE-T) and Fast Ethernet LAN (100 megabits per second, 100BASE-Tx). This section describes how to connect/disconnect to a LAN.

CAUTION: Do not install or remove an optional memory module while Wake-up on LAN is enabled.

NOTE: The Wake-up on LAN function consumes power even when the system is off. Leave the AC adaptor connected while using this feature.

Connecting LAN cable

CAUTION: The computer must be configured properly before connecting to a LAN. Logging onto a LAN using the computer’s default settings could cause a malfunction in LAN operation. Check with your LAN administrator regarding set-up procedures.

If you are using Fast Ethernet LAN (100 megabits per second, 100BASE-TX), be sure to connect with a category 5 cable, CAT5, or higher. If you are using Ethernet LAN (10 megabits per second, 10BASE-T), connect with a category 3 cable, CAT3, or higher.

To connect the LAN cable, follow the steps below.

1 . Turn off the power to the computer and to all external devices connected to

the computer.

2 . Plug one end of the cable into the LAN jack. Press gently until you hear the

OPERATING BASICS

latch click into place.

4-28

Figure 4-17 Connecting the LAN cable

Cleaning the computer

3 . Plug the other end of the cable into a LAN hub connector. Check with your

LAN administrator before connecting to a hub.

NOTE: When the computer is exchanging data with the LAN, the LAN active indicator glows orange. When the computer is connected to a LAN hub but is not exchanging data, the Link indicator glows green.

Disconnecting LAN cable

To disconnect the LAN cable, follow the steps below.

CAUTION: Make sure the LAN active indicator (orange LED) is out before you disconnect the computer from the LAN.

1. Pinch the lever on the connector in the computer’s LAN jack and pull out the connector.

2 . Disconnect the cable from the LAN hub in the same manner. Check with

your LAN administrator before disconnecting from the hub.

Cleaning the computer

To help ensure long, trouble-free operation, keep the computer free of dust and use care with liquids around the computer.

◆ Be careful not to spill liquids into the computer. If the computer does get wet,

turn the power off immediately and let the computer dry completely before you turn it on again.

◆ Clean the computer using a slightly damp (with water) cloth. You can use glass

cleaner on the display. Spray a small amount of cleaner on a soft, clean cloth and wipe the screen gently with the cloth.

CAUTION: Never spray cleaner directly onto the computer or let liquid run into any part of it. Never use harsh or caustic chemical products to clean the computer.

4-29

PERATING

ASICS

User's Manual

Moving the computer

The computer is designed for rugged durability. However, a few simple precautions taken when moving the computer will help ensure trouble-free operation.

◆ Make sure all disk activity has ended before moving the computer. Check the

Disk and Slim Select Bay indicators on the computer.

◆ If a CD/DVD is in the drive, remove it. Also make sure the drawer is securely

closed.

◆ Turn off the power to the computer.

◆ Disconnect the AC adaptor and all peripherals before moving the computer.

◆ Close the display. Do not pick up the computer by its display panel.

◆ Close all port covers.

◆ Use the carrying case when transporting the computer.

Heat dispersal

To protect from overheating, the CPU has an internal temperature sensor. If the computer’s internal temperature rises to a certain level, the cooling fan is turned on or the processing speed is lowered. You can select whether to control the CPU temperature by turning on the fan first, then if necessary, lowering the CPU speed. Or, by lowering the CPU speed first, then if necessary, turning on the fan. Use the Cooling Method item of the Power Save Mode window in TOSHIBA Power Saver.

Maximum Turn on the fan first, then if necessary, lower the CPU
