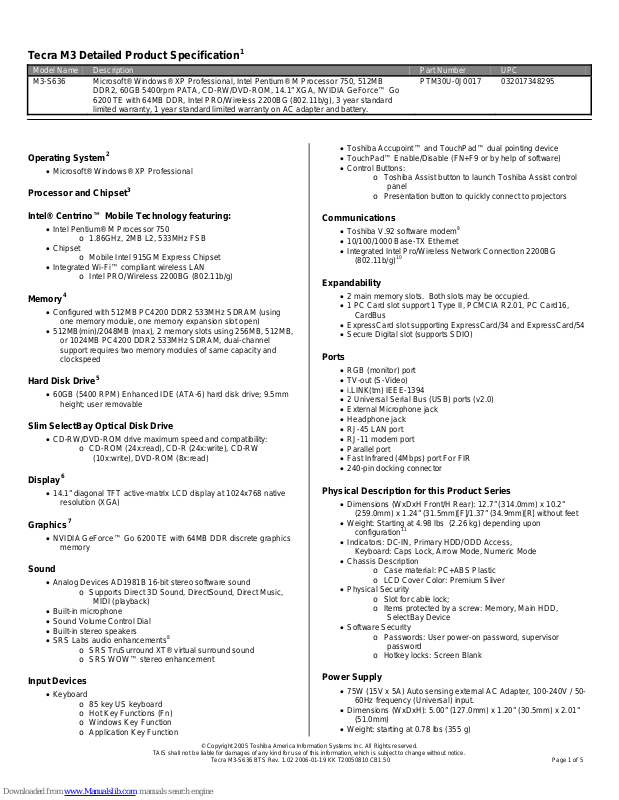

Tecra M3 Detailed Product Specification

Model Name Description Part Number UPC

M3-S636 Microsoft® Windows® XP Professional, Intel Pentium® M Processor 750, 512MB

PTM30U-0J0017 032017348295 DDR2, 60GB 5400rpm PATA, CD-RW/DVD-ROM, 14.1” XGA, NVIDIA GeForce™ Go 6200 TE with 64MB DDR, Intel PRO/Wireless 2200BG (802.11b/g), 3 year standard limited warranty, 1 year standard limited warranty on AC adapter and battery.

Operating System

• Microsoft® Windows® XP Professional

Processor and Chipset

• Toshiba Accupoint™ and TouchPad™ dual pointing device

• TouchPad™ Enable/Disable (FN+F9 or by help of software)

• Control Buttons:

o Toshiba Assist button to launch Toshiba Assist control

panel

o Presentation button to quickly connect to projectors

Intel® Centrino™ Mobile Technology featuring:

• Intel Pentium® M Processor 750

• Chipset

• Integrated Wi-Fi™ compliant wireless LAN

Memory

• Configured with 512MB PC4200 DDR2 533MHz SDRAM (using

• 512MB(min)/2048MB (max), 2 memory slots using 256MB, 512MB,

o 1.86GHz, 2MB L2, 533MHz FSB o Mobile Intel 915GM Express Chipset o Intel PRO/Wireless 2200BG (802.11b/g)

one memory module, one memory expansion slot open) or 1024MB PC4200 DDR2 533MHz SDRAM, dual-channel

support requires two memory modules of same capacity and clockspeed

Hard Disk Drive5

• 60GB (5400 RPM) Enhanced IDE (ATA-6) hard disk drive; 9.5mm height; user removable

Slim SelectBay Optical Disk Drive

• CD-RW/DVD-ROM drive maximum speed and compatibility:

o CD-ROM (24x:read), CD-R (24x:write), CD-RW

(10x:write), DVD-ROM (8x:read)

Display6

• 14.1” diagonal TFT active-matrix LCD display at 1024x768 native resolution (XGA)

Graphics7

• NVIDIA GeForce™ Go 6200 TE with 64MB DDR discrete graphics memory

Sound

• Analog Devices AD1981B 16-bit stereo software sound

• Built-in microphone

• Sound Volume Control Dial

• Built-in stereo speakers

• SRS Labs audio enhancements

o Supports Direct 3D Sound, DirectSound, Direct Music,

MIDI (playback)

o SRS TruSurround XT® virtual surround sound o SRS WOW™ stereo enhancement

Communications

• Toshiba V.92 software modem9

• 10/100/1000 Base-TX Ethernet

• Integrated Intel Pro/Wireless Network Connection 2200BG

(802.11b/g)

Expandability

• 2 main memory slots. Both slots may be occupied.

• 1 PC Card slot support 1 Type II, PCMCIA R2.01, PC Card16,

CardBus

• ExpressCard slot supporting ExpressCard/34 and ExpressCard/54

• Secure Digital slot (supports SDIO)

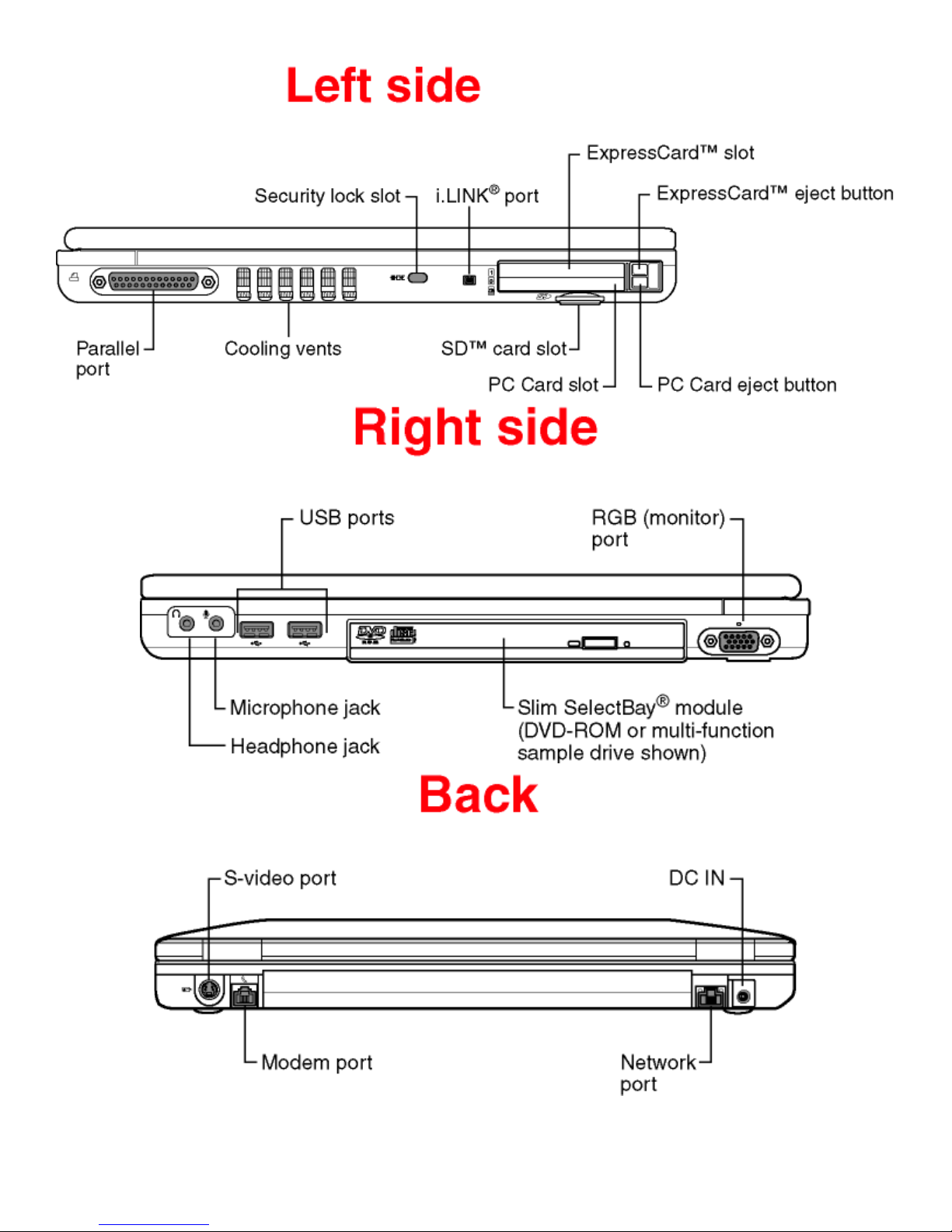

Ports

• RGB (monitor) port

• TV-out (S-Video)

• i.LINK(tm) IEEE-1394

• 2 Universal Serial Bus (USB) ports (v2.0)

• External Microphone jack

• Headphone jack

• RJ-45 LAN port

• RJ-11 modem port

• Parallel port

• Fast Infrared (4Mbps) port For FIR

• 240-pin docking connector

Physical Description for this Product Series

• Dimensions (WxDxH Front/H Rear): 12.7” (314.0mm) x 10.2” (259.0mm) x 1.24” (31.5mm)[F]/1.37” (34.9mm)[R] without feet

• Weight: Starting at 4.98 lbs (2.26 kg) depending upon configuration

• Indicators: DC-IN, Primary HDD/ODD Access, Keyboard: Caps Lock, Arrow Mode, Numeric Mode

• Chassis Description

• Physical Security

• Software Security

o Case material: PC+ABS Plastic o LCD Cover Color: Premium Silver

o Slot for cable lock; o Items protected by a screw: Memory, Main HDD,

SelectBay Device

o Passwords: User power-on password, supervisor

password

o Hotkey locks: Screen Blank

Input Devices

• Keyboard

Tecra M3-S636 BTS Rev. 1.02 2006-01-19 KK T20050810 CB1.50 Page 1 of 5

o 85 key US keyboard o Hot Key Functions (Fn) o Windows Key Function o Application Key Function

TAIS shall not be liable for damages of any kind for use of this information, which is subject to change without notice.

Power Supply

• 75W (15V x 5A) Auto sensing external AC Adapter, 100-240V / 5060Hz frequency (Universal) input.

• Dimensions (WxDxH): 5.00” (127.0mm) x 1.20” (30.5mm) x 2.01” (51.0mm)

• Weight: starting at 0.78 lbs (355 g)

Battery12

device installed

• 6-cell (4700mAh) rechargeable, removable Lithium Ion (Li-Ion) battery pack

• Dimensions (WxDxH): 8.15” (207.0mm) x 0.79” (20.0mm) x 1.77” (45.0mm)

• Weight: starting at 0.75 lbs (338 g)

• Battery Life (measured by MobileMark™)

o Included 6-cell battery: 3 hours, 13 minutes o Optional 12-cell battery: 5 hours, 56 minutes o Optional SlimSelectBay battery:

 5 hours, 46 minutes with 6-cell primary  8 hours, 31 minutes with 12-cell primary

• Recharge Time

o Main Battery Off/On – approximately 3.0

hrs/approximately 5.5 to 13.0 hrs

Toshiba EasyGuard™

• Protect & Fix

• Secure

• Connect

• Optimize

o TOSHIBA PC Diagnostic Tool o Multiple-Level Password Utilities

o Trusted Platform Module (TPM v1.1) o Execute Disable Bit

o TOSHIBA ConfigFree® o Voice-over-IP Ready Design o TOSHIBA Bluetooth® Stack

o Presentation Button o TOSHIBA Zooming Utility o One-touch Resolution Change o TOSHIBA Power Saver Utility o TOSHIBA Optical Disc Drive Power On/Off Utility o Wireless On/Off Switch o TOSHIBA Fn-esse® Shortcut Utility o TOSHIBA Mouse Utility o FN Shortcut Keys

BIOS

• ACPI, PNP, VESA, DPMS, DDC, SM BIOS v2.3, PCI BIOS v2.1 support

Software14

• Toshiba Software and Utilities

• Third-party Software

o TOSHIBA ConfigFree® o TOSHIBA Custom Utilities o Electronic User’s Guide

o Microsoft Office® OneNote™ 2003 o Microsoft Works® Version 8.0 o McAfee® VirusScan™ (30-day trial) o Sun® Java™ 2 Runtime Environment o Adobe® Acrobat® Reader version 5.0 o InterVideo® WinDVD® 5 o Sonic Solutions® RecordNow!™ Basic for Toshiba o Sonic Solutions® Drive Letter Access™ (DLA) o Microsoft® Windows Media Player version 10 o AOL® Internet Service (90-day trial)

Environmental Specifications

Operating Non-operating

Temperature Thermal Gradient 15° C per hour (max) 20° C per hour (max)

Relative Humidity (non-condensing) Altitude (relative to sea level) Shock 7G; 1.5G when

Vibration 0.2G; 0.25G when

Tecra M3-S636 BTS Rev. 1.01 2005-10-19 KK T20050810 CB1.50 Page 2 of 5

5° to 35° C (41° to 95° F)

-20° to 65° C (-4° to 149° F)

20% to 80% 10% to 90%

-60 to 3,000 meters -60 to 10,000 meters 60G

CDRW-DVD ROM device installed

1.0G

CDRW-DVD ROM

TAIS shall not be liable for damages of any kind for use of this information, which is subject to change without notice.

Tecra/Portégé – 3-year standard limited warranty17

• Standard 3-year limited warranty (battery and AC Adapter come standard with 1-year limited warranty)

Standard Limited Warranty Service Upgrades and Extensions

Toshiba offers many different enhanced services such as SystemGuard®, At-Home Repair, and Service Express to provide additional support to your notebook PC. For a full description and complete list of programs and program terms and conditions, please visit

Recommended Services Extended Service Plans

Provides an extended service plan for up to 4 total years from the original notebook purchase date. See Service Plan Agreement for program terms and conditions at Part Number Description WSN-PTQQ4V 4

www.pcsupport.toshiba.com.

Year Extended Service Plan

SystemGuard18 Accidental Damage Service w/ ServiceExpress

Provides advanced protection from damage caused from handling. Select your express repair service with either Depot Express or Carry-In Express and go to the front of the line. Extended Service Plan included except with 1 Year plan. See Service Plan Agreement for program terms and conditions at Part Number Description WSN-PQGQ3V 1

www.pcsupport.toshiba.com.

st/2nd/3rd

Year

WSN-PTGQ4V 1st/2nd/3rd/4th Year + Extended Service Plan

SystemGuard Accidental Damage Service + Business On-Site Repair

Combines SystemGuard and Business On-Site Repair coverage. Extended Service Plan included except with 1 Year plan. coverage must be purchased within the first 30 days of purchase. See Toshiba Service Plan Agreement for program terms and conditions at

www.pcsupport.toshiba.com.

Part Number Description WSN-PQGN3V 1st/2nd/3rd Year WSN-PTGN4V 1

st/2nd/3rd/4th

Year + Extended Service Plan

ServiceExpress

Select your express repair service with either Depot Express or Carry-In Express. Depot Express: Toshiba will repair your notebook and return the notebook to you via overnight shipment (excluding weekends and holidays). Carry-In Express: Take your notebook into a Premier ASP and go to the front of the line for expedited repair service. Extended Service Plan included except with 1 Year plan. See Service Plan Agreement for program terms and conditions at Part Number Description WSN-PQQP3V 1 WSN-PTQP4V 1

st/2nd/3rd st/2nd/3rd/4th

www.pcsupport.toshiba.com.

Year

Year + Extended Service Plan

Business On-Site Repair

Toshiba will provide on-site service at customer’s business location (excluding weekends and holidays) to perform the necessary hardware repairs. Extended Service Plan included except with 1 Year plan. See Toshiba Service Plan Agreement for program terms and conditions at

www.pcsupport.toshiba.com.

Part Number Description WSN-PQQN3V 1st/2nd/3rd Year WSN-PTQN4V 1

st/2nd/3rd/4th

Year + Extended Service Plan

www.pcsupport.toshiba.com

Accessories

For additional and most updated memory & accessories, please visit

www.accessories.toshiba.com

Power

Part Number Description PA3283U-2ACA Toshiba 75W Global AC Adapter PA3356U-2BRS Toshiba Primary Li Ion Battery Pack (6 Cell) PA3357U-1BRL Toshiba Primary High Capacity Li Ion Battery Pack (12

Cell)

SystemGuard

PA3129U-2BRS Toshiba Slim SelectBay 2nd 3600mAh Battery Pack PA3091U-1CHG Toshiba Battery Charger w/Integrated AC Adapter

Cases-Security

Part Number Description PA1395U-1NCS Toshiba Diplomat Nylon Carrying Case PA1396U-1NCS Toshiba Diplomat Leather Carrying Case PA1361U-1NCS Toshiba Executive Leather Case (15.4") PA1376U-1NCS Toshiba/Brenthaven SlimLine Case 14.1" PA1377U-1NCS Toshiba/Brenthaven Deluxe Shoulder Case 15.4" PA1378U-1NCS Toshiba/Brenthaven Wheeled Case 17" PA410U Targus DEFCON CL Cable Lock

Expansion

Part Number Description PA3314U-1PRP Toshiba Advanced Port Replicator III w/75W AC

Adapter

Input Devices

Part Number Description PA1336U-1NKB Toshiba USB Keyboard PA1337U-1NMS Toshiba USB Optical Scroller Mouse PA1367U-1NMS Toshiba USB Ultra-Mini Retractable Scroller Mouse PA1368U-1NHB Toshiba USB 2.0 Mini 4-Port Hub (w/AC adapter) PA1370U-1ETC Toshiba Keyboard Protector (Tecra/Satellite/Qosmio)

Storage and Backup

Part Number Description PA3404U-1H40 Toshiba USB Mobile Hard Drive 40GB (1.8") UABS2-60.0 CMS ABSplus 60GB USB 2.0 Auto Backup System UABS2-80.0 CMS ABSplus 80GB USB 2.0 Auto Backup System PA3109U-3FDD Toshiba USB Floppy Disk Drive Kit (RoHS Compliant)

Slim Select Bay

Part Number Description PA3359U-1DV2 Toshiba Slim SelectBay DVD SuperMulti Drive Kit

(Black) PA3230U-1H80 Toshiba 80GB 5400 rpm HDD Kit, (with Bracket) PA3134U-1ETC Toshiba Slim SelectBay HDD Adapter (Black Bezel) PA3306U-1H60 Toshiba 60GB 7200 rpm HDD Kit, (with Bracket)

Multimedia

Part Number Description PA3390U-1MPM Toshiba MultiMedia Center/Audio USB Hub

Wireless LAN

Part Number Description PA3363U-2MPC Wireless LAN Card Kit, Mini-PCI (802.11g) (Intel)

[dealer install only] PA3376U-1MPC Wireless LAN Card Kit, Mini-PCI (802.11ag) (Intel)

[dealer install only] PA3318U-2MPC Wireless LAN Card Kit, Mini-PCI (802.11ag) (Atheros)

[dealer install only]

Bluetooth

Part Number Description PA3455U-1BTM Toshiba USB Adapter with Bluetooth 2.0+EDR

Capability PA1381U-1ETC Toshiba Wireless Stereo Headphones with Bluetooth

Technology PA1380U-1NMS Toshiba Wireless Travel Mouse with Bluetooth

Technology

Subject to Change

While Toshiba has made every effort at the time of publication to ensure the accuracy of the information provided herein, product specifications, configurations, prices, system/component/options availability are all subject to change without notice. For the most up-to-date product information about your computer, or to stay current with the various computer software or hardware options, visit Toshiba’s Web site at

http://www.pcsupport.toshiba.com

Return Policy

Notwithstanding anything to the contrary in any third party License Agreement or product documentation supplied with your PC, Toshiba America Information Systems, Inc. (“TAIS”) does not accept the return of component parts, or bundled software, that have been removed from the PC system. Pro-rata refunds on individual PC components or bundled software, including the operating system, will not be granted. If you wish to return a complete PC system, contact the TAIS dealer where you purchased the product, and comply with the dealer’s standard return policies and procedures.

Toshiba America Information Systems, Incorporated (“TAIS”) 9740 Irvine Boulevard Irvine CA 92618 ToshibaDirect website: TAIS website for resellers: TAIS PC Support website:

Portégé, Satellite, Tecra, SelectBay, ConfigFree and SystemGuard are registered trademarks and Qosmio and EasyGuard are trademarks of Toshiba America Information Systems, Inc. and/or Toshiba Corporation. Intel, Celeron, Centrino, Intel Inside, Pentium, the Intel Centrino logo, and the Intel Inside logo are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the United States and other countries. Microsoft and Windows are registered trademarks and OneNote registered is a trademark of Microsoft Corporation in the United States and/or other countries. Winstone® is a registered trademark and BatteryMark™ is a trademark of Ziff Davis Publishing Holdings Inc. in the U.S. and other countries. MobileMark™ is a trademark of the Business Applications Performance Corporation. Wi-Fi is a registered certification mark of the Wi-Fi Alliance. The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Toshiba is under license. NVIDIA and GeForce are registered trademarks or trademarks of NVIDIA Corporation in the United States and/or other countries. All other trademarks are the property of their respective owners.

Product Series Legal Footnote. The product specifications and configuration information are designed for a product Series. Your particular model may not have all the features and specifications listed or illustrated. For more detailed information about the features and specifications on your particular model, please visit Toshiba's Web site at pcsupport.toshiba.com.

Product Offering Legal Footnote. Toshiba America Information Systems, Inc. reserves the right to modify or withdra w this offer at anytime without notice.

Operating System. Certain Microsoft® software product(s) included with this computer may use technological measures for copy protection. IN SUCH EVENT, YOU WILL NOT BE ABLE TO USE THE PRODUCT IF YOU DO NOT FULLY COMPLY WITH THE PRODUCT ACTIVATION PROCEDURES. Product activation procedures and Microsoft’s privacy policy will be detailed during initial launch of the product, or upon certain reinstallations of the software product(s) or reconfigurations of the computer, and may be completed by Internet or telephone (toll charges may apply).

Some software may differ from its retail version (if available), and may not include user manuals or all program functionality.

Processor (Central Processing Unit). CPU performance in your computer product may vary from specifications under the following conditions:

1. use of certain external peripheral products

Tecra M3-S636 BTS Rev. 1.01 2005-10-19 KK T20050810 CB1.50 Page 3 of 5

http://www.toshibadirect.com

http://sell.toshiba.com http://pcsupport.toshiba.com

TAIS shall not be liable for damages of any kind for use of this information, which is subject to change without notice.

2. use of battery power instead of AC power

3. use of certain multimedia, computer generated graphics or video applications

4. use of standard telephone lines or low speed network connections

5. use of complex modeling software, such as high end computer aided design applications

6. use of several applications or functionalities simultaneously

7. use of computer in areas with low air pressure (high altitude >1,000 meters or >3,280 feet above sea level)

8. use of computer at temperatures outside the range of 5°C to 30°C (41°F to 86° F) or >25°C (77°F) at high altitude (all temperature references are approximate and may vary depending on the specific computer model – please visit the Toshiba website at

www.pcsupport.toshiba.com for details). CPU performance may also vary from specifications due to design configuration. Under some conditions, your computer product may automatically shut-down. This is a normal protective feature designed to reduce the risk of lost data or

damage to the product when used outside recommended conditions. To avoid risk of lost data, always make back-up copies of data by periodically storing it on an external storage medium. Use your computer product only under recommended conditions. Read additional restrictions under “Environmental Conditions” in your product “Detailed Specs.” Contact Toshiba Technical Service and Support for more information.

Memory (Main System). Part of the main system memory may be used by the graphics system for graphics performance and therefore reduce the amount of main system memory available for other computing activities. The amount of main system memory allocated to support graphics may vary depending on the graphics system, applications utilized, system memory size and other factors.

Hard Disk Drive (HDD) Capacity. 1 Gigabyte (GB) means 1000 x 1000 x 1000 = 1,000,000,000 bytes using powers of 10. The computer operating system, however, reports storage capacity using powers of 2 for the definition of 1 GB = 1024 x 1024 x 1024 = 1,073,741,824 bytes, and therefore may show less storage capacity. Available storage capacity will also be less if the product includes one or more pre-installed operating systems, such as Microsoft Operating System and/or pre-installed software applications, or media content. Actual formatted capacity may vary.

Display. Small bright dots may appear on your screen display when you turn on your PC. Your display contains an extremely large number of thin-film transistors (TFT) and is manufactured using high-precision technology. Any small bright dots that may appear on your display are an intrinsic characteristic of the TFT manufacturing technology. Over a period of time, and depending on the usage of the computer, the brightness of the screen will deteriorate. This is also an intrinsic characteristic of the screen technology. When the computer is operated on battery power, the screen with dim and you may not be able to increase the brightness of the screen while on battery power.

Graphics (Graphics Processing Unit). GPU performance may vary depending on product model, design configuration, applications, power management settings and features utilized. GPU performance is only optimized when operating in AC power mode and may decrease considerably when operating in battery power mod e.

NVIDIA GeForce™ Go 6200TE GPU. The graphics processor is optimized for your specific computer model and GPU performance will be slower than the standard GeForce™ Go 6200TE or applicable successor model. GPU performance is only optimized at ambient temperatures between 5°C and 30°C.

SRS Audio Enhancements: SRS TruSurround XT is available only when using WinDVD applications. SRS WOW is available only when using Windows Media Player 9. SRS audio enhancements are available in the Microsoft Windows operating system only. SRS TruSurround XT is available in the Microsoft® Windows® operating system only

Modem Speed. Due to FCC limitations, speeds of 53 kbps are the maximum permissible transmission rates during download. Actual data transmission speeds will vary depending on line conditions.

Wireless. Wireless connectivity and some features may require you to purchase additional software, external hardware or services. Availability of public wireless LAN access points may be limited. The transmission speed over the wireless LAN and the distance over which wireless LAN can reach may vary depending on surrounding electromagnetic environment, obstacles, access point design and configuration, and client design and software/hardware configurations. The actual transmission speed will be lower than the theoretical maximum speed. To use the Atheros SuperAG™ or SuperG™ wireless function, if available, your client and access point must support the corresponding feature. Performance of these functions may vary depending on the format of data transmitted.

Weight. Weight may vary depending on product configuration, vendor components, manufacturing variability and options selected.

Battery Life. Battery life may vary considerably from specifications depending on product model, configuration, applications, power management settings and features utilized, as well as the natural performance variations produced by the design of individual components. Published battery life numbers are achieved on select models and configurations tested by Toshiba at the time of publication. See “Detailed Specs” for specific battery measurement test. Recharge time varies depending on usage. Battery may not charge while computer is consuming full power. After a period of time, the battery will lose its ability to perform at maximum capacity and will need to be replaced. This is normal for all batteries. To purchase a new battery pack, see the accessories information that shipped with your computer or visit the Toshiba web site at

Battery Life - MobileMark™. Measured by MobileMark. MobileMark is a trademark of the Business Applications Performance Corporation.

Software. Some software may differ from its retail version (if available), and may not include user manuals or all program functionality.

www.accessories.toshiba.com.

Certain Microsoft® software product(s) included with this computer may use technological measures for copy protection. IN SUCH EVENT, YOU WILL NOT BE ABLE TO USE THE PRODUCT IF YOU DO NOT FULLY COMPLY WITH THE PRODUCT ACTIVATION PROCEDURES. Product activation procedures and Microsoft’s privacy policy will be detailed during initial launch of the product, or upon certain reinstallations of the software product(s) or reconfigurations of the computer, and may be completed by Internet or telephone (toll charges may apply).

Tecra M3-S636 BTS Rev. 1.01 2005-10-19 KK T20050810 CB1.50 Page 4 of 5

TAIS shall not be liable for damages of any kind for use of this information, which is subject to change without notice.

AOL® Internet Service. Availability may be limited, especially during peak times. TO AVOID BEING CHARGED A MONTHLY MEMBERSHIP FEE, SIMPLY CANCEL BEFORE THE THREE-MONTH PROMOTIONAL PERIOD ENDS. Premium services carry surcharges and communication surcharges may apply, including AK, even during promotional period. Members may incur telephone charges on their phone bill, depending on their location and calling plan, even during promotional period. Available to new AOL members in the United States, age 18 or older; a major credit card or checking account is required.

Temperature (Environmental) Conditions. All temperature references are approximate and the performance of your computer may vary from specifications even when operating within the recommended temperature range.

Warranty. Toshiba’s standard limited warranty, extended warranty and service upgrade terms and conditions are available at www.warranty.toshiba.com.

SystemGuard. SystemGuard coverage must be purchased within the first 30 days of purchase. See Toshiba Service Plan Agreement for program terms and conditions at

www.pcsupport.toshiba.com.

Tecra M3-S636 BTS Rev. 1.01 2005-10-19 KK T20050810 CB1.50 Page 5 of 5

TAIS shall not be liable for damages of any kind for use of this information, which is subject to change without notice.
