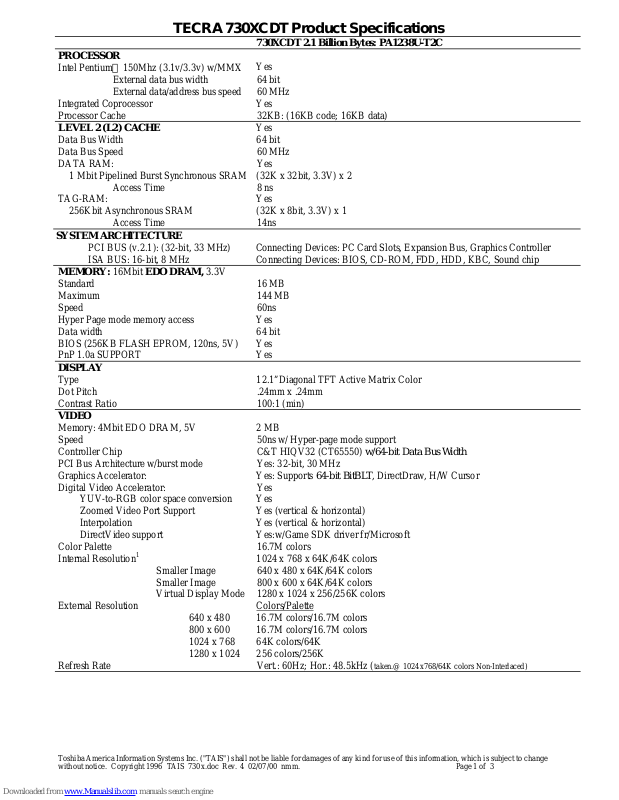

TECRA 730XCDT Product Specifications
730XCDT 2.1 Billion Bytes: PA1238U-T2C
PROCESSOR
Intel Pentium 150Mhz (3.1v/3.3v) w/MMX
External data bus width 64 bit
External data/address bus speed 60 MHz
Integrated Coprocessor Yes
Processor Cache 32KB: (16KB code; 16KB data)
LEVEL 2 (L2) CACHE
Data Bus Width 64 bit
Data Bus Speed 60 MHz
DATA RAM: Yes
1 Mbit Pipelined Burst Synchronous SRAM (32K x 32bit, 3.3V) x 2
Access Time 8 ns
TAG-RAM: Yes
256Kbit Asynchronous SRAM (32K x 8bit, 3.3V) x 1
Access Time 14ns
SYSTEM ARCHITECTURE
PCI BUS (v.2 .1): (32-bit , 33 MHz) Connecting Devices: PC Card Slots, E xpansion Bus, Graphics Controller
ISA BUS: 16-bit, 8 MHz Connecting Devices: BIOS, CD-ROM, FDD, HDD, KBC, Sound chip
MEMORY: 16Mbit EDO DRAM, 3.3V
Standard 16 MB
Maximum 144 MB
Speed 60ns
Hyper Page mode memory access Yes
Data width 64 bit
BIOS (256KB FLASH EPROM, 120ns, 5V) Yes
PnP 1.0a SUPPORT Yes
DISPLAY
Type 12.1”Diagonal TFT Active Matrix Color
Dot Pitch .24mm x .24mm
Contrast Ratio 100:1 (min)
VIDEO
Memory: 4Mbit EDO DRAM, 5V 2 MB
Speed 50ns w/ Hyper-page mode support
Controller Chip C&T HIQV32 (CT65550)
PCI Bus Architecture w/burst mode Yes: 32-bit, 30 MHz
Graphics Accelerator: Yes: Supports
Digital Video Accelerator: Yes
YUV-to-RGB color space conversion Yes
Zoomed Video Port Support Yes (vertical & horizontal)
Interpolation Yes (vertical & horizontal)
DirectVideo support Yes:w/Game SDK driver fr/Microsoft
Color Palette 16.7M colors
Internal Resolution
1
Smaller Image 640 x 480 x 64K/64K colors
Smaller Image 800 x 600 x 64K/64K colors
Virtual Display Mode 1280 x 1024 x 256/256K colors
External Resolution Colors/Palette
640 x 480 16.7M colors/16.7M colors
800 x 600 16.7M colors/16.7M colors
1024 x 768 64K colors/64K
1280 x 1024 256 colors/256K
Refresh Rate Vert.: 60Hz; Hor.: 48.5kHz (
Yes
Yes
w/64-bit Data Bus Width
64-bit BitBLT
1024 x 768 x 64K/64K colors
, DirectDraw, H/W Cursor
taken.@ 1024x768/64K colors Non-Interlaced)
Toshiba America Information Systems Inc. ("TAIS") shall not be liable for damages of any kind for use of this information, which is subject to change
without notice. Copyright 1996 TAIS 730x.doc Rev. 4 02/07/00 nmm. Page 1 of 3
TECRA 730XCDT Product Specifications
730XCDT 2.1 Billion Bytes: PA1238U-T2C (con.)
STORAGE
Removeable HDD (2.5” Enhanced IDE) 2.1 Billion Bytes=2.02GB (13msec)
SELECT BAY DEVICES
Modular FDD (3.5” 1.44MB) Included/Swappable with CD-ROM
FDD Dimensions 4.57”L x 3.8”W x .59”H
FDD Weight Weight: .29 lbs
Simultaneous FDD & CD-ROM Support Yes: External FDD adapter included
FDD Adapter Dimensions 7.0”L x 5.5”W
FDD Adapter Weight .25 lbs
Modular HDD (2.5” Enhanced IDE) Optional/For use in SelectBay only
Capacity 2.1 billion bytes=2.02GB (13msec)
Modular CD-ROM: Toshiba XM-1402B
5.25” 10x-Average speed
Weight .6 lbs
Interface .ATAPI (Enhanced IDE)
Random Access Time 180 ms
Average Sustained Transfer Rate 1,500 KB/sec
Supported Disc formats CD-DA, CD-ROM, CD-ROM XA, CD-Bridge (Photo-CD, Video-CD),
KEYBOARD
82 keys, 3mm Travel Yes
12 dedicated function keys Yes
Cursor control (8 Keys, Inverted "T") Yes
Numeric keypad (Integrated Overlay) Yes
Integrated Pointing Device
EXPANSION SLOTS
Two Stacked PC Card Slot
2
32-bit, 3.3V PC CardBus Support Yes
16-bit, 5.0V PC Card Support Yes
Internal Memory Slot (One only) Yes
EXPANSION PORTS
One RJ-11 port for internal modem (supplied) Yes
One 9-Pin Serial (16550 UART compliant) Yes
One 25-Pin Parallel (8 bit ECP) Yes
One 15-Pin RGB (SVGA video) Yes
Serial Infrared port (back only) Yes: IrDA 115.2Kbps compatible
One (PS/2) 101 Keyboard/Mouse port Yes
One External Floppy Drive port Yes
Microphone (3.5mm mini jack, monoaural) Yes
Headphone (3.5mm mini jack, stereo)
Line-in (3.5mm mini jack, stereo, 2V rms) Yes
Line-out (3.5mm mini jack, stereo, 0.7V rms) Yes
Noteworthy security lock port Yes
SOUND SYSTEM
Chipsets: Crystal Semiconductor CS4232, Yamaha OPL3 (YMF262),
Synthesis policy FM synthesis
16 bit stereo audio playback/record Yes: w/48kHz maximum sampling rate
Full duplex function Yes
Sound formats supported:
DirectSound support Yes: with Windows 95 Game SDK driver from Microsoft
Speaker system:
2.
Holds two - 5mm PC Cards Type II or one - 10.5mm PC Card Type III.
Installed/ For use in SelectBay only
CD-I, CD-I Ready, CD-G, Multisession (Photo-CD, CD-Plus)
AccuPoint
Yes: CardBus & ZV Card Ready
Yes: (16 Ω min)
SoundBlaster Pro, .WAV, MIDI, Zoomed video port audio (stereo),
CardBus audio (monaural), CD-ROM audio
Two top-mounted stereo speakers (28mm, 8 Ω)
Toshiba America Information Systems Inc. ("TAIS") shall not be liable for damages of any kind for use of this information, which is subject to change
without notice. Copyright 1996 TAIS 730x.doc Rev. 4 02/07/00 nmm. Page 2 of 3
TECRA 730XCDT Product Specifications
730XCDT 2.1 Billion Bytes: PA1238U-T2C (con.)
INTERNAL MODEM
DAA support US/Canada and Euro/Australia
Data support
Protocols supported Bell-103/212A, CCITT-V.21/V.22, V.22bis, V.23, VV.32, V.32bis, V.32 terbo, V.34
Error correction MNP 1-4
Data compression MNP 5, CCITT V.42 bis
Fax support Fax class 1
Protocols supported V.21 ch2, V.27 ter, V.29, V.17
Supported Functions Speaker phone, Telephony Answering Machine, Ring Wake-up Resume
NoteDock II Port Replicator (Optional)
Two Type III CardBus ready PC Card slots Yes: each slot supports one card
Supported Interfaces Serial, parallel, PS/2 keyboard, PS/2 mouse, DC in, SVGA monitor,
Desk Station V Plus (Optional)
(2) Full length 32-bit PCI/16-bit ISA slots Yes
(1) Half Length 32-bit PCI slot Yes
(2) Type III PC Card slots Yes
Built-in SCSI II Yes
5.25” half height drive bay Yes
Select Bay for Modular FDD or CD-ROM Yes
Designed for Windows 95 and PNP Yes
Hot Docking Support Yes
POWER
Autosensing External AC Adapter:NW2484U
Input (Voltage/Frequency) 100-240V; 50-60Hz
Output (Voltage/Amps) 15 VDC; 2.7A (max)
Power Output (Watts) 40W
Battery Type: Li-Ion (10.8V, 5600mAH) Yes: Part# PA2485UR (Note: Different form factor from 740CDT)
Battery Life: (Full Power/Low Power) 3.0 hrs. max
Recharge Time (Computer Off/On) 4 hrs.(Off) /4.5-11 hrs.(On)
MaxTime Power Management
DIMENSIONS
WEIGHT (includes 1.32 lbs. battery)
BUNDLED SOFTWARE
User selectable Windows 95 or Windows for Workgroups 3.11 & MS-DOS 6.22; Intel Indeo Video; Runtime Video for Windows
Synchro multimedia connect Communications utilities; Sony Music Screeners; Mediamatics Arcade Pak; America Online
Compuserve; Netscape Navigator; Puma TranXit; Toshiba utilities: Maxtime, magiCDisc, Fn-esse, online documentation
SECURITY
WARRANTY
ENVIRONMENTAL SPECIFICATIONS
Temperature: Operating
Non-operating
Thermal Gradient 20º C per hour (max.)
Relative Humidity: Operating
Non-operating
Altitude: Operating -197 to 9,843ft. (-60 to 3000m)
Non-operating -197 to 32,808ft. (-60 to 10,000m)
Shock: Operating 1 0G; 1.5G w/CD-ROM installed
Non-operating 60G; 5 0G w/CD-ROM installed
Vibration: Operating 0.5G; 0.25G w/CD-ROM installed
Non-operating 1G; 1G w/CD-ROM installed
28.8 /14.4 Kbps Voice/Data/Fax modem
Incoming Call Discrimination, Caller ID
Part# PA2713U
lock slot , joystick/MIDI, audio line-in, line-out, headphone, microphone
Part# PA2710U
5.51”L x 2 .95”W x .98” --- .75 lbs.
Yes
11.7”W x 9.0"D x 2.4”H
7.75 lbs.
Lock slot, Password:power-on, supervisor, HDD, Docking station eject
3 YR Parts & Labor (battery 1 year)
41°F (5°C) to 95°F (35°C)
-4°F (-20°C) to 149°F (65°C)
20% to 80% non-condensing
10% to 90% non-condensing
Toshiba America Information Systems Inc. ("TAIS") shall not be liable for damages of any kind for use of this information, which is subject to change
without notice. Copyright 1996 TAIS 730x.doc Rev. 4 02/07/00 nmm. Page 3 of 3
