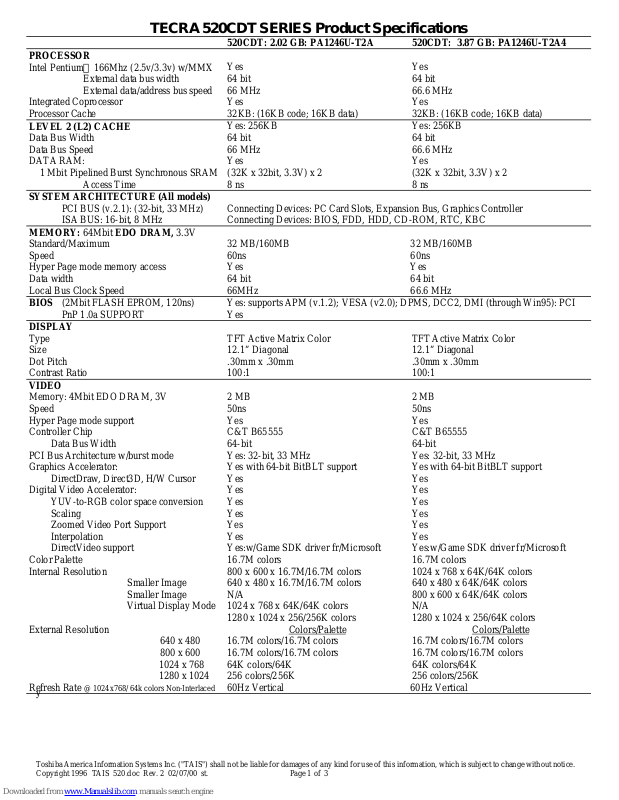

TECRA 520CDT SERIES Product Specifications
520CDT: 2.02 GB: PA1246U-T2A 520CDT: 3.87 GB: PA1246U-T2A4
PROCESSOR
Intel Pentium 166Mhz (2.5v/3.3v) w/MMX
External data bus width 64 bit 64 bit
External data/address bus speed 66 MHz 66.6 MHz
Integrated Coprocessor Yes Yes
Processor Cache 32KB: (16KB code; 16KB data) 32KB: (16KB code; 16KB data)
LEVEL 2 (L2) CACHE
Data Bus Width 64 bit 64 bit
Data Bus Speed 66 MHz 66.6 MHz
DATA RAM: Yes Yes
1 Mbit Pipelined Burst Synchronous SRAM (32K x 32bit, 3.3V) x 2 (32K x 32bit, 3.3V) x 2
Access Time 8 ns 8 ns
SYSTEM ARCHITECTURE (All models)
PCI BUS (v.2.1): (32-bit, 33 MHz) Connecting Devices: PC Card Slots, Expansion Bus, Graphics Controller
ISA BUS: 16-bit, 8 MHz Connecting Devices: BIOS, FDD, HDD, CD-ROM, RTC, KBC
MEMORY: 64Mbit EDO DRAM, 3.3V
Standard/Maximum 32 MB/160MB 32 MB/160MB
Speed 60ns 60ns
Hyper Page mode memory access Yes Yes
Data width 64 bit 64 bit
Local Bus Clock Speed 66MHz 66.6 MHz
BIOS (2Mbit FLASH EPROM, 120ns) Yes: supports APM (v.1.2); VESA (v2.0); DPMS, DCC2, DMI (through Win95): PCI
PnP 1.0a SUPPORT Yes
DISPLAY
Type TFT Active Matrix Color TFT Active Matrix Color
Size 12.1” Diagonal 12.1” Diagonal
Dot Pitch .30mm x .30mm .30mm x .30mm
Contrast Ratio 100:1 100:1
VIDEO
Memory: 4Mbit EDO DRAM, 3V 2 MB 2 MB
Speed 50ns 50ns
Hyper Page mode support Yes Yes
Controller Chip C&T B65555 C&T B65555
Data Bus Width 64-bit 64-bit
PCI Bus Architecture w/burst mode Yes: 32-bit, 33 MHz Yes: 32-bit, 33 MHz
Graphics Accelerator: Yes with 64-bit BitBLT support Yes with 64-bit BitBLT support
DirectDraw, Direct3D, H/W Cursor Yes Yes
Digital Video Accelerator: Yes Yes
YUV-to-RGB color space conversion Yes Yes
Scaling Yes Yes
Zoomed Video Port Support Yes Yes
Interpolation Yes Yes
DirectVideo support Yes:w/Game SDK driver fr/Microsoft Yes:w/Game SDK driver fr/Microsoft
Color Palette 16.7M colors 16.7M colors
Internal Resolution 800 x 600 x 16.7M/16.7M colors 1024 x 768 x 64K/64K colors
Smaller Image 640 x 480 x 16.7M/16.7M colors 640 x 480 x 64K/64K colors
Smaller Image N/A 800 x 600 x 64K/64K colors
Virtual Display Mode 1024 x 768 x 64K/64K colors N/A
External Resolution Colors/Palette
640 x 480 16.7M colors/16.7M colors 16.7M colors/16.7M colors
800 x 600 16.7M colors/16.7M colors 16.7M colors/16.7M colors
1024 x 768 64K colors/64K 64K colors/64K
1280 x 1024 256 colors/256K 256 colors/256K
Refresh Rate
y
@ 1024x768/ 64k colors Non-Interlaced
Yes Yes
Yes: 256KB Yes: 256KB
1280 x 1024 x 256/256K colors 1280 x 1024 x 256/64K colors
Colors/Palette
60Hz Vertical 60Hz Vertical
Toshiba America Information Systems Inc. ("TAIS") shall not be liable for damages of any kind for use of this information, which is subject to change without notice.
Copyright 1996 TAIS 520.doc Rev. 2 02/07/00 st. Page 1 of 3
TECRA 520CDT SERIES Product Specifications
520CDT: 2.02 GB: PA1246U-T2A 520CDT: 3.87 GB: PA1247U-T2A4
STORAGE
Removeable HDD (2.5” Enhanced IDE) 2.168 billion bytes = 2.02 GB (13msec) 4.0 billion bytes = 3.87 GB (13msec)
SELECT BAY DEVICES
Second Battery Optional: Part# PA2451UR (Includes battery adapter)
Battery Type Li-Ion (10.8V, 3600mAH)
Modular FDD (3.5” 1.44MB) Inclu ded/Swappable with CD-ROM Included/Swappa ble with CD-ROM
FDD Dimensions 4.57”L x 3.8”W x .59”H 4.57”L x 3.8”W x .59”H
FDD Weight Weight: .29 lbs Weight: .29 lbs
Simultaneous FDD & CD-ROM Support
FDD Adapter Dimensions 7.0”L x 5.5”W 7.0”L x 5.5”W
FDD Adapter Weight .25 lbs .25 lbs
Modular HDD (2.5” Enhanced IDE) Optional/Swappable with FDD Optional/Swappable with FDD
Capacity 2 . 1 billion bytes=2.02 GB (13msec) 2.1 billion bytes=2.02 GB (13msec)
Modular CD-ROM: Toshiba XM-1502B
5.25” 10x-Average speed
Weight .6 lb s .6 lbs
Interface .ATAPI (Enhanced IDE) .ATAPI (Enhanced IDE)
Random Access Time 150 ms 150 ms
Average Sustained Transfer Rate 1,500 KB/sec 1,500 KB/sec
Supported Disc formats CD-DA, CD-ROM, CD-ROM XA, CD-Bridge (Photo-CD, Video-CD),
KEYBOARD
84/86 keys, 3mm Travel, Keyboard Tilt Yes Yes
12 dedicated function keys Yes Yes
Cursor control (8 Keys, Inverted “T”) Yes Yes
Numeric keypad (Integrated Overlay) Yes Yes
Integrated Pointing Device
EXPANSION SLOTS
Two Stacked PC Card Slots Yes: Holds two - 5mm PC Cards Type II or one - 10.5mm PC Card Type III.
Support Standards Yes: Supports 32-bit, 3.3V PC CardBus cards and 16-bit, 5.0V PC card standards
Internal Memory Slot (One only) Yes Yes
EXPANSION PORTS
One RJ-11 port for internal modem (supplied) Yes Yes
One 9-Pin Serial (16550 UART compliant) Yes Yes
One 25-Pin Parallel (8 bit ECP) Yes Yes
One 15-Pin RGB (SVGA video) Yes Yes
One Fast Infrared port Yes: IrDA 1.1:4Mbps compatible Yes: IrDA 1.1:4Mbps compatible
One (PS/2) 101 Keyboard/Mouse port Yes: “Y”connector supported Yes: “Y”connector supported
One External Floppy Drive port Yes Yes
One Universal Serial Bus (USB) port Yes: Supports 127devices. Throughput Rate: 1 2Mbits/sec .
Microphone (3.5mm mini jack, monoaural) Yes Yes
Headphone (3.5mm mini jack, stereo) Yes Yes
Line-in (3.5mm mini jack, stereo, 2V rms) Yes Yes
Noteworthy security lock port Yes Yes
INTERNAL MODEM (Cellular Rea dy)
DAA Support US/Canada and Euro/Asia
Data support Protocols supported Bell-103/212A, CCITT-V.21/V.22, V.32, V.32bis, V.34, V.80
Error correction MNP 1-4
Data compression MNP 5, CCITT V.42 bis
Fax support Fax class 1
Protocols supported V.21 ch2, V.27 ter, V.29, V.17
Supported Functions Speaker phone, Telephony Answering Machine, Ring Wake-up Resume
Yes: External FDD adapter included Yes: External FDD adapter included
Installed/Swappable with FDD Installed/Swappable with FDD
CD-I, CD-I Ready, CD-G, Multisession (Photo-C D, CD-Plus)
AccuPoint AccuPoint
33.6 /14.4 Kbps Data/Fax/Voice modem w/V.80 support for Video Conferencing
Incoming Call Discrimination, Caller ID
Toshiba America Information Systems Inc. ("TAIS") shall not be liable for damages of any kind for use of this information, which is subject to change without notice.
Copyright 1996 TAIS 520.doc Rev. 2 02/07/00 st. Page 2 of 3
TECRA 520CDT SERIES Product Specifications
520CDT: 2.02 GB: PA1246U-T2A 520CDT: 3.87 GB: PA1247U-T2A4
Desk Station V Plus (Optional)
(2) Full length 32-bit PCI/16-bit ISA slots Yes Yes
(1) Half Length 32-bit PCI slot Yes Yes
(2) Type III PC Card slots Yes Yes
Built-in SCSI II Yes Yes
5.25” half height drive bay Yes Yes
Select Bay for Modular FDD, HDD, CD-ROM Yes
Designed for Windows 95 and PNP Yes Yes
Hot Docking Support Yes Yes
NoteDock II Port Replicator (Optional)
Two Type III CardBus ready PC Card slots Yes: each slot supports one card
Supported Interfaces Serial, parallel, PS/2 keyboard, PS/2 mouse, DC in, SVGA monitor,
POWER (All Models)
Autosensing External AC Adapter
Input (Voltage/Frequency) 100-240V; 50-60Hz
Output (Voltage/Amps) 15 VDC; 3A (max)
Power Output (Watts) 45W
Battery Type: Li-Ion (10.8V, 3600mAH) Yes: Part# PA2448UR
Battery Life: (Full power/Low power) One batter y: 2 hrs./2.5 hrs. ( max); Two Batteries: 4hrs./5hrs. (max)
Recharge Time (Comput er Off/On) 3.5 hrs.(Off) /4.5-11 hrs.(On) --- (per one bat tery pack)
MaxTime Power Management
SOUND SYSTEM (All Models)
Chipsets: Yamaha OPL3-SA3
16 bit stereo audio playback/record Yes
Maximum Sampling Rate 48 kHz
FM Synthesis support Yes
Full duplex function Yes
Sound formats supported:
3D Sound Support Yes
DirectSound/Direct3DSound support Yes: with Windows 95 Game SDK driver from Microsoft
Speaker system
DIMENSIONS
WEIGHT (includes .86 lbs. battery)
BUNDLED SOFTWARE (All Models)
Windows®95, Synchro Mul timedia Co nnect, Mediamatics MPEG ARCADE Pak, Puma Tranxit I R Software, M agicDisk,
Netscape Personal Edition, Fn-esse, Electronic manual
OS Recovery CD; Windows 95 Companion Disk; Backup CD
SECURITY Miscellaneous Screen blank (by Hotkey)
Lock mechanisms PC Card, keyboard (by Hotkey), Noteworthy cable lock
Password security Power-on, supervisor, HDD, Undock (from DeskStation V Plus)
WARRANTY
ENVIRONMENTAL SPECIFICA TION S
(All Models) Operating Non-operating
Temperature
Thermal Gradient: 20º C per hour (max.) N/A N/A
Relative Humidity
Altitude: -197 to 9,843ft. (-60 to 3000m) -197 to 32,808ft. (-60 to 10,000m)
Shock: 10G; 1.5G w/CD-ROM installed 60G; 50G w/CD-ROM installed
Vibration: 0.5G; 0.25G w/CD-ROM installed 1G; 1G w/CD-ROM installed
1. The slimline CD-ROM, standard with 520/530CDT, is not compatible with the Deskstation V Plus. CD-ROM use in the Desk Station requires the
purchase of CD-ROM Select Bay Adapter (PA2618U).
Part# PA2710U Part# PA2710U
1
Yes
1
Part# PA2713U
lock slot , joystick/MIDI, audio line-in, line-out, headphone, microphone
Yes: 4.90”L x 2.46”W x .97”D --- .66 lbs.
Yes
SoundBlaster Pro, .WAV, MIDI, Zoomed video port audio (stereo),
Two top-mounted stereo speakers (28mm, 8 Ω)
11.69”W x 9.09”D x 1.85”H 11.69”W x 9.09”D x 1.85”H
6.38 lbs. 6.38 lbs.
3 YR Parts & Labor 3 YR Parts & Labor
41°F (5°C) to 95°F (35°C) -4°F (-20°C) to 149°F (65°C)
20% to 80% non-condensing 10% to 90% non-condensing
Toshiba America Information Systems Inc. ("TAIS") shall not be liable for damages of any kind for use of this information, which is subject to change without notice.
Copyright 1996 TAIS 520.doc Rev. 2 02/07/00 st. Page 3 of 3
