Toshiba TLP S221, TLP T721, TLP T521E, TLP T621, T620 User Manual

...

OWNER’S MANUAL

3LCD DATA PROJECTOR

TLP-T720 (XGA / High Brightness / With PC Card Slot) TLP-T721

(XGA / High Brightness / With PC Card Slot & Document Camera)

TLP-T620 (XGA / High Brightness) TLP-T621 (XGA / High Brightness / With Document Camera) TLP-T520 (XGA / With PC Card Slot) TLP-T521 (XGA / With PC Card Slot & Document Camera) TLP-T520E (XGA / With PC Card Slot) TLP-T521E (XGA / With PC Card Slot & Document Camera) TLP-S220 (SVGA) TLP-S221 (SVGA / With Document Camera)

FAN

TEMP

LAMP

AUTO SET

VOL.

KEYSTONE AUTO

INPUT

ON/STANDBY

Before Using

Preparations

Operations

TLP-T720 / TLP-T620 / TLP-T520 / TLP-T520E / TLP-S220

Maintenance

Others

IMPORTANT SAFETY INSTRUCTIONSSAFETY PRECAUTIONS

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE

THIS APPLIANCE TO RAIN OR MOISTURE. DANGEROUS HIGH VOLTAGES ARE PRESENT INSIDE THE ENCLOSURE. DO NOT OPEN THE CABINET. REFER SERVICING TO QUALIFIED PERSONNEL ONLY.

WARNING: Handling the cord on this product or cords associated with accessories sold with

USA only

FCC Radio Frequency Interference Statement

Note: This equipment has been tested and found to comply with the limits for a Class

USA only

WARNING: Changes or modifications made to this equipment, not expressly approved by

USA only

Notice: This Class A digital apparatus complies with Canadian ICES-003. Cet appareil

CANADA only

WARNING: This is a Class A product. In a domestic environment this product may cause

this product, will expose you to lead, a chemical known to the State of Calif ornia to cause birth defects or other reproductive harm.

A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates , uses, and can radiates radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

T oshiba, or parties authorized by Toshiba, could void the user’s authority to operate the equipment.

numérique de la classe A est conforme à la norme NMB-003 du Canada.

radio interference in which case the user may be required to take adequate measures.

Wash hands after handling.

CAUTION: PLEASE READ AND OBSERVE ALL WARNINGS AND

INSTRUCTIONS GIVEN IN THIS OWNER'S MANUAL AND THOSE MARKED ON THE UNIT. RETAIN THIS BOOKLET FOR FUTURE REFERENCE.

This set has been designed and manufactured to assure personal safety. Improper use can result in electric shock or fire hazard. The saf eguards incorporated in this unit will protect you if you observe the following procedures for installation, use and servicing. This unit is fully transistorized and does not contain any parts that can be repaired by the user.

DO NOT REMOVE THE CABINET COVER, OR YOU MAY BE EXPOSED TO DANGEROUS VOLTAGE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL ONLY.

1. Read Owner's Manual

After unpacking this product, read the owner's manual carefully, and follow all the operating and other instructions.

3. Source of Light

Do not look into the lens while the lamp is on. The strong light from the lamp may cause damage to your eyes or sight.

4. Ventilation

2. Power Sources

This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. For products intended to operate from battery power, or other sources, refer to the operating instructions.

Openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug or other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer's instructions have been adhered to.

Before Using

CAUTION: Laser beam is emitted when the laser button of the remote control is pressed.

Do not look from the front of the remote control. Do not f ace toward a person or to a mirror.

2 3

IMPORTANT SAFETY INSTRUCTIONS (Continued)

5. Heat

The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

6. Water and Moisture

Do not use this product near water.

- for example, near a bath tub, wash bowl, kitchen sink, or laundry tub; in a wet basement; or near a swimming pool and the like.

7. Cleaning

Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a soft cloth for cleaning.

8. Power-Cord Protection

Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, conv enience receptacles, and the point where they exit from the product.

9. Overloading

Do not overload wall outlets; extension cords, or integr al convenience receptacles as this can result in a risk of fire or electric shock.

10. Lightning storms

For added protection for this product during storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet. This will prevent damage to the product due to lightning and power-line surges.

11. Object and Liquid Entry

Never push objects of an y kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.

12. Do not place the product vertically

Do not use the product in the upright position to project the pictures at the ceiling, or any other vertical positions. It may fall down and dangerous.

13. Stack Inhibited

Do not stack other equipment on this product or do not place this product on the other equipment. Top and bottom plates of this product develops heat and may give some undesirable damage to other unit.

14. Attachments

Do not use attachments not recommended by the product manufacturer as they may cause hazards.

Before Using

15. Accessories

Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may fall, causing serious injury to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the product. Any mounting of the product should follow the manufacturer's instructions, and should use a mounting accessory recommended by the manufacturer. A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.

S3125A

4 5

IMPORTANT SAFETY INSTRUCTIONS (Continued)

16. Damage Requiring Service

Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions:

a) When the power-supply cord or

plug is damaged.

b) If liquid has been spilled, or

objects have fallen into the product.

c) If the product has been exposed to

rain or water.

d) If the product does not operate

normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation.

e) If the product has been dropped or

damaged in any way.

f) When the product exhibits a

distinct change in performance this indicates a need for service.

17. If glass components, including lens and lamp, should break, contact your dealer for repair service.

This product incorporates glass components, including a lens and a lamp. If such parts should break, please handle with care to avoid injury and contact your dealer for repair service. The broken pieces of glass may cause to injury. In the unlikely event of the lamp rupturing, thoroughly clean the area around the projector and discard any edible items placed in that area.

18. Servicing

Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

19. Replacement Parts

When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards. (Replacement of the lamp only should be made by users.)

20. Safety Check

Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition.

21. Do not leave thermal-paper documents or easily deformed items on top of the unit or near the air exhaust for long periods of time.

The heat from the unit could erase the information on the thermal paper, or cause deformation or warping.

22. When using a wireless LAN PC card

equipped with PC card slot):

••

• Do not use near people

••

(Models

with heart pacemakers

••

• Do not use near electronic

••

medical equipment, or in hospitals or other medical institutions

••

• Do not use inside aircraft

••

or in places where the wireless LAN card could interfere with electromagnetic signals.

The electromagnetic interference could cause a malfunction, resulting in an accident.

23. If the use of a wireless LAN PC card interferes with another device’s electromagnetic signals, cease use immediately.

(Models equipped with PC card slot)

The electromagnetic interference could cause a malfunction, resulting in an accident.

24. Do not get your hands between the camera arm and the main unit when setting the camera arm back in its original position.

with document camera)

To avoid injury, be careful not to get your hands caught when setting the camera arm back in its original position. Families with children should be particularly careful.

(Models equipped

25. Do not carry by the camera arm.

(Models equipped with

document camera)

Do not carry the projector by the camera arm. Doing so can result in damage or injury.

26. Do not move the projector while the arm is still erect.

(Models equipped with document camera)

Always store the arm back in position when moving the projector. Otherwise injury or damage may result.

27. Do not look into the arm light while it is lit.

equipped with document camera)

The strong light may cause damage to your eyes or sight.

(Models

28. Do not carry the projector by having the terminal cover parts or the PC card cover part

Doing so, the projector may fall if that cover comes off, and injury or damage may result.

Before Using

6 7

LABEL LOCATIONS

MODEL NO. / RATING Label

VO L .

KEYSTO

AUTO

INPUT

ON/STANDBY

3.3A

1.5A3.3

SERIAL NO. Label

MANUFACTURED;

SERIAL NO.

WARNING LabelCAUTION Label

CAUTION Label

WARNING Label

CAUTION Label (LED)

POWER SUPPLY CORD SELECTION

If your line voltage is 220 to 240V, use one of the following types of cable.

Plug configuration

Plug type

EURO

Line voltage 220 – 240V

Plug configuration

Plug type Line voltage

Australian

200 – 240V 240V 10A

220 – 240V

Switzerland 240V

200 – 240V 6A

Use a 5A fuse which is approved by ASTA or BSI to BSI362. Always replace the fuse cover after changing the fuse.

North American 240V 15A

200 – 240V

IMPORTANT PRECAUTIONS

Save Original Packing Materials

The original shipping carton and packing materials will come in handy if you ever have to ship your LCD projector. F or maximum protection, repack the set as it w as originally packed at the factory.

Before Using

CAUTION Label (LASER)

Remote Control

CAUTION Label (LASER)

Moisture Condensation

Never operate this unit immediately after moving it from a cold location to a warm location. When the unit is exposed to such a change in temperature, moisture ma y condense on the crucial internal par ts. To prevent the unit from possible damage, do not use the unit for at

PLAY

INPUT

LASER WARNING

Models with Document Camera

CAUTION Label

Models with Document Camera

8 9

least 2 hours when there is an extreme or sudden change in temperature.

Place and Manner of Installation

• Do not place in hot locations, such as near heating equipment. Doing so could cause malfunction, and shorten the life of the LCD panel.

• Avoid locations with oil or cigarette smoke. Doing so will dirty the LCD panel and other optical parts, shortening their lives, and darkening the screen.

• Do not use in angle of 20° or more degrees. Doing so could shorten the life of the lamp.

• If used at high altitudes, the unit could cease operation even if used within the rated

temperature range. This is because the thinner air at high altitudes decreases the internal cooling efficiency . Theref ore, please lower the ambient temperature if using at high altitudes .

IMPORTANT PRECAUTIONS (Continued) EXEMPTION CLAUSES

Av oid V olatile Liquid

Do not use volatile liquids, such as an insect spray, near the unit. Do not leave rubber or plastic products touching the unit for a long time. They will leave marks on the finish. If cleaning with a chemically saturated cloth, be sure to follow the product's precautions.

Wireless LAN PC Card (Models equipped with PC card slot)

• Do not connect the supplied wireless LAN PC card to devices other than this unit. Doing so could cause malfunction.

• T o protect the PC card from static electricity, touch some nearb y metal, such as a doorknob or aluminum window frame, before touching the PC card, to rid y our body of static electricity .

• This PC card is a radio product. Concerning the regulations applied in each country/area, please refer to “Information to the user” supplied.

LCD Panel

The life of the LCD panel is limited. Take care o v er the points below so as to use the panel for years.

• To prolong the life of this panel, ne v er fail to turn the power off when the panel is not in use and make sure that the lamp has gone out. The state of the lamp being e xtinguished helps enhance the effect of energy saving.

• If the air filter is stained and is clogged up, the main unit inner temperature rises. As a result, the life of the LCD is shortened and a malfunction may also occur. Clean the air filter from time to time and replace it regularly. It is recommended that this replacement be done at the time of replacing a lamp. (Ask a dealer where the unit was purchased or your nearby service station about an air filter for replacement.)

In the spaces provided below , record the Model and Serial No. located at the bottom of y our LCD projector. Model No. Serial No.

Retain this information for future reference.

• Toshiba Corporation bears no responsibility in the case of damages arising from natural disaster such as earthquakes, lightning, etc., fire not liable to Toshiba Corporation, operating by third parties, other accidents, or use under abnormal conditions including erroneous or improper operation and other problems.

• Toshiba Corporation bears no responsibility for incidental damages (lost profit, work interruption, corruption or loss of the memory contents, etc.) arising from the use of or the inability to use this unit.

• T oshiba Corporation accepts no liability whatsoev er for any damages arising from not having followed the descriptions in this Instruction Manual.

• Toshiba Corporation accepts no liability whatsoever for any damages arising from malfunctions arising from combination with equipment or software that is not related to Toshiba Corporation.

• T oshiba bears no responsibility f or information being intercepted or leaked due to the use of a wireless LAN, or any damages therefor (models with PC card slot).

OTHER CAUTIONS AND INFORMATIONS

Copyrights

Publicly showing or transmitting commercial imaging software or broadcast or Cable-broad casting programs, either commercially or collecting a fee from the audience, or modifying images using the freeze or resize functions, could violate the direct or indirect copyrights of the imaging software or broadcast program, etc., if done without first consulting with the copyright holder. F or this reason, please take appropriate measures before perf orming one of the actions listed above, including obtaining a license from the copyright holder.

Disposal

This product contains substances which are harmful to humans and the environment.

• The solder used in the PCB manufacturing process contains lead.

• The lamp contains inorganic mercury.

Please dispose of this product or used lamps in accordance with local regulations.

Trademarks

• VGA, SV GA, XGA, SXGA, UXGA are trademarks or registered trademarks of International Business Machines Corporation.

• Macintosh is a registered trademark of Apple Computer, Inc.

• Windows is a registered trademark of Microsoft Corporation in the U.S. and other countries.

Before Using

Notational Conventions Used in This Manual

References to pages with related information are annotated as follows. For example, if making a reference to page 36:

10 11

p.36

Before Using

SAFETY PRECAUTIONS.................................................................................. 2

IMPORTANT SAFETY INSTRUCTIONS ........................................................... 3

LABEL LOCATIONS .......................................................................................... 8

POWER SUPPLY CORD SELECTION .............................................................. 9

IMPORTANT PRECAUTIONS ........................................................................... 9

EXEMPTION CLAUSES.................................................................................... 11

OTHER CAUTIONS AND INFORMATIONS ...................................................... 11

CONTENTS ....................................................................................................... 12

Preparations

Checking the package contents......................................................................... 14

Names of each part on the main unit................................................................. 15

Names of each part on the control panel and remote control............................ 16

Names of each part on the camera control panel.............................................. 17

Names of each part on the PC card slot............................................................ 17

Names of the connection terminals ................................................................... 18

Preparing and using the remote control............................................................. 19

Placement .......................................................................................................... 21

Connection......................................................................................................... 22

How to use the PC card slot .............................................................................. 23

Installing the application .................................................................................... 24

Operations

Turning the power on and off ............................................................................. 25

Basic operations ................................................................................................ 27

Using handy features......................................................................................... 29

Using auto setting (Auto setting) .................................................................... 29

Correcting the keystone distortion (Keystone)................................................ 30

Cutting off the picture and sound temporarily (Mute) ..................................... 30

Freezing the image (Freeze) .......................................................................... 31

Enlarging the picture size (Resize)................................................................. 31

Displaying Information.................................................................................... 32

Using the wireless LAN PC card........................................................................ 33

Functions........................................................................................................ 33

Communication mode .................................................................................... 33

Caution when using the wireless LAN functions ............................................ 34

Preparation..................................................................................................... 34

Displaying a computer’s screen via the projector ........................................... 36

Displaying a JPEG image saved on a computer via the projector.................. 38

Operating the projector................................................................................... 39

Projecting images stored in a memory PC card ................................................ 41

Memory PC cards........................................................................................... 41

JPEG files....................................................................................................... 42

Projecting images stored in a memory PC card ............................................. 42

Using the document camera.............................................................................. 45

Preparation of the document camera ............................................................. 45

Image projection with the document camera.................................................. 45

Using the overlay function .............................................................................. 47

Locking the white balance .............................................................................. 47

Correcting illuminated defects ........................................................................ 48

Sending the camera’s images to a computer ................................................. 49

Storing the camera images into the memory card ......................................... 51

Operating a computer using the remote control ................................................ 52

Using the menus................................................................................................ 53

How to use the menus.................................................................................... 53

The image adjustment menus ........................................................................ 54

The default setting menu................................................................................ 54

The display setting menu................................................................................ 55

The PC card setting menu.............................................................................. 55

Reset menu .................................................................................................... 56

Maintenance

Air filter cleaning ................................................................................................ 57

Lens and main unit cleaning .............................................................................. 58

Lamp replacement ............................................................................................. 58

Others

How to use the supplied software...................................................................... 60

How to use the Projector Configuration Tool .................................................. 60

How to use the JPEG Conversion Tool........................................................... 62

Trouble indications ............................................................................................. 65

Before calling service personal .......................................................................... 66

Specifications..................................................................................................... 68

List of general specifications .......................................................................... 68

Document camera specifications ................................................................... 68

List of supported signals (RGB signals) ......................................................... 69

List of supported signals (Y/P

List of supported signals (Video, S-Video signals) ......................................... 70

Pin assignment of COMPUTER-1/2 & MONITOR terminals .......................... 70

CONTROL terminal ........................................................................................ 71

Separately sold products................................................................................ 71

B/PR signals) .................................................... 70

Before Using

1312

Checking the package contents

Names of each part on the main unit

Please make sure that the following items are included in the box, along with the main unit. If an item is missing, please contact the store from which you purchased the product immediately.

L. O V

LAS

PLAY

E T

IC N L

-C

U R N

U P

O T S

(1)

(5) (9) (13)

(2) (6) (10)

(3) (7) (11)

(14)

(4) (8) (12)

■■ (1) Remote control

■■ (2) LR03 (SIZE AAA) dry-cell batteries

for remote control (2)

■■ (3) Wireless LAN PC card

■■ (3) Information to the user

(See note 1) (See note 1)

■■ (4) Quick Reference

■■ (5) CD-ROM

■■ (6) Owner’s Manual

■■ (7) Power cord

(See note 4)

■■ (8) RGB cable

■■ (9) AV cable

) Audio cable (for computer)

■■ (

) USB cable

■■ (

■■ (12) Mouse remote control receiver

(See note 2)

■■ (13) Carrying bag

) License information

■■ (

(See note 3)

(See note 2)

Notes

1: Included with models equipped with PC card slot, except TLP-T520E/T521E. 2: Included with models equipped with PC card slot. 3: Included with models not equipped with PC card slot. 4: The shape and number of power cords supplied vary depending on the product destination.

◆The Supplied CD-ROM

The supplied CD-ROM contains an owner’s manual including information omitted in the Owner’s manual (Getting started), Acrobat

p.24

and applications

for using the functions of models equipped with a PC card slot.

■ Installing Acrobat® Reader™

Windows: In the CD-ROM, select the Reader/English folder, and run ar500enu.exe. Follow the on-screen instructions. Macintosh: In the CD-ROM, select the Reader/English folder, and run Reader Installer. Follow the on-screen instructions to install the software.

■ Viewing the manual

In the CD-ROM, double-click on Start.pdf. Acrobat® Reader™ launches, and the menu screen of the Owner’s manual appears. Click on your language. The Owner’s Manual cover and list of bookmarks appear. Click on a bookmark title to view that section of the manual. Click on menu for more information about Acrobat

to view a reference page with related information. See the Help

Reader™, which is needed to view the manual,

Reader™.

(18)(22)

LED Light

(10)

(17)

(16)

(21)

AUTO KEYSTONE

INPUT

(20)(19)

(13)

ON/STANDBY

T E

MEN

VOL.

LAMP

TEMP

FAN

ARM LIGHT

CAMERA

OVERLAY

W.BALANCE

CAMERA

GAIN

LOCK

STORE


(15)(1)

(6) (5) (4) (2)(3) (1)

(7) (8) (9) (12)(11)(10)

(14)(15)

(16)

(10)

(14) (15)

(13)

Y B D

T S

Y E K

VOL.

SET

AUTO

(14)(15)

VOL.

LAMP

FAN TEMP

(14)

Name : Function

(1) Infrared remote sensor : Senses commands from the remote control

p.19

(2) Lens : Projects expanded image (3) Zooming lever : Adjusts screen size (4) Focusing ring : Adjusts screen focus

p.28

(5) Air exhaust : Expels air that has grown hot inside the projector (6) Speaker : Plays audio (7) AC IN socket : Connect the supplied power cord here

p.25

(8) Anti-theft lock hole : Attach a security chain, etc. here (9) Lamp cover : Remove to replace lamp (10) Tilt adjuster : Adjusts the projector’s horizontal tilt (11) Foot adjuster : Adjusts the vertical projection angle (12) Foot adjuster release button : Press to stow the foot adjuster (13) Control panel : Operates the projector (14) Connection terminal cover : Remove to connect to an external device (15) Air intake : Draws in air from outside unit (

) PC card slot cover

(17) Camera head

) Camera lens

( (

) Camera focusing ring (20) Camera arm (21) Camera control panel (22) Camera light

Notes

1: Models equipped with PC card slot 2: Models equipped with document camera

[See note 2]

[See note 1]

[See note 2]

: Remove to mount/remove the PC card : The document camera : The document camera’s lens : Adjusts document camera focus : Adjusts the camera angle : Operates the document camera : Shines light on the object that the document camera is

photographing

p.45

p.59

p.28

p.16

p.18

p.23

p.46

p.45

p.17

Preparations

(1)

1514

Names of each part on the control panel and remote control

Names of each part on the camera control panel

(Models equipped with document camera)

Control panel

(1)(2)

ON/STANDBY

INPUT

Front

Remote Control

Remote control transmitter

Laser

Rear

emitter

AUTO

(3)

(4)

KEYSTONE

AUTO SET

VOL.

FAN TEMP LAMP ON

VOL.

(7) (8) (9) (10)

(6)

(5)

(19)

VOL.

PJ MODE LASER

(18) (17)

(2) (4)

(3) (1)

MENU / ENTER

AUTO SET FREEZE

AUTO

KEYSTONE

ON/ STANDBY

R-CLICK

INPUT

MUTE

RESIZE

(6)

VOL.

(20)

(11) (12)

(5) (13)

(14)

OFF

(15) (16)

LASER

PLAY

ENTER

R-CLICK

INPUT

VOL.

STOP

PJ MODE

RESIZE

OFF

MUTE

AUTO SETFREEZE

AUTO KEYSTONE

ON/

STANDBY

Battery cover

Control button cover

Caution - use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

Name : Main Function

(1) ON/STANDBY button : Turns the power on/off (standby) (2) INPUT button : Selects input

p.27

(3) AUTO KEYSTONE button : Adjusts keystone (trapezoidal distortion) (4) AUTO SET button : Sets up image and mode (5) MENU/ENTER button : Displays menus and makes selections (6) Selection button : Menu selections and adjustments, etc. (7) FAN indicator : Displays cooling fan mode

p.25

p.30

p.29

p.53

p.26 p.65

(8) TEMP indicator : Lights when internal temperature too high (9) LAMP indicator : Displays lamp mode (10) ON indicator : Displays whether power is on or off

p.26

p.25

(11) LASER button : Displays laser point (

) PLAY button : Begins PC card slide display (13) FREEZE button : Pauses image (14) RESIZE button : Enlarges picture size

p.31

(15) OFF button : Turns off enlarged picture display

p.43

p.31

(16) MUTE button : Cuts off the picture and sound temporarily (17) STOP button : Ends PC card slide display (18) PJ MODE button : Switches remote control mode

p.43

p.20

(19) Transmission indicator : Lights when remote control transmitting

) L-CLICK button : Left button click of remote control mouse

(

p.65

p.30

p.52

(1)(2)(3)(4)

GAIN

ARM LIGHT

CAMERACAMERA

LOCK

STORE


W.BALANCE OVERLAY

(5) (6) (7)

Name : Functions

(1) ARM LIGHT button : Turns camera light on and off (2) OVERLAY button : Turns overlay function on and off

p.45

p.47

(3) W.BALANCE button : Switches white balance between auto adjust and

p.48

lock (4) LOCK indicator : Lights when white balance locked (5) STORE IMAGE button (6) CAMERA GAIN button : Adjusts camera gain

[See note 1]

: Stores camera images onto a memory PC card

p.46

p.48

(7) CAMERA button : Switches between camera input and previous

p.46

input

Notes

1: Models equipped with PC card slot

Names of each part on the PC card slot

■ Removing the PC card slot cover

Press on the circle (“O”) while sliding the cover

(Models equipped with PC card slot)

(1) (2) (3) (5)(4)

in the direction of the arrow. The cover will come off.

Name : Functions

(1) PC card slot : Insert PC cards here (2) CARD indicator : Displays PC card’s status (3) UNMOUNT button : Press before removing PC card (4) RESET switch (inside depression) : Press if CARD indicator turns red (5) Eject button : Press to remove PC card

p.23

Do not carry the projector by having the PC card slot cover part.

CAUTION

Doing so, the projector may fall if that cover comes off, and injury or damage may result.

1716

p.51

Preparations

Names of the connection terminals Preparing and using the remote control

PJ MODE

ASER

PJ MODE

LASER

-C

PJ MODE

LASER

■ Removing the connection terminal cover

Press on the circle (“O”) while

(2)(3)(4)

sliding the cover in the direction of the arrow. The cover will come off.

USB

MONITOR

CONTROL

R - AUDIO - L

AUDIO

COMPUTER

)

(

B/PR

Y,P

VIDEO

S-VIDEOVIDEO

MONITOR

CONTROL

AUDIO

R - AUDIO - L

(8) (7)(9) (6)

(1) COMPUTER 2 terminal

Input RGB signal from a computer or other source, or a component video signal (Y/P

R) from video equipment.

(2) COMPUTER 1 terminal

Input RGB signal from a computer or other source, or a component video signal (Y/P

R) from video equipment.

(3) MONITOR terminal

Connect to a computer display, etc.

(4) USB terminal

Connect to a computer’s USB terminal when using the remote-control mouse function.

p.52

(5) S-VIDEO terminal

Input S video signals from video equipment.

(6) VIDEO terminal

Input video signals from video equipment.

(7) AUDIO (L/R) terminal

Input audio signals from video equipment.

(8) AUDIO terminal

Input audio signals from a computer or video equipment with a component video signal output terminal.

(9) CONTROL terminal

When operating the projector via a computer, connect this to the controlling computer’s RS-232C port.

Note

p.71

• Although this owner’s manual abbreviates component video signals as Y/PB/PR, the product also supports signals from video equipment marked “Y/C

B/CR.”

Do not carry the projector by having the terminal cover parts.

CAUTION

Doing so, the projector may fall if that cover comes off, and injury or damage may result.

(1)

COMPUTER

)

(

B/PR

Y/P

VIDEO

S-VIDEOVIDEO

(5)

■ Loading dry-cell batteries into the remote control

q Remove the battery cover.

■

Operating the remote control

Point the remote control toward the projector’s infrared remote sensor, and press a button on the remote control.

• Operating the projector from the front

Approx. 15 degree

w Insert the dry-cell batteries.

Approx. 5m

Be sure to align the plus and minus ends of the batteries properly.

• Operating the projector from the rear

/STA N O

INP

E N

AUTO

Y E K

AUTO SET

Models without document

Y B D N

ENU

camera

+ .

L O V

M A L

M E T

N A F

Approx. 15 degree

Preparations

Two batteries (LR03 (SIZE AAA)) are used.

Approx. 5m

e Replace the battery cover.

DB TAN /S

INPUT

VOL.

AUTO

KEYSTONE

VOL.

LAMP

TEMP

AUTO SET

FAN

(1)

(2)

Models equipped with document camera

Approx. 15 degree

Approx. 5m

Dry-cell batteries

• Remove batteries from remote control when not using for extended periods.

• If the remote control stops working, or if its range decreases, replace all the batteries

with new ones.

The remote control

• The remote control may f ail to operate if the infrared remote sensor is exposed to bright sunlight or fluorescent lighting.

• Do not drop or bang.

• Do not leave in hot or humid locations.

• Do not get wet or place on top of wet objects.

• Do not take apart.

• In rare cases, ambient conditions could impede the operation of the remote control. If

this happens, point the remote control at the main unit again, and repeat the operation.

1918

Preparing and using the remote control (Continued)

USB

COMPUTER ( Y,P

B/PR

)

S-VIDEOVIDEO

VIDEO

R - AUDIO - L

AUDIO

MONITOR CONTROL

USB

COMPUTER

(

Y,P

B/PR

)

S-VIDEOVIDEO

VIDEO

R - AUDIO - L

AUDIO

MONITOR

CONTROL

1 2

Placement

■ Switching operation modes

Operation modes should be switched between projector operation and computer operation.

Switching the remote control operation mode.

Pressing this button toggles the mode. When this button is lit, the remote control is in [PJ Mode] (Projector operation mode). If no operations are made for 30 seconds, this light goes out, and the remote switches back to [PC Mode] (Computer operation mode).

[PJ Mode] :Functions as a select button.

If no menu is displayed, adjusts volume.

[PC Mode] :Functions as a mouse pointer control.

RESIZE

OFF

VOL.

Pressing displays a laser pointer, regardless of the mode.

[PJ Mode] :Ends memory card slide display. [PC Mode] :Functions as a down button. Used to go

forward on Microsoft

[PJ Mode] :Begins memory card slide display. [PC Mode] :Functions as an up button. Used to go back on

Microsoft

[PJ Mode] :Functions as a MENU/ENTER button. [PC Mode] :Functions as the right mouse button (R-CLIK).

Pressing one of these buttons automatically sets the remote control to [PJ Mode]. If no operations are made for 30 seconds, and the remote switches back to [PC Mode].

The L-CLICK (left click) button on the back of the remote control functions when in [PC Mode].

; MENU/ENTER button ⇒

PowerPoint® slides, etc.

p.52

, all buttons are

VOL.

PJ MODE LASER

MENU / ENTER

R-CLICK

INPUT

AUTO SET FREEZE

AUTO

MUTE

KEYSTONE

ON/ STANDBY

Notes

• See page 52 for more information on operating a computer.

• For the remainder of this manual, b uttons, including those on the control panel (main unit

side), are referred to as follows: Selection button ⇒

With the exception of operating a PC with the remote control used in [PJ Mode].

Placement Styles

As shown in the figures below, this device can be placed in 4 different styles. The factory setting is “floor-mounted front projection.” Set the placement style in the

default setting menu

Floor-mounted front projection

Ceiling-mounted front projection

p.54

, in accordance with your needs.

Floor-mounted rear projection

Ceiling-mounted rear projection

CAUTION

• Always obey the instructions listed in IMPORTANT SAFETY INSTRUCTIONS when placing the unit.

• If you wish to mount the projector on the ceiling, be sure to ask your dealer to do so. Mounting the projector on a ceiling requires special ceiling brackets (sold separately) and specialized knowledge. Improper mounting could cause the projector to fall, resulting in an accident.

Projection Distance and Screen Size

Use the figures, table, and formula below to determine the screen size and projection distance. (Screen sizes are approximate values for full-size picture and no keystone adjustment)

Screen

As seen from above

+ VOL.

ON/STANDBY

INPUT

VOL.

FAN TEMPLAM P ON

AUTO

KEYSTONE

AUTO SET

As seen from the side

Lens center

USB

COMPUTER

MONITOR

)

(

B/PR

Y,P

CONTROL

VIDEO

S-VIDEOVIDEO

R - AUDIO - L

AUDIO

a is the distance (m) between the lens and the screen, and corresponds to a range of

1.50 m to 11.74 m.

a (min length) =

a (max length) =

screen

size (cm)

32 (81) — 1.50 40(102) 1.50 1.91 60(152) 2.29 2.91

80(203) 3.08 3.90 100(254) 3.87 4.89 150(381) 5.84 7.37 200(508) 7.80 9.86 250(635) 9.77 — 300(762) 11.74 —

2120

projection size (inches) – 1.7971

25.395

projection size (inches) – 1.4258

20.148

projection distance a(m)

min length max length

(zooming max) (zooming min)

Preparations

Connection How to use the PC card slot

Before connection

• Read the owner’s manual of the device to be connected to the projector.

• Some types of computer cannot be used connected to this projector.

Check for an RGB output terminal, supported signal

• Turn off the power of both devices before connection.

• The figure below is a sample connection. This does not mean that all of these devices

can or must be connected simultaneously. (Dotted lines mean items can be exchanged.)

Computer Desktop computer

To audio output

To USB terminal

p.52

USB cable

Audio cable (for computer) (supplied)

To RGB output

USB

MONITOR

CONTROL

RGB cable

(supplied)

COMPUTER

)

(

B/PR

Y/P

p.69

, etc.

To audio output

Monitor cable Mini D-sub 15P-BNC (not supplied)

Audio cable (not supplied)

To RGB output

Please read this chapter if the model you purchased includes a PC card slot.

The wireless LAN PC card enables you to connect the projector wirelessly with a personal computer that supports IEEE802.11b based wireless LAN.

p.33

(Please note that communication between all the computers based on IEEE802.11b and this projector is not guaranteed.) You can also use a commercially available memory card to project

p.41

JPEG image files using this projector.

Please follow the steps below when removing

or mounting a PC card.

■ Mounting a PC card

q Remove the PC card slot cover.

Press lightly on the circle (“O”) while sliding the cover in the direction of the arrow.

Card slot cover

w Insert the PC card.

■ Removing a PC card

q Look at CARD indicator.

If it is off, proceed to step r.

UNMOUNT button

CARD indicator

w Press the UNMOUNT button.

Begins processing for PC card remov al

After making sure of the card orientation, press it in firmly until it stops.

e Wait until CARD indicator goes

out.

Never remove the PC card while lit. Doing so could damage the PC card or corrupt your data.

Preparations

VIDEO

VCR

S-VIDEOVIDEO

AV cable (supplied)

To S-Video output

S-Video cable (not supplied)

To audio output White (L) Red (R)

DVD player

T o Y/C output Green (Y) Blue (C Red (C

Conversion adapter BNC-pin (not supplied)

To RS-232C terminal

Computer (for control)

Control cable

p.71

R - AUDIO - L

AUDIO

Yellow (to video output)

To audio output White (L) Red (R)

Notes

• COMPUTER terminals 1 and 2 function identically.

• The AUDIO terminal doubles for devices connected to COMPUTER terminals 1 and 2.

B/CR

B),

PC Card

e Replace the PC card slot cover.

Replace the PC card slot cover to keep dust from entering.

■ If CARD indicator turns red

Press the RESET switch with a thin pin or similar implement (it is at the bottom of a recess).

r Press the Eject button.

The Eject button is a bit stiff, so press firmly while supporting the projector. Be careful to avoid injury when doing so.

CARD indicator

RESET switch

2322

Eject button

VOL

Installing the applications

Turning the power on and off

Please read this chapter if the model you purchased includes a PC card slot.

p.33

If you will use the wireless LAN PC card function

, install the application on the

supplied CD-ROM onto your computer.

■ System Requirements

Supported OSs: Windows® 98SE, Windows® Me, Windows® 2000, Windows® XP CPU: P entium III 750 MHz or higher recommended RAM: 256 MB or more recommended Screen area (resolution): 1024 by 768 pixels recommended

■ Application Types and Major Functions

Wireless utility

This application is used for wireless connections. Use it to send the images from the computer’s screen to your projector, and display on the screen.

Projector Configuration T ool

Use to modify wireless LAN and TCP/IP settings.

JPEG Conversion T ool

Use to convert JPEG and other files into a format that can be displayed as a slide show using a memory PC card.

■ How to install

In the supplied CD-ROM, select the Applications folder, and run setup.exe. F ollow the instructions on your computer screen. If you are using Windows

XP or Windows® 2000, during installation a dialog box may appear with the following message: has not passed Windows Logo to verify its compability with Windows XP (2000). Click “Continue Anyway”, and continue with the installation. When installation is finished, the following shortcuts will appear on your computer’s desktop:

Wireless Utility →

Operations

Projector Configuration Tool → Operations JPEG Conversion T ool → Operations

p.36

p.60

p.62

■ How to uninstall

Select [Start Menu] → [Settings] → [Control Panel] → [Add/Remove Programs], and remove Toshiba Data Projector from currently installed programs.

■ Connecting the power cord

Insert the power cord connector into the AC IN socket of the projector.

Insert the power cord plug into a wall or other power outlet.

INPUT

AUTO

KEYSTONE

ON/STANDBY

AUTO SET

VOL.

FAN

TEM

LAMP

FAN TEMP LAMP ON

When the power cord is plugged in, the following three green indicators will come on for several seconds: ON, TEMP, and LAMP. Next, the ON indicator will change to orange, indicating standby mode. (Do not perform any operations while the 3 green

(Supplied) Power cord connector

indicators are lit.)

Removing the lens cover

Be sure to remove the lens cover when the power is turned on. If it is left on, it could become deformed due to heat.

VOL.

Remote Control

PJ MODE LASER

MENU / ENTER

R-CLICK

INPUT

AUTO SET FREEZE

AUTO

RESIZE

MUTE

KEYSTONE

ON/

OFF

STANDBY

Start-up screen

■ T urning the power on

Press the ON/STANDBY button.

The power turns on, and the following 3 green indicators light: ON, LAMP, and FAN. After a moment, the start-up screen

Control panel

ON/STANDBY

INPUT

AUTO

KEYSTONE

AUTO SET

VOL.

FAN TEMP LAMP ON

appears.

CAUTION

• Do not look into the lens during operation. Doing so could damage your vision.

• Do not block the air intake or exhaust. Doing so could cause a fire due to internal

overheating.

• Do not place your hands, face, or other objects near the air exhaust. Doing so could cause burns, deform/break the object.

Notes

• The start-up screen will disappear after a moment. You can dismiss the start-up screen before this by performing any operation. You can also configure the start-up screen not to

p.27

p.55

appear via the Display setting menu

• The first time you use the projector after purchase, after the start-up screen disappears, the Language menu is displayed

Operations

Turning the power on and off (Continued)

Basic operations

■ Turning the power off

Press the ON/STANDBY button.

A message appears on the screen, confirming that you wish to shut off the power. This message will disappear after a moment. (This operation is no longer valid after the message disappears.)

Press the ON/STANDBY button again.

The screen turns off, but the internal cooling fan continues to operate f or a short while. Then, the projector goes into standby mode.

When cooling lamp During internal cooling After cooling complete

FAN TEMP LAMP ON

(Green) (Green) (Orange)

During cooling, the LAMP indicator flashes. In this state, the power cannot be

turned back on. In addition, unplugging the power cord in this state will shorten

Flashing

(Green) (Off) (Orange)

B C

the life of the lamp. After the LAMP indicator goes off, the cooling fan continues to operate for a

short while, in order to expel excess internal heat. If you are in a hurry, there is no problem with unplugging the power cord in this state.

In standby

Note

• The projector consumes about 6W of power in standby (models equipped with PC card slot consume about 18W). We recommend that you unplug the power cord if you will not be using the projector for an extended period.

PRECAUTIONS

• Before unplugging the power cord, make sure that the LAMP indicator is off. Unplugging the power cord and cutting off the power while the projector is running or being cooled will shorten the life of the lamp. However, please unplug the power cord if the

projector locks up or acts abnormally .

• If the power cord was unplugged before cooling was complete, give the lamp sufficient time to cool before plugging it back in. If the lamp overheats it may fail to light, and its lifetime will be shortened.

LCD Panels

LCD panels wear out. In order to prolong the lifetime of your LCD panel, take the following precautions.

• In order to extend the lifetime of the LCD panel, always turn off the power when not in use, and make sure that the lamp is off. Keeping the lamp off is also very effective at saving electricity.

• If the air filter becomes dirty and clogged, the projector’s internal temperature will rise, shortening the lifetime of the LCD panel and causing malfunctions. Clean the air filter from time to time purchased your projector, or your local Service Station for replacement air filters.

p.57

, and replace it periodically. Contact the store where you

FAN TEMP LAMP ONFAN TEMP LAMP ON

(Off) (Off) (Orange)

Preparations

• Place the projector, and correctly connect all devices.

• To operate via the remote control, [PJ MODE]

p.20

must be selected. Press the PJ MODE button. The button lights up. This light will go out 30 seconds after operations are complete. If necessary, press the button again.

Turn on the power.

[PJ MODE] Lights up

Turn on the power, following the instructions in “Turning on the power”

Select language (When using for first time).

When the projector is used for the first time after purchase, a message is displayed on the screen, and the language menu appears. The default language is English. (If the screen focus is not on the menu, adjust according to step

q Use the buttons to select the desired

language, and press the

A message displays the selected language.

button.

w Press the button to apply.

English Français Deutsch Italiano Español Português

Notes

• After the first time the projector is turned on, the Language menu does not appear

p.56

upon startup. However, from the Reset menu Language menu the next time the projector is turned on.

• The language can also be set via the Display setting menu

• This owner’s manual assumes that English has been selected.

Place connected device(s) in operating status.

Turn on and boot up connected computers and other devices.

Select input.

q Press the INPUT button.

A list of inputs appears on the screen.

w Use the buttons to select the desired

input, and press the

The picture for the selected input is projected.

button.

select “Reset all” to display the

Computer (1) Y/P

B/PR(1)

Computer (2) Y/P

B/PR(2)

Video S-video PC Card Camera

Remote Control

VOL.

PJ MODE LASER

p.25

................

..............

................

...............

..........

...................

.......

...................

p.55

English French German Italian Spanish Portuguese Japanese Chinese (simplified) Chinese (traditional) Korean

MENU / ENTER

R-CLICK

INPUT

VOL.

Operations

Basic operations (Continued)

Using handy features

Projector placement angle adjustments

The placement angle and the height of the projected image can be adjusted by the foot adjuster.

q Lift up the front of the projector until

it is at the desired angle, then press

the foot adjuster release button.

The foot adjuster extends. Release the button to lock the position.

w Turn the foot adjuster to fine-tune

the angle.

e To adjust the horizontal angle, use

the tilt adjuster.

To stow the foot adjuster, hold up the projector while pressing the foot adjuster release button, then slowly lower the projector will the button depressed.

Adjusting the picture size and focus

q Use the zooming lever to adjust the screen

size.

w Use the focusing ring to adjust the focus.

Adjusting the volume with the buttons

The speaker volume can be adjusted when an audio signal is being input.

Notes

• Note that the lamp characteristics may rarely cause the brightness to fluctuate slightly.

• A lamp is consumable supplies.

If used for extended periods, images will appear dark, and the lamp could burn out. This is characteristic of a lamp, and is not malfunction. (The lifetime of the lamp depends on conditions of use.)

• The LCD panel is made using extremely advanced technology, but there may be black spots (pixels that do not light) or bright spots (pixels that are constantly lit) on the panel. Please note that these are not malfunctions.

• Although this projector supports a wide range of RGB signals supported by the model (XGA or SVGA, depending on the model) will be expanded or shrunk, which will affect image quality slightly. To view high-quality images, it is recommended that the computer’s external output should be set to the projector’s resolution.

• With some models of computer having LCD displays or the like, displaying images simultaneously on the projector and the monitor’s display may prevent the images from displaying properly. If this happens, turn off the computer’s LCD display. For information on how to turn off the LCD display, see the owner’s manual of your computer.

• If a signal not supported by the projector is input, the

• If a no signal is being input from the connected device, the

• If an unavailable operation button is pressed, the

icon will appear.

p.69

, any resolutions not

icon will appear.

● To operate via the remote control’s buttons, [PJ MODE] must be selected. Press the PJ Mode button. The button lights up. This light will go out 30 seconds after operations are complete. If necessary, press the button again.

■ Using auto setting (Auto setting)

This function sets up the projector to the optimum state for each type of the input signal by using simple operations.

Press the AUTO SET button.

The Auto setting menu appears.

Press the AUTO SET button again.

The menu item is automatically adjusted/set. For computer input, the

icon will appear during

processing.

Control panel

AUTO

KEYSTONE

AUTO SET

ON/STANDBY

INPUT

VOL.

FAN TEMP LAMP ON

Note

• Auto adjustment/setting may not be performed correctly for input signals other than those supported by the projector

p.69, p.70

● Manual adjustment and setting

The menu items vary according to the input type, as shown in the table below. Use the the

Input Item

Computer (1) Computer (2)

Y/P

B/PR

Y/P

B/PR

Video S-video

Camera

buttons to adjust the items in the table below, then press

button when you are finished. The menu disappears.

Description

Phase Adjust with to eliminate flicker. Frequency

Adjust with to eliminate periodic patterns and flickering when many vertical lines appear in the screen.

H-position Move left Move right

Select ItemSelect Item

V-position Move up Move down

(1) (2)

Phase Adjust with to eliminate flicker. Signal format

[ : Enter to setting mode] [ : Select one of the following] [Apply: ]

480i(525i)@60Hz/480p(525p)@60Hz/ 576i(625i)@50Hz/576p(625p)@50Hz/ 720p(750p)@60Hz/720p(750p)@50Hz/ 1080i(1125i)@60Hz/1080i(1125i)@50Hz/ 1035i(1125i)@60Hz/1152i(1250i)@50Hz

Video mode [ : Enter to setting mode] [ : Select one

of the following] [Apply: ]

NTSC/PAL/SECAM/PAL-N/PAL-M/PAL60/NTSC4.43 Shutter speed Set to local line frequency: 50Hz 60Hz

VOL.

Remote Control

VOL.

PJ MODE LASER

MENU / ENTER

R-CLICK

INPUT

AUTO SET FREEZE

AUTO

RESIZE

MUTE

KEYSTONE

ON/

OFF

STANDBY

VOL.

Operations

Using handy features (Continued)

■ Correcting the keystone distortion (Keystone)

When the foot adjuster projection angle, the picture will undergo keystone (trapezoidal) distortion. This projector is capable of correcting this keystone distortion.

U S

M O N IT O

C O N T R

A U D I O

- L

q Press the AUTO KEYSTONE button.

The Keystone menu appears.

w Press the AUTO KEYSTONE button again.

The keystone distortion is automatically corrected. The icon will appear during processing.

● Manual adjustment

Use the buttons for keystone adjustment. When the adjustment is finished, press the

Item Description

Keystone Shrink screen bottom Shrink screen top

Notes

• Depending on the amount of keystone adjustment and the contents of images, some information may be lost, or the picture quality may suffer.

• Keystone adjustment will not change the shape of the menus.

p.28

is used to change the

Before correction After correction

C O M P U T E R

( Y ,P

)

/ P

VID E O

V I D E O

button. The menu disappears.

Control panel

AUTO

KEYSTONE

AUTO SET

ON/STANDBY

INPUT

VOL.

FAN TEMP LAMP ON

VOL.

■ Cutting off the picture and sound temporarily (Mute)

When you want to temporarily project the images of another projector, overhead projector, etc., this projector’s images and sound can be turned off.

Press the remote control’s MUTE button.

The picture and sound are cut off. The Mute function is released when pressing the MUTE button again. The

icon will appear while mute is in effect.

Remote Control

VOL.

PJ MODE LASER

MENU / ENTER

R-CLICK

INPUT

AUTO SET FREEZE

AUTO

RESIZE

MUTE

KEYSTONE

ON/

OFF

STANDBY

Remote Control

VOL.

PJ MODE LASER

MENU / ENTER

R-CLICK

INPUT

AUTO SET FREEZE

AUTO

RESIZE

MUTE

KEYSTONE

ON/

OFF

STANDBY

■ Freezing the image (Freeze)

The image being projected can be made to be frozen. This function is to be used to pause a video during a presentation, etc.

VOL.

Press the remote control’s FREEZE button.

The picture is paused. The Freeze function is released when pressing the FREEZE button again.

Notes

• The icon will appear while freeze is in effect.

Remote Control

VOL.

PJ MODE LASER

MENU / ENTER

R-CLICK

INPUT

AUTO SET FREEZE

AUTO

RESIZE

MUTE

KEYSTONE

ON/

OFF

STANDBY

VOL.

• The freeze function can be used on the resize function. Other operations will release the freeze.

• Even if an image is frozen on the projector, it is still changing on the video or other equipment.

■ Enlarging the picture size (Resize)

The image being projected can be enlarged.

Press the remote control’s RESIZE button.

The enlargement ratio is increased each time the RESIZE button is pressed. While the button is pushed, the image continues increasing to a limit.

To decrease the enlargement ratio, press the remote control’s RESIZE

button.

The enlargement ratio is decreased each time the RESIZE button is pressed. (The image cannot be shrunk to less than its original size.)

Remote Control

MENU / ENTER

AUTO SET FREEZE

AUTO

KEYSTONE

ON/ STANDBY

VOL.

R-CLICK

INPUT

RESIZE

MUTE

OFF

Press and hold down the buttons to move the enlarged area.

VOL.

Press the OFF button to undo the resize.

VOL.

PJ MODE LASER

The resize is released, and the image returns to its original size.

Notes

• The icon will appear while resize is in effect.

• An enlarged image can be frozen using the FREEZE button. The resize function on

a frozen image can also be used.

• Operations other than freeze will release the resize.

• Since the enlargement is performed using digital processing, enlarging the image

will cause it to appear jagged.

• Rarely, the picture could become garbled while the enlarged area is being moved.

Operations

Using handy features (Continued)

Using the wireless LAN PC card

■ Displaying Information [Status display]

This displays information about the input signal, lamp use time, etc.

Press the button twice.

When the button is pressed once, the Setting display menu appears. Pressing it again displays information is displayed. Press the button again to dismiss the display.

Item Description

Input Input source name Yes Yes Yes Yes Yes RGB signal mode H-resolution V-resolution H-frequency V-frequency Sync

RGB input mode Horizontal resolution (in bits) Vertical resolution (in bits) Horizontal sync frequency Vertical sync frequency

Sync signal polarity Signal format Y/PB/PR signal format No Yes No No No Video mode

Color method of video signal Card type PC card type No No No Yes No

Shutter speed

Shutter speed of document

imaging camera Lamp time Time of lamp use Version Firmware version MAC address See page 60

SSID

See page 34,61 DHCP See page 61 IP address See page 61 Subnet mask See page 61 Gateway See page 61

Notes

1: The mode of supported RGB signals 2: Same as the refresh rate of the computer signal. 3: Sync signal polarity shown as P (positive) or N (negative) for [H/V]. 4: Displays [Lamp time] as a measure of when the lamp should be replaced. (Cannot be

used as a counter of guaranteed lamp time.) When the time displayed approaches 1,500 hours, consult with a store about getting a TLPLW2 replacement lamp (sold separately) prepared.

5: [Version] shows the version of the projector’s internal control program. This version is

referred to for customer service, etc.

6: Displayed when wireless LAN PC card is being used.

Notes

• The displayed information will not be refreshed if the status changes. To refresh the information, dismiss the display, then displa y it again.

• Conducting another operation while information is being displayed dismisses the display.

p.53

. The table below shows what kind of information

“Yes”: displayed, “No”: not displayed

Video

PC Card Camera

[Note 1]

Computer Y/PB/PR

S-video

YesNoNoNoNo YesNoNoNoNo YesNoNoNoNo YesNoNoNoNo

[Note 2]

[Note 3]

YesNoNoNoNo YesNoNoNoNo

No No Yes No No

No No No No Yes

p.60 p.34,p.61

p.61

[Note 4] [Note 5]

p.69

Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes

No No No No No No

No No No No No No No No No No No No

is shown.

Yes Yes

Yes Yes Yes Yes

[Note 6] [Note 6]

[Note 6] [Note 6] [Note 6] [Note 6]

No No

No No No No

Please read this chapter if the model you purchased includes a PC card slot.

■ Functions

The following functions are available via wireless communications, when the wireless LAN PC card and dedicated Wireless Utility software are used.

Note:

A wireless LAN PC card except the supplied one (or recommended by Toshiba) does

not work with this product. Please ask your dealer about the available wireless LAN PC card.

1) Displaying a computer’s screen via the projector

The computer’s desktop screen can be sent, as well as the screens of a variety of software applications, to the projector for display.

2) Displaying an image saved on a computer via the projector

JPEG files can be sent to the projector for display.

3) Sending images taken with the projector’s document camera to a computer

This function is for models equipped with document camera. See “Sending the camera’s images to a computer”

4) Operating the projector by means of a computer

Some of the same functions available from the remote control can be performed.

p.24

included with this projector

p.49

for details.

■ Communication mode

This projector supports both Ad-hoc and Infrastructure Communication modes.

Ad-Hoc Communication Mode

This is transmission mode to communicate between wireless LAN equipment.

F A N T

E M P L

O V O L .

K E Y

O M E N U

N P U

O N / S T A

N D B Y

For security reason, confirm the specifications of your computer for the distance that the radio wave can reach. The coverage of this projector may vary, depending on the computer and the surrounding environment. When tested with a PC manufactured by Toshiba with built-in wireless LAN system, the coverage is approximately 60 m. This figure is not guaranteed and should be considered as merely a guideline.

Infrastructure Communication Mode

To LAN, Internet, etc.

Hub

A N T E M P

L A

T A

T O

V O L .

K E Y

O M E N U

T O N / S T A N

D B Y

Access point

Use the appropriate transmission mode for your network environment. The instructions in this owner’s manual assume that you will be using a simple ad-hoc communication mode setup.

Wireless communication can be performed via the simple configurations. This function can only be used if the projector is in range of the computer’s wireless signals.

A mixed wireless and wired LAN can be created via access points. Connecting to the rest of the world via a wired LAN or the Internet generally requires a high level of security.

Operations

Using the wireless LAN PC card (Continued)

■ Caution when using the wireless LAN functions

The Wireless LAN in this unit uses the 2.4 GHz waveband. If there is a similar wireless LAN in the area, or a wireless device using the 2.4 GHz waveband, or a microwave oven, the communication efficiency of this apparatus will be reduced, and may become unusable, but it is not a fault. If this happens, check an area away from the current location that will not cause radio interference to medical, industrial and public equipment, and change to it, or stop using the unit.

■ Preparation

● Mount the supplied wireless LAN PC card into the projector, and select

PC card input

Referring to “Mounting a PC card,” select PC card input in accordance with “Select input”

● Projector settings

The factory settings can be used as-is. However, if you need higher security, SSID, Encryption and Key should be changed.

SSID can be changed only by using Projector Configuration Tool software Other items can be changed by using Projector Configuration Tool software or from

“PC card setting menu”

• [Communication mode]:

Your projector is set to Ad-Hoc in the factory. See “How to Use the Projector Configuration Tool”

menu item is used only for channel confirmation and the mode change from Infrastructure to Ad-Hoc.

• [SSID]

This is an ID code for connecting to specific individuals over a wireless LAN. This may also be called “Network group” or “Network name”. Please read the following carefully.

1) The SSID is set to DPJ when shipped from the factory. If you leave this setting as it is, it is possible that security may be compromised due to a third party using a Wireless Utility within the possible communication area, so it is imperative that you set a different SSID to the default settings before using the unit.

2) When you use the Ad-Hoc communication mode, if there is a similar SSID network group (for example DPJ, DPJ1, DPJ2, etc.) in the possible communication area, it is possible that your projector name will not be displayed in the Wireless Utility projector list column. In this case, change the SSID to a completely different character string.

• [Channel]

A channel can be changed by your choice. However, it will be changed automatically to the other channel when the network group having the same SSID exists already in the possible communication area.

p.55

p.60

if you would like to set the mode to Infrastructure. This

p.23

mount the supplied wireless LAN PC card, then

p.27

p.60

• [Encryption]

Set the security encryption level. The higher the number of bits, the stronger the encryption, and hence the harder it will be for a third party to decipher your communications. However, setting higher encryption levels will slow down communication speed. When you need higher security, Encryption should be set to [128-bit].

• [Key]

The key must be set for any Encryption setting other than None. [64-bit] sets the key length to 5 characters, [128-bit] to 13. For security, a word written on a dictionary should not be used and Key should be changed sometimes.

• [Projector name]

This can be used to identify projectors when communicating with multiple projectors, or if there is a possibility that another person who is out of communication range will be using the same projector. It is recommended this is set to prevent wrong transmission.

● Installing the applications

Install the applications on your computer, in accordance with “Installing the

applications”

p.24

● Computer settings

Refer to instruction manuals of your computer or wireless LAN PC card to perform the following settings.

• Select Ad-Hoc (for some PC cards, this is Peer-to-Peer Group).

• Set the Channel to channel assigned to the projector (in factory reset mode, this is set

to 10). (For some computers, you cannot set the channel in Ad-Hoc mode. For this case, use infrastructure communication mode.)

• Set SSID (For some types of PC card, use Network Name instead) as the same as projector’s SSID (at factory shipment, this is set to DPJ).

• If Encryption and Key are set on the projector, set to the same values. Note) It is imperative that the projector and computer encryption settings are the same.

If the settings are different, the encryption may be invalid when sending in the ad hoc communication mode, so be careful.

Operations

Using the wireless LAN PC card (Continued)

■ Displaying a computer’s screen via the projector

Launch the Wireless Utility software

application.

When the Wireless Utility launches, the Screen image transmission mode window appears on the

computer screen. To switch to the Screen image transmission mode

window from another mode (File or Document

camera), click on the Screen Image icon

Select Transmission mode.

Click on Update automatically or Update manually. See step 6 for the meanings of Update automatically and Update manually.

Click on the Advanced button.

The Advanced Settings dialog appears. Set the dialog as shown below, as necessary.

• Interruption

Select the No Interruptions checkbox to prevent other computer from sending interrupts to the projector during your transmission.

• Mode

Selecting High quality improves the quality of the projected image, but lowers communication speed. Selecting High speed has the opposite effect.

• Window

Select the Place in T asktray at the start of transmission checkbox to iconify the Wireless Utility and place it in the computer’s tasktray

when transmission initiated. To display the window, double click on this icon, or right click and select Open from the popup menu. Transmission can be started and stopped from this popup menu in accordance with the preceding instructions, without displaying the Wireless utility window.

Select the screen image you wish the projector to display .

Select Desktop

The computer screen image is transmitted as-is.

Select application window

Select a running application (e.g. Microsoft PowerPoint®), and send that application’s window only.

The desktop and a list of running applications are displayed. Select the desired application from this list. (If the desired application is not on the list, launch it. Note that if too many applications are running, it will consume the computer’s resources, which could slow communication speed.)

Select the projector to be transmitted.

A list of the MAC addresses of the wireless LAN PC cards that are available for transmission appears. (When a projector name is set, that name appears instead of MAC address.) Select the checkbox of the projector you wish to transmit to from this list. Then icon few seconds.

It is possible to select up-to four projectors.

Click on the button.

When “Update automatically” is selected in step

When “Update manually” is selected in step

To halt transmission from Update automatically, click on the

is displayed on the projector’s screen for

Screen images are sent consecutively after the button is clicked. A single screen image is sent when the button is clicked.

p.32

p.60

mounted on the projectors

button.

If the Wireless Utility icon has been placed in the tasktray, double click on the icon to display the window, then halt transmission, or right click on the icon, and halt transmission.

Notes

• It may not be possible to transmit the images from movie player or other video applications.

•

When using “Update automatically”, the transmitted image refresh rate depends on the performance of the computer you are using and the surrounding radio wave environment.

• The projector screen may have a few differences from the computer screen.

• It is not possible to transmit to a projector that is already receiving from another

computer.

• If you selected application window in step image may not be correctly displayed by the projector.

, if that application is not active (in use), the

Operations

Using the wireless LAN PC card (Continued)

■

Displaying a JPEG image saved on a computer via the projector

Launch the Wireless Utility software application.

The Screen image transmission mode window appears on the computer’s screen.

Click on the File icon .

The Wireless Utility window changes to File transmission mode.

Select the projector to be transmitted.

A list of the MAC addresses of the wireless LAN PC cards that are available for transmission appears. If projector name has been set up already, it is shown instead of the MAC address. Select the checkbox of the projector to be transmitted to from this list. Then icon projector’s screen for few seconds. It is possible to select up-to four projectors.

Click on the button.

The selected file’s image is displayed by the projector.

p.32

p.60

mounted on the projectors

is displayed on the

Click on the Browse button, and select the file to send.

Clicking on the Browse button displays the Open dialog box. Select the file to send, then click on the Open button.

The selected file is added to the pull-down list in the

Wireless Utility’s T ransmission File field.

Select the file to be sent from the pull-down list of the Transmission File field.

Click on the T ransmission File field’s button to display the pull-down list. Select the file to be sent from this list.

A thumbnail of the selected file appears in the Preview box. The file displayed here will be transmitted.

Step The way that drag and drop the file to be sent from the desktop or Windows Explorer into the Preview box is also available. In this case as well, the selected file is added to the file pull-down list Transmission File field’s.

can be skipped.

Note

• Only one file can be sent at a time. To send another file, repeat steps 4 and 6.

■ Operating the projector

This function can be used with any projector input. Note, however, that this will not function with a memory PC card.

Launch the Wireless Utility software application.

The Screen Image transmission mode window appears on the computer’s screen.

Click on the Remote Control button

The Remote Control window appears.

As the Wireless Utility window is still displayed, you can operate the projector via the Remote Control window , while using the Wireless Utility’s functions.

While it is possible to use this function merely to operate the projector, closing the

Wireless Utility also closes the Remote Control window.

Operations

Using the wireless LAN PC card (Continued)

Projecting images stored in a memory PC card

Select the projector to be operated.

In the Remote Control window , click on the button, and select the desired projector from the pull-down list. Only one projector can be selected. (It is not possible to operate multiple projectors.) Then icon seconds.

Click on the Remote Control window’s buttons.

The function of each button and box is as follows:

Power On: Turns projector power on. Power Off: Turns projector power off.

Input (box) : Click on the Mute: Cuts off picture and sound. Click again to restore picture and sound.

Freeze: The picture is paused. Click again to release the freeze function. V olume (+/–) : Adjusting sound volume. Resize (+/–) : Displays expanded image.

↑↑

↓↓

←←

↑/

↓/

←/

↑↑

↓↓

←←

Resize Off: Restores picture to its original size.

To quit, click on the button on the Remote Control window.

Performing this does not close the Wireless Utility window. To exit both the Wireless Utility and the Remote Control, click on the

the Wireless Utility window.

is displayed on the projector’s screen for few

Note, however, that if Standby mode is set to Economy from the Default setting menu (Standby power consumption during Economy is about 6W.)

button, and select the desired input from the pull-down

list.

→→

→: Moves expanded image.

→→

p.54

, it is not possible to switch from off to on.

button on

Please read this chapter if the model you purchased includes a PC card slot.

Models equipped with PC card slot are able to read JPEG files stored on a memory PC card, and display them on the screen. This allows you to give presentations without a computer, create advertising screen board using the auto slide show function, and more. (It is not possible to reproduce animation effects, such as those produced by Microsoft

PowerPoint®.)

■ Memory PC cards

● PC card slot types

The PC card slot installed on this projector is TYPE II (PCMCIA Release 2.1)-compliant. Please use memory PC cards and conversion adapters compliant with this type of PC card slot.

● Supported storage media types

This projector supports the following types of ATA-compliant storage media. This owner’s man ual refers to the combination of the ATA conversion adapter and media in use as a “memory PC card.”

Storage media that can be used as-is

Flash ATA card, TOSHIBA Mobile Disk

Storage media that can be used in combination with each of the ATA conversion adapter types

SmartMedia™, compact Flash cards, SD memory cards Note that inserting conversion adapters and memory cards with different functions than above, and other memory cards (excluding the supplied wireless LAN PC card) into the projector could damage the PC card or cause malfunctions.

● Memory PC Cards Whose Operation Have Been Confirmed

Please note that presence on this list is not a guarantee of operation.

• TOSHIBA Mobile Disk:PAMHD005(5GB), MEHDD20A(2GB)

• Flash ATA cards: I-O DATA PCFCA-96M (96MB), PCFCA-128M (128MB)

• SmartMedia™: TOSHIBA PDR-SM16 (16MB), PDR-SM32 (32MB),

PDR-SM64 (64MB)

Adapters: FUJIFILM PC-AD3B, OLYMPUS MA-2

• Compact Flash cards: SanDisk SDCFB-64-505 (64MB), SDCFB-128-505 (128MB) Adapters: SanDisk SDCF-31

• SD memory cards: Panasonic RP-SD032 (32MB) Adapters: Panasonic BN-SDAAP3

The TOSHIBA IPC5019A SmartMedia™ PC card adapter is not ATA-compliant, and so cannot be used by this projector.

● Backing up data

Toshiba recommend that you back up the data on the memory PC card before use. (Toshiba assume no liability for losses incurred by data lost through the use of this projector.)

Operations

Projecting images stored in a memory PC card (Continued)

■ JPEG files

1) Folder names may be up to 19 characters long, and file names up to 14 characters including file extensions.

2) Supported file extensions are jpg, JPG, jpeg, and JPEG.

3) The maximum number including both folders and files is 512.

4) Some JPEG files are not supported by this projector.

5) Resolutions above 1,024 x 768 pixels will be displayed in compressed form.

The limitations in 4), above can be alleviated by converting the JPEG file with the supplied JPEG Conversion T ool

p.62

software application.

■ Projecting images stored in a memory PC card

● Switch to [PJ Mode]

Mounting a memory PC card

Mount a memory PC card into the PC card slot, in accordance with “Mounting a PC

p.23

card”

Selecting PC card input

When PC card input is selected, data readout from the memory PC card begins, and a list of thumbnails is displayed on the screen. The figure below is an example of this process. The actual display will vary depending on the data stored on your memory PC card.

Current Folder Name

Folder

p.20

to operate the remote control’s buttons.

Current File Name

Thumbnail image of first file in folder

File

Thumbnail list page Current page/Total pages

Operation Guide

Thumbnail image of file

Previous page exists

Orange frame: currently selected file or folder

Indicates that only folders are inside the folder.

Indicates that the JPEG or other file is not supported.

Indicates that an unsupported JPEG or other file is present.

Indicates a folder for files taken/ stored by the document camera.

p.51

Indicates that there is no data to be displayed in the folder.

Searching for a target file

• Use the buttons to move the orange frame over the desired file or folder.

• If there are multiple pages of thumbnails, click the

the next page, and the

button on the top row to go to the previous page.

button on the bottom row to go to

• To open a folder, move the orange frame over the desired folder, and click on the remote control’s

button. It is possible to navigate down up to 5 levels using the same procedure. To return to the next level up, click on the remote control’s

Displaying slides

button.

• When a file is selected, pressing the remote control’s button displays a slide, and the image of the selected file is shown in full-screen view.

• To return to thumbnail display screen, click on the remote control’s

Changing slides

button.

Press the remote control’s buttons when a slide is displayed to change slides. (

: previous slide; : next slide. The buttons are not available.)

Notes

• The thumbnail display order and slide order goes in order from shortest file name to longest. If two file names have the same number of characters, they are ordered numerically if numbers are used in the file name, and alphabetically otherwise.

• It is possible to give presentations without using a computer by converting presentations created with Microsoft and storing them on a memory PC card. Note, however, that functions such as animation effects and hyperlinks cannot be used, so it should be tested before the actual presentation.

PowerPoint® into JPEG files using the JPEG Conversion Tool ,

p.63

Operations

Next page exists

W.BALANCE OVERLAY

LOCK

STORE IMAGE

ARM LIGHT

CAMERACAMERA

GAIN

Projecting images stored in a memory PC card (Continued)

Using the document camera

The following functions can be used via remote control operation and menu settings.

Slide show function

• Press the remote control’s button when a slide is displayed to begin a slide show, and cycle through the slides automatically. The slides’ display interval (time) can be set via the Interval setting on the PC card

p.55

setting menu

• To stop the slide show, press the remote control’s

button.

Auto. Demo function

• From the PC card setting menu show begins automatically when a memory PC card is inserted and input switched to PC card input. At this time, the JPEG files in the root directory of the memory PC card are used in the slide show.

• From the PC card setting menu, Auto. is selected for Input select mode and On is selected for Auto. Demo, and a memory PC card is mounted, then a slide show begins automatically when the projector’s power is turned on.

• To stop the slide show, press the remote control’s

p.55

, On is selected for Auto. Demo, then a slide

button.

File deletion function

Select the file to be deleted, then press the button to bring up the Setting display menu. Delete the selected file, referring to How to use the menu

p.55

card setting menu

p.53

and the PC

Please read this chapter if the model you purchased includes a document camera.

■ Preparation of the document camera

1) Set up arm

Status before preparation (When stowed)

3) Rotate arm

ON/STANDBY

U N E

INPUT

+ . L O

V E N

UTO A

STO

M O V

T E

E T U A

N T A

4) Extend

ON/STANDBY

U N E

INPUT

+ .

L O V

E N

AUTO

STO

P O

O V

L P

SET

M E T

UTO A

N A F

T H

IG L M R A

C N

L A

A A C G

K C O L

E R O

E T G

A IM

camera head

ON/STANDBY

INPU

+ . L O

V E N O

AUTO

KEY

M O V

SET

M E

T UTO A

N A

T H G I L M

R A

O E C

N A L A

K C O L

E R O

E T

G S

A M I

ON/STANDBY

U N E

INPU

+ .

L O V

E N

UTO

STO

M O V

SET

M E T

UTO A

N A F

T H

IG L M R A

E C N A L A

E M

IN A A C G

K C O L

E R O

E T G

A M I

PRECAUTIONS

• Do not jolt or force the camera head or camera arm. Doing so could cause malfunction.

• Note that when extending or rotating the camera arm, the arm moves in an arc. Take

care not to bump yourself or others with it.

2) Extend arm

5) Rotate camera head

ON/STANDBY

PUT

N E

+ . L O

V E ON

AUTO

N O

M O V

SET

AUTO

N TE A F

H IG L

M R A

E C N A

L A

B .

E M

K C O L

E R

ON/STANDBY

U N E

INPUT

+ . L O

V E N

TO TO

M O V

SET

AUTO

N T A F

H IG L

M R A

E C N A

L A

E M

K C O L

E R

■ Image projection with the document camera

Press the ARM LIGHT button.

The arm light comes on. (Press it again to turn off the light. Use the light as needed, depending on the indoor lighting conditions.)

Set up document to be photographed.

Place the document or other material on or near the camera, and point the camera head at it.

Screen image

Operations

123

123 123

B D N A

T S / N O

E M

. L O V

NE T U

YSTO

- .

L O T

E E S

N T A F

H IG L

M R A

E C N A L

A .B W

CAMERA

GAIN

K C O

E R O

E T G

A IM

123

Set direction

123

Move the arm and camera head to place the document beside or behind the camera.

4544

W.BALANCE OVERLAY

LOCK

STORE IMAGE

ARM LIGHT

CAMERACAMERA

GAIN

Using the document camera (Continued)

Press the CAMERA button, and select camera input.

• The input returns to the previous input when the CAMERA button is pressed again.

• Camera input can also be selected by pressing the remote

STORE IMAGE

LOCK

control or camera’s INPUT button.

Move the camera head up and down to adjust the image size.

Farther: Smaller image

Closer: Larger image

Y B

D N A T

/S N O

INPUT

VOL.

AUTO

KEYSTONE

VOL.

LAMP

AUTO

TEMP

123

Use the camera head’s focusing ring to adjust the focus.

FAN

T H G I L

M R A Y

O E C N

A L A B . W

CAMERA

GAIN K C O L

E R

Turn the focusing ring to adjust the focus.

If the screen is too dark or too bright, use the CAMERA GAIN (+/–) buttons to make it easier to see.

STORE

LOCK


The Sharpness of the camera image can also be adjusted using

p.54

the Image adjustment menu

After use, turn off the light, and fold up the document camera.

Fold up the camera using the opposite order from Preparation of the document

camera.

W.BALANCE OVERLAY

GAIN

W.BALANCE OVERLAY

GAIN

ARM LIGHT

CAMERACAMERA

ARM LIGHT

CAMERACAMERA

■ Using the overlay function

The overlay function can be used to write over computer or video input images. Have a piece of white paper, and a red or blue pen ready.

Place the piece of white paper on a flat surface,

photograph it with the document camera, and display it on the screen.

Adjust the camera head and arm so that the white paper fills the screen.

Select the input that the overlay function is performed.

Press the INPUT button, use the buttons to select an input other than Camera input, then press the

Press the OVERLAY button.

The overlay function comes on. (Press it again to turn off the function.)

Write on the paper with a red or blue pen.

Before writing, check the position of the pen tip on the screen. The line written overlays the input source’s image on the screen.

Use the CAMERA GAIN (+/–) button to adjust the lines or text so that it is easiest to see.

Notes

• The writing will not be displayed properly if using colors other than blue or red.

• The writing may not be display ed properly if the pen is too fine.

button.

RGB picture

Y B D N A T

/S N

O T U

P N I

Y E K

- .

L O V

O T U A

L A

.B W K

C O L

Screen

Paper

N E M

. L O V

N O

P M A L

P M E T

N A F

H IG L

M R A

E C N A

CAMERA

GAIN

E R

E G A M I

Operations

PRECAUTION

• If the room’s fluorescent lighting causes the image to flicker, either turn off the fluorescent light, or set the Shutter speed from the Auto setting menu changing the Shutter speed setting may not eliminate the flicker, depending on the lighting, state of the document, or image adjustment.

• When arm light is used, document camera image of paper/object with reflective surface may have bright spots. In this case, turn off the arm light and have an adequate lighting from the room light.

p.29

Notes

• The camera light automatically goes off when the camera arm is collapsed.

• The camera will not output images when the camera arm is stowed.

• No audio is output when camera input is selected.

. Note that

■ Locking the white balance

Although the projector’s camera is constantly adjusting the color balance of the images it photographs, the color balance may be disrupted, depending on the color layout of the document, etc. If this happens, the white balance can be locked using the procedure below .

Lay down a piece of white paper, and adjust so it fills the screen.

Adjust the camera head and arm so that the white paper fills the screen completely.

4746

Y B D N

T /S N O

E M

. L O V

T U A

O EYSTO K

- .

M O V

E E S

N T A F

H IG L

M R A

E C N A

L A .B

CAMERA

GAIN

K C O L

E R

A IM

W.BALANCE OVERLAY

LOCK

STORE IMAGE

ARM LIGHT

CAMERACAMERA

GAIN

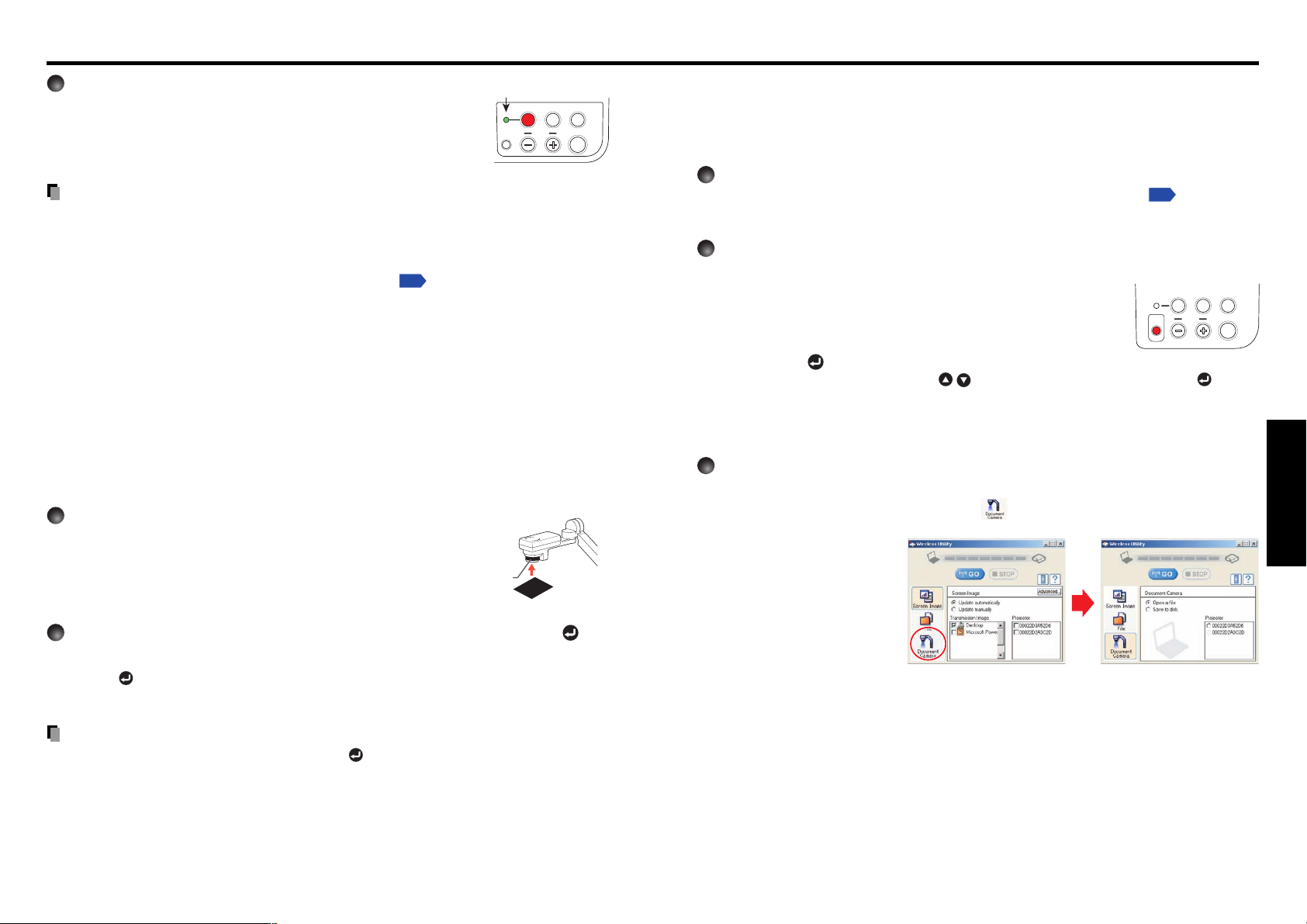

Using the document camera (Continued)

Press the W.BALANCE button. The LOCK indicator lights.

The white balance is locked. The white balance returns to automatic adjustment when pressing the W.BALANCE button again. Then LOCK indicator goes out.

Notes

• When the white balance is locked (the LOCK indicator is lit), folding and extending the arm will automatically return to automatic adjustment.

• The color of the room lighting may prevent the white balance from being adjusted to the optimum level. In this situation, or if you want to use a certain tinting, adjust the R-level,

G-level, and B-level on the Image adjustment menu

p.54

■ Correcting illuminated defects

In rare cases, a portion of the pixels of CCD image sensor used by the camera could be damaged by cosmic rays and the like. This damage could cause white spots (illuminated defects) to appear on the screen. If illuminated defects appear in the images of the document camera, correct them as follows:

With the document camera in use, cover the camera lens completely with black paper, cloth, or the like.

Camera lens

Lit

LOCK

STORE IMAGE

W.BALANCE

CAMERA

GAIN

OVERLAY

ARM LIGHT

CAMERA

■

Sending the camera’s images to a computer

(Models equipped with PC card slot)

Models equipped with a PC card slot can use a wireless LAN PC card to send images taken with the document camera to a computer in JPEG format, and open them, or save them to disk.

Preparing the computer and projector

• Set up the computer and projector in accordance with “Preparation”

p.34

, and enable

wireless LAN communication.

Operating the projector

q Switch to camera input. w Display the camera image, and press the STORE IMAGE

button.

A message appears on the screen, confirming that you wish to save the image.

e Press the

(To not save the image, use the

button to save the image.

buttons to select No, then press the button.) The image data is temporarily saved in the projector as a JPEG file. When the save is complete a message appears, then disappears after a moment.

Operating the computer

q Launch the Wireless Utility software application. w Click on the Document camera icon

The Wireless Utility window changes to

Document camera

mode.

Operations

Press the ARM LIGHT button on the Camera control panel and the

button on the control panel (main unit side) simultaneously. (The remote

control

The illuminated defects are corrected.

buttons cannot be used.)

PRECAUTION

• Do not press both the ARM LIGHT button and button when the camera lens is not blocked. Doing so will erase correction data that has already been stored, or add corrections to normal areas. This should also take care when camera input is not selected.

e Select Open a file or Save to Disk.

If you only want to view the image taken with the document camera on the computer screen, select Open a file. To save the JPEG file sent from the projector to disk, select Save to Disk.

4948

W.BALANCE OVERLAY

LOCK

STORE IMAGE

ARM LIGHT

CAMERACAMERA

GAIN

Using the document camera (Continued)

r Select the projector on which the images

were temporarily saved in step

A list of the MAC addresses of the wireless

p.60

LAN PC cards

p.32

mounted on the projectors that are available for communication appears. (If projector name has been set up already, it is shown instead of the MAC address.) Select the desired projector from this list. Then icon

is displayed on the projector’s

screen for few seconds.

t Click on the

button.

If Open a file was selected in step e

Open the JPEG file sent from the projector, and display it on the computer. The

software application linked to the jpg extension on that computer displays the file.

If Save to Disk was selected in step e

A dialog box appears, prompting you to select a location in which to save the JPEG file sent from the projector. Specify a file name in this dialog box to save the file.

To view or save another image from the camera, repeat w and e of step

, and t of step 3 as many times as necessary.

■

Storing the camera images into the memory PC card

(Models equipped with PC card slot)

Models equipped with a PC card slot are able to save image data taken with the document camera onto a memory PC card (sold separately) in JPEG format.

Mount a memory PC card into the PC card slot

p.23

Mounting a PC card will switch to PC card input if Input select mode is set to Auto on

p.55

the PC card setting menu

. In this case, press the CAMERA button on the

Camera control panel to switch to camera input.

Display the camera image, and press the STORE

IMAGE button.

A message appears on the screen, confirming that you wish to save the image.

Press the buttons to save the image.

(To not save the image, use the buttons to select No, then press the button.) Data save to the memory PC card begins.

The

Never remove the memory PC card during a save. Doing so could corrupt your data, or damage the PC card.

When the writing is complete, the icon disappears and a message appears informing you that saving is complete, then disappears after a few seconds. Repeat step

icon will appear on the upper left of the screen during saving.

as necessary to store more images.

2 3

Notes

• Only one image can be saved on this projector temporarily at a time. If another image is saved, the current one is overwritten.

• Any adjustments other than CAMERA GAIN (+/–) and Sharpness will not be reflected on the forwarded image.

• It is not possible to photograph resized or frozen images.

• The size of the saved file will vary, depending on the image.

Check the saved file, if necessary.

Use the steps in “Projecting images stored in a memory PC card”

p.42

to check the contents of the file or image. Images are saved in the memory PC card’s _doccam folder in JPEG format. If there is no _doccam folder, the images are created in the memory PC card’s root directory.

Notes

• Any adjustments other than CAMERA GAIN (+/–) and Sharpness will not be reflected on a JPEG file saved on the memory PC card.

• It is not possible to photograph resized or frozen images.

• Saved files are saved with names in the range of pix001.jpg to pix999.jpg. If there is

already a file named pix999.jpg, no more files can be saved.

• The size of the file will vary, depending on the image. The number of files that can be saved depends on the size of the files and the capacity of the memory PC card.

• Do not mount a write-protected memory PC card into the projector. It may become impossible to access the memory PC card.

5150

Operations

Operating a computer using the remote control

Using the menus

A computer can be operated using the projector’s remote control. This function is available on any computer with the Windows 98/98SE, Windows Me, Windows 2000, or Windows XP OS, that is equipped with a USB port which can support USB1.1 (The mouse remote control receiver is also supported on OS 9 or OS X for the Macintosh). However, please note that Toshiba does not guarantee the operation of all computers.

Connecting a computer

Connect the projector to a computer using the supplied USB cable. See Fig. (1) below. For models equipped with PC card slot, connect the supplied Mouse remote control receiver to the computer. See Fig. (2) below.

(2)(1)

To USB port To USB port

USB

Operating a computer

MONITOR

CONTROL

COMPUTER

(

Y,P

)

B/PR

Mouse remote control receiver

The mouse remote control function is available when the remote control is set to [PC

p.20

Mode]. (See “Switching operation modes”

Point the remote control at the infrared remote sensor (in models using Mouse remote control receivers, point it at the Mouse remote control receiver), and operate the remote control’s buttons.

● Moving the mouse pointer

Move the pointer control button in the direction that you wish the mouse pointer to

move, then press.

● T o left click

Press the L-CLICK button.

● T o right click

Press the R-CLICK button.

● To drag and drop

Move the pointer control button in a (L-)clicked state, then when the pointer is over

the desired location, release the button.

● Using the computer’s up and down arrow key functions

Press the

and buttons to switch PowerPoint® slides.

Remote Control Front Remote Control Rear

Pointer control

R-CLICK

VOL.

PJ MODE LASER

MENU / ENTER

R-CLICK

INPUT

L-CLICK

VOL.

You can call up on-screen menus, and conduct a number of adjustments and settings, using the operation buttons

p.16

on the control panel (main unit side) and remote control.

■ How to use the menus

The menu shown below is only for operation instructions and might be different from

the actual display.

1. Start

2. Select a Category

Select a category by using There are following four

categorys.

Image adjustment menu Default setting menu Display setting menu PC card setting menu

3. Adjustments & Settings

Adjustment/Setting Value

These marks signify the items can be adjusted/set by using .

These marks signify an item can be switched by using .

The figure shows a typical example. As the display may differ depending on the item, use the following pages as a reference.

These marks signify the items can be selected from the list by using . After an item selected, apply it by pressing .

p.54 p.54 p.55 p.55

Press to open the menu of the selected category.

Item

4. Back

Note

• Menu adjustments and settings (except Lamp power turned off via the ON/STANDBY button. If the power cord is unplugged before this, or the power goes out, then the data will not be saved.

Display the Setting display menu

Displays the current adjustments of selected category. Item shown with gray cannot be adjusted for the current input source.

Finish via the Status display menu.

This mark signfy that there are options. Press to display a list of options.

The menu disappears

p.54

) are saved when the power is

5. T o Finish

To Status display

p.32

6. End

Operations

5352

Using the menus (Continued)
