GATEWAY with Toshiba T1-40 PLC
CAN WE TALK?
Everyone Always Wants to Know
What Everyone Else is Doing
Higher Level Controller
Computer
DCS
PLC
Adjustable
Speed Drives
Don’t Let Anyone Work Alone!
♦ Description
Gateway is a protocol converter that allows any device with a modbus RTU protocol to talk to a Toshiba
T-Series PLC. In some cases Gateway allows the Toshiba PLC to communicate directly with other
devices using the other device’s native protocol. Gateway setup software is used to map the registers
between the other devices/controllers to registers in the Toshiba PLC.
♦ Applications
Toshiba PLC as Master on Modus Network:
Toshiba T2 PLC
Operator
Interface
Station
Adjustable
Speed
Drive
Modbus
Temperature
Controller
Toshiba PLC as Slaves on Modus Network:
Modbus Master
Toshiba T1 PLC
Modbus
Toshiba T1 PLCToshiba T1 PLC
Toshiba PLC to Other PLC Connection:
Toshiba T1 PLC
Page 2
Toshiba
Protocol
XY
Protocol
We Can Talk Now!
XY PLC
♦ Gateway Modes
There are two communications ports on the Gateway, labeled PLC1 and PLC2. Each port can be
configured for either RS232 or RS485 operation. Gateway can communicate through either the T-Series
RS232 programming port or the RS485 computer link port.
♦ Gateway Setup
Gateway is setup using simple MS Windows setup software. The software allows devices/registers from
one device to be mapped to devices/registers of the other device. For Modbus, the 400001 numbered
holding registers can be mapped directly to D data registers in the Toshiba PLC.
In the above example, 5 data registers in the T1 PLC starting at D101 are written into PID controller
modbus registers starting with holding register 400001. 3 Holding registers in the PID controller are
written into the data registers of the T1 starting at D0 (D0 –D2). It is also possible to control the priority
and frequency of the data transfer using the Gateway setup software.
♦ Specifications
Power Supply: 24 VDC +/- 5 % (50 ma MAX.) No Fuse inside
5 VDC +/- 5 % FROM PLC (120 ma MAX.)
Communication: Two ports as follows:
Com 1: RS232C/RS485
Com 2: RS232C/RS485
Status LEDs: PLC1 LED
STATUS LED
PLC2 LED
Temperature:
Humidity: 10% to 90% (Non condensing)
Immunity to ESD: Level 3 as per IEC1000-4-2
Immunity to Transients: Level 3 as per IEC1000-4-4
Radiated Susceptibility: Level 3 as per IEC1000-4-3
Emissions: EN55011 CISPR A
Dimensions: 97mm(W) X 15.mm (H) X 42mm(D) DIN RAIL mounting
Weight: 100 gm Approx.
Operating: 0 to 60 °C Storage: - 40 to 90 °C
available
Page 3

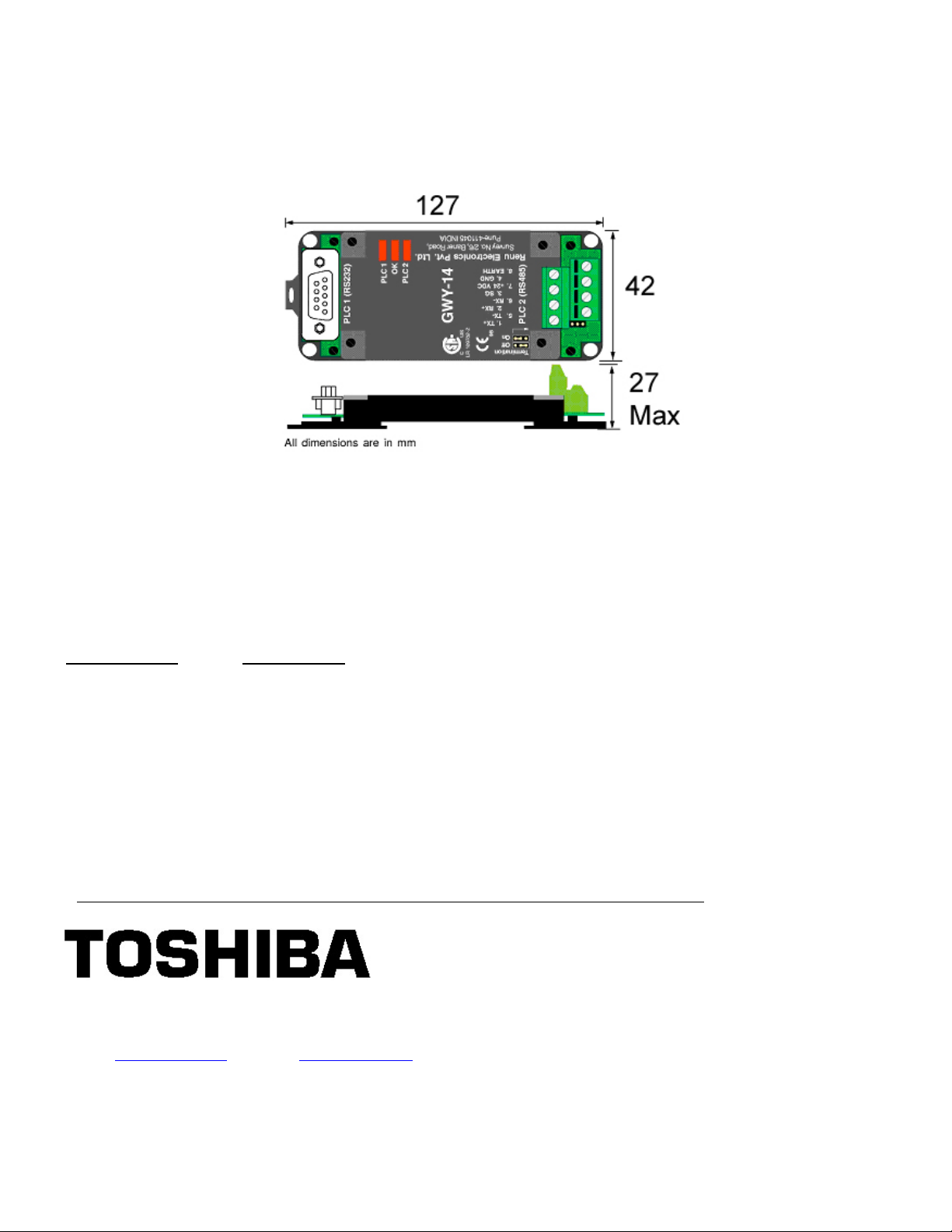

♦ Dimensions
Mounting is via Din Rail or Through Hole
Part Number Description
GWY-02 Gateway Protocol Converter, RS232/RS485, Powered from PLC, includes 50cm
cable for connection to T1 programming port.
GWY-08 Gateway Protocol Converter, RS485/RS485, Requires 24 Vdc Power.
CNV-01-02-2-0 RS232 to RS422/RS485 Converter, 2 wire / 4 wire.
SC-Y-019A-00 Y Cable, Connects Gateway to T1 and PC for downloading Gateway Program.
SC-Y-019A-00 Y Cable, Connects Gateway to T2 and PC for downloading Gateway Program.
SC-G-019A-00 Cable, Connects Gateway to T1 programming port, 2m.
SC-G-019B-00 Cable, Connects Gateway to T2 programming port, 2m.
