Toshiba Satellite Pro A10 User Manual

Download

SatellitePro

A10

User’s Manual

Choose freedom.

computers.toshiba-europe.com

Choose freedom.

User's Manual

Satellite Pro A10 Series ii

© 2003 by TOSHIBA Corporation. All rights reserved. Under the copyright laws, this manual cannot be reproduced in any form without the prior written permission of TOSHIBA. No patent liability is assumed, with respect to the use of the information contained herein.

TOSHIBA Satellite Pro A10 Series Portable Personal Computer User’s Manual

First edition April 2003 Copyright authority for music, movies, computer programs, data bases

and other intellectual property covered by copyright laws belongs to the author or to the copyright owner. Copyrighted material can be reproduced only for personal use or use within the home. Any other use beyond that stipulated above (including conversion to digital format, alteration, transfer of copied material and distribution on a network) without the permission of the copyright owner is a violation of copyright or author’s rights and is subject to civil damages or criminal action. Please comply with copyright laws in making any reproduction from this manual.

Disclaimer

This manual has been validated and reviewed for accuracy. The instructions and descriptions it contains are accurate for the TOSHIBA Satellite Pro A10 Series Portable Personal Computer at the time of this manual’s production. However, succeeding computers and manuals are subject to change without notice. TOSHIBA assumes no liability for damages incurred directly or indirectly from errors, omissions or discrepancies between the computer and the manual.

Trademarks

Intel, Intel Speed Step, Pentium and Celeron are trademarks or registered trademarks of Intel Corporation.

Windows and Microsoft are registered trademarks of Microsoft Corporation.

Photo CD is a trademark of Eastman Kodak.

EU Declaration of Conformity

This product carries the CE-Mark in accordance with the related European Directives. CE-Marking is the responsibility of TOSHIBA Europe GmbH, Hammfelddamm 8, 41460 Neuss, Germany.

User's Manual

Satellite Pro A10 Series iii

Modem warning notice

Conformity Statement

The equipment has been approved to [Commission Decision “CTR21”] for pan-European single terminal connection to the Public Switched Telephone Network (PSTN).

However, due to differences between the individual PSTNs provided in different countries/regions the approval does not, of itself, give an unconditional assurance of successful operation on every PSTN network termination point.

In the event of problems, you should contact your equipment supplier in the first instance.

Network Compatibility Statement

This product is designed to work with, and is compatible with the following networks. It has been tested to and found to conform with the additional requirements contained in EG 201 121.

Germany - ATAAB AN005, AN006, AN007, AN009, AN010,

and DE03, 04, 05, 08, 09, 12, 14, 17

Greece - ATAAB AN005, AN006 and GR01, 02, 03, 04

Portugal - ATAAB AN001, 005, 006, 007, 011 and

P03, 04, 08, 10

Spain - ATAAB AN005, 007, 012, and ES01

Switzerland - ATAAB AN002

All other countries/regions

- ATAAB AN003, 004

Specific switch settings or software setup are required for each network, please refer to the relevant sections of the user guide for more details.

The hookflash (timed break register recall) function is subject to separate national type approval. It has not been tested for conformity to national type regulations, and no guarantee of successful operation of that specific function on specific national networks can be given.

User's Manual

Satellite Pro A10 Series iv

TEAC CD-ROM drive CD-224E, CD-RW/DVD-ROM drive DW-224E safety instruction

The CD/DVD drive employs a laser system. To ensure proper use of this product, please read this instruction manual carefully and retain for future reference. Should the unit ever require maintenance, contact an authorized service location.

Use of controls, adjustments or the performance of procedures other than those specified may result in hazardous radiation exposure.

To prevent direct exposure to the laser beam, do not try to open the enclosure.

Location of the required label

THIS PRODUCT COMPLIES WITH DHHS RULES 21 CFR CHAPTER 1, SUBCHAPTER J APPLICABLE AT DATE OF MANUFACTURE.

MANUFACTURED:

Manufactured by TEAC CORPORATION 3-7-3 NAKA-CHO, MUSASHINO-SHI TOKYO, JAPAN

CLASS 1 LASER PRODUCT

LASER KLASSE 1 PRODUKT

TO EN 60825-1

CAUTION: This appliance contains a laser system and is classified as a “CLASS 1 LASER PRODUCT.” To use this model properly, read the instruction manual carefully and keep this manual for your future reference. In case of any trouble with this model, please contact your nearest “AUTHORIZED service station.” To prevent direct exposure to the laser beam, do not try to open the enclosure.

CAUTION: USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED IN THE OWNER’S MANUAL MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

User's Manual

Satellite Pro A10 Series v

Toshiba DVD-ROM drive SD-C2612, CD-RW/DVD-ROM drive SD-R2412, DVD-R/-RW drive SD-R6012 safety instruction

Use of controls, adjustments or the performance of procedures other than those specified may result in hazardous radiation exposure.

To prevent direct exposure to the laser beam, do not try to open the enclosure.

Location of the required label

PRODUCT IS CERTIFIED BY THE MANUFACTURER TO COMPLY WITH DHHS RULES 21 CFR SUBCHAPTER J APPLICABLE AT THE DATE OF MANUFACTURE.

MANUFACTURED:

TOSHIBA CORPORATION 1-1, SHIBAURA 1-CHOME MINATO-KU, TOKYO 105-8001, JAPAN

CLASS 1 LASER PRODUCT

LASER KLASSE 1 PRODUKT

TO EN 60825-1

CAUTION: USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED IN THE OWNER’S MANUAL MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

User's Manual

Satellite Pro A10 Series vi

HITACHI DVD-ROM drive GDR-8082 safety instruction

The DVD-ROM drive employs a laser system. To ensure proper use of this product, please read this instruction manual carefully and retain for future reference. Should the unit ever require maintenance, contact an authorized service location.

Use of controls, adjustments or the performance of procedures other than those specified may result in hazardous radiation exposure.

To prevent direct exposure to the laser beam, do not try to open the enclosure.

Location of the required label

THIS PRODUCT COMPLIES WITH DHHS RULES 21 CFR SUBCHAPTER J APPLICABLE AT DATE OF MANUFACTURE.

MANUFACTURED:

Hitachi-LG Data Storage Inc. 26-5, TORANOMON 1-CHOME, MINATO-KU, TOKYO, 105-0001 JAPAN

CLASS 1 LASER PRODUCT

LASER KLASSE 1 PRODUKT

TO EN 60825-1

CAUTION: USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED IN THE OWNER’S MANUAL MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

User's Manual

Satellite Pro A10 Series vii

Panasonic CD-RW/DVD-ROM drive UJDA-740/750 safety instruction

The CD-RW/DVD-ROM drive employs a laser system. To ensure proper use of this product, please read this instruction manual carefully and retain for future reference. Should the unit ever require maintenance, contact an authorized service location.

Use of controls, adjustments or the performance of procedures other than those specified may result in hazardous radiation exposure.

To prevent direct exposure to the laser beam, do not try to open the enclosure.

Location of the required label

COMPLIES WITH FCA RADIATION PERFORMANCE STANDARDS, 21 CFR SUBCHAPTER J

MANUFACTURED:

Manufactured by Panasonic Communications Co., Ltd. 1-62 4-Chome Minoshima, Hakata-Ku Fukuoka, Japan

CLASS 1 LASER PRODUCT

LASER KLASSE 1 PRODUKT

TO EN 60825-1

CAUTION: USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED IN THE OWNER’S MANUAL MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

User's Manual

Satellite Pro A10 Series viii

General Precautions

TOSHIBA computers are designed to optimise safety, minimise strain and withstand the rigors of portability. However, certain precautions should be observed to further reduce the risk of personal injury or damage to the computer.

Be certain to read the general precautions below and to note the cautions included in the text of the manual. Please also refer to the Safety Instruction Manual.

Stress injury

Carefully read the Safety Instruction Manual. It contains information on prevention of stress injuries to your hands and wrists that can be caused by extensive keyboard use. Chapter 3, Getting Started, also includes information on work space design, posture and lighting that can help reduce physical stress.

Heat Warning

■ Avoid prolonged physical contact with the bottom of the computer. If

the computer is used for long periods, its surface can become very warm. While the temperature will not feel hot to the touch, if you maintain physical contact with the computer for a long time (if you rest the computer on your lap, for example) your skin might suffer low-heat injury.

■ If the computer has been used for a long time, avoid direct contact

with the metal plate supporting the I/O ports. It can become hot.

■ The surface of the AC adaptor can become hot when in use. This

condition does not indicate a malfunction. If you need to transport the AC adaptor, disconnect it and let it cool before moving it.

■ Do not lay the AC adaptor on a material that is sensitive to heat. The

material could be damaged.

Mobile phones

Use of mobile phones can interfere with the PC sound system. The PC operation is not impaired but it is recommended that a distance of 30 cm is maintained between the PC & the mobile phone.

Pressure or impact damage

Do not apply heavy pressure to the computer or subject it to strong impact. Excessive pressure or impact can damage computer components or otherwise cause malfunctions.

User's Manual

Satellite Pro A10 Series ix

Central Processing Unit ("CPU") Performance Disclaimer

CPU Performance in your computer product may vary from specifications under the following conditions:

■ use of certain external peripheral products

■ use of battery power instead of AC power

■ use of certain multimedia games or videos with special effects

■ use of standard telephone lines or low speed network connections

■ use of complex modelling software, such as high end computer aided

design applications

■ use of computer in areas with low air pressure (high altitude >1,000

meters or >3,280 feet above sea level)

■ use of computer at temperatures outside the range of 5°C to 35°C

(41°F to 95°F) or >25°C (77°F) at high altitude (all temperature references are approximate).

■ CPU performance may also vary from specifications due to design

configuration.

Under some conditions, your computer product may automatically shutdown. This is a normal protective feature designed to reduce the risk of lost data or damage to the product when used outside recommended conditions. To avoid risk of lost data, always make back-up copies of data by periodically storing it on an external storage medium. For optimum performance, use your computer product only under recommended conditions. Read additional restrictions under Environmental Requirements defined in the Appendix A. Contact TOSHIBA Technical Service and Support for more information.

PC Card overheating

Some PC cards can become hot with prolonged use. Overheating of a PC Card can result in errors or instability in the PC Card operation. Also be careful when you remove a PC Card that has been used for a long time.

LCD Display

TFT color LCD is manufactured by using very high brightness technology. Some sequential pixels may not light or may light always, but this is not a failure.

User's Manual

Satellite Pro A10 Series x

CE compliance

This product and the original options are designed to observe the related EMC (Electromagnetic compatibility) and safety standards. However, TOSHIBA should not guarantee that this product still observes these EMC standards if options or cables not produced by TOSHIBA are connected or implemented. In this case the persons who have connected / implemented those options / cables have to assure that the system (PC plus options / cables) still fulfils the required standards. To avoid in general EMC problems following advice should be observed:

■ Only CE marked options should be connected / implemented

■ Only best shielded cables should be connected

Working environment

This product was designed to fulfil the EMC (electromagnetic compatibility) requirements to be observed for so-called "Residential, commercial and light industry environments".

TOSHIBA do not approve the use of this product in working environments other than the above mentioned "Residential, commercial and light industry environments".

For example, the following environments are not approved:

■ Industrial Environments (environments with a mains voltage >230V~)

■ Medical Environments

■ Automotive Environments

■ Aircraft Environments

If this product is supplied with a network port, please refer to the paragraph "Network connection".

Any consequences resulting from the use of this product in working environments that are not approved are not the responsibility of TOSHIBA Europe GmbH.

The consequences of the use of this product in non-approved working environments may be:

■ Interference with other devices or machines in the near surrounding

area

■ Malfunction of, or data loss from, this product caused by disturbances

generated by other devices or machines in the near surrounding area

Therefore TOSHIBA strongly recommend that the electromagnetic compatibility of this product should be suitably tested in all non-approved working environments before use. In the case of automobiles or aircraft, the manufacturer or airline respectively should be asked for permission before use of this product.

Furthermore, for general safety reasons, the use of this product in environments with explosive atmospheres is not permitted.

User's Manual

Satellite Pro A10 Series xi

Network connection (class A warning)

If this product has networking capabilities and will be connected to a network, Class A radiation limits will be observed (in accordance with technical conventions). This means that if the product will be used in a domestic environment, other devices in the near surrounding may suffer interference. Consequently, please do not use this product in such environments (for example a living room), otherwise you could be held responsible for any ensuing interference.

Information on the secure use of the CD-RW

Please adhere to the following information on the use of the CD-RW to minimise the risk of unsuccessful storing process. As the storing may be unsuccessful despite your adhering to these information, for example because of a defective storing medium, you should even if the software indicates a successful storage, always check if the data has been stored successfully.

About TOSHIBA Wireless Solution

Wireless LAN Card Types

The Wireless LAN Card is a wireless network card that complies with the IEEE 802.11 standard on wireless LANs (Revision B). The Wireless LAN Card supports data rates up to 11 Mbit/s.

■ Wi-Fi (Wireless Fidelity) certified by the Wireless Ethernet

Compatibility Alliance (WECA). This means that your Wireless hardware will communicate with other vendors’ IEEE 802.11 compliant wireless LAN product.

■ Fully compatible with any other wireless LAN system based on Direct

Sequence Spread Spectrum (DSSS) radio technology that complies with the “IEEE 802.11 standard on wireless LANs (Revision B).

Wireless LAN cards

The Wireless LAN Card supports the following wireless LAN features:

■ Automatic Transmit Rate Select mechanism in the transmit range of

11, 5.5, 2 and 1 Mbit/s.

■ Frequent Channel Selection (2.4 GHz).

■ Roaming over multiple channels.

■ Card Power Management.

■ Wired Equivalent Privacy (WEP) data encryption, based on the 128 bit

RC4 encryption algorithm as defined in the IEEE 802.11 standard on wireless LANs.

User's Manual

Satellite Pro A10 Series xii

Wireless Interoperability

The TOSHIBA Wireless LAN Mini PCI Card products are designed to be interoperable with any Wireless LAN product that is based on Direct Sequence Spread Spectrum (DSSS) radio technology, and is compliant to:

■ The IEEE 802.11 Standard on Wireless LANs (Revision B), as defined

and approved by the Institute of Electrical and Electronics Engineers.

■ The Wireless Fidelity (WiFi) certification as defined by the WECA

Wireless Ethernet Compatibility Alliance.

Wireless LAN and your Health

Wireless LAN products, like other radio devices, emit radio frequency electromagnetic energy. The level of energy emitted by Wireless LAN devices however is far much less than the electromagnetic energy emitted by wireless devices like for example mobile phones.

Because Wireless LAN products operate within the guidelines found in radio frequency safety standards and recommendations, TOSHIBA believes Wireless LAN is safe for use by consumers. These standards and recommendations reflect the consensus of the scientific community and result from deliberations of panels and committees of scientists who continually review and interpret the extensive research literature.

In some situations or environments, the use of Wireless LAN may be restricted by the proprietor of the building or responsible representatives of the organisation. These situations may for example include:

■ Using the Wireless LAN equipment on board of aeroplanes, or

■ In any other environment where the risk of interference to other

devices or services is perceived or identified as harmful.

If you are uncertain of the policy that applies on the use of wireless devices in a specific organisation or environment (e.g. airports), you are encouraged to ask for authorisation to use the Wireless LAN device prior to turning on the equipment.

Safety Instruction for Wireless Products

If your computer has wireless function, all safety instructions must be read carefully and must be fully understood, before attempting to use our Wireless Products.

This manual contains the safety instructions that must be observed in order to avoid potential hazards that could result in personal injuries or could damage your Wireless Products.

User's Manual

Satellite Pro A10 Series xiii

Limitation of Liability

For damage occurring due to an earthquake or thunder, fire beyond our responsibility, action by third party, other accident, intentional or accidental mistakes by a user, misuse, use under abnormal conditions, we do not take any responsibility.

For incidental damage (loss of business profit, business interruption, etc.) occurring due to use or disability of the product, we do not take any responsibility.

For damage occurring due to non observance of the contents described in the instruction manual, we do not take any responsibility.

For damage occurring due to erroneous operation or hang up caused by use in combination with products not related to our company, we do not take any responsibility.

Usage Restrictions

Do not use the Wireless Products for controlling equipment:

■ Equipment directly linked with human life corresponds to the

following.

■ Medical equipment such as life support systems, equipment used

in operations, etc.

■ Exhaust systems for gases such as poisonous gas etc. and

exhaust systems for smoke.

■ Equipment that must be set up in compliance with various laws

such as the Fire Services Act, the Construction Standard Act, etc.

■ Equipment corresponding to that mentioned above.

■ Equipment linked with human safety or having a serious influence on

the safe maintenance of public function, etc., because it is not designed or manufactured for this type of use.

■ Traffic control equipment for air, railroad, road, marine transport,

etc.

■ Equipment used in atomic power plants etc.

■ Equipment corresponding to that mentioned above.

User's Manual

Satellite Pro A10 Series xiv

WARNING

Turn OFF the Wireless Communication switch of Wireless Products in a congested place, such as a crowded commuter train.

Keep this product away from a cardiac pacemaker at least 22cm. Radio waves can potentially affect cardiac pacemaker operation, thereby

causing respiratory troubles. Turn OFF the Wireless Communication switch inside a medical facility or

near medical electric equipment. Do not bring medical electric equipment close to the product.

Radio waves can potentially affect medical electric equipment, thereby causing an accident due to malfunction.

Turn OFF the Wireless Communication switch near an automatic door, fire alarm or other automatic control equipment.

Radio waves can potentially affect automatic control equipment, thereby causing an accident due to malfunction.

Do not turn ON the Wireless Communication switch in aircraft or in places that generate or can generate radio interference.

Radio waves can potentially affect them, causing an accident due to malfunction.

Monitor possible radio interference or other troubles to other equipment while the product is used. If any effect is caused, turn OFF the Wireless Communication switch.

Otherwise, radio waves can potentially affect other equipment, thereby causing an accident due to malfunction.

When using the product in a car, check with the automobile dealer if the car has an adequate electromagnetic compatibility (EMC).

Radio waves of the product can potentially hamper safe driving. Depending on car model, the product can rarely affect car electronic

equipment if it is used in a car.

NOTE

Do not use the product in the following places: Places near a microwave oven where a magnetic field generates and

places where static electricity or radio interference generates. Depending on environment, radio waves can not reach to the product.

User's Manual

Satellite Pro A10 Series xv

Regulatory Information

The TOSHIBA Wireless LAN Mini PCI Card must be installed and used in strict accordance with the manufacturer’s instructions as described in the user documentation that comes with the product. This device complies with the following radio frequency and safety standards.

Canada – Industry Canada (IC)

This device complies with RSS 210 of Industry Canada. Operation is subject to the following two conditions: (1) this device may

not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of this device.”

L’utilisation de ce dispositif est autorisée seulement aux conditions suivantes : (1) il ne doit pas produire de brouillage et (2) l’utilisateur du dispositif doit étre prét à accepter tout brouillage radioélectrique reçu, même si ce brouillage est susceptible de compromettre le fonctionnement du dispositif.

Europe – EU Declaration of Conformity

This device complies with the essential requirements of the R&TTE Directive 1999/5/EC with essential test suites as per standards:

■ EN 60950 Safety of Information Technology equipment

■ ETS 300 328 Technical requirements for radio equipment

■ ETS 300 826 General EMC requirements for radio equipment.

User's Manual

Satellite Pro A10 Series xvi

Belgium/ België/Belgique

For outdoor usage only channel 10 (2457 MHz) and 11 (2462 MHz) is allowed.

For private usage outside buildings across public grounds over less than 300m no special registration with IBPT/BIPT is required. Registration to IBPT/BIPT is required for private usage outside buildings across public grounds over more than 300m. An IBPT/BIPT license is required for public usage outside building.

For registration and license please contact IBPT/BIPT.

Gebruik buiten gebouw alleen op kanalen 10 (2457 MHz) en 11 (2462 MHz). Voor privégebruik buiten gebouw over publieke groud over afstand kleiner dan 300m geen registratie bij BIPT/IBPT nodig; voor gebruik over afstand groter dan 300m is wel registratie bij BIPT/IBPT nodig. Voor publiek gebruik buiten gebouwen is licentie van BIPT/IBPT verplicht. Voor registratie of licentie kunt u contact opnemen met BIPT.

L’utilisation en extérieur est autorisé sur le canal 10 (2457 MHz) et 11 (2462 Mhz).

Dans le cas d’une utilisation privée, à l’extérieur d’un bâtiment, au-dessus d’un espace public, aucun enregistrement n’est nécessaire pour une distance de moins de 300m. Pour une distance supérieure à 300m un enregistrement auprès de I’IBPT est requise. Pour une utilisation publique à I’extérieur de bâtiments, une licence de I’IBPT est requise. Pour les enregistrements et licences, veuillez contacter I’IBPT.

Germany/ Deutschland

License required for outdoor installations. Check with reseller for procedure to follow

Anmeldung im Outdoor-Bereich notwendig, aber nicht genehmigungspflichtig. Bitte mit Händler die Vorgehensweise abstimmen.

User's Manual

Satellite Pro A10 Series xvii

France Restricted frequency band: only channels 10 and

11 (2457 MHz and 2462 MHz respectively) may be used in France. License required for every installation, indoor and outdoor installations. Please contact ART for procedure to follow.

Bande de fréquence restreinte : seuls les canaux 10 à 11 (2457 et 2462 MHz respectivement) doivent être utilisés en France.

Toute utilisation, qu’elle soit intérieure ou extérieure, est soumise à autorisation. Vous pouvez contacter I’Autorité de Régulation des Télécommuniations (http://www.art-telecom.fr) pour la procédure à suivre.

Italy/Italia License required for indoor use. Use with

outdoor installations not allowed E’necessaria la concessione ministeriale anche

per l’uso interno. Verificare con i rivenditori la procedura da

seguire. L’uso per installazione in esterni non e’ permessa.

Nederland License required for outdoor installations. Check

with reseller for procedure to follow Licentie verplicht voor gebruik met

buitenantennes. Neem contact op met verkoper voor juiste procedure

USA-Federal Communications Commission (FCC)

This device complies with Part 15 of FCC Rules. Operation of the devices in a Wireless LAN System is subject to the following two conditions:

■ This device may not cause harmful interference.

■ This device must accept any interference that may cause undesired

operation.

TOSHIBA is not responsible for any radio or television interference caused by unauthorized modification of the devices included with this TOSHIBA Wireless LAN Mini PCI Card, or the substitution or attachment of connecting cables and equipment other than specified by TOSHIBA.

The correction of interference caused by such unauthorized modification, substitution or attachment will be the responsibility of the user.

User's Manual

Satellite Pro A10 Series xviii

Caution: Exposure to Radio Frequency Radiation.

The Toshiba Wireless LAN Mini PCI Card will be installed with one of two types of antennas. Both antenna types, when installed are located at the upper edge of the LCD screen.

For both antennas, the radiated output power of the TOSHIBA Wireless LAN Mini PCI Card is far below the FCC radio frequency exposure limits. Nevertheless, the TOSHIBA Wireless LAN Mini PCI Card shall be used in such a manner that the potential for human contact during normal operation is minimized. In normal operating configuration, the LCD in the upright position, the distance between the antenna and the user should not be less than 20cm.

Refer to the Regulatory Statements as identified in the documentation that comes with those products for additional information.

Relevant transmitters include FCC IDs: CJ6PA3171WL, CJ6PA3121BT.

Taiwan

Article 14 Unless approved, for any model accredited low

power radio frequency electric machinery, any company, trader or user shall not change the frequency, increase the power or change the features and functions of the original design.

Article 17 Any use of low power radio frequency electric

machinery shall not affect the aviation safety and interfere with legal communications. In event that any interference is found, the use of such electric machinery shall be stopped immediately, and reusing of such products can be resumed until no interference occurs after improvement.

The legal communications mentioned in the above item refer to radio communications operated in accordance with telecommunication laws and regulations.

Low power radio frequency electric machinery shall resist against interference from legal communications or from industrial, scientific and medical radio emission electric machinery.

User's Manual

Satellite Pro A10 Series xix

Using this equipment in Japan

In Japan, the frequency bandwidth of 2,400~2,483.5MHz for second generation low-power data communication systems such as this equipment overlaps that of mobile object identification systems (premises radio station and specified low-power radio station).

1. Sticker Please put the following sticker on devices incorporating this product.

In the frequency bandwidth of this equipment, industrial device, scientific device, medical device like microwave oven, licensed premises radio station and non-licensed specified low-power radio station for mobile object identification system (RF-ID) that is used in product line of factories, (Other Radio Stations) are used.

1. Please make sure before using this equipment that no Other Radio Stations are used in the neighbourhood.

2. In case that RF interference occurs to Other Radio Stations from this equipment, please change promptly the frequency for use, place to use, or stop emitting Radio.

3. Please contact TOSHIBA Direct PC if you have a problem, such as interference from this equipment to Other Radio Stations.

2. Indication The indication shown below appears on this equipment.

(1) 2.4 : This equipment uses a frequency of 2.4GHz. (2) DS : This equipment uses DS-SS modulation. (3) 4 : The interference range of this equipment is less than 40m. (4)

: This equipment uses a frequency bandwidth from

2,400mhz to 2,483.5MHz. It is impossible to avoid the band of mobile object

identification systems.

User's Manual

Satellite Pro A10 Series xx

Device Authorisation

This device obtains the Technical Regulation Conformity Certification and the Technical Conditions Compliance Approval, and it belongs to the device class of radio equipment of low-power data communication system radio station stipulated in the Radio Law and the Telecommunications Business Law of Japan.

The Name of the radio equipment: MPCI3A-20/R JAPAN APPROVALS INSTITUTE FOR

TELECOMMUNICATIONS EQUIPMENT

Approval Number: D01-1128JP

TELECOM ENGINEERING CENTER Approval Number: 01NY A1088 The following restrictions apply:

■ Do not disassemble or modify the device.

■ Do not install the embedded wireless module into other device.

Table of Contents

Satellite Pro A10 Series xxi

Table of Contents

Preface ..................................................................................... xxvii

Manual contents................................................................................ xxviii

Conventions......................................................................................... xxix

Abbreviations....................................................................................xxix

Icons.................................................................................................xxix

Keys..................................................................................................xxix

Key operation ...................................................................................xxix

Display..............................................................................................xxix

Messages .........................................................................................xxix

Chapter 1 Introduction..............................................................1-1

Equipment checklist .............................................................................1-1

Hardware ...........................................................................................1-1

Software ............................................................................................1-2

Documentation ..................................................................................1-2

Features .................................................................................................1-3

Special features.....................................................................................1-8

Utilities .................................................................................................1-10

Options.................................................................................................1-11

Satellite Pro A10 Series

Table of Contents

Satellite Pro A10 Series xxii

Chapter 2 The Grand Tour........................................................2-1

Front with the display closed ...............................................................2-1

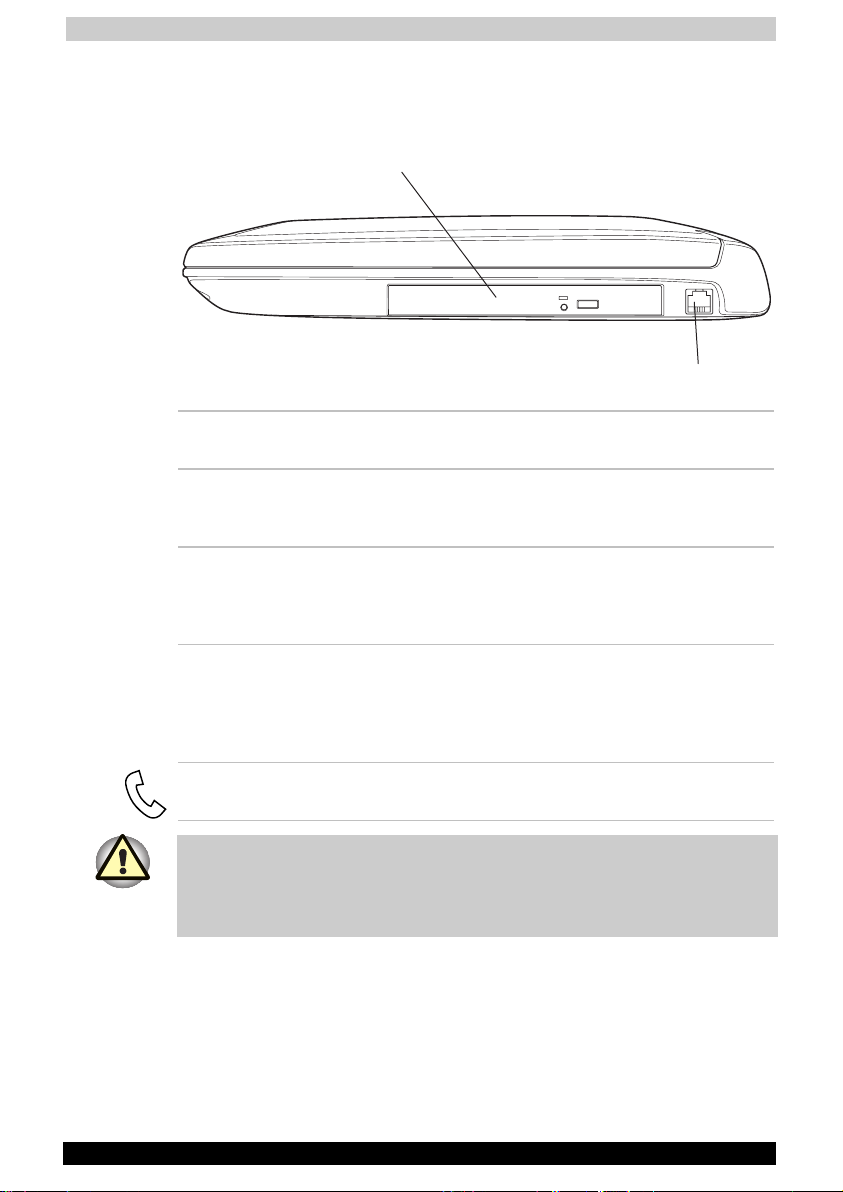

Left side..................................................................................................2-2

Right side ...............................................................................................2-3

Back side ...............................................................................................2-4

Underside...............................................................................................2-6

Front with the display open..................................................................2-7

System indicators..................................................................................2-8

Keyboard indicators..............................................................................2-9

USB diskette drive...............................................................................2-10

Optical media drive .............................................................................2-11

DVD-ROM drive...............................................................................2-11

CD-RW/DVD-ROM drive .................................................................2-12

DVD-R/-RW drive ............................................................................2-13

Universal AC adaptor..........................................................................2-14

Chapter 3 Getting Started ........................................................3-1

Setting up your work space .................................................................3-1

General conditions.............................................................................3-2

Placement of the computer ...............................................................3-2

Seating and posture ..........................................................................3-3

Lighting..............................................................................................3-4

Work habits .......................................................................................3-4

Connecting the AC adaptor..................................................................3-5

Opening the display ..............................................................................3-6

Turning on the power............................................................................3-6

Starting up for the first time .................................................................3-7

Turning off the power ...........................................................................3-7

Shut Down mode (Boot mode) ..........................................................3-7

Hibernation mode ..............................................................................3-8

Standby mode .................................................................................3-10

Restarting the computer.....................................................................3-11

Restoring the preinstalled software ..................................................3-12

Restoring the complete system.......................................................3-12

Restoring TOSHIBA utilities and drivers ..........................................3-12

Table of Contents

Satellite Pro A10 Series xxiii

Chapter 4 Operating Basics.....................................................4-1

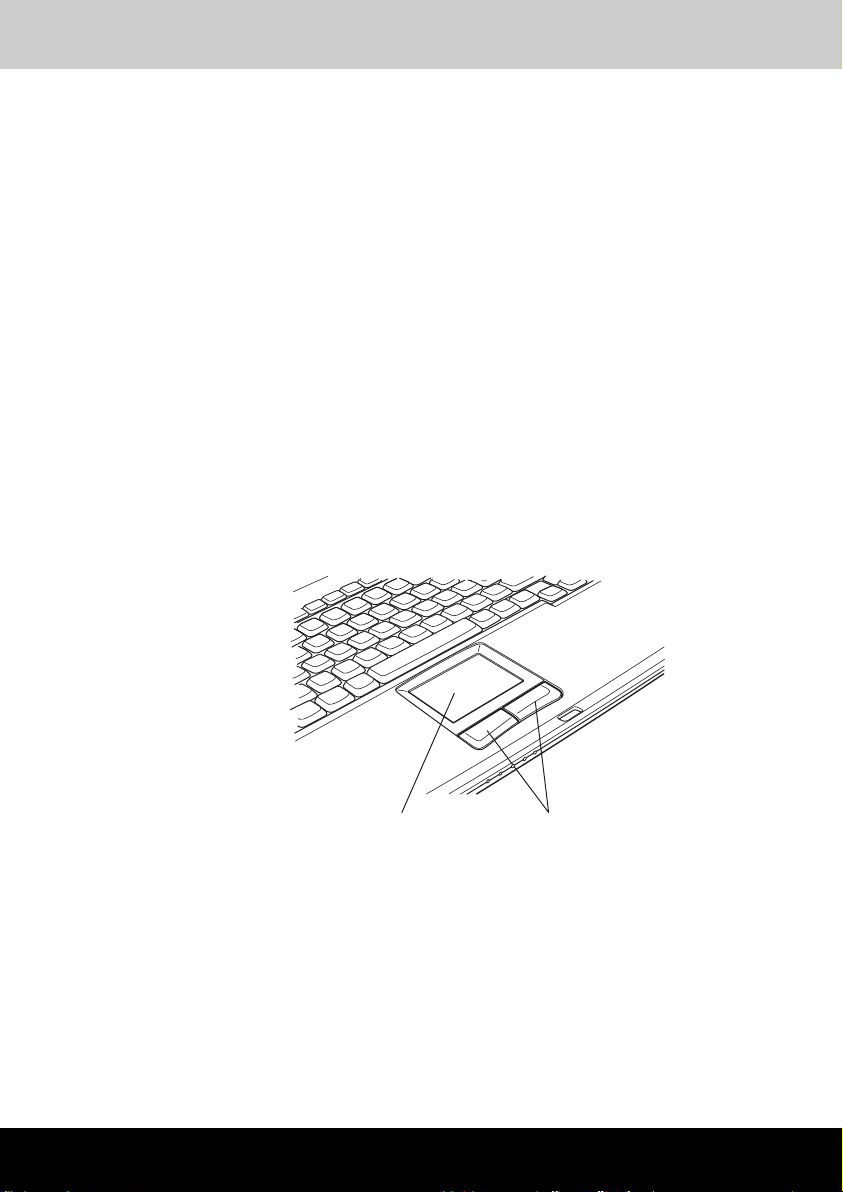

Using the Touch pad.............................................................................4-1

Using the USB diskette drive ...............................................................4-2

Connecting 3 ½" diskette drive .........................................................4-2

Disconnecting 3 ½" diskette drive.....................................................4-3

Using optical media drives ...................................................................4-3

Loading discs ....................................................................................4-3

Removing discs .................................................................................4-7

Writing CDs on CD-RW/DVD-ROM drive.............................................4-8

Before writing or rewriting .................................................................4-8

When writing or rewriting...................................................................4-9

Writing CDs/DVDs on DVD-R/-RW drive ...........................................4-10

Important message..........................................................................4-10

Disclaimer........................................................................................4-10

Read/write function chart ................................................................4-11

Before writing or rewriting ...............................................................4-12

When writing or rewriting.................................................................4-13

Drag’n Drop CD+DVD......................................................................4-13

Data Verification ..............................................................................4-14

Media care ...........................................................................................4-14

CD/DVDs .........................................................................................4-14

Diskettes..........................................................................................4-15

Modem .................................................................................................4-15

Region selection ..............................................................................4-16

Properties menu ..............................................................................4-17

Connecting ......................................................................................4-18

Disconnecting..................................................................................4-18

Wireless LAN .......................................................................................4-19

Security............................................................................................4-19

Wireless communication switch ......................................................4-19

Wireless communication Indicator ..................................................4-20

LAN .......................................................................................................4-20

Connecting a LAN cable..................................................................4-21

Disconnecting LAN cable ................................................................4-22

Cleaning the computer .......................................................................4-22

Moving the computer..........................................................................4-22

Heat dispersal......................................................................................4-23

Table of Contents

Satellite Pro A10 Series xxiv

Chapter 5 The Keyboard ..........................................................5-1

Typewriter keys .....................................................................................5-1

F1…F12 function keys...........................................................................5-2

Soft Keys: Alt Gr Key Combinations....................................................5-2

Soft keys: Fn key combinations ...........................................................5-2

Emulating keys on enhanced keyboard.............................................5-3

Hot keys ............................................................................................5-4

Fn Sticky key .....................................................................................5-5

Windows special keys .......................................................................5-6

Keypad overlay ......................................................................................5-6

Turning on the overlays .....................................................................5-6

Temporarily using normal keyboard (overlay on)...............................5-7

Temporarily using overlay (overlay off) ..............................................5-8

Temporarily changing modes ............................................................5-8

Generating ASCII characters................................................................5-8

Chapter 6 Power and Power-Up Modes.................................6-1

Power conditions ..................................................................................6-1

Power indicators ...................................................................................6-2

Battery indicator ................................................................................6-2

DC IN indicator ..................................................................................6-3

Power indicator..................................................................................6-3

Battery types..........................................................................................6-4

Battery pack ......................................................................................6-4

Real Time Clock battery ....................................................................6-5

Care and use of the battery pack ........................................................6-5

Safety precautions.............................................................................6-5

Charging the batteries .......................................................................6-8

Monitoring battery capacity...............................................................6-9

Maximising battery operating time ..................................................6-10

Retaining data with power off..........................................................6-10

Extending battery life.......................................................................6-11

Replacing the battery pack ................................................................6-11

Removing the battery pack .............................................................6-12

Installing the battery pack ...............................................................6-13

Starting the computer by password ................................................6-14

Power-up modes .................................................................................6-14

Windows utilities..............................................................................6-14

Hot keys ..........................................................................................6-14

Panel power off ...................................................................................6-15

System Auto Off ..................................................................................6-15

Table of Contents

Satellite Pro A10 Series xxv

Chapter 7 HW Setup and Passwords......................................7-1

Accessing HW Setup.............................................................................7-1

HW Setup window.............................................................................7-1

Password...........................................................................................7-2

Supervisor password ............................................................................7-9

Chapter 8 Optional Devices .....................................................8-1

PC cards.................................................................................................8-2

Inserting a PC card............................................................................8-2

Removing a PC card..........................................................................8-3

Memory expansion................................................................................8-4

Installing memory module..................................................................8-5

Removing memory module................................................................8-7

Battery pack...........................................................................................8-8

Universal AC adaptor............................................................................8-8

USB FDD kit ...........................................................................................8-8

External monitor....................................................................................8-8

TV............................................................................................................8-9

Changing the resolution to 640x480 for TV .....................................8-10

Security lock ........................................................................................8-11

Chapter 9 Troubleshooting ......................................................9-1

Problem solving process ......................................................................9-1

Preliminary checklist..........................................................................9-2

Analysing the problem.......................................................................9-2

Hardware and system checklist...........................................................9-3

System start-up.................................................................................9-4

Self test..............................................................................................9-4

Power ................................................................................................9-4

Password...........................................................................................9-6

Keyboard ...........................................................................................9-7

LCD panel..........................................................................................9-7

Hard disk drive ..................................................................................9-8

DVD-ROM drive.................................................................................9-8

CD-RW/DVD-ROM drive ...................................................................9-9

Diskette drive...................................................................................9-11

PC card............................................................................................9-11

Pointing device ................................................................................9-12

USB .................................................................................................9-13

Table of Contents

Satellite Pro A10 Series xxvi

Memory expansion ..........................................................................9-13

Sound system..................................................................................9-14

External Monitor ..............................................................................9-14

Modem ............................................................................................9-15

LAN..................................................................................................9-16

Wireless LAN ...................................................................................9-16

Real Time Clock ..............................................................................9-16

If you need further assistance............................................................9-17

Before you call.................................................................................9-17

Where to write .................................................................................9-17

Appendix A Specifications ......................................................A-1

Appendix B AC Power Cord and Connectors .......................B-1

Appendix C The TOSHIBA International Warranty ...............C-1

Appendix D Keyboard Layouts ...............................................D-1

Appendix E Display Controller and Modes............................ E-1

Appendix F If your computer is stolen ................................... F-1

Appendix G ASCII Character Codes ......................................G-1

Appendix H Wireless LAN........................................................H-1

Appendix I Internal Modem Guide........................................... I-1

Glossary....................................................................................... I-1

Index ............................................................................................ I-1

Preface

Satellite Pro A10 Series xxvii

Preface

Congratulations on your purchase of the Satellite Pro A10 Series computer. This powerful notebook computer provides excellent expansion capability, including multimedia devices, and it is designed to provide years of reliable, high-performance computing.

This manual tells how to set up and begin using your Satellite Pro A10 Series computer. It also provides detailed information on configuring your computer, basic operations and care, using optional devices and troubleshooting.

If you are a new user of computers or if you’re new to portable computing, first read over the Introduction and The Grand Tour chapters to familiarise yourself with the computer’s features, components and accessory devices. Then read Getting Started for step-by-step instructions on setting up your computer.

If you are an experienced computer user, please continue reading the preface to learn how this manual is organised, then become acquainted with this manual by browsing through its pages. Be sure to look over the Special features section of the Introduction, to learn about features that are uncommon or unique to the computers and carefully read HW Setup and Passwords. Also read Getting Started for procedures on restoring your preinstalled software.

Satellite Pro A10 Series

Preface

Satellite Pro A10 Series xxviii

Manual contents

This manual offers important information about your computer, including solutions to the most common problems, and features and specifications.

It is composed of the following chapters, appendices, a glossary and an index.

Chapter 1, Introduction, is an overview of the computer’s features, capabilities, and options.

Chapter 2, The Grand Tour, identifies the components of the computer and briefly explains how they function.

Chapter 3, Getting Started, provides a quick overview of how to begin operating your computer and gives tips on safety and designing your work area.

Chapter 4, Operating Basics, includes instructions on using the following devices: Touch pad, USB diskette drive, optical media drives, internal modem, wireless communication features, Wireless LAN and LAN. It also provides tips on care of the computer, diskettes and CD/DVDs.

Chapter 5, The Keyboard, describes special keyboard functions including the keypad overlay and hot keys.

Chapter 6, Power and Power-Up Modes, gives details on the computer’s power resources, battery save modes and how to set a password.

Chapter 7, HW Setup and Passwords, explains how to configure the computer using the HW Setup program and how to set passwords.

Chapter 8, Optional Devices, describes the optional hardware available. Chapter 9, Troubleshooting, suggests courses of action if the computer

doesn’t seem to be working properly. The Appendixes provide technical information about your computer. The Glossary defines general computer terminology and includes a list of

acronyms used in the text. The Index quickly directs you to the information contained in this manual.

Preface

Satellite Pro A10 Series xxix

Conventions

This manual uses the following formats to describe, identify, and highlight terms and operating procedures.

Abbreviations

On first appearance, and whenever necessary for clarity, abbreviations are enclosed in parentheses following their definition. For example: Read Only Memory (ROM). Acronyms are also defined in the Glossary.

Icons

Icons identify ports, dials, and other parts of your computer. The indicator panel also uses icons to identify the components it is providing information on.

Keys

The keyboard keys are used in the text to describe many computer operations. A distinctive typeface identifies the key top symbols as they appear on the keyboard. For example, Enter identifies the Enter key.

Key operation

Some operations require you to simultaneously use two or more keys. We identify such operations by the key top symbols separated by a plus sign (+). For example, Ctrl + C means you must hold down Ctrl and at the same time press C. If three keys are used, hold down the first two and at the same time press the third.

Display

S ABC

Names of Windows® or icons or text generated by the computer that appears on its display screen is presented in the type face you see to the left.

Text generated by the computer is usually preceded by the screen icon.

Messages

Messages are used in this manual to bring important information to your attention. Each type of message is identified as shown below.

Pay attention! A caution informs you that improper use of equipment or failure to follow instructions may cause data loss or damage your equipment.

Please read. A note is a hint or advice that helps you make best use of your equipment.

Introduction

Satellite Pro A10 Series 1-1

Chapter 1

Introduction

This chapter provides an equipment checklist, and it identifies the computer’s features, options and accessories.

Some of the features described in this manual may not function properly if you use an operating system that was not preinstalled by TOSHIBA.

Equipment checklist

Carefully unpack your computer. Save the box and packing materials for future use.

Hardware

Check to make sure you have all the following items:

■ Satellite Pro A10 Series Portable Personal Computer

■ AC adaptor and power cord

■ USB diskette drive (optional)

■ Modular cable

Satellite Pro A10 Series

Introduction

Satellite Pro A10 Series 1-2

Software

■ The following software is preinstalled:

■ Microsoft

Windows XP Edition

■ Modem driver

■ Display Driver for Windows

■ TOSHIBA Utilities

■ Wireless LAN driver

■ Sound Driver for Windows

■ DVD Video Player

■ LAN Driver

■ Pointing device Driver

■ TOSHIBA Power Saver

■ TOSHIBA Console

■ Drag’n Drop CD+DVD

■ Online manual

■ Product Recovery CD-ROM or DVD-ROM

■ Tools & Utilities CD-ROM

Documentation

■ Satellite Pro A10 Series Portable Personal Computer User's Manual

■ Satellite Pro A10 Series QuickStart

■ Microsoft Windows XP manual

■ Safety Instruction Manual

■ Warranty information

Introduction

Satellite Pro A10 Series 1-3

Features

The computer uses TOSHIBA’s advanced Large Scale Integration (LSI), Complementary Metal-Oxide Semiconductor (CMOS) technology extensively to provide compact size, minimum weight, low power usage, and high reliability. This computer incorporates the following features and benefits:

Processor

Built-in Some configurations are equipped with a Mobile

Intel

Celeron® processor, which incorporates a

256KB level 2 cache memory.

■ 2.20GHz Mobile Intel® Celeron® processor

2.20 GHz

■ 2.40GHz Mobile Intel® Celeron® processor

2.40 GHz

■ Some configurations are equipped with a

Mobile Intel

Pentium® 4 - M processor, which incorporates a 512KB level 2 cache memory.

■ 2.00GHz Mobile Intel

Pentium® 4 processor

2.00 GHz –M

■ 2.20GHz Mobile Intel® Pentium® 4 processor

2.20 GHz -M

Other processors may be introduced in the future.

Memory

Slots 128, 256 or 512 MB memory modules can be

installed in the two memory slots for a maximum of 1 GB system memory.

Video RAM Allocated a part of System Memory dynamically.

(Limit of graphics memory is 32MB at 128MB of System Memory, Limit of Graphics memory is 64MB at more than 256MB of System Memory)

Introduction

Satellite Pro A10 Series 1-4

Power

Battery pack The computer is powered by one rechargeable

lithium-ion battery pack.

RTC battery The computer has an internal battery to back up

the internal Real Time Clock (RTC) and calendar.

AC adaptor The AC adaptor provides power to the system

and recharges the batteries when they are low. It comes with a detachable power cord.

Because it is universal, it can receive a range of AC voltage from 100 to 240 volts; however, the output current varies among different configurations. Using the wrong adaptor can damage your computer. See the AC adaptor section in Chapter 2, The Grand Tour.

Disks

Hard disk drive Available in three sizes.

■ 27.94 GB (30.0 billion bytes)

■ 37.26 GB (40.0 billion bytes)

■ 55.88 GB (60.0 billion bytes)

Other hard disks may be introduced in the future.

USB diskette drive Accommodates either 3 ½" 1.44-megabyte or

720-kilobyte diskettes. It connects to a USB port.

DVD-ROM drive Some models are equipped with a full-size,

DVD-ROM drive module that lets you run either 12 cm (4.72") or 8 cm (3.15") CDs or 12cm(4.72") DVDs without using an adaptor. It runs DVD-ROMs at maximum 8 speed and CD-ROMs at maximum 24 speed. The drive supports the following formats:

■ DVD-ROM

■ CD-DA

■ Photo CD™ (single/

multi-session)

■ CD-ROM XA Mode 2

(Form1, Form2)

■ CD-G (Audio CD

only)

■ DVD-Video

■ CD-Text

■ CD-ROM Mode 1,

Mode 2

■ Enhanced CD

(CD-EXTRA)

■ Addressing

Method 2

Introduction

Satellite Pro A10 Series 1-5

CD-RW/DVD-ROM drive

Some models are equipped with a full-size CD-RW/DVD-ROM drive module that lets you run CD/DVDs without using an adaptor. It reads DVD-ROMs at maximum 8 speed and CD-ROMs at maximum 24 speed. It writes CD-Rs at up to 24 speed and CD-RWs at up to 10 speed. For reading, this drive supports the same formats as the DVD-ROM drive.

DVD-R/-RW drive Some models are equipped with a full- size

DVD-R/RW drive module that lets you record data to rewritable CD/DVDs as well as run either 12cm (4.72") or 8cm (3.15") CDs/12cm(4.72") DVDs without using an adaptor. It reads DVD-ROMs at maximum 8 speed and CD-ROMs at maximum 24 speed. It writes CD-Rs at up to 16 speed, CD-RWs at up to 10 speed, DVD-Rs and DVD-RWs at single speed. For reading, this drive supports the same formats as the DVD-ROM drive.

Display

The computer’s LCD panel supports high-resolution video graphics. The screen can be set at a wide range of viewing angles for maximum comfort and readability.

Built-in 14.1" XGA TFT screen or 15.0"XGATFT screen,

16 M colors, with the following resolution:

■ XGA, 1024 horizontal x 768 vertical pixels

Graphics controller Graphics controller maximizes display

performance. Refer to Appendix E for more information.

Keyboard

Built-in 85 keys or 86 keys, compatible with IBM

enhanced keyboard, embedded numeric overlay, dedicated cursor control, and two Windows keys. See Chapter 5, The Keyboard, for details.

Pointing device

Built-in Touch pad

Touch pad and control buttons in the palm rest

enable control of the on-screen pointer.

Introduction

Satellite Pro A10 Series 1-6

Ports

Parallel Some models are equipped with a parallel port

for parallel printer or other parallel device (ECP compatible). Note that some models are not equipped with this port.

External monitor 15-pin, analog VGA port supports VESA DDC2B

compatible functions.

Universal Serial Bus (USB 2.0)

The computer has two Universal Serial Bus ports that comply with the USB 2.0 standard, which enables data transfer speeds 40 times faster than the USB 1.1 standard. (The ports also support USB 1.1.)

Slots

PC card The PC card slot accommodates one 5 mm

Type II card.

Multimedia

Sound system Windows sound system compatible sound

system provides internal speakers as well as jacks for an external microphone and headphone.

TV out Some models are equipped with TV out port.

This jack lets you transfer video and sound data to external devices. Use a the S-VIDEO cable for TV-out. Data output depends on the type of device connected to the S-VIDEO cable. Note that some models are not equipped with this port.

Headphone jack This jack outputs analog audio signals.

Microphone jack A 3.5 mm mini microphone jack enables

connection of a three-conductor mini jack for monaural microphone input.

Introduction

Satellite Pro A10 Series 1-7

Communications

Modem An internal modem provides capability for data

and fax communication. It supports V.90 (V.92). Refer to Appendix E. The speed of data transfer and fax depends on analog telephone line conditions. It has a modem jack for connecting to a telephone line. It is preinstalled as a standard device in some markets. Both of V.90 and V.92 are supported only in USA and Canada. Only V.90 is available in other regions.

LAN The computer has built-in support for Ethernet

LAN (10 megabits per second, 10BASE-T) and Fast Ethernet LAN (100 megabits per second, 100BASE-Tx).

Wireless LAN Some computers in this series are equipped with

a wireless LAN mini-PCI card that is compatible with other LAN systems based on Direct Sequence Spread Spectrum /Orthogonal Frequency Division Multiplexing radio technology that complies with the IEEE802.11 Standard (Revision A or B) and Turbo Mode. Revision-A supports data transfer rate up to 54Mbit/s. Revision-B supports data transfer rate up to 11Mbit/s. Turbo Mode supports data transfer rate up to 108Mbit/s.

Security

Security lock slot Connects an optional security lock to anchor the

computer to a desk or other large object.

Software

Standard Windows XP Home Edition operating system

and TOSHIBA Utilities and drivers preinstalled on the hard disk.

Plug and Play When you connect an external device to the

computer, Plug and Play capability enables the system to recognize the connection and make the necessary configurations automatically.

Introduction

Satellite Pro A10 Series 1-8

Special features

The following features are either unique to TOSHIBA computers or are advanced features, which make the computer more convenient to use.

Hot keys Key combinations let you quickly modify the

system configuration directly from the keyboard without running a system configuration program.

Display automatic power off

This feature automatically cuts off power to the internal display when there is no input from the keyboard or pointing device for a time specified. Power is restored when any key is pressed or when there is input from a pointing device. You can specify the time in the Turn off monitor item of the Power Save Mode window in TOSHIBA Power Saver.

HDD automatic power off

This feature automatically cuts off power to the hard disk drive when it is not accessed for a time specified. Power is restored when the hard disk is accessed. You can specify the time in the Turn off hard disks item of the Power Save Mode window in TOSHIBA Power Saver.

System automatic Standby/Hibernation

This feature automatically shuts down the system in standby mode or Hibernation mode when there is no input or hardware access for a time specified. You can specify the time and select either System Standby or System Hibernate in the System standby and System hibernate item of the Power Save Mode window in TOSHIBA Power Saver.

Keypad overlay A ten-key pad is integrated into the keyboard.

Refer to the Keypad overlay section in Chapter 5, The Keyboard, for instructions on using the keypad overlay.

Power on password Two levels of password security, supervisor and

user, are available to prevent unauthorized access to your computer.

Instant security A hot key function blanks the screen and

disables the computer providing data security.

Introduction

Satellite Pro A10 Series 1-9

Intelligent power supply

A microprocessor in the computer’s intelligent power supply detects the battery’s charge and calculates the remaining battery capacity. It also protects electronic components from abnormal conditions, such as voltage overload from a universal AC adaptor. You can monitor remaining battery capacity. Use the Battery remaining item of the Power Save Modes window in TOSHIBA Power Saver.

Battery save mode This feature lets you save battery power. You

can specify the Power Save Mode in the

Running on batteries item of the Power Save Modes window in TOSHIBA Power Saver.

Panel power off/on This feature turns power to the computer off

when the display panel is closed and turns it back on when the panel is opened. You can specify the setting in the When I close the lid item of the System Power Mode window in TOSHIBA Power Saver.

Low battery automatic hibernation

When battery power is exhausted to the point that computer operation cannot be continued, the system automatically enters Hibernation and shuts down. You can specify the setting in the Battery Alarm item of the Alarm window in TOSHIBA Power Saver.

Heat dispersal The CPU has an internal temperature sensor that

automatically activates cooling procedures. Refer to the Heat dispersal section in Chapter 4, Operating Basics, for details on setting the options for cooling methods.

Hibernation This feature lets you turn off the power without

exiting from your software. The contents of main memory is saved to the hard disk, when you turn on the power again, you can continue working right where you left off. Refer to the Turning off the power section in Chapter 3, Getting Started, for details.

Standby If you have to interrupt your work, you can turn

off the power without exiting from your software. Data is maintained in the computer’s main memory. When you turn on the power again, you can continue working right where you left off.

Introduction

Satellite Pro A10 Series 1-10

Utilities

This section describes preinstalled utilities and tells how to start them. For details on operations, refer to each utility’s online manual, help files or readme.txt files.

TOSHIBA Power Saver

To access this power savings management program, open the Control Panel and select the TOSHIBA Power Saver icon.

HW Setup This program lets you customize your hardware

settings according to the way you work with your computer and the peripherals you use. To start the utility, click the Windows Start button and click Control Panel. In the Control Panel, select the TOSHIBA HW Setup icon.

TOSHIBA Console TOSHIBA Console is a graphical user interface

that provides access to help and services.

DVD Video Player The DVD Video Player is used to play

DVD-Video. It has an on-screen interface and functions. Click Start, point to All Programs, point to InterVideo WinDVD 4, then click InterVideo WinDVD 4.

ConfigFree ConfigFree is a suite of utilities to allow easy

control of communication device and network connections. ConfigFree also allows you to find communication problems and create profiles for easy switching between location and communication networks.

You can boot ConfigFree from the menu bar as follows.

Start -> All Programs -> TOSHIBA ConfigFree

-> ConfigFree

Drag’n Drop CD+DVD This easy-to-use software lets you record CDs

with just a few mouse clicks. You can create CDs in several formats including audio CDs that can be played on a standard stereo CD player and data CDs to store the files and folders on your hard drive. This software can be used on the model with CD-RW/DVD-ROM drive or DVD-R/-RW drive.

TOSHIBA Touch Pad On/Off Utility

Pressing Fn + F9 in a windows environment enables or disables the Touch pad function. When you press these hot keys, the current setting will change and be displayed as an icon.

Introduction

Satellite Pro A10 Series 1-11

Options

You can add a number of options to make your computer even more powerful and convenient to use. The following options are available:

Memory expansion A 128, 256 or 512 MB memory module (PC2100,

DDR) can easily be installed in the computer.

Battery pack An additional battery pack can be purchased

from your TOSHIBA dealer. Use it as a spare or replacement.

AC adaptor If you use your computer at more than one site

frequently, it may be convenient to purchase an additional AC adaptor for each site so you will not have to carry the adaptor with you.

Battery charger The battery charger lets you charge extra

batteries outside the computer.

USB FDD Kit A 3 ½" diskette drive accommodates

1.44-megabyte or 720-kilobyte diskette. It connects to a USB port. (You cannot format 720-kilobyte diskettes on Windows XP, but you can use previously formatted disks.)

Wireless LAN Kit This option enables wireless LAN functions. It is

installed by dealers only. Two types of Wireless LAN kit are prepared: Wireless LAN Kit for IEEE

802.11 Standard (Revision B) and Wireless LAN Kit for IEEE 802.11 Standard (Revision A and B)

The Grand Tour

Satellite Pro A10 Series 2-1

Chapter 2

The Grand Tour

This chapter identifies the various components of your computer. Become familiar with each component before you operate the computer.

Front with the display closed

The figure below shows the computer’s front with its display panel in the closed position.

WIRELESS

COMMUNICATION

INDICATOR

WIRELESS

COMMUNICATION

SWITCH

VOLUME SYSTEM INDICATORS DISPLAY LATCH

Front of the computer with display closed

Volume control Use this dial to adjust the volume of the stereo

speakers or the stereo headphones.

System indicators LEDs let you monitor the status of various

computer functions. Details are given in the Indicators section.

Display latch This latch secures the LCD panel in its closed

position. Slide the latch to open the display.

Wireless communication switch

Slide this switch toward the left of the computer to turn off Wireless LAN function. Slide it toward the right of the computer to turn on the functions (Wireless LAN model or Wireless LAN ready model only).

Satellite Pro A10 Series

The Grand Tour

Satellite Pro A10 Series 2-2

Set the switch to off in airplanes and hospitals. Check the wireless communication indicator. It will stop glowing when the wireless communication function is off.

Wireless communication Indicator

This indicator glows orange when Wireless LAN function is on (Wireless LAN model or Wireless LAN ready model only).

Left side

The figure below shows the computer’s left side.

COOLING VENTS HEADPHONE JACK

PC CARD SLOT MICROPHONE JACK

The left side of the computer

Cooling vents These vents provide an outlet for air pulled

through the computer by the fan.

Be careful not to block the cooling vents. Also be careful to keep foreign objects out of them. A pin or similar object can damage the computer’s circuitry.

Microphone jack A 3.5 mm mini microphone jack enables

connection of a three-conductor mini jack for monaural microphone input.

Headphone jack This jack lets you connect speakers or a stereo

headphone (16 ohm minimum). When you connect a speaker or headphones, the internal speakers are automatically disabled.

PC card slot A PC card slot can accommodate one 5 mm

Type II card. You can install any industry standard PC card such as a SCSI adaptor, Ethernet adaptor or flash memory card.

Keep foreign objects out of the PC card slot. A pin or similar object can damage the computer’s circuitry.

The Grand Tour

Satellite Pro A10 Series 2-3

Right side

The figure below shows the computer’s right side.

OPTICAL MEDIA DRIVE

MODEM JACK

The right side of the computer

Optical Media Drive See Chapter 4, Operating Basics, for information

on using the drive and caring for CDs and DVDs.

DVD-ROM drive Some models are equipped with a full-size

DVD-ROM drive module that lets you run DVD-ROM without using an adaptor.

CD-RW/DVD-ROM drive

Some models are equipped with a full-size CD-RW/DVD-ROM drive module that lets you run CD/DVDs without using an adaptor. You can also write CDs.

DVD-R/-RW drive Some models are equipped with a full-size

DVD-R/RW drive module that lets you record data to rewritable CD/DVDs as well as run CD/DVDs without using an adaptor. You can also write CDs/DVDs.

Modem jack The modem jack lets you use a modular cable to

connect the modem directly to a telephone line.

In case of a lightning storm, unplug the modem cable from the telephone jack.

Do not connect the modem to a digital telephone line. A digital line will damage the modem.

The Grand Tour

Satellite Pro A10 Series 2-4

Back side

The figure below shows the computer’s back panel.

SECURITY LOCK LAN INDICATORS USB PORTS

EXTERNAL MONITOR

PORT

DC IN 15V LAN JACK TV OUT PORT PARALLEL PORT

* Some models are not equipped with a Parallel Port or a TV Out Port.

The back side of the computer

Security lock A security cable attaches to this slot. The

optional security cable anchors your computer to a desk or other large object to deter theft.

LAN active indicator (orange)

This indicator glows orange when data is being exchanged between the computer and the LAN.

Link indicator (green) This indicator glows green when the computer is

connected to a LAN and the LAN is functioning properly.

Parallel port Some models are equipped with a

Centronics-compatible, 25-pin parallel port that is used to connect a parallel printer or other parallel device. This port supports Extended Capabilities Port (ECP) standard.

External monitor port This 15-pin port lets you connect an external

video display.

S-Video

TV out port Some models are equipped with a TV out port.

Plug an S-Video cable into this jack for video-out.

The Grand Tour

Satellite Pro A10 Series 2-5

Universal Serial Bus (USB 2.0) ports

Two Universal Serial Bus ports are on the back side. The ports comply with the USB 2.0 standard, which enables data transfer speeds 40 times faster than the USB 1.1 standard. (The ports also support USB 1.1.)

Keep foreign objects out of the USB connectors. A pin or similar object can damage the computer’s circuitry.

Operation of all functions of all USB devices has not been confirmed. Some functions might not execute properly.

Ether

LAN jack This jack lets you connect to a LAN. The adaptor

has built-in support for Ethernet LAN (10 megabits per second, 10BASE-T) and Fast Ethernet LAN (100 megabits per second, 100BASE-Tx). The LAN has two indicators. See Chapter 4, Operating Basics, for details.

Do not connect cables other than LAN, otherwise it causes a failure or damage.

Do not connect equipment which supplies electric power, otherwise it causes a failure or damage.

DC IN 15V

DC IN 15V The universal AC adaptor connects to this

socket. Use only the model of universal AC adaptor that comes with the computer. Using the wrong adaptor can damage your computer.

The Grand Tour

Satellite Pro A10 Series 2-6

Underside

The figure below shows the underside of the computer. Make sure the display is closed before turning over your computer.

BATTERY PACK LOCK

MEMORY MODULE

COVER

BATTERY RELEASE

LATCH

BATTERY PACK

The underside of the computer

Battery release latch Slide this latch to release the battery pack for

removal. For detailed information on removing the battery packs, refer to Chapter 6, Power and Power-Up Modes.

Battery pack lock Switch this lock to make the battery release

latch slide freely or locked.

Battery pack The battery pack powers the computer when the

universal AC adaptor is not connected. For detailed information on the battery pack, refer to Chapter 6, Power and Power-Up Modes.

Memory module cover

This cover protects two memory module sockets. One or two modules are preinstalled. Refer to the memory expansion section in Chapter 8, Optional Devices.

The Grand Tour

Satellite Pro A10 Series 2-7

Front with the display open

The figure below shows the front of the computer with the display open. To open the display, slide the display latch on the front of the display to the right of the computer and lift up. Position the display at a comfortable viewing angle.

STEREO SPEAKER

(LEFT) DISPLAY HINGE DISPLAY SCREEN

STEREO SPEAKER

(RIGHT)

POWER BUTTON TOUCH PAD TOUCH PAD CONTROL

BUTTONS

The front with the display open

Display hinge The display hinge holds the display screen at

easy-to-view angles.

Display screen The LCD displays high-contrast text and

graphics. The computer’s LCD consists of up to 1024 x 768 pixels. Refer to Appendix E.

When the computer operates on the universal AC adaptor the display screen’s image will be somewhat brighter than when it operates on battery power. The lower brightness level is intended to save battery power.

The Grand Tour

Satellite Pro A10 Series 2-8

Stereo speakers The speakers emit sound generated by your

software as well as audio alarms, such as low battery condition, generated by the system.

Power button Press the power button to turn the computer’s

power on and off.

Touch pad A Touch pad located slightly in the left from the

centre of the palm rest is used to control the on-screen pointer. Refer to the Using the Touch pad section in Chapter 4, Operating Basics.

Touch pad control buttons

Control buttons close to the Touch pad let you select menu items or manipulate text and graphics designated by the on-screen pointer.

System indicators

DC IN 15V POWER BATTERY BUILT-IN HDD OPTICAL MEDIA

DRIVE

System indicators

DC IN 15V The DC IN indicator glows green when DC power is

supplied from the AC power adaptor. If the adaptor’s output voltage is abnormal or if the power supply malfunctions, this indicator flashes orange.

Power The Power indicator glows green when the

computer is on. If you select Standby from Shut Down Windows, this indicator flashes orange (one second on, two seconds off) while the computer shuts down.

Battery The Battery indicator shows the condition of the

battery’s charge: Green indicates full charge, orange indicates battery charging and flashing orange indicates a low battery charge. Refer to Chapter 6, Power and Power-Up Modes.

Built-in HDD The Built-in HDD indicator glows green when the

computer is accessing the hard disk.

Optical media drive This indicator glows green when the computer is

accessing a disk in the DVD-ROM, CD-RW/DVD-ROM or DVD-R/RW drive.

The Grand Tour

Satellite Pro A10 Series 2-9

Keyboard indicators

The figures below show the positions of the keypad overlay indicators and the CapsLock indicator.

When the F10 key indicator glows the keypad overlay lets you control the cursor. When the F11 key indicator glows the keypad overlay lets you enter numbers.

ARROW MODE

INDICATOR

NUMERIC MODE

INDICATOR

Keypad overlay indicators

When the CapsLock indicator glows the keyboard is in all-caps mode.

CAPS LOCK INDICATOR

Caps Lock indicator

Caps Lock This indicator glows green when the alphabet

keys are locked in uppercase.

Arrow mode When the Arrow mode indicator lights green,

you can use the keypad overlay (grey labelled keys) as cursor keys. Refer to the Keypad

overlay section in Chapter 5, The Keyboard.

Numeric mode You can use the keypad overlay (grey labelled

keys) for numeric input when the Numeric mode indicator lights green. Refer to the Keypad overlay section in Chapter 5, The Keyboard.

The Grand Tour

Satellite Pro A10 Series 2-10

USB diskette drive

A 3 ½" diskette drive accommodates 1.44-megabyte or 720-kilobyte diskettes. It connects to the USB port.

DISK-IN-USE INDICATOR DISKETTE SLOT EJECT BUTTON

USB diskette drive

Disk-In-Use Indicator This indicator lights when the diskette is being

accessed.

Diskette slot Insert a diskette in this slot.

Eject button When a diskette is fully seated in the drive, the

eject button pops out. To remove a diskette, push in the eject button and the diskette pops out partially for removal.

Check the Disk-In-Use indicator when you use the diskette drive. Do not press the eject button or turn off the computer while the light is glowing. Doing so could destroy data and damage the diskette or the drive.

The external diskette drive should be placed on a flat, horizontal surface when in use. Do not set the drive on an incline greater than 20o while it is operating.

Do not set anything on top of the diskette drive.

The Grand Tour

Satellite Pro A10 Series 2-11

Optical media drive

DVD-ROM drive

Some models are equipped with a full-size, DVD-ROM drive module that lets you run either 12 cm (4.72") or 8 cm (3.15") CDs or 12cm(4.72") DVDs without using an adaptor. It runs DVD-ROMs at maximum 8 speed and CD-ROMs at maximum 24 speed. The drive supports the following formats:

■ DVD-ROM

■ CD-DA

■ Photo CD™

(single/multi-session)

■ CD-ROM XA Mode 2

(Form1, Form2)

■ CD-G (Audio CD only)

■ DVD-Video

■ CD-Text

■ CD-ROM Mode 1, Mode 2

■ Enhanced CD (CD-EXTRA)

■ Addressing Method 2

DVD-ROM drives and media are manufactured according to the specifications of six marketing regions. When you purchase DVD media, make sure it matches your drive, otherwise it will not play properly.

Code Region

1 Canada, United States

2 Japan, Europe, South Africa, Middle East

3 Southeast Asia, East Asia

4 Australia, New Zealand, Pacific Islands, Central America,

South America, Caribbean

5 Russia, Indian Subcontinent, Africa, North Korea, Mongolia

6 China

The Grand Tour

Satellite Pro A10 Series 2-12

CD-RW/DVD-ROM drive

Some models are equipped with a full-size, CD-RW/DVD-ROM drive module that lets you run CD/DVDs without using an adaptor. It reads DVD-ROMs at maximum 8 speed and CD-ROMs at maximum 24 speed. It writes CD-R at up to 24 speed and CD-RW at up to 10 speed. For reading, this drive supports the same formats as the DVD-ROM drive.

■ DVD-ROM

■ CD-DA

■ Photo CD™

(single/multi-session)

■ CD-ROM XA Mode 2 (Form1,

Form2)

■ CD-G (Audio CD only)

■ DVD-Video

■ CD-Text

■ CD-ROM Mode 1, Mode 2

■ Enhanced CD (CD-EXTRA)

■ Addressing Method 2

CD-RW/DVD-ROM drives and media are manufactured according to the specifications of six marketing regions. When you purchase DVD media, make sure it matches your drive, otherwise it will not play properly.

Code Region

1 Canada, United States

2 Japan, Europe, South Africa, Middle East

3 Southeast Asia, East Asia

4 Australia, New Zealand, Pacific Islands, Central America,

South America, Caribbean

5 Russia, Indian Subcontinent, Africa, North Korea, Mongolia

6 China

The Grand Tour

Satellite Pro A10 Series 2-13

DVD-R/-RW drive

Some models are equipped with a full- size DVD-R/RW drive module that lets you record data to rewritable CD/DVDs as well as run either 12 cm (4.72") or 8 cm (3.15") CDs/12 cm (4.72") DVDs without using an adaptor. It reads DVD-ROMs at maximum 8 speed and CD-ROMs at maximum 24 speed. It writes CD-R at up to 16 speed, CDRW at up to 10 speed, DVD-R and DVD-RW at single speed. For reading, this drive supports the same formats as the DVDROM drive.

■ DVD-ROM

■ CD-DA

■ Photo CD™

(single/multi-session)

■ CD-ROM XA Mode 2 (Form1,

Form2)

■ CD-G (Audio CD only)

■ DVD-Video

■ CD-Text

■ CD-ROM Mode 1, Mode 2

■ Enhanced CD (CD-EXTRA)

■ Addressing Method 2

DVD-R/-RW drives and media are manufactured according to the specifications of six marketing regions. When you purchase DVD media, make sure it matches your drive, otherwise it will not play properly.

Code Region

1 Canada, United States

2 Japan, Europe, South Africa, Middle East

3 Southeast Asia, East Asia

4 Australia, New Zealand, Pacific Islands, Central America,

South America, Caribbean

5 Russia, Indian Subcontinent, Africa, North Korea, Mongolia

6 China

The Grand Tour

Satellite Pro A10 Series 2-14

Universal AC adaptor

The universal AC adaptor converts AC power to DC power and reduces the voltage supplied to the computer. It can automatically adjust to any voltage from 100 to 240 volts and to a frequency of either 50 or 60 hertz, enabling you to use the computer in almost any country/region.

To recharge the battery, simply connect the universal AC adaptor to a power source and the computer. See Chapter 6, Power and Power-Up

Modes, for details.

The universal AC adaptor

Use only the universal AC adaptor that came with the computer or an equivalent optional adaptor. Use of the wrong adaptor could damage your computer. TOSHIBA assumes no liability for any damage in such case.

Getting Started

Satellite Pro A10 Series 3-1

Chapter 3

Getting Started

This chapter provides basic information to get you started using your computer. It covers the following topics:

■ Setting up your work space — for your health and safety

Be sure also to read the Safety Instruction Manual. This guide, which is included with the computer, explains product liability.

■ Connecting the AC adaptor

■ Opening the display

■ Turning on the power

■ Starting up for the first time

■ Turning off the power

■ Restarting the computer

■ Restoring the preinstalled software

All users should be sure to read the section Starting up for the first time.

Setting up your work space

Establishing a comfortable work site is important for you and your computer. A poor work environment or stressful work habits can result in discomfort or serious injury from repetitive strain to your hands, wrists or other joints. Proper ambient conditions should also be maintained for the computer’s operation. This section discusses the following topics:

■ General conditions

■ Placement of the computer

■ Seating and posture

■ Lighting

■ Work habits

Satellite Pro A10 Series

Getting Started

Satellite Pro A10 Series 3-2

General conditions

In general, if you are comfortable, so is your computer, but read the following to make sure your work site provides a proper environment.

■ Make sure there is adequate space around the computer for proper

ventilation.

■ Make sure the AC power cord connects to an outlet that is close to

the computer and easily accessible.

■ The temperature should be 5 to 35 degrees Centigrade (41 to

95 degrees Fahrenheit) and the relative humidity should be 20 to 80 percent.

■ Avoid areas where rapid or extreme changes in temperature or

humidity may occur.

■ Keep the computer free of dust, moisture, and exposure to direct

sunlight.

■ Keep the computer away from heat sources, such as electric heaters.

■ Do not use the computer near liquids or corrosive chemicals.

■ Do not place the computer near objects that create strong magnetic

fields (e.g., stereo speakers).

■ Some components in the computer, including data storage media,

can be damaged by magnets. Do not place the computer near magnetic objects or bring magnetic objects close to the computer. Be careful of objects, such as stereo speakers, that produce strong magnetic fields during operation. Also, be careful with metal objects, such as bracelets, which can be inadvertently magnetized.

■ Do not operate the computer in close proximity to a mobile phone.

■ Leave ample ventilation room for the fan. Do not block the vents.

Placement of the computer

Position the computer and peripheral devices to provide comfort and safety.

■ Set the computer on a flat surface at a comfortable height and

distance. The display should be no higher than eye level to avoid eye strain.

■ Place the computer so that it is directly in front of you when you work

and make sure you have adequate space to easily operate other devices.

■ Allow adequate space behind the computer to let you freely adjust the

display. The display should be angled to reduce glare and maximise visibility.

■ If you use a paper holder, set it at about the same height and distance

as the computer.

Getting Started

Satellite Pro A10 Series 3-3

Seating and posture

The height of your chair in relation to the computer and keyboard as well as the support it gives your body are primary factors in reducing work strain. Refer to the following tips.

Posture and positioning of the computer

■ Place your chair so that the keyboard is at or slightly below the level

of your elbow. You should be able to type comfortably with your shoulders relaxed.

■ Your knees should be slightly higher than your hips. If necessary, use

a foot rest (see "1" in the illustration) to raise the level of your knees to ease pressure on the back of your thighs.

■ Adjust the back of your chair so it supports the lower curve of your

spine.

■ Sit straight so that your knees, hips and elbows form approximately

90 degree angles when you work. Do not slump forward or lean back too far.

Getting Started

Satellite Pro A10 Series 3-4

Lighting

Proper lighting can improve legibility of the display and reduce eye strain.

■ Position the computer so that sunlight or bright indoor lighting does

not reflect off the screen. Use tinted windows, shades or other screen to eliminate sun glare.

■ Avoid placing the computer in front of bright light that could shine

directly in your eyes.

■ If possible, use soft, indirect lighting in your computer work area. Use

a lamp to illuminate your documents or desk, but be sure to position the lamp so that it does not reflect off the display or shine in your eyes.

Work habits

A key to avoiding discomfort or injury from repetitive strain is to vary your activities. If possible, schedule a variety of tasks into your work day. If you must spend long periods at the computer, finding ways to break up the routine can reduce stress and improve your efficiency.

■ Sit in a relaxed posture. Good positioning of your chair and equipment

as described earlier can reduce tension in your shoulders or neck and ease back strain.

■ Vary your posture frequently.

■ Occasionally stand up and stretch or exercise briefly.

■ Exercise and stretch your wrists and hands a number of times during

the day.

■ Frequently, look away from the computer and focus your eyes on a

distant object for several seconds, for example 30 seconds every 15 minutes.

■ Take frequent short breaks instead of one or two long breaks, for

example, two or three minutes every half hour.

■ Have your eyes examined regularly and visit a doctor promptly, if you

suspect you might be suffering from a repetitive strain injury.

A number of books are available on ergonomics and repetitive strain injury or repetitive stress syndrome. For more information on these topics or for pointers on exercises for such stress points as hands and wrists, please check with your library or book vendor. Also refer to the computer’s Safety Instruction Manual.

Getting Started

Satellite Pro A10 Series 3-5

Connecting the AC adaptor

Attach the AC adaptor when you need to charge the battery or you want to operate from AC power. It is also the fastest way to get started, because the battery pack will need to be charged before you can operate from battery power.

The AC adaptor can be connected to any power source supplying from 100 to 240 volts and 50 or 60 hertz. For details on using the AC adaptor to charge the battery pack, refer to Chapter 6, Power and Power-Up

Modes.

Use only the AC adaptor that came with the computer or an equivalent optional adaptor. Use of the wrong adaptor could damage your computer. TOSHIBA assumes no liability for any damage in such case.

1. Connect the power cord to the AC adaptor.

Connecting the power cord to the AC adaptor

2. Connect the AC adaptor’s DC output plug to the DC IN input port on the back of the computer.

Connecting the adaptor to the computer

3. Plug the power cord into a live wall outlet. The Battery and DC IN indicators on the front of the computer should glow.

Getting Started

Satellite Pro A10 Series 3-6

Opening the display

The display panel can be rotated in a wide range of angles for optimal viewing.

1. Slide the display latch on the front of the computer to the right.

2. Lift the panel up and adjust it to the best viewing angle for you.

Use reasonable care when opening and closing the display panel. Opening it vigorously or slamming it shut could damage the computer.

Opening the display

Turning on the power

This section describes how to turn on the power.

1. Open the display.

2. Press and hold the computer’s power button for two or three seconds.

Turning on the power

Getting Started

Satellite Pro A10 Series 3-7

Starting up for the first time

When you first turn on the power, the computer’s initial screen is the Microsoft Windows XP Startup Screen Logo. Follow the on-screen directions for each screen. During setup, you can click the Back button to return to the previous screen.

Be sure to read the Windows End User License Agreement display carefully.

Be sure to read the License Agreement carefully.

Turning off the power

The power can be turned off in one of the following modes: Shut down (Boot), Hibernation or Standby mode.

Shut Down mode (Boot mode)

When you turn off the power in Shut Down mode no data is saved and the computer will boot to the operating system’s main screen.

1. If you have entered data, save it to the hard disk or to a diskette.

2. Make sure all disk activity has stopped, then remove the CD/DVD-ROM or diskette.

Make sure the Built-in HDD/Optical media drive indicators are off. If you turn off the power while a disk is being accessed, you can lose data or damage the disk.

3. Click start then click Turn Off Computer. From the Turn Off Computer menu select Turn Off.

4. Turn off the power to any peripheral devices.

Do not turn the computer or devices back on immediately. Wait a moment to let all capacitors fully discharge.

Getting Started

Satellite Pro A10 Series 3-8

Hibernation mode

The hibernation feature saves the contents of memory to the hard disk when the computer is turned off. The next time the computer is turned on, the previous state is restored. The hibernation feature does not save the status of peripheral devices.

Save your data. While entering hibernation mode, the computer saves the contents of memory to the HDD. However, for safety sake, it is best to save your data manually.

Data will be lost if you remove the battery or disconnect the universal AC adaptor before the save is completed. Wait for the Built-in HDD and Optical media drive indicators to go out.

Do not install or remove a memory module while the computer is in hibernation mode. Data will be lost.

Benefits of hibernation

The hibernation feature provides the following benefits:

■ Saves data to the hard disk when the computer automatically shuts

down because of a low battery.

For the computer to shut down in hibernation mode, the hibernation feature must be enabled in two places in TOSHIBA Power Saver: the Hibernate window and the Battery Alarm item of the Alarm window. Otherwise, the computer will shut down in Standby mode. If battery power becomes depleted, data saved in Standby will be lost.

■ You can return to your previous working environment immediately

when you turn on the computer.

■ Saves power by shutting down the system when the computer

receives no input or hardware access for the duration set by the System hibernate feature.

■ You can use the panel power off feature.

Starting Hibernation

You can also enable Hibernation by pressing Fn + F4. See Chapter 5, The Keyboard, for details.

To enter Hibernation mode, follow the steps below.

1. Click start.

2. Select Turn Off Computer.

3. Open the Turn Off Computer dialog box. Hibernate is not displayed.

4. Press the Shift key. The Standby item will change to Hibernate.

5. Select Hibernate.

Getting Started

Satellite Pro A10 Series 3-9

Automatic Hibernation

The computer will enter Hibernate mode automatically when you press the power button or close the lid. First, however, make the appropriate settings according to the steps below.

1. Open the Control Panel.

2. Open Performance and Maintenance and open TOSHIBA Power Saver.

3. Select the Hibernate window, select the Enable Hibernate support check box and click the Apply button.

4. Select the Power Save Modes window.

5. Double-click Power Mode (Full Power, Normal, etc.) and open the System Power Mode window.

6. Enable the desired Hibernation settings for When I press the power button and When I close the lid.

7. Click the OK button.

Data save in hibernation mode

When you turn off the power in hibernation mode, the computer takes a moment to save current memory data to the hard disk. During this time, the Disk indicator will light.

After you turn off the computer and memory is saved to the hard disk, turn off the power to any peripheral devices.

Do not turn the computer or devices back on immediately. Wait a moment to let all capacitors fully discharge.

Getting Started

Satellite Pro A10 Series 3-10

Standby mode

If you have to interrupt your work, you can turn off the power without exiting from your software. Data is maintained in the computer’s main memory. When you turn on the power again, you can continue working right where you left off.

When the AC adaptor is used, the computer goes into Standby mode depending on the setting of the TOSHIBA Power Saver feature.

To restore operation, press the power button or press any key. The latter action works only if Wake-up on Keyboard is enabled in HW setup.

If a network application is active when the computer automatically enters Standby, it might not be restored when the computer wakes up from standby.

To prevent the computer from automatically entering standby mode, disable Standby in TOSHIBA Power Saver. Open the Standby setting. That action, however, will nullify the computer's Energy Star compliance.

Before entering Standby mode, be sure to save your data. Do not install or remove a memory module while the computer is in

standby mode. The computer or the module could be damaged. Do not remove the battery pack while the computer is in standby mode

(unless the computer is connected to an AC power source). Data in memory will be lost.

If you carry the computer on board an aircraft or into a hospital, be sure to shut down the computer in hibernation mode or in shutdown mode to avoid radio signal interference.

Benefits of standby

The standby feature provides the following benefits:

■ Restores the previous working environment more rapidly than does

hibernation.

■ Saves power by shutting down the system when the computer

receives no input or hardware access for the duration set by the System Standby feature.

■ You can use the panel power off feature.

Getting Started

Satellite Pro A10 Series 3-11

Executing standby

You can also enable Standby by pressing Fn + F3. See Chapter 5, The Keyboard, for details.

You can enter standby mode in one of three ways:

1. Click start, click Turn Off Computer and click Stand by.

2. Close the display panel. This feature must be enabled. Refer to the

System Power Mode item in Power Saver Utility described in the Control Panel.

Open Performance and Maintenance and open TOSHIBA Power

Saver.

3. Press the power button. This feature must be enabled. Refer to the

System Power Mode item in Power Saver Utility described in the Control Panel.

Open Performance and Maintenance and open TOSHIBA Power Saver.

When the computer is shut down in standby mode, the power indicator flashes orange.

If you are operating the computer on battery power, you can lengthen the operating time by shutting down in hibernation mode. Standby mode consumes more power.

Standby limitations

Standby will not function under the following conditions:

■ Power is turned back on immediately after shutting down.

■ Memory circuits are exposed to static electricity or electrical noise.

Restarting the computer

Certain conditions require that you reset the system. For example, if:

■ You change certain computer settings.

■ An error occurs and the computer does not respond to your keyboard

commands.

There are three ways to reset the computer system:

1. Click start then click Turn Off Computer. From the Turn Off Computer menu select Restart.

2. Press Ctrl + Alt + Del to display the Windows Task Manager, then select Shutdown and Restart.

3. Press the power button and hold it down for five seconds. Wait 10 to 15 seconds, then turn the power on again by pressing the power button.

Getting Started

Satellite Pro A10 Series 3-12

Restoring the preinstalled software

If preinstalled files are damaged, use the Product Recovery disk or the TOSHIBA Tools & Utilities CD-ROM to restore them.

Restoring the complete system

To restore the operating system and all preinstalled software, follow the steps below.

When you reinstall the Windows operating system, the hard disk will be reformatted and all data will be lost. Make sure you have a backup copy of your data, before you perform a complete system recovery.

1. Load the Product Recovery disk in the optical media drive and turn off the computer’s power.

2. Hold down the F12 key and turn on the power. When the TOSHIBA logo appears, release the F12 key.

3. Use the left or right cursor key to select the CD-ROM/DVD-ROM icon in the displayed menu. For details, refer to the Boot priority section in Chapter 7, HW Setup.

4. Follow the on-screen instructions.

5. If your computer came with additional software installed, this software

can not be recovered from the Product Recovery disk. Re-install these applications (e.g. Works Suite, DVD Player, Games, etc) separately from other media.

Restoring TOSHIBA utilities and drivers

If Windows is working properly, individual drivers or applications can be separately restored. Use the Tools & Utilities CD-ROM according to instructions in the booklet contained in the CD box to reinstall TOSHIBA utilities and drivers.

Operating Basics

Satellite Pro A10 Series 4-1

Chapter 4

Operating Basics

This chapter gives information on basic operations including using the Touch pad, USB diskette drive, optical media drives, the internal modem, Wireless LAN and LAN. It also provides tips on caring for your computer, diskettes and CD/DVDs.

Using the Touch pad

To use the Touch pad, simply touch and move your finger tip across it in the direction you want the on-screen pointer to go.

TOUCH PAD TOUCH PAD CONTROL

BUTTONS

Touch pad and Touch pad control buttons

Satellite Pro A10 Series

Operating Basics

Satellite Pro A10 Series 4-2

Two buttons below the keyboard are used like the buttons on a mouse pointer. Press the left button to select a menu item or to manipulate text or graphics designated by the pointer. Press the right button to display a menu or other function depending on the software you are using.

You can also tap the Touch pad to perform functions similar to those of the left button.

Click: Tap the Touch pad once Double-click: Tap twice Drag and drop: Tap twice to select the material you want to move,

leaving your finger on the Touch pad after the second tap; then move the material.

Using the USB diskette drive

The 3 ½" diskette drive connects to the computer’s USB port. It accommodates 1.44-megabyte or 720-kilobyte diskettes. Refer to Chapter 2, Grand Tour, for more information.

Connecting 3 ½" diskette drive

To connect the drive, plug the diskette drive connector into a USB port. Refer to the figure below.

Make sure the connector is back side up and properly aligned with the socket. Do not try to force the connection, doing so can damage the connecting pins.

Connecting the USB diskette drive

If you connect the diskette drive after turning on the computer, it will take about 10 seconds for the computer to recognize the drive. Do not disconnect and reconnect before 10 seconds has elapsed.

Operating Basics

Satellite Pro A10 Series 4-3

Disconnecting 3 ½" diskette drive

When you have finished using the diskette drive, follow the procedures below to disconnect it:

1. Wait for the indicator light to go out to make sure all diskette activity has stopped.

If you disconnect the diskette drive or turn off the power while the computer is accessing the drive you may lose data or damage the diskette or the drive.

2. Click the Safety Remove Hardware icon on the Task Bar.

3. Click Diskette drive.

4. Pull the diskette drive connector out of the USB port.

Using optical media drives

The full-size drive provides high-performance execution of CD/DVD-ROM-based programs. You can run either 12 cm (4.72") CD/DVDs or 8 cm (3.15") CD without an adaptor. An ATAPI interface controller is used for CD/DVD-ROM operation. When the computer is accessing a CD/DVD, an indicator on the drive glows.

Use the WinDVD 4 application to view DVD-Video discs.

Refer also to the Writing CDs section for precautions on writing to CDs.

Loading discs

To load CD/DVDs, follow the steps below and refer to the figures below.

1. a. When the power is on, press the eject button to open the drawer slightly.

Pressing the eject button

Operating Basics

Satellite Pro A10 Series 4-4

b. Pressing the eject button will not open the drawer when the CD-RW/DVD-ROM drive’s power is off. If the power is off, you can open the drawer by inserting a slender object (about 15 mm) such as a straightened paper clip into the eject hole just to the right of the eject button.

15mm

Ø 1.0mm

Manual release with the eject hole

2. Pinch the drawer gently and pull until it is fully opened.

Pulling the drawer open

Operating Basics

Satellite Pro A10 Series 4-5

3. Lay the CD/DVD, label side up, in the drawer.

Inserting a CD/DVD

When the drawer is fully opened, the edge of the computer will extend slightly over the CD/DVD tray. Therefore, you will need to turn the CD/DVD at an angle when you place it in the tray. After seating the CD/DVD, however, make sure it lies flat, as shown in figure 4-8.

Do not touch the laser lens. Doing so could cause misalignment. Be careful to keep foreign matter from entering the drive. Check the back

edge of the tray to make sure it carries no debris before closing the drive.

Operating Basics

Satellite Pro A10 Series 4-6

4. Press gently at the centre of the CD/DVD until you feel it click into

place. The CD/DVD should lie below the top of the spindle, flush with the spindle base.

5. Push the centre of the drawer to close it. Press gently until it locks into place.

If the CD/DVD is not seated properly when the drawer is closed, the CD/DVD might be damaged. Also, the drawer might not open fully when you press the eject button.

Closing the drawer

Operating Basics

Satellite Pro A10 Series 4-7

Removing discs

To remove the CD/DVD, follow the steps below and refer to the figure below.

Do not press the eject button while the computer is accessing the Fixed CD-RW/DVD-ROM drive. Wait for the Disk indicator to go out before you open the drawer. Also, if the CD/DVD is spinning when you open the drawer, wait for it to stop before you remove it.

1. To pop the drawer partially open, press the eject button. Gently pull the drawer out until it is fully opened.

When the drawer pops open slightly, wait a moment to make sure the CD/DVD has stopped spinning before pulling the drawer fully open.

Turn off the power before you use the eject hole. If the CD/DVD is spinning when you open the drawer, the CD/DVD could fly off the spindle and cause injury.

2. The CD/DVD extends slightly over the sides of the drawer so you can grasp it. Hold the CD/DVD gently and lift it out.

Removing a CD/DVD

3. Push the centre of the drawer to close it. Press gently until it locks into place.

Operating Basics

Satellite Pro A10 Series 4-8

Writing CDs on CD-RW/DVD-ROM drive

Depending on the type of drive installed, you may be able to write CDs. The CD-RW/DVD-ROM drive lets you write as well as read CD-ROMs. Observe the precautions in this section to ensure the best performance for writing CDs. For information on loading and unloading CDs refer to the Using optical media drive section.

CD-R discs can be written to only once. CD-RW discs can be rewritten many times.

Before writing or rewriting

Please observe the following points when you write or rewrite the data.

■ We recommend the following manufacturers of CD-R and CD-RW

media. Media quality can affect write or rewrite success rates. CD-R: TAIYOYUDEN CO., LTD.

Mitsui Chemicals Inc. MITSUBISHI CHEMICAL CORPORATION RICOH Co., Ltd. Hitachi Maxell Ltd.

CD-RW: MITSUBISHI CHEMICAL CORPORATION

RICOH Co., Ltd.

TOSHIBA has confirmed the operation of CD-R and CD-RW media of the manufacturers above. Operation of other media cannot be guaranteed.

■ CD-RW can generally be rewritten about 1,000 times. However, the

actual number of rewrites is affected by the quality of the media and the way it is used.

■ Be sure to connect the universal AC adaptor when you write or rewrite.

■ Be sure to close all other software programs except the writing

software.

■ Do not run software such as a screen saver which can put a heavy

load on the CPU.

■ Operate the computer at full power. Do not use power-saving

features.

■ Do not write while virus check software is running. Wait for it to finish,

then disable virus detection programs including any software that checks files automatically in the background.

■ Do not use hard disk utilities, including those intended to enhance HDD

access speed. They may cause unstable operation and damage data.

■ Write from the computer's HDD to the CD. Do not try to write from

shared devices such as a LAN server or any other network device.

■ Writing with software other than Drag'n Drop CD has not been

confirmed. Therefore, operation with other software cannot be guaranteed.

Operating Basics

Satellite Pro A10 Series 4-9

When writing or rewriting

Note the following when you write or rewrite a CD-R or CD-RW.

■ Always copy data from the HDD to the CD. Do not use cut-and-paste.

The original data will be lost if there is a write error.

■ Do not perform any of the following actions:

■ Operate the computer for any other function, including use of a

mouse or Touch Pad, closing/opening the LCD panel.

■ Start a communication application such as a modem.

■ Apply impact or vibration to the PC.

■ Install, remove or connect external devices, including the

following: PC card, USB devices, external display, optical digital devices.

■ Use the CD/MP3 control buttons to reproduce music and voice.

■ Open the optical media drive.

■ If the media is poor in quality, dirty or damaged, writing or rewriting

errors may occur.

■ Set the computer on a level surface and avoid places subject to

vibration such as airplanes trains, or cars. Do not use an unstable surface such as a stand.

■ Keep mobile phones and other wireless communication devices away

from the computer.

Operating Basics

Satellite Pro A10 Series 4-10

Writing CDs/DVDs on DVD-R/-RW drive

You can use the DVD-R/-RW drive to write data to either CD-R/-RW or DVD-R/-RW discs. The following applications for writing are supplied on CD-ROM: Drag'n Drop CD+DVD, licensed by Easy Systems Japan Ltd., and DigiOn Inc.

Important message

Before you write or rewrite to CD-R/-RW or DVD-R/-RW disc, read and follow all set-up and operating instructions in this section. If you fail to do so, the DVD-R/-RW drive may not function properly, and you may fail to write or rewrite, lose data or incur other damage.

Disclaimer

TOSHIBA does not bear responsibility for the following:

■ Damage to any CD-R/-RW or DVD-R/-RW disc that may be caused by

writing or rewriting with this product.

■ Any change or loss of the recorded contents of CD-R/-RW or DVD-R/-

RW disc that may be caused by writing or rewriting with this product, or for any business profit loss or business interruption that may be caused by the change or loss of the recorded contents.

■ Damage that may be caused by using third party equipment or

software.

Given the technological limitations of current optical disc writing drives, you may experience unexpected writing or rewriting errors due to disc quality or problems with hardware devices. Also, it is a good idea to make two or more copies of important data, in case of undesired change or loss of the recorded contents.

Operating Basics

Satellite Pro A10 Series 4-11

Read/write function chart

Disc type CD-R CD-RW DVD-R DVD-RW DVD-RAM DVD+ R DVD+ RW

Read Yes Yes Yes Yes Yes No No

Write Yes Yes Yes Yes No No No

Drag'n Drop CD+DVD*1

Yes Yes Yes Yes No No No

*1 Software supplied with the product can be used for writing to a disc.

■ Based on TOSHIBA's limited compatibility testing, we suggest the

following manufacturers of CD-R/-RW and DVD-R/-RW disc. However, in no event does TOSHIBA guarantee the operation, quality or performance of any disc. Disc quality can affect write or rewrite success rates.

CD-R: TAIYOYUDEN CO., LTD.

Mitsui Chemicals Inc. MITSUBISHI CHEMICAL CORPORATION RICOH Co., Ltd. Hitachi Maxell Ltd.

CD-RW: MITSUBISHI CHEMICAL CORPORATION

RICOH Co., Ltd.

DVD-R: DVD Specifications for Recordable Disc for General

Version 2.0

TAIYO YUDEN CO., LTD. PIONEER VIDEO CORPORATION MITSUBISHI CHEMICAL CORPORATION

DVD-RW: DVD Specifications for Re-recordable Disc for

Version 1.1 VICTOR COMPANY OF JAPAN, LIMITED TDK Corporation

■ If the disc is poor in quality, dirty or damaged, writing or rewriting

errors may occur. Be careful to check the disc for dirt or damage before you use it.

■ The actual number of rewrites to CD-RW or DVD-RW is affected by

the quality of the disc and the way it is used.

■ There are two types of DVD discs: authoring and general use discs.

Do not use authoring discs. Only general use discs can be written to by a computer drive.

■ Other DVD-ROM drives for computers or other DVD players may not

be able to read DVD-R/-RW discs.

■ You cannot partially delete any data written to a DVD-RW disc.

■ Data written to a CD-R/DVD-R disc cannot be deleted either in whole

or in part.

Operating Basics

Satellite Pro A10 Series 4-12

■ Data deleted (erase) from a CD-RW and DVD-RW disc cannot be

recovered. Check the content of the disc carefully before you delete it. If multiple drives that can write data to discs are connected, be careful not to delete data from the wrong drive.

■ In writing to a DVD-R/-RW disc, some disc space is required for file

management, so you may not be able to write the full capacity of the disc.

■ Since the disc is based on the DVD standard, it might be filled with

dummy data if the written data is less than about 1 GB. Even if you write only a small amount of data, it might take time to fill in the dummy data.

Before writing or rewriting

Please observe the following points when you write or rewrite data.

■ Be sure to connect the universal AC adaptor before you write or

rewrite.

■ Be sure to close all other software programs except the writing

software.

■ Do not run software such as a screen saver, which can put a heavy

load on the CPU.

■ Operate the computer in the full-power mode. Do not use power-

saving features.

■ Do not write while virus check software is running. Wait for it to finish,

then disable virus detection programs including any software that checks files automatically in the background.

■ Do not use hard disk utilities, including those intended to enhance

HDD access speed. They may cause unstable operation and data damage.

■ Write from the computer's HDD to the CD/DVD. Do not try to write

from shared devices such as a LAN server or any other network device.

■ Writing with software other than Drag'n Drop CD+DVD is not

recommended.

Operating Basics

Satellite Pro A10 Series 4-13

When writing or rewriting

Please observe/consider the following when you write or rewrite to a CD-R/-RW or DVD-R/-RW disc.

■ Do not perform any of the following actions when writing or rewriting:

■ Operate the computer for any other function, including using a

mouse or Touch Pad or closing/opening the LCD panel.

■ Start a communication application such as a modem.

■ Apply impact or vibration to the computer.

■ Install, remove or connect external devices, including the

following: PC card, USB devices, external display, optical digital devices.

■ Use the Audio/Video control button to reproduce music or voice.

■ Do not use standby/hibernation while writing or rewriting.

■ Make sure writing or rewriting is completed before going into

standby/hibernation.

■ Set the computer on a level surface and avoid places subject to

vibration such as airplanes, trains, or cars. Do not use an unstable surface such as a stand.

■ Keep mobile phones and other wireless communication devices away

from the computer.

Drag’n Drop CD+DVD

Note the following limitations when you use Drag'n Drop CD+DVD:

■ DVD-Video cannot be created using Drag'n Drop CD+DVD.

■ DVD-Audio cannot be created using Drag'n Drop CD+DVD.

■ You cannot use Drag'n Drop CD+DVDs music CD function to record

music to a DVD-R/-RW disc.

■ Do not use the DISC Backup function of Drag'n Drop CD+DVD to

copy DVD-Video and DVD-ROM with copyright protection, because the copy will not play correctly.

■ You cannot backup a CD-ROM or CD-R/-RW to DVD-R/-RW using

the DISC Backup function of Drag'n Drop CD+DVD.

■ You cannot back up DVD-ROM, DVD-Video or DVD-R/-RW to CD-R/-

RW using the DISC Backup function of Drag'n Drop CD+DVD.

■ Drag'n Drop CD+DVD cannot record in packet format.

■ You might not be able to use the DISC backup function of Drag'n

Drop CD+DVD to back up a DVD-R/-RW disc that was made with other software on a different DVD-R/-RW recorder.

Operating Basics

Satellite Pro A10 Series 4-14

Data Verification

To verify that data is written or rewritten correctly, follow the steps below before you write or rewrite a Data CD/DVD.

1. Right-click Data BOX and select Options to display the DATA DISC Option window.

2. Mark the Record and Verify check box and select Byte compare.

3. Click the OK button.

The “Record and Verify” function automatically checks whether data has been correctly recorded onto a CD/DVD. "Byte compare" compares the original data file with the data recorded on the CD/DVD and checks that the data completely matches.

Media care

This section provides tips on protecting data stored on your CD/DVDs and diskettes.

Handle your media with care. The following simple precautions will increase the lifetime of your media and protect the data stored on them:

CD/DVDs

1. Store your CD/DVDs in the container they came in to protect them and keep them clean.

2. Do not bend the CD/DVD.

3. Do not write on, apply a sticker to, or otherwise mar the surface of the CD/DVD that contains data.

4. Hold the CD/DVD by its outside edge or the edge on the centre hole.

Fingerprints on the surface can prevent the drive from properly reading data.

5. Do not expose to direct sunlight, extreme heat or cold. Do not place heavy objects on your CD/DVDs.

6. If your CD/DVDs become dusty or dirty, wipe them with a clean dry cloth. Wipe from the centre out, do not wipe in a circular direction around the CD/DVD. If necessary, use a cloth dampened in water or a neutral cleaner. Do not use benzene, thinner or similar cleaner.

Operating Basics

Satellite Pro A10 Series 4-15

Diskettes

Store your diskettes in the container they came in to protect them and keep them clean. If a diskette is dirty, do not use cleaning fluid. Clean it with a soft damp cloth.

1. Do not slide back the diskette’s protective metal covering or touch the diskette’s magnetic surface. Fingerprints may prevent the diskette drive from reading data from the diskette.

2. Data may be lost if the diskette is twisted; bent; or exposed to direct sunlight, extreme heat or cold.

3. Do not place heavy objects on your diskettes.

4. Do not eat, smoke, or use erasers near your diskettes. Foreign

particles inside the diskette’s jacket can damage the magnetic surface.

5. Magnetic energy can destroy the data on your diskettes. Keep your diskettes away from speakers, radios, television sets and other sources of magnetic fields.

Modem

This section describes how to connect and disconnect the internal modem to and from a telephone jack.

The internal modem does not support voice functions. All data and fax functions are supported.

In case of a lightning storm, unplug the modem cable from the telephone jack.

Do not connect the modem to a digital telephone line. A digital line will damage the modem.

Operating Basics

Satellite Pro A10 Series 4-16

Region selection

Telecommunication regulations vary from one region to another, so you will need to make sure the internal modem’s settings are correct for the region in which it will be used.

To select a region, follow the steps below.

1. Click start, point to All Programs, point to TOSHIBA Internal Modem and click Region Select Utility.

Do not use the Country/Region Select function in the Modem setup utility in the Control Panel if the function is available. If you change the Country/Region in the Control Panel, the change may not take effect.

2. The Region Selection icon will appear in the Windows Task Bar.

The Region Selection icon

3. Click the icon with the primary mouse button to display a list of regions that the modem supports. A sub menu for telephony location information will also be displayed. A check will appear next to the currently selected region and telephony location.

4. Select a region from the region menu or a telephony location from the sub-menu.

■ When you click a region it becomes the modem’s region selection,

and the New Location for telephony will be set automatically.

■ When you select a telephony location, the corresponding region is

automatically selected and it becomes the modem’s current region setting.

Operating Basics

Satellite Pro A10 Series 4-17

Properties menu

Click the icon with the secondary mouse button to display the following menu.

The menu list

Setting

You can enable or disable the following settings:

AutoRun Mode

The Region Select utility starts automatically when you start up the operating system.

Open the Dialling Properties dialog box after selecting region.

The dialling properties dialog box will be displayed automatically after you select the region.

Location list for region selection.

A submenu appears displaying location information for telephony.

Open dialog box, if the modem and Telephony Current Location region code do not match.

A warning dialog box is displayed if current settings for region code and telephony location are incorrect.

Modem Selection

If the computer cannot recognize the internal modem, a dialog box is displayed. Select the COM port for your modem to use.

Dialling Properties

Select this item to display the dialling properties.

If you are using the computer in Japan, the Telecommunications Business Law requires that you select Japan region mode. It is illegal to use the modem in Japan with any other selection.

Operating Basics

Satellite Pro A10 Series 4-18

Connecting

To connect the internal modem cable, follow the steps below.

1. Plug one end of the modular cable into the modem jack.

2. Plug the other end of the modular cable into a telephone jack.

Connecting the internal modem

Do not pull on the cable or move the computer while the cable is connected.

If you use a storage device such as a DVD-ROM drive, CD-RW/DVD-ROM drive or HDD connected to a 16-bit PC card, you might experience the following modem problems:

Modem speed is slow or communication is interrupted. Skips may occur in sound.

Disconnecting

To disconnect the internal modem cable, follow the steps below.

1. Pinch the lever on the connector in the telephone jack and pull out the connector.

2. Disconnect the cable from the computer in the same manner.

Operating Basics

Satellite Pro A10 Series 4-19

Wireless LAN

The wireless LAN is compatible with other LAN systems based on Direct Sequence Spread Spectrum /Orthogonal Frequency Division Multiplexing radio technology that complies with IEEE802.11 wireless LAN standard (Revision A or B) and Turbo Mode. It supports the following features:

■ Automatic Transmit Rate Select mechanism in the transmit range of

54, 48, 36, 24, 18, 12, 9 and 6Mbit/s. (Revision A, Revision A/B combo type)

■ Automatic Transmit Rate Select mechanism in the transmit range of

11, 5.5, 2 and 1Mbit/s. (Revision B)

■ Automatic Transmit Rate Select mechanism in the transmit range of

108, 96.72, 48, 36, 24, 18 and 12Mbit/s. (Turbo Mode, Revision A/B combo type)

■ Frequency Channel Selection (Revision A/Turbo Mode:5GHz, Revision

B: 2.4GHz)

■ Roaming over multiple channels

■ Card Power Management

■ Wired Equivalent Privacy (WEP) data encryption, based on the 152 bit

encryption algorithm.(Revision A/B combo type) Wired Equivalent Privacy (WEP) data encryption, based on the 128 bit encryption algorithm.(Revision B only type)

■ Advanced Encryption Standard (AES) data encryption, based on

256bit encryption algorithm.(Revision A/B combo type)

Wake-up on LAN does not function on a wireless LAN.

Security

1. Be sure to enable WEP (encryption) function. Otherwise your computer will allow the illegal access by outsider through wireless LAN to cause illegal intrusion, eavesdropping, and loss or destruction of stored data. TOSHIBA strongly recommend the customer to enable the WEP function.

2. TOSHIBA is not liable for the eavesdropping of data due to the use of wireless LAN and the damage thereof.

Wireless communication switch

You can enable or disable wireless LAN function, with the on/off switch. No transmission is sent or received when the switch is off. Slide the switch toward the right of the computer to turn it on and toward the left of the computer to turn it off.

Set the switch to off in airplanes and hospitals. Check the indicator. It will stop glowing when the wireless communication function is off.

Operating Basics

Satellite Pro A10 Series 4-20

Wireless communication Indicator

The wireless communication indicator indicates the status of the wireless communication functions.

Indicator status Indication

Indicator off Wireless communication switch is set to off.

Indicator glows Wireless communication switch is on.

Wireless LAN is turned on by an application.

If you used the Task Bar to disable W-LAN, restart the computer or follow the procedures below to enable the system to recognize W-LAN. Open or click the following: start, Control Panel, System, Hardware Device Manager, Network adaptors, TOSHIBA Wireless LAN Mini PCI Card and enable.

LAN

The computer has built-in support for Ethernet LAN (10 megabits per second, 10BASE-T) and Fast Ethernet LAN (100 megabits per second, 100BASE-Tx).

This section describes how to connect/disconnect to a LAN.

Do not install or remove an optional memory module while Wake-up on LAN is enabled.

Do not connect cables other than LAN, otherwise it causes a failure or damage.

Do not connect equipment which supplies electric power, otherwise it causes a failure or damage.

The Wake-up on LAN function consumes power even when the system is off. Leave the universal AC adaptor connected while using this feature.

Operating Basics

Satellite Pro A10 Series 4-21

Connecting a LAN cable

The computer must be configured properly before connecting to a LAN. Logging onto a LAN using the computer’s default settings could cause a malfunction in LAN operation. Check with your LAN administrator regarding set-up procedures.

If you are using Fast Ethernet LAN (100 megabits per second, 100BASETX), be sure to connect with a CAT5 cable. You cannot use a CAT3 cable.

If you are using Ethernet LAN (10 megabits per second, 10BASE-T), you can connect with either a CAT5 or a CAT3.

To connect the LAN cable, follow the steps below.

1. Turn off the power to the computer and to all external devices connected to the computer.

2. Plug one end of the cable into the LAN jack. Press gently until you hear the latch click into place.

Connecting the LAN cable

3. Plug the other end of the cable into a LAN hub connector. Check with your LAN administrator before connecting to a hub.

When the computer is exchanging data with the LAN, the LAN Active indicator glows orange. When the computer is connected to a LAN hub but is not exchanging data, the Link indicator glows green.

Operating Basics

Satellite Pro A10 Series 4-22

Disconnecting LAN cable

To disconnect the LAN cable, follow the steps below.

Make sure the LAN Active indicator (orange LED) is out before you disconnect the computer from the LAN.

1. Pinch the lever on the connector in the computer’s LAN jack and pull out the connector.

2. Disconnect the cable from the LAN hub in the same manner. Check with your LAN administrator before disconnecting from the hub.

Cleaning the computer

To help ensure long, trouble-free operation, keep the computer free of dust and use care with liquids around the computer.

■ Be careful not to spill liquids into the computer. If the computer does

get wet, turn the power off immediately and let the computer dry completely before you turn it on again.

■ Clean the computer using a slightly damp (with water) cloth. You can

use glass cleaner on the display. Spray a small amount of cleaner on a soft, clean cloth and wipe the screen gently with the cloth.

Never spray cleaner directly onto the computer or let liquid run into any part of it. Never use harsh or caustic chemical products to clean the computer.

■ Remove the dust from the cooling vents on the Left side of the

computer regularly with vacuum cleaner. See Chapter 2 Grand Tour, Left side.

Moving the computer

The computer is designed for rugged durability. However, a few simple precautions taken when moving the computer will help ensure troublefree operation.

■ Make sure all disk activity has ended before moving the computer.

Check the Built-in HDD indicator on the computer.

■ If a CD/DVD is in the drives, remove it. Also make sure the drawer is

securely closed.

■ Turn off the power to the computer.

■ Disconnect the universal AC adaptor and all peripherals before

moving the computer.

■ Close the display. Do not pick up the computer by its display panel.

■ Close all port covers.

■ Use the carrying case when transporting the computer.

Operating Basics

Satellite Pro A10 Series 4-23

Heat dispersal

To protect from overheating, the CPU has an internal temperature sensor. If the computer’s internal temperature rises to a certain level, the cooling fan is turned on or the processing speed is lowered. You can select whether to control the CPU temperature by turning on the fan first, then if necessary, lowering the CPU speed. Or, by lowering the CPU speed first, then if necessary, turning on the fan. Use the Cooling Method item of the Power Save Mode window in TOSHIBA Power Saver.

Maximum Performance

Turn on the fan first, then if necessary, lower the CPU processing speed.

Performance Use a combination of the fan and lowering the

CPU processing speed.

Battery optimised Lower the CPU processing speed first, then if

necessary turn on the fan.

When the CPU temperature falls to a normal range, the fan is turned off and the CPU operation returns to standard speed.

If the CPU temperature reaches an unacceptably high level with either setting, the system automatically shuts down to prevent damage. Data in memory will be lost.

The CPU cooling fan on the underside of your computer cools the CPU by drawing outside air into the computer.

To prevent possible overheating of the CPU, make sure the cooling fan's air intake is not blocked. The fan draws in air by creating a vacuum. If the fan is blocked, it could cause the CPU to run at a lower performance level or cause the computer to shut down. Loose items such as notebook and tissue paper, plastic wrappers, or other similar materials can block the air intake, preventing air from reaching the CPU. Do not use the computer on surfaces with objects that can be drawn in by the cooling fan.

The Keyboard

Satellite Pro A10 Series 5-1

Chapter 5

The Keyboard

The computer’s keyboard layouts are compatible with a 101/102-key enhanced keyboard. By pressing some keys in combination, all the 101/102-key keyboard functions can be executed on the computer.

The number of keys on your keyboard depends on which country/region’s keyboard layout your computer is configured with. Keyboards for numerous languages are available.

There are five types of keys: typewriter keys, keypad overlay, function keys, soft keys and cursor control keys.

Typewriter keys

The typewriter keys produce the upper- and lower-case letters, numbers, punctuation marks, and special symbols that appear on the screen.

There are some differences, however, between using a typewriter and using a computer keyboard:

■ Letters and numbers produced in computer text vary in width.

Spaces, which are created by a "space character," may also vary depending on line justification and other factors.

■ The lowercase l (el) and the number 1 (one) are not interchangeable on

computers as they are on a typewriter.

■ The uppercase O (oh) and the 0 (zero) are not interchangeable.

■ The Caps Lock function key locks only the alphabetic characters in

uppercase while the shift lock on a typewriter places all keys in the shifted position.

■ The Shift keys, the Tab key, and the BkSp (backspace) key perform

the same function as their typewriter counterparts but also have special computer functions.

Satellite Pro A10 Series

The Keyboard

Satellite Pro A10 Series 5-2

F1…F12 function keys

The function keys, not to be confused with Fn, are the 12 keys at the top of your keyboard. These keys function differently from other keys.

F1 through F12 are called function keys because they execute programmed functions when pressed. Used in combination with the Fn key, keys marked with icons execute specific functions on the computer. See the section Soft keys: Fn key combinations in this chapter. The function executed by individual keys depends on the software you are using.

Soft Keys: Alt Gr Key Combinations

Alt Gr

The Alt Gr key, at the right of the space bar, is used in combination with other keys to create accented or special characters (#,@,|, etc.). Note that some of the keys at the top of the keyboard bear three symbols (not to be confused with the blue or white letters on the side of some other keys). To generate the third symbol, hold Alt Gr and press the key bearing the character you wish to create. Please note that since the Alt Gr key is not present on the American keyboard, it cannot be used if you have installed an American keyboard driver.

Soft keys: Fn key combinations

The Fn (function) is unique to TOSHIBA computers and is used in combination with other keys to form soft keys. Soft keys are key combinations that enable, disable or configure specific features.

Some software may disable or interfere with soft-key operations. Soft-key settings are not restored by the Standby feature.

The Keyboard

Satellite Pro A10 Series 5-3

Emulating keys on enhanced keyboard

Esc

# 3

Home

PgUp

Bk Sp

F3 F4 F5 F6 F7 F8 F9 F10 F11 F12

! 1

$4%

(9 )

& 7

+ =

PgDn

End

Shift

Del

Ins

CapsLock

Shift

Enter

QW RTYUI OP

{[}

]

ASDFGHJ KL

: ;

? /

> .

< ,

CXZB

Tab

Alt

Enter

7 Home

8 9

PgUp

654

1 End

3 PgDn

0 Ins

Num Lock

. Del

PrtSc

Scroll lock

Pause Break

Ctrl

SysReg

* .

,, ,

A 101-key enhanced keyboard layout

The keyboard is designed to provide all the features of the 101-key enhanced keyboard, shown above. The 101/102-key enhanced keyboard has a numeric keypad and scroll lock key. It also has additional Enter and Ctrl keys to the right of the main keyboard. Since the keyboard is smaller and has fewer keys, some of the enhanced keyboard functions must be simulated using two keys instead of one on the larger keyboard.

Your software may require you to use keys that the keyboard does not have. Pressing the Fn key and one of the following keys simulates the enhanced keyboard’s functions.

Press Fn + F10 or Fn + F11 to access the integrated keypad. When activated, the keys with grey markings on the bottom edge become numeric keypad keys (Fn + F11) or cursor control keys (Fn + F10). Refer to the Keypad overlay section in this chapter for more information on how to operate these keys. The power on default for both settings is off.

Press Fn + F12 (ScrLock) to lock the cursor on a specific line. The power on default is off.

Press Fn + Enter to simulate Enter on the enhanced keyboard’s numeric keypad.

Press Fn + Ctrl to simulate the enhanced keyboard’s right Ctrl key.

The Keyboard

Satellite Pro A10 Series 5-4

Hot keys

Hot keys (Fn + a function or Esc key) let you enable or disable certain features of the computers.

Sound mute: Pressing Fn + Esc in a Windows environment turns sound on or off. When you press these hot keys, the current setting will change and be displayed as an icon.

Instant security: Press Fn + F1 to blank the screen to prevent others from accessing your data. To restore the screen and original settings, press any key or press the Touch Pad. Enter the screensaver password and click OK.

Power save mode: Pressing Fn + F2 changes the power save mode. If you press Fn + F2 in a Windows environment, the Power Save Mode is

displayed in a dialog box similar to the one below. Continue holding down Fn and press F2 again to change the setting. You can also change this setting through the Plugged in or Running on batteries item of the Power Saver Properties window in Power Saver.

Standby: When you press Fn + F3, the computer enters Standby. To avoid entering Standby unexpectedly, a dialog box appears for verification. However, if you select the check box, it will not appear in the future.

Hibernation: When you press Fn + F4, the computer enters Hibernation. To avoid entering Hibernation unexpectedly, a dialog box appears for verification. However, if you select the check box, it will not appear in the future.

The Keyboard

Satellite Pro A10 Series 5-5

Display selection: Press Fn + F5 to change the active display device.

When you press these hot keys a dialog box appears. Only selectable devices will be displayed. Hold down Fn and press F5 again to change the device. When you release Fn and F5, the selected device will change. If you hold down the keys for three seconds the selection will return to

LCD.

LCD Display Brightness: Pressing Fn + F6 decreases the display

brightness in decrements. When you press these hot keys, the current setting will be displayed for two seconds by an icon. You can also change this setting through the Monitor brightness item of the Power Save Mode window in Power Saver.

LCD Display Brightness: Pressing Fn + F7 increases the display brightness in increments. When you press these hot keys, the current setting will be displayed for two seconds by a pop-up icon. You can also change this setting through the Monitor brightness item of the Power

Save Mode window in Power Saver.

Display clarity increases with the brightness level.

Wireless setting: Fn + F8 hotkeys are not used.

Touch pad: Pressing Fn + F9 enables or disables the Touch pad

function. When you press these hot keys, the current setting will change and be displayed as an icon.

Fn Sticky key

You can use the TOSHIBA Accessibility Utility to make the Fn key sticky, that is, you can press it once, release it, and then press an “F number” key. To start the TOSHIBA Accessibility Utility, click start, point to All Programs, point to TOSHIBA Utilities and click Accessibility.

The Keyboard

Satellite Pro A10 Series 5-6

Windows special keys

The keyboard provides two keys that have special functions in Windows : one activates the start menu and the other has the same function as the secondary mouse button.

This key activates the Windows start menu.

This key has the same function as the secondary mouse button.

Keypad overlay

Your computer’s keyboard does not have an independent numeric keypad, but its numeric keypad overlay functions like one.

The keys in the centre of the keyboard with grey letters make up the numeric keypad overlay. The overlay provides the same functions as the numeric keypad on the 101/102-key enhanced keyboard.

Turning on the overlays

The numeric keypad overlay can be used for numeric data input or cursor and page control.

Arrow mode

To turn on the Arrow mode, press Fn + F10. The Arrow mode F10 indicator lights. Now try cursor and page control using the keys shown below. Press Fn + F10 again to turn off the overlay.

The Keyboard

Satellite Pro A10 Series 5-7

Numeric mode

To turn on the Numeric mode, press Fn + F11. The Numeric mode F11 indicator lights. Now try numeric data entry using the keys shown below. Press Fn + F11 again to turn off the overlay.

The numeric keypad overlay

Temporarily using normal keyboard (overlay on)

While using the overlay, you can temporarily access the normal keyboard without turning off the overlay:

1. Hold Fn and press any other key. All keys will operate as if the overlay were off.

2. Type upper-case characters by holding Fn + Shift and pressing a character key.

3. Release Fn to continue using the overlay.

The Keyboard

Satellite Pro A10 Series 5-8

Temporarily using overlay (overlay off)

While using the normal keyboard, you can temporarily use the keypad overlay without turning it on:

1. Press and hold down Fn.

2. Check the keyboard indicators. Pressing Fn turns on the most

recently used overlay. If the Numeric mode icon lights, you can use the overlay for numeric entry. If the Arrow mode icon lights, you can use the overlay for cursor and page control.

3. Release Fn to return to normal keyboard operation.

Temporarily changing modes

If the computer is in Numeric mode, you can switch temporarily to Arrow mode by pressing a shift key.

If the computer is in Arrow mode, you can switch temporarily to Numeric mode by pressing a shift key.

Generating ASCII characters

Not all ASCII characters can be generated using normal keyboard operation. But, you can generate these characters using their ASCII codes.

With the overlay on:

1. Hold down Alt.

2. Using the overlay keys, type the ASCII code.

3. Release Alt, and the ASCII character appears on the display screen.

With the overlay off:

1. Hold Alt + Fn.

2. Using the overlay keys, type the ASCII code.

3. Release Alt + Fn, and the ASCII character appears on the display

screen.

A list of ASCII characters with their codes is shown in Appendix G.

Power and Power-Up Modes

Satellite Pro A10 Series 6-1

Chapter 6

Power and Power-Up Modes

The computer’s power resources include the AC adaptor and internal batteries. This chapter gives details on making the most effective use of these resources including charging and changing batteries, tips for saving battery power, and power up modes.

Power conditions

The computer’s operating capability and battery charge status are affected by the power conditions: whether an AC adaptor is connected, whether a battery is installed and what the charge level is for the battery.

Power on Power off (no operation)

AC adaptor connected

Battery fully charged

• Operates

• LED: Battery green DC IN green

Battery partially charged or no charge

• Operates

• Quick charge

• LED: Battery orange DC IN green

• Quick charge

• LED: Battery orange DC IN green

No battery installed

• Operates

• No charge

• LED: Battery off DC IN green

• No charge

• LED: Battery off DC IN green

Satellite Pro A10 Series

Power and Power-Up Modes

Satellite Pro A10 Series 6-2

Power on Power off (no operation)

AC adaptor not connected

Battery charge is above low battery trigger point

• Operates

• LED: Battery off DC IN off

—

Battery charge is below low battery trigger point

• Operates

• LED: Battery flashes orange DC IN off

—

Battery charge exhausted

Computer goes into resume mode and shuts down

—

No Battery installed

• Cannot operate

• LED: Battery off DC IN off

—

Power indicators

As shown in the above table, the Battery, DC IN and Power indicators on the system indicator panel alert you to the computer’s operating capability and battery charge status.

Battery indicator

Check the Battery indicator to determine the status of the battery. The following indicator lights indicate the battery status:

Flashing orange The battery charge is low. The AC adaptor must

be connected to recharge the battery.

Orange Indicates the AC adaptor is connected and

charging the battery.

Green Indicates the AC adaptor is connected and the

battery is fully charged.

No light Under any other conditions, the indicator does

not light.

If the battery becomes too hot while it is being charged, the charge will stop and the battery indicator will go out. When the battery’s temperature falls to a normal range, charge will resume. This occurs whether the computer’s power is on or off.

Power and Power-Up Modes

Satellite Pro A10 Series 6-3

DC IN indicator

Check the DC IN indicator to determine the power status from the AC adaptor connected:

Green Indicates the universal AC adaptor is connected

and supplying proper power to the computer.

Flashing orange Indicates a problem with the power supply. Plug

the universal AC adaptor into another outlet. If it still does not operate properly, see your dealer.

No light Under any other conditions, the indicator does

not light.

Power indicator

Check the Power indicator to determine the power status:

Green Indicates power is being supplied to the

computer and the computer is turned on.

Blinking orange Indicates power is being supplied to the

computer while the computer is in Standby mode. The indicator turns on for one second and off for two seconds.

No light Under any other conditions, the indicator does

not light.
