Toshiba PH3100U-1EXB Setup

Download

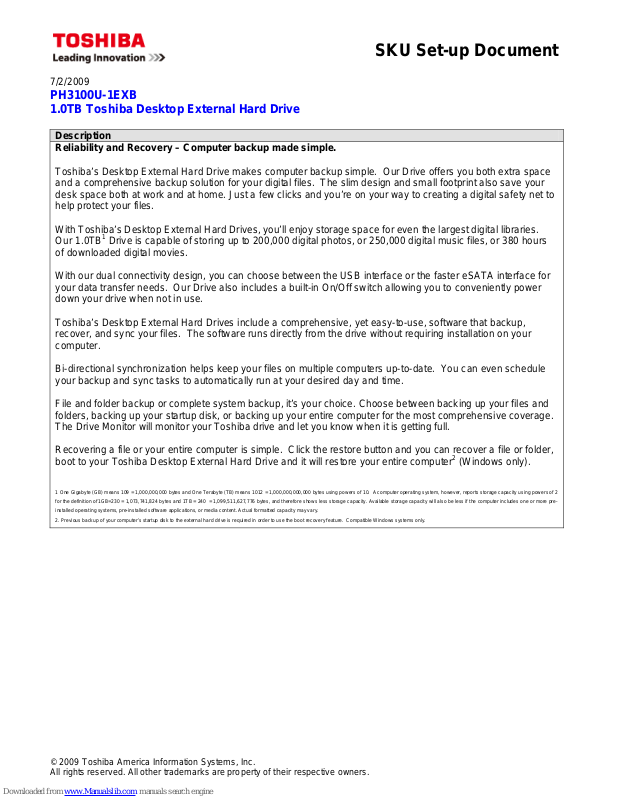

Page 1

SKU Set-up Document

7/2/2009

PH3100U-1EXB

1.0TB Toshiba Desktop External Hard Drive

Description Reliability and Recovery – Computer backup made simple.

Toshiba’s Desktop External Hard Drive makes computer backup simple. Our Drive offers you both extra space and a comprehensive backup solution for your digital files. The slim design and small footprint also save your desk space both at work and at home. Just a few clicks and you’re on your way to creating a digital safety net to help protect your files.

With Toshiba’s Desktop External Hard Drives, you’ll enjoy storage space for even the largest digital libraries. Our 1.0TB of downloaded digital movies.

With our dual connectivity design, you can choose between the USB interface or the faster eSATA interface for your data transfer needs. Our Drive also includes a built-in On/Off switch allowing you to conveniently power down your drive when not in use.

Toshiba’s Desktop External Hard Driv es include a comprehensive, yet easy-to-use, software that backup, recover, and sync your files. The software runs directly from the drive without requiring installation on your computer.

Bi-directional synchronization helps keep your files on multiple computers up-to-date. You can even schedule your backup and sync tasks to automatically run at your desired day and time.

File and folder backup or complete system backup, it’s your choice. Choose between ba cking up your files and folders, backing up your startup disk, or backing up your entire computer for the most comprehensive coverage. The Drive Monitor will monitor your Toshiba drive and let you know when it is getting full.

Recovering a file or your entire computer is simple. Click the restore button and you can recover a file or folder, boot to your Toshiba Desktop External Hard Drive and it will restore your entire computer

1 One Gigabyte (GB) means 109 = 1,000,000,000 bytes and One Terabyte (TB) means 1012 = 1,000,000,000,000 bytes using powers of 10. A computer operating system, however, reports storage capacity using powers of 2 for the definition of 1GB=230 = 1,073,741,824 bytes and 1TB = 240 = 1,099,511,627,776 bytes, and therefore shows less storage capacity. Available storage capacity will also be less if the computer includes one or more preinstalled operating systems, pre-installed software applications, or media content. Actual formatted capacity may vary.

2. Previous backup of your computer’s startup disk to the external hard drive is required in order to use the boot recovery feature. Compatible Windows systems only.

Drive is capable of storing up to 200,000 digital photos, or 250,000 digital music files, or 380 hours

(Windows only).

Page 2

Product Features

 Dual Connectivity: USB and eSATA  File & Folder backup and recovery  Complete system backup and recovery  Password protection for backup sets  Backup Encryption  Bi-directional synchronization  Drive Monitor  Internal dampening system for shock protection  Capable of storing up to 200,000 digital photos, or 250,000 digital music files, or 380 hours of

downloaded digital movies

(Windows only)

Product Specifications Product Image

Specification

 Capacity: 1.0TB  Interfaces: USB 2.0 and eSATA  Interface Transfer Rate:

o Up to 480 Mb/s (USB 2.0) o Up to 3.0 Gb/s (eSATA)

 Speed: 5400 RPM  Average Seek Time: 8.9 ms  Cache Buffer: 8 MB  Size: 6.6” (W) X 6.8” (H) X 1.34” (D)  Color: Black  Weight: 2.2 lbs

Contents

 Toshiba Desktop External Hard Drive

(preloaded with backup software)

 USB 2.0 Cable  AC Adapter  Drive Stand  Quick Install Guide  3 Year Limited Warranty

System Requirements

 Microsoft® Windows® XP or Vista  Mac® OS X® 10.4 or later  Available USB 2.0 or eSATA port

Part Set-up Information

Part Number: PH3100U-1EXB Product Dimensions: 6.6” (W) X 6.8” (H) X 1.34” (D) Product name: 1.0TB Toshiba Desktop External Hard Drive Product weight: 2.2 lbs Color: Black Package dimensions: 8” (W) X 9.5” (H) X 4” (D) UPC code: 883974254644 Package weight: 3.79 lbs ESUP: $159.99 Packaging Material: Retail Box Product category: External Storage; Desktop Storage; Backup Master carton quantity: 4

Warranty: Three (3) Year Limited Warranty Available Date: 7/22/09 Master carton weight: 15.2 lbs

Embargo Date: 8/2/09 Pallet/Quantity 240 pcs Country of origin:

Package Contents:

Compatibility:

Drive manufactured in Malaysia, Thailand, or China and assembled in China Toshiba Desktop External Hard Drive (preloaded with backup software) USB 2.0 Cable, AC Adapter, Drive Stand, Quick Install Guide, 3 Year Limited Warranty Windows XP, Vista Mac OS X 10.4 or later Available USB 2.0 or eSATA port

Master carton dimensions:

8.1” (W) X 10.3” (H) X 16.5” (L)

Page 3

Environmental:

RoHS Compliant This product is compatible with European Union Directive 2002/95/EC, Restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS), which restricts use of lead, cadmium, mercury, hexavalent chromium, PBB, and PBDE.
