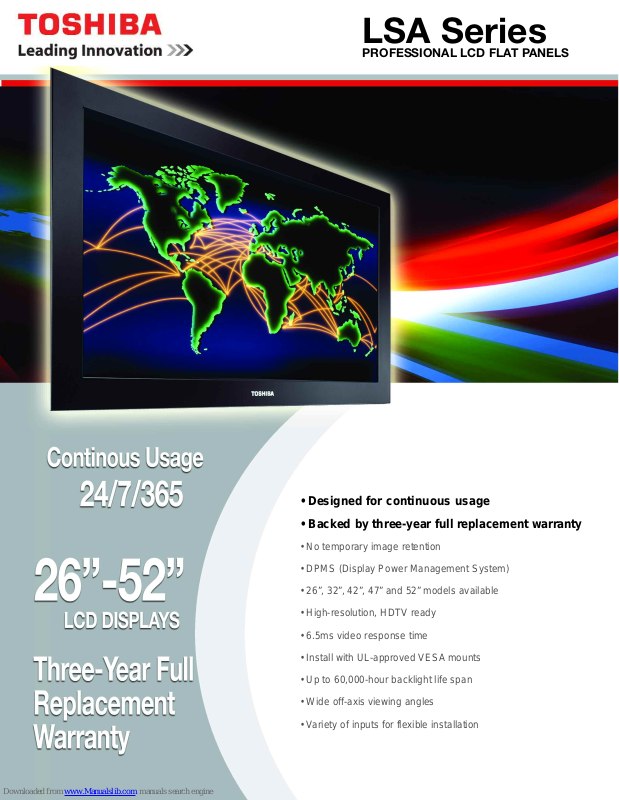

Toshiba P52LSA, P26LSA, P32LSA, P42LSA, P47LSA Specifications
LSA Series
PROFESSIONAL LCD FLAT PANELS
• Designed for continuous usage
• Backed by three-year full replacement warranty
• No temporary image retention
• DPMS (Display Power Management System)
• 26”, 32”, 42”, 47” and 52” models available
• High-resolution, HDTV ready
• 6.5ms video response time
• Install with UL-approved VESA mounts
• Up to 60,000-hour backlight life span
• Wide off-axis viewing angles
• Variety of inputs for flexible installation
LSA Series
PROFESSIONAL LCD FLAT PANELS
MODEL NUMBER P26LSA P32LSA P42LSA P47LSA P52LSA
LCD 26” 32” 42” 47” 52”
LCD panel type a-si TFTActive Matrix Super MVATFT Super MVATFT Super MVATFT Super MVATFT
Maximum resolution 1366 x 768* 1366 x 768* 1920 x 1080** 1920 x 1080** 1920 x 1080**
Colors (in millions) 16.77 16.77 16.77 16.77 16.77
Response time 8ms 6.5ms 6.5ms 6.5ms 6.5ms
Brightness 500cd/M
2
Contrast 1000:1 1000:1 1000:1 1000:1 2000:1
Viewing angle 176° (H), 176° (V) 176° (H), 176° (V) 176° (H), 176° (V) 176° (H), 176° (V) 176° (H), 176° (V)
Power Voltage AC100-240V (±10%) AC100-240V (±10%) AC100-240V (±10%) AC100-240V (±10%) AC100-240V (±10%)
50/60 Hz 50/60 Hz 50/60 Hz 50/60 Hz 50/60 Hz
Power Consumption
Operating <165W <150W <250W <350W <400W
Stand-By <15W <20W <20W <20W <20W
Dimensions (W x H x D) 24.65 x 15.77 x 3.68 31.1 x 18.9 x 3.22 40.18 x 24.15 x 4.1 45.31 x 27.25 x 4.98 50 x 29 x 5
Weight 28 lbs 43 lbs 77 lbs 128 lbs 131 lbs
Operating temperature 41°F to 140°F 41°F to 140°F 41°F to 140°F 41°F to 140°F 41°F to 140°F
Input connectors
Analog RGB D-Sub 15 pin D-Sub 15 pin D-Sub 15 pin D-Sub 15 pin D-Sub 15 pin
PC Digital DVI-D DVI-D DVI-D DVI-D DVI-D
Video (Composite) RCA x 1 RCAx 1 RCA x 1 RCA x 1 RCAx 1
S-Video (Y/C) S-video DIN S-video DIN S-video DIN S-video DIN S-video DIN
Component (Y/Cb/Cr) 8 pin DIN with 8 pin DIN with 8 pin DIN with 8 pin DIN with 8 pin DIN with
RCA breakout RCA breakout RCA breakout RCA breakout RCAbreakout
External Control -- RS232C RS232C RS232C RS232C
Input Signals
Video NTSC, PAL NTSC, PAL NTSC, PAL NTSC, PAL NTSC, PAL
RGB VGA, SVGA, XGA, SXGA VGA, SVGA, XGA, SXGA VGA, SVGA, XGA, SXGA VGA, SVGA, XGA, SXGA VGA, SVGA, XGA, SXGA
HDTV 480p, 720p 480p, 720p 480p, 720p, 1080i 480p, 720p, 1080i 480p, 720p, 1080i
Display Management VESA DPMS/DVI DMPM VESA DPMS/DVI DMPM VESA DPMS/DVI DMPM VESA DPMS/DVI DMPM VESA DPMS/DVI DMPM
Key switch Power, input, menu, Power, input, menu, Power, input, menu, Power, input, menu, Power, input, menu,
down, up, + down, up, + down, up, + down, up, + down, up, +
Link Control -- RJ45 RJ45 RJ45 RJ45
Mount VESA VESA VESA VESA VESA
Warranty (full replacement) 3 year 3 year 3 year 3 year 3 year
Accessories (all models): AC Power cord, User manual, Stand, Wireless remote, Cables for 15-pin RGB , S-video, YCbCr, RCA, DVI-D, RGB-YcbCr
* 26”, 32” monitors support 640 x 480, 800 x 600, 1024 x 768, 1366 x 768, 1280 x 1024 (compressed), 1600 x 1200 (compressed) input signals
** 42”, 47” and 52” monitors support all of above, plus 1280 x 1024, 1920 x 1080 input signals
550cd/M
2
550cd/M
2
550cd/M
2
500cd/M
2
©2008 Toshiba America Information Systems, Inc. All rights reserved. All
products and names mentioned are the property of their respective owners.
While Toshiba has made every effort at the time of publication to ensure the
accuracy of the information provided herein, product specifications, configurations, prices, system/component/options availability are all subject to
change without notice. REV 2
Surveillance & IP Video Products, Imaging Systems Division
Toshiba America Information Systems, Inc.
9740 Irvine Boulevard, Irvine, California 92618
1-877-855-1349 • www.toshibasecurity.com
52”
47”
42”
32” 26”
