OIS PLUS

Buy: www.ValinOnline.com | Phone [phone] | Email: [email protected]

OIS PLUS = PLC + OIS + Clip-on I/O

The OIS PLUS Series touchscreens are updated versions of the operator interface stations OIS55 and OIS60.
The PLUS versions contain PLC functionality and accommodate optional clip-on I/O modules (digital, analog &
communication).

OIS60 PLUS

6” Color Touchscreen

5 Clip-on I/O Modules

♦ Common Tags for Display & PLC
♦ Multi-Language with True Type Fonts
♦ Built-in PID
♦ Hi-Speed Inputs, PWM Outputs
♦ Save Tags in OIS PLUS
♦ Wide Variety of I/O & Com Modules
♦ Large Symbol Library

Create up to 10 Template Screens

♦

♦ Recipes & Data Logging
♦ Connection to Modbus Field Networks
♦ Connection to other Ind ustrial Equipment
♦ View Ladder & Screen Simultaneously
♦ Multi-state Bitmaps & Objects
♦ USB port; Programming & Data Collection
♦ Floating Point Numbers

OIS55 PLUS

3 ½” Color Touchscreen

3 Clip-on I/O Modules

Clip-on I/O Module

Page 2 of 24

p

Buy: www.ValinOnline.com | Phone [phone] | Email: [email protected]

OIS MODELS

Touchscreen--OIS PLUS

OIS55 PLUS

3 ½” Color Touchscreen

24 Vdc Power Connection

Optional Battery

2 RS232/RS485
Com Ports

OIS70E PLUS

7” Color Touchscreen w/Ethernet

Under Develo

2 USB Ports

ment

I/O Module
Connection

Clip-on I/O Module

OIS45E PLUS

4.3” Color Touchscreen w/Ethernet

Under Development

OIS60 PLUSs

6” Color Touchscreen

♦ OIS45 PLUS & OIS55 PLUS have same
dimensional cutouts.

♦ OIS60 PLUS & OIS70 PLUS have same
dimensional cutouts.

♦ Only OIS55 PLUS and OIS60 PLUS have
function keys with indicator LEDs.

♦ I/O Modules are common to all OIS PLUS
touchscreens. For a list of I/O modules see
page 17.

Page 3 of 24

Large Touchscreen—OIS120A

Buy: www.ValinOnline.com | Phone [phone] | Email: [email protected]

OIS120A

12” Color Touchscreen w/Ethernet

A Large Display for Monitoring &
Changing Data in Toshiba Control
Devices

 Alarms & Trending
 Large Number of Special Objects
 Unlimited Screens (based on memory)
 3 Communications Ports (1 Ethernet).
 Multiple Language (Unicode) Support
 Compact Flash Memory
 No Clip-on I/O Modules.

LCD Touchscreens

Screen color can
be determined by
the status of the
connected
devices.

OIS40/42 PLUS

3” Multicolor backlit Touchscreen.
Screens can be Red, Green, Blue or
any combination of the 2 or 3 colors.

OIS42 PLUS --With Built-in I/O

8 24 Vdc Inputs, 4 HS Inputs, 25 Khz.
6 Relay Outputs
2 Transistor Outputs/2 HS Outputs, 25Khz
2 Analog Inputs

mA, Vdc, TC, and RTD.

1 Analog Output

mA, Vdc

Full PLC Ladder
Logic Functionally

Page 4 of 24

KeyPad OIS

Buy: www.ValinOnline.com | Phone [phone] | Email: [email protected]

All the best features of past Toshiba PLCs are built into the OIS20 PLUS. Remember the EX20 (80s), M20
(90s) & T1-28 (00s), now there is the OIS20 PLUS (10s)

In addition, the OIS20 PLUS has:

OIS10 PLUS--With Built-in I/O

6--Relay Outputs
2--Transistor Outputs

OIS12 is same as OIS10 PLUS but no built­in I/O. For connection to Toshiba PLCs,
Integrated Controllers, ASDs, or any device
with Modbus serial protocol.

OIS20 PLUS--With Built-in I/O

12--24 Vdc Inputs

8--24 Vdc
Inputs

24 Vdc Input
Power Supply

OIS12--No I/O

6--Relay Outputs
2--Transistor Outputs

3.1” Graphical, Multicolor,Backlit LCD Display
18 Function/Numerical Entry Keys
1 Serial Communications Port

Modbus, Toshiba ASD, or Serial Printer

Page 5 of 24

OIS PLUS I/O Modules

p

Buy: www.ValinOnline.com | Phone [phone] | Email: [email protected]

These modules clip onto the back of the OIS PLUS. All terminal strips are removable.

The following modules are available.

Digital I/O

TRPDIX1600 16 Inputs, 24 Vdc (sink/source).
TRPDOX0016N 16 Outputs 24, Vdc, transistor NPN.
TRPDOX0016P 16 Outputs 24, Vdc, transistor PNP.
TRPROX0012 12 Outputs, Relay, 240/120 Vac, 2a per common.
TRPDIO0808N 8 Inputs, 24 Vdc (sink/source), 8 Outputs, Transistor, 24 Vdc, NPN.
TRPDIR0808P 8 Inputs, 24 Vdc (sink/source), 8 Outputs, Transistor, 24 Vdc, PNP.
TRPHIO0808N 8 Inputs (4 HSC), 24 Vdc (sink/source), 8 Outputs (2 HS/1 PWM),

TRPHIO0808P 8 Inputs (4 HSC), 24 Vdc (sink/source), 8 Outputs (2 HS/1 PWM),

Analog I/O

TRPADT0400 4 Inputs, 4-20 mA/0-10 Vdc, 12 bit.
TRPAIO0202L 2 Inputs, 0-20 mA/0-10 Vdc, & 2 Outputs, 0-20 mA/0-10 Vdc, 12 bits each.
TRPRTX0402 4 - Inputs, 0-10 V, 4-20 mA, RTD, TC, 2-Outputs, 0-10 V, 4-20 mA, 16 bits each.

OIS55 PLUS OIS45E PLUS
OIS60 PLUS OIS70E PLUS

24Vdc Power
Connection

Transistor, 24 Vdc, NPN.
Transistor, 24 Vdc, PNP.

For

Clips for
Attaching
to OIS
PLUS

Removable
Terminal Stri

s

Page 6 of 24

KEY FEATURES

Buy: www.ValinOnline.com | Phone [phone] | Email: [email protected]

Connection to ASDs:

The OIS PLUS can receive multiple types of inputs (digital, analog, thermocouple, RTD, etc) and use these
to control ASDs (adjustable speed drives). The OIS PLUS has the ASD parameters immediately available in
the setup software, no special programming is necessary.

A.

OIS55 PLUS

Ethernet connection is also available (requires Ethernet switch for more than 1 ASD)

Send to ASD

Run/Stop, Jog
Accel/Decel Time,
Forward/Reverse,
Operating Freq.,etc.

Send to OIS Plus

Fault Status, Power Output,
Voltage Output, Current Output
Frequency Output, etc.

RS485, Toshiba ASCII Protocol or Modbus

Setup ASDs:

ASD 1

ASD 2

Simple setup software allows each type of equipment to be defined, mapped, and tagged.

Navigate with Project Navigator

Assign Tags
to each
Device

1

Select Device
for each Com
Port & Node

4

3

2

Define
Device
Tags

Select Communication Parameters for Device

Page 7 of 24

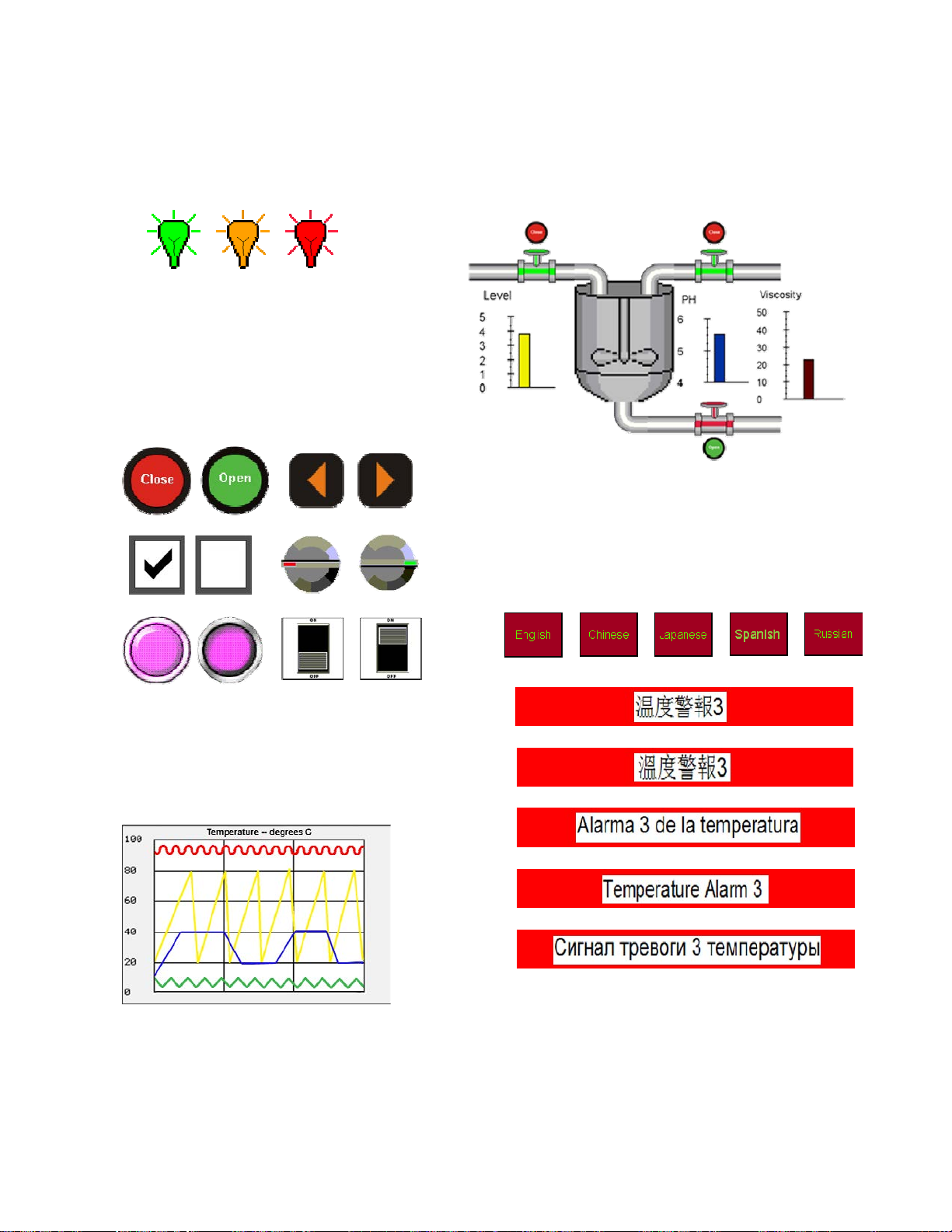

Graphic Symbols:

Buy: www.ValinOnline.com | Phone [phone] | Email: [email protected]

The OIS PLUS (operator display) has a large selection of graphics for almost any industrial or
process application. For the really special applications, user created bit maps can be imported into
the OIS PLUS.

Multi-State Indicators

Normal Warning Alarm

Colors and text can change based on
the ON/OFF bit status or the value in a
register.

Switch Pairs

One or the other of the pair will be
displayed depending on bit status
(Inputs, Outputs, etc..

Trending

Displaying trends graphically provides easier
interpretation of process/system change. Both
simple trending and historical trending are
available.

Tanks, Pipes, & Valves

Create a graphical representation for a
designated process. Add process
indicators as desired.

Multiple Languages

Tags can be created in any language supported by
Microsoft. Selecting the language button will cause
all tags to be displayed in the selected language.

Page 8 of 24

Data Logging:

Buy: www.ValinOnline.com | Phone [phone] | Email: [email protected]

In many testing procedures, production runs, or process steps, it is as import to log system parameters as it
is to control the sequences. The larger OIS PLUS have the capability to log user defined data. This data can
be exported to a *.csv file and saved on a USB memory drive. From the memory drive, the data can be
imported into MS Excel, MS Access, Lotus 1-2-3, etc. for further analysis. Logging can be specified by group
and by when to start: Logging can start and stop on command.

Power-up Time/Date Key Task Event Occurrence

USB Memory Drive

Logged data can be very useful for many different purposes:

OIS Plus

*.csv File

Date Time Tag1 Tag2 Tag3 Tag4 Tag5
10/08/16 10:15 2 50 100 500 0
10/08/17 10:15 3 45 100 600 0
10/08/18 13:30 5 40 100 700 0
10/08/19 13:30 5 40 100 700 0
10/08/20 15:00 5 45 100 700 0
10/08/21 15:00 2 50 100 600 0
10/08/22 15:00 3 50 100 500 0

Data logging can be initiated from either the touchscreen or the
ladder program. File transfer to the USB memory drive can be
done without stopping the OIS Plus. Data transfer from the OIS
PLUS can either overwrite an existing file on the USB memory
drive or create a new file.

♦ QC verification that all parameters are within acceptable range.

♦ Confirmation that critical parameters meet regulatory agency compliance specifications.

♦ Substantiation of system status for use in incident analysis.

Page 9 of 24

PROGRAMMING SOFTWARE

Buy: www.ValinOnline.com | Phone [phone] | Email: [email protected]

The OIL-DS (Operator Interface & Logic Development Software) runs on any Toshiba notebook computer or
PC compatible computer running MS Windows 2000/XP/Win7 (32/64 bit). It is used for developing both the
display screens and the control program (using ladder logic and function blocks).

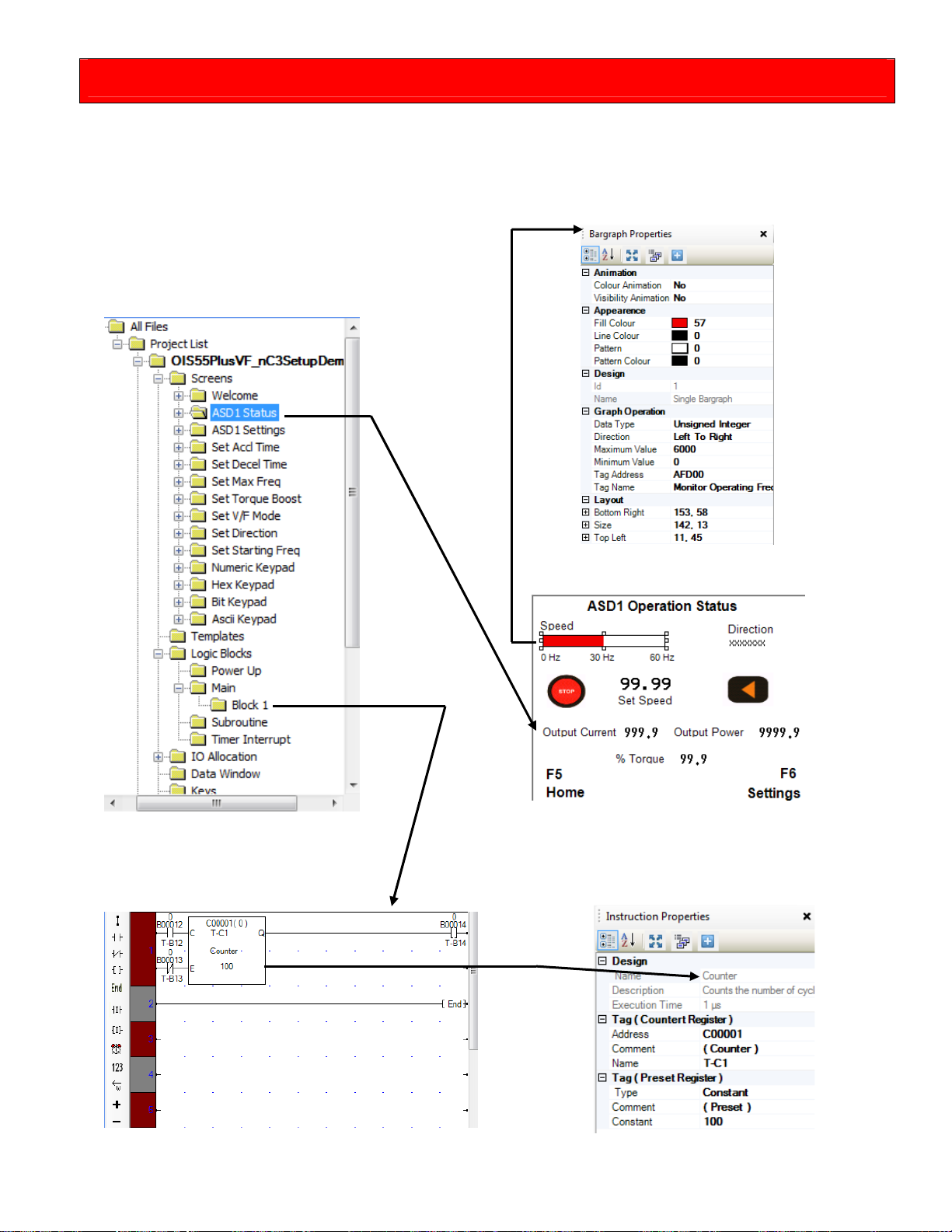

Programming Environment:

Navigation Screen

Ladder Logic Development Area

Object Properties Screen

Display Screen Work Area

Ladder Properties Screen

Page 10 of 24

Programming Ladder Logic Blocks:

Buy: www.ValinOnline.com | Phone [phone] | Email: [email protected]

Several different types of programming blocks are available for organizing the ladder program and
for making it efficient.

The Power Up block runs one time at startup.

256 Main blocks are available for
organizing the ladder program

256 Subroutine blocks are available for
special calculations, updates, etc..

2 Interrupt blocks are available for
immediate updates.

Common Tag Database:

Common
Tag

Common
Tag

Portion of Ladder Program

Portion of Touchscreen

Common
Tag

A common tag database simplifies programming the OIS (display) and the PLC (ladder logic). The OIS
PLUS display uses the same tag data base as the OIS PLUS PLC.

Page 11 of 24

Webpage Server:

Buy: www.ValinOnline.com | Phone [phone] | Email: [email protected]

These OIS PLUS displays have sufficient memory and an Ethernet port to support webpage servers:

The webpage is created in the OIL-DS software, then downloaded into the OIS PLUS along with a
static IP address. After this is done, connect the OIS PLUS to an internet access point thru its
Ethernet port. A remote user will then be able to see the OIS PLUS’s webserver page.

♦ Data Display ♦ Bit Map Objects ♦ Navigation Buttons
♦ Data Entry ♦ Multilingual Text

OIS120A OIS45E PLUS

OIS70E PLUS

Works with:

Microsoft Internet Explorer
Mozilla FireFox

The Internet

Goggle Chrome
Most Android Smart Phones

Supports

The Internet

Underdevelopment

Requires OIL-DS Ver. 2.2 or Higher

Page 12 of 24

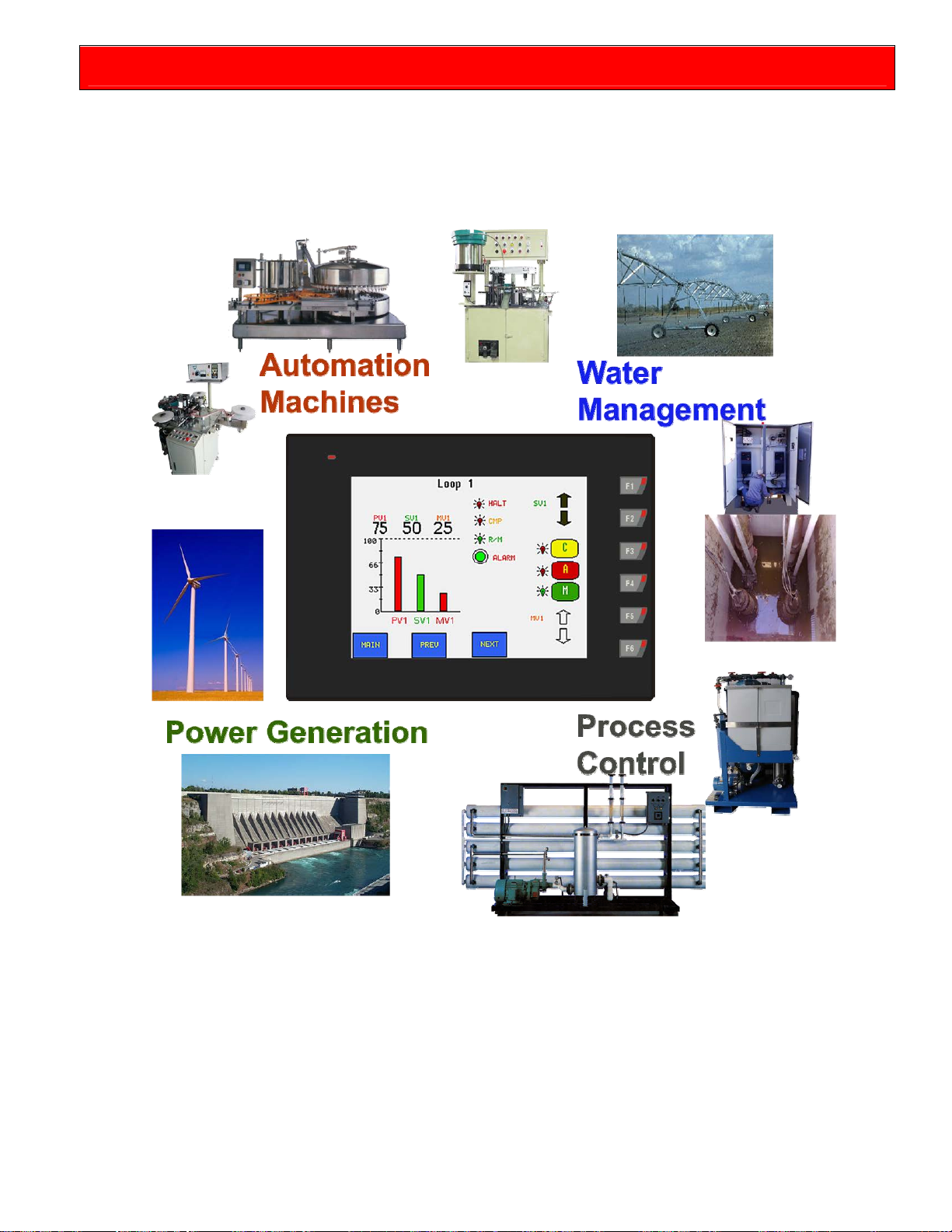

APPLICATIONS

Buy: www.ValinOnline.com | Phone [phone] | Email: [email protected]

The OIS PLUS are small, general purpose controllers. The Operator Display, PLC & I/O are all in one
compact block. This makes these ideally suited for a wide variety of control applications. Applications
include:

Other typical applications are:

♦ Packing Machinery ♦ Wash & Dry Control ♦ Compliance Monitoring
♦ Punch Press ♦ Pneumatic Control ♦ Alarm Systems
♦ Material Handling ♦ Conveyor Control ♦ Robotics

Call Toshiba to discuss Special Applications

Page 13 of 24

SPECIFICATIONS



Buy: www.ValinOnline.com | Phone [phone] | Email: [email protected]

General Specifications:

Item

Power
Bezel IP65
Operating Temperature: 0°

Storage Temperature:
LCD Life

Humidity: 10% to 90% (Non-Condensing)
Atmosphere No corrosive gas, No flammable gas
Cooling Natural air cooling
Immunity to ESD: IEC61000-4-2
Immunity to Transients: IEC61000-4-4
Radiated Susceptibility: IEC61000-4-3
Surge Withstand IEC61000-4-5
Conducted Disturbances IEC61000-4-6
Emissions: EN55011
Grounding 100Ω or less (type D grounding)
Safety Certifications CE, UL, cUL (Class 1 Div2), RoHS

Specification

24 Vdc, ±10%

to 50°C

-20° to 80°C
50,000 hrs at 25° C

Internal PLC Specifications

Item Specification Item Specification

Control Method Stored program, cyclic scan User Data -/O Reg X/XW, Y/YW 6400 pts/400 regs
Scan System Floating scan -Auxiliary Reg B/BW 4096 pts/256 regs
I/O Update Batch I/O refresh (direct I/O possible) -Special Reg S/SW 4096 pts/256 regs
Program memory Program stored in flash memory -Data Reg D 4096 regs
Program capacity 8 K steps -Counters C./C 256 regs
Program Language Ladder diagram -Timers T./T 61 @0.01 sec, 130 @ 0.1
Instructions Basic: 20 Function: 96 sec 64 @ 1 sec.
Program Types 1 Main program -Index Reg I/J/K 3 regs total
1 Initialize program Execution Time
1 Timer interrupt program
2 I/O Interrupt programs
256 Subroutine programs

1.03s/contact, 2

2.32s/16 bit transfer,
3 s/16 bit addition

s/coil

OIS10 PLUS/OIS12

Item Specification Item Specification

Display: 3.1” Multicolor Backlit LCD, 16 x 2

Display
Keys Six User-Defined Function Keys Memory-Total 512 Kb
LEDs 1 P wr, 6 User Defined, 12 Data Entry -Screen 84 Kb
Com Ports-Serial: 1 RS232/RS485 -Data Log None

-Ethernet None PLC Steps 10 K (OIS10 Plus only)

-USB 1 Device Back-up Battery
Clock-Calendar Yr/Mo/Day/Hr/Min/Sec Power Consumption 85 mA OIS10+, 72 mA OIS12
Weight: 220 g OIS10+, 172 OIS12

Page 14 of 24

I/O OIS10 PLUS: 8in & 8out

OIS12: None

3 Yrs at 25°C

OIS20 PLUS

Buy: www.ValinOnline.com | Phone [phone] | Email: [email protected]

Item Specification Item Specification

Display: 3.1” Multicolor Backlit LCD, 16 x4

Display
Keys Six User-Defined Function Keys Memory-Total 512 Kb
LEDs 1 P wr, 6 User Defined, 12 Data Entry -Screen 84 Kb
Com Ports-Serial: 1 RS232/RS485 -Data Log None

-Ethernet None PLC Steps 10 K

-USB 1 Device Back-up Battery
Clock-Calendar Yr/Mo/Day/Hr/Min/Sec Power Consumption 125 mA
Weight: 320 g

I/O 12 in & 8 out

3 Yrs at 25°C

OIS40 PLUS

Item Specification Item Specification

Display: 3” Graphical Monochrome

Touchscreen w/Tri Color-Backlight
Keys None Memory-Total 1.5 Mb
LEDs 1 Power -Screen 1 Mb
Com Ports-Serial: 1 RS232/RS485 -Data Log None

-Ethernet None PLC Steps 10 K

-USB 1 Device Back-up Battery
Clock-Calendar Yr/Mo/Day/Hr/Min/Sec Power Consumption 110 mA
Weight: 156 g

I/O None

3 Yrs at 25°C

OIS42 PLUS

Item Specification Item Specification

Display: 3” Graphical Monochrome

Touchscreen w/Tri Color-Backlight
Keys None 2 24 Vdc Trans., 300 mA each
LEDs 1 Power Analog Inputs 2, 16 bit, 0-5 Vdc, 0-10 Vdc,
Com Ports-Serial: 1 RS232/RS485 0/4-20 mA, Thermocouple, J/K

-Ethernet None RTD PT100 α1 & α2

-USB 1 Device Analog Outputs 1, 12 bit, 0-10 Vdc, 4 -20 mA
Clock-Calendar Yr/Mo/Day/Hr/Min/Sec Memory-Total 1.5 Mb
Back-up Battery
Power Consumption 420 mA -Data Log None
Weight: 300 g PLC Steps 10 K

3 Yrs at 25°C

I/O Digital Inputs

Digital Outputs

-Screen 1 Mb

8 24 Vdc, bidirectional
6 Relay, 2 amp each

Page 15 of 24

OIS55 PLUS

Buy: www.ValinOnline.com | Phone [phone] | Email: [email protected]

Item Specification Item Specification

Display: 3.5" TFT 320 x 240 Graphical Color

Touchscreen
Keys Six User-Defined Function Keys Memory-PLC 512 Kb
LEDs 1 Power, 6 User Defined -Screen 6 Mb
Com Ports-Serial: 1 RS232/RS485 -Data Log Yes

-Ethernet None PLC Steps 160 K

-USB 1 Device, 1 Host Back-up Battery
Clock-Calendar Yr/Mo/Day/Hr/Min/Sec Power Consumption 210 mA
Weight: 285 g

I/O 3 Clip-on Modules

3 Yrs at 25°C

OIS60 PLUS

Item Specification Item Specification

Display: 5.7" TFT 320 x 240 Graphical Color

Touchscreen
Keys Six User-Defined Function Keys Memory- 10 Mb
LEDs 1 Power, 6 User Defined -Screen 6 Mb
Com Ports-Serial: 1 RS232/RS485 -Data Log Yes

-Ethernet None PLC Steps 160 K

-USB 1 Device, 1 Host Back-up Battery
Clock-Calendar Yr/Mo/Day/Hr/Min/Sec Power Consumption 420 mA
Weight: 710 g

I/O 5 Clip-on Modules

3 Yrs at 25°C

OIS45E PLUS

Item Specification Item Specification

Display: 4.3" TFT 480 x 272 Graphical Color

Touchscreen
Keys None Memory- 128 Mb
LEDs 1 Power -Screen 10
Com Ports-Serial: 1 RS232/RS485 -Data Log Yes

-Ethernet 1 10/100 Mbps, Modbus T CP/IP PLC Steps 160 K

-USB 1 Device, 1 Host Back-up Battery
Clock-Calendar Yr/Mo/Day/Hr/Min/Sec Power Consumption 250 mA
Weight: 330 g

I/O 3 Clip-on Modules

3 Yrs at 25°C

Page 16 of 24

OIS70E PLUS

Buy: www.ValinOnline.com | Phone [phone] | Email: [email protected]

Item Specification Item Specification

Display: 7" TFT 800 x 480 Graphical Color

Touchscreen
Keys None Memory-PLC 128 Mb
LEDs 1 Power -Screen 10 Mb
Com Ports-Serial: 2 RS232/RS485 -Data Log Yes

-Ethernet 1 10/100 Mbps, Modbus T CP/IP PLC Steps 160 K

-USB 1 Device, 1 Host Back-up Battery
Clock-Calendar Yr/Mo/Day/Hr/Min/Sec Power Consumption 420mA
Weight: 690 g

I/O 5 Clip-on Modules

3 Yrs at 25°C

OIS120A

Item Specification Item Specification

Display: 12.1" TFT 800 x 600 Graphical Color

Touchscreen
Keys None Memory-PLC 512 Kb
LEDs 1 Power -Screen 10 Mb
Com Ports-Serial: 2 RS232/RS485 -Data Log Yes

-Ethernet 1 10/100 Mbps, Modbus T CP/IP PLC Steps 160 K

-USB 1 Device, 1 Host Back-up Battery
Clock-Calendar Yr/Mo/Day/Hr/Min/Sec Power Consumption 500 mA
Weight: 1680 g

I/O None

3 Yrs at 25°C

Discrete I/O Modules

Specification TRPDIX1600 TRPDOX0016N TRPDOX0016P TRPRO0012R

Input Type DC input,
Input Points 16 points (8p/com)
Rated Input Voltage 24Vdc, ±10%
Rated Input Current 5mA
Min. ON Voltage 15.0 Vdc

Inputs

Max. OFF Voltage 5.0 Vdc
ON/OFF Delay Time 10ms or less
Isolation Optical

Output Type DC Output DC Output Relay Output
Output Points 16points (8p/com) 16 points (8p/com) 12 points (3p/com)
Outputs Type
Rated Load Voltage 5-24Vdc, ±10% 5-24Vdc, ±10% 24 Vdc – 240 Vac

Outputs

Max. Load Current 0.5A/p oint 0.5A/point 2A/p oint
Leak Current at OFF 0.1mA or l es s 0.1mA or l es s None
ON/OFF Delay Time 1ms/2ms or less 1ms/2ms or less 10ms/5ms or less

Isolation Optical Optical Optical
External Connection Removable Term. Block Removable Term. Block Removable TB Removable TB
Max Current @ 24 Vdc 80 mA 80 mA 80 mA 80 mA
Weight 65 g 65 g 75 g 90 g

NPN Transistor PNP Transistor

Relay

Page 17 of 24

Buy: www.ValinOnline.com | Phone [phone] | Email: [email protected]

Specification

Input Type DC input, DC input, DC input DC input
Input Points 8 points (8p/com) 8 points (8p/com)
Rated Input Voltage 24Vdc, ±10% 24Vdc, ±10% 24Vdc, ±10% 24Vdc, ±10%
Rated Input Current 5mA 5mA 5mA 5mA
Min. ON Voltage 15.0 Vdc 15.0 Vdc 15.0 Vdc 15.0 Vdc

Inputs

Max. OFF Voltage 5.0 Vdc 5. 0 Vdc 5.0 Vdc 5.0 Vdc
ON/OFF Delay Time 10ms or less 10ms or less 10ms or less 10ms or less
Isolation Optical Optical Optical Optical

Output Type DC Output DC Output DC Output DC Output
Output Points 8 points (8p/com) 8 points (8p/com)
Outputs Type
Rated Load Voltage 5-24Vdc , ±10% 5-24Vdc , ±10% 5-24Vdc , ±10% 5-24Vdc , ±10%

Outputs

Max. Load Current 0.5A/point 0.5A/point 0.5A/point 0.5A/point
Leak Current at OFF 0.1mA or l e ss 0.1mA or l es s 0.1mA or l es s 0.1mA or l e ss
ON/OFF Delay Time 1ms/2ms or less 1ms/2ms or less 1ms/2ms or less 1ms/2ms or less

Isolation Optical Optical Optical Optical
External Connection Removable Term. Block Removable Term. Block Removable Term. Removable Term.
Max Current @ 24 Vdc 80 mA 80 mA 80 mA 80 mA
Weight 70 g 70 g 70 g 70 g

TRPDIO0808N TRPDIO0808P

NPN Transistor PNP Transistor NPN Transistor PNP Transistor

TRPHIO0808N TRPHIO0808P

8 pts. (4 HSCs) 8 pts. (4 HSCs)

8 pts (2 HS/1PWM) 8 pts (2 HS/1PWM)

Page 18 of 24

Analog I/O Modules

A



 1

A

A

A



 5

Buy: www.ValinOnline.com | Phone [phone] | Email: [email protected]

Specification TRPAIO0400L TRPAIO0202L TRPRTX0402

Input Type Analog Analog Analog
Input Points 4 Channels 2 Channels 4 Channels
Input Signal 0-20 mA/±10 Vdc 0-20 mA/±10 Vdc mA, Vdc, TC, RTD
Resolution 12 bit (1-4000) 12 bit (1-4000) 16 bit (1-65,000)

Inputs

ccuracy

Conversion Cycle 0.6 s 0.75 s ≈ 1 s var by type

Output
Output Points
Output Signal
Resolution

Outputs

ccuracy

Conversion Cycle

External Connection Removable TB Removable TB Removable TB
Max Current @ 5 Vdc 80 mA 80 mA 80 mA
Weight 80 g 85 g 90 g

More modules in development.

 1 at 25 C  1

2 Channels 2 Channels
2-20 mA/0-10 Vdc 2-20 mA/0-10 Vdc
12 bit (1-4000) 16 bit (1-65,000)
 5

0.7 s

at 25 C

nalog Output

at 25 C

at 25 C

nalog Output

at 25 C

≈ 1 s var by type

Page 19 of 24

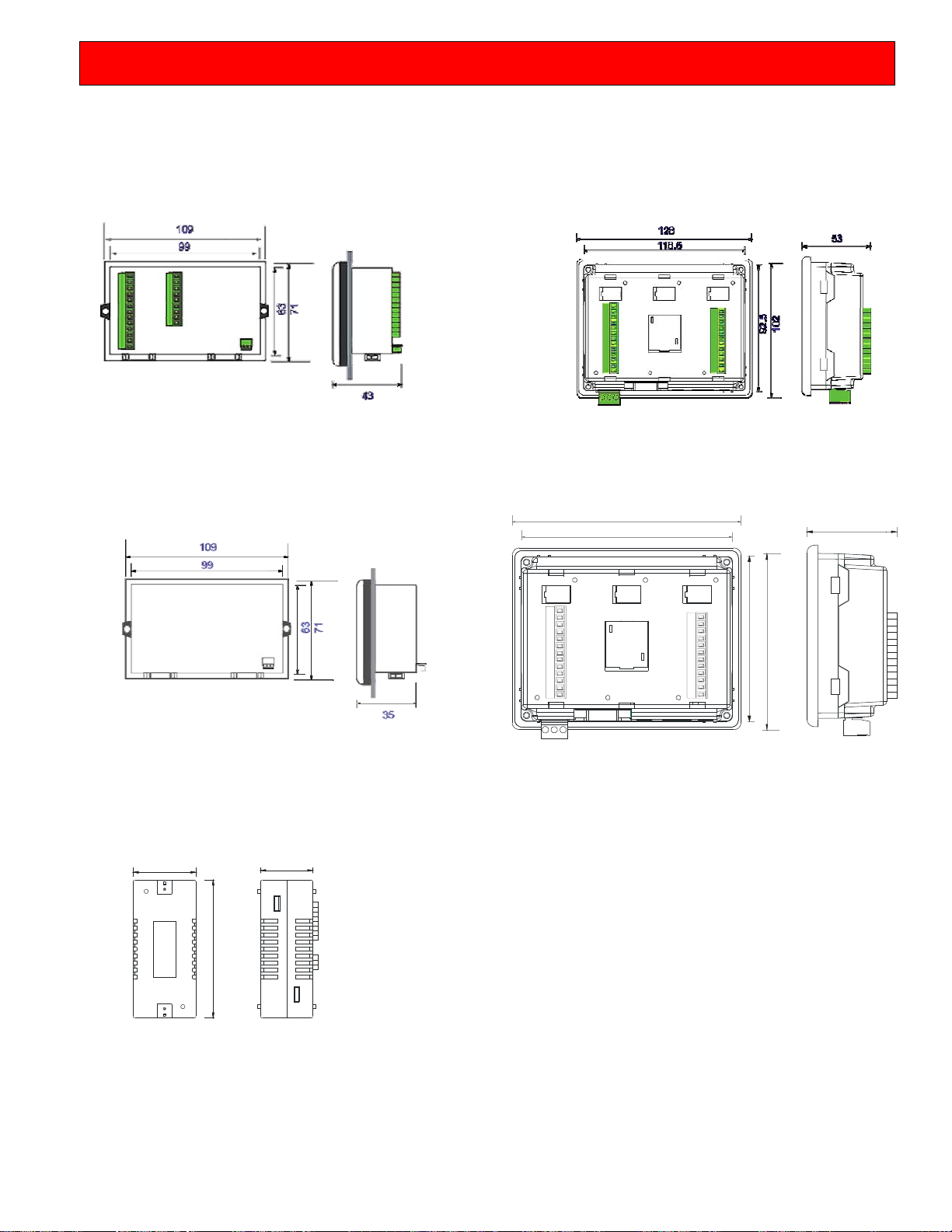

DIMENSIONS

Buy: www.ValinOnline.com | Phone [phone] | Email: [email protected]

Dimensions:

OIS10 PLUS/OIS12

Cut out = 99 x 63

OIS40/42 PLUS

Cut out = 99 x 63

OIS PLUS I/O Modules

36

7
9

FR ON T VIEW

LEFT SIDE VI EW

30

OIS20 PLUS

Cut out = 118.5 x 92.5

OIS55/OIS45E PLUS

128

118.5

Cut out = 119 x 93

102

92.5

All Dimensions in mm

53

Page 20 of 24

Buy: www.ValinOnline.com | Phone [phone] | Email: [email protected]

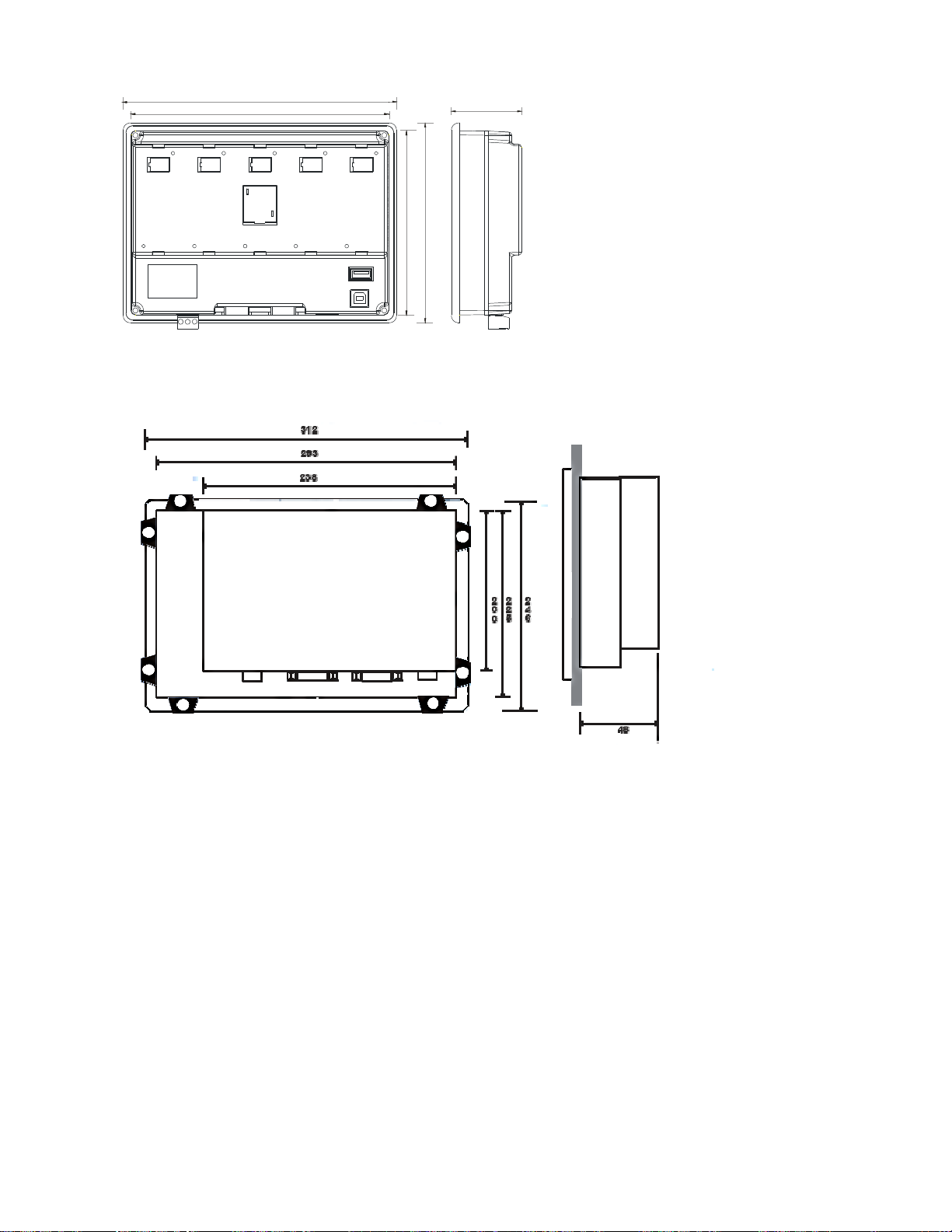

OIS60/OIS70E PLUS

195

183.8

50

142

130.8

Cut out = 184 x 131

OIS120A

Cut out = 295 x 227

All Dimensions in mm.

Page 21 of 24

Buy: www.ValinOnline.com | Phone [phone] | Email: [email protected]

Part Number Description

ORDER NUMBERS

Displays

OIS10 PLUS 16 x 2 Text with Multicolor Backlit LCD, numeric Keypad, 6 Function Keys w/built-in

OIS12 16 x 2 Text with Multicolor Backlit LCD, Same as OIS10 Plus but no I/O, used for T/C

OIS20 PLUS 3.1" Multicolor Backlit LCD, Numeric Keypad, 6 Function Keys, Has built-in 12 -24 Vdc

OIS40 PLUS 3” Multicolor Touchscreen, 24 Vdc PS, Requires OIL-DS setup software.
OIS42N PLUS 3” Multicolor Touchscreen, 8 DI, 6 RO, 2 TRO NPN, 2 AI, 1 AO, 24 Vdc PS, Requires

OIS42P PLUS 3” Multicolor Touchscreen, 8 DI, 6 RO, 2 TRO PNP, 2 AI, 1 AO, 24 Vdc PS, Requires
OIS55 PLUS 3.5” TFT Color Touch Panel, 6 Function Keys 24 Vdc PS. requires OIL-DS setup
OIS45 PLUS 4.3” TFT 480 x 272 Color Touchscreen, Ethernet Port, Accepts 3 clip-on I/O modules, 24
OIS60 PLUS 6” TFT Color Touch Panel, 24 Vdc PS, 6 Function Keys requires OIL-DS setup software.

OIS70 PLUS 7” TFT 800 x 480 Color Touchscreen, Ethernet Port, Accepts 5 clip-on I/O modules,
OIS120A 12” TFT 800 x 600 Color Touchscreen, Ethernet Port, 24 Vdc PS, Requires OIL-DS setup

Digital I/O

TRPDIX1600 16 Inputs, 24 Vdc (sink/source).
TRPDOX0016N 16 Outputs 24, Vdc, transistor NPN.
TRPDOX0016P 16 Outputs 24, Vdc, transistor PNP.
TRPRO0012R 12 Outputs, Relay, 240/120 Vac, 2a per common.
TRPDIO0808N 8 Inputs, 24 Vdc (sink/source), 8 Outputs, Transistor, 24 Vdc, NPN.
TRPDIR0808P 8 Inputs, 24 Vdc (sink/source), 8 Outputs, Transistor, 24 Vdc, PNP.
TRPHIO0808N 8 Inputs (4 HSC), 24 Vdc (sink/source), 8 Outputs (2 HS/1 PWM),

TRPHIO0808P 8 Inputs (4 HSC), 24 Vdc (sink/source), 8 Outputs (2 HS/1 PWM),

Analog I/O

TRPAIO0400L 4 Inputs, 4-20 mA/0-10 Vdc, 12 bit.
TRPAIO0202L 2 Inputs, 0-20 mA/0-10 Vdc, & 2 Outputs, 0-20 mA/0-10 Vdc, 12 bits each.
TRPRTX0402 4 - Inputs, 0-10 V, 4-20 mA, RTD, TC, 2-Outputs, 0-10 V, 4-20 mA, 16 bits each.

LEDs, Has built-in 8 -24 Vdc inputs, 6 Relay outputs, 2 - 24 Vdc NPN transistor outputs,
requires OIL-DS setup software.

access, message display, data value change for all Toshiba PLCs, Integrated Controllers
and ASDs, requires OIL-DS setup software.

inputs, 6 Relay outputs, 2 - 24 Vdc NPN transistor outputs, requires OIL-DS setup
software.

OIL-DS setup software.
OIL-DS setup software.
software.
Vdc PS, Requires OIL-DS setup software.

Ethernet Port, 24 Vdc PS, Requires OIL-DS setup software.
software.

Transistor, 24 Vdc, NPN.
Transistor, 24 Vdc, PNP.

Page 22 of 24

2

Buy: www.ValinOnline.com | Phone [phone] | Email: [email protected]

Cables
EC-P-108-00 Connects OIS PLUS to S9/S11//VF-nC1/VF-nC3 TTL Port, smart cable, 2 m.
EC-P-108A-00 Connects OIS PLUS to Toshiba G9/AS1 ASDs RS485 port, 4 wire, 2m.
EC-P-019A-00 Connects OIS40R/OISPLUS/OIS120A/GWY to T1 Programming Port, 2 m.
EC-P-019B-00 Connects OIS40R/OISPLUS/OIS120A/GWY to T2/T3/S2E/S2T Programming Port, 2 m.
EC-P-108C-00 Connects OIS PLUS to Toshiba FS1/nC3 ASDs RS485 port, 2 wire, 2m.
EC-P-046A-00 Connects OIS40R/OIS PLUS/OIS120A/GWY to T1/T2E/T3/S2E/S2T RS485 Port, Pigtail

on PLC end, 2 m.

EC-P-045B-00 Connects OIS PLUS/OIS120A to T2/T3/S2E/S2T Programming Port, 2 m.
RC-P-009H-00 Connects OIS PLUS/GWY to V200 Series PLC, RS232, 2 m.
RC-P-009I-00 Connects OIS PLUS/GWY to V200 Series PLC, RS485, 2 m.
IBM-0909-1-00

Notes: 1. Analog Inputs are Non Isolated (unless noted)

2. Standard USB printer cable can be used for programming/monitoring OIS

Programming Cable, For Download fro m Computer to all OIS/OIS PLUS. Use with

OISeup32 & OIL-DS setup software.

PLUS Displays.

Page 23 of 24
