FILE NO. 140-200208
SERVICE MANUAL
COLOR TELEVISION/
VIDEO CASSETTE RECORDER
MV20FM3
SERVICING NOTICES ON CHECKING
As for the places which need special attentions,
they are indicated with the labels or seals on the
cabinet, chassis and parts. Make sure to keep the
indications and notices in the operation manual.
2. AVOID AN ELECTRIC SHOCK
There is a high voltage part inside. Avoid an
electric shock while the electric current is
flowing.
3. USE THE DESIGNATED PARTS
The parts in this equipment have the specific
characters of incombustibility and withstand
voltage for safety. Therefore, the part which is
replaced should be used the part which has
the same character.
Especially as to the important parts for safety
which is indicated in the circuit diagram or the
table of parts as a mark, the designated
parts must be used.
4. PUT PARTS AND WIRES IN THE
ORIGINAL POSITION AFTER
ASSEMBLING OR WIRING
There are parts which use the insulation
material such as a tube or tape for safety, or
which are assembled in the condition that
these do not contact with the printed board.
The inside wiring is designed not to get closer
to the pyrogenic parts and high voltage parts.
Therefore, put these parts in the original
positions.
5. TAKE CARE TO DEAL WITH THE
CATHODE-RAY TUBE
In the condition that an explosion-proof cathoderay tube is set in this equipment, safety is
secured against implosion. However, when
removing it or serving from backward, it is
dangerous to give a shock. Take enough care to
deal with it.
6. AVOID AN X-RAY1. KEEP THE NOTICES
Safety is secured against an X-ray by considering about the cathode-ray tube and the high
voltage peripheral circuit, etc.
Therefore, when repairing the high voltage peripheral circuit, use the designated parts and
make sure not modify the circuit.
Repairing except indicates causes rising of high
voltage, and it emits an X-ray from the cathoderay tube.
PERFORM A SAFETY CHECK AFTER
7.
SERVICING
Confirm that the screws, parts and wiring which
were removed in order to service are put in the
original positions, or whether there are the
portions which are deteriorated around the
serviced places serviced or not. Check the
insulation between the antenna terminal or
external metal and the AC cord plug blades.
And be sure the safety of that.
(INSULATION CHECK PROCEDURE)
1.
Unplug the plug from the AC outlet.
2.
Remove the antenna terminal on TV and turn
on the TV.
3.
Insulation resistance between the cord plug
terminals and the eternal exposure metal
[Note 2] should be more than 1M ohm by
using the 500V insulation resistance meter
[Note 1].
4.
If the insulation resistance is less than 1M
ohm, the inspection repair should be
required.
[Note 1]
If you have not the 500V insulation
resistance meter, use a Tester.
[Note 2]
External exposure metal: Antenna terminal
Earphone jack
HOW TO ORDER PARTS
Please include the following informations when you order parts. (Particularly the VERSION LETTER.)
1. MODEL NUMBER and VERSION LETTER
The MODEL NUMBER can be found on the back of each product and the VERSION LETTER can be
found at the end of the SERIAL NUMBER.
2. PART NO. and DESCRIPTION
You can find it in your SERVICE MANUAL.
A1-1

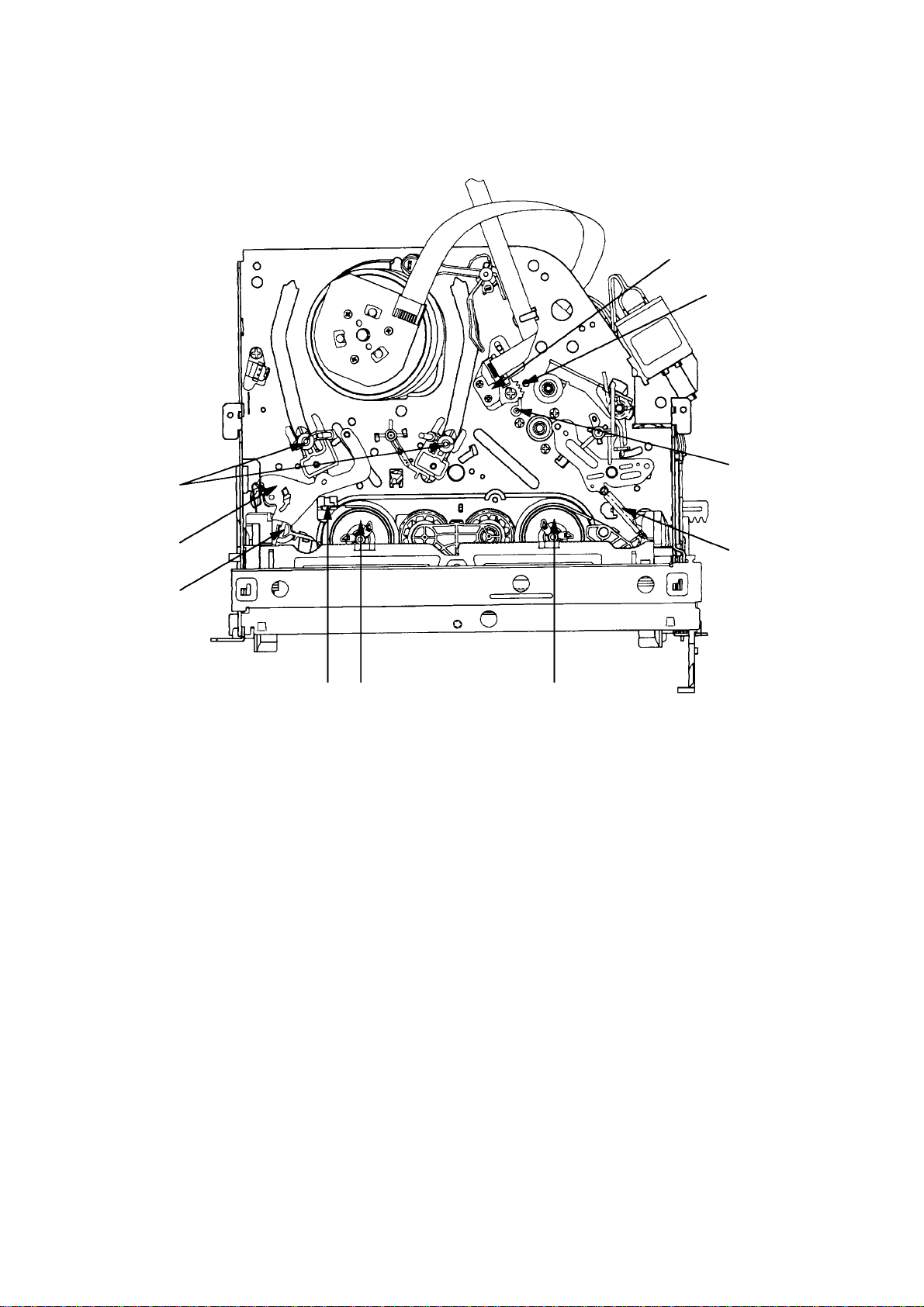

TAPE REMOV AL METHOD AT NO POWER SUPPLY
1.
Remove the VCR block from the main unit.
(Refer to item 1 of the DISASSEMBLY INSTRUCTIONS.)
2.
Remove the screw 1 of the Deck Chassis and remove the Loading Motor.
3.

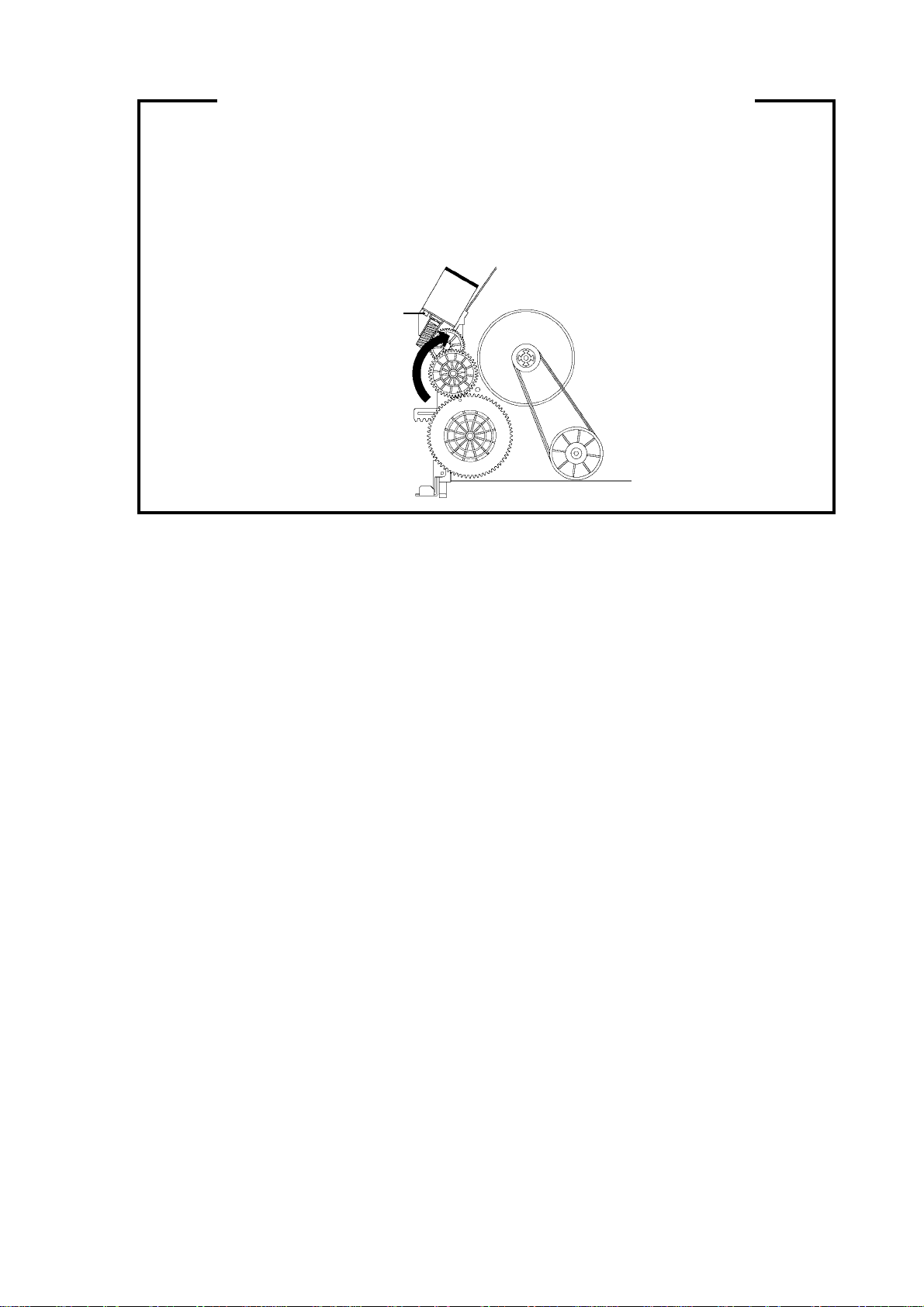

Rotate the Pinch Roller Cam in the direction of the arrow by hand to slacken the Video Tape.
4.
Rotate the Clutch Ass'y either of the derections to wind the Video Tape in the Cassette Case.
5.
Repeat the above step 3~4. Then take out the Video Cassette from the Deck Chassis. Be careful not to
scratch on the tape.
Loading Motor
Screw 1
Capstan DD Unit
Pinch Roller Cam
Main Cam
Clutch Ass'y
Main Chassis (Front Side)
A1-2
TABLE OF CONTENTS
SERVICING NOTICES ON CHECKING.....................................................................................
HOW TO ORDER PARTS ..........................................................................................................
TAPE REMOVAL METHOD AT NO POWER SUPPLY ............................................................
TABLE OF CONTENTS..............................................................................................................
GENERAL SPECIFICATIONS....................................................................................................
DISASSEMBLY INSTRUCTIONS
1. REMOVAL OF MECHANICAL PARTS AND P. C. BOARDS ............................................
2. REMOVAL OF DECK PARTS ............................................................................................

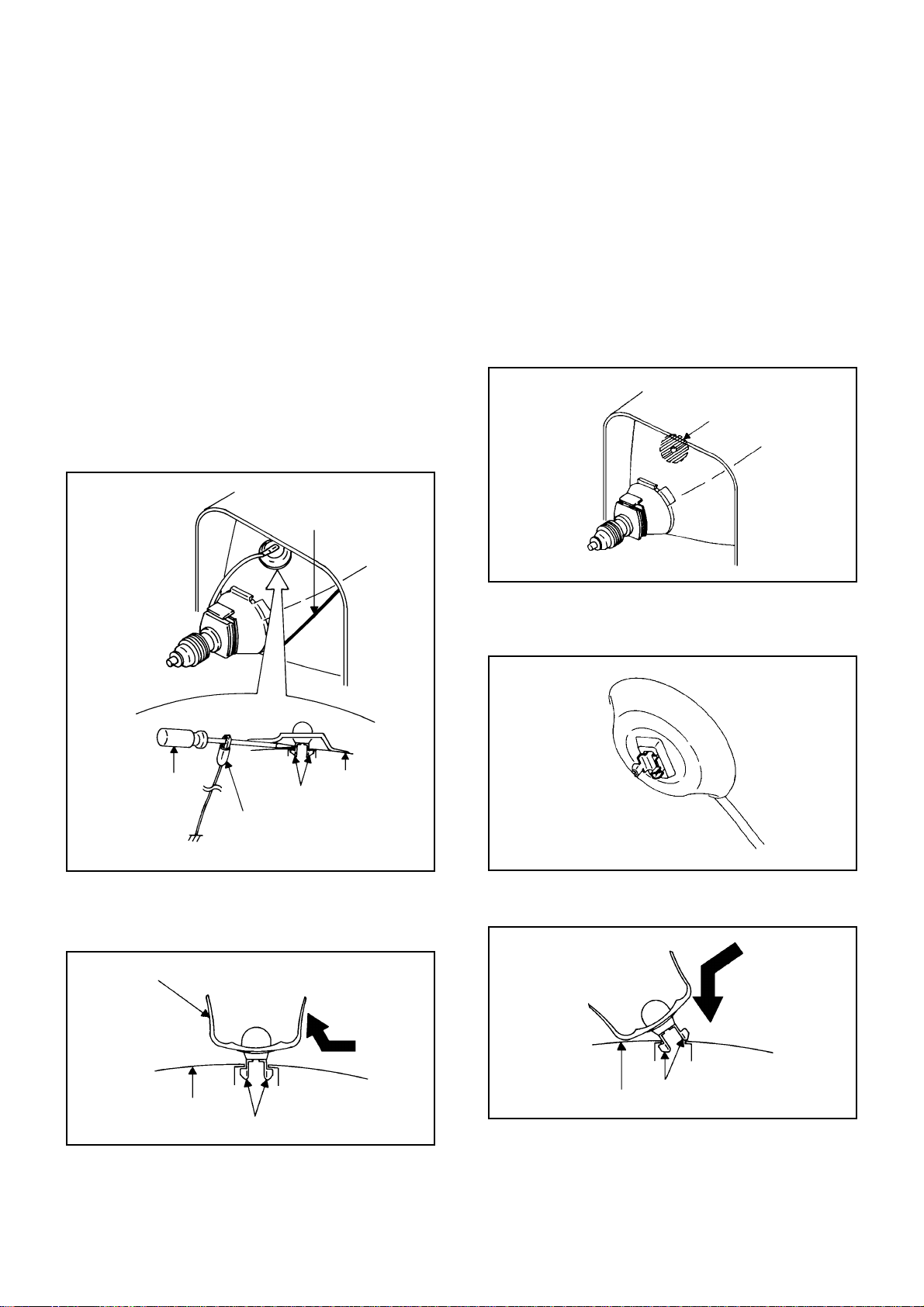

3. REMOVAL OF ANODE CAP ..............................................................................................

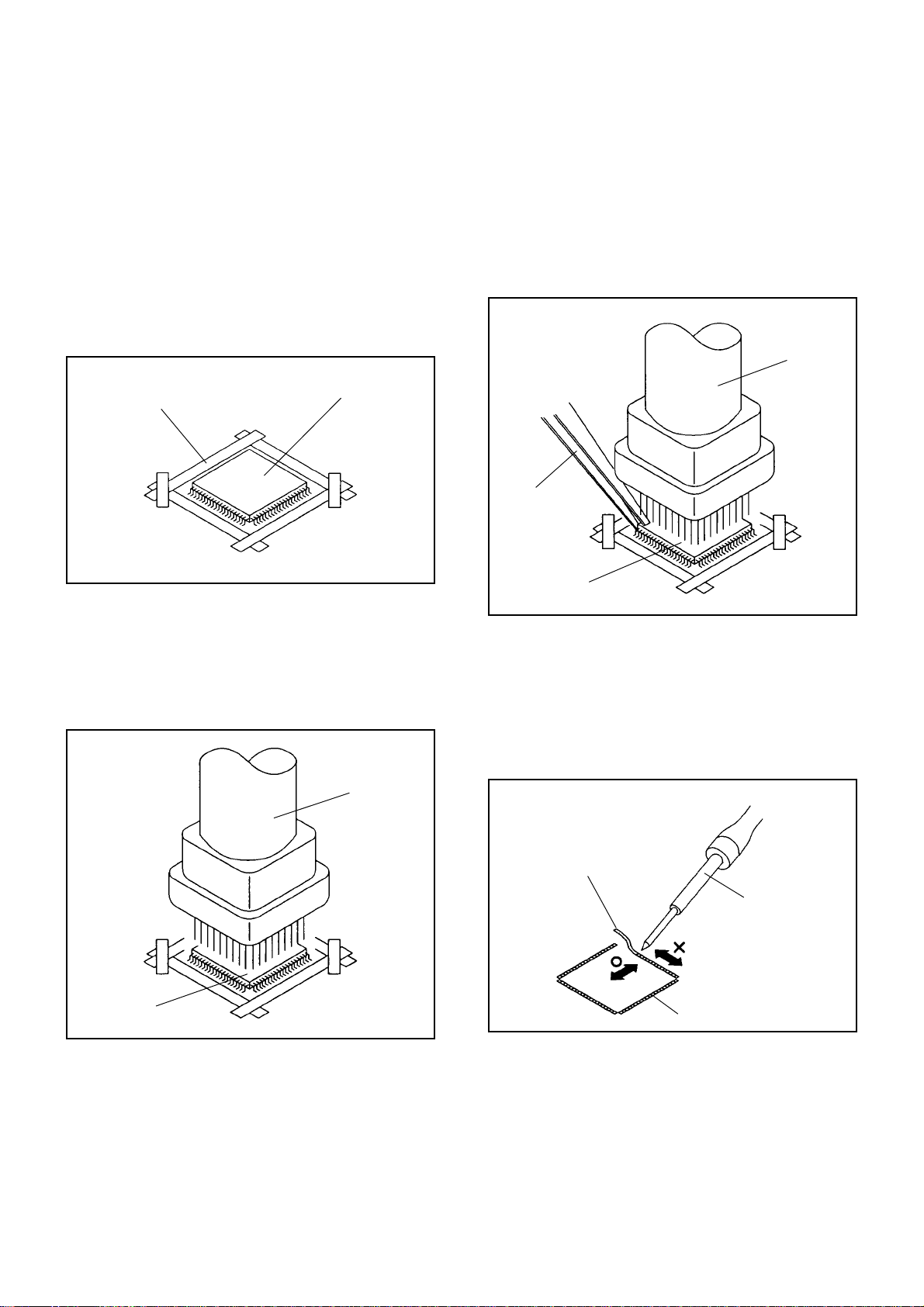

4. REMOVAL AND INSTALLATION OF FLAT PACKAGE IC ...............................................
KEY TO ABBREVIATIONS ........................................................................................................
SERVICE MODE LIST ................................................................................................................
PREVENTIVE CHECKS AND SERVICE INTERVALS..............................................................
WHEN REPLACING EEPROM (MEMORY) IC ..........................................................................
SERVICING FIXTURES AND TOOLS .......................................................................................
PREPARATION FOR SERVICING.............................................................................................

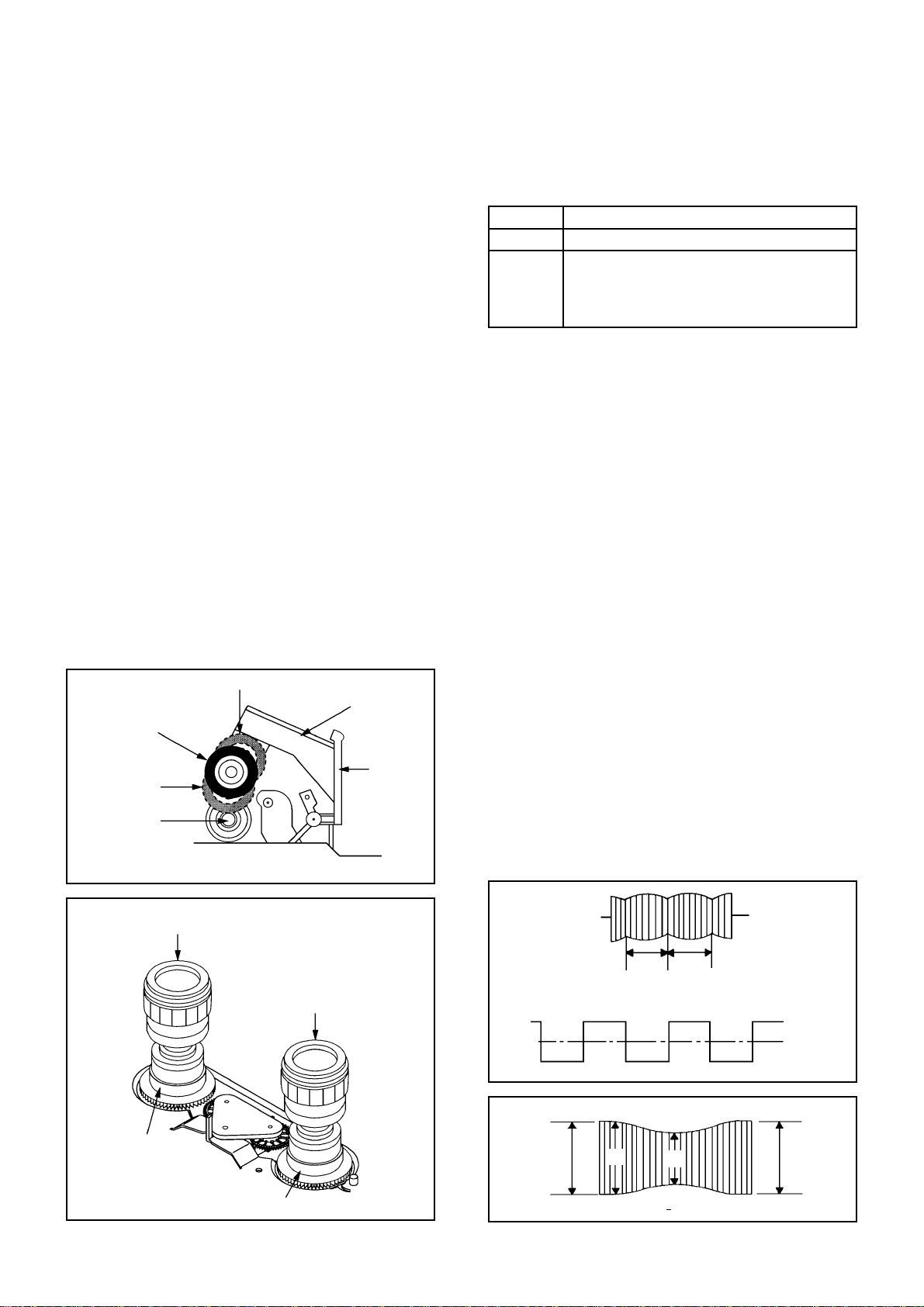

MECHANICAL ADJUSTMENTS ................................................................................................
ELECTRICAL ADJUSTMENTS..................................................................................................
BLOCK DIAGRAMS
TV ............................................................................................................................................
Y/C/AUDIO/CCD/HEAD AMP .................................................................................................
MICON/OPERATION/IN/OUT ................................................................................................
HI-FI........................................................................................................................................
PRINTED CIRCUIT BOARDS

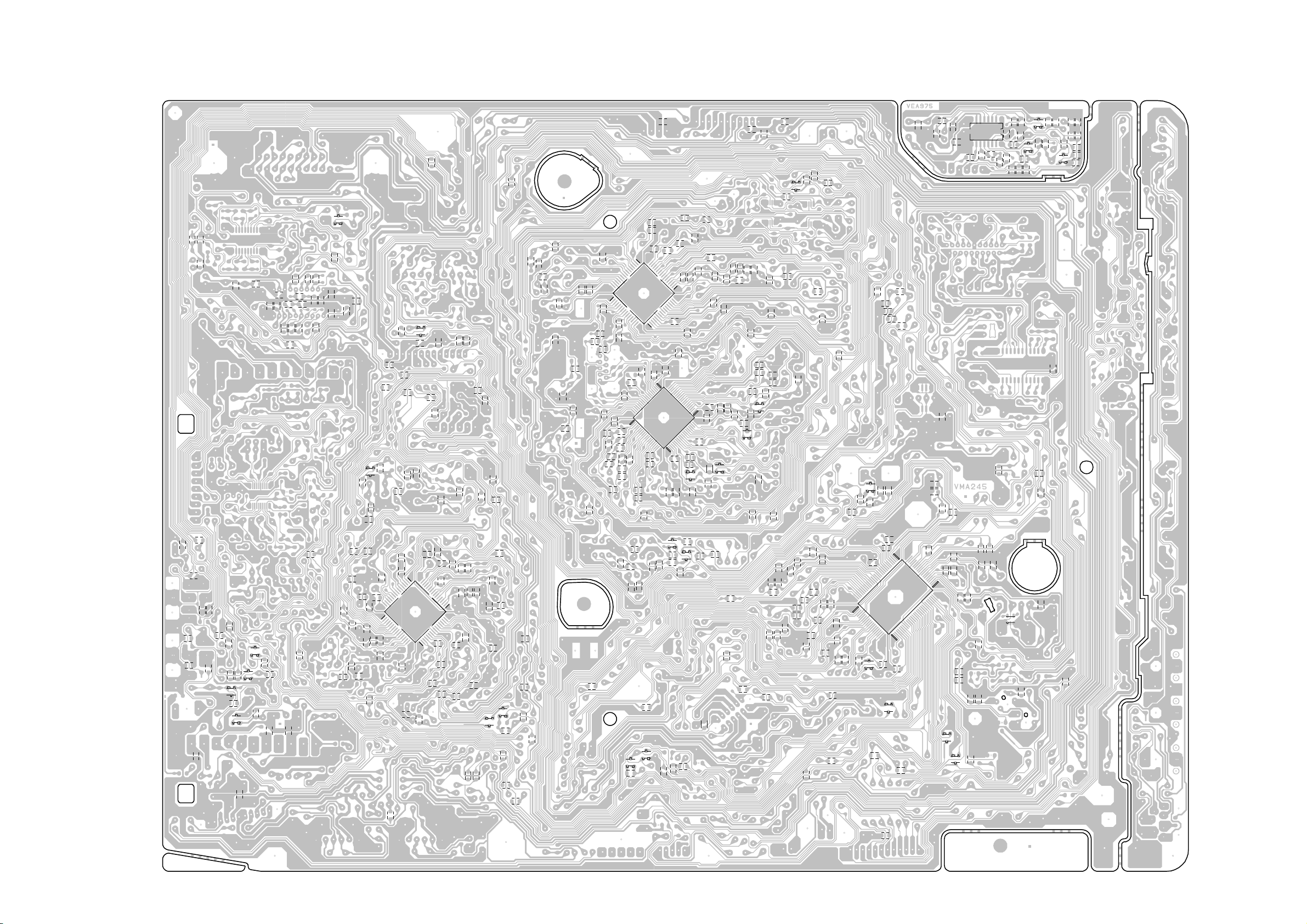

MAIN/CRT ...............................................................................................................................
SYSCON/COMB......................................................................................................................
OPERATION ...........................................................................................................................
SCHEMATIC DIAGRAMS
Y/C/AUDIO/CCD/HEAD AMP .................................................................................................

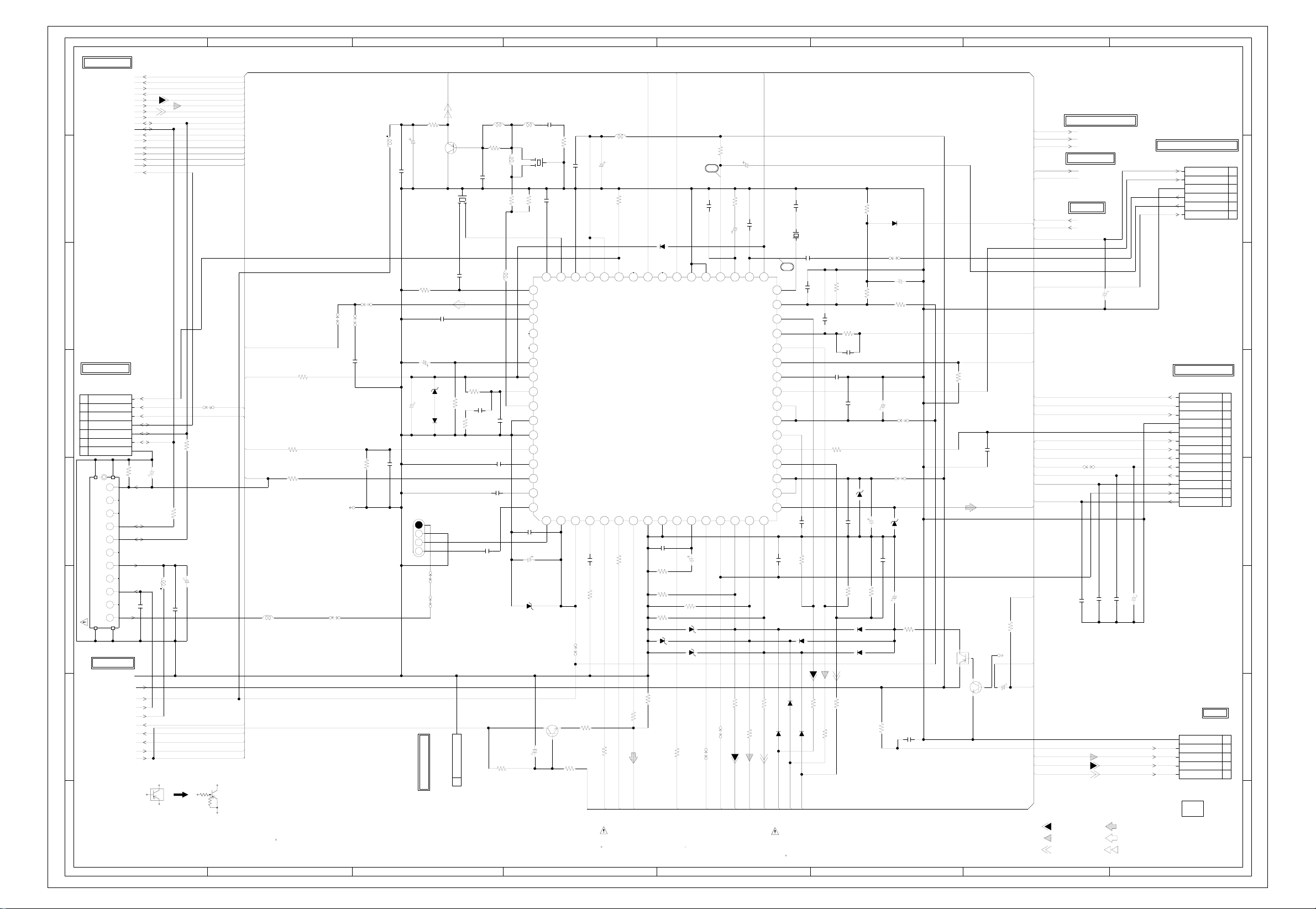

MICON .....................................................................................................................................

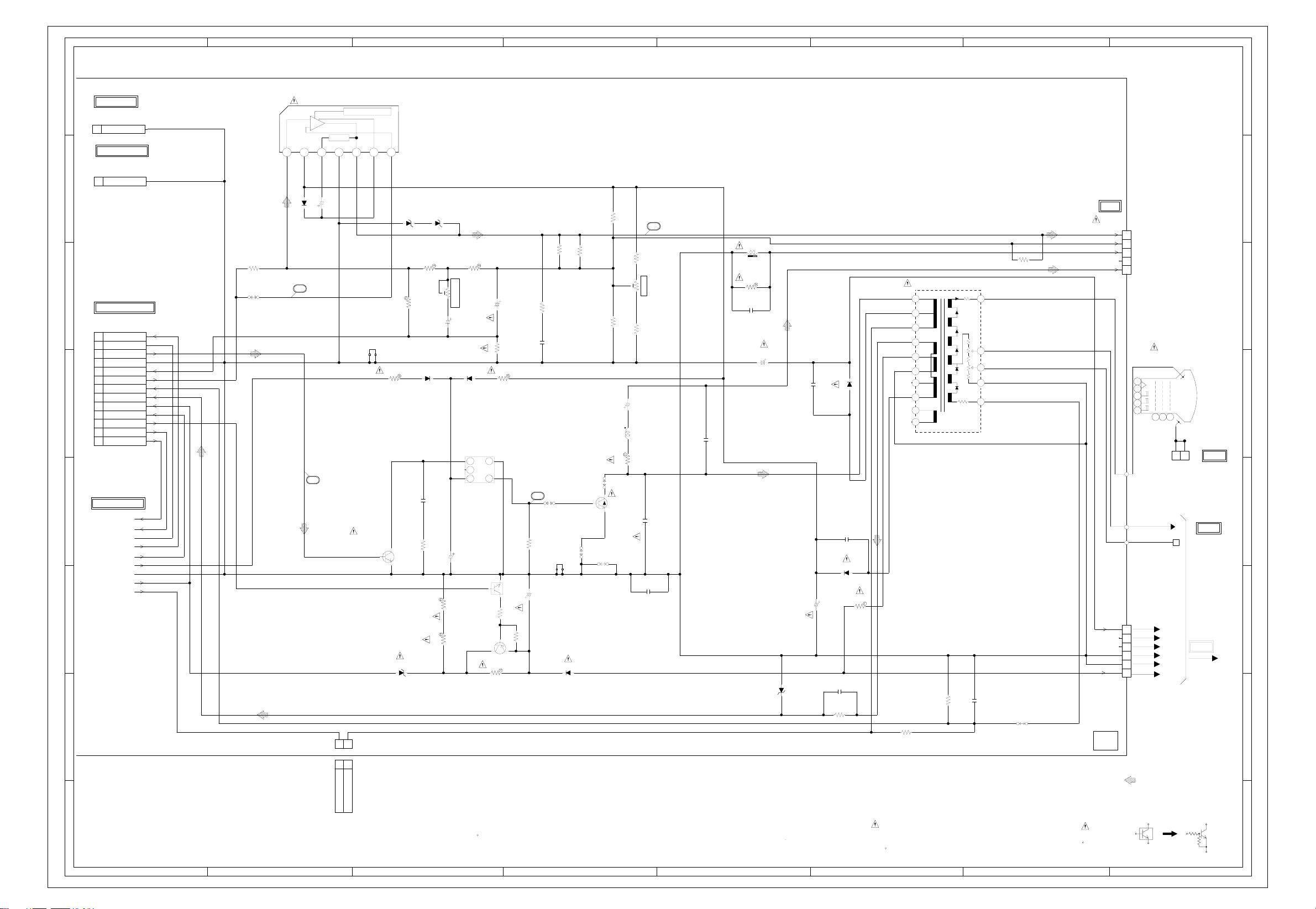

POWER ...................................................................................................................................
IN/OUT .....................................................................................................................................
CHROMA/IF.............................................................................................................................
SOUND AMP ...........................................................................................................................
HI-FI .........................................................................................................................................
IF ............................................................................................................................................
DIGITAL COMB FILTER .........................................................................................................
TV POWER .............................................................................................................................
DEFLECTION..........................................................................................................................
CRT..........................................................................................................................................
OPERATION ...........................................................................................................................
INTERCONNECTION DIAGRAM ...............................................................................................

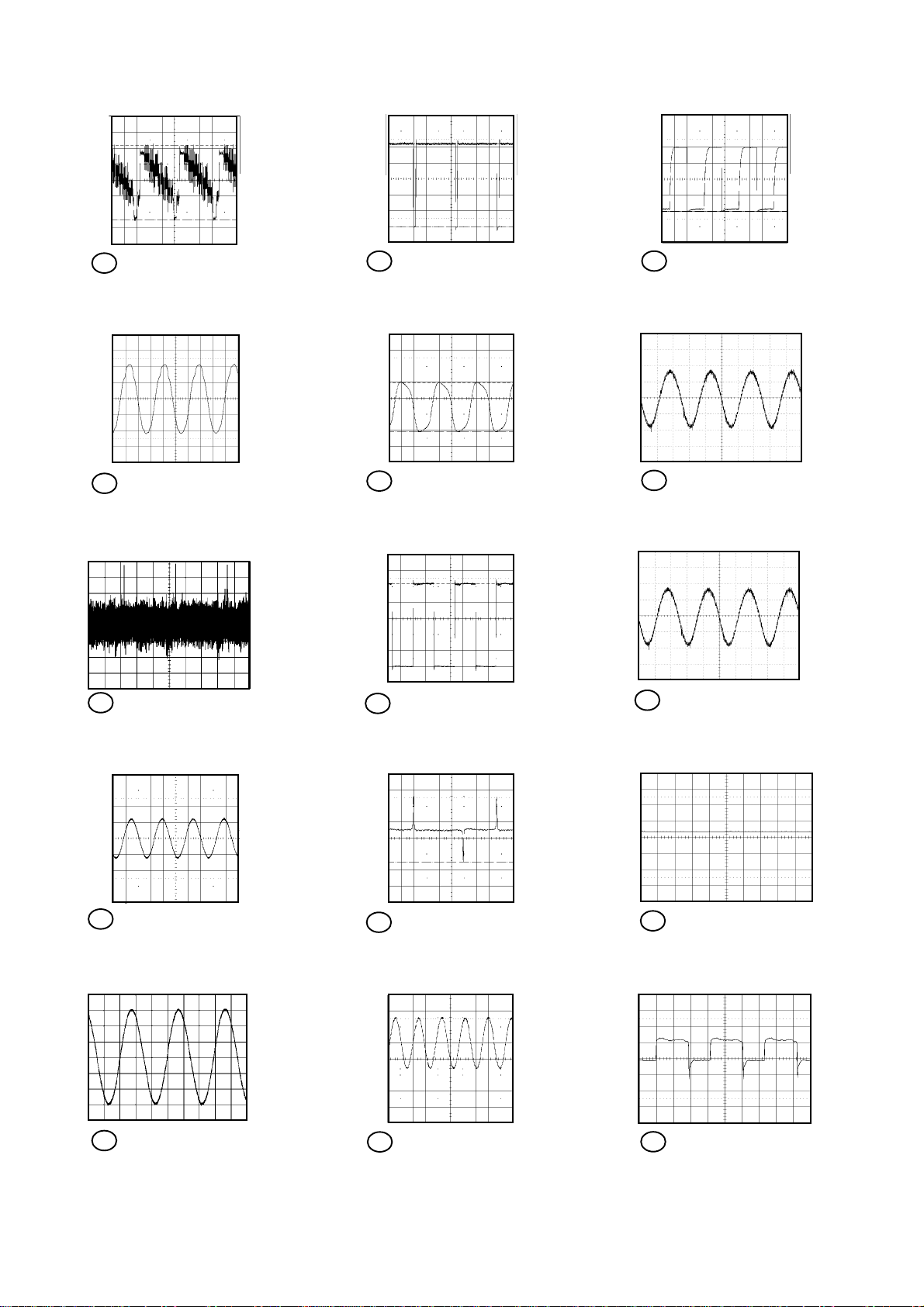

WAVEFORMS .............................................................................................................................
MECHANICAL EXPLODED VIEWS...........................................................................................
CHASSIS EXPLODED VIEWS ...................................................................................................
MECHANICAL REPLACEMENT PARTS LIST .........................................................................
CHASSIS REPLACEMENT PARTS LIST..................................................................................
ELECTRICAL REPLACEMENT PARTS LIST...........................................................................
A1-1
A1-1
A1-2
A2-1
A3-1~A3-5
B1-1, B1-2
B2-1~B2-6
B3-1
B4-1, B4-2
C1-1, C1-2
C2-1
C3-1, C3-2
C4-1
D1-1
D1-1
D2-1~D2-4
D3-1~D3-6
E-1, E-2
E-3, E-4
E-5, E-6
E-7, E-8
F-1~F-4
F-5~F-8
F-9, F-10
G-1, G-2
G-3, G-4
G-5, G-6
G-7, G-8
G-9, G-10
G-11, G-12
G-13, G-14
G-15, G-16
G-17, G-18
G-19, G-20
G-21, G-22
G-23, G-24
G-25, G-26
G-27, G-28
H-1, H-2
I1-1, I1-2
I2-1, I2-2
J1-1
J2-1
J3-1~J3-5
A2-1
GENERAL SPECIFICATIONS
2~69, 4A,A
,
G-1 TV CRT CRT Size / Visual Size 20 inch / 508.0 mmV
System CRT Type Flat
Deflection 90 degree
Magnetic Field BV/BH + 0.45 G / 0.18 G
Color System NTSC
Speaker 2 Speaker
Position Front
Size 3 Inch
Impedance 8 ohm
Sound Output MAX 1.5W + 1.5W
10%(Typical) 1.5W + 1.5W
G-2 VCR System VHS Player / Recorder
System Video System NTSC
Hi-Fi STEREO Yes
NTSC PB Deck DECK OVD-7
Loading System Front
Motor 3
Heads Video Head 4 Head
FM Audio Head 2 Head
Audio /Control Mono /Yes
Erase(Full Track Erase) Yes
Tape Rec PAL Speed NTSC SP/SLP(EP)
Play PAL -
NTSC SP/SLP(EP)
Fast Forward / Rewind Time (Approx.) at 25oC FF:4'50"/REW:2'30"
with Cassette T-120
Forward/Reverse NTSC or PAL-M SP/SLP(EP) = 3x,5x / 9x,15x
Picture Search
Frame Advance 1/10
Slow Speed 1/10
G-3 Tuning Broadcasting System US System M
System Tuner and System 1 Tuner
Receive CH Destination US(w/CATV)
Tuning System F-Synth
Input Impedance VHF/UHF 75 ohm
CH Coverage
Intermediate Picture(FP) 45.75MHz
Frequency Sound(FS) 41.25MHz
FP-FS 4.5MHz
Preset CH
Stereo/Dual TV Sound US-Stereo
Tuner Sound Muting Yes
G-4 Signal Video Signal Input Level 1 V p-p/75 ohm
Output Level 1 V p-p/75 ohm
S/N Ratio (Weighted) 50 dB
Horizontal Resolution at SP Mode 220Line
Audio Signal
(0dB=0.775Vrms)
Hi-Fi Audio Signal Dynamic Range : More than 90 dB
G-5 Power Power Source AC 120V,60Hz
Power Consumption at AC 110 W at 120 V 60 Hz
Protector Power Fuse Yes
Input Level
Output Level
S/N Ratio at SP (Weighted) 38 dB
Harmonic Distortion (1KHz)
Typical
Frequency Response at SP 100Hz - 10kHz
at LP -
at SLP 100Hz - 4kHz
Wow And Flutter : Less than 0.01 %Wrms
Channel Separation : More than 60 dB
Harmonic Distortion : Less than 1.0 %
DC -
at DC Stand by (at AC) 3 W at 120 V 60 Hz
Per Year -
Dew Sensor
-8dBm/50Kohm
-8dBm/1Kohm
1.5 %
J~W
-5~A-1, A~I,
W+1~W+84
No
No
A3-1
GENERAL SPECIFICATIONS
Play/S
/FF/Rew/Rec/OTR/T-Rec/P
/Ej
(Sy
)
G-6 Regulation Safety UL
Radiation FCC
X-Radiation DHHS
G-7 Temperature Operation +5oC ~ +40oC
Storage -20oC ~ +60oC
G-8 Operating Humidity Less then 80% RH
G-9 On Screen Menu Yes
Display Menu Type Character
Timer Rec Set Yes
Channel Setup Yes
TV/CATV Yes
Auto CH Memory Yes
Add/ Delete Yes
Guide CH Set
TV Setup Yes
V-chip Set Yes
On/Off Timer Set Yes
Picture Yes
Audio Yes
Sap On/Off Yes
Auto Repeat On/Off Yes
System Setup Yes
Clock Set Yes (Calendar 12h)
Language Yes
Auto Clock On/Off Yes
Standard Time Yes
Daylight Saving Time Yes
Commercial Advance
Marking On/Off
Blueback On/Off
Playback Auto/Manual
Unmarked Tape
Movie Advance
Go To Movie
Go To Preview
G-CODE(or SHOWVIEW or PLUSCODE)No. Entry
Clock / Date Yes
CH/AV Yes
Tape Counter(Linear Counter) Yes
Tape Speed Yes
Sleep Time Yes
Stereo/Audio Output Yes
Bilingal
SAP Yes
Control Volume Yes
Level Bright / Contrast / Sharpness / Color Yes
Tint Yes
Bass/Treble/Balance Yes
Manual Tracking Yes
top
Auto Tracking/Manual Tracking Yes
Caption / Text Yes
Index
Muting Yes
Hi-Fi Yes
Repeat Yes
Zero Return
DEW
G-10 OSD Language English French Spanish
G-11 Clock,Timer Calendar 1990/1/1 ~ 2081/12/31
and Timer Timer Events 8 Program/ 1 Month
Back-up One Touch Recording Max Time 5 Hours
OTPB Valid Time Sleep Timer Max Time 120
On/Off Timer Program(On Timer / Off Timer) 1
Auto Shut Off No Signal 15
Timer Back-up (at Power Off Mode) 5
mbol Mark
Step 10
No Operation -
ause
ect/Tape In
Yes
No
No
No
No
No
No
No
No
No
No
No
No
No
No
Min
Min
Program
Min
Min
Sec
A3-2
GENERAL SPECIFICATIONS
G-12 Remote Unit RC-DQ
Control Glow in Dark Remocon Yes
Format NEC
Custom Code 40-BFh,44-BBh
Power Source Voltage(D.C) 3V
UM size x pcs UM-4 x 2 pcs
Total Keys 44
Keys Power Yes
1Yes
2Yes
3Yes
4Yes
5Yes
6Yes
7Yes
8Yes
9Yes
0Yes
CH Up Yes
CH Down Yes
Volume Up Yes
Volume Down Yes
Input Select Yes
Play Yes
F.Fwd Yes
Rew Yes
Pause/Still Yes
Stop Yes
Rec/OTR Yes(2Keys)
Eject Yes
Counter Reset Yes
Speed Yes
Timer Rec Yes(2Keys)
TV Monitor
Quick View Yes
Program Yes
Slow Yes
Auto Tracking Yes
Set/Tracking+ Yes
Set/ Tracking - Yes
Menu Yes
Enter Yes
Cancel Yes
Call Yes
TV/Caption/Text Yes
Sleep Timer Yes
Muting Yes
Zero Return Yes
CM Skip Yes
Audio Select Yes
Keys
No
A3-3
GENERAL SPECIFICATIONS
G-13 Features Auto Head Cleaning
Auto Tracking Yes
HQ (VHS Standard High Quality) Yes
Auto Power On, Auto Play, Auto Rewind, Auto Eject Yes
VIDEO PLUS+(SHOWVIEW,G-CODE)
Auto Clock Yes
Forward / Reverse Picture Search Yes
Reverse Slow
One Touch Playback
Auto CH Memory Yes
Closed Caption Yes
TV Auto Shut off Function Yes
End Call
Index Search
SQPB
CATV Yes
CM Skip(30sec x 6 Times) Yes
Comb Filter Yes
TV Monitor
Program Extend
Choke Coil
Energy Star Yes
Protect of FBT Leak Curcuit Yes
Zero Return Yes
Power On Memory
Dirty Head
V-chip USA V-chip Yes
CANADA V-chip
CM Advance
Movie Advance
G-14 Accessories Owner's Manual Language English
w/Guarantee Card Yes
Remote Control Unit Yes
Battery Yes
UM size x pcs UM-4 x 2 pcs
Rod Antenna
Poles -
Terminal Loop Antenna
Terminal U/V Mixer
300 ohm to 75 ohm Antenna Adapter Yes
Antenna Change Plug
DC Car Cord (Center+)
AC Plug Adapter
AC Cord
AV Cord (2Pin-1Pin)
Guarantee Card
Registration Card Yes
ESP Card Yes
Warning Sheet
Dew/AHC Caution Sheet
Quick Set-up Sheet
Circuit Diagram
Service Facility List
Important Safeguard
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
A3-4
GENERAL SPECIFICATIONS
G-15 Interface Switch Power Yes
Play Yes
Pause/Still
System Select
One Touch Playback
Channel Up Yes
Channel Down Yes
F.FWD/Cue Yes
Eject/Stop Yes
Main Power SW
Volume Up Yes
Volume Down Yes
Rew/Rev Yes
Rec/OTR Yes
Input Select
Indicator Power
Rec/OTR Red
T-Rec Red
On Timer
CS
Key Light up Rec/OTR
One Touch Playback
Play
Terminals Front Video Input RCAx1
Audio Input RCA x 2(Stereo)
Other Terminal Head Phone(Stereo & Mono, 3.5mm)
Rear Video Input RCAx1
Audio Input RCA x 2(Stereo)
Video Output RCAx1
Audio Output RCA x 2(Stereo)
Euro Scart
Diversity
Ext Speaker
DC Jack 12V(Center +)
VHF/UHF Antenna Input
AC Inlet
G-16 Set Size Approx. W x D x H (mm) 574 x 483 x 514.5
G-17 Weight Net (Approx.) 26.5 kg( 58.5 lbs)
Gross (Approx.) 28.5 kg( 62.9 lbs)
G-18 Carton Master Carton
Content -
Material -
Dimensions W x D x H(mm) -
Description of Origin -
Gift Box Yes
Material DOUBLE/WHITE
Dimensions W x D x H(mm) 647 x 620 x 625
Design As per Buyer's
Description of Origin Yes
Drop Test Natural Dropping At
Height (cm) 31
Container Stuffing(40' container) 171
G-19 Cabinet Material Cabinet Front PS 94V0 DECABROM
Cabinet Rear PS 94V0 DECABROM
Jack Panel PS 94V0
F Type
1 Corner / 3 Edges / 6 Surfaces
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
Sets
A3-5
DISASSEMBLY INSTRUCTIONS
1. REMOVAL OF MECHANICAL PARTS
AND P.C. BOARDS

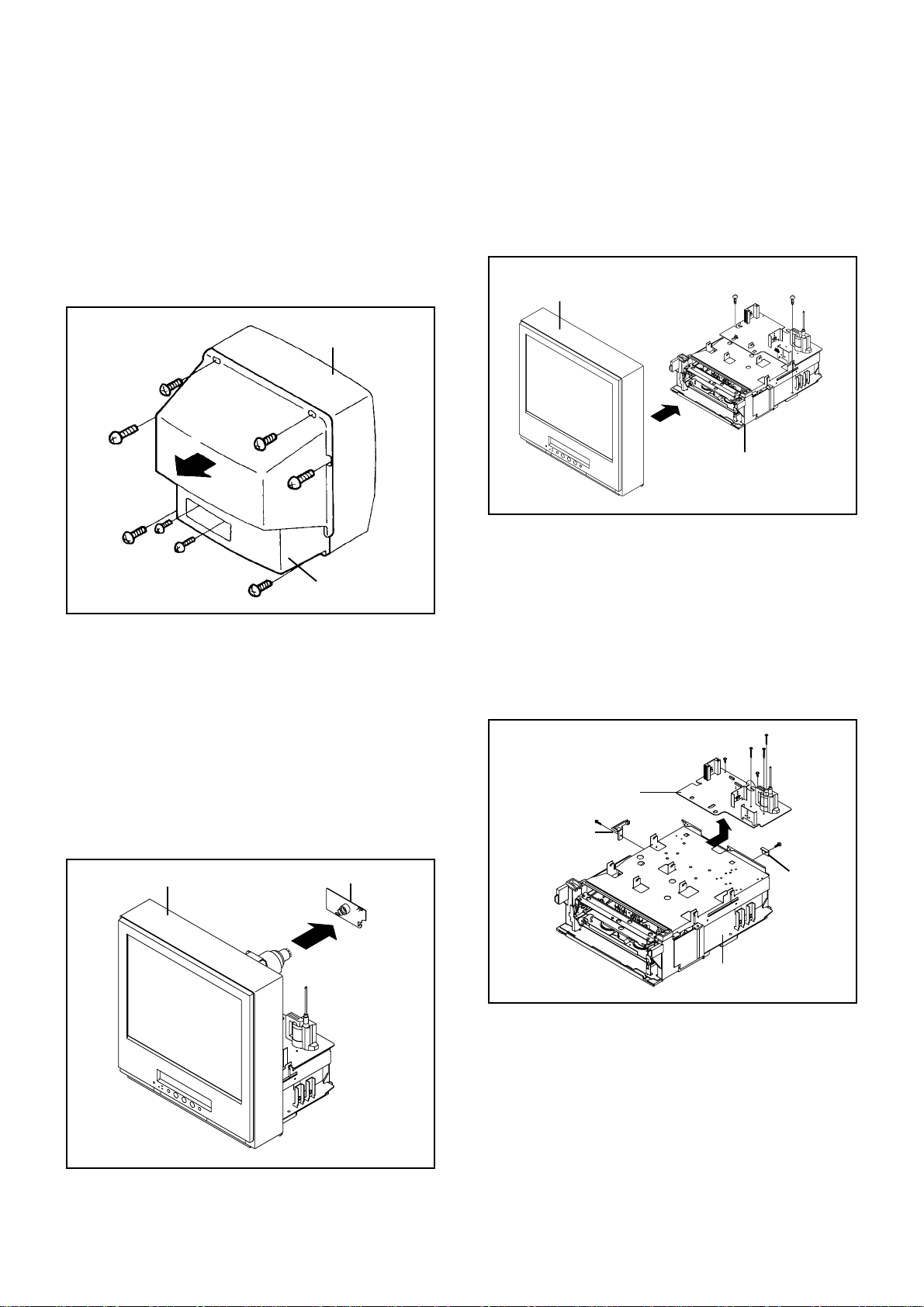

1-1: BACK CABINET (Refer to Fig. 1-1)
1.
Remove the 6 screws 1.
2.
Remove the 2 screws 2 which are used for holding the
Back Cabinet.
3.
Remove the AC cord from the AC cord hook 3.
4.
Remove the Back Cabinet in the direction of arrow.
Front Cabinet
1
1
1
2
2
1-2: CRT PCB (Refer to Fig. 1-2)
CAUTION: BEFORE REMOVING THE ANODE CAP,
DISCHARGE ELECTRICITY BECAUSE IT
CONTAINS HIGH VOLTAGE.
BEFORE ATTEMPTING TO REMOVE OR
REPAIR ANY PCB, UNPLUG THE POWER
CORD FROM THE AC SOURCE.
1.
Remove the Anode Cap.
(Refer to REMOVAL OF ANODE CAP)
2.
Disconnect the following connectors:
(CP802 and CP805).
3.
Remove the CRT PCB in the direction of arrow.
1
1
3
1
Back Cabinet
Fig. 1-1
1-3: TV/VCR BLOCK (Refer to Fig. 1-3)
1.
Remove the 2 screws 1.
2.
Disconnect the following connectors:
(CP401, CP502, CP2201 and CP4202).
3.
Unlock the support 2.
4.
Remove the TV/VCR Block in the direction of arrow.
Front Cabinet
1
TV/VCR Block
UP TO
RELEASE
1-4: MAIN PCB (Refer to Fig. 1-4)
1.
Remove the screw 1.
2.
Remove the Main PCB Holder.
3.
Remove the screw 2.
4.
Remove the TV-PCB Holder.
5.
Remove the 2 screws 3.
6.
Remove the 3 screws 4.
7.
Disconnect the following connectors:
(CP810A, CP820A, CP403 and CD402).
8.
Remove the Main PCB in the direction of arrow.
4
4
3
Main PCB
1
Main PCB Holder
4
3
2
1
2
Fig. 1-3
Front Cabinet CRT PCB
TV-PCB Holder
VCR Block
Fig. 1-4
Fig. 1-2
B1-1
DISASSEMBLY INSTRUCTIONS
1-5:
DECK SHIELD PLATE AND BOTTOM SHIELD
(Refer to Fig. 1-5)
1.
Remove the 2 screws 1.
2.
Remove the screw 2.
3.
Remove the Deck Shield Plate in the direction of arrow (A).
4.
Remove the screw 3.
5.
Remove the Bottom Shield in the direction of arrow (B).
2
1
1
(A)
VCR Block
(B)
Bottom Shield
Deck Shield Plate
1-7: JACK PLATE AND SYSCON PCB (Refer to Fig. 1-7)
1.
Remove the screw 1.
2.
Remove the Syscon PCB in the direction of arrow (A).
3.
Remove the 2 screws 2.
4.
Unlock the 2 supports 3.
5.
Remove the Jack Plate in the direction of arrow (B).
Jack Plate
Syscon PCB
3
(B)
1
(A)
Deck Holder
2
2
3
Fig. 1-7
3
1-6: DECK CHASSIS (Refer to Fig. 1-6)
1.
Remove the screw 1.
2.
Remove the Plate Cover Light.
3.
Remove the 3 screws 2.
4.
Disconnect the following connectors:
(CP1001, CP4001, CP4002 and CP4003).
5.
Remove the Deck Chassis and AC Head Cover in the
direction of arrow.
1
Plate Cover Light
2
2
Deck Chassis
2
AC Head Cover
Fig. 1-5
Syscon PCB
Fig. 1-6
B1-2
DISASSEMBLY INSTRUCTIONS

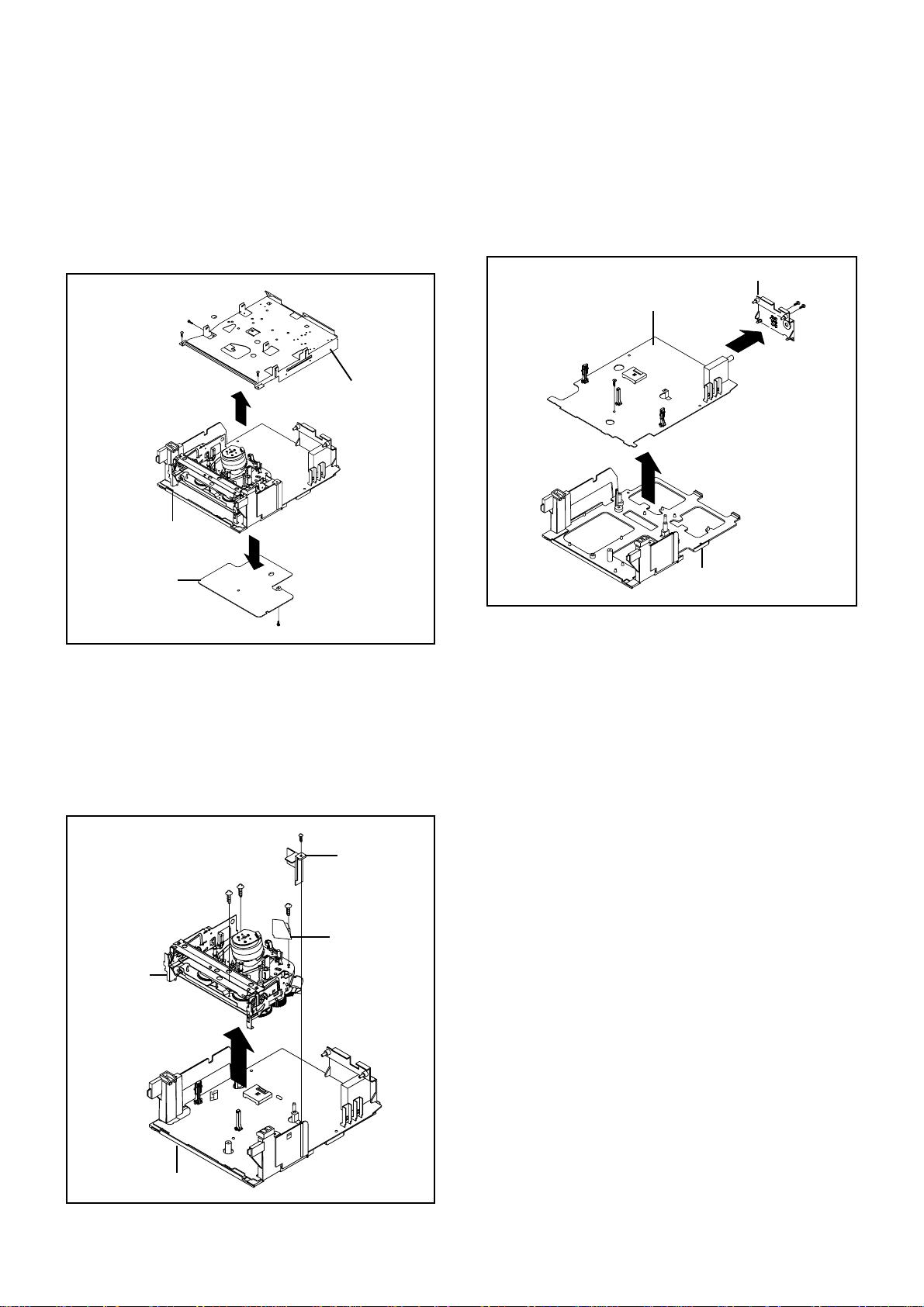

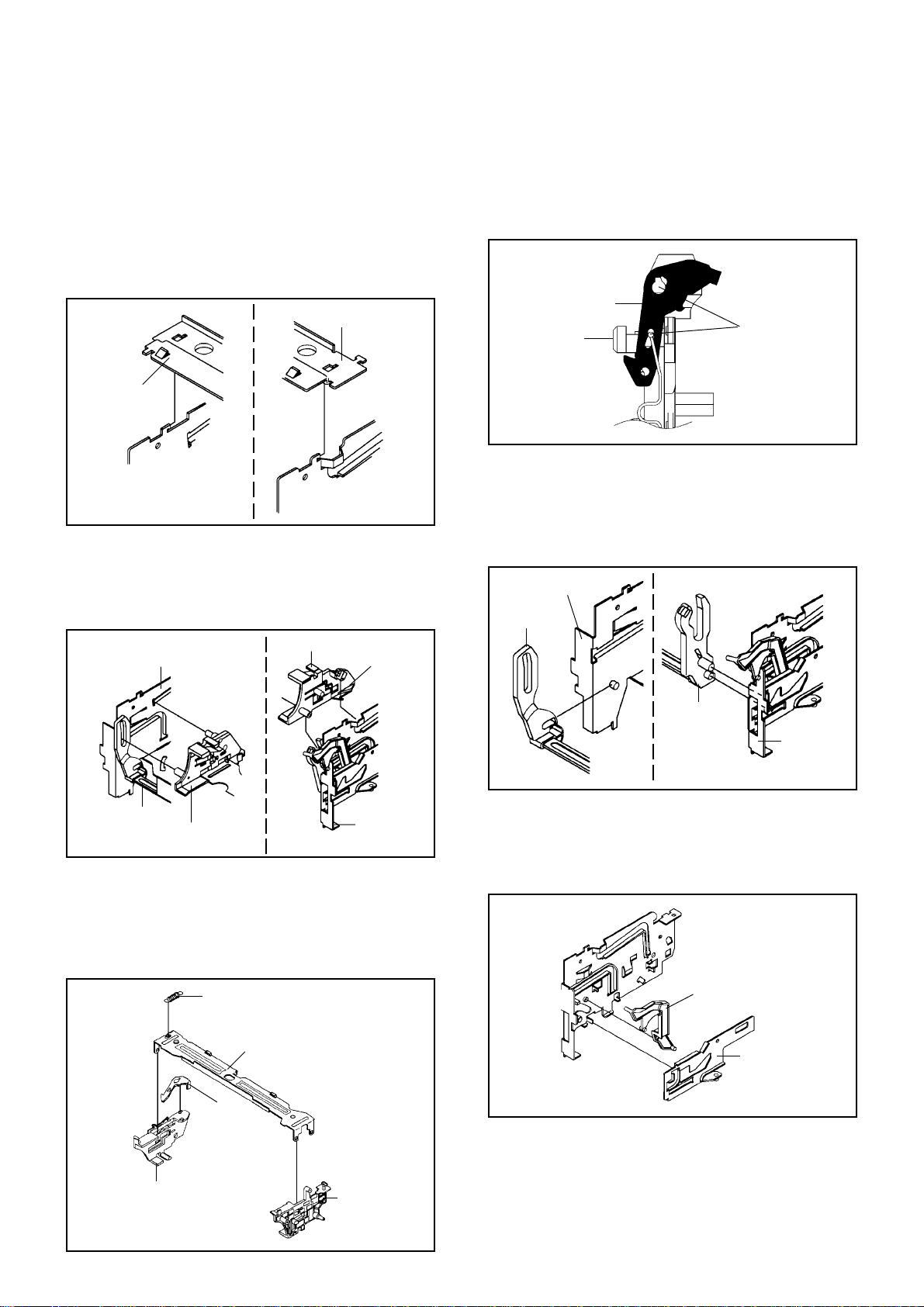

2. REMOVAL OF DECK PARTS
2-1: TOP BRACKET (Refer to Fig. 2-1)
Extend the 2 supports 1.
1.
Slide the 2 supports 2 and remove the Top Bracket.
2.
NOTE
1. After the installation of the Top Bracket, bend the
support 1 so that the Top Bracket is fixed.
Top Bracket
1
Top Bracket
2
Main Chassis
2
Main Chassis
2-2: CASSETTE HOLDER ASS'Y (Refer to Fig. 2-2)
Move the Cassette Holder Ass'y to the front side.
1.
Push the Locker R to remove the Cassette Side R.
2.
Remove the Cassette Side L.
3.
Main Chassis
Cassette Side R
1
Fig. 2-1
Locker R
NOTE
1.2.In case of the Locker R installation, check if the two
positions of Fig.2-3-B are correctly locked.
When you install the Cassette Side R, be sure to move
the Locker R after installing.
Locker R
Check if these
Cassette Side R
positions are locked.
Fig. 2-3-B
2-4: LINK UNIT (Refer to Fig. 2-4)
Set the Link Unit to the Eject position.
1.
Unlock the support 1.
2.
Remove the (A) side of the Link Unit first, then remove
3.
the (B) side.
Main Chassis
Link Unit
Link Unit
Cassette Side L
Main Chassis
Fig. 2-2
2-3: CASSETTE SIDE L/R (Refer to Fig. 2-3-A)
Remove the Locker Spring.
1.
Unlock the 4 supports 1 and then remove the Cassette
2.
Side L/R.
Unlock the support 2 and then remove the Locker R.
3.
Locker Spring
1
1
2
Cassette Holder
Locker R
1
1
(A)
1
(B)
Link Unit
Main Chassis
2-5: LINK LEVER/FLAP LEVER (Refer to Fig. 2-5)
Extend the support 1.
1.
Remove the Link Lever.
2.
Remove the Flap Lever.
3.
1
Flap Lever
Link Lever
Fig. 2-4
Fig. 2-5
Cassette Side R
Cassette Side L
Fig. 2-3-A
B2-1
DISASSEMBLY INSTRUCTIONS

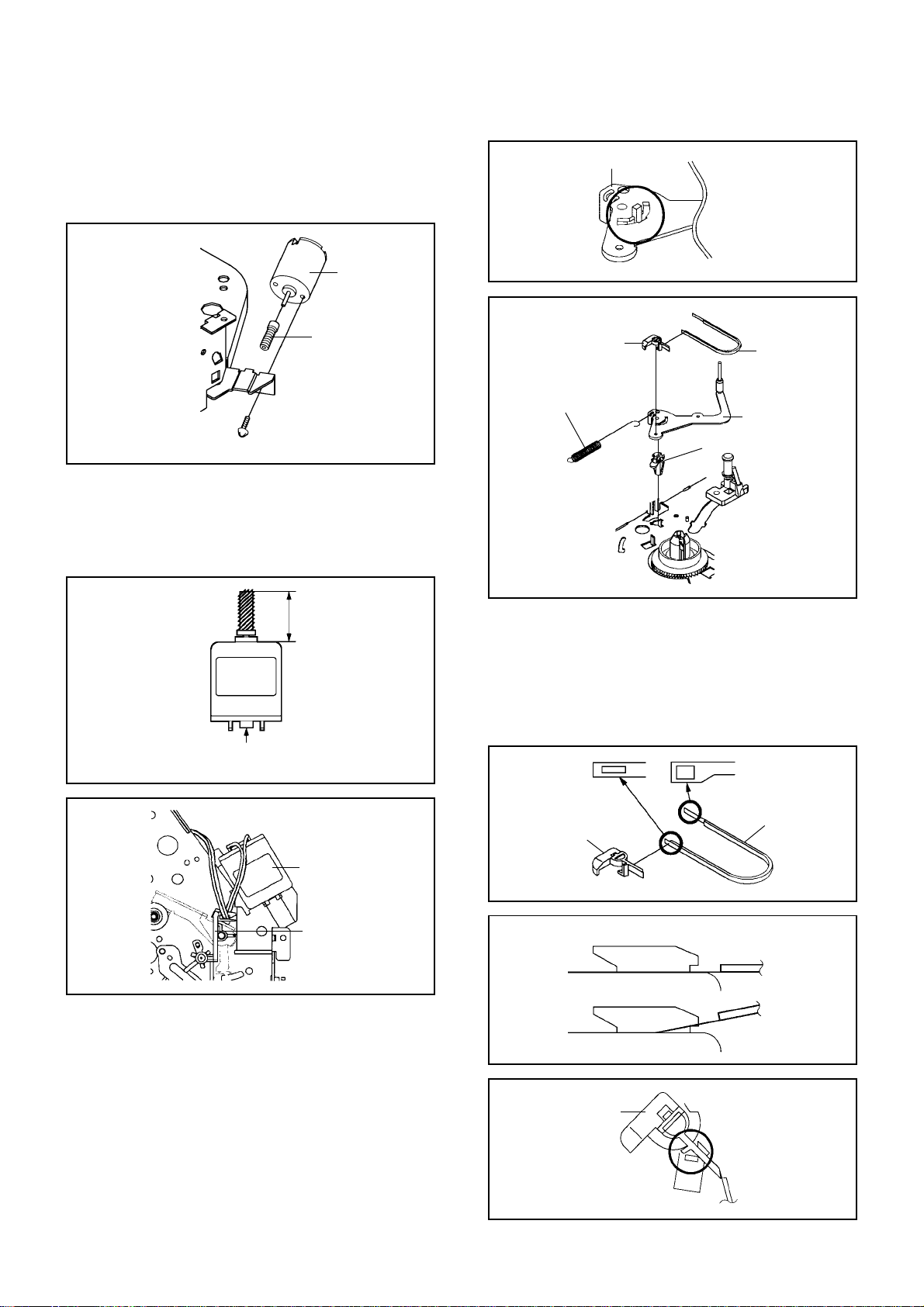

2-6: LOADING MOTOR/WORM (Refer to Fig. 2-6-A)
Remove the screw 1.
1.
Remove the Loading Motor.
2.
Remove the Worm.
3.
Loading Motor
Worm
Main Chassis
• Screw Torque: 3 ± 0.5kgf•cm
1
Fig. 2-6-A
NOTE
1.2.In case of the Worm installation, check if the value of
the Fig. 2-6-B is correct.
In case of the Loading Motor installation, hook the wire
on the Cassette Opener as shown Fig. 2-6-C.
Tension Arm Ass'y
Tension Connect
Tension Spring
2
4
1
3
Tension Holder
Fig. 2-7-A
1
Tension Band
Tension Arm Ass'y
Fig. 2-7-B
19.2 ± 0.1mm
Safety surface for pressing
of the insert.
Loading Motor
Cassette Opener
Fig. 2-6-B
Fig. 2-6-C
2-7: TENSION ASS'Y (Refer to Fig. 2-7-B)
Turn the Pinch Roller Cam clockwise so that the
1.
Tension Holder hook is set to the position of Fig. 2-7-A
to move the Tension Arm Ass'y.
Remove the Tension Spring.
2.
Unlock the 2 supports 1 and remove the Tension
3.
Band.
Unlock the support 2 and remove the Tension Arm
4.
Ass'y.
Unlock the support 3 and remove the Tension
5.
Connect.
Float the hook 4 and turn it clockwise then remove the
6.
Tension Holder.
B2-2
NOTE
1.
In case of the Tension Band installation, note the
direction of the installation. (Refer to Fig. 2-7-C)
2.
In case of the Tension Band installation, install correctly
as Fig. 2-7-D.
3.
In case of the Tension Connect installation, install as
the circled section of Fig. 2-7-E.
Tension Connect
Tension Band
Fig. 2-7-C
[OK]
[NG]
Tension Connect
Tension Connect
Tension Band
Tension Band
Fig. 2-7-D
Tension Connect
Main Chassis
Fig. 2-7-E
DISASSEMBLY INSTRUCTIONS
2-8: T BRAKE ARM/T BRAKE BAND (Refer to Fig. 2-8-A)
Remove the T Brake Spring.
1.
Turn the T Brake Arm clockwise and bend the hook
2.
section to remove it.
Unlock the 2 supports 1 and remove the T Brake
3.
Band.
Idler Gear
S Reel
Idler Arm Ass'y
(B)
T Brake Band
Hook section
1
1
T Brake Arm
T Brake Spring
Fig. 2-8-A
NOTE

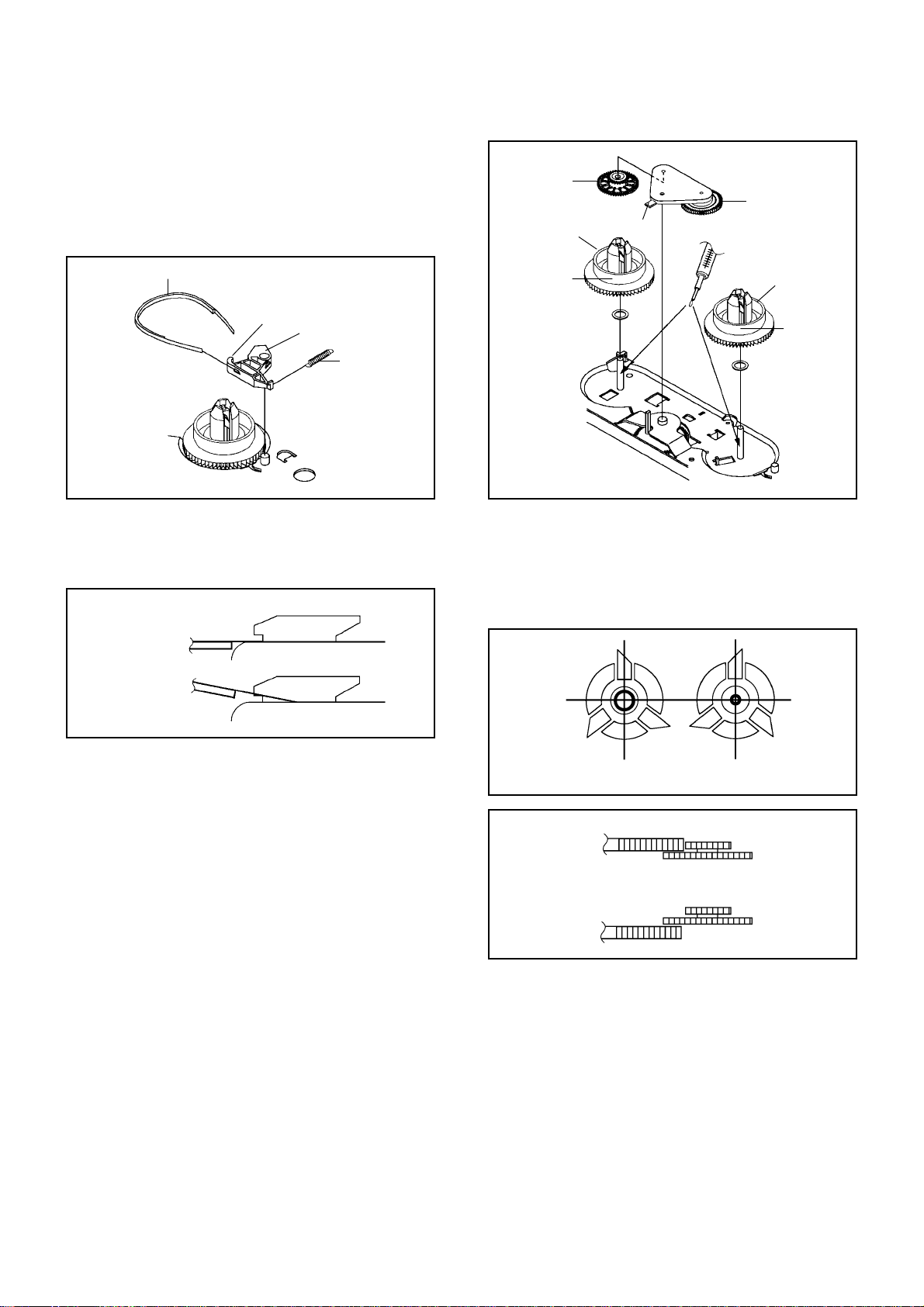

1. In case of the T Brake Band installation, install correctly
as Fig. 2-8-B.
[OK]
T Brake Band
[NG]
T Brake Band
T Brake Arm
T Brake Arm
(A) T Reel
1
(A)
1
Fig. 2-9-A
NOTE
1.2.In case of the S Reel and T Reel installation, check if the
correct parts are installed. (Refer to Fig. 2-9-B)
In case of the Idler Arm Ass'y installation, install correctly
as Fig. 2-9-C. And also set it so that the section "B" of
Fig. 2-9-A is placed under the Main Chassis tab.
Fig. 2-8-B
2-9: S REEL/T REEL/IDLER ARM ASS'Y/IDLER GEAR

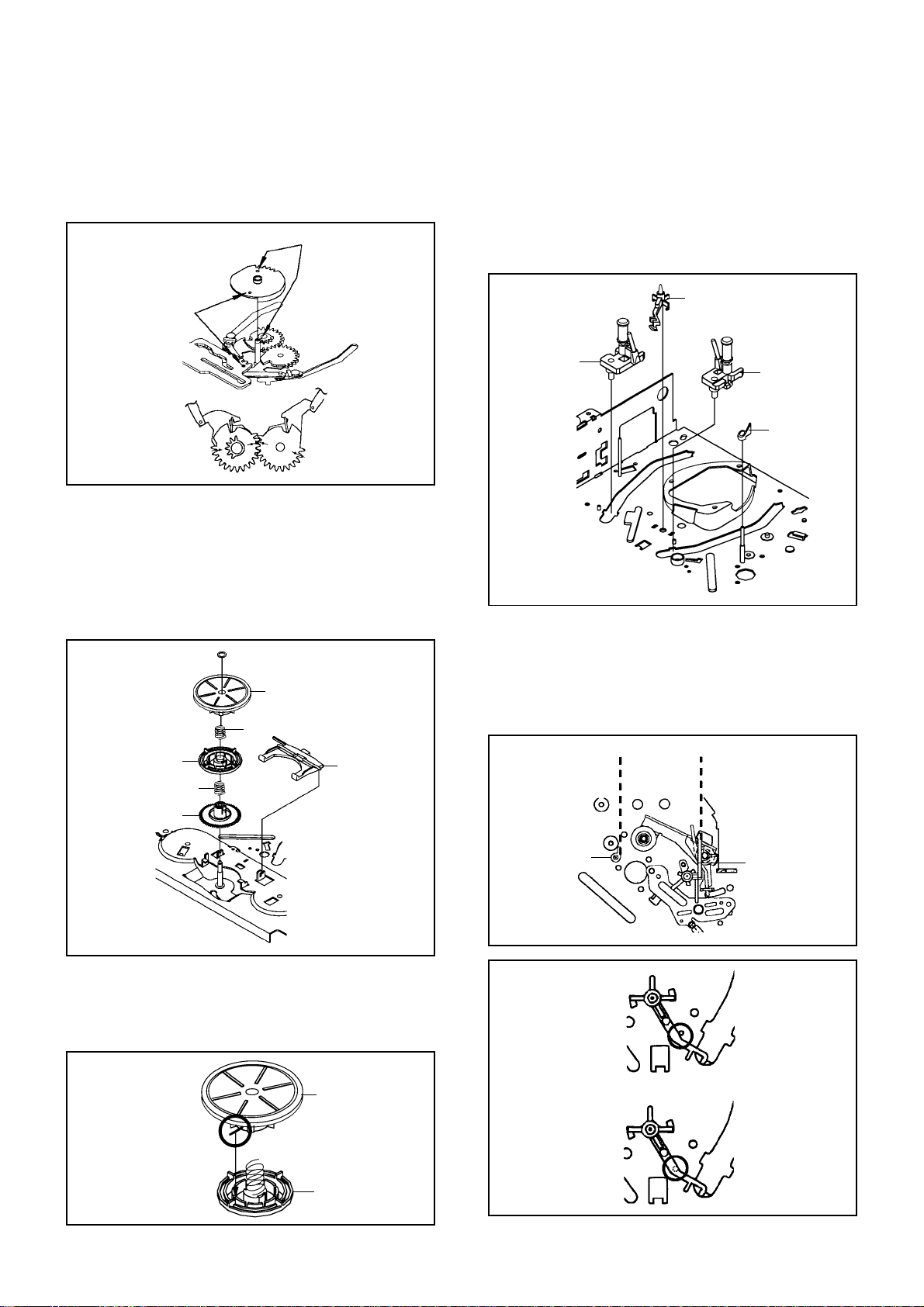

(Refer to Fig. 2-9-A)
Remove the S Reel and T Reel.
1.
Remove the 2 Polyslider Washers 1.
2.
Remove the Idler Arm Ass'y and Idler Gear.
3.
NOTE
Take care not to damage the gears of the S Reel and T
1.
Reel.
The Polyslider Washer may be remained on the back of
2.
the reel.
Take care not to damage the shaft.
3.
Do not touch the section "A" of S Reel and T Reel. (Use
4.
gloves.) (Refer to Fig. 2-9-A) Do not adhere the stains
on it.
When you install the reel, clean the shaft and grease it.
5.
(If you do not grease, noise may be heard in FF/REW
mode.)
After installing the reel, adjust the height of the reel.
6.
(Refer to MECHANICAL ADJUSTMENT)
[OK]
[NG]
Clutch Gear
Clutch Gear
Big Hole
(S Reel)
Small Hole
(T Reel)
Fig. 2-9-B
Idler Arm Ass'y
Idler Arm Ass'y
Fig. 2-9-C
B2-3
DISASSEMBLY INSTRUCTIONS
2-10: CASSETTE OPENER/PINCH ROLLER BLOCK/
P5 ARM ASS'Y (Refer to Fig. 2-10-A)
Unlock the support 1 and remove the Cassette
1.
Opener.
Remove the Pinch Roller Block and P5 Arm Ass'y.
2.
1
Cassette Opener
Pinch Roller Block
P5 Arm Ass'y
Main Chassis
Fig. 2-10-A
NOTE
Do not touch the Pinch Roller. (Use gloves.)
1.
In case of the Pinch Roller Block and the Pinch Roller
2.
Cam installation, install correctly as Fig. 2-10-B.
Pinch Roller Block
P5 Arm Ass'y
Can be seen the hole of the
Main Cam.
Can be seen the hole of
the Pinch Roller Cam.
Fig. 2-10-B

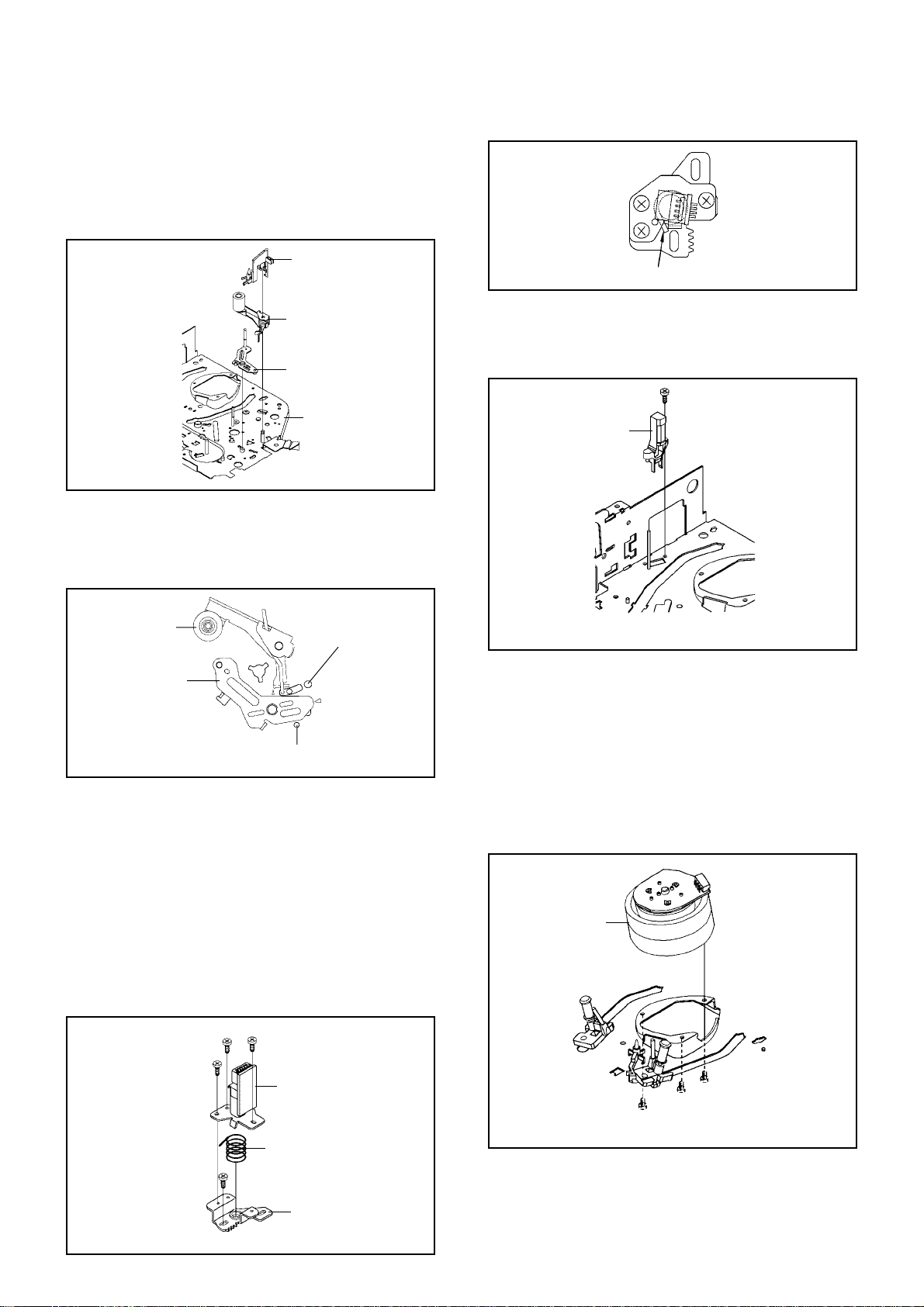

2-11: A/C HEAD (Refer to Fig. 2-11-A)
Remove the screw 1.
1.
Remove the A/C Head Base.
2.
Remove the 3 screws 2.
3.
Remove the A/C Head and A/C Head Spring.
4.
NOTE
1.
Do not touch the A/C Head. (Use gloves.)
2.
When you install the A/C Head Spring, install as shown in
Fig. 2-11-B.
3.
When you install the A/C Head, tighten the screw (1) first,
then tighten the screw (2), finally tighten the screw (3).
(3)
(1)
2
2
(2)
2
A/C Head
A/C Head Spring
Spring Position
Fig. 2-11-B
2-12: FE HEAD (RECORDER ONLY) (Refer to Fig. 2-12)
Remove the screw 1.
1.
Remove the FE Head.
2.
1
FE Head
• Screw Torque: 5 ± 0.5kgf•cm
• The FE Head is not installed on the Video Cassette Player.
Fig. 2-12
2-13: CYLINDER UNIT ASS'Y (Refer to Fig. 2-13)
Disconnect the following connector:
1.
(CD2001)
Remove the 3 screws 1.
2.
Remove the Cylinder Unit Ass'y.
3.
NOTE
When you install the Cylinder Unit Ass'y, tighten the
1.
screws from (1) to (3) in order while pulling the Ass'y
toward the left front direction.
Cylinder Unit Ass'y
(3)
(2)
1
1
Fig. 2-13
• Screw Torque: 3 ± 0.5kgf•cm
(1)
1
1
• Screw Torque: 5 ± 0.5kgf•cm (Screw 1)
A/C Head Base
Fig. 2-11-A
B2-4
DISASSEMBLY INSTRUCTIONS

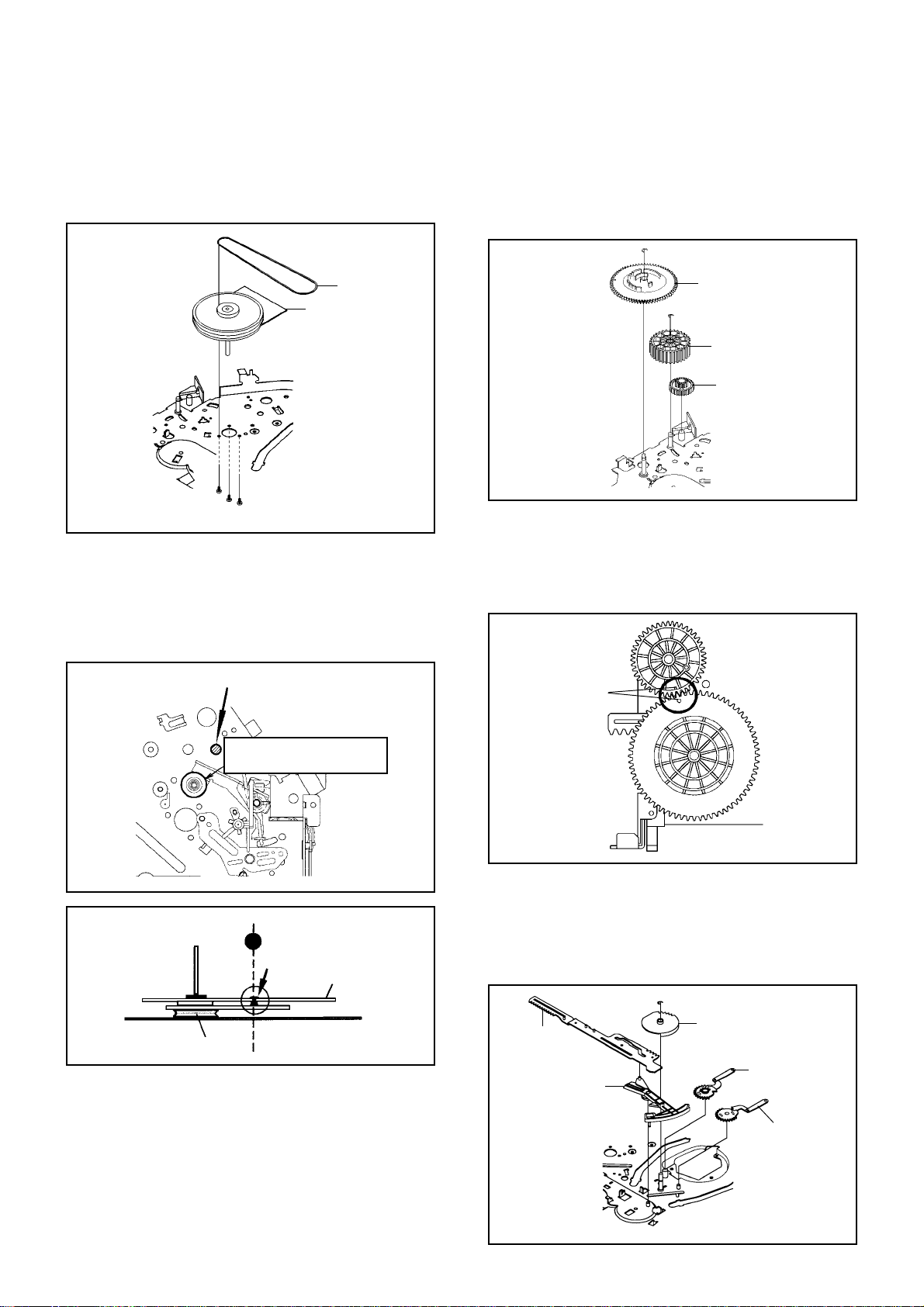

2-14: CAPSTAN DD UNIT (Refer to Fig. 2-14-A)
Remove the Capstan Belt.
1.
Remove the 3 screws 1.
2.
Remove the Capstan DD Unit.
3.
2-15:
MAIN CAM/PINCH ROLLER CAM/JOINT GEAR
(Refer to Fig. 2-15-A)
Remove the E-Ring 1, then remove the Main Cam.
1.
Remove the E-Ring 2, then remove the Pinch Roller
2.
Cam and Joint Gear.
1
Capstan Belt
Capstan DD Unit
1
1
• Screw Torque: 4 ± 0.5kgf•cm
1
Fig. 2-14-A
NOTE
In case of the Capstan DD Unit installation, apply the
1.
silicon bond (TSE3843-W) on the position Fig. 2-14-B
correctly. (If no silicon bond applied, abnormal noise will
be heard on the deck operation.)
(Refer to Fig. 2-14-B, C)
Applied position of
silicon bond
Main Cam
2
Pinch Roller Cam
Joint Gear
Fig. 2-15-A
NOTE
In case of the Pinch Roller Cam and Main Cam
1.
installation, install them as the circled section of Fig. 215-B so that the each markers are met. (Refer to Fig.
2-15-B)
Pinch Roller Cam
Marker
Capstan DD Unit
Be careful not to apply the silicon
bond to the Pinch Roller.
Fig. 2-14-B
Silicon Bond
Main Chassis
Fig. 2-14-C
Main Cam
Fig. 2-15-B
2-16: LOADING GEAR S/T UNIT (Refer to Fig. 2-16-A)
1.2.Remove the E-Ring 1 and remove the Main Loading
Gear.
Remove the Main Rod, Tension Lever, Loading Arm S
Unit and Loading Arm T Unit.
1
Main Rod
Tension Lever
Main Loading Gear
Loading Arm T Unit
Loading Arm S Unit
B2-5
Fig. 2-16-A
DISASSEMBLY INSTRUCTIONS
NOTE
When you install the Loading Arm S Unit, Loading Arm
1.
T Unit and Main Loading Gear, align each marker.
(Refer to Fig. 2-16-B)
Marker
Main Loading Gear
Marker
CASSETTE GUIDE POST/INCLINED BASE S/T
2-18:
UNIT/P4 CAP (Refer to Fig. 2-18-A)
Remove the P4 Cap.
1.
Unlock the support 1 and remove the Cassette Guide
2.
Post.
Remove the Inclined Base S Unit and Inclined Base T
3.
Unit.
1
Cassette Guide Post
Loading Arm T Unit
2-17:
CLUTCH ASS'Y/RING SPRING/CLUTCH LEVER/
Loading Arm S Unit
CLUTCH GEAR (Refer to Fig. 2-17-A)
Remove the Polyslider Washer 1.
1.
Remove the Clutch Ass'y and Ring Spring.
2.
Remove the Clutch Lever.
3.
Remove the Coupling Gear, Coupling Spring and
4.
Clutch Gear.
1
Clutch Ass'y
Ring Spring
Coupling Gear
Coupling Spring
Clutch Lever
Fig. 2-16-B
Inclined Base S
Unit
Inclined Base T
Unit
P4 Cap
Fig. 2-18-A
NOTE
Do not touch the roller of Guide Roller.
1.
In case of the P4 Cap installation, install it with parallel
2.
for "A" and "B" of Fig. 2-18-B.
In case of the Cassette Guide Post installation, install
3.
correctly as the circled section of Fig. 2-18-C.
"A"
"B"
Clutch Gear
Fig. 2-17-A
NOTE
In case of the Clutch Ass'y installation, install it with
1.
inserting the spring of the Clutch Ass'y into the dent of
the Coupling Gear. (Refer to Fig. 2-17-B)
Clutch Ass'y
Coupling Gear
Fig. 2-17-B
B2-6
P4 Cap
[OK]
Cassette Guide Post
[NG]
Cassette Guide Post
Cassette Opener
Fig. 2-18-B
Fig. 2-18-C
DISASSEMBLY INSTRUCTIONS
3. REMOVAL OF ANODE CAP
Read the following NOTED items before starting work.
After turning the power off there might still be a potential
*
voltage that is very dangerous. When removing the
Anode Cap, make sure to discharge the Anode Cap's
potential voltage.
*
Do not use pliers to loosen or tighten the Anode Cap
terminal, this may cause the spring to be damaged.
REMOVAL
1. Follow the steps as follows to discharge the Anode Cap.
(Refer to Fig. 3-1.)
Connect one end of an Alligator Clip to the metal part of a
flat-blade screwdriver and the other end to ground.
While holding the plastic part of the insulated Screwdriver,
touch the support of the Anode with the tip of the
Screwdriver.
A cracking noise will be heard as the voltage is discharged.
GND on the CRT
3. After one side is removed, pull in the opposite direction
to remove the other.
NOTE
Take care not to damage the Rubber Cap.
INSTALLATION
1. Clean the spot where the cap was located with a small
amount of alcohol. (Refer to Fig. 3-3.)
NOTE
Confirm that there is no dirt, dust, etc. at the spot where
the cap was located.
Location of Anode Cap
Fig. 3-3
Screwdriver
Alligator Clip
GND on the CRT
Flip up the sides of the Rubber Cap in the direction of
2.
the arrow and remove one side of the support.
(Refer to Fig. 3-2.)
Rubber Cap
Support
CRT
Fig. 3-1
2.3.Arrange the wire of the Anode Cap and make sure the
wire is not twisted.
Turn over the Rubber Cap. (Refer to Fig. 3-4.)
Fig. 3-4
4. Insert one end of the Anode Support into the anode
button, then the other as shown in Fig. 3-5.
CRT
Support
Fig. 3-2
Support
CRT
5.6.Confirm that the Support is securely connected.
Put on the Rubber Cap without moving any parts.
B3-1
Fig. 3-5
DISASSEMBLY INSTRUCTIONS
4.
REMOVAL AND INSTALLATION OF
FLAT PACKAGE IC
REMOVAL

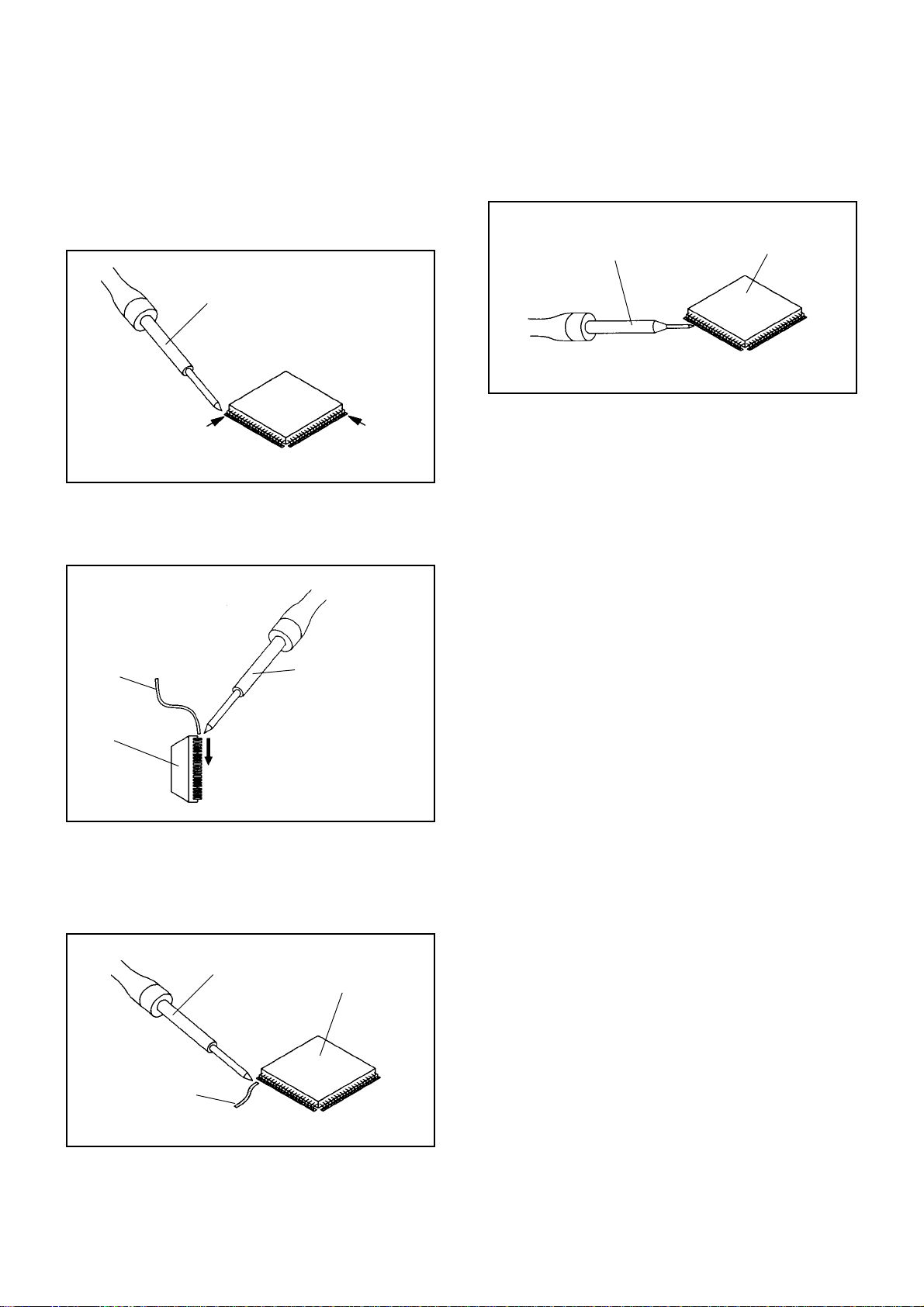

Put the Masking Tape (cotton tape) around the Flat
1.
Package IC to protect other parts from any damage.
(Refer to Fig. 4-1.)
NOTE
Masking is carried out on all the parts located within
10 mm distance from IC leads.
When IC starts moving back and forth easily after
3.
desoldering completely, pickup the corner of the IC using
a tweezers and remove the IC by moving with the IC
desoldering machine. (Refer to Fig. 4-3.)
NOTE
Some ICs on the PCB are affixed with glue, so be
careful not to break or damage the foil of each IC
leads or solder lands under the IC when removing it.
Blower type IC
desoldering
machine
Masking Tape
(Cotton Tape)
Heat the IC leads using a blower type IC desoldering
2.
IC
machine. (Refer to Fig. 4-2.)
NOTE
Do not add the rotating and the back and forth
directions force on the IC, until IC can move back and
forth easily after desoldering the IC leads completely.
Blower type IC
desoldering machine
Fig. 4-1
Tweezers
IC
Peel off the Masking Tape.4.
Absorb the solder left on the pattern using the Braided
5.
Shield Wire. (Refer to Fig. 4-4.)
NOTE
Do not move the Braided Shield Wire in the vertical
direction towards the IC pattern.
Fig. 4-3
Braided Shield Wire
Soldering Iron
IC
Fig. 4-2
IC pattern
Fig. 4-4
B4-1
DISASSEMBLY INSTRUCTIONS
INSTALLATION
Take care of the polarity of new IC and then install the
1.
new IC fitting on the printed circuit pattern. Then solder
each lead on the diagonal positions of IC temporarily.
(Refer to Fig. 4-5.)
Soldering Iron
Solder temporarily
Supply the solder from the upper position of IC leads
2.
Solder temporarily
sliding to the lower position of the IC leads.
(Refer to Fig. 4-6.)
Fig. 4-5
When bridge-soldering between terminals and/or the
4.
soldering amount are not enough, resolder using a Thintip Soldering Iron. (Refer to Fig. 4-8.)
Thin-tip Soldering Iron
IC
Fig. 4-8
Finally, confirm the soldering status on four sides of the
5.
IC using a magnifying glass.
Confirm that no abnormality is found on the soldering
position and installation position of the parts around the
IC. If some abnormality is found, correct by resoldering.
NOTE
When the IC leads are bent during soldering and/or
repairing, do not repair the bending of leads. If the
bending of leads are repaired, the pattern may be
damaged. So, be always sure to replace the IC in this
case.
Soldering IronSolder
IC
Absorb the solder left on the lead using the Braided
3.
Supply soldering
from upper position
to lower position
Shield Wire. (Refer to Fig. 4-7.)
NOTE
Do not absorb the solder to excess.
Soldering Iron
IC
Braided Shield Wire
Fig. 4-6
Fig. 4-7
B4-2
A
A/C
ACC
AE
AFC
AFT
AFT DET
AGC
AMP
ANT
A.PB
APC
ASS'Y
AT
AUTO
A/V
B
BGP
BOT
BPF
BRAKE SOL
BUFF
B/W
C
C
CASE
CAP
CARR
CH
CLK
CLOCK (SY-SE)
COMB
CONV
CPM
CTL
CYL
CYL-M
CYL SENS
D
DATA (SY-CE)
dB
DC
DD Unit
DEMOD
DET
DEV
E
E
EF
EMPH
ENC
ENV
EOT
EQ
EXT
F
F
FBC
FE
FF
FG
FL SW
FM
FSC
FWD
G
GEN
GND
H
H.P.F
KEY TO ABBREVIATIONS
:
Audio/Control
:
Automatic Color Control
:
Audio Erase
:
Automatic Frequency Control
:
Automatic Fine Tuning
:
Automatic Fine Tuning Detect
:
Automatic Gain Control
:
Amplifier
:
Antenna
:
Audio Playback
:
Automatic Phase Control
:
Assembly
:
All Time
:
Automatic
:
Audio/Video
:
Burst Gate Pulse
:
Beginning of Tape
:
Bandpass Filter
:
Brake Solenoid
:
Buffer
:
Black and White
:
Capacitance, Collector
:
Cassette
:
Capstan
:
Carrier
:
Channel
:
Clock
:
Clock (Syscon to Servo)
:
Combination, Comb Filter
:
Converter
:
Capstan Motor
:
Control
:
Cylinder
:
Cylinder-Motor
:
Cylinder-Sensor
:
Data (Syscon to Servo)
:
Decibel
:
Direct Current
:
Direct Drive Motor Unit
:
Demodulator
:
Detector
:
Deviation
:
Emitter
:
Emitter Follower
:
Emphasis
:
Encoder
:
Envelope
:
End of Tape
:
Equalizer
:
External
:
Fuse
:
Feed Back Clamp
:
Full Erase
:
Fast Forward, Flip-flop
:
Frequency Generator
:
Front Loading Switch
:
Frequency Modulation
:
Frequency Sub Carrier
:
Forward
:
Generator
:
Ground
:
High Pass Filter
H.SW
Hz
I
IC
IF
IND
INV
K
KIL
L
L
LED
LIMIT AMP
LM, LDM
LP
L.P.F
LUMI.
M
M
MAX
MINI
MIX
MM
MOD
MPX
MS SW
N
NC
NR
O
OSC
OPE
P
PB
PB CTL
PB-C
PB-Y
PCB
P. CON
PD
PG
P-P
R
R
REC
REC-C
REC-Y
REEL BRK
REEL S
REF
REG
REW
REV, RVS
RF
RMC
RY
S
S. CLK
S. COM
S. DATA
SEG
SEL
SENS
SER
SI
SIF
SO
SOL
SP
STB
SW
:
Head Switch
:
Hertz
:
Integrated Circuit
:
Intermediate Frequency
:
Indicator
:
Inverter
:
Killer
:
Left
:
Light Emitting Diode
:
Limiter Amplifier
:
Loading Motor
:
Long Play
:
Low Pass Filter
:
Luminance
:
Motor
:
Maximum
:
Minimum
:
Mixer, mixing
:
Monostable Multivibrator
:
Modulator, Modulation
:
Multiplexer, Multiplex
:
Mecha State Switch
:
Non Connection
:
Noise Reduction
:
Oscillator
:
Operation
:
Playback
:
Playback Control
:
Playback-Chrominance
:
Playback-Luminance
:
Printed Circuit Board
:
Power Control
:
Phase Detector
:
Pulse Generator
:
Peak-to Peak
:
Right
:
Recording
:
Recording-Chrominance
:
Recording-Luminance
:
Reel Brake
:
Reel Sensor
:
Reference
:
Regulated, Regulator
:
Rewind
:
Reverse
:
Radio Frequency
:
Remote Control
:
Relay
:
Serial Clock
:
Sensor Common
:
Serial Data
:
Segment
:
Select, Selector
:
Sensor
:
Search Mode
:
Serial Input
:
Sound Intermediate Frequency
:
Serial Output
:
Solenoid
:
Standard Play
:
Serial Strobe
:
Switch
C1-1
S
SYNC
SYNC SEP
T
TR
TRAC
TRICK PB
TP
U
UNREG
V
V
VCO
VIF
VP
V.PB
VR
V.REC
VSF
VSR
VSS
V-SYNC
VT
X
X'TAL
Y
Y/C
KEY TO ABBREVIATIONS
:
Synchronization
:
Sync Separator, Separation
:
Transistor
:
Tracking
:
Trick Playback
:
Test Point
:
Unregulated
:
Volt
:
Voltage Controlled Oscillator
:
Video Intermediate Frequency
:
Vertical Pulse, Voltage Display
:
Video Playback
:
Variable Resistor
:
Video Recording
:
Visual Search Fast Forward
:
Visual Search Rewind
:
Voltage Super Source
:
Vertical-Synchronization
:
Voltage Tuning
:
Crystal
:
Luminance/Chrominance
C1-2
SERVICE MODE LIST
This unit provided with the following SERVICE MODES so you can repair, examine and adjust easily.
To enter SERVICE MODE, unplug AC cord till lost actual clock time. Then press and hold Vol (-) button of main unit and
remocon key simultaneously.
The both pressing of set key and remote control key will not be possible if clock has been set. To reset clock, either unplug
AC cord and allow at least 5 seconds before Power On.
Set Key Remocon Key Operations
VOL. (-) MIN
VOL. (-) MIN 1
VOL. (-) MIN 2
VOL. (-) MIN
VOL. (-) MIN 4
VOL. (-) MIN 5
VOL. (-) MIN
0
3
6
Releasing of V-CHIP PASSWORD.
Initialization of the factory.
NOTE:
Horizontal position adjustment of OSD.
NOTE: Also can be adjusted by using the Adjustment MENU.
Refer to the "ELECTRICAL ADJUSTMENT" (OSD HORIZONTAL).
Adjust the PG SHIFTER automatically.
Refer to the "ELECTRICAL ADJUSTMENT" (PG SHIFTER).
Adjust the PG SHIFTER manually.
Refer to the "ELECTRICAL ADJUSTMENT" (PG SHIFTER).
Adjusting of the Tracking to the center position.
NOTE: Also can be adjusted by pressing the ATR button for more than 2 seconds
during PLAY.
POWER ON total hours and PLAY/REC total hours are displayed on the screen.
Refer to the "PREVENTIVE CHECKS AND SERVICE INTERVALS" (CONFIRMATION
OF HOURS USED).
Can be checked of the INITIAL DATA of MEMORY IC.
Refer to the "WHEN REPLACING EEPROM (MEMORY) IC".
Do not use this for the normal servicing.
If you set a factory initialization, the memories are reset such as the clock
setting, the channel setting, the POWER ON total hours, and PLAY/REC
total hours.
VOL. (-) MIN 8
VOL. (-) MIN 9
Method Operations
Press the ATR button on the
remote control for more than
2 seconds during PLAY.
Make the short circuit between
the test point of SERVICE and
the GND.
Writing of EEPROM initial data.
NOTE: Do not use this for the normal servicing.
Display of the Adjustment MENU on the screen.
Refer to the "ELECTRICAL ADJUSTMENT" (On-Screen Display Adjustment).
Adjusting of the Tracking to the center position.
Refer to the "MECHANICAL ADJUSTMENT" (GUIDE ROLLER) and "ELECTRICAL
ADJUSTMENT" (PG SHIFTER).
The BOT, EOT, and the Reel Sensor do not work and the deck can be operated
without a cassette tape.
Refer to the "PREPARATION FOR SERVICING"
C2-1
PREVENTIVE CHECKS AND SERVICE INTERVALS
The following standard table depends on environmental conditions and usage.
Parts replacing time does not mean the life span for individual parts.
Also, long term storage or misuse may cause transformation and aging of rubber parts.
The following list means standard hours, so the checking hours depends on the conditions.
Time
Parts Name
Audio Control Head
Full Erase Head
(Recorder only)
Capstan Belt
Pinch Roller
Capstan DD Unit
Loading Motor
Tension Band
T Brake Band
Clutch Ass'y
Idler Arm Ass'y
Capstan Shaft
Tape Running
Guide Post
Cylinder Unit
: Clean
: Check it and if necessary, replace it.
500
hours
1,000
hours
1,500
hours
2,000
hours
2,500
hours
Notes
Clean those parts in
contact with the tape.
Clean the rubber, and parts
which the rubber touches.
Replace when rolling
becomes abnormal.
Clean the Head
CONFIRMATION OF HOURS USED
POWER ON total hours and PLAY/REC total hours can be checked on the screen.
Total hours are displayed in 16 system of notation.
NOTE: If you set a factory initialization, the total hours is reset to "0".
The confirmation of using hours will not be possible if clock has been set. To reset clock, either unplug
AC cord and allow at least 5 seconds before Power On.
1.
Set the VOLUME to minimum.
2.
Press both VOL. DOWN button on the set and the Channel button (6) on the remote control simultaneously.
3.
After the confirmation of using hours, turn off the power.
INIT 00 88
POWER ON 0010
PLAY/REC 0003
(16 x 16 x 16 x thousands digit value) + (16 x 16 x hundreds digit value) + (16 x tens digit value) + (ones digit value)
Initial setting content of MEMORY IC.
POWER ON total hours.
PLAY/REC total hours.
C3-1
PREVENTIVE CHECKS AND SER VICE INTERVALS
CLEANING
NOTE
After cleaning the heads with isopropyl alcohol, do not
run a tape until the heads dry completely. If the heads
are not completely dry and alcohol gets on the tape,
damage may occur.

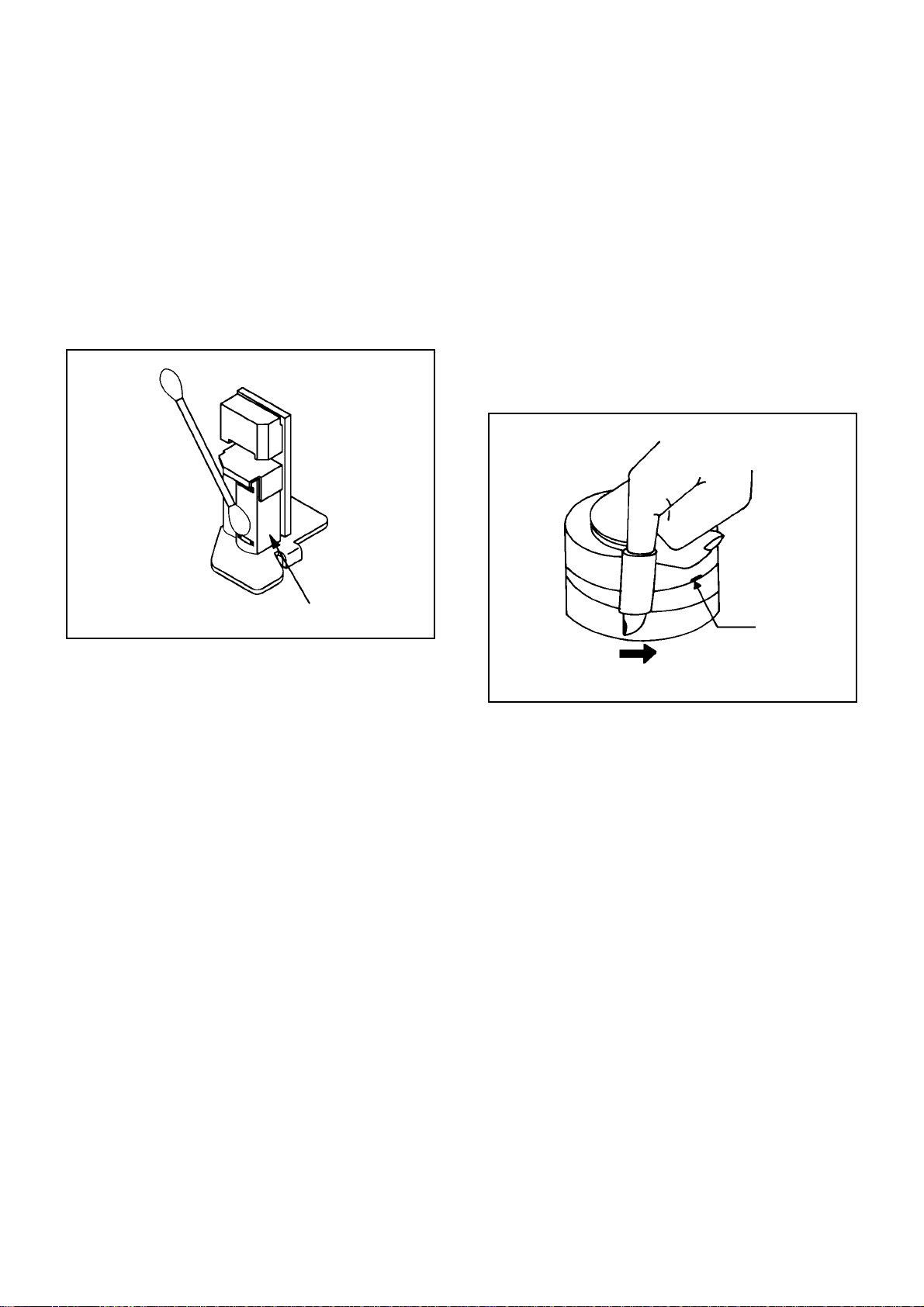

1. AUDIO CONTROL HEAD
Clean the Audio Control Head with the cotton stick
soaked by alcohol. Clean the full erase head in the
same manner. (Refer to the figure below.)
2. TAPE RUNNING SYSTEM
When cleaning the tape transport system, use the
gauze moistened with isopropyl alcohol.
3. CYLINDER
Wrap a piece of chamois around your finger. Dip it in
isopropyl alcohol. Hold it to the cylinder head softly.
Turn the cylinder head counterclockwise to clean it (in
the direction of the arrow). (Refer to the figure below.)
NOTE
Do not exert force against the cylinder head. Do not move
the chamois upward or downward on the head.
Use the chamois one by one.
Audio Control Head
Cylinder Head
C3-2
WHEN REPLACING EEPROM (MEMORY) IC
If a service repair is undertaken where it has been required to change the MEMORY IC, the following steps should be taken to
ensure correct data settings while making reference to TABLE 1.
NOTE: Initial Data setting will not be possible if clock has been set. To reset clock, either unplug AC cord and allow
at least 5 seconds before Power On.
+0 +1 +2 +3 +4 +5 +6 +7 +8 +9
88 7B B2 47 4B 23 24 0B 51 A2
A3
DC 9A 94 27 00 32 05 8B 08
10
20
83 25 05 15 30 00 3A 3B 91 01
30 6D 4E 6E 4F 6F 50
09 49 0A 4A 6A 4B 6B 4C 6C 4D
40 51
70 71 52 72 53 73 54 74 55
78 79 5A 7A 7A 5B 5B 7B 7B
50
60
59 5C
7D 7D 5E 5E 7E 7E 5F 5F 7F 7F
+A
+B +C +D +E +FINI
1C 62 56 11 17 1E00
A9 55 94 3A 07 E1
62 45 26 07 67 48
75 56 76 57 77 58
5C 7C 7C 5D 5D
--- --- --- --- --- ---
Table 1
Enter DATA SET mode by setting VOLUME to minimum.
1.
While holding down VOLUME button on front cabinet, press key 6 on remote control simultaneously.
2.
ADDRESS and DATA should appear as FIG 1.
ADDRESS DATA
INIT 00 88
POWER ON 0010
PLAY/REC 0003
Fig. 1
3.
ADDRESS is now selected and should "blink". Using the SET + or - button on the remote, step through the ADDRESS
until required ADDRESS to be changed is reached.
4.
Press ENTER to select DATA. When DATA is selected, it will "blink".
5.
Again, step through the DATA using SET + or - button until required DATA value has been selected.
6.
Pressing ENTER will take you back to ADDRESS for further selection if necessary.
7.
Repeat steps 3 to 6 until all data has been checked.
8.
When satisfied correct DATA has been entered, turn POWER off (return to STANDBY MODE) to finish DATA input.
The unit will now have the correct DATA for the new MEMORY IC.
C4-1

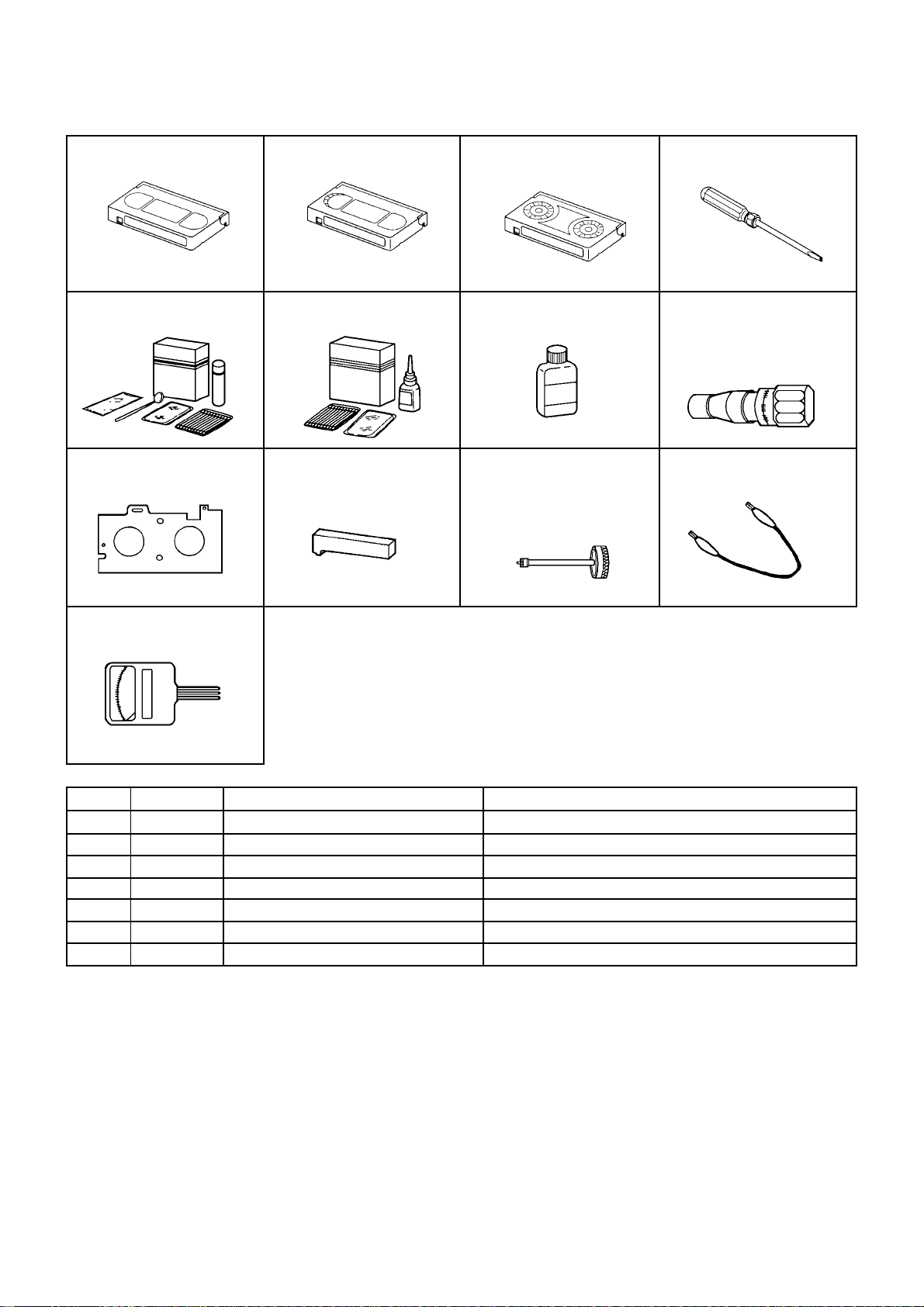

SERVICING FIXTURES AND TOOLS
Alignment Tape
Back tension cassette gauge
Torque cassette gauge
Taper nut driver
(KT-300NR)
ST-N5
ST-NF
70909103
70909199
70909228
VTR cleaning kit VTR lubrication kit Grease JG002B
JG002E
JG002F
JG022 Master Plane JG024A Reel Disk Height
Adjustment Jig
JG153 X Value Adjustment
Screwdriver
JG154 Cable
Adapter
Dial Torque Gauge
(10~90gf•cm)
(60~600gf•cm)
Tentelometer
Part No.Ref. No. Parts Name
JG002B
JG002E
JG002F
JG024A APJG024A00 Reel Disk Height Adjustment Jig Reel Disk Height Adjustment
JG153 APJG153000 X Value Adjustment Screwdriver X Value Adjustment
JG154 APJG154000 Cable Used to connect the test point of SERVICE and GROUND
APJG002B00
APJG002E00
APJG002F00
APJG022000JG022 Master Plane Reel Disk Height Adjustment
Adapter
Dial Torque Gauge (10~90gf•cm)
Dial Torque Gauge (60~600gf•cm)
VSR Torque, Brake Torque (S Reel/T Reel Ass'y)
Brake Torque (T Reel Ass'y)
VSR Torque, Brake Torque (S Reel)
Remarks
PREPARATION FOR SERVICING
How to use the Servicing Fixture
1.
Remove the Main PCB and Syscon PCB from the set.
Be sure to place the parts on a paper so that they have no short-circuit each other.
2.
Short circuit between TP1001 and Ground with the cable JG154.
(The BOT, EOT, and the Reel Sensor do not work and the deck can be operated without a cassette tape.)
3.
In case of using a cassette tape, press the STOP/EJECT button to insert or eject a cassette tape.
Turn on the power and re-check the cable before checking the trouble points.
D1-1

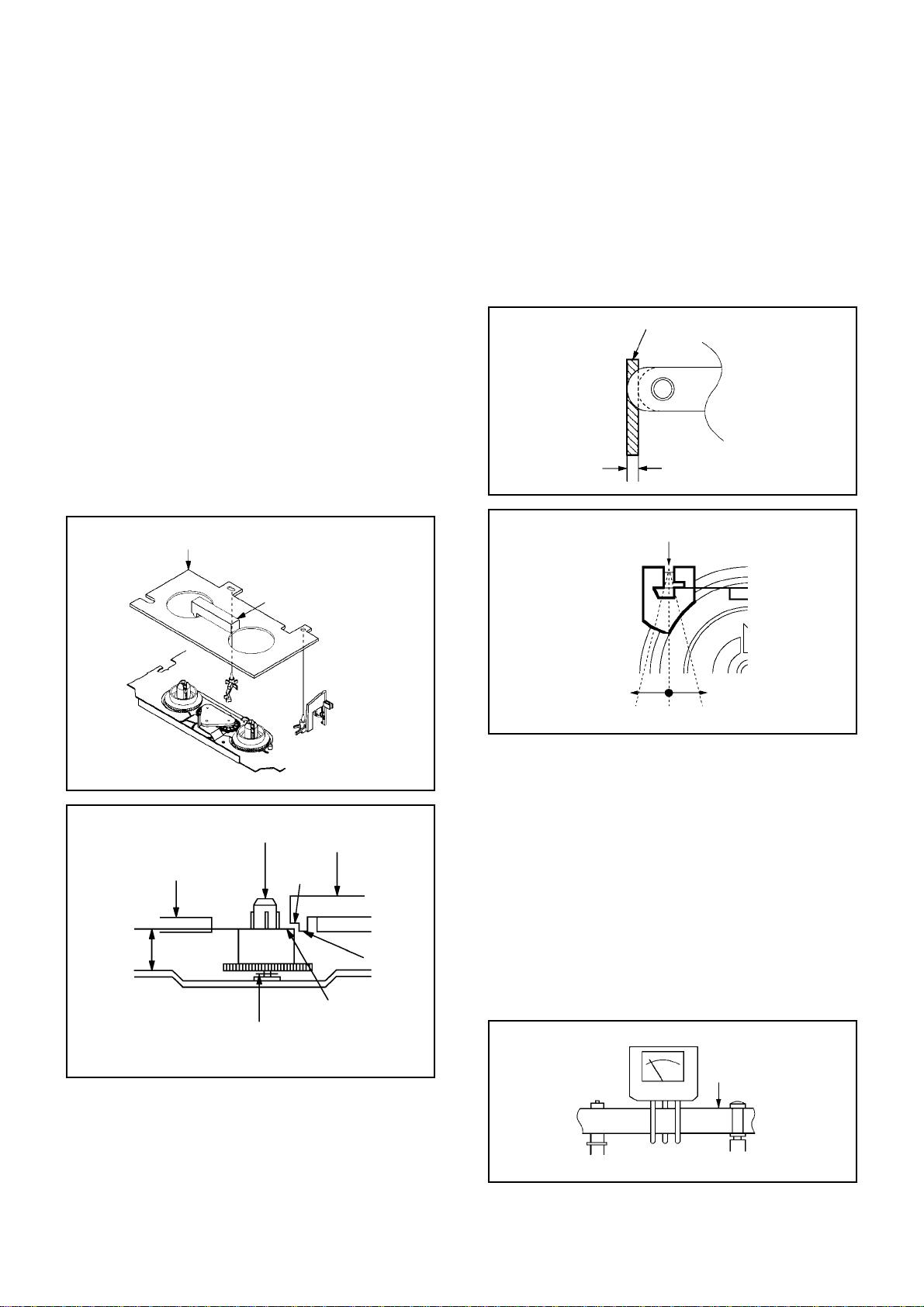

MECHANICAL ADJUSTMENTS
1. CONFIRMATION AND ADJUSTMENT
Read the following NOTES before starting work.
• Place an object which weighs between 450g~500g on
the Cassette Tape to keep it steady when you want to
make the tape run without the Cassette Holder. (Do not
place an object which weighs over 500g.)
CONFIRMATION AND ADJUSTMENT OF REEL
1-1:
DISK HEIGHT
1.
Turn on the power and set to the STOP mode.
2.
Set the master plane (JG022) and reel disk height
adjustment jig (JG024A) on the mechanism framework,
taking care not to scratch the drum, as shown in Fig. 1-
1-A.
3.
While turning the reel and confirm the following points.
Check if the surface "A" of reel disk is lower than the
surface "B" of reel disk height adjustment jig (JG024A)
and is higher than the surface "C". If it is not passed,
place the height adjustment washers and adjust to
10(+2, -0)mm.
4.
Adjust the other reel in the same way.
Master Plane (JG022)
Reel Disk Height Adjustment Jig
(JG024A)
1-2: CONFIRMATION AND ADJUSTMENT OF TENSION
POST POSITION
1.
Set to the PLAY mode.
2.
Adjust the adjusting section for the Tension Arm
position so that the Tension Arm top is within the
standard line of Main Chassis.
3.
While turning the S Reel clockwise, confirm that the
edge of the Tension Arm is located in the position
described above.
Standard line of Main Chassis
Tension Arm
0.5mm (Adjusting range)
Fig. 1-2-A
Adjusting section for the
Tension Arm position
Tension Band
Master Plane (JG022)
10(+0.2, -0)mm
Reel Disk
Height Adjustment
Washer
2.6x4.7xT0.13
2.6X4.7xT0.25
Reel Disk Height
Adjustment Jig
(JG024A)
(B)
(A)
Fig. 1-1-A
(C)
Fig. 1-1-B
The Tension Arm top will
move to the inside direction
of the Main Chassis.
Bend
The Tension Arm top will
move to the outside direction
of the Main Chassis.
Fig. 1-2-B
1-3: CONFIRMATION OF PLAYBACK TORQUE AND
BACK TENSION TORQUE DURING PLAYBACK
Load a video tape (T-120) recorded in standard speed
1.
mode. Set the unit to the PLAY mode.
Install the tentelometer as shown in Fig. 1-3. Confirm that
2.
the meter indicates 20 ± 2gf in the beginning of playback.
• USING A CASSETTE TYPE TORQUE TAPE (KT-300NR)
1.
After confirmation and adjustment of Tension Post
position (Refer to item 1-2), load the cassette type
torque tape (KT-300NR) and set to the PLAY mode.
2.
Confirm that the right meter of the torque tape indicates
50~90gf•cm during playback in SP mode.
3.
Confirm that the left meter of the torque tape indicates
25~40gf•cm during playback in SP mode.
Tentelometer
Video Tape
D2-1
P1 Post
Guide Roller
Fig. 1-3
MECHANICAL ADJUSTMENTS
1-4: CONFIRMATION OF VSR TORQUE
Install the Torque Gauge (JG002F) and Adapter (JG002B)
1.
on the S Reel. Set to the Picture Search (Rewind) mode.
(Refer to Fig.1-4-B)
Then, confirm that it indicates 120~180gf•cm.
2.
NOTE
Install the Torque Gauge on the reel disk firmly. Press the
REW button to turn the reel disk.
1-5: CONFIRMATION OF REEL BRAKE TORQUE
(S Reel Brake) (Refer to Fig. 1-4-B)
Once set to the Fast Forward mode then set to the Stop
1.
mode. While, unplug the AC cord when the Pinch Roller
Block is on the position of Fig. 1-4-A.
Move the Idler Ass'y from the S Reel.
2.
Install the Torque Gauge (JG002F) and Adapter
3.
(JG002B) on the S Reel. Turn the Torque Gauge
(JG002F) clockwise.
Then, confirm that it indicates 60~100gf•cm.
4.
(T Reel Brake) (Refer to Fig. 1-4-B)
Once set to the Fast Forward mode then set to the Stop
1.
mode. While, unplug the AC cord when the Pinch Roller
Block is on the position of Fig. 1-4-A.
Move the Idler Ass'y from the T Reel.
2.
Install the Torque Gauge (JG002E) and Adapter
3.
(JG002B) on the T reel. Turn the Torque Gauge
(JG002E) counterclockwise.
Then, confirm that it indicates 30~50gf•cm.
4.
The position at FF mode.
Pinch Roller Block
Stop at this position.
Cassette
The position at
STOP mode.
Capstan DD Unit
Cassette Holder Ass'y
Opener
Fig. 1-4-A
NOTE
If the torque is out of the range, replace the following
parts.
Check item
1-4
1-5
S Reel side:
Replacement Part
Idler Ass'y/Clutch Ass'y
S Reel/Tension Band/Tension
Connect/Tension Arm Ass'y
T Reel side:
T Reel/T Brake Band//T Brake
Spring/T Brake Arm
2. CONFIRMATION AND ADJUSTMENT
OF TAPE RUNNING MECHANISM
Tape Running Mechanism is adjusted precisely at the
factory. Adjustment is not necessary as usual. When you
replace the parts of the tape running mechanism because
of long term usage or failure, the confirmation and
adjustment are necessary.
2-1: GUIDE ROLLER
Playback the VHS Alignment Tape.
1.
Connect CH-1 of the oscilloscope to TP4001 (Envelope)
2.
and CH-2 to TP1002 (SW Pulse).
Press and hold the Tracking-Auto button on the remote
3.
control more than 2 seconds to set tracking to center.
Trigger with SW Pulse and observe the envelope. (Refer
4.
to Fig. 2-1-A)
When observing the envelope, adjust the Taper Nut
5.
Driver slightly until the envelope will be flat.
Even if you press the Tracking Button, adjust so that
flatness is not moved so much.
Adjust so that the A : B ratio is better than 3 : 2 as shown
6.
in Fig. 2-1-B, even if you press the Tracking Button to
move the envelope (The envelope waveform will begin to
decrease when you press the Tracking Button).
Adjust the PG shifter during playback.
7.
(Refer to the ELECTRICAL ADJUSTMENTS)
NOTE
After adjustment, confirm and adjust A/C head.
(Refer to item 2-2)
Torque Gauge/Adapter
(JG002F/JG002B)
S Reel
Torque Gauge/Adapter
(JG002E/JG002B)
T Reel
Fig. 1-4-B
D2-2
CH-1
Envelope
(TP4001)
CH-1
Track
CH-2
SW Pulse (TP1002)
Entrance Exit
Max
A
A : B ≥ 3 : 2
B
CH-2
Track
Fig. 2-1-A
Max
Fig. 2-1-B

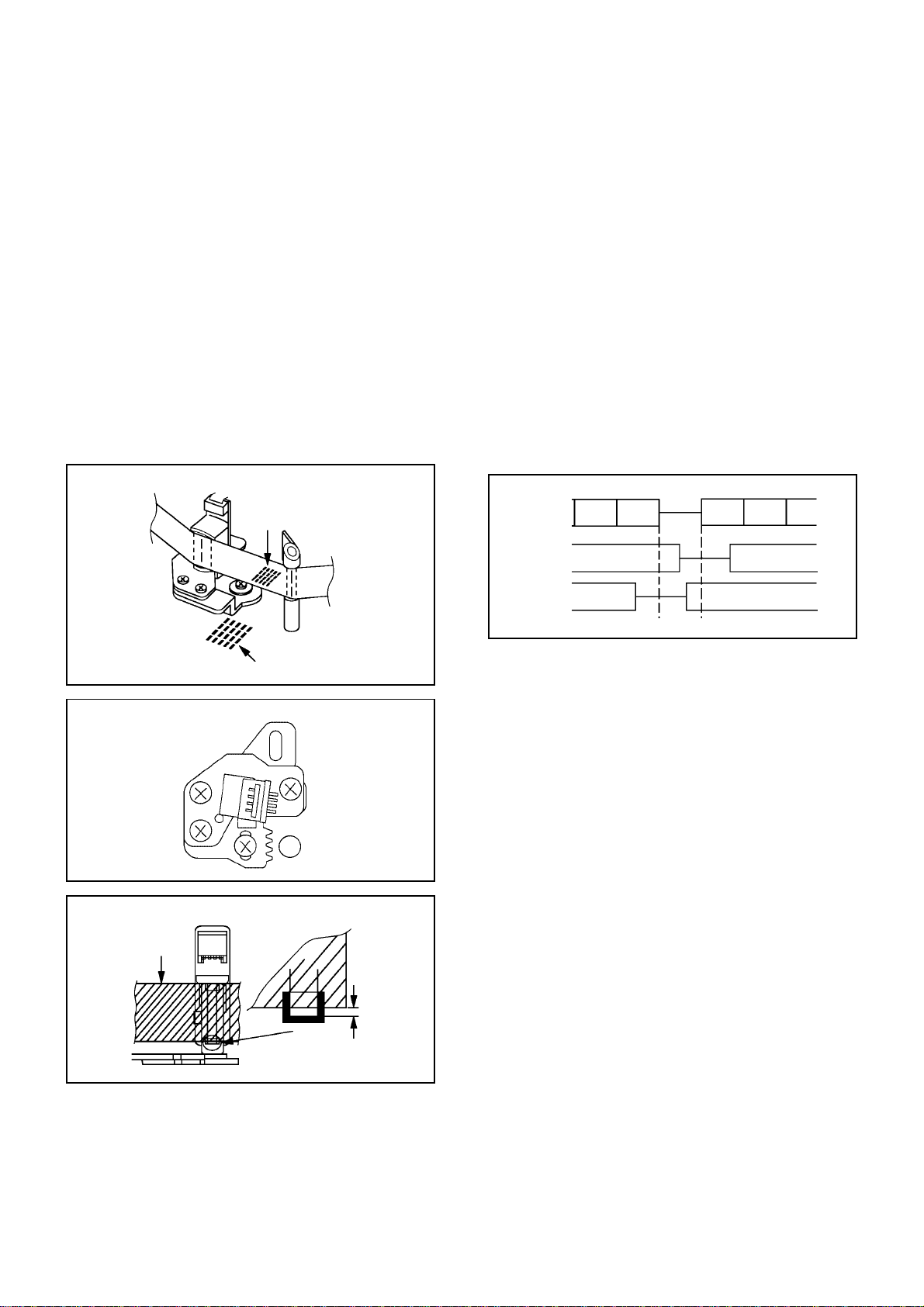

MECHANICAL ADJUSTMENTS
CONFIRMATION AND ADJUSTMENT OF AUDIO/
CONTROL HEAD
When the Tape Running Mechanism does not work well,
adjust the following items.
1.
Playback the VHS Alignment Tape.
2.
Confirm that the reflected picture of stamp mark is
appeared on the tape prior to P4 Cap as shown in Fig. 2-
2-A.
When the reflected picture is distorted, turn the screw
a)
1 clockwise until the distortion is disappeared.
When the reflected picture is not distorted, turn the
b)
screw 1 counterclockwise until little distortion is
appeared, then adjust the a).
3.
Turn the screw 2 to set the audio level to maximum.
4.
Confirm that the bottom of the Audio/ Control Head and
the bottom of the tape is shown in Fig. 2-2-C.
When the height is not correct, turn the screw 3 to
c)
adjust the height. Then, adjust the 1~3 again.
Audio/Control Head
Reflected picture of
Stamp Mark
P4 Cap
TAPE RUNNING ADJUSTMENT
2-3:2-2:
(X VALUE ADJUSTMENT)
Confirm and adjust the height of the Reel Disk.
1.
(Refer to item 1-1)
Confirm and adjust the position of the Tension Post.
2.
(Refer to item 1-2)
Adjust the Guide Roller. (Refer to item 2-1)
3.
Confirm and adjust the Audio/Control Head.
4.
(Refer to item 2-2)
Connect CH-1 of the oscilloscope to TP1002, CH-2 to
5.
TP4001 and CH-3 to HOT side of Audio Out Jack.
Playback the VHS Alignment Tape.
6.
Press and hold the Tracking-Auto button on the remote
7.
control more than 2 seconds to set tracking to center.
Set the X Value adjustment driver (JG153) to the 4 of
8.
Fig. 2-2-B. Adjust X value so that the envelope waveform
output becomes maximum. Check if the relation between
Audio and Envelope waveform becomes (1) or (2) of Fig.
2-3.
Envelope
(1)
CH-3
Audio
(2)
Audio/Control Head
3
2
Audio/Control Head
Tape
Stamp Mark
Fig. 2-3
Fig. 2-2-A
1
4
Fig. 2-2-B
0.25±0.05mm
Fig. 2-2-C
D2-3
MECHANICAL ADJUSTMENTS
3. MECHANISM ADJUSTMENT PARTS LOCATION GUIDE
3
4
5
6
2
1
8910
1. Tension Connect
2. Tension Arm
3. Guide Roller
4. Audio/Control Head
5. X value adjustment driver hole
6.
P4 Post
7.
T Brake Spring
8.
T Reel
9.
S Reel
10.
Adjusting section for the Tension Arm position
7
D2-4

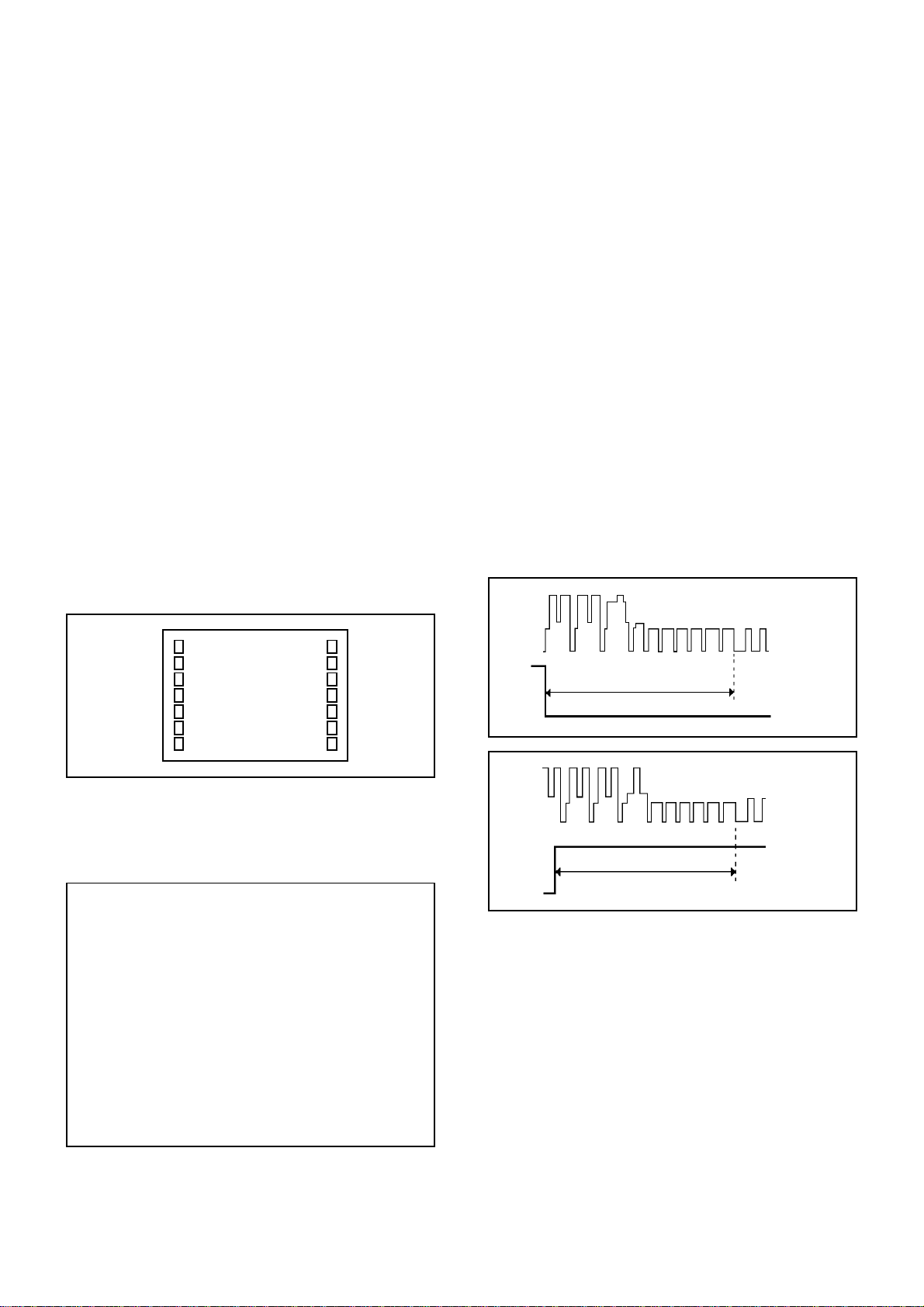

ELECTRICAL ADJUSTMENTS
1.
BEFORE MAKING ELECTRICAL
ADJUSTMENTS
Read and perform these adjustments when repairing the
circuits or replacing electrical parts or PCB assemblies.
CAUTION
•
Use an isolation transformer when performing any
service on this chassis.
•
Before removing the anode cap, discharge electricity
because it contains high voltage.
•
When removing a PCB or related component, after
unfastening or changing a wire, be sure to put the wire
back in its original position.
•
When you exchange IC and Transistor for a heat sink,
apply the silicon grease on the contact section of the
heat sink. Before applying new silicon grease, remove all
the old silicon grease. (Old grease may cause damages
to the IC and Transistor.)
On-Screen Display Adjustment
Unplug the AC plug for more than 5 seconds to set the
1.
clock to the non-setting state. Then, set the volume
level to minimum.
Press the VOL. DOWN button on the set and the
2.
Channel button (9) on the remote control simultaneously
to appear the adjustment mode on the screen as shown
in Fig. 1-1.
2. BASIC ADJUSTMENTS
(VCR SECTION)
2-1: PG SHIFTER
1.
Connect CH-1 on the oscilloscope to TP1002 and CH-2
to TP4201.
2.
Playback the alignment tape.
3.
Press and hold the Tracking-Auto button on the remote
control more than 2 seconds to set tracking to center.
4.
Press the VOL. DOWN button on the set and the
channel button (3) on the remote control simultaneously
until the indicator REC disappears. If the indicator REC
disappears, adjustment is completed.
(If the above adjustments doesn't work well:)
5.
Press the VOL. DOWN button on the set and the
channel button (3) on the remote control simultaneously
until the indicator REC disappears.
6.
When the REC indicator is blinking, press both VOL.
DOWN button on the set and the channel button (4) on
the remote control simultaneously and adjust the
Tracking +/- button until the arising to the down of Head
Switching Pulse becomes 6.5 ± 0.5H.
(Refer to Fig. 2-1-A, B)
7.
Press the Tracking Auto button.
CH-2
TV
00 OSD 15
Use the Channel UP/DOWN button or Channel button
3.
(0-9) on the remote control to select the options shown
in Fig. 1-2.
Press the MENU button on the remote control to end
4.
the adjustments.
FUNCTION
NO.
OSD H
00
CUT OFF
01
RF AGC
02
VIF VCO
03
H VCO
04
H PHASE
05
V SIZE
06
V SHIFT
07
R DRIVE
08
B DRIVE
09
R CUT OFF
10
G CUT OFF
11
B CUT OFF
12
FUNCTION
NO.
BRIGHTNESS
13
CONTRAST
14
COLOR
15
TINT
16
SHARPNESS
17
FM LEVEL
18
---
19
---
20
SEPARATION
21
TEST MONO
22
TEST STEREO
23
X-RAY TEST
24
Fig. 1-1
Fig. 1-2
6.5H
CH-1
Fig. 2-1-A
CH-2
CH-1
6.5H
Fig. 2-1-B
2-2: VCO FREERUN
1.
Receive the VHF HIGH (63dB).
2.
Place the set with Aging Test for more than 10 minutes.
3.
Connect the digital voltmeter between the pin 7 of
CP602 and the pin 1 (GND) of CP602.
4.
Activate the adjustment mode display of Fig. 1-1 and
press the channel button (03) on the remote control to
select "VIF VCO".
5.
Press the VOL. UP/DOWN button on the remote control
until the digital voltmeter is 2.5V.
D3-1
ELECTRICAL ADJUSTMENTS
2-3: RF AGC
1.
Receive the VHF HIGH (63dB).
2.
Connect the digital voltmeter between the pin 5 of
CP602 and the pin 1 (GND) of CP602.
3.
Activate the adjustment mode display of Fig. 1-1 and
press the channel button (02) on the remote control to
select "RF AGC".
4.
Press the VOL. UP/DOWN button on the remote control
until the digital voltmeter is 2.5 ± 0.05V.
2-4: STEREO SEPARATION
Please do the method (1) or method (2) adjustment.
Method (1)
1.
Set the multi-sound signal generator for each different
L-ch and R-ch frequency (Ex. L-ch=2KHz, R-ch=400Hz)
and receive the RF.
2.
Connect the oscilloscope to the Audio Out Jack.
3.
Press the AUDIO SELECT button on the remote control
to set to the stereo mode.
4.
Activate the adjustment mode display of Fig. 1-1 and
press the channel button (18) on the remote control to
select “FM LEVEL”.
5.
Press the VOL. UP/DOWN button on the remote control
to adjust it until the audio output wave becomes a fine
sine wave.
Method (2)
1.
Set the multi-sound signal generator L-ch=1KHz, R-ch
=Non input and receive the RF.
2.
Connect the oscilloscope to the Audio Out Jack (R-ch).
3.
Press the AUDIO SELECT button on the remote control
to set to the stereo mode.
4.
Activate the adjustment mode display of Fig. 1-1 and
press the channel button (18) on the remote control to
select “FM LEVEL”.
5.
Press the VOL. UP/DOWN button on the remote control
to adjust it until the R-ch output becomes minimum.
6.
Set the multi-sound signal generator L-ch=Non input,
R-ch=1KHz and receive the RF.
7.
Connect the oscilloscope to the Audio Out Jack (L-ch).
8.
Press the AUDIO SELECT button on the remote control
to set to the stereo mode.
9.
Activate the adjustment mode display of Fig. 1-1 and
press the channel button (18) on the remote control to
select “FM LEVEL”.
10.
Press the VOL. UP/DOWN button on the remote control
to adjust it until the L-ch output becomes minimum.
(TV SECTION)
2-5: CONSTANT VOLTAGE
1.
Connect the digital voltmeter to the TP501 (R502).
2.
Set condition is AV MODE without signal.
3.
Using the remote control, set the brightness and contrast
to normal position.
4.
Adjust the VR502 until the digital voltmeter is 115 ± 0.5V.
2-6: CUT OFF
1.
Adjust the unit to the following settings.
R CUT OFF=128, G CUT OFF=128, B CUT OFF=128,
R DRIVE=64, B DRIVE=64, BRIGHTNESS=100,
CONTRAST=85
2.
Place the set with Aging Test for more than 15 minutes.
3.
Set condition is AV MODE without signal.
4.
Using the remote control, set the brightness and
contrast to normal position.
5.
Activate the adjustment mode display of Fig. 1-1 and
press the channel button (01) on the remote control to
select "CUT OFF".
6.
Adjust the Screen Volume until a dim raster is obtained.
2-7: WHITE BALANCE
NOTE: Adjust after performing CUT OFF adjustment.
Place the set with Aging Test for more than 15 minutes.
1.
Receive the gray scale pattern from the Pattern
2.
Generator.
Using the remote control, set the brightness and
3.
contrast to normal position.
Activate the adjustment mode display of Fig. 1-1 and
4.
press the channel button (10) on the remote control to
select "R CUT OFF".
Press the CH. UP/DOWN button on the remote control
5.
to select the "R CUT OFF", "G CUT OFF", "B CUT
OFF", "R DRIVE" or "G DRIVE".
Adjust the VOL. UP/DOWN button on the remote control
6.
to whiten the R CUT OFF, G CUT OFF, B CUT OFF, R
DRIVE, and G DRIVE at each step tone sections equally.
7.
Perform the above adjustments 5 and 6 until the white
color is looked like a white.
2-8: FOCUS
1.
Receive the monoscope pattern.
2.
Using the remote control, set the brightness and
contrast to normal position.
3.
Turn the Focus Volume fully counterclockwise once.
4.
Adjust the Focus Volume until picture is distinct.
2-9: HORIZONTAL PHASE
1.
Receive the monoscope pattern.
2.
Using the remote control, set the brightness and
contrast to normal position.
3.
Activate the adjustment mode display of Fig. 1-1 and
press the channel button (05) on the remote control to
select "H PHASE".
4.
Press the VOL. UP/DOWN button on the remote
control until the SHIFT quantity of the OVER SCAN on
right and left becomes minimum.
2-10: VERTICAL SHIFT
1.
Receive the monoscope pattern.
2.
Using the remote control, set the brightness and
contrast to normal position.
3.
Activate the adjustment mode display of Fig. 1-1 and
press the channel button (07) on the remote control to
select "V SHIFT".
4.
Check if the step No. V. SHIFT is "0".
5.
Adjust the VR401 until the horizontal line becomes fit to
the notch of the shadow mask.
D3-2
ELECTRICAL ADJUSTMENTS
2-11: VERTICAL SIZE
1.
Receive the monoscope pattern.
2.
Using the remote control, set the brightness and
contrast to normal position.
3.
Activate the adjustment mode display of Fig. 1-1 and
press the channel button (06) on the remote control to
select "V SIZE".
4.
Press the VOL. UP/DOWN button on the remote
control until the SHIFT quantity of the OVER SCAN on
upside and downside becomes 10 ± 2%.
2-12: VERTICAL LINEARITY
NOTE: Adjust after performing adjustments in section 2-11.
After the adjustment of Vertical Linearity, reconfirm
the Vertical Shift and Vertical Size adjustments.
1.
Receive the monoscope pattern.
2.
Using the remote control, set the brightness and
contrast to normal position.
3.
Adjust the VR402 until the SHIFT quantity of the OVER
SCAN on upside and downside becomes minimum.
2-13: SUB BRIGHTNESS
1.
Receive the monoscope pattern. (RF Input)
2.
Using the remote control, set the brightness and
contrast to normal position.
3.
Activate the adjustment mode display of Fig. 1-1 and
press the channel button (13) on the remote control to
select "BRIGHTNESS".
4.
Press the VOL. UP/DOWN button on the remote
control until the white 10% is starting to be visible.
5.
Receive the monoscope pattern. (Audio Video Input)
6.
Press the INPUT SELECT button on the remote control
to set to the AV mode. Then perform the above
adjustments 2~4.

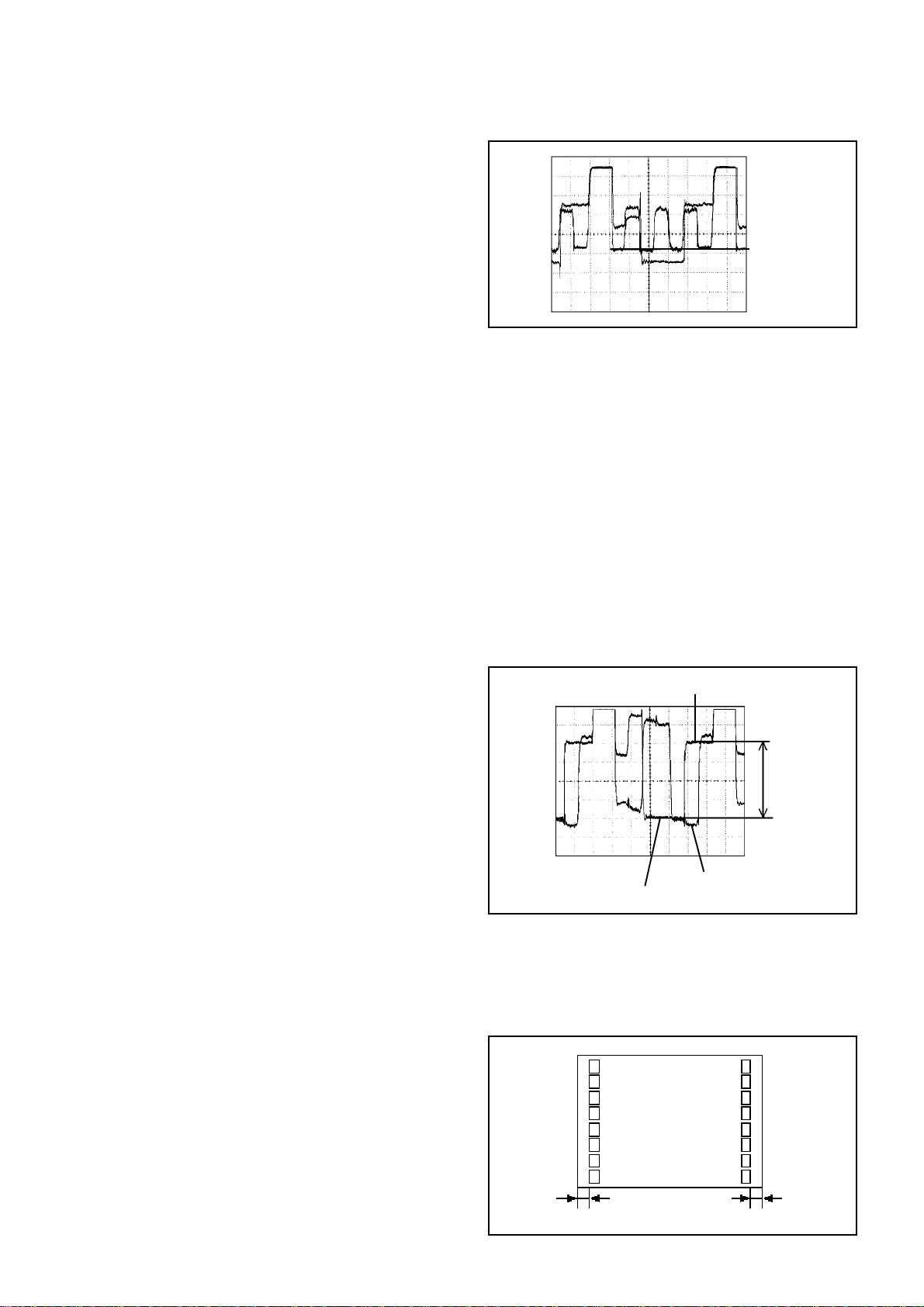

"A"
Fig. 2-2
2-16: SUB COLOR
1.
Receive the color bar pattern. (RF Input)
2.
Using the remote control, set the brightness, contrast,
color and tint to normal position.
3.
Connect the oscilloscope to TP804 (R804).
4.
Activate the adjustment mode display of Fig. 1-1 and
press the channel button (15) on the remote control to
select "COLOR".
5.
Adjust the VOLTS RANGE VARIABLE knob of the
oscilloscope until the range between white 100% and
0% is set to 4 scales on the screen of the oscilloscope.
6.
Press the VOL. UP/DOWN button on the remote control
until the red color level is adjusted to 110 ± 5% of the
white level. (Refer to Fig. 2-3)
7.
Receive the color bar pattern. (Audio Video Input)
8.
Press the INPUT SELECT button on the remote control
to set to the AV mode. Then perform the above
adjustments 2~6.
White 0%
2-14: SUB CONTRAST
1.
Activate the adjustment mode display of Fig. 1-1 and
press the channel button (14) on the remote control to
select "CONTRAST".
2.
Press the VOL. UP/DOWN button on the remote
control until the contrast step No. becomes "85".
3.
Press the INPUT SELECT button on the remote control
to set to the AV mode. Then perform the above
adjustments 1~2.
2-15: SUB TINT
1.
Receive the color bar pattern. (RF Input)
2.
Using the remote control, set the brightness, contrast,
color and tint to normal position.
3.
Connect the oscilloscope to TP806 (R808).
4.
Activate the adjustment mode display of Fig. 1-1 and
press the channel button (16) on the remote control to
select "TINT".
5.
Press the VOL. UP/DOWN button on the remote control
until the section "A" becomes a straight line.
(Refer to Fig. 2-2)
6.
Receive the color bar pattern. (Audio Video Input)
7.
Press the INPUT SELECT button on the remote control
to set to the AV mode. Then perform the above
adjustments 2~5.
100%
White 100%
2-17: OSD HORIZONTAL
1.2.Activate the adjustment mode display of Fig. 1-1.
Press the VOL. UP/DOWN button on the remote
control until the difference of A and B becomes
minimum. (Refer to Fig. 2-4)
00 OSD 15
Red Level
Fig. 2-3
TV
D3-3
BA
Fig. 2-4
ELECTRICAL ADJUSTMENTS
2-18: SUB SHARPNESS
1.
Activate the adjustment mode display of Fig. 1-1 and
press the channel button (17) on the remote control to
select "SHARPNESS".
2.
Check if the step No. of SHARPNESS is "38".
3.
Press the INPUT SELECT button on the remote control
to set to the AV mode. Then perform the above
adjustment 1~2.
2-19: H. VCO
1.2.Activate the adjustment mode display of Fig. 1-1 and
press the channel button (04) on the remote control to
select "H VCO".
Check if the step No. of H VCO is "3".
D3-4
ELECTRICAL ADJUSTMENTS

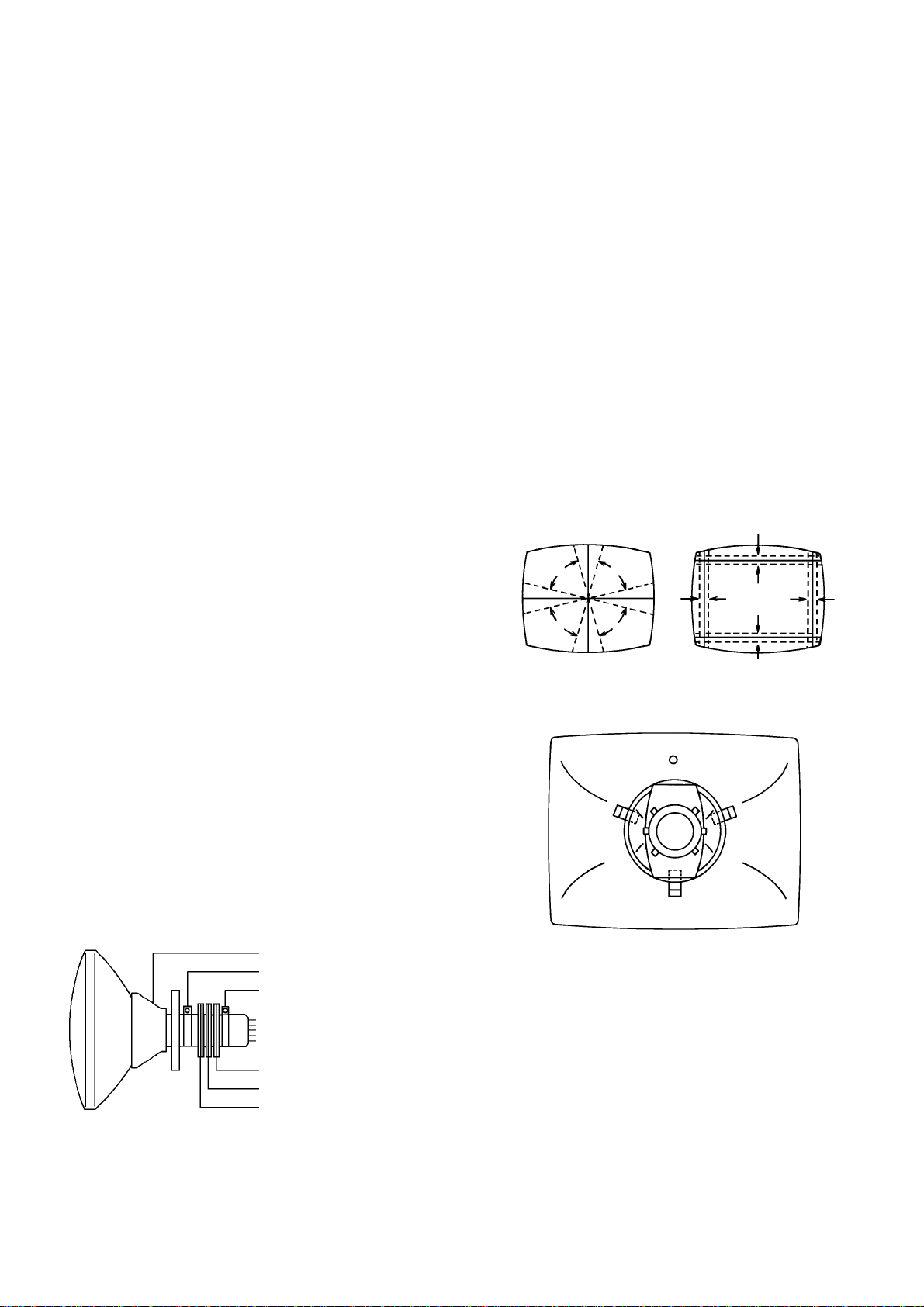

3.PURITY AND CONVERGENCE
ADJUSTMENTS
NOTE
1.
Turn the unit on and let it warm up for at least 30
minutes before performing the following adjustments.
2.
Place the CRT surface facing east or west to reduce the
terrestrial magnetism.
3.
Turn ON the unit and demagnetize with a Degauss Coil.
3-1: STATIC CONVERGENCE (ROUGH ADJUSTMENT)
1.
Tighten the screw for the magnet. Refer to the adjusted
CRT for the position. (Refer to Fig. 3-1)
If the deflection yoke and magnet are in one body,
untighten the screw for the body.
2.
Receive the green raster pattern from the color bar
generator.
3.
Slide the deflection yoke until it touches the funnel side
of the CRT.
4.
Adjust center of screen to green, with red and blue on
the sides, using the pair of purity magnets.
5.
Switch the color bar generator from the green raster
pattern to the crosshatch pattern.
6.
Combine red and blue of the 3 color crosshatch
pattern on the center of the screen by adjusting the pair
of 4 pole magnets.
7.
Combine red/blue (magenta) and green by adjusting the
pair of 6 pole magnets.
8.
Adjust the crosshatch pattern to change to white by
repeating steps 6 and 7.
3-2: PURITY
NOTE
Adjust after performing adjustments in section 3-1.
1.
Receive the green raster pattern from color bar
generator.
2.
Adjust the pair of purity magnets to center the color on
the screen.
Adjust the pair of purity magnets so the color at the
ends are equally wide.
3.
Move the deflection yoke backward (to neck side)
slowly, and stop it at the position when the whole screen
is green.
4.
Confirm red and blue color.
5.
Adjust the slant of the deflection yoke while watching
the screen, then tighten the fixing screw.
DEFLECTION YOKE
DEFLECTION YOKE SCREW
MAGNET SCREW
3-3: STATIC CONVERGENCE
NOTE
Adjust after performing adjustments in section 3-2.
1.
Receive the crosshatch pattern from the color bar
generator.
2.
Combine red and blue of the 3 color crosshatch
pattern on the center of the screen by adjusting the pair
of 4 pole magnets.
3.
Combine red/blue (magenta) and green by adjusting the
pair of 6 pole magnets.
3-4: DYNAMIC CONVERGENCE
NOTE
Adjust after performing adjustments in section 3-3.
1.2.Adjust the differences around the screen by moving the
deflection yoke upward/downward and right/left.
(Refer to Fig. 3-2-a)
Insert three wedges between the deflection yoke and
CRT funnel to fix the deflection yoke.
(Refer to Fig. 3-2-b)
R G B
R
G
B
UPWARD/DOWNWARD SLANT RIGHT/LEFT SLANT
WEDGE
WEDGE POSITION
R
G
B
Fig. 3-2-a
WEDGE
WEDGE
Fig. 3-2-b
R G B
6 POLE MAGNETS
4 POLE MAGNETS
PURITY MAGNETS
Fig. 3-1
D3-5
WAVEFORMS
Y/C/AUDIO/CCD/HEAD AMP
1PB
0.5V 20µs/div
2 POWER ON
100mV 0.1µs/div
MICON
7 POWER ON
0.5V 10ms/div
8 POWER ON
1.0V 10µs/div
12 PB
1.0V 0.5ms/div
HI-FI
22 200mV 1ms/div
3 PB
10mV 20us/div
4 PB
0.5V 1ms/div
5 REC
10.0V 5us/div
9 PB
1.0V 10ms/div
10 PB
1.0V 5ms/div
11 PB
0.5V 0.5ms/div
23 200mV 1ms/div
TV POWER
24 REC/PB
5V 0.1ms/div
DEFLECTION
25 0.5V 20µs/div
The following waveforms were measured at the point of the corresponding
NOTE:
balloon number in the schematic diagram.
H-1

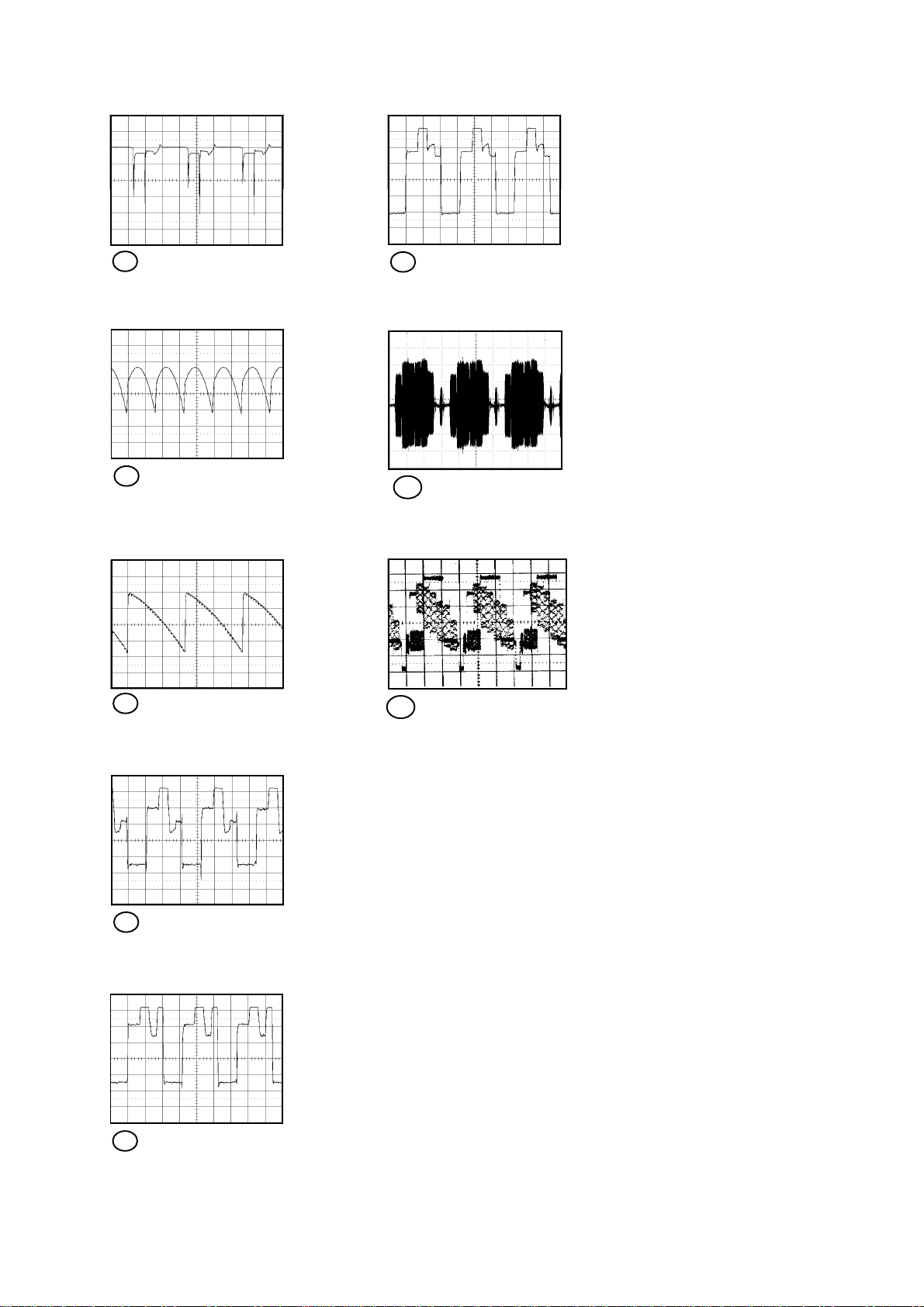

WAVEFORMS
26 5V 20µs/div
27 1V 10ms/div
28 0.5V 5ms/div
31 20.0V 20µs/div
CHROMA/IF
15 100mV 20µs/div
16 200mV 20µs/div
CRT
29 20.0V 20µs/div
30 20.0V 20µs/div
The following waveforms were measured at the point of the corresponding
NOTE:
balloon number in the schematic diagram.
H-2

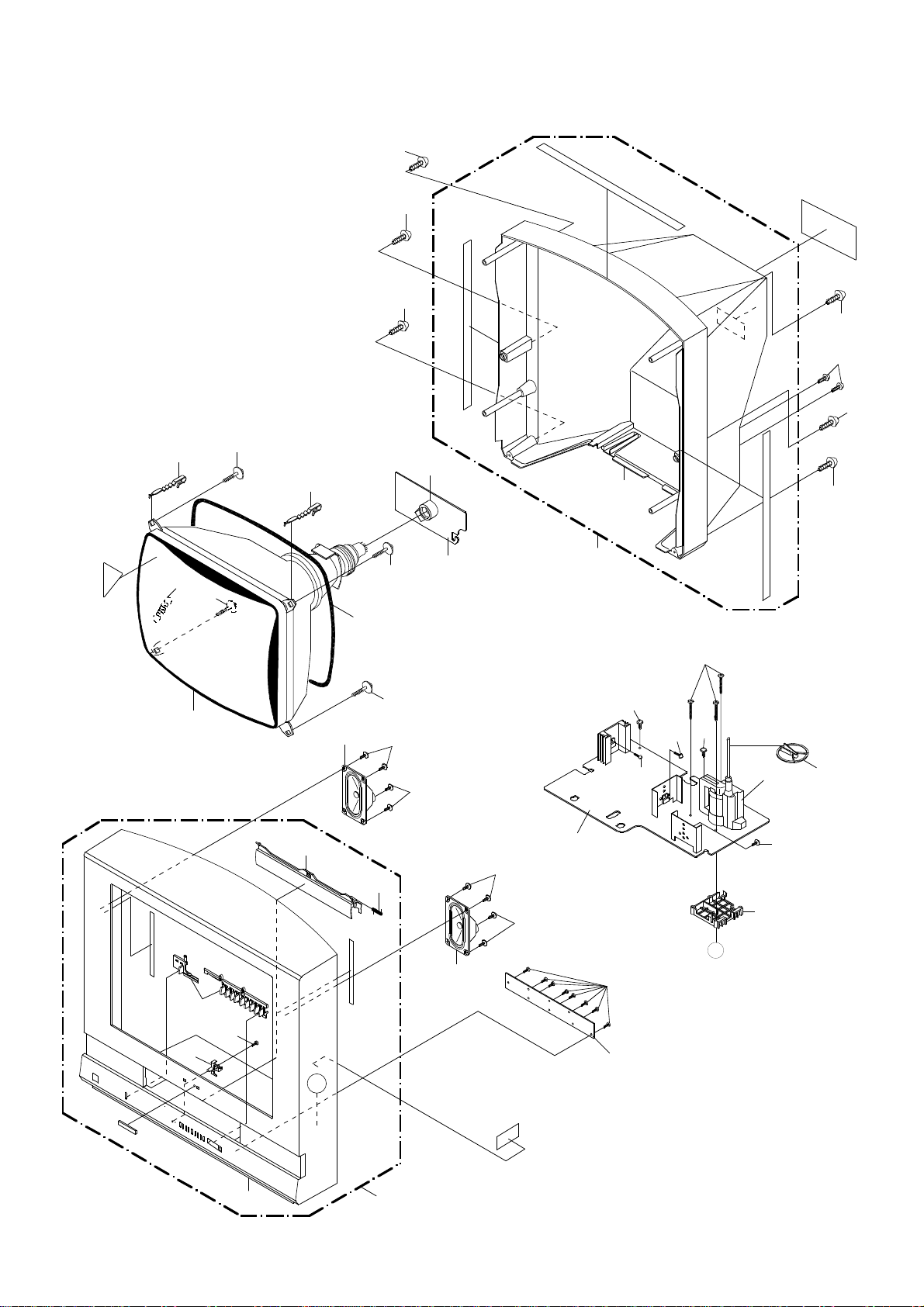

MECHANICAL EXPLODED VIEW
201
201
201
201
205
201
129
115
V801
203
203
129
119
SP352
L503
122
203
203
206
J801
PCB110
(CRT PCB)
206
206
124
PCB070
(MAIN PCB)
123
210
207
212
211
210
FB401
201
117
207
121
120
202
118
206
SP351
B
101
I1-1
206
PCB030
(OPERATION PCB)
114
A

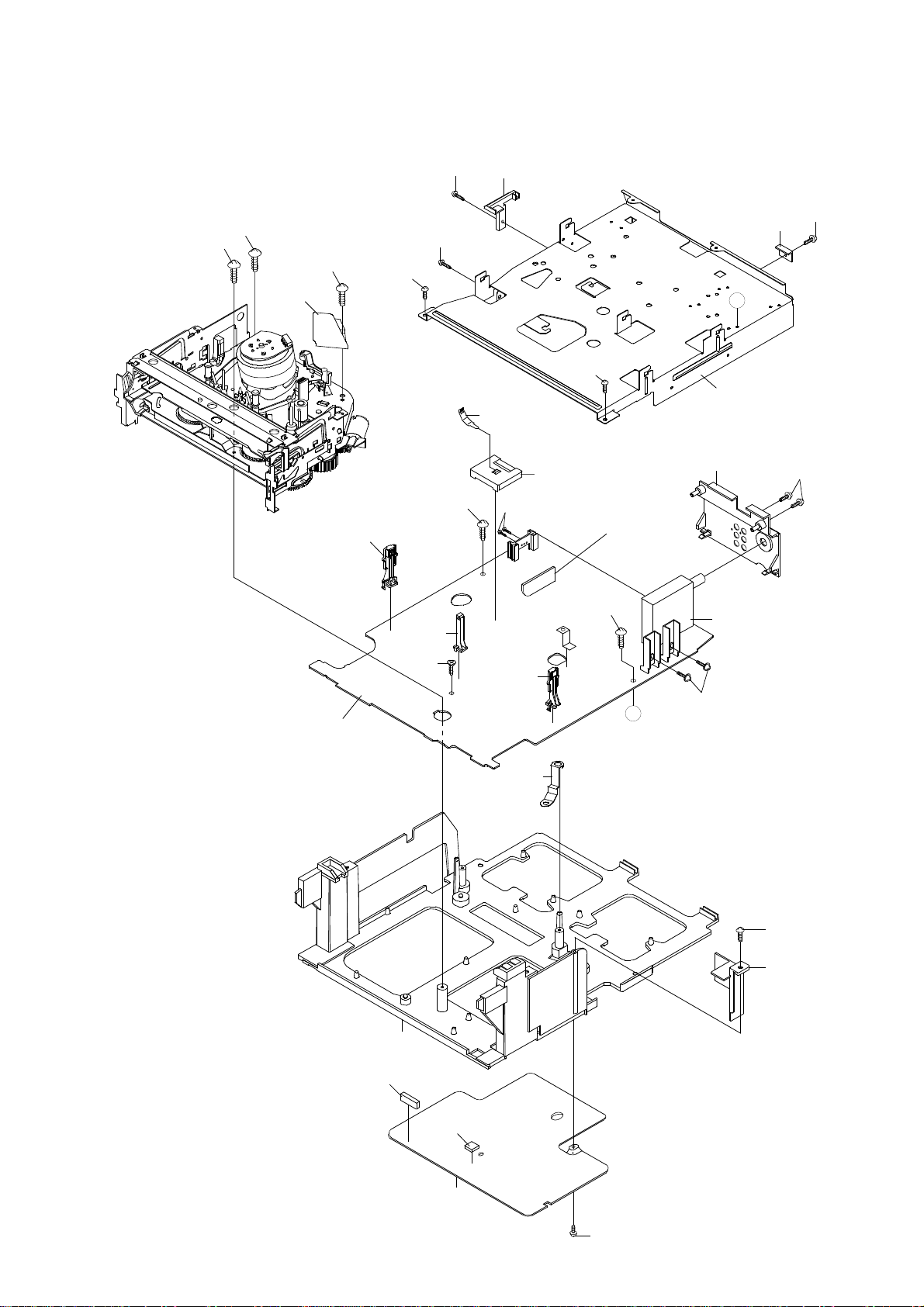

MECHANICAL EXPLODED VIEW
205
205
113
205
112
205
214
105
209
201
126
130
212
103
PCB300
(COMB PCB)
205
201
125
109
TU601
213
116
A
206
PCB010
(SYSCON PCB)
106
128
208
112
207
B
108
205
110
111
102
I1-2
204

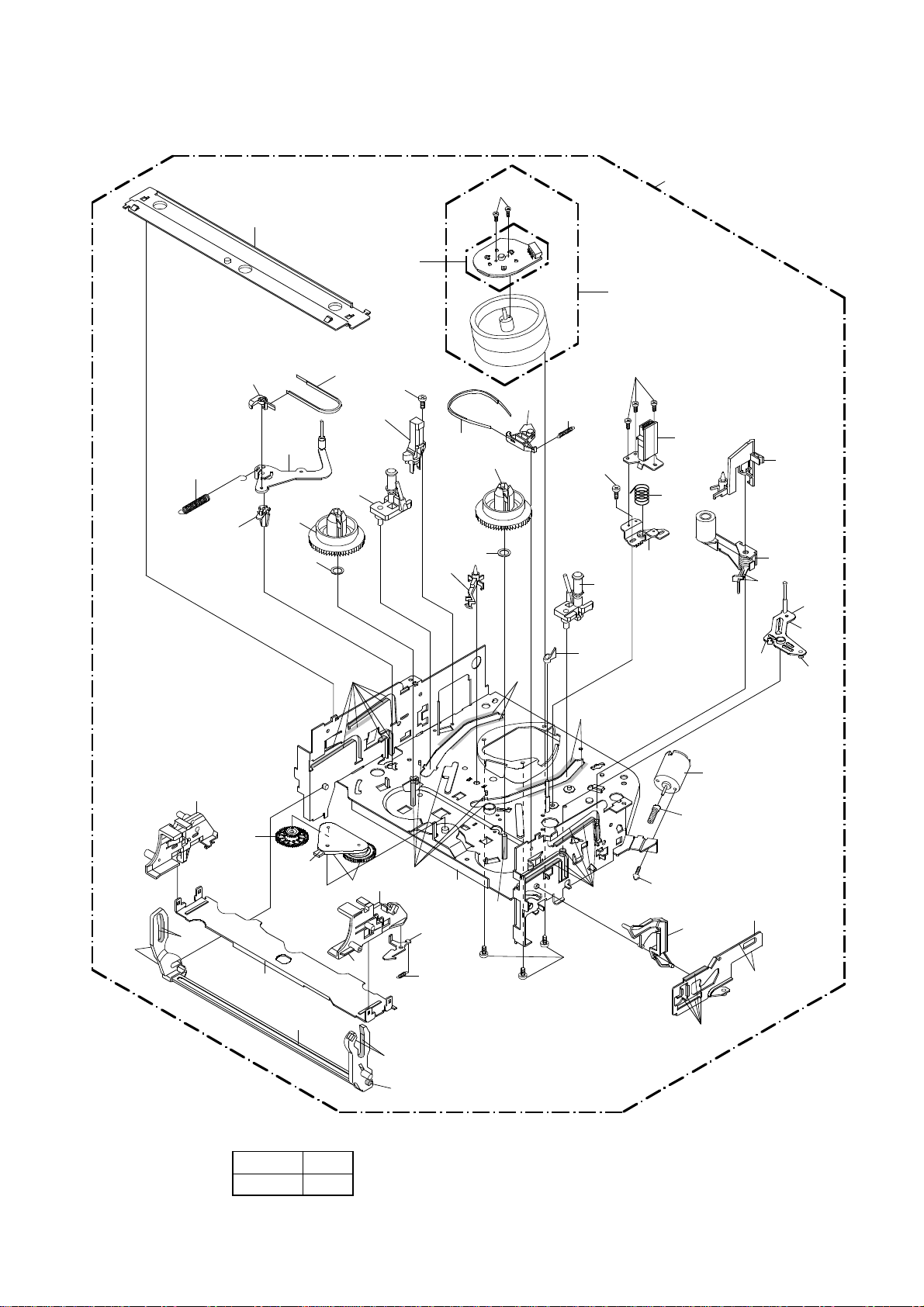

CHASSIS EXPLODED VIEW (TOP VIEW)
341
331
302
334
314
323
508
333
315
AA
M2003
501
H5002
322
336
508
502
324
AA
335
342
332
UN4001
503
312
504
305
300
H5001
347
306
301
AA
313
AA
AA
AA
AA
318
AA
325
317
CLASS
GREASE
309
321
MARK
AA
AA
AA
319
AA
NOTE:
AA
AA
307
AA
320
316
AA
Applying positions AA for the grease are
displayed for this section.
Check if the correct grease is applied for
each position.
AA
507
M101
304
506
345
346
AA
AA
I2-1

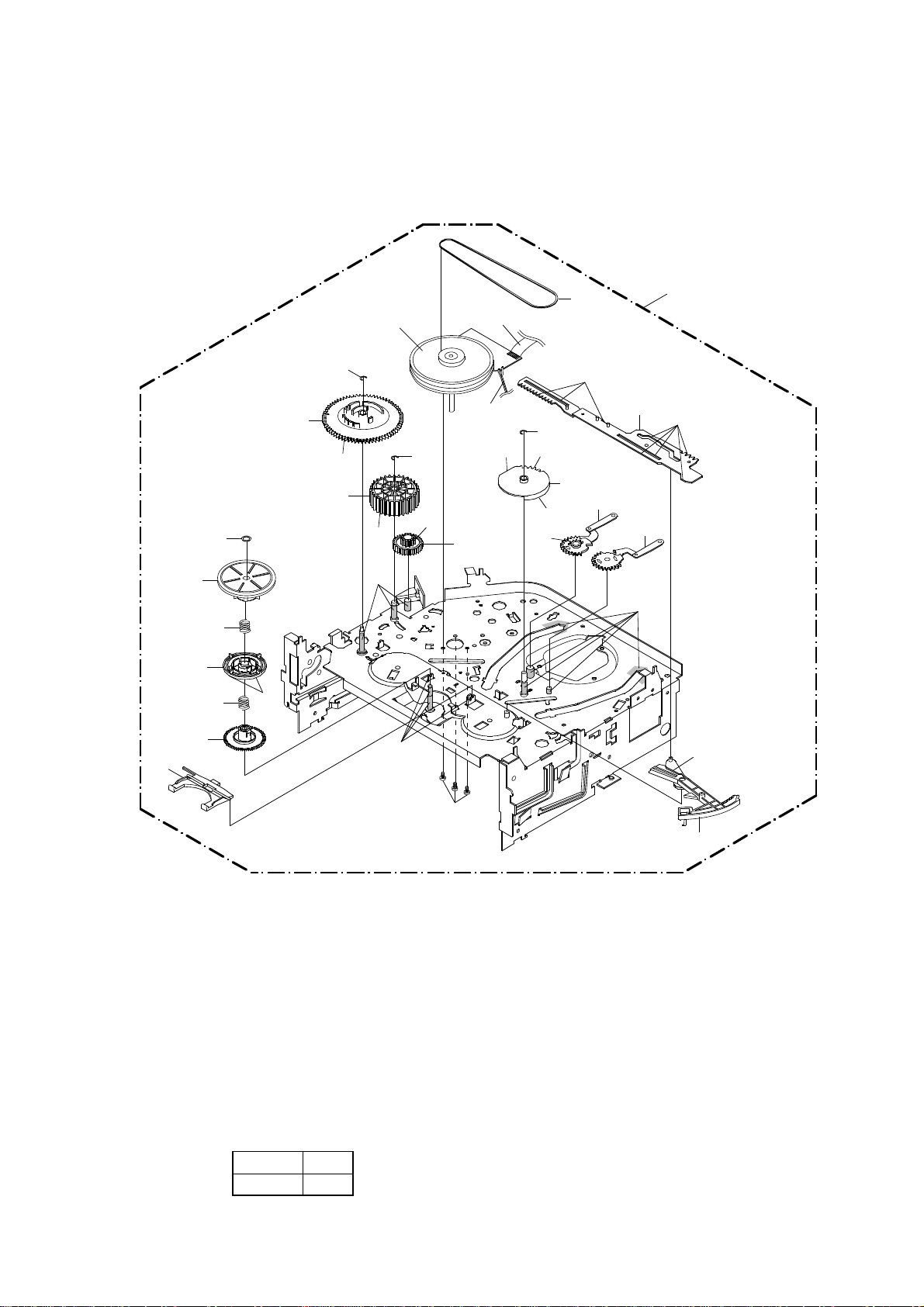

CHASSIS EXPLODED VIEW (BOTTOM VIEW)
328
308
327
326
509
344
343
AA
338
AA
337
510
M2001
AA
AA
AA
510
AA
CD1501
CD1502
340
AA
AA
AA
510
AA
329
303
AA
311
339
310
AA
300
AA
AA
CLASS
GREASE
MARK
AA
NOTE:
505
330
Applying positions AA for the grease are
displayed for this section.
Check if the correct grease is applied for
each position.
I2-2
MECHANICAL REPLACEMENT PARTS LIST
Location No. TSB P/N Reference No. Description
101 BZ310342 A5B4010720 CABINET,FRONT ASSY
102 BZ710248 752WSAA028 SHIELD,BOTTOM
103 BZ710466 752WSA0230 SHIELD,CASE HEAD AMP
105 BZ710497 85OP700037 HOLDER,LED
106 BZ710631 761WPAA055 HOLDER,DECK
108 BZ710610 753WSA0144 PLATE,BOTTOM-EARTH
109 BZ710632 771WPA0272 PLATE,JACK
110 BZ710508 755WPA0026 PLATE,COVER LIGHT
111 BZ710252 800WFA0038 CUSHION 10x10xT=2
112 BZ710498 85OP700038 HOLDER,END SENSOR
113 BZ710633 752WSA0275 COVER,AC HEAD
114 BZ710459 761WPA0223 HOLDER,FBT
115 BZ710258 741WUA0001 SPRING,EARTH
116 BZ710634 761WPA0240 HOLDER,TV-PCB
117 BZ710260 899HV3T000 HOLDER,ANODE WIRE
118 BZ710640 701WPJB586 CABINET,FRONT
119 BZ710641 712WPJB324 FLAP
120 BZ710455 713WPA0165 GLASS,LED
121 BZ710642 735WPBA365 BUTTON,FRAME
122 BZ710010 743WKA0032 SPRING,FLAP
123 BZ710457 702WPAA169 CABINET,BACK ASS'Y
124 BZ310350 A5B4010740 CABINET,BACK ASS'Y
125 BZ710638 752WSA0277 PLATE,DECK SHIELD ASS'Y
126 BZ710012 761WPA0151 HOLDER,M/PCB
128 BZ710251 800WFA0037 CUSHION 15x5xT=6
129 BZ710259 762WPA0011 HOLDER,CRT WIRE
130 BZ710331 753WUAA006 SPRING,EARTH HEAD AMP
201 BZ710036 8117540B04 SCREW,TAPPING(B0) TRUSS 4x20
202 BZ710031 8110630A04 SCREW,TAP TITE(P) BRAZIER 3x10
203 BZ710275 8121J50B54 SCREW,TAPPING(B0) GW20 5x28
204 BZ710158 8110630604 SCREW,TAP TITE(P) BRAZIER 3x6
205 BZ710032 8110630A24 SCREW,TAP TITE(P) BRAZIER 3x12
206 BZ710030 8110630804 SCREW,TAP TITE(P) BRAZIER 3x8
207 BZ710239 8109I30A04 SCREW,TAP TITE(B) WH7 3x10
208 BZ710028 8110330804 SCREW,TAP TITE(P) FLAT 3x8
209 BZ710018 8107630804 SCREW,TAP TITE(S) BRAZIER 3x8
210 BZ710337 8107930604 SCREW,CUP(S) 3x6
211 BZ710409 8107630B04 SCREW,TAP TITE(S) BRAZIER 3x20
212 BZ710019 8109630802 SCREW,TAP TITE(B) BRAZIER 3x8
213 BZ710147 8107630604 SCREW,TAP TITE(S) BRAZIER 3x6
214 BZ710408 8109630604 SCREW,TAP TITE(B) BRAZIER 3x6
--- BZ710410 792WHA0317 PACKAGE,TOP
--- BZ710411 792WHA0318 PACKAGE,BOTTOM
--- BZ710643 793WCDB153 GIFT BOX
--- BZ614388 J5B40101 INSTRUCTION BOOK
J1-1
CHASSIS REPLACEMENT PARTS LIST
Location No. TSB P/N Reference No. Description
300 BZ610339 A5B401Z420A DECK ASSY A5B401Z420A
301 BZ710564 85OA400234 PINCH ROLLER BLOCK
302 BZ710514 85OP900746 BRACKET,TOP 3V
303 BZ710193 85OP200290 BELT,CAPSTAN (S)
304 BZ710515 85OP600581 WORM
305 BZ710094 85OP500083 BASE,AC HEAD
306 BZ710112 85OP800324 SPRING,AC HEAD
307 BZ710516 85OA000459 MAIN CHASSIS ASS'Y
308 BZ710517 85OA200089 CLUTCH ASS'Y
309 BZ710518 85OA200090 ARM IDLER ASS'Y
310 BZ710519 85OA300065 LOADING ARM S UNIT
311 BZ710520 85OA300066 LOADING ARM T UNIT
312 BZ710521 85OA400223 INCLINED BASE T UINT 3S
313 BZ710522 85OA400232 P5 ARM ASS'Y 2
314 BZ710523 85OA400233 TENSION ARM ASS'Y (WT)
315 BZ710524 85OA400231 INCLINED BASE S UNIT
316 BZ710525 85OP800358 SPRING,LOCKER
317 BZ710526 85OP900736 CASS,HOLDER
318 BZ710527 85OP900748 CASS,SIDE L
319 BZ710528 85OP900749 CASS,SIDE R
320 BZ710529 85OP900739 LOCKER,R
321 BZ710530 85OA900228 LINK UNIT
322 BZ710531 85OP000496 POST,CASS GUIDE
323 BZ710532 85OP200316 REEL,S (S)
324 BZ710533 85OP200317 REEL,T (S)
325 BZ710534 85OP200308 GEAR,IDLER
326 BZ710535 85OP200311 GEAR,CLUTCH
327 BZ710536 85OP200312 GEAR,COUPLING
328 BZ710537 85OP200313 LEVER,CLUTCH
329 BZ710538 85OP300194 GEAR,MAIN LOADING
330 BZ710092 85OP400490 LEVER,TENSION
331 BZ710093 85OP400492 HOLDER,TENSION
332 BZ710366 85OP400520 CAP.P4
333 BZ710539 85OP400539 BAND,TENSION
334 BZ710540 85OP400533 CONNECT,TENSION
335 BZ710541 85OP600573 ARM,BRAKE T
336 BZ710542 85OP600583 BAND,BRAKE T
337 BZ710543 85OP600577 CAM,PINCH ROLLER
338 BZ710544 85OP600578 CAM,MAIN
339 BZ710545 85OP600579 ROD,MAIN
340 BZ710546 85OP600582 GEAR,JOINT
341 BZ710110 85OP800322 SPRING,TENSION
342 BZ710547 85OP800360 SPRING,BRAKE T
343 BZ710548 85OP800355 SPRING,COUPLING
344 BZ710549 85OP800356 SPRING,RING
345 BZ710565 85OP900750 LEVER,LINK 2
346 BZ710551 85OP900744 LEVER,FLAP
347 BZ710552 85OP900745 CASS,OPENER
501 BZ710049 8107226804 SCREW,TAP TITE(S) BIND 2.6x8
502 BZ710390 8107226504 SCREW,TAP TITE(S) BIND 2.6x5
503 BZ710371 8107226404 SCREW,TAP TITE(S) BIND 2.6x4
504 BZ710046 8102120604 SCREW,PAN M2x6
505 BZ710050 8109126604 SCREW,TAP TITE(B) PAN 2.6x6
506 BZ710553 810A130404 SCREW/WASHER(A) M3x4
507 BZ710219 810A126504 SCREW/WASHER(A) M2.6x5
508 BZ710056 82Q264713N POLYSLIDER WASHER 2.6x4.7xT0.13
509 BZ710054 82P184505N POLYSLIDER WASHER(CUT) 1.8x4.5xT0.5
510 BZ710058 83ETW30000 E-RING 3.0
CD1501 BZ614338 122H071603 CORD JUMPER SMCD-7X151
CD1502 BZ614339 122Y021902 CORD JUMPER 2Y021902
H5001 BZ710040 1523D91034 HEAD (AUDIO CONTROL) HVMXA1072A
H5002 BZ710041 1543D02013 HEAD (FULL ERASE) HVFHP0032A
! M101 BZ710566 1596P98001 MOTOR (LOADING) MXN13FB12K3
! M2001 BZ710555 1510S98036 CAPSTAN DD UNIT F2QVB08
M2003 BZ710391 1589S11015 MICRO MOTOR I2OAL01
! UN4001 BZ610340 A5B401B500 CYLINDER UNIT ASS'Y A5B401B500
J2-1
ELECTRICAL REPLACEMENT PARTS LIST
Location No. TSB P/N Reference No. Description
RESISTORS
! R401 BZ210228 R3X28A101J R,METAL OXIDE 100 OHM 2W
! R402 BZ210229 R3X28A151J R,METAL OXIDE 150 OHM 2W
R408 BZ210239 R00202681J RC 680 OHM 1/2W
! R418 BZ210150 R002T2010J RC 1 OHM 1/2W
! R442 BZ210114 R4X5T6123F R,METAL 12K OHM 1/6W
! R443 BZ210230 R4X5T6332F R,METAL 3.3K OHM 1/6W
! R444 BZ210231 R4X5T6153F R,METAL 15K OHM 1/6W
! R447 BZ210185 R65582151J R,FUSE 150 OHM 1/2W
R448 BZ210153 R3X181102J R,METAL OXIDE 1K OHM 1W
! R450 BZ210232 R6558A6R8J R,FUSE 6.8 OHM 2W
R500 BZ210080 R0G3K2275K RC 2.7M OHM 1/2W
! R501 BZ210117 R5X2CE010J R,CEMENT 1 OHM 7W
! R502 BZ210165 R3X18AR56J R,METAL OXIDE 0.56 OHM 2W
! R512 BZ210045 R3X181223J R,METAL OXIDE 22K OHM 1W
! R514 BZ210233 R4X5T6272F R,METAL 2.7K OHM 1/6W
! R527 BZ210234 R3X1810R1J R,METAL OXIDE 0.1 OHM 1W
! R529 BZ210190 R63581R22J R,FUSE 0.22 OHM 1W
! R538 BZ210206 R002T2155J RC 1.5M OHM 1/2W
R693 BZ210235 R00204103J RC 10K OHM 1/4W
! R804 BZ210050 R3X18A123J R,METAL OXIDE 12K OHM 2W
! R806 BZ210050 R3X18A123J R,METAL OXIDE 12K OHM 2W
! R808 BZ210050 R3X18A123J R,METAL OXIDE 12K OHM 2W
CAPACITORS
! C407 BZ110209 E0ELF3222M CE 2200 UF 25V
C423 BZ110210 P411F3394J CMPP 0.39 UF 250V ECWF
! C428 BZ110211 P4N8FK133H CMPP 0.013 UF 1.5KV
! C431 BZ110204 E0ELFD220M CE 22 UF 250V
! C433 BZ110205 E02LU5220M CE 22 UF 50V
C450 BZ110182 C03L0R713K CC 0.001 UF 2KV R
C501 BZ110176 C03L0R7Q2K CC 470 PF 2KV R
C504 BZ110182 C03L0R713K CC 0.001 UF 2KV R
! C505 BZ110138 P2472B224M CMP 0.22UF 275V PHE840
! C506 BZ110145 P2472B104M CMP 0.1 UF 275V PHE840
! C507 BZ110012 E51CGC471M CE 470 UF 200V
C517 BZ110181 C03L0R7H3K CC 0.0022UF 2KV R
! C518 BZ110206 C0JTB05Q2K CC 470 PF 500V B
! C520 BZ110207 E02LT2102M CE 1000 UF 16V
! C521 BZ110130 E62NFC221M CE 220 UF 200V
! C523 BZ110029 E5EZT3471M CE 470 UF 25V
! C524 BZ110053 E02LF3102M CE 1000 UF 25V
! C529 BZ110051 CB3930MH3M CC 0.0022UF 250V
! C530 BZ110051 CB3930M13M CC 0.001 UF 250V
! C531 BZ110129 E5EZF2222M CE 2200 UF 16V
! C533 BZ110051 CB3930M13M CC 0.001 UF 250V
C540 BZ110191 C03L0R7E3K CC 0.0015UF 2KV R
C741 BZ110208 E02L052R2M CE 2.2 UF 50V
C808 BZ110182 C03L0R713K CC 0.001 UF 2KV R
DIODES
D401 BZ410043 D2WT011E10 DIODE,SILICON 11E1-EIC
D402 BZ410019 D97U03001B DIODE,ZENER MTZJ30B T-77
D405 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77
D406 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77
D407 BZ410019 D97U03001B DIODE,ZENER MTZJ30B T-77
! D409 BZ410017 D94TA11B13 DIODE,ZENER HZ11B3L TD
D410 BZ410022 D97U06R81B DIODE,ZENER MTZJ6.8B T-77
! D411 BZ410092 D2WXN49370 DIODE,SILICON 1N4937
! D412 BZ410014 D2LTPG06J0 DIODE,SILICON RMPG06J-G3
! D413 BZ410092 D2WXN49370 DIODE,SILICON 1N4937
! D501 BZ410044 D4LZBL06L0 DIODE GBL06L-6177
D504 BZ410043 D2WT011E10 DIODE,SILICON 11E1-EIC
! D505 BZ410076 D2WXB290S0 DIODE,SILICON SB290S
D506 BZ410092 D2WXN49370 DIODE,SILICON 1N4937
D507 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77
D508 BZ410092 D2WXN49370 DIODE,SILICON 1N4937
! D509 BZ410076 D2WXB290S0 DIODE,SILICON SB290S
! D510 BZ410080 D2WXRU2AM0 DIODE,SILICON RU2AM-EIC
! D512 BZ410076 D2WXB290S0 DIODE,SILICON SB290S
! D514 BZ410076 D2WXB290S0 DIODE,SILICON SB290S
! D515 BZ410037 D97U03301B DIODE,ZENER MTZJ33B T-77
D516 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77
D517 BZ410090 D97U04R71B DIODE,ZENER MTZJ4.7B T-77
! D519 BZ410076 D2WXB290S0 DIODE,SILICON SB290S
! D523 BZ410076 D2WXB290S0 DIODE,SILICON SB290S
D524 BZ410043 D2WT011E10 DIODE,SILICON 11E1-EIC
D525 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77
D526 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77
D528 BZ410021 D97U05R61B DIODE,ZENER MTZJ5.6B T-77
J3-1
ELECTRICAL REPLACEMENT PARTS LIST
Location No. TSB P/N Reference No. Description
DIODES
D533 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77
D601 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77
D602 BZ410053 D97U08R21C DIODE,ZENER MTZJ8.2C T-77
D603 BZ410084 D97U01101B DIODE,ZENER MTZJ11B T-77
D604 BZ410008 D23U1003A3 DIODE,SCHOTTKY SB10-03A3
D605 BZ410025 D28T11ESN1 DIODE,SILICON 11ES1N-TA1B2
D606 BZ410084 D97U01101B DIODE,ZENER MTZJ11B T-77
D607 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77
D608 BZ410022 D97U06R81B DIODE,ZENER MTZJ6.8B T-77
D609 BZ410022 D97U06R81B DIODE,ZENER MTZJ6.8B T-77
D612 BZ410022 D97U06R81B DIODE,ZENER MTZJ6.8B T-77
D613 BZ410022 D97U06R81B DIODE,ZENER MTZJ6.8B T-77
D616 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77
D617 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77
D618 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77
D619 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77
D620 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77
D621 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77
D791 BZ410054 0021721150 LED SLR-342VCT32
D793 BZ410054 0021721150 LED SLR-342VCT32
D801 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77
D802 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77
D803 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77
D1001 BZ410084 D97U01101B DIODE,ZENER MTZJ11B T-77
D1002 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77
D1003 BZ410095 0010100320 INFRARED LED LNA2702L010R
D1014 BZ410022 D97U06R81B DIODE,ZENER MTZJ6.8B T-77
D2201 BZ410022 D97U06R81B DIODE,ZENER MTZJ6.8B T-77
D4003 BZ410034 D97U01301B DIODE,ZENER MTZJ13B T-77
D4201 BZ410021 D97U05R61B DIODE,ZENER MTZJ5.6B T-77
D4204 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77
D4205 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77
D4206 BZ410034 D97U01301B DIODE,ZENER MTZJ13B T-77
D5501 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77
ICS
IC301 BZ611034 I06DF62420 IC M62420SP
IC352 BZ611035 I0FSP75220 IC AN7522
! IC401 BZ611025 I03TD80400 IC LA78040
! IC501 BZ611097 I0WD015070 IC TEA1507P/N1
! IC506 BZ410088 0002E00610 PHOTO COUPLER LTV-817M-VB
IC601 BZ611055 I06FC61206 IC M61206FP
! IC602 BZ611089 I1KA98R09A IC KIA78R09API
! IC603 BZ611054 I1KA98R050 IC KIA78R05PI
IC901 BZ611079 I05FE90A45 IC TC90A45F
IC1001 BZ611093 I56F57071A IC OEC7071A
IC1002 BZ611057 IC7J0311A0 IC R3111N311A/C-TR
IC1099 BZ610331 A5B401Z015 IC S-24C04BDP-LA
IC4001 BZ611095 I03F3205M0 IC LA71205M-MPB
IC5501 BZ611024 I01F62FBP0 IC AN3662FBP
TRANSISTORS
Q350 BZ510002 T8YJ2412K0 TRANSISTOR,SILICON 2SC2412KT146 R,S
Q403 BZ510078 TNATJ03003 COMPOUND TRANSISTOR KRC111MAT
Q404 BZ510073 TAATA12660 TRANSISTOR,SILICON KTA1266-AT(Y,GR)
! Q405 BZ510097 TCAT03227Y TRANSISTOR,SILICON KTC3227_Y-AT
! Q406 BZ510028 TDUF024990 TRANSISTOR,SILICON 2SD2499
! Q501 BZ510098 T220033260 FET 2SK3326(2)
Q502 BZ510004 TA3T016240 TRANSISTOR,SILICON 2SA1624-AA
! Q503 BZ510005 TA3T1371A0 TRANSISTOR,SILICON 2SA1371(D,E)-AE
Q504 BZ510069 TCATC31980 TRANSISTOR,SILICON KTC3198-AT(Y,GR)
Q505 BZ510011 TC3T029090 TRANSISTOR,SILICON 2SC2909(S,T)-AA
Q507 BZ510069 TCATC31980 TRANSISTOR,SILICON KTC3198-AT(Y,GR)
Q601 BZ510001 T6YJ1037K0 TRANSISTOR,SILICON 2SA1037AKT146R,S
! Q602 BZ510070 TCAT032034 TRANSISTOR,SILICON KTC3203_Y-AT
! Q603 BZ510070 TCAT032034 TRANSISTOR,SILICON KTC3203_Y-AT
Q604 BZ510090 TPAAB05001 COMPOUND TRANSISTOR KRA102SRTK
! Q605 BZ510043 TC10013840 TRANSISTOR,SILICON 2SC13840W
! Q606 BZ510043 TC10013840 TRANSISTOR,SILICON 2SC13840W
! Q608 BZ510043 TC10013840 TRANSISTOR,SILICON 2SC13840W
Q609 BZ510002 T8YJ2412K0 TRANSISTOR,SILICON 2SC2412KT146 R,S
Q651 BZ510002 T8YJ2412K0 TRANSISTOR,SILICON 2SC2412KT146 R,S
! Q801 BZ510091 TCA0042170 TRANSISTOR,SILICON KTC4217(O,Y) or
! Q802 BZ510091 TCA0042170 TRANSISTOR,SILICON KTC4217(O,Y) or
! Q803 BZ510091 TCA0042170 TRANSISTOR,SILICON KTC4217(O,Y) or
Q810 BZ510080 TCYT1740S0 TRANSISTOR,SILICON 2SC1740SP TP
BZ510027 TC3Q026210 TRANSISTOR,SILICON 2SC2621(D,E)-RAC
BZ510027 TC3Q026210 TRANSISTOR,SILICON 2SC2621(D,E)-RAC
BZ510027 TC3Q026210 TRANSISTOR,SILICON 2SC2621(D,E)-RAC
J3-2
ELECTRICAL REPLACEMENT PARTS LIST
Location No. TSB P/N Reference No. Description
TRANSISTORS
Q811 BZ510080 TCYT1740S0 TRANSISTOR,SILICON 2SC1740SP TP
Q812 BZ510080 TCYT1740S0 TRANSISTOR,SILICON 2SC1740SP TP
Q901 BZ510002 T8YJ2412K0 TRANSISTOR,SILICON 2SC2412KT146 R,S
Q902 BZ510002 T8YJ2412K0 TRANSISTOR,SILICON 2SC2412KT146 R,S
Q903 BZ510002 T8YJ2412K0 TRANSISTOR,SILICON 2SC2412KT146 R,S
Q1002 BZ410097 0000M00390 PHOTO TRANSISTOR ST-304L
Q1003 BZ410106 0002700680 PHOTO COUPLER RPI-352C40N or
Q1004 BZ510067 TNAAC05002 COMPOUND TRANSISTOR KRC103SRTK
Q1005 BZ410107 0002700690 PHOTO COUPLER RPI-303 or
Q1006 BZ510067 TNAAC05002 COMPOUND TRANSISTOR KRC103SRTK
Q1007 BZ510067 TNAAC05002 COMPOUND TRANSISTOR KRC103SRTK
Q1008 BZ510001 T6YJ1037K0 TRANSISTOR,SILICON 2SA1037AKT146R,S
Q1009 BZ410106 0002700680 PHOTO COUPLER RPI-352C40N or
Q1013 BZ410097 0000M00390 PHOTO TRANSISTOR ST-304L
Q1014 BZ510067 TNAAC05002 COMPOUND TRANSISTOR KRC103SRTK
Q4001 BZ510069 TCATC31980 TRANSISTOR,SILICON KTC3198-AT(Y,GR)
Q4002 BZ510069 TCATC31980 TRANSISTOR,SILICON KTC3198-AT(Y,GR)
Q4003 BZ510072 TPAAC05002 COMPOUND TRANSISTOR KRA103SRTK
Q4005 BZ510073 TAATA12660 TRANSISTOR,SILICON KTA1266-AT(Y,GR)
Q4006 BZ510070 TCAT032034 TRANSISTOR,SILICON KTC3203_Y-AT
Q4007 BZ510002 T8YJ2412K0 TRANSISTOR,SILICON 2SC2412KT146 R,S
Q4009 BZ510001 T6YJ1037K0 TRANSISTOR,SILICON 2SA1037AKT146R,S
Q4010 BZ510001 T6YJ1037K0 TRANSISTOR,SILICON 2SA1037AKT146R,S
Q4012 BZ510002 T8YJ2412K0 TRANSISTOR,SILICON 2SC2412KT146 R,S
Q4013 BZ510002 T8YJ2412K0 TRANSISTOR,SILICON 2SC2412KT146 R,S
Q4203 BZ510002 T8YJ2412K0 TRANSISTOR,SILICON 2SC2412KT146 R,S
Q4205 BZ510071 TNAAB05003 COMPOUND TRANSISTOR KRC102SRTK
Q4206 BZ510071 TNAAB05003 COMPOUND TRANSISTOR KRC102SRTK
Q4210 BZ510001 T6YJ1037K0 TRANSISTOR,SILICON 2SA1037AKT146R,S
Q4211 BZ510002 T8YJ2412K0 TRANSISTOR,SILICON 2SC2412KT146 R,S
Q4212 BZ510001 T6YJ1037K0 TRANSISTOR,SILICON 2SA1037AKT146R,S
Q5501 BZ510002 T8YJ2412K0 TRANSISTOR,SILICON 2SC2412KT146 R,S
BZ410096 0002700670 PHOTO COUPLER RPI-352Q02
BZ410049 0002700590 PHOTO COUPLER RPI-301
BZ410096 0002700670 PHOTO COUPLER RPI-352Q02
COILS &TRANSFORMERS
L301 BZ310002 021673101K COIL 100 UH
L302 BZ310005 02167D101K COIL 100 UH
L401 BZ310004 021679472K COIL 4.7 MH
L402 BZ310063 022100027A COIL,LINEARITY ELH5L4113
! L501 BZ310115 029T000093 COIL,LINE FILTER 1R5A472F24
! L503 BZ310066 028R200024 COIL,DEGAUSS 8R200024
L601 BZ310169 021LA6R39M COIL 0.39 UH
L604 BZ310041 02167F101J COIL 100 UH
L607 BZ310052 021LA6100K COIL 10 UH
L608 BZ310041 02167F101J COIL 100 UH
L610 BZ310156 021375101K COIL 100 UH
L613 BZ310136 021LA63R3K COIL 3.3 UH
L618 BZ310117 021LA6330K COIL 33 UH
L620 BZ310029 021LA6470K COIL 47 UH
L801 BZ310002 021673101K COIL 100 UH
L802 BZ310070 02167D820K COIL 82 UH
L804 BZ310070 02167D820K COIL 82 UH
L901 BZ310138 021673821K COIL 820 UH
L902 BZ310170 021673151K COIL 150 UH
L903 BZ310140 02167F150J COIL 15 UH
L904 BZ310141 02167F100J COIL 10 UH
L1001 BZ310009 021LA62R2K COIL 2.2 UH
L4001 BZ310039 02167F220J COIL 22 UH
L4003 BZ310041 02167F101J COIL 100 UH
L4004 BZ310039 02167F220J COIL 22 UH
L4005 BZ310040 02167F470J COIL 47 UH
L4006 BZ310040 02167F470J COIL 47 UH
L4007 BZ310171 032623004T COIL,TRAP STP-01064 or
L4008 BZ310041 02167F101J COIL 100 UH
L4009 BZ310039 02167F220J COIL 22 UH
L4205 BZ310041 02167F101J COIL 100 UH
L5501 BZ310002 021673101K COIL 100 UH
L5503 BZ310071 021LA6820K COIL,TRAP 82 UH
L5506 BZ310041 02167F101J COIL 100 UH
T401 BZ310172 045013003J TRANS,HORIZONTAL DRIVE ETH14Y47AY
! T501 BZ310173 0481350774 TRANSFORMER,SWITCHING 81350774
T4001 BZ310114 031626009R COIL,BIAS OSC 1626009
BZ310024 0326230038 COIL,TRAP 2623003
JACKS
! J351 BZ614002 060G131014 RCA JACK HTJ-035-28A
J701 BZ614114 0602431013 RCA JACK JPJ1187-010010
J3-3
ELECTRICAL REPLACEMENT PARTS LIST
Location No. TSB P/N Reference No. Description
JACKS
J801 BZ614115 066C130017 SOCKET,CATHODE RAY TUBE CVT3275-5101
J4201 BZ614203 060Q431018 RCA JACK AV3-19DS-1
J4202 BZ614204 060Q411015 RCA JACK AV3-19D-1
SWITCHES
SW751 BZ612010 0504101T34 SWITCH,TACT EVQ21505R
SW791 BZ612010 0504101T34 SWITCH,TACT EVQ21505R or
SW792 BZ612010 0504101T34 SWITCH,TACT EVQ21505R or
SW793 BZ612010 0504101T34 SWITCH,TACT EVQ21505R or
SW794 BZ612010 0504101T34 SWITCH,TACT EVQ21505R or
SW795 BZ612010 0504101T34 SWITCH,TACT EVQ21505R or
SW796 BZ612010 0504101T34 SWITCH,TACT EVQ21505R or
SW797 BZ612010 0504101T34 SWITCH,TACT EVQ21505R or
SW798 BZ612010 0504101T34 SWITCH,TACT EVQ21505R or
SW799 BZ612010 0504101T34 SWITCH,TACT EVQ21505R or
SW1001 BZ612014 0508A11002 SWITCH(LEAF) MXS01380MPP0
BZ612001 0504201T31 SWITCH,TACT SKHVBED010
BZ612001 0504201T31 SWITCH,TACT SKHVBED010
BZ612001 0504201T31 SWITCH,TACT SKHVBED010
BZ612001 0504201T31 SWITCH,TACT SKHVBED010
BZ612001 0504201T31 SWITCH,TACT SKHVBED010
BZ612001 0504201T31 SWITCH,TACT SKHVBED010
BZ612001 0504201T31 SWITCH,TACT SKHVBED010
BZ612001 0504201T31 SWITCH,TACT SKHVBED010
BZ612001 0504201T31 SWITCH,TACT SKHVBED010
VARIABLE RESISTORS
VR401 BZ210237 V1K63Q4BTE VOLUME,SEMI FIXED NVG6TLTAB473
VR402 BZ210238 V1K6313BTE VOLUME,SEMI FIXED NVG6TLTAB102
VR502 BZ210238 V1K6313BTE VOLUME,SEMI FIXED NVG6TLTAB102
P.C.BOARD ASSEMBLIES
PCB010 BZ310343 A5B4020010 PCB ASS'Y VMA245B
PCB030 BZ610333 A5B402Z030 PCB ASS'Y TEXA33C
PCB070 BZ310345 A5B4020070 PCB ASS'Y TMA524A
PCB110 BZ310346 A5B4020110 PCB ASS'Y TCA382A
PCB300 BZ310347 A5B4020300 PCB ASS'Y VEA975B
MISCELLANEOUS
B301 BZ310121 024HT03553 CORE,BEADS W5RH3.5X5X1.0
B502 BZ310122 024HT03563 CORE,BEADS W4BRH3.5X6X1.0X2
BL001 BZ310174 023V000009 COIL,BALUN WEV1020-9004
CD355 BZ614205 06CU123201 CORD,CONNECTOR CU123201
CD356 BZ614205 06CU123201 CORD,CONNECTOR CU123201
CD402 BZ614066 06CH01004A CORD,CONNECTOR CH01004A
! CD501 BZ614341 120R414903 CORD,AC BUSH 0R414903
CD506 BZ614377 069X620009 CONNECTOR JM-2W-96
CD604 BZ614059 06CH01006A CORD,CONNECTOR CH01006A
CD702 BZ614206 06CU2B2801 CORD,CONNECTOR CU2B2801
CD757 BZ614207 06CU2A2501 CORD,CONNECTOR CU2A2501
CD802 BZ614378 06CU823001 CORD,CONNECTOR CU823001
CD803 BZ614384 WDL6030038 FLAT CABLE AWM2468 A WG26 6C BLACK 300MM
CD805 BZ614385 WCL6838038 FLAT CABLE AWM2468 A WG26 5C GRAY 380MM
CD810 BZ614386 WHL6030038 FLAT CABLE AWM2468 A WG26 10C BLACK 300MM
CD820 BZ614387 WLL6826038 FLAT CABLE AWM2468 A WG26 13C GRAY 260MM
CF601 BZ613031 1029045R7G FILTER,SAW TSF5229P3
CF603 BZ613015 1011T4R504 FILTER,CERAMIC EFCT4R5YS5A
CF604 BZ613016 1011T4R517 FILTER,CERAMIC EFCT4R5MW5
! CP401 BZ614303 069S450089 CONNECTOR PCB SIDE A1561WV2-A5P
CP403 BZ614016 069W01001A CONNECTOR PCB SIDE 003P-2100
! CP502 BZ614283 069S420110 CONNECTOR PCB SIDE A1561WV2-2P
CP506 BZ614379 069X620090 CONNECTOR PCB SIDE RF-H022TD-1190
CP601 BZ614016 069W01001A CONNECTOR PCB SIDE 003P-2100
CP602 BZ614380 069X170379 CONNECTOR PCB SIDE 07JQ-ST
CP604 BZ614285 069J160038 CONNECTOR PCB SIDE IMSA-9130B-06
CP802 BZ614269 069S320010 CONNECTOR PCB SIDE A2361WV2-2P
CP805 BZ614212 069R250589 CONNECTOR PCB SIDE 52147-0510
CY901 BZ614284 069J160048 CONNECTOR PCB SIDE IMSA-9130S-06L
CD4001 BZ614373 122F061502 CORD,JUMPER 2F061502
CP1001 BZ614289 06972C0010 CONNECTOR PCB SIDE TMC-J12P-B2
CP2201 BZ614213 069S2A0629 CONNECTOR PCB SIDE A2001WV2-10P
CP4001 BZ614011 0697290620 CONNECTOR PCB SIDE TOC-C09X-A1
CP4002 BZ614050 069J760029 CONNECTOR PCB SIDE IMSA-9604S-06Z14
CP4003 BZ614009 0697120320 CONNECTOR PCB SIDE TMC-T02X-E1
CP4202 BZ614214 069S2B0629 CONNECTOR PCB SIDE A2001WV2-11P
CP803A BZ614333 067U006049 WIRE HOLDER B2013H02-6P
CP803B BZ614333 067U006049 WIRE HOLDER B2013H02-6P
CP805B BZ614276 067U005049 WIRE HOLDER B2013H02-5P
CP810A BZ614274 069R2A0589 CONNECTOR PCB SIDE 52147-1010
CP810B BZ614332 067U011029 WIRE HOLDER B2013H02-11P
CP820A BZ614218 069R2D0589 CONNECTOR PCB SIDE 52147-1310
J3-4
ELECTRICAL REPLACEMENT PARTS LIST
Location No. TSB P/N Reference No. Description
MISCELLANEOUS
CP820B BZ614304 067U013029 WIRE HOLDER B2013H02-13P
CUS011 BZ710279 800WFAA006 CUSHION A
CUS012 BZ710148 800WFAA007 CUSHION B
CUS013 BZ710149 800WFAA008 CUSHION C
EL001 BZ614043 124116281A EYE LET XRY16X28BD
EL002 BZ614044 124120301A EYE LET XRY20X30BD
! F501 BZ614177 081PC05004 FUSE 51MS050LCC
! FB401 BZ310175 043220054R TRANSFORMER,FLYBACK 3220054R
FH501 BZ614005 06710T0006 HOLDER,FUSE EYF-52BC
FH502 BZ614005 06710T0006 HOLDER,FUSE EYF-52BC
OS753 BZ614127 077Q000019 REMOTE RECEIVER PIC-28143TC5
PH001 BZ614016 069W01001A CONNECTOR PCB SIDE 003P-2100
PH002 BZ614016 069W01001A CONNECTOR PCB SIDE 003P-2100
! RY501 BZ612009 0560V20115 RELAY ALKS321
SP351 BZ614381 070C546004 SPEAKER C109-410-149A
SP352 BZ614381 070C546004 SPEAKER C109-410-149A
! TH501 BZ410079 DF5EL3R0A0 DEGAUSS ELEMENT ZPB45BL3R0A
TM101 BZ614312 076D0DQ040 TRANSMITTER TOT201N06050
TU601 BZ310341 0145K00056 TUNER,VHF-UHF TECC1040PG32E
! V801 BZ614382 098W210438 CRT W/DY A51LVV896X01(O)
X602 BZ613004 100CT3R505 CRYSTAL HC-49/C
X1001 BZ613002 100CT01207 CRYSTAL HC-49/U-S
X1002 BZ613006 100DA32R01 CRYSTAL DT-26
X4001 BZ613017 100CT3R502 CRYSTAL HC-49/U
RESISTOR
CAPACITORS
RC................... CARBON RESISTOR
CC................... CERAMIC CAPACITOR
CE................... ALUMI ELECTROLYTIC CAPACITOR
CP................... POLYESTER CAPACITOR
CPP.................. POLYPROPYLENE CAPACITOR
CPL.................. PLASTIC CAPACITOR
CMP...................... METAL POLYESTER CAPACITOR
CMPL................ METAL PLASTIC CAPACITOR
CMPP................ METAL POLYPROPYLENE CAPACITOR
J3-5
FILE NO. 140-200208
SERVICE MANUAL
COLOR TELEVISION/
VIDEO CASSETTE RECORDER
MV20FM3
ELECTRICAL ADJUSTMENTS

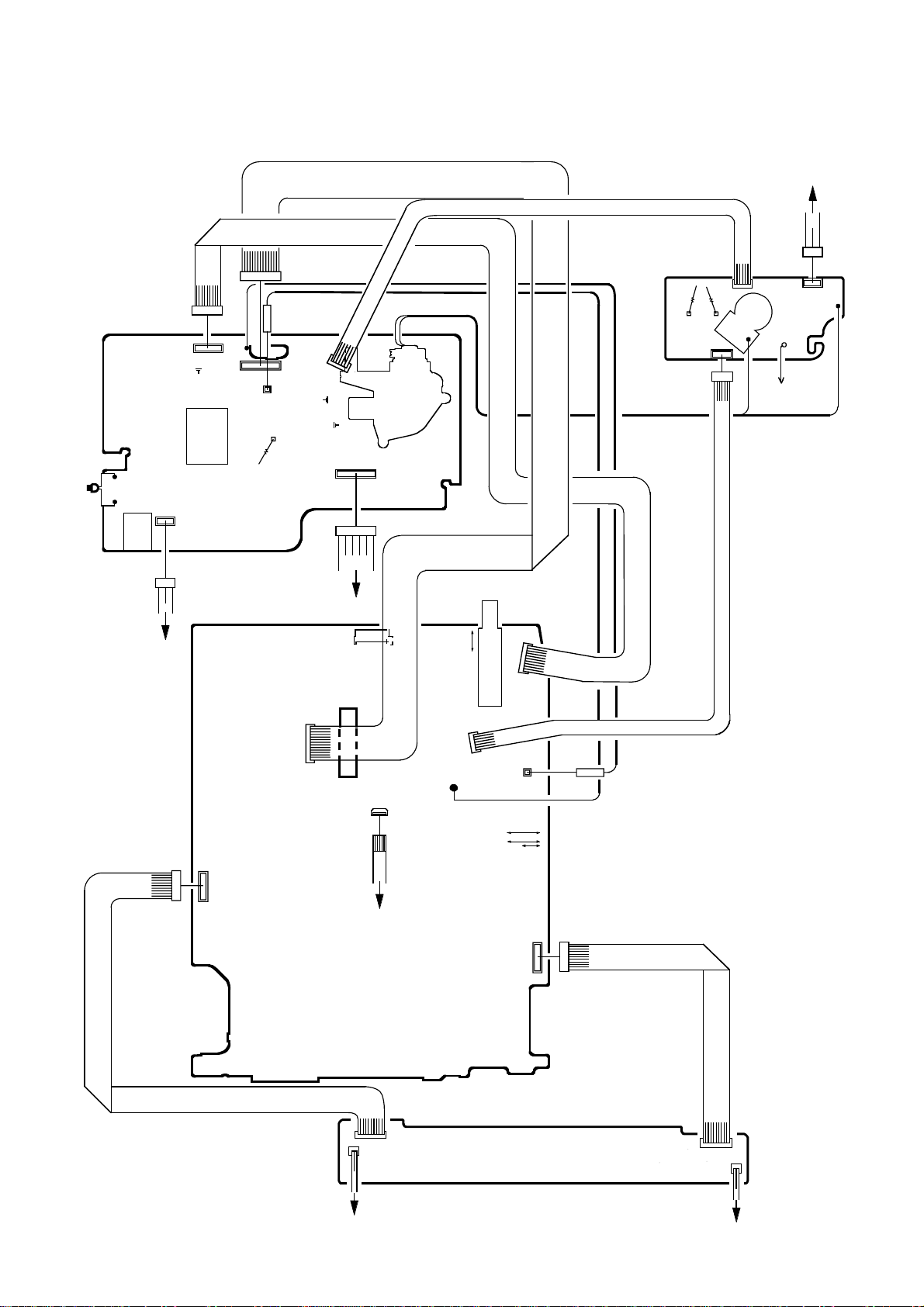

4. ELECTRICAL ADJUSTMENT PARTS LOCATION GUIDE (WIRING CONNECTION)
CRT PCB
R804
AC IN
MAIN PCB
S501
S502
CP502
L501
L503
CRT
CD402
CP810A_1
VR502
CP820A
T501_1
SYSCON PCB
CP403
TP501_1
502
R
CP803A
VR402
VR401
CP401
CRT
CP602
FB401_1
CP820B
TP4201
TU601
CP810B
TP806
CP805
R808
TP804
J801
CP803B
S803
TO BRIDED
WIRE GND
CRT
CD802
CP802_1
S801
CP4202
CD702
COMB PCB
CP4002
CD4001
A/C HEAD
CP805B
CP601
CD604
TP4001
TP1002
TP1001
CP2201_2
CD757_2
SP352
CD356
CD355
OPERATION PCB
SP351
D3-6
TV BLOCK DIAGRAM
OPERATION/
Y/C/AUDIO/CCD/
HEAD AMP/
Y/C/AUDIO/
CCD/HEAD AMP
HI-FI
L503
DEGAUSS COIL
MICON/
IN/OUT
HI-FI
TU1_AUDIO_A
MONITOR_V
AUDIO_OUT_R
AUDIO_OUT_L
SCL
SDA
TU1_VIDEO
TU601
P.CON + 9V
1
4
5
11
Q903
SAW FILTER
CF601
1
Q901
BUFFER
DIGITAL COMB FILTER
IC901 TC90A45F
4
BUFFER
13
Q902
54
15
BUFFER
IC602
KIA78R09API
9V REG
UNGER+8V
AT+13V
CHROMA
IC601 M61206FP
62
64
1
60
AFT OUT
31
IC603
KIA78R05PI
TV/Y IN
36
5V REG
57 55
VREG Vcc
VIF VIDEO OUT
34
Q602, Q603
REG
41
5.7V REG OUT
P.CON + 5V
Q608
REG
Q605, Q606
33 13
39
8.7VREF
32
X602
3.579545MHz
Q502
PROTECT
REG
5v REG
POWER ON CONT
V PULSE OUT
H.PLUSE OUT
FBP IN
6
12
DRIVE
AT+5V
P.CON+8V
P.CON+5V
50
SDA
10
SCL
5
FAST BLK
R OUT
G OUT
B OUT
V OUT
R IN
G IN
B IN
7
27
14
15
16
17
29
30
28
20
Q403, Q404
DIGITAL SOUND CONTROL
IC301 M62420SP
7 142 19
SW.
10
V. OUTPUT IC401 LA78040
THERMAL
PROTECTION
AMP
PUMP
UP
VCC
1
3
2
5
7
10
Q803, Q812
Q801, Q810
Q802, Q811
Q405
H-DRIVE
FB401
3
E27
COL
2
+B
7
ABL
9
AFC
HEATER
BLUE AMP
RED AMP
GREEN
AMP
Q651
1
HV
F
S
SW.
Q406
H. OUTPUT
F
7
11
8
6
10
J801
H-CONTROL
V801
CRT
P. CON + 8V
MICON/
OPERATION/
IN/OUT
DY
X_RAY_TEST
VD
HD
OSD_BLK
9
SOUND AMP
IC352 AN7522
OSD_B
OSD_R
OSD_G
AFT_M
MICON/
OPERATION/
IN/OUT
E-1
AC IN
Q507
FEED BACK
+B
ADJ
VR502
F501
SW.
D501
RECTIFIER
FEED BACK
IC506
LTV-817M-VB
POWER
CONTROL
IC501
TEA1507P/N1
Q501
POWER
T501
8
5
9
13
11
15
AT + 30V
Q503
SWITCHING
UNREG + 8V
Q505
SWITCHING
2
6
4
1
8
12
10
95
SP352
SPEAKER
SP351
SPEAKER
2
6
7
5
4
3
1
HEADPHONE
JACK J351
POWER FAIL
VCR_POWER-H
TV_POWER-H
TV_A_MUTE
MICON/
OPERATION/
IN/OUT
E-2
HI-FI
HF2
HF COM
HF1
Y/C/A/CCD/H.AMP IC
IC4001
LA71205M-MPB
X4001
3.579545MHz
50 49

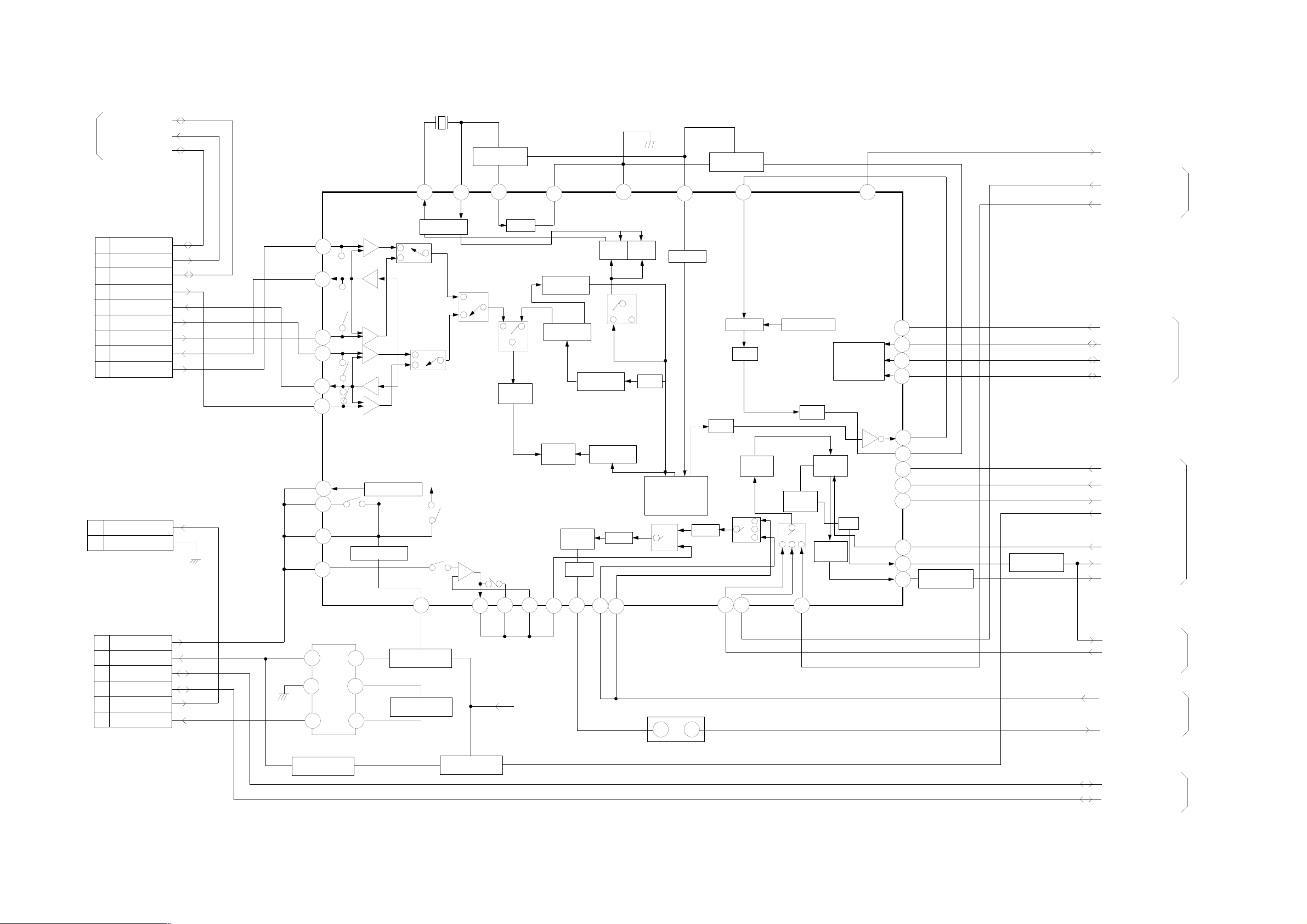

Y/C/AUDIO/CCD/HEAD AMP BLOCK DIAGRAM
Q4012
BUFFER
41
43 37
38
VSS
Q4010
BUFFER
34
41
FSC
FRONT_VIDEO_IN
REAR_VIDEO_IN
HI-FI
MICON/
OPERATION/
IN/OUT
FE HEAD
CYL
CP4001
HF1(R)
9
8
HF COM
7
HF2(L)
SP-CH1 (R)
6
5
SP_COM
4
SP-CH2 (L)
EP/LP-CH2 (R)
3
EP/LP_COM
2
1
EP/LP-CH2 (L)
CP4003
FE HEAD (HOT)
1
2
FE HEAD (GND)
73
67
66
65
72
74
PLL
C-LPF
3.58M
BPF2
Main
CONV
B-UP
AMP
REC
APC
RP
REC
APC
AGC
CLAMP
CLAMP
CCD
AUTO-BIAS
OUT
SERAIL
DECODER
58
53
54
55
VCR_A_MUTE
Y/C_CLK
Y/C_DATA
Y/C_CS
MICON/
OPERATION/
IN/OUT
HA
GND
VX01
P
R
P
P
L
H
H
L
R
P
VCA
36
ACC
DET
9
7
8
6
REC AMP
AUTO BIAS
VREF
EQ
AMP
PB.EE
LINE
AMP
MUTE
3.58M
BPF1
LPF
YNR/COMB
R
P
ALC
VIDEO
AGC
1
2
3
QV-QH
2
1
SYNC
SEP
C-ROT
RF-SW IN
AUDIO
MUTE HA SW
ENV DET
60B
3
SYNC
SEP
39
57
58
59
24
26
25
Q4007
SYNC IN
Q4009
BUFFER
H. SW
VCR_A_MUTE
ENV. DET
V.REC_ST-H
DUMMY_V. SYNC
SD_VIDEO
SD_SYNC
MICON/
OPERATION/
IN/OUT
HEAD
AUDIO
CONTROL
CP4002
6
AUDIO PB
5
AUDIO REC
4
CTL+
CTL-
3
2
AE HEAD(-)
AE HEAD(+)
1
COIL, BIAS OSC
T4001
5
6
4
Q4001, Q4002
AUDIO PB SW
11
Q4005
2
3
1
BIAS CTL
Q4006
BIAS OSC
3
4
P. CON + 5V
5
10
2 80
76
L4007
2
Q4003
SW
32
30
28
MONITOR_V
TU1_VIDEO
TV
NORMAL_A
HI-FI
3
Y/C_AUDIO
CTL+
CTL-
MICON/
OPERATION/
IN/OUT
E-3 E-4

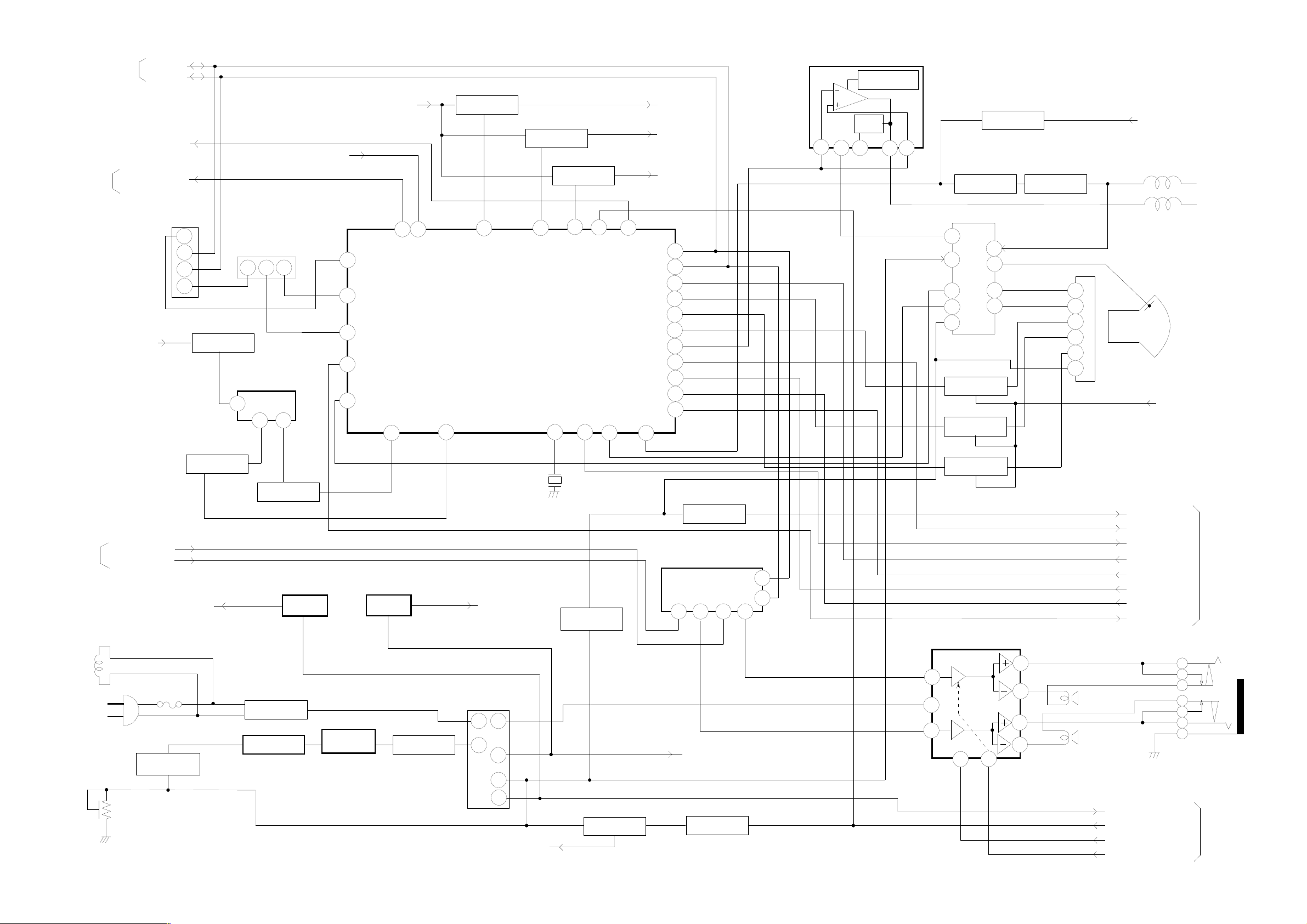

MICON/OPERATION/IN/OUT BLOCK DIAGRAM
Y/C/AUDIO/
CCD/HEAD AMP
FRONT_AUDIO_IN_L
HI-FI
FRONT_AUDIO_IN_R
TV
CAPSTAN
DD UNIT
Y/C/AUDIO/CCD/
HEAD AMP
FRONT_VIDEO_IN
H_CONTROL
X-RAY_TEST
VCR_POWER_H
CP1001
1
CAP_FG
4
CAP/M F/R
5
I LIMIT
9
CAP_CTL
10
LDM_CTL
11
CTL_FG/PG
12
CYL_CTL
HI-FI
DUMMY_V. SYNC
AT+5.6V
AT+5.6V
P. CON+5V
HI-FI-ENV
HI-FI-H.SW
VCR_A_MUTE
ST_SELECT
J701
2
4
6
7
SW1001
14
2
3
4
1
3
2
3
1
4
2
Q1013
EOT SENSOR
Q1006
LED DRIVER
MS_SEN A
Q1009
MS_SEN B
Q1003
REEL SENS.
Q1005
TIMER SYSCON MICON IC
IC1001 OEC7071A
TAB SW
50
1
MSSEN-A
MSSEN-B
2
REEL-T
80
24
H_CONTROL
41
X-RAY_TEST
27
VCR-POWER
12
CAP-LIMIT
76
CAP-PWM
CAP-FG
87
11
CAP-FWD
20
LDM CTL
90
DRUM FG/PG
DRUM-PWM
77
5
HI-FI-ENV
19
HI-FI-H.SW
81
VCR_A_MUTE
100
DEW/ST_SELECT
13
DUMMY-V.SYNC
3
EOT
61
CENTER LED
RESET-L
POWER_FAIL_L
X-OUT(12MHz)
X-IN(12MHz)
XC-OUT(32KHz)
XC-IN(32MHz)
V-REC-START-H
CVIN
VIDEO-H. SW
SCLK
CS
VIDEO ENV
VCR_A_MUTE
IIC-DATA1
IIC-CLK1
CTL AMP-OUT
FF/REW-L
AFT(MONI)
OSD OUT1
V-SYNC
H/C-SYNC
KEY 1
TV-POWER
OUT
34
1
IC1002
SDA
R3111N311A/C
SCL
SYSTEM RESET IC
85
39
38
36
X1001
12MHz
Q1008
BUFFER
X1002
35
95CTL+
94CTL66
56
18
68SDATA
70
69
6
81
72
71
97
FF/REW_SW
73
R
64
G
63
62
B
7
60
59
58
82TV_A_MUTE
9
28
32.768KHz
Q1004
5
6
SDA
SCL
POWER
ON/OFF
EEP ROM IC
IC1099
S-24C04BDP-LA
REC/OTR STOP/EJECT PLAY
J4201
2
3
4
6
REAR_VIDEO_IN_R
REAR_AUDIO_IN_L
REAR_VIDEO_IN
CTL+
CTLV. REC_ST_H
SD_VIDEO
SD_SYNC
H. SW
Y/C_DATA
Y/C_CLK
Y/C_CS
ENV_DET
VCR_A_MUTE
POWER _FAIL
SDA
SCL
OSD_R
OSD_G
OSD_B
AFT_M
OSD_BLK
VD
HD
TV_A_MUTE
TV_POWER_H
FF/CUE REW/REV
HI-FI
Y/C/AUDIO/
CCD/HEAD AMP
TV
Y/C/AUDIO/
CCD/HEAD AMP
E-5
HI-FI
AUDIO_OUT_R
AUDIO_OUT_L
VIDEO OUT
D1003
Q1002
BOT SENSOR
J4202
KEY 2
10
OS753
4
BOT
REMOCON-IN
2
3
T-REC LED
14
30REC LED
29
Q4205
REC LED SW
REC/OTR
D793
Q4206
T-REC LED
SW
321
CH DOWN
T-REC
D791
5
CH UP VOL. UP VOL. DOWN
AT+5V
E-6

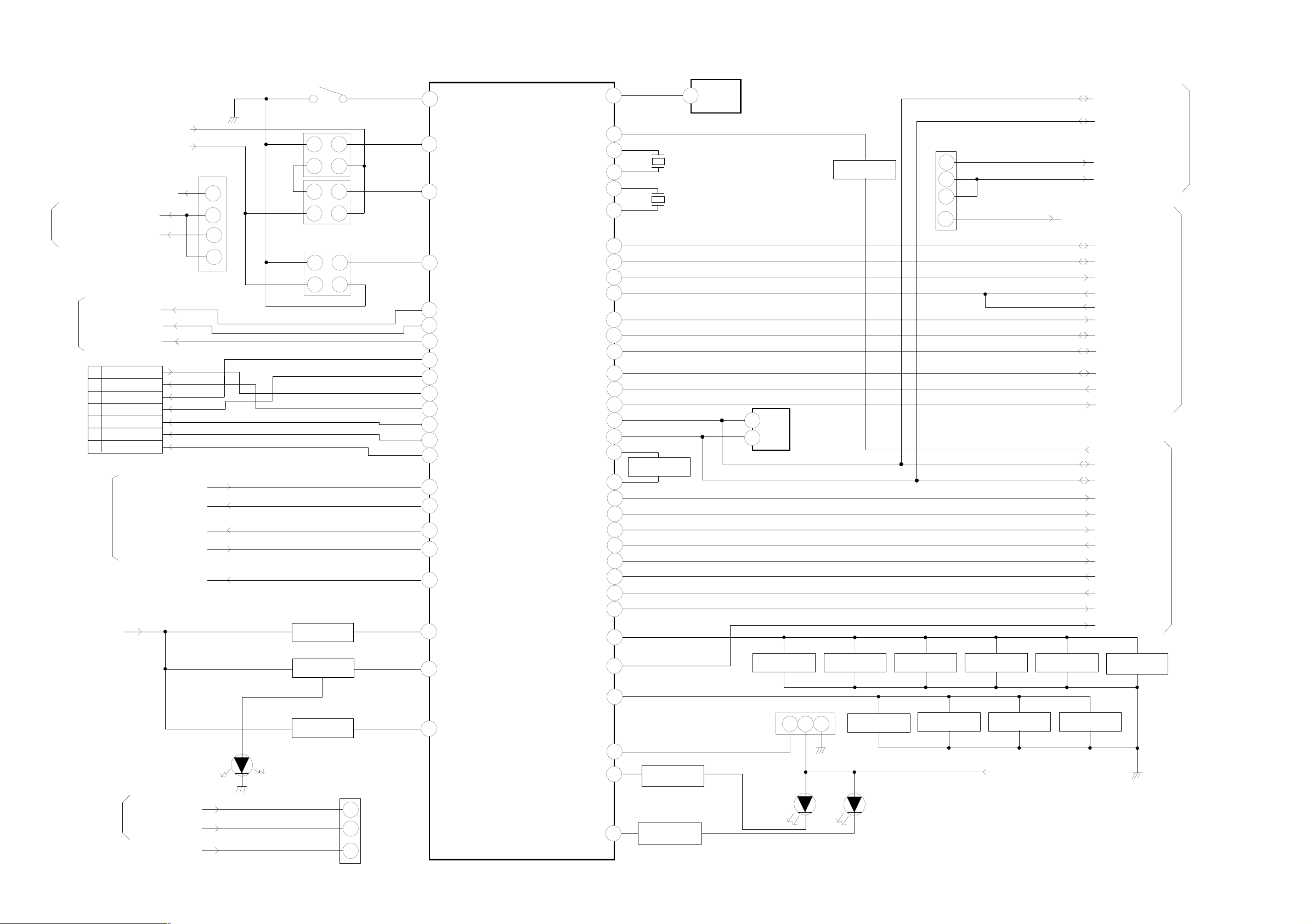

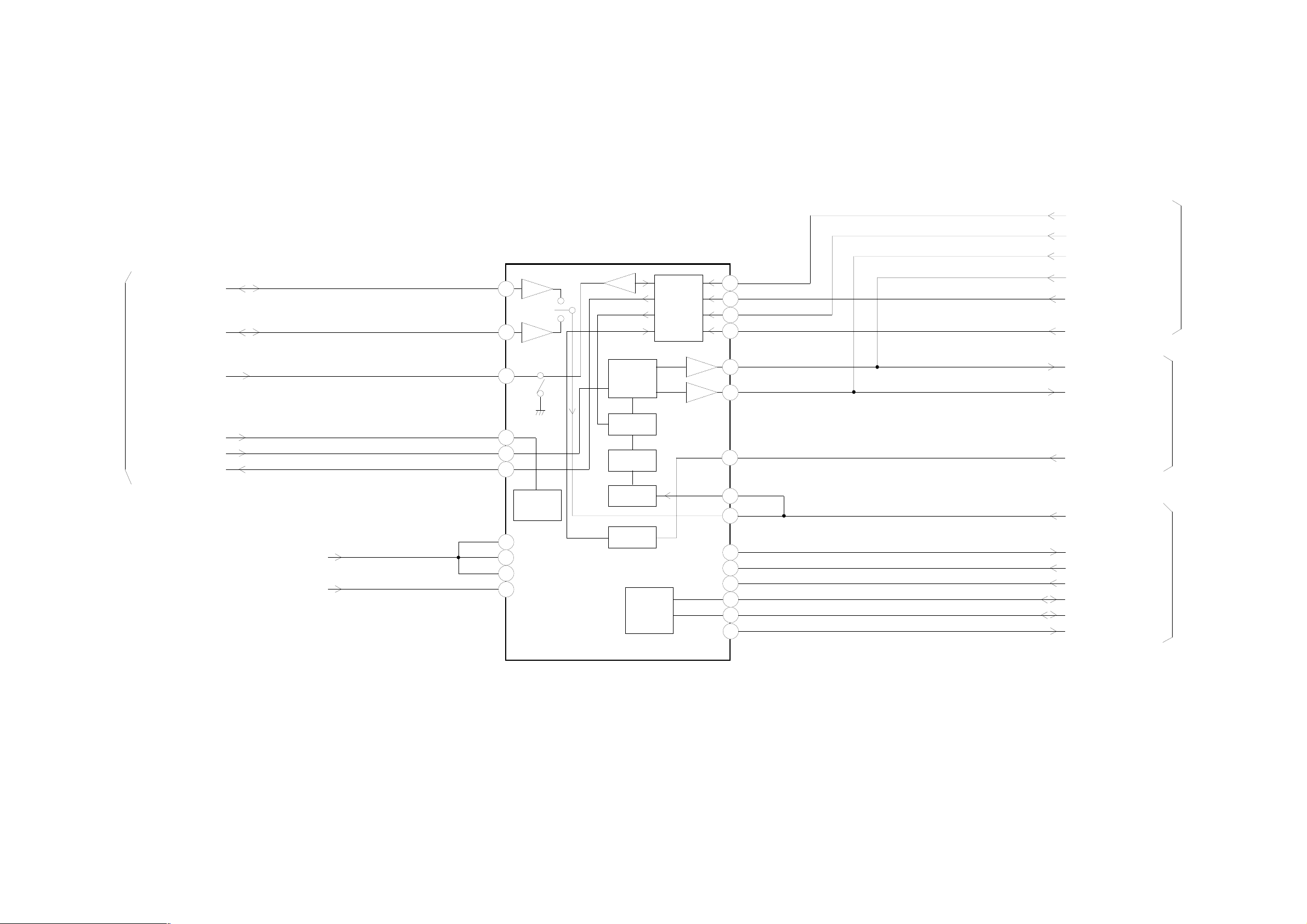

HI-FI BLOCK DIAGRAM
FRONT_AUDIO_IN_R
Y/C/AUDIO/CCD/
HEAD AMP
HF2
HF1
HF_COM
FSC
Y/C_AUDIO
NORMAL_A
P.CON+5V
P.CON+9V
HI-FI AUDIO/HEAD AMP/DEM IC
IC5501
AN3662FBP
22
24
21
45
62
61
25
40
51
58
AMP
AMP
VCO-FO
ADJ
LOGIC
AGC
OUTPUT
FM LIM
BLOCK
SW
PNR
BPF
DEM
LOGIC
INPUT SW
AMP
AMP
10
15
53
57
48
30
29
28
27
36
42
43
56
FRONT_AUDIO_IN_L
AUDIO_OUT_L
2
AUDIO_OUT_R
MICON/
OPERATION/
IN/OUT
REAR_AUDIO_IN_R
4
REAR_AUDIO_IN_L
AUDIO_OUT_R
AUDIO_OUT_L
TV
TU1_AUDIO_A
V. REC_ST_H
HIFI_ENV.
HIFI_H.SW
VCR_A_MUTE
SCL
MICON/
OPERATION/
IN/OUT
SDA
ST_SELECT
E-7
E-8

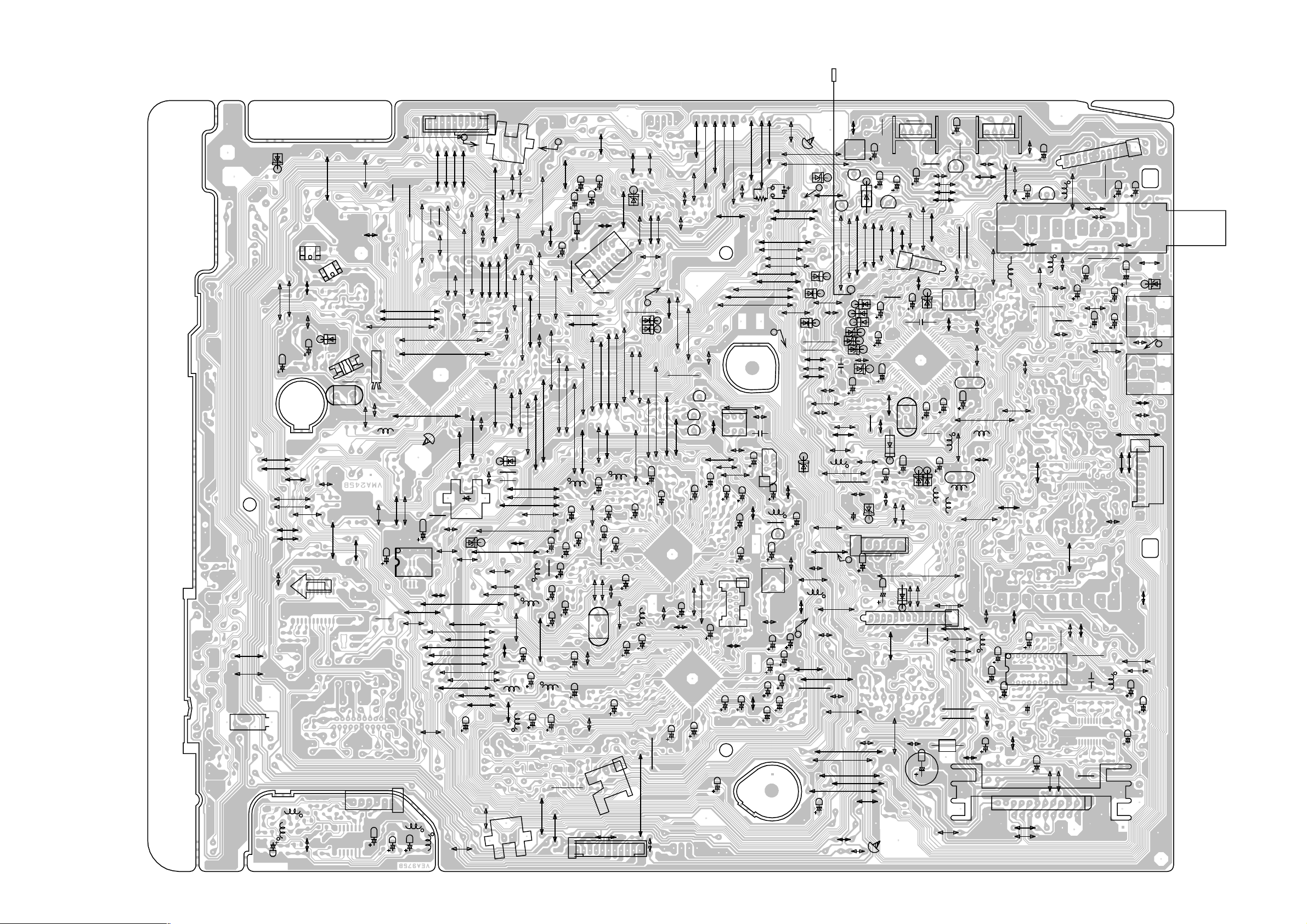

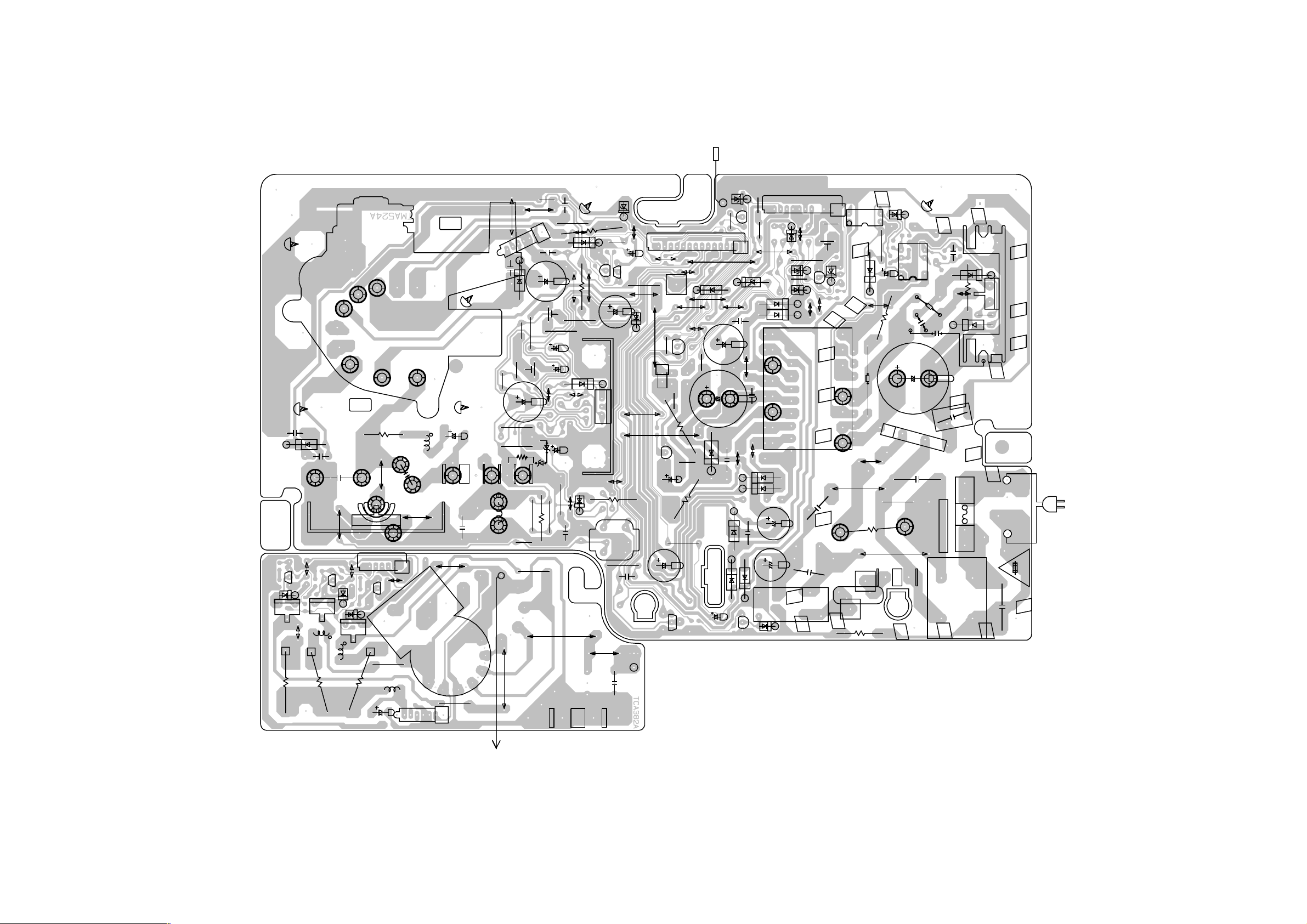

PRINTED CIRCUIT BOARDS
MAIN/CRT (INSERTED PARTS)
SOLDER SIDE
CD402
D411
Q811
TP805
R806
C436
Q802
D802
W827
C429_1
W849
Q803
L804
TP806
808
R
C428_2
Q812
Q406_1
W816
L802
W850
D801
Q801
D803
CP805
Q810
TP804
4
0
8
R
C814
FB401_1
R447
W823
W853
R830
L801
L401
C423
W817
HS402
CP803B
W028
J801
C422
CP401
C450
R829
CP803A
L402
S803
R411
W026
C430
R413
R418
R407
W029
D413
R416
R460
R408
R463
R828
W854
R419
R490
C432
C431
VR401
C407_1
D402
VR402
R464
C406
C405
C418
R448
R423
W019
W027
D407
R467
R417
W025
CP802_1
C439_1
W015
R421
W835
W814
C434
D412
R402
D401
D406
R450
Q404
W017
IC401
W808
D410
R442
Q403
C421
W023
T401_1
C417_1
C433
HS401_1
R401_1
S801
C808
D405
W024
R456
W020
R453
W014
W021
CP506
W804
W018
R518
Q502
C510
Q405_2
CP403
Q503
2
1
5
R
C520_1
R504
R505
W012
R502
R506
CP820A
W016
W011
W008
R554
D510
D526
C531
W005
C521
D523
C537
D515
R519
W009
C518
C517_1
D506
Q504
D409
W007
W013
D519
R443
Q505
C503
D505
W801
D509
C501
D512
D516
R444
W036
D514
D517
R507
D525
C523
C524
CP810A_1
D533
W006
R553
T501_1
RY501
Q507
C533
VR502
W821
R514
D528
W809
C530
TH501_1
IC506
W003
PH001
PH002
D508
B503
W802
W034
R501
R500
R529
C542
D507
R511
R538
W004
CP502
C
540
C507
IC501
C506
B
502
D
501
C543
R527
W001
D524
C504
C529
FH502
F501
FH501
5A125VOR250V
R522
L501
D504
Q501
S501
HS501
CD501_1
S502
_A_V
C505
TO BRIDED WIRE GND
F-1 F-2

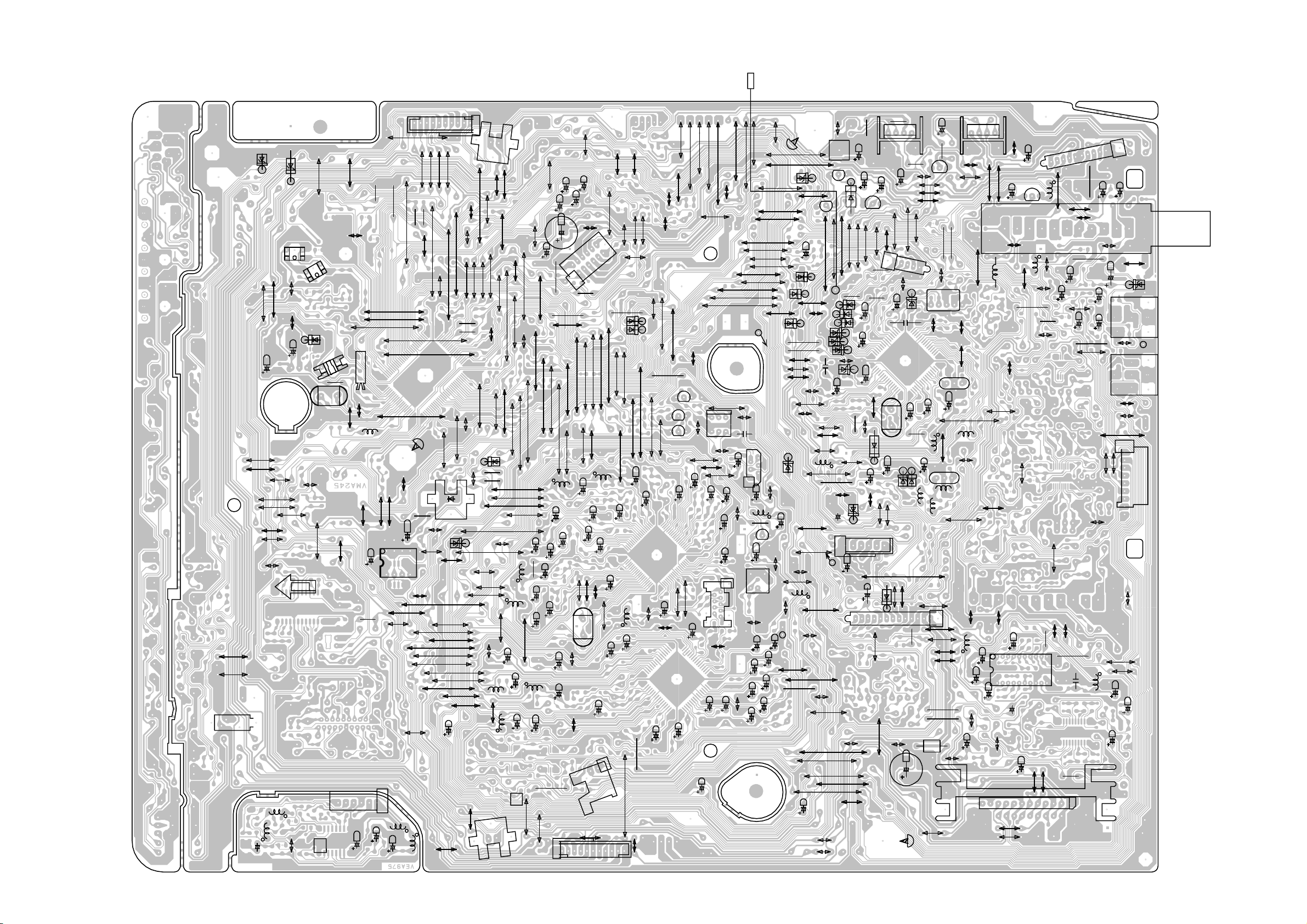

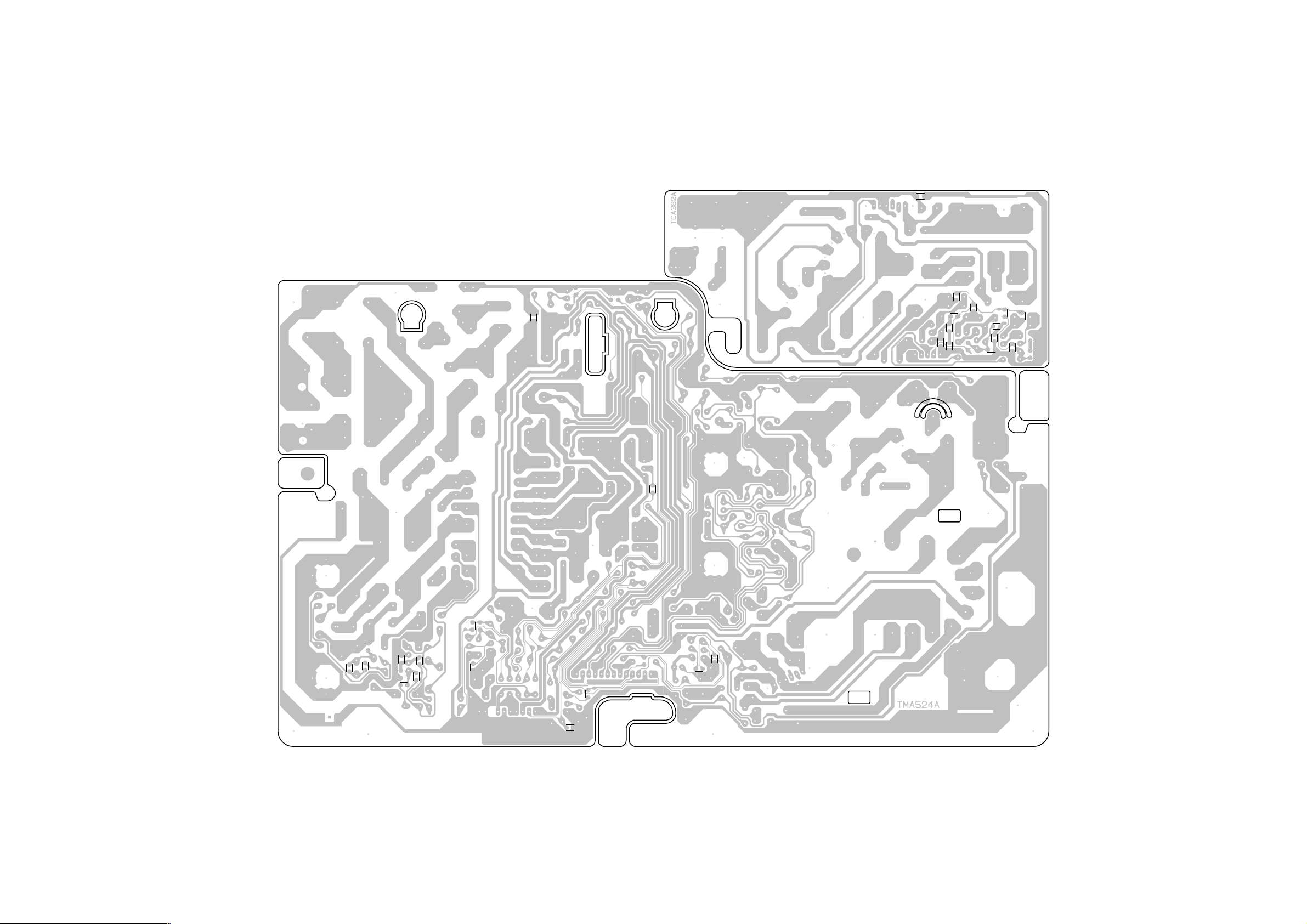

PRINTED CIRCUIT BOARDS
MAIN/CRT (CHIP MOUNTED PARTS)
SOLDER SIDE
R513
R515
C502
C807
R817
R810
R805
C804
R813
R812
R815
R821
R809
C806
R811
R814
C805R807
R819
R534
R535
R533
R531
C541
R516
R523
R510
R525
C554
R532
C528
R520
W810
R431
R412
R428
F-3
F-4

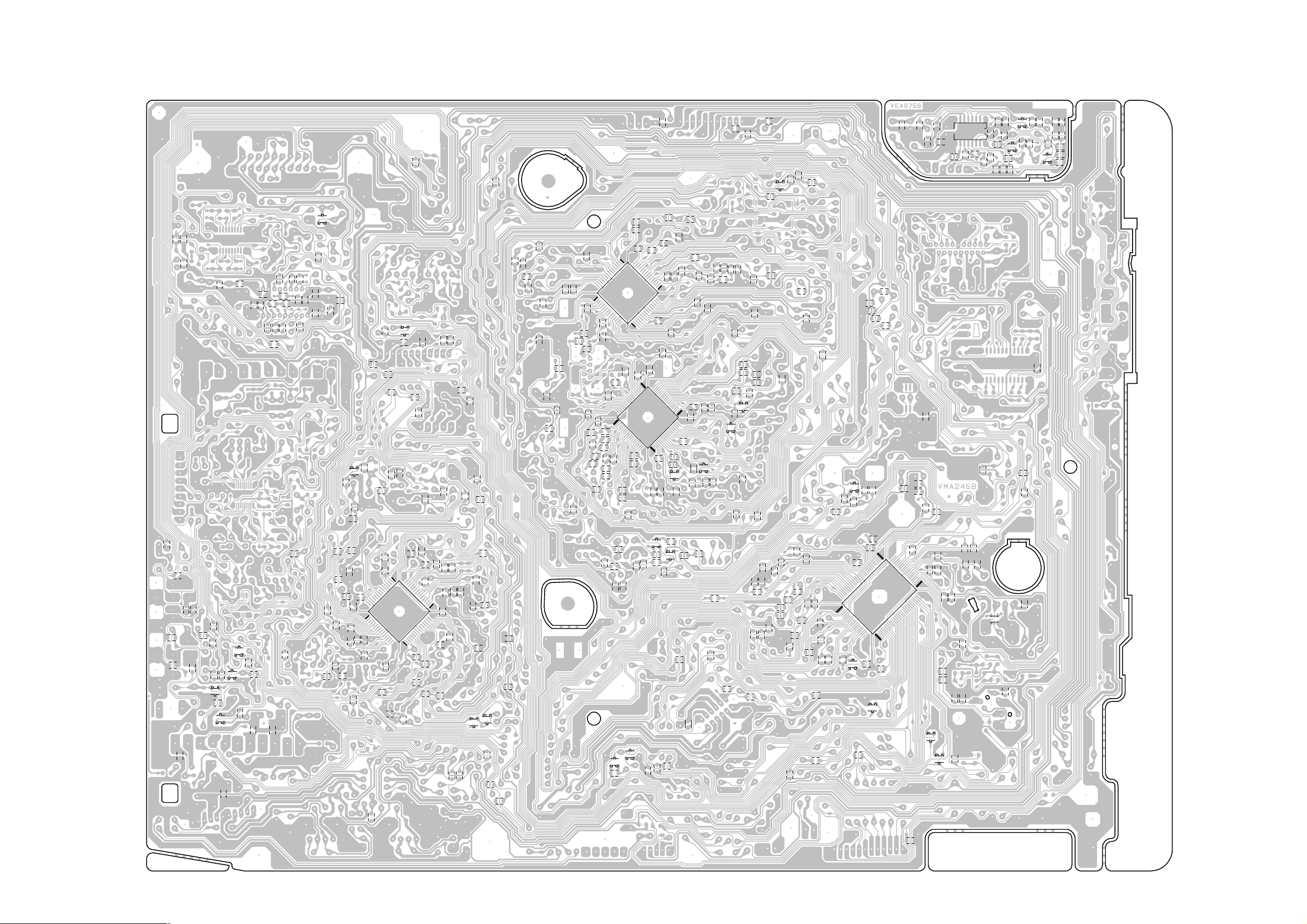

PRINTED CIRCUIT BOARDS
SYSCON/COMB (INSERTED PARTS)
SOLDER SIDE
CD604
W383
W379
SW1001
D2201
C1003_1
W374
W373
C914
L903
W356
W370
W369
W365
W364
W959
L904
W358
W372
Q1003
C1021
W368
W357
W353
W388
D1002
W869
W349
W367
Q
1009
X1001
R1040
Q
1005
W271
W362
W908
W246
CY901
C907
W303
L1001
W402
C1011
R1046
X1002
W295
C903
R2211
W286
W284
W282
C916
W294
IC1099
W321
L901
R1052
W304
C1026
W322
L902
W270
W254
R1002
W340
CP2201_2
W266
R1062
R1066
W279
W866
W292
W863
W265
W395
W862
W252
W287
W301
W319
W316
W315
W313
W312
W328
W264
D1003
W290
W854
W320
W318
S807X
W263
W250
W305
D4003
W311
W310
W253
R1013
R1009
W309
W306
C4076
W331
W255
W249
W243
W874
W242
W855
W291
W327
W324
W323
Q
Q1002
W256
W261
W241
W278
W302
D5501
W835
L5503
W307
1013
W244
W300
W853
W259
W251
W285
R4048
R4026
W205
L4005
L4006
W317
L5506
W260
W289
W274
W272
W210
C5531
C5523
C5512
W868
W277
W212
W211
W208
C4057
W314
W245
W276
W273
R4033
C4067
W332
S807Y
W258
C671_1
W281
W275
C4065
L5501
C5510
W850
W288
W299
R5513
W239
W248
C1015
R1016
C4047
C4058
C5534
W187
L4009
C4052
C4062
C1020
C1002
R1006
W198
W225
W220
W185
W206
C4049
X4001
C5501
CP4202
R1024
C4053
W232
W227
W240
C1016
W860
W193
C4050
W231
W178
C1018
W192
W221
C4042
R4036
C5509
W238
P
C
W195
W219
L4004
W234
W233
C
W173
001
1
D4204
W194
C4048
C5536
0
4
P
R610
W197
3
0
W177
D1014
S811Y
W183
W218
C4063
R1039
W169
W167
D4205
W190
C4051
L4001
C5538
W236
W176
W171
W182
R5501
W237
W170
W186
C4045
C5518
W405
W199
W184
C4046
W230
W836
W942
W202
R4059
W224
C4009
C5565
TP1001
W174
W200
Q4006
Q4002
Q4001
C4035
W229
W214
W228
TP1002
W189
W223
W215
C4034
C5550
C5516
TP5502
TP4001
W168
T4001
C4030
C4023
CP4001
W988
C5526
W217
W213
C4027
C4012
TP5501
W088
C4031
C5525
W406
C4002
C5532
W823
R693
S802X
W130
W209
Q4005
W226
W087
CP4002
L4007
W142
C5547
C5537
C5527
W086
W063
W060
W059
W109
W106
W104
W101
W100
W098
L4003
R4004
W085
C741
W068
W097
C4004
C4025
C5548
C5529
W072
W122
C4010
C5533
S811X
D618
D616
D1001
W151
W857
S102Y
C5539
W134
W082
D4201
W094
W092
W091
W152
W149
R5507
W996
D617
R685
R683
W938
W089
W131
W851
W076
Q603
W099
W939
W118
W112
W133
D608
C664
W126
L608
S802Y
L4008
W143
C5552
W069
D619
D609
W129
W127
W123
C665
W166
W162
W160
W822
W154
Q602
W102
D620
R607
W132
W158
W084
CP601
D604
W103
W121
C683
W157
W951
W108
R635
D606
C659
W125
D613
W164
W991
W107
D612
R642
W058
D621
W093
W128
C738_1
C694
C680
Q606
C645
W090
D607
W921
W135
R667
W933
R636
R651
C692_1
C655
X602
C632
W119
CP604
W161
HS603_1
C685
W812
C635
C624
W919
D605
CP820B
C321_1
R668
IC603
W399
W145
W163
W071
C674
D602
W150
R669
C688
W073
CP805B
C649
R677
D601
W144
R688
C620
W081
W078
W075
W062
D603
C648
L618
C677
Q608
W080
W096
L610_2
W146
B301
W050
R644
CF604
L607
L620
W140
W042
W139
W137
R359
R353
R603
R602
W930
CF601_1
CF603
W124
W047
W054
W019
C641
L613
W028
HS602_1
W009
W990
W018
W039
W859
C315
W947
IC602
W394
L302
C301
C323
W029
W055
W010
W982
C311
W008
L601
W046
W051
W049
C684
W003
C357
W879
C643
TU601
W022
W013
IC301
C325_1
Q605
W031
C312
L4205
R601
W053
L604
W024
R4238
W856
R309
IC352
W001
C4207
W025
W043
W052
CP810B
W007
W045
R357
W020
C4245
R310
W004
R4239
C4220
R690
R4212
W881
C317
W006
C4206 C4212
W030
HS352
C612
W002
C4211
J4201_1
W034
L301
C350
J4202_1
W886
W037
W033
CP602_1
W403
W041
C610
TP4201
D4206
S102X
W891
W890
W048
C309
C314
F-5
F-6
PRINTED CIRCUIT BOARDS
SYSCON/COMB (CHIP MOUNTED PARTS)
SOLDER SIDE
C4213
C4210
C4209
W945
W888
W057
R313
R605
R4224
C4216
R4213
C4214
R4205
R4207
Q4212
C4202
Q4210
C310
R4217
Q4211
Q4203
C4208
C608
R311
R4232
C308
C319
R4231
R4203
C613
R306 C302
C318
C306
R317
R316
C602
R318
R307
C304
R656
R625
C307
C305
C303
R303
R304
Q350
R358
C316
R305
W920
R308
R673
C625
C627
R302
R609
W928
W943
C628
Q601
C629
R672
R618
C640
R614
R622
C636
R608
C618_1
C626
R655
W985
R620
C621
C622
49
R616
R626
R679
W393
C651
C650 R633
C634
C734
C676
33
IC601
Q651
R657
R681
1
C654
R692
C656
C639
R630
R5526
C615_1
W803
R646
C661
17
R624
R634
C614
C658
C644
R631
R658
C670
C630
C623_1
C700
C653
R659
C647
C633
R643
C601
R682
R649
R662
C669
W924
Q604
R641
R638
C660
R652
R660
Q609
R661
R648
R663
W401
R5525
R4204
R647
R684
R5511
C5566_1
R5508
C5564
W816
R5514
C4014
R4005
R4011
C4022
R4014
R5516
C5546
C5544
C5557
C5543
C4077
R4061
C5524
C5545
C4020
R4019
C4029
R4020
17
C4075
C4028
R4017
R4018
R4057
C4033
R4021
C5551 C5542
R4012
C4083
C4032
R4001
C4005
R4010
Q1008
R1047
1
R4024
R4023
R4069
C5559
R5505
C5515
1
IC5501
33
C4055
C4037
C4036
R4022
C4021
C4006
Q1007
C4019
IC4001
Q4013
R4002
R4058
C4071
C5513
49
61
21
R4003
C1041
R5502
R5510
C4016
R4065
R4025
R4047
W952
R5506
C4086
R4029
Q4007
C4038
R4062
Q4003
R4060
R4046
C5507
C5508
C5541
41
R4032
R6034
C4222
C5556
C5506
R4038
C4054
C4044
R4045
W818
C4061
C4082
R4028
R4044
C1030
R5512
C5530
Q4009
C5514
C5540
C4078
C4060
R4034
R1007
R1014
R5503
R5518
R4035
R1028
C4204
C5519
R4041
Q4010
C5521
C5502
C4069
R4039
C4066
R4043
R4056
Q4012
C4041
R1008
C4203
C5562_1
C5549
C4064
R4042
R4054
C1067
R1021
R1077
C4218
W404
W852
C1071_1
R1029
Q5501
W961
C1010
C1065
C1023
R1044
R1042
R1038
C4059
R1035
C1029
R5524
C5522
R1045
R1020
C1028
R1001
C5535
R5523
R1036
R1043
C5555_1
C1009
R1053
R1017
W992
R687
R4055
C4043
C1013
C1001
R1012
C1019
Q1006
C1062
C1037
81
C1022
Q1004
R2212
C5560
R1033
C1027
C5561
R5521
R1034
C1031
C1035
Q1014
R5520
R5517
C1038
IC1001
1
R1003
Q901
C902
R914
C1046
R909
C910
W817
C1040
IC1002_1
C912
C911
C901
R910
C913
Q903
R913
R911
R1050
C924
R1019
C917
R902
C904
R1004
C1056
W871
C1034
R1031
R1058
51
31
Q4206
C905
C906
R1032
C1014
C1050
C1049
R1083
C1006
Q4205
C908
R1049
C1017
IC901
C1008
C4201
C909
C1047
C1048
R1011
R1087
R912
R1018
R1051
R901
C921
R903
Q902
C6309
C920
R906
R904
C923
R908
C919
C922
R905
F-7
R686
C4205
F-8

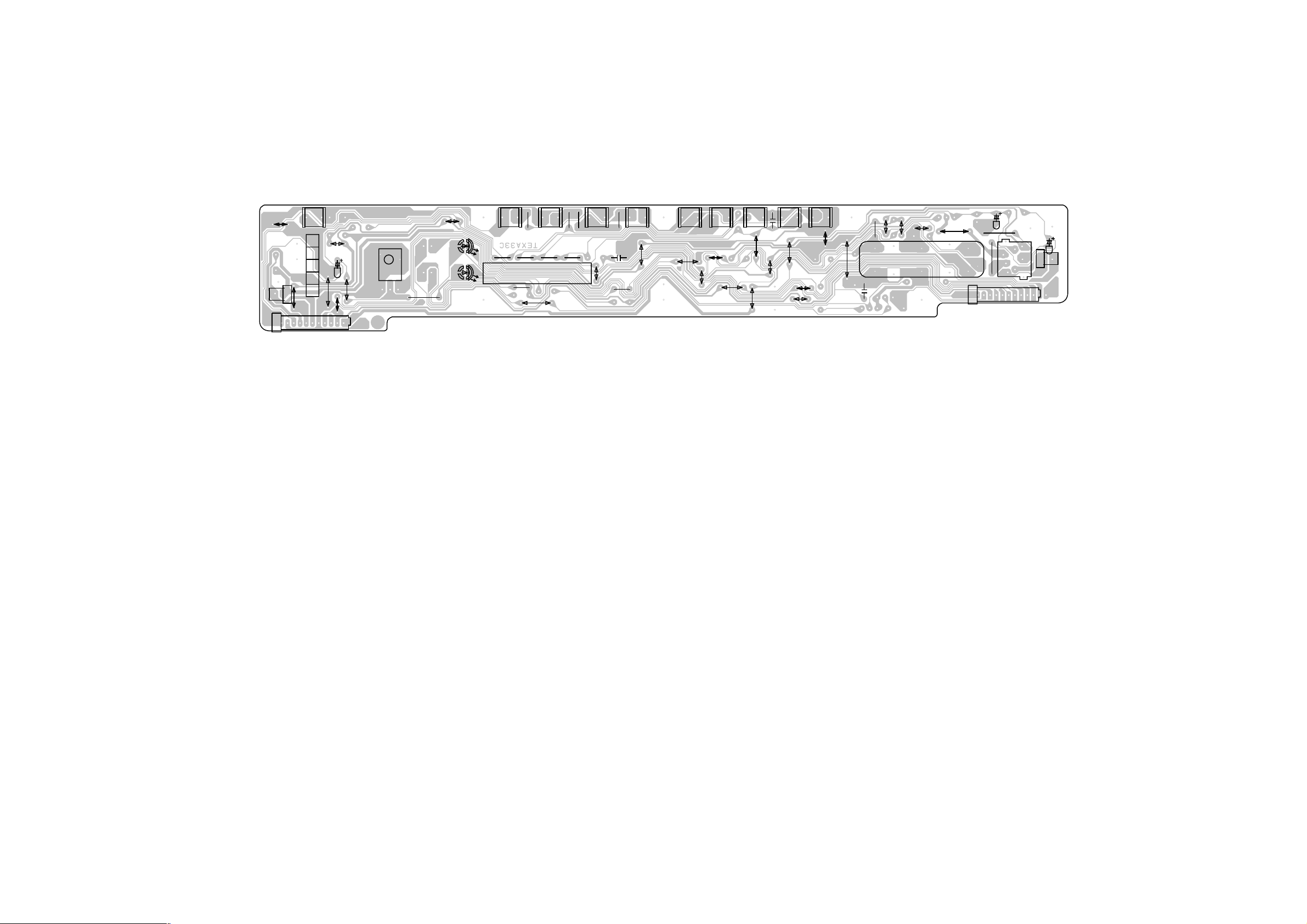

PRINTED CIRCUIT BOARDS
OPERATION
SOLDER SIDE
W015
CD356
W023
CD702
SW751_1
W809
W005
W808
C755
W016
OS753
R766
W806
D793
D791
R778
SW794
R777
R793
R774
W004
SW791
R776
R771
R775
R772
SW792
W017
R773
C781
R754
SW793
W019
SW795
W018
W009
W007
SW797
W011
SW796
W010
W008
C779
W020
SW799
W024
W006
W013
SW798
W002
W014
C751
R702_1
W812
W012
W804
J701_1
W813
C353
R351
CD757_2
R352
J351
C352
CD355
F-9
F-10
ABC D E F GH
G-1
G-2

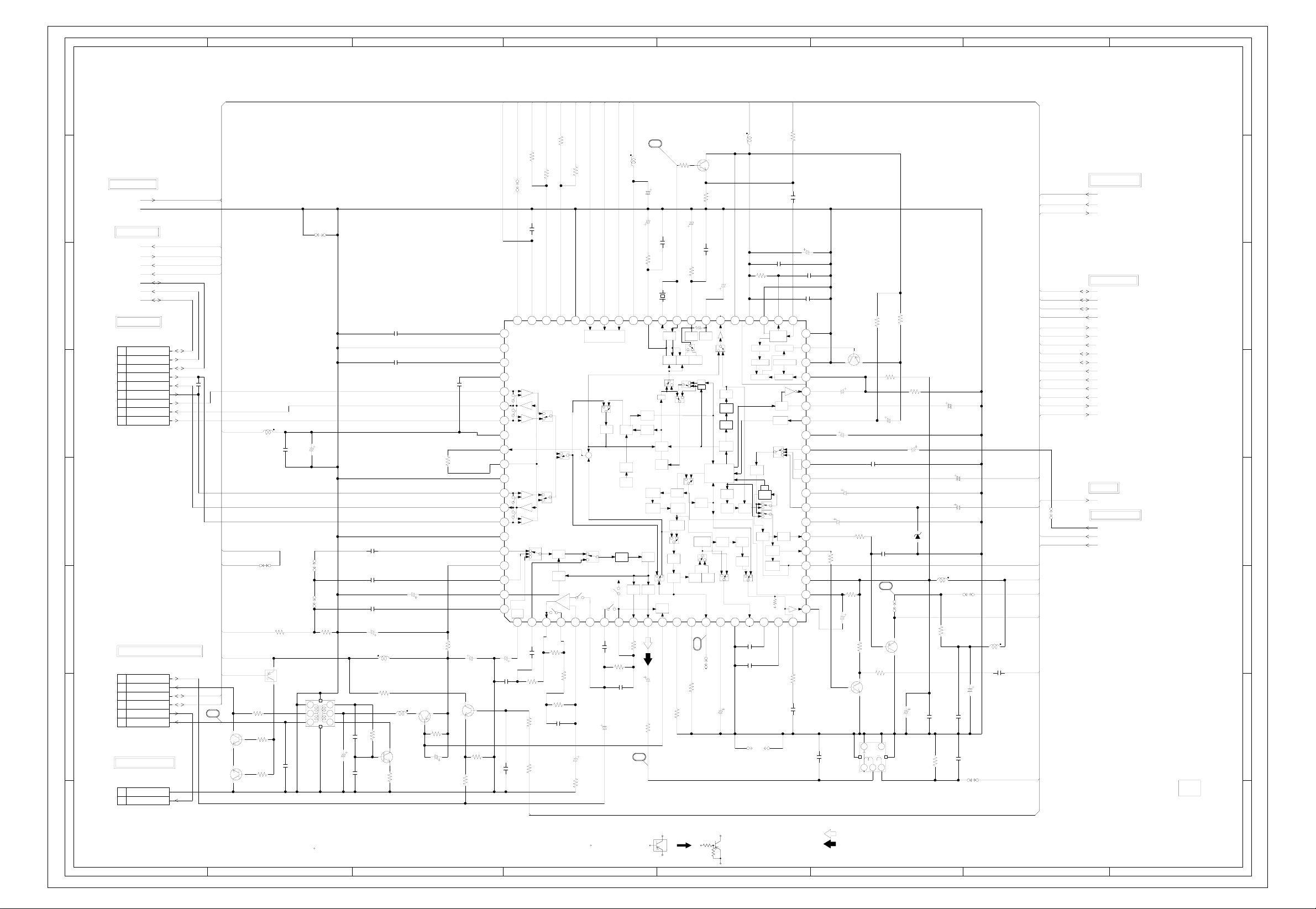

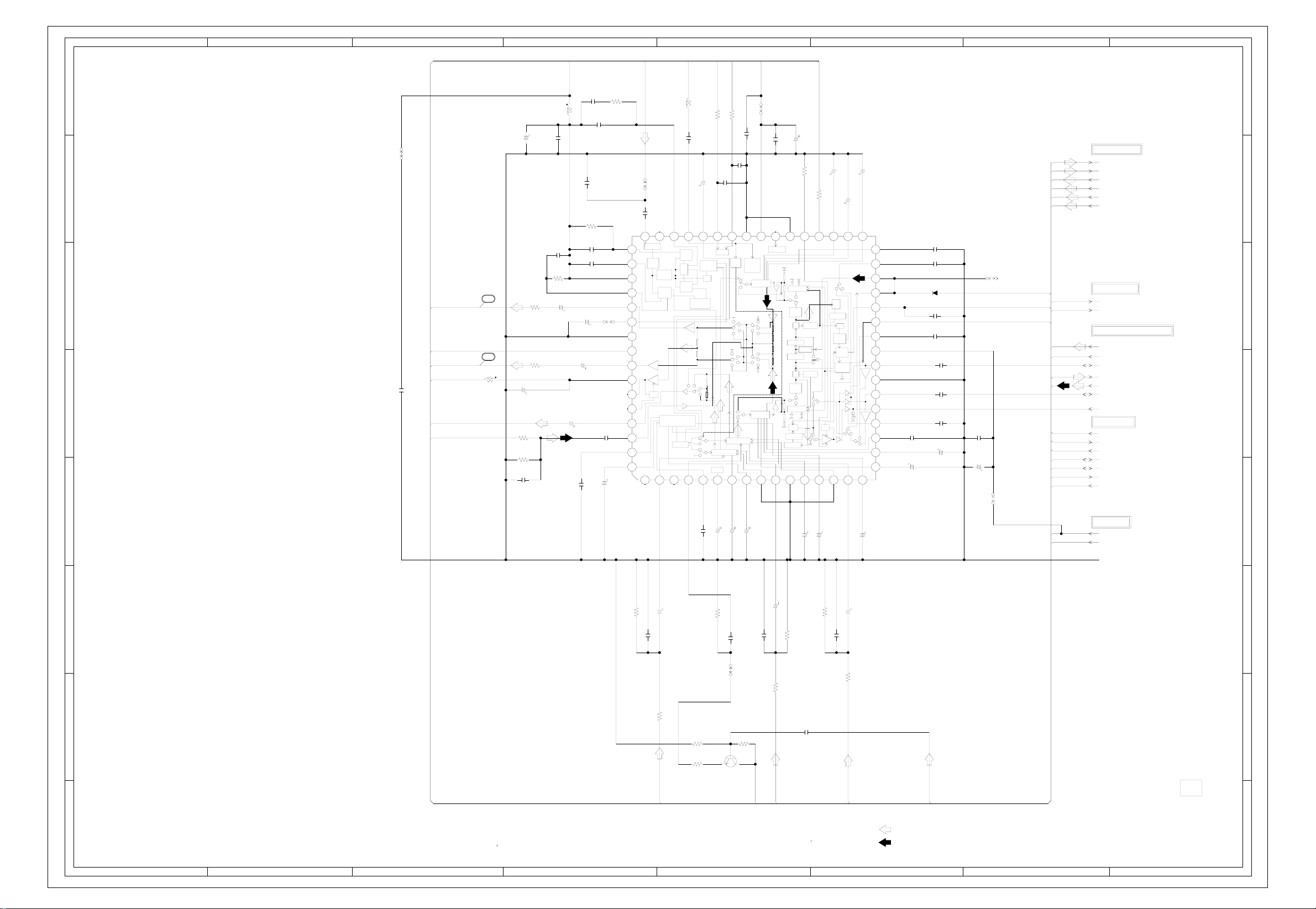

Y/C/AUDIO/CCD/HEAD AMP SCHEMATIC DIAGRAM
8
(SYSCON PCB)
8
MAIN
1/2
FBC
FIL
0305
S102YS102X
4FscVDD
R
P
R
P
V.SYNC
SYNC
SEP
SEP
0.11.5
C4059
0.1 B
PLL
OUTTIMMING
AUTO-BIAS
CLAMP
VCA
CLAMP
1
2
3
6DB
4.7K
S
DET
2.52.3
FSC
R4054
C4060
414243444546474849550515253545556575859660
CLOCK
VCA
VCP
BAL
TC1
AGC
TC2
Y-VCC
B
R4025
C4038
1K
FROM/TO IN/OUT
0.01 B
FRONT_V_IN
REAR_V_IN
VIDEO_OUT
7
C4058
476.3V KA
C4061
0.01 B
C4078
0.1 B
R4033
3.3M
R4036
R4029
C4048
C4053
C4050
C4051
336.3V KA
47K
C4046
SYNC IN
Q4007
2SC2412K
BUFFER
Q4010
2SA1037AK
1.7
0
1016V KA
150V KA
0.2250V KA
R4032
R4065
2.2M
150V KA
R4028
0.7
220
2.3
3.4
0
C4054
0.1 B
47K
R4034
C4049
C4082
33P CH
0
R4026
39K 1/4W
82K
4.750V KA
1
W855
5.0
5.0
2.2K 1/4W
R4035
100K
C4057
150V KA
D4003
BUFFER
Q4009
2SA1037AK
C4045
2206.3V KA
MTZJ13B
L4004
22uH 0305
R4048
0.1 B
C4044
C4052
150V KA
C4076
180 1/4W
C4047
C4041
150V KA
150V KA
W856
C4042
0.33 B
FRONT_V_IN
REAR_V_IN
W859
P.CON+5V
VIDEO_OUT
SD_VIDEO
L4009
22uH
0305
C4043
SD_SYNC
0.1 B
1006.3V KA
0
40
VSS
1.7
OUT
0
VSS
3.0
IN
2.8
3.1
3.1
2.6
2.0
4.0
REG
4V
2.0
30 31 32 33 34 35 36 37 38 39
2.3
2.3
1.6
2.9
3.6
0
4.9
2.8
1.8
21 22 23 24 25 26 27 28 29
1.5K
180P CH
FROM/TO MICON
Y/C_CS
H.SW
SD_VIDEO
ENV_DET
VCR_A_MUTE
CTL+
CTL-
C_ROTARY
DUMMY_V.SYNC
V.REC_ST_H
H.AMP_SW1
COMP
SD_SYNC
TO IF
VIDEO_OUT
FROM CHROMA/IF
TU1_VIDEO
TU1_AUDIO
VD
6
5
4
3
2
6
C4022
0.01 B
NC
15.6KHZ TRAP
1234
L4007
STP-01064
R4005
1.5K
C4014
0.047 B
W857
Y/C_AUDIO
PCB010
VMA245
COMP
ENV_DET
H.AMP_SW1
22K
R4044
7
FROM POWER
P.CON+5V
GND
FROM/TO HI-FI
(S801)
W988
W854
C4069
0.1 B
TU2_AUDIO
NORMAL_A
Y/C_AUDIO
FSC
HF2
6
5
HF_COM Y/C_CLK
HF1 Y/C_DATA
FROM/TO CYL
CP4001
TOC-C09X-A1
9
HF1 (R)
8
HF_COM
7
HF2 (L)
6
SP-CH1 (R)
5
SP_COM
4
SP-CH2 (L)
3
EP/LP-CH1 (R)
2
EP/LP_COM
1
EP/LP-CH2 (L)
C4083
22P CH
P.CON+5V
L4001
22uH
0305
C4055
476.3V KA
C4009
0.33 B
C4016
0.068 B
C4019
0.047 F
4
C4004
C4020
1F
C4021
0.1 B
C4075
C4023
226.3V KA
0.1 B
C4012
226.3V KA
L4008
100uH
0305
R4062
6.8K
3.3K
R4010
C4005
0.01 B
2206.3V YK
C4006
0
0.015 B
0
R4069
L4003
100uH
0305
BIAS OSC
Q4006
KTC3203_Y
0
2.2
BIAS CTL
Q4005
KTA1266
0.2
5.0
R4011
C4010
TU2_AUDIO
TU1_AUDIO DUMMY_V.SYNC
W851
W852
W853
3
0
SW
Q4003
KRA103SRTK
R4001
560
R4002
0.7
R4003
0.7
R4055
12K
5.2
5.3
10K
C4002
10K
NORMAL_A
FROM/TO HEAD AUDIO CONTROL
CP4002
IMSA-9604S-06Z14
6
AUDIO PB
5
AUDIO REC
4
CTL+
3
CTL-
2
AE HEAD(-)
1
2
AE HEAD(+)
TO FULL ERASE HEAD
CP4003
TMC-T02X-E1
FE HEAD(GND)
2
FE HEAD(HOT)
1
GND
HOT
CTL+
CTL-
KTC3198
5
AUDIO
PB SW
Q4001
KTC3198
AUDIO
PB SW
Q4002
P.CON+5V
V.REC_ST_H
0
0
0
0
COIL,BIAS OSC
T4001
1626009
6
5
0.022100V MKT
R4056
8.2K
1
2
34
5.1
22K
C4086
0.1 B
476.3V KA
Y/C/A/CCD/HEAD AMP
680
+-1%
R4012
R4004
15 1/4W
4.7
0
R4061
IC4001
LA71205M-MPB
C4025
4706.3V YK
0
AMP
Q4013
2SC2412K
R4060
1.5K
10M
0.5 2.8 0 0 0 4.8 4.8 4.8 5.0 1.9 2.6 4.0 3.3 3.3
2.2
OUT
COMP
ENV
AUDIO
DET
KILL
616263646566676869
0
4.0
1.8
0.7
0.7
0.7
5.0
1.7
1.8
70717273747576777879
0
2.0
2.0
2.0
0
2.2
4.9
2.3
DET
HA
GND
CHROMA
DET
ACC
DET
HA VCC
HA
PRE GND
A-GND
A-VCC
HA SW
P
R
P
P
R
P
1
2
3
0
2.3
Vref
2.3V
1 10111213141516
C4027
C4077
0.01 B
C4071
336.3V KA
270P CH
C4028
R4057
1K
R4058
R4059
0.1 B
10M
10M 1/4W
C_ROTARY
VCR_A_MUTE
R4046
12K
R4045
C-ROT
MUTE
RF-SW
IN
H
L
H
L
ALC
ALC
DET
SP,LP
3
4
R4017
6.8K
R4018
R4019
330K
C4029
0.01 B
H.SW
Y/C_CS
Y/C_CLK
Y/C_DATA
P.CON+5V
22K
12K
R4047
C-GND
SERAIL
DECODER
PR
C-LPF
+
4.21M
R
LPF
P
VREF
PB,EE
EQ
AMP
PB,EE
REC:LP<EP
PB:EP
7
8809
C4032
0.0033 B
R4021
12K
22K
C4033
0.001 B
3.350V KA
C4031
1016V KA
C4030
180
R4020
Main
CONV
Sub
CONV
BPF
L4006
C-VCC
REC
AMP
R4022
47uH
C4062
820
C4034
4
C4063
R4039
3.58M
BPF2
B-UP
AMP
LINE
AMP
MUTE
R4014
DETAIL
2
0305
150V KA
8.2K
PPPR
ENH
NL
EMPHA
P
4.725V KA
390
476.3V KA
C4064
X4001
BGA
ACC
AMP
ACC
DET
AUTO
BIAS
0.022 B
VX01
REC
APC
R
R
R-EQ
TEST
REC
FM-EQ
R
AGC
fo-ADJ
4.0
R4041
1.8K
C4065
R4042
100CT3R502
320FH
VCO
P
PB
APC
BEFORE
P
AFTER
R
P
P
CLAMP
NL
EMPHA
FM
MOD
NORMAL
FM
FM EQ
PHASE
PHASE
EQ
EQ
Q-ADJ
R4024
27K
R4023
5.1
3.4
R
REC
AFC
BGA
BGA
R
Y-LPF
DOUBBLE
PB
VHS
150V KA
1.5K
LIM
3
100
R4043
C4066
SLD
PB-C
S-EQ
SOPB
TP4001
NC
BUFFER
Q4012
2SC2412K
1.8K
0.022 B
2.3
YNR/COMB
P
R
P.CON+5V
47uH
L4005
R4038
680K
150V KA
C4067
NC
5.0 5.0 0 2.2 0.8
ALWAYS
5V
B
DRIVER
CCD
CNC
PB
AMP
B.D
P
3.58M
BPF1
VIDEO
AGC
R
N.L.
PB-C
DEEM
Y/C
NC1
MIX
SUB
LPF
MAIN
DE-EM
R
P
Y-GND
0
01.41.71.01.05.02.42.32.22.32.22.22.32.22.2
C4036
390P B
C4037
0.1 B
3.350V KA
QV/QH
R
EMPHA
17 18 192 20
NC
FM
DEM
P
FM
AGC
FIL
V.ENV
C4035
VD
1
THE DC VOLTAGE AT EACH PART WAS
NOTE:
MEASURED WITH THE DIGITAL TESTER
DURING PLAYBACK
NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME
OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE
CAUTION: DIGITAL TRANSISTOR
AUDIO SIGNAL(REC)
1
AUDIO SIGNAL(PB)
ABC D E F GH
ABC DEF GH
G-3
G-4
OSD_B
270
R1035
270
HI-FI-H.SW
VIDEO-H.SW
W817
10K 1/4W
HIFI_H.SW
(SYSCON PCB)
OSD_BLK
CENTER_LED
4.7K
R1036
C1009
220PCH
C1067
100PCH
C1023
220PCH
C1010
220PCH
C1037
390PCH
V-SYNC
OSD OUT1
CENTER LED
50 TAB SW
49 OSD-VSS
48 AV2
33 PLAY LED
32 RENT_H / OTPB_LED
31 ON-TIMER LED
DEGAUSS_H
X-RAY IN
LDM CTL
R1052
4.7K 1/4W
DEGAUSS_H
LDM_CTL
220PCH
C1031
0.001B
NUA
H-SYNC
STANDBY-H
H CONTROL
H_CONTROL
R1004
C1056
0.1B
W871
C1034
0.1B
C1035
CVIN
PROTECT
PROTECT
1K
VHOLD
VIDEO-MUTE
004.9
EXT_MUTE
1K
R1031
HLF
OSD-VCC
OSC-OUT2
NC(CS_REC_LED)
X-RAY_TEST
X-OUT(12MHz)
X-IN(12MHz)
XC_OUT(32KHz)
XC_IN(32KHz)
VCR-POWER
TV-POWER
5.2
R1032
515253545556575859660616263646566676869770717273747576777879880
SD-IN
AV1
NUB
OSC-IN2
CLKSEL
VSS
VCC
RESET-L
T-REC LED
REC_LED
T-REC_LED
10K
C1071_1
5.25.22.11.62.34.24.900002.62.52.51.8
SERVICE
REC LED
50
40 41 42 43 44 45 46 47 48 49
31 32 33 34 35 36 37 38 39
330P B
5.2
0
NC
4.8
NC
4.8
0
2.6
2.5
5.2
NC
0
0
0
2.6
2.1
5.2
1.3
1.5
5.2
NC
4.9
NC
0
NC
0
R1066
SD_SYNC
SERVICE
TP1001
R1033
1K
8
C1038
680P CH
R1040
33K1/4W
12
100CT01207
100DA32R01
10
PROTECT SW
Q1014
KRC103SRTK
4.8
4.7K 1/4W
L1001
X1001
X1002
0
0
NC
R1034
C1062
1B
1M
2.2uH
4.9
0
9
2.7K
R1058
C1014
0.1 B
C1050
20P CH
TP1002
H.SW
0
PROTECT SW
Q1007
KRC103SRTK
W874
HD
VD
C1046
20P CH
C1047
18P CH
C1040
18P CH
C1048
18P CH
C1049
22PCH
RESET
TV_POWER_H
VCR_POWER_H
H.SW
COMP
NC
STANDBY-H
PROTECT_A
FROM/TO HI-FI
V.REC_ST_H
HIFI_H.SW
SCL
SDA
ST_SELECT
VCR_A_MUTE
FROM/TO Y/C/AUDIO/HEADAMP
Y/C_CLK
Y/C_DATA
Y/C_CS
H.SW
SD_VIDEO
ENV_DET
VCR_A_MUTE
CTL+
CTL-
C_ROTARY
DUMMY_V.SYNC
V.REC_ST_H
H.AMP_SW1
COMP
SD_SYNC
FROM/TO CHROMA/IF
HD
VD
DEGAUSS_H
POWER_FAIL
OSD_R
OSD_G
OSD_B
OSD_BLK
SDA
SCL
AFT_M
VCR_POWER_H
X_RAY_TEST
PROTECT
IIC_OFF
PROTECT_A
H_CONTROL
FROM/TO IN/OUT
VCR_A_MUTE
REC_LED
T-REC_LED
KEY_A
KEY_B
REMOCON_IN
EXT_MUTE
EXT_A_MUTE
8
7
6
5
4
3

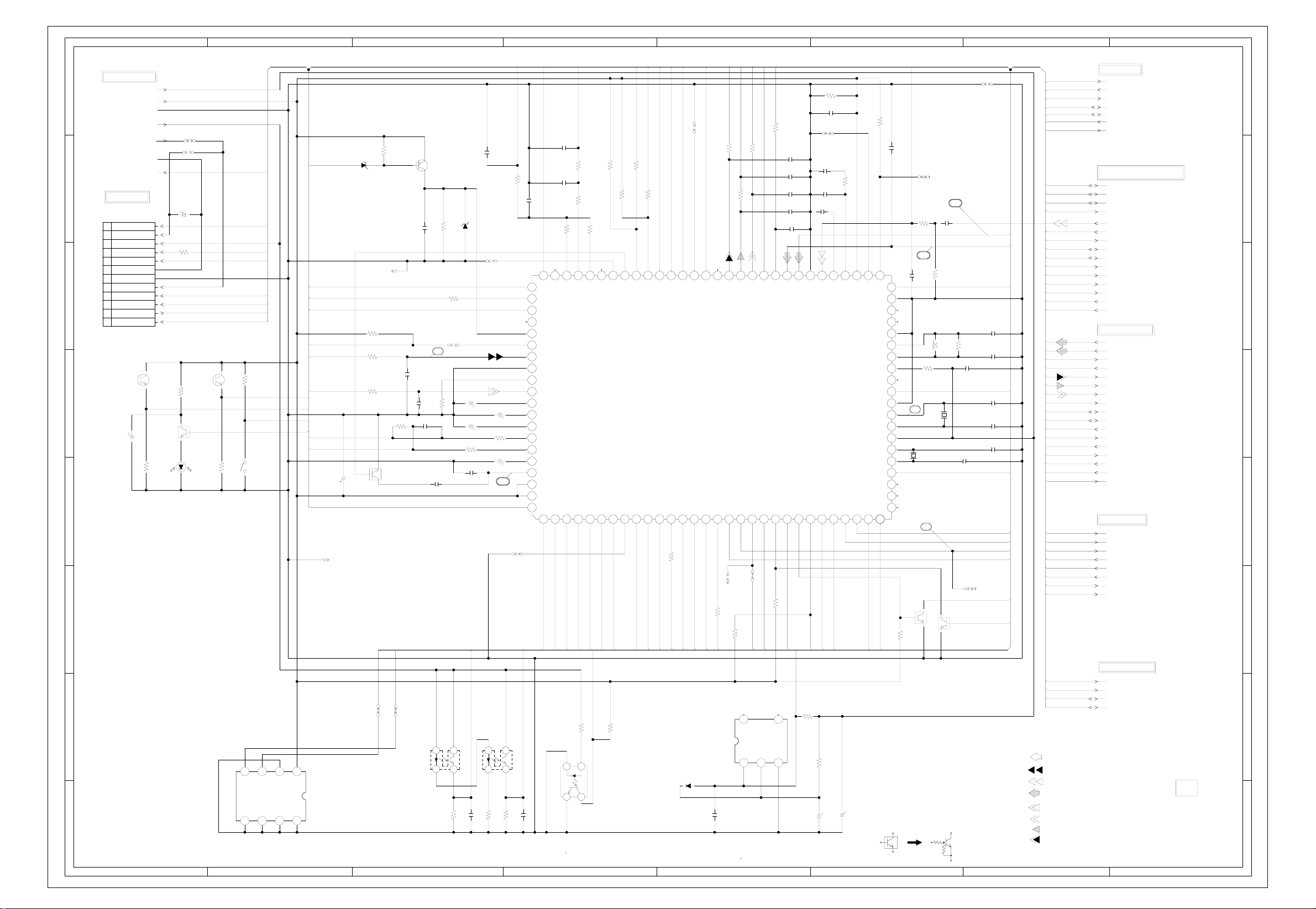

MICON SCHEMATIC DIAGRAM
8
7
6
5
4
3
FROM/TO POWER
AT+5V[BACKUP] HIFI_ENV
FROM/TO DECK
CP1001
TMC-J12P-B2
1
2
CAP_VCO
3
4
CAP/M/F/R
5
I_LIMIT
6
7
8
LD/CY_VCO
9
10
11
CYL_FG/PG
12
EOT SENSOR
AT+5V[UCON]
P.CON+5V
AT+12V
MOTOR_GND
STANDBY-H
CAP_FG
VCC
GND[M]
GND
CAP_CTL
LDM_CTL
CYL_CTL
Q1013
ST-304L
3306.3V KS
C1026
GND
5.2
0
CENT SW
Q1006
KRC103SRTK
220K
R1011
C1002
R1016
3.3K 1/4W
R1002
D1003
LNA2702L010R
W823
W860
33035V YK
220 1/4W
2.8
4.8
3.7
Q1002
ST-304L
BOT SENSOR
R1003
5.2
0
CAP_LIMIT
CYL_FG/PG
330K
TAB SW.
CAP_FG
CAP_F/R
CAP_CTL
LDM_CTL
CYL_CTL
4.7K
R1018
CENTER_LED
SW1001
BOT
EOT
TAB_SW
MXS01380MPP0
10K
R1047
C1011
D1001
MTZJ11B
1006.3V KA
R1001
3.3K
R1008
R1006
1K1/4W
4.8
1K
0
0
POWER_FAIL
VCR_A_MUTE TAB_SW
TV_A_MUTE
EXT_A_MUTE
IIC_OFF
CAP_FG
CYL_FG/PG X_RAY_TEST
CTL-
CTL+
ST_SELECT
S802X
4.1
S807Y
C1013
R1012
10K
FF/REW_SW
Q1004
KRC103SRTK
4.9
4.9
C1041
0.0039 B
C1001
C1019
0.001B
0.1 B
0.0022 B
C1022
0.1B
BUFFER
Q1008
2SA1037AK
R1039
3.3K 1/4W
R1077
W866
11
4.7K
R1043
1K
D1014
C1015
C1018
R1013
5601/4W
C1027
0.0039B
MTZJ6.8B
4710V KA
4.750V KA
C1030
W869
R1009
560 1/4W
0.0033 B
C1016
2216V KA
C1020
1016V KA
7
REEL_T
CAP_CTL
22K
R1028
C1029
0.0068 B
818283848586878889
0
5.1
0
NC
5.1
POWER_FAIL_L
5.9
IIC OFF
5.2
CAP-FG
2.5
AMP-VSS
0
NC
2.0
DRUM-FG/PG
90919293949596979899
0.6
AMP-VREFOUT
2.5
AMP-VREFIN
2.5
C
0.2
CTL-
0
CTL+
2.5
AMP C
2.6
CTL AMP-OUT
2.5
5.2
5.2
100
0
110
W868
MS_SEN-A
CYL_CTL
C1065
0.1B
4.7K
R1029
C1028
0.1B
33K
R1017
220
CAP FULL
EOT
EOT
R1020
CAP-PWM
DRUM-PWM
HI-FI-ENV
BOT
4
5
0
HIFI_ENV
BOT
22K
NC
ENV_DET
R1053
NC
0.9
0.9
REEL-S
REEL-T
MSSEN-A
MSSEN-B
4.9 4.9
1.4 0 0 2.42.2 5.25.2 0 2.2 0 0 5.22.32.62.6 0 0 0 5.2 0 0
MS_SEN-B
SDA
SCL
Y/C_CS
Y/C_CLK
Y/C_DATA
V.REC_ST_H
W992
3.3K
R1045
VOLUME/REC_AGC
81 VCR_A_MUTE
82 TV_A_MUTE
83 EXT_A_MUTE
84 NC(TUNER_CTL)
98 AMP-VCC
99 ANALOG VCC
100 DEW/ST_SELECT
VIDEO-ENV
220
R1038
3.3K
R1044
00
JUST CLOCK
AFT(MONI)
AFT_M
220
R1042
4.9 0 0 04.8
CS
SCLK
IIC-CLK1
FF/REW-L
IIC-DATA1
TIMER SYSCON MICON IC
CAP-LIMIT
AFT(REC)
0
CAP-FWD
KEY 2
KEY 1
11 12 13 14 15 16 17 18 192 20 21 22 23 24 25 26 27 28 293 30
9
1K 1/4W
R1024
CAP_LIMIT
CAP_F/R
KEY_A
KEY_B
004.80.10
BBE_H
SDATA
V_REC_START_H
IC1001
OEC7071A
COLOR ROTARY
REMOCON-IN
DUMMY-V.SYNC
0
C_ROTARY
DUMMY_V.SYNC
REMOCON_IN
NC
R1014
H.AMP_SW1
OSD_R
OSD_G
270
R1007
R1021
4.8
RGB
NC(AV3)
HEAD.AMP.SW
ENV-CMP-IN
TP5502
NC
HIFI_H.SW
560
R1062
FROM/TO SOUND AMP
TV_POWER_H
TV_A_MUTE
SCL
SDA
PCB010
VMA245
2
1
C1017
0.12 B
SYSTEM RESET IC
IC1002_1
R3111N311A/C
NC NC
OUT
123
5.2 5.2
RESET
NCNC
0.30.2
R1049
45
4.7K
GNDIN
5.6K
0
R1051
AUDIO SIGNAL(REC)
CAPSTAN AFC SIGNAL
TUNER VIDEO SIGNAL
DEFLECTION SIGNAL
CYLINDER APC SIGNAL
B.SIGNAL
C1021
4706.3V YK
4716V KA
C1003_1
CAUTION: DIGITAL TRANSISTOR
G.SIGNAL
R.SIGNAL
SCL
SDA
5.1 5.1
3.9
R1083
MS_SEN-B
MS_SEN A
Q1009
RPI-352C40N
23
4
1
1.4
33K
100P CH
R1050
C1006
W862
2
5678
SDA
EEP ROM IC
VSS
1
IC1099 S-24C04BDP-LA
5.202.62.5
SCL
A2
VCC
TEST
A1
A0
1234
0000
W863
MS_SEN B
Q1003
RPI-352C40N
23
1
NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME
OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE
MS_SEN-A
5.13.9
4
4.92.7
33K
100
C1008
R1087
100P CH
0
1
R1046
1.2
2
34
0.10
REEL SENS
Q1005
RPI-303
REEL_T
390 1/4W
R1019
47K
D1002
1SS133
THE DC VOLTAGE AT EACH PART WAS
NOTE:
MEASURED WITH THE DIGITAL TESTER
DURING PLAYBACK
ABC DEF GH
ABC D E F GH
G-5
G-6

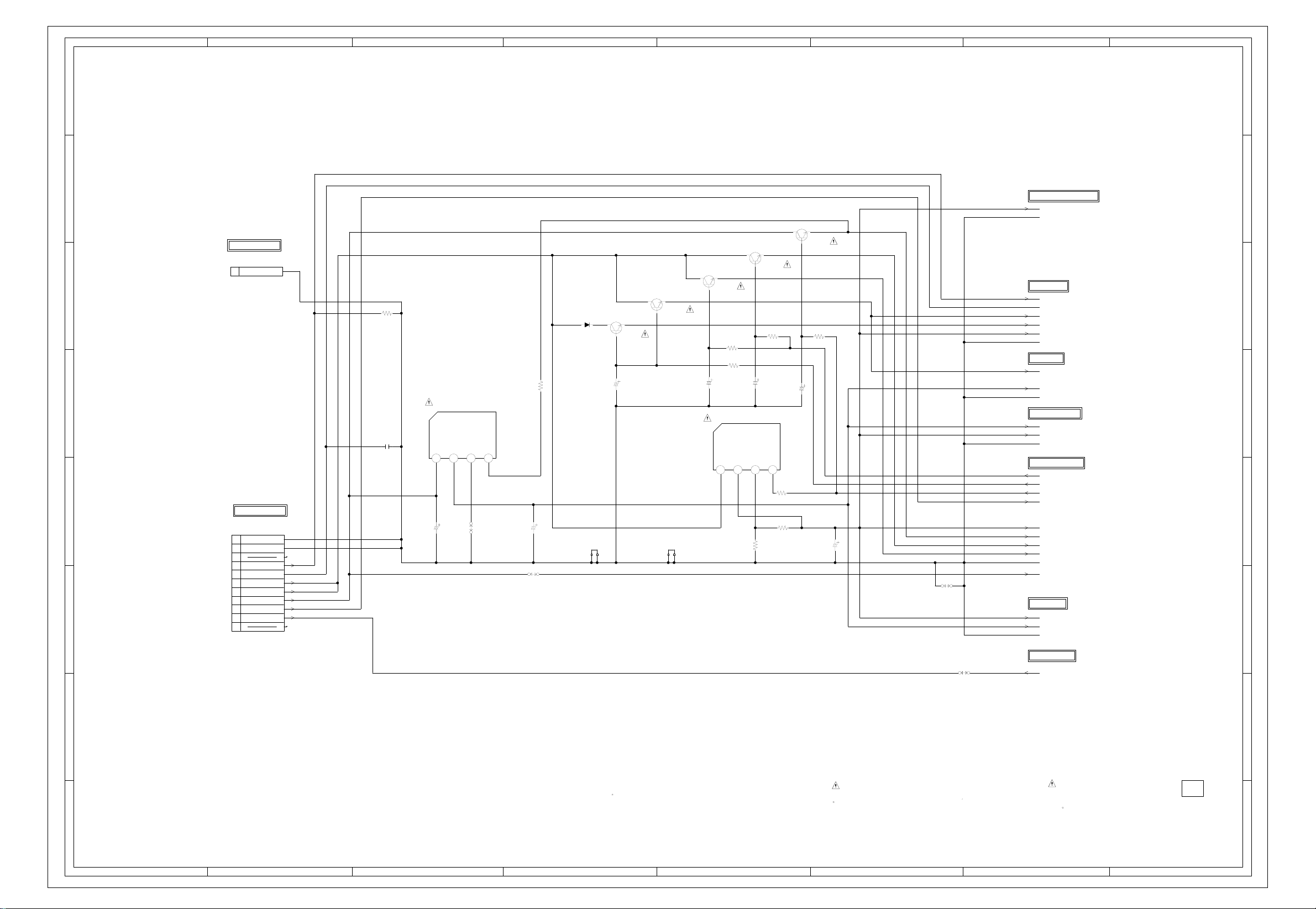

POWER SCHEMATIC DIAGRAM
8
(SYSCON PCB)
8
7
TO Y/C/AUDIO/HEAD AMP
P.CON+5V
GND
12.6 8.2
REG.
FROM/TO TV POWER
CP601
(CD404)
003P-2100
1
GND
6
R690
1K 1/2W
C677
W990
R644
4735V YK
5
C608
1F
4
3
FROM TV POWER
(CP810A_1)
CP810B
B2013H02-11P
1
GND
2
GND
3
4
AT+12V
5
MOTOR_GND
6
UNREG+8V
7
UNREG+8V
8
AT+13V
9
AT+30V
X-RAY_STOP
10
11
NC
NC
9V REG IC
IC602 KIA78R09API
1234
150V YK
C643
SWGNDOUTIN
8.29.012.6
0.3
W879
100 1/4W
D604
SB10-03A3
HS602_1
763WSA0017
5.2
7.8
REG.
Q602
5.5
KTC3203_Y
2235V YK
C680
7.5
5.5
763WSA0017
5.2
Q603
KTC3203_Y
HS603_1
REG.
5.2
7.8
REG.
Q605
5.6
2SC13840W
R663
R662
2216V KA
C684
5V REG.IC
IC603 KIA78R05PI
1234
100
5.2
7.8
REG.
Q606
5.6
2SC13840W
R682
100
100
2216V KA
C685
SWGNDOUTIN
8.85.27.7
0.3
R669
1K 1/4W
R668
470 1/4W
R667
15 1/4W
Q608
8.8
2SC13840W
TO MICON
AT+12V
MOTOR_GND
AT+5V[UCON]
AT+5V[BACKUP]
P.CON+5V
GND
TO IN/OUT
AT+5V[UCON]
P.CON+9V
GND
TO SOUND AMP
P.CON+9V
P.CON+5V
GND
FROM/TO CHROMA/IF
5.7VREF[PCON]
5.7VREF[AT]
8.7VREF
AT+30V
P.CON+5V
P.CON+8V
P.CON+5V[CHROMA]
P.CON+5V[TU1]
GND
CHROMA+13V
TO HI-FI
P.CON+5V
P.CON+9V
GND
C688
R686
100
150V YK
1006.3V YK
C694
W996
7
6
5
4
3
FROM MICON
W850
2
THE DC VOLTAGE AT EACH PART WAS
NOTE:
MEASURED WITH THE DIGITAL TESTER
DURING RECORDING (SP MODE)
NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME
OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE
CRITICAL FOR SAFETY,USE ONES
DESCRIBED IN PARTS LIST ONLY
ARESINCE THESE PARTS MARKED BYCAUTION:
DANGEREUSES AN POINT DE VUE SECURITE
N’UTILISER QUE CELLS DECRITES
DANS LA NOMENCLATURE DES PIECES
1
STANDBY-H
2
ETANTLES PIECES REPAREES PAR UNATTENTION:
PCB010
VMA245
1
ABC D E F GH
ABC D E F GH
G-7
G-8

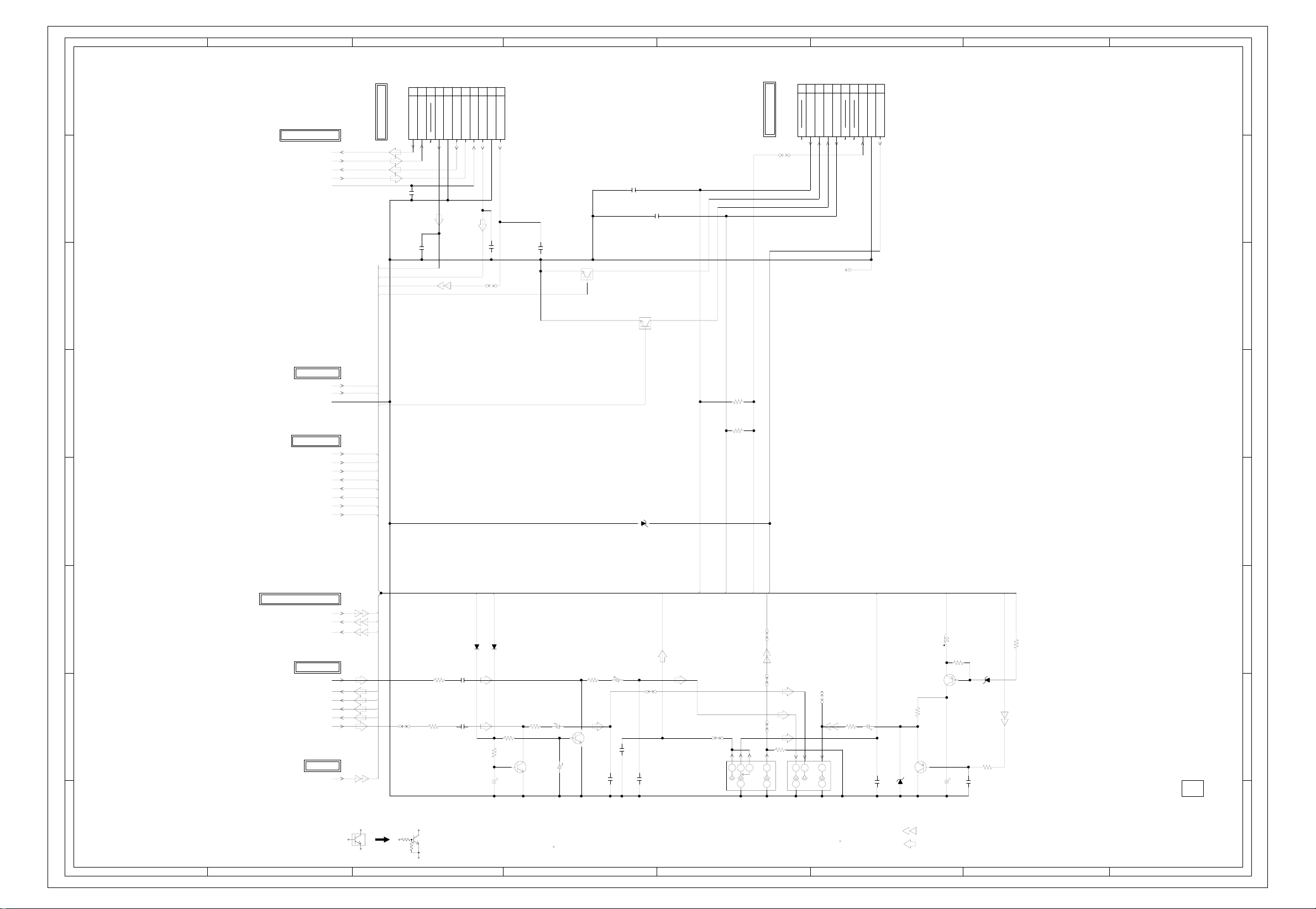

IN/OUT SCHEMATIC DIAGRAM
8
(CD702)
FROM/TO OPERATION
FROM/TO SOUND AMP
SP_OUT_R
SOUND_R+
SP_OUT_L
SOUND_L+
7
SOUND_GND
CP4202
10
11
SP_OUT_R
SOUND_OUT_R
A2001WV2-11P
NC
C4203
0.001 B
9
GND
FRONT_A_IN_R
SP_OUT_L
SOUND_OUT_L
1
2345678
GND
SOUND_GND
FRONT_VIDEO_IN
FRONT_AUDIO_IN_L
(SYSCON PCB)
C4201
0.01 B
C4205
0.01 B
10
(CD757_2)
FROM/TO OPERATION
CP2201_2
A2001WV2-10P
NC
W908
9
KEY_B
REC_LED
T-REC_LED
KEY_A
45678
2
3
1
GND
AT+5V
REMOCON_OUT
NC
NC
8
7
C4222
470P CH
FRONT_A_IN_R
FRONT_A_IN_L
FRONT_V_IN
6
FROM POWER
AT+5V[UCON]
5
4
P.CON+9V
GND
FROM/TO MICON
VCR_A_MUTE
REC_LED
T-REC_LED
KEY_A
KEY_B
REMOCON_IN
EXT_MUTE
EXT_A_MUTE
REC_LED
T-REC_LED
C4204
W828
(W239)
470P CH
C4218
REC LED SW
Q4205
KRC102SRTK
47P CH
3.70
0
T-REC LED SW
Q4206
KRC102SRTK
3.7
0
0
R2211
4.7K 1/4W
R2212
4.7K
D2201
MTZJ6.8B
S807X
6
5
4
KEY_B
KEY_A
AT+5V[UCON]
REMOCON_IN
FROM/TO Y/C/AUDIO/HEAD AMP
3
2
1
VIDEO_OUT
FRONT_V_IN
REAR_V_IN
FROM/TO HI-FI
AUDIO_OUT_R
REAR_A_IN_R
FRONT_A_IN_L
FRONT_A_IN_R
REAR_A_IN_L
AUDIO_OUT_L
FROM IF
VIDEO_OUT
W881
CAUTION: DIGITAL TRANSISTOR
R4205
680
R4212
680 1/4W
C4208
C4216
1F
1F
EXT_A_MUTE
D4205
1SS133
VCR_A_MUTE
D4204
1SS133
R4207
100
R4203
2.2K
0
R4231
2.2K
CH MUTE
Q4211
0
2SC2412K
0
4.750V YK
C4245
THE DC VOLTAGE AT EACH PART WAS
NOTE:
MEASURED WITH THE DIGITAL TESTER
DURING PLAYBACK
MUTE SW
Q4203
2SC2412K
C4212
1016V KA
C4207
REAR_A_IN_L
C4206
R4217
1016V KA
100
0
0
0
4.725V KA
C4210
C4213
470P CH
W886
W888
470P CH
C4209
470P CH
REAR A/V JACK(STEREO)
NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME
OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE
REAR_V_IN
W822
W890W891
R4224
75
H1NCH1H2
234
6
1
5
EE
J4201_1
AV3-19DS-1
NC
TP4201
V.OUT
H1H1 H2
2345
1
EE
REAR A/V JACK(STEREO)
J4202_1
AV3-19D-1
R4213
75
C4211
47016V YK
REAR_A_IN_R
D4206
C4214
470P CH
5.2
MTZJ13B
P.CON+9V
0305
L4205
100uH
R4232
10K
0
MUTE SW
Q4210
10016V YK
C4202
D4201
MTZJ5.6B
R4238
33 1/4W
27P CH
R4239
BUFFER
Q4212
2SA1037AK
0
8.9
8.8
2SA1037AK
220 1/4W
4.6
C4220
TUNER VIDEO SIGNAL
AUDIO SIGNAL(REC)
EXT_MUTE
VIDEO_OUT
R4204
1K
PCB010
VMA245
3
2
1
ABC D E F GH
ABC D E F GH

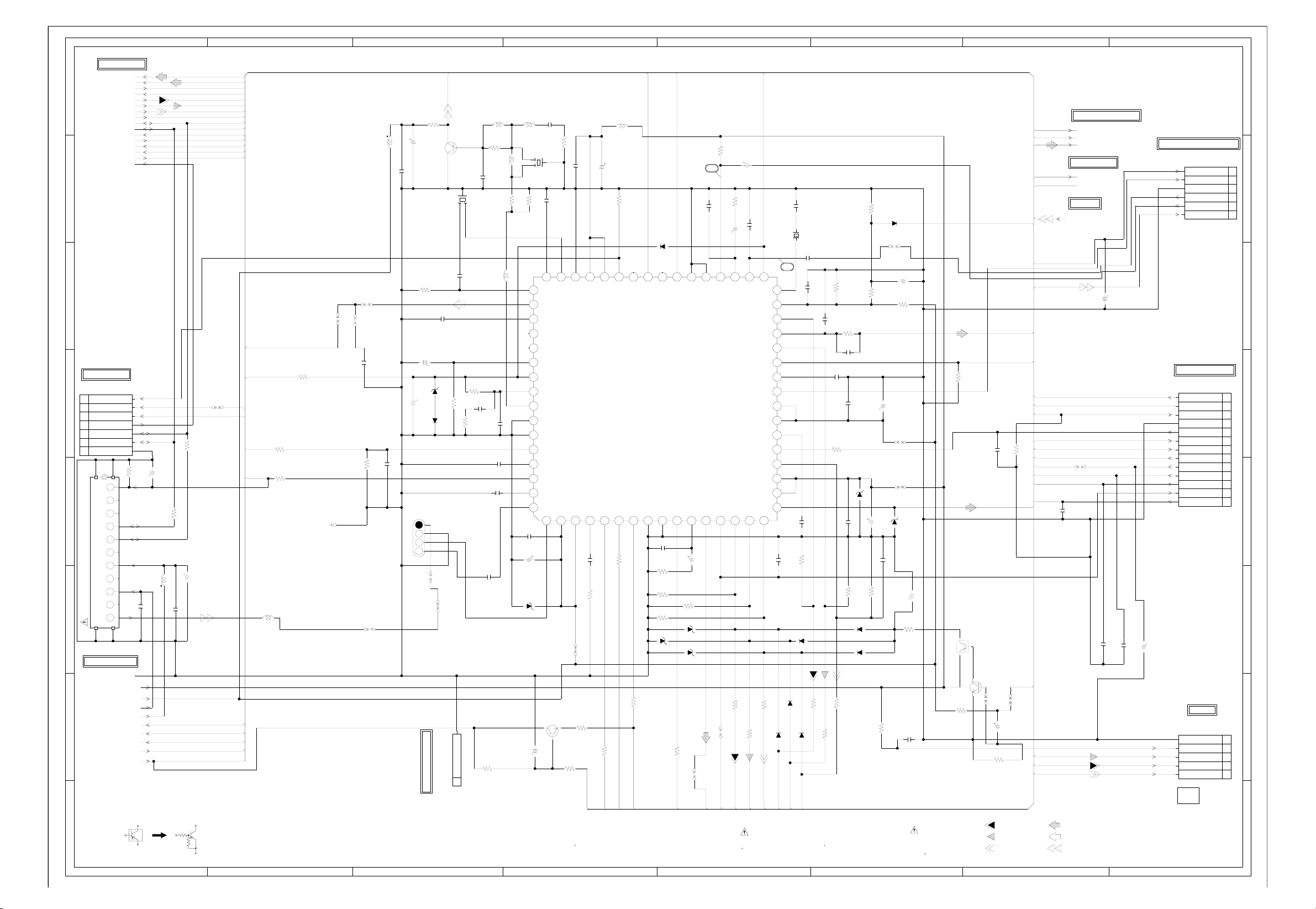

G-9
G-10
FROM/TO MICON
HD
8
VD
DEGAUSS_H
POWER_FAIL
OSD_R
OSD_G
OSD_B
OSD_BLK
SDA
SCL
AFT_M
VCR_POWER_H
X_RAY_TEST
PROTECT
PROTECT_A
H_CONTROL
IIC_OFF
7
6
TEST POINT
CP602_1
07JQ-ST
INTELLGENT_MONI
7
5
6
B.OUT
AGC_M
5
IIC_OFF
4
3
SDA
2
4
3
2
SCL
1
GND
1
AGC
2
3
SCL
4
SDA
5
6
+5V
7
8
TU601 TECC1040PG32ETUNER
+30V
9
10
IF
11
FROM/TO POWER
P.CON+5V[CHROMA]
P.CON+5V[TU1]
5.7VREF[PCON]
5.7VREF[AT]
CHROMA+13V
R605
1213
1.8
NC
NC
2.5
2.5
2.5
NC
0
4.9
NC
0
29.5
NC
2.0
0
1415
GND
P.CON+8V
AT+30V
8.7VREF
P.CON+5V
22K
C602
C610
0.01 B
L604
R603
220 1/4W
2.250V KA
R602
220 1/4W
2206.3V YK
C612
100uH 0305
C613
0.1 B
CAUTION: DIGITAL TRANSISTOR
1
NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME
OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE
ABC D E F GH
W812
CHROMA/IF SCHEMATIC DIAGRAM
TU1_VIDEO
L618
BUFFER
Q601
10M
R609
GND
180P CH
R673
1.2M
L620
47uH
R620
6.8K
L607
10uH
C629
22P CH
470
R622
L613
3.3uH
C627
1B
220
C618_1
220P CH
C626
0.1 B
C622
0.22 B
C634
0.01 B
MTZJ11B
R679
47K
CRITICAL FOR SAFETY,USE ONES
DESCRIBED IN PARTS LIST ONLY
C676
33uH
150P CH
R681
CF604
EFCT4R5MW5
470
R672
2.3
49
2.4
50515253545556575859
2.3
3.0
NC
2.0
NC
3.2
9.0
3.0
2.2
0
0
2.4
6061626364
2.9
2.3
2.7
1.5
C674
0.1 F
C635
4716V YK
D603
5.100
C671_1
1.5K
C640
C636
0.01 B
AUDIO BYPASS
EXT AUDIO IN
FM DIRECT OUT
VIF VCO F/B
VREG Vcc
VIF APC FILTER
VIF VIDEO OUT
VIF GND
VIF GND
AFT OUT
QIF IN
RF AGC OUT
RF AGC FILTER
VIF Vcc
VIF Vcc
1 10111213141516
2
3
W930
SW
Q651
2SC2412K
220 1/4W
1016V KA
R687
1K
0.1 B
C639
R624
R688
H_CONTROL
C641
Hi Vcc
Hi Vcc
47 LIMITER IN
48 IF AGC
49 QIF OUT
50 AUDIO OUT
64 VIF IN
1 VIF IN
SCL
H VCO F/B
5
0.01 B
2K
R655
SCL
L610_2
100uH
22025V YK
100
ARESINCE THESE PARTS MARKED BYCAUTION:
R616
220
3.4
C620
100uH 0305
C614
0.01 B
C624
0.01 B
CF601_1
TSF5229P3
SAW FILTER
476.3V KA
0
CF603
EFCT4R5YS5A
R608
C628
10K
C625
1F
C632
2.250V KA
D602
MTZJ8.2C
22016V YK
R618
D601
1SS133
234
W943
W928
(CP403)
CH01006A
CD604
FROM/TO DEFLECTION
2.7
2SA1037AK
1
L608
W924
W919
W921
TU1_AUDIO
C623_1
CHROMA+13V
B.OUT
AGC_M
AFT_M ACL
AGC_M
0.39uH
R607
220 1/2W
R610
100 1/4W
R601
2.2K 1/4W
L601
NOTE:
100P CH
180K
C621
R614
S802Y
W920
THE DC VOLTAGE AT EACH PART WAS
MEASURED WITH THE DIGITAL TESTER
DURING RECORDING (SP MODE)
10K
R625
4.8 2.8
MCU RESET
INTELLIGENT MONI
CHROMA/IF IC
IC601
M61206FP
H OUT
FBP IN
6
789
10K
R626
2.2K
R656
H_PLUSE
H_OUT
5.7VREF[AT]
5.7VREF[PCON]
D607
1SS133
NCNC
5v REG
Y SW OUT
5.7V REG OUT(FOR CPU)
34 EXT C in46 SW REG CONT
33 8.7V REG OUT
32 X’TAL
31 ACL/ABCL
17 V OUT
16 B OUT
DEF GND
DEF GND
SDA
C647
0.01 B
R631
6.8K
R658
2.2K
R659
R660
2.2K
D609
MTZJ6.8B
MTZJ6.8B
MTZJ6.8B
1K
R657
R630
SDA
DANGEREUSES AN POINT DE VUE SECURITE
N’UTILISER QUE CELLS DECRITES
DANS LA NOMENCLATURE DES PIECES
16
C650
VIDEO/CHROMA GND
VIDEO/CHROMA GND
AFC FILTER
H.PLUSE OUT
150V KA
C645
2.2K
D608
D612
100
W824
(W109)
HD
R677
C648
1.5M 1/4W
R633
0.015 B
C649
TV/Y IN
CHROMA APC FILTER
V PULSE OUT
SPOT KILLER
VIDEO/CHROMA Vcc
VIDEO/CHROMA Vcc
V RAMP FEEDBACK
STRAT UP Vcc
R OUT
POWER ON CONT
R634
W933
R.OUT
VCR_POWER_H
(SYSCON PCB)
8.7VREF
0.150V KA
8.2K
150V YK
C651
47P CH
8.82.03.23.2005.65.54.08.28.28.22.02.0
333435363738394404142434445464748
3.3
3.0
0
R IN
30 31 32
4.7
0
G IN
G OUT
100 1/4W
B IN
R636
B.OUT
2.42.52.54.83.93.43.6002.50.83.62.65.05.01.5
100 1/4W
C669
D617
0.1
7.3
5.0
NC
4.9
4.9
4.8
2.0
20 21 22 23 24 25 26 27 28 29
0
8.2
8.2
17 18 19
3.8
OSD_R
ETANTLES PIECES REPAREES PAR UNATTENTION:
FAST BLK
fsc OUT
V RAMP CAP
100
R635
G.OUT
X602
15
0.01 B
D618
1SS133
OSD_G
C654
0.01 B
C664
R647
D620
1SS133
1SS133
D616
18P CH
100CT3R505
C656
C661
1B
163V MKT
2.2K
R684
1SS133
OSD_B
R661
8.2K
D605
11ES1N
W803
C665
R646
8.2K
R642
C644
0.039 B
R643
47K
C700
0.0012 B
C658
0.22 B
C660
0.1 B
R641
27K
D606
C655
C653
0.01 B
2.2K
R648
D621
1SS133
D619
1SS133
R683
6.8K
6.8K 1/4W
R685
6.8K 1/4W
THE RESISTOR MARKED F IS FUSE RESISTOR.NOTE:
THE ALUMI ELECTROLYTIC CAPACITOR MARKED NP
IS NON POLAR ONE.
6.8K
C659
MTZJ11B
R649
R692
1/4W
22016V YK
C601
2.2K
R638
4716V YK
W939
D613
10P CH
C692_1
470
1016V KANP
5.6K
W938
MTZJ6.8B
3325V YK
R651
100 1/4W
C734
0.001 B
R652
Q609
2SC2412K
4.7K
0.3
8.2
8.2
SW
C615_1
SW
Q604
KRA102SRTK
8.2
0.3
0
0.001 B
S811X
C741
OSD_BLK
V_OUT
P.CON+5V
R693
AFT_R
PROTECT
2.250V YK
ACL
10K 1/4W
VD
P.CON+5V
MONITOR_V
SOUND+B
SOUND_GND
H_OUT
V_OUT
H_PLUSE
PROTECT_A
POWER_FAIL
X_RAY_TEST
DEGAUSS_H
G.OUT
R.OUT
B.OUT
R.SIGNAL
G.SIGNAL
B.SIGNAL
TO Y/C/AUDIO/HEAD AMP
TU1_AUDIO
TU1_VIDEO
VD
TO SOUND AMP
SOUND+B
SOUND_GND
FROM IF
MONITOR_V
AFT_R
W942
C670
C630
C633
0.001 B
0.001 B
FROM/TO DIGITAL COMB FILTER
MONITOR_V.OUT
C683
4706.3V YK
FROM/TO DEFLECTION
CP820B
B2013H02-13P
PROTECT/TV_POWER_H
X-RAY_TEST
VCR POWER H
4716V YK
C738_1
220P CH
PCB010
VMA245
DEFLECTION SIGNAL
AUDIO SIGNAL(REC)
TUNER VIDEO SIGNAL
CP604
IMSA-9130B-06
P.CON+5V
FSC
GND
C IN
Y IN
(CP820A)
SOUND+B
SOUND_GND
H.OUT
GND
V.FEEDBACK
V.OUT
ACL
H.PLUSE
POWER_FAIL
DEGAUSS_H
TO CRT
CP805B
B2013H02-5P
GND
CUT_OFF
G.OUT
R.OUT
B.OUT
(CY901)
(CP805)
8
1
2
7
3
4
5
6
6
1
5
2
3
4
5
6
7
8
9
10
11
12
13
4
3
2
5
4
3
2
1
1
ABC D E F GH
G-11
G-12

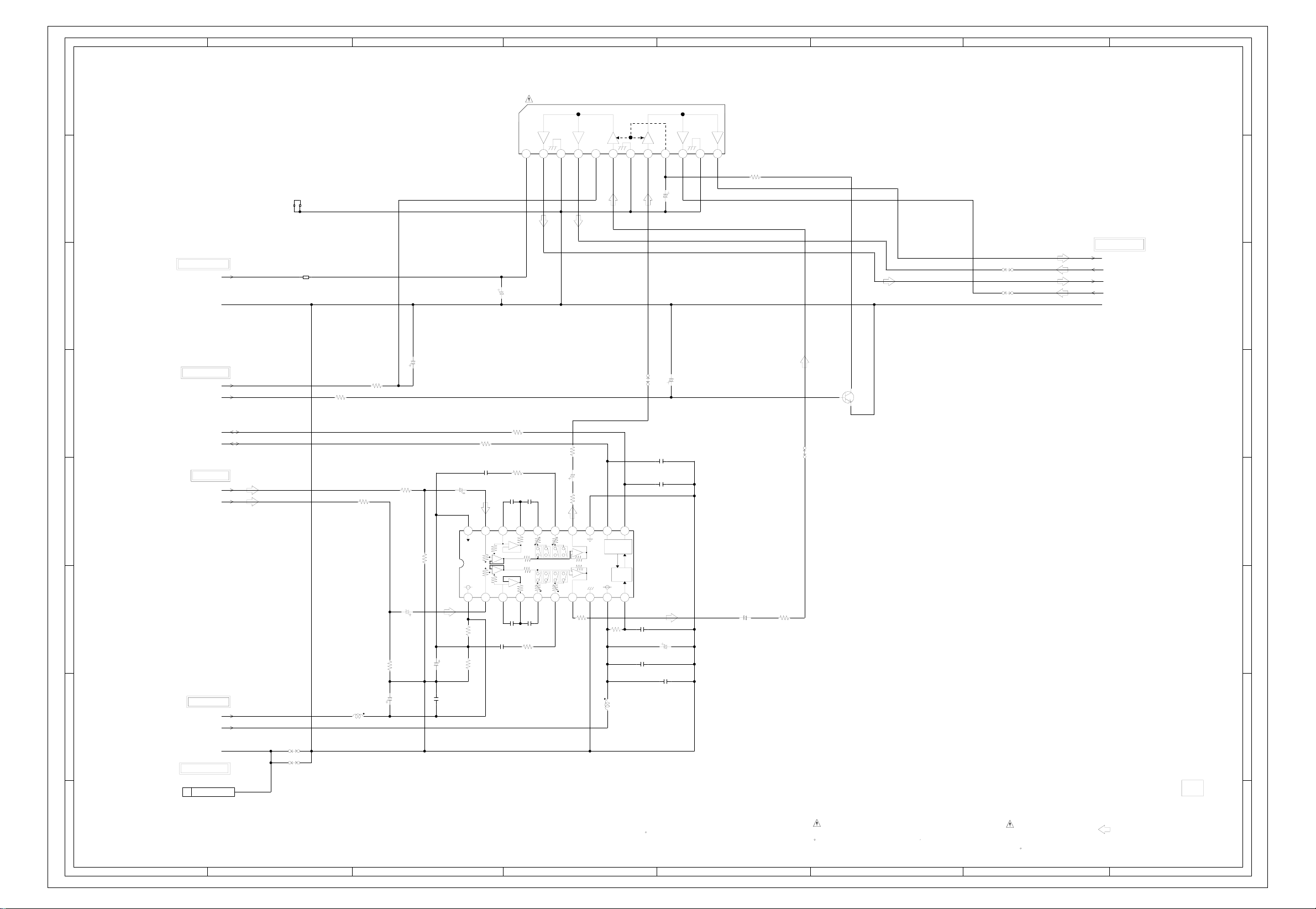

SOUND AMP SCHEMATIC DIAGRAM
8
SOUND AMP IC
IC352 AN7522
(SYSCON PCB)
8
RL
1 10111223456789
6.6 3.5 0 3.5 3.9 1.3 0 1.3 6.6 3.5 0 3.5
7
FROM CHROMA/IF
SOUND+B
6
SOUND_GND SOUND_GND
FROM/TO MICON
TV_POWER_H
5
4
TV_A_MUTE
SCL
SDA
FROM HI-FI
AUDIO_OUT_R
AUDIO_OUT_L
3
FROM POWER
2
P.CON+9V
P.CON+5V
HS352
763WAA0160
B301
W5RH3.5X5X1.0
R359
47K 1/4W
100uH 0607
L302
R316
3.9K
R353
68K 1/4W
C315
R302
3.3K
4716V YK
R303
3.9K
C311
C357
1050V KA
3325V YK
R308
3.3K
C301
C316
1050V YK
0.1 B
0.150V KA
C350
C321_1
100016V YK
150V KA
W945
C323
R310
220 1/4W
R309
220 1/4W
R306
C302
0.033 B
C312
1050V KA
110
REF
VR1
REF
REF
VR2
IC301 M62420SP
DIGITAL SOUND CONTROL IC
4.7K
R304
R305
4.7K
1.8K
C304
0.022 B
C306
0.47 B
2203456789
1.8K
136K
+
-
SIMAMP1
+
-
VOLAMP1
VOLAMP2
+
SIMAMP2
+
136K
1.8K
C305
0.022 B
C303
0.033 B
VR3
6.5K
6.5K
VR4
C307
0.47 B
R307
1.8K
VR5
S3
S1
S2
S4
390
R313
1050V KA
C314
100
R317
1.610.504.44.34.34.44.44.44.4
TONE
S5
S7
AMP1
+
-
6.5K
+
TONE
S8
S6
AMP2
VR6
R318
100
6.5K
I2C BUS
INTERFACE
CONTROL
LOGIC
111213141516171819
5.25.2
04.44.34.34.44.44.48.9
R311
100K
L301
100uH
C308
0.001 B
C317
0.1 MMTS
C318
100P CH
C319
100P CH
C309
4716V YK
C310
0.022 B
+-+-
R357
100K 1/4W
C325_1
1016V KANP
R358
390
W947
MUTE SW
Q350
2SC2412K
FROM/TO IN/OUT
W951
W952
2.0
0
0
SOUND_R+
SP_OUT_L
SOUND_L+
SP_OUT_R
7
6
5
4
3
2
GND
FROM/TO CHASSIS
CD302 CH01408A
GND
1
1
W991
W985
THE DC VOLTAGE AT EACH PART WAS
NOTE:
MEASURED WITH THE DIGITAL TESTER
DURING RECORDING (SP MODE)
NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME
OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE
CRITICAL FOR SAFETY,USE ONES
DESCRIBED IN PARTS LIST ONLY
PCB010
VMA245
ARESINCE THESE PARTS MARKED BYCAUTION:
DANGEREUSES AN POINT DE VUE SECURITE
N’UTILISER QUE CELLS DECRITES
DANS LA NOMENCLATURE DES PIECES
ETANTLES PIECES REPAREES PAR UNATTENTION:
AUDIO SIGNAL(REC)
1
ABC D E F GH
ABC D E F GH
G-13
G-14
HI-FI SCHEMATIC DIAGRAM
8
7
6
5
4
(SYSCON PCB)
W959
C6309
FSC
SDA
SCL
C5501
476.3V
P.CON+5V
L5501
KA
0.1 F
C5502
100uH
C5521
0.22 B
C5514
0.1 F
R5518
3.3K
TU2_AUDIO
L5503
C5522
82uH
R5520 220
24P CH
P.CON+5V
VCR_A_MUTE
W835
R5521 220
C5555_1
220P CH
C5530
476.3V KA
0.1 B
C5531
C5561
3316V KA
0.72.601.8005.200.31.82.403.92.1
HPF
DET
LINER
SW
HOLD
CURR
AMP
C5536
RECPB
-
-
+
SW11
SW15
C5538
1016V KA
2.62.2
1016V KA
333435363738394404142434445464748
2.6
2.6
30 31 32
2.0
2.0
3.9
3.5
0
5.3
0
HA1HA2
0
0.7
0
20 21 22 23 24 25 26 27 28 29
2.7
H
2.6
L
2.6
17 18 19
0.7
C5546
0.015 B
C5548
1016V KA
C5540 0.015 B
C5541 0.22 B
D5501
1SS133
C5549 0.1 F
C5542 0.1 F
C5543
0.01 F
C5544
0.01 F
C5545
0.1 F
C5547
1016V KA
C5551
0.1 F
C5550
C5539 336.3V KA
100P
CH
C5560
PILOT
DET
SL
PLL
L.R
DEMOD
SAP
(L.R)/SAP
AMP
SW22
C5523
SWITCH
L
MIX
R
75uS
DE-EMPH
LPF
L
R
5
C5524 0.1 B
4.750V KA
100P
CH
LOGIC
SW19
SW17
INPUT_SW(L)
INPUT_SW(R)
VREF1
6
C5525 1016V KA
MUTE VCO-F0
ADJ
CTL
LOGIC
PNR RCH
SW21
FROM 1PIN
MUTE
R
SW18
BS
L
R
MIX
NORMAL
MUTE
SW16
L
MIX
HIFI
L
BS
R
FROM 3PIN
SW2
PNR LCH
789
C5527 1016V KA
C5526 4.725V KA
NC
ZZ-PROM
HIFI
560P B
C5562_1
R5512
2.7M
C5506 0.1 F
C5508
C5507 0.1 F
0.1 F
R5503
10M
AUDIO_OUT_R HIFI_ENV
23
R5526
2.2K
C5516
1016V KA
C5509
W818
2.250V KA
ST_SELECT
AUDIO_OUT_L
P.CON+9V
0.01 B
NORMAL_A
Y/C_AUDIO
22
L5506
100uH
0305
C5510
4716V KA
R5501
15K 1/4W
R5525
2.2K
C5552
1016V KA
HIFI AUDIO
/HEAD AMP/DEM IC
IC5501
AN3662FBP
C5512
1016V KA
C5513
0.1 F
R5502
5.6K
C5556
0.001 B
C5515
C5518
0.022 B
W961
1F
C5519
NC
DEM_BLK
49
3.9
INPUT
50515253545556575859
VCA
3.8
5.4
2.9
STEREO
FILTER
SAP
DEMOD
4.6
2.0
0
1.8
AMP
4.5
RFC
9.0
DET
NC
4.6
NC
6061626364
0.2
2.6
1.1
DBX
NOISE REDUCTION
MATRIX
0.7
0.4
1 10111213141516
2
3.350V KA
3
0.12.6 2.6 0.1 2.2 2.6 2.0 0.4 0 0.1 0 2.2 2.6 0 0.1 2.6
NC NC
S/N
SW NOISE
AUDIO
LIMIT
RCH BPF
LCH BPF
AUDIO
LIMIT
SW NOISE
MIX
REC LPF
LCH VCO
R5510
SW9
PC PB LPF
FM UM
PC
PB LPF
SW4
S/N
C5532 4.725V KA
22K
R5517
SW10
SW14
SW13
C5533 150V KA
DET
AGC
C5534
1K
SW12
REC LPF
RCH
VCO
NOISE
TIMING
TP5501
HIFI ENV
476.3V
KA
W836
NC
V.REC_ST_H
HIFI_H.SW
FROM/TO IN/OUT
AUDIO_OUT_L
AUDIO_OUT_R
FRONT_A_IN_L
FRONT_A_IN_R
REAR_A_IN_L
REAR_A_IN_R
TO SOUND AMP
AUDIO_OUT_R
AUDIO_OUT_L
FROM/TO Y/C/AUDIO/HEAD AMP
TU2_AUDIO
FSC
HF1
NORMAL_A
Y/C_AUDIO
HF2
HF_COM
FROM/TO MICON
V.REC_ST_H
HIFI_ENV
HIFI_H.SW
SCL
SDA
ST_SELECT
VCR_A_MUTE
FROM POWER
P.CON+5V
P.CON+9V
GND
8
7
6
5
4
150V KA
1B
C5564
C5529
680P CH
R5508
R5516
10K
3
R5505
10K
C5559
C5565
680P CH
R5511
180
C5566_1
150V KA
W816
R5507
47K 1/4W
47K
2
1
THE DC VOLTAGE AT EACH PART WAS
NOTE:
MEASURED WITH THE DIGITAL TESTER
DURING PLAYBACK
R5506
0.5
BUFFER
Q5501
2SC2412K
R5524
120K
8.80
P.CON+9V
REAR_A_IN_R
R5523
120K
R5513
1K 1/4W
FRONT_A_IN_R
NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME
OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE
C5535
1B
10K
C5557
150V KA
C5537
680P CH
47K
R5514
REAR_A_IN_L
FRONT_A_IN_L
AUDIO SIGNAL(REC)
AUDIO SIGNAL(PB)
PCB010
VMA245
3
2
1
ABC D E F GH
ABC D E F GH
G-15
G-16
IF SCHEMATIC DIAGRAM
8
7
TO CHROMA/IF
MONITOR_V
6
FROM Y/C/AUDIO/HEAD AMP
5
TO MICON
AFT_R
VIDEO_OUT
TO IN/OUT
VIDEO_OUT
FROM/TO POWER
GND
(SYSCON PCB)
R6034
S811Y
6.8K
8
7
6
VIDEO_OUT
5
W982
AFT_R
MONITOR_V
4
3
2
THE DC VOLTAGE AT EACH PART WAS
NOTE:
MEASURED WITH THE DIGITAL TESTER
DURING PLAYBACK
NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME
OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE
TUNER VIDEO SIGNAL
PCB010
VMA245
1
4
3
2
1
ABC D E F GH
ABC D E F GH
G-17
G-18

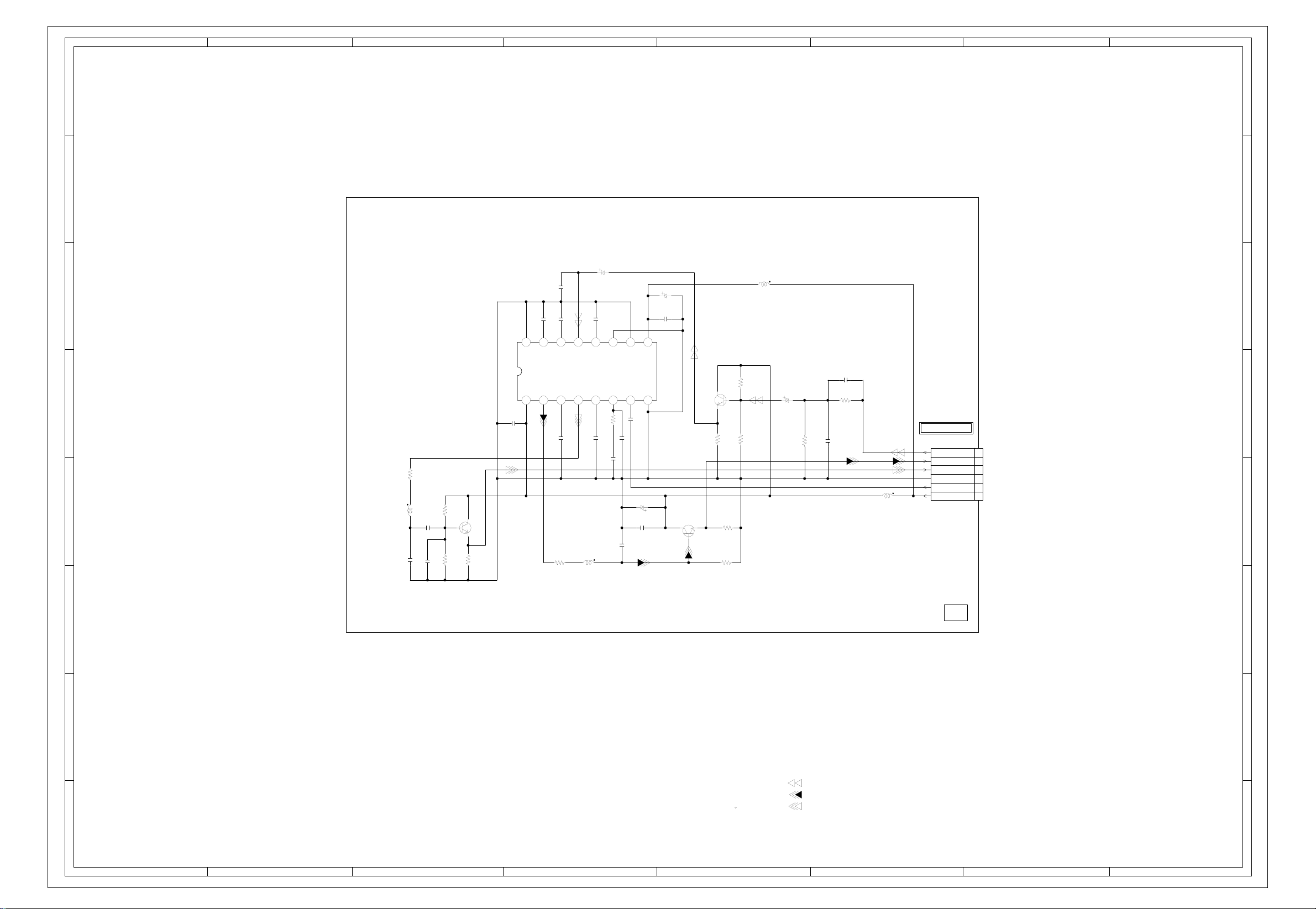

DIGITAL COMB FILTER SCHEMATIC DIAGRAM
8
(COMB PCB)
8
7
C903
0.4750V KA
C904
6
1
SS
AV
DD
AV
IC901 TC90A45F
1K
DIGITAL COMB FILTER IC
5.4 3.8 1.4 4.2 3.6 2.2 2.5 0
C913
0.01 B
BUFFER
Q903
2SC2412K
5
1K
R913
4
L904
C920
10uH
56P CH
0305
C921
C924
0.1 B
6.8K
R912
5.0
1.7
1.1
R910
R911
3.3K
100P CH
27P CH
C901
C902
0.01 B
2345678
VRB
OUT
Y
C912
R909
100
VRT
BIAS2
0.01 B
0.01 B
15uH 0305
ADIN
OUT
C
L903
C905
C911
BIAS1
BIAS3
0.01 B
TEST
VFIL
820
C908
R914
C909
0.01 B
C910
0.01 B
C919
10111213141516
180P CH
120P CH
KILLER
CKIN
00 2.4 3.0 2.6 2.6 0 5.5
DD
DV
SS
DV
9
100P CH
C916
4716V YK
C917
0.01 B
C907
4706.3V YK
C906
0.01 B
BUFFER
Q902
2SC2412K
4.4 2.1
2.4
BUFFER
Q901
2SC2412K
R902
1.9 2.5
1K
R906
1K
R908
1.2K
L901
820uH
27K
R901
5.4
R903
C914_1
3.350V KA
24K
R904
C923
150P CH
R905
1K
FROM/TO CHROMA/IF
CY901
560
C922
220P CH
L902 150uH
(CP604)
IMSA-9130S-06L
MONITOR V.OUT
Y IN
C IN
GND
FSC
P.CON+5V
6
5
4
3
2
1
7
6
5
4
PCB300
3
2
VEA975
3
2
TUNER VIDEO SIGNAL
THE DC VOLTAGE AT EACH PART WAS
NOTE:
MEASURED WITH THE DIGITAL TESTER
DURING RECORDING (SP MODE)
NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME
OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE
1
ABC D E F GH
LUMINANCE SIGNAL
COLOR SIGNAL
1
ABC D E F GH
G-19
G-20

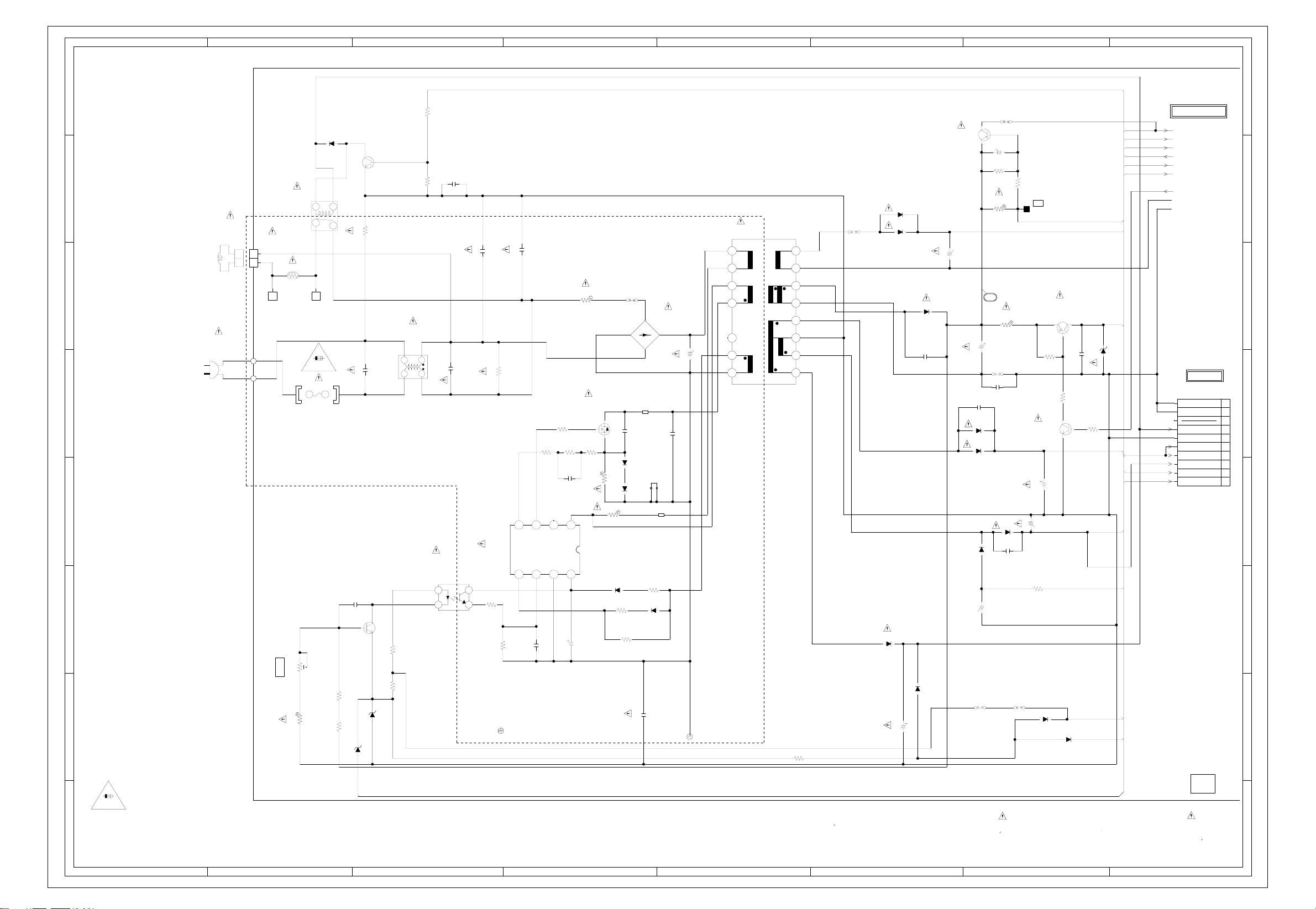

TV POWER SCHEMATIC DIAGRAM
(MAIN PCB)
8
10K
R515
0.2
0
R500
C505
C554
0.01 B
6.0
Q507
KTC3198-AT
(Y,GR)
39K 1/4W
18K 1/4W
D517
RELAY DRIVE
Q504
KTC3198-AT(Y,GR)
0.6
2.7M 1/2W
0.22275V PHE840
6.3
5.4
R525
R532
D528
MTZJ5.6B
MTZJ4.7B
L501
1R5A472F24
470
1K
10K
R513
34
12
FEED BACK
IC506
LTV-817M-VB
7.3
1
2
6.3
0.1 B
C506
C502
0.1275V PHE840
0.001250V KX
C530
16.9
R523
34
1.4
1K
0.001250V KX
C533
R538
1.5M 1/2W
0 4.4 11.4
56
IC501
TEA1507P/N1
POWER CONTROL IC
DEM Isense
1K
R531
IS THE LIVE CONNECTIONCAUTION:
C541
4.7 1/4W
R533
470
0
DRIVER
CTRL
0.022 B
2SK3326(2)
R522
R534
22K
C543
0.47 F
NC
78
HVS
DRAIN
NC
VCC
GND
1234
16.701.21.3
C542
R501
POWER
4725V YK
Q501
4.7
R535
1K
D505
SB290S
T501_1
81350774
0.4
DC IN
89
0
7
11.4
W802
17W
W4BRH3.5X6X1.0X2
176.0
D
G
C540
0
S
D504
R527
0.1 1W
D524
R529
0.22 1W
D508
1N4937
R516
680K
R510
680K
GBL06L-6177
2
1
4
3
B502
0.00152KV R
11E1-EIC
HS501
763WAA0166
11E1-EIC
B503
W4BRH3.5*6*1.0*2
(W035)
R511
22 1/2W
D507
1SS133
C529
0.0022250V KX
D501
C504
C507
0.0012KV R
6
411
5
COL
3
NC
NC
12.5
470200V UP
ADJ
2
013
GND
1
8.4
SB
0
SG
10
113
11
HG
12
8.53
8V
13
LG
14
12.44
15
13V
12V
16
R507 100 1/4W
W801
D509
SB290S
D519
SB290S
C524
D516
1SS133
7
DEGAUSS
COIL
L503
8R200024
21
A1561WV2-2P
1
2
6
AC120V_60Hz
CD501_1
0R414903
BLACK
WHITE
WIDE
5
BLADE
CP502
PH001
003P-2100
S501
S502
RY501
ALKS321
TH501_1
ZPB45BL3R0A
1
FH502
EYF-52BC
3
1
PH002
003P-2100
5A 125V
F501
5A125V
51MS050LCC
12
4
FH501
EYF-52BC
4
3
FEED BACK
SWITCHING
METAL
VR502
1K
+B ADJ
R553
2
R514
2.7K +-1%
R554
D510
RU2AM-EIC
C517_1
0.00222KV R
D533
1SS133
100025V YK
PROTECT DRIVE
Q502
2SA1624
100016V YK
C520_1
C521
C518
470P500V B
D514
SB290S
D512
SB290S
D506
C537
W809
222.6
111.8
115
R506
22K 1/4W
R502
0.56 2W
24
220200V YXF
W804
C503
0.1 F
1N4937
1050V YK
W810
C510
10100V MHE
R512
22K 1W
D523
SB290S
C501
470P2KV R
W821
R504
2.2K 1/4W
+B
TP501_1
SWITHING
Q505
2SC2909
C523
R505
1K 1/4W
31.5
R518
10K 1/4W
C531
470
25V
D525
1SS133
SWITHING
Q503
2SA1371
R519
3.5
220016V MHE
MHE
1SS133
30.9
0
D526
31.4
270K 1/4W
4.8
C528
UNREG+8V
DEGAUSS_H
SOUND+B
AT+30V
D515
0.022 B
R520
47K
AT+13V
POWER_FAIL
UNREG+8V
SOUND+B
+B
MTZJ33B
UNREG+8V
AT+30V
STAND_BY_H
FROM/TO DEFLECTION
PROTECT
+B
SOUND+B
DEGAUSS_H
AT+13V
POWER_FAIL
VCR.POWER_H
SOUND_GND
GND
TO POWER
CP810A_1
52147-1010
GND
GND
NC
AT+12V
MOTOR GND
UNREG+8V
UNREG+8V
AT+13V
AT+30V
ST.BY_H/CAP_VCO
(CP810B)
8
7
6
5
1
2
3
4
5
6
7
8
9
10
4
3
2
5A 125V
CAUTION:
FOR CONTINUED PROTECTION AGAINST FIRE HAZARD,
1
REPLACE ONLY WITH THE SAME TYPE FUSE
5A 125V(F501)
ATTENTION: POUR UNE PROTECTION CONTINUE LES RISQUES D’INCEIE
N’UTILISER QUE DES FUSIBLE DE MEME TYPE
5A 125V(F501)
ABC D E F GH
STAND_BY_H
THE RESISTOR MARKED F IS FUSE RESISTOR.NOTE:
THE ALUMI ELECTROLYTIC CAPACITOR MARKED NP
IS NON POLAR ONE.
THE DC VOLTAGE AT EACH PART WAS MEASURED
NOTE:
WITH THE DIGITAL TESTER WHEN THE COLOR BROADCAST
WAS RECEIVED IN GOOD CONDITION AND PICTURE IS NORMAL.
NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME
OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE
CRITICAL FOR SAFETY,USE ONES
DESCRIBED IN PARTS LIST ONLY
PCB070
TMA524
ARESINCE THESE PARTS MARKED BYCAUTION:
DANGEREUSES AN POINT DE VUE SECURITE
N’UTILISER QUE CELLS DECRITES
DANS LA NOMENCLATURE DES PIECES
ETANTLES PIECES REPAREES PAR UNATTENTION:
1
ABC D E F GH
G-21
G-22
8
7
6
5
4
3
2
1
FROM/TO POWER
CD402
(CD302)
CH01004A
1
GND
FROM/TO CHROMA/IF
CP403
003P-2100
1
GND
FROM/TO CHROMA/IF
(CP820B)
CP820A
52147-1310
1
SOUND+B
SOUND_GND
2
3
H.OUT
4
GND
5
V.FEEDBACK
6
V.OUT
7
ACL
8
H.PULSE
9
PROTECTER
POWER_FAIL
10
X-RAY_TEST
11
VCR_POWER_H
12
DEGAUSS_H
13
FROM/TO TV POWER
DEGAUSS_H
VCR.POWER_H
SOUND_GND
SOUND+B
POWER_FAIL
AT+13V
GND
PROTECT
+B
THE DC VOLTAGE AT EACH PART WAS MEASURED
NOTE:
WITH THE DIGITAL TESTER WHEN THE COLOR BROADCAST
WAS RECEIVED IN GOOD CONDITION AND PICTURE IS NORMAL.
R412
1.2K
W835
V.OUTPUT IC
IC401 LA78040
+
Vcc GND
1234567
3.9 25.5 1.3 0 12.9 24.8 3.9
D401
27
NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME
THERMAL PROTECTION
AMP
PUMP UP
10035V YK
C406
11E1-EIC
25
H-DRIVE
Q405_2
KTC3227_Y-AT
2
2
+B(A)
CD506 JM-2W-96
HS401_1
763WSAA013
1
CP506
RF-H022TD-1190
1
+B(B)
D407
MTZJ30B
MTZJ30B
R413
39K +-1%
R411
22K +-1%
R401_1
100 2W
14.3
0
0
D409
HZ11B3L
D406
1SS133
C417_1
R456
120 1/2W
OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE
D402
C405
0.033100V MKT
C418
R443
R444
R416
12K +-1%
METAL
VR401
47K
V.LINEARTY
150V YK
D405
1SS133
T401_1
ETH14Y47AY
31.0 0
NC
45
0.2
3
22.3
2250V YK
0
SWITHING
Q403
KRC111MAT
3.3K +-1%
SWITHING
Q404
KTA1266-AT
(Y,GR)
15K +-1%
12K +-1%
DEFLECTION SCHEMATIC DIAGRAM
R421
1K 1/2W
28
R417
R419
680 1/2W
17.9
R442
C407_1
R418
12
1.3
R431
R402
150 2W
17.9
220025V YK
1 1/2W
0
17.910.0
680 1/2W
R467
1 1/2W
0.22100V MKT
C434
D412
RMPG06J
W817
247.6
1.3
W814
26
W816
R460
100 1/4W
HS402
763WSAA013
2250V YK
C433
10K
10K
R428
THE RESISTOR MARKED F IS FUSE RESISTOR.NOTE:
THE ALUMI ELECTROLYTIC CAPACITOR MARKED NP
IS NON POLAR ONE.
W823
0
R407
1.8K 1/2W
C422
L401
R447
H.OUTPUT
Q406_1
2SD2499
R463
R464
1250V MHE
4.7mH
150 1/2W
470 1/2W
V.POSI
470 1/2W
0909
C428_2
C436
0.1
(W033)
METAL
VR402
1K
0.0131.5KV MPP
B
C423
0.39250V ECWF
(MAIN PCB)
L402
ELH5L4113
R448
1K 1W
C450
0.0012KV R
C431
22250V YK
D410
0.001500V B
C430
C421
MTZJ6.8B
DANGEREUSES AN POINT DE VUE SECURITE
N’UTILISER QUE CELLS DECRITES
DANS LA NOMENCLATURE DES PIECES
47035V MHE
C439_1
10K 1/4W
R423
D413
C429_1
0.0022500V B
D411
1N4937
180P500V B
1N4937
R450
6.8 2W
ETANTLES PIECES REPAREES PAR UNATTENTION:
FB401_1 3220054R
1000V
COL
1
286V
E180
6
115
B+
2
9.02
AFC
9
HEA
6.0
TER
10
0
GND
8
E12
NC
4
25.6
E27
3
GND
8
E8
NC
5
R453
100K 1/4W
R490
29.32
HV
7.72
F
650
S
0
GND
11
4.23
ABL
7
0.1100V MKT
C432
22K 1/4W
CRITICAL FOR SAFETY,USE ONES
DESCRIBED IN PARTS LIST ONLY
R408
680 1/2W
W854
TO DY
CP401
A1561WV2-A5P
(CP803B)
CP803A
B2013H02-6P
PCB070
TMA524
ARESINCE THESE PARTS MARKED BYCAUTION:
5
4
3
2
NC
1
V801
A51LVV896X01(O)
9
10
R
8
G
6
B
11
FOCUS
SCREEN
180V
180V
6
NC
NC
5
NC
NC
4
GND
GND
3
GND
GND
2
HEATER
HEATER
1
CD803
WDL6030038
DEFLECTION SIGNAL
CAUTION: DIGITAL TRANSISTOR
175
21
CD802
CU823001
8
7
6
5
TO CRT
4
TO CRT
3
TO CRT
2
1
ABC D E F GH
ABC D E F GH
G-23
G-24

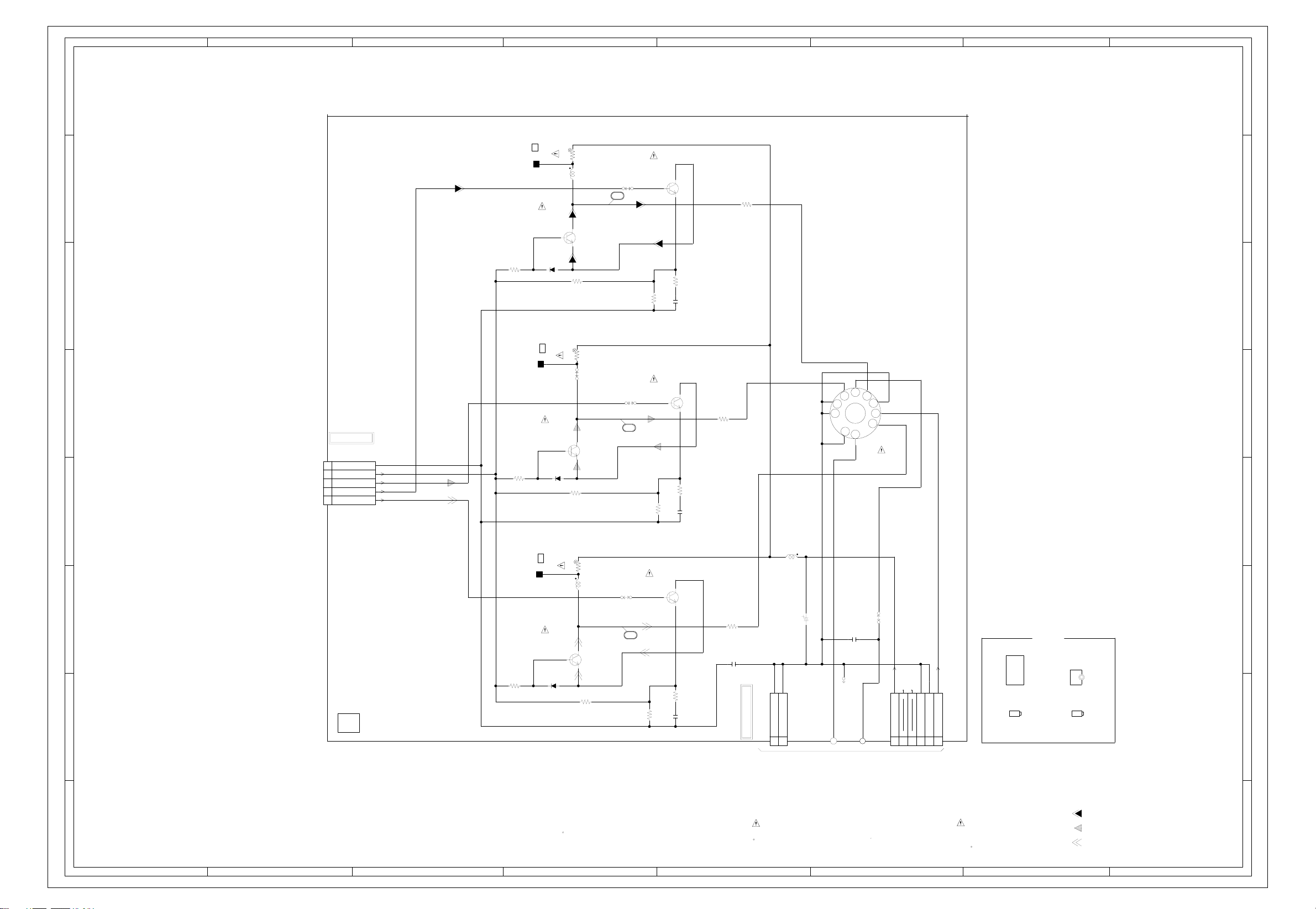

CRT SCHEMATIC DIAGRAM
8
R
TP804
7
RED AMP
KTC4217(O,Y)
R813
220
6
Q801
TP805
1SS133
G
D801
R804
12K 2W
L802
82uH
0607
121.6
2.4
2.1
R810
1.8K
R806
12K 2W
W827
5
GREEN AMP
R814
220
Q802
KTC4217(O,Y)
D802
1SS133
121.6
2.2
1.9
R811
1.8K
FROM CHROMA/IF
CP805
(CP805B)
52147-0510
5
GND
4
CUT_OFF
3
G.OUT
2
R.OUT
1
4
B.OUT
(CRT PCB)
RED AMP
Q810
2SC1740SP TP
W853
29
GREEN AMP
2SC1740SP TP
W849
31
R817
Q811
R819
8
CRT PCB
7.3
3.0
2.4
56
R805
220
C804
680P CH
7.3
3.0
2.4
56
R807
220
C805
560P CH
R829
2.7K 1/4W
R828
2.7K 1/4W
116.7
0
148.3
678
0
5
0
4
1
0
F
CVT3275-5101
0
9
148.3
10
144.5
11
J801
7
6
5
4
GND_A
(CD802)
GND
CP802_1
A2361WV2-2P
1
ARESINCE THESE PARTS MARKED BYCAUTION:
L801
100uH
GND_A
GND
2
C814
2.2250V YK
S803
FOCUS
C808
0.0012KV R
SCREEN
S801
W808
(CP803A)
CP803B
180V
NC
180V
B2013H02-6P
NC
456
GND_A
GND
GND_A
GND
HEATER
HEATER
123
TM101
RC-DQ
BT002
R03(AB)E_20_T
UM4
ACCESSORY
BL001
WEV1020-9004
BT001
R03(AB)E_20_T
UM4
3
2
R.SIGNAL
DANGEREUSES AN POINT DE VUE SECURITE
N’UTILISER QUE CELLS DECRITES
DANS LA NOMENCLATURE DES PIECES
ETANTLES PIECES REPAREES PAR UNATTENTION:
G.SIGNAL
B.SIGNAL
1
B
TP806
3
BLUE AMP
Q803
KTC4217(O,Y)
R815
220
2
THE DC VOLTAGE AT EACH PART WAS MEASURED
1
NOTE:
WITH THE DIGITAL TESTER WHEN THE COLOR BROADCAST
WAS RECEIVED IN GOOD CONDITION AND PICTURE IS NORMAL.
PCB110
TCA382
NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME
OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE
D803
1SS133
R808
12K 2W
L804
82uH
0607
121.4
2.3
2.0
R812
1.8K
W850
30
BLUE AMP
Q812
2SC1740SP TP
7.3
3.1
2.5
56
R809
R821
C806
220
680P CH
CRITICAL FOR SAFETY,USE ONES
DESCRIBED IN PARTS LIST ONLY
R830
2.7K 1/4W
C807
220P CH
FROM DEFLECTION
ABC D E F GH
ABC D E F GH
G-25
G-26

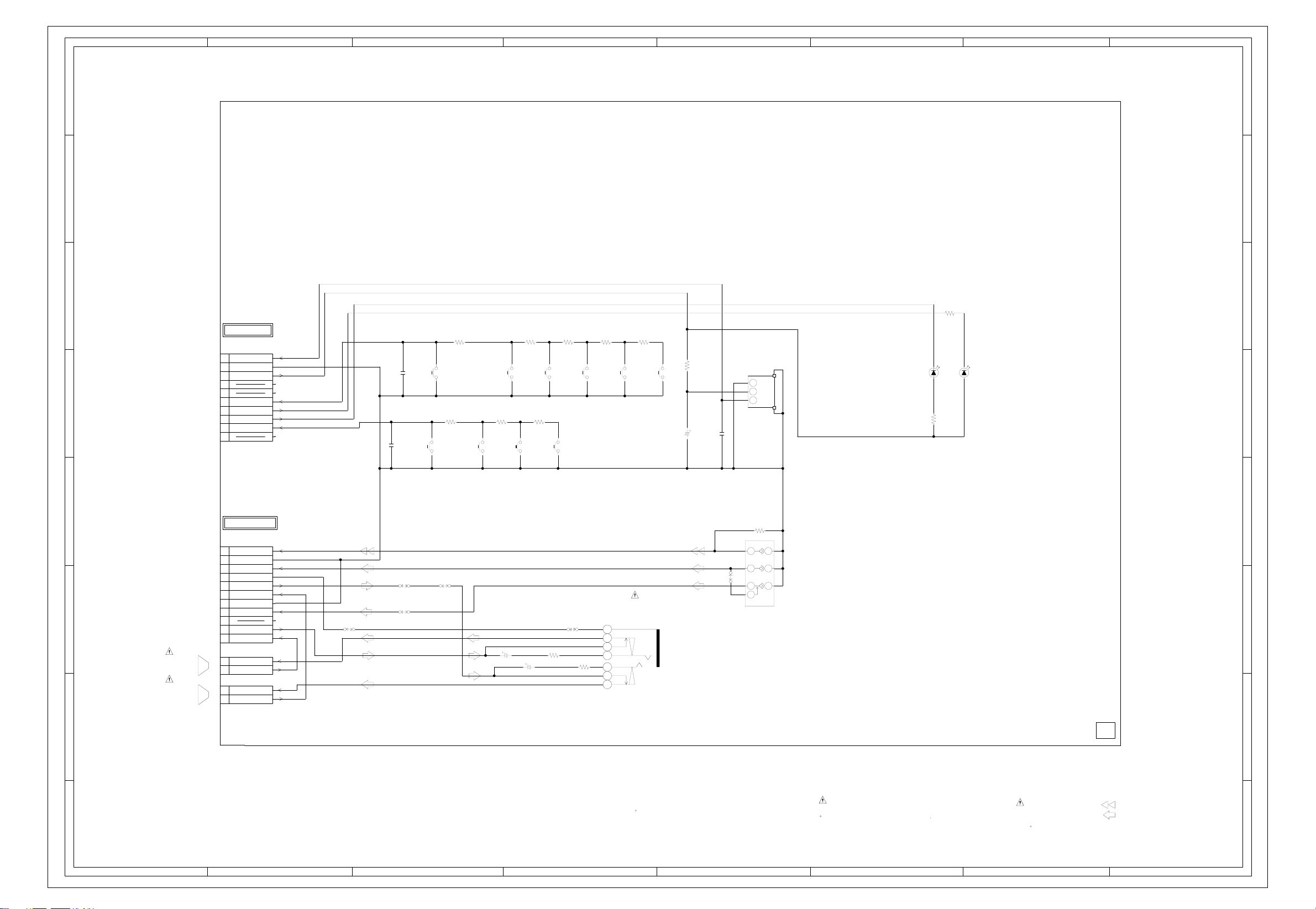

OPERATION SCHEMATIC DIAGRAM
8
(OPERATION PCB)
7
6
R754
270 1/4W
FROM/TO IN/OUT
CD757_2
(CP2201_2)
CU2A2501
1
REMOCON_OUT
2
GND
3
AT+5V
4
5
5
6
7
8
9
10
KEY_A
T-REC_LED
REC_LED
KEY_B
NC
NC
NC
C779
C781
0.001 B
0.001 B
CH DOWN
SW751_1
EVQ21505R
POWER ON/OFF
R775
820 1/4W
SW799
EVQ21505R
R778
820 1/4W
CH UP
SW798
SW795
REC/OTR(OPEN)
R776
1K 1/4W
EVQ21505R
SW796
VOL UP
R771
1K 1/4W
EVQ21505R
R777
1.5K 1/4W
EVQ21505R
SW791
STOP/EJECT
SW797
VOL DOWN
R772
1.5K 1/4W
EVQ21505R
EVQ21505R
PLAY
SW792
R773
2.7K 1/4W
EVQ21505R
R774
5.6K 1/4W
SW793
EVQ21505R
FF/CUE(SKIP FF)
SW794
EVQ21505R
REW(SKIP REW)
R766
C755
100 1/2W
2206.3V KA
C751
100P B
0
3
4.8
2
4.8
1
OS753
PIC-28143TC5
GND
B+
Vout
D793
REC/OTR
R793
D791
T-REC
SLR-342VCT32
270 1/4W
SLR-342VCT32
8
7
6
5
4
FROM/TO IN/OUT
(CP4202)
CD702
CU2B2801
FRONT_VIDEO_IN
1
2
GND
FRONT_AUDIO_IN_L
3
SOUND_GND
4
SOUND_OUT_L
5
SP_OUT_L
6
7
GND
FRONT_A_IN_R
SPEAKER
SPEAKER
8
9
SOUND_OUT_R
10
SP_OUT_R
11
CD355 CU123201
SP OUT R+
1
SP OUT R-
2
CD356 CU123201
SP OUT L+
1
SP OUT L-
2
NC
W809
3
SP351
C109-410-149A
8OHM
SP352
C109-410-149A
8OHM
W806
W808
W812
C352
4716V KA
C353
4716V KA
R351
220 1/2W
W813
220 1/2W
R352
HEADPHONE JACK
J351
HTJ-035-28A
1
5
4
3
2
6
7
2
THE DC VOLTAGE AT EACH PART WAS MEASURED
NOTE:
WITH THE DIGITAL TESTER WHEN THE COLOR BROADCAST
1
WAS RECEIVED IN GOOD CONDITION AND PICTURE IS NORMAL.
NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME
OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE
R702_1
75 1/4W
H
E
1
2
H
4
W804
H
6
7
NC
CRITICAL FOR SAFETY,USE ONES
DESCRIBED IN PARTS LIST ONLY
E
3
E
5
FRONT AV JACK
J701_1
JPJ1187-010010
PCB030
TEXA33
ARESINCE THESE PARTS MARKED BYCAUTION:
DANGEREUSES AN POINT DE VUE SECURITE
N’UTILISER QUE CELLS DECRITES
DANS LA NOMENCLATURE DES PIECES
ETANTLES PIECES REPAREES PAR UNATTENTION:
TUNER VIDEO SIGNAL
AUDIO SIGNAL
4
3
2
1
ABC D E F GH
ABC D E F GH
G-27
G-28
8OHM
8OHM
SP352
8
FRONT AV JACK
7
6
J701_1
H
FRONT_VIDEO_IN GND
FRONT_AUDIO_IN_L
FRONT_A_IN_R
FRONT_AUDIO_IN_L
HEADPHONE JACK
J351
2
H
4
H
6
7
NC
SPEAKER
1
2
SP OUT L-
SP OUT L+
CD356
E
1
E
3
GND
E
5
GND
1
5
4
3
2
6
7
SP351
SPEAKER
2
SP OUT R-
CD355
1
SP OUT R+
TM101
COMMAND TRANSMITTER
OPERATION PCB
PCB030
TEXA33
FROM
OS753
TO
TM101
GND
3
OS753
CD757_2
B+
Vout
1
2
5
4
NC
ACL
GND
H.OUT
V.OUT
SOUND+B
SOUND GND
1
2345678
CP820A
GND
3
2
GND
DEGAUSS COIL
L503
CD402
AC120V_60Hz
WIDE
BLADE
V.FEEDBACK
CP403
1
1
CD501_1
BLACK
WHITE
21
H.PULSE
TV POWER H
9
POWER FAIL
101112
2
1
S501
S502
X-RAY TEST
VCR POWER H
CP502
GND
GND
DEGAUSS H
1102345678
13
CP810A_1
FBT
FB401
MAIN PCB
PCB070
TMA524
AT+12V
MOTOR_GND
1
2
3
4
5
6
UNREG+8V
UNREG+8V
HEATER
GND_A
GND_A
NC
NC
180V
AT+13V
CP401
CP803A
AT+30V
STANDBY_H
9
1
2
NC
3
4
5
FOCUS SCREEN
1
CRITICAL FOR SAFETY,USE ONES
DESCRIBED IN PARTS LIST ONLY
CD702
CD803
S801

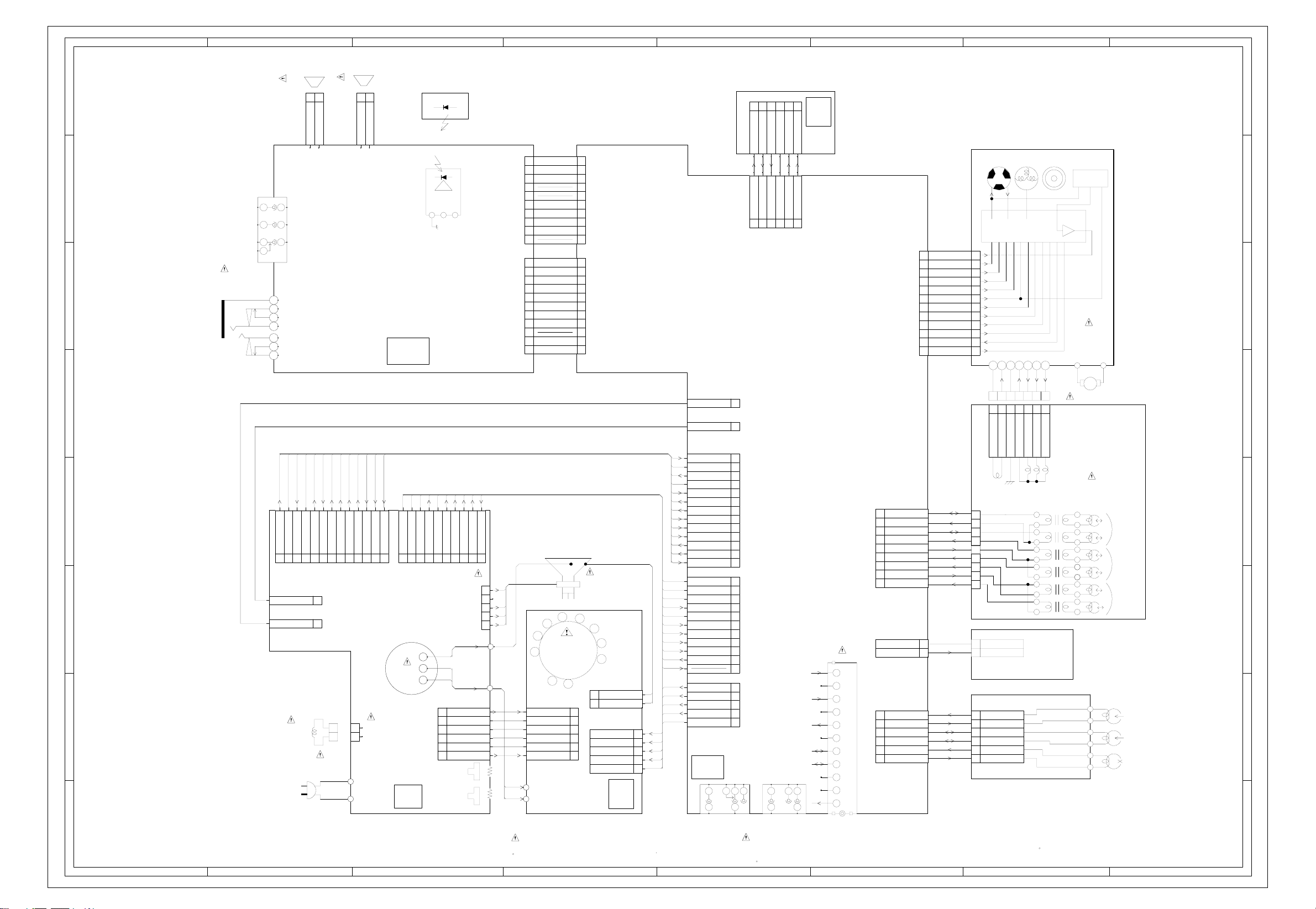

INTERCONNECTION DIAGRAM
CP2201_2
GND
AT+5V
KEY_A
KEY_B
GND
SP_OUT _L
GND
CRT
H.V
DY
7
CRT SOCKET
J801
1
1
2
3
4
5
6
7
8
9
10
CP4202
1
2
3
4
5
6
7
8
9
10
11
GND
GND
CP820B
SOUND+B
SOUND_GND
H.OUT
GND
V.FEEDBACK
V.OUT
ACL
H.PULSE
TV_POWER_H
POWER_FAIL
X-RAY_TEST
VCR_POWER_H
V801
8
9
10
11
F
CP802_1
1
GND_A
2
1
2
3
4
5
6
GND_A
B.OUT
R.OUT
G.OUT
CUT_OFF
GND
CRT PCB
PCB110
TCA382
CD802
CP805
1
2
3
4
5
DANGEREUSES AN POINT DE VUE SECURITE
N’UTILISER QUE CELLS DECRITES
DANS LA NOMENCLATURE DES PIECES
DEGAUSS_H
CP810B
GND
GND
NC
AT+12V
MOTOR_GND
UNREG+8V
UNREG+8V
AT+13V
AT+30V
X-RAY_STOP
CP805B
B.OUT
R.OUT
G.OUT
CUT_OFF
GND
SYSCON PCB
PCB010
VMA245
H1 NC H1 H2
6
5
REAR A/V JACK(STEREO)
J4201_1
1
2
3
4
5
6
7
8
9
10
FRONT_VIDEO_IN
1
2
FRONT_AUDIO_IN
3
4
5
6
7
8
9
10
11
ANODE
5
4
CP803B
FOCUS
SCREEN
ARESINCE THESE PARTS MARKED BYCAUTION:
REMOCON_OUT
T-REC_LED
REC_LED
SOUND_GND
SOUND_OUT _L
FRONT_A_IN_R
SOUND_OUT_R
SP_OUT_R
6
HEATER
GND_A
GND_A
NC
NC
180V
CP601
CD604
1
1
1
2
3
4
5
6
7
8
9
10
11
12
13
1
2
3
4
5
6
7
8
9
10
11
1
2
3
4
5
23 4
1
CY901
CP604
EE
6
GND
C_IN
Y_IN
MONITOR V.OUT
GND
C_IN
Y_IN
MONITOR V.OUT
6
H1 H1H2
EE
REAR A/V JACK(STEREO)
J4202_1
ETANTLES PIECES REPAREES PAR UNATTENTION:
FSC
FSC
12345
P.CON+5V
P.CON+5V
12345
2345
1
VEA975
COMB PCB
NC
NC
NC
NC
NC
PCB300
TU601
14 15
11
10
9
8
7
6
5
4
3
2
1
12 13
IF
+30V
+5V
SDA
SCL
AGC
HALL
SENSOR
HALL
HALL
IN
VCC
CP1001
VCC
GND
1
2
3
4
5
6
7
8
9
10
11
12
FFC
1234567
D-PG OUT
D-PG GND
9
8
7
6
5
4
3
2
1
2
FE HEAD (GND)
1 FE HEAD (HOT)
FULL ERASE HEAD ASS’Y
AUDIO PB
6
AUDIO REC
5
CTL+
4
CTL-
3
AE HEAD(-)
2
AE HEAD(+)
1
M-GND
1
CAP_FG
2
CAP_VCO
3
4
CAP/M/F/R
I LIMIT
5
6
MOTOR_GND
7
CYL/LAD VCO
8
9
CAP_CTL
10
LDM_CTL
11
CYL_FG/PG
12
CYL_CTL
CP4001
HF1 (R)
9
8
HF_COM
HF2 (L)
7
SP-CH1 (R)
6
SP_COM
5
SP-CH2 (L)
4
EP/LP-CH1 (R)
3
EP/LP_COM
2
EP/LP-CH2 (L)
1
CP4003
FE HEAD (GND)
FE HEAD (HOT)
CP4002 FFC
6
5
4
3
2
1
AUDIO PB
AUDIO REC
CTL+
CTL-
AE HEAD(-)
AE HEAD(+)
2
1
OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE
ROTOR
MAIN
MAGNETCOIL
OUT
SWITCH
LOGIC
CAPSTAN DD UNIT
7654321
7
6
7654321
D-COM
D-U OUT
D-V OUT
D-W OUT
CYLINDER UNIT ASS’Y
H5002
HEAD AUDIO CONTROL ASS’Y
H5001
THE TIMETHIS INTERCONNECTION DIAGRAM IS THE LATEST ATNOTE:
MR
FG SENSOR
OGVCC
M2001
LM
LOADING MOTOR
M101
UN4001
WHITERED
HI-FI HEAD
SP HEAD
EP/LP HEAD
AUDIO
CONTROL
AE
8
7
6
5
4
3
2
1
ABC D E F GH
TOSHIBA VIDEO PRODUCTS PTE. LTD.
438B ALEXANDRA ROAD, BLOCK B #06-01 ALEXANDRA TECHNOPARK SINGAPORE 119968
TOSHIBA VIDEO PRODUCTS PTE. LTD.
438B ALEXANDRA ROAD, BLOCK B #06-01 ALEXANDRA TECHNOPARK SINGAPORE 119968
FILE NO. 143-200250
the respective list (version A or B). Components in versions A and B are interchangeable.
DOCUMENT CREATED IN JAPAN, Nov., 2002
PCB300
VEA975B
VEA975D
SUPPLEMENT
SERVICE MANUAL
COLOR TELEVISION/
VIDEO CASSETTE RECORDER
MV20FM3
SUMMARY
This supplement serves as an update to the original Service Manual, file number 140-200208.
Please refer to this Supplement in conjunction with the original Service Manual when servicing
this model.
MV20FM3 comes with 2 versions of SYSCON PCB. The version can be identified by the alphabet
behind the serial no. Eg. 85584001 B. When replacing components use only the components in
MFR'S VERSION
A
B
PCB010
VMA245B
VMA245D
Change of SYSCON PCB and COMB PCB
ELECTRICALREPLACEMENT PARTS LIST
MFR'S VERSION A MFR'S VERSION B
REF. NO.
R627 R801R7682J RC 6.8K OHM 1/10W AD301727
R653 R801R7103J RC 10K OHM 1/10W AD301728
R693 R00204103J RC 10K OHM 1/4W BZ210235 DEL
R4036 R001T6335J RC 3.3M OHM 1/6W DEL
R6034 R801R7682J RC 6.8K OHM 1/10W DEL
C619 E02LU52R2M CE 2.2 UF 50V AD301729
C741 E02L052R2M CE 2.2 UF 50V BZ110208 DEL
CUS011 800WFAA006 CUSHION A BZ710279 DEL
PCB010 A5B4020010
PCB300 A5B4020300
All parts are interchangeable between version.
PART NO. DESCRIPTION TSB P/N PART NO. DESCRIPTION TSB P/N
SYSCON PCB ASS'Y (VERSION A)
VMA245B
COMB PCB ASS'Y (VERSION A)
VEA975B
BZ310343 A5B401Z010
BZ310347 A5B401Z300
SYSCON PCB ASS'Y (VERSION B)
VMA245D
COMB PCB ASS'Y (VERSION B)
VEA975D
AD301730
AD301731
W383
ADD: C619
W379
D2201
W356
C1003_1
W374
W373
SW1001
C914_2
W370
W369
W365
W364
W959
W831
W372
L904
L903
Q1003
W368
D1014
W357
W353
W388
C1021
R1040
W869
W349
Q1009
D1002
W367
X1001
D
W246
Q
1005
W362
C907
W908
W271
R1046
W303
L1001
W402
C1011
CY901
C903
R2211
X1002
W295
W270
W286
W284
W282
W294
IC1099
L901
C916
D
R1052
W871
W321
C1026
W322
L902
CP2201_2
R1066
W254
W304
R1002
W863
W315
W340
W266
W279
W866
W292
W313
R1062 W395
W862
W854
W320
W319
W318
W312
W265
W252
W301
D1003
C4076
W264
W287
W290
W328
W263
W250
W305
W316
W311
W310
Q1002
W255
W256
W261
W249
W253
W244
W241
W242
W243
R1013
W278
R1009
W302
W874
D5501
W855
R4048
R4026
W205
D4003 C4057
W844
W327
W324
W323
W835
L5503
W309
W307
W306
W331
1013
Q
PRINTED CIRCUIT BOARDS
SYSCON/COMB(INSERTED PARTS)
SOLDER SIDE
(MFR'S VERSION B)
TP1001
TP5502
TP1002
TP5501
W228
C5550
W189
W223
W215
C4034
CP4001
C5516
T4001
W214
C4030
TP4001
W168
W217
W213
C4027
C4023
C4012
W988
C5526
W088
C4031
C5525
W259
W285
W300
W853
W260
W251
W289
W274
W210
L4006
W317
C5523
C5512
L5506
W868
W277
W272
W212
W211
W208
L4005
W314
C5531
W850
C671_1
W245
W276
W273
R4033
C4065
L5501
C5510
W332
C1002
W275
W288
W281
C4047
C4067
R5513
W828
W248
C1015
R1016
W299
L4009
C4058
C5534
R1006
W198
W187
C4052
C4062
C1020
W225
W185
C5501
C1016
R1024
W220
C4049
W232
CP4202
W860
W193
W231
W227
W240
W178
C1018
CP1001
W192
W221
C4042
C4050
C4053
X4001
C5509
W195
W219
W234
W233
C
D4204
W194
C4048
C5536
0
4
P
W238
W173
W197
L4004
3
0
W177
R610
D4205
W183
W218
C4063
W169
W167
W190
C4051
L4001
C5538
W236
W176
W171
W182
C4046
R5501
W237
W170
W186
C4045
C5518
W199
R4059
W184
W230
W836
W942
W202
W224
C4009
W174
W405
W200
Q4006
Q4002
Q4001
C4035
W229
C5565
W823
W406
S802X
C4002
C5532
CD604
W087
W130
CP4002
W209
Q4005
W142
C5537
W226
W106
W104
W101
W100
W098
L4003
R4004
C5547
C5527
W086
W063
W060
W085
W079
W072
W068
W059
W109
W097
C4004
C4025
C5548
C5529
W082
D4201
D1001
W122
W151
L4007
W857
C5539
C5533
W996
D618
D616
W092
W091
C4010
W149
S102Y
W134
R685
R683
W094
W131
W152
R5507
Q603
D617
W938
W089
W118
W112
W851
W133
CP601
W076
W099
W939
S802Y
L4008
W069
C619
D608
C664
W127
W126
L608
W123
C665
W143
W132
W160
C5552
W154
W951
D619
D609
W129
W166
W162
W822
Q602
W102
D620
R607
C659
W121
C683
W158
W157
W084
D604
W103
R635
D606
R642
W125
C738_1
W164
W991
W108
D612
W107
D621
W093
W128
D613
C694
Q606
W090
D607
W921
R667
C680
W058
R636
R651
C692_1
C645
C655
X602
C632
W119
D605
W135
W161
IC603
HS603_1
W812
W933
C635
W919
CP820B
C321_1
R668
C685
C624
CP604
W150
W163
W071
W399
C674
D602
W145
R669
C688
W073
R677
D601
W144
W081
W080
W078
W075
W062
CP805B
D603
C649
C648
C620
R688
C677
Q608
W096
L610
L618
W146
B301
W050
R644
L607
L620
W140
W042
W139
W137
R359
R353
R603
W930
CF603
W124
W054
R602
W019
C641
CF604
W028
IC602
HS602_1
W009
W990
W394
CF601_1
W018
W039
L613
W859
W047
C301
L302
W947
C323
C315
W010
W029
W046
W055
W982
C311
W008
L601
W051
W049
C684
C357
W879
R601
W013
C325_1
Q605
W003
W031
C312
W022
W053
C643
W024
W856
R309
IC301
L604
L4205
R4238
W052
W001
C4207
W025
W043
W045
IC352
CP810B
W007
W020
C4245
R357
W006
W004
R4239
R310
R690
W002
C4220
C4206
C4212
R4212
W881
C317
W030
C612
J4202_1
J4201_1
W034
L301
C610
W886
W037
W033
W403
W041
TU601
TP4201
C4211
W891
W890
CP602_1
C309
C350
HS352
D4206
S102X
W048
C314
R5526
ADD:
R627
R653
PRINTED CIRCUIT BOARDS
SYSCON/COMB(CHIP MOUNTED PARTS)
SOLDER SIDE
(MFR'S VERSION B)
C4218
C4203
Q5501
W404
R5525
W952
C4204
R5524
C5535
R5523
C917
D
C904
R902
C906
C905
C908
IC901
C909
R914
R909
C910
C912
C911
C901
R910
Q903
R913
R911
C902
C913
Q901
C924
R912
R901
C921
R903
Q902
R908
C920
C919
R906
R904
C923
C922
R905
C4213
C4210
C4209
W945
W701
W888
W057
R313
R605
C4214
R4224
C4216
R4213
Q4212
C4202
Q4210
C310
R4205
R4207
R4217
Q4211
Q4203
C4208
C608
R311
R4203
R4232
C308
C319
R4231
C613
R307
R306 C302
C318
C306
R317
R316
C602
R318
C304
R656
R625
C307
C305
C303
R303
R304
Q350
R358
C316
R305
W920
R308
R673
C625
C627
R302
C628
W928
W943
R609
Q601
C629
R672
R618
R622
C636
R608
C618_1
C626
R614
R655
W985
R626
R620
C621
C622
C640
49
R616
R679
W393
C651
C650 R633
C634
C734
R657
C676
33
IC601
1
Q651
R681
C654
R692
C656
R630
C661
C639
R624
R634
C615_1
W803
C614
R646
C658
17
R631
R658
C644
C670
C630
C633
C623_1
C700
R643
C601
C653
C647
R660
R682
R649
Q604
R662
C669
W924
R659
R661
R641
R638
C660
R648
R652
Q609
W723
W401
R663
R4204
R647
R684
R627
R5511
C5566_1
R5508
C5564
R653
W816
R5514
C4014
R4005
R4011
C4022
R4014
R5516
C5544
W824
C5557
C5546
C5543
C4077
R4019
C4029
R4061
C5524
C5545
C4020
R4057
R4020
17
C4075
C4028
R4017
R4018
C4033
R4021
C5551 C5542
R4012
C4083
R4032
R4001
C4005
R4010
Q1008
R1047
1
R4022
R4024
R4023
R4069
Q1007
C5559
R5505
C5515
1
33
C4055
C4037
C4036
C4006
W724
IC5501
C4021
C4019
61
IC4001
21
R4065
Q4013
R4002
R4058
C4071
C5513
49
R5510
C4016
R4003
C1041
R5506
R5502
R4025
C4038
R4047
C5508
C4086
41
R4032
R4029
Q4007
R4062
Q4003
R4060
R4046
C5507
C5541
C4054
C4044
R4045
C4222
C5556
C5506
R4038
W818
C4061
C4082
R4028
R4044
C1030
R5512
C5530
C4078
Q4009
R1007
R5518
C5514
C5540
C4060
R1014
C5519
R5503
R4035
R4034
Q4010
R1028
C5521
C4066
R4041
C5502
C4069
R4039
Q4012
R4043
R4056
R1008
R4042
R4054
C4041
R1021
C5562_1
C5549
C4064
W852
C1067
C1010
R1077
R1029
W961
C1071_1
C1023
R1042
R1038
C1065
C4059
R1035
R1044
C1029
C5522
R1045
R1020
C1028
R1001
R1036
R1043
C5555_1
C1009
R1053
R1017
C1013
W992
R687
R4055
C4043
C1001
R1012
C1019
Q1006
C1062
C1037
81
C1022
Q1004
R1033
C1027
R2212
W842
C5560
C5561
R5521
R1034
C1031
C1035
Q1014
R5520
C1038
IC1001
1
R1003
R5517
51
W719
C1056
C1034
31
R1058
R1004
R1032
R1031
C1050
Q4206
Q4205
C1014
C1049
R1083
C1006
C1017
R1049
C1008
C4201
D
C1047
C1048
R1011
R1087
C1046
C1040
IC1002_1
W817
C6309
R1019
R1018
R1051
R1039
R1050
R686
C4205
ABC D E F GH
ADD:
R627
R653
C619
8
VCR_POWER_H {2}
7
6
TEST POINT
CP602_1 07JQ-ST
7
INTELLGENT MONI
5
6
5
4
3
2
1
4
TU601 TECC1040PG32ETUNER
+30V
3
FROM/TO POWER
2
1
FROM/TO MICON
HD {2}
VD {2}
DEGAUSS_H {2}
POWER_FAIL {2}
OSD_R {2}
OSD_G {2}
OSD_B {2}
OSD_BLK {2}
SDA {2}
SCL {2}
AFT_M {2}
X_RAY_TEST {2}
PROTECT_A {2}
H_CONTROL {2}
IIC_OFF {2}
B.OUT
AGC M
IIC OFF
SDA
SCL
GND
22K
R605
C610
1213
1
AGC
1.8
2
NC
NC
3
2.5
SCL
4
2.5
SDA
5
2.5
NC
6
0
+5V
7
4.9
NC
8
0
29.5
9
NC
10
2.0
C602
0
P.CON+8V
AT+30V
8.7VREF
0.01 B
IF
11
1415
GND {2,4}
P.CON+5V[CHROMA]
P.CON+5V[TU1]
5.7VREF[PCON]
5.7VREF[AT]
CHROMA+13V
P.CON+5V {2}
CAUTION: DIGITAL TRANSISTOR
L604
CHROMA/IF SCHEMATIC DIAGRAM
(MFR’S VERSION B)(SYSCON PCB)
8
TU1_VIDEO
L618
10M
R609
Q601
180P CH
R673
1.2M
C627
1B
220
C629
6.8K
C634
0.01 B
R679
47K
R620
22P CH
C626
0.1 B
C622
0.22 B
L620
47uH
L613
C618_1
L607
R622
220P CH
C676
33uH
150P CH
R681
1.5K
0.1 B
C641
Hi Vcc
H VCO F/B
C639
0.01 B
2K
R624
H_CONTROL
22025V YK
Hi Vcc
47 LIMITER IN
48 IF AGC
49 QIF OUT
50 AUDIO OUT
64 VIF IN
1 VIF IN
SCL
5
100
R655
SCL
C640
C636
0.01 B
AUDIO BYPASS
EXT AUDIO IN
FM DIRECT OUT
VIF VCO F/B
VREG Vcc
VIF APC FILTER
VIF VIDEO OUT
VIF GND
VIF GND
AFT OUT
QIF IN
RF AGC OUT
RF AGC FILTER
VIF Vcc
VIF Vcc
1 10111213141516
2
3
W930
SW
Q651
2SC2412K
1016V KA
R688
220 1/4W
R687
1K
3.3uH
10uH
470
2.3
2.4
2.3
3.0
NC
2.0
NC
3.2
9.0
3.0
2.2
2.4
2.9
2.3
2.7
1.5
MTZJ11B
CF604
EFCT4R5MW5
470
R672
49
50515253545556575859
0
0
6061626364
C674
0.1 F
C635
4716V YK
D603
5.100
C671_1
R616
220
476.3V KA
L608
100uH 0305
C614
W924
W919
W921
TU1_AUDIO
C623_1
R614
W920
100P CH
180K
C621
0.01 B
NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME
L601
R610
100 1/4W
R601
2.2K
1/4W
R607
220 1/2W
S802Y
CHROMA+13V
W812
B.OUT
AGC_M
R603
220 1/4W
2.250V KA
R602
220 1/4W
2206.3V YK
C612
100uH 0305
C613
0.1 B
AFT_M ACL
AGC_M
0.39uH
NOTE:THE DC VOLTAGE EACH PART WAS
MEASURED WITH THE DIGITAL TESTER
DURING PLAYBACK.
3.4
C620
0.01 B
R608
10K
C632
C624
SAW FILTER
CF601_1
TSF5229P3
234
2.250V KA
22016V YK
2.7
BUFFER
0
2SA1037AK
CF603
EFCT4R5YS5A
C628
C625
1F
D602
MTZJ8.2C
R618
D601
1SS133
W943
W928
GND
(CP403)
CD604
CH01006A
1
FROM/TO DEFLECTION
OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE
5.7VREF[AT]
L610
100uH
9A06B
10K
R625
D607
1SS133
NCNC
4.8 2.8
MCU RESET
INTELLIGENT MONI
5.7V REG OUT(FOR CPU)
CHROMA/IF IC
IC601
M61206FP
H OUT
DEF GND
FBP IN
6
789
C647
0.01 B
10K
R626
H_PLUSE
R631
6.8K
R658
2.2K
R660
2.2K
D609
MTZJ6.8B
2.2K
R656
H_OUT
CRITICAL FOR SAFETY,USE ONES
DESCRIBED IN PARTS LIST ONLY
5.7VREF[PCON]
Y SW OUT
DEF GND
R630
SDA
5v REG
VIDEO/CHROMA GND
34 EXT C in46 SW REG CONT
33 8.7V REG OUT
32 X’TAL
31 ACL/ABCL
17 V OUT
16 B OUT
AFC FILTER
SDA
150V KA
C645
R659
2.2K
D608
MTZJ6.8B
D612
MTZJ6.8B
100
W824
R677
1.5M 1/4W
16
C650
0.015 B
C649
TV/Y IN
VIDEO/CHROMA GND
VIDEO/CHROMA Vcc
VIDEO/CHROMA Vcc
H.PLUSE OUT
POWER ON CONT
W933
HD
VCR_POWER_H
8.7VREF
C648
0.150V KA
R633
8.2K
150V YK
C651
47P CH
333435363738394404142434445464748
R IN
CHROMA APC FILTER
V PULSE OUT
G IN
FAST BLK
PROTECT
fsc OUT
V RAMP CAP
V RAMP FEEDBACK
B IN
STRAT UP Vcc
G OUT
R OUT
100
R636
R634
R635
100 1/4W
R.OUT
G.OUT
B.OUT
ARESINCE THESE PARTS MARKED BYCAUTION:
TO Y/C/AUDIO/HEAD AMP
TU1_AUDIO
TU1_VIDEO
VD {2}
TO SOUND AMP
SOUND+B
SOUND_GND {4}
C654
18P CH
X602
100CT3R505
C656
0.01 B
15
8.82.03.23.2005.65.54.08.28.28.22.02.0
3.3
1B
C661
3.0
0
30 31 32
4.7
0
0.1
7.3
5.0
NC
4.9
4.9
4.8
2.0
20 21 22 23 24 25 26 27 28 29
0
8.2
8.2
17 18 19
3.8
C664
2.42.52.54.83.93.43.6002.50.83.62.65.05.01.5
C669
R647
0.01 B
D620
1SS133
D618
1SS133
100 1/4W
D616
D617
1SS133
OSD_R
OSD_G
R646
C644
0.039 B
C658
0.22 B
R641
27K
163V MKT
2.2K
6.8K
R684
R683
R685
1SS133
6.8K 1/4W
OSD_B
DANGEREUSES AN POINT DE VUE SECURITE
N’UTILISER QUE CELLS DECRITES
DANS LA NOMENCLATURE DES PIECES
8.2K
R643
47K
C700
0.0012 B
C660
C653
R648
1/4W
6.8K
0.1 B
D606
0.01 B
2.2K
D621
1SS133
D619
1SS133
R661
R642
MTZJ11B
C655
R649
C659
R692
8.2K
6.8K
22016V YK
C601
2.2K
D605
11ES1N
W803
1/4W
4716V YK
D613
10P CH
470
C665
1016V KANP
R638
5.6K
W938
W939
MTZJ6.8B
C692_1
R651
100 1/4W
C734
0.001 B
ACL
P.CON+5V
MONITOR_V
VD
OSD_BLK
4.7K
R652
SOUND+B
SOUND_GND
H_OUT
V_OUT
1K
R657
0.001 B
C615_1
3325V YK
SW
Q604
KRA102SRTK
0.3
8.2
8.2
8.2
0.3
SW
Q609
0
2SC2412K
ETANTLES PIECES REPAREES PAR UNATTENTION:
R653
W723
10K
C619
2.250V YK
R627
6.8K
R.SIGNAL
G.SIGNAL
PROTECT
W724
V_OUT
H_PLUSE
PROTECT_A
POWER_FAIL
X_RAY_TEST
DEGAUSS_H
G.OUT
R.OUT
B.OUT
B.SIGNAL
FROM IF
MONITOR_V
C683
W942
B
C633
0.001
C630
0.001 B
C670
DEFLECTION SIGNAL
AUDIO SIGNAL(REC)
TUNER VIDEO SIGNAL
4706.3V YK
FROM/TO DIGITAL COMB FILTER
4716V YK
C738_1
220P CH
CP604
(CY901)
IMSA-9130B-06
P.CON+5V
FSC
GND
C IN
Y IN
MONITOR V.OUT
FROM/TO DEFLECTION
CP820B
(CP820A)
B2013H02-13P
SOUND+B
SOUND_GND
H.OUT
GND
V.FEEDBACK
V.OUT
ACL
H.PLUSE
PROTECT/TV_POWER_H
POWER_FAIL
X-RAY_TEST
VCR_POWER_H
DEGAUSS_H
TO CRT
(CP805)
CP805B
B2013H02-5P
GND
CUT OFF
G.OUT
R.OUT
B.OUT
PCB010
VMA245
1
2
7
3
4
5
6
6
1
5
2
3
4
5
6
7
8
9
10
11
12
13
4
3
2
5
4
3
2
1
1
ABC D E F GH
TOSHIBA VIDEO PRODUCTS PTE. LTD.
438B ALEXANDRA ROAD, BLOCK B #06-01 ALEXANDRA TECHNOPARK SINGAPORE 119968
Loading...
