FILE NO. 140-200416
DOCUMENT CREATED IN JAPAN, April, 2004
SERVICE MANUAL
COLOR TELEVISION/
VIDEO CASSETTE RECORDER
MV13P2C
SERVICING NOTICES ON CHECKING
As for the places which need special attentions,
they are indicated with the labels or seals on the
cabinet, chassis and parts. Make sure to keep the
indications and notices in the operation manual.
2. AVOID AN ELECTRIC SHOCK
There is a high voltage part inside. Avoid an
electric shock while the electric current is
flowing.
3. USE THE DESIGNATED PARTS
The parts in this equipment have the specific
characters of incombustibility and withstand
voltage for safety. Therefore, the part which is
replaced should be used the part which has
the same character.
Especially as to the important parts for safety
which is indicated in the circuit diagram or the
table of parts as a mark, the designated
parts must be used.
4. PUT PARTS AND WIRES IN THE
ORIGINAL POSITION AFTER
ASSEMBLING OR WIRING
There are parts which use the insulation
material such as a tube or tape for safety, or
which are assembled in the condition that
these do not contact with the printed board.
The inside wiring is designed not to get closer
to the pyrogenic parts and high voltage parts.
Therefore, put these parts in the original
positions.
5. TAKE CARE TO DEAL WITH THE
CATHODE-RAY TUBE
In the condition that an explosion-proof cathoderay tube is set in this equipment, safety is
secured against implosion. However, when
removing it or serving from backward, it is
dangerous to give a shock. Take enough care to
deal with it.
6. AVOID AN X-RAY1. KEEP THE NOTICES
Safety is secured against an X-ray by considering about the cathode-ray tube and the high
voltage peripheral circuit, etc.
Therefore, when repairing the high voltage peripheral circuit, use the designated parts and
make sure not modify the circuit.
Repairing except indicates causes rising of high
voltage, and it emits an X-ray from the cathoderay tube.
PERFORM A SAFETY CHECK AFTER
7.
SERVICING
Confirm that the screws, parts and wiring which
were removed in order to service are put in the
original positions, or whether there are the
portions which are deteriorated around the
serviced places serviced or not. Check the
insulation between the antenna terminal or
external metal and the AC cord plug blades.
And be sure the safety of that.
(INSULATION CHECK PROCEDURE)
1.
Unplug the plug from the AC outlet.
2.
Remove the antenna terminal on TV and turn
on the TV.
3.
Insulation resistance between the cord plug
terminals and the eternal exposure metal
[Note 2] should be more than 1M ohm by
using the 500V insulation resistance meter
[Note 1].
4.
If the insulation resistance is less than 1M
ohm, the inspection repair should be
required.
[Note 1]
If you have not the 500V insulation
resistance meter, use a Tester.
[Note 2]
External exposure metal: Antenna terminal
HOW TO ORDER PARTS
Please include the following informations when you order parts. (Particularly the VERSION LETTER.)
1. MODEL NUMBER and VERSION LETTER
The MODEL NUMBER can be found on the back of each product and the VERSION LETTER can be
found at the end of the SERIAL NUMBER.
2. PART NO. and DESCRIPTION
You can find it in your SERVICE MANUAL.
A1-1
TAPE REMOVAL METHOD AT NO POWER SUPPLY
1.
Remove the VCR block from the main unit.
(Refer to item 1 of the DISASSEMBLY INSTRUCTIONS.)
2.
Remove the screw 1 of the Deck Chassis and remove the Loading Motor.
3.
Rotate the Pinch Roller Cam in the direction of the arrow by hand to slacken the Video Tape.
4.
Rotate the Clutch Ass'y either of the directions to wind the Video Tape in the Cassette Case.
5.
Repeat the above step 3~4. Then take out the Video Cassette from the Deck Chassis. Be careful not to
scratch on the tape.
Loading Motor
Screw 1
Capstan DD Unit
Pinch Roller Cam
Main Cam
Clutch Ass'y
Main Chassis (Front Side)
A1-2
TABLE OF CONTENTS
SERVICING NOTICES ON CHECKING.....................................................................................
HOW TO ORDER PARTS ..........................................................................................................
TAPE REMOVAL METHOD AT NO POWER SUPPLY ............................................................
TABLE OF CONTENTS..............................................................................................................
GENERAL SPECIFICATIONS ...................................................................................................
DISASSEMBLY INSTRUCTIONS
1. REMOVAL OF MECHANICAL PARTS AND P. C. BOARDS............................................
2. REMOVAL OF VCR DECK PARTS ...................................................................................
3. REMOVAL OF ANODE CAP..............................................................................................
4. REMOVAL AND INSTALLATION OF FLAT PACKAGE IC ...............................................
KEY TO ABBREVIATIONS ........................................................................................................
SERVICE MODE LIST ................................................................................................................
PREVENTIVE CHECKS AND SERVICE INTERVALS..............................................................
WHEN REPLACING EEPROM (MEMORY) IC ..........................................................................
SERVICING FIXTURES AND TOOLS .......................................................................................
PREPARATION FOR SERVICING.............................................................................................
MECHANICAL ADJUSTMENTS ................................................................................................
ELECTRICAL ADJUSTMENTS..................................................................................................
BLOCK DIAGRAMS
TV ............................................................................................................................................
Y/C/AUDIO/HEAD AMP ..........................................................................................................
MICON/IN/OUT/AV.................................................................................................................
PRINTED CIRCUIT BOARDS
SYSCON/CRT .........................................................................................................................
SCHEMATIC DIAGRAMS
Y/C/AUDIO/HEAD AMP ..........................................................................................................
MICON .....................................................................................................................................
IN/OUT .....................................................................................................................................
AV ............................................................................................................................................
CHROMA/IF.............................................................................................................................
SOUND AMP ...........................................................................................................................
POWER ...................................................................................................................................
DEFLECTION..........................................................................................................................
CRT ..........................................................................................................................................
INTERCONNECTION DIAGRAM ...............................................................................................
WAVEFORMS .............................................................................................................................
MECHANICAL EXPLODED VIEWS...........................................................................................
CHASSIS EXPLODED VIEWS ...................................................................................................
MECHANICAL REPLACEMENT PARTS LIST .........................................................................
CHASSIS REPLACEMENT PARTS LIST..................................................................................
ELECTRICAL REPLACEMENT PARTS LIST...........................................................................
A1-1
A1-1
A1-2
A2-1
A3-1~A3-5
B1-1
B2-1~B2-6
B3-1
B4-1, B4-2
C1-1, C1-2
C2-1
C3-1, C3-2
C4-1
D1-1
D1-1
D2-1~D2-4
D3-1~D3-6
E-1, E-2
E-3, E-4
E-5, E-6
F-1~F-4
G-1, G-2
G-3, G-4
G-5, G-6
G-7, G-8
G-9, G-10
G-11, G-12
G-13, G-14
G-15, G-16
G-17, G-18
G-19, G-20
H-1, H-2
I1-1~I1-3
I2-1, I2-2
J1-1
J2-1
J3-1~J3-4
A2-1
GENERAL SPECIFICATIONS
G-1 TV CRT CRT Size / Visual Size 13 inch / 335.4mmV
G-2 VCR System VHS Player / Recorder
G-3 Tuning Broadcasting System US System M
G-4 Signal Video Signal Input Level 1 V p-p/75 ohm
System CRT Type Normal
Color System NTSC
Speaker 1Speaker
Sound Output MAX 1.5 W
System Video System NTSC
Hi-Fi STEREO No
NTSC PB Deck DECK OVD-7
Heads Video Head 2 Head
FM Audio Head No
Audio /Control Mono/Yes
Erase(Full Track Erase) Yes
Tape Rec PAL Speed NTSC SP/SLP
Play PAL -
Fast Forward / Rewind Time (Approx.) at 25oC FF:4'50"/REW:2'30"
Forward/Reverse NTSC or PAL-M SP/SLP=3x,5x/9x,15x
Picture Search PAL or SECAM Frame Advance Slow Speed -
System Tuner and System 1Tuner
Receive CH Destination US(w/CATV)
Intermediate Picture(FP) 45.75MHz
Frequency Sound(FS) 41.25MHz
Preset CH
Stereo/Dual TV Sound
Tuner Sound Muting Yes
Audio Signal
Hi-Fi Audio Signal Dynamic Range : More than -
Deflection 90 degree
Magnetic Field BV/BH +0.45G / 0.18G
Position Front
Size 1.5 x 2.7 Inch
Impedance 8 ohm
10%(Typical) 1.0 W
Loading System Front
Motor 3
NTSC SP/SLP
with Cassette T-120
Tuning System F-Synth
Input Impedance VHF/UHF 75 ohm
CH Coverage
FP-FS 4.5MHz
Output Level S/N Ratio (Weighted) 50dB
Horizontal Resolution at SP Mode 220Lines
Input Level
Output Level
S/N Ratio at SP (Weighted) 38dB
Harmonic Distortion at SP(1KHz) Typical 1.5 %
Frequency Response at SP 100Hz - 10kHz
at LP -
at SLP 100Hz - 4kHz
Frequency Response Wow And Flutter : Less than Channel Separation : More than Harmonic Distortion : Less than -
-8dBm/50k ohm
-
2~69, 4A,A-5~A-1, A~I,
J~W,W+1~W+84
No
No
A3-1
GENERAL SPECIFICATIONS
G-5 Power Power Source AC 120V 60Hz
Power Consumption at AC 65 W at 120V 60Hz
Protector Power Fuse Yes
G-6 Regulation Safety CSA
G-7 Temperature Operation +5oC ~ +40oC
G-8 Operating Humidity Less than 80% RH
G-9 On Screen Menu Yes
Display Menu Type Icon
System Setup Yes
TV Setup Yes
Channel Setup Yes
V-chip Setup
Tape Setup Yes
G-CODE(or SHOWVIEW or PLUSCODE)No. Entry
Clock Yes
CH/AV(Line) Yes
Tape Counter(Linear Counter) Yes
Tape Speed Yes
Sleep Time Yes
Stereo/Audio Output
Control Volume Yes
Level Bright / Contrast / Sharpness / Color Yes
Tint Yes
Bass/Treble/Balance
Manual Tracking Yes
Play/Stop/FF/Rew/Rec/OTR/T-Rec/Pause/Eject/Tape In (Symbol Mark)
Auto Tracking/Manual Tracking Yes
Caption / Text Yes
Index Yes
Mute Yes
Hi-Fi
Repeat Yes
Zero Return Yes
DEW
G-10 OSD Language English French Spanish
DC -
Stand by (at AC) 5 W at 120V 60 Hz
Per Year -
Safety Circuit Yes
IC Protector(Micro Fuse) No
Dew Sensor
Radiation IC
X-Radiation HWC
Storage -20oC ~ +60oC
Clock Set Yes
On/Off Timer Set Yes
Auto Clock On/Off Yes
Standard Time Yes
Daylight Saving Time Yes
Language Yes
Picture Yes
Audio
Picture Preference Yes
TV/CATV Yes
Auto CH Memory Yes
Add/ Delete Yes
Timer Rec Set Yes
Auto Repeat On/Off Yes
Bilingual
SAP
at DC -
No
No
No
No
No
No
No
No
Yes
No
No
A3-2
GENERAL SPECIFICATIONS
G-11 Clock,Timer Calendar 1990/1/1 ~ 2081/12/31
G-12 Remote Unit RC-JG
and Timer Timer Events 8 prog/ 1 month
Back-up One Touch Recording Max Time 6 Hours
Control Glow in Dark Remocon Yes
OTPB Valid Time No
Sleep Timer Max Time 120
On/Off Timer Program(On Timer / Off Timer) 1
Auto Shut Off No Signal 15
Timer Back-up (at Power Off Mode) 5
Format NEC
Custom Code 40-BFh , 44-BBh
Power Source Voltage(D.C) 3V
Total Keys 44
Keys Power Yes
Step 10
No Operation -
UM size x pcs UM-4 x 2 pcs
1 Yes
2 Yes
3 Yes
4 Yes
5 Yes
6 Yes
7 Yes
8 Yes
9 Yes
0 Yes
CH Up Yes
CH Down Yes
Volume Up Yes
Volume Down Yes
Input Select Yes
Play Yes
F.Fwd Yes
Rew Yes
Pause/Still Yes
Stop Yes
Index+ Yes
Index- Yes
T-REC
Rec(T-Rec/OTR)
Rec/OTR
Eject Yes
Counter Reset Yes
Speed Yes
TV Monitor Yes
Quick View(Channel Return) Yes
Program Yes
Slow
Auto Tracking(Digital Tracking) Yes
Tracking+ Yes
Tracking - Yes
Menu Yes
Enter Yes
Cancel Yes
Call Yes
Closed Caption(TV/Caption/Text) Yes
Sleep Timer Yes
Mute Yes
Zero Return Yes
CM Skip(Skip Search) Yes
Audio Select
Yes
Yes
Yes
min.
min.
prog.
min.
sec.
Keys
No
No
A3-3
GENERAL SPECIFICATIONS
G-13 Features Auto Head Cleaning
Auto Tracking Yes
HQ (VHS Standard High Quality) Yes
Auto Power On, Auto Play, Auto Rewind, Auto Eject Yes
VIDEO PLUS+(SHOWVIEW,G-CODE)
Auto Clock Yes
Forward / Reverse Picture Search Yes
One Touch Playback
Auto CH Memory Yes
Closed Caption Yes
TV Auto Shut off Function Yes
End Call
Index Search Yes
SQPB
CATV Yes
CM Skip(30sec x 6 Times) Yes
Comb Filter
TV Monitor Yes
Program Extend
Choke Coil
Energy Star Yes
Dirty Head
V-chip USA V-chip
CANADA V-chip
CM Advance
Movie Advance
Zero Return Yes
Power On Memory
Picture Preference Yes
Auto Setup Yes
Protect of FBT Leak Circuit Yes
G-14 Accessories Owner's Manual Language English/French
w/Guarantee Card Yes
Remote Control Unit Yes
Battery Yes
UM size x pcs UM-4 x 2 pcs
OEM Brand No
Rod Antenna
Poles -
Terminal -
W/300 ohm to 75 ohm antenna adapter -
Loop Antenna
Terminal U/V Mixer
300 ohm to 75 ohm Antenna Adapter Yes
Antenna Change Plug
DC Car Cord (Center+)
AC Plug Adapter
AC Cord
AV Cord (2Pin-1Pin)
Guarantee Card
Registration Card
ESP Card
Warning Sheet
Dew/AHC Caution Sheet
Quick Set-up Sheet
Circuit Diagram
Service Station List
Important Safeguard
Sheet Information (Return) No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
A3-4
GENERAL SPECIFICATIONS
G-15 Interface Switch Power Yes
Indicator Power
Key Light up Rec/OTR
Terminals Front Video Input RCA x 1
Rear Video Input
G-16 Set Size Approx. W x D x H (mm) 362 x 365 x 382
G-17 Weight Net (Approx.) 11.0 kg( 24.3 lbs)
G-18 Carton Master Carton
Gift Box Yes
Drop Test Natural Dropping At
Container Stuffing(40' container) 700
G-19 Material Cabinet Front PS 94V0 DECABROM
PCB Non-Halogen Demand No
G-20 Environment Pb Free Lead-free Solder No
Cd Free No
Play Yes
Pause/Still
One Touch Playback
Channel Up Yes
Channel Down Yes
F.FWD/Cue Yes
Eject/Stop Yes
Main Power SW
Volume Up Yes
Volume Down Yes
Rew/Rev Yes
Rec/OTR Yes
Input Select
Rec/OTR Yes (Red)
T-Rec Yes (Red)
On Timer
CS
One Touch Playback
Play
Audio Input RCA x 1
Other Terminal Head Phone(Stereo & Mono, 3.5mm)
Audio Input
Video Output
Audio Output
Euro Scart
Diversity
Ext Speaker
DC Jack 12V(Center +)
VHF/UHF Antenna Input
AC Inlet
Gross (Approx.) 12.5 kg( 27.6 lbs)
Content -
Material -
Dimensions W x D x H(mm) -
Description of Origin -
Material Double/White
Dimensions W x D x H(mm) 423 x 447 x 443
Design As per Buyer's
Description of Origin Yes
Height (cm) 62
Rear PS 94V0 DECABROM
Jack Panel -
Eyelet Demand Yes
Other No
F Type
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
1 Corner / 3 Edges / 6 Surfaces
Sets
A3-5
DISASSEMBLY INSTRUCTIONS
1. REMOVAL OF MECHANICAL PARTS
AND P.C. BOARDS
1-1: BACK CABINET (Refer to Fig. 1-1)
1.
Remove the 4 screws 1.
2.
Remove the AC cord from the AC cord hook 2.
3.
Remove the Back Cabinet in the direction of arrow.
Front Cabinet
1
1
1
1
1-2: CRT PCB (Refer to Fig. 1-2)
CAUTION: BEFORE REMOVING THE ANODE CAP,
DISCHARGE ELECTRICITY BECAUSE IT
CONTAINS HIGH VOLTAGE.
BEFORE ATTEMPTING TO REMOVE OR
REPAIR ANY PCB, UNPLUG THE POWER
CORD FROM THE AC SOURCE.
1.
Remove the Anode Cap.
(Refer to REMOVAL OF ANODE CAP)
2.
Disconnect the following connector: (CP801).
3.
Remove the CRT PCB in the direction of arrow.
Front Cabinet
2
Back Cabinet
Fig. 1-1
CRT PCB
1-3: TV/VCR BLOCK (Refer to Fig. 1-3)
1.
Remove the 2 screws 1.
2.
Disconnect the following connectors:
(CP352, CP401 and CP502).
3.
Unlock the support 2.
4.
Remove the TV/VCR Block in the direction of arrow.
Front Cabinet
1
TV/VCR Block
1
2
UP TO
RELEASE
Fig. 1-3
1-4: DECK CHASSIS AND SYSCON PCB
(Refer to Fig. 1-4)
1.
Remove the 2 screws 1.
2.
Remove the screw 2.
3.
Remove the Deck Shield Plate in direction of arrow (A).
4.
Remove the 3 screws 3.
5.
Disconnect the following connectors:
(CP1001, CP4001, CP4002 and CP4003).
6.
Remove the Deck Chassis in the direction of arrow (B).
7.
Remove the screw 4.
8.
Remove the Syscon PCB in the direction of arrow (C).
1
2
1
Deck Shield Plate
333
(A)
Fig. 1-2
B1-1
(B)
Deck Chassis
4
(C)
Syscon PCB
Deck Holder
Fig. 1-4
DISASSEMBLY INSTRUCTIONS
2. REMOVAL OF VCR DECK PARTS
2-1: TOP BRACKET (Refer to Fig. 2-1)
Extend the 2 supports 1.
1.
Slide the 2 supports 2 and remove the Top Bracket.
2.
NOTE
After the installation of the Top Bracket, bend the support
1.
1 so that the Top Bracket is fixed.
Top Bracket
1
Top Bracket
2
Main Chassis
2
Main Chassis
2-2: CASSETTE HOLDER ASS'Y (Refer to Fig. 2-2)
1.
Move the Cassette Holder Ass'y to the front side.
2.
Push the Locker R to remove the Cassette Side R.
3.
Remove the Cassette Side L.
Cassette Side R
Main Chassis
1
Locker R
Fig. 2-1
NOTE
1.2.In case of the Locker R installation, check if the one
position of Fig.2-3-B are correctly locked.
When you install the Cassette Side R, be sure to move
the Locker R after installing.
Locker R
Check if this position
Cassette Side R
is locked.
Fig. 2-3-B
2-4: LINK UNIT (Refer to Fig. 2-4)
1.
Set the Link Unit to the Eject position.
2.
Unlock the support 1.
3.
Remove the (A) side of the Link Unit first, then remove
the (B) side.
Main Chassis
Link Unit
Link Unit
Cassette Side L
Main Chassis
2-3: CASSETTE SIDE L/R (Refer to Fig. 2-3-A)
1.
Remove the Locker Spring.
2.
Unlock the 4 supports 1 and then remove the Cassette
Side L/R.
3.
Unlock the support 2 and then remove the Locker R.
Locker Spring
1
1
2
Cassette Side R
Cassette Holder
Locker R
1
1
Cassette Side L
Fig. 2-2
(A)
(B)
Link Unit
2-5: LINK LEVER/FLAP LEVER/BOT COVER
(Refer to Fig. 2-5)
Unlock the support 1.
1.
Remove the BOT Cover.
2.
Extend the support 2.
3.
Remove the Link Lever.
4.
Remove the Flap Lever.
5.
1
2
Flap Lever
BOT Cover
Link Lever
Main Chassis
Fig. 2-4
Fig. 2-3-A
Fig. 2-5
B2-1
DISASSEMBLY INSTRUCTIONS
2-6: LOADING MOTOR/WORM (Refer to Fig. 2-6-A)
1.
Remove the screw 1.
2.
Remove the Loading Motor.
3.
Remove the Worm.
Loading Motor
Worm
Main Chassis
• Screw Torque: 3 ± 0.5kgf•cm
1
Fig. 2-6-A
NOTE
1.
In case of the Worm installation, check if the value of the
Fig. 2-6-B is correct.
2.
In case of the Loading Motor installation, hook the wire on
the Cassette Opener as shown Fig. 2-6-C.
3.
When installing the wires between Capstan DD Unit and
Loading Motor, connect them correctly as shown Fig. 2-6-D.
19.2 ± 0.1mm
2-7: TENSION ASS’Y (Refer to Fig. 2-7-B)
1.
Turn the Pinch Roller Cam clockwise so that the Tension
Holder hook is set to the position of Fig. 2-7-A to move
the Tension Arm Ass’y.
2.
Remove the Tension Spring.
3.
Unlock the 2 supports 1 and remove the Tension Band.
4.
Unlock the support 2 and remove the Tension Arm Ass’y.
5.
Unlock the support 3 and remove the Tension Connect.
6.
Float the hook 4 and turn it clockwise then remove the
Tension Holder.
Tension Arm Ass’y
Fig. 2-7-A
1
Tension Connect
Tension Spring
2
4
1
3
Tension Holder
Tension Band
Tension Arm Ass’y
Loading Motor
-
+
Safety surface for pressing
of the insert.
Pink
White
Fig. 2-6-B
Loading Motor
Cassette Opener
Fig. 2-6-C
Capstan DD Unit
L2
L1
Fig. 2-6-D
B2-2
Fig. 2-7-B
NOTE
1.
In case of the Tension Band installation, note the direction of the installation. (Refer to Fig. 2-7-C)
2.
In case of the Tension Band installation, install correctly
as Fig. 2-7-D.
3.
In case of the Tension Connect installation, install as the
circled section of Fig. 2-7-E.
Tension Connect
Tension Band
Fig. 2-7-C
[OK]
[NG]
Tension Connect
Tension Connect
Tension Connect
DISASSEMBLY INSTRUCTIONS
NOTE
1.
Take care not to damage the gears of the S Reel and T
Tension Band
Tension Band
Fig. 2-7-D
Reel.
2.
The Polyslider Washer may be remained on the back of
the reel.
3.
Take care not to damage the shaft.
4.
Do not touch the section “A” of S Reel and T Reel. (Use
gloves.) (Refer to Fig. 2-9-A) Do not adhere the stains
on it.
5.
When you install the reel, clean the shaft and grease it. (If
you do not grease, noise may be heard in FF/REW
mode.)
6.
After installing the reel, adjust the height of the reel.
(Refer to MECHANICAL ADJUSTMENT)
Main Chassis
Fig. 2-7-E
2-8: T BRAKE ARM/T BRAKE BAND (Refer to Fig. 2-8-A)
Remove the T Brake Spring.
1.
Turn the T Brake Arm clockwise and bend the hook
2.
section to remove it.
Unlock the 2 supports 1 and remove the T Brake Band.
3.
T Brake Band
Hook section
1
1
T Brake Arm
T Brake Spring
Fig. 2-8-A
NOTE
1. In case of the T Brake Band installation, install correctly
as Fig. 2-8-B.
Idler Gear
Idler Arm Ass’y
S Reel
(A)
(B)
T Reel
1
(A)
1
Fig. 2-9-A
NOTE
1.2.In case of the S Reel and T Reel installation, check if the
correct parts are installed. (Refer to Fig. 2-9-B)
In case of the Idler Arm Ass’y installation, install correctly
as Fig. 2-9-C. And also set it so that the section “B” of
Fig. 2-9-A is placed under the Main Chassis tab.
[OK]
T Brake Band
[NG]
T Brake Band
T Brake Arm
T Brake Arm
Fig. 2-8-B
2-9: S REEL/T REEL/IDLER ARM ASS’Y/IDLER GEAR
(Refer to Fig. 2-9-A)
1.
Remove the S Reel and T Reel.
2.
Remove the 2 Polyslider Washers 1.
3.
Remove the Idler Arm Ass’y and Idler Gear.
B2-3
[OK]
[NG]
Clutch Gear
Clutch Gear
Big Hole
(S Reel)
Small Hole
(T Reel)
Fig. 2-9-B
Idler Arm Ass’y
Idler Arm Ass’y
Fig. 2-9-C
DISASSEMBLY INSTRUCTIONS
2-10: CASSETTE OPENER/PINCH ROLLER BLOCK/P5
ARM ASS’Y (Refer to Fig. 2-10-A)
1.2.Unlock the support 1 and remove the Cassette Opener.
Remove the Pinch Roller Block and P5 Arm Ass’y.
1
Cassette Opener
Pinch Roller Block
P5 Arm Ass’y
Main Chassis
Fig. 2-10-A
NOTE
1.2.Do not touch the Pinch Roller. (Use gloves.)
In case of the Pinch Roller Block and the Pinch Roller
Cam installation, install correctly as Fig. 2-10-B.
Pinch Roller Block
P5 Arm Ass’y
Can be seen the hole of the
Main Cam.
Can be seen the hole of
the Pinch Roller Cam.
Fig. 2-10-B
2-11: A/C HEAD (Refer to Fig. 2-11-A)
1.
Remove the screw 1.
2.
Remove the A/C Head Base.
3.
Remove the 3 screws 2.
4.
Remove the A/C Head and A/C Head Spring.
NOTE
1.
Do not touch the A/C Head. (Use gloves.)
2.
When you install the A/C Head Spring, install as shown in
Fig. 2-11-B.
3.
When you install the A/C Head, tighten the screw (1) first,
then tighten the screw (2), finally tighten the screw (3).
Spring Position
Fig. 2-11-B
2-12: FE HEAD (RECORDER ONLY) (Refer to Fig. 2-12)
Remove the screw 1.
1.
Remove the FE Head.
2.
1
FE Head
• Screw Torque: 5 ± 0.5kgf•cm
• The FE Head is not installed on the Video Cassette Player.
Fig. 2-12
2-13: CYLINDER UNIT ASS'Y (Refer to Fig. 2-13)
Disconnect the following connector:
1.
(CD2001)
Remove the 3 screws 1.
2.
Remove the Cylinder Unit Ass'y.
3.
NOTE
When you install the Cylinder Unit Ass'y, tighten the
1.
screws from (1) to (3) in order while pulling the Ass'y
toward the left front direction.
Cylinder Unit Ass'y
(1)
2
2
(2)
1
• Screw Torque: 5 ± 0.5kgf•cm (Screw 1)
(3)
2
A/C Head
A/C Head Spring
A/C Head Base
Fig. 2-11-A
B2-4
• Screw Torque: 3 ± 0.5kgf•cm
(3)
(2)
(1)
1
1
1
Fig. 2-13
DISASSEMBLY INSTRUCTIONS
2-14: CAPSTAN DD UNIT (Refer to Fig. 2-14-A)
1.
Remove the Capstan Belt.
2.
Remove the 3 screws 1.
3.
Remove the Capstan DD Unit.
Capstan Belt
Capstan DD Unit
1
1
1
• Screw Torque: 4 ± 0.5kgf•cm
Fig. 2-14-A
NOTE
1. In case of the Capstan DD Unit installation, apply the
silicon bond (TSE3843-W) on the position Fig. 2-14-B
correctly. (If no silicon bond applied, abnormal noise will
be heard on the deck operation.)
(Refer to Fig. 2-14-B, C)
Applied position of
silicon bond
Part Name: TSE3843-W
Part No.: Y118011000
2-15: MAIN CAM/PINCH ROLLER CAM/JOINT GEAR
(Refer to Fig. 2-15-A)
1.2.Remove the E-Ring 1, then remove the Main Cam.
Remove the E-Ring 2, then remove the Pinch Roller
Cam and Joint Gear.
1
Main Cam
2
Pinch Roller Cam
Joint Gear
Fig. 2-15-A
NOTE
1. In case of the Pinch Roller Cam and Main Cam installation, install them as the circled section of Fig. 2-15-B so
that the each markers are met. (Refer to Fig. 2-15-B)
And also can be seen the Main Chassis hole through the
Main Cam maker hole.
Pinch Roller Cam
Marker
Main Cam
Be careful not to apply the silicon
bond to the Pinch Roller.
Capstan DD Unit
Silicon Bond
Main Chassis
Fig. 2-14-B
Fig. 2-14-C
2-16: LOADING GEAR S/T UNIT (Refer to Fig. 2-16-A)
1.2.Remove the E-Ring 1 and remove the Main Loading
Gear.
Remove the Main Rod, Tension Lever, Loading Arm S
Unit and Loading Arm T Unit.
1
Main Rod
Tension Lever
Main Loading Gear
Loading Arm S Unit
B2-5
Fig. 2-15-B
Loading Arm T Unit
Fig. 2-16-A
DISASSEMBLY INSTRUCTIONS
NOTE
1. When you install the Loading Arm S Unit, Loading Arm T
Unit and Main Loading Gear, align each marker. (Refer
to Fig. 2-16-B)
Marker
Main Loading Gear
Marker
Loading Arm T Unit Loading Arm S Unit
Fig. 2-16-B
2-17: CLUTCH ASS’Y/RING SPRING/CLUTCH LEVER/
CLUTCH GEAR (Refer to Fig. 2-17-A)
1.
Remove the Polyslider Washer 1.
2.
Remove the Clutch Ass’y and Ring Spring.
3.
Remove the Clutch Lever.
4.
Remove the Coupling Gear, Coupling Spring and Clutch
Gear.
2-18:
CASSETTE GUIDE POST/INCLINED BASE S/T
UNIT/P4 CAP/LED REFLECTOR
(Refer to Fig. 2-18-A)
Remove the P4 Cap.
1.
Unlock the support 1 and remove the Cassette Guide
2.
Post.
Remove the Inclined Base S/T Unit.
3.
Remove the screw 2.
4.
Remove the LED Reflector.
5.
1
Inclined Base S Unit
LED Reflector
Cassette Guide Post
Inclined Base T Unit
P4 Cap
1
Clutch Ass’y
Ring Spring
Coupling Gear
Coupling Spring
Clutch Gear
Clutch Lever
Fig. 2-17-A
NOTE
1. In case of the Clutch Ass’y installation, install it with
inserting the spring of the Clutch Ass’y into the dent of the
Coupling Gear. (Refer to Fig. 2-17-B)
Clutch Ass’y
2
Fig. 2-18-A
NOTE
1.
Do not touch the roller of Guide Roller.
2.
In case of the P4 Cap installation, install it with parallel
for “A” and “B” of Fig. 2-18-B.
3.
In case of the Cassette Guide Post installation, install
correctly as the circled section of Fig. 2-18-C.
“A” “B”
P4 Cap
Cassette Opener
Fig. 2-18-B
[OK]
Cassette Guide Post
Coupling Gear
Fig. 2-17-B
[NG]
Cassette Guide Post
Fig. 2-18-C
B2-6
DISASSEMBLY INSTRUCTIONS
3. REMOVAL OF ANODE CAP
Read the following NOTED items before starting work.
After turning the power off there might still be a potential
*
voltage that is very dangerous. When removing the
Anode Cap, make sure to discharge the Anode Cap's
potential voltage.
*
Do not use pliers to loosen or tighten the Anode Cap
terminal, this may cause the spring to be damaged.
REMOVAL
1. Follow the steps as follows to discharge the Anode Cap.
(Refer to Fig. 3-1.)
Connect one end of an Alligator Clip to the metal part of a
flat-blade screwdriver and the other end to ground.
While holding the plastic part of the insulated Screwdriver,
touch the support of the Anode with the tip of the
Screwdriver.
A cracking noise will be heard as the voltage is discharged.
GND on the CRT
3. After one side is removed, pull in the opposite direction to
remove the other.
NOTE
Take care not to damage the Rubber Cap.
INSTALLATION
1. Clean the spot where the cap was located with a small
amount of alcohol. (Refer to Fig. 3-3.)
NOTE
Confirm that there is no dirt, dust, etc. at the spot where
the cap was located.
Location of Anode Cap
Fig. 3-3
Screwdriver
Alligator Clip
GND on the CRT
Flip up the sides of the Rubber Cap in the direction of the
2.
arrow and remove one side of the support.
(Refer to Fig. 3-2.)
Rubber Cap
Support
CRT
Fig. 3-1
2.3.Arrange the wire of the Anode Cap and make sure the
wire is not twisted.
Turn over the Rubber Cap. (Refer to Fig. 3-4.)
Fig. 3-4
4. Insert one end of the Anode Support into the anode button,
then the other as shown in Fig. 3-5.
CRT
Support
Fig. 3-2
Support
CRT
5.6.Confirm that the Support is securely connected.
Put on the Rubber Cap without moving any parts.
B3-1
Fig. 3-5
DISASSEMBLY INSTRUCTIONS
4. REMOVAL AND INSTALLATION OF FLAT
PACKAGE IC
REMOVAL
1. Put the Masking Tape (cotton tape) around the Flat
Package IC to protect other parts from any damage.
(Refer to Fig. 4-1.)
NOTE
Masking is carried out on all the parts located within
10 mm distance from IC leads.
Masking Tape
(Cotton Tape)
2. Heat the IC leads using a blower type IC desoldering
machine. (Refer to Fig. 4-2.)
NOTE
Do not add the rotating and the back and forth directions force on the IC, until IC can move back and forth
easily after desoldering the IC leads completely.
IC
Fig. 4-1
Blower type IC
desoldering machine
3. When IC starts moving back and forth easily after
desoldering completely, pickup the corner of the IC using
a tweezers and remove the IC by moving with the IC
desoldering machine. (Refer to Fig. 4-3.)
NOTE
Some ICs on the PCB are affixed with glue, so be
careful not to break or damage the foil of each IC
leads or solder lands under the IC when removing it.
Blower type IC
desoldering machine
Tweezers
IC
4.5.Peel off the Masking Tape.
Absorb the solder left on the pattern using the Braided
Shield Wire. (Refer to Fig. 4-4.)
NOTE
Do not move the Braided Shield Wire in the vertical
direction towards the IC pattern.
Fig. 4-3
Braided Shield Wire
Soldering Iron
IC
Fig. 4-2
IC pattern
Fig. 4-4
B4-1
DISASSEMBLY INSTRUCTIONS
INSTALLATION
1. Take care of the polarity of new IC and then install the
new IC fitting on the printed circuit pattern. Then solder
each lead on the diagonal positions of IC temporarily.
(Refer to Fig. 4-5.)
Soldering Iron
Solder temporarily
Solder temporarily
Fig. 4-5
2. Supply the solder from the upper position of IC leads
sliding to the lower position of the IC leads.
(Refer to Fig. 4-6.)
4. When bridge-soldering between terminals and/or the
soldering amount are not enough, resolder using a Thintip Soldering Iron. (Refer to Fig. 4-8.)
IC
Thin-tip Soldering Iron
Fig. 4-8
5. Finally, confirm the soldering status on four sides of the
IC using a magnifying glass.
Confirm that no abnormality is found on the soldering
position and installation position of the parts around the
IC. If some abnormality is found, correct by resoldering.
NOTE
When the IC leads are bent during soldering and/or
repairing, do not repair the bending of leads. If the
bending of leads are repaired, the pattern may be
damaged. So, always be sure to replace the IC in this
case.
Solder
IC
Supply soldering
from upper position
to lower position
Soldering Iron
Fig. 4-6
3. Absorb the solder left on the lead using the Braided
Shield Wire. (Refer to Fig. 4-7.)
NOTE
Do not absorb the solder to excess.
Soldering Iron
IC
Braided Shield Wire
Fig. 4-7
B4-2
A
A/C
ACC
AE
AFC
AFT
AFT DET
AGC
AMP
ANT
A.PB
APC
ASS'Y
AT
AUTO
A/V
B
BGP
BOT
BPF
BRAKE SOL
BUFF
B/W
C
C
CASE
CAP
CARR
CH
CLK
CLOCK (SY-SE)
COMB
CONV
CPM
CTL
CYL
CYL-M
CYL SENS
D
DATA (SY-CE)
dB
DC
DD Unit
DEMOD
DET
DEV
E
E
EF
EMPH
ENC
ENV
EOT
EQ
EXT
F
F
FBC
FE
FF
FG
FL SW
FM
FSC
FWD
G
GEN
GND
KEY TO ABBREVIATIONS
:
Audio/Control
:
Automatic Color Control
:
Audio Erase
:
Automatic Frequency Control
:
Automatic Fine Tuning
:
Automatic Fine Tuning Detect
:
Automatic Gain Control
:
Amplifier
:
Antenna
:
Audio Playback
:
Automatic Phase Control
:
Assembly
:
All Time
:
Automatic
:
Audio/Video
:
Burst Gate Pulse
:
Beginning of Tape
:
Bandpass Filter
:
Brake Solenoid
:
Buffer
:
Black and White
:
Capacitance, Collector
:
Cassette
:
Capstan
:
Carrier
:
Channel
:
Clock
:
Clock (Syscon to Servo)
:
Combination, Comb Filter
:
Converter
:
Capstan Motor
:
Control
:
Cylinder
:
Cylinder-Motor
:
Cylinder-Sensor
:
Data (Syscon to Servo)
:
Decibel
:
Direct Current
:
Direct Drive Motor Unit
:
Demodulator
:
Detector
:
Deviation
:
Emitter
:
Emitter Follower
:
Emphasis
:
Encoder
:
Envelope
:
End of Tape
:
Equalizer
:
External
:
Fuse
:
Feed Back Clamp
:
Full Erase
:
Fast Forward, Flip-flop
:
Frequency Generator
:
Front Loading Switch
:
Frequency Modulation
:
Frequency Sub Carrier
:
Forward
:
Generator
:
Ground
H
H.P.F
H.SW
Hz
I
IC
IF
IND
INV
K
KIL
L
L
LED
LIMIT AMP
LM, LDM
LP
L.P.F
LUMI.
M
M
MAX
MINI
MIX
MM
MOD
MPX
MS SW
N
NC
NR
O
OSC
OPE
P
PB
PB CTL
PB-C
PB-Y
PCB
P. CON
PD
PG
P-P
R
R
REC
REC-C
REC-Y
REEL BRK
REEL S
REF
REG
REW
REV, RVS
RF
RMC
RY
S
S. CLK
S. COM
S. DATA
SEG
SEL
SENS
SER
SI
SIF
SO
SOL
SP
:
High Pass Filter
:
Head Switch
:
Hertz
:
Integrated Circuit
:
Intermediate Frequency
:
Indicator
:
Inverter
:
Killer
:
Left
:
Light Emitting Diode
:
Limiter Amplifier
:
Loading Motor
:
Long Play
:
Low Pass Filter
:
Luminance
:
Motor
:
Maximum
:
Minimum
:
Mixer, mixing
:
Monostable Multivibrator
:
Modulator, Modulation
:
Multiplexer, Multiplex
:
Mecha State Switch
:
Non Connection
:
Noise Reduction
:
Oscillator
:
Operation
:
Playback
:
Playback Control
:
Playback-Chrominance
:
Playback-Luminance
:
Printed Circuit Board
:
Power Control
:
Phase Detector
:
Pulse Generator
:
Peak-to Peak
:
Right
:
Recording
:
Recording-Chrominance
:
Recording-Luminance
:
Reel Brake
:
Reel Sensor
:
Reference
:
Regulated, Regulator
:
Rewind
:
Reverse
:
Radio Frequency
:
Remote Control
:
Relay
:
Serial Clock
:
Sensor Common
:
Serial Data
:
Segment
:
Select, Selector
:
Sensor
:
Search Mode
:
Serial Input
:
Sound Intermediate Frequency
:
Serial Output
:
Solenoid
:
Standard Play
C1-1
S
STB
SW
SYNC
SYNC SEP
T
TR
TRAC
TRICK PB
TP
U
UNREG
V
V
VCO
VIF
VP
V.PB
VR
V.REC
VSF
VSR
VSS
V-SYNC
VT
X
X'TAL
Y
Y/C
KEY TO ABBREVIATIONS
:
Serial Strobe
:
Switch
:
Synchronization
:
Sync Separator, Separation
:
Transistor
:
Tracking
:
Trick Playback
:
Test Point
:
Unregulated
:
Volt
:
Voltage Controlled Oscillator
:
Video Intermediate Frequency
:
Vertical Pulse, Voltage Display
:
Video Playback
:
Variable Resistor
:
Video Recording
:
Visual Search Fast Forward
:
Visual Search Rewind
:
Voltage Super Source
:
Vertical-Synchronization
:
Voltage Tuning
:
Crystal
:
Luminance/Chrominance
C1-2
SERVICE MODE LIST
This unit provided with the following SERVICE MODES so you can repair, examine and adjust easily.
To enter SERVICE MODE, unplug AC cord till lost actual clock time. Then press and hold Vol (-) button of main unit and remocon
key simultaneously.
The both pressing of set key and remote control key will not be possible if clock has been set. To reset clock, either unplug AC
cord and allow at least 5 seconds before Power On.
Set Key Remocon Key Operations
VOL. (-) MIN
VOL. (-) MIN 1
VOL. (-) MIN 2
VOL. (-) MIN
VOL. (-) MIN 4
VOL. (-) MIN
VOL. (-) MIN
0
3
5
6
Releasing of V-CHIP PASSWORD.
Initialization of the factory.
NOTE:
Horizontal position adjustment of OSD.
NOTE: Also can be adjusted by using the Adjustment MENU.
Refer to the "ELECTRICAL ADJUSTMENT" (OSD HORIZONTAL).
Adjust the PG SHIFTER automatically.
Refer to the "ELECTRICAL ADJUSTMENT" (PG SHIFTER).
Adjust the PG SHIFTER manually.
Adjusting of the Tracking to the center position.
POWER ON total hours and PLAY/REC total hours are displayed on the screen.
Refer to the "PREVENTIVE CHECKS AND SERVICE INTERVALS" (CONFIRMATION
OF HOURS USED).
Can be checked of the INITIAL DATA of MEMORY IC.
Refer to the "WHEN REPLACING EEPROM (MEMORY) IC".
Do not use this for the normal servicing.
If you set a factory initialization, the memories are reset such as the clock
setting, the channel setting, the POWER ON total hours, and PLAY/REC
total hours.
VOL. (-) MIN 9
Method Operations
Make the short circuit between
the test point of SERVICE and
the GND.
Display of the Adjustment MENU on the screen.
Refer to the "ELECTRICAL ADJUSTMENT" (On-Screen Display Adjustment).
The BOT, EOT, and the Reel Sensor do not work and the deck can be operated
without a cassette tape.
Refer to the "PREPARATION FOR SERVICING"
C2-1
PREVENTIVE CHECKS AND SERVICE INTERVALS
The following standard table depends on environmental conditions and usage.
Parts replacing time does not mean the life span for individual parts.
Also, long term storage or misuse may cause transformation and aging of rubber parts.
The following list means standard hours, so the checking hours depends on the conditions.
Time
Parts Name
Audio Control Head
Full Erase Head
(Recorder only)
Capstan Belt
Pinch Roller
Capstan DD Unit
Loading Motor
Tension Band
T Brake Band
Clutch Ass’y
Idler Arm Ass’y
Capstan Shaft
Tape Running
Guide Post
Cylinder Unit
: Clean
: Check it and if necessary, replace it.
500
hours
1,000
hours
1,500
hours
2,000
hours
2,500
hours
Notes
Clean those parts in
contact with the tape.
Clean the rubber, and parts
which the rubber touches.
Replace when rolling
becomes abnormal.
Clean the Head
CONFIRMATION OF HOURS USED
POWER ON total hours and PLAY/REC total hours can be checked on the screen.
Total hours are displayed in 16 system of notation.
NOTE: If you set a factory initialization, the total hours is reset to "0".
The confirmation of using hours will not be possible if clock has been set. To reset clock, either unplug AC cord
and allow at least 5 seconds before Power On.
1.
Set the VOLUME to minimum.
2.
Press both VOL. DOWN button on the set and Channel button (6) on the remote control for more than 2 seconds.
3.
After the confirmation of using hours, turn off the power.
INIT 00 08
POWER ON 0010
PLAY/REC 0003
(16 x 16 x 16 x thousands digit value) + (16 x 16 x hundreds digit value) + (16 x tens digit value) + (ones digit value)
Initial setting content of MEMORY IC.
POWER ON total hours.
PLAY/REC total hours.
C3-1
PREVENTIVE CHECKS AND SERVICE INTERVALS
CLEANING
NOTE
After cleaning the heads with isopropyl alcohol, do not
run a tape until the heads dry completely. If the heads
are not completely dry and alcohol gets on the tape,
damage may occur.

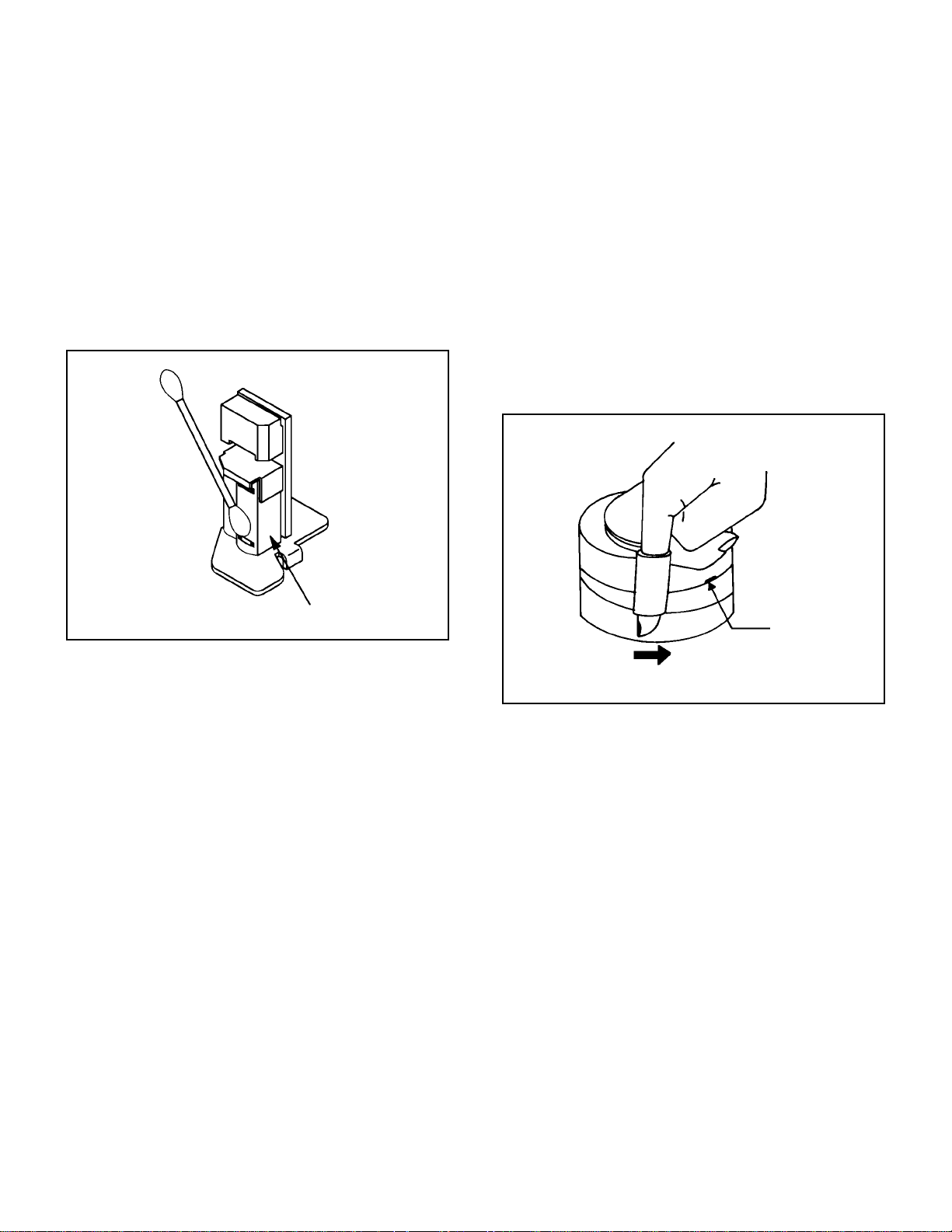

1. AUDIO CONTROL HEAD
Clean the Audio Control Head with the cotton stick
soaked by alcohol. Clean the full erase head in the
same manner. (Refer to the figure below.)
2. TAPE RUNNING SYSTEM
When cleaning the tape transport system, use the
gauze moistened with isopropyl alcohol.
3. CYLINDER
Wrap a piece of chamois around your finger. Dip it in
isopropyl alcohol. Hold it to the cylinder head softly.
Turn the cylinder head counterclockwise to clean it (in
the direction of the arrow). (Refer to the figure below.)
NOTE
Do not exert force against the cylinder head. Do not move
the chamois upward or downward on the head.
Use the chamois one by one.
Audio Control Head
Cylinder Head
C3-2
WHEN REPLACING EEPROM (MEMORY) IC
If a service repair is undertaken where it has been required to change the MEMORY IC, the following steps should be taken to
ensure correct data settings while making reference to TABLE 1.
NOTE: No need setting for after INI 3F due to the adjustment value.
+0 +1 +2 +3 +4 +5 +6 +7 +8 +9
08 0A 70 6B C2 B3 24 A9 50 2C
10
B2 92 93 00 11 30 25 08 82
9A
06 3A 01 25 54 60 23 3B DA D7
20 00 00 00 00 00 38
+A
+B +C +D +E +FINI
40 A6 1A 40 00 1000
A9 0F 94 45 06 14
88 08 88 98 88 06 00 00 00 0030 00 00 00 00 00 00
Table 1
Enter DATA SET mode by setting VOLUME to minimum.
1.
Press both VOL. DOWN button on the set and Channel button (6) on the remote control for more than 2 seconds.
2.
ADDRESS and DATA should appear as FIG 1.
ADDRESS DATA
INIT 00 08
POWER ON 0010
PLAY/REC 0003
Fig. 1
3.
ADDRESS is now selected and should "blink". Using the VOL. +/- button on the remote, step through the ADDRESS until
required ADDRESS to be changed is reached.
4.
Press ENTER to select DATA. When DATA is selected, it will "blink".
5.
Again, step through the DATA using VOL. +/- button until required DATA value has been selected.
6.
Pressing ENTER will take you back to ADDRESS for further selection if necessary.
7.
Repeat steps 3 to 6 until all data has been checked.
8.
When satisfied correct DATA has been entered, turn POWER off (return to STANDBY MODE) to finish DATA input.
After the data input, set to the initializing of shipping.
9.
Turn POWER on.
10.
Press both VOL. DOWN button on the set and Channel button (1) on the remote control for more than 2 seconds.
11.
After the finishing of the initializing of shipping, the unit will turn off automatically.
The unit will now have the correct DATA for the new MEMORY IC.
C4-1
SERVICING FIXTURES AND TOOLS
Alignment Tape
Back tension cassette gauge
Torque cassette gauge
Taper nut driver
(KT-300NR)
ST-N5
ST-NF
70909103
70909199
70909228
VTR cleaning kit VTR lubrication kit Grease JG002B
JG002E
JG002F
JG022 Master Plane JG024A Reel Disk Height
Adjustment Jig
JG153 X Value Adjustment
Screwdriver
JG154 Cable
Adapter
Dial Torque Gauge
(10~90gf•cm)
(60~600gf•cm)
JG180 AV Jack Jig
Part No.Ref. No. Parts Name
JG002B
JG002E
JG002F
JG024A APJG024A00 Reel Disk Height Adjustment Jig Reel Disk Height Adjustment
JG153 APJG153000 X Value Adjustment Screwdriver X Value Adjustment
JG154 APJG154000 Cable Used to connect the test point of SERVICE and GROUND
JG180 APJG180000 AV Jack Jig PG Shifter Adjustment
JG185 APJG185000 Tentelometer Confirmation of Tape Tension on Playback
APJG002B00
APJG002E00
APJG002F00
APJG022000JG022 Master Plane Reel Disk Height Adjustment
JG185 Tentelometer
Adapter
Dial Torque Gauge (10~90gf•cm)
Dial Torque Gauge (60~600gf•cm)
Remarks
VSR Torque, Brake Torque (S Reel/T Reel Ass'y)
Brake Torque (T Reel Ass'y)
VSR Torque, Brake Torque (S Reel)
PREPARATION FOR SERVICING
How to use the Servicing Fixture
1.
Remove the Syscon PCB from the set.
Be sure to place the parts on a paper so that they have no short-circuit each other.
2.
Short circuit between TP1001 and Ground with the cable JG154.
(The BOT, EOT, and the Reel Sensor do not work and the deck can be operated without a cassette tape.)
3.
In case of using a cassette tape, press the STOP/EJECT button to insert or eject a cassette tape.
Turn on the power and re-check the cable before checking the trouble points.
D1-1
MECHANICAL ADJUSTMENTS
1. CONFIRMATION AND ADJUSTMENT
Read the following NOTES before starting work.
• Place an object which weighs between 450g~500g on the
Cassette Tape to keep it steady when you want to make
the tape run without the Cassette Holder. (Do not place an
object which weighs over 500g.)
CONFIRMATION AND ADJUSTMENT OF REEL
1-1:
DISK HEIGHT
1.
Turn on the power and set to the STOP mode.
2.
Set the master plane (JG022) and reel disk height
adjustment jig (JG024A) on the mechanism framework,
taking care not to scratch the drum, as shown in Fig. 1-1-
A.
3.
While turning the reel and confirm the following points.
Check if the surface "A" of reel disk is lower than the
surface "B" of reel disk height adjustment jig (JG024A)
and is higher than the surface "C". If it is not passed,
place the height adjustment washers and adjust to 10(+2,
-0)mm.
4.
Adjust the other reel in the same way.
Master Plane (JG022)
Reel Disk Height Adjustment Jig
(JG024A)
1-2: CONFIRMATION AND ADJUSTMENT OF TENSION
POST POSITION
1.
Set to the PLAY mode.
2.
Adjust the adjusting section for the Tension Arm position
so that the Tension Arm top is within the standard line of
Main Chassis.
3.
While turning the S Reel clockwise, confirm that the edge
of the Tension Arm is located in the position described
above.
Standard line of Main Chassis
Tension Arm
0.5mm (Adjusting range)
Adjusting section for the
Tension Arm position
Tension Band
Fig. 1-2-A
Master Plane (JG022)
10(+0.2, -0)mm
Reel Disk
Height Adjustment
Washer
2.6x4.7xT0.13
2.6X4.7xT0.25
Reel Disk Height
Adjustment Jig
(JG024A)
(B)
(A)
Fig. 1-1-A
(C)
Fig. 1-1-B
The Tension Arm top will
move to the inside direction
of the Main Chassis.
Bend
The Tension Arm top will
move to the outside direction
of the Main Chassis.
Fig. 1-2-B
1-3: CONFIRMATION OF PLAYBACK TORQUE AND
BACK TENSION TORQUE DURING PLAYBACK
Load a video tape (T-120) recorded in standard speed
1.
mode. Set the unit to the PLAY mode.
Install the tentelometer (JG185) as shown in Fig. 1-3.
2.
Confirm that the meter indicates 20 ± 2gf in the beginning
of playback.
• USING A CASSETTE TYPE TORQUE TAPE (KT-300NR)
1.
After confirmation and adjustment of Tension Post
position (Refer to item 1-2), load the cassette type torque
tape (KT-300NR) and set to the PLAY mode.
2.
Confirm that the right meter of the torque tape indicates
50~90gf•cm during playback in SP mode.
3.
Confirm that the left meter of the torque tape indicates
25~40gf•cm during playback in SP mode.
Tentelometer
(JG185)
Video Tape
D2-1
P1 Post
Guide Roller
Fig. 1-3
MECHANICAL ADJUSTMENTS
1-4: CONFIRMATION OF VSR TORQUE
Install the Torque Gauge (JG002F) and Adapter (JG002B)
1.
on the S Reel. Set to the Picture Search (Rewind) mode.
(Refer to Fig.1-4-B)
Then, confirm that it indicates 120~180gf•cm.
2.
NOTE
Install the Torque Gauge on the reel disk firmly. Press the
REW button to turn the reel disk.
1-5: CONFIRMATION OF REEL BRAKE TORQUE
(S Reel Brake) (Refer to Fig. 1-4-B)
Once set to the Fast Forward mode then set to the Stop
1.
mode. While, unplug the AC cord when the Pinch Roller
Block is on the position of Fig. 1-4-A.
Move the Idler Ass'y from the S Reel.
2.
Install the Torque Gauge (JG002F) and Adapter
3.
(JG002B) on the S Reel. Turn the Torque Gauge
(JG002F) clockwise.
Then, confirm that it indicates 60~100gf•cm.
4.
(T Reel Brake) (Refer to Fig. 1-4-B)
Once set to the Fast Forward mode then set to the Stop
1.
mode. While, unplug the AC cord when the Pinch Roller
Block is on the position of Fig. 1-4-A.
Move the Idler Ass'y from the T Reel.
2.
Install the Torque Gauge (JG002E) and Adapter
3.
(JG002B) on the T reel. Turn the Torque Gauge
(JG002E) counterclockwise.
Then, confirm that it indicates 30~50gf•cm.
4.
The position at FF mode.
Pinch Roller Block
Stop at this position.
Cassette
The position at
STOP mode.
Capstan DD Unit
Cassette Holder Ass'y
Opener
Fig. 1-4-A
Torque Gauge/Adapter
(JG002F/JG002B)
Torque Gauge/Adapter
(JG002E/JG002B)
NOTE
If the torque is out of the range, replace the following parts.
Check item
1-4
1-5
S Reel side:
Replacement Part
Idler Ass'y/Clutch Ass'y
S Reel/Tension Band/Tension
Connect/Tension Arm Ass'y
T Reel side:
T Reel/T Brake Band//T Brake
Spring/T Brake Arm
2. CONFIRMATION AND ADJUSTMENT
OF TAPE RUNNING MECHANISM
Tape Running Mechanism is adjusted precisely at the
factory. Adjustment is not necessary as usual. When you
replace the parts of the tape running mechanism because of
long term usage or failure, the confirmation and adjustment
are necessary.
2-1: GUIDE ROLLER
Playback the VHS Alignment Tape.
1.
Connect CH-1 of the oscilloscope to TP4001 (Envelope)
2.
and CH-2 to TP1002 (SW Pulse).
Press both VOL. DOWN button on the set and the
3.
Channel button (5) on the remote control simultaneously.
Trigger with SW Pulse and observe the envelope. (Refer
4.
to Fig. 2-1-A)
When observing the envelope, adjust the Taper Nut Driver
5.
slightly until the envelope will be flat.
Even if you press the Tracking Button, adjust so that
flatness is not moved so much.
Adjust so that the A : B ratio is better than 3 : 2 as shown
6.
in Fig. 2-1-B, even if you press the Tracking Button to
move the envelope (The envelope waveform will begin to
decrease when you press the Tracking Button).
Adjust the PG shifter during playback.
7.
(Refer to the ELECTRICAL ADJUSTMENTS)
NOTE
After adjustment, confirm and adjust A/C head.
(Refer to item 2-2)
CH-1
Envelope
(TP4001)
CH-1
CH-2
Track
CH-2
SW Pulse (TP1002)
Track
S Reel
T Reel
Fig. 1-4-B
D2-2
Max
Entrance
A
B
A : B ≥ 3 : 2
Fig. 2-1-A
Exit
Max
Fig. 2-1-B
MECHANICAL ADJUSTMENTS
2-2:
CONFIRMATION AND ADJUSTMENT OF AUDIO/
CONTROL HEAD
When the Tape Running Mechanism does not work well,
adjust the following items.
1.
Playback the VHS Alignment Tape.
2.
Confirm that the reflected picture of stamp mark is
appeared on the tape prior to P4 Cap as shown in Fig. 2-
2-A.
When the reflected picture is distorted, turn the screw
a)
1 clockwise until the distortion is disappeared.
When the reflected picture is not distorted, turn the
b)
screw 1 counterclockwise until little distortion is
appeared, then adjust the a).
3.
Turn the screw 2 to set the audio level to maximum.
4.
Confirm that the bottom of the Audio/ Control Head and
the bottom of the tape is shown in Fig. 2-2-C.
When the height is not correct, turn the screw 3 to
c)
adjust the height. Then, adjust the 1~3 again.
Audio/Control Head
Reflected picture of
Stamp Mark
P4 Cap
2-3: TAPE RUNNING ADJUSTMENT
(X VALUE ADJUSTMENT)
Confirm and adjust the height of the Reel Disk.
1.
(Refer to item 1-1)
Confirm and adjust the position of the Tension Post.
2.
(Refer to item 1-2)
Adjust the Guide Roller. (Refer to item 2-1)
3.
Confirm and adjust the Audio/Control Head.
4.
(Refer to item 2-2)
Connect the connector of AV Jack Jig (JG180) to
5.
CP1003.
Connect CH-1 of the oscilloscope to TP1002, CH-2 to
6.
TP4001 and CH-3 to Hot side of JG180 Audio out Jack.
Playback the VHS Alignment Tape.
7.
Press both VOL. DOWN button on the set and the
8.
Channel button (5) on the remote control simultaneously.
Set the X Value adjustment driver (JG153) to the 4 of
9.
Fig. 2-2-B. Adjust X value so that the envelope waveform
output becomes maximum. Check if the relation between
Audio and Envelope waveform becomes (1) or (2) of Fig.
2-3.
Envelope
Audio/Control Head
3
2
Audio/Control Head
Tape
Stamp Mark
(1)
CH-3
Audio
(2)
Fig. 2-3
Fig. 2-2-A
1
4
Fig. 2-2-B
0.25±0.05mm
Fig. 2-2-C
D2-3
MECHANICAL ADJUSTMENTS
3. MECHANISM ADJUSTMENT PARTS LOCATION GUIDE
3
4
5
6
2
1
8910
1. Tension Connect
2. Tension Arm
3. Guide Roller
4. Audio/Control Head
5. X value adjustment driver hole
6.
P4 Post
7.
T Brake Spring
8.
T Reel
9.
S Reel
10.
Adjusting section for the Tension Arm position
7
D2-4
ELECTRICAL ADJUSTMENTS
1. BEFORE MAKING ELECTRICAL
ADJUSTMENTS
Read and perform these adjustments when repairing the
circuits or replacing electrical parts or PCB assemblies.
CAUTION
•
Use an isolation transformer when performing any
service on this chassis.
•
Before removing the anode cap, discharge electricity
because it contains high voltage.
•
When removing a PCB or related component, after
unfastening or changing a wire, be sure to put the wire
back in its original position.
•
When you exchange IC and Transistor for a heat sink,
apply the silicon grease on the contact section of the
heat sink. Before applying new silicon grease, remove all
the old silicon grease. (Old grease may cause damages
to the IC and Transistor.)
Prepare the following measurement tools for electrical
adjustments.
Oscilloscope
1.
Digital Voltmeter
2.
On-Screen Display Adjustment
Unplug the AC plug for more than 5 seconds to set the
1.
clock to the non-setting state. Then, set the volume
level to minimum.
Press both VOL. DOWN button on the set and the
2.
Channel button (9) on the remote control for more than
2 seconds to appear the adjustment mode on the
screen as shown in Fig. 1-1.
FUNCTION
NO.
00
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
OSD H
CUT OFF
RF AGC
V.VCO
H.VCO
H.PHAS
V.SIZE
V.SFT
R.DRV
B.DRV
R CUT OFF
G CUT OFF
B CUT OFF
BRI.CENT
BRI.MAX
BRI.MIN
NO.
16
17
18
19
20
21
22
23
24
25
26
27
28
29
FUNCTION
CONT.CENT
CONT.MAX
CONT.MIN
COL.CENT
COL.MAX
COL.MIN
TINT
SHARP
FM.LVL
LVL
SEP1
SEP2
T.MONO
T.STE
Fig. 1-2
2. BASIC ADJUSTMENTS
(VCR SECTION)
2-1: PG SHIFTER
1.
Connect the connector of AV Jack Jig (JG180) to
CP1003.
2.
Connect CH-1 on the oscilloscope to TP1002 and CH-2
to Hot side of JG180 Video out Jack.
3.
Playback the alignment tape.
4.
Press both VOL.DOWN button on the set and the
Channel button (5) on the remote control simultaneously
to set tracking to center.
5.
Press the VOL. DOWN button on the set and the
channel button (3) on the remote control simultaneously
until the indicator REC disappears. If the indicator REC
disappears, adjustment is completed.
TV
00 OSD 16
Use the Channel UP/DOWN button or Channel button
3.
(0-9) on the remote control to select the options shown
in Fig. 1-2.
Press the MENU button on the remote control to end
4.
the adjustments.
Fig. 1-1
(If the above adjustments doesn't work well:)
6.
Press the VOL. DOWN button on the set and the
channel button (3) on the remote control simultaneously
until the indicator REC disappears.
7.
When the REC indicator is blinking, press both VOL.
DOWN button on the set and the channel button (4) on
the remote control simultaneously and adjust the
8.
Tracking +/- button until the arising to the down of Head
Switching Pulse becomes 6.5 ± 0.5H.
(Refer to Fig. 2-1-A, B)
9.
Press the Tracking Auto button.
CH-2
6.5H
CH-1
Fig. 2-1-A
D3-1
ELECTRICAL ADJUSTMENTS
CH-2
CH-1
6.5H
Fig. 2-1-B
2-2: VCO FREERUN
1.
Receive the VHF HIGH (63dB).
2.
Place the set with Aging Test for more than 10 minutes.
3.
Connect the digital voltmeter between the pin 5 of
CP351 and the pin 1 (GND) of CP351.
4.
Activate the adjustment mode display of Fig. 1-1 and
press the channel button (03) on the remote control to
select "V.VCO".
5.
Press the VOL. UP/DOWN button on the remote control
until the digital voltmeter is 2.5V.
6.
After the 2.5V adjustment, countdown the VIF VCO step
No. by 1 step with the VOL. DOWN button.
2-3: RF AGC
1.
Receive the VHF HIGH (63 ± 1dB).
2.
Connect the digital voltmeter between the pin 5 of
CP351 and the pin 1 (GND) of CP351.
3.
Activate the adjustment mode display of Fig. 1-1 and
press the channel button (02) on the remote control to
select "RF AGC".
4.
Press the VOL. UP/DOWN button on the remote control
until the digital voltmeter is 2.7 ± 0.05V.
(TV SECTION)
2-4: CONSTANT VOLTAGE
1.
Using the remote control, set the brightness and contrast
to normal position.
2.
Connect the digital voltmeter to TP601 (R520).
3.
Set condition is AV MODE without signal.
4.
Adjust the VR502 until the digital voltage is 135 ± 0.5V.
2-5: CUT OFF
1.
Adjust the unit to the following settings.
R CUT OFF=127, G CUT OFF=127, B CUT OFF=127,
SUB BRI.CENT=127, SUB CONT.MAX=70
2.
Place the set with Aging Test for more than 15 minutes.
3.
Set condition is AV MODE without signal.
4.
Using the remote control, set the brightness and
contrast to normal position.
5.
Activate the adjustment mode display of Fig. 1-1 and
press the channel button (01) on the remote control to
select "CUT OFF".
6.
Adjust the Screen Volume until a dim raster is obtained.
2-6: WHITE BALANCE
NOTE: Adjust after performing CUT OFF adjustment.
1.
Place the set with Aging Test for more than 10 minutes.
2.
Receive the gray scale pattern.
3.
Using the remote control, set the brightness and
contrast to normal position.
4.
Activate the adjustment mode display of Fig. 1-1 and
press the channel button (10) on the remote control to
select "R CUT OFF".
5.
Using the VOL. UP/DOWN button on the remote
control, adjust the R CUT OFF.
6.
Press the CH. UP/DOWN button on the remote control
to select the "R DRIVE", "B DRIVE", "G CUT OFF" or
"B CUT OFF".
7.
Adjust the VOL. UP/DOWN button on the remote
control, adjust the R DRIVE, B DRIVE, G CUT OFF or
B CUT OFF at each step tone sections equally.
8.
Perform the above adjustments 6 and 7 until the white
color is looked like a white.
2-7: FOCUS
1.
Receive the monoscope pattern.
2.
Using the remote control, set the brightness and
contrast to normal position.
3.
Turn the Focus Volume fully counterclockwise once.
4.
Adjust the Focus Volume until picture is distinct.
2-8: HORIZONTAL PHASE
1.
Receive the monoscope pattern.
2.
Using the remote control, set the brightness and
contrast to normal position.
3.
Activate the adjustment mode display of Fig. 1-1 and
press the channel button (05) on the remote control to
select "H PHAS".
4.
Press the VOL. UP/DOWN button on the remote control
until the SHIFT quantity of the OVER SCAN on right
and left becomes minimum.
2-9: VERTICAL SHIFT
1.
Receive the monoscope pattern.
2.
Using the remote control, set the brightness and
contrast to normal position.
3.
Activate the adjustment mode display of Fig. 1-1 and
press the channel button (07) on the remote control to
select "V SFT".
4.
Check if the step No. V. SHIFT is "03".
5.
Adjust the VR401 until the horizontal line becomes fit to
the notch of the shadow mask.
2-10: VERTICAL SIZE
1.
Receive the monoscope pattern.
2.
Using the remote control, set the brightness and
contrast to normal position.
3.
Activate the adjustment mode display of Fig. 1-1 and
press the channel button (06) on the remote control to
select "V SIZE".
4.
Press the VOL. UP/DOWN button on the remote
control until the SHIFT quantity of the OVER SCAN
on upside and downside becomes 10 ± 2%.
D3-2
ELECTRICAL ADJUSTMENTS
2-11: SUB BRIGHTNESS
1.
Receive the monoscope pattern. (RF Input)
2.
Using the remote control, set the brightness and
contrast to normal position.
3.
Activate the adjustment mode display of Fig. 1-1 and
press the channel button (13) on the remote control to
select "BRI.CENT".
4.
Press the VOL. UP/DOWN button on the remote
control until the white 10% is starting to be visible.
5.
Receive the monoscope pattern. (Audio Video Input)
6.
Press the INPUT SELECT button on the remote control
to set to the AV mode. Then perform the above
adjustments 2~4.
2-12: SUB CONTRAST MAX
1.
Activate the adjustment mode display of Fig. 1-1 and
press the channel button (17) on the remote control to
select "CONT.MAX".
2.
Press the VOL. UP/DOWN button on the remote
control until the contrast step No. becomes "72".
3.
Receive a broadcast and check if the picture is normal.
4.
Press the INPUT SELECT button on the remote control
to set to the AV mode.
5.
Activate the adjustment mode display of Fig. 1-1 and
press the channel button (17) on the remote control to
select "CONT.MAX".
6.
Press the VOL. UP/DOWN button on the remote
control until the contrast step No. becomes "75".
7.
Receive a broadcast and check if the picture is normal.
2-14: SUB COLOR
1.
Receive the color bar pattern. (RF Input)
2.
Using the remote control, set the brightness, contrast,
color and tint to normal position.
3.
Connect the oscilloscope to TP803.
4.
Activate the adjustment mode display of Fig. 1-1 and
press the channel button (19) on the remote control to
select "COL.CENT".
5.
Adjust the VOLTS RANGE VARIABLE knob of the
oscilloscope until the range between white 100% and
0% is set to 4 scales on the screen of the oscilloscope.
6.
Press the VOL. UP/DOWN button on the remote control
until the red color level is adjusted to 110 ± 10% of the
white level. (Refer to Fig. 2-3)
7.
Receive the color bar pattern. (Audio Video Input)
8.
Press the INPUT SELECT button on the remote control
to set to the AV mode. Then perform the above
adjustments 2~6.

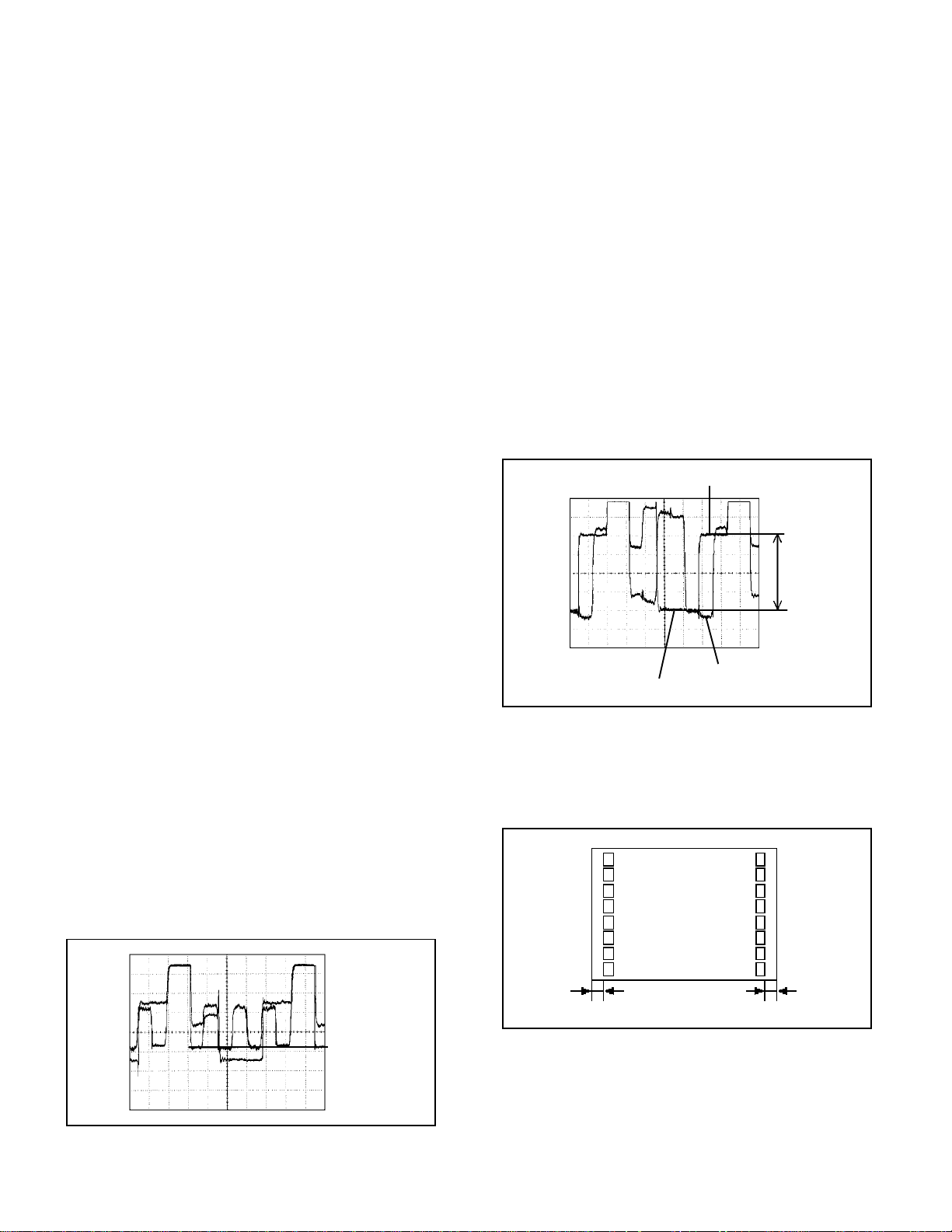

White 0%
100%
2-13: SUB TINT
1.
Receive the color bar pattern. (RF Input)
2.
Using the remote control, set the brightness, contrast,
color and tint to normal position.
3.
Connect the oscilloscope to TP801.
4.
Activate the adjustment mode display of Fig. 1-1 and
press the channel button (22) on the remote control to
select "TINT".
5.
Press the VOL. UP/DOWN button on the remote control
until the section "A" becomes a straight line.
(Refer to Fig. 2-2)
6.
Receive the color bar pattern. (Audio Video Input)
7.
Press the INPUT SELECT button on the remote control
to set to the AV mode. Then perform the above
adjustments 2~5.
"A"
Fig. 2-2
White 100%
2-15: OSD HORIZONTAL
1.2.Activate the adjustment mode display of Fig. 1-1.
Press the VOL. UP/DOWN button on the remote control
until the difference of A and B becomes minimum.
(Refer to Fig. 2-4)
00 OSD 16
A
Red Level
TV
Fig. 2-3
B
Fig. 2-4
D3-3
ELECTRICAL ADJUSTMENTS
2-16: Confirmation of Fixed Value (Step No.)
Please check if the fixed values of the each adjustment
items are set correctly referring below.
NO.
FUNCTION
04
H.VCO
14
BRIGHT MAX
15
BRIGHT MIN
16
CONT CENT
18
CONT MIN
20
COLOR MAX
21
COLOR MIN
23
SHARP
24
FM LVL
25
LVL
26
SEP 1
27
SEP 2
28
T MONO
29
T STE
RF
04
150
50
40
20
65
01
37
127
63
15
63
00
00
AV
04
150
50
40
20
65
01
37
127
63
15
63
00
00
D3-4
ELECTRICAL ADJUSTMENTS
3.PURITY AND CONVERGENCE
ADJUSTMENTS
NOTE
1.
Turn the unit on and let it warm up for at least 30
minutes before performing the following adjustments.
2.
Place the CRT surface facing east or west to reduce the
terrestrial magnetism.
3.
Turn ON the unit and demagnetize with a Degauss Coil.
3-1: STATIC CONVERGENCE (ROUGH ADJUSTMENT)
1.
Tighten the screw for the magnet. Refer to the adjusted
CRT for the position. (Refer to Fig. 3-1)
If the deflection yoke and magnet are in one body,
untighten the screw for the body.
2.
Receive the green raster pattern from the color bar
generator.
3.
Slide the deflection yoke until it touches the funnel side
of the CRT.
4.
Adjust center of screen to green, with red and blue on
the sides, using the pair of purity magnets.
5.
Switch the color bar generator from the green raster
pattern to the crosshatch pattern.
6.
Combine red and blue of the 3 color crosshatch pattern
on the center of the screen by adjusting the pair of 4
pole magnets.
7.
Combine red/blue (magenta) and green by adjusting the
pair of 6 pole magnets.
8.
Adjust the crosshatch pattern to change to white by
repeating steps 6 and 7.
3-2: PURITY
NOTE
Adjust after performing adjustments in section 3-1.
1.
Receive the green raster pattern from color bar
generator.
2.
Adjust the pair of purity magnets to center the color on
the screen.
Adjust the pair of purity magnets so the color at the
ends are equally wide.
3.
Move the deflection yoke backward (to neck side)
slowly, and stop it at the position when the whole screen
is green.
4.
Confirm red and blue colors.
5.
Adjust the slant of the deflection yoke while watching
the screen, then tighten the fixing screw.
DEFLECTION YOKE
DEFLECTION YOKE SCREW
MAGNET SCREW
3-3: STATIC CONVERGENCE
NOTE
Adjust after performing adjustments in section 3-2.
1.
Receive the crosshatch pattern from the color bar
generator.
2.
Combine red and blue of the 3 color crosshatch pattern
on the center of the screen by adjusting the pair of 4
pole magnets.
3.
Combine red/blue (magenta) and green by adjusting the
pair of 6 pole magnets.
3-4: DYNAMIC CONVERGENCE
NOTE
Adjust after performing adjustments in section 3-3.
1.2.Adjust the differences around the screen by moving the
deflection yoke upward/downward and right/left.
(Refer to Fig. 3-2-a)
Insert three wedges between the deflection yoke and
CRT funnel to fix the deflection yoke.
(Refer to Fig. 3-2-b)
R G B
R
G
B
UPWARD/DOWNWARD SLANT RIGHT/LEFT SLANT
WEDGE
WEDGE POSITION
R
G
B
Fig. 3-2-a
WEDGE
WEDGE
Fig. 3-2-b
R G B
6 POLE MAGNETS
4 POLE MAGNETS
PURITY MAGNETS
Fig. 3-1
D3-5
ELECTRICAL ADJUSTMENTS
4. ELECTRICAL ADJUSTMENT PARTS LOCATION GUIDE (WIRING CONNECTION)
CRT
L503
CP351
SPEAKER
AC IN
CD353
TP1002
TP1001
CP1003
CP352
TP4001
CP502
VR502
A/C HEAD
TU601
TP601
R520
CP4002
VR401
CP401
CRT
FB401
CP851A
CP801
CRT
R802
J801
TP801
R810
TP803
S801
CP851B
SYSCON PCB
CRT PCB
D3-6
MICON/
IN/OUT/AV
AT+5V_BACK UP
Y/C/AUDIO/
HEAD AMP
SCL
SDA
AT+12V
TU_AUDIO
TU_VIDEO
Y/C_AUDIO
Q601
BUFFER
CHROMA/IF IC
IC601 M61250FP
53
42 32
58
Q602, Q603
REG.
TV BLOCK DIAGRAM
Q606
REG.
Q604, Q605
47
49
REG.
28
54
AT+12V
UNREG+8V
V. OUTPUT IC
IC401 LA78040N-E
THERMAL
PROTECTION
AMP
PUMP
UP
VCC
1
3
2
Q607
H-CONTROL
7
5
Q405
H-DRIVE
Q406
H. OUTPUT
H_CTL
MICON/
IN/OUT/AV
DY
TU601
1
4
5
11
SAW FILTER
CF601
1
59
RF AGC OUT
63
VIF IN (1)
64
VIF IN (2)
34
2
AFT OUT
EXT AUDIO IN
VREG VCC
VIF VIDEO OUT
8.7V REG OUT
AT 5.7V REG OUT
P.CON 5.7V REG
POWER ON CONT
V RAMP FEED BACK
AUDIO OUT
FM DIRECT OUT
FAST BLK
R OUT
G OUT
B OUT
V OUT
V PLUSE OUT
SDA
SCL
26
14
15
51
27
24
16
20
FB401
COL
+B
E180
ABL
AFC
HEA
E180V
3
J801
F
S
F
8
3
7
9
V801
CRT
1
2 HV
6
7
9
10
5
6
Q804
BLUE AMP
Q806
RED AMP
Q805
GREEN
AMP
Q609, Q611
ACL_CANCEL
Q612
CUT OFF SW
J351
HEAD
JACK
CP352
SP+
SP–
POWER_FAIL 2
VCR_POWER-H
TV_POWER-H
TV_A_MUTE
VD
PROTECT
VD
HD
OSD_BLK
OSD_B
OSD_R
OSD_G
AFT_M
SP351
SPEAKER
MICON/
IN/OUT/AV
Y/C/AUDIO/
HEAD AMP
MICON/
IN/OUT/AV
MICON/
IN/OUT/AV
L503
DEGAUSS COIL
AC IN
X-RAY
X-RAY_TEST
2
2
1
1
F501
Q507
FEED BACK
SW.
VR502
+B ADJ
Q404
Q403
TH501
SW.
SW.
D518, D520,
D521, D530
RECTIFIER
FEED BACK
IC502
TLP621(GR)
Q511
SWITCHING
Q510
SWITCHING
T501
8
5
11
13
14
16
21
B IN
23
R IN
22
G IN
X' TAL
INV FBP OUT
FBP IN
34
19
10
X602
3.579545MHz
AT+12V
UNREG+8V
3
IC501
KIA78R05API
5V REG IC
H OUT
11
Q508
PROTECT SW
Q505
POWER_FAIL
P. CON+5V
Q503
PROTECT
DRIVE
SOUND AMP IC
IC351 AN7511
2
5
1
6
8
4
E-1 E-2
Y/C/AUDIO/HEAD AMP IC
IC4001
LA71206M-MPB
X4001
3.579545MHz
50 49
Y/C/AUDIO/HEAD AMP BLOCK DIAGRAM
Q4012
BUFFER
41
34
37
Q4010
BUFFER
VD
TV
FE HEAD
CYL
CP4001
1
SP-CH2 (L)
2
SP_COM
3
SP-CH1 (R)
4
CP4003
1
AE_HEAD (-)
GND2
NC
NC
67
66
65
72
73
74
9
7
8
6
P
R
P
P
R
P
REC AMP
AUTO BIAS
VX01
L
H
PLL
3.58M
REC
APC
REC
APC
TIMMING
DRIVER
BPF2
H
L
VREF
EQ
AMP
C-LPF
PB.EE
Main
CONV
ACC
DET
LINE
AMP
MUTE
B-UP
AMP
3.58M
BPF1
RP
AGC
NYR/COMB
LPF
CLAMP
CLAMP AUTO-BIAS
Y/C_CLK
Y/C_DATA
Y/C_CS
H. SW
VCR_A_MUTE
ENV. DET
V.REC_ST-H
DUMMY_V. SYNC
SD_VIDEO
SD_SYNC
MICON/
IN/OUT/AV
MICON/
IN/OUT/AV
C-ROT
AUDIO
53
54
55
36
39
57
58
59
24
26
25
Q4009
BUFFER
Q4007
SYNC IN
CCD
VCA
VIDEO
AGC
QV-QH
1
ALC
R
P
2
3
12
OUT
SYNC
SEP
3
SERAIL
DECODER
RF-SW IN
MUTE HA SW
ENV DET
60B
SYNC
SEP
HEAD
AUDIO
CONTROL
CP4002
6
AUDIO REC
5
AUDIO PB
4
CTL+
3
CTL-
2
AE HEAD(+)
AE HEAD(-)
1
COIL, BIAS OSC
T4001
5
6
4
Q4001, Q4002
AUDIO PB
SW.
11
3
Q4005
2
3
1
BIAS CTL
Q4006
BIAS OSC
Q4003
SW
5
4
P. CON + 5V
80
10
2
76
32
30
NC
28
TU_VIDEO
TU_AUDIO
Y/C/AUDIO
FRONT_VIDEO
FRONT_AUDIO
CTL+
CTL-
TV
MICON/
IN/OUT/AV
E-3 E-4
TV
CAPSTAN
DD UNIT
X-RAY_TEST
VCR_POWER_H
CP1001
1
CAP_FG
4
CAP/M F/R
5
I LIMIT
9
CAP_CTL
10
LDM_CTL
11
CTL_FG/PG
12
CYL_CTL
TV
AT+5V
AT+5V
P. CON+5V
X_RAY
H_CTL
PROTECT
Q1014
X-RAY
SW1001
14
2
1
2
1
2
Q1013
EOT SENSOR
3
4
3
3
4
MS_SEN A
Q1009
MS_SEN B
Q1003
REEL SENS.
Q1005
MICON/IN/OUT/AV BLOCK DIAGRAM
TIMER SYSCON MICON IC
IC1001 OEC7107A
TAB SW
50
1
MSSEN-A
MSSEN-B
2
REEL-T
80
41
X-RAY_TEST
27
VCR-POWER
87
CAP- FG
11
CAP-FWD
CAP-LIMIT
12
76
CAP-PWM
20
LDM CTL
90
DRUM FG/PG
DRUM-PWM
77
X_RAY
21
24 H CONTROL
25
PROTECT
3
EOT
RESET-L
POWER_FAIL_L
X-OUT(12MHz)
X-IN(12MHz)
XC-OUT(32KHz)
XC-IN(32MHz)
DUMMY-V.SYNC
CTL+
CTL-
V REC START H
CVIN
VIDEO-H. SW
SCLK
CS
VIDEO ENV
VCR_A_MUTE
IIC-DATA1
IIC-CLK1
CTL AMP-OUT
FF/REW-L
AFT(MONI)
OSD OUT1
V-SYNC
H/C-SYNC
34
85
39
38
36
35
13
95
94
66
56
18
68SDATA
70
1 OUT
X1001
12MHz
X1002
32.768KHz
73
6
81
72
71
97
Q1004
FF/REW_SW
84
R
64
G
63
62
B
7
60
59
58
30TV_POWER
82TV_A_MUTE
SYSTEM RESET IC
IC1003
PST3231NR
SDA
5
SCL
6
EEP ROM IC
IC1099
AT24C04N-10SI-2.7
J4202
J4201
POWER FAIL2
2
4
FRONT_AUDIO
FRONT_VIDEO
DUMMY_V.SYNC
CTL+
CTLV. REC_ST_H
SD_VIDEO
SD_SYNC
H. SW
Y/C_DATA
Y/C_CLK
Y/C_CS
ENV_DET
VCR_A_MUTE
SDA
SCL
OSD_R
OSD_G
OSD_B
AFT_M
OSD_BLK
VD
HD
TV
Y/C/AUDIO/
HEAD AMP
TV
TV_POWER_H
TV_A_MUTE
E-5
Q1011
BOT SENSOR
KEY 1
4
BOT
KEY 2
10
9
POWER
ON/OFF
REC/OTR STOP/EJECT PLAY
FF/CUE REW/REV
OS2201
CH UP VOL. UP VOL. DOWN
AT+5V
REMOCON-IN
T-REC LED
14
29
T-REC/PLAY
LED SW
Q4202
REC
D1013
321
T-REC
D1004
CH DOWN
Q1007
REC LED
28
REC LED
SW(AI)
E-6
CD853
C4211
SW2209
SW2210
SW2202
OS2201
J351
J4202
J4201
SW2201
C382
SW2205 SW2206
SW2203
SW2204
SW2208
SW2207
C380
C381
W242
D1013
D1004
SW1001
W260
R380
C1021
C1003_1
D2201
R381
D1002
R1018_1
R1056
W251
R1051
Q602
D608
C1053
D801
W221
W219
W218
W250
L801
C643
W220
W245
W244
W241
W256
W252
W249
Q804
W216
R816_1
W213
W233
W230
X1001
W240
W238
W263
W261
Q805
W235
W239
Q1003
C1058
W801
W227
W225
W237
C805
X1002
W262
W223
R820
TP803
Q603
W231
W222
W267
Q806
D802
W217
W128
W234
L1001
W254
R810
W125
Q1005
W232
W228
W243
W257
CP851B
Q1009
W226
W255
D803
R1050
W236
W264
W247
W111
W168
W187
W246
W119
W113
W169
W266
W259
TP801
TP802
C801_1
S801
W805
R1010
W108
W164
W159
R808
W102
CC002
W157
W146
W178
W170
R807
W156
W183
R802
W149
W182
W211
C620
W145
W190
W105
W133
W148
W174
W210
W196
R805
W132
W194
W127
W114
W143
C1020
W181
W104
W129
W850
D1001
W836
W142
W180
W825
J
801
W124
W112
W158
W141
C1015
W914
W208
CP1003
_
1
W163
W140
W126
D609
W166
W139
C1016
W179
W207
W195
W270
W844
W162
R1016
W138
W192
W177
W209
W199
Q1011
W841
W122
D610
W161
W137
W193
C1018
D1014
W172
W130
R1028
W212
W197
PRINTED CIRCUIT BOARDS
SYSCON/CRT (INSERTED PARTS)
SOLDER SIDE
D603
C1007
W071
W272
W852
R643_1
W073
W097
W095
W892
W061
R613_1
W068
C4046
C4053
L4005
W094
W092
W090
W050
L609_1
R639_1
R627_1
W067
CP4003
TP4001
W049
C
W063
W874
W072
C4034
C4049
C4052
X4001
W047
10
P
B602
C4010
C4035
W100
TP1002
W813
R1064
01
C666
X602
W070
C4031
C4051
S819X
C649
C648
W079
W098
W809
R623
C662_1
W069
D4002
C4027
C4048
W812
W814
W895
W861
C664
C659
L4003
C4030
C4058
W096
W882
C356_1
C351
W051
W842
S822X
R668
W818
IC351
CF603
C636
C652
Q606
Q4006
Q4005
R4004
W085
S819Y
C403
W056
C627
W091
D409
W828
CF601_1
CF604
W074
C4012
C4023
W078
C4065
R612
W849
W269
W076
W087
W089
C419_1
W053
W060
R644_1
C641
T4001
C4004
W086
W084
C4067
C4062
C355_1
W093
CP801
C1024
W136
L4009
W206
W131
D611
W160
W144
W885
W205
W118
W147
W189
W176
S802
W109
W165
W191
W175
W173
W171
R4048
W120
W155
W188
W202
W103
W121
W110
W167
W154
C4047
W200
Q1013
C665
W065
W064
W135
W075
W153
W082
C4042
W203
TP1001
CD852
W107
D605
W117
W152
R4028
R4029
R4032
W080
R655_1
C1032
W062
W151
W066
W888
W873
W083
W077
W099
W201
W106
W134
W115
W150
C4045
D4001
W057
C1001
R1008
W865
L607
C628_1
W915
C4002_1
W081
W101
CP352
R665_1
W827
R607
C4063
C
P
4
0
W268
Q4002
W088
W058
W054
CP851A
0
2
C4009
W014
L601
C644
W059
Q605
W022
Q4001
CP4001_1
R4007
W834
L4006
W042
C632
C625
Q604
W026
W025
W023
W041
L4001
R4006
W829
D412
R442_1
W013
W878
R616_1
D601
C624_1
W016
C4025
W038
W847
R420_1
R456
W018
W015
W024
W043
D602
S822Y
C431
W027
W879
W040
C534
W039
W045
R522
C354
C417_1
W917
W019
D515
D508
Q405
W858
C438
W030
W036
D513
W857
W872
W020
HS504
W044
T401
C418
R651
D501
W035
R460
HS402
R512
R508
S
1
R640
C517_1
R503
C511
IC501
01
A
D413
W925
W017
R402
D504
W034
W816
CP401
R554
W021
C521
C522
S102A
Q406
R553
D510_1
C519
D405
W032
W037
R490
C432
R520
CP503
C524_1
R521
F501 FH501FH502
W811
C402
W936
L401_1
W830
B503
D519
D512
C516
C423
C531_1
W833
Q503
D503
D505
D502
R536
C518
R450
C
42
W029
C523_3
C541_1
C506_1
4
C422
VR401
R408_1
W028
D517
4
R
W033
D507
B505
7
4
W928
R529
VR502
C505
D514
R500
W001
D407
CF602
R533
CP504
W817
R453
W840
C451
R532
R449
D411
Q507
T501
D402
R410
L616
D528
TH501_1
D403
D404
R505
R419
W871
C515_1
CP505
W838
D401
W007
R421
W003
IC401
L603
D533
FB401_1
C406
W006
D536
R511
B501
CP502
R501
L502
R517
W004
R528
R509
R534
C
535_
C405
HS401
TU601
C612
IC502
D535
1
R514
D530
W807
C610
C537_1
D534
R
D
C509
5
02
53
7
D521
C407
R415
W005
R531
D518
D520
R524
W009
W002
W010
Q511
C507
C508
W008
Q510
W853
C420
R423
D410
W839
C539
C529_1
CP351_1
HS501
F-1 F-2
CD501
PRINTED CIRCUIT BOARDS
SYSCON/CRT (CHIP MOUNTED PARTS)
SOLDER SIDE
R352
R353
C301
R359
Q1007
C510
R605
R527
C605C604
C536
C532
R525
C549
C602
R504R506
R510
R552_1
C554
R535
R507
R516
R530
Q505
R513
C631
R4053
R4052
C4020
R4001
C4069
R4051
C4015_1
C4021
C4016
C4019_1
R4003
R4002
Q4003
R4039
C4064
61
R4064
C4055
C4005_1
R4015
R4042
R4012
R4010
C4066
C4059
41
IC4001
1
R4011
C4006
R357
C4061_1
R4041
R4038
21
R4043
Q4012
R4055
C4028
C4074_1
R4020
R4017
R4018
C4060_1
R4035
R4060
C4032
R4021
R4019
C4029_1
R669
C654
C1042_1
R4033
R4034
R4062
R4068
C4037
C4036
R4024
R4022
C4033
R4037
R4065
R646
Q4010
C4050
R4023
C4038
C4014
C4054
C4044
C4076
R4057
R4058
R638
R4025
R4054
C4075
C4057
Q4011
R4059
C4041
Q4007
R652
R1025
Q4009
R4061
C629
R602
C675
R603
R4044
R4045
R4047
R1035
C1028
R1012
C1070
R1017
R1029
C1019
R1011
R4026
C1039_1
R1021
R1013
C4043
R1007
C1029
C1065
R1009
Q1004
C1004
C1009
C1010
R1042
Q4202
R1078
C1062_1
C1023
R1020
R1053
C1022
C656_1
R1033
R1036
C1037
C1084
R1034
C1034
R1044
R1045
R1038
C1013
C1027
81
R1048
R1022
C1060
C1061
R1031
C1035
C1031
C1038
C1071
R1063
C1025
C1056
IC1099
R1032
IC1001
1
R2201
R1084
R1086
C1043
C1082
R2207
R2206
R2204
R2202
R2208
R2203
R1046
R1047
R1070
C1026
R1040
R1005
C1040
C1047
31
C1048
C1049
C1083
C1050
C1068
R1066
C1046
51
R401
R411
R416
R414
R413
Q508
R519_1
C416
C623
W851
Q404
Q601
R443
R618
R628
C527
R620
C603_1
C640
R601
R657
R622
R615
C618
R609
C622
C626
C660
C691_1
C634_1
C650
R633
C651
33
R626
Q611
C639_1
R656
C647_1
R635
C1069
Q609
49
IC601
1
C637_1
R636
Q607
17
C646
R634
R625
C688
C668_1
C645
R631
R649
C653_1
R1001
R647
R648
C630
R667
R670
R641
R1073
R642
R660
W894
R659
R658
W843
R653
C621_1
Q612
R1054
Q1014
R617
R1087
R1055
R1052
R1019
C811
R813
R1083
R663
C667_1
W810
C810
R812
R815
R811
C809
R814
R1049
IC1003
C1017
Q403
R2205
R4203_1
C4205
F-3
F-4
ABC D E F GH
G-1
G-2
Y/C/AUDIO/HEAD AMP SCHEMATIC DIAGRAM
8
(SYSCON PCB)
8
FROM TV POWER
7
6
5
FROM/TO CYL
CP4001_1
4
TOC-C04X-B1
4
SP-CH1 (R)
3
SP_COM
2
SP-CH2 (L)
1
3
FROM/TO HEAD AUDIO CONTROL
CP4002
IMSA-9604S-06Z14
AUDIO_REC
6
AUDIO_PB
5
4
3
AE_HEAD(+)
2
AE_HEAD(-)
1
2
TO FULL ERASE HEAD
CP4003
B2013H02-2P
2
AE_HEAD(-)
1
COMP
ENV_DET
H.AMP_SW1
100K
R4044
18K
P.CON+5V GND
GND
W858
NC
2.7K
R4051
W812
R4054
C4069
0.1 F
0.5
2.2
OUT
COMP
ENV
DET
KILL
616263646566676869
DET
0
HA
GND
4.0
CHROMA
DET
1.8
ACC
DET
P
0.7
NC
0.7
NC
5.0
R
P
HA VCC
1.7
1.8
820
70717273747576777879
0
HA
PRE GND
2.0
P
2.0
2.0
2.2
4.9
2.3
NC
R
P
0
A-GND
1
2
3
A-VCC
0
2.0
Vref
2.3V
1 10111213141516
2.2 2.2 2.3 2.2 2.2 2.5 2.3 2.2 2.3 2.4 5.0 1.0 1.0 1.7 1.4 0
0.1 F
C4028
C4074_1
C4025
R4055
0.01 B
336.3V KA
C4027
2206.3V YK
476.3V KA
GND
CTL+
CTL-
HOT
GND
C4016
0.068 B
C4019_1
C4015_1
0.047 B
0.047 B
P.CON+5V
TU_AUDIO
P.CON+5V DUMMY_V.SYNC
FRONT_AUDIO P.CON+5V
L4001
22uH 0305
R4004
15 1/4W
C4055
C4023
R4052
8.2K
226.3V KA
R4064
6.8K
D4002
R4012
C4020
0.1 F
C4021
0.1 F
4716V KA
0.1 F
C4009
R4007
39K 1/4W
R4006
C4012
47K 1/4W
R4053
6.8K
226.3V KA
MTZJ13B
Y/C/AUDIO/HEAD AMP IC
W879
IC4001
LA71206M-MPB
P.CON+5V SD_SYNC
5.2
SW
0
Q4003
DTA124EKA
5.3
R4001
560
0
R4002
0.7
0
0
0.7
0
10K
R4003
10K
5
C4002_1
0.022100V MMTS
6
5
COIL,BIAS OSC
T4001
1626009
1
2
34
2206.3V KA
C4004
C4005_1
C4006
BIAS CTL
Q4005
L4003
KTA1266
100uH 0305
0
3.3K
0.01 B
R4010
BIAS OSC
Q4006
0
KTC3203_Y
0
2.2
R4015
0.015 B
5.20
5.2
R4011
22K
C4010
CTL+
CTL-
AUDIO PB SW
Q4001
KTC3198
AUDIO PB SW
Q4002
KTC3198
V.REC_ST_H
VCR_A_MUTE
12K
R4045
AUDIO
C-ROT
MUTE
RF-SW
HA SW
H
L
H
L
ALC
ALC
DET
SP,LP
3
1K
6.8K
R4017
5.6K
R4018
R4019
C4029_1
0.015 B
IN
4
330K
H.SW
Y/C_CS
Y/C_CLK
Y/C_DATA
R4047
P.CON+5V
BUFFER
Q4012
2SC2412K
12K
L4006
47uH 0305
1.8K
2
R4041
5.0
4.0
3.4
P.CON+5V
L4005
47uH 0305
476.3V KA
C4063
150V KA
C4062
R4039
SERAIL
DECODER
C-LPF
PB,EE
7
C4032
3.350V KA
R4057
4.7M
RP
2.7K
4.9
0
R4058
VREF
0.0018 B
R4021
C4033
820PB
5.6K
C-VCC
Main
CONV
4.21M
BPF
Sub
CONV
LPF
8809
R4022
27K
BUFFER
Q4011
2SC2412K
0.6
C4075
3.58M
BPF2
B-UP
AMP
DETAIL
ENH
NL
EMPHA
LINE
AMP
REC
MUTE
AMP
470
C4034
4
R4059
10M
100P CH
R4061
C-GND
+
R
P
PB,EE
EQ
REC:LP<EP
AMP
PB:EP
C4031
R4065
1016V KA
C4030
120
R4020
C4064
8.2K
X4001
BGA
ACC
AMP
ACC
P
AUTO
BIAS
4.725V KA
VX01
REC
APC
R
DET
R
R-EQ
TEST
R
10M
C4065
0.022 B
100CT3R502
3.579545MHz
PB
APC
BEFORE
P
AFTER
R
P
RPPP
P
CLAMP
NL
EMPHA
FM
MOD
NORMAL
REC
FM-EQ
FM
AGC
PHASE
EQ
fo-ADJ
68K
R4023
C4076
R4042
320FH
VCO
P
PHASE
EQ
Q-ADJ
R4024
FM EQ
R
REC
AFC
R
Y-LPF
DOUBBLE
PB
VHS
0.1 F
150V KA
C4066
820
SLD
BGA
BGA
PB-C
LIM
S-EQ
V.ENV
TP4001
6.8K
R4037
R4043
B
YNR/COMB
P
R
SOPB
3
NC
390
0.022
AGC
C4035
C4067
NC
B
AMP
3.58M
BPF1
FM
DEM
P
FM
FIL
3.3K
CNC
PB
B.D
P
N.L.
DEEM
NC1
ALWAYS
R
Y-GND
150V KA
150V KA
5V
R
PB-C
MAIN
DE-EM
C4058
476.3V KA
C4059
0.1 F
R4038
680K
VDD 4Fsc
TIMMING OUT
DRIVER
CCD
VIDEO
AGC
1/2
FBC
R
Y/C
P
MIX
R
P
QV/QH
SUB
LPF
V.SYNC
R
P
MAIN
EMPHA
FIL
17 18 192 20
0 1.5
NC
C4036
W882
C4014
0.047 B
PLL
AUTO-BIAS
CLAMP
CLAMP
SYNC
SEP
SEP
4.7K
S
DET
0.1 2.2
390P B
C4037
2.203.33.34.02.61.92.8
VCA
1
2
3
6DB
C4060_1
414243444546474849550515253545556575859660
CLOCK
VCA
VCP
TC1
AGC
Y-VCC
B
R4025
0.1 F
C4038
0.85.05.02.35.04.84.84.8000
VSS
OUT
VSS
IN
REG
4V
BAL
TC2
0.01 B
C4061_1
0.01 B
40
1.7
30 31 32 33 34 35 36 37 38 39
21 22 23 24 25 26 27 28 29
1.5K
180P CH
0
0
3.0
2.8
3.1
3.1
2.6
2.0
4.0
2.0
NC
2.3
0.22 B
2.3
R4060 1.5M
1.6
2.9
3.6
0
4.9
2.8
1.8
C4044
C4048
1016V KA
C4049
C4050
C4051
0.1 F
W818
1016V KA
336.3V KA
C4045
BUFFER
Q4010
2SA1037AK
1.7
0 2.3
2.2M
R4068
2206.3V KA
W873
C4052
C4053
C4054
0.1 F
C4046
4.750V KA
4.750V KA
R4032
100 1/4W
3.350V KA
2.2K
R4033
0
5.0
R4029
47K 1/4W
R4034
82K
R4062
3.3M
C4047
C4057
1016V KA
1F
R4048
68 1/4W
R1025
100
5.0
BUFFER
Q4009
2SA1037AK
0.7
SYNC IN
Q4007
2SC2412K
R4035
100K
D4001 MTZJ13B
0.1 F
C4042
C4041
W885
W888
R4028
47K 1/4W
R4026
2.8
0
39K
6.3V
KA
100
L4009
100uH 0305
1
C4043
0.1 F
TU_VIDEO
FRONT_VIDEO
P.CON+5V
Y/C_VIDEO
SD_VIDEO
PLAYBACK LUMINANCE SIGNAL
PLAYBACK COLOR SIGNAL
RECORD LUMINANCE SIGNAL
RECORD COLOR SIGNAL
PLAYBACK VIDEO SIGNAL
TUNER VIDEO SIGNAL
AUDIO SIGNAL(PB)
AUDIO SIGNAL(REC)
DEFLECTION SIGNAL
FROM AV
FRONT_VIDEO
FRONT_AUDIO
TO IN/OUT
Y/C_AUDIO
Y/C_VIDEO
FROM/TO MICON
Y/C_CLK
Y/C_DATA
Y/C_CS
V.REC_ST_H
VCR_A_MUTE
DUMMY_V.SYNC
CTL-
CTL+
H.AMP_SW1
COMP
ENV_DET
H.SW
SD_VIDEO
SD_SYNC
FROM/TO CHROMA/IF
TU_VIDEO
TU_AUDIO
SD_VIDEO
Y/C_AUDIO
VD
PCB010
VMB281
7
6
5
4
3
2
1
GND
CAUTION: DIGITAL TRANSISTOR
P.CON+5V
VD
NOTE:THE DC VOLTAGE EACH PART WAS
MEASURED WITH THE DIGITAL TESTER
DURING PLAYBACK.
Y/C_AUDIO
NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME
OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE
1
ABC D E F GH
8
G-3
G-4
7
CP1001
TMC-J12P-B2
1
2
3
4
5
6
6
7
8
9
10
11
12
5
4
3
2
1
FROM TV POWER
POWER_FAIL2
FROM/TO DECK
(CP101)
CAP_FG
CAP_VCO
VCC
CAP/M/F/R
I_LIMIT
GND[M]
GND
LD/CY_VCO
CAP_CTL
LDM_CTL
CYL_FG/PG
CYL_CTL
FROM/TO DECK
CD852
CH01408A
BOT SENSOR
Q1011
ST-304L
EOT SENSOR
Q1013
ST-304L
CAUTION
ABC D E F GH
MICON SCHEMATIC DIAGRAM
P.CON+5V
GND
MOTOR+12V
(MOTER GND)
GND
22016V YK
C1032
W892
W805
0
5.1
5.1
0
:SINCE THESE PARTS MARKED BY
CRITICAL FOR SAFETY,USE ONES
DESCRIBED IN PARTS LIST ONLY
C1001
R1010
3.3K 1/4W
EOT
R1011
D1001
CENTER LED
LTE-3271T-012A-O
4716V YK
330K
R1016
W914
BOT
R1073
270 1/4W
330K
C1024
4706.3V YK
C1007
W836
ARE
4725V YK
CAP_FG
CAP_M/F/R
R1018_1
47K 1/4W
TAB SW
CAP_CTL
LDM_CTL
CYL_DRIVE
0.01 B
SW1001
LSA-1144EAU
(SYSCON PCB)
C1056 0.1 F
SDA
SCL
0.0068 B
R1044
3.3K
R1045
VOLUME
CAP-PWM
83 (EXT MUTE)
HI-FI-ENV
VIDEO-ENV
ENV_DET
REEL SENS
Q1005
RPI-303
Y/C_CS
3.3K
JUST CLOCK
81 VCR_A_MUTE
82 TV_A_MUTE
98 AMP-VCC
99 ANALOG VCC
100 DEW
AFT(MONI)
AFT_M
Y/C_CLK
Y/C_DATA
C1061 100P CH
C1060 100P CH
220
R1042
220
R1038
4.9 0 0 0
CS
IIC-DATA1
AFT(REC)
KEY 1
9
5.2 5.2 2.22.22.41.41.4 5.2 2.3 2.6 2.6 5.2 5.2
KEY_A
REEL_T
R1046
R1019
0 1.2
0 0.9
0 4.7 5.24.24.9
SCLK
IIC-CLK1
KEY 2
KEY_B
C1039_1
4.7K
47K
1
SDATA
CENTER LED
CAP-FWD
DUMMY-V.SYNC
CAP-LIMIT
11 12 13 14 15 16 17 18 192 20 21 22 23 24 25 26 27 28 293 30
000
DUMMY_V.SYNC
REMOCON_IN
0.1 F
C1058
4.7K
R1047
390
R1052
2
34
REEL_T
0.1 F
C1065
C1069
D1014
VCR_A_MUTE TAB_SW
TV_A_MUTE
R1001
IIC_OFF
CAP_FG
C1042_1
1F
TAB_SW VCR_POWER_H
C1043
ATTENTION
:LES PIECES REPAREES PAR UN ETANT
3.3K
R1008
C1013
1K 1/4W
0.0039 B
R1064
13
1K 1/4W
CTL-
CTL+
FF/REW_SW
DTC124EKA
H.SW
H.AMP_SW1
CAP_M/F/R
DANGEREUSES AN POINT DE VUE SECURITE
N’UTILISER QUE CELLS DECRITES
DANS LA NOMENCLATURE DES PIECES
Q1004
5.1
C1025
0.0022 B
R1012
10K
C1022
0
0.1 F
0
RPI-352C40N
W894
MS_SEN B
Q1003
C1015 4710V KA
C1016 2216V KA
C1084
0.0047 B
C1018 4.750V KA
R1009 560
C1019
0.001 CH
C1027
0.0039 B
5.2 5.2
0.8 1.4 0.5
CAP_CTL
0.0033 B
R1028
22K 1/4W
C1070
0.1 B
MTZJ6.8B
11
R1048
4.7K
R1013 560
C1020
1016V KA
10
TIMER SYSCON MICON IC
IC1001
OEC7107A
R1070
100
23
1
4
33K
R1083
CYL_DRIVE
R1029
4.7K
W810
818283848586878889
0
5.1
NC
5.1
FF/REW-L
5.2
POWER_FAIL_L
5.9
IIC OFF
5.2
CAP-FG
2.5
AMP-VSS
0
NC
2.0
DRUM FG/PG
90919293949596979899
0.6
AMP-VREFOUT
2.5
AMP-VREFIN
2.5
C
0.2
CTL-
0
CTL+
2.5
AMP C
2.6
CTL AMP-OUT
2.5
5.1
5.2
100
0
MS_SEN-B
MS_SEN A
Q1009
RPI-352C40N
0.8 5.2
23
1
R1050
100 1/4W
NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME
OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE
C1028
0.1 F
C1029
22K
R1020
R1017 39K
R1053 220
NC NC NC NC
0.90.9 00
REEL-T
REEL-S
CAP FULL
DRUM-PWM
BOT
EOT
MSSEN-A
MSSEN-B
4
110
MS_SEN-A
MS_SEN-B
4
1.4
R1087
5
00 0 00 0 0 00
EOT
BOT
MS_SEN-A
33K
OSD_R
V.REC_ST_H
22
R1007
R1021
4.7K
R1063
00
0
NC
REMOCON-IN
R
NC
V REC START H
HEAD.AMP.SW
ENV-CMP-IN
COLOR ROTARY
NC NC
C1082
0.01 F
COMP
1006.3V YK
C1017
OSD_G
OSD_B
C1071
100P CH
OSD_BLK
10
R1035
10
R1036 4.7K
C1004 100P CH
C1037 390P CH
C1023 220P CH
C1010 220P CH
C1009 220P CH
NC
4.8
G
B
NC
OSD OUT1
50 TAB SW
49 OSD-VSS
48 (AV2)
33 PLAY LED
32 RENT_H
31 ON-TIMER LED
VIDEO-H.SW
HI-FI-H.SW
LDM CTL
X-RAY
4.5 0 5.2
NC
9
H.SW
TP1002
NC
R1055 4.7K
W825
LDM_CTL
4.5
X_RAY
0.03
X_RAY
0
Q1014
DTC124EKA
NC
0
NC
IC1003
PST3231NR
OUT
SYSTEM RESET IC
123
5.2 5.1
0.1 F
NOTE:THE DC VOLTAGE EACH PART WAS
MEASURED WITH THE DIGITAL TESTER
DURING PLAYBACK.
V-SYNC
H/C-SYNC
NC
DEGAUSS_H
R1066
4.7K
R1022 4.7K
NC
0
45
NC
GNDIN
0
C1034
0.1 F
C1035
220P CH
C1031
0.001 B
NUA
PROTECT
H_CONTROL
5.2
5.0
H_CTL
PROTECT
RESET
R1049
4.7K
D1002
1SS133
CVIN
VHOLD
EXT-MUTE
NC
R1054
1K
R1031
HLF
X-OUT(12MHz)
XC_OUT(32KHz)
XC_IN(32KHz)
VCR-POWER
C1083
0.0022 B
1K
REC_LED
R1051
18K 1/4W
C1003_1
3325V YK
C1021
SERVICE
R1032 10K
TP1001
NC
7
5.22.11.62.300002.62.52.51.8
515253545556575859660616263646566676869770717273747576777879880
50
5.2
SERVICE
OSD-VCC
OSC-OUT2
X-RAY_TEST
X-IN(12MHz)
REC LED
SD-IN(MONI)
NUB
OSC-IN2
CLKSEL
NC
VSS
VCC
RESET-L
T-REC LED
C1068
T-REC_LED
4706.3V YK
40 41 42 43 44 45 46 47 48 49
4.8
31 32 33 34 35 36 37 38 39
TV-POWER
0.0022 B
0
NC
0
NC(AV1)
0
0
2.6
2.5
5.2
NC
0
0
0
2.6
2.1
5.2
1.3
1.5
5.2
NC
NC
0
NC
0
CAUTION: DIGITAL TRANSISTOR
SD_SYNC
6
R1033
C1038
330P CH
L1001
2.2uH
R1040
33K
8
100CT01207
X1002
100DA32R01
32.768KHz
2.5 2.6 0 5.2
5678
SDA
VSS
0
C1046 20P CH
R1005
2.7K
C1047 18P CH
X1001
12MHz
SCL
TEST
A2
A1
000
1K
X-RAY_TEST
C1040 18P CH
C1048 18P
C1049 22P CH
C1050 20P CH
RESET
VCC
IC1099
EEP ROM IC
A0
1234
C1062_1
1F
R1078
390K
1M
R1034
CH
C1026
0.01 F
AT24C04N-10SI-2.7
R.SIGNAL
G.SIGNAL
B.SIGNAL
CYLINDER APC SIGNAL
CAPSTAN AFC SIGNAL
PLAYBACK VIDEO SIGNAL
DEFLECTION SIGNAL
TV_POWER_H
FROM/TO Y/C/AUDIO/HEAD AMP
Y/C_CLK
Y/C_DATA
Y/C_CS
H.SW
SD_VIDEO
ENV_DET
VCR_A_MUTE
CTL+
CTL-
DUMMY_V.SYNC
V.REC_ST_H
H.AMP_SW1
COMP
SD_SYNC
FROM/TO CHROMA/IF
H_CTL
HD
VD
AFT_M
SCL
SDA
OSD_R
OSD_G
OSD_B
OSD_BLK
AT+5V_BACKUP
AT+5V
VCR_POWER_H
PROTECT
FROM/TO IN/OUT
IIC_OFF
REC_LED
T-REC_LED
KEY_B
SCL
SDA
KEY_A
REMOCON_IN
FROM AV
AT+5V
KEY_B
KEY_A
REMOCON_IN
GND
TO SOUND AMP
TV_POWER_H
TV_A_MUTE
FROM/TO DEFLECTION
X_RAY
X-RAY_TEST
PCB010
VMB281
8
7
6
5
4
3
2
1
ABC D E F GH
ABC D E F GH
G-5
G-6
IN/OUT SCHEMATIC DIAGRAM
8
(SYSCON PCB)
8
7
6
5
4
3
CP351_1
TEST POINT
00_8283_0611_00
FROM/TO MICON
REMOCON_IN
T-REC_LED
6
B.OUT
IIC_OFF
SDA
SCL
REC_LED
KEY_B
KEY_A
IIC OFF
INT-MONI
SDA
7
123
AT+5V
Y/C_AUDIO
GND
4
Y/C_VIDEO
12345
SCL
GND
CP1003
TEST POINT
173979-4
6
5
FROM CHROMA/IF
AT+5V
INT-MONI
0
3.6
REC LED SW(AI)
DTC114EKA
0
Q1007
T-REC/PLAY LED SW
Q4202
DTC114EKA
4.8
B.OUT
3.5
0
KEY_A
KEY_B
REMOCON_IN
AT+5V
GND
GND
FROM AV
FROM/TO TV POWER
4
3
FROM Y/C/AUDIO/HEAD AMP
2
1
270
Y/C_AUDIO
Y/C_VIDEO
NOTE:THE DC VOLTAGE EACH PART WAS
MEASURED WITH THE DIGITAL TESTER
DURING PLAYBACK.
NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME
OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE
T-REC
R1086
D1004
SLR-342VCT32
CAUTION: DIGITAL TRANSISTOR
REC
D1013
R1084
270
SLR-342VCT32
B.SIGNAL
AUDIO SIGNAL(REC)
AUDIO SIGNAL(PB)
RECORD LUMINANCE SIGNAL
RECORD COLOR SIGNAL
PLAYBACK LUMINANCE SIGNAL
PCB010
VMB281
2
1
PLAYBACK COLOR SIGNAL
ABC D E F GH
ABC D E F GH
G-7
G-8
AV SCHEMATIC DIAGRAM
8
TO Y/C/AUDIO/HEAD AMP
(SYSCON PCB)
8
FRONT_AUDIO
FRONT_VIDEO
7
TO IN/OUT
GND
REMOCON_IN
KEY_A
KEY_B
AT+5V
GND
6
FROM/TO SOND AMP
SOUND+
SP_OUT
SOUND_GND
GND
5
TO MICON
REMOCON_IN
KEY_A
KEY_B
AT+5V
GND
4
FRONT_AUDIO
FRONT_VIDEO
REMOCON_IN
KEY_A
KEY_B
AT+5V
SOUND+
SP_OUT
SOUND_GND
REMOCON_IN
KEY_A
KEY_B
AT+5V
FRONT_AUDIO
FRONT_VIDEO
SOUND_GND
SOUND+
R381
68 1/2W
SP_OUT
C4205
C4211
R380
68 1/2W
7
FRONT AUDIO(L)
J4202
AV1-09D-4
1
2
H
E
FRONT VIDEO
J4201
470P CH
R4203_1
0.1 F
KA
4.750V
C380
C381
AV1-09D-3
1
2
H
PIC-37243SR
0
4.8
4.8
NC
NC
OS2201
3
2
1
GND
B+
Vout
E
1
5
4
3
2
6
7
75
C382
10016V YK
KA
4.750V
TO CHASSIS
CD853
CH012101
HEADPHONE JACK
J351
MSJ-2000_AG
6
5
4
KEY_B
KEY_A
SW2201
SW2207
R2201
EVQ21505R
R2206
820
EVQ21505R
820
REC/OTR
CH UP
3
POWER ON/OFF
CH DOWN
SW2202
SW2208
R2202
EVQ21505R
R2207
EVQ21505R
1K
SW2203
STOP/EJECT
1K
VOL UP
SW2209
2
1
CAUTION
:SINCE THESE PARTS MARKED BY
CRITICAL FOR SAFETY,USE ONES
DESCRIBED IN PARTS LIST ONLY
ARE
ATTENTION
:LES PIECES REPAREES PAR UN ETANT
DANGEREUSES AN POINT DE VUE SECURITE
N’UTILISER QUE CELLS DECRITES
DANS LA NOMENCLATURE DES PIECES
NOTE:THE DC VOLTAGE EACH PART WAS
MEASURED WITH THE DIGITAL TESTER
DURING PLAYBACK.
AT+5V
REMOCON_IN
R2203
1.5K
EVQ21505R
R2208
1.5K
EVQ21505R
R1056
100 1/4W
R2204
2.7K
PLAY
SW2204
EVQ21505R
SW2210
VOL DOWN
EVQ21505R
NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME
OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE
C1053
6.3V
YK
220
FF/CUE
D2201
SW2205
MTZJ6.8B
R2205
5.6K
EVQ21505R
SW2206
REW/REV
EVQ21505R
TUNER VIDEO SIGNAL
AUDIO SIGNAL(REC)
PCB010
VMB281
3
2
1
ABC D E F GH
ABC D E F GH
G-9
G-10
8
7
6
5
4
3
2
FROM/TO MICON
PROTECT
AT+5V
AT+5V_BACKUP
VD
OSD_R
OSD_G
OSD_B
OSD_BLK
SDA
SCL
AFT_M
VCR_POWER_H
HD
1213
1.8
1
AGC
0
2
2.5
3
2.5
SCL
4
2.5
SDA
5
0
6
4.9
+5V
7
0
8
29.3
+30V
9
0
10
IF
11
1415
AT+30V
UNREG+8V
AT+12V
P.CON+5V_SW
AT+5V
H_GND
H_CTL
0
GND
TU601 TECC1040PG38W
FROM/TO TV POWER
FROM MICON
CHROMA/IF SCHEMATIC DIAGRAM
Q606
REG.
KTC3203_Y
4.8
REG.
Q602
W827
4716V KA
1006.3V KA
C659
TV/Y IN
VIDEO CHROMA Vcc
DEF GND
DEF GND
C668_1
C647_1
0.01 B
KTC3203_Y
C651
C660
0.1 F
EXT C in
VIDEO CHROMA Vcc
34 X’TAL
33 ACL/ABCL
32 AT5.7V REG OUT
17 H VCO F/B
16 B OUT
FBP IN
H OUT
1F
C666
22K
R626
R656
D603 1SS133
R657 1K
H.PLUSE
H_OUT
47P CH
4716V KA
2.2K
C653_1 1 F
C667_1
0.01 B
D602
D601
1SS133
YK
100010V
C641
150V KA
C636
0.1 F
Hi Vcc
fsc OUT 2
47 8.7V REG OUT
48 LIMITER IN
49 P.Con5.7V REG
64 VIF IN (2)
1 V RAMP CAP
2 AFT OUT
V OUT
V RAMP FEEDBACK
5
6
R641
100uH 0305
V_FEEDBACK
V_OUT
R607
390 1/2W
C624_1
MTZJ8.2B
VREG Vcc
AFC FILTER
789
22K
1B
C645
R631
6.8K
R623
220 1/4W
W842
S822X
4716V YK
C652
1/4W
C640
100
NC
NC
NC
VIF Vcc
VIF Vcc
3
5.0
C646 0.1 F
L609_1
1.2
H_CONT
Q607
2SC2412K
0.4
8.35.0
R615
470
IC601
M61250FP
C662_1
AFT_M
11.0 8.2
8.8
REG.
Q605
KTD863_Y
8.3
5.0
100
R628
2250V YK
C644
W865
R644_1
2.3
49
2.4
NC
50515253545556575859
QIF OUT
2.3
AUDIO OUT
3.0
AUDIO BYPASS
2.0
EXT AUDIO IN
3.2
FM DIRECT OUT
9.0
VIF VCO F/B
3.0
VIF GND
2.2
VIF GND
0
VIF VIDEO OUT
0
RF AGC OUT
2.4
VIF APC FILTER
6061626364
2.9
IF AGC FILTER2
2.3
IF AGC FILTER1
2.7
VIF IN (1)
1.5
2
1 101112
C664
163V MKT
B602
W5RH3.5X5X1.0
4716V KA
C637_1
0.1 B
4.5
1016V KA
C620
1K
R617
W915
AT+5V
REG.
Q604
KTD863_Y
W895
TU_VIDEO
L603
47uH 0305
C612
4706.3V YK
4.750V KA
C610
NC
NC
NC
NC
NC
C604
C602
0.1 F
C605
100P CH
100P CH
W871
R605
100K
L616
0.39uH
AUDIO_OUT
Y/C_AUDIO VCR_POWER_H
TU_AUDIO SCL
R601
10K
L601
0.56uH
CF602
MKT47.3MC110P-TF
0.01 B
C656_1
R612
680 1/4W
C623 0.0047 B
R618 10M
R609 330
C618 47P CH
W861
R616_1
2.6
1.9
0
BUFFER
Q601
2SA1037AK
CF603
SFSRA4M50CF00-A0
C628_1
C631
1F
C632
150V KA
C603_1
0.01 B
C626
0.22 B
SAW FITER
CF601_1
TSF5229P3
GNDOUTOUTIN
1234
1K 1/4W
R620
100
100P B
C627
0.4750V KA
C621_1
R665_1
0.01 B
5.6 5.6
CF604
TPSRA4M50C00-A0
12uH
L607
390
R622
W849
10M 1/4W
C625
150V KA
C691_1
100P CH
C622
0.01 B
C634_1
0.01 B
CHROMA/IF IC
W843
(SYSCON PCB)
D608
8.0
SB140-EIC
5.5
150V KA
C649
R633
8.2K
X602
3.2
Y SW OUT
MCU RESET
VIDEO/CHROMA GND
VIDEO/CHROMA GND
CHROMA APC FILTER
STRAT UP Vcc
fsc OUT 1
POWER ON CONT
CLOCK CONT
FAST BLK
V PULSE OUT
INV FBP OUT
INTELLIGENT MONI
R OUT
NC
13 14 15 16
NC
D610 MTZJ6.8B
D609 MTZJ6.8B
R658 1.5K
W874
100
R634
R.OUT
G.OUT
C650
100DT3R531
2.0 8.83.2005.63.75.55.54.08.28.28.22.0NC2.0
333435363738394404142434445464748
SCL
SDA
R IN
G IN
B IN
G OUT
R636 100
R659 1.5K
R635
100
B.OUT
4.8 8.3
W801
C643
0.015 B
C654
3.579545MHz
3.3
3.0
NC
0
30 31 32
NC
4.7
NC
0
0.1
7.3
4.9
4.9
4.9
4.8
2.0
0
20 21 22 23 24 25 26 27 28 29
8.0
8.0
3.7
17 18 19
3.04.0 4.8 2.84.03.33.02.6 0 00.43.22.55.01.5
D611
R660 1.5K
KTC3203_Y
5.5
2250V YK
18P CH
C675 68P CH
C629
68P CH
MTZJ6.8B
REG.
Q603
100
R663
R602 100
R603 100
R667
4.7K
0.01 B
C639_1
W852
R670
8
27K
R668
R647
5.6K
R625
10K
330 1/4W
R669
470
S819X
C665
1016V KA
D605
11ES1-EIC
0.2
4.8
0
R652
C630
100P CH
W872
R653
2.2K
4.7K
W828
1.0
0
PROTECT
AT+5V
OSD_BLK
INT-MONI
PROTECT
0.4
CUT OFF SW
Q612
DTC114EKA
SDA
VD
HD
OSD_R
OSD_G
OSD_B
H_GND
W878
CUT_OFF
B.OUT
G.OUT
R.OUT
CUT_OFF_SW
HEATER
180V
FROM/TO Y/C/AUDIO/HEAD AMP
SD_VIDEO
TU_VIDEO
TU_AUDIO
Y/C_AUDIO
VD
INT-MONI
B.OUT
AT+5V
AUDIO_OUT
FROM/TO DEFLECTION
ACL
GND
V_OUT
HEATER
V_FEEDBACK
180V
H_OUT
H.PLUSE
H_GND
FROM/TO CRT
(CP851B)
CP851A
B2013H02-10P
10
9
8
7
6
5
H_GND1
4
3
NC
2
1
TO SOUND AMP
GND
CUT OFF
B.OUT
G.OUT
R.OUT
CUT OFF SW
H GND
HEATER
NC
180V
7
TO IN/OUT
6
5
4
3
2
C648
0.2250V KA
S822Y
R646
R642
R638
5.6K
8.2K
R655_1
330 1/4W
4.8
2.2K 1/4W
R627_1
4.9
R639_1
2.2K 1/4W
W844
0.2
ACL_CANCEL
Q609
DTC114EKA
R648
5.6K
R649 5.6K
C688 0.056 B
R643_1 47K 1/4W
W850
1/4W
2.2K
ACL_CANCEL
Q611
DTA114EKA
1M
R613_1
R.SIGNAL
G.SIGNAL
B.SIGNAL
AUDIO SIGNAL(PB)
1
AUDIO SIGNAL(REC)
CAUTION: DIGITAL TRANSISTOR
CAUTION: DIGITAL TRANSISTOR
DEFLECTION SIGNAL
PLAYBACK VIDEO SIGNAL
TUNER VIDEO SIGNAL
ABC D E F GH
NOTE:THE DC VOLTAGE EACH PART WAS
MEASURED WITH THE DIGITAL TESTER
DURING PLAYBACK.
NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME
OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE
CAUTION
:SINCE THESE PARTS MARKED BY
CRITICAL FOR SAFETY,USE ONES
DESCRIBED IN PARTS LIST ONLY
ARE
ATTENTION
:LES PIECES REPAREES PAR UN ETANT
DANGEREUSES AN POINT DE VUE SECURITE
N’UTILISER QUE CELLS DECRITES
DANS LA NOMENCLATURE DES PIECES
PCB010
VMB281
1
ABC D E F GH
G-11
G-12
SOUND AMP SCHEMATIC DIAGRAM
8
(SYSCON PCB)
8
7
CP352
W809
14
6
FROM/TO A/V
SOUND+
SP_OUT
SOUND_GND
GND
A2502WV2-2P
SP_OUT
SOUND_GND
CD353
CH12444A
1
2
SPEAKER
1
2
SP351
SG04D11BNA
8 OHM
5
W814
5678
08.2 3.5 3.4
7
6
5
-+
4
3
2
1
FROM MICON
TV_A_MUTE
TV_POWER_H
FROM TV POWER
SOUND+B
SOUND_GND
FROM CHROMA/IF
AUDIO_OUT
GND
NOTE:THE DC VOLTAGE EACH PART WAS
MEASURED WITH THE DIGITAL TESTER
DURING PLAYBACK.
NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME
OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE
C355_1
0.4750V KA
R359
47K
R353
68K
R357
1K
CAUTION
220016V YK
C354
R352
4.7K
:SINCE THESE PARTS MARKED BY
CRITICAL FOR SAFETY,USE ONES
DESCRIBED IN PARTS LIST ONLY
S819Y
C351
ARE
SOUND AMP IC
IC351 AN7511
1234
0
C301
0.012
2.250V KA
3.95.1 0.3
B
1050V KA
C356_1
4
3
2
PCB010
VMB281
ATTENTION
:LES PIECES REPAREES PAR UN ETANT
DANGEREUSES AN POINT DE VUE SECURITE
N’UTILISER QUE CELLS DECRITES
DANS LA NOMENCLATURE DES PIECES
AUDIO SIGNAL(REC)
1
ABC D E F GH
ABC D E F GH
G-13
G-14
POWER SCHEMATIC DIAGRAM
8
CAUTION
ATTENTION
5A 125V
:FOR CONTINUED PROTECTION AGAINST FIRE HAZARD,
REPLACE ONLY WITH THE SAME TYPE FUSE
5A 125V (F501).
:POUR UNE PROTECTION CONTINUE LES RISQUES D’INCEIE
N’UTILISER QUE DES FUSIBLE DE MEME TYPE
5A 125V (F501).
7
6
5
4
3
2
DEGAUSS COIL
8R140031
AC120V_60Hz
CD501
0R414903
BLADE
WIDE
L503
WHITE
BLACK
21
CP502
A1561WV2-2P
1
2
ZPB45BL3R0A
S101A
S102A
+B ADJ
R529
TH501_1
VR502
+-1%
1/4W
2.7K
003P-2100
CP505
FH502
EYF-52BCY
330
POWER_FAIL2
EMEGENCY
CP504
003P-2100
5A 125V
F501
51MS050L
51MS050LCC
EYF-52BCY
R530
D501
MTZJ10B
POWER_FAIL
10K
R516
2SA1037AK
POWER_FAIL
FH501
1K
R513
10K
9.8
Q505
R500
0
2.7M 1/2W
8.6
R507
+-10%
C506_1
0
0
2.1
47K
COIL,LINE FILTER
0.22275V ECQUL
PROTECT SW
Q508
AT+5V
W838
L502
SS24V-10100
34
12
DTC114EKA
R553
R554
R552_1
10K
FEED BACK
SWITCHING
KTC3198
39K 1/2W
22K 1/4W
0.01 B
0.0022 B
Q507
R509
3.3 5W
C549
C554
6.0
R501
1.5M 1/2W
D528
15.7
5.4
R532
4.7K 1/4W
R505
100 1/4W
MTZJ5.6B
D518
1N4005-EIC
D520
1N4005-EIC
FEED BACK
TLP621(GR)
R533
C507
C508
C509
330200V UP
IC502
820 1/4W
1N4005-EIC
0.001500V B
500V
1N4005-EIC
D521
D530
B
0.001
54.4
1
2
53.6
R528
0.22 1W
R502
HS501
763WSAA013
10.1
R5041MR5061MR510
10 3W
0.0012KV R
C535_1
0.33 1W
34
1.7
D534
MTZJ18B
R514
C537_1
C529_1
180
D
G
S
0
2SK3563(ORION_Q)
4725V MHE
R527
470P250V KX
1M
15.6
SWITCHING
Q510
R525
R534
100 1/4W
10K
R511
1M 1/4W
1.8K
C536
C539
(SYSCON PCB)
B501
W4BRH3.5X6X1.0X2
330 1W
C510
0.0047 B
D533
1SS133
R531221/4W
R524
560 1/4W
D537
3.4
0.4
0.5
0.022 B
0.0033250V KX
D535 MTZJ18B
R517
C515_1
0.01100V MMTS
C532
270P B
1SS133
SWITCHING
Q511
KTC3203_Y
D536
1N4937
195
DC IN
8
6
NC
160
5
COL
4
NC
3
0
2
GND
32
1
ADJ
T501 81290804
NC
SB
SG
12V
5V
LG
135V
HG
12V
8
CP503
1
2
(MOTOR GND)
CD503
JM-2BK-61
1
2
+B(A)
+B(B)
TO SOUND AMP
SOUND+B
GND
SOUND_GND
TO Y/C/AUDIO/HEAD AMP
GND
P.CON+5V
TO DEFLECTION
GND
+B
AT+12V
H_GND_1
H_GND
FROM/TO IN/OUT
GND
FROM/TO MICON
GND
P.CON+5V
POWER_FAIL2
GND
MOTOR+12V
FROM/TO CHROMA/IF
H_GND
AT+30V
AT+12V
UNREG+8V
AT+5V
P.CON+5V_SW
GND
PCB010
VMB281
7
6
5
4
3
2
RE-H022TD-1130
C516
470P500V B
D505
21DQ09N
R519_1
47K
D508
1SS133
RU2AM-EIC
C517_1
R536
100 1/4W
C524_1
D510_1
120P2KV R
YK
220016V
C522
B503
W5RH3.5X5X1.0
C541_1
0.00182KV R
C518
470P500V B
D512
21DQ09N
D514
1SS133
21DQ09N
D517
1N4937
C519
21DQ09N
D504
1SS133
C505
D507
470P500V B
D519
470P500V B
D513
1SS133
10
32
11
12
13
14
0
15
16
0
17
18
B505
W5RH3.5X5X1.0
D503
MTZJ8.2B
100
R535
D502
1SS133
W833
220200V YXF
C521
C511
47025V YK
IC501 KIA78R05API
150V YK
R503
1 1/2W
1234
C534
100016V YK
8.2
NC
HS504
763WSA0019
135.0
0
1050V MHE
C531_1
5.6K 1/4W
R520
0.82 2W
R512
56K 1/2W
R508
56K 1/2W
C527
YK
330016V
C523_3
R640 10 1/2W
R651 10 1/2W
5V REG IC
OUTIN GND SW
134.6
EMEGENCY
PROTECT DRIVE
Q503
2SA1624
R521
D515
1F
POWER_FAIL
0
4.84.9
R522
100 1/4W
W830
AT+30V
MTZJ33B
AT+12V
UNREG+8V
W834
+B
1
THE RESISTOR MARKED F IS FUSE RESISTOR.NOTE:
THE ALUMI ELECTROLYTIC CAPACITOR MARKED NP
IS NON POLAR ONE.
NOTE:THE DC VOLTAGE AT EACH PART WAS MEASURED
WITH THE DIGITAL TESTER WHEN THE COLOR BROADCAST
WAS RECEIVED IN GOOD CONDITION AND PICTURE IS NORMAL.
NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME
OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE
CAUTION
:SINCE THESE PARTS MARKED BY
CRITICAL FOR SAFETY,USE ONES
DESCRIBED IN PARTS LIST ONLY
ARE
ATTENTION
:LES PIECES REPAREES PAR UN ETANT
DANGEREUSES AN POINT DE VUE SECURITE
N’UTILISER QUE CELLS DECRITES
DANS LA NOMENCLATURE DES PIECES
CAUTION: DIGITAL TRANSISTOR
1
ABC D E F GH
8
G-15
G-16
7
6
5
4
FROM/TO CHROMA/IF
V_OUT
V_FEEDBACK
H.PLUSE
HEATER
H_GND
180V
H_OUT
ABC D E F GH
DEFLECTION SCHEMATIC DIAGRAM
GND
ACL
W839
W841
IC401 LA78040N-EV.OUTPUT IC
THERMAL PROTECTION
AMP
+
PUMP UP
Vcc GND
1234567
3.6 25.9 2.0 0 12.5 26.3 3.7
MHE
11E1-EIC
R401
470
C406
100
35V
D403
MTZJ30B
D404
MTZJ30B
R402
270 1W
D401
17
20
R411
33K +-1%
D407
11E1-EIC
R413
1.8K
D411
11E1-EIC
R414
C405
R415
12K
150V KA
2.2 1/2W
R416
82K
R410
220 2W
C407
(SYSCON PCB)
D402
1N4937
R421
220 1/2W
R408_1
680 1/2W
C422
R447
VR401
1250V MHE
68 1/2W
METAL
2.2K
R419
V.POSI
330 1/2W
100025V YK
HS401
736WSAA013
L401_1
4.7mH
18
R449
C451
0.47250V PMS
C423
1 1/2W
0.22100V MKT
W807
C402
100035V YK
W840
W857
FB401_1 FNI-14B001
COL
1
VIDEO
6
B+
2
AFC
9
GND
8
E12
4 5
E25
3
GND
ABL
HEATER
GND
HV
F
S
11
7
10
NCNC
8
TO DY
CP401
A1561WV2-A5P
5
4
3
2
1
A34AGT13X98(L)
9
10
8
6
11
V801
R
G
B
175
2NC1
CD801
SM1098-009-1A
FROM/TO DECK
CD803_1
CH012101
8
7
6
5
4
FROM TV POWER
3
FROM/TO MICON
2
1
GND
H_GND
H_GND_1
AT+12V
X_RAY
X-RAY_TEST
NOTE:THE DC VOLTAGE AT EACH PART WAS MEASURED
WITH THE DIGITAL TESTER WHEN THE COLOR BROADCAST
WAS RECEIVED IN GOOD CONDITION AND PICTURE IS NORMAL.
NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME
OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE
W928
+B
ABC D E F GH
W829
W917
W853
W813
SWITCHING
Q403
DTC114TKA
C403
4.9
150V YK
0
0
CAUTION
D409
HZ11B3L
SWITCHING
Q404
DTA144EKA
C416
22P CH
0.01100V MMTS
C417_1
31.0
0.5
H-DRIVE
2SC1627_Y
0
Q405
R443
8.2K +-1%
W851
10.8
0
0
:SINCE THESE PARTS MARKED BY
CRITICAL FOR SAFETY,USE ONES
DESCRIBED IN PARTS LIST ONLY
R442_1
5.6K +-1%
W847
R456
470 1/2W
C418
C419_1
R420_1
31.0
22.3
NC
0.2
2250V YK
2.7K +-1%
ARE
ETH09K14BZ
22100V YK
T401
0 262.0
34
2
1
19
6
1.3
0.001500V B
C438
R460
D412
1N4937
ATTENTION
W936
W925
0
TT2140LS-CBC
H.OUTPUT
Q406
W816
100 1/4W
1.3
HS402
763WSAA013
:LES PIECES REPAREES PAR UN ETANT
DANGEREUSES AN POINT DE VUE SECURITE
N’UTILISER QUE CELLS DECRITES
DANS LA NOMENCLATURE DES PIECES
C424
0.00911.25KV MPP
R450
5.6 1W
D410
MTZJ6.8B
THE RESISTOR MARKED F IS FUSE RESISTOR.NOTE:
THE ALUMI ELECTROLYTIC CAPACITOR MARKED NP
IS NON POLAR ONE.
C420
100P500V B
R423
10K 1/4W
C431
D413
1N4937
10250V YK
0.150V YK
C432
W811
R453
180K 1/4W
CAUTION: DIGITAL TRANSISTOR
R490
68K 1/4W
W817
D405
11E1-EIC
FOCUS
SCREEN
DEFLECTION SIGNAL
CAUTION: DIGITAL TRANSISTOR
PCB010
VMB281
TO CRT
3
2
1
ABC D E F GH
G-17
G-18
CRT SCHEMATIC DIAGRAM
8
TP801
132.5
2.5
GREEN AMP
Q805
2SC4217
2.9
21
22
132.1
2.5
BLUE AMP
D801
1SS133
Q804
2SC4217
2.8
7
4.7K
R814
R811
390
C809
270P B
CP851B
B2013H02-10P
10
9
8
7
6
5
4
3
2
1
CUT_OFF
CUT_OFF_SW
FROM/TO CHROMA/IF
(CP851A)
GND
CUT_OFF
NC NC
B.OUT
G.OUT
R.OUT
H_GND1
HEATER
180V
B.OUT
G.OUT
R.OUT
H_GND
HEATER
180V
GND
6
5
R808
2.7K 1/4W
TP802
(CRT PCB)
R802
12K 1W
R807
2.7K 1/4W
R805
12K 1W
J801_1
ISMS01S
127.5
0
3
567
4
1
0
0
0
126.5
104.1
8
9
127.5
F
8
7
6
5
D802
4.7K
R815
R816_1
4.7K 1/4W
1SS133
D803
RED AMP
2SC4217
1SS133
Q806
TP803
23
132.3
2.8
2.5
C805
330P B
R810
12K 1W
R820
2.7K 1/4W
L801
CC002
TP-1S-05
270uH
(CD801_1)
GND
FROM/TO DEFLECTION
A2361WV2-2P
CP801
2
GND
1
S802
FOCUS
C801_1
SCREEN
S801
0.00222KV R
BL001
HPN-01
BT101
R03(AB)E_2P_G
ACCESSORY
ORV203N5703003
4
3
TM101
2
BT102
R03(AB)E_2P_G
R812
390
C810
220P B
4
3
R813
390
C811
220P B
2
PCB110
TCB413
1
NOTE:THE DC VOLTAGE AT EACH PART WAS MEASURED
WITH THE DIGITAL TESTER WHEN THE COLOR BROADCAST
WAS RECEIVED IN GOOD CONDITION AND PICTURE IS NORMAL.
NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME
OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE
CAUTION
:SINCE THESE PARTS MARKED BY
CRITICAL FOR SAFETY,USE ONES
DESCRIBED IN PARTS LIST ONLY
ARE
ATTENTION
:LES PIECES REPAREES PAR UN ETANT
DANGEREUSES AN POINT DE VUE SECURITE
N’UTILISER QUE CELLS DECRITES
DANS LA NOMENCLATURE DES PIECES
R.SIGNAL
G.SIGNAL
B.SIGNAL
1
ABC D E F GH
ABC D E F GH
G-19
G-20
INTERCONNECTION DIAGRAM
8
ROTOR
MAGNETCOIL
MR
FG SENSOR
G
O
VCC
CAPSTAN DD UNIT ASS’Y
M2001
HALL
IN
MAIN
OUT
SWITCH
LOGIC
HALL
SENSOR
1
CAP_FG
CAP_VCO
VCC
CAP/M/F/R
I_LIMIT
GND[M]
GND
LD/CY_VCO
CAP_CTL
LDM_CTL
CYL_FG/PG
CYL_CTL
2
HALL
VCC
1
2
3
4
5
6
7
8
9
10
11
12
1
2
3
4
5
6
7
TM101
COMMAND TRANSMITTER
TO
OS2201
FROM
OS2201
REMOCON SENSOR
GND
B+
TM101
V.OUT
DEGAUSS COIL
L503
SPEAKER
HEADPHONE JACK
J351
WHITE
BLADE
WIDE
BLACK
21
CD353
1
2
1
5
4
3
2
6
7
S101A
S102A
CP502
2
1
CP352
2
1
DEGAUSS COIL
DEGAUSS COIL
SOUND_GND
SP_OUT
7
6
5
AC120V_60Hz
CD501
SP351
8 OHM
E
1
2
H
FRONT AUDIO(L)
J4202
E
1
2
H
FRONT VIDEO
J4201
LM
LOADING MOTOR
M101
CP1001
1
2
3
4
5
6
7
8
9
10
11
12
8
7
6
5
CD503
+B(A)
+B(B)
4
1
2
2
FOCUS SCREEN
3
S801
6
7
5
CRT SOCKET
J801
1
F
R.OUT
G.OUT
8
9
H_GND
HEATER
CUT_OFF_SW
1102345678
NC
180V
4
3
1
2
CP801
2
GND
GND
CD801
CP851B
GND
9
B.OUT
CUT_OFF
SCREEN
CRT PCB
PCB110
TCB413
FOCUS
V801
FBT
FB401_1
CP401
5
4
3
2
NC
1
CP851A
GND
10
9
ANODE
H.V
CRT
CUT_OFF
B.OUT
G.OUT
R.OUT
CUT_OFF_SW
H_GND
HEATER
NC
180V
SYSCON PCB
PCB010
VMB281
8
7
6
5
4
3
2
1
1
1
GND
GND
TUNER PACK
TU601
IF
11
NC
10
+30V
9
NC
8
+5V
7
NC
6
5
SDA
SCL
4
3
NC
NC
2
AGC
1
U IN
CP4001_1
1
2
SP-CH2 (L)
3
SP_COM
4
SP-CH1 (R)
CP4002
6
AUDIO REC AUDIO REC
5
AUDIO PB
4
CTL+
3
CTL-
2
FE HEAD(-)
1
FE HEAD(+)
CP4003
FE HEAD (GND)
2
FE HEAD (HOT)
1
CD4001
FFC
1
2
3
4
6
5
4
3
2
1
2
1 FE HEAD (HOT)
CD2001
1
U-OUT
2
V-OUT
3
W-OUT
4
M-COM
5
GND
6
PG_OUT
7
PG-GND
CYLINDER UNIT ASS’Y
UN4001
NC
HEAD AUDIO CONTROL ASS’Y
AUDIO PB
CTL+
CTL-
FE HEAD(-)
FE HEAD(+)
FE HEAD (GND)
FULL ERASE HEAD ASS’Y
H5002
CP503
1
MICRO MOTOR
H5001
M2003
CH2
CH1
SP
HEAD
AUDIO
CONTROL
4
3
FE
2
CD853CD852
1
OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE
THE TIMETHIS INTERCONNECTION DIAGRAM IS THE LATEST ATNOTE:
FROM/TO DECK
CAUTION
:SINCE THESE PARTS MARKED BY
CRITICAL FOR SAFETY,USE ONES
DESCRIBED IN PARTS LIST ONLY
ARE
ATTENTION
:LES PIECES REPAREES PAR UN ETANT
DANGEREUSES AN POINT DE VUE SECURITE
N’UTILISER QUE CELLS DECRITES
DANS LA NOMENCLATURE DES PIECES
1
ABC D E F GH
Y/C/AUDIO/HEAD AMP
WAVEFORMS
MICON
1PB
0.5V 20µs/div
2 POWER ON
100mV 0.1µs/div
3 PB
10mV 20µs/div
6 POWER ON
1.0V 20µs/div
7 POWER ON
0.5V 10ms/div
8 POWER ON
1.0V 10µs/div
11 PB
0.5V 0.5ms/div
13 PB
1.0V 5ms/div
SOUND AMP
14 POWER ON
200mV 2ms/div
4 PB
0.5V 1ms/div
5 REC
10.0V 5µs/div
DEFLECTION
9 PB
1.0V 10ms/div
10 PB
1.0V 5ms/div
The following waveforms were measured at the point of the corresponding
NOTE:
balloon number in the schematic diagram.
H-1
17 POWER ON
0.5V 5ms/div
18 POWER ON
10.0V 5ms/div
19 POWER ON
2.0V 20µs/div
20 POWER ON
200mV 20µs/div
CRT
WAVEFORMS
21 POWER ON
50.0V 20µs/div
22 POWER ON
50.0V 20µs/div
23 POWER ON
50.0V 20µs/div
The following waveforms were measured at the point of the corresponding
NOTE:
balloon number in the schematic diagram.
H-2
MECHANICAL EXPLODED VIEW
110
112
203
203
203
202
PCB110
(CRT PCB ASS'Y)
202
102
109
202
202
113
113
101D
101C
101B
203
111
101H
101F
205
101G
A
122
123
101E
101
101A
I1-1
MECHANICAL EXPLODED VIEW
207
211
204
108
204
107
211
105
103
201
104
208
114
106
104
206
209
210
107
208
A
PCB010
(SYSCON PCB ASS'Y)
201
I1-2

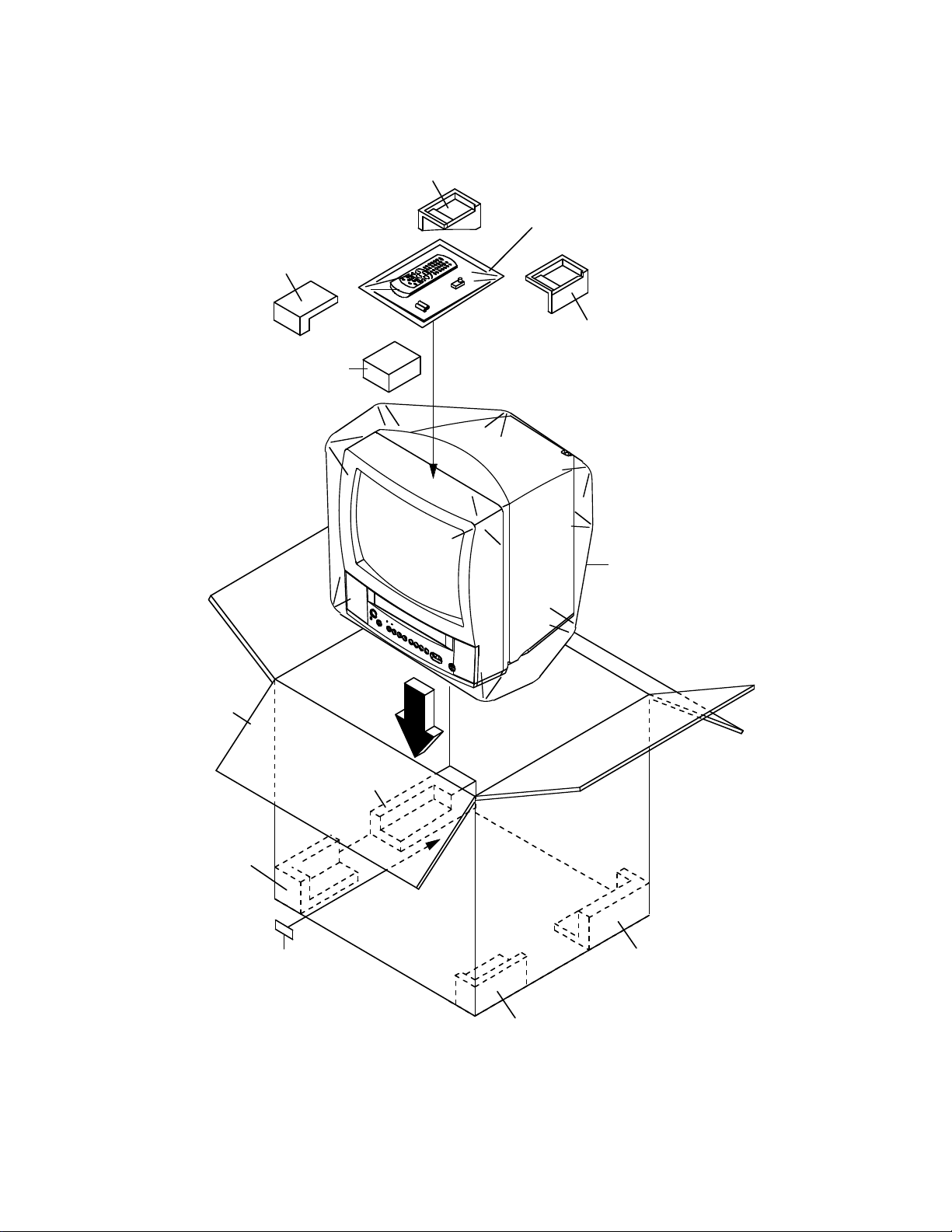

MECHANICAL EXPLODED VIEW
(PACKING DIAGRAM)
117
121, 124,
BL001, TM101
117
117
117
119
118
115
116
118
118
I1-3
118
CHASSIS EXPLODED VIEW (TOP VIEW)
341
331
302
334
314
323
508
333
315
AA
M2003
501
H5002
322
336
508
511
324
AA
335
342
503
332
CD1501
UN4001
504
312
305
300
H5001
347
306
301
AA
313
AA
AA
AA
AA
318
AA
325
317
CLASS
GREASE
309
321
MARK
AA
AA
AA
AA
319
307
AA
320
507
316
348
510
AA
NOTE:
Applying positions AA for the grease are
displayed for this section.
Check if the correct grease is applied for
each position.
AA
AA
506
CD1502
M101
304
349
345
346
AA
AA
I2-1
CHASSIS EXPLODED VIEW (BOTTOM VIEW)
308
327
509
344
343
AA
338
502
AA
337
M2001
AA
AA
502
AA
CD1502
340
CD1501
AA
AA
AA
502
AA
329
303
AA
311
339
310
AA
300
AA
328
326
CLASS
GREASE
MARK
AA
AA
NOTE:
AA
505
330
Applying positions AA for the grease are
displayed for this section.
Check if the correct grease is applied for
each position.
I2-2
MECHANICAL REPLACEMENT PARTS LIST
Location No. TSB P/N Reference No. Description
101 AE002770 7A701A018A FRONT CABI ASS'Y
101A AE002771 701WPJC487 CABINET,FRONT
101B AE002772 712WPJB964 FLAP
101C AD301664 713WPA0248 GLASS,LED
101D AD301663 713WPA0249 GUIDE,REMOCON
101E AD301657 723549A011 BADGE,BRAND
101F AD301661 735WPAA493 STOPPER,BUTTON
101G AE002773 735WPBA957 BUTTON,FRAME
101H AD301686 743WKA0037 SPRING,FLAP
102 AE004203 A5L808V740 CABINET,BACK ASSY
103 BZ710466 752WSA0230 SHIELD,CASE HEAD AMP
104 AE000049 753WSA0118 PLATE,EARTH-SYSCON
105 BZ710331 753WUAA006 SPRING,EARTH HEAD AMP
106 AD301656 761WPA0236 HOLDER,DECK
107 BZ710498 85OP700038 HOLDER,END SENSOR
108 AD301750 752WSAA051 PLATE,DECK SHIELD
109 AE004204 722549A365 SHEET,RATING
110 AE004205 723000C606 POP LABLE
111 AD300132 7230006818 SHEET,CAUTION
112 BZ710660 741WUA0021 SPRING,EARTH
113 AE000053 800WR0A011 SHEET,CRT SUPPORT (D)
114 BZ710260 899HV3T000 HOLDER,ANODE WIRE
115 AE004206 723000C605 SHEET,BAR CODE
116 AD302402 791WHA0061 LAMIFILM BAG
117 AD301669 792WHA0412 PACKAGE,TOP
118 AE004114 792WHAA121 PACKAGE,BOTTOM
119 AE004207 793WCDC245 GIFT BOX
120 AE004208 A5L808V975 INSTRUCTION BOOK KIT
121 AE004209 J5L80821A INSTRUCTION BOOK
122 AE000091 722000A023 SHEET,HWC
123 AE000006 7220001119 SHEET,CSA WARNING
124 AE002695 JB5UD100 POLYBAG,INSTRUCTION(RED CAUTION)
201 BZ710036 8117540B04 SCREW,TAPPING(B0) TRUSS 4x20
202 BZ710035 8117540A64 SCREW,TAPPING(B0) TRUSS 4x16
203 BZ710321 8121F50B84 SCREW,TAP TITE(P) FAI20 FLAT 5x28
204 BZ710032 8110630A24 SCREW,TAP TITE(P) BRAZIER 3x12
205 BZ710030 8110630804 SCREW,TAP TITE(P) BRAZIER 3x8
206 BZ710028 8110330804 SCREW,TAP TITE(P) FLAT 3x8
207 AD301667 8110E30804 SCREW,TAP TITE(P) WH10 3X8
208 BZ710239 8109I30A04 SCREW,TAP TITE(B) WH7 3x10
209 BZ710562 8109I30804 SCREW,TAP TITE(B) WH7 3x8
210 BZ710018 8107630804 SCREW,TAP TITE(S) BRAZIER 3x8
211 BZ710147 8107630604 SCREW,TAP TITE(S) BRAZIER 3x6
J1-1
CHASSIS REPLACEMENT PARTS LIST
Location No. TSB P/N Reference No. Description
300 AD301674 A5E201A420K DECK ASS'Y A5E201A420K
301 AE002754 85OA400240 PINCH ROLLER BLOCK (VA)
302 BZ710514 85OP900746 BRACKET,TOP 3V
303 BZ710193 85OP200290 BELT,CAPSTAN (S)
304 BZ710515 85OP600581 WORM
305 BZ710094 85OP500083 BASE,AC HEAD
306 BZ710112 85OP800324 SPRING,AC HEAD
307 BZ710516 85OA000459 MAIN CHASSIS ASS'Y
308 BZ710517 85OA200089 CLUTCH ASS'Y
309 BZ710518 85OA200090 ARM IDLER ASS'Y
310 BZ710519 85OA300065 LOADING ARM S UNIT
311 BZ710520 85OA300066 LOADING ARM T UNIT
312 BZ710521 85OA400223 INCLINED BASE T UINT 3S
313 BZ710522 85OA400232 P5 ARM ASS'Y 2
314 BZ710650 85OA400235 TENSION ARM ASS'Y 2
315 BZ710524 85OA400231 INCLINED BASE S UNIT
316 AE000442 85OP800367 SPRING,LOCKER
317 BZ710526 85OP900736 CASS,HOLDER
318 BZ710527 85OP900748 CASS,SIDE L
319 BZ710528 85OP900749 CASS,SIDE R
320 BZ710529 85OP900739 LOCKER,R
321 BZ710530 85OA900228 LINK UNIT
322 BZ710531 85OP000496 POST,CASS GUIDE
323 BZ710532 85OP200316 REEL,S (S)
324 BZ710533 85OP200317 REEL,T (S)
325 BZ710534 85OP200308 GEAR,IDLER
326 BZ710535 85OP200311 GEAR,CLUTCH
327 BZ710536 85OP200312 GEAR,COUPLING
328 BZ710537 85OP200313 LEVER,CLUTCH
329 BZ710538 85OP300194 GEAR,MAIN LOADING
330 BZ710092 85OP400490 LEVER,TENSION
331 BZ710093 85OP400492 HOLDER,TENSION
332 BZ710366 85OP400520 CAP.P4
333 BZ710762 85OP400542 BAND,TENSION
334 BZ710540 85OP400533 CONNECT,TENSION
335 BZ710541 85OP600573 ARM,BRAKE T
336 BZ710763 85OP600584 BAND,BRAKE T
337 BZ710543 85OP600577 CAM,PINCH ROLLER
338 BZ710544 85OP600578 CAM,MAIN
339 BZ710545 85OP600579 ROD,MAIN
340 BZ710546 85OP600582 GEAR,JOINT
341 BZ710110 85OP800322 SPRING,TENSION
342 BZ710547 85OP800360 SPRING,BRAKE T
343 BZ710548 85OP800355 SPRING,COUPLING
344 BZ710549 85OP800356 SPRING,RING
345 BZ710565 85OP900750 LEVER,LINK 2
346 BZ710551 85OP900744 LEVER,FLAP
347 BZ710552 85OP900745 CASS,OPENER
348 BZ710106 85OP700035 REFLECTOR,LED
349 BZ710796 85OP700039 COVER,BOT
501 BZ710049 8107226804 SCREW,TAP TITE(S) BIND 2.6x8
502 BZ710058 83ETW30000 E-RING 3.0
503 BZ710371 8107226404 SCREW,TAP TITE(S) BIND 2.6x4
504 BZ710046 8102120604 SCREW,PAN M2x6
505 BZ710050 8109126604 SCREW,TAP TITE(B) PAN 2.6x6
506 BZ710553 810A130404 SCREW/WASHER(A) M3x4
507 BZ710219 810A126504 SCREW/WASHER(A) M2.6x5
508 BZ710056 82Q264713N POLYSLIDER WASHER 2.6x4.7xT0.13
509 BZ710054 82P184505N POLYSLIDER WASHER(CUT) 1.8x4.5xT0.5
510 BZ710017 8107226604 SCREW,TAP TITE(S) BIND 2.6x6
511 BZ710051 810A123504 SEMS A M2.3x5.0
CD1501 BZ614292 122H071704 CORD JUMPER 2H071704
CD1502 BZ614339 122Y021902 CORD JUMPER 2Y021902
H5001 AD301675 1523Q91003 HEAD (AUDIO CONTROL) VTR-1X2RPE22-756
H5002 AD301676 1543Q02014 HEAD (FULL ERASE) VTR-1X2ERS11-154
! M101 BZ710566 1596P98001 MOTOR (LOADING) MXN13FB12K3
! M2001 AE002696 1510S98040 CAPSTAN DD UNIT F2QVB33B
! M2003 BZ710373 1589S11014 MICRO MOTOR I2OAL03
! UN4001 BZ610290 A5A305A500 CYLINDER UNIT ASS'Y A5A305A500
J2-1
ELECTRICAL REPLACEMENT PARTS LIST
Location No. TSB P/N Reference No. Description
RESISTORS
! R402 BZ210225 R3X181271J R,METAL OXIDE 270 OHM 1W
! R410 BZ210262 R3X28A221J R,METAL OXIDE 220 OHM 2W
! R415 BZ210053 R002T22R2J RC 2.2 OHM 1/2W
! R420 BZ210233 R4X5T6272F R,METAL 2.7K OHM 1/6W
! R442 BZ210244 R4X5T6562F R,METAL 5.6K OHM 1/6W
! R443 AE002992 R803R9822F RC 8.2K OHM 1/16W
! R447 BZ210021 R65582680J R,FUSE 68 OHM 1/2W
! R449 BZ210241 R655U2010J R,FUSE 1 OHM 1/2W
! R450 AD301631 R655815R6J R,FUSE 5.6 OHM 1W
! R500 BZ210080 R0G3K2275K RC 2.7M OHM 1/2W
! R501 AD301632 R5Y2CD3R3J R,CEMENT 3.3 OHM 5W
! R502 BZ210215 R3X28B100J R,METAL OXIDE 10 OHM 3W
! R508 BZ210158 R002T2563J RC 56K OHM 1/2W
! R509 BZ210206 R002T2155J RC 1.5M OHM 1/2W
! R510 AE001887 R803R9105J RC 1M OHM 1/16W
! R512 BZ210158 R002T2563J RC 56K OHM 1/2W
! R514 BZ210048 R3X181R33J R,METAL OXIDE 0.33 OHM 1W
! R517 BZ210217 R3X181331J R,METAL OXIDE 330 OHM 1W
! R520 BZ210009 R3X28AR82J R.METAL OXIDE 0.82 OHM 2W
! R528 BZ210190 R63581R22J R,FUSE 0.22 OHM 1W
! R529 BZ210084 R4X5T4272F R,METAL 2.7K OHM 1/4W
! R802 AE004059 R3X181123J R,METAL OXIDE 12K OHM 1W
! R805 AE004059 R3X181123J R,METAL OXIDE 12K OHM 1W
! R810 AE004059 R3X181123J R,METAL OXIDE 12K OHM 1W
CAPACITORS
C354 BZ110135 E02L02222M CE 2200 UF 16V
! C402 BZ110077 E02L04102M CE 1000 UF 35V
! C407 BZ110078 E02L03102M CE 1000 UF 25V
! C419 AD300064 E02LT8220M CE 22 UF 100V
C423 BZ210173 P4J7F3474J CMPP 0.47 UF 250V PMS
! C424 AD302292 P4N8FJ912H CMPP 0.0091UF 1.25KV
! C431 BZ110103 E02LTD100M CE 10 UF 250V
! C506 BZ110025 P2122B224M CMP 0.22 UF 275V ECQUL
! C507 BZ110061 C0JTB0513K CC 0.001 UF 500V B
! C509 AD301635 E51CGC331M CE 330 UF 200V
! C511 BZ110041 E02LT3471M CE 470 UF 25V
! C516 BZ110206 C0JTB05Q2K CC 470 PF 500V B
C517 AD301636 C0PLRR7B2K CC 120 PF 2KV R
! C521 BZ110130 E62NFC221M CE 220 UF 200V
! C522 AD300788 E02LU5010M CE 1 UF 50V
C523 BZ110104 E0EL02332M CE 3300 UF 16V
! C524 BZ110135 E02L02222M CE 2200 UF 16V
! C529 AE000308 CD39B0MQ2K CC 470 PF 250V
C535 BZ110202 C0PLRR713K CC 0.001 UF 2KV R
! C539 BZ110227 CD39E0ML3M CC 0.0033UF 250V
C541 AD301702 C0PLRR7G3K CC 0.0018 UF 2KV R
C801 BZ110201 C0PLRR7H3K CC 0.0022 UF 2KV R
DIODES
D401 BZ410043 D2WT011E10 DIODE,SILICON 11E1-EIC
! D402 AD300731 D2WXN49370 DIODE,SILICON 1N4937
D403 BZ410019 D97U03001B DIODE,ZENER MTZJ30B T-77
D404 BZ410019 D97U03001B DIODE,ZENER MTZJ30B T-77
D405 BZ410043 D2WT011E10 DIODE,SILICON 11E1-EIC
D407 BZ410043 D2WT011E10 DIODE,SILICON 11E1-EIC
! D409 BZ410017 D94TA11B13 DIODE,ZENER HZ11B3L TD
D410 BZ410022 D97U06R81B DIODE,ZENER MTZJ6.8B T-77
D411 BZ410043 D2WT011E10 DIODE,SILICON 11E1-EIC
! D412 AD300731 D2WXN49370 DIODE,SILICON 1N4937
! D413 AD300731 D2WXN49370 DIODE,SILICON 1N4937
! D501 BZ410061 D97U01001B DIODE,ZENER MTZJ10B T-77
D502 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77
D503 BZ410058 D97U08R21B DIODE,ZENER MTZJ8.2B T-77
D504 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77
! D505 BZ410010 D28T21DQN9 DIODE,SCHOTTKY 21DQ09N-TA2B1
! D507 BZ410010 D28T21DQN9 DIODE,SCHOTTKY 21DQ09N-TA2B1
D508 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77
! D510 BZ410080 D2WXRU2AM0 DIODE,SILICON RU2AM-EIC
! D512 BZ410010 D28T21DQN9 DIODE,SCHOTTKY 21DQ09N-TA2B1
D513 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77
D514 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77
! D515 BZ410037 D97U03301B DIODE,ZENER MTZJ33B T-77
J3-1
ELECTRICAL REPLACEMENT PARTS LIST
Location No. TSB P/N Reference No. Description
DIODES
! D517 AD300731 D2WXN49370 DIODE,SILICON 1N4937
! D518 BZ410085 D2WXN40050 DIODE,SILICON 1N4005-EIC
! D519 BZ410010 D28T21DQN9 DIODE,SCHOTTKY 21DQ09N-TA2B1
! D520 BZ410085 D2WXN40050 DIODE,SILICON 1N4005-EIC
! D521 BZ410085 D2WXN40050 DIODE,SILICON 1N4005-EIC
D528 BZ410021 D97U05R61B DIODE,ZENER MTZJ5.6B T-77
! D530 BZ410085 D2WXN40050 DIODE,SILICON 1N4005-EIC
D533 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77
! D534 AD300671 D97U01801B DIODE,ZENER MTZJ18B T-77
! D535 AD300671 D97U01801B DIODE,ZENER MTZJ18B T-77
D536 AD300731 D2WXN49370 DIODE,SILICON 1N4937
D537 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77
D601 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77
D602 BZ410058 D97U08R21B DIODE,ZENER MTZJ8.2B T-77
D603 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77
D605 BZ410059 D2WT11ES10 DIODE SILICON 11ES1-EIC
D608 BZ410077 D2WXSB1400 DIODE,SCHOTTKY SB140-EIC
D609 BZ410022 D97U06R81B DIODE,ZENER MTZJ6.8B T-77
D610 BZ410022 D97U06R81B DIODE,ZENER MTZJ6.8B T-77
D611 BZ410022 D97U06R81B DIODE,ZENER MTZJ6.8B T-77
D801 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77
D802 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77
D803 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77
D1001 AD301638 0010E00330 INFRARED LED LTE-3271T-012A-O
D1002 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77
D1004 BZ410054 0021721150 LED SLR-342VCT32
D1013 BZ410054 0021721150 LED SLR-342VCT32
D1014 BZ410022 D97U06R81B DIODE,ZENER MTZJ6.8B T-77
D2201 BZ410022 D97U06R81B DIODE,ZENER MTZJ6.8B T-77
D4001 BZ410034 D97U01301B DIODE,ZENER MTZJ13B T-77
D4002 BZ410034 D97U01301B DIODE,ZENER MTZJ13B T-77
ICS
! IC351 BZ611001 I01DP75110 IC AN7511
! IC401 AE002783 I03TD804N0 IC LA78040N-E
! IC501 AE000560 I1KA9R05A0 IC KIA78R05API
! IC502 BZ410055 0002500450 PHOTO COUPLER TLP621(GR)
IC601 AD301639 I06FC61250 IC M61250FP
IC1001 AE002784 I56F57107A IC OEC7107A
! IC1003 AD301641 I9UF032310 IC PST3231NR
IC1099 AE002785 A5L801V015 INIT DATA
IC4001 AD301643 I03F3206M0 IC LA71206M-MPB
TRANSISTORS
Q403 BZ510022 TNYJJ05001 COMPOUND TRANSISTOR DTC114TKAT146
Q404 BZ510049 TPYJD05001 COMPOUND TRANSISTOR DTA144EKAT146
! Q405 BZ510089 TC5T01627Y TRANSISTOR,SILICON 2SC1627_Y(TPE2)
! Q406 BZ510120 TD3U021400 TRANSISTOR,SILICON TT2140LS-CBC
! Q503 BZ510004 TA3T016240 TRANSISTOR,SILICON 2SA1624-AA
Q505 BZ510001 T6YJ1037K0 TRANSISTOR,SILICON 2SA1037AKT146R,S
Q507 BZ510069 TCATC31980 TRANSISTOR,SILICON KTC3198-AT(Y,GR)
Q508 BZ510020 TNYJB05001 COMPOUND TRANSISTOR DTC114EKAT146
! Q510 AE002251 T25F035630 FET 2SK3563(ORION_Q)
! Q511 BZ510070 TCAT032034 TRANSISTOR,SILICON KTC3203_Y-AT
Q601 BZ510001 T6YJ1037K0 TRANSISTOR,SILICON 2SA1037AKT146R,S
Q602 BZ510070 TCAT032034 TRANSISTOR,SILICON KTC3203_Y-AT
Q603 BZ510070 TCAT032034 TRANSISTOR,SILICON KTC3203_Y-AT
Q604 BZ510074 TDAT00863Y TRANSISTOR,SILICON KTD863_Y-AT
Q605 BZ510074 TDAT00863Y TRANSISTOR,SILICON KTD863_Y-AT
Q606 BZ510070 TCAT032034 TRANSISTOR,SILICON KTC3203_Y-AT
Q607 AE002626 T8YJ2412K0 TRANSISTOR,SILICON 2SC2412KT146 R,S
Q609 BZ510020 TNYJB05001 COMPOUND TRANSISTOR DTC114EKAT146
Q611 BZ510025 TPYJB05001 COMPOUND TRANSISTOR DTA114EKAT146
Q612 BZ510020 TNYJB05001 COMPOUND TRANSISTOR DTC114EKAT146
! Q804 BZ510009 TC3F042170 TRANSISTOR,SILICON 2SC4217(D,E)-RAC
! Q805 BZ510009 TC3F042170 TRANSISTOR,SILICON 2SC4217(D,E)-RAC
! Q806 BZ510009 TC3F042170 TRANSISTOR,SILICON 2SC4217(D,E)-RAC
Q1003 BZ410106 0002700680 PHOTO COUPLER RPI-352C40N
Q1004 BZ510021 TNYJC05001 COMPOUND TRANSISTOR DTC124EKAT146
! Q1005 BZ410107 0002700690 PHOTO COUPLER RPI-303
Q1007 BZ510020 TNYJB05001 COMPOUND TRANSISTOR DTC114EKAT146
Q1009 BZ410106 0002700680 PHOTO COUPLER RPI-352C40N
Q1011 BZ410097 0000M00390 PHOTO TRANSISTOR ST-304L
J3-2
ELECTRICAL REPLACEMENT PARTS LIST
S
Location No. TSB P/N Reference No. Description
TRANSISTORS
Q1013 BZ410097 0000M00390 PHOTO TRANSISTOR ST-304L
Q1014 BZ510021 TNYJC05001 COMPOUND TRANSISTOR DTC124EKAT146
Q4001 BZ510069 TCATC31980 TRANSISTOR,SILICON KTC3198-AT(Y,GR)
Q4002 BZ510069 TCATC31980 TRANSISTOR,SILICON KTC3198-AT(Y,GR)
Q4003 BZ510026 TPYJC05001 COMPOUND TRANSISTOR DTA124EKAT146
Q4005 BZ510073 TAATA12660 TRANSISTOR,SILICON KTA1266-AT(Y,GR)
Q4006 BZ510070 TCAT032034 TRANSISTOR,SILICON KTC3203_Y-AT
Q4007 AE002626 T8YJ2412K0 TRANSISTOR,SILICON 2SC2412KT146 R,S
Q4009 BZ510001 T6YJ1037K0 TRANSISTOR,SILICON 2SA1037AKT146R,S
Q4010 BZ510001 T6YJ1037K0 TRANSISTOR,SILICON 2SA1037AKT146R,S
Q4011 AE002626 T8YJ2412K0 TRANSISTOR,SILICON 2SC2412KT146 R,S
Q4012 AE002626 T8YJ2412K0 TRANSISTOR,SILICON 2SC2412KT146 R,S
Q4202 BZ510020 TNYJB05001 COMPOUND TRANSISTOR DTC114EKAT146
COILS &TRANSFORMERS
L401 AD301644 021L75472J COIL 4.7 MH
! L502 BZ310075 029X000087 COIL,LINE FILTER SS24V-10100
! L503 BZ310076 028R140031 COIL,DEGAUSS 8R140031
L601 BZ310012 021LA6R56M COIL 0.56 UH
L603 BZ310040 02167F470J COIL 47 UH
L607 BZ310038 021LA6120K COIL 12 UH
L609 BZ310041 02167F101J COIL 100 UH
L616 BZ310169 021LA6R39M COIL 0.39 UH
L801 AD301757 021673271K COIL 270 UH
L1001 BZ310009 021LA62R2K COIL 2.2 UH
L4001 BZ310039 02167F220J COIL 22 UH
L4003 BZ310041 02167F101J COIL 100 UH
L4005 BZ310040 02167F470J COIL 47 UH
L4006 BZ310040 02167F470J COIL 47 UH
L4009 BZ310041 02167F101J COIL 100 UH
T401 BZ310157 045009003J TRANS,HORIZONTAL DRIVE ETH09K14BZ
! T501 BZ310160 0481290804 TRANSFORMER,SWITCHING 81290804
T4001 BZ310114 031626009R COIL,BIAS OSC 1626009
JACKS
! J351 AE003431 060J131016 HEADPHONE JACK MSJ-2000_AG
! J801 BZ614434 066F120018 SOCKET,CATHODE RAY TUBEISMS01
J4201 BZ614322 060Q401077 RCA JACK AV1-09D-3
J4202 BZ614321 060Q401076 RCA JACK AV1-09D-4
ISMS01S
SWITCHES
SW1001 BZ612016 0508S11001 SWITCH (LEAF) LSA-1144EAU
SW2201 BZ612010 0504101T34 SWITCH,TACT EVQ21505R
SW2202 BZ612010 0504101T34 SWITCH,TACT EVQ21505R
SW2203 BZ612010 0504101T34 SWITCH,TACT EVQ21505R
SW2204 BZ612010 0504101T34 SWITCH,TACT EVQ21505R
SW2205 BZ612010 0504101T34 SWITCH,TACT EVQ21505R
SW2206 BZ612010 0504101T34 SWITCH,TACT EVQ21505R
SW2207 BZ612010 0504101T34 SWITCH,TACT EVQ21505R
SW2208 BZ612010 0504101T34 SWITCH,TACT EVQ21505R
SW2209 BZ612010 0504101T34 SWITCH,TACT EVQ21505R
SW2210 BZ612010 0504101T34 SWITCH,TACT EVQ21505R
VARIABLE RESISTORS
VR401 BZ210218 V1K63H3BTE VOLUME,SEMI FIXED NVG6TLTAB222
VR502 BZ210024 V1163L2BTC VOLUME,SEMI FIXED EVNCYAA03BY2
P.C.BOARD ASSEMBLIES
PCB010 AE002786 A5L801V010 PCB ASS'Y VMB281B
PCB110 AE002787 A5L801V110 PCB ASS'Y TCB413B
MISCELLANEOUS
B501 BZ310122 024HT03563 CORE,BEADS W4BRH3.5X6X1.0X2
B503 BZ310121 024HT03553 CORE,BEADS W5RH3.5X5X1.0
B505 BZ310121 024HT03553 CORE,BEADS W5RH3.5X5X1.0
B602 BZ310121 024HT03553 CORE,BEADS W5RH3.5X5X1.0
BL001 BZ310014 023C00022A COIL,BALUN HPN-01
BT101 AE000012 1412004008 BATTERY,MANGAN R03(AB)E_2P_G
BT102 AE000012 1412004008 BATTERY,MANGAN R03(AB)E_2P_G
CD353 BZ614150 06CH12444A CORD,CONNECTOR CH12444A
! CD501 BZ614341 120R414903 CORD,AC BUSH 0R414903
CD503 BZ614133 069X620040 CONNECTOR JM-2BK-61
CD801 BZ614175 06CU82039A CORD,CONNECTOR SM1098-009-1A
CD803 BZ614317 06CH012101 CORD,CONNECTOR CH012101
CD851 BZ614318 WHL6032038 FLAT CABLE AWM2468 AWG26 10C BLACK 320MM
CD852 BZ614100 06CH01408A CORD,EIS CONNECTOR CH01408A
CD853 BZ614317 06CH012101 CORD,CONNECTOR CH012101
J3-3
ELECTRICAL REPLACEMENT PARTS LIST
Location No. TSB P/N Reference No. Description
MISCELLANEOUS
CF601 BZ613031 1029045R7G FILTER,SAW TSF5229P3
CF602 BZ613018 1012T04702 FILTER,CERAMIC TRAP MKT47.3MC110P-TF
CF603 AD301647 1012T4R520 FILTER,CERAMIC SFSRA4M50CF00-A0
CF604 AD301648 1012T4R519 FILTER,CERAMIC TRAP TPSRA4M50C00-A0
CP351 BZ614474 069E260659 CONNECTOR PCB SIDE 00_8283_0611_00_00
CP352 BZ614365 069S120419 CONNECTOR PCB SIDE A2502WV2-2P
CP401 BZ614303 069S450089 CONNECTOR PCB SIDE A1561WV2-A5P
! CP502 BZ614283 069S420110 CONNECTOR PCB SIDE A1561WV2-2P
CP503 BZ614137 069X620030 CONNECTOR PCB SIDE RE-H022TD-1130
CP504 BZ614016 069W01001A CONNECTOR PCB SIDE 003P-2100
CP505 BZ614016 069W01001A CONNECTOR PCB SIDE 003P-2100
CP801 BZ614269 069S320010 CONNECTOR PCB SIDE A2361WV2-2P
CD4001 BZ614373 122F061502 CORD,JUMPER 2F061502
CP1001 BZ614289 06972C0010 CONNECTOR PCB SIDE TMC-J12P-B2
CP1003 BZ614138 0694240139 CONNECTOR PCB SIDE 173979-4
CP4001 BZ614054 0697240600 CONNECTOR PCB SIDE TOC-C04X-B1
CP4002 BZ614050 069J760029 CONNECTOR PCB SIDE IMSA-9604S-06Z14
CP4003 AD301649 067U002019 WIRE HOLDER B2013H02-2P
CP851A BZ614273 067U010049 WIRE HOLDER B2013H02-10P
CP851B BZ614273 067U010049 WIRE HOLDER B2013H02-10P
CUS013 BZ710149 800WFAA008 CUSHION C
EL001 BZ614044 124120301A EYE LET XRY20X30BD
EL002 BZ614043 124116281A EYE LET XRY16X28BD
! F501 BZ614504 081PC05005 FUSE 51MS050L
! FB401 AD301650 043214037F TRANSFORMER,FLYBACK FNI-14B001
FH501 AE002634 06710T0009 HOLDER,FUSE EYF-52BCY
FH502 AE002634 06710T0009 HOLDER,FUSE EYF-52BCY
OS2201 BZ614199 077Q004017 REMOTE RECEIVER PIC-37243SR
! SP351 BZ614200 070C533019 SPEAKER SG04D11BNA
! TH501 BZ410079 DF5EL3R0A0 DEGAUSS ELEMENT ZPB45BL3R0A
TM101 AE002788 076D0JG010 TRANSMITTER ORV203N5703003
! TU601 AD301652 0145K00062 TUNER,VHF-UHF TECC1040PG38W
! V801 BZ614141 098Q1404B2 CRT W/DY A34AGT13X98(L)
X602 AD301653 100DT3R531 CRYSTAL HC-49/U
X1001 BZ613002 100CT01207 CRYSTAL HC-49/U-S
X1002 BZ613006 100DA32R01 CRYSTAL DT-26
X4001 BZ613017 100CT3R502 CRYSTAL HC-49/U
RESISTOR
CAPACITORS
RC................... CARBON RESISTOR
CC................... CERAMIC CAPACITOR
CE................... ALUMI ELECTROLYTIC CAPACITOR
CP................... POLYESTER CAPACITOR
CPP.................. POLYPROPYLENE CAPACITOR
CPL.................. PLASTIC CAPACITOR
CMP................... METAL POLYESTER CAPACITOR
CMPL................ METAL PLASTIC CAPACITOR
CMPP................ METAL POLYPROPYLENE CAPACITOR
J3-4
TOSHIBA CORPORATION
1-1, SHIBAURA 1-CHOME, MINATO-KU, TOKYO 105-8001, JAPAN
Loading...
