Toshiba MV13L3 Schematic

FILE NO. 140-200114

SERVICE MANUAL

COLOR TELEVISION/
VIDEO CASSETTE RECORDER

MV13L3

SERVICING NOTICES ON CHECKING

As for the places which need special attentions,
they are indicated with the labels or seals on the
cabinet, chassis and parts. Make sure to keep the
indications and notices in the operation manual.

2. AVOID AN ELECTRIC SHOCK

There is a high voltage part inside. Avoid an
electric shock while the electric current is
flowing.

3. USE THE DESIGNATED PARTS

The parts in this equipment have the specific
characters of incombustibility and withstand
voltage for safety. Therefore, the part which is
replaced should be used the part which has
the same character.
Especially as to the important parts for safety
which is indicated in the circuit diagram or the
table of parts as a mark, the designated
parts must be used.

4. PUT PARTS AND WIRES IN THE
ORIGINAL POSITION AFTER
ASSEMBLING OR WIRING

There are parts which use the insulation
material such as a tube or tape for safety, or
which are assembled in the condition that
these do not contact with the printed board.
The inside wiring is designed not to get closer
to the pyrogenic parts and high voltage parts.
Therefore, put these parts in the original
positions.

5. TAKE CARE TO DEAL WITH THE
CATHODE-RAY TUBE

In the condition that an explosion-proof cathode­ray tube is set in this equipment, safety is
secured against implosion. However, when
removing it or serving from backward, it is
dangerous to give a shock. Take enough care to
deal with it.

6. AVOID AN X-RAY1. KEEP THE NOTICES

Safety is secured against an X-ray by consider­ing about the cathode-ray tube and the high
voltage peripheral circuit, etc.
Therefore, when repairing the high voltage pe­ripheral circuit, use the designated parts and
make sure not modify the circuit.
Repairing except indicates causes rising of high
voltage, and it emits an X-ray from the cathode­ray tube.

PERFORM A SAFETY CHECK AFTER

7.
SERVICING

Confirm that the screws, parts and wiring which
were removed in order to service are put in the
original positions, or whether there are the
portions which are deteriorated around the
serviced places serviced or not. Check the
insulation between the antenna terminal or
external metal and the AC cord plug blades.
And be sure the safety of that.

(INSULATION CHECK PROCEDURE)

1.

Unplug the plug from the AC outlet.

2.

Remove the antenna terminal on TV and turn
on the TV.

3.

Insulation resistance between the cord plug
terminals and the eternal exposure metal
[Note 2] should be more than 1M ohm by
using the 500V insulation resistance meter

[Note 1].

4.

If the insulation resistance is less than 1M
ohm, the inspection repair should be
required.

[Note 1]

If you have not the 500V insulation
resistance meter, use a Tester.

[Note 2]

External exposure metal: Antenna terminal

Earphone jack

HOW TO ORDER PARTS

Please include the following informations when you order parts. (Particularly the VERSION LETTER.)

1. MODEL NUMBER and VERSION LETTER
The MODEL NUMBER can be found on the back of each product and the VERSION LETTER can be

found at the end of the SERIAL NUMBER.

2. PART NO. and DESCRIPTION
You can find it in your SERVICE MANUAL.

GENERAL SPECIFICATIONS

J~W,

G-1 TV CRT CRT Size / Visual Size 13 inch / 335.4mmV

G-2 VCR System VHS

G-3 Tuning Broadcasting System US Sysytem M

G-4 Signal Video Signal Input Level 1 V p-p/75 ohm

G-5 Power Power Source AC 120V 60Hz

G-6 Regulation Safety UL

G-7 Temperature Operation +5oC ~ +40oC

G-8 Operating Humidity Less then 80% RH

System CRT Type Normal

Color System NTSC
Speaker 1Speaker

Sound Output MAX 1.5 W

System Player / Recorder

Video System NTSC
Hi-Fi STEREO No
NTSC PB ­Deck DECK OVD-6S

Heads Video Head 2 Head

FM Audio Head No

Audio /Control Mono/Yes

Erase(Full Track Erase) Yes
Tape Rec PAL ­Speed NTSC SP/SLP(EP)

Play PAL -

Fast Forward / Rewind Time (Approx.) FF:4'50"/REW:2'30"

Forward/Reverse NTSC or PAL-M SP/SLP(EP)=3x,5x/9x,15x
Picture Search
Slow Speed Frame Advance -

System Tuner and System 1Tuner

Receive CH Destination USA+CATV

Intermediate Picture(FP) 45.75MHz
Frequency Sound(FS) 41.25MHz

Preset CH No
Stereo/Dual TV Sound No

Audio Signal Input Level RCA-8dB/50Kohm

Hi-Fi Audio Signal Dynamic Range : More than -

Power Consumption at AC 65 W at 120V 60Hz

Protector Power Fuse Yes

Deflection 90 degree
Magnetic Field BV/BH +0.45G / 0.18G

Position Front
Size 1.5 x 2.5 Inch
Impedance 8 ohm

10%(Typical) 1.0 W

Loading System Front
Motor 3

NTSC SP/SLP(EP)

Cassette at T-120

Slow -

Tuning System F-Synth
Input Impedance VHF/UHF 75 ohm

CH Coverage

FP-FS 4.5MHz

Output Level ­S/N Ratio (Weighted) 50 dB
Horizontal Resolution at SP Mode 220 Lines

Output Level -

Wow And Flutter : Less than ­Channel Separation : More than ­Harmonic Distortion : Less than -

DC -

at DC ­Stand by (at AC) 5 W at 120V 60 Hz
Per Year -

Dew Sensor

Radiation FCC
X-Radiation DHHS

Storage -20oC ~ +60oC

2~69, 4A,A-5~A-1, A~I,

No

W+1~W+84

GENERAL SPECIFICATIONS

G-9 On Screen Menu Yes

G-10 OSD Language English French Spanish

G-11 Clock,Timer Calendar 1990/1/1 ~ 2081/12/31

Display Menu Type Character

G-CODE(or SHOWVIEW or PLUSCODE)No. Entry
Clock Yes
CH/AV Yes
Tape Counter(Linear Counter) Yes
Tape Speed Yes
Sleep Time Yes
Stereo/Audio Output

Control Volume Yes
Level Bright / Contrast / Sharpness / Color Yes

Play/Stop/FF/Rew/Rec/OTR/T-Rec/Pause/Eject/Tape In (Symbol Mark) Yes
Auto Tracking/Manual Tracking Yes
Caption / Text Yes
Index
Muting Yes
Hi-Fi ,SAP
Repeat Yes
Zero Return
DEW

and Timer Timer Events 8 prog/ 1 month
Back-up One Touch Recording Max Time 5 Hours

OTPB Valid Time No
Sleep Timer Max Time 120

On/Off Timer Program(On Tim / Off Tim) 1
Auto Shut Off No Signal 15

Timer Back-up (at Power Off Mode) 5

Timer Rec Set Yes
Channel Setup Yes

TV/CATV Yes
Auto ch Memory Yes
Add/Delete Yes
Guide ch Set

TV Setup Yes

V-chip Set Yes
On/Off Timer Set Yes
Picture Yes
Audio
Sap On/Off

Auto Repeat On/Off Yes
System Setup Yes

Clock Set Yes
Language Yes
Auto Clock On/Off Yes
Standard Time Yes
Daylight Saving Time Yes

Commercial Advance

Marking On/Off
Blueback On/Off
Playback Auto/Manual
Unmarked Tape

Movie Advance

Go To Movie
Go To Preview

Bilingal
SAP

Tint Yes
Bass/Treble/Balance
Manual Tracking Yes

OSD Language Setting English

Step 10

No Operation -

No

No
No

No
No
No
No
No
No
No
No
No

No
No
No

No

No

No

No
No

min.
min.
prog.
min.

sec.

GENERAL SPECIFICATIONS

G-12 Remote Unit RC-DQ

Control Glow in Dark Remocon Yes

Format NEC
Custom Code 40-BFh , 44-BBh
Power Source Voltage(D.C) 3V

UM size x pcs UM-4 x 2 pcs

Total Keys 42
Keys Power Yes

1 Yes
2 Yes
3 Yes
4 Yes
5 Yes
6 Yes
7 Yes
8 Yes
9 Yes
0 Yes
CH Up Yes
CH Down Yes
Volume Up Yes
Volume Down Yes
Input Select Yes
Play Yes
F.Fwd Yes
Rew Yes
Pause/Still Yes
Stop Yes
Rec/OTR Yes(2Keys)
Eject Yes
Counter Reset Yes
Speed Yes
Timer Rec Yes(2Keys)
TV Monitor
Quick View Yes
Program Yes
Slow
Auto Tracking Yes
Set/Tracking+ Yes
Set/ Tracking - Yes
Menu Yes
Enter Yes
Cancel Yes
Call Yes
TV/Caption/Text Yes
Sleep Timer Yes
Muting Yes
Zero Return Yes
CM Skip Yes
Audio Select

G-13 Features Auto Head Cleaning Yes

Auto Tracking Yes
HQ (VHS Standard High Quality) Yes
Auto Power On, Auto Play, Auto Rewind, Auto Eject Yes
VIDEO PLUS+(SHOWVIEW,G-CODE)
Auto Clock Yes
Forward / Reverse Picture Search Yes
One Touch Playback
Auto CH Memory Yes
Closed Caption Yes
TV Auto Shut off Function Yes
End Call
Index Search
SQPB
CATV Yes
CM Skip(30sec x 6 Times) Yes
Comb Filter
TV Monitor
Program Extend
Choke Coil
Energy Star Yes
Dirty Head
V-chip USA V-chip Yes

CANADA V-chip
CM Advance
Movie Advance

FBT Leak Test Protect Yes

Keys

No

No

No

No

No

No
No
No

No
No
No
No

No

No
No
No

GENERAL SPECIFICATIONS

G-14 Accessories Owner's Manual Language English

Remote Control Unit Yes
Rod Antenna

Loop Antenna

U/V Mixer
DC Car Cord (Center+)
Guarantee Card
Warning Sheet
Circuit Diagram
Antenna Change Plug
Service Facility List
Important Safeguard
Dew/AHC Caution Sheet
AC Plug Adapter
Quick Set-up Sheet
Battery Yes

AC Cord
AV Cord (2Pin-1Pin)
Registration Card Yes
ESP Card Yes
300 ohm to 75 ohm Antenna Adapter Yes

G-15 Interface Switch Power Yes

Indicator Power Red

Key Light up Rec/OTR

Terminals Front Video Input RCAx1

Rear Video Input

G-16 Set Size Approx. W x D x H (mm) 362 x 369 x 382
G-17 Weight Net (Approx.) 11.0 kg

w/Guarantee Card Yes

Poles ­Terminal ­w/300 ohm to 75 ohm Antenna Adapter -

Terminal -

UM size x pcs UM-4 x 2 pcs

Play Yes
Pause/Still
System Select
One Touch Playback
Channel Up Yes
Channel Down Yes
F.FWD/Cue Yes
Eject/Stop Yes
Main Power SW
Volume Up Yes
Volume Down Yes
Rew/Rev Yes
Rec/OTR Yes
Input Select Yes

Rec/OTR Red
T-Rec Red
On Timer
CS

One Touch Playback
Play

Audio Input RCAx1
Other Terminal Head Phone(Stereo & Mono, 3.5mm)

Audio Input
Video Output
Audio Output
Euro Scart
Diversity
Ext Speaker
DC Jack 12V(Center +)
VHF/UHF Antenna Input
AC Inlet

Gross (Approx.) 12.5 kg

F Type

No

No

No
No
No
No
No
No
No
No
No
No
No

No
No

No
No
No

No

No
No
No
No
No

No
No
No
No
No
No
No
No

No

(24.3 lbs)
(27.6 lbs)

GENERAL SPECIFICATIONS

G-18 Carton Master Carton

Content ­Material ­Dimensions W x D x H(mm) ­Description of Origin -

Gift Box Yes

Material Double/White
Dimensions W x D x H(mm) 423 x 447 x 443
Design As per Buyer's
Description of Origin Yes

Drop Test Natural Dropping At

Height (cm) 62

Container Stuffing(40' container) 700

G-19 Cabinet Material Cabinet Front PS 94V0 DECABROM

Cabinet Rear PS 94V0 DECABROM
Jack Panel PS 94V0 DECABROM

No

1 Corner / 3 Edges / 6 Surfaces

Sets

DISASSEMBLY INSTRUCTIONS

1. REMOVAL OF MECHANICAL PARTS
AND P.C. BOARDS

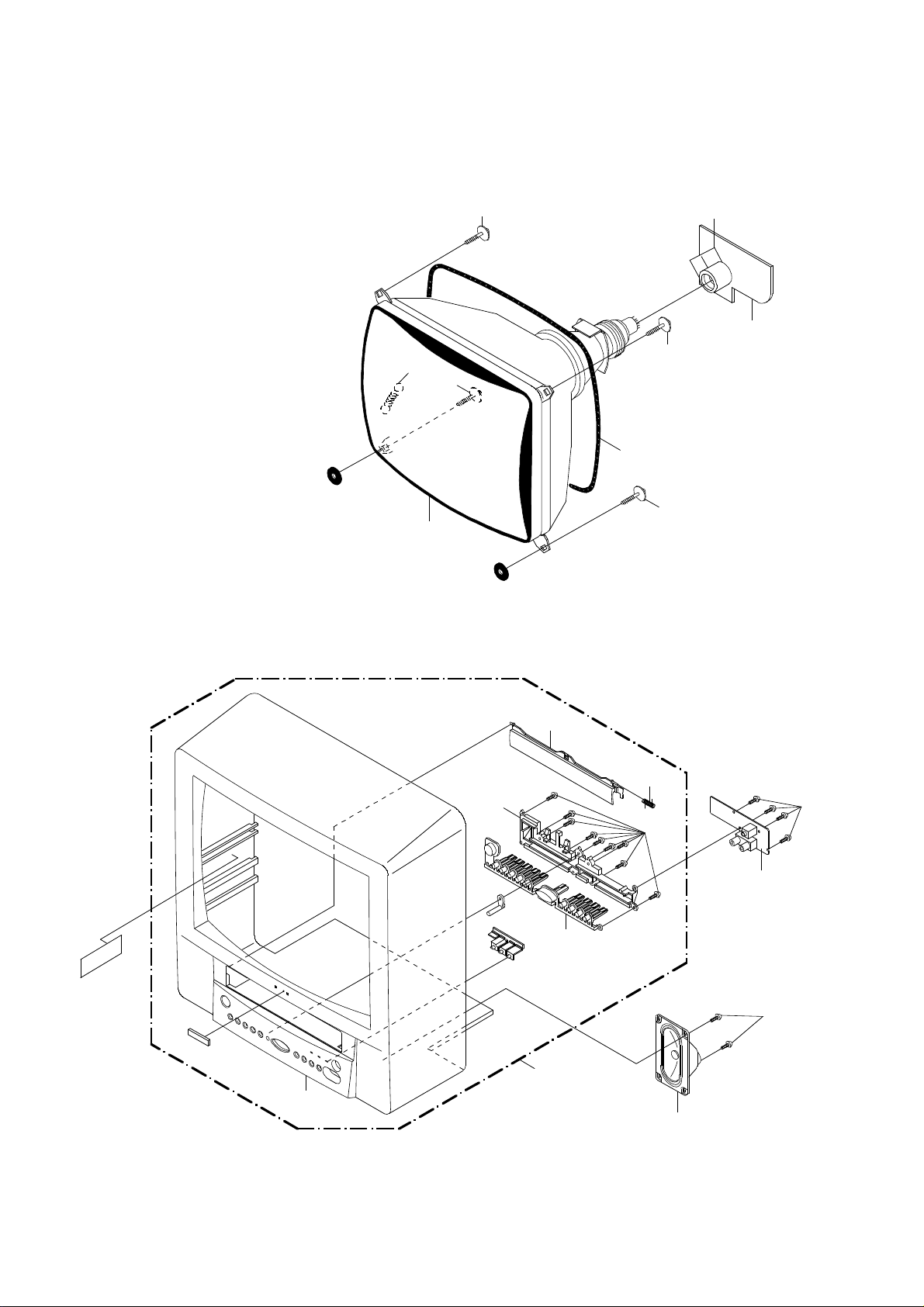

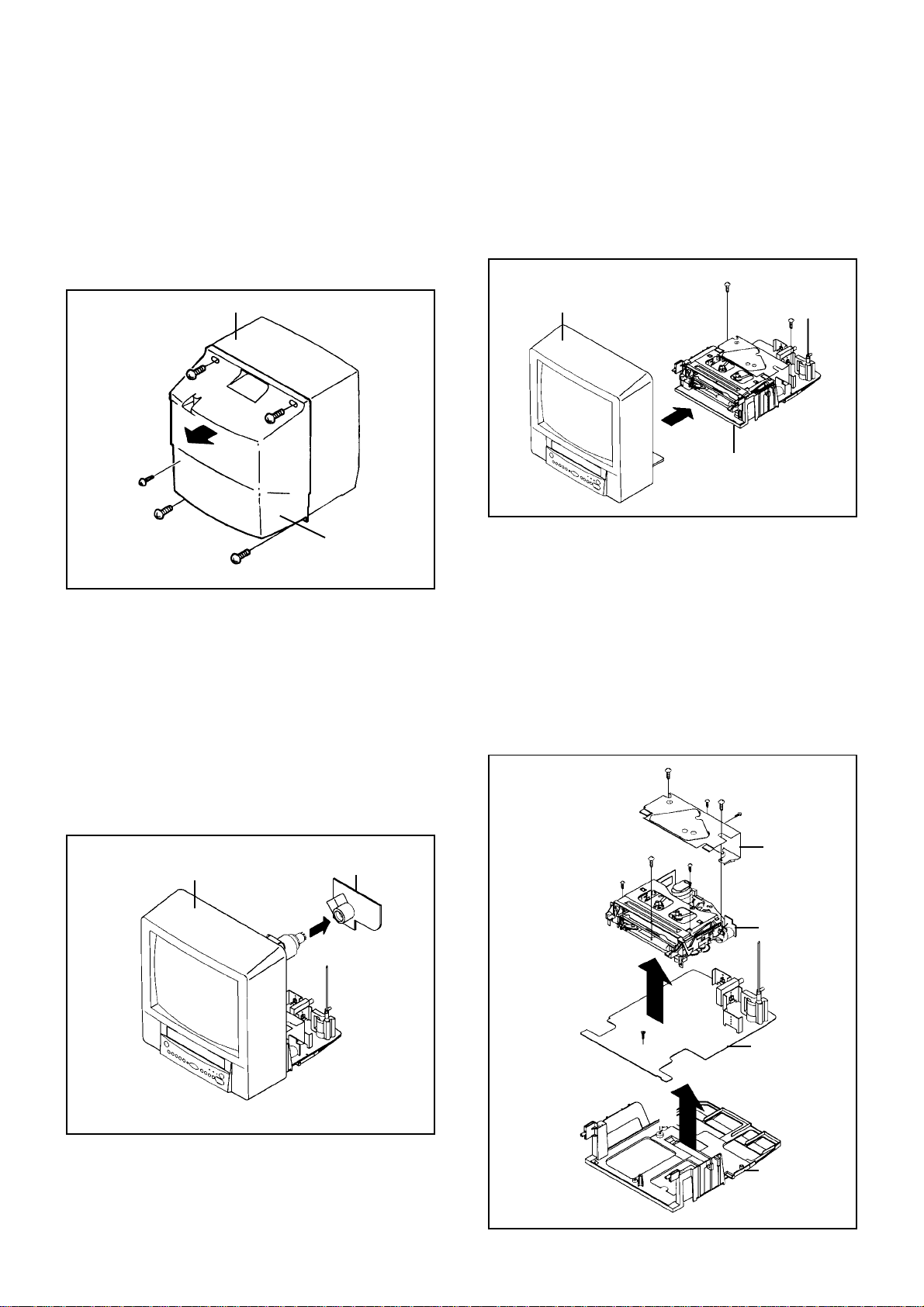

1-1: BACK CABINET (Refer to Fig. 1-1)

1.

Remove the 4 screws 1.

2.

Remove the screw 2.

3.

Remove the AC cord from the AC cord hook 3.

4.

Remove the Back Cabinet in the direction of arrow.

Front Cabinet

1

1

2

1

3

Back Cabinet

1

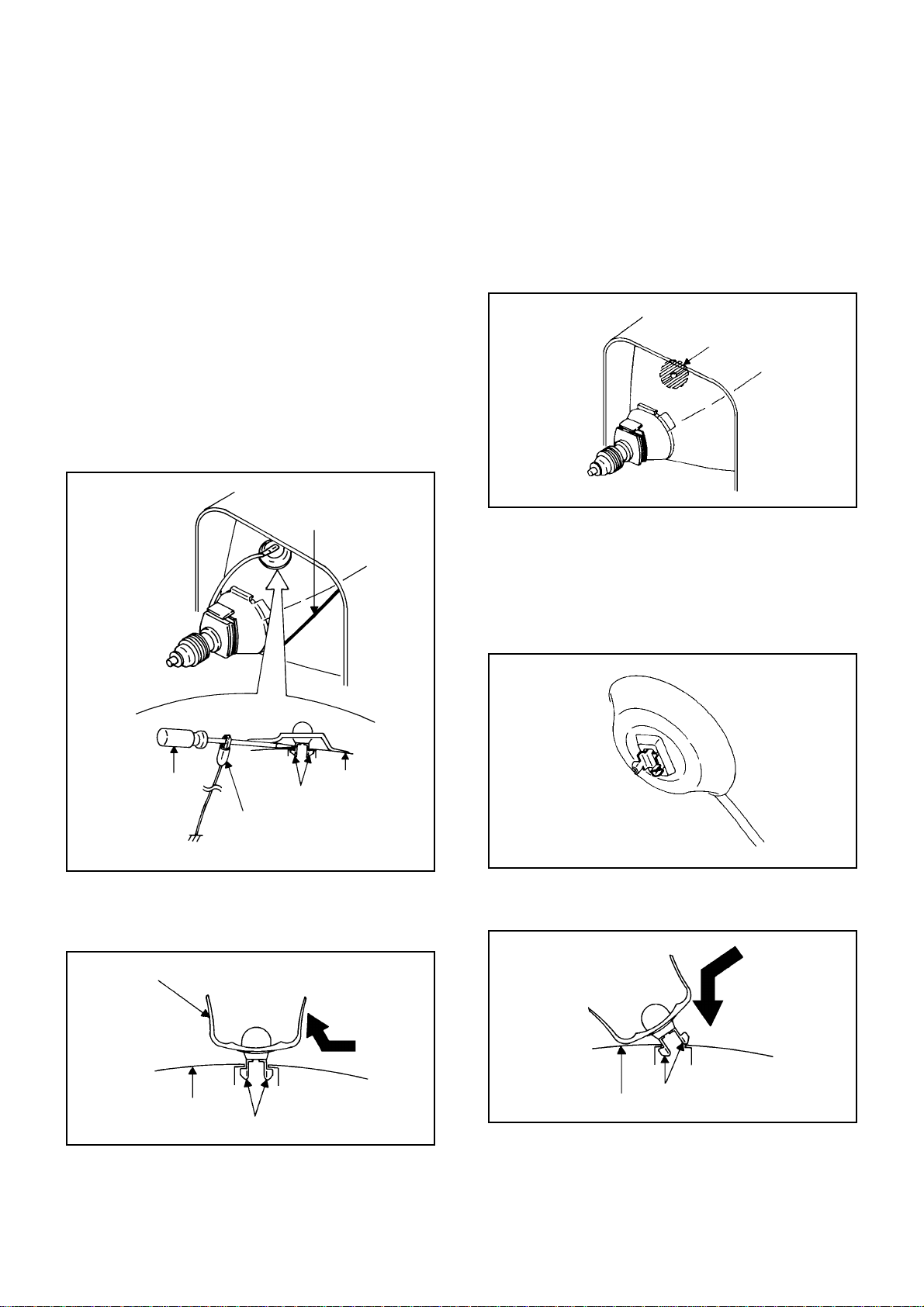

1-2: CRT PCB (Refer to Fig. 1-2)
CAUTION: BEFORE REMOVING THE ANODE CAP,

DISCHARGE ELECTRICITY BECAUSE IT
CONTAINS HIGH VOLTAGE.
BEFORE ATTEMPTING TO REMOVE OR
REPAIR ANY PCB, UNPLUG THE POWER
CORD FROM THE AC SOURCE.

1.

Remove the Anode Cap.
(Refer to REMOVAL OF ANODE CAP)

2.

Disconnect the following connectors:
(CP801 and CP851).

3.

Remove the CRT PCB in the direction of arrow.

Fig. 1-1

1-3: TV/VCR BLOCK (Refer to Fig. 1-3)

1.

Remove the 2 screws 1.

2.

Disconnect the following connectors:
(CP352, CP353, CP354, CP401, CP502 and CP503).

3.

Unlock the support 2.

4.

Remove the TV/VCR Block in the direction of arrow.

1

Front Cabinet

1

2

UP TO
RELEASE

TV/VCR Block

Fig. 1-3

1-4: DECK CHASSIS AND SYSCON PCB

(Refer to Fig. 1-4)

1.

Remove the 3 screws 1.

2.

Remove the 3 screws 2.

3.

Remove the screw 3.

4.

Disconnect the following connectors:
(CP1004, CP1005, CP1006, CP4001, CP4002 and
CP4003).

5.

Remove the Deck Chassis and Deck Shield Plate in the
direction of arrow (A).

6.

Remove the screw 4.

7.

Remove the Syscon PCB in the direction of arrow (B).

1

2

1

3

Front Cabinet

CRT PCB

Fig. 1-2

Deck Shield Plate

1

2

(A)

4

2

Deck Chassis

Syscon PCB

(B)

Deck Holder

Fig. 1-4

DISASSEMBLY INSTRUCTIONS

2. REMOVAL OF DECK PARTS

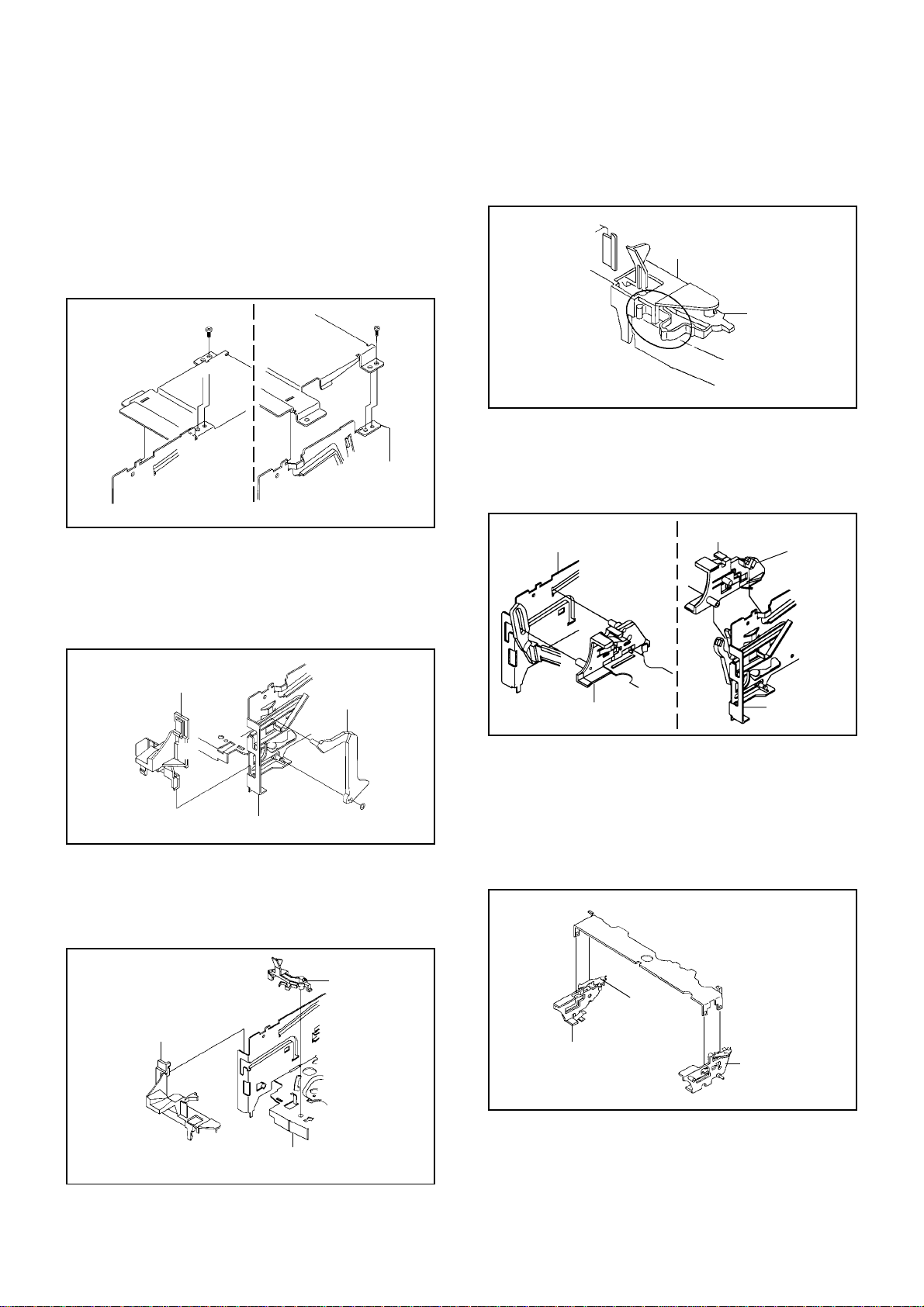

2-1: TOP BRACKET (Refer to Fig. 2-1)

Remove the 2 screws 1.

1.

Slide the 2 supports 2 and remove the Top Bracket.

2.

NOTE

When you install the Top Bracket, install the screw (1)
first, then install the screw (2).

(2)

1

Top Bracket

2

Main Chassis

• Screw Torque: 5 ± 0.5kgf•cm

Top Bracket

2

Main Chassis

2-2: FLAP LEVER/TAPE GUIDE R (Refer to Fig. 2-2)

Move the Cassette Holder Ass'y to the back side.

1.

Remove the Polyslider Washer 1.

2.

Remove the Flap Lever.

3.

Unlock the 3 supports 2 and remove the Tape Guide R.

4.

(1)

1

Fig. 2-1

NOTE

When you install the Tape Guide L, install as shown in the
circle of Fig. 2-3-B. (Refer to Fig. 2-3-B)

Tape Guide L

REC Lever

• The REC Lever is not installed on the Video Cassette Player.

Fig. 2-3-B

2-4: CASSETTE HOLDER ASS'Y (Refer to Fig. 2-4)

Move the Cassette Holder Ass'y to the front side.

1.
Push the Locker R to remove the Cassette Side R.

2.
Remove the Cassette Side L.

3.

Main Chassis

Cassette Side R

Locker R

Tape Guide R

Flap Lever

2

2

2

Main Chassis

1

Fig. 2-2

2-3: TAPE GUIDE L (Refer to Fig. 2-3-A)

Move the Cassette Holder Ass'y to the back side.

1.
Unlock the 2 supports 1 and remove the Tape Guide L.

2.
Remove the REC Lever. (Recorder only)

3.

REC Lever

Tape Guide L

1

Cassette Side L

Main Chassis

Fig. 2-4

2-5: CASSETTE SIDE L/R (Refer to Fig. 2-5)

Unlock the 4 supports 1 and then remove the Cassette

1.
Side L/R.

NOTE

When you install the Cassette Side R, be sure to move the
Locker R after installing.

1

1

Locker R

Cassette Side R

1

1

Cassette Side L

Fig. 2-5

1

Main Chassis

• The REC Lever is not installed on the Video Cassette Player.

Fig. 2-3-A

DISASSEMBLY INSTRUCTIONS

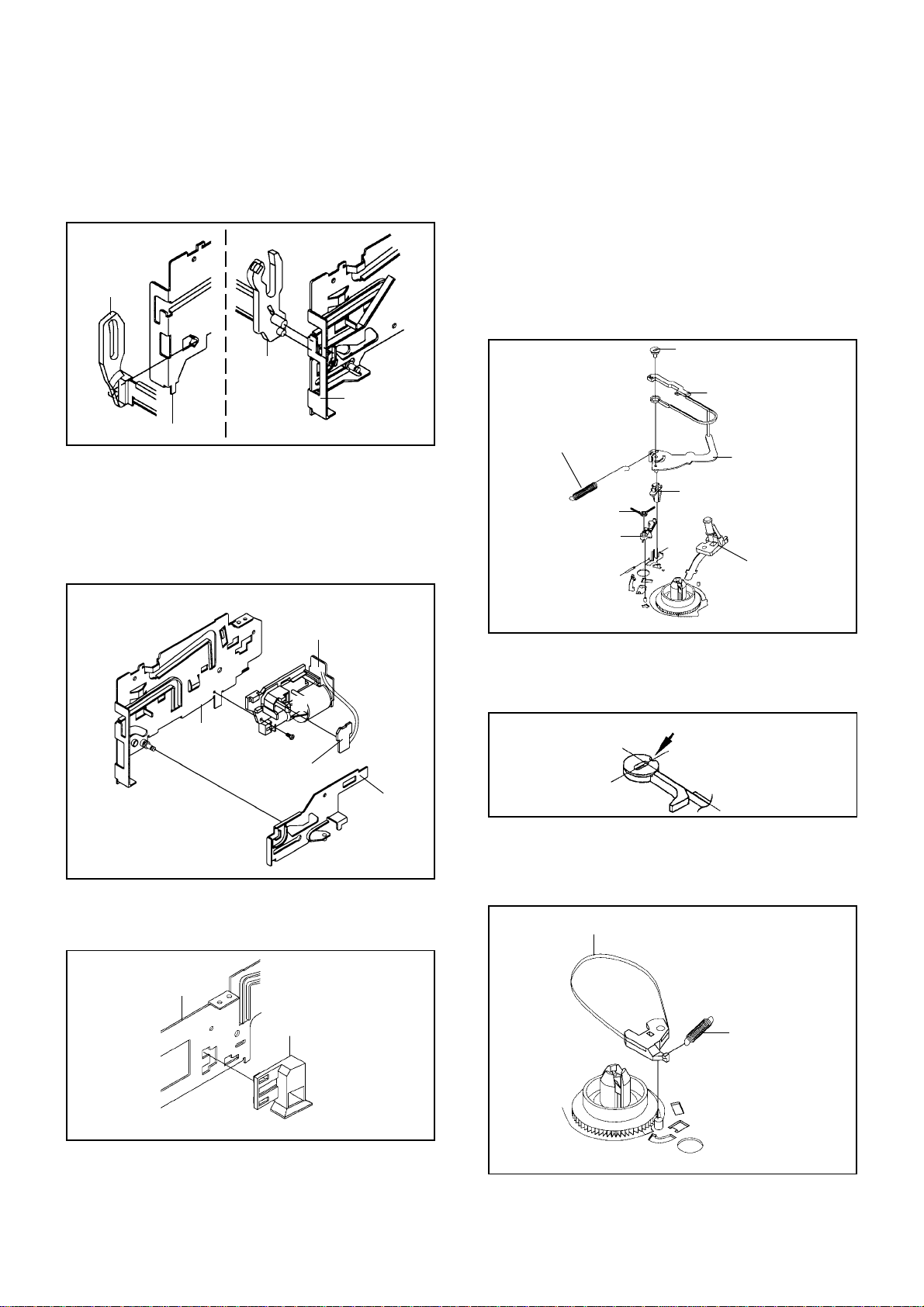

2-6: LINK UNIT (Refer to Fig. 2-6)

Set the Link Unit to the Eject position.

1.
Remove the (A) side of the Link Unit first, then remove

2.
the (B) side.

Link Unit

(B)

(A)

Main Chassis

Link Unit

Main Chassis

2-7: LOADING MOTOR ASS'Y (Refer to Fig. 2-7)

Remove the Link Lever.

1.
Remove the screw 1.

2.
Remove the Loading Motor Ass'y.

3.
Unlock the 2 supports 2 and remove the Deck PCB

4.
(BOT).

Fig. 2-6

2-9: TENSION ASS'Y (Refer to Fig. 2-9-A)

Move the Inclined S Ass'y to the back side.

1.
Remove the Tension Spring.

2.
Unlock the support 1 and remove the Tension Arm

3.
Ass'y.
Remove the Tension Adjust.

4.
Unlock the 2 supports 2 and remove the Tension Band

5.
Ass'y.
Unlock the support 3 and remove the Tension Holder.

6.
Remove the SS Brake Spring.

7.
Remove the SS Arm Brake.

8.

Tension Adjust

2

Tension Spring

SS Brake Spring

SS Arm Brake

2

1

3

Tension Band Ass'y

Tension Arm Ass'y

Tension Holder

Inclined S Ass'y

Loading Motor Ass'y

2

Main Chassis

1

Deck PCB
(BOT)

• Screw Torque: 5 ± 0.5kgf•cm

2-8: SENSOR COVER L3 (Refer to Fig. 2-8)

Unlock the support 1 and remove the Sensor Cover L3.1.

Main Chassis

Sensor Cover L3

Link Lever

Fig. 2-7

Fig. 2-9-A

NOTE

When you install the Tension Adjust, install as shown in
Fig. 2-9-B. (Refer to Fig. 2-9-B)

Adjust the direction of the Marker to inside.

Fig. 2-9-B

2-10: T BRAKE ASS'Y (Refer to Fig. 2-10)

Remove the T Brake Spring.

1.
Remove the T Brake Ass'y.

2.

T Brake Ass'y

T Brake Spring

1

Fig. 2-8

Fig. 2-10

DISASSEMBLY INSTRUCTIONS

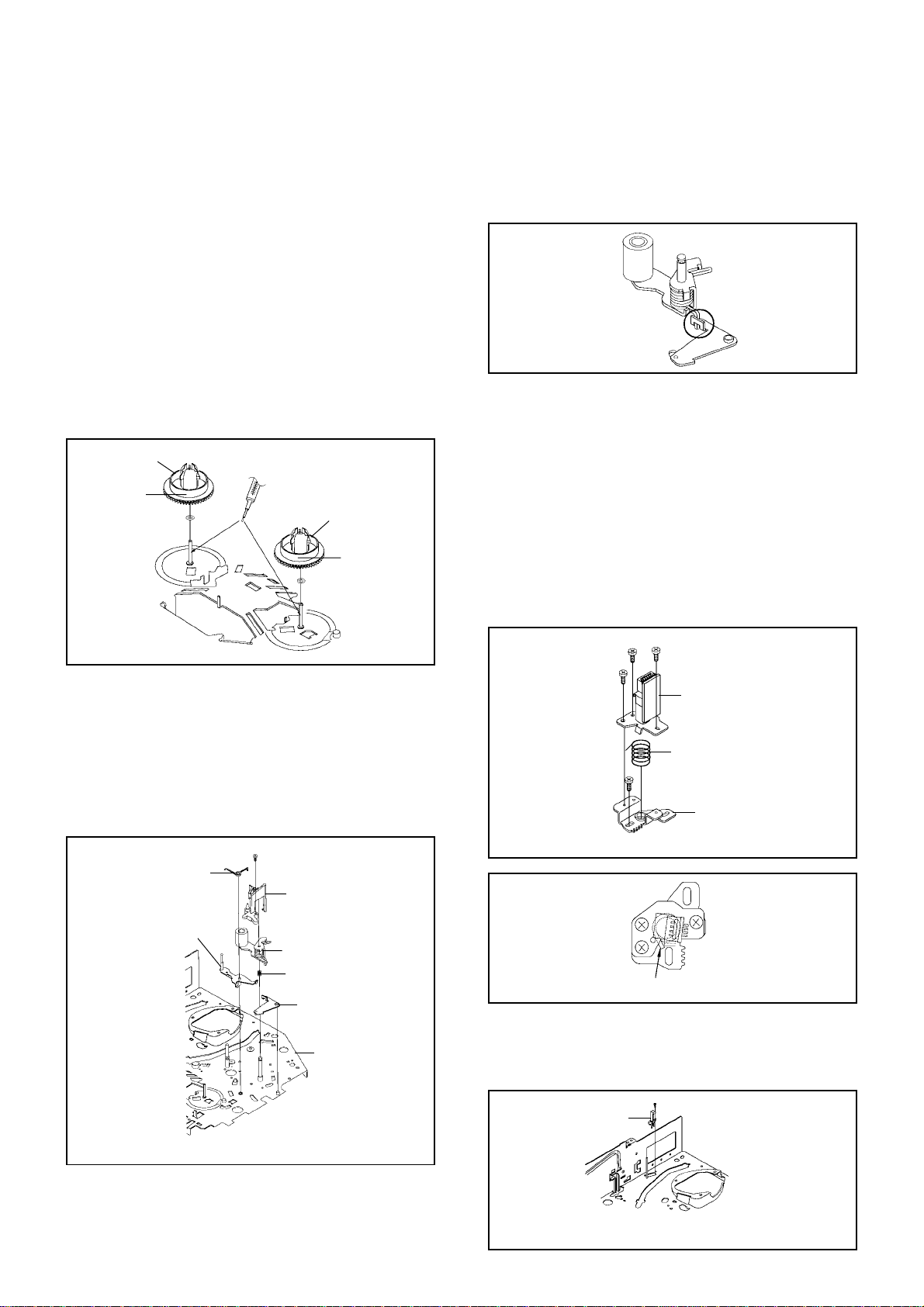

2-11: S REEL/T REEL (Refer to Fig. 2-11)

Remove the S Reel and T Reel.

1.
Remove the 2 Polyslider Washers 1.

2.

NOTE

Take care not to damage the gears of the S Reel and T

1.
Reel.
The Polyslider Washer may be remained on the back of

2.
the reel.
Take care not to damage the shaft.

3.
Do not touch the section "A" of S Reel and T Reel. (Use

4.
gloves.) (Refer to Fig. 2-11) Do not adhere the stains
on it.
When you install the reel, clean the shaft and oil it. (If

5.
you do not oil, noise may be heard in FF/REW mode.)
After installing the reel, adjust the height of the reel.

6.

(Refer to MECHANICAL ADJUSTMENT)

S Reel

(A)

1

T Reel

(A)

1

NOTE

Do not touch the Pinch Roller. (Use gloves.)

1.
When you install the Pinch Roller Block, install as shown

2.
in the circle of Fig. 2-12-B. (Refer to Fig. 2-12-B)

Fig. 2-12-B

2-13: A/C HEAD (Refer to Fig. 2-13-A)

Remove the screw 1.

1.
Remove the A/C Head Base.

2.
Remove the 3 screws 2.

3.
Remove the A/C Head and A/C Head Spring.

4.

NOTE

Do not touch the A/C Head. (Use gloves.)

1.
When you install the A/C Head Spring, install as shown

2.
in Fig. 2-13-B. (Refer to Fig. 2-13-B)
When you install the A/C Head, tighten the screw (1)

3.
first, then tighten the screw (2), finally tighten the screw
(3).

2-12: PINCH ROLLER BLOCK/P5-3 ARM ASS'Y

(Refer to Fig. 2-12-A)

Remove the P5 Spring.

1.
Remove the screw 1.

2.
Unlock the 2 supports 2 and remove the Cassette

3.
Opener.
Remove the Pinch Roller Block, Pinch Roller Arm

4.
Spring, Pinch Roller Lever Ass'y and P5-3 Arm Ass'y.

P5 Spring

P5-3 Arm Ass'y

1

2

Cassette Opener

2

Pinch Roller Block

Pinch Roller Arm Spring

Pinch Roller Lever Ass'y

Main Chassis

Fig. 2-11

(3)

(1)

2

2

(2)

1

• Screw Torque: 5 ± 0.5kgf•cm (Screw 1)

2

Spring Position

A/C Head

A/C Head Spring

A/C Head Base

Fig. 2-13-A

Fig. 2-13-B

2-14: FE HEAD (RECORDER ONLY) (Refer to Fig. 2-14)

Remove the screw 1.

1.
Remove the FE Head.

2.

• Screw Torque: 5 ± 0.5kgf•cm

Fig. 2-12-A

FE Head

• The FE Head is not installed on the Video Cassette Player.

• Screw Torque: 4 ± 0.5kgf•cm

1

Fig. 2-14

DISASSEMBLY INSTRUCTIONS

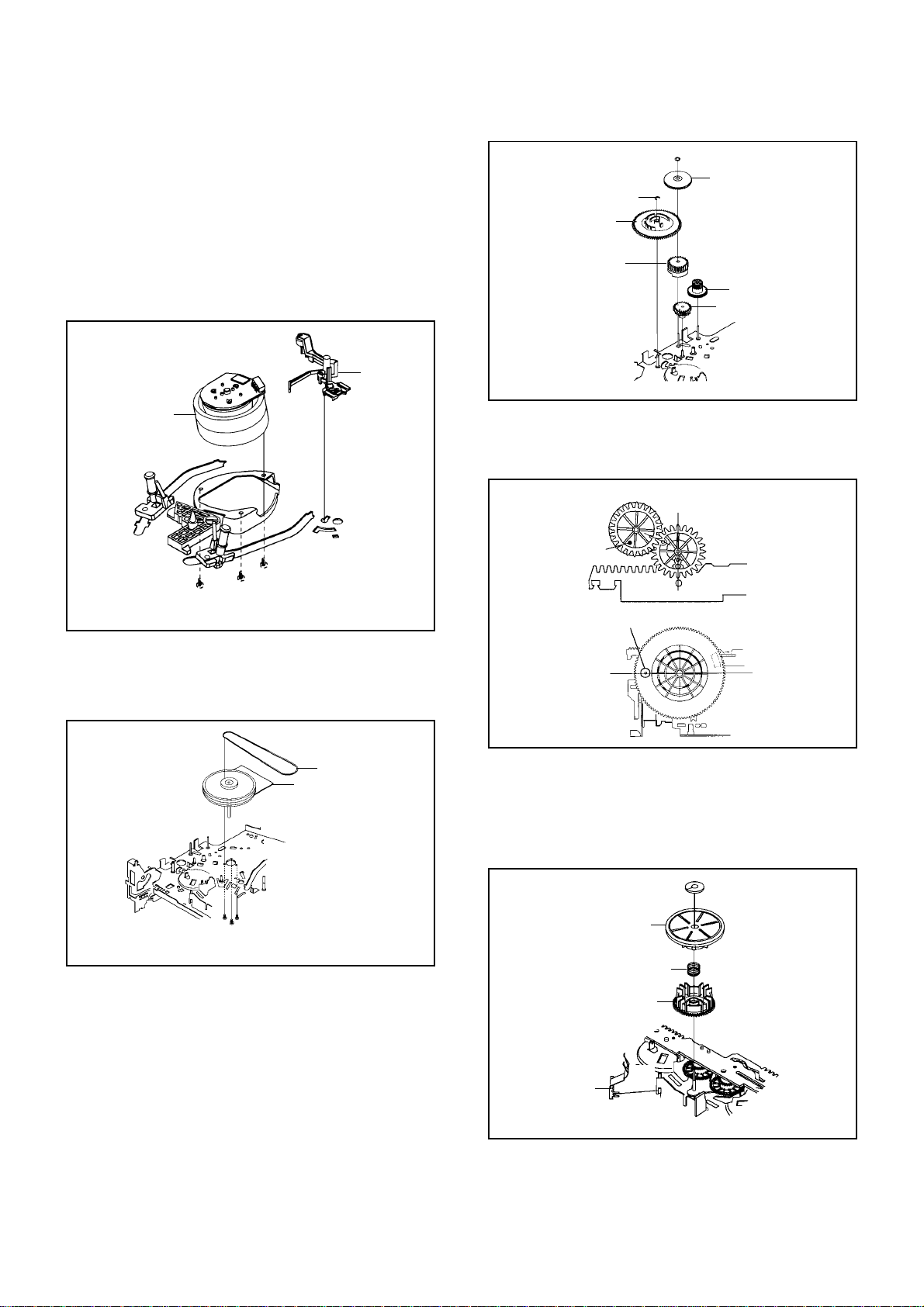

2-15: AHC ASS'Y/CYLINDER UNIT ASS'Y

(Refer to Fig. 2-15)

Unlock the support 1 and remove the AHC Ass'y.

1.
Remove the 3 screws 2.

2.
Remove the Cylinder Unit Ass'y.

3.

NOTE

When you install the Cylinder Unit Ass'y, tighten the
screws from (1) to (3) in order while pulling the Ass'y
toward the left front direction.

AHC Ass'y

Cylinder Unit Ass'y

2

(2)

• Screw Torque: 3 ± 0.5kgf•cm

(1)

2

2

(3)

1

Fig. 2-15

2-16: CAPSTAN DD UNIT (Refer to Fig. 2-16)

Remove the Capstan Belt.

1.
Remove the 3 screws 1.

2.
Remove the Capstan DD Unit.

3.

1

Middle Gear

E-Ring

Main Cam

Pinch Roller Cam

Joint Gear

P5 Cam

Fig. 2-17-A

NOTE

When you install the Pinch Roller Cam, P5 Cam and Main
Cam, align each marker. (Refer to Fig. 2-17-B)

Pinch Roller Cam

Check the hole of Main
Chassis can be seen.

Marker

Main Cam

P5 Cam

Capstan Belt

Capstan DD Unit

1

1

1

• Screw Torque: 5 ± 0.5kgf•cm

Fig. 2-16

2-17: MIDDLE GEAR/MAIN CAM (Refer to Fig. 2-17-A)

Remove the Polyslider Washer 1, then remove the

1.
Middle Gear.
Remove the E-Ring, then remove the Main Cam, P5

2.
Cam, Pinch Roller Cam and Joint Gear.

Fig. 2-17-B

2-18: CLUTCH ASS'Y (Refer to Fig. 2-18)

Remove the Polyslider Washer 1.

1.
Remove the Clutch Ass'y, Ring Spring and Coupling

2.
Gear.
Unlock the 2 supports 2 and remove the Clutch Lever.

3.

1

Clutch Ass'y

Ring Spring

Coupling Gear

Clutch Lever

2

2

Fig. 2-18

DISASSEMBLY INSTRUCTIONS

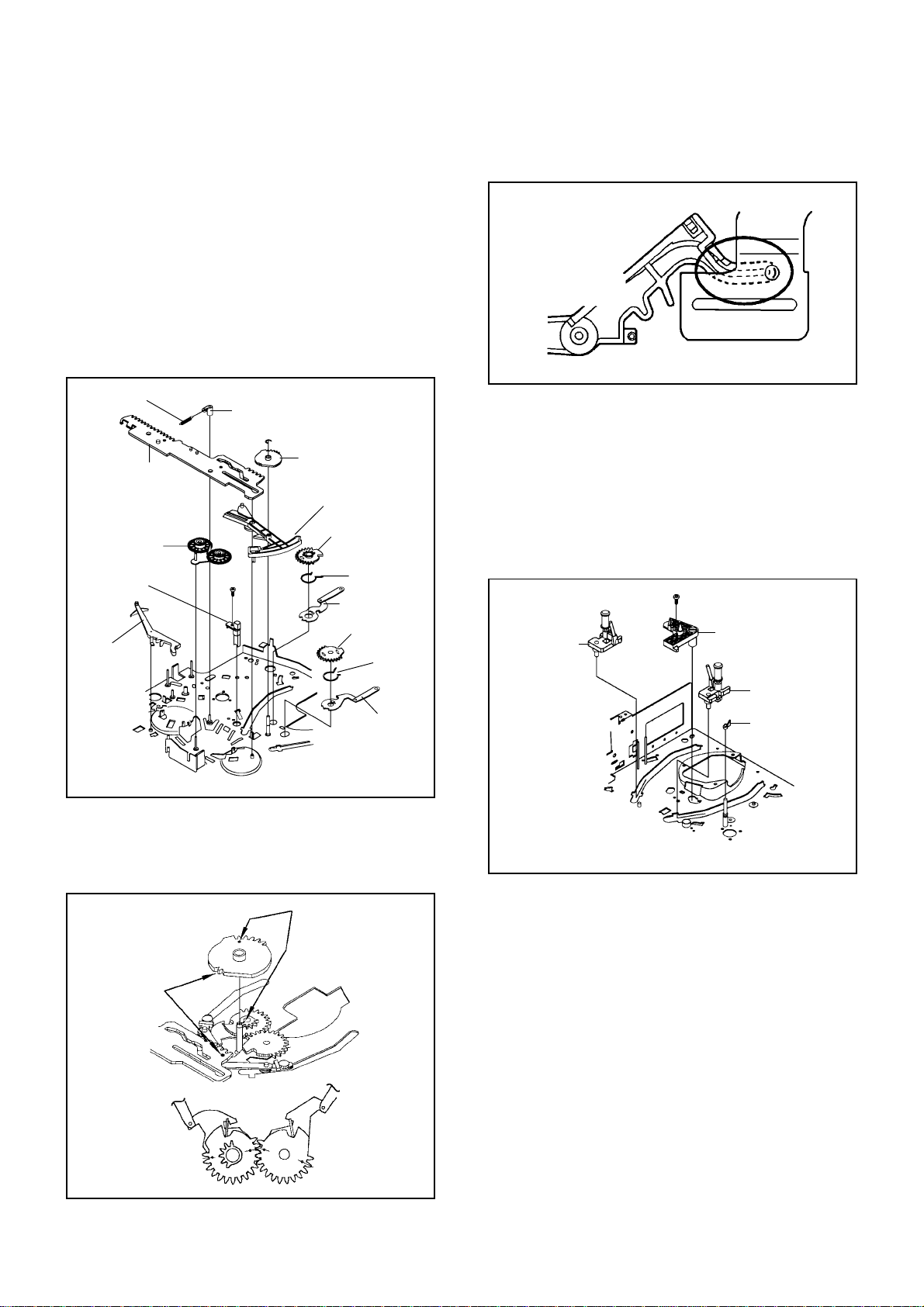

2-19: LOADING GEAR S/T ASS'Y (Refer to Fig. 2-19-A)

Remove the E-Ring 1 and remove the Main Loading

1.
Gear.
Remove the Capstan Brake Spring.

2.
Slide the Main Rod and remove the Spring Holder.

3.
Remove the Main Rod, Tension Lever, Clutch Actuator,

4.
Idler Arm Ass'y.
Remove the screw 2.

5.
Remove the LED Reflecter.

6.
Remove the Loading Arm S Ass'y and Loading Arm T

7.
Ass'y.

8.

Remove the Loading Gear S and Loading Gear T.

9.

Remove the Loading Gear Spring.

Capstan Brake Spring

Spring Holder

1

Main Loading Gear

Tension Lever

Loading Gear T

Loading Gear
Spring

Loading Arm T Ass'y

Loading Gear S

Loading Gear
Spring

Idler Arm Ass'y

LED Reflecter

Clutch Actuator

Main Rod

2

2. When you install the Clutch Actuator, install as shown in
the circle of Fig. 2-19-C. (Refer to Fig. 2-19-C)

Clutch Actuator

Fig. 2-19-C

2-20: INCLINED S/T ASS'Y (Refer to Fig. 2-20)

Remove the Cap P4.

1.
Remove the screw 1.

2.
Unlock the support 2 and remove the Loading Gear

3.
Holder.
Remove the Inclined S Unit.

4.
Remove the Inclined T Unit.

5.

NOTE

Do not touch the roller of Guide Roller.

1

Inclined S Unit

Loading Gear Holder

2

Loading Arm S Ass'y

• Screw Torque: 5 ± 0.5kgf•cm

Fig. 2-19-A

NOTES

1. When you install the Loading Arm S Ass'y, Loading Arm
T Ass'y and Main Loading Gear, align each marker.

(Refer to Fig. 2-19-B)

Marker

Main Loading Gear

Marker

• Screw Torque: 2.5 ± 0.5kgf•cm

Inclined T Unit

Cap P4

Fig. 2-20

Loading Arm T Ass'y

Loading Arm S Ass'y

Fig. 2-19-B

DISASSEMBLY INSTRUCTIONS

3. REMOVAL OF ANODE CAP

Read the following NOTED items before starting work.
*

After turning the power off there might still be a potential
voltage that is very dangerous. When removing the
Anode Cap, make sure to discharge the Anode Cap's
potential voltage.

*

Do not use pliers to loosen or tighten the Anode Cap
terminal, this may cause the spring to be damaged.

REMOVAL

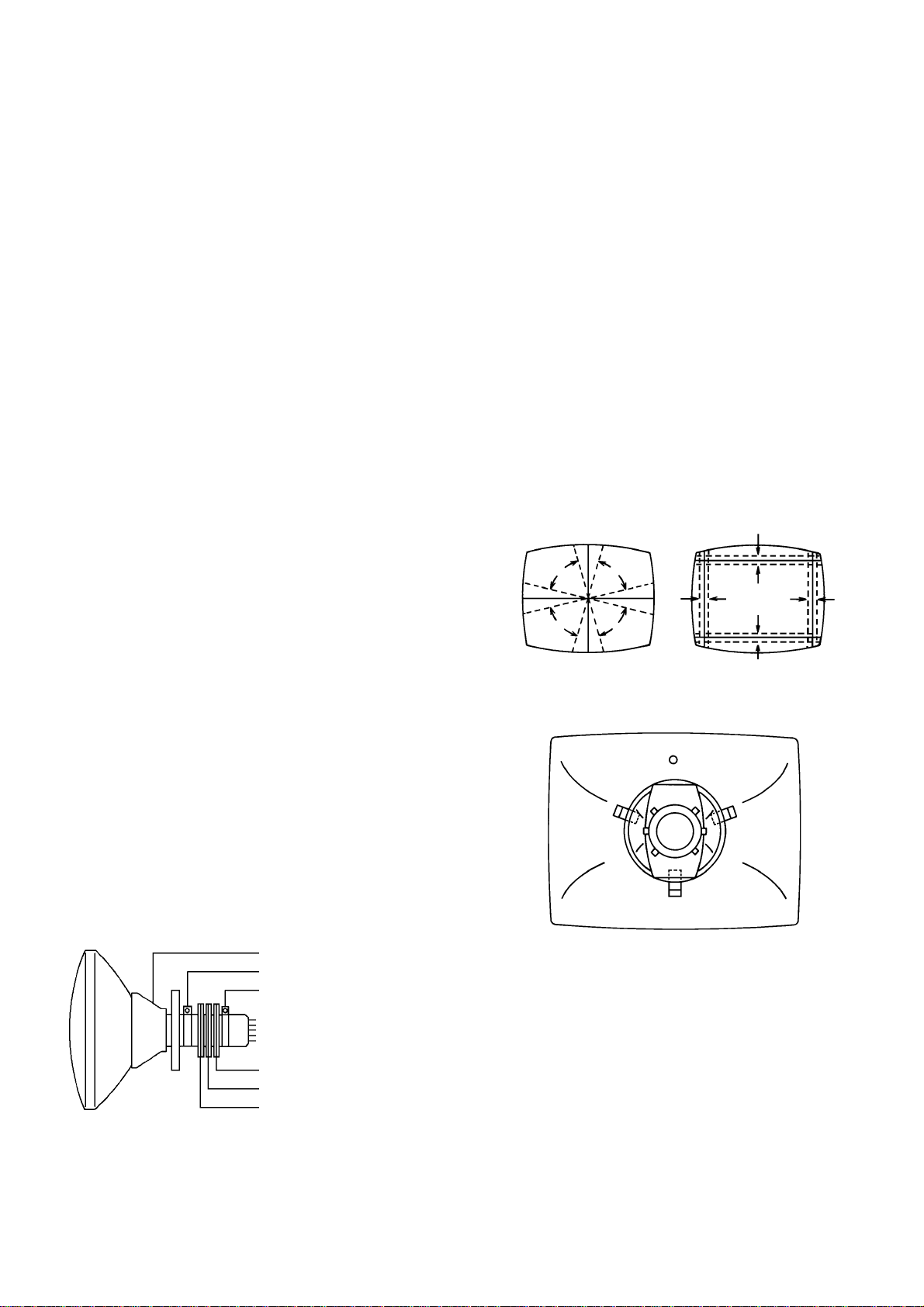

1. Follow the steps as follows to discharge the Anode Cap.

(Refer to Fig. 3-1.)

Connect one end of an Alligator Clip to the metal part of a
flat-blade screwdriver and the other end to ground.
While holding the plastic part of the insulated Screwdriver,
touch the support of the Anode with the tip of the
Screwdriver.
A cracking noise will be heard as the voltage is discharged.

GND on the CRT

3. After one side is removed, pull in the opposite direction to
remove the other.

NOTE

Take care not to damage the Rubber Cap.

INSTALLATION

1. Clean the spot where the cap was located with a small
amount of alcohol. (Refer to Fig. 3-3.)

Location of Anode Cap

Fig. 3-3

NOTE

Confirm that there is no dirt, dust, etc. at the spot where
the cap was located.

2.3.Arrange the wire of the Anode Cap and make sure the
wire is not twisted.
Turn over the Rubber Cap. (Refer to Fig. 3-4.)

Screwdriver

Alligator Clip

GND on the CRT

Flip up the sides of the Rubber Cap in the direction of the

2.
arrow and remove one side of the support.

(Refer to Fig. 3-2.)

Rubber Cap

CRT

Support

Support

CRT

Fig. 3-1

Fig. 3-2

Fig. 3-4

4. Insert one end of the Anode Support into the anode button,
then the other as shown in Fig. 3-5.

Support

CRT

5.6.Confirm that the Support is securely connected.
Put on the Rubber Cap without moving any parts.

Fig. 3-5

A

A/C
ACC
AE
AFC
AFT
AFT DET
AGC
AMP
ANT
A.PB
APC
ASS'Y
AT
AUTO
A/V

B

BGP
BOT
BPF
BRAKE SOL
BUFF
B/W

C

C
CASE
CAP
CARR
CH
CLK
CLOCK (SY-SE)
COMB
CONV
CPM
CTL
CYL
CYL-M
CYL SENS

D

DATA (SY-CE)
dB
DC
DD Unit
DEMOD
DET
DEV

E

E
EF
EMPH
ENC
ENV
EOT
EQ
EXT

F

F
FBC
FE
FF
FG
FL SW
FM
FSC
FWD

G

GEN
GND

H

H.P.F

KEY TO ABBREVIATIONS

:

Audio/Control

:

Automatic Color Control

:

Audio Erase

:

Automatic Frequency Control

:

Automatic Fine Tuning

:

Automatic Fine Tuning Detect

:

Automatic Gain Control

:

Amplifier

:

Antenna

:

Audio Playback

:

Automatic Phase Control

:

Assembly

:

All Time

:

Automatic

:

Audio/Video

:

Burst Gate Pulse

:

Beginning of Tape

:

Bandpass Filter

:

Brake Solenoid

:

Buffer

:

Black and White

:

Capacitance, Collector

:

Cassette

:

Capstan

:

Carrier

:

Channel

:

Clock

:

Clock (Syscon to Servo)

:

Combination, Comb Filter

:

Converter

:

Capstan Motor

:

Control

:

Cylinder

:

Cylinder-Motor

:

Cylinder-Sensor

:

Data (Syscon to Servo)

:

Decibel

:

Direct Current

:

Direct Drive Motor Unit

:

Demodulator

:

Detector

:

Deviation

:

Emitter

:

Emitter Follower

:

Emphasis

:

Encoder

:

Envelope

:

End of Tape

:

Equalizer

:

External

:

Fuse

:

Feed Back Clamp

:

Full Erase

:

Fast Forward, Flipflop

:

Frequency Generator

:

Front Loading Switch

:

Frequency Modulation

:

Frequency Sub Carrier

:

Forward

:

Generator

:

Ground

:

High Pass Filter

H.SW
Hz

I

IC
IF
IND
INV

K

KIL

L

L
LED
LIMIT AMP
LM, LDM
LP
L.P.F
LUMI.

M

M
MAX
MINI
MIX
MM
MOD
MPX
MS SW

N

NC
NR

O

OSC
OPE

P

PB
PB CTL
PB-C
PB-Y
PCB
P. CON
PD
PG
P-P

R

R
REC
REC-C
REC-Y
REEL BRK
REEL S
REF
REG
REW
REV, RVS
RF
RMC
RY

S

S. CLK
S. COM
S. DATA
SEG
SEL
SENS
SER
SI
SIF
SO
SOL
SP
STB
SW

:

Head Switch

:

Hertz

:

Integrated Circuit

:

Intermediate Frequency

:

Indicator

:

Inverter

:

Killer

:

Left

:

Light Emitting Diode

:

Limiter Amplifier

:

Loading Motor

:

Long Play

:

Low Pass Filter

:

Luminance

:

Motor

:

Maximum

:

Minimum

:

Mixer, mixing

:

Monostable Multivibrator

:

Modulator, Modulation

:

Multiplexer, Multiplex

:

Mecha State Switch

:

Non Connection

:

Noise Reduction

:

Oscillator

:

Operation

:

Playback

:

Playback Control

:

Playback-Chrominance

:

Playback-Luminance

:

Printed Circuit Board

:

Power Control

:

Phase Detector

:

Pulse Generator

:

Peak-to Peak

:

Right

:

Recording

:

Recording-Chrominance

:

Recording-Luminance

:

Reel Brake

:

Reel Sensor

:

Reference

:

Regulated, Regulator

:

Rewind

:

Reverse

:

Radio Frequency

:

Remote Control

:

Relay

:

Serial Clock

:

Sensor Common

:

Serial Data

:

Segment

:

Select, Selector

:

Sensor

:

Search Mode

:

Serial Input

:

Sound Intermediate Frequency

:

Serial Output

:

Solenoid

:

Standard Play

:

Serial Strobe

:

Switch

S

SYNC
SYNC SEP

T

TR
TRAC
TRICK PB
TP

U

UNREG

V

V
VCO
VIF
VP
V.PB
VR
V.REC
VSF
VSR
VSS
V-SYNC
VT

X

X'TAL

Y

Y/C

KEY TO ABBREVIATIONS

:

Synchronization

:

Sync Separator, Separation

:

Transistor

:

Tracking

:

Trick Playback

:

Test Point

:

Unregulated

:

Volt

:

Voltage Controlled Oscillator

:

Video Intermediate Frequency

:

Vertical Pulse, Voltage Display

:

Video Playback

:

Variable Resistor

:

Video Recording

:

Visual Search Fast Forward

:

Visual Search Rewind

:

Voltage Super Source

:

Vertical-Synchronization

:

Voltage Tuning

:

Crystal

:

Luminance/Chrominance

SERVICE MODE LIST

This unit provided with the following SERVICE MODES so you can repair, examine and adjust easily.
To enter SERVICE MODE, unplug AC cord till lost actual clock time. Then press and hold Vol (-) button of main unit and

remocon key simultaneously.
The both pressing of set key and remote control key will not be possible if clock has been set. To reset clock, either unplug

AC cord and allow at least 5 seconds before Power On.

Set Key Remocon Key Operations

VOL. (-) MIN

VOL. (-) MIN 1

VOL. (-) MIN

VOL. (-) MIN

VOL. (-) MIN 4

VOL. (-) MIN

VOL. (-) MIN

0

2

3

5

6

Releasing of V-CHIP PASSWORD.

Initialization of the factory.
NOTE: Do not use this for the normal servicing.

Horizontal position adjustment of OSD.
NOTE: Also can be adjusted by using the Adjustment MENU.
Refer to the "ELECTRICAL ADJUSTMENT" (OSD HORIZONTAL).

Adjust the PG SHIFTER automatically.
Refer to the "ELECTRICAL ADJUSTMENT" (PG SHIFTER).

Adjust the PG SHIFTER manually.
Refer to the "ELECTRICAL ADJUSTMENT" (PG SHIFTER).

Adjusting of the Tracking to the center position.
NOTE: Also can be adjusted by pressing the ATR button for more than 2 seconds
during PLAY.

POWER ON total hours and PLAY/REC total hours are displayed on the screen.
Refer to the "PREVENTIVE CHECKS AND SERVICE INTERVALS" (CONFIRMATION
OF USING HOURS).

Can be checked of the INITIAL DATA of MEMORY IC.
Refer to the "NOTE FOR THE REPLACING OF MEMORY IC".

VOL. (-) MIN 8

VOL. (-) MIN 9

Method Operations

Press the ATR button on the
remote control for more than
2 seconds during PLAY.

Make the short circuit between
the test point of SERVICE and
the GND.

Writing of EEPROM initial data.
NOTE: Do not use this for the normal servicing.

Display of the Adjustment MENU on the screen.
Refer to the "ELECTRICAL ADJUSTMENT" (On-Screen Display Adjustment).

Adjusting of the Tracking to the center position.
Refer to the "MECHANICAL ADJUSTMENT" (GUIDE ROLLER) and "ELECTRICAL
ADJUSTMENT" (PG SHIFTER).

The EOT/BOT/Reel sensor do not work at this moment.
Refer to the "PREPARATION FOR SERVICING"

PREVENTIVE CHECKS AND SERVICE INTERV ALS

The following standard table depends on environmental conditions and usage. Unless maintenance is properly
carried out, the following service intervals may be quite shortened as harmful effects may be had on other parts.
Also, long term storage or misuse may cause transformation and aging of rubber parts.

Time

Parts Name

Audio Control Head

Full Erase Head

(Recorder only)

Capstan Belt

Pinch Roller

Capstan DD Unit

Loading Motor

Tension Band
Capstan Shaft

Tape Running
Guide Post

Cylinder Unit

: Clean
: Replace

500

hours

1,000
hours

1,500
hours

2,000
hours

3,000
hours

Notes

Clean those parts in
contact with the tape.

Clean the rubber, and parts
which the rubber touches.

Replace when rolling
becomes abnormal.

Clean the Head

CONFIRMATION OF USING HOURS

POWER ON total hours and PLAY/REC total hours can be checked on the screen.
Total hours are displayed in 16 system of notation.

NOTE: The confirmation of using hours will not be possible if clock has been set. To reset clock, either unplug

AC cord and allow at least 5 seconds before Power On.

1.

Set the VOLUME to minimum.

2.

While holding down VOLUME button on front cabinet, press key 6 on remote control simultaneously.

3.

After the confirmation of using hours, turn off the power.

INIT 00 83
POWER ON

PLAY/REC

(16 x 16 x 16 x thousands digit value) + (16 x 16 x hundreds digit value) + (16 x tens digit value) + (ones digit value)

0010
0003

Initial setting content of MEMORY IC.

POWER ON total hours.
PLAY/REC total hours.

PREVENTIVE CHECKS AND SERVICE INTERV ALS

CLEANING

NOTE

After cleaning the heads with isopropyl alcohol, do not
run a tape until the heads dry completely. If the heads
are not completely dry and alcohol gets on the tape,
damage may occur.

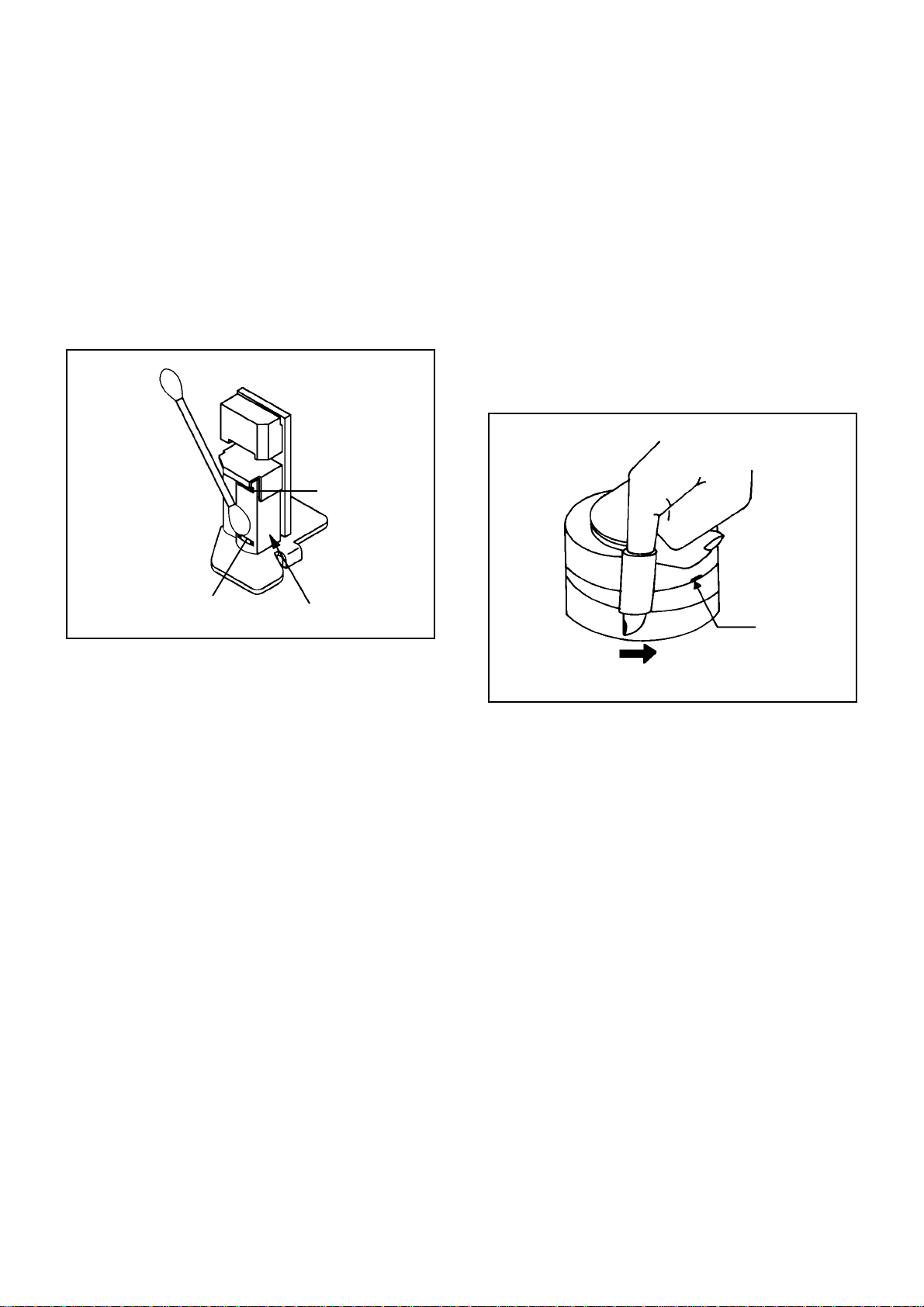

1. AUDIO CONTROL HEAD

Clean the Audio Control Head with the cotton stick
soaked by alcohol. Clean the full erase head in the
same manner. (Refer to the figure below.)

Head

2. TAPE RUNNING SYSTEM

When cleaning the tape transport system, use the
gauze moistened with isopropyl alcohol.

3. CYLINDER

Wrap a piece of chamois around your finger. Dip it in
isopropyl alcohol. Hold it to the cylinder head softly.
Turn the cylinder head counterclockwise to clean it (in
the direction of the arrow). (Refer to the figure below.)

NOTE

Do not exert force against the cylinder head. Do not move
the chamois upward or downward on the head.
Use the chamois one by one.

Head

Audio Control Head

Cylinder Head

NOTE FOR THE REPLACING OF MEMORY IC

If a service repair is undertaken where it has been required to change the MEMORY IC, the following steps should be taken to
ensure correct data settings while making reference to TABLE 1.

NOTE: Initial Data setting will not be possible if clock has been set. To reset clock, either unplug AC cord and allow

at least 5 seconds before Power On.

+0 +1 +2 +3 +4 +5 +6 +7 +8 +9
88 1B E2 63 43 14 34 09 51 38

9A

B2 92 93 00 00 30 05 08 00

10

06 29 01 15 10 60 32 3A BA D7

20 10 15 20 25 26 27
30 3A 3C 3E 40 41 42

28 29 2A 2C 2E 30 32 34 36 38

40 44 4D 4E 4F 50 51 52

43 45 46 47 48 49 4A 4B 4C

53 55 56 57 58 59 5A 5B 5C

50
60 --- --- --- --- --- ---

Enter DATA SET mode by setting VOLUME to minimum.

1.
While holding down VOLUME button on front cabinet, press key 6 on remote control simultaneously.

2.
ADDRESS and DATA should appear as FIG 1.

54

63 64 66 69 6D 74 79 7C 7E 7F

Table 1

ADDRESS DATA

+A

+B +C +D +E +FINI
10 96 19 00 00 2900
A9 0F 04 3E 06 04

5D 5E 5F 60 61 62

INIT 00 83
POWER ON

PLAY/REC

0010
0003

Fig. 1

3.

ADDRESS is now selected and should "blink". Using the SET + or - keys on the remote, step through the ADDRESS until
required ADDRESS to be changed is reached.

4.

Press ENTER to select DATA. When DATA is selected, it will "blink".

5.

Again, step through the DATA using SET + or - until required DATA value has been selected.

6.

Pressing ENTER will take you back to ADDRESS for further selection if necessary.

7.

Repeat steps 3 to 6 until all data has been checked.

8.

When satisfied correct DATA has been entered, turn POWER off (return to STANDBY MODE) to finish DATA input.

The unit will now have the correct DATA for the new MEMORY IC.

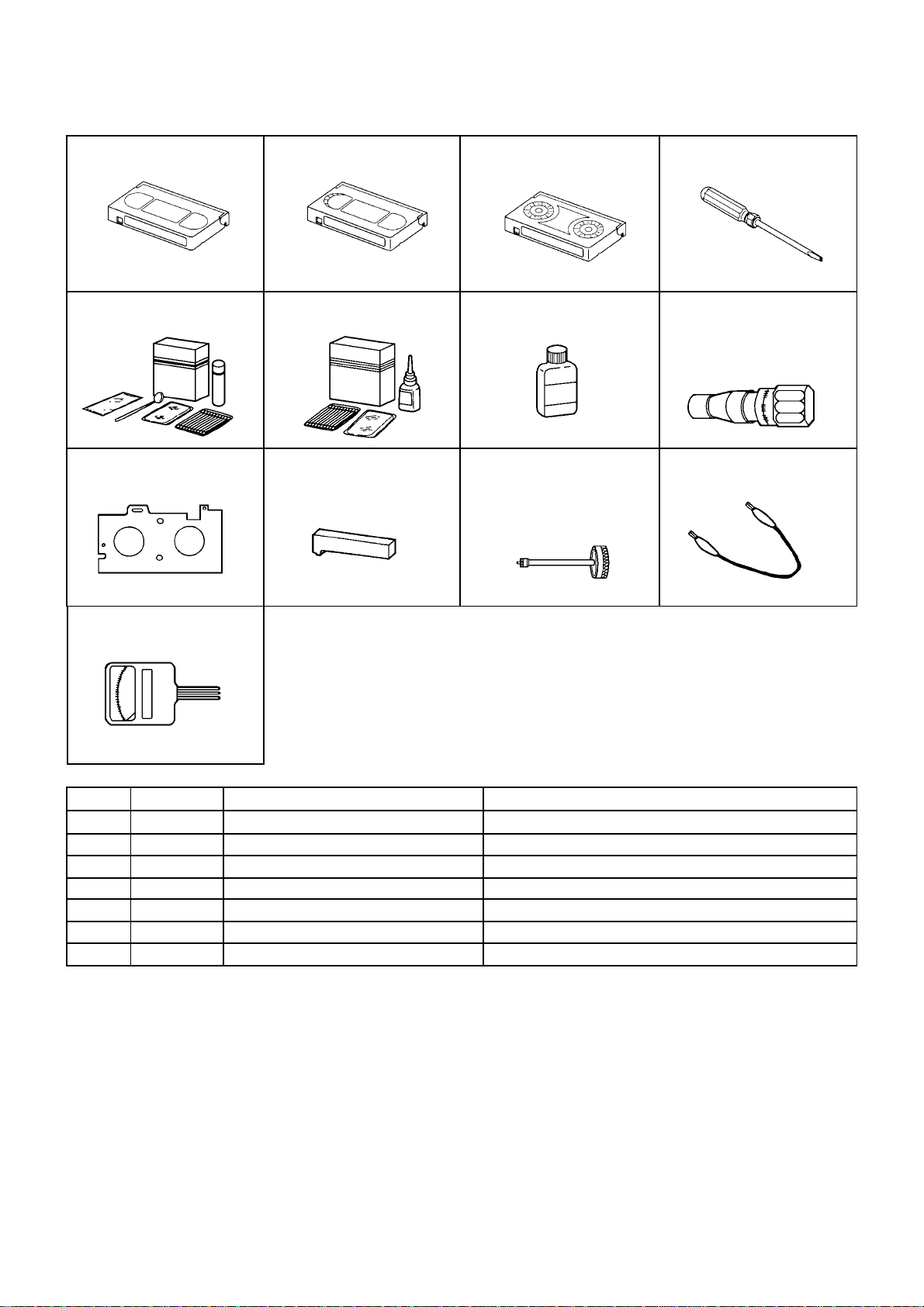

SERVICING FIXTURES AND TOOLS

Alignment Tape

Back tension cassette gauge

Torque cassette gauge

Taper nut driver

(KT-300NR)

ST-N5
ST-NF

70909103

70909199

70909228

VTR cleaning kit VTR lubrication kit Grease JG002B

JG002E
JG002F

JG022 Master Plane JG024A Reel Disk Height

Adjustment Jig

JG153 X Value Adjustment

Screwdriver

JG154 Cable

Adapter
Dial Torque Gauge
(10~90gf•cm)
(60~600gf•cm)

Tentelometer

Part No.Ref. No. Parts Name

JG002B
JG002E
JG002F

JG024A APJG024A00 Reel Disk Height Adjustment Jig Reel Disk Height Adjustment

JG153 APJG153000 X Value Adjustment Screwdriver X Value Adjustment
JG154 APJG154000 Cable Used to connect the test point of SERVICE and GROUND

APJG002B00
APJG002E00
APJG002F00
APJG022000JG022 Master Plane Reel Disk Height Adjustment

Adapter
Dial Torque Gauge (10~90gf•cm)
Dial Torque Gauge (60~600gf•cm)

VSR Torque, Brake Torque (S Reel/T Reel Ass'y)
Brake Torque (T Reel Ass'y)
VSR Torque, Brake Torque (S Reel)

Remarks

PREPARATION FOR SERVICING

How to use the Servicing Fixture

1.

Unplug the connector CP353 and CP354, then remove the TV/VCR Block from the set.

2.

Remove the Operation PCB from the set, then connect it with the Syscon PCB.
If necessary, connect CP353. (Front A/V Jack Input Terminal)

3.

Short circuit between TP1001 and Ground with the cable JG154.

(Refer to MAJOR COMPONENTS LOCATION GUIDE)

4.

The EOT, BOT and Reel Sensor do not work at this moment.
At that time, the STOP/EJECT button is available to insert and eject the Cassette Tape.

MECHANICAL ADJUSTMENTS

1. CONFIRMATION AND ADJUSTMENT

Read the following NOTES before starting work.

••Place an object which weighs between 450g~500g on

the Cassette Tape to keep it steady when you want to
make the tape run without the Cassette Holder. (Do not
place an object which weighs over 500g.)
When you activate the deck without the Cassette Holder,
short circuit between TP1001 and GND. (Refer to

ELECTRICAL ADJUSTMENT PARTS LOCATION
GUIDE) In this condition the BOT/EOT/Reel Sensor will

not function.

CONFIRMATION AND ADJUSTMENT OF REEL

1-1:

DISK HEIGHT

1.

Turn on the power and set to the STOP mode.

2.

Set the master plane (JG022) and reel disk height
adjustment jig (JG024A) on the mechanism framework,
taking care not to scratch the drum, as shown in Fig. 1-
1-A.

3.

While turning the reel and confirm the following points.
Check if the surface "A" of reel disk is lower than the
surface "B" of reel disk height adjustment jig (JG024A)
and is higher than the surface "C". If it is not passed,
place the height adjustment washers and adjust to
10(+2, -0)mm.

4.

Adjust the other reel in the same way.

1-2: CONFIRMATION AND ADJUSTMENT OF TENSION

POST POSITION

1.

Set to the PLAY mode.

2.

Adjust the Tension Adjust until the edge of the Tension
Arm is positioning within 0.5mm range from the
standard line center of Main Chassis.
After this adjustment, confirm that the cut position is
located in "A" area as shown in Fig. 1-2-B. If it is
located in "B" area, adjust again.

3.

While turning the S Reel clockwise, confirm that the
edge of the Tension Arm is located in the position
described above.

Standard line of Main Chassis

Tension Arm

0.5mm (Adjusting range)

Standard line center of Main Chassis

Tension Adjust

Fig. 1-2-A

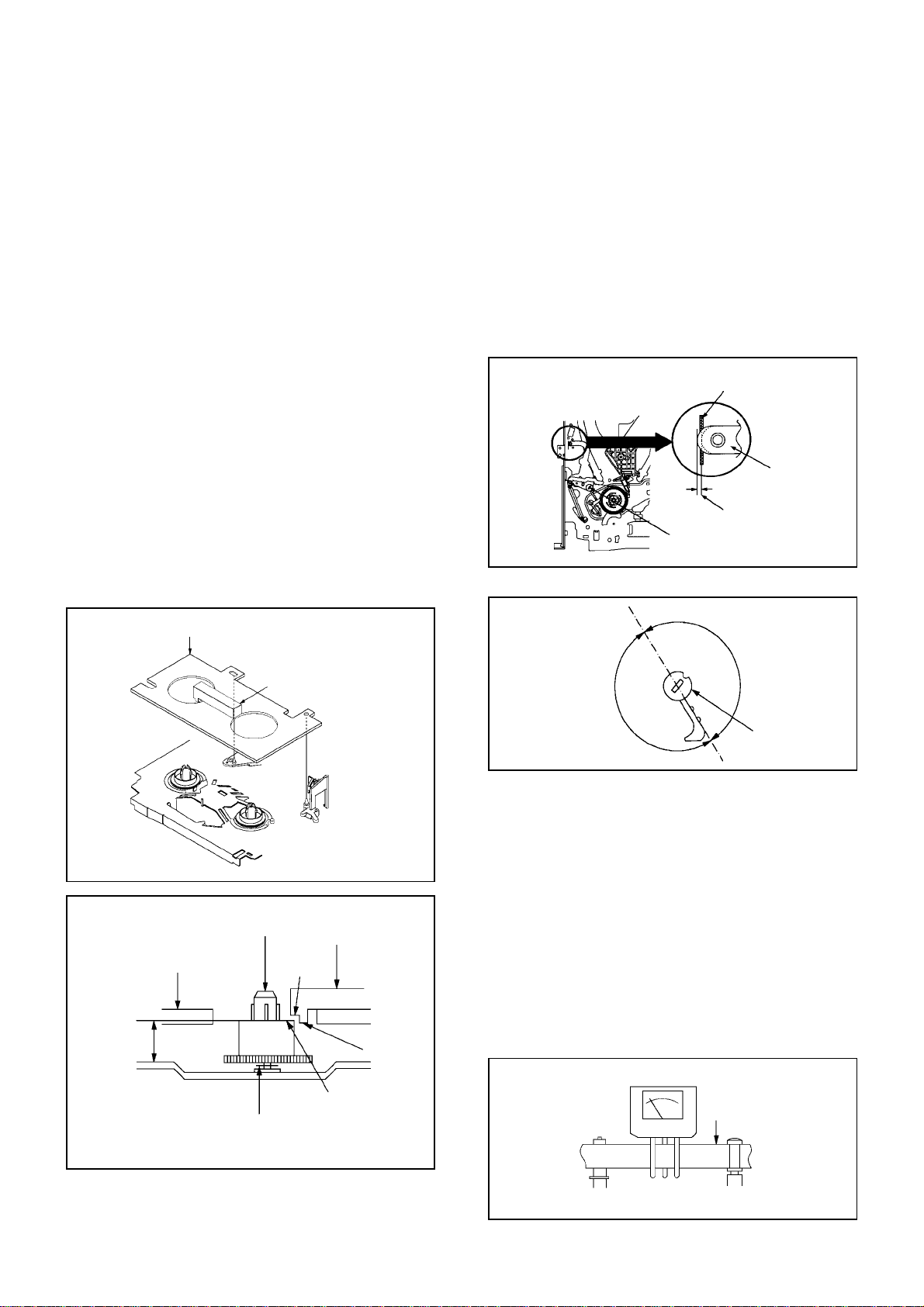

Master Plane (JG022)

10(+0.2, -0)mm

Master Plane (JG022)

Height Adjustment
Washer

2.6x4.7xT0.13

2.6X4.7xT0.25

Reel Disk Height Adjustment Jig
(JG024A)

Reel Disk Height

Reel Disk

Adjustment Jig
(JG024A)

(B)

(A)

Fig. 1-1-A

(C)

Fig. 1-1-B

(A)

Cut Position

(B)

Tension Adjust

Fig. 1-2-B

1-3: CONFIRMATION OF PLAYBACK TORQUE AND

BACK TENSION TORQUE DURING PLAYBACK

Load a video tape (T-120) recorded in standard speed

1.
mode. Set the unit to the PLAY mode.
Install the tentelometer as shown in Fig. 1-3. Confirm that

2.
the meter indicates 20 ± 2gf in the beginning of playback.

• USING A CASSETTE TYPE TORQUE TAPE (KT-300NR)

1.

After confirmation and adjustment of Tension Post
position (Refer to item 1-2), load the cassette type
torque tape (KT-300NR) and set to the PLAY mode.

2.

Confirm that the right meter of the torque tape indicates
60~110gf•cm during playback in SP mode.

3.

Confirm that the left meter of the torque tape indicates
25~40gf•cm during playback in SP mode.

Tentelometer

Video Tape

P1 Post

Guide Roller

Fig. 1-3

MECHANICAL ADJUSTMENTS

1-4: CONFIRMATION OF VSR TORQUE

Install the Torque Gauge (JG002F) and Adapter (JG002B)

1.
on the S Reel. Set to the Picture Search (Rewind) mode.

(Refer to Fig.1-4)

Then, confirm that it indicates 120~180gf•cm.

2.

NOTE

Install the Torque Gauge on the reel disk firmly. Press the
REW button to turn the reel disk.

1-5: CONFIRMATION OF REEL BRAKE TORQUE

(S Reel Brake) (Refer to Fig. 1-4-B)

Once set to the Fast Forward mode then set to the Stop

1.
mode. While, unplug the AC cord when the Pinch Roller
Block is on the position of Fig. 1-4-A.
Move the Idler Ass'y from the S Reel.

2.
Install the Torque Gauge (JG002F) and Adapter

3.

(JG002B) on the S Reel. Turn the Torque Gauge
(JG002F) clockwise.

Then, confirm that it indicates 60~100gf•cm.

4.

(T Reel Brake) (Refer to Fig. 1-4-B)

Once set to the Fast Forward mode then set to the Stop

1.
mode. While, unplug the AC cord when the Pinch Roller
Block is on the position of Fig. 1-4-A.
Move the Idler Ass'y from the T Reel.

2.
Install the Torque Gauge (JG002E) and Adapter

3.

(JG002B) on the T reel. Turn the Torque Gauge
(JG002E) counterclockwise.

Then, confirm that it indicates 45~70gf•cm.

4.

The position at FF mode.

Pinch Roller Block

Stop at this position.

The position at
STOP mode.

Capstan DD Unit

Cassette Holder Ass'y

Cassette
Opener

Fig. 1-4-A

NOTE

If the torque is out of the range, replace the following
parts.

Check item

1-4
1-5

S Reel side:

Replacement Part

Idler Ass'y/Clutch Ass'y

S Reel/Tension Band Ass'y/
Tension Arm Ass'y

T Reel side:

T Reel/T Brake Spring/T Brake
Ass'y

2. CONFIRMATION AND ADJUSTMENT
OF TAPE RUNNING MECHANISM

Tape Running Mechanism is adjusted precisely at the
factory. Adjustment is not necessary as usual. When you
replace the parts of the tape running mechanism because
of long term usage or failure, the confirmation and
adjustment are necessary.

2-1: GUIDE ROLLER

Playback the VHS Alignment Tape.

1.

Connect CH-1 of the oscilloscope to TP4001 (Envelope)

2.

and CH-2 to TP1002 (SW Pulse).
Press and hold the Tracking-Auto button on the remote

3.

control more than 2 seconds to set tracking to center.

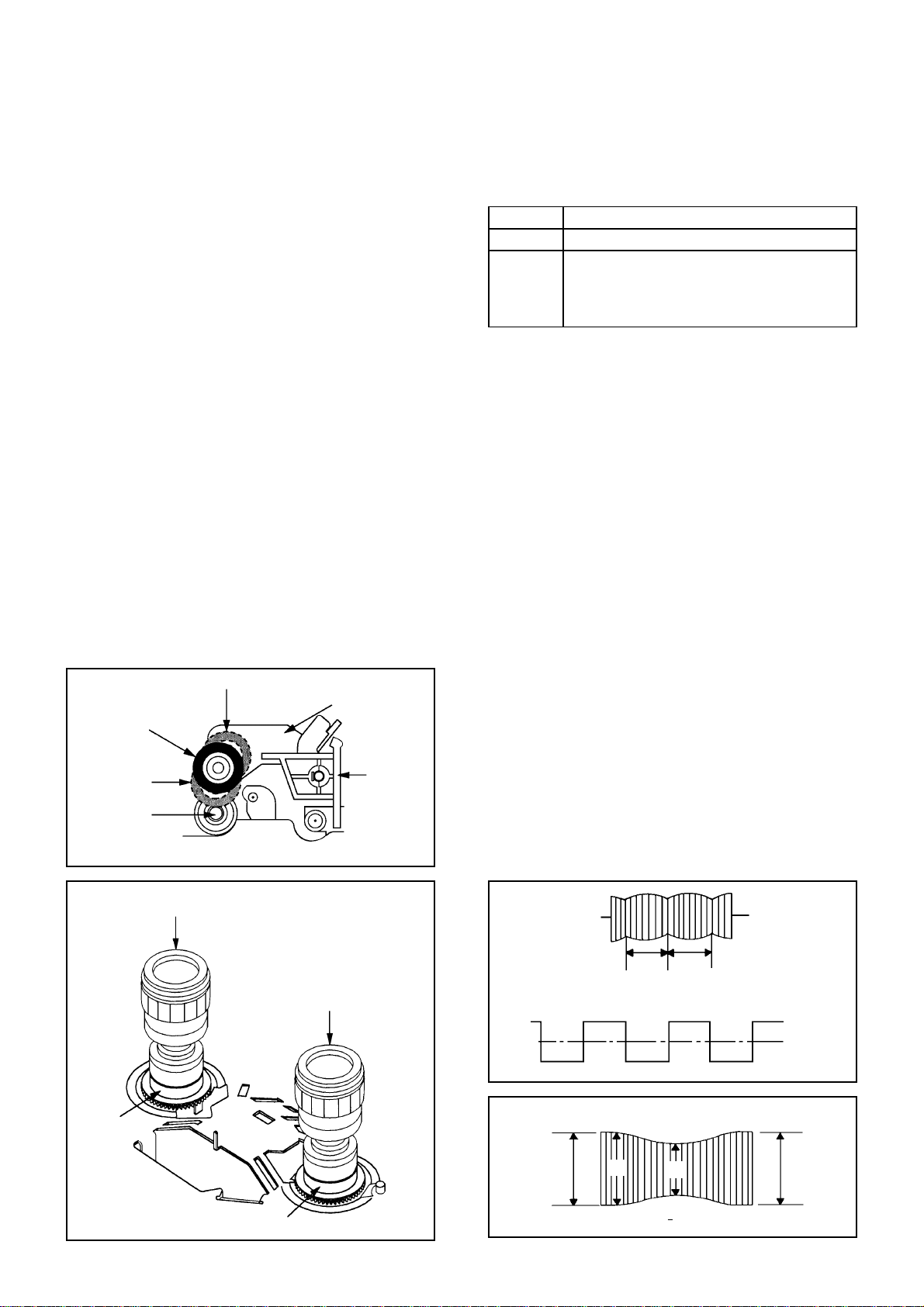

Trigger with SW Pulse and observe the envelope. (Refer

4.

to Fig. 2-1-A)

When observing the envelope, adjust the Taper Nut

5.

Driver slightly until the envelope will be flat.
Even if you press the Tracking Button, adjust so that
flatness is not moved so much.
Adjust so that the A : B ratio is better than 3 : 2 as shown

6.

in Fig. 2-1-B, even if you press the Tracking Button to
move the envelope (The envelope waveform will begin to
decrease when you press the Tracking Button).
Adjust the PG shifter during playback.

7.

(Refer to the ELECTRICAL ADJUSTMENTS)

NOTE

After adjustment, confirm and adjust A/C head.

(Refer to item 2-2)

Torque Gauge/Adapter
(JG002F/JG002B)

S Reel

Torque Gauge/Adapter
(JG002E/JG002B)

T Reel

Fig. 1-4-B

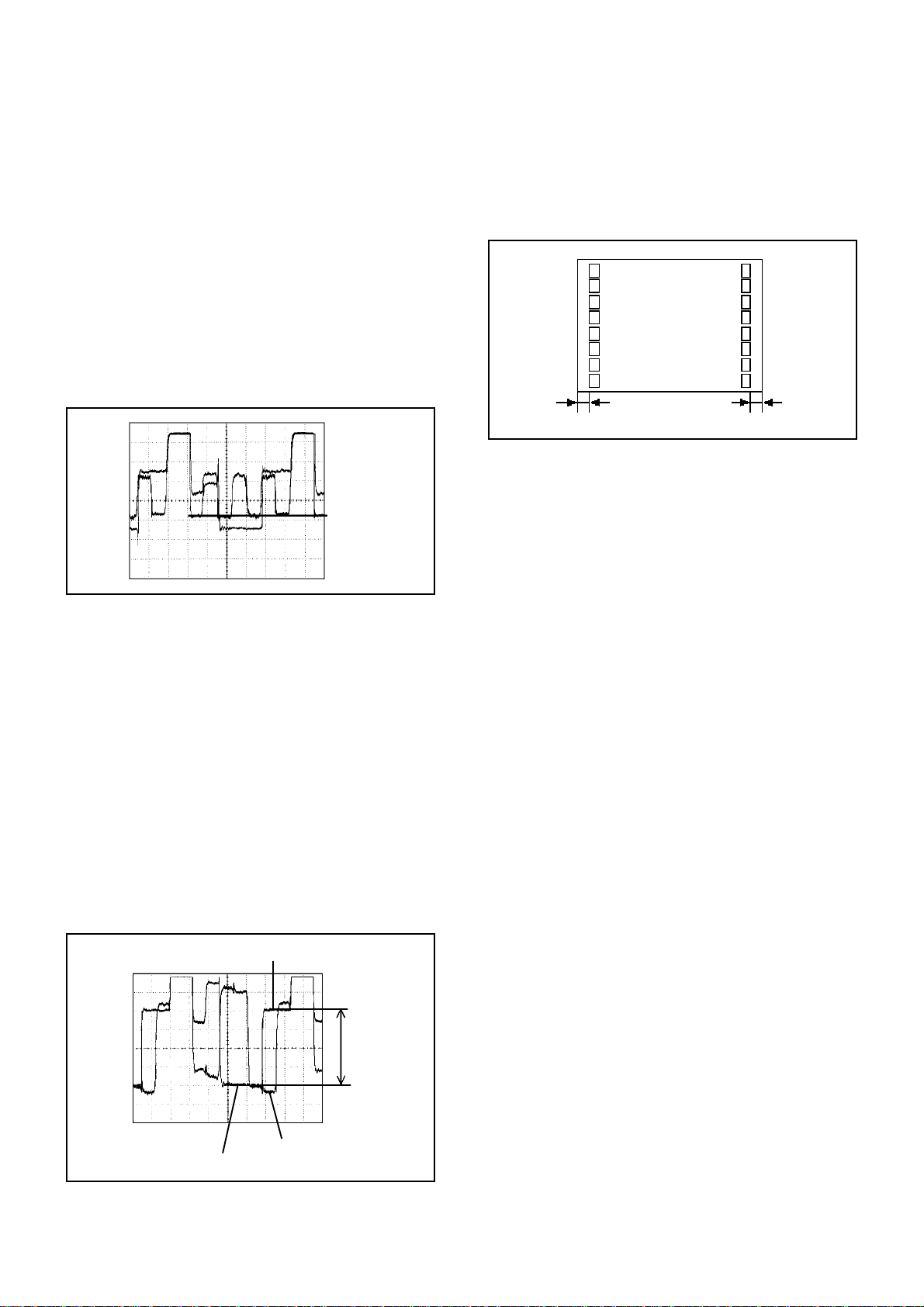

CH-1
Envelope
(TP4001)

CH-1
Track

CH-2
SW Pulse (TP1002)

Entrance Exit

Max

A

A : B ≥ 3 : 2

CH-2
Track

B

Fig. 2-1-A

Max

Fig. 2-1-B

MECHANICAL ADJUSTMENTS

CONFIRMATION AND ADJUSTMENT OF AUDIO/
CONTROL HEAD

When the Tape Running Mechanism does not work well,
adjust the following items.

1.

Playback the VHS Alignment Tape.

2.

Confirm that the reflected picture of stamp mark is
appeared on the tape prior to P4 Post as shown in Fig.
2-2-A.

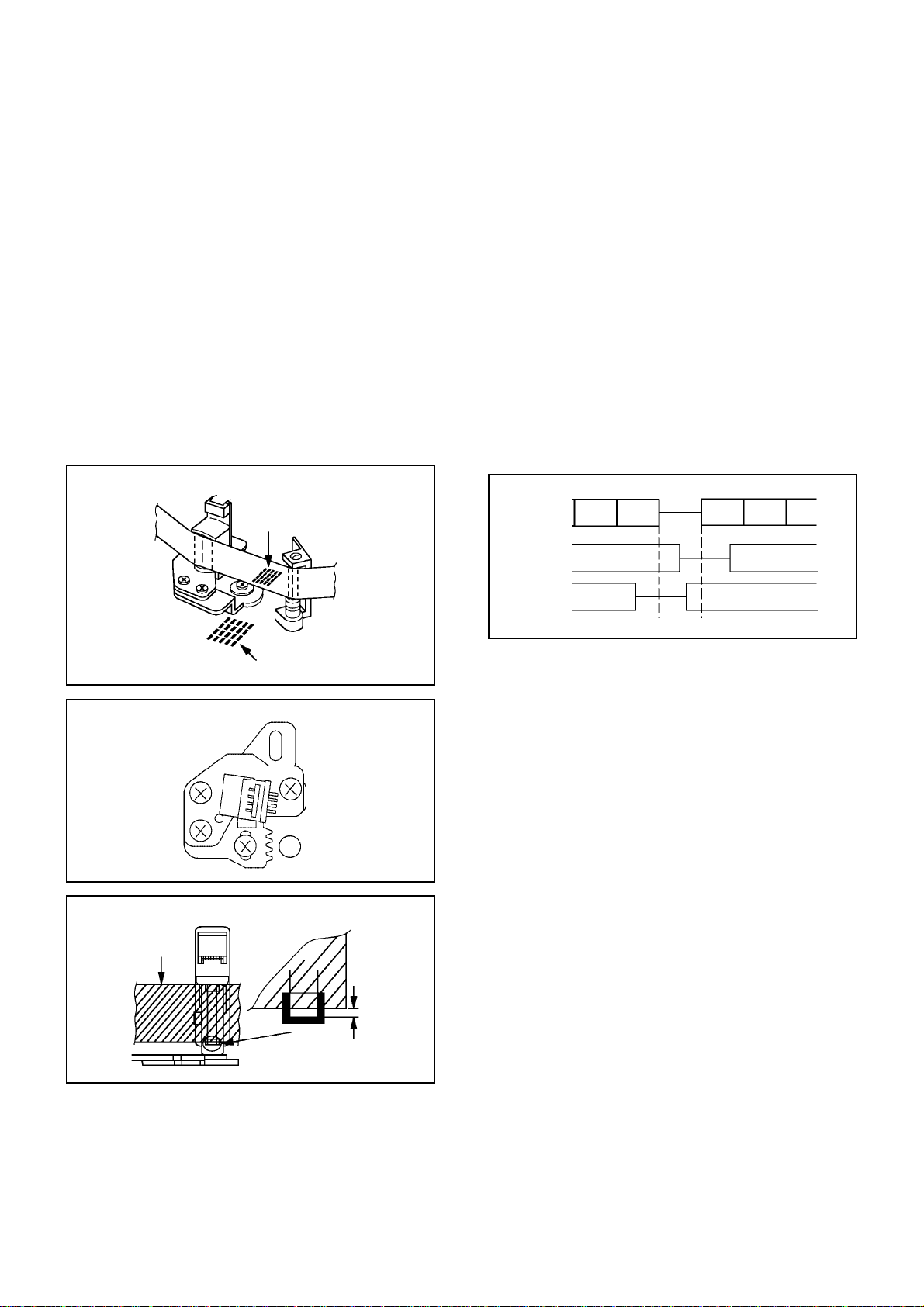

When the reflected picture is distorted, turn the screw

a)

1 clockwise until the distortion is disappeared.
When the reflected picture is not distorted, turn the

b)

screw 1 counterclockwise until little distortion is
appeared, then adjust the a).

3.

Turn the screw 2 to set the audio level to maximum.

4.

Confirm that the bottom of the Audio/ Control Head and
the bottom of the tape is shown in Fig. 2-2-C.

When the height is not correct, turn the screw 3 to

c)

adjust the height. Then, adjust the 1~3 again.

Audio/Control Head

Reflected picture of
Stamp Mark

P4 Post

2-3:2-2:

TAPE RUNNING ADJUSTMENT
(X VALUE ADJUSTMENT)

Confirm and adjust the height of the Reel Disk.

1.

(Refer to item 1-1)

Confirm and adjust the position of the Tension Post.

2.

(Refer to item 1-2)

Adjust the Guide Roller. (Refer to item 2-1)

3.

Confirm and adjust the Audio/Control Head.

4.

(Refer to item 2-2)

Connect CH-1 of the oscilloscope to TP4001, CH-2 to

5.

TP1002 and CH-3 to HOT side of Audio Out Jack.
Playback the VHS Alignment Tape.

6.

Press and hold the Tracking-Auto button on the remote

7.

control more than 2 seconds to set tracking to center.
Set the X Value adjustment driver (JG153) to the 4 of

8.

Fig. 2-2-B. Adjust X value so that the envelope waveform
output becomes maximum. Check if the relation between
Audio and Envelope waveform becomes (1) or (2) of Fig.
2-3.

Envelope

(1)
CH-3
Audio

(2)

Audio/Control Head

3

2

Audio/Control Head

Tape

Stamp Mark

Fig. 2-3

Fig. 2-2-A

1

4

Fig. 2-2-B

0.25±0.05mm

Fig. 2-2-C

MECHANICAL ADJUSTMENTS

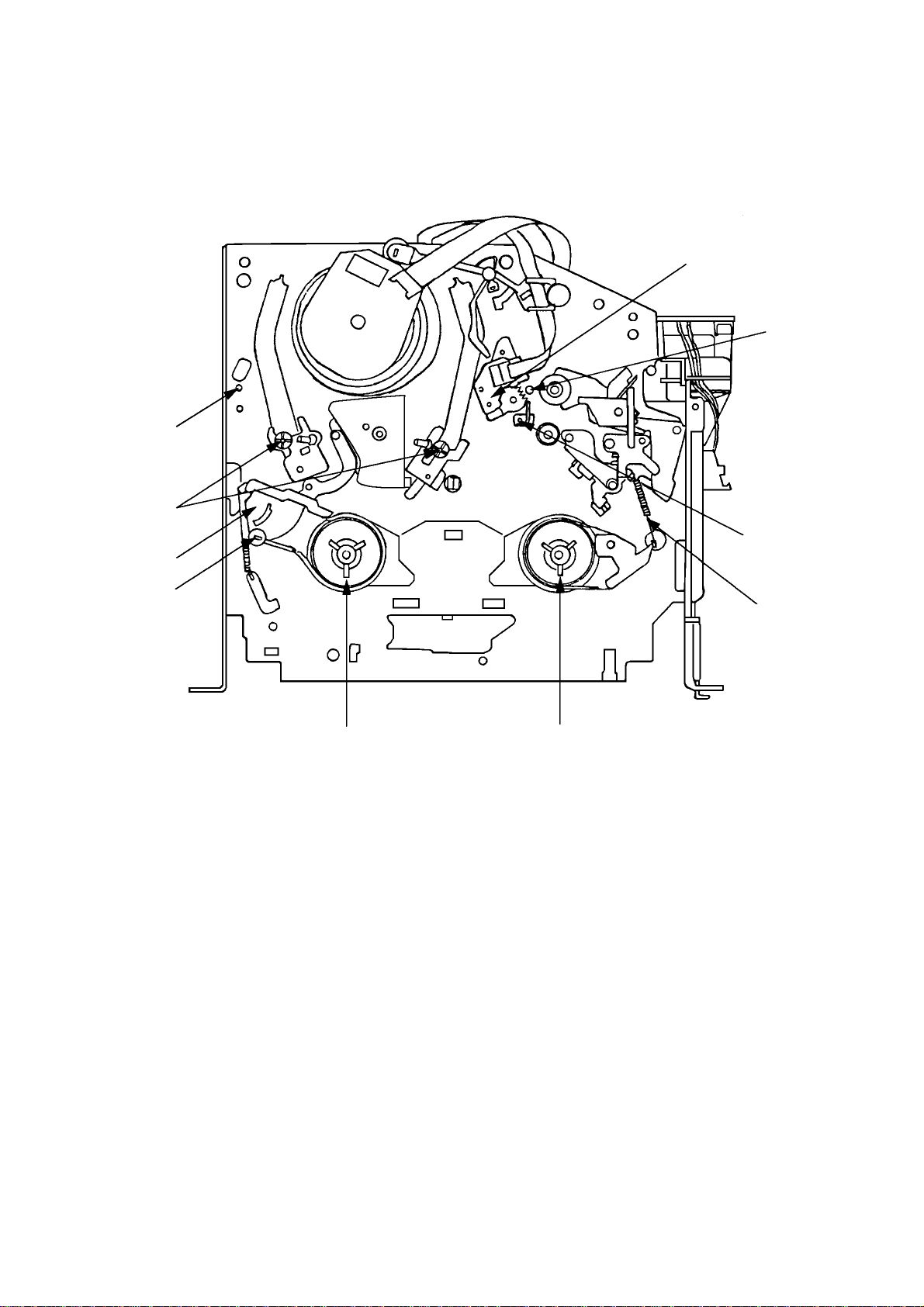

3. MECHANISM ADJUSTMENT PARTS LOCATION GUIDE

4

3

2

5

6

7

1

10

1. Tension Adjust

2. Tension Arm

3. Guide Roller

4. P1 Post

5. Audio/Control Head

6.

X value adjustment driver hole

7.

P4 Post

8.

T Brake Spring

9.

T Reel

10.

S Reel

9

8

ELECTRICAL ADJUSTMENTS

1.

BEFORE MAKING ELECTRICAL
ADJUSTMENTS

Read and perform these adjustments when repairing the
circuits or replacing electrical parts or PCB assemblies.

CAUTION

•

Use an isolation transformer when performing any
service on this chassis.

•

Before removing the anode cap, discharge electricity
because it contains high voltage.

•

When removing a PCB or related component, after
unfastening or changing a wire, be sure to put the wire
back in its original position.
Inferior silicon grease can damage IC's and transistors.

•

When replacing IC's and transistors, use only specified
silicon grease.
Remove all old silicon before applying new silicon.

On-Screen Display Adjustment

Unplug the AC plug for more than 5 seconds to set the

1.
clock to the non-setting state. Then, set the volume
level to minimum.
Press the VOL. DOWN button on the set and the

2.
Channel button (9) on the remote control simultaneously

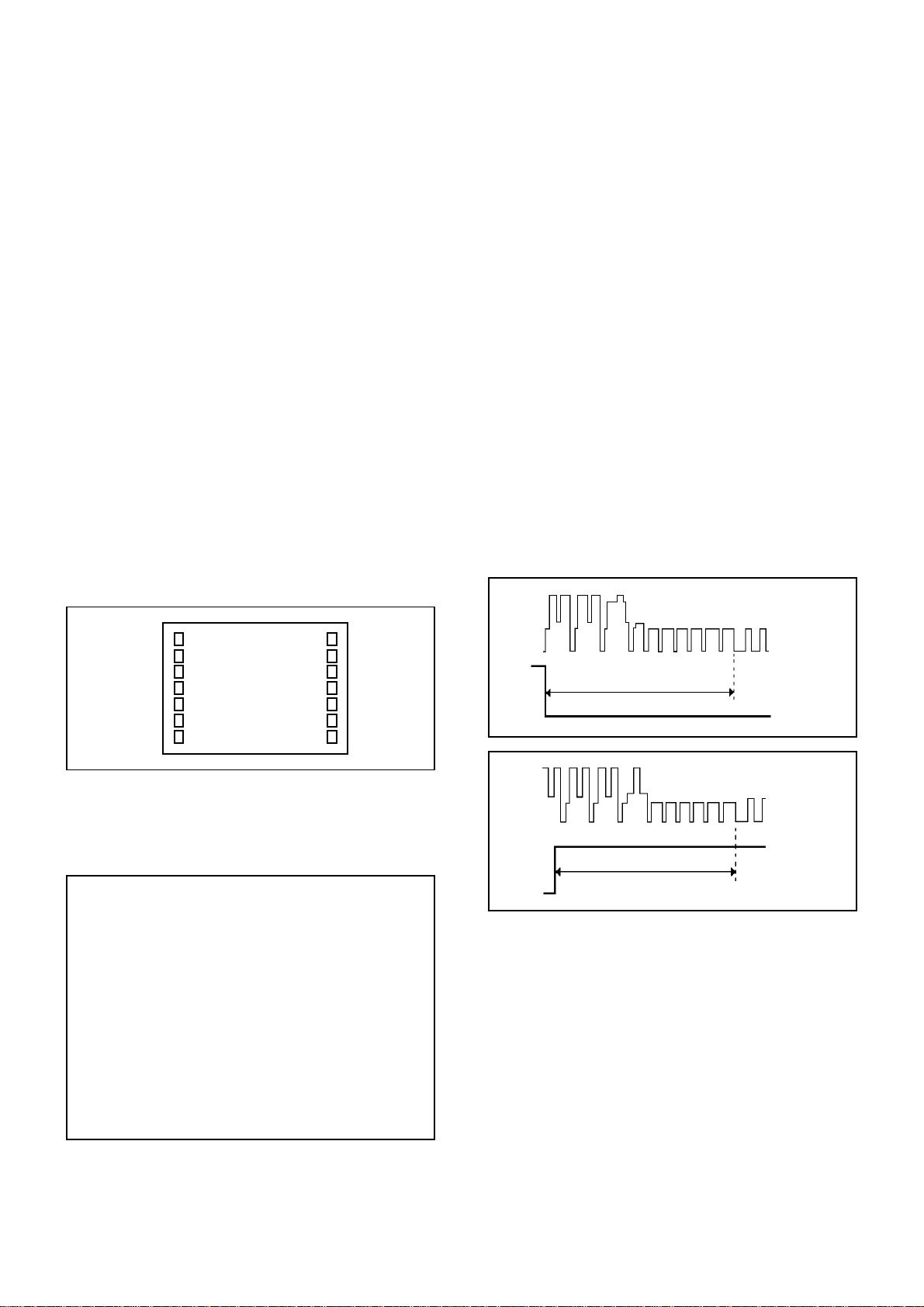

to appear the adjustment mode on the screen as shown
in Fig. 1-1.

2. BASIC ADJUSTMENTS
(VCR SECTION)

2-1: PG SHIFTER

1.

Connect CH-1 on the oscilloscope to TP1002 and CH-2
to pin 4 of CP1003.

2.

Playback the alignment tape.

3.

Press and hold the Tracking-Auto button on the remote
control more than 2 seconds to set tracking to center.

4.

Press the VOL. DOWN button on the set and the
channel button (3) on the remote control simultaneously
until the indicator REC disappears. If the indicator REC
disappears, adjustment is completed.

(If the above adjustments doesn't work well:)

5.

Press the VOL. DOWN button on the set and the
channel button (3) on the remote control simultaneously
until the indicator REC disappears.

6.

When the REC indicator is blinking, press both VOL.
DOWN button on the set and the channel button (4) on
the remote control simultaneously and adjust the
Tracking +/- button until the arising to the down of Head
Switching Pulse becomes 6.5 ± 0.5H.

(Refer to Fig. 2-1-A, B)

7.

Press the Tracking Auto button.

TV

00 OSD 15

Use the Channel UP/DOWN button or Channel button

3.
(0-9) on the remote control to select the options shown
in Fig. 1-2.
Press the MENU button on the remote control to end

4.
the adjustments.

FUNCTION

NO.

00
01
02
03
04
05
06
07
08
09
10
11
12

OSD H
CUT OFF
RF DELAY
VIF VCO
H VCO
H PHASE
V SIZE
V SHIFT
R DRIVE
B DRIVE
R BIAS
G BIAS
B BIAS

FUNCTION

NO.

BRIGHTNESS

13

CONTRAST

14

COLOR

15

TINT

16

SHARPNESS

17

FM LEVEL

18

LEVEL

19

SEPARATION 1

20

SEPARATION 2

21

TEST MONO

22

TEST STEREO

23

X-RAY TEST

24

Fig. 1-1

Fig. 1-2

CH-2

6.5H

CH-1

Fig. 2-1-A

CH-2

CH-1

6.5H

Fig. 2-1-B

2-2: VCO FREERUN

1.

Place the set with Aging Test for more than 10 minutes.

2.

Receive the VHF HIGH.

3.

Disconnect the Antenna while receiving the VHF HIGH
and set to the Noise screen.

4.

Once turn off the Power and turn on the Power again.

5.

Approxi. 3 seconds later, input the Antenna again.

6.

Connect the digital voltmeter between the pin 5 of
CP351 and the pin 1 (GND) of CP351.

7.

Activate the adjustment mode display of Fig. 1-1 and
press the channel button (03) on the remote control to
select "VIF VCO".

8.

Press the VOL. UP/DOWN button on the remote control
until the digital voltmeter is 2.5VDC.

9.

After the 2.5V adjustment, countdown the VIF VCO step
No. by 1 step with the VOL. DOWN button.

ELECTRICAL ADJUSTMENTS

2-3: RF AGC

1.

Receive the VHF HIGH (63dB).

2.

Connect the digital voltmeter between the pin 5 of
CP351 and the pin 1 (GND) of CP351.

3.

Activate the adjustment mode display of Fig. 1-1 and
press the channel button (02) on the remote control to
select "RF DELAY".

4.

Press the VOL. UP/DOWN button on the remote control
until the digital voltmeter is 2.9V.

(TV SECTION)

2-4: CONSTANT VOLTAGE

1.

Connect the digital voltmeter to the R520.

2.

Set condition is AV MODE without signal.

3.

Using the remote control, set the brightness and contrast
to normal position.

4.

Adjust the VR502 until the digital voltmeter is 135 ± 0.5V.

2-5: CUT OFF

1.

Adjust the unit to the following settings.
R BIAS=128, G BIAS=128, B BIAS=128,
BRIGHTNESS=128, CONTRAST=100

2.

Place the set with Aging Test for more than 15 minutes.

3.

Set condition is AV MODE without signal.

4.

Using the remote control, set the brightness and
contrast to normal position.

5.

Activate the adjustment mode display of Fig. 1-1 and
press the channel button (01) on the remote control to
select "CUT OFF".

6.

Adjust the Screen Volume until a dim raster is obtained.

2-6: WHITE BALANCE
NOTE: Adjust after performing CUT OFF adjustment.

1.

Place the set with Aging Test for more than 15 minutes.

2.

Receive the color bar pattern.

3.

Using the remote control, set the brightness and contrast
to normal position.

4.

Activate the adjustment mode display of Fig. 1-1 and
press the channel button (10) on the remote control to
select "R.BIAS".

5.

Using the VOL. UP/DOWN button on the remote control,
adjust the R.BIAS.

6.

Press the CH. UP/DOWN button on the remote control to
select the "R.DRIVE", "B.DRIVE", "G.BIAS" or "B.BIAS".

7.

Using the VOL. UP/DOWN button on the remote control,
adjust the R.DRIVE, B.DRIVE, G.BIAS or B.BIAS.

8.

Perform the above adjustments 6 and 7 until the white
color is looked like a white.

2-7: FOCUS

1.

Receive the monoscope pattern.

2.

Using the remote control, set the brightness and
contrast to normal position.

3.

Turn the Focus Volume fully counterclockwise once.

4.

Adjust the Focus Volume until picture is distinct.

2-8: HORIZONTAL PHASE

1.

Receive the monoscope pattern.

2.

Using the remote control, set the brightness and
contrast to normal position.

3.

Activate the adjustment mode display of Fig. 1-1 and
press the channel button (05) on the remote control to
select "H PHASE".

4.

Press the VOL. UP/DOWN button on the remote
control until the SHIFT quantity of the OVER SCAN on
right and left becomes minimum.

2-9: VERTICAL SHIFT

1.

Receive the monoscope pattern.

2.

Using the remote control, set the brightness and
contrast to normal position.

3.

Activate the adjustment mode display of Fig. 1-1 and
press the channel button (07) on the remote control to
select "V SHIFT".

4.

Press the VOL. UP/DOWN button on the remote
control until the horizontal line becomes fit to the notch
of the shadow mask.

2-10: VERTICAL SIZE

1.

Receive the monoscope pattern.

2.

Using the remote control, set the brightness and
contrast to normal position.

3.

Activate the adjustment mode display of Fig. 1-1 and
press the channel button (06) on the remote control to
select "V SIZE".

4.

Press the VOL. UP/DOWN button on the remote
control until the SHIFT quantity of the OVER SCAN on
upside and downside becomes minimum.

2-11: SUB BRIGHTNESS

1.

Receive the monoscope pattern. (RF Input)

2.

Using the remote control, set the brightness and
contrast to normal position.

3.

Activate the adjustment mode display of Fig. 1-1 and
press the channel button (13) on the remote control to
select "BRIGHTNESS".

4.

Press the VOL. UP/DOWN button on the remote
control until the white 10% is starting to be visible

5.

Receive the monoscope pattern. (Audio Video Input)

6.

Press the INPUT SELECT button on the remote control
to set to the AV mode. Then perform the above
adjustments 2~4.

2-12: SUB CONTRAST

1.

Activate the adjustment mode display of Fig. 1-1 and
press the channel button (14) on the remote control to
select "CONTRAST".

2.

Press the VOL. UP/DOWN button on the remote
control until the contrast step No. becomes "79"

3.

Press the INPUT SELECT button on the remote control
to set to the AV mode.

4.

Activate the adjustment mode display of Fig. 1-1 and
press the channel button (14) on the remote control.

5.

Press the VOL. UP/DOWN button on the remote
control until the contrast step No. becomes "85"

ELECTRICAL ADJUSTMENTS

2-13: SUB TINT

1.

Receive the color bar pattern. (RF Input)

2.

Connect the oscilloscope to TP801.

3.

Using the remote control, set the brightness, contrast,
color and tint to normal position.

4.

Activate the adjustment mode display of Fig. 1-1 and
press the channel button (16) on the remote control to
select "TINT".

5.

Press the VOL. UP/DOWN button on the remote control
until the section "A" becomes a straight line.

(Refer to Fig. 2-2)

6.

Receive the color bar pattern. (Audio Video Input)

7.

Press the INPUT SELECT button on the remote control
to set to the AV mode. Then perform the above
adjustments 2~5.

"A"

Fig. 2-2

2-15: OSD HORIZONTAL

1.2.Activate the adjustment mode display of Fig. 1-1.
Press the VOL. UP/DOWN button on the remote
control until the difference of A and B becomes
minimum. (Refer to Fig. 2-4)

TV

00 OSD 15

A

B

Fig. 2-4

2-14: SUB COLOR

1.

Receive the color bar pattern. (RF Input)

2.

Connect the oscilloscope to TP803.

3.

Using the remote control, set the brightness, contrast,
color and tint to normal position.

4.

Activate the adjustment mode display of Fig. 1-1 and
press the channel button (15) on the remote control to
select "COLOR".

5.

Adjust the VOLTS RANGE VARIABLE knob of the
oscilloscope until the range between white 100% and
0% is set to 4 scales on the screen of the oscilloscope.

6.

Press the VOL. UP/DOWN button on the remote control
until the red color level is adjusted to 110 ± 5% of the
white level. (Refer to Fig. 2-3)

7.

Receive the color bar pattern. (Audio Video Input)

8.

Press the INPUT SELECT button on the remote control
to set to the AV mode. Then perform the above
adjustments 2~6.

White 0%

100%

White 100%

Red Level

Fig. 2-3

ELECTRICAL ADJUSTMENTS

3. ELECTRICAL ADJUSTMENT PARTS LOCATION GUIDE

TP1001

CP1003

TP4001

TP1002

FB401

FOCUS VOLUME
SCREEN VOLUME

CP351

R520

SYSCON

J801

VR502

TU601

TP801

TP803

CRT

ELECTRICAL ADJUSTMENTS

4.PURITY AND CONVERGENCE
ADJUSTMENTS

NOTE

1.

Turn the unit on and let it warm up for at least 30
minutes before performing the following adjustments.

2.

Place the CRT surface facing east or west to reduce the
terrestrial magnetism.

3.

Turn ON the unit and demagnetize with a Degauss Coil.

4-1: STATIC CONVERGENCE (ROUGH ADJUSTMENT)

1.

Tighten the screw for the magnet. Refer to the adjusted
CRT for the position. (Refer to Fig. 4-1)
If the deflection yoke and magnet are in one body,
untighten the screw for the body.

2.

Receive the green raster pattern from the color bar
generator.

3.

Slide the deflection yoke until it touches the funnel side
of the CRT.

4.

Adjust center of screen to green, with red and blue on
the sides, using the pair of purity magnets.

5.

Switch the color bar generator from the green raster
pattern to the crosshatch pattern.

6.

Combine red and blue of the 3 color crosshatch pattern
on the center of the screen by adjusting the pair of 4
pole magnets.

7.

Combine red/blue (magenta) and green by adjusting the
pair of 6 pole magnets.

8.

Adjust the crosshatch pattern to change to white by
repeating steps 6 and 7.

4-2: PURITY
NOTE

Adjust after performing adjustments in section 4-1.

1.

Receive the green raster pattern from color bar
generator.

2.

Adjust the pair of purity magnets to center the color on
the screen.
Adjust the pair of purity magnets so the color at the
ends are equally wide.

3.

Move the deflection yoke backward (to neck side)
slowly, and stop it at the position when the whole screen
is green.

4.

Confirm red and blue colors.

5.

Adjust the slant of the deflection yoke while watching
the screen, then tighten the fixing screw.

DEFLECTION YOKE
DEFLECTION YOKE SCREW
MAGNET SCREW

4-3: STATIC CONVERGENCE
NOTE

Adjust after performing adjustments in section 4-2.

1.

Receive the crosshatch pattern from the color bar
generator.

2.

Combine red and blue of the 3 color crosshatch pattern
on the center of the screen by adjusting the pair of 4
pole magnets.

3.

Combine red/blue (magenta) and green by adjusting the
pair of 6 pole magnets.

4-4: DYNAMIC CONVERGENCE
NOTE

Adjust after performing adjustments in section 4-3.

1.2.Adjust the differences around the screen by moving the
deflection yoke upward/downward and right/left.

(Refer to Fig. 4-2-a)

Insert three wedges between the deflection yoke and
CRT funnel to fix the deflection yoke.

(Refer to Fig. 4-2-b)

R G B

R
G
B

UPWARD/DOWNWARD SLANT RIGHT/LEFT SLANT

WEDGE

WEDGE POSITION

R
G
B

Fig. 4-2-a

WEDGE

WEDGE

Fig. 4-2-b

R G B

6 POLE MAGNETS
4 POLE MAGNETS
PURITY MAGNETS

Fig. 4-1

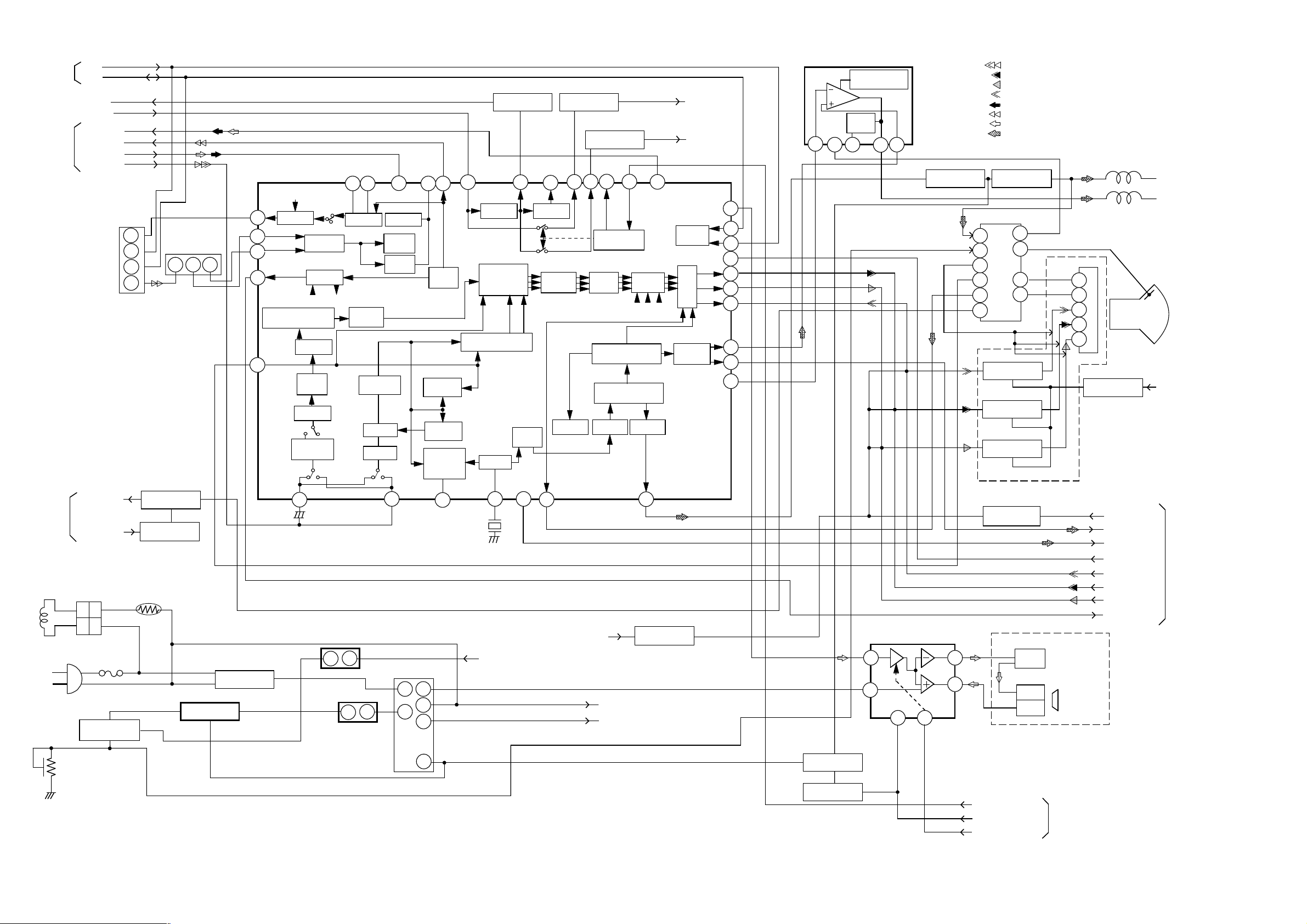

MICON/

OPERATION/

IN/OUT/DECK

Y/C/AUDIO/

HEAD AMP

MICON/

OPERATION/

IN/OUT/

DECK

L503

DEGAUSS COIL

AC IN

SCL

SDA

AT+5V

AT+25V

TU_AUDIO

TU_VIDEO

Y/C_AUDIO
SD_VIDEO

X-RAY

X-RAY_TEST

2

2

1

1

Q507

FEED BACK

VR502

+B ADJ

F501

SW.

TU601

1
4

5

11

Q404

Q403

TH501

SAW FILTER
CF601

1

SW.

SW.

FEED BACK

CHROMA IC
IC601 M61206FP

62

1

64

54

60

31

D501

RECTIFIER

Q501 TLP621(GR)

DELAY ADJ

RF AGC

VIF AMP

AFT

DEFEAT

BLACK STRETCH

GAMMA

CLAMP

VIDEO

TONE

DELAY

CHROMA

TRAP

5V REG. IC
IC501
KIA78R05PI

POWER REG. IC
IC502
STR-G6623

63 48

IF AGC

AFT OUT

VIDEO

MUTE

4

1

5

VIDEO

APC
DET

CHROMA

BPF

ACC

HPF

34

1

52

VCO

DET

T501

8

3

57

56

LOCK

DET

KILLER

DET

ACC

DET

CHROMA

APC
DET

3536

17
15
14

10

Q602, Q603

REG.

55

CONTRAST

41

5.7Vreg

RGB

MATRIX

DEMODULATOR

VCO
ADJ

VCXO

32

12

X602

3.579545MHz

P. CON+8V

TV BLOCK DIAGRAM

Q606

REG.

Q604, Q605

REG.

NC

33

42

RESET

P-ON-ON

BRIGHT

AFC 1

6

POWER_FAIL

39 46 13

POWER ON

CONTROL

DRIVE
AMP

VERTICAL

COUNT DOWN

HORIZONTAL

COUNT DOWN

H VCO AFC 2

AT+12V

UNREG+8V

53

CLAMP

26

RGB

CUT OFF

7

Q611

POWER FAIL

SW.

BLK

V.RAMP

P. CON+8V

AT+5V

BUS

I/F

HV

50
10

27

14
15
16

17
29

21

V. OUTPUT IC IC401 AN5522

THERMAL

PROTECTION

AMP

PUMP
UP

VCC

1

5

2

4 5

7

Q405

H-DRIVE

PLAYBACK VIDEO SIGNAL
R. SIGNAL
G. SIGNAL
B. SIGNAL

AUDIO SIGNAL (PB)
TUNER VIDEO SIGNAL
AUDIO SIGNAL
DEFLECTION SIGNAL

Q406

H. OUTPUT

FB401

COL
+B

E180
ABL
AFC
HEA

3

HV

F
S

1

2

6
7

9

10

E180V

J801

F

7

11

8
6

DY

V801

CRT

Q804

Q402

DRIVER

Q401

SWITCHING

SOUND AMP IC
IC351 AN7511

2

5

1

BLUE AMP

Q806

RED AMP

Q805

GREEN

AMP

Q609

POWER ON

SW.

OPERATION PCB

J351

6

8

HEAD
JACK

CD353

SP+
SP–

4

VCR_POWER-H
TV_POWER-H
TV_A_MUTE

Q608

CUT OFF SW. P. CON+8V

CRT PCB

TV_POWER-H

VD
HD

OSD_BLK
OSD_B
OSD_R

OSD_G

AFT_M

SP351
SPEAKER

MICON/
OPERATION/
IN/OUT/DECK

MICON/
OPERATION/
IN/OUT/DECK

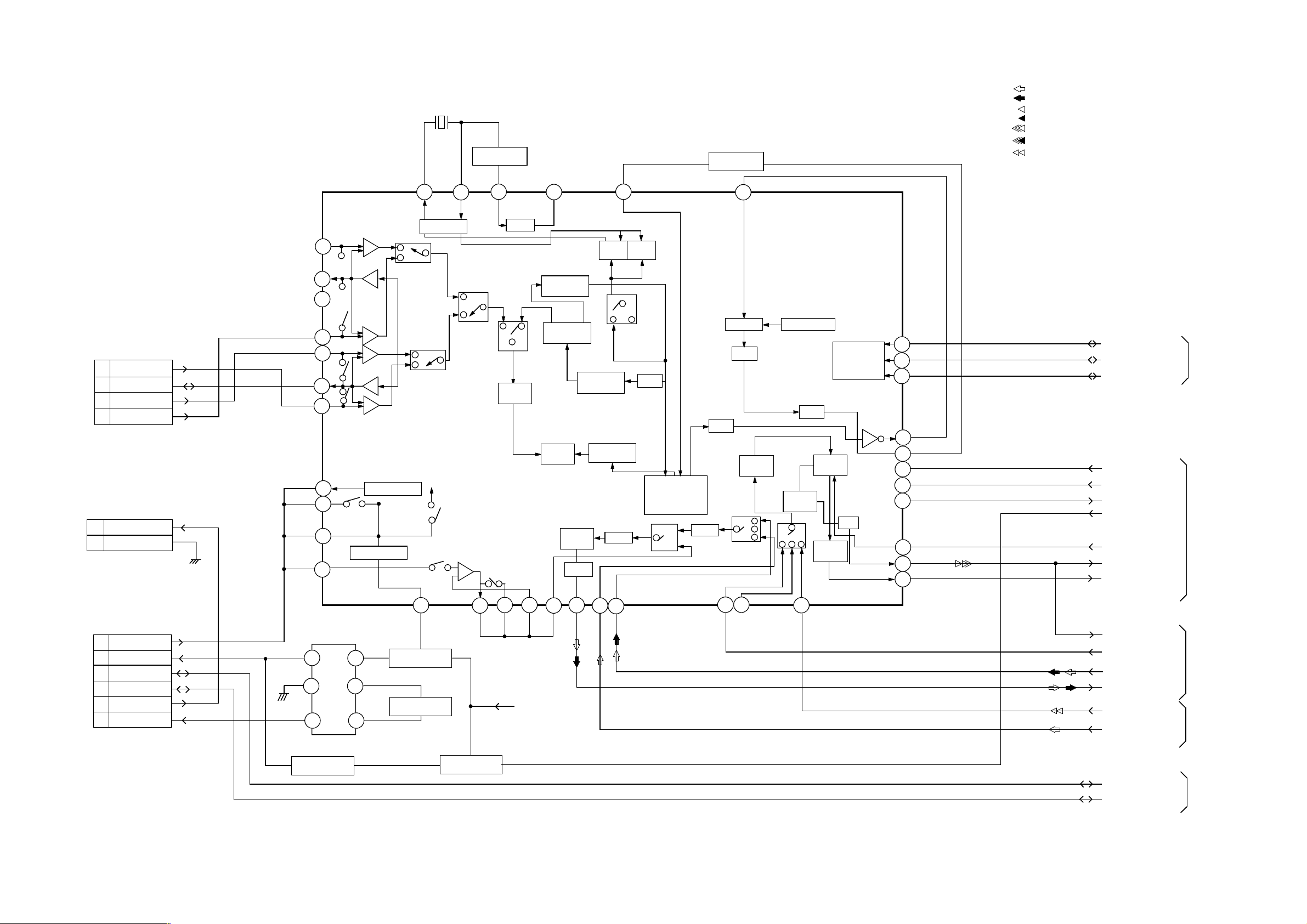

Y/C/AUDIO/HEAD AMP BLOCK DIAGRAM

FE HEAD

CYL

CP4003

1

2

CP4001

SP-CH1 (R)

6

SP_COM

5
4

SP-CH2 (L)

EP/LP-CH1 (R)

3

FE HEAD (HOT)

FE HEAD (GND)

Y/C/AUDIO/HEAD AMP IC
IC4001
LA71201M-MPB

66

65
72

73

74

67

62

GND

9

7

8

6

P

R

HA

P
P

R

P

REC AMP

AUTO BIAS

X4001

3.579545MHz

50

L

H

H

L

VX01

49

EQ

AMP

Q4012

BUFFER

41 43 37

34

PLL

REC

REC

APC

APC

3.58M
BPF2

RP

Main
CONV

C-LPF

ACC
DET

B-UP
AMP

3.58M
BPF1

AGC

NYR/COMB

R
P

PB.EE

LINE
AMP

MUTE

LPF

Q4010

BUFFER

CLAMP AUTO-BIAS

CCD

VCA

VIDEO
AGC

1

ALC

2
3

QV-QH

2

1

3

OUT

SYNC
SEP

SYNC
SEP

SERAIL
DECODER

C-ROT

RF-SW IN

AUDIO

MUTE HA SW

ENV DET

60B

53
54

55

39
57
58
59

26
25

36

24

AUDIO SIGNAL(REC)
AUDIO SIGNAL (PB)
PLAYBACK COLOR SIGNAL
PLAYBACK LUMINANCE SIGNAL
RECORD COLOR SIGNAL

RECORD LUMINANCE SIGNAL
TUNER VIDEO SIGNAL

Y/C_CLK

Y/C_DATA

Y/C_CS

H. SW
VCR_A_MUTE
ENV. DET

V.REC_ST-H

DUMMY_V. SYNC

SD_VIDEO

SD_SYNC

MICON/
OPERATION/
IN/OUT/
DECK

MICON/
OPERATION/
IN/OUT/
DECK

HEAD

AUDIO

CONTROL

CP4002

6

AUDIO PB

5

AUDIO REC

4

CTL+
CTL-

3
2

AE HEAD(-)
AE HEAD(+)

1

COIL, BIAS OSC
T4001

5

6

4

Q4001, Q4002

AUDIO PB SW

11

3

2

5

4

10

80

76

32

30

28

NC

Q4005

2

3

1

BIAS CTL

Q4006

BIAS OSC

P. CON + 5V

SD_VIDEO

TU_VIDEO

TU_AUDIO

Y/C_AUDIO

FRONT_VIDEO

FRONT_AUDIO

TV

MICON/
OPERATION/
IN/OUT/
DECK

Q4003

SW

CTL+
CTL-

MICON/
OPERATION/
IN/OUT/
DECK

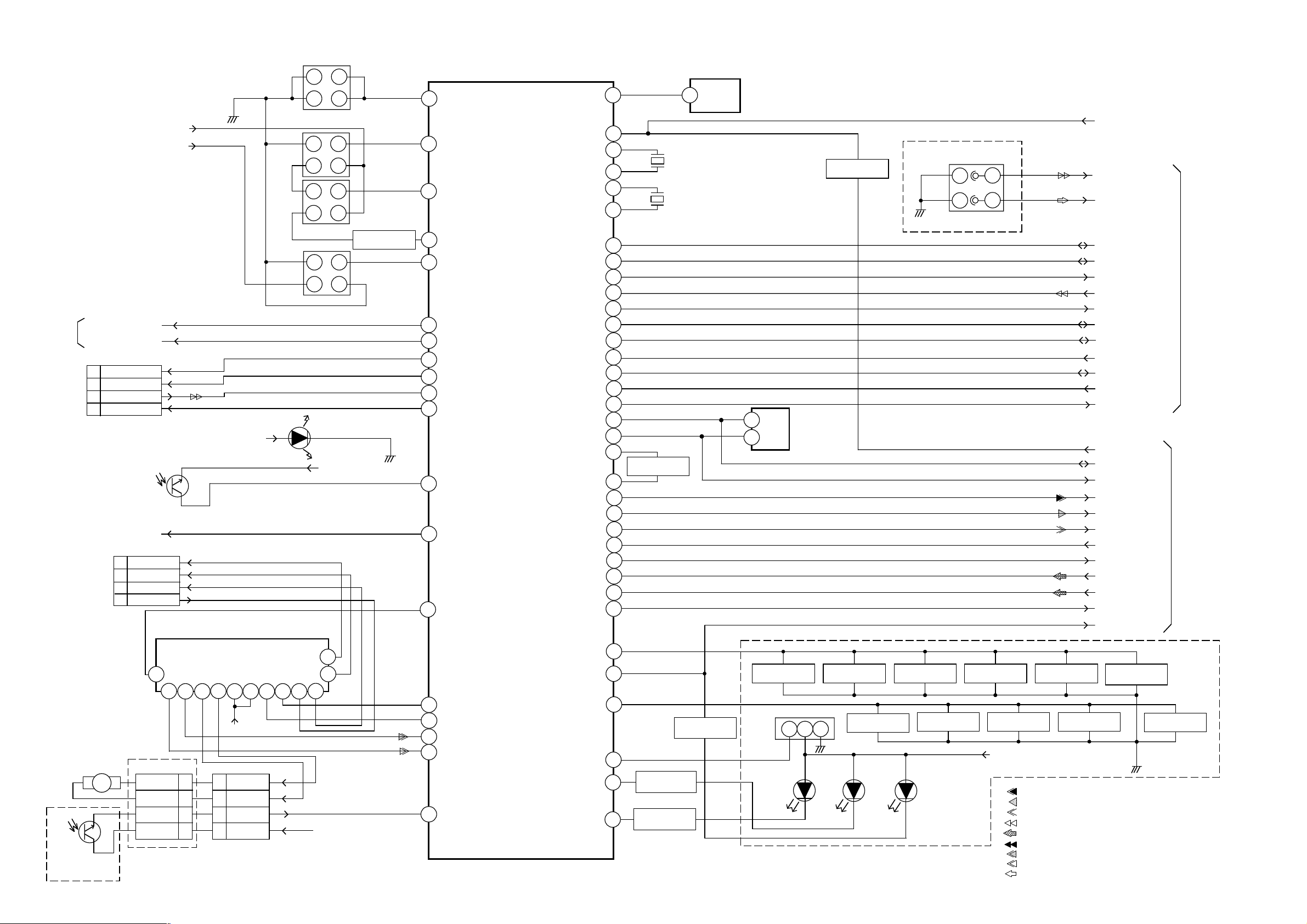

MICON/OPERATION/IN/OUT/DECK BLOCK DIAGRAM

TV

CAPSTAN
DD UNIT

Y/C/AUDIO/
HEAD AMP

LOADING
MOTOR

BOT SENSOR

X-RAY_TEST

VCR_POWER_H

CP1004

3

I LIMIT

4

CTL

6

FG
CAP/M F/R

7

DUMMY_V. SYNC

CP1005

12U-OUT

MICRO

MOTOR

3
4

M101

LM

Q101

AT+5.6V

P. CON+5V

EOT SENSOR

V-OUT
W-OUT

M-COM

IC1004 LB11880

CYL/LOADING MOTOR DRIVER IC

7

CP101

LDM+
LDM­BOT
VCC 1

Q1013

13 15

8

4
3
2

P. CON+5V

10

9

AT + 12V

CP1006

LDM+

4

LDM-

3

BOT

2

VCC1

11

D1003

12

SW1001

2
1

14

2

1

2

1

2

18

19

3
4

3

4

3

Q1002

3

4

P. CON+5V

16

172

P. CON+5V

MS_SEN A

Q1009

MS_SEN B

Q1003

SENSOR SW

REEL SENS.

Q1005

TIMER SYSCON MICON IC
IC1001 OEC7059A

TAB SW

50

1

MSSEN-A

2

MSSEN-B

23

SENS LED

REEL-T

80

41

X-RAY_TEST

27

VCR-POWER

12

CAP-PWM

76

CAP-PWM
CAP-FG

87
11

CAP-FWD

3

EOT

13

DUMMY-V.SYNC

DRUM-PWM

77

LDM-FWD

21

20

LDM-RVS

89

DRUM-FG

90

DRUM-PG

4

BOT

RESET-L

POWER_FAIL_L

X-OUT(12MHz)

X-IN(12MHz)

XC-OUT(32KHz)

XC-IN(32MHz)

V-REC-ST-H

CVIN

Y/C_DATA

Y/C_CS

ENV_DET

VCR_A_MUTE

IIC-DATA1

IIC-CLK1

CTL AMP-OUT

FF/REW-L

AFT(MONI)

OSD OUT1

V-SYNC

H/C-SYNC

KEY A

TV-POWER

KEY B

REMOCON-IN

REC LED

T-REC LED

34

OUT

1

IC1003
R3111N311A/C-TR

SYSTEM RESET IC

POWER FAIL2

85
39

38
36

35

95CTL+
94CTL­66
56
18VIDEO-H. SW
68
70Y/C_CLK
49OSD_VSS
69

X1001
12MHz

X1002

32.768KHz

6

Q1023

X_RAY_SW

81

EEP ROM IC

72

71
97

Q1004

SDA

5
6

SCL

IC1099
S-24C04BDP-LA

FF/REW_SW

73

R

64

G

63

62

B

7
60
59
58

82TV_A_MUTE

OPERATION PCB

9

28

10

14

30

29

Q4201

Q1006

REC LED

SW(TO)

Q4202

T-REC

LED SW(TO)

TV POWER

SW(TO)

POWER
ON/OFF

OS753

321

REC/OTR T-REC

D793

D791

REC/OTR STOP/EJECT PLAY

CH DOWN

D792

OPERATION PCB

J701

AUDIO L

4

3

1

2

VIDEO

CH UP VOL. UP VOL. DOWN

AT+5V

POWER/PLAY

R. SIGNAL
G. SIGNAL

B. SIGNAL
TUNER VIDEO SIGNAL
DEFLECTION SIGNAL
CAPSTAN AFC SIGNAL

FRONT_VIDEO

FRONT_AUDIO

CTL+
CTL­V. REC_ST_H
SD_VIDEO

H. SW

Y/C_DATA

CLK

Y/C_

SD_SYNS

Y/C_CS

ENV_DET

VCR_A_MUTE

X_RAY
SDA

SCL

OSD_R
OSD_G
OSD_B
AFT_M
OSD_BLK

VD
HD
TV_A_MUTE

TV_POWER_H

FF/CUE REW/REV

INPUT SELECT

Y/C/AUDIO/
HEAD AMP

TV

CYLINDER AFC SIGNAL
CYLINDER APC SIGNAL

AUDIO SIGNAL(REC)

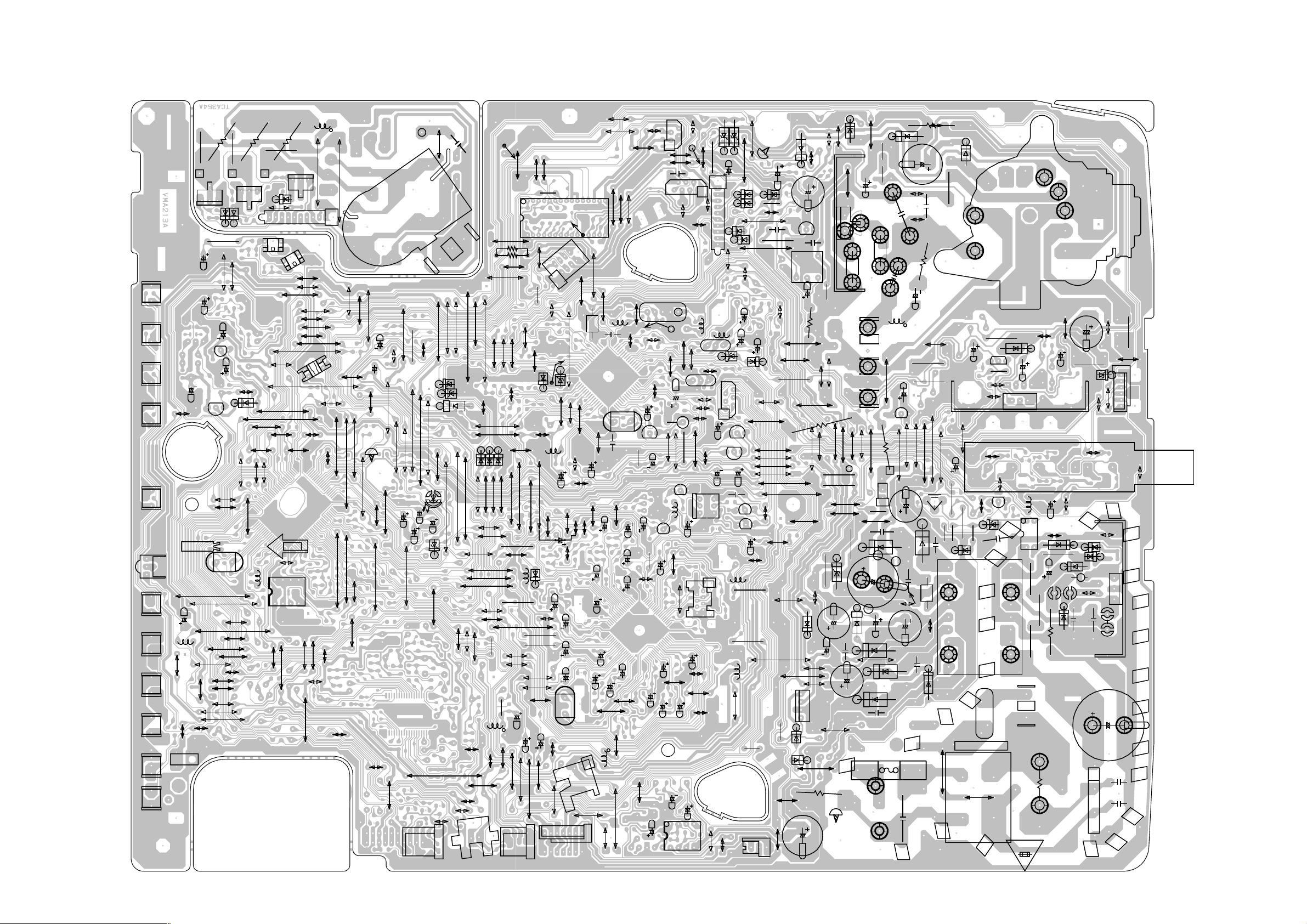

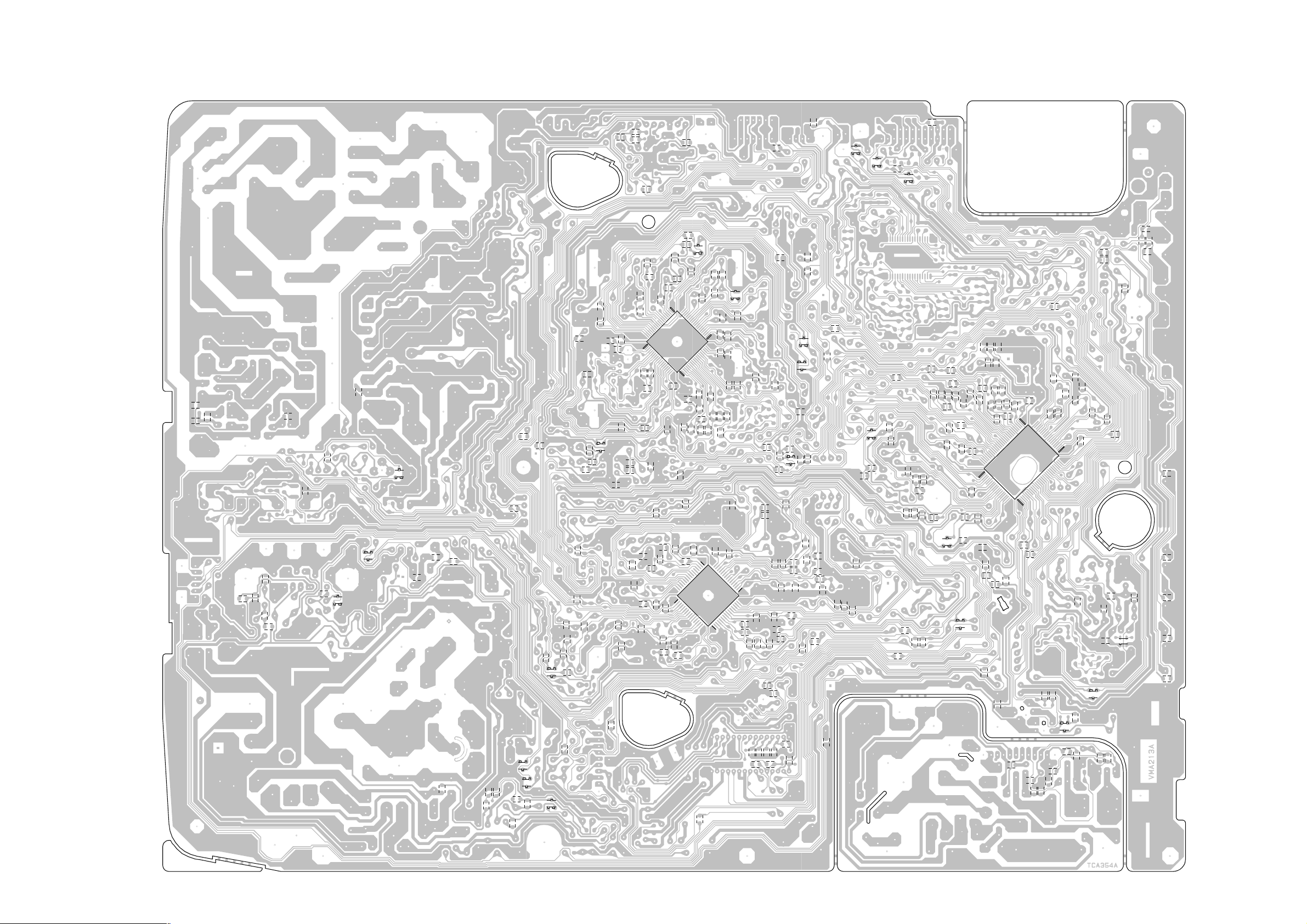

PRINTED CIRCUIT BOARDS

SYSCON/CRT (INSERTED PARTS)

SOLDER SIDE

SW1003

SW1012

SW1011SW1002

SW1008

SW1007

W248

SW1009

OS1001

SW1010

SW1005

SW1006

SW1004

W276

SW1001

C1003_1

X1002

L1002

TP1001

R808

C1032

C1021

C1053

W942

W275

R805

TP802
Q805_1

D802

R1079

C1058

C643

Q602

W271

W270

W267

W257

W252

W278

W208

W232

W231

X1001

W259

W277

R807

W266

W258

W810

Q603

W268

W254

W249

R802

TP801
Q804_1

D801

W801

W237

W255

W216

W243

W241

W235

W233

L1001

TP803

D608

D803

W234

W260

W212

W244

W242

IC1099

R810

Q806_1

CP851B

Q1003

W221

W219

Q1005

W273

W262

R820

W209

W224

W217

W240

Q

1009

W214

W250

W222

W218

W109

W265

W253

L801

W264

W210

W228

W226

W865

W239

W882

W825

W916

W211

W213

W247

W246

W230

W227

W245

W229

C665

W238

W272

W269

W225

J801_1

W134

C645

W117

W147

W142

W197

W850

W120

W149

W806

W127

W165

C1016

W141

CP354

S801

R650

W163

W122

W118

C1020

C1015

8

P

C

W116

C1018

D1014

W184

01

W115

D1003

W190

W836

W132

D609

W161

W158

W196

W131

D605

W160

W177

W913

C

80

W130

D611

W159

W180
W176

W204

W822

W813

S801X

W082

B602

W068

W085

C4049

W103

W078

W095

W089

C4051

W079

C687

C659

C4031

C4035

C4052

W022

W849

L605

X602

C4034

L4005

TP4001

W057

C664

W088

C4023

C4027

W044

W105

TP1002

W056

W934

R668

C4030

C4048

S801Y

1

W819

W110

W111

R1064

IC1004

W289

W108

W126

W874

W286

W179

R4029
R4032

W170
W169

W166

C4057

R1008

W121

D615

W156

D1004

W199

100

P

C

W081

S802Y

L612

C655

W145

C4024

X4001

W206

W194

CP353_1

4

W087

C4045

D610

W071

W077

W070

W827

W090
W086

W837

C4046

C4050

C4053

CP4003

W133

D620

W292

W193

W128

W154

W188

W186

W185

W175

R1080

R1073

W129

W114

W164
W162

D619

W153

W144

W143

W181

W202

W137

W125

W152

R4047

L4009

C4047_1

W205

W138

W124

W119

D621

W285

W151

W150

R4065

W140

R4028

W173

W171

R4048

C4042

W203

CP1003

W123

L4004

W178

W201

W155

W200

W060

W055

W076

C4010

W814

CF601

W072

Q606

R4004

W284

C4058

C356

W063

C1064

W848

C648

Q4006

W059

C649

Q4005

C4065

CP1006

S802X

W073

C641

W094

L4003

C4012

W047

C351

W058

CP1005

W054

W075

W069

W067

W093

C4004
W084

W283

C4067

C4062

C355

IC351

S113Y

W053

W074

CF603

B604

R654

W099

W097

W896

L601

W106

W815

CP851A

CF604

W887

W096

C644

W048

T4001

C4063

W061

W092

D409

R686

W885

L607

C4002

Q4001

Q4002

L4001

CP4001_1

W101

D614

D613

D602

C652

W100

C1085

D604

C627

C624

Q605

D408

D612

CP4002

C4025_1

R4007

R4006

L4006

W936

R612

CP352

W062

W895

D601

Q604

C678

W291

W064

D618

W011

W878

W040

W012

C632

W017

W029

W028

W042

C417

R456

W030

W027

W023

W282

W049

W026

W046

R522

R678

W851

W025

W842

W041

W870

D412

C433

T401

W917

R607

W043

D508

Q405

C438

C418

W919

W858

D526

C354

R449

W854

W872

D513

W847

C534

C525

IC501

W050

R500

R460

W857

R632

R512

W937

W013

C431

W010

S113X

W880

W015

HS402

W019

R640

R651

W024

C519

W037

W901

W816

W036

R508

D515

S102A

D413

Q406

B402

CP401

W031

R554

C521_1

D519

C511_1

FH502

B403

W032

W856

D517

D505

C516

S101A

W811

C432

W035

CP503

D510_1

R454

R453

C424

L401

C517_1

W904

C522

D512

D405

W830

R520

W034

TP601

C523

C524

W045

4

2

3

FH501F501

R450

C402

W892

C

W279

W893

C531_1

Q503

W135

C560_1

C518

C506

C422

R419

R424

B503

W014

C425

R447

W860

W881

VR502

D507

W817

W897

R533

C505

D514

W287

R490

FB401

W831

W038

C610

R553

R529

R532

5A125VOR250V

D402

C408

R505

TH501_1

W838

W883

D504

L502

Q402

W862

W002

W871

R421

R410

W008

D528

C530

T501

IC401

Q507

D401

Q501

HS401

R503

W005

C406

L603

C510

R510

R504

TU601

R542

CP502

R501

C405

W006

R502

B502

D520

W807

C612

D502

W007

R415

C535

D501

C407

W003

D506

R543_2

W009

C514

D410

W001

W004

W861

D518

C507

C502_1

W157

CP351_1

D521

IC502

B505

C503_1

R423

W853

W866

HS502

V_A_

13

10

Q

PRINTED CIRCUIT BOARDS

SYSCON/CRT (CHIP MOUNTED PARTS)

SOLDER SIDE

C512

C515

R506

R401

R411

R416

R413

R414

C509

C602

R402

C554

Q401

W922

Q508

Q502

R519

R521

R683

R441

R439

R440

W907

R516

R444

C631

Q609

R420

Q611

R442

W281

Q601

Q404

R616

R620

R601

R618

R609

R655

R4053

R4001

C623

R4052

R4002

R628

R665

C4015

Q4003

R4003

R4051

C4069

R4015

R357

C4019

R636

C4016

W920

R4010
C4005

R622

R630

R352
C301

C674

R608

R359

C4066

R4042

R4039 C4064

61

R4064

C4055_1

C4020

C640

C672

R625

C618

R4038

C4059

R4012_1

C4021

C4006

R610

R633

C650

C636

R615

R621

R4041

C4061

W818

41

IC4001

1

C4074

R4011

C625

C622

C634

R353

R4043

R644

C651

49

R4018

R4020

C4014

R669

Q4012

C4060

21

R4017

C654

R4034

C4028

R4055

C4029

33

IC601

1

R1082

R4035

R4062

C4032

R4021

R4019

R646

R4033

Q4010

R4060

R4068

C4037

C4033

R4022

R4037

C4044

C4036

R4024

C660

R647

17

C675

C4054

R4023

R626

C1077

R656

C1073

R4025

R4057

R676
C673

C629

C639

W894

C1070

R1048

R4201

R4054

R4056

R631

R624

C1090

C1069

C4038

C688

C647

R657

R1054

C1080

C4075

R4058

R638

R639

R648

R643

C653

R603

Q4009

Q4007

C4076

Q4011

R649

C1078

C4041

R1025

R4061

R4059

R627

R613

R634

R635

R1011

C630

R652

R641

R4044

R4045

C658

C1007

R660

Q4201

R659

R1075

R642

R658

Q1006

Q1023

C1089

W900

R1035

R1039

R1002

R1028

Q4202

R602

C1028

C1065

R1012

R4026

R1029

C1019

R614

W918

R1017

R1009

R1013

C621

C4043

R1021

C1067

R1007

Q1004

C1004

C1009

R1042

R1038

C1029_1

C1022

Q608

C1010

C656

C1023

R1020

R1053

C1062

C1037

C1013

C1091

C1084

R1045

R1036

81

C1027

R1019

R1052

R1044

C1061

C1038

R1084

C1056

C1060

R1034

C1035
C1031

C1071

R1087

R1033

C1034

R1001

C805

R1031

IC1001

1

R1003

R1032

51

C1082

R816

R813

R1083

R811

C811

W833

C1046

31

Q1002

C810

R1040

C1047

R1050

R812

R1005

C1026

C1048

C1040

C1083

R663

R1066

C809

Q403

R1046
R1047

C1049

C1017

C1050

C1068

R1049

C667

R814

R815

IC1003

R1018

R1058

R1057

R1060

R1051

R1059

R1067

R1062

R1065

R1068

R1069

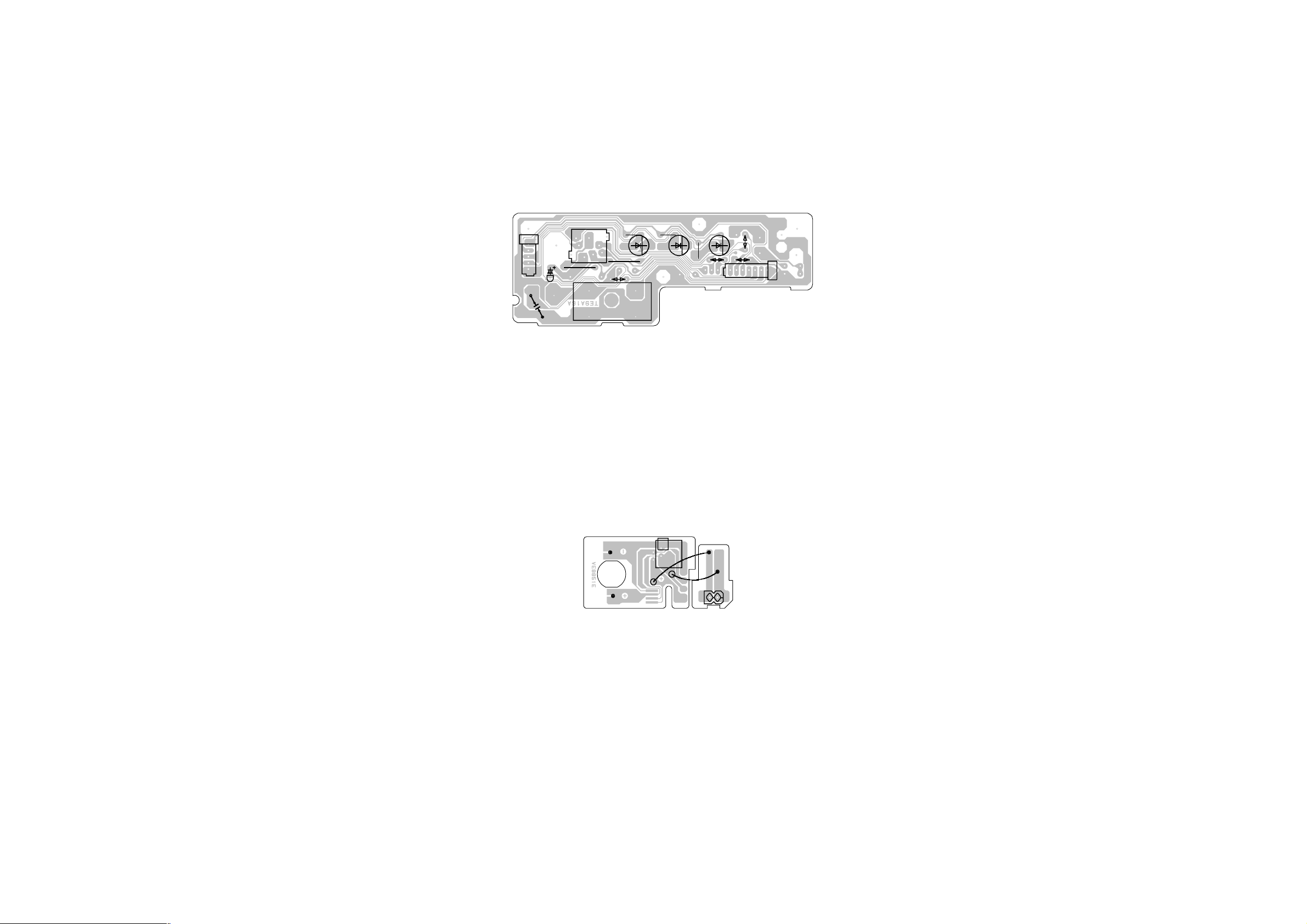

PRINTED CIRCUIT BOARDS

OPERATION

SOLDER SIDE

CD352

C352

C701

R351_1

J351

W002

D792

R350

R761

R754

D791

J701_1

DECK

SOLDER SIDE

S101

S102

CP101

S104

S103

R793

D793

W811

W805

W001

CD351_1

S105

S106

Q101

ABC D E F GH

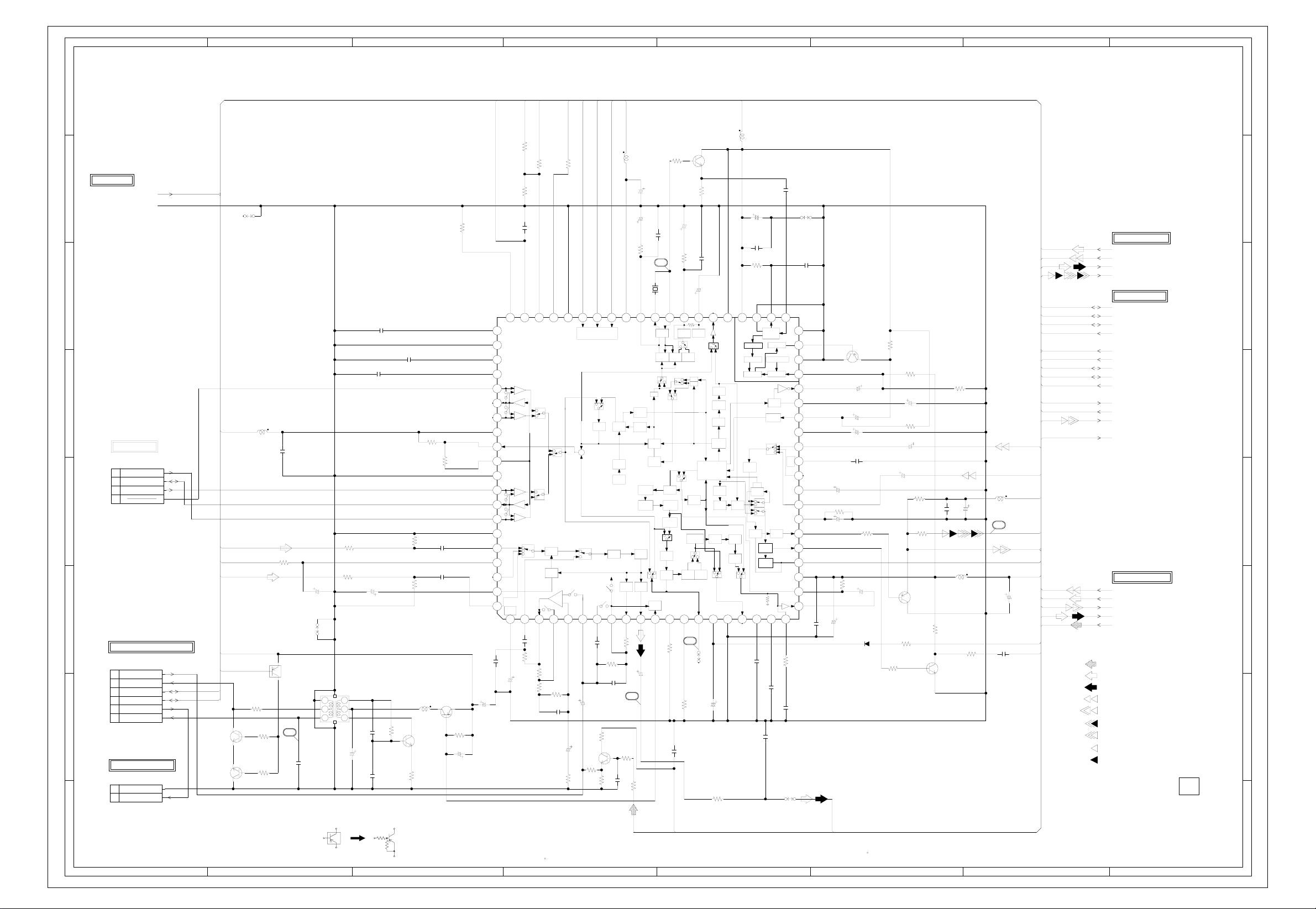

Y/C/AUDIO/HEAD AMP SCHEMATIC DIAGRAM

8

H.SW

R4047

12K 1/4W

Y/C_CS

Y/C_DATA

ENV_DET

H.AMP_SW1

VCR_A_MUTE

R4044

100K

12K

R4045

FROM POWER

7

P.CON+5V

GND

18K

R4054

W858

NC

R4051

2.7K

C4069

0.1 F

6

0.5 2.8 0 0 0 4.8 4.8 4.8 5.0 1.9 2.6 4.0 3.3 3.3 5.0 5.0 0 0.82.22.3

OUT

C4016

0.068 B

C4019

0.047 F

C4015

0.047 F

5

L4001

FROM/TO CYL

CP4001_1
TOC-C04X-B1

4

SP-CH1 (R)

3

2

SP-CH2 (L)

1

SP_COM

P.CON+5V

22uH 0305

1B

C4055_1

R4064

6.8K

R4012_1

820

4

C4012

R4007

39K 1/4W

R4006

47K 1/4W

TU_AUDIO

P.CON+5V DUMMY_V.SYNC

FRONT_AUDIO P.CON+5V

R4004

15 1/4W

226.3V KA

C4023

226.3V KA

R4052

8.2K

R4053

6.8K

3

W920

FROM/TO HEAD AUDIO CONTROL

CP4002
IMSA-9604S-06Z14

AUDIO PB

6

AUDIO REC

5

CTL+

4

CTL-

3

AE HEAD(-)

2

AE HEAD(+)

2

1

TO FULL ERASE HEAD

CP4003
TMC-T02X-E1

FE HEAD(GND)

2

FE HEAD(HOT)

1

GND

HOT

1

P.CON+5V SD_SYNC

V.REC_ST_H

CTL+

CTL-

0

AUDIO
PB SW

0.7

Q4001

KTC3198

0

0

AUDIO
PB SW
Q4002

KTC3198

0.7

0

R4001

560

0

R4002

10K

R4003

10K

5.3

5.2
SW

Q4003

KRA103RTK

5

C4002

0.022100V MKT

6

5

COIL,BIAS OSC

T4001

1626009

1

2

34

2206.3V YK

C4004

C4005

C4006

3.3K

R4010

0.01 F

0

0.015 B

CAUTION: DIGITAL TRANSISTOR

C4020

0.1 F

C4021

0.1 F

Y/C/AUDIO/HEAD AMP IC 1 10 11 12 13 14 15 16

IC4001

LA71201M-MPB

BIAS CTL

Q4005

KTA1266

L4003

100uH

0305

0

BIAS OSC

KTC3203_Y

0

Q4006

5.2

5.20

R4011

22K

C4010

476.3V KA

2.2

R4015

COMP

2.2

4.0

1.8

0.7

0.7
NC

0.7
NC

5.0

ENV
DET

KILL

616263646566676869

DET

0

HA

GND

CHROMA

DET

ACC
DET

P

R

P

HA VCC

1.7

1.8

70717273747576777879

0

HA

PRE GND

2.0

P

2.0

2.0

R

P

0

A-GND

2.2

4.9

A-VCC

2.3

NC

0

2.0

Vref

2.3V

2.2 2.2 2.3 2.2 2.2 2.5 2.3 2.2 2.3 2.4 5.0 1.0 1.0 1.7 1.4 0 0 1.5 0.1 2.2

C4028

R4055

0.01 F

C4074

336.3V KA

C4027

C4025_1

2206.3V KA

THE DC VOLTAGE AT EACH PART WAS

NOTE:

MEASURED WITH THE DIGITAL TESTER
DURING PLAYBACK

AUDIO

C-ROT

C-GND

PB,EE

+

R

P

SERAIL
DECODER

C-LPF

PB,EE

REC:LP<EP
PB:EP

7

C4032

MUTE

RF-SW

IN

HA SW

H

L

H

L

1
2

ALC

3

ALC
DET

EQ

AMP

SP,LP

3

4

0.1 F

1K

6.8K

R4017

R4019

12K

R4018

330K

C4029

C4031

3.350V KA

0.01 F

R4057

4.9

1016V KA

C4030

R4056

10M

0

180

R4020

R4058

2.7K

ABC D E F GH

(SYSCON PCB)

Y/C_CLK

P.CON+5V

L4006

47uH 0305

C4063

C4062

R4039

C-VCC

RP

VREF

0.0033 B
R4021

22K

C4033

820PB

0.6

Main
CONV

4.21M
BPF

Sub
CONV

LPF

8809

BUFFER

Q4011

6.8K
2SC2412K

C4075

REC
AMP

R4022

R4059

10M

150P CH

4

3.58M
BPF2

B-UP

820

C4034

VD

AMP

LINE

AMP

MUTE

DETAIL

ENH

EMPHA

R4061

NL

10M

150V KA

8.2K

P

4.725V KA

476.3V KA

BGA

ACC
AMP

ACC

AUTO
BIAS

C4064

X4001

DET

R-EQ
TEST

R

VX01

R

R

2

REC
APC

P.CON+5V

BUFFER

R4041

1.8K

Q4012

2SC2412K

4.0

L4005

5.0

47uH 0305

3.4

R4043

3.3K
C4060

0.01 F

C4058

VDD 4Fsc

5V

TIMMING OUT

DRIVER

CCD

VIDEO

AGC

R

PB-C

Y/C
MIX

QV/QH

SUB

LPF

MAIN

DE-EM

R

P

17 18 192 20

C4059

0.1 F

R4038

680K

1/2
FBC

MAIN

EMPHA

FIL

476.3V KA

R

P

R

P

SYNC

SEP

V.SYNC

SEP

PLL

AUTO-BIAS

CLAMP

VCA

CLAMP

1
2
3

6DB

4.7K
S

DET

414243444546474849550515253545556575859660

Y-VCC

B

CLOCK

VSS

OUT

VCA

VCP

REG

4V

BAL
TC1

AGC
TC2

VSS

IN

C4065

0.022 B

3.579545MHz

320FH

P

PB

APC

BEFORE

P

AFTER

R

P

RPPP

P

CLAMP

NL

EMPHA

FM

MOD

NORMAL

REC

FM-EQ

FM

AGC

PHASE

PHASE

EQ

Q-ADJ

fo-ADJ

R4042

VCO

R

REC
AFC

R

PB

FM EQ

EQ

150V KA

820

C4067

SLD

BGA
BGA

PB-C

Y-LPF

DOUBBLE

LIM

S-EQ

VHS

C4066

P

R

SOPB

0.022 B

150V KA

NC

B

AMP

3.58M
BPF1

YNR/COMB

FM

DEM

P

FM

AGC

FIL

CNC

PB

B.D

P

N.L.

DEEM

NC1

ALWAYS

R

Y-GND

NC

3

33K

R4023

C4076

R4024

0.1 F

NC

V.ENV

TP4001

5.6K

C4035

R4037

C4036

150V KA

390P B

C4014

C4037

1.5K

R4025

0.1 F

C4038

180P CH

0.047 F

W837

390

P.CON+5V

NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME

OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE

W818

C4061

0.01 F

0

40

1.7

0

3.0

2.8

3.1

3.1

2.6

2.0

4.0

2.0

30 31 32 33 34 35 36 37 38 39

2.3

2.3

1.6

2.9

3.6

0

4.9

2.8

1.8

21 22 23 24 25 26 27 28 29

NC

R4060 1.5M

0.1 F

C4044

2SA1037AK

C4050

0.2250V KA

C4051

336.3V KA

R4068

C4045

Y/C_AUDIO

BUFFER

Q4010

C4048

C4049

C4053

C4054

0.1 F

2.2M

2206.3V KA

1.7

2.30

1016V KA

1016V KA

4.750V KA

R4032

100 1/4W

C4046

3.350V KA

D1004

1SS133

2.2K

R4033

R4062 3.3M

C4047_1

0

5.0

R4065

330K 1/4W

R4029

47K 1/4W

R4034

100K

C4052

4.750V KA

C4057

1016V KA

150V KA

R4048

68 1/4W

R1025

100

5.0
BUFFER

Q4009

2SA1037AK

0.7

SYNC IN

Q4007

2SC2412K

R4028

2.8

0

R4035

100K

C4041

0.1 F

L4004

22uH 0305

47K 1/4W

C4042

R4026

8

7

FROM/TO IN/OUT

FRONT_AUDIO

FRONT_VIDEO

Y/C_AUDIO

Y/C_VIDEO

6

5

TU_VIDEO

FROM/TO MICON

Y/C_CLK

Y/C_DATA

Y/C_CS

V.REC_ST_H

VCR_A_MUTE

DUMMY_V.SYNC

CTL-

CTL+

H.AMP_SW1

ENV_DET

H.SW

SD_VIDEO

SD_SYNC

FRONT_VIDEO

L4009

100uH 0305

1

P.CON+5V

4

Y/C_VIDEO

1006.3V

KA

SD_VIDEO

FROM/TO CHROMA/IF

TU_VIDEO

C4024

1006.3V KA

VCR_A_MUTE

C4043

0.1 F

39K

TU_AUDIO

SD_VIDEO

Y/C_AUDIO

VD

DEFLECTION SIGNAL

3

AUDIO SIGNAL(REC)
AUDIO SIGNAL(PB)

TUNER VIDEO SIGNAL
PLAYBACK VIDEO SIGNAL

RECORD LUMINANCE SIGNAL

2

RECORD COLOR SIGNAL
PLAYBACK COLOR SIGNAL

PLAYBACK LUMINANCE SIGNAL

PCB800
VMA213

1

8

C1080

7

0.1 B
C1069

0.022 B
C1070

0.0022 B
C1073

0.0022 B

6

5

4

FROM/TO MICRO MOTOR

3

CP1005

IMSA-9604S-07Z14

1

2

3

4

5

6

7

FROM/TO CAPSTAN DD UNIT

2

CP1004

TMC-J08P-B1

1

2

3

4

5

6

CAP/M/F/R

7

8

1

ABC D E F GH

FROM/TO POWER

R1054

11.5

11.5

11.5

12.2

S801X

M-COM

W-OUT

V-OUT

U-OUT

FROM/TO DECK

(CP101)

CP1006
IMSA-9604S-04Z14

1

2

LDM-

3

LDM+

4

U-OUT

V-OUT

W-OUT

M-COM

GND

PG OUT

PG GND

GND

MOTOR GND

I LIMIT

CTL

VCO

FG

VCC(5V)

POWER_FAIL2

GND

P.CON+5V

AT+12V

MOTOR_GND

TV_POWER_H

H_GND

CYL/LOADING MOTOR DRIVER IC

IC1004 LB11880

GND

30

3.7
PC OUT

560K

1.9
VCO IN

0

CX

0

C2

2.3

C1

W IN

NC

V IN

NC

U IN

22 23 24 25 26 27 28 29

NC

VCC

0

RF

20 21

7.5
M COM

0

W OUT

0

V OUT

0

U OUT

16 17 18 19

VCC

BOT

LM- TV_POWER_H

LM+ VCR_POWER_H

U-OUT

V-OUT

W-OUT

M-COM

VREG

PG IN(+)

PG IN(-)

PG OUT1

PG OUT2

BFGO

LVCC

VREF

X IN

Y IN

X OUT

LGND

Y OUT

C1064

1F

FC

VC

PNA2604M010R

C1078

1.00

1101112131415

0.1 F

2.5

2

5.0

3

2.6

456789

2.6

2.6

0

0

11.5

11.5

0

0

10.1

0

10.1

EOT SENSOR

Q1013

0.1

5.0

270

R1002

R1082

1.5K

W882

C1007 0.1 F

B

C1077

0.0047

W819

EOT

R1011

D1003

SID1050CM

SPVF130100

C1090

0.0033 B

CAP_CTL

CAP_FG

CAP_F/R

W901

R1048

R1073

2.2K

R1018

23

TAB SW
SW1001

PGIN-

PGIN+

10K

W849

1 1/4W

BOT

R1003

4.7K

4

1

H_GND

W919

CYL_DRIVE

P.CON+5V

CYL_PG

CYL_FG

LDM_R

LDM_F

S801Y

R1080

82K

C1085

22016V YK

PGIN+

PGIN-

1 1/4W

TAB_SW

THE DC VOLTAGE AT EACH PART WAS

NOTE:

MEASURED WITH THE DIGITAL TESTER
DURING PLAYBACK

CAP_CTL

R1028

5.9

0.1 F

R1064

1K 1/4W

R1012

10K

0

0

R1075

R1008

1K 1/4W

C1084

C1022

0.1 F

0.2

X_RAY_SW

Q1023

0

2SC2412K

4.7K

C1013 0.0039 B

C1091 0.0022 B

13

C1015 4710V KA

C1016 2216V KA

0.0022 B
C1018 4.750V KA

C1019

0.001 CH

C1027

0.0039 B

10

W833

W894

1.3

SENSOR SW

Q1002

2SC2412K

MS_SEN B

Q1003

RPI-352Q01R

R1039 18K

11

R1009 560

R1013 560

C1020

1016V KA

TIMER SYSCON MICON IC

OEC7059A

SEN_LED

1K

R1066

C1032

R1079

22 1/4W

5.1

1.2 5.2

23

1

NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME

OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE

X_RAY

C1089

VCR_A_MUTE TAB_SW

TV_A_MUTE

R1001

3.3K

IIC_OFF

CAP_FG

R1084

CYL_FG

1K

CYL_PG X-RAY_TEST

CTL-

CTL+

FF/REW_SW

Q1004

KRC103RTK

5.1

H.SW

H.AMP_SW1

CAP_F/R

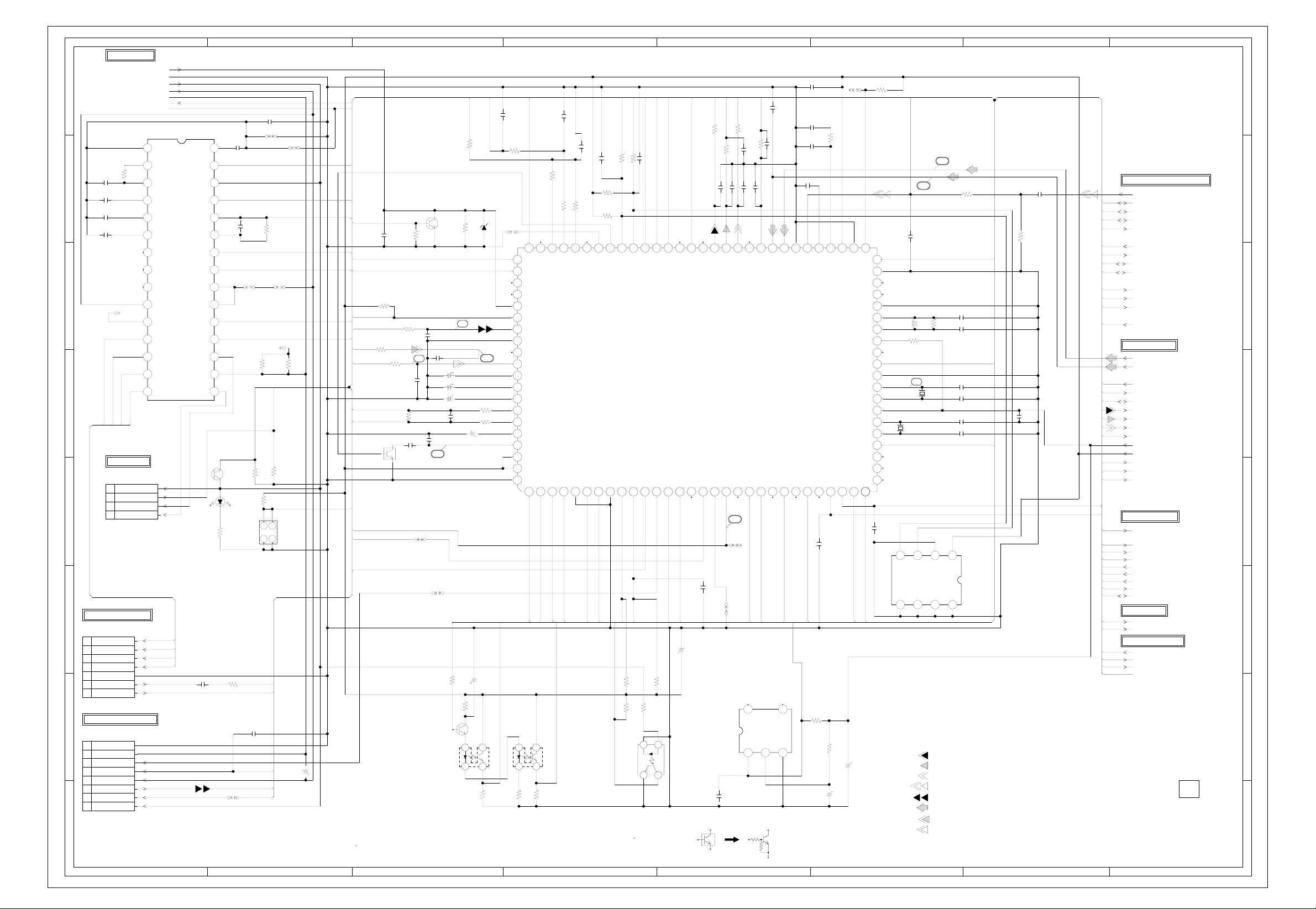

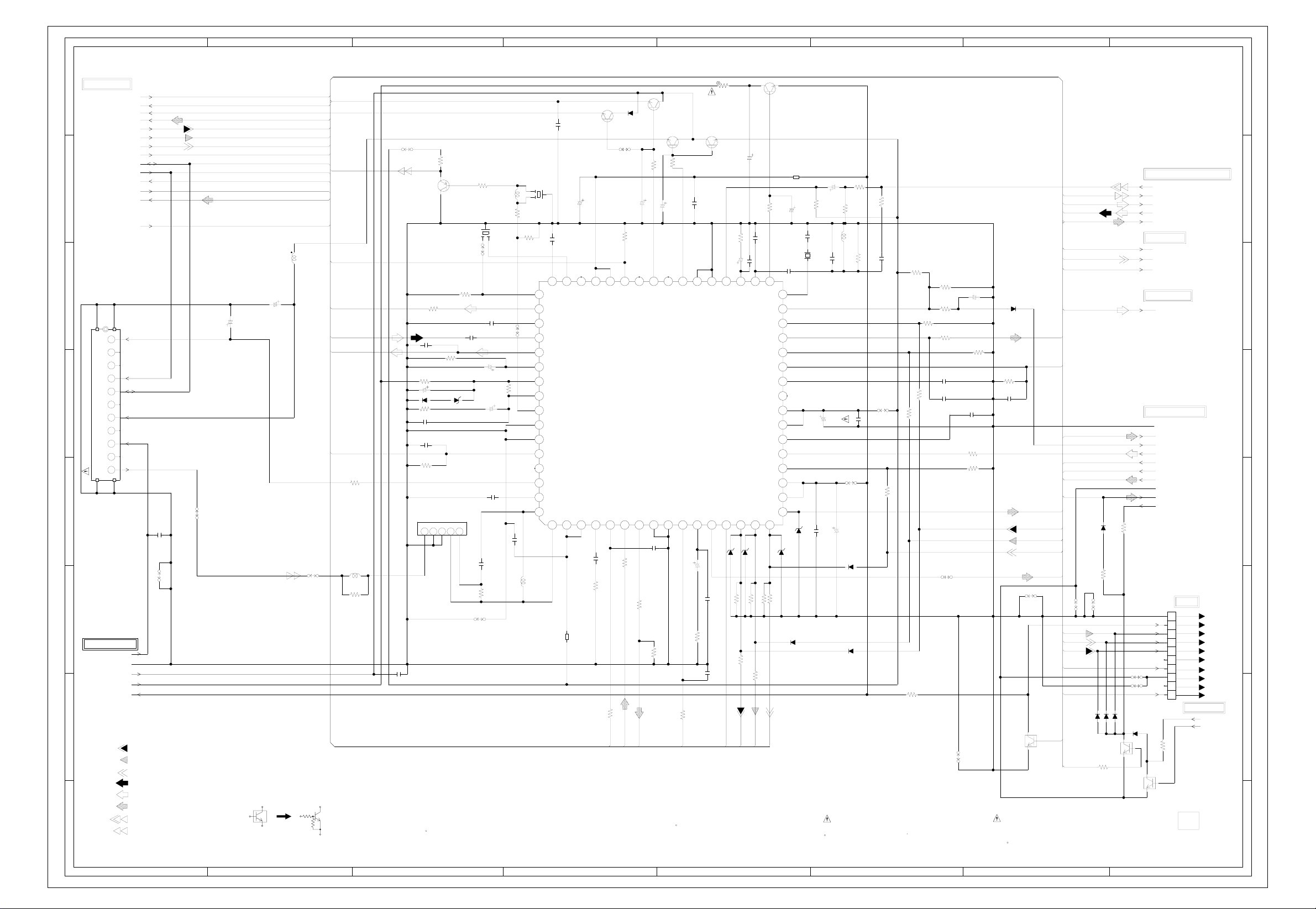

MICON SCHEMATIC DIAGRAM

SDA

100P CH

R1038 220

R1044

3.3K

R1045

3.3K

4.9 0

73 FF/REW-L

72 IIC-DATA1

74 JUST CLOCK

7 AFT(MONI)

8 AFT(REC)

9 KEY A

9

KEY_A

REEL_T

R1046

R1019

REEL SENS

Q1005

RPI-301

SCL

Y/C_CLK

R1042 220

C1060 100P CH

70 SCLK

71 IIC-CLK1

11 CAP-FWD

10 KEY B

11 12 13 14 15 16 17 18 192 20 21 22 23 24 25 26 27 28 293 30

KEY_B

4.7K

R1047

47K

390

R1052

1.2
1

0 0.9

22K

D1014

IC1001

2206.3V

4

R1083

CYL_DRIVE

12

YK

1.40.8

33K

C1065

MTZJ5.6B

5.1

5.1

5.9

5.2

2.5

NC

2.0

0.6

2.5

2.5

0.2

2.5

2.6

2.5

5.1

5.2

MS_SEN-B

RPI-352Q01R

REEL_T

0.1 F

R1029

4.7K

W810

NC NC NC

818283848586878889

REEL-T

NC

0

NC

POWER_FAIL_L

IIC OFF

CAP-FG

AMP-VSS

0

DRUM-FG

DRUM-PG

90919293949596979899

AMP-VREFOUT

AMP-VREFIN

C

CTL-

0

CTL+

AMP C

CTL AMP-OUT

100

MSSEN-A

0

110

MS_SEN-A

MS_SEN A

Q1009

5.20.8

23

1

4

1.4

0.5

100

R1087

R1050

R1053

REEL-S

CAP FULL

EOT

MSSEN-B

MS_SEN-B

EOT

33K

C1028

220

R1017 39K

DRUM-PWM

BOT

4

BOT

MS_SEN-A

0.1 F

C1029_1

0.0068 B

C1061

R1020 22K

0 0 4.7

CAP-PWM

75 VOLUME

81 VCR_A_MUTE

82 TV_A_MUTE

83 SP/LP/EP-H

84 CA/MA_SEL

98 AMP-VCC

99 ANALOG VCC

100 DEW

6 VIDEO-ENV

5 HI-FI-ENV

5

2.40001.41.4 2.205.25.202.20005.22.32.62.60000 5.2 5.25.200

ENV_DET

AFT_M

Y/C_CS

Y/C_DATA

69 CS

68 SDATA

13 DUMMY-V.SYNC

12 CAP-LIMIT

DUMMY_V.SYNC

C1058

4.7K

0

2

34

(SYSCON PCB)

OSD_R

OSD_G

OSD_B

V.REC_ST_H

22

R1035

R1007

C1067

100P CH

R1021 10

C1009 220P CH

C1010 220P CH

NC NC

62 B

64 R

63 G

65 NC

67 NC

66 V REC START H

17 ENV-CMP-IN

16 HEAD.AMP.SW

15 COLOR ROTARY

14 REMOCON-IN

NC

C1082

REMOCON_IN

1006.3V YK

CAUTION: DIGITAL TRANSISTOR

0.01 F

W825

SYSTEM RESET IC

0.1 F

C1017

19 HI-FI-H.SW

18 VIDEO-H.SW

NC

9

H.SW

TP1002

IC1003

R3111N311A/C-TR

C1071

100P CH

OSD_BLK

10

R1036 4.7K

C1004 100P CH

C1023 220P CH

C1037 470P CH

4.8

59 V-SYNC

58 H/C-SYNC

60 OSD OUT1

61 CENTER LED

50 TAB SW

49 OSD-VSS

48 CM_ADV_AUDIO/AV2

33 E/V_MASK/PLAY LED

32 RENT_H

31 ON-TIMER LED

22 DEGAUSS_H

21 LDM-FWD

20 LDM-RVS

NC

LDM_R

NC NC

OUT

123

23 SENS LED

NC NC

SEN_LED

LDM_F

RESET

NCNC

00

45

GNDIN

5.15.2

0

C1056

0.1 F

C1034

C1035

220P CH

C1031

0.001 B

57 NUA

24 SP-H

0.1 F

56 CVIN

25 SPOT H

NC

C1083

SPOT_H

R1049

4.7K

55 VHOLD

EXT-MUTE

SERVICE

TP1001

NC

1K

R1031

0

54 HLF

53 OSD-VCC

52 SD-IN(MONI)

CM_ADV_VIDEO/AV1

OSC-OUT2

OSC-IN2

CLKSEL

TUNER_CONTROL

X-RAY_TEST

X-OUT(12MHz)

X-IN(12MHz)

XC_OUT(32KHz)

XC_IN(32KHz)

RESET-L

T-REC LED

VCR-POWER

TV-POWER

0.0022 B

T-REC_LED

18K

R1051

YK

220

C1003_1

6.3V

3325V YK

C1021

5.25.22.12.3 1.604.24.900000002.62.52.5 01.800.90.9

515253545556575859660616263646566676869770717273747576777879880

SERVICE

NUB

VSS

VCC

REC LED

REC_LED

R1032 10K

50

5.20

0

NC

0

NC

0

0

L1001

2.6

2.2uH

2.5

5.2
NC

0

0

40 41 42 43 44 45 46 47 48 49

0

2.6

2.1

5.2

1.3

1.5

5.2

NC

4.8
NC

0

NC

31 32 33 34 35 36 37 38 39

0

C1068

0.0022 B

5678

SD_SYNC

6

7

C1038

680P CH

C1046 20P CH

R1005

2.7K

R1040

33K

X1002

32.768KHz

SDA

VSS

0000

C1047 18P CH

C1040 18P CH

8

X1001
12MHz

C1048 18P CH

C1049 22P CH

C1050 20P CH

5.202.62.5

TEST

A1

VCC

A0

1234

SCL

A2

R.SIGNAL
G.SIGNAL
B.SIGNAL
PLAYBACK VIDEO SIGNAL

CAPSTAN AFC SIGNAL

DEFLECTION SIGNAL

CYLINDER AFC SIGNAL
CYLINDER APC SIGNAL

R1033

1K

IC1099

EEP ROM IC

RESET

S-24C04BDP-LA

R1034

1M

C1026

0.01 F

C1062

1B

FROM/TO Y/C/AUDIO/HEAD AMP

SD_VIDEO

Y/C_CLK

Y/C_DATA

Y/C_CS

H.SW

ENV_DET

VCR_A_MUTE

CTL+

CTL-

DUMMY_V.SYNC

V.REC_ST_H

H.AMP_SW1

SD_SYNC

FROM/TO CHROMA/IF

HD

VD

AFT_M

SCL

SDA

OSD_R

OSD_G

OSD_B

OSD_BLK

AT+5V_BACKUP

AT+5V

VCR_POWER_H

TV_POWER_H

SPOT_H

FROM/TO IN/OUT

IIC_OFF

TV_POWER_H
REC_LED
T-REC_LED
KEY_A
KEY_B
REMOCON_IN
SCL
SDA

TO SOUND AMP

TV_POWER_H
TV_A_MUTE

FROM/TO DEFLECTION

X_RAY
X-RAY_TEST
TV_POWER_H
H_GND

PCB800
VMA213

8

7

6

5

4

3

2

1

ABC D E F GH

ABC D E F GH

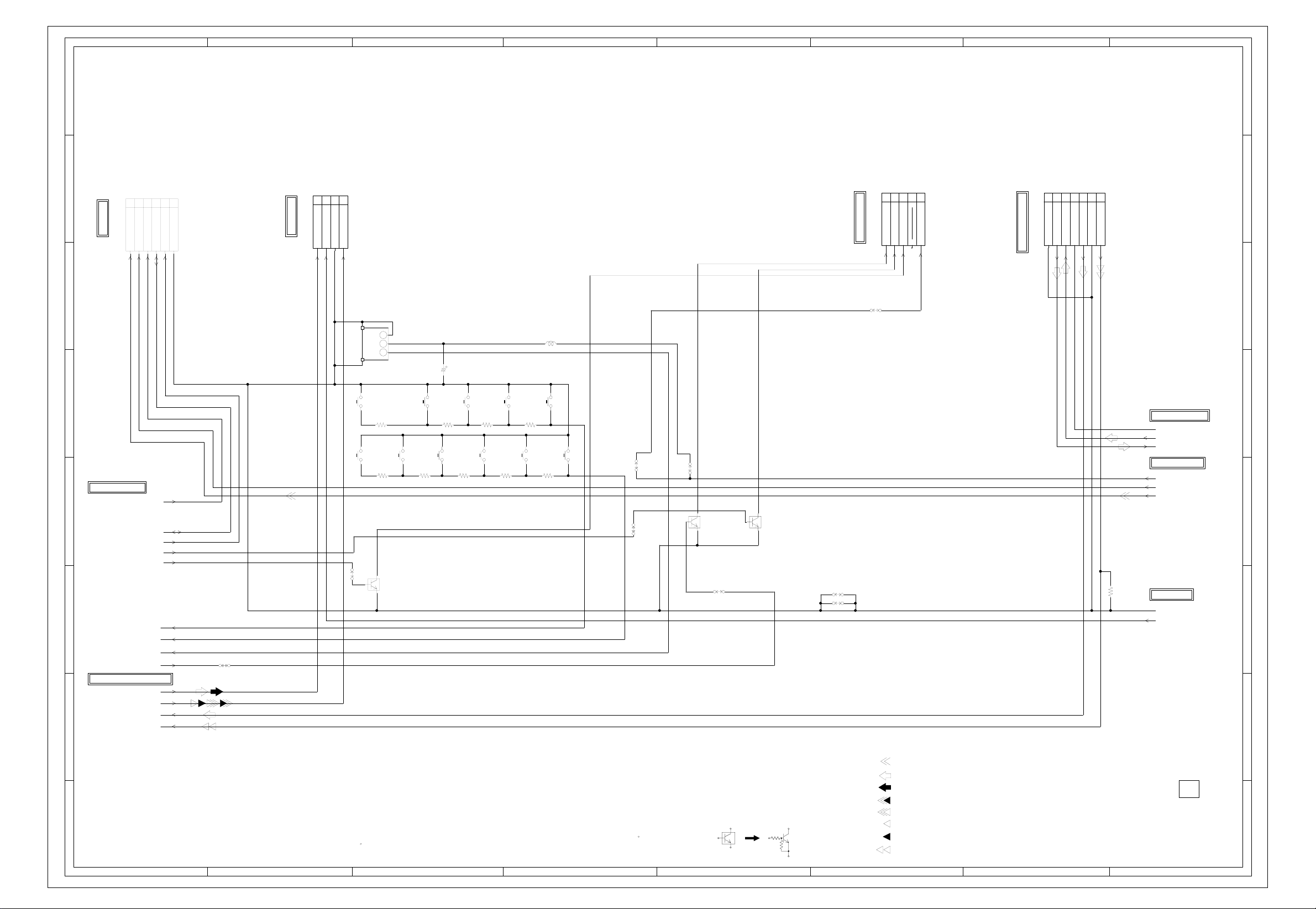

IN/OUT SCHEMATIC DIAGRAM

8

(SYSCON PCB)

8

7

6

5

FROM/TO MICON

4

3

FROM/TO Y/C/AUDIO/HEAD AMP

2

CP351_1

TEST POINT

6

173979-6

B.OUT

REMOCON_IN

TV_POWER_H

FRONT_AUDIO

FRONT_VIDEO

IIC OFF

INT-MONI

IIC_OFF

T-REC_LED

REC_LED

KEY_B

KEY_A

Y/C_AUDIO

Y/C_VIDEO

SDA

SCL

SDA

4

REC_LED

T-REC_LED

5

AT+5V

NC

1234567

CP353_1

173979-7

GND

SP_OUT_L

(CD351_1)

FROM/TO OPERATION

SOUND_GND

SOUND_OUT_L

FRONT_A_IN_L

GND

FRONT_VIDEO_IN

123

P.CON+5V

Y/C_AUDIO

GND

4

Y/C_VIDEO

12345

SCL

GND

CP1003

173979-4

TEST POINT

CP354

173979-5

(CD352)

TO OPERATION

123

POWER_ON_L

6

7

W918

0

GND

W822

B+

Vout

OS1001

PIC-37243SR

SW1002

EVQ21505R
R1057

INPUT SELECT/OTPB

33K

SW1007

REW/REV

EVQ21505R

R1062

5.6K

0

W900

(TO)

4.5
0

3

4.8

2

4.8

1

FF/CUE

REC LED SW(TO)

Q1006

KRC102RTK

VOL DOWN

SW1008

EVQ21505R

R1065

2.7K

C1053

SW1003

EVQ21505R
R1058

1.5K

PLAY

2206.3V YK

SW1009

EVQ21505R

R1067

1.5K

VOL UP

SW1004

EVQ21505R

R1059

1K

SW1010

STOP/EJECT

CH UP

EVQ21505R

R1068

1K

SW1005

EVQ21505R
R1060

REC/OTR

820

L1002

100uH

SW1011

EVQ21505R

R1069

820

CH DOWN

SW1006

EVQ21505R

SW1012

EVQ21505R

POWER ON/OFF

W806

W916

(T0)

4.8

W942

3.5

TV POWER SW(TO)

0

Q4201

KRC102RTK

W913

(TO)

4.8

3.5
T-REC LED SW(TO)

KRC102RTK

0

Q4202

W866

W870

R4201

5

FROM/TO SOUND AMP

SOUND_GND

SOUND+

SP_OUT

FROM CHROMA/IF

AT+5V

INT-MONI

B.OUT

4

75

FROM POWER

GND

P.CON+5V

3

2

B.SIGNAL

AUDIO SIGNAL(REC)
AUDIO SIGNAL(PB)

PCB800
VMA213

RECORD LUMINANCE SIGNAL

1

THE DC VOLTAGE AT EACH PART WAS

NOTE:

MEASURED WITH THE DIGITAL TESTER
DURING PLAYBACK

NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME

OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE

CAUTION: DIGITAL TRANSISTOR

ABC D E F GH

RECORD COLOR SIGNAL
PLAYBACK COLOR SIGNAL

PLAYBACK LUMINANCE SIGNAL
TUNER VIDEO SIGNAL

1

ABC D E F GH

8

7

6

5

4

3

2

1

FROM/TO MICON

AT+5V_BACKUP

VCR_POWER_H

TV_POWER_H

1

AGC

2

3

4

SCL

5

SDA

6

7

+5V

8

+30V

9

10

TU601 TECC1040PG32D

IF

11

FROM/TO POWER

UNREG+8V

P.CON+8V

SPOT_H

AT+5V

VD

OSD_R

OSD_G

OSD_B

OSD_BLK

SDA

SCL

AFT_M

HD

1213

1.8

NC

2.5
NC

2.5

2.5

NC

4.9

NC

29.3

NC
0

1415

C602

0.022 F

W937

AT+30V

GND

AT+25V

R.SIGNAL
G.SIGNAL

B.SIGNAL
AUDIO SIGNAL(PB)

AUDIO SIGNAL(REC)
DEFLECTION SIGNAL

PLAYBACK VIDEO SIGNAL
TUNER VIDEO SIGNAL

W871

C612

4706.3V YK

4.750V KA

C610

CAUTION: DIGITAL TRANSISTOR

L603

CHROMA/IF SCHEMATIC DIAGRAM

REG.

Q603

KTC3203_Y

5.5
REG.

Q604

2SD400E

5.0 8.3

R628

100

R663

2250V YK

2250V YK

C644

NC

3.7 3.2 2.0 8.8

Y SW OUT

5.7V REG OUT(FOR CPU)

DEF

C675

68P CH

1K

1K

R657

Q605

2SD400E

5.6

5.6

100

C640

0.1 F

5.6 0 0 3.2

5v REG

33 8.7V REG OUT
32 X’TAL
31 ACL/ABCL

17 V OUT
16 B OUT

AFC FILTER

SDA

150V KA

C645

C647

R631

6.8K

C629

100

R603

SDA

REG.

5.5

SCL

5

SCL

8.04.8

SB10-03A3

W801

R625

6

R626

100

H.PLUSE

4.8 8.3

D608

C643

10K

NC

MCU RESET

INTELLIGENT MONI

FBP IN

H OUT

789

10K

R656

H_OUT

AT+5V

REG.

Q602

C667

KTC3203_Y

0.01 F

W895

1K

TU_VIDEO

INT-MONI

47uH 0305

AUDIO_OUT

Y/C_AUDIO VD

TU_AUDIO

AFT_M

R601

2.2K

W851

L601

1.2uH

R630

2.2K

C656

0.01 F

THE DC VOLTAGE AT EACH PART WAS

NOTE:

MEASURED WITH THE DIGITAL TESTER
DURING PLAYBACK

R616

2.6

0

BUFFER

Q601

2SA1037AK

EFCT4R5YS5A

R612

680 1/4W

C623 0.0047 B

R618 10M

R607 1K 1/2W

C624 4716V KA

D601 1SS133

R609 680

330P CH

MTZJ8.2A

C618

C621

0.01 F

R614

180K

SAW FILTER

CF601

SAF45MFY220ZR

12345

1.9

D602

OUTOUTGININ

CF603

R608

10K

C631

1F

R620

100

W887

C625

1F

C632

2.250V KA

C627

150V KA

C622

0.22 B

C634

0.01 F

R621

2.2K

W934

NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME

CF604

EFCT4R5MW5

22uH

R665

C687

L607

R622

W848

150K

390

R615

C636

470

2.0 2.0 8.2 8.2 8.2 4.0 4.8 5.5

2.3
49

2.4
50515253545556575859

2.3

AUDIO BYPASS

3.0

EXT AUDIO IN

2.0

FM DIRECT OUT

3.2

VIF VCO F/B

9.0

VREG Vcc

3.0

VIF APC FILTER

2.2

VIF VIDEO OUT

0

VIF GND

0

2.4

AFT OUT

6061626364

2.9

QIF IN

NC

2.3

RF AGC OUT

2.7

IF AGC FILTER

1.5

1 10111213141516

CHROMA IC

IC601

0.1 F
M61206FP

L605

1.2uH

0.01 F

2

B602

C641

NC

VIF Vcc

3

BL01RN1-A63

100010V YK

Hi Vcc

46 SW REG CONT 34 EXT C in
47 LIMITER IN
48 IF AGC
49 QIF OUT
50 AUDIO OUT

64 VIF IN

1 VIF IN

H VCO F/B

C639

0.01 F

2K

R624

R602

OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE

(SYSCON PCB)

R632

220 2W

VIDEO/CHROMA GND

H.PLUSE OUT

0.01 F

68P CH

11.0 8.2

8.8

5.08.3

10035V YK

C678

100

R644

C651

R633

8.2K
47P CH

150V KA

C649

C650

0.015 B

333435363738394404142434445464748

TV/Y IN

R IN

CHROMA APC FILTER

V PULSE OUT

G IN

FAST BLK

SPOT KILLER

fsc OUT

VIDEO CHROMA Vcc

V RAMP CAP

V RAMP FEEDBACK

B IN

STRAT UP Vcc

R OUT

G OUT

POWER ON CONT

3.04.0 4.8 2.84.03.33.02.6 0 00.43.22.55.05.01.5

D611

D609 MTZJ6.8B

D610 MTZJ6.8B

R659 1.5K

R658 1.5K

R660 1.5K

R636 100

R634

100

R635

100

VCR_POWER_H

R.OUT

G.OUT

B.OUT

CRITICAL FOR SAFETY,USE ONES
DESCRIBED IN PARTS LIST ONLY

REG.

Q606

KTC3203_Y

B604

BL02RN1-R62

YK
4716V

C652

C672

0.01 F

3.3

3.0

0

30 31 32

4.7

0

0.1

7.3

NC

4.9

4.9

4.8

2.0

0

20 21 22 23 24 25 26 27 28 29

8.0

8.0

3.7

17 18 19

D615

MTZJ6.8B

D620

1SS133

R610

C654

X602

C659

C653

MTZJ6.8B

C648

0.2250V

1M

CH

18P

C673

3.579545MHz

1006.3V KA

C655

0.01 F

ARESINCE THESE PARTS MARKED BYCAUTION:

KA

R668

L612

220P CH

4716V KA

1SS133

1SS133

W874

D621

D619

470 1/4W

6.8uH

R669

470

R676

C660

R654

820 1/2W

1K

C674

120P CH

R638

8.2K
R646

C665

27K

R642

1016V KANP

5.6K

R647

2.2K
R643

47K

R648

2.2K

C658

0.22 B
C688

12K

R639

R627

R650

0.056 B

12K

C664

163V MKT

R641 22K

R649 2.2K

W850

W865

W827

0.1 F

12K

R613

470 1/4W

DANGEREUSES AN POINT DE VUE SECURITE
N’UTILISER QUE CELLS DECRITES
DANS LA NOMENCLATURE DES PIECES

D605

11ES1-EIC

R652

4.7K
C630

100P CH

ETANTLES PIECES REPAREES PAR UNATTENTION:

1.0

W872

0

CUT OFF SW

KRC102RTK

OSD_BLK

V_OUT

OSD_R

OSD_G

OSD_B

SPOT_H

0.4

Q608

HD

W878

CUT_OFF

G.OUT

B.OUT

R.OUT

HEATER

180V

POWER ON SWITCH

TV_POWER_H

W885

D614 1SS133

Q609

KRC102RTK

R683

D604

R655

100

1SS133

2.7K

D612 1SS133

R686

D613 1SS133

0.8

0

FROM/TO Y/C/AUDIO/HEAD AMP

SD_VIDEO

TU_VIDEO

TU_AUDIO

Y/C_AUDIO

VD

TO IN/OUT

INT-MONI

B.OUT

AT+5V

TO SOUND AMP

AUDIO_OUT

FROM/TO DEFLECTION

GND

V_OUT

ACL

V_FEEDBACK

180V

HEATER

H.PLUSE

H_GND

H_OUT

F_P.CON+15V

1.5K 1/2W

(CP851B)

CP851A

51048-1010

NC

W896

H_GND1

W815

NC

D618

1SS133

5.0
R678

0

8.0
POWER FAIL SWITCH

0

TO CRT

GND

10

CUT OFF

9

G.OUT

8

B.OUT

7

R.OUT

6

NC

5

HEATER

4

H GND

3

NC

2

180V

1

4.7K 1/4W

Q611

KRC102RTK

PCB800
VMA213

FROM POWER

AT+12V
POWER_FAIL

8

7

6

5

4

3

2

1

ABC D E F GH

ABC D E F GH

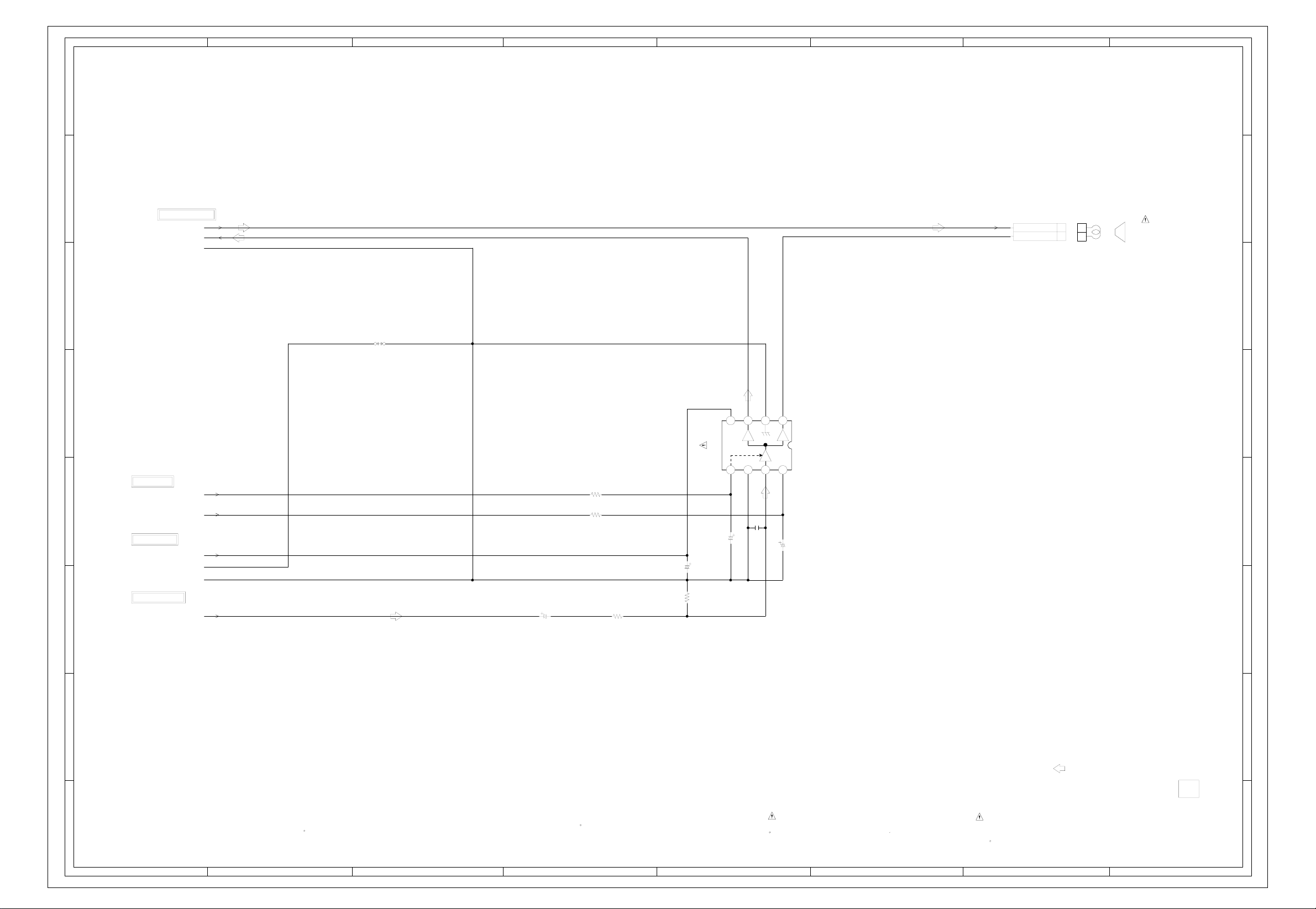

SOUND AMP SCHEMATIC DIAGRAM

8

(SYSCON PCB)

8

7

CP352

FROM/TO IN/OUT

SP_OUT

SOUND+

SOUND_GND

SP_OUT

SOUND_GND

B2B-EH-A

CD353

CH12426A

1

2

SPEAKER

1

2

SP351

SG04D11BNA

8 OHM

6

W814

5

5678

08.2 3.5 3.4

7

6

5

-+

SOUND AMP IC

IC351 AN7511

FROM MICON

TV_A_MUTE

4

FROM POWER

FROM CHROMA/IF

3

TV_POWER_H

SOUND+B

GND

SOUND_GND

AUDIO_OUT

C355

1016V KA

R359

47K

R353

68K

R357

5.6K

C354

R352

4.7K

2.250V KA

C351

220016V YK

0

C301

0.022

1234

3.95.1 0.3

4

B

1050V YK

C356

3

2

2

AUDIO SIGNAL(REC)

PCB800
VMA213

THE DC VOLTAGE AT EACH PART WAS

NOTE:

1

MEASURED WITH THE DIGITAL TESTER
DURING PLAYBACK

NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME

OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE

CRITICAL FOR SAFETY,USE ONES
DESCRIBED IN PARTS LIST ONLY

ABC D E F GH

ARESINCE THESE PARTS MARKED BYCAUTION:

DANGEREUSES AN POINT DE VUE SECURITE
N’UTILISER QUE CELLS DECRITES
DANS LA NOMENCLATURE DES PIECES

ETANTLES PIECES REPAREES PAR UNATTENTION:

1

ABC D E F GH

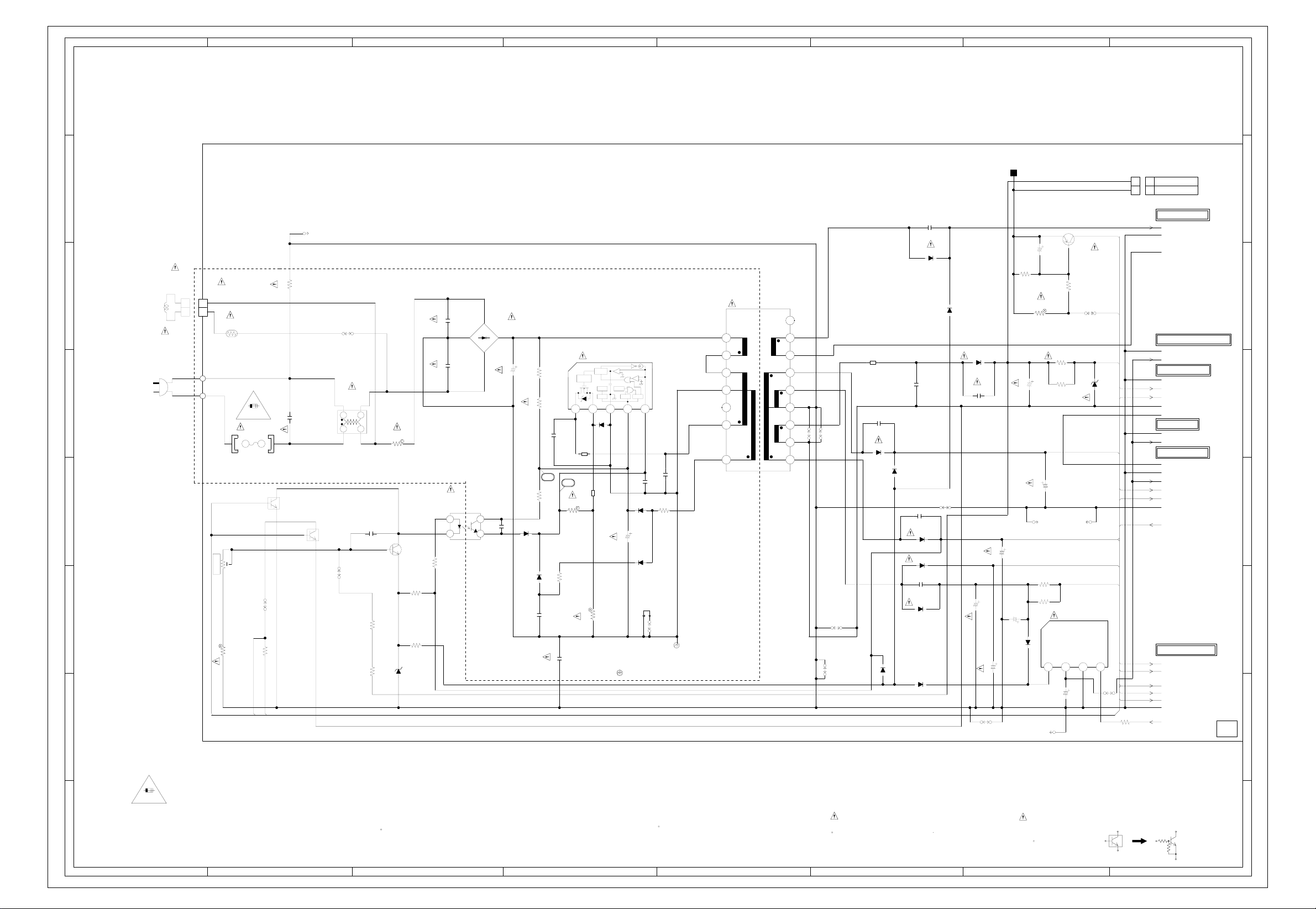

POWER SCHEMATIC DIAGRAM

8

(SYSCON PCB)

8

TP601

7

1SS133

SB290S

C560_1

C505

470P500V B

D507

15DF6

D517

11ES1-EIC

C519

470P500V B

D519

SB290S

D513

1SS133

C516

470P500V B

D505

0.00222KV YR

W817

D508

1SS133

D510_1

RU2AM

C517_1

820P2KV YR

C524

100016V MHE

W842

0135.0

135.0

1050V MHE

C531_1

R519

47K

R520

0.82 2W

YXF

100

C521_1

160V

C511_1

S113X

YK

47035V

C523

R640

10 1/2W

R651

10 1/2W

C534

100016V

MHE

D526

SB10-03A3

C522 1160V YK

PROTECT DRIVE

Q503

2SA1624

R521

5.6K

W830

R512

56K 1/2W

R508

IC501

C525

S113Y

5V REG IC

KIA78R05PI

47010V YK

D515

POWER_FAIL

56K 1/2W

47025V MHE

IN OUT GND SW

1234

7.9 7.94.9 0

S802Y

S802X

DEGAUSS COIL

L503

6

5

8R140031

AC120V_60Hz

CD501

07414905

BLADE

WIDE

WHITE

BLACK

21

CP502

TV-50P-02-A1

1

2

ZPB45BL3R0A

S101A

S102A

TH501_1

FH502

EYF-52BC

5A 125V

F501

5A125V

233005

4

330

VR502

+B ADJ

3

R529

+-1%

2.7K 1/4W

PROTECT

POWER_FAIL2

FH501

EYF-52BC

13.0

0

0

W864

(W032)

10K

R516

POWER_FAIL

R500

2.7M 1/2W

C506

0.22275V PHE840

PROTECT SW

Q502

DTC144EKA

0

+-10%

8.6
PROTECT SW

Q508

DTC144EKA

0

W838

L502

1R0A103F24

34

12

W883

C554

0.001 B

FEED BACK
SWITCHING

Q507

KTC3198

R553

39K 1/2W

R554

22K 1/4W

6.0

R501

2.2 5W

D528

15.7

5.4

4.7K 1/4W

330 1/4W

MTZJ5.6B

R532

R505

FEED BACK

TLP621(GR)

R533

4.7K 1/4W

C503_1

C502_1

Q501

1

2

T501 8129015S

135V

0

18

NC

5.9

SB

17

0

SG

16

11.8

12V

15

8.2

5V

14

0

LG

13

134.4

12

W904

W922

0

11

HG

25.2

25V

10

W856

W880

B503

BL01RN1-A63

C518

470P500V B

D512

SB290S

D504

D514

1SS133

0.001500V B

4

0.001500V B

2

GBL06L-6177

1

3

10.1

1.7

34

C509

0.01 F

D501

C507

470200V UP

D502

1SS133

R504

R510

R503

D518

C515

IC502 STR-G6623

DRIVE

120K 1/2W

12345

120K 1/2W

206.0

680P2KV YR

C535

B505

BL02RN2-R62T4

15

16

B502

R543_2

3.3K 1/4W

680 1/4W

R506

2.2K

1SS133

C530

R542

0.0047125V MX

0.0022 B

POWER REG. IC

-+

O.S.C

REG.

START

0 0 15.8 2.5

D520

BL02RN2-R62T4

0.18 1W

T.S.D

SB140-EIC

O.V.P LATCH

RMPG06J

C510

1SS133

763WSA0015

-+

C512

D506

10035V MHE

D521

HS502

IS THE LIVE CONNECTIONCAUTION:

C514

0.001 B

R502

4.7 1/4W

W861

GND1

136.0

DC IN

8

131.0
7

NC

131.0

NC

6

0

GND

5

0

NC

4

NC

126.8
3

COL

0

ADJ

1

0.00272KV YR

2

RE-H022TD-1130

PROTECT

+B

AT+30V

MTZJ33B

AT+12V

AT+25V

UNREG+8V

W936

100 1/4W

R522

CP503

1

2

CD503

JM-2BK-61

1

2

+B(A)

+B(B)

TO SOUND AMP

SOUND+B
GND

SOUND_GND

TO Y/C/AUDIO/HEAD AMP

GND

P.CON+5V

TO DEFLECTION

GND

+B

AT+25V

H_GND_1

H_GND

TO IN/OUT

GND

P.CON+5V

FROM/TO MICON

H_GND

GND

P.CON+5V

AT+12V

POWER_FAIL2

MOTOR_GND

TV_POWER_H

FROM/TO CHROMA/IF

AT+12V
AT+30V

POWER_FAIL
AT+25V
UNREG+8V
GND

P.CON+8V

PCB800
VMA213

7

6

5

4

3

2

5A 125V

CAUTION:

FOR CONTINUED PROTECTION AGAINST FIRE HAZARD,

1

REPLACE ONLY WITH THE SAME TYPE FUSE
5A 125V (F501).

ATTENTION: POUR UNE PROTECTION CONTINUE LES RISQUES D’INCEIE

N’UTILISER QUE DES FUSIBLE DE MEME TYPE
5A 125V (F501).

THE DC VOLTAGE AT EACH PART WAS

NOTE:

MEASURED WITH THE DIGITAL TESTER
DURING PLAYBACK

NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME

OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE

CRITICAL FOR SAFETY,USE ONES
DESCRIBED IN PARTS LIST ONLY

ARESINCE THESE PARTS MARKED BYCAUTION:

DANGEREUSES AN POINT DE VUE SECURITE
N’UTILISER QUE CELLS DECRITES
DANS LA NOMENCLATURE DES PIECES

ETANTLES PIECES REPAREES PAR UNATTENTION:

CAUTION: DIGITAL TRANSISTOR

1

ABC D E F GH

8

7

6

FROM MICON

FROM/TO CHROMA/IF

5

TV_POWER_H

H_GND

V_OUT

V_FEEDBACK

H_OUT

H.PLUSE

F_P.CON+15V

HEATER

180V

H_GND

ABC D E F GH

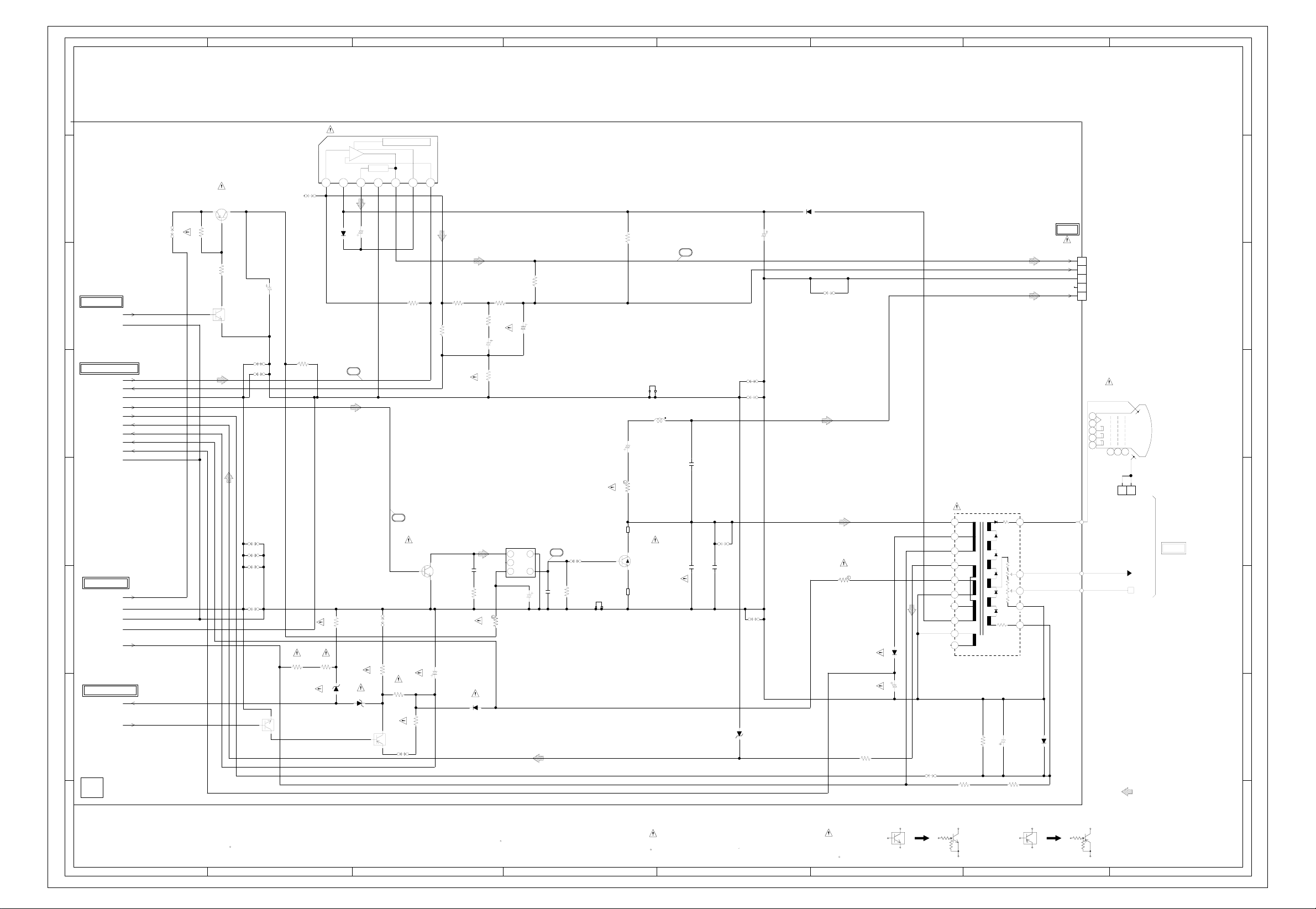

DEFLECTION SCHEMATIC DIAGRAM

GND

ACL

W881

R402

SWITCHING

Q401

KRC103RTK

4.8

DRIVER

Q402

KTA1281_Y

25.0

47K

R410

0.1

0.1

26.026.0

3.3K 1/4W

W897

W831

C408

2250V MHE

W862

NC

R424

2.2K 1/2W

IC401 AN5522V.OUTPUT IC

AMP

C406

THERMAL PROTECTION

PUMP UP

10035V MHE

R401

470

R411

­+

Vcc GND

1234567

3.6 25.9 2.0 0 12.5 26.3 3.7

D401

11E1-EIC

17

R413

1.8K

33K +-1%

R414

C405

R415

R416

82K

12K

2.2 1/2W

(SYSCON PCB)

D402

RMPG06J

100035V YK

R421

680 1/2W

R419

330 1/2W

100025V YK

C407

150V KA

HS401

763WSA0015

4.7mH 0909

1250V MHE

C422

L401

18

0.39250V PMS

C423

C402

W857

W860

W807

TO DY

CP401

B05B-DVS

NC

5

4

3

2

1

A34AGT13X98(L)

9

10

8
6

11

V801

R
G
B

175

8

7

6

5

4

3

2

FROM POWER

H_GND_1

FROM/TO MICON

X-RAY_TEST

PCB800
VMA213

AT+25V

H_GND

X_RAY

GND

1

FOCUS

SCREEN

2

CD801

SM1098-009-1A

DEFLECTION SIGNAL

4

TO CRT

3

2

R447

68 1/2W

20

HS402

763WSA0015

262.0

1.3

B403

BL01RN1-A63

0

B402

H.OUTPUT

Q406

2SD2627LS-CBC11

BL01RN1-A63

C424

0.00821.25KV MPP

C425

W893

680P2KV YR

D410

W892

MTZJ6.8B

R450

4.7 1W

R423

10K 1/4W

D413

C431

RMPG06J

10250V YK

W811

R449

31.0

0.2

22.3

NC

T401

305Y001

34

2

1

C418

100 1/4W

0

19

W816

6

1.3

0.001500V B
R460

C438

2250V YK

100 1/4W

W917

W853

W854

W813

R439

22K +-1%

+B

R440

R441

51K

56K

D408

HZ27-1L

D409

HZ11B3L

SWITCHING

Q404

DTA144EKA

4.9

SWITCHING

Q403

KRC111RTK

0

0

H-DRIVE

Q405

2SC2271

W907

R444

39K +-1%

R442

18K +-1%

10.8

0

0

W847

0.5

R420

31.0

0

C433

8.2K +-1%

B

0.001

C417

500V

R456

4.7K 1/2W

33025V YK

D412

RMPG06J

262.0

136.0

135.0

22.3

8.1

NC

1.5

NC

FB401 3213013R

COL

1

E180

6

B+

2

AFC

0

9

HEA
TER

10

GND

8

0

E12

4

E27

3

GND

8

E8

5

R453

220K 1/4W

R490

68K 1/4W

C432

33K 1/4W

GND

ABL

R454

HV

F

S

0

11

0.7

7

0.150V YK
D405 11E1-EIC

1

THE DC VOLTAGE AT EACH PART WAS

NOTE:

MEASURED WITH THE DIGITAL TESTER
DURING PLAYBACK

NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME

OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE

CRITICAL FOR SAFETY,USE ONES
DESCRIBED IN PARTS LIST ONLY

ARESINCE THESE PARTS MARKED BYCAUTION:

DANGEREUSES AN POINT DE VUE SECURITE
N’UTILISER QUE CELLS DECRITES
DANS LA NOMENCLATURE DES PIECES

ETANTLES PIECES REPAREES PAR UNATTENTION:

CAUTION: DIGITAL TRANSISTOR

CAUTION: DIGITAL TRANSISTOR

1

ABC D E F GH

ABC D E F GH

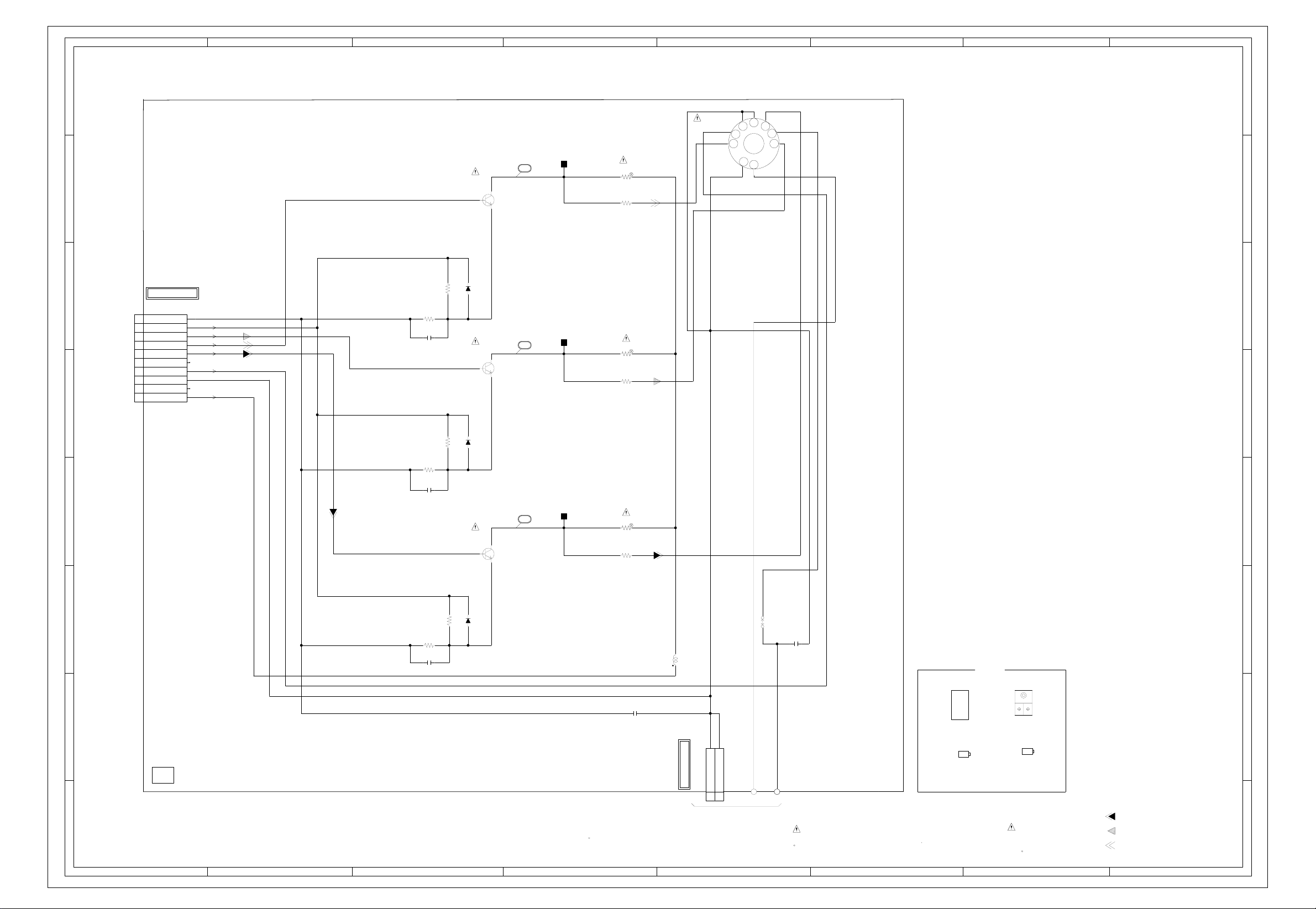

CRT SCHEMATIC DIAGRAM

8

TP801

BLUE AMP

R814

4.7K

D801

GREEN AMP

Q804_1

2SC4217

2.8

1SS133

Q805_1

2SC4217

2.9

7

10

9

8

7

6

5

4

3

2

1

CP851B
51048-1010

FROM CHROMA/IF

(CP851A)

GND

CUT OFF

G.OUT

B.OUT

R.OUT

NC

HEATER

H GND

NC

180V

GND

CUT_OFF

G.OUT

B.OUT

R.OUT

NC

HEATER

H_GND1

NC

180V

R811

390

C809

680P B

6

5

21

132.5

2.5

TP802

22

132.1

2.5

(CRT PCB)

R802

12K 1W

R807

2.7K 1/4W

R805

12K 1W

R808

2.7K 1/4W

J801_1

HPS3200-010501

127.5

0

3

0

567

4

1

0

8

0

126.5

104.1

8

127.5

9

F

7

6

5

D802

R815

4.7K
1SS133

R812

390

C810

390P B

4

23

RED AMP

Q806_1

132.3

2SC4217

2.8

2.5

TP803

R810

12K 1W

R820

2.7K 1/4W

3

D803

R816

4.7K
1SS133

R813

390

C811

390P B

C805

2

PCB110
TCA354

100P CH

L801

220uH

FROM DEFLECTION

(CD801)

CP801

TS-80P-02-V1

GND

2

GND

1

FOCUS

W836

SCREEN

S801

C801

0.00222KV B

TM101

VC-L2B

BT101

R03(AB)E_20_T

ACCESSORY

BL001

HPN-01

BT102

R03(AB)E_20_T

4

3

2

1

THE DC VOLTAGE AT EACH PART WAS MEASURED

NOTE:

WITH THE DIGITAL TESTER WHEN THE COLOR BROADCAST

WAS RECEIVED IN GOOD CONDITION AND PICTURE IS NORMAL.

NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME

OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE

CRITICAL FOR SAFETY,USE ONES
DESCRIBED IN PARTS LIST ONLY

ARESINCE THESE PARTS MARKED BYCAUTION:

DANGEREUSES AN POINT DE VUE SECURITE
N’UTILISER QUE CELLS DECRITES
DANS LA NOMENCLATURE DES PIECES

ETANTLES PIECES REPAREES PAR UNATTENTION:

R.SIGNAL

G.SIGNAL

B.SIGNAL

1

ABC D E F GH

ABC D E F GH

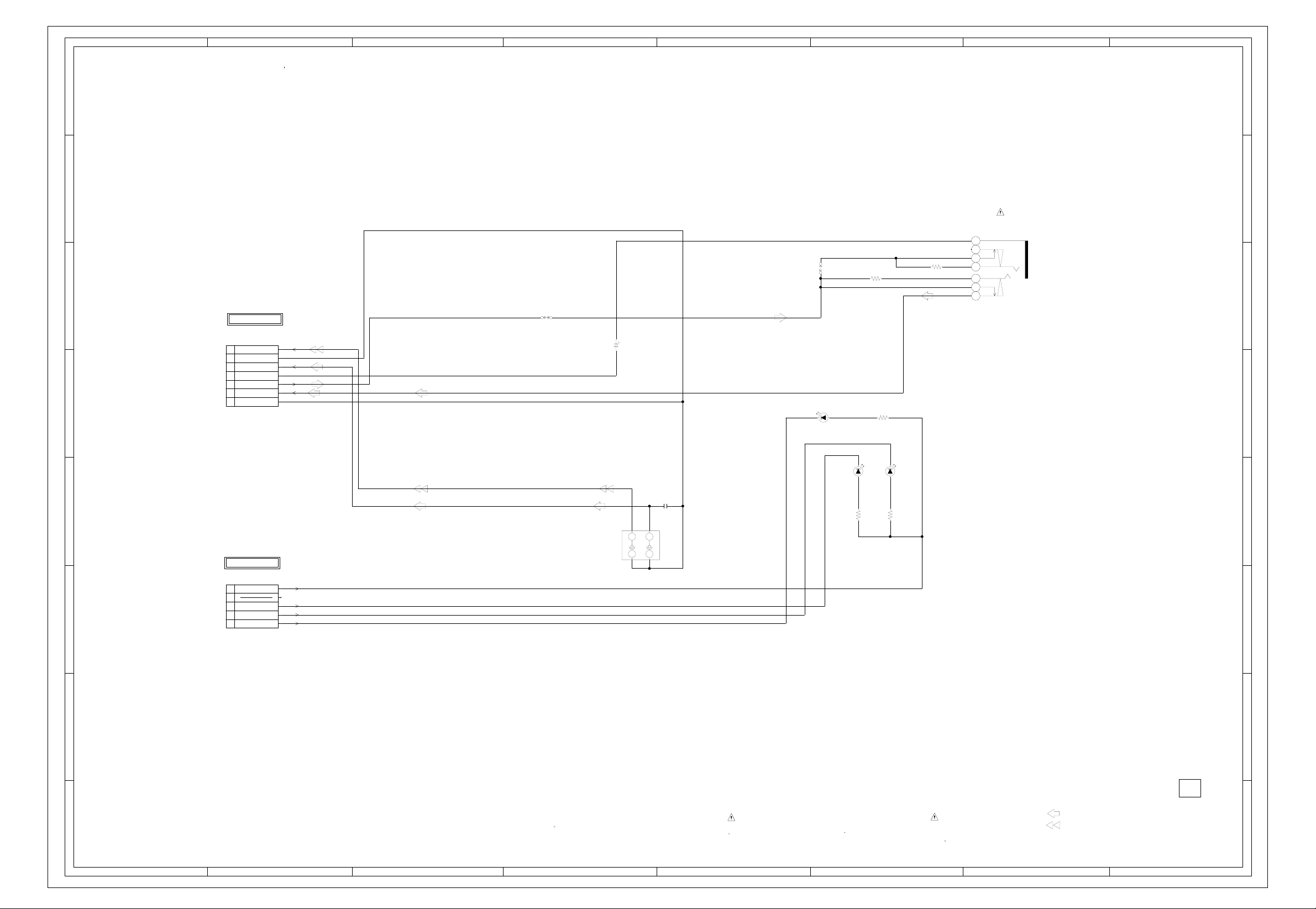

OPERATION SCHEMATIC DIAGRAM

8

(OPERATION PCB)

8

7

HEADPHONE JACK

J351

HTJ-035-28A

1

NC

5

W811

R351_1

22 1/4W

R350

22 1/2W

6

FROM/TO IN/OUT

CD351_1

(CP353_1)

CH27091A

1

FRONT_VIDEO_IN

2

GND

3

FRONT_A_IN_L

4

GND/SOUND GND

5

SOUND_OUT_L

6

5

SP_OUT_L

7

GND

4

FROM/TO IN/OUT

(CP354)

CD352
CH25093A

AT+5V

1

2

REC_LED

3

T-REC_LED

3

4

5

POWER_ON_L

NC

W805

C352

VIDEO

10016V KA

HEH

4

123

E

FRONT AV JACK

J701_1

AV2-24D-5

C701

0.001 B

AUDIO L

POWER/PLAY

D792

SLZ-936C-07-S-T1

REC/OTR

R793

R761

270 1/4W

D793

T-REC

SLZ-936C-07-S-T1

R754

270 1/4W

D791

SLZ-936C-07-S-T1

270 1/4W

4

3

2

6

7

7

6

5

4

3

2

PCB030
TE9A16

THE DC VOLTAGE AT EACH PART WAS MEASURED

1

NOTE:

WITH THE DIGITAL TESTER WHEN THE COLOR BROADCAST

WAS RECEIVED IN GOOD CONDITION AND PICTURE IS NORMAL.

NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME

OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE

CRITICAL FOR SAFETY,USE ONES
DESCRIBED IN PARTS LIST ONLY

ARESINCE THESE PARTS MARKED BYCAUTION:

DANGEREUSES AN POINT DE VUE SECURITE
N’UTILISER QUE CELLS DECRITES
DANS LA NOMENCLATURE DES PIECES

ETANTLES PIECES REPAREES PAR UNATTENTION:

AUDIO SIGNAL(REC)

TUNER VIDEO SIGNAL

2

1

ABC D E F GH

ABC D E F GH

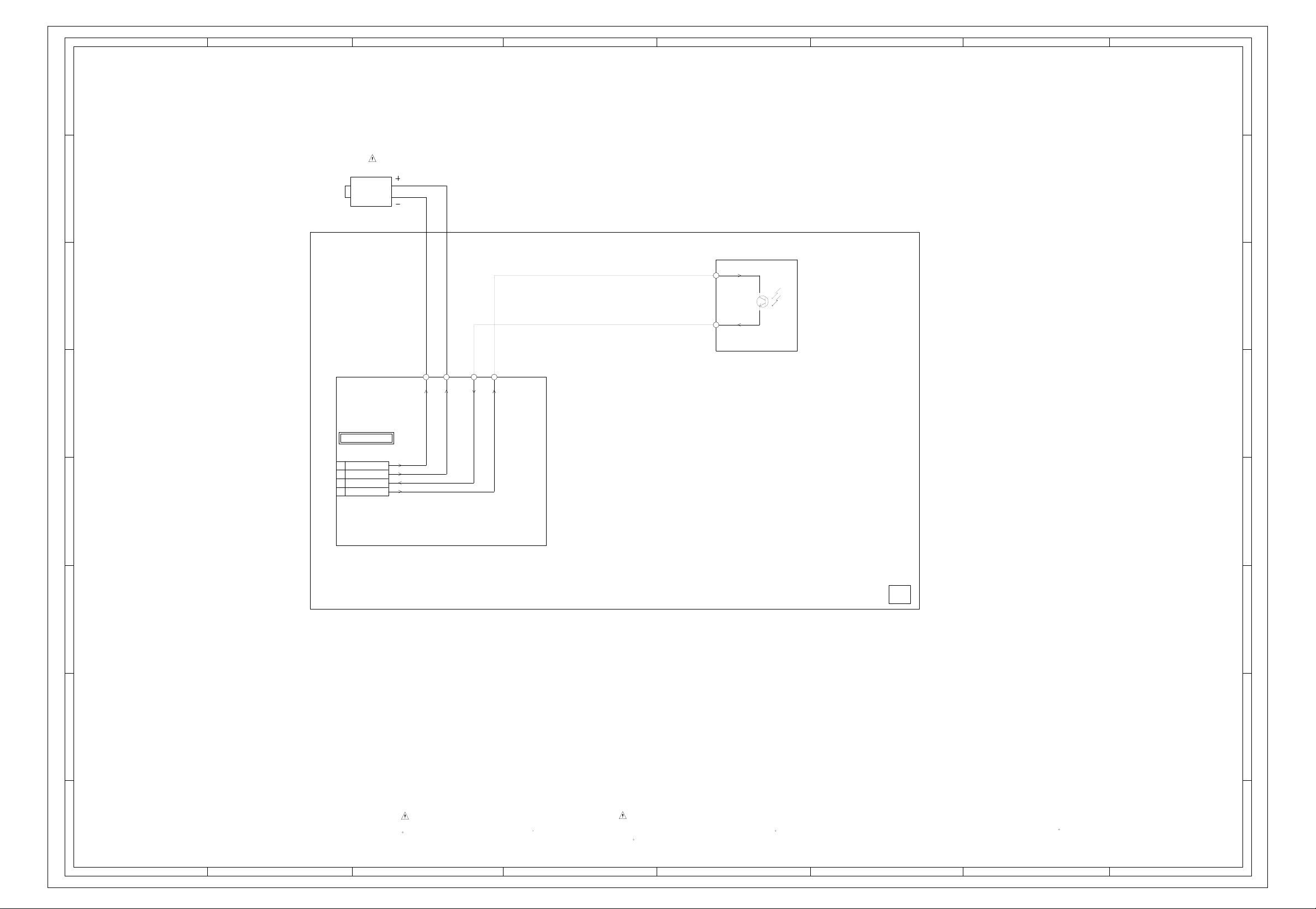

DECK SCHEMATIC DIAGRAM

8

LOADING MOTOR

M101

7

(DECK PCB)

8

7

S105

S106

5.1

0

BOT SENSOR

Q101

RPT-38PB113

PCB550
VE8851

6

5

4

3

6

S103 S104S101 S102

5

FROM/TO MICON

CP101
52044-0445

LDM+

4

LDM-

3

2

BOT

1

VCC

4

3

2

THE DC VOLTAGE AT EACH PART WAS

1

CRITICAL FOR SAFETY,USE ONES
DESCRIBED IN PARTS LIST ONLY

ARESINCE THESE PARTS MARKED BYCAUTION:

DANGEREUSES AN POINT DE VUE SECURITE
N’UTILISER QUE CELLS DECRITES
DANS LA NOMENCLATURE DES PIECES

ETANTLES PIECES REPAREES PAR UNATTENTION:

NOTE:

MEASURED WITH THE DIGITAL TESTER
DURING PLAYBACK

NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME

OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE

2

1

ABC D E F GH

ABC D E F GH

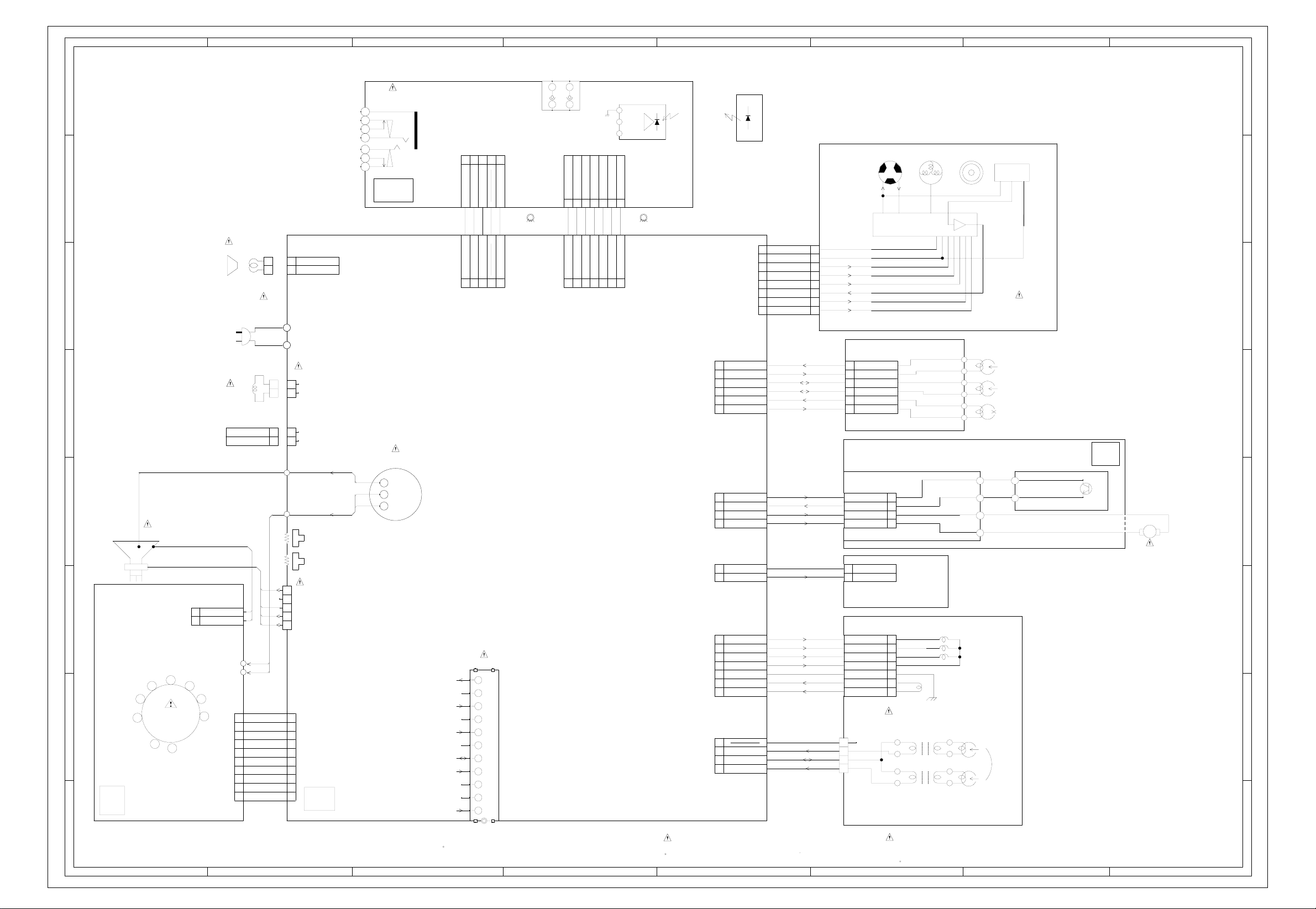

INTERCONNECTION DIAGRAM

8

HEADPHONE JACK

J351

1

5

4

3

2

6

7

7

SPEAKER

SP351

6

5

8 OHM

BLADE

WIDE

DEGAUSS COIL

L503

CD503

AC120V_60Hz

CD501

+B(A)

+B(B)

CD353

WHITE

BLACK

CP352

1

1

2

1

2

SP_OUT

2

SOUND_GND

S101A

S102A

CP502

21

2

1

CP503

1

2

OPERATION PCB

PCB030
TE9A16

FBT

FB401

54321

CD352

POWER_ON_L

POWER_ON_L

CP354

REC_LED

T-REC_LED

REC_LED

T-REC_LED

AT+5V

L005 L004

AT+5V

54321

HEH

4

123

E

FRONT AV JACK

J701_1

CD351_1

GND

7654321

GND

CP353_1

SP_OUT_L

SOUND_OUT_L

SP_OUT_L

SOUND_OUT_L

GND

SOUND_GND

FRONT_A _IN_L

GND

SOUND_GND

FRONT_A _IN_L

OS1001

3

GND

2

B+

1

V.OUT

FRONT_VIDEO_IN

FRONT_VIDEO_IN
7654321

FROM

TM101

4

V801

CRT

H.V

3

CRT PCB

PCB110
TCA354

3

2

1

4

DY

5

CRT SOCKET

1

J801

ANODE

6

F

FOCUS SCREEN

CD801

1

2

7

CP801

GND

GND

FOCUS

SCREEN

S801

8

CP851B CP851A

9

1

2

3

4

5

6

7

8

9

10

180V

H_GND

HEATER

R.OUT
B.OUT

G.OUT

CUT_OFF

CP401

1

2

NC

3

4

5

1

2

NC

3

4

5

NC

6

7

8

9

SYSCON PCB

10

GND

PCB800
VMA213

OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE

TU601

14 15

IF

11

10

NC

+30V

9

8

NC

+5V

7

6

NC

SDA

5

SCL

4

3

NC

2

NC

AGC

1

12 13

THE TIMETHIS INTERCONNECTION DIAGRAM IS THE LATEST ATNOTE:

CRITICAL FOR SAFETY,USE ONES
DESCRIBED IN PARTS LIST ONLY

ARESINCE THESE PARTS MARKED BYCAUTION:

COMMAND TRANSMITTER

TO

OS1001

CP4002

6

AUDIO PB

5

AUDIO REC

4

3

2

AE HEAD(-)

1

AE HEAD(+)

CP1006

1

VCC

2

BOT

3

LDM-

4

LDM+

CP4003

FE HEAD (GND)

2

FE HEAD (HOT)

1

CP1005

1

U-OUT

2

V-OUT

3

W-OUT

4

M-COM

5

GND

6

PG OUT

7

PG GND

CP4001_1

1

SP-CH2 (L)

2

SP_COM

3

SP-CH1 (R)

4

TM101

CTL+

CTL-

CP1004

1

2

3

4

5

6

7

8

MOTOR_GND

I LIMIT

CAP/M/F/R

VCC(5V)

1

GND

2

3

4

CTL

5

VCO

6

FG

7

8

CD4001

FFC

CD1001

FFC

CD1002

FFC

DANGEREUSES AN POINT DE VUE SECURITE
N’UTILISER QUE CELLS DECRITES
DANS LA NOMENCLATURE DES PIECES

1

2

3

4

6

5

4

3

2

1

CP101

2

1

VCC

BOT

LDM-

LDM+

FE HEAD (GND)

FE HEAD (HOT)

U-OUT

V-OUT

W-OUT

M-COM

PG OUT

PG GND

NC

SENSOR

HALL

HALL

IN

VCC

HEAD AUDIO CONTROL ASS’Y

AUDIO PB

AUDIO REC

CTL+

CTL-

AE HEAD(-)

AE HEAD(+)

1

2

3

4

FULL ERASE HEAD ASS’Y

H5002

1

2

3

4

5

GND

6

7

CYLINDER UNIT ASS’Y

UN4001

ETANTLES PIECES REPAREES PAR UNATTENTION:

MAINHALL

OUT

SWITCH

LOGIC

H5001

MICRO MOTOR

M2003

ROTOR

MAGNETCOIL

CH2

CH1

MR

FG SENSOR

G

O

VCC

CAPSTAN DD UNIT ASS’Y

DECK MECHA ASS’Y

M2001

AUDIO

CONTROL

AE

RED

WHITE

HEAD

BOT SENSOR

Q101

DECK PCB

PCB550
VE8851

LM

LOADING MOTOR

M101

8

7

6

5

4

3

2

1

ABC D E F GH

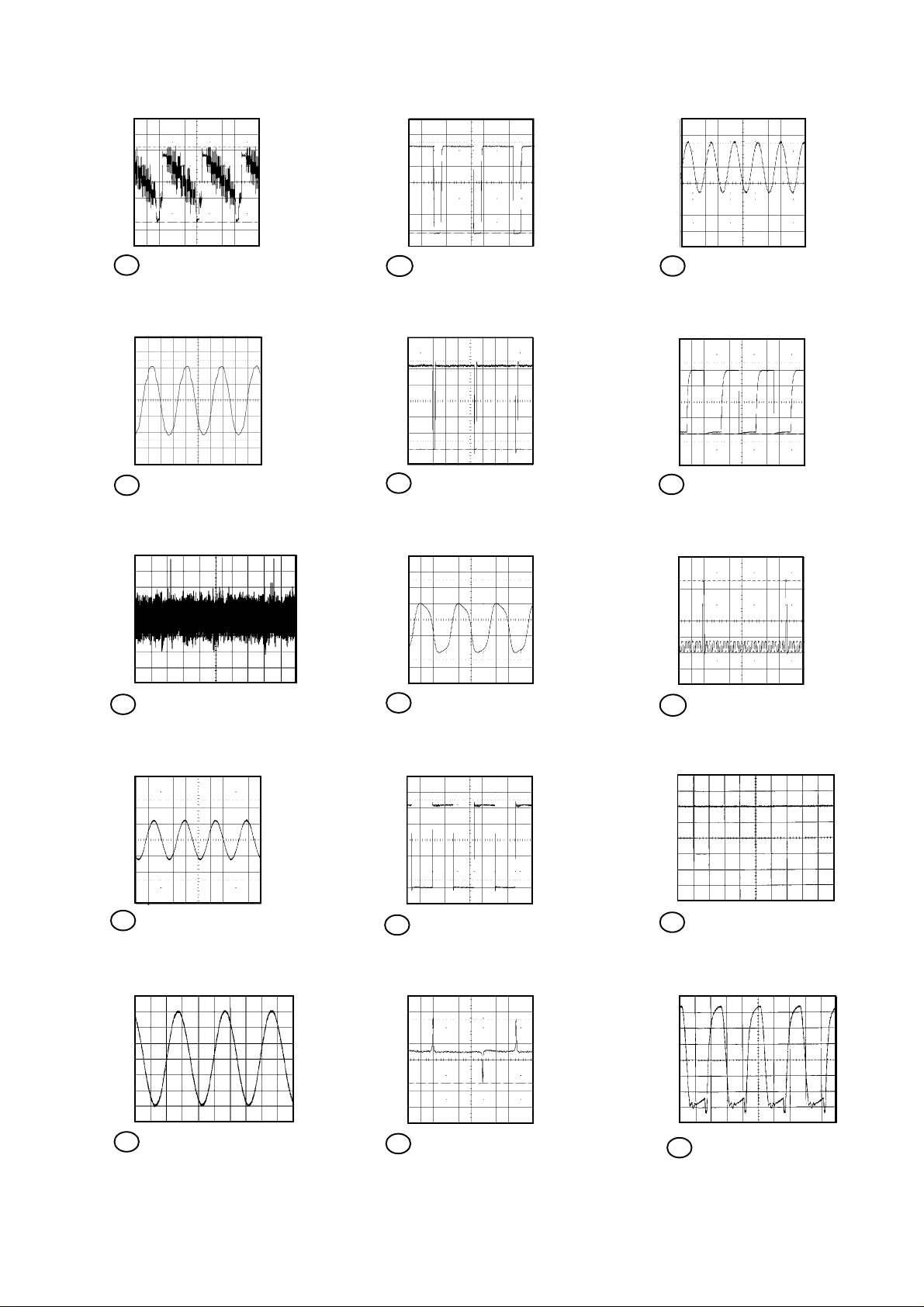

WAVEFORMS

Y/C/AUDIO/HEAD AMP

1PB

0.5V 20µs/div

2 POWER ON

100mV 0.1µs/div

MICON

6 POWER ON

1.0V 20µs/div

7 POWER ON

0.5V 10ms/div

11 PB

0.5V 0.5ms/div

12 PB

1.0V 0.5ms/div

3 PB
10mV 20us/div

4 PB

0.5V 1ms/div

5 REC

10.0V 5us/div

8 POWER ON

1.0V 10µs/div

13 PB

1.0V 5ms/div

POWER

9 PB

1.0V 10ms/div

10 PB

1.0V 5ms/div

The following waveforms were measured at the point of the corresponding

NOTE:

balloon number in the schematic diagram.

15 5.0V 20ms/div

16 500mV 5µs/div

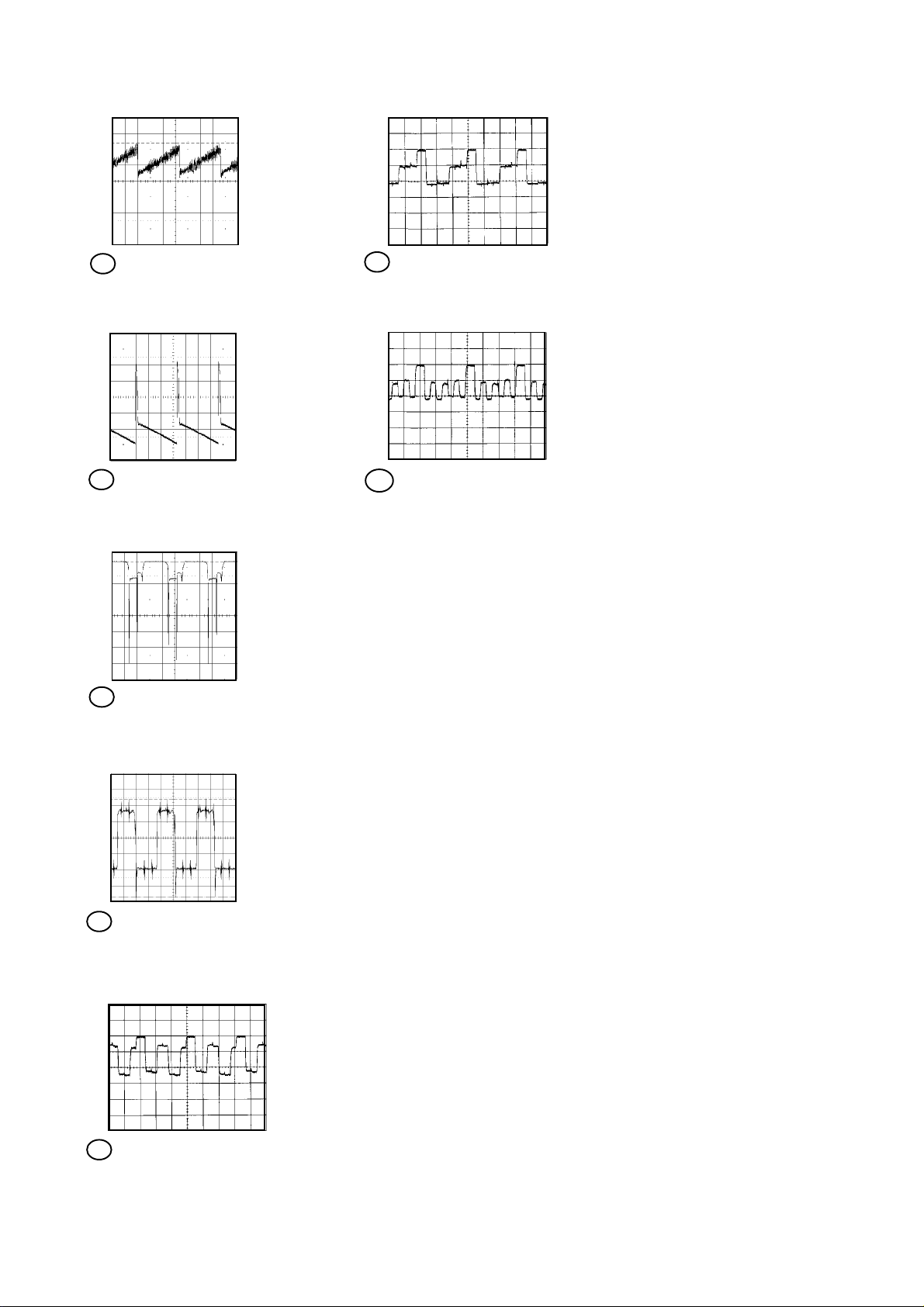

DEFLECTION

WAVEFORMS

17 0.5V 5ms/div

18 10.0V 5ms/div

19 2.0V 20 µs/div

22 50.0V 20µs/div

23 50.0V 20µs/div

20 200mV 20µs/div

CRT

21 50.0V 20µs/div

The following waveforms were measured at the point of the corresponding

NOTE:

balloon number in the schematic diagram.

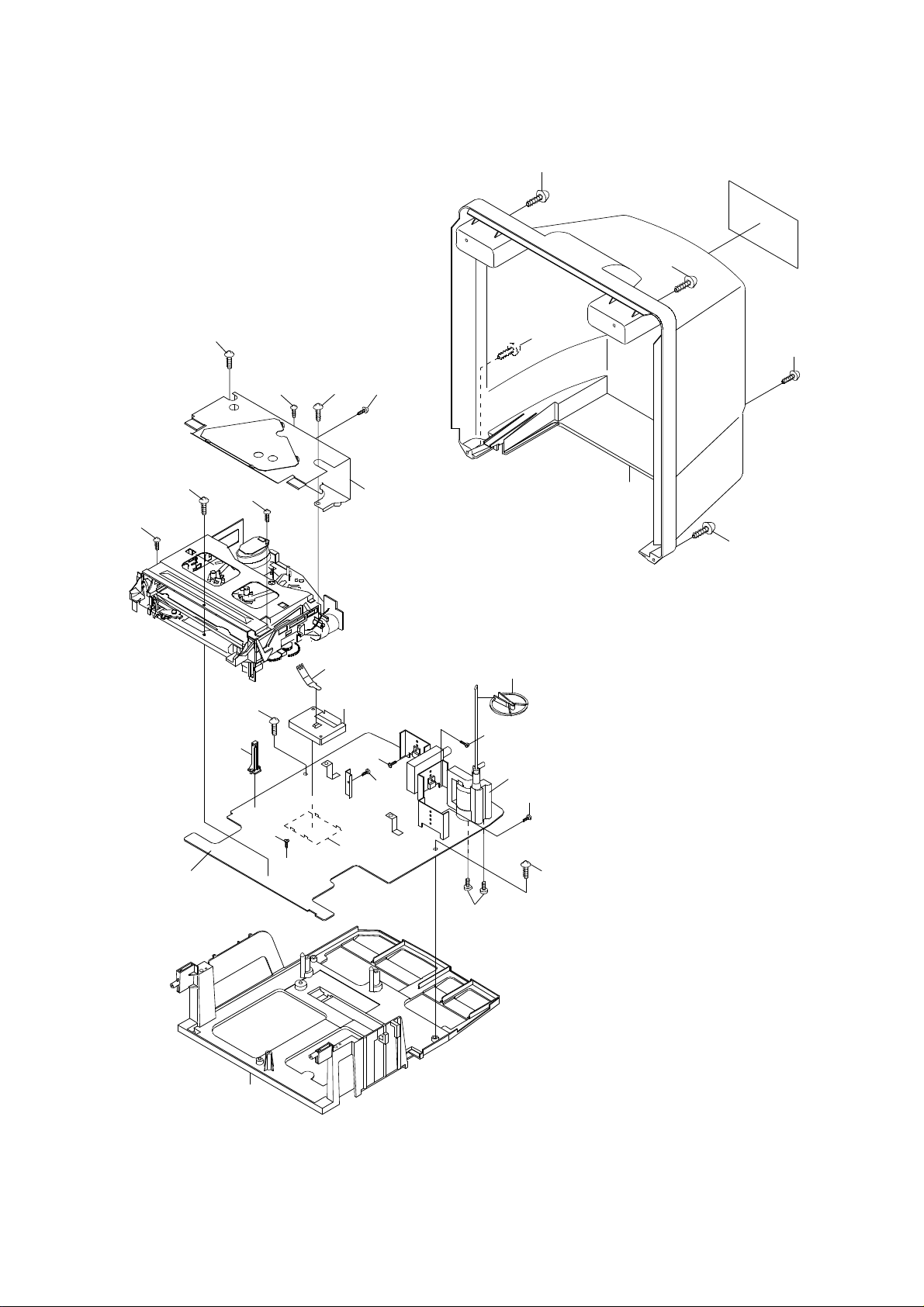

MECHANICAL EXPLODED VIEW

115

205

V801

205

L503

205

205

J801

PCB110
(CRT PCB)

113

121

116

122

206

206

PCB030
(OPERATION PCB)

120

212

101

SP351

MECHANICAL EXPLODED VIEW

202

202

207

204

204

112

207

201

207

110

204

103

208

105

211

213

111

210

FB401

211

202

203

108

202

PCB800
(SYSCON PCB)

107

209

106

201

210

503

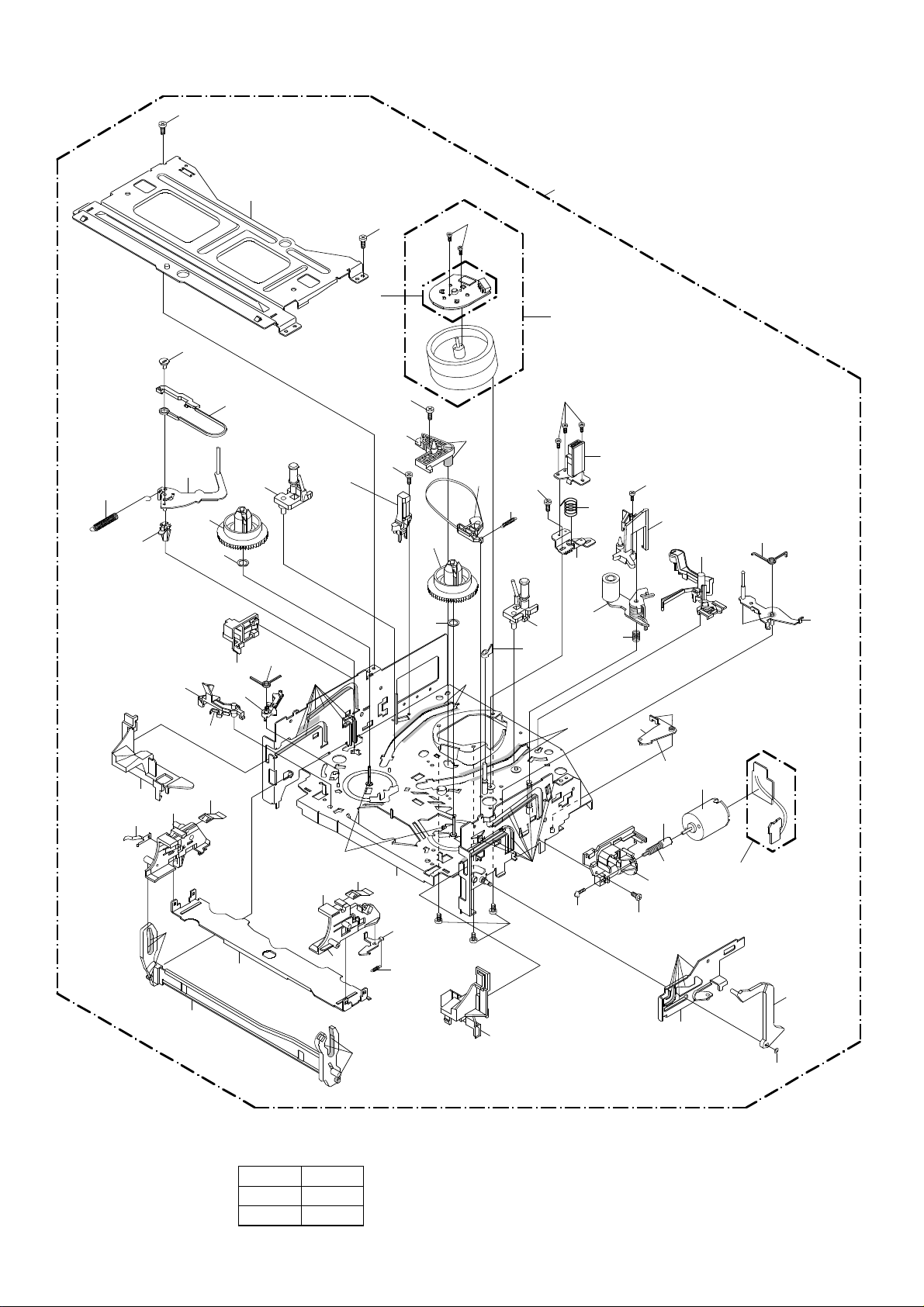

CHASSIS EXPLODED VIEW (TOP VIEW)

349

336

335

318

303

328

512

AA

319

313

309

352

314

355

AA

M2003

H5002

503

502

502

334

310

512

510

AA

AA

321

348

506

315

338

300

UN4001

507

304

317

AA

H5001

305

361

501

320

356

AA

301

AA

347

316

359

364

357

AA

323

360

363

CLASS

GREASE

OIL

358

AA

MARK

AA

BA

BA

360

AA

306

AA

353

508

509

351

365

NOTE:

Applying positions AA and BA for the grease or
oil are displayed for this section.
Check if the correct grease or oil is applied for
each position.

502

AA

329

AA

330

M101

PCB550
(DECK PCB ASS'Y)

AA

362

324

511

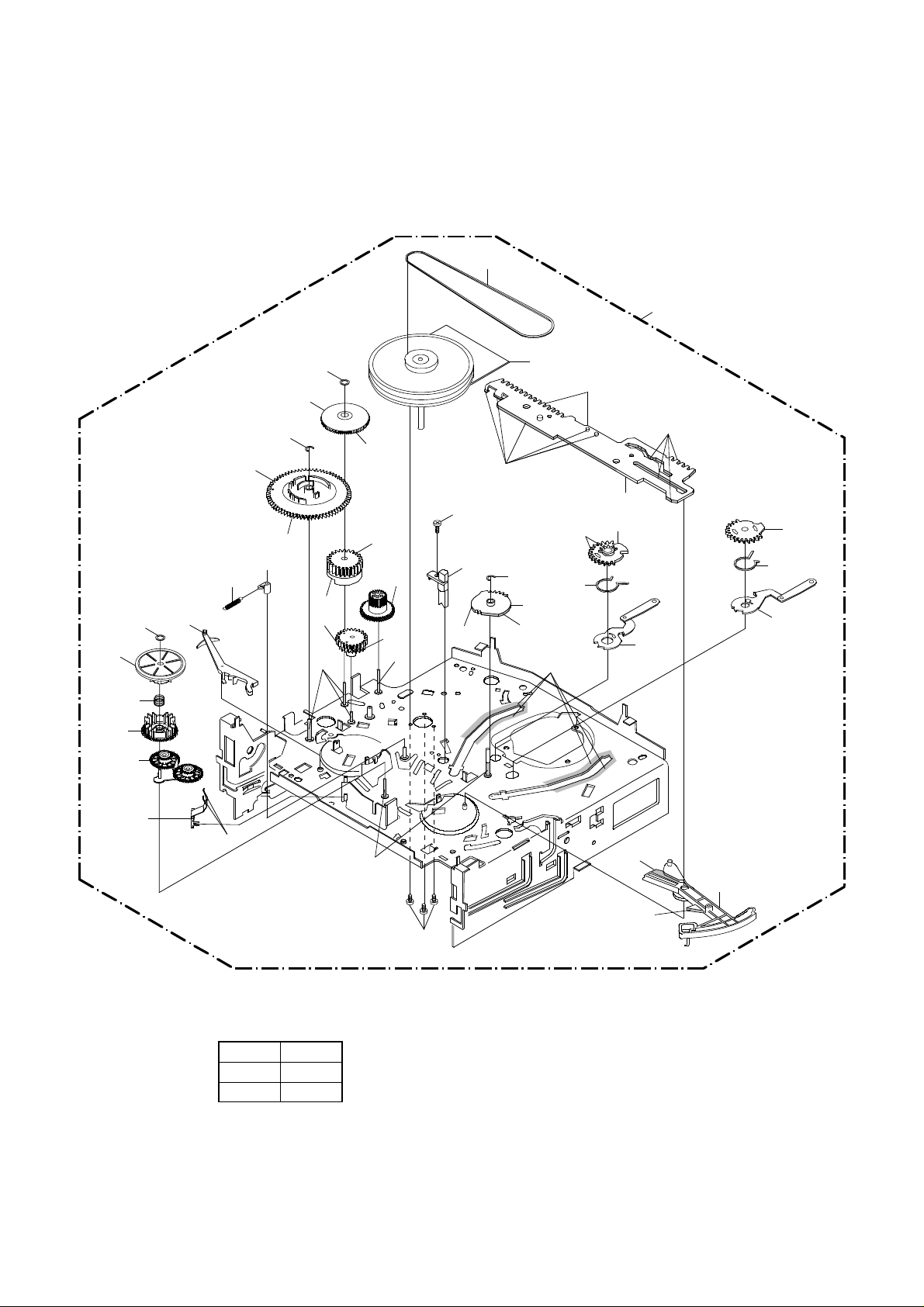

CHASSIS EXPLODED VIEW (BOTTOM VIEW)

302

300

307

327

308

354

513

326

350

341

322

505

AA

340

511

AA

342

AA

AA

343

339

AA

AA

503

345

AA

AA

505

AA

M2001

331

AB

346

AA

AA

344

333

AA

332

346

311

312

325

AA

CLASS

GREASE

OIL

MARK

AA
BA

AA

504

NOTE:

Applying positions AA and BA for the grease or
oil are displayed for this section.
Check if the correct grease or oil is applied for
each position.

AA

337

AA

MECHANICAL REPLACEMENT PARTS LIST

Location No. TSB P/N Reference No. Description

101 BZ610212 A57819A720 CABINET,FRONT ASSY
103 BZ710328 752WSA0209 SHIELD,CASE HEAD AMP
105 BZ710351 752WSA0232 PLATE,DECK SHIELD ASS'Y
106 BZ710270 753WSA0130 SHIELD,COVER HEAD AMP
107 BZ710329 761WPAA045 HOLDER,DECK
108 BZ710272 702WPAA108 CABINET,BACK

110 BZ710331 753WUAA006 SPRING,EARTH HEAD AMP
111 BZ710260 899HV3T000 HOLDER,ANODE WIRE
112 BZ710178 85OP700036 HOLDER,EOT SENSOR
113 BZ610206 701WPJB309 CABINET,FRONT
115 BZ710009 741WUA0019 SPRING,EARTH
116 BZ610207 712WPJA991 FLAP

120 BZ610208 735WPJA386 BUTTON,FRAME
121 BZ710008 738WPA0014 BUTTON,BASE
122 BZ710010 743WKA0032 SPRING,FLAP

201 BZ710036 8117540B04 SCREW,TAPPING(B0) TRUSS 4x20
202 BZ710035 8117540A64 SCREW,TAPPING(B0) TRUSS 4x16
203 BZ710262 8117540A04 SCREW,TAPPING(B0) TRUSS 4x10
204 BZ710034 8117140A24 SCREW,TAPPING(B0) PAN 4x12
205 BZ710321 8121F50B84 SCREW,TAPPING(B0) GW20 FLAT 5x28
206 BZ710031 8110630A04 SCREW,TAP TITE(P) BRAZIER 3x10
207 BZ710030 8110630804 SCREW,TAP TITE(P) BRAZIER 3x8
208 BZ710017 8107226604 SCREW,TAP TITE(S) BIND 2.6x6
209 BZ710028 8110330804 SCREW,TAP TITE(P) FLAT 3x8

210 BZ710019 8109630802 SCREW,TAP TITE(B) BRAZIER 3x8
211 BZ710239 8109I30A04 SCREW,TAP TITE(B) WH7 3x10
212 BZ710029 8110330A04 SCREW,TAP TITE(P) FLAT 3x10
213 BZ710352 8109I30604 SCREW,TAP TITE(B) WH7 3x6

--- BZ710305 792WHA0286 PACKAGE,TOP

--- BZ710306 792WHA0287 PACKAGE,BOTTOM

--- BZ710437 793WCDA994 GIFT BOX

--- BZ614262 J5781901 INSTRUCTION BOOK

CHASSIS REPLACEMENT PARTS LIST

Location No. TSB P/N Reference No. Description

300 BZ610157 A57808A420K DECK ASSY A57808A420K
301 BZ710073 85OA500022 AHC ASS'Y
302 BZ710193 85OP200290 BELT,CAPSTAN (S)
303 BZ710132 85OP900710 LEVER,REC
304 BZ710094 85OP500083 BASE,AC HEAD
305 BZ710112 85OP800324 SPRING,AC HEAD
306 BZ710354 85OA000449 MAIN CHASSIS ASS'Y (3V)
307 BZ710195 85OA200082 CLUTCH ASS'Y(S2)
308 BZ710355 85OA200088 ARM,IDLER ASS'Y 3V
309 BZ710197 85OP600556 ARM,SS BRAKE (S)

310 BZ710198 85OP200292 REEL,T (S)
311 BZ710063 85OA300061 LOADING ARM S ASS'Y
312 BZ710064 85OA300062 LOADING ARM T ASS'Y
313 BZ710216 85OP900714 COVER,SENSOR L3
314 BZ710356 85OA400220 INCLINED BASE S UNIT 3V
315 BZ710357 85OA400221 INCLINED BASE T UNIT 3V
316 BZ710200 85OA400199 P5-3 ARM ASS'Y(S)
317 BZ710072 85OA400205 PINCH ROLLER BLOCK
318 BZ710065 85OA400175 TENSION ARM ASS'Y
319 BZ710374 85OA400216 TENSION BAND ASS'Y 3V

320 BZ710067 85OA400178 PINCH ROLLER LEVER ASS'Y
321 BZ710375 85OA600197 BRAKE T ASS'Y 3V
322 BZ710359 85OP500087 HOLDER,SPRING(SV)
323 BZ710360 85OA900223 LINK UNIT(SV)
324 BZ710361 85OP900716 LEVER,LINK(SV)
325 BZ710204 85OP200284 LEVER,CLUTCH (S)
326 BZ710205 85OP200285 ACTUATOR,CLUTCH
327 BZ710206 85OP200298 GEAR,COUPLING(S2)
328 BZ710207 85OP200291 REEL,S (S)
329 BZ710362 85OP600566 WORM(SV)

330 BZ710363 85OP600567 BRACKET,MOTOR(SV)
331 BZ710364 85OP300193 GEAR,MAIN LOADING
332 BZ710087 85OP300179 GEAR,LOADING S
333 BZ710088 85OP300180 GEAR,LOADING T
334 BZ710365 85OP300189 HOLDER,LOADING GEAR (S-ZV)
335 BZ710090 85OP400472 ADJUST,TENSION
336 BZ710093 85OP400492 HOLDER,TENSION
337 BZ710092 85OP400490 LEVER,TENSION
338 BZ710366 85OP400520 CAP.P4
339 BZ710097 85OP600543 GEAR,JOINT

340 BZ710098 85OP600544 GEAR,MIDDLE
341 BZ710367 85OP600572 CAM,MAIN(S)
342 BZ710101 85OP600546 CAM,P5
343 BZ710172 85OP600565 CAM,PINCH ROLLER
344 BZ710210 85OP600561 ROD,MAIN(S)
345 BZ710106 85OP700035 REFLECTOR,LED
346 BZ710107 85OP800318 SPRING,LOADING GEAR
347 BZ710211 85OP800334 SPRING,P5 (S)
348 BZ710212 85OP800335 SPRING,BRAKE T (S)
349 BZ710110 85OP800322 SPRING,TENSION

350 BZ710213 85OP800336 SPRING,CAP BRAKE (S)
351 BZ710118 85OP800342 SPRING,LOCKER (S)
352 BZ710128 85OP900695 BRACKET,TOP
353 BZ710217 85OP900713 LOCKER,R2
354 BZ710115 85OP800330 SPRING,RING
355 BZ710214 85OP800337 SPRING,SS BRAKE (S)
356 BZ710119 85OP900680 OPENER,CASS
357 BZ710368 85OP900722 CASS SIDE L(SV)
358 BZ710369 85OP900723 CASS SIDE R(SV)
359 BZ710314 85OP900728 TAPE GUIDE L(P,R)

360 BZ710127 85OP900694 SPRING,PACK
361 BZ710117 85OP800341 SPRING,P/R ARM
362 BZ710123 85OP900688 LEVER,FLAP
363 BZ710370 85OP900717 CASS HOLDER(SV)
364 BZ710129 85OP900696 SPRING,CASS EARTH
365 BZ710315 85OP900729 TAPE GUIDE R

CHASSIS REPLACEMENT PARTS LIST

Location No. TSB P/N Reference No. Description

501 BZ710048 8107126A04 SCREW,TAP TITE(S) PAN 2.6x10
502 BZ710049 8107226804 SCREW,TAP TITE(S) BIND 2.6x8
503 BZ710017 8107226604 SCREW,TAP TITE(S) BIND 2.6x6
504 BZ710050 8109126604 SCREW,TAP TITE(B) PAN 2.6x6
505 BZ710058 83ETW30000 E-RING 3.0
506 BZ710371 8107226404 SCREW,TAP TITE(S) BIND 2.6x4
507 BZ710046 8102120604 SCREW,PAN M2x6
508 BZ710219 810A126504 SCREW/WASHER(A) M2.6x5
509 BZ710241 810A130504 SCREW/WASHER(A) M3x5

510 BZ710051 810A123504 SEMS A M2.3x5.0
511 BZ710055 82P266005N POLYSLIDER WASHER(CUT) 2.6x6.0xT0.5
512 BZ710218 82Q2647C5N POLYSLIDER WASHER 2.6x4.7xT0.25
513 BZ710054 82P184505N POLYSLIDER WASHER(CUT) 1.8x4.5xT0.5

CP101 BZ614040 069R740018 CONNECTOR PCB SIDE 52044-0445
H5001 BZ710040 1523D91034 HEAD (AUDIO CONTROL) HVMXA1072A

H5002 BZ710041 1543D02013 HEAD (FULL ERASE) HVFHP0032A
! M101 BZ710044 1596P78001 MOTOR (LOADING) MXN13FB11H
! M2001 BZ710372 1594S98001 CAPSTAN DD UNIT F2QSB36
! M2003 BZ710373 1589S11014 MICRO MOTOR I2OAL03

PCB550 BZ610053 A4C831B550 DECK PCB ASS'Y VE8851

Q101 BZ410026 0000700320 TRANSISTOR,PHOTO RPT-38PB113
! UN4001 BZ610158 A4E101A500 CYLINDER UNIT ASS'Y A4E101A500

ELECTRICAL REPLACEMENT PARTS LIST

Location No. TSB P/N Reference No. Description

RESISTORS

! R415 BZ210053 R002T22R2J RC 2.2 OHM 1/2W
! R420 BZ210070 R801R7822F RC 8.2K OHM 1/10W
! R439 BZ210072 R801R7223F RC 22K OHM 1/10W
! R440 BZ210142 R903N8513J RC 51K OHM 1/8W
! R441 BZ210143 R903N8563J RC 56K OHM 1/8W
! R442 BZ210144 R801R7183F RC 18K OHM 1/10W
! R444 BZ210145 R801R7393F RC 39K OHM 1/10W
! R447 BZ210021 R65582680J R,FUSE 68 OHM 1/2W
! R449 BZ210078 R65584101J R,FUSE 100 OHM 1/4W
! R450 BZ210116 R655814R7J R,FUSE 4.7 OHM 1W
! R500 BZ210080 R0G3K2275K RC 2.7M OHM 1/2W
! R501 BZ210146 R5Y2CD2R2J R,CEMENT 2.2 OHM 5W
! R510 BZ210081 R002T2124J RC 120K OHM 1/2W
! R520 BZ210009 R3X28AR82J R,METAL 0.82 OHM 2W
! R529 BZ210084 R4X5T4272F R,METAL 2.7K OHM 1/4W
! R542 BZ210085 R33681R18J R,METAL 0.18 OHM 1W
! R543 BZ210086 R635U4681J R,FUSE 680 OHM 1/4W

R632 BZ210087 R3X18A221J R,METAL OXIDE 220 OHM 2W
! R802 BZ210089 R3X181123J R,METAL 12K OHM 1W
! R805 BZ210089 R3X181123J R,METAL 12K OHM 1W
! R810 BZ210089 R3X181123J R,METAL 12K OHM 1W

R1080 BZ210148 R00104010J RC 1 OHM 1/4W

CAPACITORS

C354 BZ110135 E02L02222M CE 2200 UF 16V

C402 BZ110077 E02L04102M CE 1000 UF 35V
! C407 BZ110078 E02L03102M CE 1000 UF 25V

C423 BZ110136 P4J7F3394J CMPP 0.39 UF 250V PMS
! C424 BZ110137 P4N8FJ822H CMPP 0.0082UF 1.25KV
! C425 BZ110122 C0JLYR7U2K CC 680 PF 2KV YR
! C431 BZ110103 E02LTD100M CE 10 UF 250V
! C433 BZ110079 E02LT3331M CE 330 UF 25V
! C502 BZ110061 C0JTB0513K CC 0.001 UF 500V B
! C503 BZ110061 C0JTB0513K CC 0.001 UF 500V B
! C506 BZ110138 P2472B224M CMP 0.22UF 275V PHE840
! C507 BZ110012 E51CGC471M CE 470 UF 200V
! C510 BZ110018 E5EZT4101M CE 100 UF 35V
! C511 BZ110029 E5EZT3471M CE 470 UF 25V

C514 BZ110113 C0JLYR7K3K CC 0.0027UF 2KV YR

C517 BZ110114 C0JLYR7W2K CC 820 PF 2KV YR
! C521 BZ110139 E62NFB101M CE 100 UF 160V
! C530 BZ110140 C034F0JQ3M CC 0.0047UF 125V MX

C535 BZ110122 C0JLYR7U2K CC 680 PF 2KV YR

C560 BZ110115 C0JLYR7H3K CC 0.0022UF 2KV YR

C701 BZ110098 CHGTB0413K CC 0.001 UF 50V B

C801 BZ110141 C0HHB07H3K CC 0.0022UF 2KV B

C4024 BZ110142 E50HT0101M CE 100 UF 6.3V

DIODES

D401 BZ410043 D2WT011E10 DIODE,SILICON 11E1-EIC

D402 BZ410014 D2LTPG06J0 DIODE,SILICON RMPG06J-G3

D405 BZ410043 D2WT011E10 DIODE,SILICON 11E1-EIC
! D408 BZ410018 D94TA27011 DIODE,ZENER HZ27-1L TD
! D409 BZ410017 D94TA11B13 DIODE,ZENER HZ11B3L TD

D410 BZ410022 D97U06R81B DIODE,ZENER MTZJ6.8B T-77
! D412 BZ410014 D2LTPG06J0 DIODE,SILICON RMPG06J-G3
! D413 BZ410014 D2LTPG06J0 DIODE,SILICON RMPG06J-G3
! D501 BZ410044 D4LZBL06L0 DIODE GBL06L-6177

D502 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77

D504 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77
! D505 BZ410076 D2WXB290S0 DIODE,SILICON SB290S

D506 BZ410014 D2LTPG06J0 DIODE,SILICON RMPG06J-G3

D507 BZ410057 D28015DF60 DIODE,SILICON 15DF6

D508 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77
! D510 BZ410028 D2BTRU2AM0 DIODE,SILICON RU2AM V1
! D512 BZ410076 D2WXB290S0 DIODE,SILICON SB290S

D513 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77

D514 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77
! D515 BZ410037 D97U03301B DIODE,ZENER MTZJ33B T-77
! D517 BZ410059 D2WT11ES10 DIODE,SILICON 11ES1-EIC

D518 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77
! D519 BZ410076 D2WXB290S0 DIODE,SILICON SB290S

D520 BZ410077 D2WXSB1400 DIODE,SCHOTTKY SB140-EIC

D521 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77

D526 BZ410008 D23U1003A3 DIODE,SCHOTTKY SB10-03A3

D528 BZ410021 D97U05R61B DIODE,ZENER MTZJ5.6B T-77

D601 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77

D602 BZ410078 D97U08R21A DIODE,ZENER MTZJ8.2AT-77

D604 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77

ELECTRICAL REPLACEMENT PARTS LIST

Location No. TSB P/N Reference No. Description

DIODES

D605 BZ410059 D2WT11ES10 DIODE,SILICON 11ES1-EIC

D608 BZ410008 D23U1003A3 DIODE,SCHOTTKY SB10-03A3

D609 BZ410022 D97U06R81B DIODE,ZENER MTZJ6.8B T-77

D610 BZ410022 D97U06R81B DIODE,ZENER MTZJ6.8B T-77

D611 BZ410022 D97U06R81B DIODE,ZENER MTZJ6.8B T-77

D612 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77

D613 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77

D614 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77

D615 BZ410022 D97U06R81B DIODE,ZENER MTZJ6.8B T-77

D618 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77

D619 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77

D620 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77

D621 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77

D791 BZ410005 002132Q130 LED SLZ-936C-07-S-T1

D792 BZ410005 002132Q130 LED SLZ-936C-07-S-T1

D793 BZ410005 002132Q130 LED SLZ-936C-07-S-T1

D801 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77

D802 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77

D803 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77

D1003 BZ410004 0010600060 LED SID1050CM

D1004 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77

D1014 BZ410021 D97U05R61B DIODE,ZENER MTZJ5.6B T-77

ICS

! IC351 BZ611001 I01DP75110 IC AN7511
! IC401 BZ611053 I01TD55220 IC AN5522

IC501 BZ611054 I1KA98R050 IC KIA78R05PI
! IC502 BZ611041 I2BT066230 IC STR-G6623

IC601 BZ611055 I06FC61206 IC M61206FP

IC1001 BZ611056 I56F57059A IC OEC7059A
! IC1003 BZ611057 IC7J0311A0 IC R3111N311A/C-TR

IC1004 BZ611058 I03DQ18800 IC LB11880

IC1099 BZ610152 A57808A015 IC S-24C04BDP-LA

IC4001 BZ611059 I03F3201M0 IC LA71201M-MPB

TRANSISTORS

Q401 BZ510067 TNAAC05002 COMPOUND TRANSISTOR KRC103RTK

Q402 BZ510057 TAAT01281Y TRANSISTOR,SILICON KTA1281_Y

Q403 BZ510068 TNAAJ05003 COMPOUND TRANSISTOR KRC111RTK

Q404 BZ510049 TPYJD05001 COMPOUND TRANSISTOR DTA144EKAT146
! Q405 BZ510010 TC3T022710 TRANSISTOR,SILICON 2SC2271(D,E)-AE
! Q406 BZ510036 TD30026270 TRANSISTOR,SILICON 2SD2627LS-CBC11

Q501 BZ410055 0002500450 PHOTO COUPLER TLP621(GR)

Q502 BZ510045 TNYJD05001 COMPOUND TRANSISTOR DTC144EKAT146
! Q503 BZ510004 TA3T016240 TRANSISTOR,SILICON 2SA1624-AA

Q507 BZ510069 TCATC31980 TRANSISTOR,SILICON KTC3198-AT(Y,GR)

Q508 BZ510045 TNYJD05001 COMPOUND TRANSISTOR DTC144EKAT146

Q601 BZ510001 T6YJ1037K0 TRANSISTOR,SILICON 2SA1037AKT146R,S

Q602 BZ510070 TCAT032034 TRANSISTOR,SILICON KTC3203_Y-AT

Q603 BZ510070 TCAT032034 TRANSISTOR,SILICON KTC3203_Y-AT

Q604 BZ510042 TDWT00400E TRANSISTOR,SILICON 2SD400E

Q605 BZ510042 TDWT00400E TRANSISTOR,SILICON 2SD400E

Q606 BZ510070 TCAT032034 TRANSISTOR,SILICON KTC3203_Y-AT

Q608 BZ510071 TNAAB05003 COMPOUND TRANSISTOR KRC102RTK

Q609 BZ510071 TNAAB05003 COMPOUND TRANSISTOR KRC102RTK

Q611 BZ510071 TNAAB05003 COMPOUND TRANSISTOR KRC102RTK
! Q804 BZ510009 TC3F042170 TRANSISTOR,SILICON 2SC4217(D,E)-RAC
! Q805 BZ510009 TC3F042170 TRANSISTOR,SILICON 2SC4217(D,E)-RAC
! Q806 BZ510009 TC3F042170 TRANSISTOR,SILICON 2SC4217(D,E)-RAC

Q1002 BZ510002 T8YJ2412K0 TRANSISTOR,SILICON 2SC2412KT146 R,S

Q1003 BZ410041 0002700530 PHOTO COUPLER RPI-352Q01R

Q1004 BZ510067 TNAAC05002 COMPOUND TRANSISTOR KRC103RTK
! Q1005 BZ410049 0002700590 PHOTO COUPLER RPI-301

Q1006 BZ510071 TNAAB05003 COMPOUND TRANSISTOR KRC102RTK

Q1009 BZ410041 0002700530 PHOTO COUPLER RPI-352Q01R

Q1013 BZ410042 0000100380 PHOTO TRANSISTOR PNA2604M010R

Q1023 BZ510002 T8YJ2412K0 TRANSISTOR,SILICON 2SC2412KT146 R,S

Q4001 BZ510069 TCATC31980 TRANSISTOR,SILICON KTC3198-AT(Y,GR)

Q4002 BZ510069 TCATC31980 TRANSISTOR,SILICON KTC3198-AT(Y,GR)

Q4003 BZ510072 TPAAC05002 COMPOUND TRANSISTOR KRA103RTK

Q4005 BZ510073 TAATA12660 TRANSISTOR,SILICON KTA1266-AT(Y,GR)

Q4006 BZ510070 TCAT032034 TRANSISTOR,SILICON KTC3203_Y-AT

Q4007 BZ510002 T8YJ2412K0 TRANSISTOR,SILICON 2SC2412KT146 R,S

Q4009 BZ510001 T6YJ1037K0 TRANSISTOR,SILICON 2SA1037AKT146R,S

Q4010 BZ510001 T6YJ1037K0 TRANSISTOR,SILICON 2SA1037AKT146R,S

Q4011 BZ510002 T8YJ2412K0 TRANSISTOR,SILICON 2SC2412KT146 R,S

Q4012 BZ510002 T8YJ2412K0 TRANSISTOR,SILICON 2SC2412KT146 R,S

Q4201 BZ510071 TNAAB05003 COMPOUND TRANSISTOR KRC102RTK

Q4202 BZ510071 TNAAB05003 COMPOUND TRANSISTOR KRC102RTK

ELECTRICAL REPLACEMENT PARTS LIST

Location No. TSB P/N Reference No. Description

COILS &TRANSFORMERS

L401 BZ310004 021679472K COIL 4.7 MH
! L502 BZ310099 029T000092 COIL,LINE FILTER 1R0A103F24
! L503 BZ310076 028R140031 COIL,DEGAUSS 8R140031

L601 BZ310101 0216A61R2K COIL 1.2 UH

L603 BZ310040 02167F470J COIL 47 UH

L605 BZ310112 021LA61R2K COIL 1.2 UH

L607 BZ310058 021LA6220K COIL 22 UH

L612 BZ310068 021LA66R8K COIL 6.8 UH

L801 BZ310113 021673221K COIL 220 UH

L1001 BZ310009 021LA62R2K COIL 2.2 UH

L1002 BZ310079 021LA6101J COIL 100 UH

L4001 BZ310039 02167F220J COIL 22 UH

L4003 BZ310041 02167F101J COIL 100 UH

L4004 BZ310039 02167F220J COIL 22 UH

L4005 BZ310040 02167F470J COIL 47 UH

L4006 BZ310040 02167F470J COIL 47 UH

L4009 BZ310041 02167F101J COIL 100 UH

T401 BZ310080 03305Y0018 TRANS,HORIZONTAL DRIVE 305Y001
! T501 BZ310094 048129015S TRANSFORMER,SWITCHING 8129015S

T4001 BZ310114 031626009R COIL,BIAS OSC 1626009

JACKS

! J351 BZ614002 060G131014 RCA JACK HTJ-035-28A

J701 BZ614172 060Q401075 RCA JACK AV2-24D-5
! J801 BZ614004 066X120014 SOCKET,CATHODE RAY TUBE HPS3200-010501

SWITCHES

SW1001 BZ612002 0508221001 SWITCH (LEAF) SPVF130100

SW1002 BZ612010 0504101T34 SWITCH,TACT EVQ21505R

SW1003 BZ612010 0504101T34 SWITCH,TACT EVQ21505R

SW1004 BZ612010 0504101T34 SWITCH,TACT EVQ21505R

SW1005 BZ612010 0504101T34 SWITCH,TACT EVQ21505R

SW1006 BZ612010 0504101T34 SWITCH,TACT EVQ21505R

SW1007 BZ612010 0504101T34 SWITCH,TACT EVQ21505R

SW1008 BZ612010 0504101T34 SWITCH,TACT EVQ21505R

SW1009 BZ612010 0504101T34 SWITCH,TACT EVQ21505R

SW1010 BZ612010 0504101T34 SWITCH,TACT EVQ21505R

SW1011 BZ612010 0504101T34 SWITCH,TACT EVQ21505R

SW1012 BZ612010 0504101T34 SWITCH,TACT EVQ21505R

VARIABLE RESISTORS

VR502 BZ210024 V1163L2BTC VOLUME,SEMI FIXED EVNCYAA03BY2

P.C.BOARD ASSEMBLIES

PCB030 BZ610224 A57819A03A PCB ASS'Y TE9A16A

PCB110 BZ610225 A57819A11A PCB ASS'Y TCA354A

PCB800 BZ610226 A57819A01A PCB ASS'Y VMA213A

PCB550 BZ610053 A4C831B550 SEE CHASSIS REPLACEMENT PARTS LIST

MISCELLANEOUS

B402 BZ310016 024AT03655 CORE,BEADS BL01RN1-A63T6

B403 BZ310016 024AT03655 CORE,BEADS BL01RN1-A63T6

B502 BZ310015 024AT03482 CORE,BEADS BL02RN2-R62T4

B503 BZ310016 024AT03655 CORE,BEADS BL01RN1-A63T6

B505 BZ310015 024AT03482 CORE,BEADS BL02RN2-R62T4

B602 BZ310016 024AT03655 CORE,BEADS BL01RN1-A63T6

B604 BZ310045 024AT03481 CORE,BEADS BL02RN1-R62T2

BL001 BZ310014 023C00022A COIL,BALUN HPN-01

CD351 BZ614131 06CH27091A CORD,CONNECTOR CH27091A

CD352 BZ614132 06CH25093A CORD,CONNECTOR CH25093A

CD353 BZ614096 06CH12426A CORD,CONNECTOR CH12426A
! CD501 BZ614197 1207414905 CORD,AC BUSH 7414905

CD503 BZ614133 069X620040 CONNECTOR JM-2BK-61

CD801 BZ614175 06CU82039A CORD,CONNECTOR SM1098-009-1A

CF601 BZ613014 1022T45R72 FILTER,SAW SAF45MFY220ZR

CF603 BZ613015 1011T4R504 FILTER,CERAMIC EFCT4R5YS5A

CF604 BZ613016 1011T4R517 FILTER,CERAMIC EFCT4R5MW5

CP351 BZ614135 0694260139 CONNECTOR PCB SIDE 173979-6

CP352 BZ614019 069X120249 CONNECTOR PCB SIDE B2B-EH-A

CP353 BZ614102 0694270139 CONNECTOR PCB SIDE 173979-7

CP354 BZ614136 0694250139 CONNECTOR PCB SIDE 173979-5
! CP401 BZ614020 069X450029 CONNECTOR PCB SIDE B05B-DVS
! CP502 BZ614018 069W420029 CONNECTOR PCB SIDE TV-50P-02-A1

CP503 BZ614137 069X620030 CONNECTOR PCB SIDE RE-H022TD-1130

CP801 BZ614017 069W320018 CONNECTOR PCB SIDE TS-80P-02-V1

CD1002 BZ614198 122F071901 CORD,JUMPER 2F071901

CP1003 BZ614138 0694240139 CONNECTOR PCB SIDE 173979-4

CP1004 BZ614010 0697280590 CONNECTOR PCB SIDE TMC-J08P-B1

CP1005 BZ614086 069J770029 CONNECTOR PCB SIDE IMSA-9604S-07Z14

CP1006 BZ614014 069J740029 CONNECTOR PCB SIDE IMSA-9604S-04Z14

CP4001 BZ614054 0697240600 CONNECTOR PCB SIDE TOC-C04X-B1

CP4002 BZ614050 069J760029 CONNECTOR PCB SIDE IMSA-9604S-06Z14

ELECTRICAL REPLACEMENT PARTS LIST

Location No. TSB P/N Reference No. Description

MISCELLANEOUS

CP4003 BZ614009 0697120320 CONNECTOR PCB SIDE TMC-T02X-E1

CP851A BZ614139 067R010019 WIRE HOLDER 51048-1010

CP851B BZ614139 067R010019 WIRE HOLDER 51048-1010

CUS011 BZ710279 800WFAA006 CUSHION A

CUS012 BZ710149 800WFAA008 CUSHION C

EL001 BZ614043 124116281A EYE LET XRY16X28BD

EL002 BZ614044 124120301A EYE LET XRY20X30BD
! F501 BZ614177 081PC05004 FUSE 51MS050LCC
! FB401 BZ310082 043213013R TRANSFORMER,FLYBACK 3213013R

FH501 BZ614005 06710T0006 HOLDER,FUSE EYF-52BC

FH502 BZ614005 06710T0006 HOLDER,FUSE EYF-52BC

OS1001 BZ614199 077Q004017 REMOTE RECEIVER PIC-37243SR
! SP351 BZ614200 070C533019 SPEAKER SG04D11BNA
! TH501 BZ410079 DF5EL3R0A0 DEGAUSS ELEMENT ZPB45BL3R0A

TM101 BZ614201 076N0DQ050 TRANSMITTER VC-L2B
! TU601 BZ610125 0145K00055 TUNER,VHF-UHF TECC1040PG32D
! V801 BZ614141 098Q1404B2 CRT W/DY A34AGT13X98(L)

X602 BZ613004 100CT3R505 CRYSTAL HC-49/C

X1001 BZ613002 100CT01207 CRYSTAL HC-49/U-S

X1002 BZ613006 100DA32R01 CRYSTAL DT-26

X4001 BZ613017 100CT3R502 CRYSTAL HC-49/U

RESISTOR

CAPACITORS

RC................... CARBON RESISTOR

CC................... CERAMIC CAPACITOR

CE................... ALUMI ELECTROLYTIC CAPACITOR

CP................... POLYESTER CAPACITOR

CPP.................. POLYPROPYLENE CAPACITOR

CPL.................. PLASTIC CAPACITOR

CMP................... METAL POLYESTER CAPACITOR

CMPL................ METAL PLASTIC CAPACITOR

CMPP................ METAL POLYPROPYLENE CAPACITOR

TOSHIBA VIDEO PRODUCTS PTE. LTD.

438B ALEXANDRA ROAD, BLOCK B #06-01 ALEXANDRA TECHNOPARK SINGAPORE 119968
