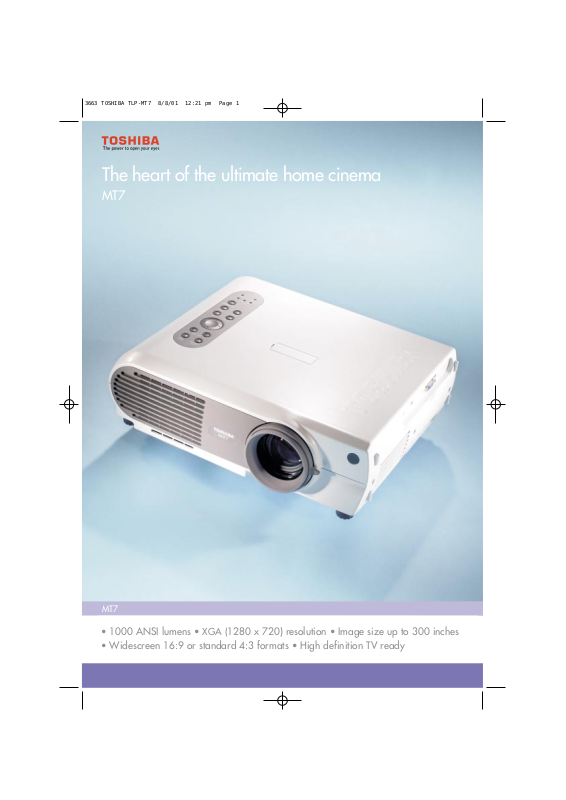

The heart of the ultimate home cinema
MT7
MT7
• 1000 ANSI lumens • XGA (1280 x 720) resolution • Image size up to 300 inches
• Widescreen 16:9 or standard 4:3 formats • High definition TV ready
MT7
High-impact Home Cinema Projector
MT7
For the heart of your home cinema it’s sheer
power and punch that count. Whether you’ve
chosen the latest all-action blockbuster or
a movie classic, brightness and resolution
are everything.
You’ll be amazed at the 1000 lumen impact
that Toshiba’s TLP-MT7 packs into its small,
pearl-white box; it’s a combination of
performance and portability that means you
can even take your projector along for a
screening to a sizeable audience. The versatility
doesn’t end there, since the TLP-MT7 also
brings games to life like never before and it
can be simply connected to your computer for
stunning presentations.
Experience the big screen for yourself and
you’ll be spoiled for anything less.
MT7 Specification
DISPLAY 1.2" Polysilicon LCD x 3
RESOLUTION XGA (1280 x 720)
BRIGHTNESS 1000 ANSI Lumens
PROJECTION LENS Manual Zoom and Focus
F=2.2-2.5 / f=47-61mm
IMAGE SIZE 28"-300"
PROJECTION DISTANCE 1.38-11.81m (4.5-38.75ft)
VIDEO COMPATIBILITY NTSC/PAL/SECAM
LAMP 170W UHP
INPUT 1 RGB: D-sub mini 15 pins
1 audio for RGB: stereo mini jack
2 Video: RCA and S-video
1 audio for video: RCA L&R
AUDIO OUTPUT Integrated 2W Loudspeaker
DIMENSIONS (WxHxD) 345 x 104 x 281 (mm)
WEIGHT 5.3kg
POWER SOURCE 100-240V AC, 50/60Hz
POWER CONSUMPTION 230 W
ACCESSORIES Manual, Remote, Batteries, Power Cord,
RCA Cable, Audio Cable, Scart Adapter
Format versatility
• Standard 4:3 or widescreen 16:9
• Connects to DVD, VCR, TV or digital camera
• Zoom lens
Simple set-up
• Plug it in and it’s ready
• Automatically squares-up the picture
(keystone correction)
Brilliant performance
• 400:1 contrast ratio for cinema quality
• The visual clout of 1000 ANSI lumens even
when the lights aren’t down
• 1280 x 720 resolution
• Games, digital snaps and computer
presentations, too
Projection distance
38.75 ft
25.79 – 33.04 ft
19.32 – 24.74 ft
12.83 – 16.47 ft
10.24 – 13.16 ft
5.3 – 6.86 ft
4.53 ft
Diagonal Image Minimum Maximum
screen size width distance distance
(inches) (inches) (feet) (feet)
28 22 - 4.5
42 33 5.3 6.9
80 64 10.2 13.1
100 80 12.8 16.5
150 120 19.3 24.7
200 160 25.8 33.0
300 240 38.8 -
42"
28"
150"
100"
80"
300"
200"
Toshiba Information Systems (UK) Limited
Consumer Products Division
Toshiba House, Frimley Road
Camberley, Surrey GU16 7JJ
TPR0003/1
www.htrgroup.com
Product design and specification subject to change or modification without notice.
