This equipment has been tested and found to comply with the limits for a Ciass A digitai
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications. Operation of this equipment in a residential
area is likely to cause harmful interference in which case the user will be required to correct
the interference at his own expense.
WARNING
“THIS DIGITAL APPARATUS DOES NOT EXCEED THE CLASS A LIMITS FOR RADIO
NOISE EMISSIONS FROM DIGITAL APPARATUS SET OUT IN THE RADIO INTERFER
ENCE REGULATIONS OF THE CANADIAN DEPARTMENT OF COMMUNICATIONS."
“LE PRÉSENT APPAREIL NUMÉRIQUE N’EMET PAS DE BRUITS RADIOÉLECTRIQUES
DÉPASSANT LES LIMITES APPLICABLES AUX APPAREILS NUMÉRIQUES DE LA
CLASSE A PRESCRITES DANS LE RÉGLEMENT SUR LE BROUILLAGE RADIOÉLEC
TRIQUE ÉDICTÉ PAR LE MINISTÈRE DES COMMUNICATIONS DU CANADA."
Thank you for choosing the TEC electronic cash register MA-85-100 series.
This instruction manual provides a description of the functions and handling of
this register and should be read carefully to ensure optimum performance.
Since every consideration has been given to safety and reliability, there is no
danger of damaging the machine by incorrect operation.
Please refer to this manual whenever you have any questions concerning the
machine. This machine has been manufactured under strict quality control and
should give you full satisfaction. However, if the machine is damaged during
transit, or there are any unclear points in this manual:
For supplies, service or assistance call:
EOl-11072
Please have the following information available when
you call:
)
Product Name: TEC Electronic Cash Register
Model: MA-85-100
Serial Number:
Place Purchased;
Date of Purchase:
If for any reason this product is to be returned to the
store where purchased, it must be packed in the original
carton.
• The specifications described in this manual may be modified by TEC, if
necessary.
• Be sure to keep this manual for future reference.
The ECR is a precision machine. Please handle it carefully considering the
following guidelines.
Remarks on the Location
Do not place it where unusual temperature
changes are expected or where it will be
subjected to direct sunlight.
EOI-11072
Place it on a flat and level surface with little
dust, humidity, vibration, etc.
)
Keep it away from water sources.
Be certain that the power voltage in your
area matches that required for the
machine. (The rated voltage is 117V AC.)
The socket-outlet shall be Installed near
the equipment and shall be easily
accessible.
-3-
Remarks on Operating the ECR
The keys on the keyboard function with a
light touch. Avoid pressing the keys too
hard.
Do not handie the machine with wet
\ hands, since this may cause eiectricai
maifunctions and corrosion of parts.
EOl-11072
Do not apply thinner, benzine, or other
volatile materials to the cabinet or other
plastic parts. Such liquids wili cause
discoloration or deterioration, if dirty, wipe
off with a piece of cioth soaked in a neutrai
detergent and wrung out thoroughly.
Turn the Control Lock to OFF position
when ali operations are compieted after
business hours.
Never try to repair the ECR. If a problem
occurs, please call your authorized TEC
dealer, reseller or local TEC representative.
5. Outline of Preparation Procedure Before Operating
the ECR
This chapter shows the outline of set-up procedure of the ECR before actually
starting the ECR operation. ^
Remove the cash register from the carton,
referring to Chapter “2. Unpacking” on page 2.
And take out all the parts and accessories.
Remove the tapes and seals for holding parts or
protecting the register surfaces.
EOl-11072
Plug the power cord of the register into a wall
outlet. Make sure that the outlet voltage matches
that of the power required for the register.
Insert the MA key into the Control Lock.
Turn the Control Lock to the REG position.
REG
OFF
SET
-8-
Install the paper roll (referring to Chapter ''10.
Installing the Paper Roll”).
If any optional keys are installed or relocated on
the keyboard, the optional key setting
programming must be performed first before any
other programming. Refer to Chapter “13.
Optional Key Setting.”
EOl-11072
Set the time and date correctly, referring to
Chapter “11. Setting the Time and Date”.
Set the tax tables, referring to the Chapter “12.
Tax Table Setting”.
Perform programming of the register, such as
Departments and PLUs, according to the
requirement of the market and your store (refer
to Chapter 14 and thereafter).
-9-
6. Appearance and Nomenclature
EO1-11072
Receipt Outlet / Journal Window
Control Lock
j=
—
Drawer
.....
^
Keyboard
•Customer Display
Operator Display
Operator Display
Used by the operator to confirm the entry
contents and the status of the register,
(page 12)
Customer Display
Provided for the customer to see the amount
entered for each item and sale total, (page
12)
Receipt Outlet / Journal Window
The operator can see which items have
already been entered through this window
with the Journal-format Option.
The receipt for the finalized sale is issued
with the Receipt-format Option.
Control Lock
It selects the type of register operations,
(page 11)
Keyboard
Used to enter sale items, (page 14)
Drawer
Cash and other media are kept here. It
automatically opens on finalizing a sale.
-10 -
7. Control Lock and Control Keys
Control Keys
There are three types of Control keys: the REG (registration) key, the MA
(manager) key, and the S (service) key.
REG Key: The REG key is used by the cashier or clerk who operates
ordinary transaction entries. This key can access the
positions of OFF and REG of the Control Lock.
MA Key: The MA Key is used by the store manager or owner who will
daily supervise the collection of money and printout of
transactions recorded by the register. This key is also used
when programming the register. This key can access the
positions of SET, OFF, REG, X, and Z.
EOl-11072
S Key:
)
Control Lock
The Control Lock has five effective positions for different modes of
operation, which are accessed by the appropriate Control Keys.
*«N.
OFF —V- 2 register.
SET fBUNtDl Transaction entries are carried out in this
■ 2
rBl'lNDl
U____J
not actually
printed.
The S key is used by the owner. This key can access any
position including BLIND of the Control Lock. However, to
prevent programmed data and sales data from being
changed by mistake, use the REG or MA keys for
transaction entries or report taking purposes.
(position)
SET
OFF
The register allows programming operations.
Nothing appears on the display in this position.
However, the power is being supplied to the
(function)
REG
mode. Displays the current time while no
entries are under way.
X
The sale totals in memory can be read (X
reports) and the programmed data can be
verified in this position.
Z
BLIND
All the resettable totals and their respective
counters in memory will be read and reset in
this position (Z reports)
The register allows special programming
operations and memory clear operations.
-11 -
8. Display
The Operator’s Display (front display) is located at the top of the register just
above the keyboard. The Customer’s Display may be used only as a rear
display if left in the retracted position or it can be positioned for viewing at
other angles by pulling it upward and turning it to the desired position. The
display has two types of display portions - numeric display and message
descriptors (triangular lamps).
Operator’s Display
EOl-11072
r
AMOUNT
II r r n o O ri
- 12 -
inn III III
► TL
► ST
► CG
Numeric Display
AMOUNT (8 digits for total display, 7 digits for entries):
Displays the numeric data, such as amount, quantity, etc.
When the obtained total or subtotal amount is 8-digit, the
RPT digit is also used for the amount display. When no
entries are under way and the Control Lock is in the REG
position, the current time is displayed.
DP (2 digits): Displays the code which represents each Department key.
It stays lit when repeating the same department entry.
EOl-11072
RPT (1 digit):
Displays the repeat count of the same item. The count is
indicated from the second entry on, and only the last digit
will be displayed even if the count exceeds nine.
PLU (3 digits of the DP and RPT are used for this purpose):
Displays the PLU code when any PLU is entered. It goes
out when repeating the same PLU entry, then only the
RPT digit will be displayed for the repeat entry count.
)
Message Descriptors (Triangular Lamps)
SIGN
ON
ALM
R
OFF
Illuminates when a cashier has signed ON if the cashier signing
method is selected (optional function).
illuminates with the alarm buzzer to indicate that the last
operation or numeric entry was an error. To clear the error
condition, depress the [C] key.
Illuminates when the Receipt-OFF mode is declared by the
[LOG/RECEIPT] key. In this condition, no receipts will be
issued for a sale to be entered. To extinguish this lamp (i.e., to
change into Receipt-ON mode for issuing receipts), simply
depress the [LOG/RECEIPT] key again.
TL
ST
CG
Illuminates with the total amount displayed when a sale
finalized without any amount tendered.
Illuminates with the subtotal amount displayed when the [ST] or
IS
[TXBL TL] key is depressed.
When an amount tendering operation has been performed, this
lamp illuminates with the amount of change due displayed.
-13-
9. Keyboard
The following is the standard keyboard layout, which was initially set at the
factory. This register is designed to be capable of programming most of the
keys at desired locations or adding some optional keys in place of the current
keys. If you are in need of changing the locations or adding keys, see Chapter
“13. Optional Key Setting”.
Standard Keyboard Layout
EOl-11072
FEED
RTN
MDSE
TX/M
PLU
AMT
ITEM
CORR
NSVOID
C
ALL
VOID
@/FOR
789
4
1
5
23
000
6
1
2
3
4
5
LC
OPEN
10
6
7
8
9
% +
R/A
DOLL
DISC
Chg
ST
ATn'L
%-
PO
EX
CHK
TND
TXBL
TL
#/ClD
•
- 14 -
10. Installing the Paper Roil
The printer may be used for journal-format print (standard status) or receiptformat print (optional status). (Refer to Chapter 17. System Option Setting,
Address 2 - Bit 7.)
Turn the Control Lock to the REG
position using a Control Key.
EOI-11072
Remove the Printer Cover.
)
rM'i
Cut the paper end to make it sharp.
0
Place the paper roll into the paper
pocket.
-15-
EOl-11072
Insert the paper ends into the paper
inlet located on the rear side of the
printer.
Press the [FEED] key on the
keyboard until the paper end comes
out of the outlet.
If used for journal, insert the paper
end Into the slit on the Take-up Reel
and wind it around the reel two or
three times, set the reel to the holder,
and press the [FEED] key for a while
to tense the paper.
If used for receipts, do not wind the
paper end around the Journal Take-
up Reel.
If used for journal, simply attach the
Paper Cover. The Receipt Outlet is
used as a Journal Window.
If used for receipts, attach the Paper
Cover with the paper end coming out
of the Receipt Outlet located on the
Paper Cover.
* When the 2-ply paper is used, load the
upper sheet as a receipt, and bottom sheet
as a journal.
-16 -
11. Setting the Time and Date
Setting the Time
The register has a dock function. Once the time is set, the time is kept even
when the power is turned off. The 24-hour system (the military time) is used
for time setting, display, and printing. Time setting is allowed any time outside
a sale.
The current time is displayed in the “AMOUNT” area when the Control Lock is
turned to REG from any other position. When the Control Lock position is
changed or any entry operation starts, the displayed time disappears.
EOl-11072
Time Display Format:
(Example: 1:45 p.m.)
/ “/
I ~l
I I r

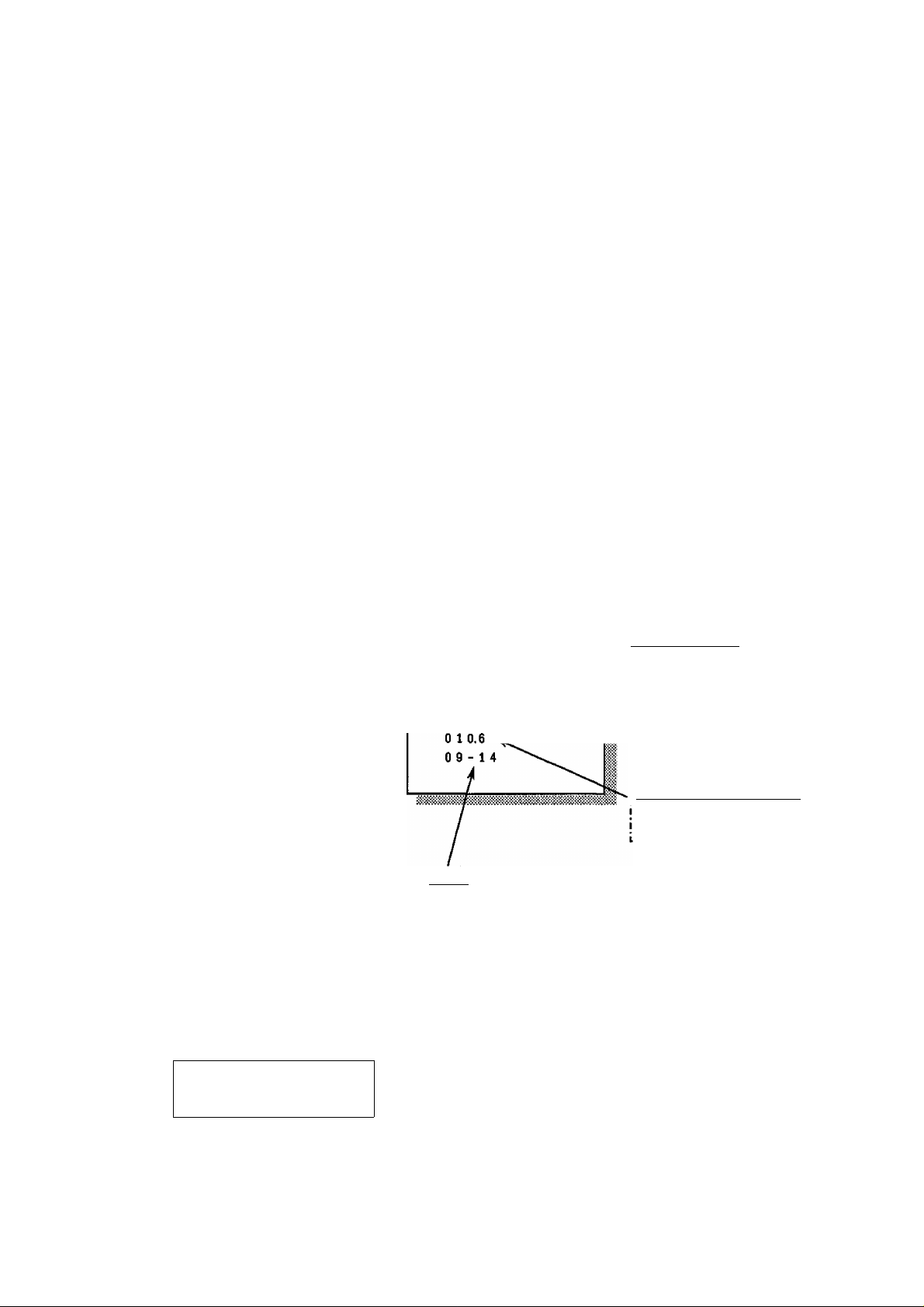

Printing the Time and Date
The current time is printed on every receipt or on journal (for every
transaction, read or reset report, or programming sequence), as the bottom
line (refer to the Receipt Print Format on the preceding page). The time can
be programmed to non-print, if necessary, by a System Option selection (refer
to Chapter *'17. System Option Setting**, Address 1 ~ Bit 1).
The date is printed on every receipt, as the top line below the Store Name
)
Stamp print (refer to the Receipt Print Format on the preceding page).
However, when the Journal-format Option is selected, the date is printed as
the last line only when a Read or Reset Report has been taken.
- 19-
12. Tax Table Setting
For details about the actual tax table, contact to the location where the
register was purchased.
Setting the U.S. Tax Tables (also applicable to PST in Canada)
There are three ways to set state and local tax tables. Select one that suits
the tax table required to be set.
Condition for Setting: After Daily Financial Reset
NOTE on “Condition*':
Unless the register satisfies this condition, the programming operations will not be
allowed.
“After ... Reset” means that the designated reset report must be taken before
entering the programming (setting) operation. An error will result if the operation is
attempted without taking the report.
However, it does not necessarily mean “immediately after ...” When the designated
reset report has already been taken and then some operations are performed in the
“X”, “Z”, or “SET” mode, the condition “After ... Reset” is still satiated and the
programming operation is still allowed.
EO1-11072
On the contrary, when the designated reset report has been taken but then some
sales data relating to that report's output data are entered in the “REG” mode, the
programming operation will no longer be allowed and the same reset report must be
taken again.
Thus the condition “After ... Reset” indicates that all the sales data relating to the
report data must be zero (except non-resettable memory data). Because of this
“Condition” requirement, the report data will be protected from any inconsistencies
of sales data entered in the period from a resetting of the report to another resetting
of the same report next time. When no condition is specified to a programming
(setting) operation, it means that the operation is allowed any time outside a sale but
the cashier must be signed off.
Setting Procedure:
Use the MA Key to turn the
Control Lock to “SET”.
REG
OFF
SET
—^ Go to 1), 2), or 3) on the following pages.
Indications of types of keys on the following pages:
□
I
___ __
□
......
Individual Numeric Key
I ....... Data to be entered through Numeric Keys
.......
• Function Key
-20-
EOl-11072
1) Tax 1: Full Breaks (Non-cvciic Breaks + Cyclic Breaks)
)
[max, amount non-taxable[ —► I txi/m
[max, amount for 1C tax levied|
[max, amount for gg tax levied]
Repeat up to the “A** Break.
[max, amount for Nc tax levied] -
(to indicate the **A*' Break entry)
[max, amount for N -M c tax levied] [max, amount for N + 2c tax levied] -
Repeat up to the "S” Break.
TXI/M
I
|“B” Break]
(to complete this tax table setting)
NOTB: Bach amount (break) entry may be a maximum of 4-digit value (99990).
First, set all the non-cyclic breaks up to the “A” Break entry and the [ST] key
depression shown in the above case of “1) Tax 1 Full Breaks”.
[Tax Rate applied when exceeding the “A” Break amount]
(Max. 6 digits up to 99.9999%. Use the [. ] key for a decimal value. Examples: To
set 5%, enter 5. To set 5.26%, enter 5->[ . ]-»2->6. The fraction of the amount
resulting from this % rate calculation will be rounded off.)
3) Tax 1: % Rate Only
TX1/MI (to indicate that no breaks are entered)
[Tax Rate applied to any amount] —►
(The description for the Tax Rate in the above case 2) is also applied to this case.)
i
(to complete this tax table setting)
-21 -
NOTES 1, In a single-tax area, the [TX1/M] key may be labeled as [TX/M] key.
2. For Tax 2 table setting in a multi-tax area, follow the same procedure in 1), 2), or
3) above, using the [TX2/M] key instead of [TX1/M].
To install the [TX2/M] key on the keyboard, refer to Chapter “13. Optional Key
Setting“.
3. If two tax tables are to be set, the Tax 1 table must be set first. The Tax 1 table
setting will automatically reset the old Tax 1 and Tax 2 tables.
4. A maximum of 64 breaks may be entered for Tax 1 and Tax 2 tables altogether.
Setting Examples:
ex. 1) Tax 1; Full Breaks
EOl-11072
Thank you
Call again
11. - 1E-9 3
0.0*
00*aio
0 1*a2 2
02
★ a39
03*as 8
04
*a?3
0 5★ a9 0
0 6
0 7* 12 4
0 8* 14 1
1 0*174
1 1*19 1
1 2
* 10 8
*108 ST
09
* 158
*Z08
* 2.0 8 T 1
0 0 t6
0 8- 5 4
TX 1
-22-
ex. 2) Tax 1; “A” Break and % Rate Combination
EOl-11072
Tax Table
Amount Range Tax LeviecI
Key Operation
Control Lock: SET
Thank you
Call again
$0.00 to $0.09 OC
$0.10 to $0.29 10
$0.30 to $0.59 20
$0.60 to $0.84 30
$0.85 to $1.12 40
... “A” Break
5% is applied to any
amount exceeding the
0
00
00
00
□00
ST
0 *
“A” Break.
,)
TXl/M
TX1/M
TXl/M
TX1/M
TXl/M
11.-12.-93
0.0*
TX 1
00 ★ aoe
01 *tt29
0 2 * 05 9
03 *084
04 ★ 112
★ 112 ST
5. %
0 0 1.7
0 8-54
ex. 3) Tax 1; % Rate Only
Tax Table
10% is applied to any
amount.
Key Operation
Control Lock; SET
0
□0
Thank you
Call again
1 1.- 1 2.- 9 3
0.0*
TX 1
0 0 *0.0 0
*0.0 0 ST
10. %
0 0 1.8
0 8-54
-23-
Setting the GST Rate (applicable to Canada only)
Please note the following before operating the GST rate setting. The following
preparations are required:
1} Select the “GST Active” status in Chapter “17. System Option Setting”. Address 14 -
Bit 1 (some other options can also be selected relating to GST in the same Address).
2) Install the [GST/M] (GST Modifier) key on the keyboard (in place of unnecessary key)
referring to Chapter “13. Optional Key Setting”.
Condition for Setting: After Daily Financial Reset
(refer to “NOTE on Condition” on page 20.)
Setting Procedure:
Use the MA Key to turn the
Control Lock to “SET”.
REG
This portion is required
only when any decimal
portion is contained in the
rate.
_
___________
A____________
EOl-11072
OFF
SET
Examples) '
~ 0
12%
To reset the rate
once set:
1 2
0
□□ □ □□
------------------V-------------------
GST Rate 0 to 99.99(%)
GST Rate 7%
is set.
Thank you
Call again
11.- 19 3
0.0
------
^ * 7. T
0 0 1.5
0 8-54
- 24 -
Setting the Non-taxable Limit Amount
(applicable to only certain areas in Canada)
This nori’taxable amount limit must be set only in certain areas in Canada.
Non-taxable Limit Amount
(max. 4 digits: 1 to 99990,
or enter 00 to reset the limit)
0 1 0
-►
Thank you
Cail again
1 1.- 1 2, - 9 3
1.2 *
^ .i. 9 n n n
0 0 2.4
0 9-00
AT/TL
NOTES 1. When the sum of the sale portion subject to Tax (PST) 1 and the sale portion
subject to Tax (PST) 2 exceeds the Non-taxable Limit Amount programmed here, all
the amount subject to either of the two taxes are all taxed. When the sum is less
than the programmed limit. Tax 1 is tax-exempted and only Tax 2 is calculated on
the sale portion subject to Tax 2.
2. When the sum of the sale portion subject to Tax (PST) 1 and the sale portion
subject to Tax (PST) 2 is negative, the portion subject to Tax 1 will not be taxed.
3. When the sale portion subject to Tax 1 is tax-exempted, the taxable amount is not
stored in Tax 1 memory.
4. An error results when the [GST/MJ key is depressed in sale entries on the ECR with
Non-taxable Limit Amount programmed.
-25-
Tax Calculation Test
Tax calculation can be tested by the following procedure. This operation will
not affect any sales data.
Operating Procedure:
Use the MA Key to turn the
Control Lock to “X”.
EOl-11072
REG
OFF
SET
|Amount|
Enter any amount
through Numeric Keys.
The entered amount is
displayed.
TX/M
or
TX1/M I or
TXBL
TL
The tax amount (total of all the
taxes due) is displayed in the
AMOUNT portion.
(The Non-taxable Limit Amount
setting is disregarded from this
display.)
-26-
13. Optional Key Setting
This chapter introduces optional keys (keys not installed on the current
Standard Keyboard) that can be programmed. Please note, however, that
adding an optional key means to sacrifice another key already installed. If you
plan to install any of the Optional Keys or change locations of any of the
current keys, this operation must be performed first before any other
programming or setting operation (refer to NOTE 9 at the end of this chapter).
List of Keys
The following is the list of the all the keys that can be programmed on the keyboard. Numeric
Keys 0 to 9 are fixed as to their locations, therefore, not Included in the list. The “Key Code”
assigned to each key in the list is used in the setting procedure next page. For detail functions
and operations of each key, refer to Chapter “15. Setting Preparation of Each Key and
Transaction Entries”. For a brief information of the Optional Keys, refer to NOTE 8at the end
of this chapter.
IZZI
□ -
(All those keys, not only the Optional Keys, can be eliminated or changed as to their locations
on the keyboard. However, please do not eliminate the keys of minimum requirements.)
- Keys that must be installed as minimum requirement
* Keys that are already installed on the Standard Keyboard
• Optional Keys
EOl-11072
Code
[' ■,
Key
PO (Paid Out)
NS (No-sale)
LC OPEN (Listing Capacity Open)
#/CID (Non-add Number Print/Cash-
Key Name
in-drawer)
1 91#^S (Non-add Number/No-sale)
PLU (Price-Look-Up)
@/FOR (At/For; Multiplication)
94RECEIPT ISSUE (Post-receipt)
fiiiimi mi
1.^......1
1 127
C (Clear)
TK/M or TX1/M (Tax 1 Modifier)
TX2/M (Tax 2 Modifier)
98
TXBL TL (Taxable Total)
TAX (Manual Tax)
100
EX (Tax Exempt)
AMT (Amount)
GST/M (GST Modifier)
115
LOG/RECEIPT (Logffieceipt) i
*2
*3
Key
Code
)
*1
0Code to deactivate the key.
Department Keys 1 to 10 |
11 to 15Department Keys 11 to 15
US—^
FEED (PaperFeed)
00 (Double-zero)
• (Decimal Point)
DOLL DISC (Dollar Discount)
% + (Percent Charge)
% “ (Percent Discount)
RTN MDSE (Returned Merchandise)
ITEM CORR (Item Correct)
VOID (Void)
ALL VOID (All Void)
AT/TL (Cash Tender/Total)
CHK TND (Check Tender)
Chg (Charge Total)
ST (Subtotal) 1
R/A (Recetved-on-Account)
Key Name
*1. At ¡east one Department Key is required to be instaifed.
*2. The /#/WSJ key has both [#/CID] and [NS] hinctions. Therefore, when /#/WSJ is
instalied, neither [#/CID] nor [NS] are necessary. (At least, either [lif/CID] or [iSf/NS]
must be installed.)
-27-
*3. W/je/7 the Signing Method is selected for cashier identification (refer to Chapter 18),
this key must be installed. If this optional function is not selected, this key merely
functions as receipt issue/non-issue key.
Key Installation Setting
Condition for Setting: After all Daily and Periodical Resets
(refer to “NÓTE on Condition” on page 20.)
Setting Procedure:
Use the S Key to turn the
Control Lock to the “BLIND”
position.
X
REG
OFF
SET
(The BUND positíon is the unmarked
step next to "Z".)
Only to read the Key Code currently set on the key.
Z
(BLIND)
7 6
To declare Key Installation
Setting.
Amt
EO1-11072
Repeat for all the
keys to be newly
installed, for location
changes, or for
reading Key Codes
already set.
Key Cocte Displays the
3diQte; see ^nterndKey
№e List of Keys on code in the
the preceding mOUm
portion, as it is
entered.
Blank Keyboard Sketch (for your planning aid)
Rll in:
Key Name
Key Code
(Refer to the "List
of Keys" on the
preceding page)
For the Standard
Keyboard Layout,
refer to Chapter “9.
Keyboard”.
) ( )( )( )
(
()
()
()
()
7
45
89
□
Depress the key
to be set with the
Key Code.
Displays the Key
Code set or read,
in the AMOUNT
portion.
(
( )(
6
(
(
Depress the [AT/TLl key
to complete the Key
Installation Setting
operation.
) ()
) ()
) ()
()
)
) (
(
() (
() (
) (
(
AT7TL
)
)
)
)
()
()
123
0
( )( )
-28-
(
(
) ()
)
()
()
AT/TL
(
)
Loading...
+ 90 hidden pages
You need points to download manuals.
1 point = 1 manual.
You can buy points or you can get point for every manual you upload.
