Toshiba HDWA120EZSTA User Manual

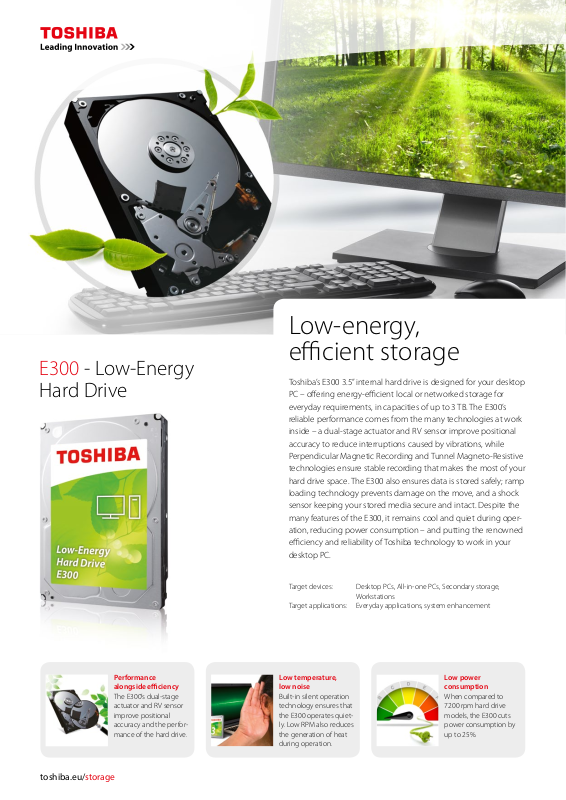

E300 - Low-Energy

Hard Drive

Low-energy, ecient storage

Toshiba’s E300 3.5” internal hard drive is designed for your desktop PC – oering energy-ecient local or networked storage for everyday requirements, in capacities of up to 3 TB. The E300’s reliable performance comes from the many technologies at work inside – a dual-stage actuator and RV sensor improve positional accuracy to reduce interruptions caused by vibrations, while Perpendicular Magnetic Recording and Tunnel Magneto-Resistive technologies ensure stable recording that makes the most of your hard drive space. The E300 also ensures data is stored safely; ramp loading technology prevents damage on the move, and a shock sensor keeping your stored media secure and intact. Despite the many features of the E300, it remains cool and quiet during operation, reducing power consumption – and putting the renowned eciency and reliability of Toshiba technology to work in your desktop PC.

Target devices: Desktop PCs, All-in-one PCs, Secondary storage,

Workstations

Target applications: Everyday applications, system enhancement

toshiba.eu/storage

Performance alongside eciency

The E300’s dual-stage actuator and RV sensor improve positional accuracy and the performance of the hard drive.

Low temperature, low noise

Built-in silent operation technology ensures that the E300 operates quietly. Low RPM also reduces the generation of heat during operation.

Low power consumption

When compared to 7200 rpm hard drive models, the E300 cuts power consumption by up to 25%.

E300 - Low-Energy

Hard Drive

Specications

Part number: E300 - Low-Energy Hard Drive, 3 TB:

Form factor: 3.5-inch Interface: SATA 6.0 Gbit/s Available capacities: 2 TB, 3 TB Advanced Format (AF): yes RoHS compatible: yes Halogen Free: yes

Performance

Rotational speed: 5940 rpm (3 TB), 5700 (2 TB) Buer size: 64 MB Average latency: 5.06 ms (3 TB), 5.27 ms (2 TB) Native Command Queing (NCQ): supported

Reliability

Unrecoverable error rate: 1 per 10E14 bits read

Power Management

Supply voltage: 5VDC (±5 %) / 12VDC (±10 %) Consumption - Read/Write: 4.7 W typ. (2 TB), 5.4 W typ. (3 TB) Consumption - Low Power Idle: 3.3 W typ. (2 TB), 4.2 W typ. (3 TB)

Environmental

Temperature (operating): 0 to 60 °C Temperature (non-operating): -40 to 70 °C Vibration (operating): 6.57 m/s Vibration (non-operating): 10.2 m/s Shock (operating): 686 m/s Shock (non-operating): 2,920 m/s Acoustics (idle mode): 25 dB typ. (3 TB), 23 dB typ. (2 TB) Acoustics (seek mode): 26 dB typ. (3 TB), 25 dB typ. (2 TB)

Physical

Dimensions: 147 (L) x 101.6 (W) x 26.1 (H) mm Weight: 680 g max.

HDWA130EZSTA (Retail), HDWA130UZSVA (Bulk) E300 - Low-Energy Hard Drive, 2 TB: HDWA120EZSTA (Retail), HDWA120UZSVA (Bulk)

{0.67 G} (5 to 500 Hz)

{1.04 G} (2 to 200 Hz)

{70 G} (2 ms half sine)

{350 G} (2 ms half sine) (2 TB & 3 TB)

Top features:

• Eco-friendly performance

• Silent operation

• Ecient power management

• Data protection technology

Retail packaging

Box Content

• 3.5-inch internal HDD - E300 Low-Energy Hard Drive

• Quick Start Guide

• Warranty Leaet

toshiba.eu/storage

Copyright © 2015 Toshiba Europe GmbH. All Rights Reserved. Product specications, congurations, prices and component / options availability are all subject to change without notice. Product design, specications and colours are subject to change without notice and may vary from those shown. Errors and omissions excepted.
