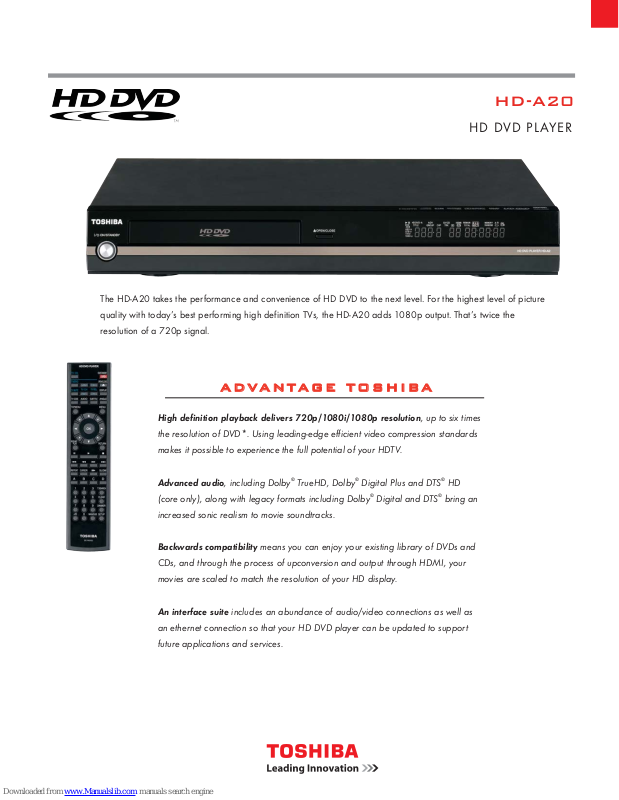

Toshiba HD-A20 Specifications
HD-A20
ADVANTAGE TOSHIBA
High definition playback delivers 720p/1080i/1080p resolution, up to six times
the resolution of DVD*. Using leading-edge efficient video compression standards
makes it possible to experience the full potential of your HDTV.
Advanced audio, including Dolby
®
TrueHD, Dolby®Digital Plus and DTS®HD
(core only), along with legacy formats including Dolby
®
Digital and DTS®bring an
increased sonic realism to movie soundtracks.
Backwards compatibility means you can enjoy your existing library of DVDs and
CDs, and through the process of upconversion and output through HDMI, your
movies are scaled to match the resolution of your HD display.
An interface suite includes an abundance of audio/video connections as well as
an ethernet connection so that your HD DVD player can be updated to support
future applications and services.
HD DVD PLAYER
The HD-A20 takes the performance and convenience of HD DVD to the next level. For the highest level of picture
quality with today’s best performing high definition TVs, the HD-A20 adds 1080p output. That’s twice the
resolution of a 720p signal.
Specifications
HD Output 720p/1080i/1080p
SD Upconversion 480p/720p/1080i/1080p
HD DVD Video ✓
DVD Video ✓
Dolby®Digital 5.1ch
Dolby
®
Digital Plus 5.1ch
Dolby
®
TrueHD 5.1ch
DTS
®
5.1ch
DTS
®
HD (core only) 5.1ch
HD DVD Video
✓
HD DVD Video ✓
DVD Video ✓
DVD VR ✓
DVD-R (Video) ✓
DVD-R DL (Video) ✓
DVD-RW (Video/VR CPRM not supported) ✓
CD, CD-R, CD-RW (CD-DA) ✓
OSD Language English/French/German/Japanese
Remote Control Unit
TV Control (preset) ✓
Glow Remote ✓
AV Cable (Video/L/R) ✓
Advanced Navigation ✓
Persistent Storage ✓
Digital / Analog out simultaneously ✓
Video Output
Composite 1
S-Video 1
Component 1
Audio Output
Analog 2ch 1
Digital Optical 1
HDMI
TM
Output 1
Ethernet (10/100BASE) 1
Extension Terminal 2
Unit Dimensions (WHD) 16.9" x 2.58" x 13.58"
Unit Weight 8.76 lbs
Carton Dimensions (WHD) 21.38" x 6.81" x 17.95"
Carton Weight 12.76 lbs
UPC 022265000243
IMPORTANT NOTES
HD DVD with high-definition content required for HD viewing. Viewing high-definition content
and up-converting DVD content may require an HDCP capable DVI or HDMI input on your
display device. Up-conversion of DVD content will result in near HD picture quality. Firmware
update may be required for some interactive features depending on content, which may also
require an always-on broadband internet connection. Some features may require additional
bandwidth. Some recordable media may not be supported. Dolby Digital Plus, Dolby
TrueHD and DTS support for up to 5.1 channels (DTS HD support for DTS core only). MP3/
WMA audio files not supported. Some current DVDs and CDs may not be compatible. Some
Combo Discs and Twin Format Discs may not be compatible. HDMI audio support for PCM
only. Because HD DVD is a new format that makes use of new technologies, certain disc, digital connection and other compatibility and/or performance issues are possible. This may, in
rare cases, include disc freezing while accessing certain disc features or functions, or certain
parts of the disc not playing back or operating as fully intended. If you experience such
issues, please refer to the FAQ sections of www.toshibahddvd.com or www.tacp.toshiba.com
for information on possible work-around solutions or the availability of firmware updates that
may resolve your problem, or contact Toshiba Customer Solutions. Some features subject to
delayed availability. 1080p capable display required for 1080p output resolution. While
Toshiba has made every effort at the time of publication to ensure the accuracy of the information provided herein, product specifications, configurations, system/component/options
availability are all subject to change without notice. *Resolution comparison based on 480i
vs. 1080i pixel counts.
www.toshibahddvd.com
http://www.tacp.toshiba.com Customer Solutions: 800.631.3811
© 2007 Toshiba America Consumer Products, LLC
82 Totowa Road, Wayne, NJ 07470. All Rights Reserved (4/07.10)
Dolby and the double-D symbol are registered trademarks of Dolby Laboratories. “DTS" is a registered
trademark of DTS, Inc. HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks
of registered trademarks of HDMI Licensing LLC. , HD DVD and DVD are trademarks of DVD
Format/Logo Licensing Corporation.
Product design and specifications subject to change or modification without notice.
Audio
Product & Packaging
Terminals
Video
Convenience
HD-A20
Playback Media
