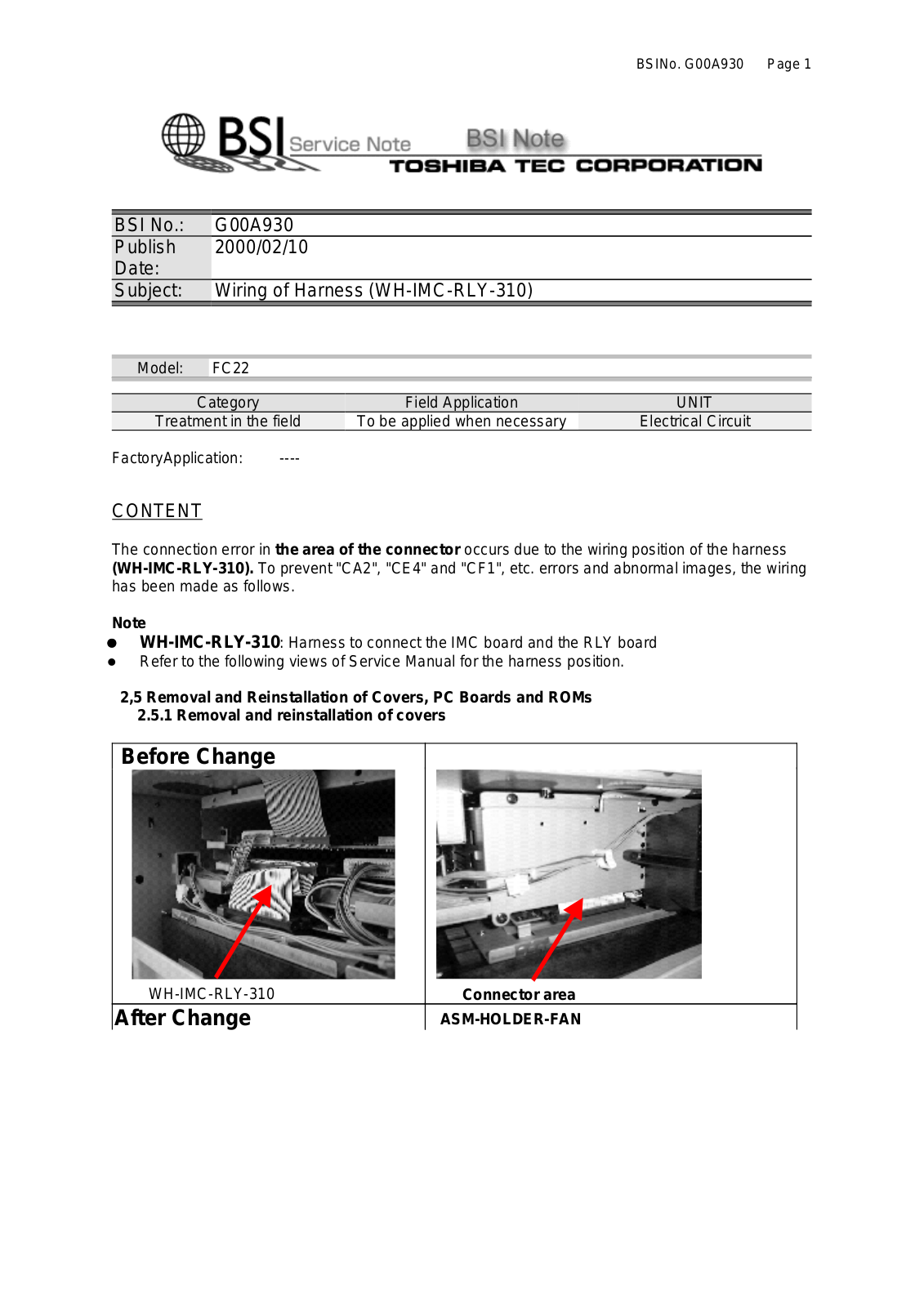

Toshiba g00a930 Service Note

BSINo. G00A930 Page 1

BSI No.: G00A930
Publish

2000/02/10
Date:
Subject: Wiring of Harness (WH-IMC-RLY-310)

Model: FC22

Category Field Application UNIT

Treatment in the field To be applied when necessary Electrical Circuit

FactoryApplication: ----

CONTENT

The connection error in

(WH-IMC-RLY-310).

has been made as follows.

Note

WH-IMC-RLY-310

zzzz

z

Refer to the following views of Service Manual for the harness position.

2,5 Removal and Reinstallation of Covers, PC Boards and ROMs

2.5.1 Removal and reinstallation of covers

the area of the connector

To prevent "CA2", "CE4" and "CF1", etc. errors and abnormal images, the wiring

: Harness to connect the IMC board and the RLY board

occurs due to the wiring position of the harness

Before Change

WH-IMC-RLY-310

After Change

Connector area

ASM-HOLDER-FAN

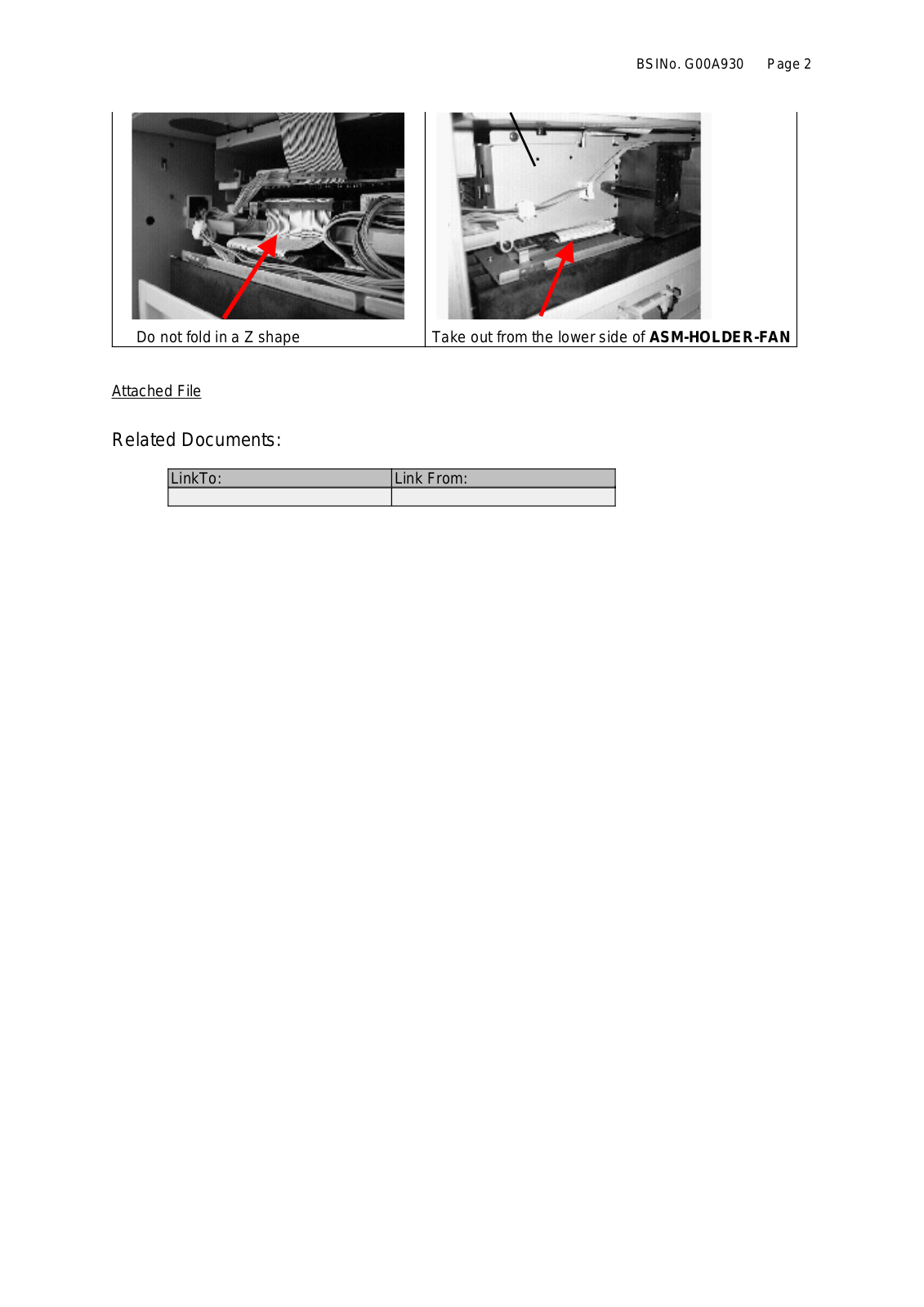

BSINo. G00A930 Page 2

Do not fold in a Z shape

Attached File

Related Documents:

LinkTo: Link From:

Take out from the lower side of

ASM-HOLDER-FAN
