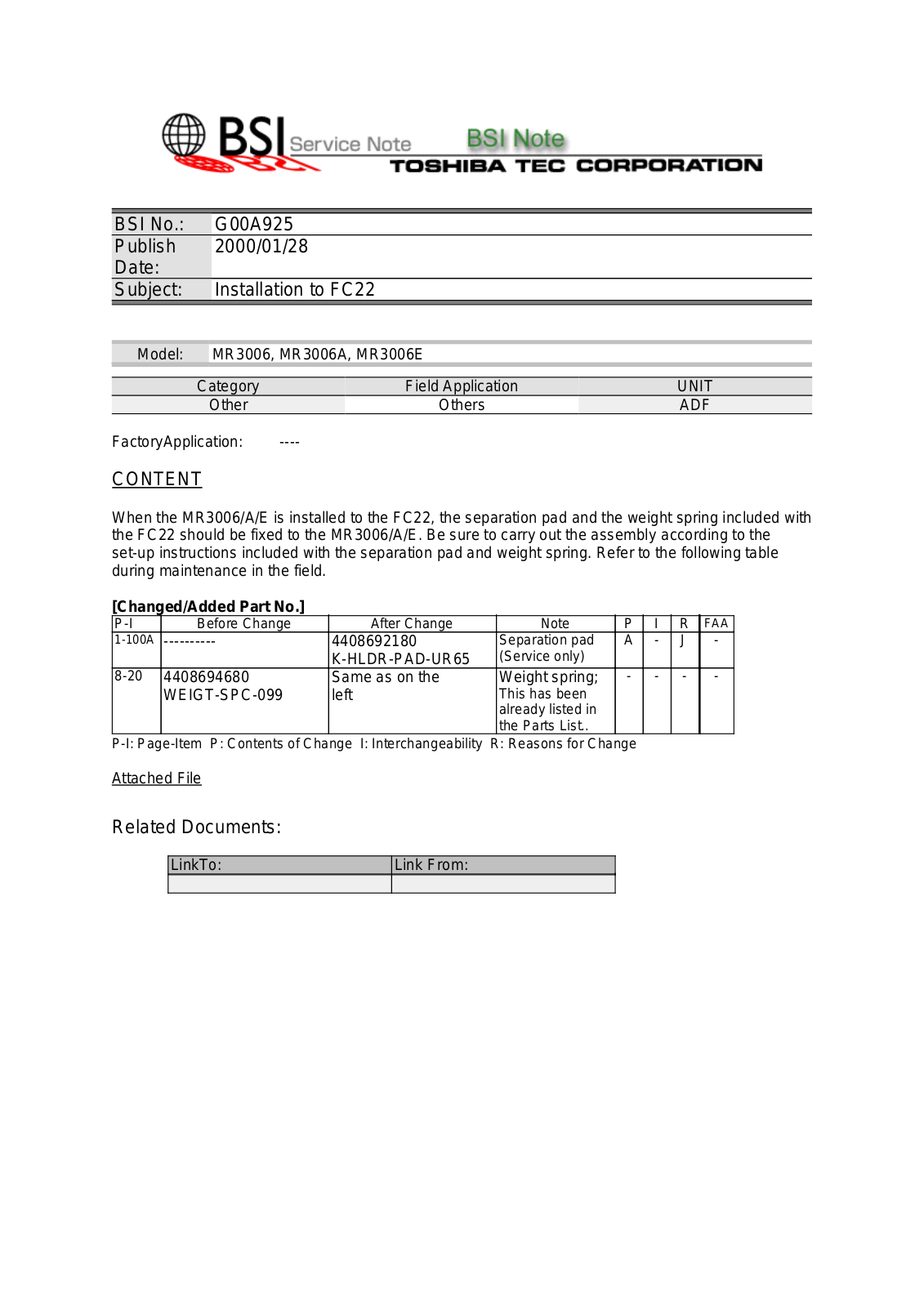

Toshiba g00a925 Service Note

BSI No.: G00A925
Publish

2000/01/28
Date:
Subject: Installation to FC22

Model: MR3006, MR3006A, MR3006E

Category Field Application UNIT

Other Others ADF

FactoryApplication: ----

CONTENT

When the MR3006/A/E is installed to the FC22, the separation pad and the weight spring included with
the FC22 should be fixed to the MR3006/A/E. Be sure to carry out the assembly according to the
set-up instructions included with the separation pad and weight spring. Refer to the following table
during maintenance in the field.

[Changed/Added Part No.]

P-I Before Change After Change Note P I R

1-100A

8-20

P-I: Page-Item P: Contents of Change I: Interchangeability R: Reasons for Change

---------- 4408692180
K-HLDR-PAD-UR65

4408694680
WEIGT-SPC-099

Same as on the
left

Separation pad
(Service only)

Weight spring;

This has been
already listed in
the Parts List..

A - J -

- - - -

FAA

Attached File

Related Documents:

LinkTo: Link From:
