Toshiba f99j809 Service Note

BSI(Service Note) TOSHIBA

TOSHIBA TEC CORPORATION

2-4-1, Shibakoen, Minato-ku, TOKYO, 105-8524 JAPAN

BSI No

F99J809

SUBJECT

Kit "KN-FC-22S01" for FC22

MODEL

CATEGORY

Other

----

CONTENT

The present MG-2014 is used as the sorter for the color copier FC22 (new model). When the MG-2014 is installed to the FC-22, the sorter kit "KN-FC22S01" is necessary. At the time of Unpacking/Setup, be sure to carry out the assembly according to the easy set-up instructions included with KN-FC22S01.

MG2014

FIELD APPLICATION

Others

FACTORY APPLICATION

UNIT

Sorter

Date

99/12/10

----

[Changed/Added Part No.]

MODEL P-I Before Change After Change Note P I R 50-1

50-2

50-3

50-4

50-8

50-9

50-10

50-11

50-14

50-15

50-17

50-18

50-19

50-21

50-22

---------- 4400598300 BRKT-PLATE

---------- 4400598310 BRACKET

---------- 4400598320 ASM-PLATE-RAIL

---------- 4402349500 ASM-RAIL-780

---------- 4400598500 PRA-310SRT-01

---------- 4400598330 PLATE-SORT-RAIL

---------- 4400595360 SPACER-RAIL-773

---------- 4400595350 BRKT-RAIL-773

---------- 4402966190 RAIL-4A11984020

---------- 4402349450 STOPPER-780

---------- 4400598350 PLATE-GUID

---------- 4407837130 PIN-GUIDE

---------- 4400596040 SPL-JOINT

---------- 4400598370 BRKT-MAGNET-F

---------- 4400598380 MAGNET

---- A - J -

FAA

BSI No. F99J809 Page 2

50-23

---------- 4400598400

---- A - J -

BRKT-MAGNET-R

50-501

---------- 4407843290

---- A - J -

SCREW

50-502

---------- 4402962550

---- A - J -

SCREW-M4*25

50-503

---------- 4400598410

---- A - J -

SCREW-M4*10

50-504

---------- 7043401015

---- A - J -

BID40*10MSNI3CI

50-505

---------- 4400790590

---- A - J -

SCREW-RS-M4*8

50-506

---------- 4842040724

---- A - J -

TPPAN4006MSZN3L

50-507

---------- 7043400813

---- A - J -

BID40*08MSCR1AI

P-I: Page-Item P: Contents of Change I: Interchangeability R: Reasons for Change

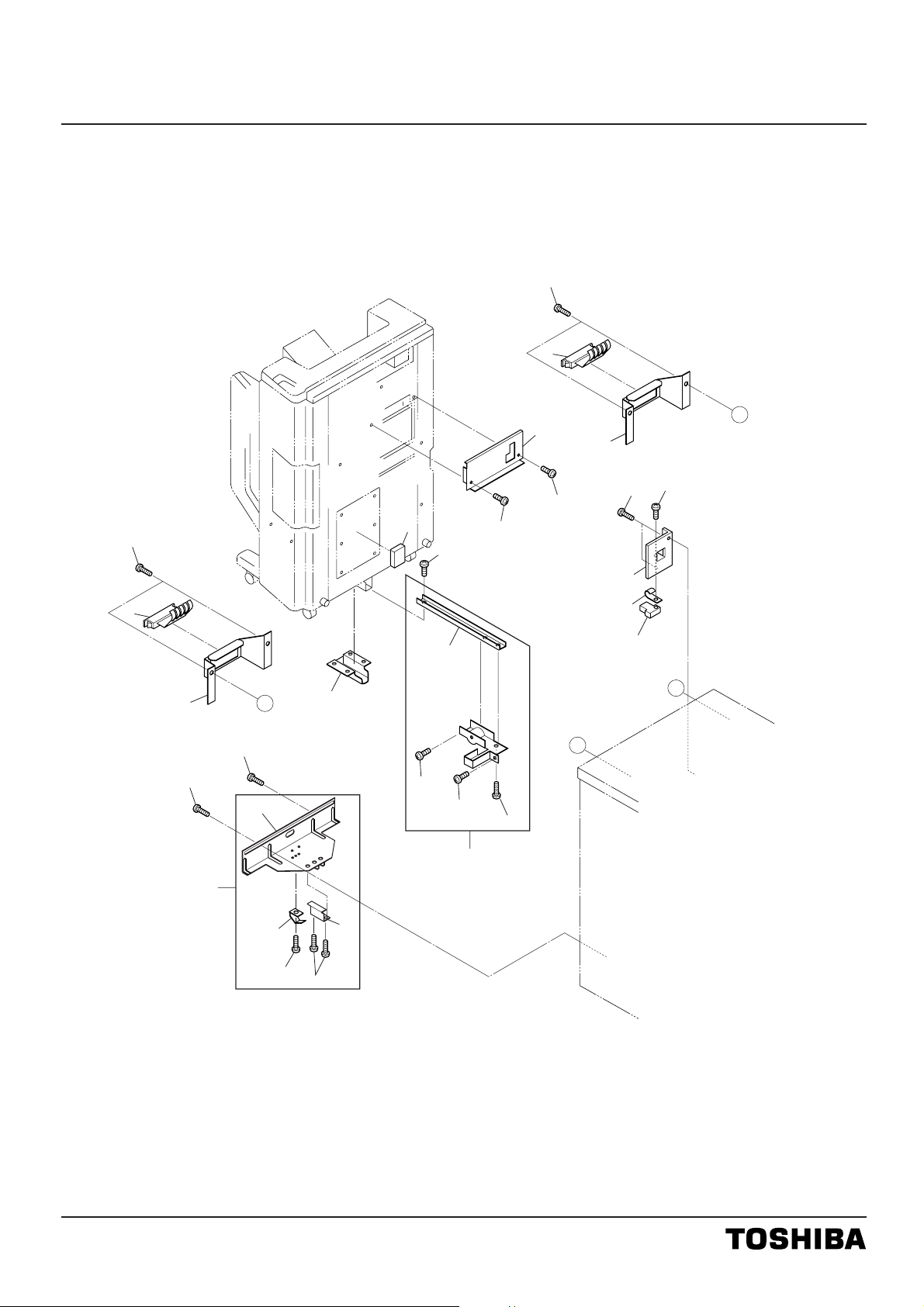

[Illustration of Added Page (PDF type file)]
