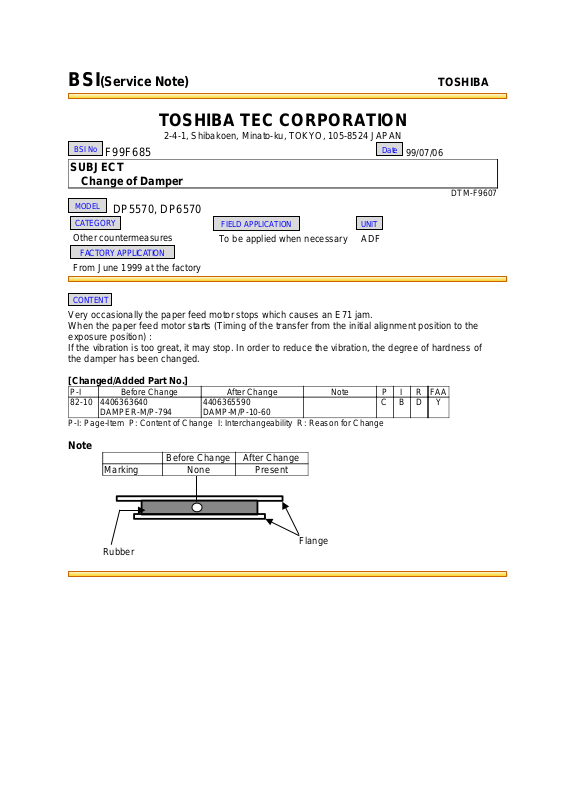

Toshiba f99f685 Service Note
BSI(Service Note) TOSHIBA
TOSHIBA TEC CORPORATION
2-4-1, Shibakoen, Minato-ku, TOKYO, 105-8524 JAPAN
BSI No
F99F685
SUBJECT
Change of Damper
MODEL
CATEGORY
Other countermeasures
From June 1999 at the factory
CONTENT
Very occasionally the paper feed motor stops which causes an E71 jam.
When the paper feed motor starts (Timing of the transfer from the initial alignment position to the
exposure position) :
If the vibration is too great, it may stop. In order to reduce the vibration, the degree of hardness of
the damper has been changed.
DP5570, DP6570
FIELD APPLICATION
To be applied when necessary
FACTORY APPLICATION
UNIT
ADF
Date
99/07/06
DTM-F9607
[Changed/Added Part No.]
P-I Before Change After Change Note P I R FAA
82-10 4406363640
DAMPER-M/P-794
P-I: Page-Item P: Content of Change I: Interchangeability R: Reason for Change
4406365590
DAMP-M/P-10-60
C B D Y
Note
Before Change After Change
Marking None Present
Flange
Rubber
