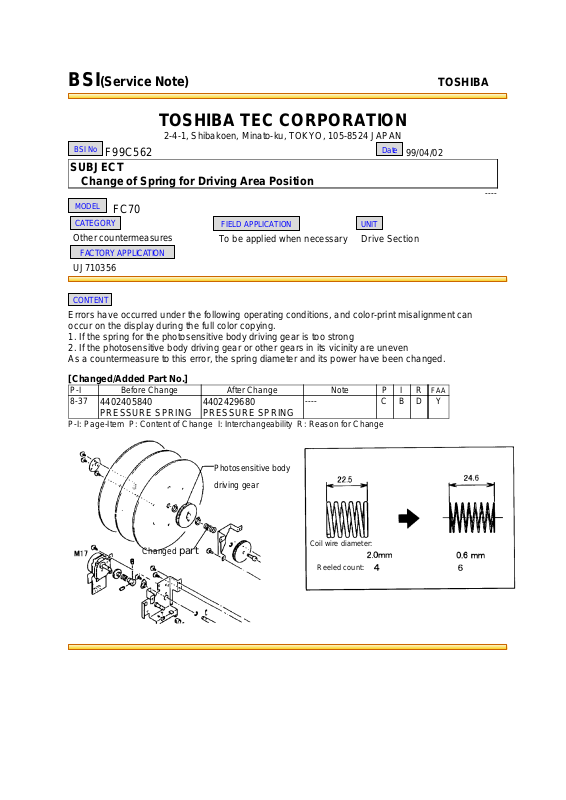

BSI(Service Note) TOSHIBA
TOSHIBA TEC CORPORATION
2-4-1, Shibakoen, Minato-ku, TOKYO, 105-8524 JAPAN
BSI No
F99C562
SUBJECT
Change of Spring for Driving Area Position
MODEL
CATEGORY
Other countermeasures
UJ710356
CONTENT
Errors have occurred under the following operating conditions, and color-print misalignment can
occur on the display during the full color copying.
1. If the spring for the photosensitive body driving gear is too strong
2. If the photosensitive body driving gear or other gears in its vicinity are uneven
As a countermeasure to this error, the spring diameter and its power have been changed.
FC70
FIELD APPLICATION
To be applied when necessary
FACTORY APPLICATION
Date
99/04/02
UNIT
Drive Section
----
[Changed/Added Part No.]
P-I Before Change After Change Note P I R
8-37
P-I: Page-Item P: Content of Change I: Interchangeability R: Reason for Change
4402405840
PRESSURE SPRING
Changed
part
4402429680
PRESSURE SPRING
Photosensitive body
driving gear
---- C B D Y
Coil wire diameter:
Reeled count:
FAA
