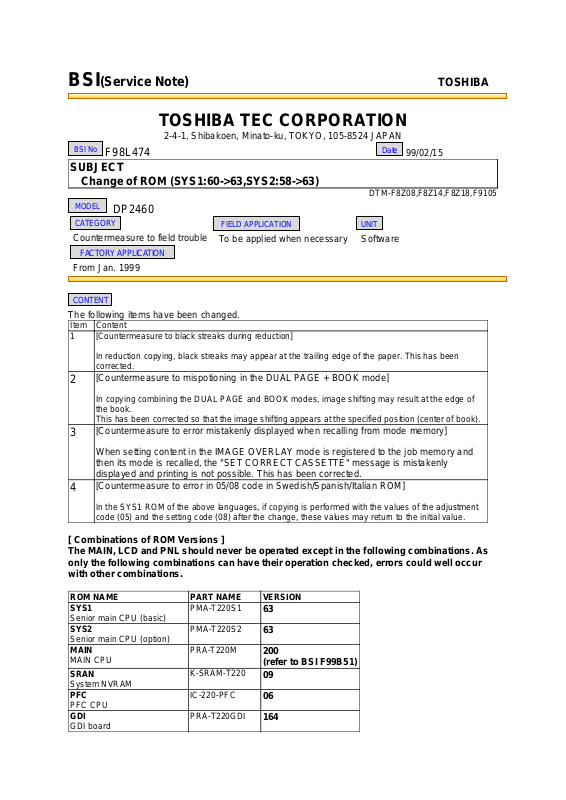

Toshiba f98l474 Service Note
BSI(Service Note) TOSHIBA
TOSHIBA TEC CORPORATION
2-4-1, Shibakoen, Minato-ku, TOKYO, 105-8524 JAPAN
BSI No
F98L474
SUBJECT
Change of ROM (SYS1:60->63,SYS2:58->63)
MODEL
CATEGORY
Countermeasure to field trouble
From Jan. 1999
CONTENT
The following items have been changed.
Item Content
1 [Countermeasure to black streaks during reduction]
2
DP2460
FIELD APPLICATION
To be applied when necessary
FACTORY APPLICATION
In reduction copying, black streaks may appear at the trailing edge of the paper. This has been
corrected.
[Countermeasure to mispotioning in the DUAL PAGE + BOOK mode]
Date
99/02/15
DTM-F8Z08,F8Z14,F8Z18,F9105
UNIT
Software
In copying combining the DUAL PAGE and BOOK modes, image shifting may result at the edge of
the book.
This has been corrected so that the image shifting appears at the specified position (center of book).
[Countermeasure to error mistakenly displayed when recalling from mode memory]
3
When setting content in the IMAGE OVERLAY mode is registered to the job memory and
then its mode is recalled, the "SET CORRECT CASSETTE" message is mistakenly
displayed and printing is not possible. This has been corrected.
[Countermeasure to error in 05/08 code in Swedish/Spanish/Italian ROM]
4
In the SYS1 ROM of the above languages, if copying is performed with the values of the adjustment
code (05) and the setting code (08) after the change, these values may return to the initial value.
[ Combinations of ROM Versions ]
The MAIN, LCD and PNL should never be operated except in the following combinations. As
only the following combinations can have their operation checked, errors could well occur
with other combinations.
ROM NAME PART NAME VERSION
SYS1
Senior main CPU (basic)
SYS2
Senior main CPU (option)
MAIN
MAIN CPU
SRAN
System NVRAM
PFC
PFC CPU
GDI
GDI board
PMA-T220S1
PMA-T220S2
PRA-T220M
K-SRAM-T220
IC-220-PFC
PRA-T220GDI
63
63
200
(refer to BSI F99B51)
09
06
164
BSI No. F98L474 Page 2
[Changed/Added Part No.]
MODEL P-I Before Change After Change Note P I R FAA
7-21A
(SYS1)
DP2460 7-21B 4402365940
7-21C 4402365960
7-21D 4402365970
7-21E 4402365950
7-21F 4402365980
7-21G 4402366030
7-21H 4402366040
7-21I 4402366050
7-21J 4402366070
7-21K 4402366080
7-21L 4402366090
7-22
(SYS2)
P-I: Page-Item P: Contents of Change I: Interchangeability R: Reasons for Change
4402365930
PMA-T220S1UC60
PMA-T220S1EU60
PMA-T220S1F60
PMA-T220S1D60
PMA-T220S1AD60
PMA-T220S1E60
PMA-T220S1I60
PMA-T220S1NL60
PMA-T220S1S60
PMA-T220S1N60
PMA-T220S1DK60
PMA-T220S1SF60
4402365780
PMA-T220S258
4402366680
PMA-T220S1UC63
4402366690
PMA-T220S1EU63
4402366760
PMA-T220S1F63
4402366770
PMA-T220S1D63
4402366700
PMA-T220S1AD63
4402366730
PMA-T220S1E63
4402366740
PMA-T220S1I63
4402366790
PMA-T220S1NL63
4402366720
PMA-T220S1S63
4402366800
PMA-T220S1N63
4402366780
PMA-T220S1DK63
4402366810
PMA-T220S1SF63
4402366710
PMA-T220S263
NAD C B J Y
UKD,SED C B J Y
FRD C B J Y
GSD C B J Y
SAD,ASD,AUD C B J Y
SPANISH C B J Y
ITALIAN C B J Y
DUTCH C B J Y
SWEDISH C B J Y
NORWEGIAN C B J Y
DANISH C B J Y
FINNISH C B J Y
C B J Y
Combination History of ROM Version
Factory Application
Sample 19 19 - - - 19 110 06 04 - F98C247
1997/11 - 27 - - - 27 130 07 05 - F98C247
1997/11M
1997/11E 28 32
1997/12
1998/3
1998/7
1999/1
SYS1 SYS2 MAIN SRAM PFC GDI
UC EU D F AD
28 32
38 38 38 38 38 38
58 58 58 58 58 58 190 09
60 60 60 60 60
63 63 63 63 63 63 200
- -
34 34
32 28 140 08 06
32 28 140 08 06 - F98A148
140 08 06 - F98C247
58 190 09 06 164 F98H353
09 06 164 F98L474
06 164 F98H353
- F98C247
BSI No
F99B516
