BSI(Service Note) TOSHIBA
TOSHIBA TEC CORPORATION
2-4-1, Shibakoen, Minato-ku, TOKYO, 105-8524 JAPAN
BSI No
F98A155
SUBJECT
Cautionary Point about Installing the Fuser Unit
Date
98/02/10
MODEL
CATEGORY
Treatment in the field
CONTENT
To improve the serviceability of the 4560/4570, the fuser unit has been constructed so that it can be
installed or removed by sliding the front side of the copier.
When installing the fuser unit into the copier, be careful of the following point.
Make sure that the fuser unit gear and the copier gear mesh with each another, for if the protruding
parts do not match properly, the gears will knock against each other and may become damaged.
Since correct engagement of the gears is very important, be sure to carry out the installation slowly
and carefully.
4560, 4570
FACTORY APPLICATION
FIELD APPLICATION
Others
UNIT
Fuser/Paper-Exit
A
Whole figure

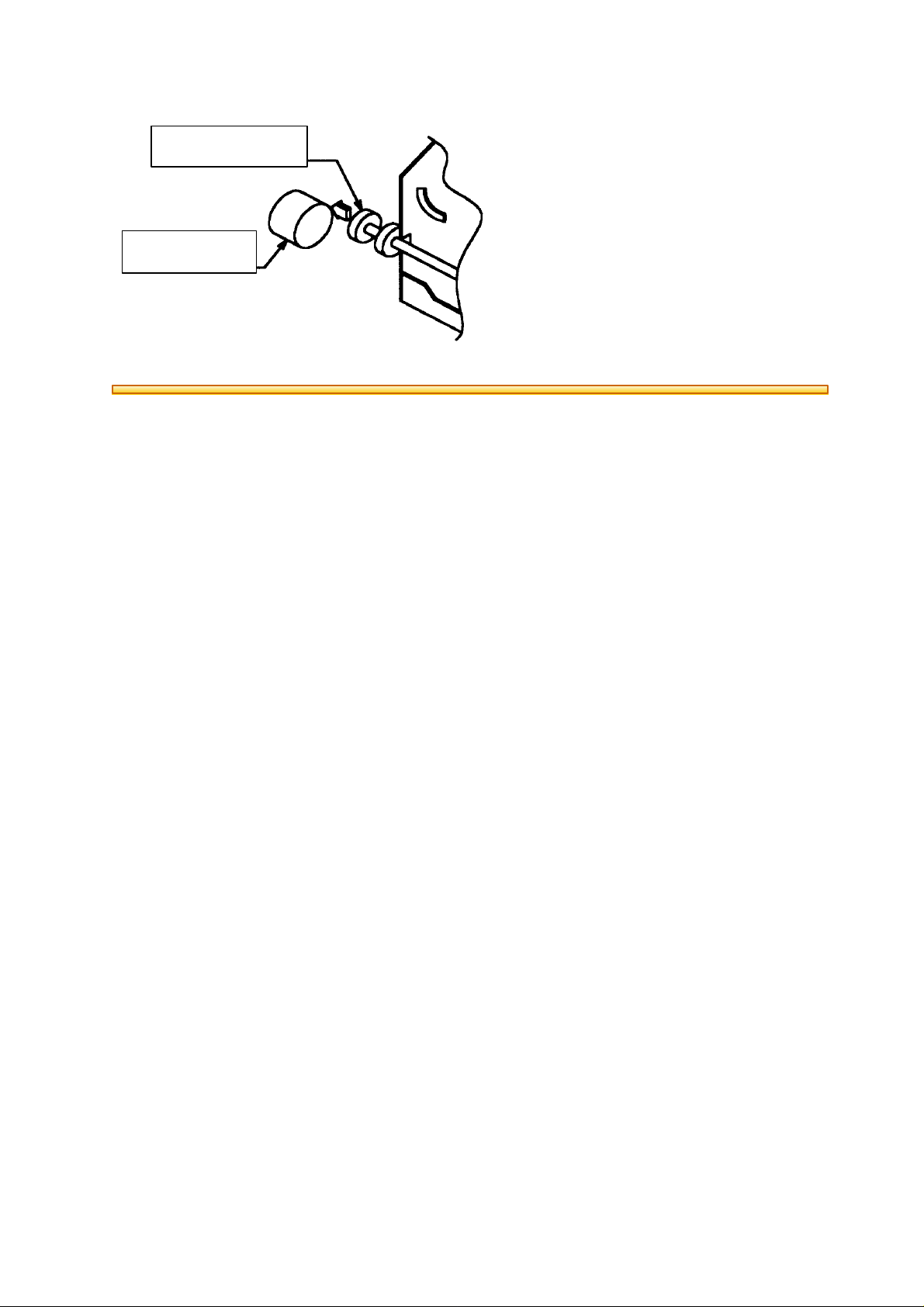

Fuser unit side gear
Copier side gear
"A" figure
BSI No. F98A155 Page 2
