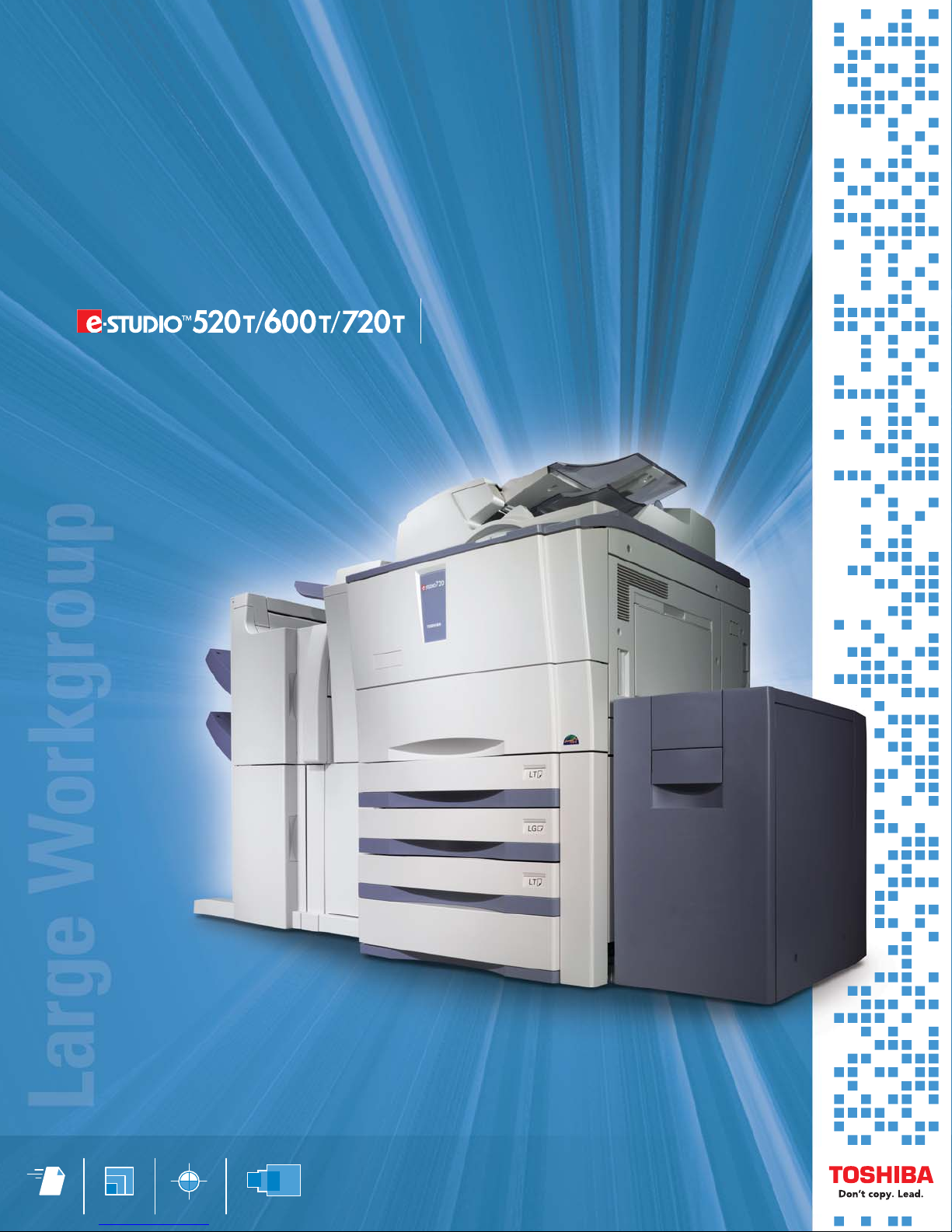

Toshiba e-studio 520T, e-studio 600T, e-studio 720T Specifications

PP OO WW EE RR SS TT AA TT II OO NN

4

1

PPM

52/60/72

L

Workgroup

Black & White

in

Copy / Print / Scan / Fax

In order to compete with today’s fast-paced businesses,

you need the office equipment designed to do just that.

The e-

STUDIO520T/600T/720T Tandem Series utilizes the

same advanced technology that you’ll find in the standard

e-

STUDIO MFPs. In addition, a tandem drawer configuration

has been added to provide greater paper handling capacity.

Other advantages like an extra large LCD panel, e-BRIDGE

™

technology and the latest security features help

put this series in a class all its own.

Speed and agility.

Thanks to advanced Toshiba technology, the e-STUDIO520T/600T/720T

Tandem Series are top performers. Print and copy speeds are

Power

through jobs at

52/60/72

PPM

52, 60 and 72 pages per minute, respectively. All units scan

71 originals per minute at 600 dpi and are even faster when

scanning to file at a lower resolution. With 100% duplex

productivity, no time is lost while paper is inverted. And an

impressive warm-up time of just 130 seconds along with a

30-second recovery from standby helps reduce wait time.

Flexibility in Tandem.

The e-STUDIO520T/600T/720T Tandem Series utilizes a special tandem drawer configuration for greater

flexibility. Two 500-sheet drawers are combined with a lower, built-in large capacity drawer that

holds two stacks of 1,250 letter-size sheets. When the right stack of paper runs dry, the left stack is

shifted over and used, without interruption, in order to help make short work of long jobs.

Built to handle anything.

The two standard drawers plus the tandem drawer combine to meet whatever paper requirements you

might have. The top two drawers can be arranged to accommodate statement to ledger-size paper of up

to 110-pound index stock. In all, the three drawers offer an impressive 3,600-sheet capacity that comes

standard when you include the 100-sheet Smart Stack Feed Bypass. Add the optional 4.000-sheet LCF

for a total of 7,600 and you’ll have all the capacity you need, whenever you need it.

ScanStation OP V3.0

Leverage flexible, rapid solutions for paper-to-digital business integration.

eCopy ScanStation OP document imaging and distribution software transforms

your e-STUDIO520T/600T/720T Tandem Series into full-featured information

hubs. It integrates hardcopy documents directly into the workflow of critical

business processes–reporting, administration, document

management, financials, human resources, and

customer management. Additionally, easy-to-use

administration tools let you manage multiple

Tandem

device from one central location.

Configuration

2,500-Sheet

Capacity

4

1

PPM

52/60/72

Convert scanned documents into 16 file formats with the

touch of a button. Instant Optical Character Recognition (OCR)

file format transforms hardcopy text and graphic documents

into easily editable file formats including .doc, .html, .pdf,

and more. This innovative technology automatically performs

OCR and file conversions. Converted images can then be sent

to network drives, Email, or both.

L

Workgroup

Black & White

in

Copy / Print / Scan / Fax

Looking good.

Performance doesn’t come at the sacrifice of image

quality. The Tandem Series produces crisp, clear images

at an industry-leading 2400 x 600 dpi, thanks to a new

image processor unit. Clarity is further enhanced by

ultra-fine 8-micron toner and 40-micron developer. An

8-bit monochrome scanner renders impressive, high

fidelity grayscales and sharpens onscreen images as well.

Extra

Large

easy to use

LCD panel

Heightened security.

Along with productivity and performance, today’s

businesses are becoming more and more concerned

about the security of MFPs. That’s why we’ve

introduced several features to make the e-

STUDIO520T/600T/720T Tandem Series even more secure.

The data disk overwrite option writes over the data

multiple times to protect previous copy and print jobs

on the hard disk drive. In addition, a scrambler board

encrypts hard drive data. With full SMTP

authentication and LDAP support, businesses can be

certain that only authorized users are sending out

scanned documents and recipients will know

specifically who has sent them. For additional security,

10,000 user codes ensure that only those authorized

are granted access. Even wireless usage is safe,

thanks to the latest 802.11g wireless encryption

protocol.

Make professional looking

booklets with letter, legal,

and ledger-size paper.

Our guarantee is simple:

QUALITY

COMMITMENT

Q

If our products don’t operate to specification, we replace them free of charge. Named the choice
manufacturer seven of the past nine years and “Copier Manufacturer of the Year” three years
straight, our fully–trained and certified, employee family is as knowledgeable as our copiers are
dependable. You can count on Toshiba to deliver excellence in all we do.
This is our quality commitment to you.

The many advantages
of a single board.

Advanced e-BRIDGE™technology combines

copy, print, scan, and other functions in a

single board architecture. This unified approach

allows you to add functionality as you need it,

in no time at all, thanks to Enablers that are

simple to install. Just plug and print. With

e-FILING, users can store frequently needed

documents right on the device and reprint them

whenever necessary. These documents can be

password protected for additional security.

Other features include Scan-to-Email, Internet

faxing, and TopAccess

®

—a remote

administration utility with a

common interface across

Toshiba products. And

to perform all functions

with greater speed, the

system uses a lightning

fast 600 MHz processor.

Lightning Fast

600MHz

processor

Only from Toshiba.

Experience and innovation combine to create unique

product benefits like “toner on the fly” that allows

you to replace a high-yield cartridge while the system

is in operation. Easy-to-change service modules keep

downtime to a minimum. And periodic maintenance

intervals of 450, 500 and 575K ensure reliability with

some of the highest PM intervals on the market.

In addition to a hole punch and post inserter, advanced

finishing options include a 50-sheet multi-position

stapling finisher, a 50-sheet unit with saddle-stitch

booklet maker, and a 100-sheet finisher with saddle-

stitch. To offer even more flexibility, the saddle stitch

units can make booklets using letter, legal, or ledger-

size paper. You can do the layout yourself or have the

system do it automatically.

From productivity to security, image quality to advanced

finishing options, nothing powers today’s businesses

quite like the e-

STUDIO

520T/600T/720

T

Tandem Series.

4,000

sheet LCF

available

Toner

on the fly

Copying Process Indirect Electrostatic Photographic

Method (Dry Process)

Copying Type Laser Electronic

Original Reading Method CCD Line Sensor

Control Panel Icon Based LCD Touch Panel; Key Top

Copy/Print Resolution 2,400 x 600 dpi

Gradation 256 Steps

Copy/Print Speed 52/60/72 PPM (Letter)

Warm-Up Time Approximately 130 Seconds

First Copy Out Time Less Than 4.0 Seconds (Letter)

Duty Cycle 450,000/500,000/575,000 Copies

Multiple Copying Up to 9,999 Copies

Paper Exit Face Down

Paper Supply 500 x 2 Drawers; 1,250-Sheet x 2 Tandem Drawer;

100-Sheet Universal Stack Feed
Optional 4,000-Sheet External LCF

Bypass (Standard);

Bypass Stack Feed Bypass (100-Sheet)

Acceptable Paper Size

Acceptable Paper Type Standard Bond, Overhead Transparencies,

Drawer: Statement-R (5.5" x 8.5") to Ledger (11" x 17");
Stack Feed Bypass: Statement-R (5.5" x 8.5") to
Ledger (11" x 17"); Optional External LCF: Letter
Only (8.5” x 11”)17 lb. Bond - 110 lb. Index

Tab Sheets – Drawers 2 + Bypass

Memory 320 MB + 40 GB HDD

Reduction/Enlargement 25% to 400% in 1% Increments

Dimensions 27.5” x 31.1” x 47.8” (W x D x H)

Weight Approximately 462 lbs.

PM Cycle 450,000/500,000/575,000

Toner Control Method Automatically Controlled; Toner Empty Detection;

Electrical

Drum Type/Yield Organic Photoconductor/450,000/500,000/575,000

Black Toner Yield 60,100

Black Developer Yield 450,000/500,000/575,000

Power Supply 120 Volts; 60 Hz; 20 A

Power Consumption Maximum 2.0 kW (115 Volts)

COPY FUNCTIONS

Special Features Access Codes (10,000 User, 1,000 Department),

Alternation, Annotation, AMS/APS, Auto Job Start,
Auto Drawer Change, Auto Duplex, Auto Energy
Saver, Auto Sleep Mode, Auto Sort Mode, Center
Erase, Control Panel Text Input, Copy-On-Tab,
Cover Sheet, Date/Time Indication, Department
Code Data Print Out, Document Storage, Dual Page
Copying, Edge Erase, e-FILING, Electronic Sorting
(Sort, Group & Staple), Energy Saver, Help/Info.
Function, Image Direction, Image Adjustment,
Image Shift, Interrupt Memory, Job Build, Job
Memory – Templates, Job Reservation (Scan
Ahead) – 10 Jobs, Magazine Sort, Mirror Image,
Negative/Positive, OHP Sheet Mode, Original
Counter, Page Numbering, Rotation Copy, Sheet
Insertion, Smart Bypass, Text, Text/Photo, & Photo
Modes, Thick Paper Mode, Trimming/Masking,
Weekly Timer, X-Y Zoom, Zoom Indicator, 2-in-1,
4-in-1, 8-in-1 Copy Mode

PRINT

PDL Support PCL6™, PostScript™3

Fonts

Operating Systems NetWare®4.x, 5.x, 6.x, Windows®98/Me/2000,

Protocol Support IPX/SPX, TCP/IP, EtherTalk®, LPR/LPD, IPP, WINS,

PCL 80 Fonts, PS 136 Fonts, Monotype Font Manager

®

Windows
XP, 2003 Server, Citrix

SNMP, SMB, AppleTalk
9100 (Bi-Di), Bluetooth

OS Terminal Edition, Windows®NT 4.0,

®

Metaframe XP

®

, NetBIOS, NetWare®, Port

®

(HCRP)

®

SPECIFICATIONS

PRINT (CONTINUED)

Drivers Windows

Connectivity 10BaseT/100BaseTX Ethernet, USB, IEEE 1284,

Device Management TopAccess™

Certifications WHQL, Novell

®

98, 2000, 2003, Me, Windows®NT 4.0,
XP; Macintosh
PPD), UNIX

®

OS 8.6, 9.x, 10.1/10.2/10.3 (With

®

, AS/400 via iData, ERP Support SAP R/3

802.11b/g Wireless LAN, Bluetooth

®

®

(HCRP)

SCAN

Scan Resolution 600 dpi, 400 dpi, 300 dpi, 200 dpi, 150 dpi

Scan Speed Up to 83 PPM @ 300 dpi, 71 PPM @ 600 dpi

File Format TIFF Single/Multipage, PDF, JPG

Void Area 2mm All Sides

Drivers TWAIN (No ISIS)

Authentication SMTP, LDAP

e-FILING

Operation Method Touch Screen Control Panel or Client PC

Number of Boxes 1 Public Box; 200 Private User Boxes

Capacity of Boxes 100 Folders Per Box; 400 Documents Per Folder;

1,000 Pages Per Document

File Format TIFF-MMR, TIFF-S, PDF

OPTIONS

FINISHING OPTIONS

MJ1027 – Multi-Position Stapling Finisher (50-Sheet)

MJ1028 – Multi-Position Stapling Finisher with Saddle-Stitch (50-Sheet)

MJ1029 – Multi-Position Stapling Finisher with Saddle-Stitch (100-Sheet)

MJ6003 – Hole Punch Unit

MJ7001 – Post Inserter Unit

KN1017 – Finisher Guide Rail

ADDITIONAL PAPER OPTIONS

MP4004 – 4,000-Sheet Front Loading Large Capacity Feeder, for LT Size

SECURITY OPTIONS

GP1040 – Scrambler Board

GP1060 – Data Overwrite Kit

CONNECTIVITY OPTIONS

GM2040 – Print & Scan Enabler

GM1050 – Printer Enabler

GM4010 – Scanner Enabler

GD1170 – Fax Board

GO1050 – PCI Slot

GN1040 – Wireless LAN Module

GN2010 – Bluetooth

GN3010 – Antenna

GF1140 – Parallel Interface Kit

GB1250 – Re-Rite - Integrated OCR Conversion Distribution Tool

TB-04SXP01-03 – eCopy ScanStation OP

TB-ACCSS02-00 – eCopy ScanStand Accessory Box

®

Module

e-STUDIO600T/720T only

Corporate Office: 2 Musick, Irvine, California 92618-1631

East Coast: 959 Route 46 East, 5th Floor, Parsippany, New Jersey 07054

Tel: [phone] Fax: [phone]

Midwest: 8770 W. Bryn Mawr Avenue, Suite 700, Chicago, Illinois 60631
Tel: [phone] Fax: [phone]

South: 4855 Peachtree Industrial Blvd., Suite 210, Norcross, Georgia 30092-3024
Tel: [phone] Fax: [phone]

West Coast: 142 Technology, Suite 150, Irvine, California 92618
Tel: [phone] Fax: [phone]

Web Site: www.copiers.toshiba.com or www.fax.toshiba.com

© 2006 Toshiba America Business Solutions, Inc., Electronic Imaging Division
e-

STUDIO520T/600T/720T Brochure/Inv. Code ES520T600T720T1

Designs and specifications subject to change without notice. For best results and reliable performance,
always use supplies manufactured or designated by Toshiba. Toner yields are estimates, based on
6% coverage, letter-size page. Driver and connectivity feature support varies by client/network
operating system. Not all options and accessories may be available at the time of product launch.
Please contact a local Authorized Toshiba Dealership for availability.

AUTHORIZED TOSHIBA DEALER
