Toshiba e-studio 180s User Manual

Under the copyright laws, this manual cannot be reproduced in any form without prior written permission of TOSHIBA TEC CORPORATION. No patent liability is assumed, however, with respect to the use of the information contained herein.

• e-STUDIO180S is model name of TOSHIBA TEC CORPORATION.

• TOSHIBA TEC and TOSHIBA TEC logo are trademarks of TOSHIBA TEC CORPORATION.

• IBM and IBM PC are trademarks of International Business Machines Corporation.

• Microsoft, Windows, Windows 98, Windows Me, Windows 2000, Windows XP, and Windows Vista are registered trademarks of Microsoft Corporation.

• All other brand or product names are trademarks of their respective companies or organizations.

1. Introduction

Special features ..................................................................................................................... 1.1

Understanding component locations .......................................................................................... 1.2

Front view ....................................................................................................................... 1.2

Rear view ........................................................................................................................ 1.2

Control panel functions ...................................................................................................... 1.3

2. Getting started

Setting up your machine

Finding more information ........................................................................................................ 2.1

Selecting a location ................................................................................................................ 2.2

Installing the toner cartridge ................................................................................................... 2.2

Loading paper ....................................................................................................................... 2.3

Making connections ................................................................................................................ 2.5

Turning the machine on .......................................................................................................... 2.5

Setting up the machine system

Overview of control panel menus ............................................................................................. 2.6

Changing the display language ................................................................................................. 2.6

Using the save modes ............................................................................................................. 2.6

Toner save mode .............................................................................................................. 2.6

Power save mode ............................................................................................................. 2.6

Printer software overview

Supplied printer software ........................................................................................................ 2.7

Programs for Windows ...................................................................................................... 2.7

Printer driver features ............................................................................................................. 2.7

System requirements ............................................................................................................. 2.8

3. Loading original documents and paper

Loading document .................................................................................................................. 3.1

Selecting print materials ......................................................................................................... 3.2

Supported paper types and sizes ........................................................................................ 3.2

Paper size supported in each mode ..................................................................................... 3.3

Guidelines for selecting and storing print materials ................................................................ 3.3

Loading paper ....................................................................................................................... 3.5

In the paper input tray ...................................................................................................... 3.5

In the manual feeder ........................................................................................................ 3.5

Setting the paper size and type ................................................................................................ 3.6

Selecting an output location .................................................................................................... 3.6

Printing to the output tray (Face down) ............................................................................... 3.6

Printing to the rear cover (Face up) ..................................................................................... 3.7

4. Copying

Copying ................................................................................................................................ 4.1

Changing the settings for each copy ......................................................................................... 4.1

Reduced/Enlarged copy ..................................................................................................... 4.1

Darkness ......................................................................................................................... 4.1

Original type .................................................................................................................... 4.1

Changing the default settings .................................................................................................. 4.2

Using special copy features ..................................................................................................... 4.2

Clone copying .................................................................................................................. 4.2

Auto Fit copying ............................................................................................................... 4.2

ID Card copying ............................................................................................................... 4.2

2-UP copying ................................................................................................................... 4.3

Poster copying ................................................................................................................. 4.3

Setting the time out option ...................................................................................................... 4.3

5. Basic printing

Printing a document ............................................................................................................... 5.1

Canceling a print job .............................................................................................................. 5.1

6. Scanning

Scanning basics ..................................................................................................................... 6.1

7. Ordering toner cartridge

Toner cartridges .................................................................................................................... 7.1

How to purchase .................................................................................................................... 7.1

8. Maintenance

Printing reports ...................................................................................................................... 8.1

Clearing memory ................................................................................................................... 8.1

Cleaning your machine ........................................................................................................... 8.1

Cleaning the outside ......................................................................................................... 8.1

Cleaning the inside ........................................................................................................... 8.1

Cleaning the drum ............................................................................................................ 8.2

Cleaning the scan unit ....................................................................................................... 8.2

Maintaining the toner cartridge ................................................................................................ 8.3

Redistributing the toner cartridge ....................................................................................... 8.3

Replacing the toner cartridge ............................................................................................. 8.4

Consumable and replacement parts .......................................................................................... 8.5

9. Troubleshooting

Clearing paper jams ............................................................................................................... 9.1

In the paper input tray ...................................................................................................... 9.1

In the manual feeder ........................................................................................................ 9.1

In the fuser area or around the toner cartridge ..................................................................... 9.2

In the paper exit area ....................................................................................................... 9.2

Tips for avoiding paper jams .............................................................................................. 9.3

Understanding the Status LED ................................................................................................. 9.3

Understanding display messages .............................................................................................. 9.4

Solving other problems ........................................................................................................... 9.4

Paper feeding problems ..................................................................................................... 9.5

Printing problems ............................................................................................................. 9.5

Printing quality problems ................................................................................................... 9.7

Copying problems ............................................................................................................. 9.9

Scanning problems ........................................................................................................... 9.9

Common Windows problems ............................................................................................ 9.10

10. Specifications

General specifications ........................................................................................................... 10.1

Scanner and copier specifications ........................................................................................... 10.1

Printer specifications ............................................................................................................ 10.2

Important Precautions and Safety Information

When using this machine, these basic safety precautions should always be followed to reduce risk of fire, electric shock and injury to people:

1. Read and understand all instructions.

2. Use common sense whenever operating electrical appliances.

3. Follow all warnings and instructions marked on the machine and in the literature accompanying the machine.

4. If an operating instruction appears to conflict with safety information, heed the safety information. You may have misunderstood the operating instruction. If you cannot resolve the conflict, contact your sales or service representative for assistance.

5. Unplug the machine from the AC wall socket and/or telephone jack before cleaning. Do not use liquid or aerosol cleaners. Use only a damp cloth for cleaning.

6. Do not place the machine on an unstable cart, stand or table. It may fall, causing serious damage.

7. Your machine should never be placed on, near or over a radiator, heater, air conditioner or ventilation duct.

8. Do not allow anything to rest on the power. Do not locate your machine where the cords will be abused by persons walking on them.

9. Do not overload wall outlets and extension cords. This can diminish performance, and may result in the risk of fire or electric shock.

10. Do not allow pets to chew on the AC power, telephone or PC interface cords.

11. Never push objects of any kind into the machine through case or cabinet openings. They may touch dangerous voltage points, creating a risk of fire or shock. Never spill liquid of any kind onto or into the machine.

12. Your machine may have a heavy cover for optimal pressure on the document for the best scanning and/or faxing (usually the flatbed-type machine). In this case, replace the cover after placing document on the scan glass, by holding and moving it down slowly until it seats on its location.

13. To reduce the risk of electric shock, do not disassemble the machine. Take it to a qualified service technician when repair work is required. Opening or removing covers may expose you to dangerous voltages or other risks. Incorrect reassembly could cause electric shock when the unit is subsequently used.

14. Unplug the machine from the telephone jack, PC and AC wall outlet and refer servicing to qualified service personnel under the following conditions:

•When any part of the power cord, plug or connecting cable is damaged or frayed.

•If liquid has been spilled into the machine.

•If the machine has been exposed to rain or water.

•If the machine does not operate properly after instructions have been followed.

•If the machine has been dropped, or the cabinet appears damaged.

•If the machine exhibits a sudden and distinct change in performance.

15. Adjust only those controls covered by the operating instructions. Improper adjustment of other controls may result in damage, and may require extensive work by a qualified service technician to restore the machine to normal operation.

16. Avoid using this machine during a lightning storm. There may be a remote risk of electric shock from lightning. If possible, unplug the AC power and telephone cord for the duration of the lightning storm.

17. Pull the plug out from the outlet more than once a year to clean around the prongs. Accumulating dust and dirt could cause a fire due to the heat released by electric leakage.

18. SAVE THESE INSTRUCTIONS.

19. Use only No.26 AWG or larger telephone line cord.

20. Never attempt to incinerate toner cartridges. This could cause an explosion. Do not dispose of used toner cartridges. Contact your service representative.

WARNING

This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.

Laser Safety Statement

The printer is certified in the U.S. to conform to the requirements of DHHS 21 CFR, chapter 1 Subchapter J for Class I(1) laser products, and elsewhere is certified as a Class I laser product conforming to the requirements of IEC 60825-1.

Class I laser products are not considered to be hazardous. The laser system and printer are designed so there is never any human access to laser radiation above a Class I level during normal operation, user maintenance or prescribed service condition.

WARNING

Never operate or service the printer with the protective cover removed from Laser/Scanner assembly. The reflected beam, although invisible, can damage your eyes.

AUTION

Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

The unit is classified as Class 1 Laser Product according to IEC 608251:1993/EN 60825-1.1994 including amendments.

The unit uses laser diode of output 25 mW, wave length 785 nm, continuous pulse.

Machine Noise Information (For Germany only)

Ordinance 3. GPSGV: The maximum sound pressure level is equal or less than 70 dB(A) according to EN ISO 7779

Power Saver

This machine contains advanced energy conservation technology that reduces power consumption when it is not in active use.

When the machine does not receive data for an extended period of time, power consumption is automatically lowered.

The ENERGY STAR emblem does not represent EPA endorsement of any machine or service.

Recycling

Please recycle or dispose of the packaging material for this product in an environmentally responsible manner.

Explanatory label

Ozone Safety

During normal operation, this machine produces ozone. The ozone produced does not present a hazard to the operator. However, it is advisable that the machine be operated in a well ventilated area.

If you need additional information about ozone, please request your nearest TOSHIBA TEC dealer.

Correct Disposal of This Product (Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems)

This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.

Declaration of Conformity (European Countries)

Approvals and Certifications

The CE marking applied to this product symbolizes TOSHIBA TEC CORPORATION. Declaration of Conformity with the following applicable 93/68/EEC Directives of the European Union as of the dates indicated:

January 1, 1995

laws of the member states related to low voltage equipment.

: Council Directive 2006/95/EC Approximation of the

January 1, 1996

approximation of the laws of the Member States related to electromagnetic compatibility.

March 9, 1999

telecommunications terminal equipment and the mutual recognition of their conformity.

CE marking is the responsibility of TOSHIBA TEC GERMANY IMAGING SYSTEMS GmbH, Carl-Schurz-Str. 7, 41460 Neuss, Germany, phone +49(0)-2131-1245-0.

For a copy of the related CE Declaration of Conformity please contact your dealer or TOSHIBA TEC.

: Council Directive 89/336/EEC (92/31/EEC),

: Council Directive 1999/5/EC on radio equipment and

Disclaimer Notice

The following notice sets out the exclusions and limitations of liability of TOSHIBA TEC CORPORATION (including its employees, agents and subcontractors) to any purchaser or user (‘User’) of the e-STUDIO180S, including its accessories, options and bundled software (‘Product’).

1. The exclusion and limitations of liability referred to in this notice shall be effective to the fullest extent permissible at law. For the avoidance of doubt, nothing in this notice shall be taken to exclude or limit TOSHIBA TEC CORPORATION’s liability for death or personal injury caused by TOSHIBA TEC CORPORATION’s negligence or TOSHIBA TEC CORPORATION’s fraudulent misrepresentation.

Replacing the Fitted Plug (for UK Only)

MPORTANT

The mains lead for this machine is fitted with a standard (BS 1363) 13 amp plug and has a 13 amp fuse. When you change or examine the fuse, you must re-fit the correct 13 amp fuse. You then need to replace the fuse cover. If you have lost the fuse cover, do not use the plug until you have another fuse cover.

Please contact the people from you purchased the machine.

The 13 amp plug is the most widely used type in the UK and should be suitable. However, some buildings (mainly old ones) do not have normal 13 amp plug sockets. You need to buy a suitable plug adaptor. Do not remove the moulded plug.

ARNING

If you cut off the moulded plug, get rid of it straight away.

You cannot rewire the plug and you may receive an electric shock if you plug it into a socket.

MPORTANT WARNING

The wires in the mains lead have the following color code:

•Green and Yellow: Earth

•Blue: Neutral

•Brown: Live

If the wires in the mains lead do not match the colors marked in your plug, do the following:

You must connect the green and yellow wire to the pin marked by the letter “E” or by the safety ‘Earth symbol’ or colored green and yellow or green.

You must connect the blue wire to the pin which is marked with the letter “N” or colored black.

You must connect the brown wire to the pin which is marked with the letter “L” or colored red.

You must have a 13 amp fuse in the plug, adaptor, or at the distribution board.

: You must earth this machine.

2. All warranties, conditions and other terms implied by law are, to the fullest extent permitted by law, excluded and no such implied warranties are given or apply in relation to the Products.

3. TOSHIBA TEC CORPORATION shall not be liable for any loss, cost, expense, claim or damage whatsoever caused by any of the following: (a) use or handling of the Product otherwise than in accordance with the manuals, including but not limited to Operator’s Manual, User’s Guide, and/or incorrect or careless handling or use of the Product; (b) any cause which prevents the Product from operating or functioning correctly which arises from or is attributable to either acts, omissions, events or accidents beyond the reasonable control of TOSHIBA TEC CORPORATION including without limitation acts of God, war, riot, civil commotion, malicious or deliberate damage, fire, flood, or storm, natural calamity, earthquakes, abnormal voltage or other disasters; (c) additions, modifications, disassembly, transportation, or repairs by any person other than service technicians authorized by TOSHIBA TEC CORPORATION; or (d) use of paper, supplies or parts other than those recommended by TOSHIBA TEC CORPORATION.

4. Subject to paragraph 1, TOSHIBA TEC CORPORATION shall not be liable to Customer for: (a) loss of profits; loss of sales or turnover; loss of or damage to reputation; loss of production; loss of anticipated savings; loss of goodwill or business opportunities; loss of customers; loss of, or loss of use of, any software or data; loss under or in relation to any contract; or (b) any special, incidental, consequential or indirect loss or damage, costs, expenses, financial loss or claims for consequential compensation;

whatsoever and howsoever caused which arise out of or in connection with the Product or the use or handling of the Product even if TOSHIBA TEC CORPORATION is advised of the possibility of such damages.

TOSHIBA TEC CORPORATION shall not be liable for any loss, cost, expense, claim or damage caused by any inability to use (including, but not limited to failure, malfunction, hang-up, virus infection or other problems) which arises from use of the Product with hardware, goods or software which TOSHIBA TEC CORPORATION has not directly or indirectly supplied.

Software License Agreement

INSTALLING OR OTHERWISE USING THIS SOFTWARE PRODUCT CONSTITUTES YOUR ACCEPTANCE OF THE FOLLOWING TERMS AND CONDITIONS (UNLESS A SEPARATE LICENSE IS PROVIDED BY THE SUPPLIER OF APPLICABLE SOFTWARE IN WHICH CASE SUCH SEPARATE LICENSE SHALL APPLY). IF YOU DO NOT ACCEPT THESE TERMS, YOU MAY NOT INSTALL OR USE THIS SOFTWARE, AND YOU MUST PROMPTLY RETURN THE SOFTWARE TO THE LOCATION WHERE YOU OBTAINED IT.

THE SOFTWARE INSTALLED ON THIS PRODUCT INCLUDES NUMEROUS INDIVIDUAL SOFTWARE COMPONENTS, EACH HAVING ITS OWN APPLICABLE END USER LICENSE AGREEMENT (“EULA”). INFORMATION RELATING TO THE EULAS MAY BE FOUND IN AN ELECTRONIC FILE INCLUDED ON THE USER DOCUMENTATION CD-ROM INCLUDED HEREWITH; HOWEVER, ALL SOFTWARE AND DOCUMENTATION DEVELOPED OR CREATED BY OR FOR TOSHIBA TEC CORPORATION (“TTEC”) ARE PROPRIETARY PRODUCTS OF TTEC AND ARE PROTECTED BY COPYRIGHT LAWS, INTERNATIONAL TREATY PROVISIONS, AND OTHER APPLICABLE LAWS.

Grant of License

This is a legal agreement between you, the end-user (“You”), and TTEC and its suppliers. This software, fonts (including their typefaces) and related documentation (“Software”) is licensed for use with the system CPU on which it was installed (“System”) in accordance with the terms contained in this Agreement. This Software is proprietary to TTEC and/or its suppliers.

TTEC and its suppliers disclaim responsibility for the installation and/or use of this Software, and for the results obtained by using this Software. You may use one copy of the Software as installed on a single System, and may not copy the Software for any reason except as necessary to use the Software on a single System. Any copies of the Software shall be subject to the conditions of this Agreement.

You may not, nor cause or permit any third party to, modify, adapt, merge, translate, reverse compile, reverse assemble, or reverse engineer the Software. You may not use the Software, except in accordance with this license. No title to the intellectual property in the Software is transferred to you and full ownership is retained by TTEC or its suppliers. Source code of the Software is not licensed to you. You will be held legally responsible for any copyright infringement, unauthorized transfer, reproduction or use of the Software or its documentation.

Term

This license is effective until terminated by TTEC or upon your failure to comply with any term of this Agreement. Upon termination, you agree to destroy all copies of the Software and its documentation.

You may terminate this license at any time by destroying the Software and its documentation and all copies.

Disclaimer of Warranty

THIS SOFTWARE IS PROVIDED “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, TITLE, AND NON-INFRINGEMENT. TTEC AND ITS SUPPLIERS DISCLAIM ANY WARRANTY RELATING TO THE QUALITY AND PERFORMANCE OF THE SOFTWARE. IF THE SOFTWARE PROVES DEFECTIVE, YOU (AND NOT TTEC OR ITS SUPPLIERS) SHALL BE RESPONSIBLE FOR THE ENTIRE COST OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION. TTEC AND ITS SUPPLIERS DO NOT WARRANT THAT THE FUNCTIONS CONTAINED IN THE SOFTWARE WILL MEET YOUR REQUIREMENTS OR THAT THE OPERATION OF THE SOFTWARE WILL BE UNINTERRUPTED OR ERROR FREE.

ALL INFORMATION CONTAINED HEREIN THAT IS PROVIDED BY TTEC AND ITS AFFILIATES PURSUANT TO A EULA IS PROVIDED “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED.

Limitation of Liability

IN NO EVENT WILL TTEC OR ITS SUPPLIERS BE LIABLE TO YOU FOR ANY DAMAGES, WHETHER IN CONTRACT, TORT, OR OTHERWISE (EXCEPT PERSONAL INJURY OR DEATH RESULTING FROM NEGLIGENCE ON THE PART OF TTEC OR ITS SUPPLIERS), INCLUDING WITHOUT LIMITATION ANY LOST PROFITS, LOST DATA, LOST SAVINGS OR OTHER INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE SOFTWARE, EVEN IF TTEC OR ITS SUPPLIERS HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES, NOR FOR THIRD PARTY CLAIMS.

U.S. Government Restricted Rights

The Software is provided with RESTRICTED RIGHTS. Use, duplication or disclosure by the U.S. Government is subject to restrictions set forth in subdivision (b) (3) (ii) or (c) (i) (ii) of the Rights in Technical Data and Computer Software Clause set forth in 252.227-7013, or 52.227-19 (c) (2) of the DOD FAR, as appropriate. Contractor/Manufacturer is TOSHIBA TEC Corporation, 6-78, Minami-cho, Mishima-shi, Shizuoka-ken, 411-8520, Japan.

General

You may not sublicense, lease, rent, assign or transfer this license or the Software. Any attempt to sublicense, lease, rent, assign or transfer any of the rights, duties or obligations hereunder is void. You agree that you do not intend to, and will not ship, transmit (directly or indirectly) the Software, including any copies of the Software, or any technical data contained in the Software or its media, or any direct product thereof, to any country or destination prohibited by the United States Government. This license shall be governed by the laws of Japan or, at the election of a Supplier of TTEC concerned with a dispute arising from or relating to this Agreement, the laws of the Country designated from time to time by the relevant Supplier of TTEC. If any provision or portion of this Agreement shall be found to be illegal, invalid or unenforceable, the remaining provisions or portions shall remain in full force and effect.

YOU ACKNOWLEDGE THAT YOU HAVE READ THIS LICENSE AGREEMENT AND THAT YOU UNDERSTAND ITS PROVISIONS. YOU AGREE TO BE BOUND BY ITS TERMS AND CONDITIONS. YOU FURTHER AGREE THAT THIS LICENSE

AGREEMENT CONTAINS THE COMPLETE AND EXCLUSIVE AGREEMENT BETWEEN YOU AND TTEC AND ITS SUPPLIERS AND SUPERSEDES ANY PROPOSAL OR PRIOR AGREEMENT, ORAL OR WRITTEN, OR ANY OTHER COMMUNICATION RELATING TO THE SUBJECT MATTER OF THIS LICENSE AGREEMENT.

TOSHIBA TEC Corporation, 6-78, Minami-cho, Mishima-shi, Shizuoka-ken, 411-8520, Japan.

1 Introduction

Thank you for purchasing this TOSHIBA multifunctional product. Your machine provides printing, copying, and scanning functions!

This chapter includes:

• Special features

• Understanding component locations

Special features

Your new machine is equipped with special features that improve the print quality. You can:

Print with excellent quality and speed

• You can print up to

Section

• Your machine prints A4-sized paper at up to 18 ppm letter-sized paper at up to 19 ppm.

600 dpi X 600 dpi

. See the

Software

and

Save time and money

• You can print multiple pages on one single sheet of paper to save paper.

• You can use preprinted forms and letterhead on plain paper. See the

• This machine automatically substantially reducing power consumption when not printing.

Print in various environments

•You can print in

• Your machine comes with the

Software Section.

Windows 98/Me/2000/XP/Vista

conserves electricity

USB

interface.

Handle paper flexibly

•The

manual feeder

envelope, label, transparency, custom-sized material, postcard, and heavy paper.

paper input tray

•The sized paper.

Create professional documents

•Print

Watermarks

words, such as “Confidential.” See the

Posters

document are magnified and printed across the sheet of paper and taped together to form a poster. See the

Software Section

supports plain paper, letterhead,

supports 250 sheets of A4/letter-

. You can customize your documents with

Software Section

. The text and pictures of each page of your

a. page per minute

Introduction

Understanding component locations

These are the main components of your machine:

Front view

rear cover

USB port

Rear view

power receptacle

power switch

document cover

document glass

control panel

front cover

toner cartridge

manual feeder guides

paper input tray

manual feeder

output tray

scan unit

Introduction

Control panel functions

Displays the current status and prompts during an operation.

Status

Scroll through the options available in the selected menu.

Back

- Shows the status of your machine. See page 9.3.

- Enters Menu mode and scrolls through the available menus.

- Confirms the selection on the display.

- Sends you back to the upper menu level.

Copies

Stop/Clear

In Standby mode, clears/cancels the copy options, such as the resolution, the document type setting, the copy size, and the number of copies.

Start

- Allows you to enter the number of copies.

- Stops an operation at any time.

- Starts a job.

Introduction

2 Getting started

This chapter gives you step-by-step instructions for setting up your machine.

This chapter includes:

Setting up your machine

• Selecting a location

• Installing the toner cartridge

• Loading paper

• Making connections

• Turning the machine on

Setting up the machine system

• Overview of control panel menus

• Changing the display language

• Using the save modes

Printer software overview

• Supplied printer software

• Printer driver features

• System requirements

Setting up your machine

Finding more information

You can find information for setting up and using your machine from the following resources, either printed or onscreen.

Quick Install Guide

Online User’s Guide

Provides information on setting up your machine and, therefore, be sure to follow the instructions in the guide to get the machine ready.

Provides you with step-by-step instructions for using your machine’s full features, and contains information for maintaining your machine, troubleshooting, and installing accessories.

This user’s guide also contains the

Software Section

information on how to print documents with your machine on various operating systems, and how to use the supplied software utilities.

NOTE:

You can access the user’s guides in other languages from the folder on the printer driver CD.

providing you with

Manual

Getting started

Printer Driver Help Provides you with help information on

printer driver properties and instructions for setting up the properties for printing. To access a printer driver help screen,

Help

click dialog box.

from the printer properties

Selecting a location

Installing the toner cartridge

Select a level, stable place with adequate space for air circulation. Allow extra space for opening covers and trays.

The area should be well-ventilated and away from direct sunlight or sources of heat, cold, and humidity. Do not set the machine close to the edge of your desk or table.

Clearance space

•

Front

: 482.6 mm (enough space so that the paper tray can

be removed)

•

Back

: 100 mm (enough space for ventilation)

•

Right

: 100 mm (enough space for ventilation)

Left

: 100 mm (enough space for ventilation)

•

Open the front cover.

Remove the toner cartridge from its bag. Do not use a knife or other sharp object as it might scratch the drum of the toner cartridge.

Roll the toner cartridge 5 or 6 times to distribute the toner evenly inside the toner cartridge.

Getting started

Thoroughly rolling the toner cartridge will assure maximum copies per toner cartridge.

Remove the paper protecting the

NOTE

: If toner gets on your clothing, wipe it off with a dry cloth and wash clothing in cold water. Hot water sets toner into fabric.

toner cartridge

CAUTION

• To prevent damage, do not expose the toner cartridge to light for more than a few minutes. Cover it with a piece of paper, if left exposed for more than a few minutes.

• Do not touch the green underside of the toner cartridge. Use the handle on the toner cartridge to avoid touching this area.

Hold the toner cartridge by the handle. Slowly insert the toner cartridge into the opening in the machine.

Tabs on the sides of the toner cartridge and corresponding grooves within the machine will guide the toner cartridge into the correct position until it locks into place completely.

Loading paper

The paper input tray can hold a maximum of 250 sheets of 20

75 g/m2) plain paper.

lb (

Pull open the paper input tray and remove it from the machine.

Fan the edges of the paper stack to separate the pages. Then tap the stack on a flat surface to even it up.

Groove

Tab

Close the front cover. Make sure that the front cover is securely closed.

NOTE

: When printing text at 5% coverage, you can expect a toner cartridge life of approximately 3,000 pages. (1,000 pages for the toner cartridge that is shipped with the machine.)

Insert the paper stack into the paper input tray

side to be printed on facing down

NOTE

: If you want to load a different sized paper, you need to

adjust the paper guides. For details, see page 2.4.

with the

Getting started

Pay attention to the paper limit mark on both inside walls of the paper input tray. Paper overloading may cause paper jams.

Insert and slide the paper input tray back into the machine.

Changing the size of the paper in the paper input tray

To load longer sizes of paper, such as Legal-sized paper, you need to adjust the paper guides to extend the paper input tray.

After pressing and unlatching the guide lock, slide the paper length guide out completely to extend the paper input tray to its full length.

After inserting paper into the paper input tray, squeeze the front paper length guide and slide it until it lightly touches the end of the paper stack.

NOTE

: After you load paper, you need to set up your machine for the paper type and size you loaded. See page 3.6 for copying, or the settings made from the printer driver override the settings on the control panel.

Software Section

for PC-printing. The

Getting started

For paper smaller than Letter size, adjust the front paper length guide so that it lightly touches the paper stack.

Squeeze the paper width guide, as shown and slide it to the stack of paper until it lightly touches the side of the stack.

NOTES

• Do not push the paper width guide far enough to cause the

• If you do not adjust the paper width guide, it may cause

materials to warp.

paper jams.

NOTE

: When using the USB connection, your machine provides two USB modes; Fast and Slow. Fast is the default mode. Some PC users may experience poor USB function in the default mode. If this occurs, select Slow mode to achieve successful results. For details about changing the USB mode, see page 9.7.

Turning the machine on

Plug one end of the supplied power cord into the

receptacle

properly grounded AC outlet.

Press the power switch to turn the machine on.

up please wait

machine is now on.

on the machine and the other end into a

appears on the display indicating that the

power

warming

Making connections

Connect a USB cable to the USB connector on your machine. You need to buy a USB 2.0 compliant cable that is not longer than 3 m.

To the USB port on your computer

Connect the other end of the cable to the USB port on your computer.

See your computer User’s Guide if you need help.

To view your display text in another language, see page 2.6.

CAUTION

• The fuser area inside of the rear cover of your machine

becomes very hot when in use. Take care not to burn your fingers when you access this area.

• Do not disassemble the machine with power on. If you do,

you may receive an electric shock.

Getting started

Setting up the machine system

Overview of control panel menus

The control panel provides access to various menus to set up the machine or use the machine’s functions. They can be

accessed by pressing

Refer to the following diagram.

Reduce/Enlarge

Darkness

Original Type

Special Copy

Off

Clone

Auto Fit

ID Card Copy

2 UP

Poster

Changing the display language

To change the language that appears on the control panel, follow these steps:

Press

until

Machine Setup

of the display.

Press

when

Language

Press the scroll button ( or ) to select the language you

want and press

Press

Stop/Clear

to return to Standby mode.

appears.

appears on the top line

Using the save modes

Toner save mode

Toner save mode allows your machine to use less toner on each page. Activating this mode extends the life of the toner cartridge beyond what one would experience in the normal mode, but it reduces print quality.

Press

until

Toner Save

the display.

Press the scroll button ( or ) until On appears and press

appears on the top line of

Toner Save

Paper Setting

Copy Setup

Report

Machine Setup

Maintenance

Paper Size

Paper Type

Default-Change

Timeout

Language

Power Save

USB mode

Clean Drum

Clear Settings

NOTE

: When PC-printing, you can also turn on or off Toner Save mode in the printer properties. See the

Section

Software

Power save mode

Power save mode allows your machine to reduce power consumption when it is not in actual use. You can turn this mode on and select a length of time for which the machine waits after a job is printed before it switches to a reduced power state.

Press

until

Machine Setup

of the display.

Press the scroll button ( or ) until

and press

Press the scroll button ( or ) until On appears and press

Press the scroll button ( or ) to select the time setting you want and press

Press

Stop/Clear

to return to Standby mode.

appears on the top line

Power Save

appears

Getting started

Printer software overview

Supplied printer software

You must install the printer software using the supplied printer driver CD after you have set up your machine and connected it to your computer. For details, see the

The printer driver CD provides you with the following software:

Programs for Windows

To use your machine as a printer and scanner in Windows, you must install the MFP driver. You can install selectively or all the following components:

Printer driver

• your printer’s features.

Scanner driver

• (WIA) driver are available for scanning documents on your machine.

Status Monitor

• machine’s status and alerts you when an error occurs during printing.

- Use this driver to take full advantage of

- TWAIN and Windows Image Acquisition

- This program allows you to monitor the

Software Section

Printer driver features

Your printer drivers support the following standard features:

• Paper source selection

• Paper size, orientation and media type

•Number of copies

The following table lists a general overview of features supported by your printer drivers.

Printer Driver

Feature

Ton e r sa v e Y

Print quality option Y

Poster printing Y

Multiple pages per sheet (N-up)

Fit to page printing Y

Scale printing Y

Win 98/Me/2000/XP/Vista

Waterm ark Y

Overlay Y

TrueType fonts option Y

NOTE

: Overlay is not supported in Windows NT 4.0.

Getting started

System requirements

Before you begin, ensure that your system meets the minimum requirements.

Item Requirements Recommended

Operating system

CPU Windows 98/

RAM Windows 98/

Free disk space

Windows 98/Me/NT 4.0/2000/XP/2003/Vista

Me/NT 4.0/ 2000

Windows XP/ 2003/Vista

Me/NT 4.0/ 2000

Windows XP/ 2003

Windows Vista

Windows 98/ Me/NT 4.0/ 2000

Windows XP/ 2003

Windows Vista

Pentium II 400 MHz or higher

Pentium III 933 MHz or higher

64 MB or more 128 MB

128 MB or more

512 MB or more

300 MB or more

1 GB or more 5 GB

15 GB 15 GB or more

Pentium III 933 MHz

Pentium IV 1 GHz

256 MB

1 GB

Internet Explorer

NOTE

: For Windows 2000/XP/Vista, users who have an

administrator right can install the software.

Windows 98/ Me/NT 4.0/ 2000/XP/ 2003

Windows Vista

5.0 or higher

7.0 or higher

Getting started

3 Loading original

documents and paper

This chapter introduces you to how to load documents and print materials into your machine.

This chapter includes:

• Loading document

• Selecting print materials

• Loading paper

• Setting the paper size and type

• Selecting an output location

Loading document

You can use the document glass to load an original document for copying and scanning.

Lift and open the document cover.

Place the document and align it with the registration guide at the top left corner of the glass.

Close the document cover. Be careful not to move the document.

NOTES

• Leaving the document cover open while copying may affect

• Dust on the document glass may cause black spots on the

• If you are copying a page from a book or magazine, lift the

copy quality and toner consumption.

printout. Always keep it clean.

document cover until its hinges are caught by the stopper and then close the cover. If the book or magazine is thicker than 30 mm, start copying with the cover open.

face down

on the

document glass

Loading original documents and paper

Selecting print materials

You can print on a variety of print materials, such as plain paper, envelopes, labels, and transparencies. Always use print materials that meet the guidelines for use with your machine. Paper that does not meet the guidelines outlined in this user’s guide may cause the following problems:

• Poor print quality

• Increased paper jams

•Premature wear on the machine.

Properties, such as weight, composition, grain, and moisture content, are important factors that affect the machine’s performance and the output quality. When you choose print materials, consider the following:

• Desired outcome: The paper you choose should be appropriate for your project.

• Size: You can use any size paper that fits easily within the paper adjusters of the paper input tray.

• Weight: Your machine supports paper weights as follows:

- 16 to 24 lb (60 to 90 g/m

- 16 to 43 lb (60 to 165 g/m

• Brightness: Some papers are whiter than others and produce sharper, more vibrant images.

• Surface smoothness: The smoothness of the paper affects how crisp the printing looks on the paper.

NOTES

• Some paper may meet all of the guidelines in this section and still not produce satisfactory results. This may be the result of improper handling, unacceptable temperature and humidity levels, or other variables over which TOSHIBA TEC has no control.

• Before purchasing large quantities of paper, ensure that the paper meets the requirements specified in this user’s guide.

) bond for the paper input tray

) bond for the manual feeder.

Supported paper types and sizes

Type Size Dimensions WeightaCapacity

Plain paper Letter 215.9 x 279 mm

(8.5 x 11 inches)

Legal 215.9 x 355.6

mm (8.5 x 14 inches)

Folio 216 x 330.2 mm

(8.5 x 13 inches)

A4 210 x 297 mm

(8.27 x 11.69 inches)

Oficio 216

x 343 mm (8.5 x 13.5 inches)

JIS B5 182 x 257 mm

(7.18 x 10.12 inches)

ISO B5 176 x 250 mm

(6.93 x 9.84 inches)

Executive 184.2 x 266.7

mm (7.25 x 10.5 inches)

A5 148.5 x 210 mm

(5.85 x 8.27 inches)

A6 105 x 148.5 mm

(4.13 x 5.85 inches)

• 60 to 90 g/m2 (16 to 24 lb bond) for the paper input tray

• 60 to 165

(16

g/m to 43 lb bond) for the manual feeder

•250

•1 sheet of

sheets of

75 g/m (20 lb bond) paper for the paper input tray

paper for the manual feeder

CAUTION

: Using paper that does not meet these specifications may cause problems, requiring repairs. Such repairs are not covered by the warranty or service agreements.

Loading original documents and paper

Envelope Envelope B5 176 x 250 mm

(6.92 x 9.48 inches)

Envelope Monarch

98.4 x 190.5 mm (3.88 x 7.5 inches)

Envelope COM-10

105 x 241 mm (4.12 x 9.5 inches)

Envelope DL 110 x 220 mm

(4.33 x 8.66 inches)

Envelope C5 162 x 229 mm

(6.38 x 9.02 inches)

60 to 90

(16 to

g/m 24 lb)

1 sheet of paper for the manual feeder

Type Size Dimensions WeightaCapacity

Envelope (continued)

Envelope C6 114 x 162 mm

(4.48 x 6.37 inches)

60 to 90

(16 to

g/m 24 lb)

1 sheet of paper for the manual feeder

Transparency Letter, A4 Refer to the Plain

paper section

138 to 148

g/m

1 sheet of paper for the manual feeder

Labels Letter, Legal,

Folio, A4, JIS B5, ISO B5, Executive,

Refer to the Plain paper section

120 to 150

(32 to

g/m 40 lb)

1 sheet of paper for the manual feeder

A5, A6

Card stock Letter, Legal,

Folio, A4, JIS B5, ISO B5, Executive,

Refer to the Plain paper section

60 to 165

(16 to

g/m 43 lb)

1 sheet of paper for the manual feeder

A5, A6

Minimum size (custom) 76 x 127 mm

(3.0 x 5.0 inches)

60 to 165

(16 to

g/m 43 lb bond)

1 sheet of paper for the manual feederMaximum size (custom) 215.9 x 356 mm

(8.5 x 14 inches)

a If paper weight is over 90 g/m2, load one sheet of paper in the manual feeder. b Maximum capacity may differ depending on media weight, thickness, and

environmental conditions.

Paper size supported in each mode

Mode Size Source

Copy mode Letter, A4, Legal, Folio,

Executive, ISO B5, JIS B5, A5, A6

Single side printing All sizes supported by the

machine

• paper input tray

• manual feeder

• paper input tray

• manual feeder

Guidelines for selecting and storing print materials

When selecting or loading paper, envelopes, or other print materials, keep these guidelines in mind:

• Always use paper and other materials that conform with the specifications listed on page 3.2.

• Attempting to print on damp, curled, wrinkled, or torn paper can cause paper jams and poor print quality.

• For the best print quality, use only high quality copier grade paper specifically recommended for use in laser printers.

• Avoid using the following paper types:

- Paper with embossed lettering, perforations, or a texture that is too smooth or too rough

- Erasable bond paper

- Multi-paged paper

- Synthetic paper and thermally reactive paper

Carbonless

• Use of these types of paper could result in paper jams, chemical smells, and damage to your machine.

• Store paper in its ream wrapper until you are ready to use it. Place cartons on pallets or shelves, not on the floor. Do not place heavy objects on top of the paper, whether it is packaged or unpackaged. Keep it away from moisture or other conditions that can cause it to wrinkle or curl.

• Store unused materials at temperatures between 15

C (59o F to 86o F). The relative humidity should be

30 between 10% and 70%.

• Store unused paper in a moisture-proof wrap, such as a plastic container or bag, to prevent dust and moisture from contaminating your paper.

• Load special paper types one sheet at a time through the manual feeder to avoid paper jams.

• To prevent materials such as transparencies and label sheets from sticking together, remove them as they print out.

paper and

Tracing

paper.

C and

Loading original documents and paper

Guidelines for special materials

Paper Type Guidelines

Envelopes • Successful printing on envelopes depends upon the

quality of the envelopes. When selecting envelopes, consider the following factors:

- Weight: The weight of the envelope paper should not exceed 90 g/m

(24 lb) or jamming may

occur.

- Construction: Prior to printing, envelopes should lie flat with less than 6 mm (0.25 inches) curl, and should not contain air.

- Condition: Envelopes should not be wrinkled, nicked, or otherwise damaged.

- Temperature: You should use envelopes that are compatible with the heat and pressure of the machine during operation.

• Use only well-constructed envelopes with sharp and well creased folds.

• Do not use stamped envelopes.

• Do not use envelopes with clasps, snaps, windows, coated lining, self-adhesive seals, or other synthetic materials.

• Do not use damaged or poorly made envelopes.

• Be sure the seam at both ends of the envelope extends all the way to the corner of the envelope.

Acceptable

Unacceptable

• Envelopes with a peel-off adhesive strip or with more than one flap that folds over to seal must use adhesives compatible with the machine’s fusing temperature of 208° C (406.4° F) for 0.1 second. The extra flaps and strips might cause wrinkling, creasing, or jams, and may even damage the fuser.

• For the best print quality, position margins no closer than 15 mm (0.6 inches) from the edges of the envelope.

• Avoid printing over the area where the envelope’s seams meet.

Transparencies • To avoid damaging the machine, use only

transparencies designed for use in laser printers.

• Transparencies used in the machine must be able to withstand 208° C (406.4° F), the machine’s fusing temperature.

• Place them on a flat surface after removing them from the machine.

• Do not leave them in the paper tray for long periods of time. Dust and dirt may accumulate on them, resulting in spotty printing.

• To avoid smudging caused by fingerprints, handle them carefully.

• To avoid fading, do not expose printed transparencies to prolonged sunlight.

• Ensure that transparencies are not wrinkled, curled, or have any torn edges.

Labels • To avoid damaging the machine, use only labels

designed for use in laser printers.

• When selecting labels, consider the following factors:

- Adhesives: The adhesive material should be stable

at 208° C (406.4° F), the machine’s fusing temperature.

- Arrangement: Only use labels with no exposed

backing between them. Labels can peel off sheets that have spaces between the labels, causing serious jams.

- Curl: Prior to printing, labels must lie flat with no

more than 13 mm (5 inches) of curl in any direction.

- Condition: Do not use labels with wrinkles,

bubbles, or other indications of separation.

• Make sure that there is no exposed adhesive material between labels. Exposed areas can cause labels to peel off during printing, which can cause paper jams. Exposed adhesive can also cause damage to machine components.

• Do not run a sheet of labels through the machine more than once. The adhesive backing is designed for only a single pass through the machine.

• Do not use labels that are separating from the backing sheet or are wrinkled, bubbled, or otherwise damaged.

Card stock or custom-sized materials

• Do not print on media smaller than 76 mm (3 inches) wide or 127 mm (5 inches) long.

• In the software application, set margins at least 6.4 mm (0.25 inches) away from the edges of the material.

Loading original documents and paper

Paper Type Guidelines

Preprinted paper • Letterhead must be printed with heat-resistant ink

that will not melt, vaporize, or release hazardous emissions when subjected to the machine’s fusing temperature of 208° C (406.4° F) for 0.1 second.

• Letterhead ink must be non-flammable and should not adversely affect printer rollers.

• Forms and letterhead should be sealed in a moisture-proof wrapping to prevent changes during storage.

• Before you load preprinted paper, such as forms and letterhead, verify that the ink on the paper is dry. During the fusing process, wet ink can come off preprinted paper, reducing print quality.

Loading paper

In the paper input tray

Load the print material you use for the majority of your print jobs in the paper input tray. The paper input tray can hold a maximum of 250 sheets of 20 lb (

To load paper, pull open the paper input tray and load paper with the side to be printed on face down.

You can load letterhead paper with the design side face down. The top edge of the sheet with the logo should be placed at the front of the paper input tray.

For details about loading paper in the tray, see page 2.3.

NOTES

• If you experience problems with paper feed, place one sheet

• You can load previously printed paper. The printed side

at a time in the manual feeder.

should be facing up with an uncurled edge at the front. If you experience problems with paper feed, turn the paper around. Note that the print quality is not guaranteed.

75 g/m2) plain paper.

In the manual feeder

Use the manual feeder to print transparencies, labels, envelopes or postcards in addition to making quick runs of paper types or sizes that are not currently loaded in the paper input tray.

To load print material in the manual feeder:

Load a sheet of the print material

printed on facing up

feeder.

Depending on the paper type you are using, keep the following loading method:

• Envelopes: load a sheet with the flap side down and with the stamp area on the top left side.

• Transparencies: load a sheet with the print side up and the top with the adhesive strip entering the machine first.

• Labels: load a sheet with the print size up and top short edge entering the machine first.

• Preprinted paper: load a sheet with the design face up, top edge toward the machine.

• Card: load a sheet with the print side up and the short edge entering the machine first.

• Pre printed paper: load a sheet with the printed side down and an uncurled edge toward the machine.

into the center of the manual

with the side to be

Loading original documents and paper

Adjust the manual feeder guides to the width of the print material without bending it.

Press the scroll button ( or ) to find the paper size you

are using and press

Press

Back

to return to the upper level.

Press the scroll button ( or ) to select

press

Press the scroll button ( or ) to find the paper type you are using and press

Press

Stop/Clear

Paper Type

to return to Standby mode.

Selecting an output location

and

After loading paper, you need to set the paper type and size for the manual feeder. See page 3.6 for copying or the

Software Section

NOTE

: The settings made from the printer driver override the

settings on the control panel.

If you want to use the rear cover, open the rear cover.

Tips on using the manual feeder

• Print materials should be loaded face up with the top edge going into the manual feeder first and be placed in the center of the tray.

• Always load only the print materials specified in the Specifications on page 3.2 to avoid paper jams and print quality problems.

• When you print on 76 x 127 mm (3 x 5 inches) sized media on the manual feeder, open the rear cover to use the rear cover.

• Make sure to open the rear cover when you print on transparencies. If not, they may tear while exiting the machine.

for PC-printing.

The machine has two output locations: the rear cover (face up) and the output tray (face down).

To use the output tray, make sure that the rear cover is closed. To use the rear cover, open the rear cover.

NOTES

• If paper coming out of the output tray has problems, such as

• To avoid paper jams, do not open or close the rear cover

excessive curl, try printing to the rear cover.

while the machine is printing.

Printing to the output tray (Face down)

The output tray collects printed paper face down, in the order in which the sheets were printed. The tray should be used for most print jobs.

If you use paper which is not long enough to reach the output tray, use the scan unit.

To use the scan unit:

Lift the scan unit. A tab automatically springs up to support the cover.

Setting the paper size and type

After loading paper in the paper tray, you need to set the paper size and type using the control panel buttons. These settings will apply to Copy mode. Fo r PC-printing, you need to select the paper size and type in the application program you use on your PC.

Press

until

Paper Setting

of the display.

Press

when

Paper Size

Press the scroll button ( or ) to select the paper tray you want to use and press

appears on the top line

appears.

Loading original documents and paper

Take the paper out manually.

Close the scan unit. In order to close the cover, push the tab to the left and hold it down. Then lower the cover carefully until the cover is holding down the tab. Then you can move your hand and finish lowering the cover.

Be careful not to pinch your fingers!

To use the rear cover, open the rear cover by pulling it up.

CAUTION:

machine becomes very hot when in use. Take care when you access this area.

The fuser area inside the rear cover of your

NOTES

• If you continuously print many pages, the surface of the

• The output tray can hold up to 50 sheets of paper. Remove

output tray may become hot. Be careful not to touch the surface, and especially keep children away from the surface.

the pages so that tray is not overloaded.

Printing to the rear cover (Face up)

Using the rear cover, paper comes out of the machine face up.

Printing from the manual feeder to the rear cover provides a

straight paper path

output quality with special materials.

. Using the rear cover might improve the

Loading original documents and paper

4 Copying

This chapter gives you step-by-step instructions for copying documents.

This chapter includes:

•Copying

• Changing the settings for each copy

• Using special copy features

• Changing the default settings

• Setting the time out option

Copying

Place a document on the document glass.

Customize the copy settings including copy size, darkness, and original type, by using the control panel buttons. See page 4.1.

If necessary, you can use special copy features, such as Poster copying or 2 Up copying. See page 4.3.

Press

Copies

scroll button ( or ), if necessary.

Press

Start

The display shows the copy processing.

NOTE

: You can cancel the copy job during an operation. Press

Stop/Clear

Changing the settings for each copy

The buttons on the control panel let you select all basic copy options: darkness, document type and copy size. Set the following options for the current copy job before pressing to make copies.

NOTE

: If you press options, all of the options you have set for the current copy job will be canceled and returned to their default status.

and enter the number of copies using the

to begin copying.

, and the copying will stop.

Stop/Clear

while setting the copy

Start

Reduced/Enlarged copy

You can reduce or enlarge the size of a copied image from 50% to 200% when you copy original documents from the document glass.

To select from the predefined copy sizes:

Press

Menu then

Press the scroll button ( or ) to select the size setting you want and press

To fine-tune the size of copies:

Press

Menu then

Press the scroll button ( or ) until appears and press

Press the scroll button ( or ) to enter the copy size you want. Pressing and holding the button allows you to quickly scroll to the number you want.

Press

to save the selection.

NOTE

: When you make a reduced copy, black lines may

appear at the bottom of your copy.

Reduce/Enlarge

Reduce/Enlarge appears.

appears.

Custom:50-200%

Darkness

If you have an original document containing faint markings and dark images, you can adjust the brightness to make a copy that is easier to read.

Press

until

Darkness

display.

Press the scroll button ( or ) to select the contrast mode you want.

•

Light

: works well with dark print.

Normal

• documents.

•

Dark

markings.

Press OK to save the selection.

: works well with standard typed or printed

: works well with light print or faint pencil

appears on the top line of the

Original type

The original type setting is used to improve the copy quality by selecting the document type for the current copy job.

Press

until

Original Type

the display.

appears on the top line of

Copying

Press the scroll button ( or ) to select the image mode you want.

•

Text

: Use for documents containing mostly text.

Text/Photo

• photographs.

•


: Use for documents with mixed text and

: Use when the originals are photographs.

Press OK to save the selection.

Changing the default settings

The copy options, including darkness, original type, copy size and number of copies, can be set to the most frequently used modes. When you copy a document, the default settings are used unless they are changed by using the menus on the control panel.

To create your own default settings:

Press

until

Copy Setup

the display.

Press OK when

Press the scroll button ( or ) to select a setup option and press

Press the scroll button ( or ) to change the setting or enter the value and press

Repeat steps 3 through 4, as needed.

Press

Stop/Clear

NOTE

: While you are setting copy options, pressing cancels the changed settings and restores their default

Clear

status.

Default-Change

to return to Standby mode.

appears on the top line of

appears.

Stop/

Using special copy features

Clone copying

This feature prints multiple image copies from the original document on a single page. The number of images is automatically determined by the original image and paper size.

Place the document to be copied on the document glass, and close the cover.

Press

until

Special Copy

the display.

Press the scroll button ( or ) until

press

Customize the copy settings including copy size, darkness, and original type, by using the control panel buttons. See page 4.1.

appears on the top line of

Clone

appears and

Auto Fit copying

This feature automatically reduces or enlarges the original

image to fit on the paper currently loaded in the machine.

NOTE

: When the size of the document you want to copy is not

same as the size of the paper loaded, this function automatically adjusts the size of the document to fit the paper. You can not adjust the copy size manually.

Load the document to be copied on the document glass, and close the cover.

Press

until

Special Copy

the display.

Press the scroll button ( or ) until

press

Customize the copy settings including copy size, darkness, and original type, by using the control panel buttons. See page 4.1.

NOTE

: You cannot adjust the copy size using the

Enlarge

Press

menu while Auto Fit copying is enabled.

Start

to begin copying.

appears on the top line of

Auto Fit

appears and

Reduce/

ID Card copying

You can copy both sides of the ID Card like a drivers licence to a single side of paper.

When you copy using this feature, the machine prints one side of the card on the upper half of the paper and the other side on the lower half without reducing the size of the original.

If the loaded card is larger than the printable area, some portions may not be printed.

Place the ID Card to be copied on the document glass and close the cover.

Press

until

Special Copy

the display.

Press the scroll button ( or ) until

appears and press

Customize the copy settings including copy size, darkness, and original type, by using the control panel buttons. See page 4.1.

Press

Start

to begin copying.

Your machine begins scanning the front side and will then display

Set Backside

appears on the top line of

ID Card copy

NOTE

: You cannot adjust the copy size using the

Enlarge

menu while making a clone copy.

Press

Start

to begin copying.

Reduce/

Copying

Open the document cover and flip the document over. Close the cover.

NOTE

: If you press approximately 30 seconds, the machine cancels the copy job and returns to Standby mode.

Press

Start

Stop/Clear

to begin copying.

or no buttons are pressed for

NOTE

: You cannot adjust the copy size using the

Enlarge

menu while making a poster.

Your original document is divided into 9 portions. Each portion is scanned and printed one by one in the following order:

Reduce/

2-UP copying

This feature prints 2 original images reduced to fit onto one sheet of paper.

Place the document to be copied on the document glass and close the cover.

1 2

Press

until

Special Copy

the display.

Press the scroll button ( or ) until

press

Customize the copy settings including copy size, darkness, and original type, by using the control panel buttons. See page 4.1.

NOTE

: You cannot adjust the copying size using the

Enlarge

Press

Your machine begins scanning the front side and will then display

Place the second document to be copied on the document glass.

menu while making a 2-UP copying.

Start

to begin copying.

Set Next Page Press Start

appears on the top line of

2-UP

appears and

Reduce/

Setting the time out option

You can set the time the machine waits before it restores the default copy settings, if you do not start copying after changing them on the control panel.

Press

until

Copy Setup

the display.

Press the scroll button ( or ) until

press

Press the scroll button ( or ) to select the time setting you want.

Selecting default settings until you press

Stop/Clear

Press OK to save your selection.

press

Off

means that the machine does not restore the

to cancel.

Stop/Clear

to return to Standby mode.

appears on the top line of

Timeout

Start

to begin copying, or

appears and

Press

Start

to begin copying.

NOTE

: 2-UP copying reduces your original document by 50%.

Poster copying

This feature prints an image onto 9 sheets of paper (3x3). You can paste the printed pages together to make one poster-sized document.

Place the document to be copied on the document glass and close the cover.

Press

until

Special Copy

the display.

Press the scroll button ( or ) until

press

Customize the copy settings including copy size, darkness, and original type, by using the control panel buttons. See page 4.1.

Press

Start

to begin copying.

appears on the top line of

Poster

appears and

Copying

5 Basic printing

This chapter explains common printing tasks.

Printing a document

This printer allows you to print from various Windows applications. The exact steps for printing a document may vary depending on the application you use.

For details about printing, see the

Canceling a print job

If the print job is waiting in a print queue or print spooler, such as the printer group in Windows, delete the job as follows:

Click the Windows

For Windows 98/2000/Me, select

Printers

For Windows XP/2003, select

For Windows Vista, select

and Sound

→

Start

Printers

button.

Printers and Faxes

Control Panel

Software Section

Settings

and then

→

Hardware

Double-click the

From the (Windows 98/Me) or

NOTE

: You can also access this window by simply doubleclicking the printer icon at the bottom right corner of the Windows desktop.

You can also cancel the current job by pressing

control panel

the

Document

TOSHIBA e-STUDIO180S

menu, select

Cancel

of your machine.

Cancel Printing

(Windows 2000/XP/Vista).

icon.

Stop/Clear

Basic printing

6 Scanning

Scanning with your machine lets you turn pictures and text into digital files on your computer. Then you can upload them on your web site or use them to create projects that you can print using the WIA driver.

Scanning basics

Your machine offers the following ways to scan an image:

• From TWAIN-compliant software: You can use other

software including Adobe PhotoDeluxe and Adobe Photoshop.

• From the Windows Images Acquisition (WIA) driver: Your

machine supports the WIA driver for scanning images.

NOTE

: To scan with your machine, you must install the software. For details about installing the software, see the

Software Section

Scanning

7 Ordering toner

cartridge

This chapter provides information on purchasing toner cartridges available for your machine.

Toner cartridges

When the toner runs out, you can order the following type of toner cartridges for your machine:

Type Yield

Standard 3,000 pages T-1820

a. ISO 19752 5% coverage

NOTE

: To assure optimal printing performance, we recommend that you use TOSHIBA toner cartridges.

Part number

How to purchase

To order TOSHIBA-authorized toner cartridges, contact your local TOSHIBA TEC dealer or the retailer where you purchased your machine.

Ordering toner cartridge

8 Maintenance

Cleaning your machine

This chapter provides information for maintaining your machine and the toner cartridge.

This chapter includes:

• Printing reports

• Clearing memory

• Cleaning your machine

• Maintaining the toner cartridge

• Consumable and replacement parts

Printing reports

Your machine can print report containing system data information.

Press

until

Report

display.

Press OK when

The system data information will be printed.

System Data

appears on the top line of the

appears.

To maintain print and scan quality, follow the cleaning procedures below each time the toner cartridge is replaced or if print and scan quality problems occur.

CAUTION

materials containing large amounts of alcohol, solvent, or other strong substances can discolor or crack the cabinet.

: Cleaning the cabinet of the machine with cleaning

Cleaning the outside

Clean the cabinet of the machine with a soft lint-free cloth. You can dampen the cloth slightly with water, but be careful not to let any water drip onto or into the machine.

Cleaning the inside

During the printing process, paper, toner, and dust particles can accumulate inside the machine. This buildup can cause print quality problems, such as toner specks or smearing. Cleaning the inside of the machine clears or reduces these problems.

Turn the machine off and unplug the power cord. Wait for the machine to cool down.

Open the front cover and pull the toner cartridge out. Set it on a clean flat surface.

Clearing memory

You can selectively clear information stored in your machine’s memory.

Press

until

Maintenance

the display.

Press the scroll button ( or ) until

appears and press

Press the scroll button ( or ) to select the item you want to clear.

Paper Setting

• to the factory default.

•

Copy Setup

factory default.

•

All Settings

default.

Machine Setup

• as the display language and save mode, to the factory default.

Press OK to confirm clearing. The selected setting is cleared.

Repeat steps 3 through 4 to clear another setting.

: Resets all of the Copy Setup options to the

: Resets all of your settings to the factory

: Resets all of the Paper Setting options

: Resets all of the system settings, such

appears on the top line of

Clear Settings

CAUTION

• To prevent damage to the toner cartridge, do not expose it to light for more than a few minutes. Cover it with a piece of paper, if necessary.

• Do not touch the green surface underside of the toner cartridge. Use the handle on the toner cartridge to avoid touching this area.

Press

Stop/Clear

to return to Standby mode.

Maintenance

With a dry lint-free cloth, wipe away any dust and spilled toner from the toner cartridge area and the toner cartridge cavity.

CAUTION

not to touch the transfer roller, located underneath the toner cartridge. Oil from your fingers can cause print scan quality problems.

: While cleaning the inside of the machine, be careful

Locate the long strip of glass (LSU) inside the top of the toner cartridge compartment, and gently swab the glass to see if dirt turns the white cotton black.

Press

when

Clean Drum

The machine prints out a cleaning page. Toner particles on the drum surface are affixed to the paper.

If the problem remains, repeat steps 1 through 3.

appears.

Cleaning the scan unit

Keeping the scan unit clean helps ensure the best possible copies. We suggest that you clean the scan unit at the start of each day and during the day, as needed.

Slightly dampen a soft lint-free cloth or paper towel with water.

Open the document cover.

Wipe the surface of the document glass until it is clean and dry.

Reinsert the toner cartridge and close the front cover.

Plug in the power cord and turn the machine on.

Cleaning the drum

If there are streaks or spots on your print, the OPC drum of the toner cartridge may require cleaning.

Before starting the cleaning procedure, make sure that paper is loaded in the machine.

Press

until

Maintenance

the display.

appears on the top line of

Maintenance

document cover

document glass

Wipe the underside of the document cover until it is clean and dry.

Close the document cover.

Maintaining the toner cartridge

Toner cartridge storage

To get the most from the toner cartridge, keep the following guidelines in mind:

• Do not remove the toner cartridge from its package until ready for use.

• Do not refill the toner cartridge.

does not cover damage caused by using a refilled toner cartridge

• Store toner cartridges in the same environment as your machine.

• To prevent damage to the toner cartridge, do not expose it to light for more than a few minutes.

Saving toner

The machine warranty

Pull the toner cartridge out.

Thoroughly roll the toner cartridge 5 or 6 times to distribute the toner evenly inside the toner cartridge.

To save toner, press

press of the toner cartridge and reduces your cost per page, but it also reduces print quality.

when On appears. Using this feature extends the life

until

Toner Save

appears and then

Expected toner cartridge life

The life of the toner cartridge depends on the amount of toner that print jobs require. When printing text at ISO 19752 5% coverage, a new toner cartridge lasts an average of 3,000 pages. (The original toner cartridge supplied with the machine lasts an average of 1,000 pages.) The actual number may be different depending on the print density of the page you print. If you print a lot of graphics, you may need to change the toner cartridge more often.

NOTE

: The 1,000 pages and 3,000 pages toner cartridge have

different shapes.

Redistributing the toner cartridge

When the toner cartridge is near the end of its life:

• White streaks or light printing occurs.

• The warning message, panel.

•The

Status

If this happens, you can temporarily reestablish print quality by redistributing the remaining toner in the toner cartridge. In some cases, white streaks or light printing will still occur even after you have redistributed the toner.

LED blinks red.

Toner Low

displays on the control

NOTE

: If toner gets on your clothing, wipe it off with a dry cloth and wash clothing in cold water. Hot water sets toner into fabric.

CAUTION

cartridge. Use the handle on the toner cartridge to avoid touching this area.

: Do not touch the green underside of the toner

Hold the toner cartridge by the handle and slowly insert the toner cartridge into the opening in the machine.

Tabs on the sides of the toner cartridge and corresponding grooves within the machine will guide the toner cartridge into the correct position until it locks into place completely.

Open the front cover.

Maintenance

Close the front cover. Make sure that the cover is securely closed.

Replacing the toner cartridge

When the toner cartridge is completely empty:

• The warning message,

Replace Toner

•The

Status

At this stage, the order information for toner cartridges, see page 7.1.

displays on the control panel.

LED lights red.

toner cartridge

Toner Empty

needs to be replaced. For

[Toner Empty]

Remove the paper protecting the

toner cartridge

NOTES

• This feature does not work for the

• To assure optimal printing performance, we recommend that

CAUTION

could cause an explosion. Do not dispose of used toner cartridges. Contact your service representative.

[Toner Empty] Replace

message.

Toner

you use TOSHIBA toner cartridges.

: Never attempt to incinerate toner cartridges. This

Pull the

Remove the new toner cartridge from its bag.

toner cartridge

out.

NOTE

: If toner gets on your clothing, wipe it off with a dry cloth and wash clothing in cold water. Hot water sets toner into fabric.

CAUTION

cartridge. Use the handle on the toner cartridge to avoid touching this area.

NOTE

service representative.

: Do not touch the green underside of the toner

Hold the toner cartridge by the handle and slowly insert the toner cartridge into the opening in the machine.

Tabs on the sides of the toner cartridge and corresponding grooves within the machine will guide the toner cartridge into the correct position until it locks into place completely.

Close the securely closed.

: Do not dispose of used toner cartridge. Contact your

front cover

. Make sure that the cover is

Roll the toner cartridge 5 or 6 items to distribute the toner evenly inside the toner cartridge.

Thoroughly rolling the toner cartridge will assure maximum copies per toner cartridge.

Maintenance

Consumable and replacement parts

From time to time, you needs to replace the toner cartridge, roller, and fuser unit to maintain top performance and to avoid print quality problems and paper feed problems resulting from worn parts.

The following items should be replaced after you have printed the specified number of pages, or when the life span of each item has expired.

Items Yield (Average)

Transfer roller Approx. 50,000 pages

Fuser unit

Paper feeding roller

To purchase consumable and replacement parts, contact your TOSHIBA TEC dealer or the retailer where you bought your machine. We strongly recommend that these items be installed by a trained service professional, except for the

cartridge

(see page 8.4).

Approx. 50,000 pages

toner

Maintenance

9 Troubleshooting

This chapter gives helpful information for what to do if you encounter an error.

This chapter includes:

• Clearing paper jams

• Understanding the Status LED

• Understanding display messages

• Solving other problems

Clearing paper jams

When a paper jam occurs, Refer to the table below to locate and clear the paper jam.

Message Location of Jam Go to

[Paper Jam 0] Open/Close

Door

Paper Jam

In the paper input tray below and

appears on the display.

page 9.1

Remove the jammed paper by gently pulling it straight out.

If there is any resistance and the paper does not move when you pull, or if you cannot see the paper in this area, check the fuser area around the toner cartridge. See page 9.2.

Insert the paper input tray into the machine until it snaps into place.

Open and close the front cover to resume printing.

[Paper Jam 1] Open/Close Door

[Paper Jam 2] Check Inside

To avoid tearing the paper, pull out the jammed paper gently and slowly. Follow the instructions in the following sections to clear the jam.

In the fuser area or around the toner cartridge

In the manual feeder

In the paper exit area page 9.2

page 9.2

In the paper input tray

Open and close the front cover. The jammed paper automatically exits the machine.

If the paper does not exit, continue to step 2.

Pull the paper input tray out.

In the manual feeder

If the paper is not feeding properly, pull the paper out of the machine.

To resume printing, open and close the front cover.

Troubleshooting

In the fuser area or around the toner cartridge

NOTE

: The fuser area is hot. Take care when removing paper

from the machine.

Open the front cover and pull the toner cartridge out.

Remove the jammed paper by gently pulling it straight out.

In the paper exit area

Open and close the front cover. The jammed paper automatically exits the machine.

If the paper does not exit, continue to step 2.

Gently pull the paper out of the output tray. Skip to step 9.

If you cannot see the jammed paper in the output tray, continue to the next step.

Lift the scan unit.

Pull the jammed paper out gently.

Close the scan unit by pushing a tab to the left and hold it down and lowering the cover carefully until the cover is holding down the tab.

If there is any resistance and the paper does not move when you pull or if you cannot see the paper under the scan unit, continue to the next step.

Replace the toner cartridge and close the front cover. Printing automatically resumes.

Open the rear cover.

Remove the jammed paper by gently pulling it straight out.

Close the rear cover.

Open and close the front cover to resume printing.

Troubleshooting

Tips for avoiding paper jams

By selecting the correct paper types, most paper jams can be avoided. When a paper jam occurs, follow the steps outlined in page 9.1.

• Follow the procedures in page 2.3. Ensure that the adjustable guides are positioned correctly.

• Do not overload the paper input tray. Ensure that the paper is below the paper capacity mark on the inside wall of the paper input tray.

• Do not remove paper from the paper input tray while your machine is printing.

• Flex, fan, and straighten the paper before loading.

• Do not use creased, damp, or highly curled paper.

• Do not mix paper types in the paper input tray.

• Use only recommended print materials. See page 3.2.

• Ensure that the recommended print side of print materials is facing down in the paper input tray and facing up in the manual feeder.

Understanding the Status LED

The

Status

machine. See the table below to know your machine’s status.

Off • The machine is off-line.

Green On The machine is on-line and can be used.

Red On • The toner cartridge is totally exhausted.

LED on the control panel shows the status of your

Status Description

• The machine is in Power Save mode. When data is received, or any button is pressed, it switches to on-line automatically.

Blinking • When the backlight slowly blinks, the

machine is receiving data from the computer.

• When the backlight normally blinks, the machine is scanning the loaded document.

• When the backlight fast blinks, the machine is printing data.

Remove the old toner cartridge and install a new one. See page 8.4.

• A paper jam has occurred. To solve the problem, see page 9.1.

• The front cover is open. Close the front cover.

• There is no paper in the paper input tray. Load paper in the paper input tray.

• The machine has stopped due to a major error. Check the display message. See page 9.4 for details on the meaning of the error message.

Troubleshooting

Blinking • A minor error occurs and the machine is

waiting an error to be cleared. Check the display message. When the problem is cleared, the machine resumes.

• The toner cartridge is low. Order a new toner cartridge. You can temporarily improve print quality by redistributing the toner. See page 8.4.

Understanding display messages

Messages appear on the control panel display to indicate the machine's status or errors. Refer to the tables below to understand the messages’ meaning and correct the problem if necessary. Messages and their meanings are listed in alphabetical order.

NOTE

: When you call for service, it is very convenient to tell

the service representative the display message.

Display Meaning Suggested solutions

Door Open

Hsync Error

Invalid Cartridge

No Cartridge

The front cover or rear cover is not securely latched.

A problem has occurred in the LSU (Laser Scanning Unit).

You have used an unauthorized cartridge.

•You have used an unauthorized cartridge.

• The toner cartridge you have installed is not for your machine.

Close the cover until it locks into place.

Unplug the power cord and plug it back in. If the problem persists, please call for service.

You must use a TOSHIBA approved cartridge.

• You must use a TOSHIBA approved cartridge.

• Install a TOSHIBA genuine toner cartridge, designed for your machine.

Display Meaning Suggested solutions

[Paper Jam 0] Open/Close

Door

[Paper Jam 1] Open/Close Door

[Paper Jam 2] Check Inside

Power Failure

Scanner Error

Toner Empty

[Toner Empty] Replace Toner

Toner Low

Paper has jammed in the feeding area of the paper input tray.

Paper has jammed in the fuser area or in the manual feeder.

Paper has jammed in the paper exit area.

Power has turned off then on and the machine’s memory has not been back up.

There is a problem in the scanner unit.

The toner cartridge has run out.

The toner cartridge has run out. The printer stops printing.

The toner is almost empty.

Clear the jam. See page 9.1.

Clear the jam. See page 9.2.

The job which you were trying to do before the power failure must be completely re-done.

Unplug the power cord and plug it back in. If the problem persists, please call for service.

Replace the toner cartridge with a new one. See page 8.4.

Take out the toner cartridge and gently shake it. By doing this, you can temporarily reestablish printing operations.

[Jam 1] or [No Cartridge]

Low Heat Error

[LSU Error]

[No Paper] Add Paper

Open Heat Error

[Over Heat]

The toner cartridge is not installed.

There is a problem in the fuser unit.

A problem has occurred in the LSU (Laser Scanning Unit).

The paper in the paper input tray has run out.

There is a problem in the fuser unit.

Install the toner cartridge. See page 2.2.

Unplug the power cord and plug it back in. If the problem persists, please call for service.

Load paper in the paper input tray. See page 2.3.

Unplug the power cord and plug it back in. If the problem persists, please call for service.

Troubleshooting

Solving other problems

The following chart lists some conditions that may occur and the recommended solutions. Follow the suggested solutions until the problem is corrected. If the problem persists, please call for service.

Paper feeding problems

Printing problems

Condition Suggested solutions

Paper is jammed during printing.

Paper sticks together.

Multiple sheets of paper do not feed.

Paper does not feed into the machine.

The paper keeps jamming.

Transparencies stick together in the paper exit.

Envelopes skew or fail to feed correctly.

Clear the paper jam. See page 9.1.

• Ensure that there is not too much paper in the paper input tray. The paper input tray can hold up to 250 sheets of paper, depending on the thickness of your paper.

• Make sure that you are using the correct type of paper. See page 3.2.

• Remove paper from the paper input tray and flex or fan the paper.

• Humid conditions may cause some paper to stick together.

• Different types of paper may be stacked in the paper input tray. Load paper of only one type, size, and weight.

• If multiple sheets have caused a paper jam, clear the paper jam. See page 9.1.

• Remove any obstructions inside the machine.

• Paper has not been loaded correctly. Remove paper from the paper input tray and reload it correctly.

• There is too much paper in the paper input tray. Remove excess paper from the paper input tray.

• The paper is too thick. Use only paper that meets the specifications required by the machine. See page 3.2

• There is too much paper in the paper input tray. Remove excess paper from the tray. If you are printing on special materials, use the manual feeder.

• An incorrect type of paper is being used. Use only paper that meets the specifications required by the machine. See page 3.2.

• There may be debris inside the machine. Open the front cover and remove the debris.

Use only transparencies specifically designed for laser printers. Remove each transparency as it exits from the machine.

Ensure that the paper guides are against both sides of the envelopes.

Condition Possible cause Suggested solutions

The machine does not print.

The machine is not receiving power.

The machine is not selected as the default printer.

Check the machine for the following:

• The front cover is not closed. - Close the front cover.

• Paper is jammed. - Clear the paper jam. See page 9.1.

• No paper is loaded. - Load paper. See page 2.3.

• The toner cartridge is not installed. - Install the toner cartridge. See page 2.2.

If a printer system error occurs, contact your service representative.

The connection cable between the computer and the machine is not connected properly.

The connection cable between the computer and the machine is defective.

The port setting is incorrect.

The machine may be configured incorrectly.

The printer driver may be incorrectly installed.

Check the power cord connections. Check the power switch and the power source.

TOSHIBA

Select your default printer in your Windows.

Disconnect the printer cable and reconnect it.

If possible, attach the cable to another computer that is working properly and print a job. You can also try using a different printer cable.

Check the Windows printer setting to make sure that the print job is sent to the correct port, for example, LPT1. If the computer has more than one port, make sure that the machine is attached to the correct one.

Check the printer properties to ensure that all of the print settings are correct.

Repair the printer software. See the

Software Section

e-STUDIO180S

Troubleshooting

The machine is malfunctioning.

Check the display message on the control panel to see if the machine is indicating a system error.

Condition Possible cause Suggested solutions

The machine selects print materials from the wrong paper source.

A print job is extremely slow.

Half the page is blank.

The machine prints, but the text is wrong, garbled, or incomplete.

The paper source selection in the printer properties may be incorrect.

The job may be very complex.

If you are using Windows 98/Me, the Spooling Setting may be set incorrectly.

The page orientation setting may be incorrect.

The paper size and the paper size settings do not match.

The printer cable is loose or defective.

For many software applications, the paper source selection is found under the tab within the printer properties. Select the correct paper source. See the

Software Section

Reduce the complexity of the page or try adjusting the print quality settings.

The maximum print speed of your machine is 19 PPM for Letter-sized paper and 18 PPM for A4-sized paper.

From the and

e-STUDIO180S Properties

then choose the Select the desired spool setting.

Change the page orientation in your application. See the

Ensure that the paper size in the printer driver settings matches the paper in the paper input tray.

Or, ensure that the paper size in the printer driver settings matches the paper selection in the software application settings you use.

Disconnect the printer cable and reconnect. Try a print job that you have already printed successfully. If possible, attach the cable and the machine to another computer and try a print job that you know works. Finally, try a new printer cable.

Start

Printers

, click the

menu, choose

. Right-click the

machine icon, choose

Details

Spool Settings

Software Section

Paper

Settings

TOSHIBA

tab, and

button.

Pages print, but are blank.

The illustrations print incorrectly in Adobe Illustrator.

An error occurs repeatedly when you are printing with the USB connection.

The toner cartridge is defective or out of toner.

The file may have blank pages.

Some parts, such as the controller or the board, may be defective.

The setting in the software application is wrong.

When the USB mode is set to

Fast

, some PC users may experience poor USB communication.

Redistribute the toner, if necessary. See page 8.3.

If necessary, replace the toner cartridge.

Check the file to ensure that it does not contain blank pages.

Contact a service representative.

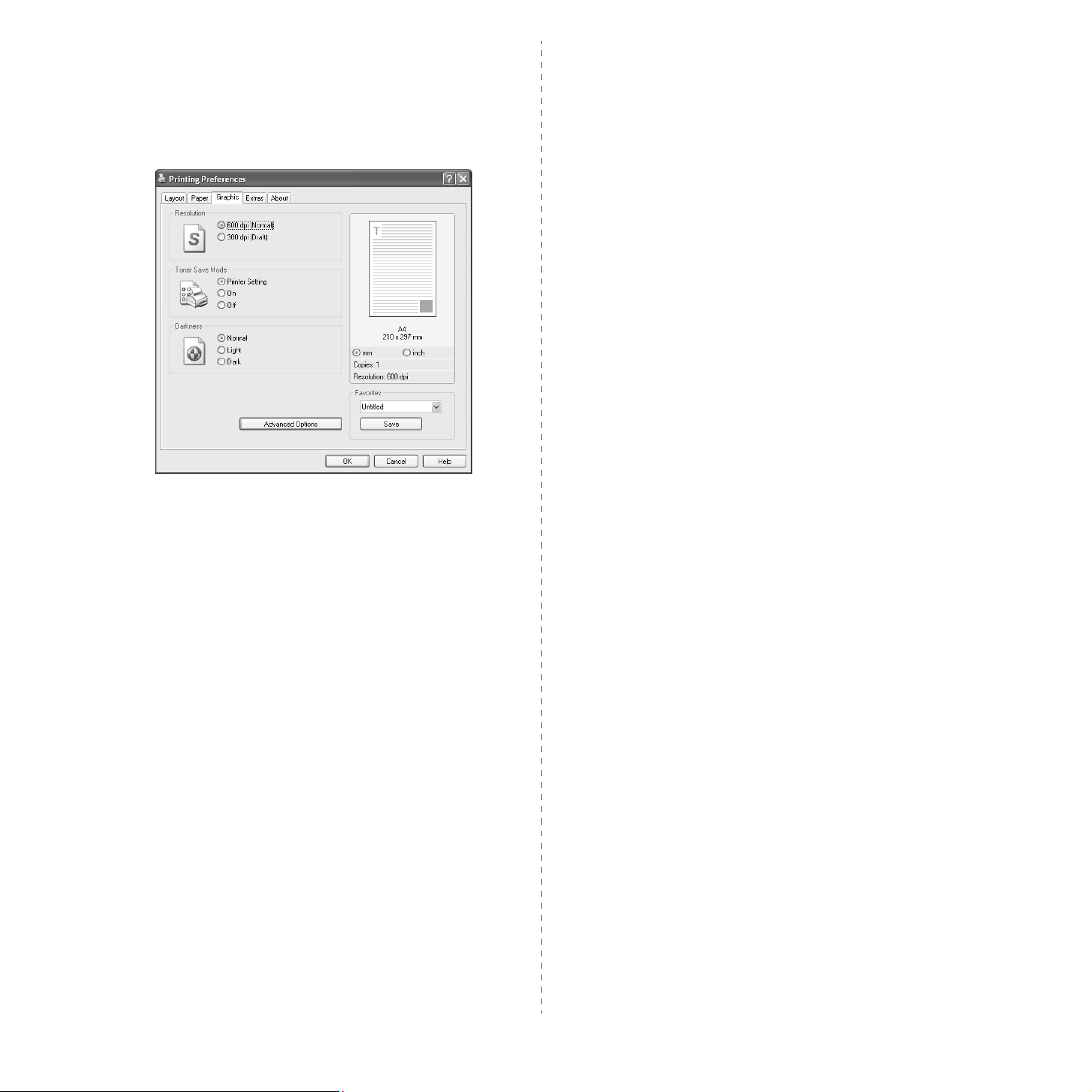

Download as Bit Image

Select

TrueType Options

Graphic properties and print the document again.

Change the USB mode to follow these step:

Press

appears on the top line of the display.

Press the scroll button ( or ) until

USB mode

Press the scroll button ( or ) until

Slow

appears and press Ok.

Press

Stop/Clear

standby mode.

window of the

Slow

until

Machine Setup

appears and press Ok.

to return to

in the

. To do so,

The wrong printer driver was selected.

The software application is malfunctioning.

The operating system is malfunctioning.

Check the application’s printer selection menu to ensure that your machine is selected.

Try printing a job from another application.

Exit Windows and reboot the computer. Turn the machine off and then back on again.

Troubleshooting

Printing quality problems

If the inside of the machine is dirty or paper has been loaded improperly, you may notice a reduction in print quality. See the table below to clear the problem.

Condition Suggested solutions

Light or faded print

AaBbCc AaBbCc AaBbCc

AaBbCc AaBbCc

If a vertical white streak or faded area appears on the page:

• The toner supply is low. You may be able to temporarily extend the toner cartridge life. See page 8.3. If this does not improve the print quality, install a new toner cartridge.

• The paper may not meet paper specifications; for example, the paper is too moist or too rough. See page 3.2

• If the entire page is light, the print resolution setting is too low or the toner save mode is on. Adjust the print resolution and turn the toner save mode off. See the page 2.6, respectively.

• A combination of faded or smeared defects may indicate that the toner cartridge needs cleaning. See page 8.2.

• The surface of the LSU part inside the machine may be dirty. Clean the LSU. See page 8.2.

Software Section

and

Condition Suggested solutions

Vertical lines

AaBbCc AaBbCc

If black vertical streaks appear on the page:

• The drum inside the toner cartridge has probably been scratched. Remove the toner cartridge and install a new one. See page 8.4.

AaBbCc AaBbCc AaBbCc

Gray background

AaBbCc AaBbCc AaBbCc AaBbCc AaBbCc

Toner smear

If white vertical streaks appear on the page:

• The surface of the LSU part inside the machine may be dirty. Clean the LSU (see page 8.2).

If the amount of background shading becomes unacceptable:

• Change to a lighter weight paper. See

• Check the machine’s environment: very dry (low humidity) or high humidity (higher than 80% RH) conditions can increase the amount of background shading.

• Remove the old toner cartridge and install a new one. See page 8.4.

• Clean the inside of the machine. See page 8.1.

• Check the paper type and quality. See page 3.2.

• Remove the toner cartridge and install a new one. See page 8.4.

page 3.2

Toner specks

AaBbCc AaBbCc

AaBbCc AaBbCc AaBbCc

Dropouts

AaBbCc AaBbCc AaBbCc AaBbCc AaBbCc

• The paper may not meet specifications; for example, the paper is too moist or too rough. See page 3.2

• The transfer roller may be dirty. Clean the inside of your machine. See page 8.1.

• The paper path may need cleaning. See page 8.2.

If faded areas, generally rounded, occur randomly on the page:

• A single sheet of paper may be defective. Try reprinting the job.

• The moisture content of the paper is uneven or the paper has moist spots on its surface. Try a different brand of paper. See

• The paper lot is bad. The manufacturing processes can cause some areas to reject toner. Try a different kind or brand of paper.

• If these steps do not correct the problem, contact a service representative.

page 3.2

Vertical repetitive defects

AaBbCc AaBbCc

AaBbCc AaBbCc AaBbCc

If marks repeatedly appear on the printed side of the page at even intervals:

• The toner cartridge may be damaged. If a repetitive mark occurs on the page, print a cleaning sheet several times to clean the toner cartridge; see page 8.2. After the printout, if you still have the same problems, remove the toner cartridge and install a new one. See page 8.4.

• Parts of the machine may have toner on them. If the defects occur on the back of the page, the problem will likely correct itself after a few more pages.

• The fusing assembly may be damaged. Contact a service representative.

• If you use inferior quality paper; see page 8.2.

Troubleshooting

Condition Suggested solutions

Background scatter

Misformed characters

Page skew

aBbC

AaBbC

AaBbCc

aBbCc

Curl or wave

Background scatter results from bits of toner randomly distributed on the printed page.

• The paper may be too damp. Try printing with a different batch of paper. Do not open packages of paper until necessary so that the paper does not absorb too much moisture.

• If background scatter occurs on an envelope, change the printing layout to avoid printing over areas that have overlapping seams on the reverse side. Printing on seams can cause problems.

• If background scatter covers the entire surface area of a printed page, adjust the print resolution through your software application or the printer properties.

• If characters are improperly formed and producing hollow images, the paper stock may be too slick. Try a different paper. See

• If characters are improperly formed and producing a wavy effect, the scanner unit may need service. For service, contact a service representative.

• Ensure that the paper is loaded properly.

• Check the paper type and quality. See

• Ensure that the paper or other material is loaded correctly and the guides are not too tight or too loose against the paper stack.

• Ensure that the paper is loaded properly.

• Check the paper type and quality. Both high temperature and humidity can cause paper curl.

page 3.2

See

• Turn over the stack of paper in the tray. Also try rotating the paper 180° in the tray.

• Try printing to the rear cover.

page 3.2

Wrinkles or creases

Back of printouts are dirty

Black pages

Loose toner

Character Voids

• Ensure that the paper is loaded properly.

• Check the paper type and quality. See

• Turn over the stack of paper in the tray. Also try rotating the paper 180° in the tray.

• Try printing to the rear cover.

Check for leaking toner. Clean the inside of the machine. See page 8.1.

• The toner cartridge may not be installed properly. Remove the toner cartridge and reinsert it.

• The toner cartridge may be defective and need replacing. Remove the toner cartridge and install a new one. See page 8.4.

• The machine may require repair. Contact a service representative.

• Clean the inside of the machine. See page 8.1.

• Check the paper type and quality. See

• Remove the toner cartridge and install a new one. See page 8.4.

• If the problem persists, the machine may require repair. Contact a service representative.

Character voids are white areas within parts of characters that should be solid black:

• If you are using transparencies, try another type of transparency. Because of the composition of transparencies, some character voids are normal.

• You may be printing on the wrong surface of the paper. Remove the paper and turn it around.

• The paper may not meet paper specifications. See page 3.2

page 3.2

Troubleshooting

Condition Suggested solutions

Horizontal stripes

AaBbCc AaBbCc AaBbCc AaBbCc AaBbCc

Curl

If horizontally aligned black streaks or smears appear:

• The toner cartridge may be installed improperly. Remove the toner cartridge and reinsert it.

• The toner cartridge may be defective. Remove the toner cartridge and install a new one. See page 8.4.

• If the problem persists, the machine may require repair. Contact a service representative.

If the printed paper is curled or paper does not feed into the machine:

• Turn over the stack of paper in the tray. Also try rotating the paper 180° in the tray.

• Try printing to the rear cover.

Copying problems

Condition Suggested solutions

Copies are too light or too dark.

Smears, lines, marks, or spots appears on copies.

Copy image is skewed.

Blank copies print out.

Image rubs off the copy easily.

Use

Darkness

of the copies.

• If defects are on the original, use lighten the background of your copies.

• If no defects are on the original, clean the scan unit. See page 8.2.

• Ensure that the original is face down on the document glass.

• Check that the paper is loaded correctly.

Ensure that the original is face down on the document glass.

• Replace the paper in the paper input tray with paper from a new package.

• In high humidity areas, do not leave paper in the machine for extended periods of time.

to darken or lighten the background

Darkness

Toner cartridge produces fewer copies than expected before running out of toner.

• Your originals may contain pictures, solids, or heavy lines. For example, your originals may be forms, newsletters, books, or other documents that use more toner.

• The machine may be turned on and off frequently.

• The document cover may be left open while copies are being made.

Scanning problems

Condition Suggested solutions

The scanner does not work.

The unit scans very slowly.

• Make sure that you place the document to be scanned face down on the document glass.

• There may not be enough available memory to hold the document you want to scan. Try the Prescan function to see if that works. Try lowering the scan resolution rate.

• Check that the USB cable is connected properly.

• Make sure that the USB cable is not defective. Switch the cable with a known good cable. If necessary, replace the cable.

• Check that the scanner is configured correctly. Check the scan setting in the application you want to use to make certain that the scanner job is being sent to the correct port, for example, LPT1.

• Check if the machine is printing received data. If so, scan the document after the received data has been printed.

• Graphics are scanned more slowly than text.

• Communication speed slows in scan mode because of the large amount of memory required to analyze and reproduce the scanned image. Set your computer to the ECP printer mode through BIOS setting. It will help to increase the speed. For details about how to set BIOS, refer to your computer User’s Guide.

Frequent copy paper jams occur.

• Fan the stack of paper, then turn it over in the paper input tray. Replace the paper in the paper input tray with a fresh supply. Check/adjust the paper guides, if necessary.

• Ensure that the paper is the proper paper weight

• Check for copy paper or pieces of copy paper

75 g/m

remaining in the machine after a paper jam has been cleared.

(20 lb bond) paper is recommended.

Troubleshooting

Condition Suggested solutions

Message appears on your computer screen:

• “Device can't be set to the H/W mode you want.”

• “Port is being used by another program.”

• “Port is disabled.”

•“Scanner is busy receiving or printing data. When the current job is completed, try again.”

• “Invalid handle.”

• “Scanning has failed.”

• There may be a copying or printing job in progress. When that job is complete, try your job again.

• The Selected port is currently being used. Restart your computer and try again.

• The printer cable may be improperly connected or the power may be off.

• The scanner driver is not installed or the operating environment is not set up properly.

• Ensure that the machine is properly connected and the power is on, Then restart your computer.

• The USB cable may be improperly connected or the power may be off.

Common Windows problems

Condition Suggested solutions

“File in Use” message appears during installation.

“Error Writing to LPTx” message appears.

“General Protection Fault ”, “Exception OE”, “Spool32”, or “Illegal Operation” messages appear.

“Fail To Print”, “A printer timeout error occurred.” messages appear.

NOTE

: Refer to Microsoft Windows 98/Me/2000/XP/Vista User’s Guide that came with your PC for further information on Windows error messages.

Exit all software applications. Remove all software from the StartUp Group, then restart Windows. Reinstall the printer driver.

• Ensure that the cables are connected correctly, the machine is on.

• If bi-directional communication is not turned on in the driver, it will also cause this message.

Close all other applications, reboot Windows and try printing again.

These messages may appear during printing. Just keep waiting until the machine finishes printing. If the message appears in standby mode or after printing has been completed, check the connection and/or whether an error has occurred.

Troubleshooting

Specifications

Item Description

Duty cycle Monthly print: Up to 10,000 pages

This chapter includes:

• General specifications

• Scanner and copier specifications

• Printer specifications

General specifications

Item Description

Model name

Paper input capacity Tray with multi-pages: 250 multi-pages for plain

Paper output capacity Face down: 50 sheets

Consumables 1-piece toner cartridge system

Power rating 220 - 240 VAC, 50/60 Hz, 2.5 A

Power consumption Average: 350 W

Noise level

Warm-up time Less than 42 seconds

First print out time Standby mode: less than 11 seconds

Operating environment

DP-1820

paper (20 lb bond, 75 g/m Tray with single page and manual tray: 1 single page

for plain paper, transparencies, labels, Post Card and envelopes (16 ~43 lb bond, 60 ~ 165 g/m

Face up: 1 sheet

Power save mode: Less than 10 W

Standby mode: Less than 38 dBA Scanning / Printing mode: Less than 53 dBA Warm-up: Less than 45 dBA

Cold status: less than 53 seconds

Temperature: 50° F to 89° F (10° C to 32° C) Humidity: 20% to 80% RH

)

a Sound Pressure Level, ISO7779 b The number of pages may be affected by operating environment, printing interval,

media type, and media size.

Scanner and copier specifications

Item Description

Compatibility TWAIN standard/ WIA standard

Scanning method Color CIS

Resolution Optical: Max. 600 x 2400 dpi (Mono and color)

Enhanced: 4,800 x 4,800 dpi

Effective scanning length Max. 297 mm (11.7 inches)

Effective scanning width Max. 216 mm (8.5 inches)

Effective: 208 mm (8.2 inches)

Color bit depth 24 bit

Mono bit depth 1 bit for Black & White mode

8 bit for Gray mode

Copy speed

Copy resolution Scan: up to 600 x 300 dpi (Text, Text/Photo)

Zoom rate 50 ~ 200%

Multiple copies 1-99 pages

Gray scale 256 levels

a Copy Speed is based on Single Document Multiple Copy.

Up to 18 ppm in A4 (19 ppm in Letter)

up to 600 x 600 dpi (Photo) Print: up to 600 x 600 dpi (Text, Text/Photo,

Photo)

Display 16 characters x 2 lines

Toner cartridge life

Memory 8 MB (Non-extendable)

External dimension (W x D x H)

Weight 9.3 Kg (including consumables)

Package weight Paper: 2.16 Kg, Plastic: 0.4 Kg

3,000 pages at ISO 19752 5% coverage (Ships with 1,000 pages toner cartridge)

409 x 362 x 232 mm (16.1 x 14.3 x 9.1 inches)

10.

Specifications

Printer specifications

Item Description

Printing method Laser Beam Printing

Printing speed

First print out time 11 seconds (From Ready)

Print resolution Up to 600 x 600 dpi

OS Compatibility Windows 98/Me/2000/XP/Vista

Interface USB 2.0

a Print speed will be affected by operating system used, computing performance, applica-

tion software, connecting method, media type, media size, and job complexity.

Up to 18 ppm in A4 (19 ppm in Letter)

10.

Specifications

INDEX
