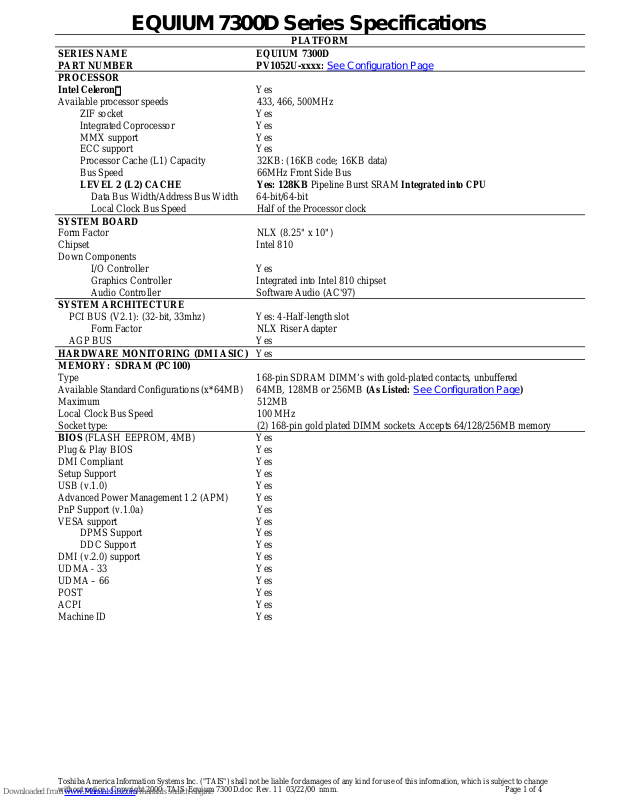

EQUIUM 7300D Series Specifications

PLATFORM

SERIES NAME EQUIUM 7300D PART NUMBER PV1052U-xxxx: See Configuration Page PROCESSOR Intel Celeron

Available processor speeds 433, 466, 500MHz

ZIF socket Yes Integrated Coprocessor Yes MMX support Yes ECC support Yes Processor Cache (L1) Capacity 32KB: (16KB code; 16KB data) Bus Speed 66MHz Front Side Bus LEVEL 2 (L2) CACHE Yes: 128KB Pipeline Burst SRAM Integrated into CPU

Data Bus Width/Address Bus Width 64-bit/64-bit Local Clock Bus Speed Half of the Processor clock

SYSTEM BOARD

Form Factor NLX (8.25" x 10") Chipset Intel 810 Down Components

I/O Controller Yes Graphics Controller Integrated into Intel 810 chipset Audio Controller Software Audio (AC'97)

SYSTEM ARCHITECTURE

PCI BUS (V2.1): (32-bit, 33mhz) Yes: 4-Half-length slot

Form Factor NLX Riser Adapter

AGP BUS Yes

HARDWARE MONITORING (DMI ASIC) MEMORY: SDRAM (PC100)

Type 168-pin SDRAM DIMM’s with gold-plated contacts, unbuffered Available Standard Configurations (x*64MB) Maximum 512MB Local Clock Bus Speed 100 MHz Socket type: (2) 168-pin gold plated DIMM sockets: Accepts 64/128/256MB memory

BIOS (FLASH EEPROM, 4MB)

Plug & Play BIOS Yes DMI Compliant Yes Setup Support Yes USB (v.1.0) Yes Advanced Power Management 1.2 (APM) Yes PnP Support (v.1.0a) Yes VESA support Yes

DPMS Support Yes

DDC Support Yes DMI (v.2.0) support Yes UDMA - 33 Yes UDMA – 66 Yes POST Yes ACPI Yes Machine ID Yes

Yes

64MB, 128MB or 256MB (As Listed: See Configuration Page)

Yes

Toshiba America Information Systems Inc. ("TAIS") shall not be liable for damages of any kind for use of this information, which is subject to change

Page 2

EQUIUM 7300D Series Specifications

SERIES NAME EQUIUM 7300D PART NUMBER PV1052U-xxxx: See Configuration Page EXTERNAL INTERFACES

One RJ-45 port One 9-Pin Serial (16550 UART compliant) Yes Universal Serial Bus ports

One 25-Pin Parallel Yes: Supports EPP, ECP One 15-Pin RGB (SVGA video) Yes One (PS/2) Mouse Port Yes One (PS/2) Windows 95 104 Keyboard Yes Microphone (3.5mm mini jack, monaural) Yes Line-out (3.5mm mini jack, stereo, 0.7V rms) Yes AC IN (Standard 3 prong ) Yes

VIDEO (SDRAM)

Video Memory

Data Bus Width 64-bit Clock Speed 100 MHz

Graphic Controller

Standards Supported DPMS Power Managment, PnP compliant Controller Chip

Connected Bus type CPU System Bus 64-bit BitBLT Engine Yes 2D Supported Features BitBLT, Hardware Cursor, DirectDraw 3D Supported Features Yes

Triangle Setup Yes Modeling Fo ggi ng, lighting Shading Gouraud shading Rendering Texture mapping: Nearest, Linear, MIP Nearest, MIP Linear, Anisotropic,

Alpha-blending Yes Direct3D support Yes

Digital Video Accelerator

YUV Color Space Conversion Yes: Off-loads conversion from CPU for higher performance full motion video

Scaling Yes: Bilinear Interpolation Motion Compensation Yes

As Listed: See Configuration Page

Supports 2 USB peripherals without external hub

Intel Dynamic System Memory (Shares System Main Memory)

Integrated into Intel 810 chipset (Intel 752 graphics compatible)

Z-Buffering

Without compromising picture quality or frame rate.

SUPPORTED VIDEO RESOLUTIONS Colors/ Refresh Rate

(Non-interlaced unless otherwise specified) 4MB Memory

640 x 480 24-bit (16.7M) 85 Hz 800 x 600 24-bit (16.7M) 85 Hz 1024 x 768 24-bit (16.7M) 85 Hz 1280 x 1024 24-bit (16.7M) 85 Hz 1600 x 1200 8-bit (256) 75 Hz

SOUND SYSTEM

Chipsets: Compatibility Sound Blaster Pro & Windows Sound System FM Synthesis Yes 16-bit stereo audio full duplexed Yes 3D sound support Yes DirectSound Yes Built-in microphone No

1. Both ports operate from a single controller allowing 128 devices total, not per port. Throughput for the Universal Serial Bus (USB)

12mb/sec.

Toshiba America Information Systems Inc. ("TAIS") shall not be liable for damages of any kind for use of this information, which is subject to change

Integrated into Intel 810 chipset (Audio-Codec 97 )

Page 3

EQUIUM 7300D Series Specifications

SERIES NAME EQUIUM 7300D PART NUMBER PV1052U-xxxx: See Configuration Page

CHASSIS "DESKTOP DESIGN"

EXPANSION BAY TOTAL

Internal 3.5” 2 1 1 (HDD)

5.25” 0 0 0 External 3.5” 1 0 1 (FDD)

5.25” 2 1 1 (CD-ROM)

EXPANSION SLOTS TOTAL

PCI: Half-Le ngth 4 4 0

POWER SUPPLY (200Watts )

Input (Voltage/Frequency) 115-230V; 47-63Hz Cord Length 6 feet

SUPPORTED SAFETY STANDARDS

US/Canada UL 1950 – CSA 950-95, 3rd Edition, 7/28/95

CSA C22.2 No. 950-95 ISO9241-3/8 ICES-003, Issue 2 FCC Class B

Europe EN 60950: A1-A4, EN55022

CE Mark EN 50082-1 (1992) IEC 801-4 (European harmonized standard) IEC 801-2 ESD testing IEC 801-3 Radiated Field susceptibility TUV/GS Mark, Blue Angel

International CISPR 22, 1995

IEC 950, 2nd Edition, 1995 (w/amendments 1, 2 &3 & 4) AS/NZS 3548 Class B (1995)

CERTIFICATIONS: Windows 95 & Windows NT logo, Novell Client, Ener gy Star HARDWARE COMPLIANT: PC98, PC99, Wired For Management (WfM), Year 2000 SECURITY

Hardware Security Lock Loop (Secures chassis internals) – lock not included Miscellaneous Chassis Intrusion Alert Password Support Supervisor/Administrator, User, Sleep

DIMENSIONS WEIGHT BUNDLED SOFTWARE OPTIONS: Windows 95, Windows 98 Second Edition or Windows NT W orkstation v4.0

w/NT Service Pack 4 & SystemSoft Card Wizard, Intel LANDesk Client Manager 6. 0 and Toshiba SMS Connection CD’s Included: Toshiba Configuration Builder CD & Toshiba Companion disk

WARRANTY: 3 Yr. Limited Warranty: 1 ENVIRONMENTAL SPECIFICATIONS Operating Non-operating

Temperature: 50°F (10°C) to 95°F (35 °C) -4°F (-20°C) to 140°F (60°C)

Packaged: -30°C to 70°C -- --

Relative Humidity: 3 0 % to 8 0 % non-condensing 10% to 90% non-condensing Shock: 10G; 1.5G w/CD-ROM installed 60G; 10G w/CD-ROM installed Vibration (5~150Hz f/30 minutes, each axis) 0.3G

Packaged: 1.0G -- --

17.32”L x 16.34”W x 5.12”D

24.5 lbs.

Year on-site, 2nd and 3rd year parts

AVAILABLE CONFIGURED

0.6G

Toshiba America Information Systems Inc. ("TAIS") shall not be liable for damages of any kind for use of this information, which is subject to change

Page 4

EQUIUM 7300D Series Specifications

SERIES NAME EQUIUM 7300D PART NUMBER PV1052U-xxxx: See Configuration Page

COMPONENT STORAGE FDD HDD (3.5” Ha lf-height Enhanced IDE) As Listed: See Configuration Page

Type SMART, Ultra-DMA66 Capacity options RPM 5400 Buffer 512KB Access Time <9.7 msec Ultra DMA Yes

Burst Data Transfer Rate Ultra DMA Mode4 (66.0MB/sec); Ultra DMA Mode2 (33.0MB/sec);

Certifications SMART, UDMA-33, UDMA-66, Energy Star Controller Enhanced IDE

CD-ROM: As Listed: See Configuration Page

Available options CD-ROM speed 40X

Interface ATAPI ( Enhanced IDE )

Modes supported PIO mode 4, DMA mode 2, and Ultra DMA Random Access Time < 80 ms(typical) Sustained Data Transfer Rate 2550~6000KB/Sec(17X~40X), average over 30X Disk Formats supported ISO9660 Data Discs, CD-ROM(Mode 1 & Mode 2), Mixed Mode (Audio Combined

DVD-ROM (Toshiba SD-M1202) 8X speed, Region 1 (DVD-ROM is for storage only) Interface ATAPI ( Enhanced IDE )

Random Access Time 105ms (DVD mode); 80ms (CD-ROM mode) Sustained Data Transfer Rate (DVD) 4,460KB/sec to 10,800KB/sec Sustained Data Transfer Rate (CD) 2,595KB/sec to 6,000KB/sec Supported Disk Formats Multisession Photo-CD, CD-Extra, CD-ROM XA, CD-I, Video CD, CD-G,

OTHER OPTIONAL DEVICES ETHERNET SUPPORT As Listed: See Configuration Page

Available options Intel EtherExpress PRO/100B PCI or None Chipset i82559 Support Network 100Base-TX, 10Base T Port RJ 45 (with Connection Status LED and Ethernet Speed LED) Wake on LAN Yes

KEYBOARD (PS/2)

Choice of Two Keyboard Options

Enhanced 104-key keyboard Yes Windows 95 support Yes

3.5mm Travel Yes 12 dedicated function keys Yes Numeric keypad Yes Keyboard tilt Yes Scroll Lock, CapsLock, NumLock Indicators Yes

POINTING DEVICE Choice of

3.5” 1.44MB Floppy Disk Drive

6.4GB, 10.2GB, 13.6GB, 17.2GB, 20.5GB ( GB = 1billion bytes)

PIO Mode 4/Multi-word DMA mode2 (16.7MB/sec)

None, 40X CD-ROM or 8X DVD-ROM (DVD-ROM is for storage only)

CD-ROM Disc), CD-ROM/XA(Mode 2, Form 1 & Form 2), CD-I/FMV, Video CD, CD-DA, Photo-CD(Single & Multisession), Karaoke CD, CD Extra, CD-RW (read

Only)

with 256KB Buffer

CD-I Ready, MPC-3 Compliant, DVD, DVD-R, CD-DA, CD-R, CD-RW (read only) PCMCIA card reader (ISA based) or 100MB Iomega® Zip® (IDE)

Value Keyboard

2 Button with PS/2 connector 2 Button Scroller mouse with PS/2 connector and wheel for scroll function
