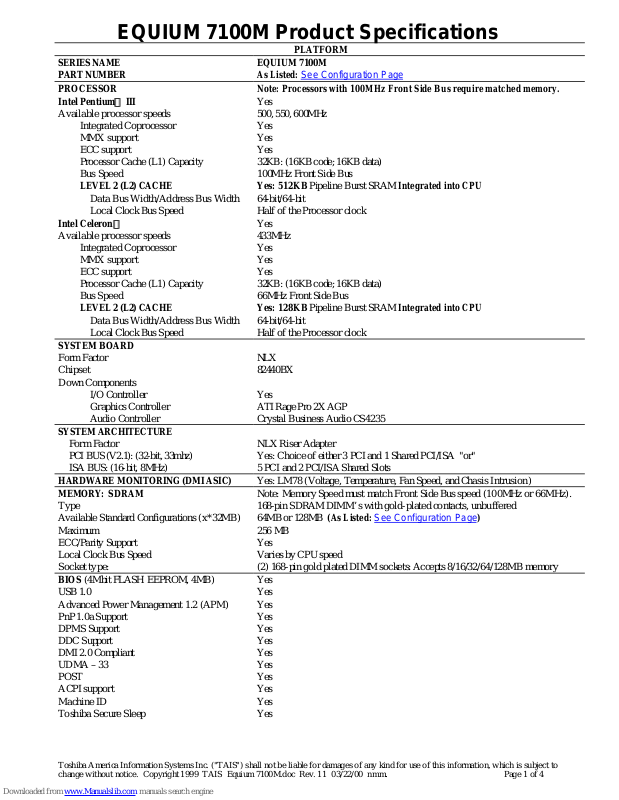

EQUIUM 7100M Product Specifications

PLATFORM

SERIES NAME EQUIUM 7100M PART NUMBER As Listed: See Configuration Page

PROCESSOR Note: Processors with 100MHz Front Side Bus require matched memory. Intel Pentium III Yes

Available processor speeds 500, 550, 600MHz

Integrated Coprocessor Yes MMX support Yes ECC support Yes Processor Cache (L1) Capacity 32KB: (16KB code; 16KB data) Bus Speed 100MHz Front Side Bus LEVEL 2 (L2) CACHE Yes: 512KB Pipeline Burst SRAM Integrated into CPU

Data Bus Width/Address Bus Width 64-bit/64-bit Local Clock Bus Speed Half of the Processor clock

Intel Celeron Yes Available processor speeds 433MHz

Integrated Coprocessor Yes MMX support Yes ECC support Yes Processor Cache (L1) Capacity 32KB: (16KB code; 16KB data) Bus Speed 66MHz Front Side Bus LEVEL 2 (L2) CACHE Yes: 128KB Pipeline Burst SRAM Integrated into CPU

Data Bus Width/Address Bus Width 64-bit/64-bit Local Clock Bus Speed Half of the Processor clock

SYSTEM BOARD

Form Factor NLX Chipset 82440BX Down Components

I/O Controller Yes Graphics Controller ATI Rage Pro 2X AGP Audio Controller Crystal Business Audio CS4235

SYSTEM ARCHITECTURE

Form Factor NLX Riser Adapter PCI BUS (V2.1): (32-bit, 33mhz) Yes: Choice of either 3 PCI and 1 Shared PCI/ISA "or" ISA BUS: (16-bit, 8MHz) 5 PCI and 2 PCI/ISA Shared Slots

HARDWARE MONITORING (DMI ASIC) Yes: LM78 (Voltage, Temperature, Fan Speed, and Chasis Intrusion) MEMORY: SDRAM Note: Memory Speed must match Front Side Bus speed (100MHz or 66MHz).

Type 168-pin SDRAM DIMM’s with gold-plated contacts, unbuffered Available Standard Configurations (x*32MB) 64MB or 128MB (As Listed: See Configuration Page) Maximum 256 MB ECC/Parity Support Yes Local Clock Bus Speed Varies by CPU speed Socket type: (2) 168-pin gold plated DIMM sockets: Accepts 8/16/32/64/128MB memory BIOS (4Mbit FLASH EEPROM, 4MB) Yes USB 1.0 Yes Advanced Power Management 1.2 (APM) Yes PnP 1.0a Support Yes DPMS Support Yes DDC Support Yes DMI 2.0 Compliant Yes UDMA – 33 Yes POST Yes ACPI support Yes Machine ID Yes Toshiba Secure Sleep Yes

Toshiba America Information Systems Inc. ("TAIS") shall not be liable for damages of any kind for use of this information, which is subject to change without notice. Copyright 1999 TAIS Equium 7100M.doc Rev. 11 03/22/00 nmm. Page 1 of 4

Page 2

EQUIUM 7100M Product Specifications

SERIES NAME EQUIUM 7100M PART NUMBER As Listed: See Configuration Page

EXTERNAL INTERFACES All ports color coded for easy installation

One 9/25-Pin Serial Yes (NS16C550 UART compatible) Two Universal Serial Bus ports One 25-Pin Parallel Yes: (Multimode bidirectional EPP/ECP compatible) One 15-Pin RGB (SVGA video) Yes One (PS/2) Mouse Port Yes One (PS/2) 104 Keyboard Yes One External Microphone jack Yes Line-out (3.5mm mini jack, stereo, 0.7V rms) Yes AC IN (Standard 2 prong ) Yes

VIDEO

Video Memory: SGRAM 4 MB expandable to 8MB (via SO-DIMM socket)

Speed 40ns Data Bus Width 64-bit Clock Speed 100 MHz

Graphic Controller

Standards Supported DPMS Power Managment, PnP Compliant Local Bus support Yes: PCI Bus (33 Mhz, 32-bit) Controller Chip ATI Rage Pro Turbo 2X (AGP – Accelerated Graphics Port)

Connected Bus type AGP 1.0

Bus Speed 133 MHz 64-bit BitBLT Engine Yes 2D Supported Features BitBLT, Hardware Cursor (up to 64 x 64 x 2), DirectDraw,

3D Supported Features Yes: supports 24-bit color

AGP Support Yes: (133mhz with sidebands and pipelining 64-bit PCI Graphics Accelerator)

Triangle Setup Yes

Modeling Fogging, lighting

Shading Gouraud shading

Rendering Texture mapping: Bilinear,Trilinear, Anti-aliasing, MIP mapping, Z-Buffering

AGP Texturing (Execute mode) Yes

Alpha-blending Yes

Direct3D support Yes

Open GL support Yes

Digital Video Accelerator

YUV Color Space Conversion Yes: Off-loads conversion from CPU for higher performance full motion video

Scaling/ Interpolation Yes Direct Video, DirectMPEG Yes Motion Compensation Yes

SUPPORTED VIDEO RESOLUTIONS

(Non-interlaced unless otherwise specified) 4MB Memory 6MB Memory

1. Both ports operate from a single controller allowing 128 devices total, not per port. Throughput for the Universal Serial Bus (UBS) is 12Mbits/sec.

♦ At maximum resolution (1600 x 1200) the standard pre-install will support the following refresh rates: 2MB/8-bit (256)colors/85Hz; 4MB/16-bit (64K) colors/85Hz; 6MB/24-bit (16.7M)/75Hz.

Supports 2 USB peripherals without external hub

Retangle Fill,Line Draw, Polygon Fill, Panning/Scrolling, Bit Masking, Monochrome Expansion, Scssoring and full ROP support

Without compromising picture quality or frame rate.

♦♦

Colors/ Refresh Rate

640 x 480 32-bit (4.2B) 200 Hz 32-bit (4.2B) 200 Hz 800 x 600 32-bit (4.2B) 200 Hz 32-bit (4.2B) 200 Hz 1024 x 768 32-bit (4.2B) 140 Hz 32-bit (4.2B) 140 Hz 1152 x 864 32-bit (4.2B) 100 Hz 32-bit (4.2B) 100 Hz 1280 x 1024 24-bit (16.7M) 100 Hz 32-bit (4.2B) 90 Hz 1600 x 1200 16-bit (64K) 76 Hz 24-bit (16.7M) 76 Hz

Page 3

EQUIUM 7100M Product Specifications

SERIES NAME EQUIUM 7100M (PLATFORM con.) PART NUMBER As Listed: See Configuration Page

SOUND SYSTEM

Chipsets: Crystal Business Audio CS4235 Compatibility Sound Blaster Pro & Windows Sound System FM Synthesis Yes (Yamaha OPL3 compatible) 16-bit stereo audio Yes 3D Sound/Direct Sound support Yes Built-in microphone No

CHASSIS (DESKTOP DESIGN)

EXPANSION BAY TOTAL AVAILABLE CONFIGURED

Internal 3.5” 2 1 1 (HDD)

5.25” 0 0 0 External 3.5” 2 1 1 (FDD)

As Listed: See Configuration Page5.25” 3 2 1 (CD-ROM)

EXPANSION SLOTS TOTAL AVAILABLE CONFIGURED

(As Listed: See Configuration Page)

Option 1: 7-Slot Riser Card 7 7 0

PCI: Full-Length 2 2 0 PCI: Half-Length 3 3 0 PCI/ISA Shared: Full-length 2 2 0

Option 2: 4-Slot Riser Card 4 4 0

PCI: Half-Length 3 3 0 PCI/ISA Shared: Full-length 1 1 0

POWER SUPPLY 7-Slot Riser Configuration 4-Slot Riser Configuration

Watts 300W 200W Input (Voltage/Frequency) 115VAC/50-60Hz 115VAC/50-60Hz Switched Yes Yes

SUPPORTED SAFETY STANDARDS

US/Canada UL 1950 – CSA950-95, 3rd Edition, 7/28/95

CSA22.2 No.950-93, 3rd Edition ICES-003, Issue 2

FCC Class B International IEC 950, 2nd Edition, 1991 (w/amendments 1,2, & 3) Europe EN 60950 w/Nordic deviation

CERTIFICATIONS: Windows 95 & Windows NT logo, Novell Client, Energy Star HARDWARE COMPLIANT: PC97, PC98 ACPI, Wired For Management (WfM) SECURITY

Hardware Chasis Lock (key mechanism/padlock) -- Lock not included Keyboard/Mouse Lock Secure sleep Miscellaneous Screen blank Password Support Power-on, Supervisor/Administrator, User, Sleep, Setup Utility & Disable

DIMENSIONS

Measurements/ Weight 9.0”W x 20.0”D x 19.5”H Weight: 38.5 lbs.

BUNDLED SOFTWARE OPTIONS: Windows 95, Windows 98 or Windows NT Workstation v4.0 w/Windows NT Serv. Pack 4; Intel LANDesk Client Manager (v.3.3); Equium On-line User’s Guide; Expert Intelligent Help -- Systemsoft SystemWizard (v.3.0) CD’s Included: Configuration Builder CD

WARRANTY: 3 Yr. Parts/One Yr. Labor (First Yr. On-site), Years 2 & 3 Parts only; 24 x 7 Dedicated technical support

ENVIRONMENTAL SPECIFICATIONS Operating Non-operating

Temperature: 50°F (10°C) to 95°F (35°C) 14°F (-20°C) to 140°F (60°C)

Packaged: -30°C to 70°C -- --

Relative Humidity: 30% to 80% non-condensing 10% to 90% non-condensing Shock: 10G; 1.5G w/CD-ROM installed 60G; 10G w/CD-ROM installed Vibration (5~150Hz f/30 minutes, each axis) 0.35G 0.75G

Page 4

EQUIUM 7100M Product Specifications

SERIES NAME EQUIUM 7100M PART NUMBER As Listed: See Configuration Page

COMPONENT STORAGE FDD 3.5” 1.44MB Floppy Disk Drive HDD (3.5” Half-height Enhanced IDE) As Listed: See Configuration Page

Type SMART, Ultra-DMA, Energy Star Capacity options 4GB, 6.4GB, 8GB, 10GB, 13.6GB, 17.2GB or 20.5GB (See Configuration Page) RPM 5400 Buffer 256KB Access Time (average) 9.5msec (read); 15msec (write) Ultra DMA support Yes

Burst Data Transfer Rate Ultra DMA Mode2 (33.3MB/sec); PIO Mode 4 (16.3MB/sec)

Certifications SMART, UDMA-33, Energy Star

MULTIMEDIA OPTIONS As Listed: See Configuration Page

Available options No CD-ROM, 40X CD-ROM or 4X DVD-ROM (DVD-ROM is for storage only) CD-ROM 40X Max speed

Interface ATAPI ( Enhanced IDE ) with 256KB Buffer

Modes supported PIO Mode4, DMA Mode2 and Ultra DMA/33 Random Access Time 80ms Sustained Data Transf er Rate 2100~6000KB/Sec(14X~40X), average over 28X Standards supported MPC Level 2 & 3 Supported Disk Formats SO9660 Data Discs, CD-ROM(Mode 1 & Mode 2), Mixed Mode (Audio Combined

CD-ROM Disc), CD-ROM/XA(Mode2, Form 1 & Form 2), CD-I/FMV, Video CD, CD-DA, Photo-CD(Single & Multisession), Karaoke CD, CD Extra, CD-RW (Read Only)

DVD-ROM (Toshiba SD-M1202) 4X speed, Region 1 (DVD-ROM is for storage only)

Interface ATAPI ( Enhanced IDE ) with 256KB Buffer

Random Access Time 160 ms Sustained Data Transfer Rate 2,704 KB/sec to 6,534KB/sec Supported Disk Formats Multisession Photo-CD, CD-Extra, CD-ROM XA, CD-I, Video CD, CD-G,

CD-I Ready, MPC-3 Compliant, Red Book, Yellow Book, Plug and Play

ETHERNET SUPPORT As Listed: See Configuration Page

Available options Intel EtherExpress PRO/100B PCI, 3Com Fast EtherLink XL 10/100, or None Chipset i82558 (Specs not available for 3COM Option) Support Network 100Base-TX, 10Base T Port RJ 45 (with Connection Status LED and Ethernet Speed LED) Wake on LAN Yes

KEYBOARD (PS/2) Two Keyboard Options available Value Keyboard Option

Enhanced 104-key keyboard Yes Windows 95 support Yes

3.5mm Travel Yes 12 dedicated function keys Yes Numeric keypad Yes Keyboard tilt Yes Detatchable palm rest No Scroll Lock, CapsLock, NumLock Indicators Yes

POINTING DEVICE

PS/2 Mouse Yes: 2 Button with 6 foot cable
