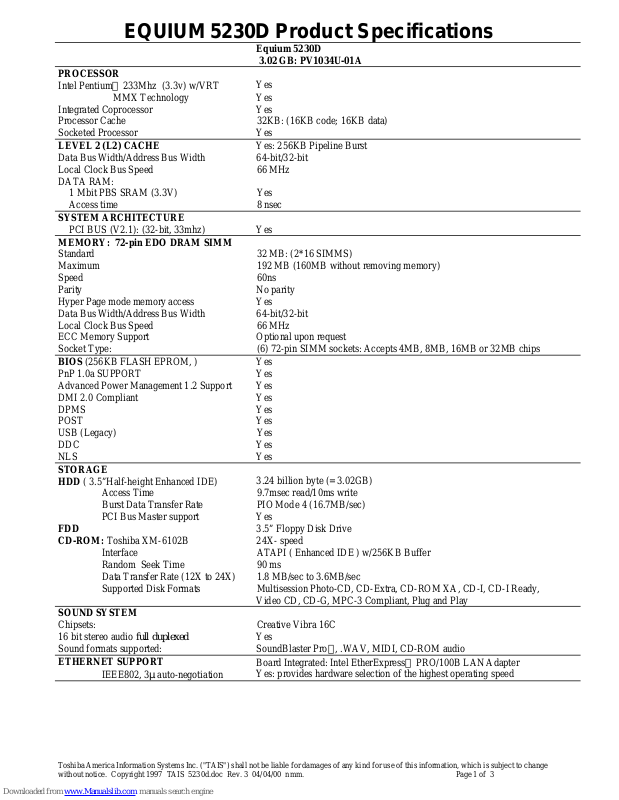

Page 1
EQUIUM 5230D Product Specifications
Equium 5230D
3.02 GB: PV1034U-01A
PROCESSOR
Intel Pentium 233Mhz (3.3v) w/VRT
MMX Technology Yes
Integrated Coprocessor Yes
Processor Cache 32KB: (16KB code; 16KB data)
Socketed Processor Yes
LEVEL 2 (L2) CACHE
Data Bus Width/Address Bus Width 64-bit/32-bit
Local Clock Bus Speed 66 MHz
DATA RAM:
1 Mbit PBS SRAM (3.3V) Yes
Access time 8 nsec
SYSTEM ARCHITECTURE
PCI BUS (V2.1): (32-bit, 33mhz) Yes
MEMORY: 72-pin EDO DRAM SIMM
Standard 32 MB: (2*16 SIMMS)
Maximum 192 MB (160MB without removing memory)
Speed 60ns
Parity No parity
Hyper Page mode memory access Yes
Data Bus Width/Address Bus Width 64-bit/32-bit
Local Clock Bus Speed 66 MHz
ECC Memory Support Optional upon request
Socket Type: (6) 72-pin SIMM sockets: Accepts 4MB, 8MB, 16MB or 32MB chips
BIOS (256KB FLASH EPROM, )
PnP 1.0a SUPPORT Yes
Advanced Power Management 1.2 Support Yes
DMI 2.0 Compliant Yes
DPMS Yes
POST Yes
USB (Legacy) Yes
DDC Yes
NLS Yes
STORAGE
HDD ( 3.5”Half-height Enhanced IDE)
Access Time 9.7msec read/10ms write
Burst Data Transfer Rate PIO Mode 4 (16.7MB/sec)
PCI Bus Master support Yes
FDD
CD-ROM: Toshiba XM-6102B
Interface ATAPI ( Enhanced IDE ) w/256KB Buffer
Random Seek Time 90 ms
Data Transfer Rate (12X to 24X) 1.8 MB/sec to 3.6MB/sec
Supported Disk Formats Multisession Photo-CD, CD-Extra, CD-ROM XA, CD-I, CD-I Ready,
SOUND SYSTEM
Chipsets: Creative Vibra 16C
16 bit stereo audio full duplexed Yes
Sound formats supported:
ETHERNET SUPPORT
IEEE802, 3µ auto-negotiation
Yes
Yes: 256KB Pipeline Burst
Yes
3.24 billion byte (= 3.02GB)
3.5” Floppy Disk Drive
24X- speed
Video CD, CD-G, MPC-3 Compliant, Plug and Play
SoundBlaster Pro, .WAV, MIDI, CD-ROM audio
Board Integrated: Intel EtherExpress PRO/100B LAN Adapter
Yes: provide s hardware selectio n of the highest operating speed
Toshiba America Information Systems Inc. ("TAIS") shall not be liable for damages of any kind for use of this information, which is subject to change
without notice. Copyright 1997 TAIS 5230d.doc Rev. 3 04/04/00 nmm. Page 1 of 3
Page 2
EQUIUM 5230D Product Specifications
Equium 5230D
3.02 GB: PV1034U-01A
VIDEO
Video Memory: SGRAM 2 MB expandable to 4MB
Memory Type 2Mbit SGRAM (5V)
Speed 40ns
Data Bus Width/Clock Speed 64-bit/75 Mhz
VESA Feature connector Yes: 34-pin LBP VESA feature connector
Graphic Controller Yes: Supports DPMS Power Management, Plug & Play (DCC1, DDC2B)
PCI (v.2.1) Bus Architecture Yes: 33 MHz Bus Clock Speed
Controller Chip ATI Rage II +
64-bit BitBLT Engine Yes
2D Supported Features BitBLT, Hardware Cursor (to 64x64x2), DirectDraw, Hardware Acceleration
3D Supported Features Yes: supports 24-bit color
Performance 30 Million pixels/sec
Triangle Setup 0.2 Million pixels/sec
Modeling Fogging
Shading Gouraud shading
Rendering Texture mapping (1024 x 1024), Bilinear,Trilinear, MIP mapping
Z-Buffering Yes
Alpha-blending Yes
Direct3D support Yes
Digital Video Accelerator
YUV Color Space Conversion Yes: Off-lo a ds conversion from CPU for higher pe rformance full motion video
without compromising picture quality or frame rate.
Scaling/ Interpolation Yes: vertical & horizontal
Motion Compensation Yes - MPEG II
SUPPORTED VIDEO RESOLUTIONS Colors
640 x 480 24-bit 200 Hz
800 x 600 24-bit 120 Hz
1024 x 768 16-bit 140 Hz
1152 x 864 16-bit 100 Hz
1280 x 1024 256 85 Hz
1600 x 1200 256 60 Hz
EXPANSION SLOTS TOTAL
AVAILABLE CONFIGURED
PCI: Bus Mastere d Full-Length 1 1 0
PCI: Bus Mastered Half-Length 1 1 0
ISA: Full Length 3 3 0
PCI/ISA Shared 0 0 0
EXPANSION BAY TOTAL
AVAILABLE CONFIGURED
Internal 3.5” 1 0 1 (3.5” HDD)
5.25” 0 0 0
External 3.5” 1 0 1 (3.5” FDD)
5.25” 2 1 1 (5.25” CD-ROM)
EXTERNAL INTERFACES All ports color coded for easy installation
One RJ-45 port for ethernet card (supplied) Yes
One IrDA infrared interface Yes: IrDA 115.2Kbps compatible
One 9/25-Pin Serial (16550 UART compliant) Yes
Universal Serial Bus ports
2
Supports 2 USB peripherals without external hub
One 25-Pin Parallel Yes: ECP/EPP
One 15-Pin RGB (SVGA video) Yes
One (PS/2) Mouse Port Yes
One (PS/2) Windows 95 104 Keyboard Yes
Microphone (3.5mm mini jack, monaural) Yes
Line-out (3.5mm mini jack, stereo, 0.7V rms) Yes
AC IN (Standard 2 prong ) Yes
Refresh Rate (Non-Interlaced)
1
Toshiba America Information Systems Inc. ("TAIS") shall not be liable for damages of any kind for use of this information, which is subject to change
without notice. Copyright 1997 TAIS 5230d.doc Rev. 3 04/04/00 nmm. Page 2 of 3
Page 3
EQUIUM 5230D Product Specifications
Equium 5230D
3.02 GB: PV1034U-01A
KEYBOARD (PS/2)
104-key keyboard with the Windows 95 keys Yes
3.8mm Travel Yes
12 dedicated function keys Yes
Numeric keypad Yes
Detachable Palm Rest Yes
Keyboard Tilt Yes
Numeric keypad Yes
Dimensions (W x H x D) 17.9” x 1.5” x 6.75”
Weight 1.9 lbs.
POINTING DEVICE
PS/2 Mouse Yes
Number of Buttons 3
SECURITY
Slot for Cable Lock Yes
Chasis Lock (key mechanism/padlock) Yes (optional Kensington-style lock)
Power-on password Yes
Supervisor/Administrator password Yes
User Password Yes
Sleep Password Yes
Keyboard/Mouse Lock Yes (BIOS via User/Administrator password, Sleep, and Windows 95)
Screen Blank Yes
POWER SUPPLY( 145Watts )
Input (Voltage/Frequency) 115-230V; 50-60Hz, Switch Selectable
Noise Level 45 db or less
SUPPORTED SAFETY STANDARDS
DIMENSIONS: (L x W x D)
WEIGHT
BUNDLED SOFTWARE: User Selectable choice of Windows 95 or Windows for Workgroups 3.11 & MS-DOS 6.22;
Disk Creation utility; Ethernet drivers, Intel LANDesk Client Manager 3.0, Microsoft Internet Explorer 3.0,
Mediamatics Arcade Player, PUMA TranXit for IRDA; Plug and Play drivers, Companion (Boot) Disk
WARRANTY: 3 Yr. Parts & Labor (First Yr. On-site); Dedicated technical support, business hours nationwide
Notes:
1. Includes Rectangle Fill, Line Draw, BitBLT, Polygon Fill, Panning/Scrolling, Bit Masking, Monochrome Expansion,
Scissoring, and full ROP support.
2. Both ports operate from a single controller allowing 128 devices total, not per port. Throughput for the Universal Serial
Bus (UBS) is 12Mbits/sec.
UL; CSA/CUL; NRTL/C; EMI FCC Part 15 Class B; EN 60950; CE Mark
17.625” x 18.375” x 4.75”
28 LBS
Toshiba America Information Systems Inc. ("TAIS") shall not be liable for damages of any kind for use of this information, which is subject to change
without notice. Copyright 1997 TAIS 5230d.doc Rev. 3 04/04/00 nmm. Page 3 of 3
Page 4
EQUIUM 5230D Product Specifications
PRICING
5230D 233Mhz Pentium with MMX, 3.02GB HDD, 24X CD-ROM PV1034U-01A $1,529
EQUIUM MONITORS
17” (15.8” viewable image)TekBright Multimedia Monitor (DC786MF) PV2003U-01 $649
Toshiba TekBright
Toshiba TekBright
17” (16.23”viewable image) Autoscan Monitor DP782M-01 $599
15” (13.78”viewable image) Autoscan Monitor DP566M-01 $299
EQUIUM ACCESSORIES
6260M)
8MB Kingston Noteworthy EDO memory upgrade module KTT-INF/8 $40
16MB Kingston Noteworthy EDO memory upgrade module KTT-INF/16 $70
32MB Kingston Noteworthy EDO memory upgrade module KTT-INF/32 $136
64MB Kingston Noteworthy EDO memory upgrade module KTT-INF/64 $263
128MB Kingston Noteworthy EDO memory upgrade module KTT-INF/128 $629
2MB Video memory upgrade module
17” (15.8” viewable image) Monitor -- 700P
15” (13.7” viewable image) Monitor -- 500V
(For 5160D, 5200D, 5230D, 6200D,
(For 5160D, 5200D, 5230D, 6200M)
PART # PRICE
PART # PRICE
PV2006U-01 $649 NEW!!
PV2005U-01 $349 NEW!!
PART # PRICE
KTT-VATI/2 $50
Toshiba America Information Systems Inc. ("TAIS") shall not be liable for damages of any kind for use of this information, which is subject to change
without notice. Copyright 1997 TAIS 5230d.doc Rev. 3 04/04/00 nmm. Page 4 of 3
