Toshiba EM1-31064JE, SL-9000-FFB, EM1-31064, SL-9000N-FFB User Manual

TEC Electronic Computing Scale

Table of Contents

SL-9000/9000N-FFB SERIES

Owner’s Manual

Safety Summary

Personal safety in handling or maintaining the equipment is extremely important. Warnings and Cautions necessary for safe handling are included in this manual. All warnings and cautions contained in this manual should be read and understood before handling or maintaining the equipment. Do not attempt to effect repairs or modifications to this equipment. If a fault occurs that cannot be rectified using the procedures described in this manual, turn off the power, unplug the machine, then contact your authorized TOSHIBA TEC representative for assistance.

Meanings of Each Symbol

This symbol indicates warning items (including cautions). Specific warning contents are drawn inside the symbol. (The symbol on the left indicates a general caution.)

This symbol indicates prohibited actions (prohibited items). Specific prohibited contents are drawn inside or near the symbol. (The symbol on the left indicates “no disassembling”.)

This symbol indicates actions which must be performed. Specific instructions are drawn inside or near the symbol. (The symbol on the left indicates “disconnect the power cord plug from the outlet”.)

WARNING

Any other than the specified AC voltage is prohibited.

Prohibited

Do not use voltages other than the voltage (AC) specified on the rating plate, as this may cause fire or electric shock.

If the machines share the same outlet with any other electrical appliances which consume large amounts of power, the voltage will fluctuate widely each time these appliances operate. Be sure to provide an exclusive outlet for the machine as this may cause the machines to malfunction.

Do not insert or drop metal, flammable or other foreign objects into the machines through the ventilation slits, as this may cause fire or electric shock.

This indicates that there is the risk of death or serious injury if the machines are improperly handled contrary to this indication.

Prohibited

Do not plug in or unplug the power cord plug with wet hands as this may cause electric shock.

Do not place metal objects or water-filled containers such as flower vases, flower pots or mugs, etc. on top of the machines. If metal objects or spilled liquid enter the machines, this may cause fire or electric shock.

Do not scratch, damage or modify the power cords. Also, do not place heavy objects on, pull on, or excessively bend the cords, as this may cause fire or electrical shock.

Disconnect the plug.

If the machines are dropped or their cabinets damaged, first turn off the power switches and disconnect the power cord plugs from the outlet, and then contact your authorized TOSHIBA TEC representative for assistance. Continued use of the machine in that condition may cause fire or electric shock.

(i)

Disconnect the plug.

Continued use of the machines in an abnormal condition such as when the machines are producing smoke or strange smells may cause fire or elec- tric shock. In these cases, immediately turn off the power switches and disconnect the power cord plugs from the outlet. Then, contact your authorized TOSHIBA TEC representative for assistance.

Safety Summary

Disconnect the plug.

Connect a grounding wire.

If foreign objects (metal fragments, water, liquids) enter the machines, first turn off the power switches and disconnect the power cord plugs from the outlet, and then contact your authorized TOSHIBA TEC representative for assistance. Continued use of the machine in that condition may cause fire or electric shock.

Ensure that the equipment is properly grounded. Extension cables should also be grounded. Fire or electric shock could occur on improperly grounded equipment.

Disconnect the plug.

No disassembling.

When unplugging the power cords, be sure to hold and pull on the plug portion. Pulling on the cord portion may cut or expose the internal wires and cause fire or electric shock.

Do not remove covers, repair or modify the machine by yourself. You may be injured by high voltage, very hot parts or sharp edges inside the machine.

This indicates that there is the risk of personal Injury or damage to

CAUTION

objects if the machines are improperly handled contrary to this indication.

Precautions

The following precautions will help to ensure that this machine will continue to function correctly.

• Try to avoid locations that have the following adverse conditions: * Temperatures out of the specification * Direct sunlight * High humidity * Shared power source * Excessive vibration * Dust/Gas

• Do not subject the machine to sudden shocks.

• Do not press the keys too hard. Keys will operate correctly if they are touched lightly.

• Clean the cover and keyboard, etc. by wiping with a dry cloth or a cloth soaked with detergent and wrung out thoroughly. Never use thinner or other volatile solvent for cleaning.

• To ensure that the scale is operating correctly, place a known weight on the platter and check it for correct weight measurement. This should be done every morning before starting normal operations.

• When moving the machine, take hold of the case and lift the machine. Never hold the remote unit.

• Do not place the machines on unstable or slanted surfaces, as they may drop or fall and cause injury.

• USE ONLY TOSHIBA TEC SPECIFIED paper.

• DO NOT STORE the paper or ribbons where they might be exposed to direct sunlight, high temperatures, high humidity, dust, or gas.

• Ensure the machine is operated on a level surface.

• Any data stored in the memory of the machine could be lost during a machine fault.

• Try to avoid using this equipment on the same power supply as high voltage equipment or equipment likely to cause mains interference.

• Unplug the machine whenever you are working inside it or cleaning it.

• Keep your work environment static free.

• Do not place heavy objects on top of the machines, as these items may become unbalanced and fall causing injury.

• Do not block the ventilation slits of the machines, as this will cause heat to build up inside the machines and may cause fire.

• Do not lean against the machine. It may fall on you and could cause injury.

• Care must be taken not to injure yourself with the printer paper cutter.

• Unplug the machine when it is not used for a long period of time.

Request Regarding Maintenance

• Utilize our maintenance services. After purchasing the machine, contact your authorized TOSHIBA TEC representative for assistance once a year to have the inside of the machine cleaned. Otherwise, dust will build up inside the machines and may cause a fire or a malfunction. Cleaning is particularly effective before humid rainy seasons.

• Our preventive maintenance service performs the periodic checks and other work required to maintain the quality and performance of the machines, preventing accidents beforehand. For details, please consult your authorized TOSHIBA TEC representative for assistance.

• Using insecticides and other chemicals Do not expose the machines to insecticides or other volatile solvents. This will cause the cabinet or other parts to deteriorate or cause the paint to peel.

(ii)

Page

1.INTRODUCTION ............................................................................................. 1-1

1.1 APPLICABLE MODEL........................................................................... 1-2

1.2 ACCESSORIES .................................................................................... 1-2

2.SPECIFICATIONS ........................................................................................... 2-1

2.1 SCALE................................................................................................... 2-1

2.2 OPTION................................................................................................. 2-2

3.APPEARANCE ................................................................................................ 3-1

4.DISPLAY.......................................................................................................... 4-1

4.1 US TYPE ............................................................................................... 4-1

4.2 CA/QR TYPE......................................................................................... 4-1

5.KEY LAYOUT .................................................................................................. 5-1

5.1 PROGRAMMING KEYBOARD ............................................................. 5-1

5.2 OPERATION KEYBOARD AND SPEED KEYBOARD.......................... 5-3

5.3 SELF SERVICE KEYBOARD................................................................ 5-5

6.PROCEDURE BEFORE OPERATION ............................................................ 6-1

7.INSTALLATION PROCEDURE ....................................................................... 7-1

8.LEVEL ADJUSTMENT .................................................................................... 8-1

9.REMOVAL AND REPLACEMENT OF MEDIA ................................................ 9-1

10.OUTLINE OF OPERATION ............................................................................. 10-1

11.PROGRAMMING PROCEDURES .................................................................. 11-1

11.1 UNIT PRICE CHANGE.......................................................................... 11-4

11.2 PLU DATA SETTING ............................................................................ 11-5

11.3 INGREDIENT MESSAGE ..................................................................... 11-7

11.4 NUTRITION FACTS .............................................................................. 11-8

11.5 PLU VERIFYING LABEL....................................................................... 11-12

11.6 ADDRESS AND COMMERCIAL MESSAGE SETTING........................ 11-13

11.7 COMBINATION MESSAGE .................................................................. 11-14

11.8 SPECIAL INFORMATION ..................................................................... 11-16

11.9 GRADE LINE......................................................................................... 11-16

11.10 SPEED KEY SETTING ......................................................................... 11-17

11.11 PRINT FORMAT.................................................................................... 11-18

11.12 DATE/TIME SETTING........................................................................... 11-20

11.13 CMT/PL-3 .............................................................................................. 11-20

11.14 IN-LINE/LOCAL ..................................................................................... 11-23

11.15 LON SYSTEM ....................................................................................... 11-24

11.16 BAR CODE FORMAT ........................................................................... 11-26

11.17 TITLES .................................................................................................. 11-28

11.18 TRANSFERRING LOGO DATA ............................................................ 11-29

11.19 IDIOM SETTING.................................................................................... 11-31

11.20 VENDOR SETTING .............................................................................. 11-31

11.21 FREE FORMAT SETTING .................................................................... 11-32

Page

12.PROGRAMMED DATA VERIFICATION REPORTS ....................................... 12-1

13.PASSWORD SECURITY ................................................................................. 13-1

13.1 SETTING PASSWORD AND PROTECT MENU................................... 13-1

13.2 CALLING MENU BY ENTERING PASSWORD .................................... 13-3

14.OPERATING PROCEDURES ......................................................................... 14-1

14.1 WEIGHING OPERATION...................................................................... 14-2

14.2 FIX PRICE OPERATION (FOR US TYPE ONLY)................................. 14-3

14.3 BY COUNT OPERATION...................................................................... 14-4

14.4 PRINT COUNT OPERATION................................................................ 14-6

14.5 ISSUING LABELS WITH NET WEIGHT STATEMENT

(FOR US TYPE ONLY) ......................................................................... 14-9

14.6 TARE/SAVE FUNCTION PROCEDURES ............................................ 14-11

14.7 CALLING AND PRINTING GRADE LINE ............................................. 14-12

14.8 CALLING AND PRINTING LOGOS ...................................................... 14-13

14.9 SELECTING PRINT ITEM..................................................................... 14-14

14.10 DATE CHANGE .................................................................................... 14-15

14.11 BATCH PRINT MODE (with 30 Items Run Assignment)....................... 14-16

14.12 VISUAL COMMODITY LIBRARY.......................................................... 14-19

14.13 FLOATING VENDOR ............................................................................ 14-20

15.TOTAL OPERATION ....................................................................................... 15-1

15.1 HOURLY TOTAL REPORT................................................................... 15-2

15.2 GRAND TOTAL REPORT..................................................................... 15-2

15.3 PLU TOTAL REPORT........................................................................... 15-2

15.4 VENDOR TOTAL REPORT................................................................... 15-3

16.ERROR MESSAGE TABLE............................................................................. 16-1

17.CLEANING THE PRINT HEAD ....................................................................... 17-1

18.TROUBLESHOOTING..................................................................................... 18-1

CAUTION:

1. This manual may not be copied in whole or in part without prior written permission of TOSHIBA TEC.

2. The contents of this manual may be changed without notification.

3. Please refer to your local Authorized Service representative with regard to any queries you may have in this manual.

1. INTRODUCTION

EM1-31064

1. INTRODUCTION

Thank you for purchasing the TEC SL-9000 Series electronic computing scale. As you will discover, the TEC SL-9000 series has many features and functions designed for user friendliness as well as complete customer satisfaction. The 256 x 64 dot fluorescent display provides customers with ample information, the 140 speed keys realize a higher degree of operability, and the 3 inch/sec. print speed ensures fast and clear printing. Password security prevents unauthorized access to the PROG., M.DOWN, REWRAP, REPORT and RESET mode. The latest high speed in-line system, Local Operation Network (LON), allows easy system configuration and greater throughput. Various options, including a TMCC interface, RS-232C interface, etc., are selectable in accordance with your needs. We believe that your needs will now be fully satisfied, and you will have total reliability in price calculations. Should you have any questions concerning the scale, please refer to this manual. Be sure to keep this manual for future reference.

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operations of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. (for USA only)

Changes or modifications not expressly approved by manufacturer for compliance could void the user’s authority to operate the equipment.

“This Class A digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.” “Cet appareil numéique de la classe A respecte toutes les exigences du Rèlement sur le matériel brouilleur du Canada.”

(for CANADA only)

Some procedures described in this manual may be illegal in various state jurisdictions. When there are optional settings to enable various functions or to disable functions. Please ensure that the optional settings for scale operation meet the local requirements of weights and measures. If you are uncertain of specific items, contact the state or county office of weights and measures for clarification.

1-1

1. INTRODUCTION

1.1 APPLICABLE MODEL

• SL-9000-15M-FFB-CA • SL-9000-30M-N-FFB-US

• SL-9000-15M-FFB-QR • SL-9000-15M-N-FFB-CA

• SL-9000-15M-N-FFB-QR

The description of the model number is as follows.

S L - 9 0 0 0 - 3 0 M - N - F F B - U S

Destination Code

Max. Capacity

30M: 30 lbs (decimal

pound/multi-interval)

15M: 15 Kg (multi-interval)

Keyboard Type

Display Type

ex.) US, CA, QR etc.

B: Built-in keyboard

EM1-31064

1.1 APPLICABLE MODEL

1.2 ACCESSORIES

Owner's Manual

(EM1-31064)

Print Head Cleaner

(24089500013)

FF: Fluorescent full dot display

N: LAN (option) is available. Blank: LAN (option) is not available.

Remote Display Speed Key Sheet

Remote Blind Plate

Sealing Lead

Quality Control Report

(US type only)

Stranded Wire

NOTE:Check that there are no missing or incorrect parts in the accessories.

1-2

2. SPECIFICATION

2.1 SCALE

Item US CA QR

Maximum Capacity 30 lb 15 Kg (30 lb) Minimum Scale Division 0.005 lb (0~15 lb) 0.002 Kg (0 ~ 6 Kg)

Maximum Tare 2.000 lb 1.000 Kg (2.205 lb) Display Range 0 ~ 30.05 lb 0 ~ 15.025 Kg (0 ~ 30.05 lb)

Unit Price Presettable $0.01 ~ 99.99 $0.01 ~ 99.99 0 ~ 99999 Minimum Price Display $0.01 $0.01 1

Power Requirement AC 120 V ± 10%, 60 Hz (US/CA type)

Power Consumption US/CA: 66 W, 1.1 A (Standby: 26 W, 0.39 A)

Temperature Limits 32°F ~ 104°F (0°C ~ 40°C) Relative Humidity 35% ~ 85% (No condensation) Message Display 256 x 64 dots Fluorescent display

Weight 5 digits (US/CA type), 5 digits (QR type) Unit Price 4 digits (US/CA type), 5 digits (QR type)

Total Price 5 digits (US/CA type), 6 digits (QR type) Remote Display Mode Dual sides Capacity of PLU Memory 560 PLUs (Standard), 240 PLUs when LOGO is available.

(SL-9000) 3120 PLUs max. (Option) Capacity of PLU Memory 3600 PLUs max. (Standard)

(SL-9000N) Print Head Thermal Print Head (2 inch wide) Media Issue Method On-demand/Batch Dot Density 193 dots/inch (7.6 dots/mm) Print Speed 3 inch/sec. (76.2 mm/sec.) Available Media Width 1.89 inch (48 mm), 2.24 inch (57 mm) Recommended Media

Thermal Label VHTS, VLTB (OSP)/Outer diameter: Ø93 mm (Max.)

Variable Length Label VHTS, VLTB (OSP)/Outer diameter: Ø90 mm (Max.)

Thermal Receipt 120 FC (RICOH)/Outer diameter: Ø81 mm (Max.) Interface CMT/PL-3 interface (Program Loader)

Dimensions (approx.) 17.2 inch (width)x16.8 inch (depth) x 18.7 inch (height)

Weight 33 lb (15 Kg)

EM1-31064

2.1 SCALE

0.005 Kg (6 ~ 15 Kg)

0.01 lb (15~30 lb) 0.005 lb (0 ~ 15 lb)

0.01 lb (15 ~ 30 lb)

AC 220 V ± 10%, 50/60 Hz (QR type)

QR: 70 W, 0.66 A (Standby: 32 W, 0.26 A)

LON interface (RS-485) PC-AT KEY interface (Option) TMCC interface (Option) Drawer interface (Exact interface) LAN interface (10 Base T, SL-9000N Option)

436 mm (width)x426 mm (depth) x 474 mm (height)

2-1

2. SPECIFICATION

2.2 OPTION

Option Name

LON Connector TM8P-88P

LON Terminal Resistor 285D-8P

LON

LON Cable S-STLAN-2P (200 m/roll)

External Connector Box

I/O PC Board

TMCC

TMCC Cable Kit

Model No.

or Part No.

Part No. EAJ-0028001

Part No. EAJ-0029001

Part No. 10319100003

OP-9000-IOEC-B

OP-9000-IOB

OP-9000-IOCNTMCC

Description Source

A modular connector used to connect scales

to each other in a LON configuration.

A modular resistor attached to the scales connected at both ends of the LON configuration.

An 8-pin telephone cable used with the LON connectors attached to both ends of the cable. This cable connects scales to each other in a LON configuration.

A junction box to which the TMCC kit is attached. It is also used with the RS-232 CL/CS kit.

An I/O board equipped with the TMCC interface and PC-AT keyboard interface ports. It is used to construct a TMCC system and program PLU data, etc.

A cable kit for the TMCC interface

EM1-31064

2.2 OPTION

See Note 2

See Note 1

This board is used to expand the PLU memory to 4MB by installing the memory module.

DIP type PS-RAM to be installed on the MEMO PC board (OP-9000-PIGGYBACK) for memory expansion.

When expanding the memory, install the two modules as one set.

DIP type S-RAM to be installed on the MEMO PC board (OP-9000-PIGGYBACK-S/F) for memory expansion.

When expanding the memory, install the two modules as one set.

It is covenient to change several kinds of labels.

This board enables the SL-9000N to be used in a LAN network.

MEMO PC Board (SL-9000 only)

Memory Module

Label Cassette

10 Base T (LAN) Interface Board (SL-9000N only)

OP-9000PIGGYBACK OP-9000PIGGYBACK-S/F

OP-9000-RAM512KB

OP-9000-SRAM512KB

OP-9000CASSETTE

OP-9000N-LAN

NOTES: 1. Contact TOSHIBA TEC H.Q. or your nearest TOSHIBA TEC representative.

2. Order from TOSHIBA TEC Parts Center or purchase locally.

3. When purchasing memory modules locally, select one having the following specifications.

■

Maker: HITACHI Pseudo Static RAM (OP-9000-RAM-512KB)

HITACHI Static RAM (OP-9000-SRAM-512KB)

■

Type: HM658512ALP-8V80ns, 600mil 32-pin Plastic DIP (DP-32) (OP-9000-

RAM-512KB) HM628512ALP-770ns, 600mil 32-pin Plastic DIP (DP-32) (OP-9000SRAM-512KB)

4. The Memo PC board (Flash ROM type) is installed in the SL-9000N model as

standard.

2-2

See Note 1

See Note 1 and 3

See Note 1

3. APPEARANCE

LAN I/F (SL-9000N Option)

PC-AT Keyboard I/F (Option)

EM1-31064

3. APPEARANCE

Main Power Switch

CMT/PL-3 I/F

LON I/F

Power Cord

Speed Keyboard and Programming Keyboard

Drawer I/F (Unused)

Remote Display

Meat Platter

Right Cover

Adjustable Legs

Operation Keyboard

Print Head

Level Gauge

TMCC I/F: MALE (Option)

3-1

4. DISPLAY

4.1 US TYPE

EM1-31064

4.1 US TYPE

SL-9000N

4.2 CA/QR TYPE

SL-9000N

CAPACITY

CAPACITY CAPACITÉ

WEIGHT 0 ~ 15 lb

15 ~ 30 lb

WEIGHT

0 ~ 6 Kg

6 ~ 15 Kg

e=d

0.005 lb

0.01 lb

e=d

0.002 Kg

0.005 Kg

SCROLLING MESSAGE INDICATES SCALE AT ZERO

WEIGHT

0 ~ 15 lbs

15 ~ 30 lbs

e=d

0.005 lbs

0.01 lbs

NOTE: For the SL-9000 model, the model name on the display panel is "SL-9000".

4-1

5. KEY LAYOUT

5.1 PROGRAMMING KEYBOARD

SEND

PROG.

! 1

[

A È

ENTER

$ 4

)

(

]

F Ê

RECEIVE

TEST

→

CLEAR

↑

←

& 6

Y {

←

SHIFT

↓

→

;

↓

SET

CHANGE

PLU

DELETE

(A)

1/2

8 <

| }

↑

SPACE

PLU

DELETE

PLU

INSERT

1 ?

9 =

O ~

5.1 PROGRAMMING KEYBOARD

AUTO CODE

RETURN

1/4

DELETE

(B)

0 >

EM1-31064

NOTE: Blank keys have no function.

Programming Keyboard Function

Name of Key

CLEAR

SHIFT

SET

PLU

AUTO CODE

1. Clears numeric data just entered.

2. Releases the scale from the error mode. Selects the upper case or lower case.

Calls the PLU # which follows the currently called PLU #. Sets the media transarency on the sensor.

Calls the PLU # registered right after the currently called PLU #.

Sets "AUTO CODE."

ZERO

Function

FEED

CHANGE

PLU

DELETE

PLU

TEST

ENTER

Changes the PLU # currently called.

Deletes PLU.

Prints the data in the currently called PLU.

Inputs data to the SL-9000 system during programming.

5-1

5. KEY LAYOUT

EM1-31064

5.1 PROGRAMMING KEYBOARD

Name of Key

←

→

DELETE

(A)

1/2

INSERT

DELETE

(B)

RETURN

1/4

Function

1. Displays the preceding PLU data.

2. Used for setting an auto code.

3. Calls the preceding label format # when setting the print position. Moves the cursor to the left.

Moves the cursor to the right.

1. Deletes the character selected by the cursor when setting commodity name or message.

2. Sets a unit price per 1/2 lb.

1. Inserts a space at the cursor position when setting a commodity name or message.

2. Sets a unit price per lb/100g/Kg.

Deletes all characters on the selected line when setting commodity name or message.

1. Displays the next line when setting the ingredient or message.

2. Sets a unit price per 1/4 lb.

↑

SPACE

SEND

RECEIVE

↑

↓

PROG.

Inserts a blank space in descriptors.

Stores "Ingredient data" in the temporaty memory.

Calls "ingredient data" from the temporaty memory.

Sets the preceding item when setting PLU and nutrition information.

Sets the following item when setting PLU and nutrition information.

Returns to the programming menu.

1. Selects programming menu page.

2. Selects capitals or small letters.

3. Sorts the file when setting PLU data, ingredient data and nutrition data.

4. Sets a block PLU # using the confirmation label procedure.

5. Selects the scrolling message or fixed message.

6. Calls the second half of the speed key and sets a department #.

7. Selects the adjusting item of print format (in rotation).

8. Toggles between In-line and Local or in-line and off-line of LON system.

Other Keys

The other 39 keys are used to set the character.

5-2

5. KEY LAYOUT

5.2 OPERATION KEYBOARD AND SPEED KEYBOARD

Primary function

Secondary function

US type

1/2

1/4

CA, QR

type 100 g LB/kg

PRESET

COUNT

GRADE

LINE

LOGO

GROUP#

ESC.

PROG.

POWER

VOID

PLU

SAVE FOR DT/TM

789

456

123

EM1-31064

FEED

TESTZERO

PLU PRT/*

NOTE: 1. The numbers 1~70 indicate the speed key layout, but the actual keys have no number.

Pressing the

key enables another 70 PLUs assignment.

2. The functions of the 3 and 4 keys can be changed according to the initial settings as follows.

Initial Setting #

SL-9000

8 - 7

0 0 1 1

SL-9000N

28 - 4

0 0 1 1

SL-9000

SL-9000N

12 - 8

0 1 0 1

69 (4) Speed key #69 Speed key #69 Speed key #69

AUTO/MANUAL key

Speed key #

70 (3)

Speed key #70

AUTO/MANUAL key

Tare % key Tare % key

Operation Keyboard Function

Name of Key

Enters numeric data such as PLU #, unit price and tare.

Function

PLU

1. Clears numeric entries.

2. Releases the scale from error mode.

3. Releases the scale from SAVE mode. Subtracts tare.

Calls a PLU or clears the displayed PLU.

5-3

5. KEY LAYOUT

Operation Keyboard Function

EM1-31064

5.2 OPERATION KEYBOARD AND SPEED KEYBOARD

Name of Key

PRT/*

SAVE

FOR

DT/TM

PLU

VOID

ESC.

PROG.

Function

Prints a customer label.

Saves tare and unit price after taking off the commodity from the platter.

Sets the quantity of a commodity in "BY COUNT" mode.

Displays the date.

Selects the item for change Print/OFF.

Corrects data just after the registration.

1. Enables calling the other 70 speed keys.

2. Selects the function for change Print/OFF. Returns to the main menu.

Accesses print item, auto message timer, print format and issue mode selection mode.

POWER

1/4

1/2

100g

LB/kg

PRESET

COUNT

GRADE

LINE

LOGO

Turns the display on/off when the scale power is on.

Changes between 1/2 lb and 1/4 lb (US type only).

Changes the unit of measure to 100g (CA type only).

Changes the unit of measure between lb and kg (CA type only).

Sets the number of labels to print.

Prints a grade line.

Calls a logo.

5-4

5. KEY LAYOUT

EM1-31064

5.3 SELF SERVICE KEYBOARD

Name of Key

GROUP

FEED

TEST

ZERO

AUTO/

MANUAL

1 70

Function

No function

This key is used for item or subtotal discount by entering a percentage. (Optional key by initial setting)

Feeds the label.

Issues a test label.

Adjusts the zero point.

Changes the label issue mode between automatic issue and manual issue. (Optional key by initial setting)

Calls the assigned PLU.

5.3 SELF SERVICE KEYBOARD

PUSH

PLU

PUSH

NOTES: 1. When using the self service keyboard, set the initial setting #13-2 to 1.

2. The above X columns indicate No Function.

3. The ESC. key is available while scanning.

ZERO

FEED

ESC.

POWER

5-5

5. KEY LAYOUT

(For Programming/Unit-Price Change/Read Reset/Security)

PROG.

[

A È

CLEAR

RECEIVE

SEND

TEST

ENTER

2 +

S É

# 3

(

]

D Â

F Ê

)

→

SHIFT

↑

←

& 6

{

←

→

↓

;

↓

SET

CHANGE

PLU

DELETE

(A)

1/2

8 <

| }

↑

SPACE

PLU

DELETE

PLU

INSERT

1 ?

9 =

O ~

AUTO

CODE

RETURN

1/4

DELETE

(B)

0 >

EM1-31064

5.3 SELF SERVICE KEYBOARD

ESC.

PROG.

PLU

SAVE FOR DT/TM

789

456

123

POWER

VOID

ZERO

FEED

PLU PRT/*

The Speed keys can operate among unit-price change (prog-mode), read/reset-mode, security-mode. Of course panel-keys can operate, those panel keys aren't indicated on top of the key-sheet.

Unit-Price Change

(left side key) (right side key)

PROG.

0 ~ 9 0 ~ 9

= =

PROG.

ENTER PRT/* CLEAR C

- VOID

= = =

(left side key) (right side key)

NEXT PLU

Read/Reset

0 ~ 9 0 ~ 9

ENTER PRT/*

= =

FOR

Security

(left side key) (right side key)

0 ~ 9 0 ~ 9

CLEAR C

ENTER PRT/*

= = =

NEXT PLUNEXT PLU

TEST TEST

NOTE: If you would like to switch the initial setting #13-2 to 1, please contact your authorized TOSHIBA

TEC representative.

5-6

6. PROCEDURE BEFORE OPERATION

1. Unpack the accessories and scale from the carton.

2. Install the remote display on the scale. (See Page 7-1.)

3. Refer to Safety Precautions in this manual and set up the scale in a proper location.

4. Load the label or receipt. (See Page 9-1.)

5. Be sure to insert the power cord plug into an AC outlet.

6. Adjust the level gauge. (See page 8-1.)

7. Connect a PC-AT keyboard if necessary.

8. Turn the power on and then press the power key. (See page10-1.)

9. Set the following program menus:

Menu Page ITEM No. Programming Name

2 0 PRINT FORMAT 2 1 DATE/TIME SETTING 1 1 PLU DATA SETTING

EM1-31064

If necessary, set the following program menus:

Menu Page ITEM No. Programming Name

1 2 INGREDIENT MESSAGE 1 3 NUTRITION SETTING 1 5 ADDRESS AND COMMERCIAL

MESSAGE SETTING 1 7 SPECIAL INFORMATION 1 8 GRADE LINE 1 9 SPEED KEY SET

10. Call a PLU which contains the unit price used in weighing mode, then place a weight on the platter and check a correct price is displayed.

11. The scale is ready to issue labels.

6-1

7. INSTALLATION PROCEDURE

EM1-31064

7. INSTALLATION PROCEDURE

Remote Display

WARNING!

Be sure to cover the connectors with the connector cover because of high voltage and current. If the connectors are exposed to water, a leakage may result.

CAUTION: Never place the scale upside down. Doing so will cause a malfusction.

1. To install the remote display, insert the two screws provided on the bottom of the remote pipe into the

holes in the scale base.

2. Connect the connectors, pull down the connector cover, and install the remote blind plate.

Then tighten the screws to secure the remote display.

3. Remove the tape from the remote packing and remote cap and lower to fit them to the scale.

Remote Display

Remote Pipe

Remote Cap

Remote Packing

Tape

Hole

Screw

Remote Blind Plate

Connector

7-1

Connector Cover

8. LEVEL ADJUSTMENT

1. Level Gauge

Set the scale on a stable and level surface. Level the scale by turning the adjustable legs so that the air bubble is inside the center circle.

EM1-31064

Correct

Incorrect

2. Adjustment Procedure

1 When the air bubble moves toward the left side, turn the right adjustable legs clockwise.

2 When the air bubble moves toward rear, turn the front adjustable legs clockwise.

8-1

9. REMOVAL AND REPLACEMENT OF MEDIA

WARNING!

Since there is a cutter at the paper outlet, be careful not to injure your fingers when replacing media.

CAUTION: Do not hold the label cassette by the portion A. Doing so may deform the label

cassette, causing damage when setting it in position. Please be sure to hold the label cassette as the following figure shows.

EM1-31064

1. Open the right cover. Then push the head-up lever in the direction indicated by the arrow.

Head-up Lever

2. Pull out the label cassette.

3. Pull out the roll stopper and the backing paper stopper, and remove the media core with backing paper.

Label Cassette

Roll Stopper

Backing Paper Stopper

Backing Paper

NOTE: When removing the backing paper, loosen the paper by turning the paper winding shaft

counterclockwise.

9-1

9. REMOVAL AND REPLACEMENT OF MEDIA

4. Loosen the P-2.6x6 screw and move the label guide plate according to the media width.

5. Secure the label guide plate with the P-2.6x6 screw.

Screw (P-2.6x6)

48-mm label dowel

Label Guide Plate

57-mm label dowel

EM1-31064

NOTE: Ensure that the label guide plate aligns with the dowel.

6. Refer to the figure below and set the media on the label cassette.

7. Insert the roll stopper into the media core fully.

8. Set the backing paper stopper in the proper orientation.

Label or Report Paper

Roll Stopper

Label

Backing Paper Stopper

9. Set the label cassette to the scale and remove slack of the media.

Push down the print head, and close the right cover.

Roll Stopper

NOTE: After replacing the media, press the feed key to confirm that the media is issued correctly.

*Use of other model’s label cassette in the SL-9000 may cause a label skew.

9-2

10. OUTLINE OF OPERATION

WARNING!

Since there is a cutter at the paper outlet, be careful not to injure your fingers when issuing labels.

EM1-31064

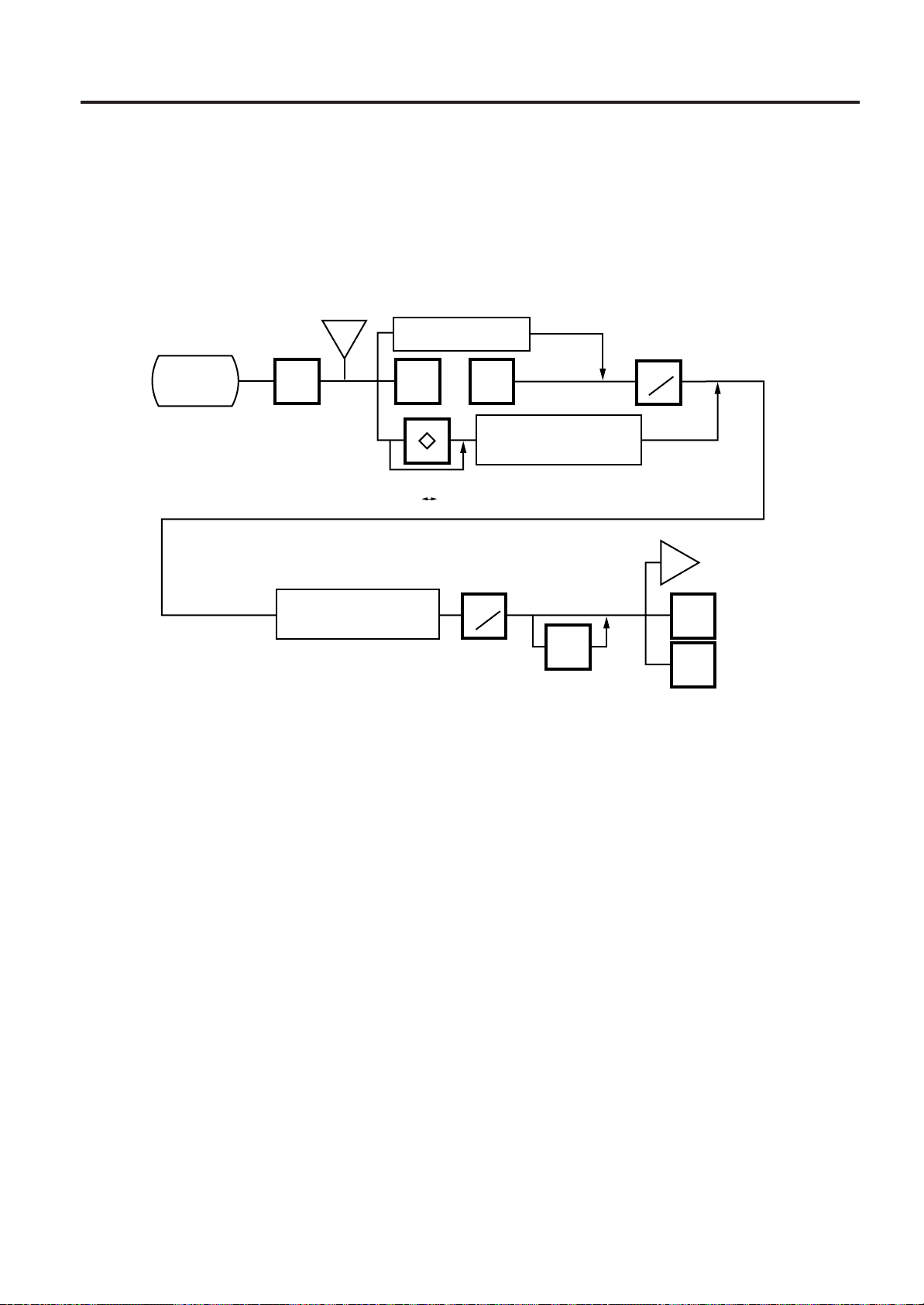

10. OUTLINE OF OPERATION

Press the

POWER key

REG Menu

(Refer to Section 14)

Main Power

Switch ON

Display OFF

Press the

POWER key

Scanning Display

NOTE4

ESC Key

No Press

Menu No. 1

Menu No. 3

REWRAP Menu

(Refer to Section 14)

Menu #1

Press

Necessary

Password Input

Menu No. 2

MARK DOWN

(Refer to Section 14)

PROG Menu

(Refer to Section 11)

Main Menu

Increment

Select the

Menu #

Other than Menu #1.

Password

(Refer to Section 12, 15)

Menu No. 0

PLU

Decrement

Unnecessary

Menu No. 5

READ Menu

VOID

Menu No. 4

SECURITY

(Refer to Section 13)

Menu No. 6

RESET Menu

(Refer to Section 15)

POWER key

No Press

ESC. key

No Press

Return to

each mode

NOTE5

Press

Display OFF

<Menu>

0. PROG. 5. REPORT

1. REG 6. RESET

2. MARK DOWN 7.

3. REWRAP 8.

4. SECURITY 9.

NOTES:

1. You can register a password to prohibit unauthorized access to each menu expect for REG. menu.

2. To avoid wasteful use of the display, press the POWER key to turn the display off while being unused. Pressing the POWER key again allows you to enter REG. mode without scanning.

3. Refer to respective sections for explanation each menu enclosed by a double rectangle.

4. In the self service scale mode (the initial setting #13-2 is set to 1) the POWER , and ESC. keys are available in the following cases.

POWER key: Available after the main power switch turns ON. ESC. key: Available after the POWER key is depressed while scaling.

5. In the self service scale mode (the initial setting #13-2 is set to 1), these keys are unavailable. If you would like to switch the initial setting #13-2 to 1, please contact your authorized TOSHIBA TEC

representative.

10-1

10. OUTLINE OF OPERATION

■ Registration Mode

EM1-31064

10. OUTLINE OF OPERATION

O:AVAILABLE X:NOT AVAILABLE

No.

ZERO SETTING

LABEL FEED

CALL PLU BY SPEED KEY

CALL PLU BY PLU KEY

RETURN TO PLU CALLING MODE

TEMPORARY CHANGE OF DATE

TARE CLEAR

PRESET TARE 1

PRESET TARE 2

DIRECT TARE

SAVE UNIT PRICE

SAVE TARE

TEST PRINT

MANUAL ISSUE WITH WEIGHING

VOID REGISTRATION

AUTO ISSUE WITH WEIGHING

1/2, 1/4LB KEY

100g, kg KEY

LB/kg KEY

CHANGE PRINT/OFF

BY COUNT (FIX PRICE)

BY COUNT (PRICE/PIECES)

BY COUNT (SPLIT PRICE)

COUNT PRESET

NET WT. STATEMENT

CALL LOGO

CALL DEPT. #

CALL GRADE LINE

OPEN PLU

AUTO CLEAR

FLOATING VENDOR

% TARE

BATCH PRINTING

VISUAL COMMODITY LIBRARY

TMCC (CMT-port) communication

Clerk Label

FUNCTION

WEIGH

O O O O O O O O O O O O O O O O O O O O X X X O X O O O O O O O X O O O

COUNT

X O O O O X X X X X X X O X O X X X X O O O O O X O O O O X O X O O O O

FIX PRICE

O O O O O O O O O O O O O O O O

X X X

X X

X O O O O O O

O/X

O O O

SELF

SERVICE

O O

X O O

X O

X O O

X O

10-2

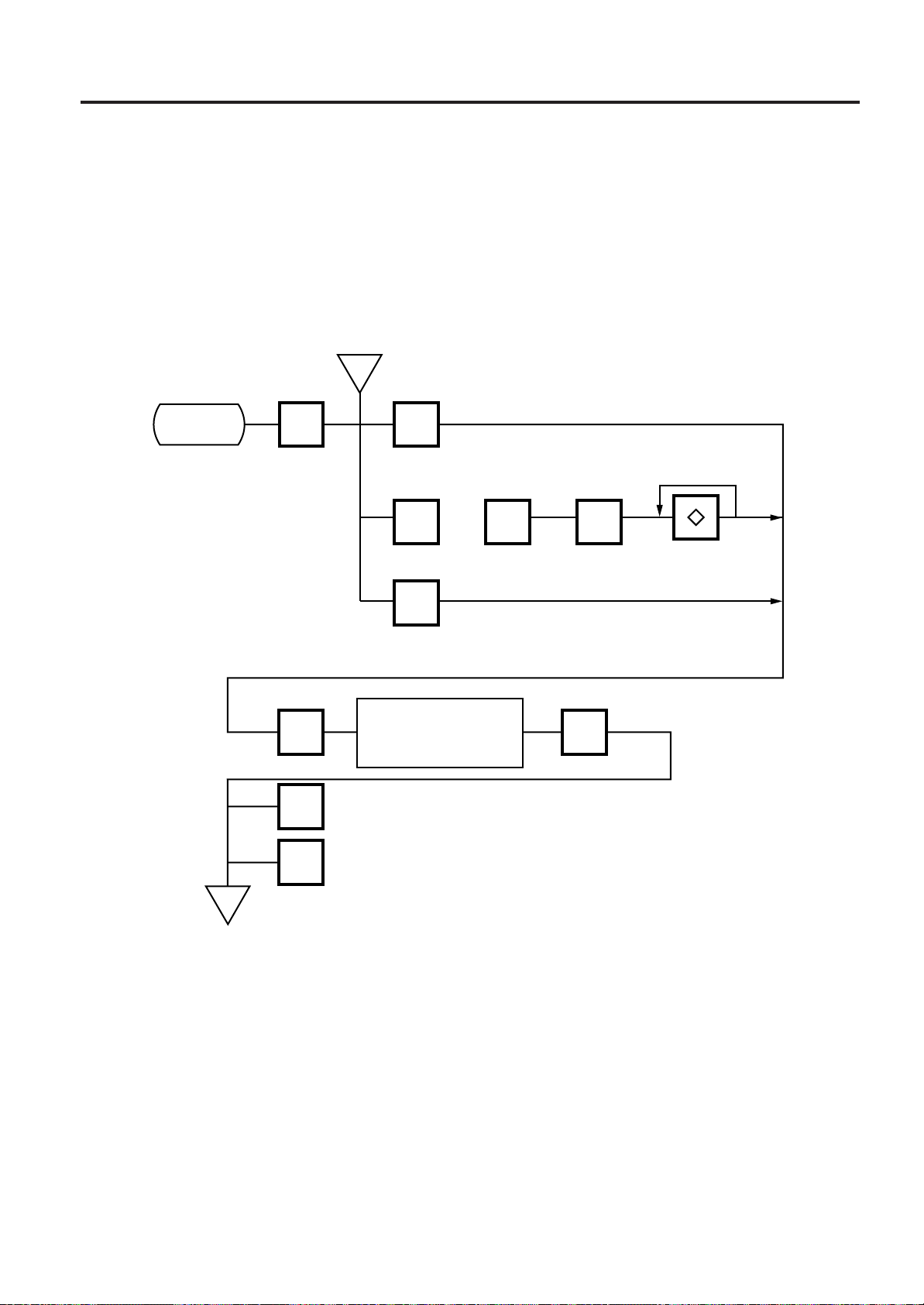

11. PROGRAMMING PROCEDURES

Select an item No. (See next page.)

Select the programming menu Page

00 9

Enter the Password

neccesary

unnecessary

Enter a menu number

Password

ESC.

Programming

starts

Programming

completes

PROG.

How to access the Programming Menu

EM1-31064

11. PROGRAMMING PROCEDURES

How to access the Programming Menu

NOTES:1. When the selected menu ( 0 ) is protected from an access, refer to Section 13.2 and enter

the password.

2. In Sections 11.1, 11.2 and 11.3, items which have been sold on that day cannot be called before resetting (refer to Section 15.) unless Initial Setting #1-4 is set to 1.

How to Select Menu and Item No.

<Menu> PROG. 1

0. PLU DATA EDIT 5. MESSAGE

1. PLU DATA 6. MSG. COMBINATION

2. INGREDIENT 7. SPECIAL INFO

3. NUTRITION 8. GRADE LINE

4. CONFIRMATION LABEL 9. SPEED KEY SET

<Menu> PROG. 2

0. PRT LOCATION 5. INITIAL SET

1. DATA TIME 6. BAR CODE FORMAT

2. CMT 7. TITLE

3. ON-LINE/LOCAL 8. LOGO

4. LON SYSTEM 9. IDIOM

<Menu> PROG. 3

0. VENDOR

1. FREE FORMAT

2. LAN SYSTEM (SL-9000N only)

11-1

11. PROGRAMMING PROCEDURES

How to access the Programming Menu

EM1-31064

Table 1: Title and Contents of Programming Menu

NO. TITLE MENU ITEM CONTENTS Page

Page No.

1 PLU DATA EDIT 1 0 CHANGE UNIT PRICE 11-4 2 PLU DATA 1 1 PROGRAM/CHANGE/DELETE PLU 11-5 3 INGREDIENT MESSAGE 1 2 PROGRAM/CHANGE INGREDIENT 11-7 4 NUTRITION FACTS 1 3 PROGRAM/CHANGE NUTRITION FACTS TABLE 11-8 5 CONFIRMATION LABEL 1 4 VERIFY THE PROGRAMMING DATA OF PLU 11-12 6 ADDRESS SETTING 1 5 PROGRAM MESSAGE/ADDRESS 11-13 7 COMBINATION MESSAGE 1 6 PROGRAM MESSAGE ON DISPLAY AND TIME 11-14 8 SPECIAL INFO. 1 7 PROGRAM SPECIAL INFORMATION 11-16

9 GRADE LINE 1 8 PROGRAM GRADE LINE 11-16 10 SPEED KEY SETTING 1 9 ASSIGN COMMON PLU TO SPECIFIC SPEED KEY 11-17 11 PRT LOCATION 2 0 SELECT LABEL FORMAT AND ADJUST 11-18 12 DATE/TIME SETTING 2 1 PROGRAM DATE/TIME/MACHINE #/STORE CODE 11-20 13 CMT/PL-3 2 2 BACK-UP /LOAD DATA OF PLU/ING/NUTRI./SPEED KEY 11-20 14 IN-LINE/LOCAL 2 3 SET PARAMETERS FOR TMCC 11-23 15 LON SYSTEM 2 4 SET PARAMETERS FOR LON 11-24 16 INITIAL SET 2 5 SET INITIAL PARAMETERS 17 BAR CODE FORMAT 2 6 PROGRAM BARCODE FORMAT 11-26 18 TITLE 2 7 PROGRAM/CHANGE TITLE ON DISPLAY/PRINT 11-28 19 LOGO 2 8 SEND/RECIEVE LOGO DATA 11-29 20 IDIOM 2 9 PROGRAM IDIOM 11-30 21 VENDOR 3 0 VENDOR NAME 11-30 22 FREE FORMAT 3 1 PROGRAM FREE FORMAT 11-31 23 LAN SYSTEM 3 2 PROGRAMS PARAMETERS FOR LAN -

(SL-9000N only)

NOTE: Menu No. 16 and 23 are programs for use of dealers. Contact a TOSHIBA TEC representative

if you desire to use them. When you enter one of these menus by mistake, press ESC. key to return to Main Menu.

11-2

11. PROGRAMMING PROCEDURES

How to enter characters

Use the following procedure to enter a commodity name, address and ingredient message.

Example) 1st line: TEC STORE

2nd line (TEL) 0123-45-6789

EM1-31064

SHIFT (

NOTES: 1. ← and

2. To insert a space, move the cursor to the next character to the space to be inserted, and press

3. To delete a line, press

4. To move the cursor to the preceding line when entering a commodity name, press key, or

5. Pressing the

6. When entering a commodity name, press

RETURN 1/4

7. Pressing the

8. To call a preset ingredient message idiom, follow the procedure below:

9. To skip a line when entering an ingredient message, follow the procedure below:

SPACE

1st line content

SHIFT

→

keys are the cursor keys.

INSERT

STOR

TEE 6789

key.

DELETE (B)

↑

key.

key toggles between capitals and small letters.

key to return.

CHANGE PLU

DELETE

(A) 1/2

2nd line content

RETURN

1/4

key.

ENTER

↓

key instead of the

key toggles the type font between normal and boldface.

PLU

SET

Enter the idiom #.

Enter the line #.

11-3

RETURN

1/4

RETURN

1/4

+ 67 hidden pages

Toshiba EM1-31064JE, SL-9000-FFB, EM1-31064, SL-9000N-FFB User Manual

TABLE OF CONTENTS

4.1 US TYPE

10. OUTLINE OF OPERATION

11. PROGRAMMING PROCEDURES
