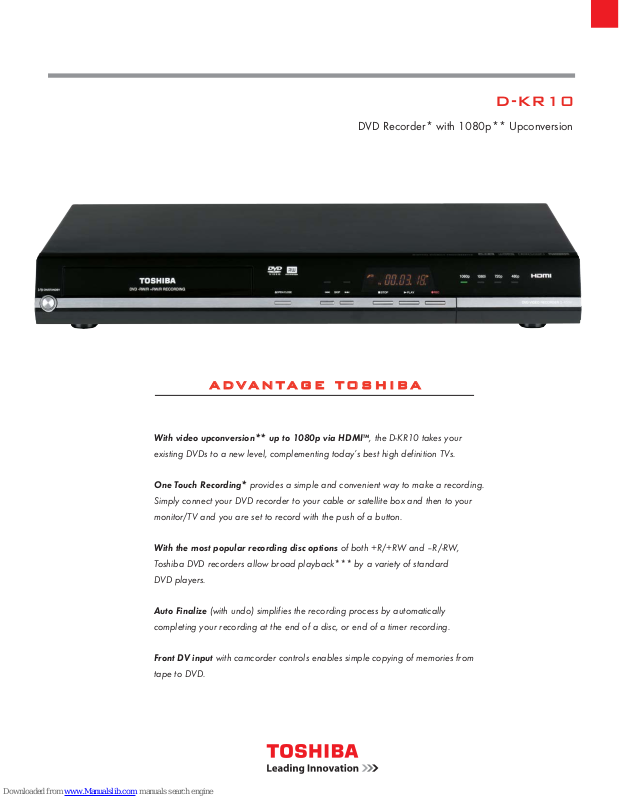

D-KR10
DVD Recorder* with 1080p** Upconversion
ADVANTAGE TOSHIBA
With video upconversion** up to 1080p via HDMITM, the D-KR10 takes your
existing DVDs to a new level, complementing today’s best high definition TVs.
One Touch Recording* provides a simple and convenient way to make a recording.
Simply connect your DVD recorder to your cable or satellite box and then to your
monitor/TV and you are set to record with the push of a button.
With the most popular recording disc options of both +R/+RW and –R/-RW,
Toshiba DVD recorders allow broad playback*** by a variety of standard
DVD players.
Auto Finalize (with undo) simplifies the recording process by automatically
completing your recording at the end of a disc, or end of a timer recording.
Front DV input with camcorder controls enables simple copying of memories from
tape to DVD.
Page 2
D-KR10 Specifications
Playable Disc Types*** DVD-Video, CD-DA, CD-R, CD-RW,
DVD-RAM, DVD-R, DVD-RW,
DVD+RW, DVD+R, VCD
Progressive Out
✓
Video DAC 10-bit/54 MHz
Video Upconversion** 720p/1080i/1080p
Digital Photo Viewer (JPEG)
✓
Y/C Separation ✓
DVD-RW (VR & Video Mode) ✓
DVD+RW (VR Mode) ✓
DVD-R (Video Mode) ✓
DVD+R (VR Mode) ✓
Time Slip - Chasing Playback w/-RW (Except XP.SP)
Time Slip - Pause Live TV
✓
Recording Modes 1H(XP)/2H(SP)/4H(LP)/6H(EP)/8H(SLP)
Auto Finalization w/ undo
✓
V-Chip Recording ✓
Timer Recording 12 programs/1 month
Camcorder Controls Yes (Dubbing)
Audio DAC 192kHz/24bit
MP3***
✓
WMA*** ✓
DivX®Home Theater Certified ✓
Dolby®Digital Recording (2-Ch) ✓
L-PCM Recording XP mode only
3D (Virtual Surround Sound)
✓
OSD Language English/French/Spanish
1.5x FF with Audio 1.3x /0.8x with Audio
Scan FF/REW 2X(fwd) 5X(back) ,20X,40X
Slow-Motion 1/2(fwd) 1/4(back), 1/8X, 1/16X
Instant Skip
✓
Zoom (magnifications) ✓
Editing Features Playlist/Rename Title/Replace Title
Thumbnail / Chapter Creation (User and Auto)
Timer Back Up (at standby mode) 30 sec.
Auto Finalization (with undo)
✓
Commercial Skip ✓
Component Out 1
HDMI
TM
Out 1
Rear S-Video Input/Output 1/1
Rear RCA-Video Input/Output 1/1
Rear Analog Audio Input/Output 1/1
Coax Output 1
Front DV Input 1
Unit Dimensions (WHD) in. 16.54 x 2.32 x 9.72
Carton Dimensions (WHD) in. 20.47 x 5.79 x 14.25
Unit Weight 5.28 lbs.
Carton Weight 7.7 lbs.
UPC Code 022265000823
Video
Audio/Video Format Support
http://www.tacp.toshiba.com Customer Solutions: 800.631.3811
© Toshiba America Consumer Products, L.L.C.
82 Totowa Road, Wayne, NJ 07470 (2007). All Rights Reserved (7/07.04)
Dolby and the double-D symbol are registered trademarks of Dolby Laboratories.
DivX, DivX Certified, and associated logos are trademarks of DivX, Inc. and are used
under license. HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.
Product design and specifications subject to change or modification without notice.
*External tuner source required to record television programming. This product is not made
or sold for unauthorized use of copyrighted works, and it is only intended for recording and
playback of authorized content and any other lawful use.
**A HDTV or HD Monitor with an HDCP capable HDMI or DVI input is required for video
upconversion. To upconvert to 720p, 1080i, or 1080p resolution, a 720p, 1080i, or
1080p capable HDTV or HD Monitor (as applicable) is required.
***Some DVD-R/DVD-RW and CD-R/CD-RW discs may be incompatible due to laser pick
up and disc design. CD-R/CD-RW discs must be recorded using CD-DA method for CD
audio playback. The DVD Recorder may not support some MP3/WMA/JPEG/DivX recordings due to differences in recording formats, disc structure, or condition of the disc (use of
CD-RW for MP3 files is not recommended). See owner’s manual for more information.
