Toshiba B-SX5T User Manual

TEC Thermal Printer

B-SX5T SERIES

Owner's Manual

CE Compliance (for EU only)

This product complies with the requirements of EMC and Low Voltage Directives including their amendments.

VORSICHT:

•

Schallemission: unter 70dB (A) nach DIN 45635 (oder ISO 7779) Die für das Gerät Vorgesehene Steckdose muß in der Nähe des Gerätes und leicht zugänglich sein.

•

Centronics is a registered trademark of Centronics Data Computer Corp. Microsoft is a registered trademark of Microsoft Corporation. Windows is a trademark of Microsoft Corporation.

As an ENERGY STAR® Partner, TOSHIBA TEC has determined that this product meets the ENERGY STAR

-- Outline of the International ENERGY STAR® Office Equipment Program --

The International ENERGY STAR promotes energy saving through the penetration of energy efficient computers and other office equipment. The program backs the development and dissemination of products with functions that effectively reduce energy consumption. It is an open system in which business proprietors can participate voluntarily. The targeted products are office equipment such as computers, monitors, printers, facsimiles, copiers, scanners, and multifunction devices. Their standards and logos are uniform among participating nations.

guidelines for energy efficiency.

Office Equipment Program is an international program that

NERGY STAR is a U.S. registered mark.

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable rotection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not inst alled and sed in accordance with the instruction manual, may cause harmful interference to radio communications. Operations of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his ow n expense.

(for USA only)

Changes or modifications not expressly approved by manufacturer for compliance could void the user’s authority to operate the equipment.

“This Class A digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.” “Cet appareil numérique de la classe A respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada.”

(for CANADA only)

Safety Summary

ENGLISH VERSION EO1-33036

6DIHW\6XPPDU\

Personal safety in handling or maintaining the equipment is extremely important. Warnings and Cautions necessary for safe handling are included in this manual. All warnings and cautions contained in this manual should be read and understood before handling or maintaining the equipment.

Do not attempt to effect repairs or modifications to this equipment. If a fault occurs that cannot be rectified using the procedures described in this manual, turn off the power, unplug the machine, then contact your authorised TOSHIBA TEC representative for assistance.

0HDQLQJVRI(DFK6\PERO

This symbol indicates warning items (including cautions). Specific warning contents are drawn inside the symbol.

(The symbol on the left indicates a general caution.)

This symbol indicates prohibited actions (prohibited items). Specific prohibited contents are drawn inside or near the

(The symbol on the left indicates “no disassembling”.)

This symbol indicates actions which must be performed. Specific instructions are drawn inside or near the ● symbol.

(The symbol on the left indicates “disconnect the power cord plug from the outlet”.)

symbol.

$Q\ RWKHU WKDQ WKH VSHFLILHG $& YROWDJH LV SURKLELWHG

3URKLELWHG

:$51,1*

Do not use voltages other than the voltage (AC) specified on th e rating plate, as thi s may cause

fire

electric shock

If the machines share the same outlet with any other electrical appliances that consume large amounts of power, the voltage will fluctuate widely each time these appliances operate. Be sure to provide an exclusive outlet for the machine as this may cause

fire

electric shock

or Do not insert or drop metal, flammable or other foreign objects into th e machines through the ventilation slits, as this may

fire

cause

electric shock

This indicates that there is the risk of

death

serious injury

machines are improperly handled contrary to this indication.

3URKLELWHG

Do not plug in or unplug the power cord plug with wet hands as this may cause

Do not place metal objects or water-filled containers such as flower vases, flower pots or mugs, etc. on top of the machines. If metal objects or spilled liquid enter the machines, this may cause or

Do not scratch, damage or modify the power cords. Also, do not place heavy objects on, pull on, or excessively bend the cords, as this may cause

electric shock

fire

electrical shock.

if the

fire

'LVFRQQHFW WKH SOXJ

If the machines are dropped or their cabinets damaged, first turn off the power switches and disconnect the power cord plugs from the outlet, and then contact your authorised TOSHIBA TEC representative for assistance. Continued use of the machine in that condition may cause

electric shock

fire

'LVFRQQHFW WKH SOXJ

Continued use of the machines in an abnormal condition such as when the machines are producing smoke or strange smells may cause

fire

electric shock

or cases, immediately turn off the power switches and disconnect the power cord plugs from the outlet. Then, contact your au thorised TOSHIBA TEC representative for assistance.

. In these

( ) i

Safety Summary

ENGLISH VERSION EO1-33036

'LVFRQQHFW WKH SOXJ

&RQQHFW D JURXQGLQJ ZLUH

If foreign objects (metal fragments, water, liquids) enter the machines, first turn off the power switches and disconnect the power cord plugs from the outlet, and then contact your authorised TOSHIBA TEC representative for assistance. Continued use of the machine in that condition may cause

electric shock

Ensure that the equipment is properly grounded. Extension cables should also be grounded.

Fire

or occur on improperly grounded equipment.

electric shock

fire

could

'LVFRQQHFW WKH SOXJ

1R GLVDVVHPEOLQJ

When unplugging the power cords, be sure to hold and pull on the plug portion. Pulling on the cord portion may cut or expose the internal wires

fire

and cause

Do not remove covers, repair or modify the machine by yourself. You may be voltage, very hot parts or sharp edges inside the machin e.

electric shock

injured

by high

&$87,21

This indicates that there is the risk of personal

Injury

objects if the machines are improperly handled contrary to this indication.

damage

Precautions

The following precautions will help to ensure that this machine will continue to function correctly.

●

Try to avoid locations that have the following adverse conditions: * Temperatures out of the specification * Direct sunlight * High humidity * Shared power source * Excessive vibration * Dust/Gas

●

The cover should be cleaned by wiping with a dry cloth or a cloth slightly dampened with a mild

detergent solution. NEVER USE THINNER OR ANY OTHER VOLATILE SOLVENT on the plastic

covers.

●

USE ONLY TOSHIBA TEC SPECIFIED paper and ribbons.

●

DO NOT STORE the paper or ribbons where they might be exposed to direct sunlight, high

temperatures, high humidity, dust, or gas.

●

Ensure the printer is operated on a level surface.

●

Any data stored in the memory of the printer could be lost during a printer fault.

●

Try to avoid using this equipment on the same power supply as high voltage equipment or equipment

likely to cause mains interference.

●

Unplug the machine whenever you are working inside it or cleaning it.

●

Keep your work environment static free.

●

Do not place heavy objects on top of the machines, as these items may become unbalanced and fall

causing injury.

●

Do not block the ventilation slits of the machines, as this will cause heat to build up inside the

machines and may cause fire.

●

Do not lean against the machine. It may fall on you and could cause injury.

●

Care must be taken not to injure yourself with the printer paper cutter.

●

Unplug the machine when it is not used for a long period of time.

●

Place the machine on a stable and level surface.

Request Regarding Maintenance

●

Utilize our maintenance services.

After purchasing the machine, contact your authorised TOSHIBA TEC representative for assistance

once a year to have the inside of the machine cleaned. Otherwise, dust will build up inside the machines and may cause a fire or a malfunction. Cleaning is particularly effective before humid rainy seasons.

●

Our preventive maintenance service performs the periodic checks and other work required to maintain

the quality and performance of the machines, preventing accidents beforehand.

For details, please consult your authorised TOSHIBA TEC representative for assistance.

●

Using insecticides and other chemicals Do not expose the machines to insecticides or other volatile solvents. This will cause the cabinet or other parts to deteriorate or cause the paint to peel.

( ) ii

ENGLISH VERSION EO1-33036

Page

1. PRODUCT OVERVIEW ........................................................................................................E1-1

1.1 Introduction..................................................................................................................E1-1

1.2 Features.......................................................................................................................E1-1

1.3 Unpacking....................................................................................................................E1-1

1.4 Accessories .................................................................................................................E1-2

1.5 Appearance..................................................................................................................E1-3

1.5.1 Dimensions .................................................................................................................. E1-3

1.5.2 Front View.................................................................................................................... E1-3

1.5.3 Rear View .................................................................................................................... E1-3

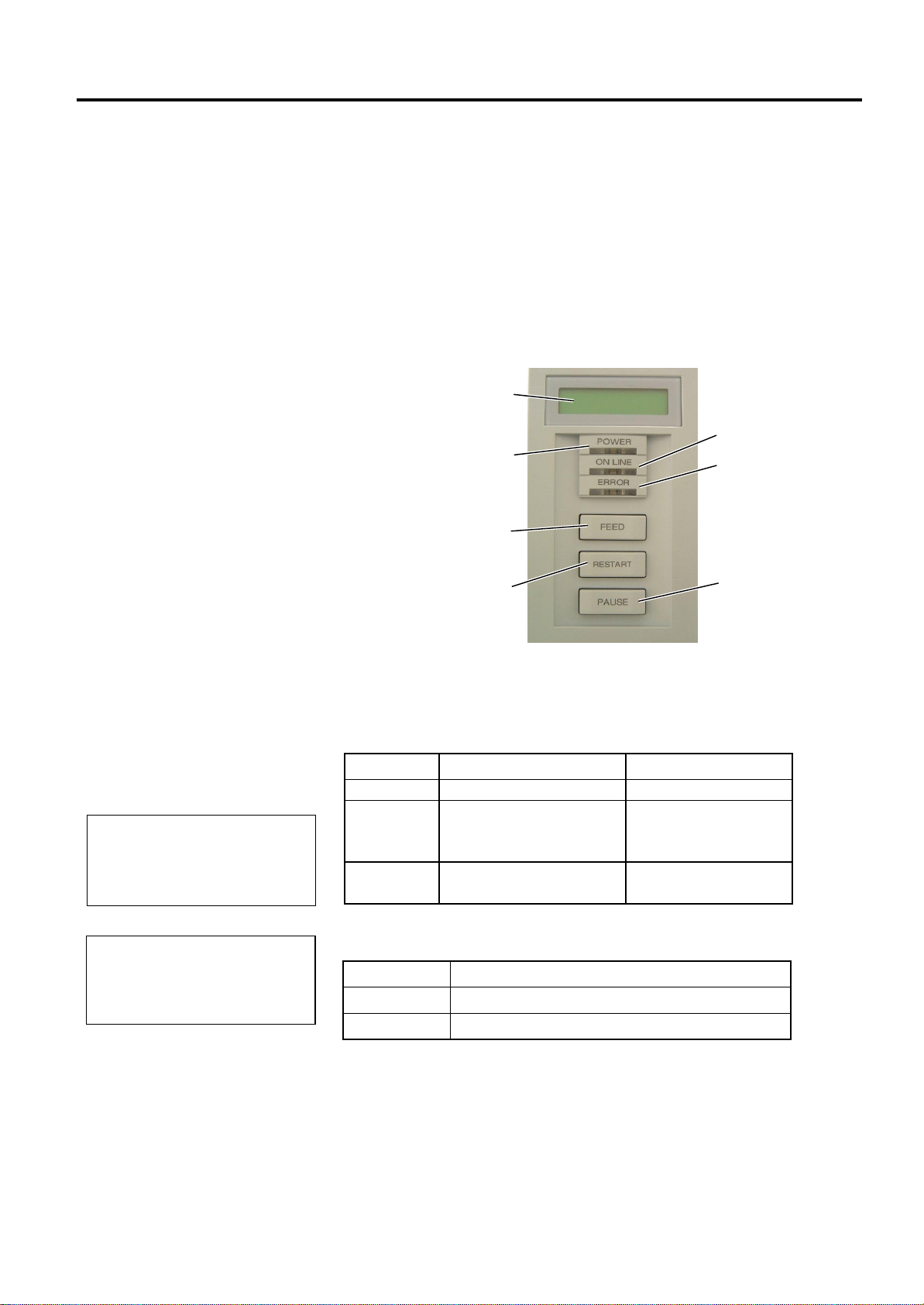

1.5.4 Operation Panel........................................................................................................... E1-4

1.5.5 Interior.......................................................................................................................... E1-4

2. PRINTER SETUP..................................................................................................................E2-1

2.1 Precautions..................................................................................................................E2-1

2.2 Procedure before Operation.........................................................................................E2-2

2.3 Fitting the Fan Filter.....................................................................................................E2-2

2.4 Connecting the Cables to Your Printer.........................................................................E2-3

2.5 Connecting the Power Cord .........................................................................................E2-4

2.6 Turning the Printer ON/OFF.........................................................................................E2-5

2.6.1 Turning ON the Printer................................................................................................. E2-5

2.6.2 Turning OFF the Printer...............................................................................................E2-5

2.7 Loading the Media........................................................................................................E2-6

2.8 Loading the Ribbon....................................................................................................E2-12

2.9 Inserting the Optional PCMCIA Cards........................................................................E2-14

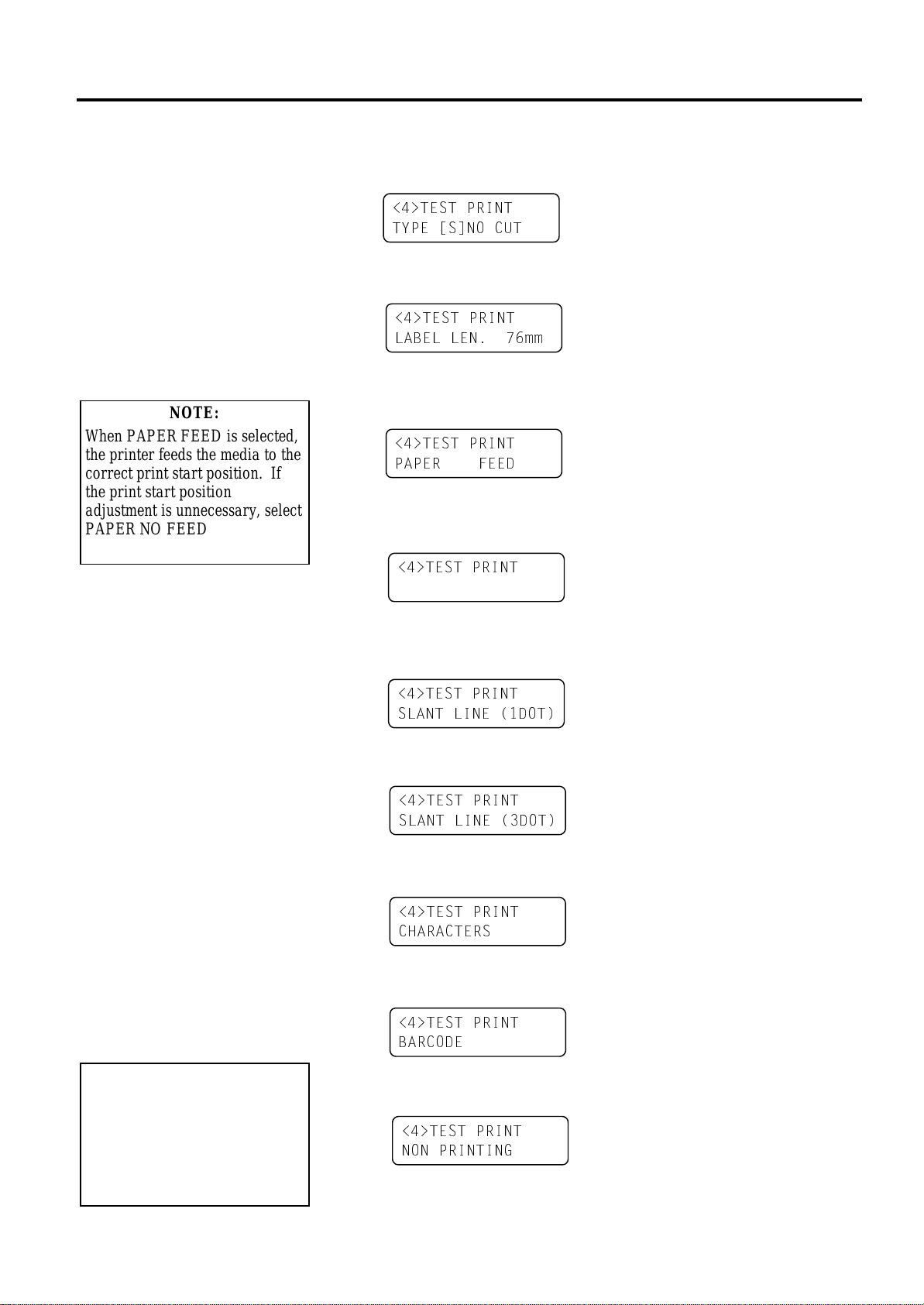

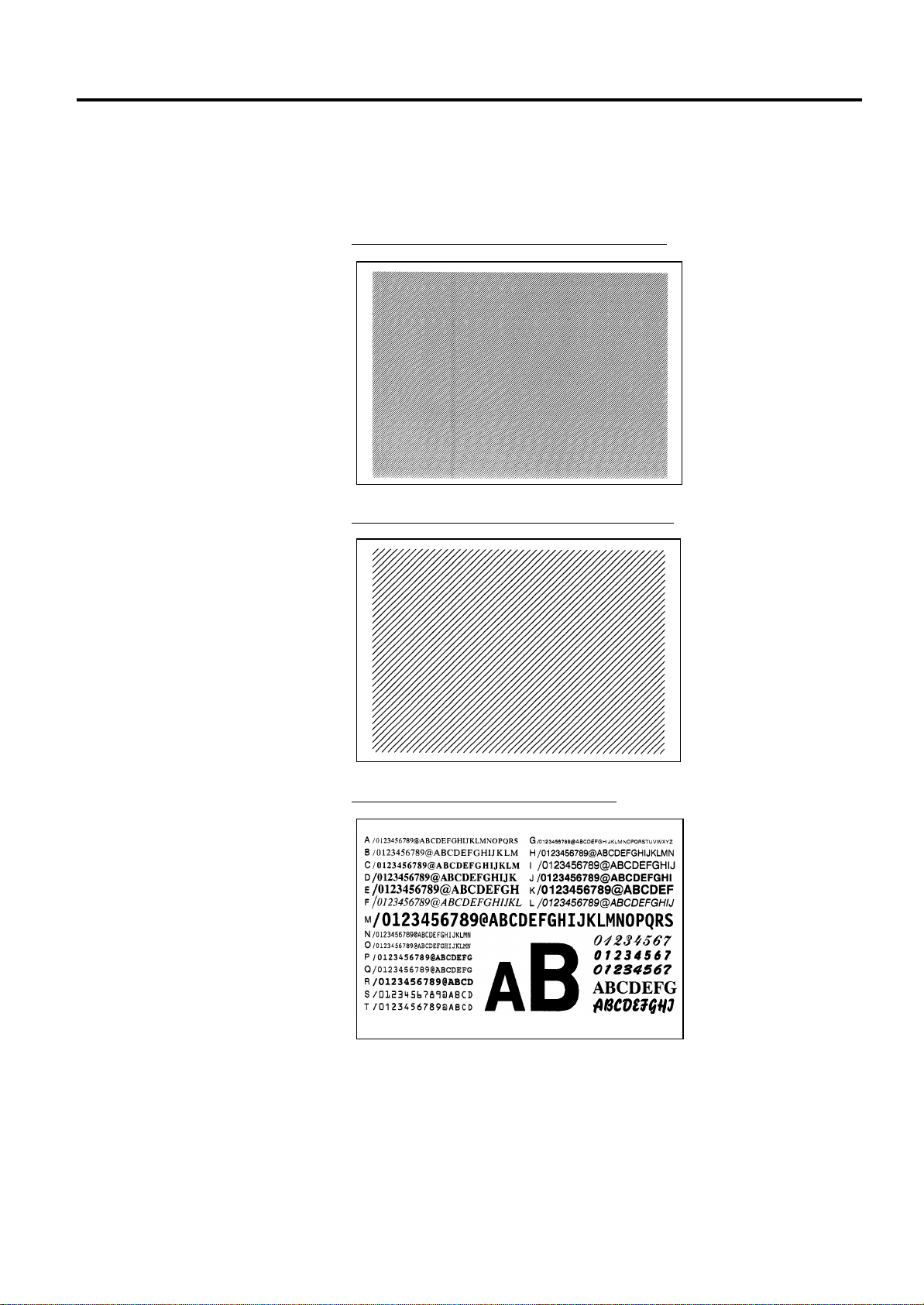

2.10 Test Print....................................................................................................................E2-15

3. ON LINE MODE ....................................................................................................................E3-1

3.1 Operation Panel...........................................................................................................E3-1

3.2 Operation.....................................................................................................................E3-2

3.3 Reset............................................................................................................................E3-2

3.4 Dump Mode..................................................................................................................E3-3

4. MAINTENANCE....................................................................................................................E4-1

4.1 Cleaning.......................................................................................................................E4-1

4.1.1 Print Head/Platen/Sensors.......................................................................................... E4-1

4.1.2 Covers and Panels ......................................................................................................E4-2

4.1.3 Optional Cutter Module................................................................................................E4-3

4.2 Care/Handling of the Media and Ribbon.......................................................................E4-3

5. TROUBLESHOOTING..........................................................................................................E5-1

5.1 Error Messages............................................................................................................E5-1

5.2 Possible Problems........................................................................................................E5-2

5.3 Removing Jammed Media............................................................................................E5-3

5.4 Threshold Setting.........................................................................................................E5-4

ENGLISH VERSION EO1-33036

APPENDIX 1 SPECIFICATIONS...............................................................................................EA1-1

A1.1 Printer........................................................................................................................EA1-1

A1.2 Options......................................................................................................................EA1-2

A1.3 Media.........................................................................................................................EA1-2

A1.3.1 Media Type.....................................................................................................EA1-2

A1.3.2 Detection Area of the Transmissive Sensor....................................................EA1-3

A1.3.3 Detection Area of the Reflective Sensor .........................................................EA1-4

A1.3.4 Effective Print Area.........................................................................................EA1-4

A1.4 Ribbon.......................................................................................................................EA1-5

APPENDIX 2 MESSAGES AND LEDS .....................................................................................EA2-1

APPENDIX 3 INTERFACE........................................................................................................EA3-1

APPENDIX 4 PRINT SAMPLES................................................................................................EA4-1

GLOSSARIES INDEX

WARNING!

This is a Class A product. In a domestic environment this product may cause radio interference in which case the user ma

be required to take adequate measures.

CAUTION!

1. This manual may not be copied in whole or in part without prior written permission of TOSHIBA TEC.

2. The contents of this manual may be changed without notification.

3. Please refer to your local Authorised Service representative with regard to any queries you may have in this manual.

1. PRODUCT OVERVIEW

ENGLISH VERSION EO1-33036

1. PRODUCT OVERVIEW

1.1 Introduction

1.2 Features

1.3 Unpacking

1. Check for damage or scratches on the printer. However, please note that TOSHIBA TEC shall have no liability for any damage of any kind sustained during transportation of the product.

2. Keep the cartons and pads for future transportation of the printer.

NOTES:

Thank you for choosing the TEC B-SX5T series thermal printer. This Owner’s Manual contains from general set-up through how to confirm the printer operation using a test print, and should be read carefully to help gain maximum performance and life from your printer. For most queries please refer to this manual and keep it safe for future reference. Please contact your TOSHIBA TEC representative for further information concerning this manual.

This printer has the following features:

• The print head block can be opened providing smooth loading of

media and ribbon.

• Various kinds of media can be used as the media sensors can be

moved from the centre to the left edge of the media.

• The strip module, ribbon saving module, and expansion I/O interface

board are provided on this printer as standard.

• When the optional interface board is installed, Web functions such as

remote maintenance and other advanced network features are available.

• Superior hardware, including the specially developed 12 dots/mm

(306 dots/inch) thermal print head which will allow very clear print at a printing speed of 76.2 mm/sec. (3 inches/sec.), 127.0 mm/sec. (5 inches/sec.), or 203.2 mm/sec. (8 inches/sec.).

• Besides the optional Cutter Module, there are also an optional

PCMCIA Interface Board, LAN Interface Board, and the USB Interface Board.

Unpack the printer as per the Unpacking Instructions supplied with the printer.

1.1 Introduction

E1- 1

1. PRODUCT OVERVIEW

ENGLISH VERSION EO1-33036

1.4 Accessories

When unpacking the printer, please make sure all the following accessories are supplied with the printer.



US Power Cord (1 pc.)

(P/No. FBCB0030203)

QQ model only



CD-ROM (1 pc.)

QQ (P/No.: 7FM00332100) QP (P/No.: 7FM00256100)



Rewinder Guide Plate (1 pc.)

(P/No.: FMBD0034501)



EU Power Cord (1 pc.)

(P/No.EKA-0030001) QP model only



Fan Filter (1 pc.) (P/No. FMBB0036801)

SMW-4x8 Sems Screws (2 pcs.)



(P/No.: X0-00161000)



Warranty Disclaimer Sheet (1 sheet)

QQ-US model only

E1- 2

1. PRODUCT OVERVIEW

291

460

308

ENGLISH VERSION EO1-33036

1.5 Appearance

1.5.1 Dimensions

1.5.2 Front View

1.5 Appearance

The names of the parts or units introduced in this section are used in the following chapters.

291 (11.5)

460 (18.1)

308

(12.1)

Dimensions in mm (inches)

LCD Message Display

Top Cover

Operation Panel

1.5.3 Rear View

Supply Window

Media Outlet

Parallel Interface Connector (Centronics)

Serial Interface Connector (RS-232C)

AC Power Inlet

PCMCIA Card Slot (Option), USB Connector (Option), or LAN Connector (Option)

USB Connector (Option) or LAN Connector (Option)

Expansion I/O Interface Connector

Power Switch

{

: OFF

|: ON

E1- 3

1. PRODUCT OVERVIEW

ENGLISH VERSION EO1-33036

1.5.4 Operation Panel

1.5.5 Interior

1.5 Appearance

LCD Message Display

POWER LED

(Green)

[FEED]

ON LINE LED (Green)

ERROR LED (Red)

[RESTART]

[PAUSE]

key

Please see Section 3.1 for further information about the Operation Panel.

Ribbon Stoppe

Locking Ring

Supply Holder

Print Head Block

Supply Shaft

Print Head

Platen

Head Lever

Ribbon Shaft

Take-up Spool

E1- 4

2. PRINTER SE TUP

ENGLISH VERSION EO1-33036

2. PRINTER SETUP

2.1 Precautions

This section outlines the procedures to setup your printer prior to its operation. The section includes precautions, connecting cables, assembling accessories, loading media and ribbon, inserting the optional memory card, and performing a test print.

To insure the best operating environment, and to assure the safety of the operator and the equipment, please observe the following precautions.

• Operate the printer on a stable, level, operating surface in a location

free from excessive humidity, high temperature, dust, vibration or direct sunlight.

• Keep your work environment static free. Static discharge can cause

damage to delicate internal components.

• Make sure that the printer is connected to a clean source of AC

Power and that no other high voltage devices that may cause line noise interference are connected to the same mains.

• Assure that the printer is connected to the AC mains with a three-

prong power cable that has the proper ground (earth) connection.

• Do not operate the printer with the cover open. Be careful not to

allow fingers or articles of clothing to get caught into any of the moving parts of the printer especially the optional cutter mechanism.

• Make sure to turn off the printer power and to remove the power cord

from the printer whenever working on the inside of the printer such as changing the ribbon or loading the media, or when cleaning the printer.

• For best results, and longer printer life, use only TOSHIBA TEC

recommended media and ribbons.

• Store the media and ribbons in accordance with their specifications.

• This printer mechanism contains high voltage components; therefore

you should never remove any of the covers of the machine as you may receive an electrical shock. Additionally, the printer contains many delicate components that may be damaged if accessed by unauthorised personnel.

• Clean the outside of the printer with a clean dry cloth or a clean cloth

slightly dampened with a mild detergent solution.

• Use caution when cleaning the thermal print head as it may become

very hot while printing. Wait until it has had time to cool before cleaning. Use only the TOSHIBA TEC recommended print head cleaner to clean the print head.

• Do not turn off the printer power or remove the power plug while the

printer is printing or while the ON LINE lamp is blinking.

E2- 1

2. PRINTER SE TUP

ENGLISH VERSION EO1-33036

2.2 Procedure before Operation

To communicate with the host computer, one of the following cables is required. (1) RS-232C cable: 25 pins (2) Centronics cable: 36 pins (3) USB: B plug (Option) (4) LAN: 10 Base-T or 100

Base-TX (Option)

NOTE:

2.3 Fitting the Fan Filter

2.2 Procedure before Operation

This section describes the outline of the printer setup.

Unpack the accessories and printer from the box.

Refer to Safety Precautions in this manual and set up the printer at a

proper location.

Fit the Fan Filter to the printer. (Refer to Section 2.3.)

The host computer must have a serial, Centronics parallel, USB or

LAN port. (Refer to Section 2.4.)

Be sure to insert the power cord plug into an AC outlet. (Refer to

Section 2.5.)

Load the media. (Refer to Section 2.7.)

Adjust the position of the Feed Gap Sensor or Black Mark Sensor

depending on the media being used. (Refer to Section 2.7.)

Load the ribbon. (Refer to Section 2.8.)

Turn the power ON. (Refer to Section 2.6.)

10.

Perform a test print. (Refer to Section 2.10.)

11.

Install the Printer Drivers. (Refer to the Printer Driver Manual.)

When installing the printer, it is important to ensure that the Fan Filter is attached before using the printer.

The Fan Filter consists of 2 parts: (1) Filter Pad

(2) Filter Retainer To fit the Fan Filter, put the Filter Pad inside the Filter Retainer and

simply press into place as shown in the diagram below, ensuring connecting pins are aligned with the connecting holes.

Filter Pad

Snap On

Filter Retainer

Snap On

E2- 2

2. PRINTER SE TUP

ENGLISH VERSION EO1-33036

2.4 Connecting the Cables to Your Printer

1. The picture on the right shows the layout of the interface connectors when the options are fully installed. It may be different depending on your system configuration.

2. The USB interface and LAN interface cannot be used at the same time.

NOTES:

2.4 Connecting the Cables to Y our P ri nter

The following paragraphs outline how to connect the cables from the

printer to your host computer, and will also show how to make cable connections to other devices. Depending on the application software you use to print labels, there are 4 possibilities for connecting the printer to your host computer. These are:

•

A serial cable connection between the printer’s RS-232 serial

connector and one of your host computer’s COM ports. (Refer to APPENDIX 3.)

•

A parallel cable connection between the printer’s standard parallel

connector and your host computer’s parallel port (LPT).

•

An Ethernet connection using the optional LAN board.

•

A USB cable connection between the printer’s optional USB

connector and your host computer’s USB port. (Conforming to USB 1.1)

The diagram below shows all the possible cable connections to the current version of the printer.

g, h

gori

Parallel Interface Connector (Centronics)

Serial Interface Connector (RS-232C)

Expansion I/O Interface Connector

Power Inlet

USB Interface Connector (Option)

PCMCIA Card Slot (Option)

LAN Interface Connector (Option)

E2- 3

2. PRINTER SE TUP

ENGLISH VERSION EO1-33036

2.5 Connecting the Power Cord

1. Make sure that the pr inte

2. Use only the Power Cord

3. Connect the Power Cor d

CAUTION!

Power Switch is turned to the OFF position ( before connecting the Power Cord to prevent possible electric shock or damage to the printer.

supplied with the printer. Use of any other cord may cause electric shock or fire.

to a supply outlet with a properly grounded (earthed) connection.

{

)

2.5 Connecting the Power Cord

Make sure that the printer Power Switch is in the OFF (

{

) position.

{

Power Switch

Connect the Power Cord to the printer as shown in the figure below.

Power Cord

Plug the other end of the Power Cord into a grounded outlet as shown

in the figure below.

Power Cord

[QQ Type] [QP Type]

E2- 4

2. PRINTER SE TUP

I L

ENGLISH VERSION EO1-33036

2.6 Turning the Printer ON/OFF

2.6.1 Turning ON the Printer

Use the power switch to turn the printer On/Off. Plugging or unplugging the Power Cord to turn the printer On/Off may cause fire, an electric shock, or damage to the printer.

f a message other than ON

INE appears on the display or the ERROR LED lamp is illuminated, go to Section 5.1, Error Messages.

2.6.2 Turning OFF the Printer

1. Do not turn off the printer

2. Do not turn off the printer

CAUTION!

power while the media is being printed as this may cause a paper jam or damage to the printer.

power while the ON LINE lamp is blinking as this may cause damage to your computer.

NOTE:

2.6 Turning the Printer ON/OFF

When the printer is connected to your host computer it is good practice to turn the printer ON before turning on your host computer and turn OFF your host computer before turning off the printer.

To turn ON the printer power, press the Power Switch as shown in the

is the power ON side of the switch.

diagram below. Note that (

Check that the ON LINE message appears in the LCD Message

Display and that the ON LINE and POWER LED lights are illuminated.

Before turning off the printer Power Switch verify that the ON LINE message appears in the LCD Message Display and that the ON LINE LED light is on and is not flashing.

To turn OFF the printer power press the Power Switch as shown in the diagram below. Note that ({)

)

Power Switch

is the power OFF side of the switch.

Power Switch

E2- 5

2. PRINTER SE TUP

ENGLISH VERSION EO1-33036

2.7 Loading the Media

1. Do not touch any moving

2. The Print Head becomes

3. To avoid injury, be caref u l

Be careful not to touch the Print Head Element when raising the Print Head Block. Failure to do this may cause missing dots by static electricity or other print qualit problems.

WARNING!

parts. To reduce the risk of fingers, jewellery, clothing, etc., being drawn into the moving parts, be sure to load the media once the printer has stopped moving completely.

hot immediately after printing. Allow it to cool before loading the media.

not to trap your fingers while opening or closing the cover.

CAUTION!

2.7 Loading the Media

The following procedure shows the steps to properly load the media into the printer so that it feeds straight and true through the printer.

The printer prints both labels and tags.

Turn off the power and open the Top Cover.

Turn the Head Lever to

Free

position, then release the Ribbon Shaft

Holder Plate.

Open the Print Head Block.

Print Head Block

Top Cover

Head Lever

Ribbon Shaft Holder Plate

CAUTION!

When loading or replacing the media or a ribbon, be careful not to damage the print head with a hard object like a watch or a ring.

NOTES:

1. When the Head Lever is

Free

turned to Print Head is raised.

2. To allow printing the Head Lever must be set to position. (This ensures that the Print Head is closed.)

There are two head pressure

levels in the Set the Head Lever depending on the media type:

Position c: Labels Position d: Tags However, proper position

may differ depending on media. For details, refer to TOSHIBA TEC authorised service representative.

3. Do not turn the Locking Ring counter-clockwise too far or it may come off the Supply Holder.

position, the

Lock

position.

Care must be taken not to allow the metal or glass part of a watch to touch the print head edge.

Care must be taken not to allow a metal object like a r ing to touch the print head edge.

Since the print head element can be easily damaged by shock, please treat it carefully by not hitting a hard object against it.

Turn the Locking Ring counterclockwise and remove the Supply

Holder from the Supply Shaft.

Locking Ring

Supply Shaft

Supply Holder

E2- 6

2. PRINTER SE TUP

D R

ENGLISH VERSION EO1-33036

2.7 Loading the Media (Cont.)

o not over-tighten the Locking

ing of the Supply Holder.

NOTE:

2.7 Loading the Media

Put the media on the Supply Shaft.

Pass the media around the Damper, then pull the media towards the

front of the printer.

Align the projection of the Supply Holder with the groove of the

Supply Shaft, and push the Supply Holder against the m edia until the media is held firmly in place. This will centre the media automatically. Then turn the Locking Ring clockwise to secure the Supply Holder.

Damper

Suppl

Holder

Projection

Media

Supply Shaft

Locking Ring

In case of a label rolled with the print side facing inside.

In case of a label rolled with the print side facing outside.

Media

Damper

Place the media between the Media Guides, adjust the Media Guides

to the media width, and tighten the Locking Screw.

Check that the media path through the printer is straight. The media

should be centred under the Print Head.

Media Guide

Print Head

Supply Holder

Locking Screw

Media

Media Guide

E2- 7

+ 39 hidden pages

Toshiba B-SX5T User Manual

TABLE OF CONTENTS
