CIRCUIT DIAGRAMS
Integrated HD Projection Television
51H94
57H94
DOCUMENT CREATED IN JAPAN, Oct., 2004
Page 2
SCHEMATIC DIAGRAM
MODEL : 51H94/57H94
WARNING: BEFORE SERVICING THIS CHASSIS, READ THE "X-RAY RADIATION PRECAUTION", "SAFETY
PRECAUTION" AND "PRODUCT SAFETY NOTICE" ON THE MANUAL FOR THIS MODEL.
CAUTION: The international hazard symbols " " in the schematic diagram and the parts list designate components
which have special characteristics important for safety and should be replaced only with types identical to those in the
original circuit or specified in the parts list. The mounting position of replacements is to be identical with originals.
Before replacing any of these components, read carefully the PRODUCT SAFETY NOTICE on the MANUAL for this
model. Do not degrade the safety of the receiver through improper servicing.
NOTE:
1. RESISTOR Resistance is shown in ohm [K = 1.000, M = 1.000.000]. All resistors are 1/6W and 5% tolerance
carbon resistor, unless otherwise noted as the following marks.
1/2R = Metal or Metal oxide of 1/2 watt 1/2S = Carbon compsistion of 1/2 watt
1RF = Fuse resistor of 1 watt 10W = Cement of 10 watt
±
10% G = ±2% F = ±1%
K =
2. CAPACITOR Unless otherwise noted in schematic, all capacitor values less than 1 are expressed in
the values more than 1 in pF.
All capacitors are ceramic 50V, unless otherwise noted as the following marks.
Electolytic capacitor
Mylar capacitor
µ
F, and
3. The parts indicated with "
4. Voltages read with DIGITAL MULTI-METER from point indicated to chassing ground, using a color bar signal with
all controls at normal, line voltage at 220 volts.
5. Waveforms are taken receiving color bar signal with enough sensitivity.
6. Voltage reading shown are nominal values and may vary
" have special characteristics, and should be replaced with identical parts only.
±
20% except H.V.
Page 3
SCHEMATIC DIAGRAM STRUCTURE:
AUDIO SELECT (HYPER SIGNAL)...................................................... 1/58
FRONT AV (FRONT CONTROL) [SHEET-1/2].................. 2/58
(FRONT IN/REMOTE) [SHEET-2/2].................. 3/58
BACK AV (1/2) [SHEET-1/2].................. 4/58
(IR BLASTER) [SHEET-2/2].................. 5/58
CONVER IF AUDIO (1/4) [SHEET-1/4].................. 6/58
(CONVER OUT) [SHEET-2/4].................. 7/58
(IF) [SHEET-3/4].................. 8/58
(SOUND) [SHEET-4/4].................. 9/58
CONNECTION (HS AV).................................................................... 10/58
CRT-D SVM (B) [SHEET-1/2]................ 11/58
(R, G) [SHEET-2/2]................ 12/58
DEF POWER (CONNECTION) [SHEET-1/3]................ 13/58
(DEF) [SHEET-2/3]................ 14/58
(POWER) [SHEET-3/3]................ 15/58
FAN CONTROL................................................................................................................ 16/58
IR BLA OUT...................................................................................................................... 17/58
MULTI CARD (1/4) [SHEET-1/4]................ 18/58
(2/4) [SHEET-2/4]................ 19/58
(3/4) [SHEET-3/4]................ 20/58
(4/4) [SHEET-4/4]................ 21/58
REGULATOR (HYPER SIGNAL).................................................... 22/58
SUB POWER (1/2) [SHEET-1/2]................ 23/58
(2/2) [SHEET-2/2]................ 24/58
HYPER SIGNAL (BACK AV SOCKET) [SHEET-1/34].............. 25/58
(AV1) [SHEET-2/34].............. 26/58
(AV2) [SHEET-3/34].............. 27/58
(AUDIO SWITCH) [SHEET-4/34].............. 28/58
(AV3) [SHEET-5/34].............. 29/58
(6/34) [SHEET-6/34].............. 30/58
(7/34) [SHEET-7/34].............. 31/58
(8/34) [SHEET-8/34].............. 32/58
(9/34) [SHEET-9/34].............. 33/58
(MICON1) [SHEET-10/34]............ 34/58
(MICON2) [SHEET-11/34]............ 35/58
(MICON3) [SHEET-12/34]............ 36/58
(MICON4) [SHEET-13/34]............ 37/58
(MICON5) [SHEET-14/34]............ 38/58
(MICON6) [SHEET-15/34]............ 39/58
(MICON7) [SHEET-16/34]............ 40/58
(MICON8) [SHEET-17/34]............ 41/58
(MICON9) [SHEET-18/34]............ 42/58
(REGULATOR) [SHEET-19/34]............ 43/58
(MAICON9) [SHEET-20/34]............ 44/58
(DIGITAL-CONVER1) [SHEET-21/34]............ 45/58
(DIGITAL-CONVER2) [SHEET-22/34]............ 46/58
(DIGITAL-CONVER3) [SHEET-23/34]............ 47/58
(DIGITAL-CONVER4) [SHEET-24/34]............ 48/58
(DIGITAL-CONVER5) [SHEET-25/34]............ 49/58
(DIGITAL-CONVER6) [SHEET-26/34]............ 50/58
(DIGITAL-CONVER7) [SHEET-27/34]............ 51/58
(DIGITAL-CONVER8) [SHEET-28/34]............ 52/58
(CONVER-REG) [SHEET-29/34]............ 53/58
(30/34) [SHEET-30/34]............ 54/58
(31/34) [SHEET-31/34]............ 55/58
(32/34) [SHEET-32/34]............ 56/58
(33/34) [SHEET-33/34]............ 57/58
(34/34) [SHEET-34/34]............ 58/58
Page 4
CIRCUIT BLOCK DIAGRAM
IF & AUDIO board
BACK AV
E1
E2
E3
VAL_L
VAL_R
monitor out
Rec out
CS-1
CS-2
L,R
Y,Pb,P
YPbP
Q601
H001 IMA
TV1 L,R in
A_MUTE
RST
L,R
out
W
out
Q663
VARI-AMP
AUDIO OUT
W in
L in
R in
W out
L out
R out
SP_MUTE MUTE_A EXT_MUTE
MAIN_AFT PIP_AFT
Video Device
51H94
Digital Device
L,R
V
V
V,Y,C
V,Y,C
VYC
YPbP
YPbP
V
L,
LR
LR
LR
LR
L,
L
HD,VD
LR
LR
LR
LR
QV01
MM1630XQ
V6(TV1)
V8(DB_SD_OU
VYC1(E1
VYC2(E
VYC3(E3)
CY1(CS1)
CY2(CS
IN1(TV1)
IN2(TV2)
V(Y),C
IN3(E1)
IN4(E2)
IN5(E3)
IN6(CS1)
IN7(CS2)
IN8(HDMI1)
IN9(HDMI2)
IN10(seine_audio)
QS01
MM1631XJBE
VIDEO SW
O1
OUT1
OUT
OUT4
(MON)
HD,VD
OUT1
(SPK)
OUT2
(MON)
OUT3
(1394)
V(Y)CCbCr
V(Y),C
QV04
BA7623
F
BOARD
75_ Driver
Y,Pb,P
V(Y)CCbCr
QZ01
TC90A92F 16bit(601)
TC90A92AFG
sync on g
Y
Cb,Cr
HD,VD,CLP
SAA7115
Y
Q501
TA1383
V,(Y)
To C/C slicer(WSS
SYNC_DET(main)
Seine
Board
AD****
VBI SLCE
To V-chip slicer
(sub)
SYNC_DET(sub)
flash
E2P
ROM
L,R D
HD,VD
24bit(4:4:4)
HD,VD
I2Bus
SW
Micro
Processer
QA01
M306V2ME
(Micro)
TC81420
reset
Ys,Ym,R,G,
SD_VIDEO
Pb,P
Y
HD,VD
RGB
Processer
Q510
TA1360AFG
SIGNAL
CRT-D board
H: WIDE BAND
TYPE
or
HX: NORMAL BAND
TYPE
Frequency Detecter
Synchronized Signal
Decorder
R,G,B,VM
Micro-P Device
H_OUT
VP
V_OUT_BLK
V_STOP_BLK
AFC
ABL
H_PHA_COM
ABL_SW
To
Power/De
f
DVI
AUDIO
HDMI
IEEE1394
POD
TMDS
TC90700
MB8619
DAC
L,R_BS
AD
uPD61051
SW
AD
TS
TS
M-PEG
EXT BUS
3DYCS, Color Decorder
Analog/Digital Converter
TS Decorder, MPEG Decorder
UP CON, Multi Window, Scaler
Video Signal Processer
Page 5

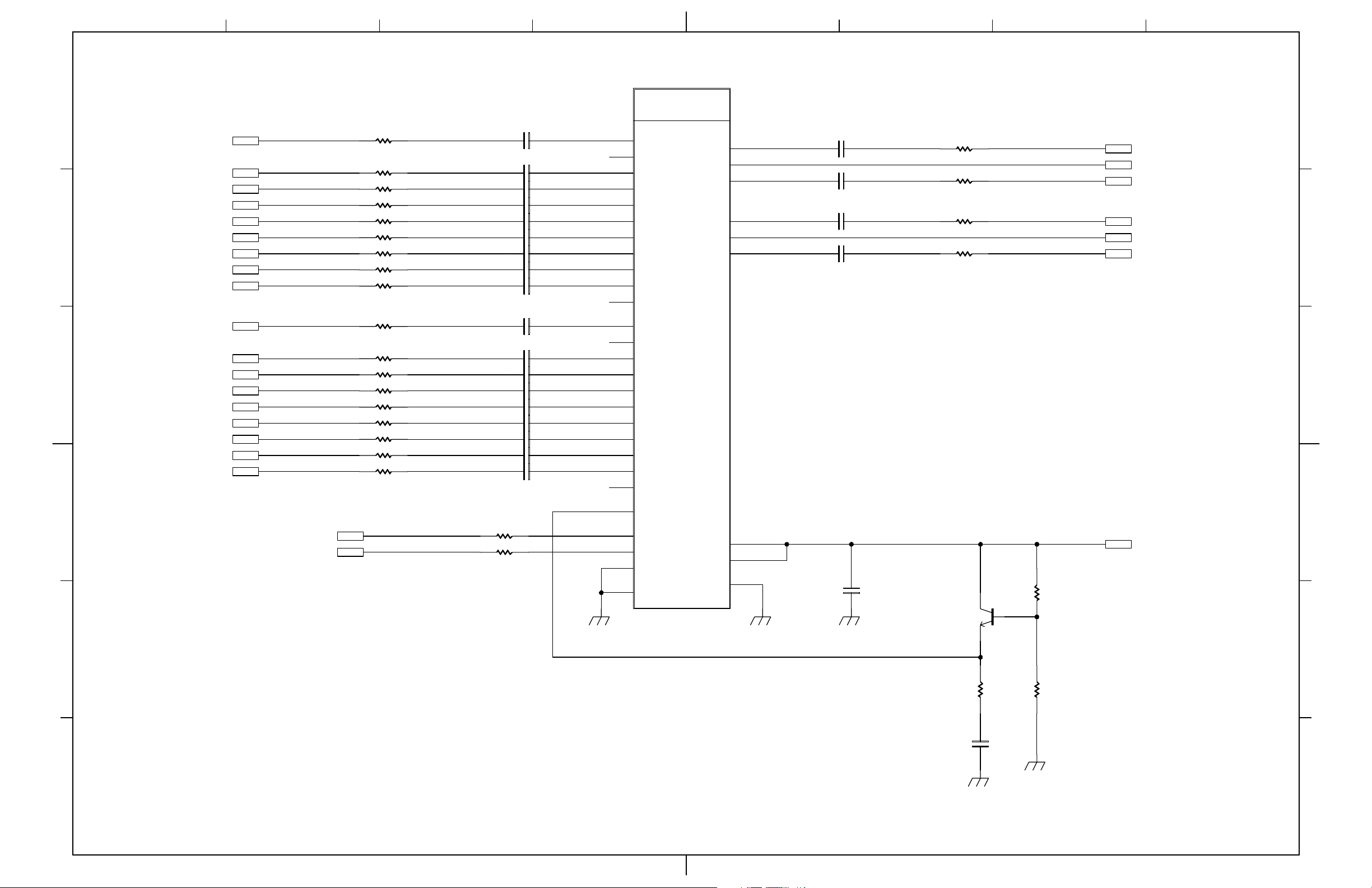

NEW SHEET
NEW SHEET,057:4D
005:4C
L_TV
L_E1
L_E2
L_E3
L_CS1
L_CS2
L_HDMI1
L_HDMI2
L_BS
RS01
RS05
RS07
RS09
RS11
RS13
RS15
RS17
RS19
QS01
2.2k
2.2k
2.2k
2.2k
2.2k
2.2k
2.2k
2.2k
2.2k
CS01
CS05
CS07
CS09
CS11
CS13
CS15
CS17
CS19
2.2u
2.2u
2.2u
2.2u
2.2u
2.2u
2.2u
2.2u
2.2u
33
L1
35
L2
1
L3
3
L4
5
L5
7
L6
9
L7
11
L8
13
L9
15
L10
17
L11
MM1631XJBE
LOUT1
LOUT2
LOUT3
4.7u
CS21
30
28
26
CS29
4.7u
RS21
RS41
100
100
L_SIG
L_OUT2
L_OUT3
057:4D
003:8D
057:4E
NEW SHEET
NEW SHEET,057:4D
005:4C
R_TV
R_E1
R_E2
R_E3
R_CS1
R_CS2
R_HDMI1
R_HDMI2
R_BS
9V2
RS25
6.8k
RS26
1.8k
RS02
RS06
RS08
RS10
RS12
RS14
RS16
RS18
RS20
2.2k
2.2k
2.2k
2.2k
2.2k
2.2k
2.2k
2.2k
2.2k
QS02
2SC4081-Q
RS27
10
+
CS24
16V22
CS02
CS06
CS08
CS10
CS12
CS14
CS16
CS18
CS20
2.2u
2.2u
2.2u
2.2u
2.2u
2.2u
2.2u
2.2u
2.2u
+
CS23
16V47
34
R1
36
R2
2
R3
4
R4
6
R5
8
R6
10
R7
12
R8
14
R9
16
R10
18
R11
31
Vcc
32
Vcc
19
BIAS
ROUT1
ROUT2
ROUT3
SCL
SDA
ADR
MUTE
GND
29
27
25
23
22
21
20
24
CS22
CS30
4.7u
4.7u
100
RS23
100
RS24
RS22
RS42
100
100
R_SIG
R_OUT2
R_OUT3
SCL1
SDA1
057:4D
003:8D
057:4E
51H94/57H94

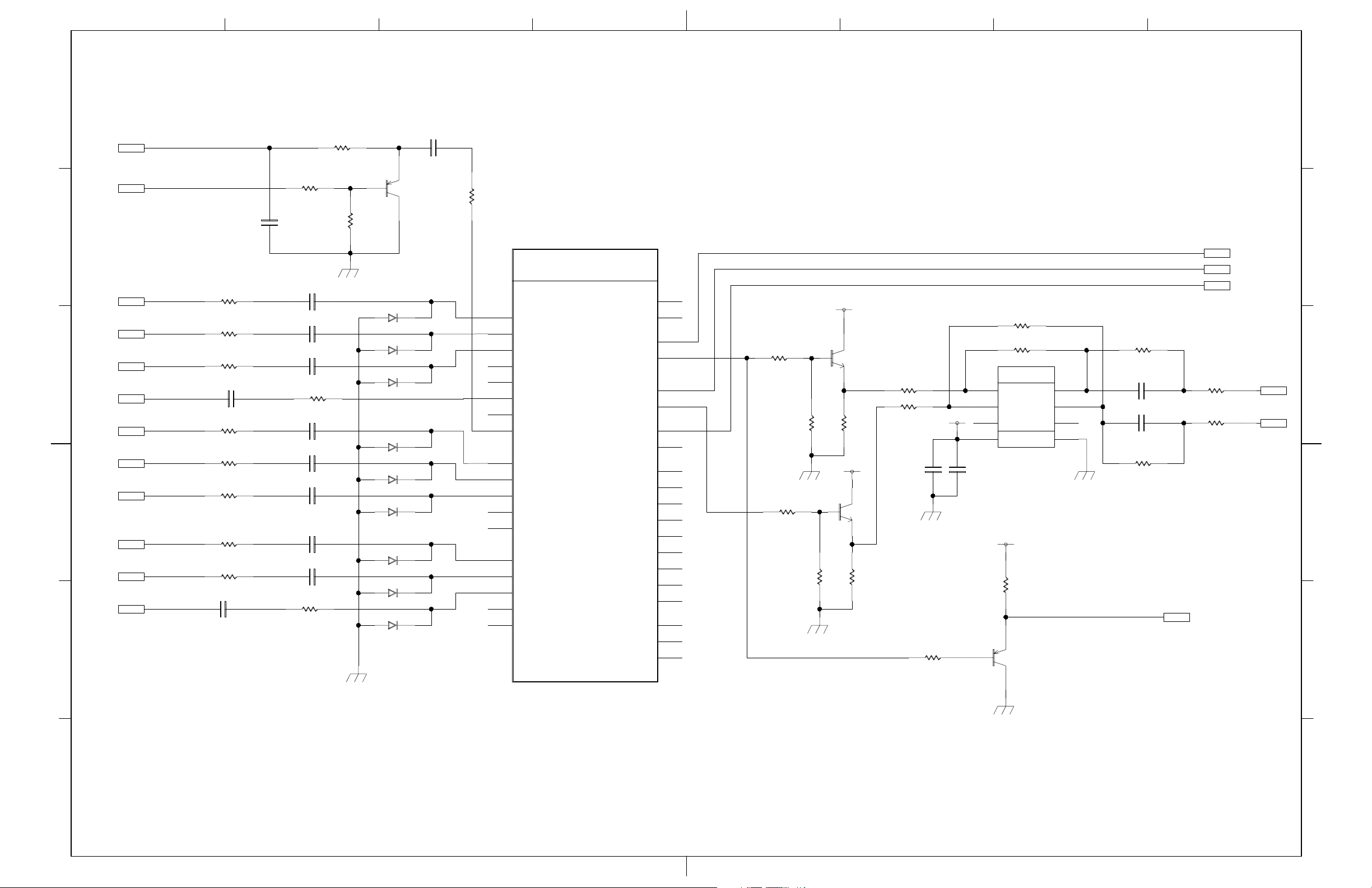

AUDIO SELECT (HYPER SIGNAL)
(1/58)
Page 6
TO HYPER/SIGNAL
PDxxxx(PA03A)
RB13
1/6P2.2k
QB02
KTA1266Y
5V-1
RB09
1/6P330
LED-R
RB12
1/6P10k
GND
KEY-2
1/6P2.2k
DB01
SPR54MVWFLMN
KEY-1
RB11
GND
645 7213
QB01
KTA1266Y
RB08
1/6P330
LED-G
DB01A
PB11
PLUG 7P
RB10
1/6P10k
FRONT-CONTROL
SA02 SA03SA01
CH DN VOL UPCH UP
RA71
RA72
RA73
1/6P8.2k
1/6P15k
1/6P27k
SA05SA04 SA08 SA09SA06 SA07
POWVOL DN TFOCUS EXITMENU VIDEO
RA76
1/6P8.2k
RA77
1/6P15K
RA78
1/6P27k
RA79
1/6P82k
51H94/57H94

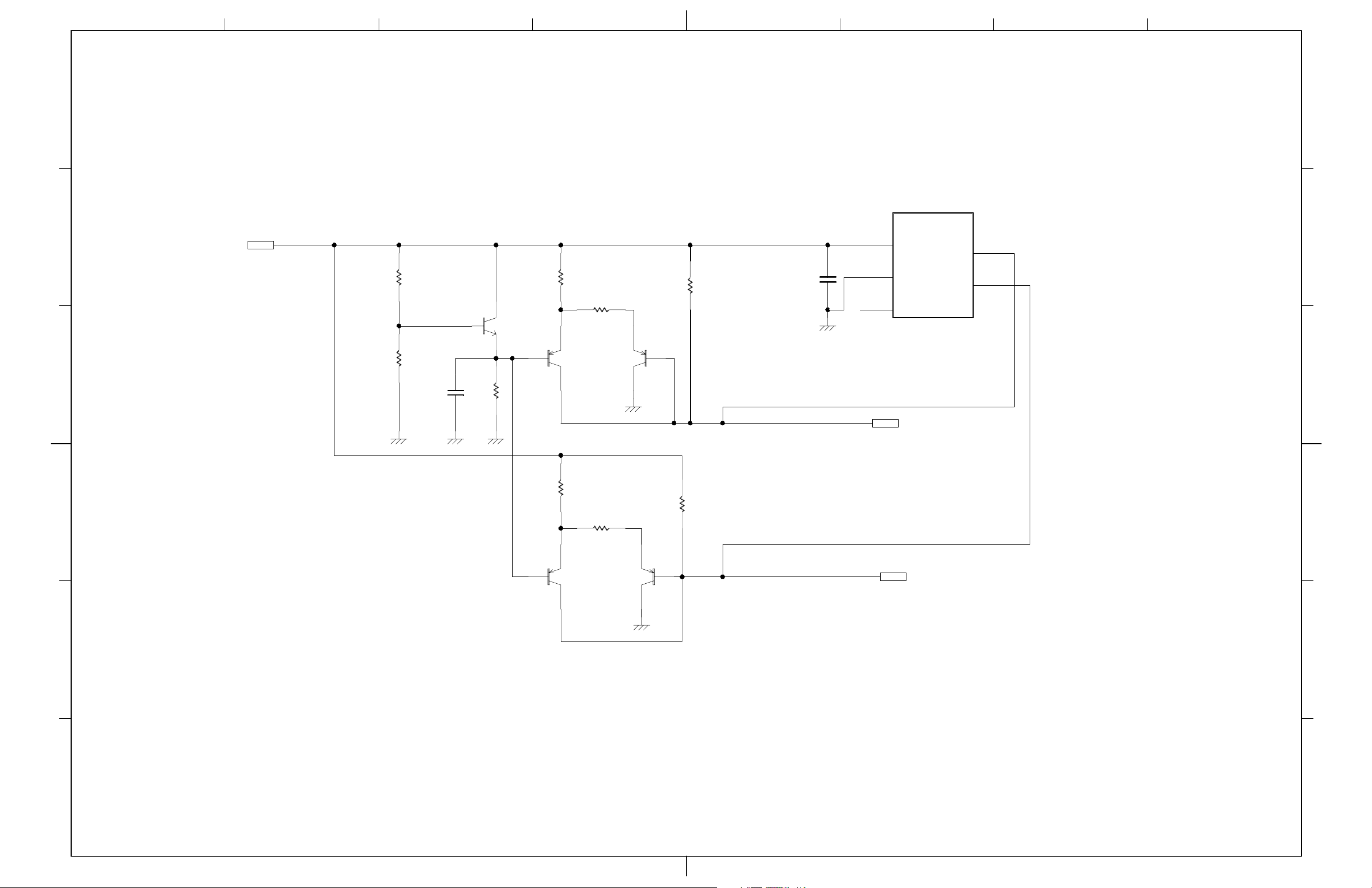

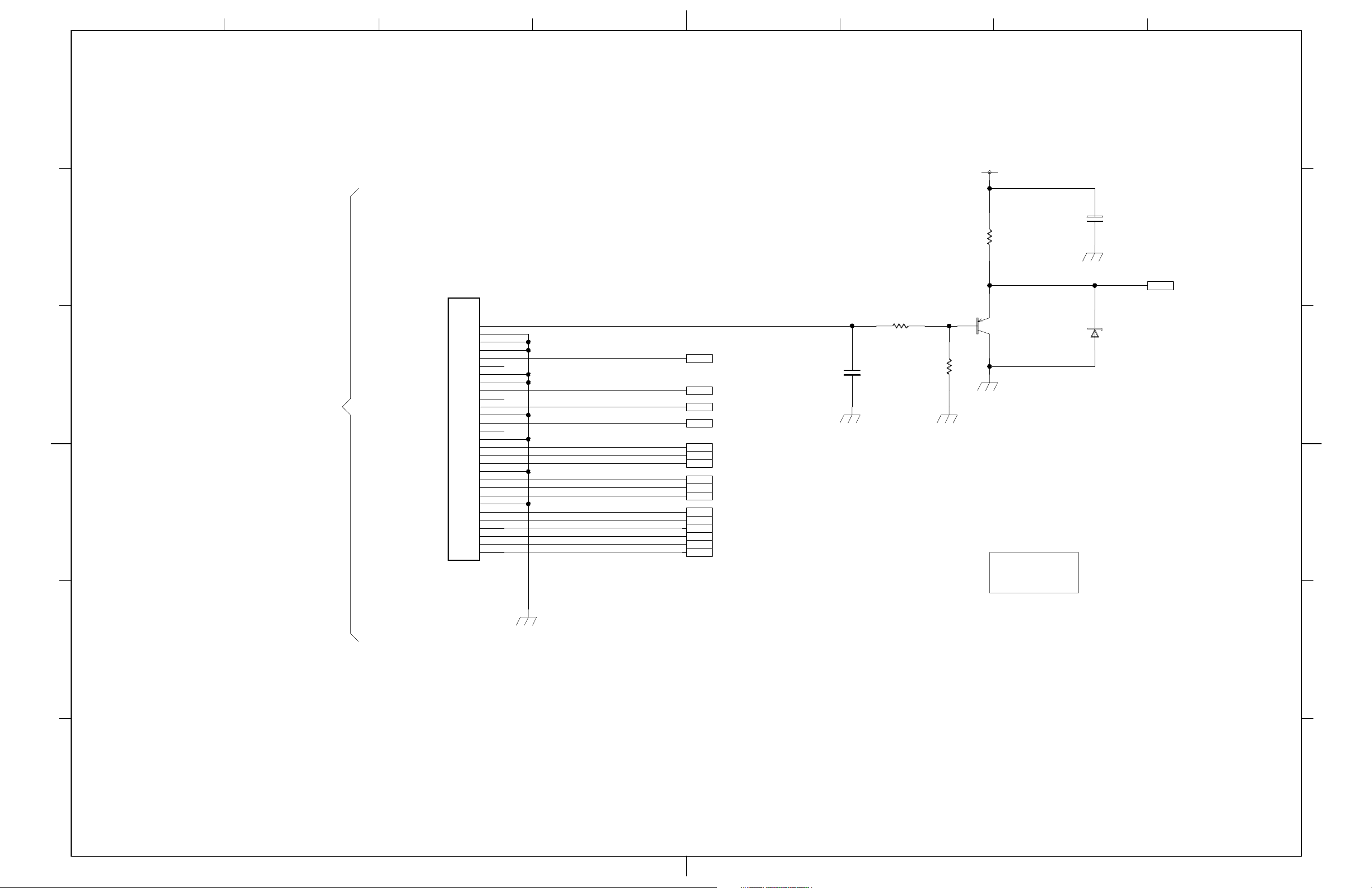

FRONT AV (FRONT CONTROL)
SHEET-1/2
(2/58)
Page 7
TO HYPER/SIGNAL
PDxxxx(P112)
REMOTE
1/6P470
RB15
DB31
KETSU
DB30
KETSU
KB01
PIC-37043TE2
5V-1
RB19
1/6P47
CB01
16V47u
321
Vcc
GND
VOUT
SIR-56SB3F
RMT-IN
3241
DB05
KETSU
+
DB03
DB03A
RESET
S701
PB22
4P_2.5mm
RMT-OUT
GND
TO SIGNAL
3
21
P701
3P_2.5mm_1.5A_Beige
PV05
JACK 1S3P
FRONT VIDEO3 INPUT
LR
L
R
VL/MONORS
YC
RV22
RV23
1/6P100
V
SW
1/6P75
RV21
1/6P75
LV20
56
CV14
0.01
A
Y
C
RV20
1/6P75
GND
R
R
TO HYPER/SIGNAL
PDxxxx(PB60)
L
GND
L
V
PV60
GNDCV
546213810 9 7
Y
S_SW
Y
GND
10P
C
SW
FRONT-IN
51H94/57H94

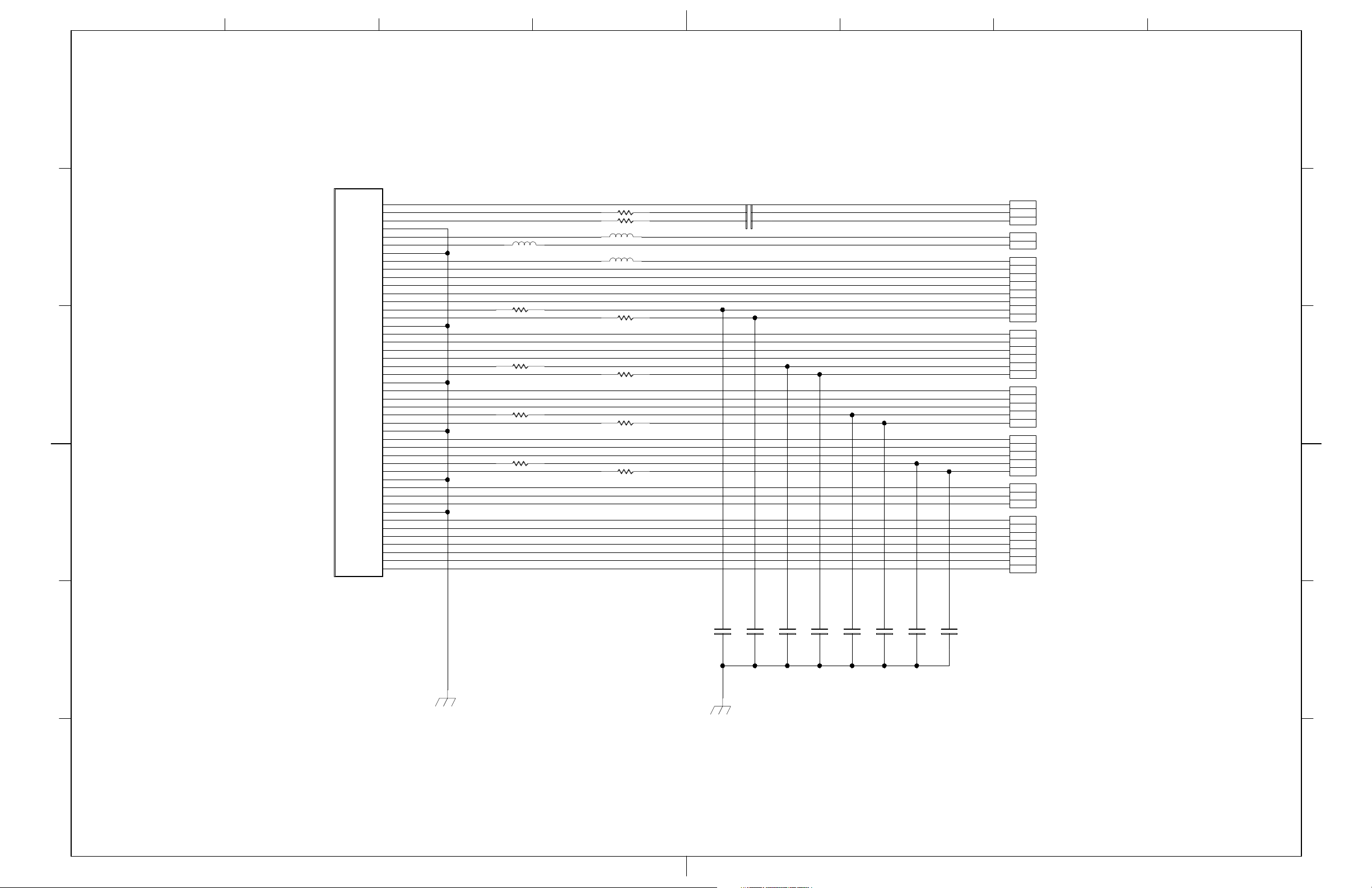

FRONT AV (FRONT IN/REMOTE)
SHEET-2/2
(3/58)
Page 8
EXT-1
EXT-2
HD-1
HD-2
HDMI-2-R
HDMI-1-R
MONITOR
PV01
JACK 2S6P
S
L4
V
L
R
L3
L2
L1
S
R4
V
L
R
R3
R2
R1
PV02
JACK 10P
Y
L5
Pb
L4
Pr
L3
L
L2
R
L1
Y
R5
Pb
R4
Pr
R3
L
R2
R
R1
L5
L4
L3
V
L2
L
R
L1
CV38
B1000p
RV33
1/6P75
RV34
1/6P75
CV39
B1000p
RV35
1/6P75
RV40
1/6P75
R286 R287 R288
1/6P75
R264
1/6P75
RV37
1/6P75
RV36
1/6P75
LV37
56u
LV36
56u
1/6P75
R266 R265
1/6P75
BB70
V_BS
L_BS
R_BS
GND
IRBL_OUT
IRBL_SW
5V1
9V2
PLUG B-B 46P TAIKO
46
V_BS
45
L_BS
44
R_BS
43
GND
42
IRBL_OUT
41
IRBL_SW
40
GND
39
5V1
38
9V2
37
Y_E1
36
SC_E1
35
S-SW_E1
34
V_E1
33
L_E1
32
R_E1
31
GND
30
Y_E2
29
SC_E2
28
S-SW_E2
27
V_E2
26
L_E2
25
R_E2
24
GND
23
Y_1
22
PB_1
21
PR_1
20
L_CS1
19
R_CS1
18
GND
17
Y_2
16
PB_2
15
PR_2
14
L_CS2
13
R_CS2
12
GND
11
V_MONI
10
L_MONI
9
R_MONI
8
GND
7
L_HDMI_1
6
R_HDMI_1
5
L_HDMI_2
4
R_HDMI_2
3
GND
2
L_VARI
1
R_VARI
2-C6
2-C6
2-C6
2-C6
2-C6
2-D6
2-C6
2-C6
1/6P75
1/6P75
HDMI-2-L
HDMI-1-L
VARIABLE
LV13
2-C6
1/6P100
10u
9V2
RV61
CV30
0.01
CV29
+
16V100
R5
R4
R2
L
R1
R
PV03
JACK 9P
PS01
3
OPEN
R1GND2L
from HDMI
(HD ready)
QV48
2SC1740S
CV27
10V470u
+
RV89
RV85
1/6P68
1/6P470
RV86
1/6P470
51H94/57H94
BACK AV (1/2)
SHEET-1/2
(4/58)
Page 9

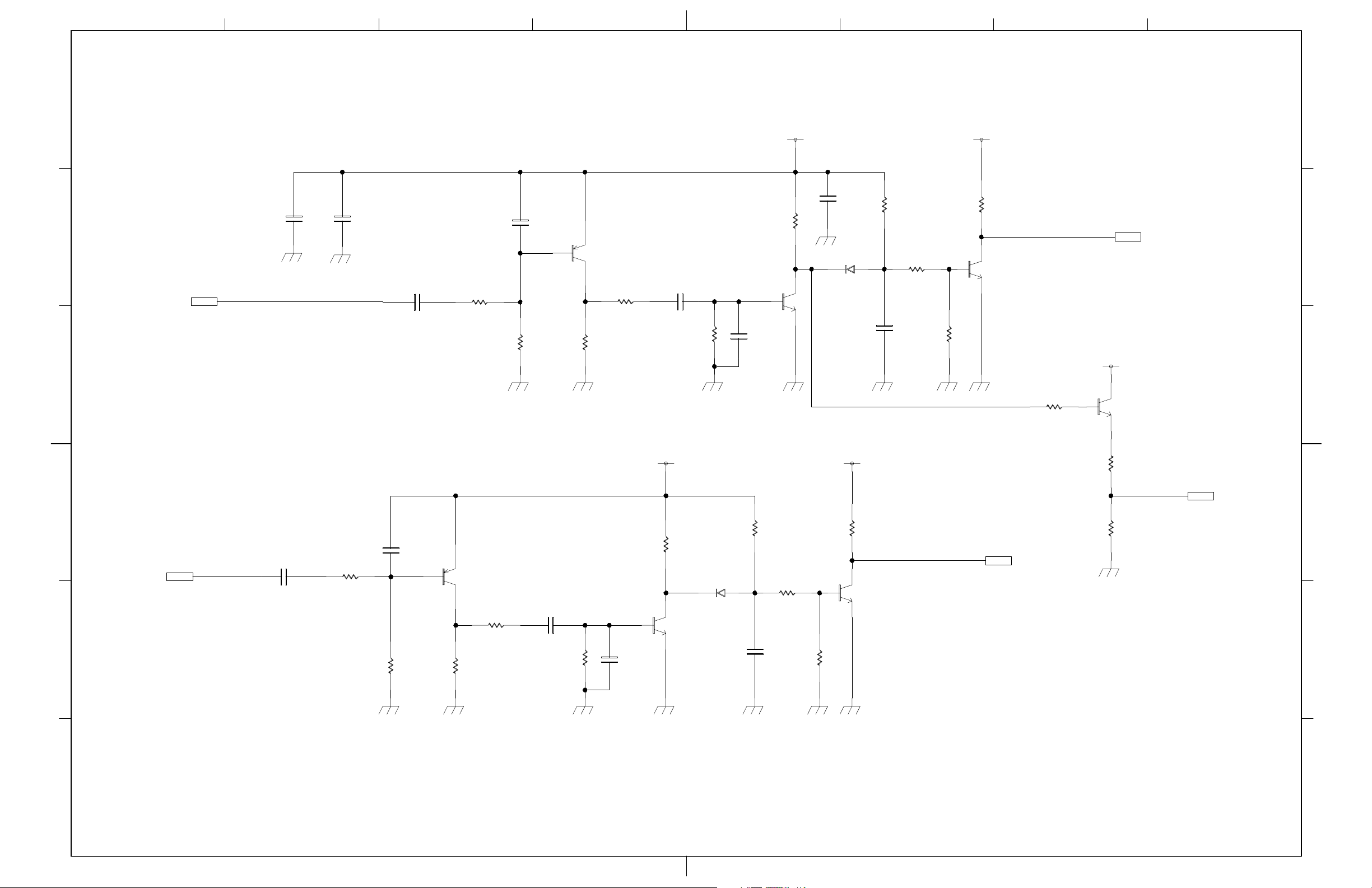

REC OUT
IR OUT
IR OUT
PV04
OPEN
L
R
M
L
R
V
+
CB504
RB563 RB562
1/6P39 1/6P100k
DB504
1SS133/1SS120-7
PB501
JACK
DB501
1SS133/1SS120-7
PB502
JACK
RB561
1/6P100
RB506
1/6P39
16V10
RB504
1/6P100k
RB505
1/6P100
QB502QB508
2SA562TM-Y2SA562TM-Y
QB509
2SC2878-A
QB510
RN1204
RB567
1/6P22k
QB512
2SC2878-A
QB513
RN1204
RN1204
QV148
OPEN
CV127
OPEN
RV189
OPEN
RB558
1/6P22k
RB559
1/6P22k
QB511
RV161
OPEN
+
RV185
OPEN
LV113
OPEN
CV130
OPEN
+
CV129
OPEN
5V1
CB505
F25V10000P
PASS
IRMICOM
PB503
PLUG 3P
GND
1
NC
2
PASS THROUGH
3
R_BS
L_BS
9V2
V_BS
GND
5V1
IRBL_OUT
IRBL_SW
1-B5
1-B5
1-E5
1-B5
1-B5
1-B5
1-B5
1-B5
H94 series only
51H94/57H94
BACK AV (IR BLASTER)
SHEET-2/2
(5/58)
Page 10
to Hyp.SIGNAL
V_TV
TUNER GND
TVGND
TUNER GND
RESET_IMA
V_TV2
TV2GND
R_TV
AFT2
AFT1
A_TV2
MUTE_A
R_AV
A_MUTE
MUTE_E
SP_MUTE
R_VARI
SCL1
NC/10V
SDA1
L_VARI
GND_A
GND
GND
L_TV
GND
GND
L_AV
GND
GND
9V1
5V2
PF03A
29FE-BT-VK-N
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
1
2
3
P881B
3P_2.5mm_1.5A_BLACK
TVGND
RESET_IMA
MUTE_A
A_MUTE
MUTE_E
SP_MUTE
R_VARI
L_VARI
GND_A
9V1
GND
5V2
V_TV
GND
GND
V_TV2
GND
TV2G
R_TV
AFT2
AFT1
GND
L_TV
A_TV2
GND
R_AV
GND
L_AV
GND
SCL1
10V
SDA1
3-E5
3-E5
3-E5
3-B6
3-C6
3-E5
3-C6
3-E5
3-E6
3-C6
4-D8
3-E6
4-C2
4-D8
3-E6
4-C8
4-C2
3-D3
4-C8
3-D3
4-C2
1
P882B
PLUG 5P
2
3
4
5
3-D3
4-C2
5V2
GND
9V1
GND
TUNER32V
IF/AUDIO
4-C2
3-D3
3-D3
3-D3
TUNER32V
4-C8
A_VCC
4-C8
GND_A
4-C8
11V_A
TUNER32V8
Audio Vcc
7
Audio Vcc
6
Audio Vcc
5
Audio GND
4
3 Audio GND
Audio GND2
1
11V Audio
P880B
8P_2.5mm_1.5A_Beige
to POWER/DEF
to Hyp.SIGNAL
(D-CONVER block)
BB60
BB 16P PLUG
16
RV
GH
15
14
BH
13
12
CONVER-5V
11
10
9
RH
8
BV
7
6
GV
5
CONV_RST
4
3
2
1
CONVER+16V
CONVER+5V
CONVER OUT
RV
GH
BH
-5V
RH
BV
GV
5V
CONV_RST
2-A8
2-A8
2-A8
2-D5
2-E1
-21V
PROTECT
21V
11V
CONV_ABL
2-F1
2-F1
2-F1
6-D1
2-E1
2-F1
2-F1
6-C1
2-B1
2-A8
-16V
1-B1
16V
CONVER-21V
1
2
CONVER-16V
3
4
CONVER+16V
5
6
PROTECT
7
8
CONVER+21V
BB10
BB 8P BASE SOCKET
+11V
1
GND
2
CONV_ABL
3
GND
4
H_CONV
5
AFC
6
V_DF
7
V_BLK
8
BB20
BB 8P BASE SOCKET
to POWER/DEF
51H94/57H94
CONVER IF AUDIO (1/4)
SHEET-1/4
(6/58)
Page 11
6-D1
1-B2
1-B2
16V
1-B2
-16V
1-A2
21V
CONVER+5V
6-C1
1-A2
-21V
-5V
CONV ABL
CONV_ABL
5V
1SS355-TE17
D7806
R7880
220
L7710
TLN3299D
L7711
TLN3299D
R7881
Q782
NJM79M05FA
OUTIN
Q7761
KTA2014Y
R7745
R7749
R7751
C7706
R7743
1R0.33
R7747
C7761
10V47
220
+
D7760
D7761
RD8.2ESAB2
+
C7765
25V22u
D7763
1SS355
R7753
C7785
0.1u
100
R7755
15K
Q7763
KTC4075Y-RTK
R7757
680
PROTECT
1-A2
+
1SS355-TE17
C7750
10V47u
MUTE
2-C3
+11V
2-D5
11V
C7701
63V 0.33u
100
1k
15K
63V 0.33u
Q784
KIA7805API
Q784B
Q784A
+5V
1
M
321
16V 470u
C7705
1
GND
C7704
25V100
+
D7731
RD6.2ESAB2
R7701
D7730
+
RD6.2ESAB2
Q785
PST994D
1
2
3
3.9k
32
-5V
M
6-D1
-5V
6-C1
5V
CONV_RST
1-A1
R7744
1R0.33
R7750
3.3K
R7752
8.2K
TA75S393F
C7762
10V47
Q7762
KTC4075Y-RTK
Q794
R7748
220
+
R7756
15k
C7786
R7754
33K
R7885
D7764
1SS355
1/6P4.7k
R7886
100k
R7884
10k
0.1u
Q7764
KTA2014Y
D7766
1SS355
R7758
3.3K
2-B6
MUTE
Q766
KTC4075Y-RTK
R7763
12k
C7752
+
50V 47u
Q795
1/6P4.7k
1564372
R7892
6.8k
R7762
D7791
1SS355
R7893
4.7k
BH
RH
D7762
RD8.2ESAB2
C7784
25V22u
+
R7887
1/6P10k
4
5
VCC
+-
3
2
1
+
C7800
16V22
Q752
STK394-250A
R7732
+++
B-H
---
15
16
C7737
OPEN
C7740
OPEN
4.7k
4.7k
R7723
330
2R1.8
R7891
R7726
BH
C7733
CH 330p
R7725
2R220
Q752C
1
1
Q752B
Q752A
181712
2R470
R7801
2R680
D7793
MA8082-M
R7771
10k
R7770
10k
R7802
R7761
12k
+
C7751
50V 47u
2-B6
11V
R7760
KTC4075Y-RTK
D7792
1SS355
TA75S393F
Q765
D7790
1SS355
R7769
10k
5
Q769
VCC
1
+
R7722
4.7k
R7890
C7736
G-H
6
8
7
9
50V220u
4.7k
C7738
R7728
CH 330p
R7730
2R220
R7731
2R1.8
330
GH
MUTE
2
3
1
Q768
KTC4075Y-RTK
R7768
10k
R7767
10k
891213 101114
TC4066BP
R7896
R7895
OPEN
OPEN
RV BV
4
5
+
C7735
50V220u
C7732
OPEN
R-V
C7741
2R220
CH 330p
R7736
14
13
4.7k
R7727
4.7k
R7733
220
2R1.8
R7911
RV
10
11
R7735
Q751
STK394-250A
MUTE
2
3
1
Q767
KTC4075Y-RTK
R7766
1/6P10k
R7765
10k
+
C7753
50V470u
R7772
4
47k
R7773
+-
2
10k
R7774
10k
3
4
+
+
C7724
50V220u
C7721
OPEN
R-H
6
8
7
5
C7725
50V220u
R7707
4.7k
R7713
R7913
330
RH
9
C7727
CH 330p
4.7k
R7715
2R220
2R1.8
R7716
B-V G-V
10
11
C7730
CH 330p
R7720
2R220
R7721
13
4.7k
R7712
4.7k
R7718
2R1.8
R7910
+++
---
14
15
16
OPEN
C7726
C7722
CH 330p
4.7k
R7708
220
100
OPEN
R7912
C7729
BV
GV
R7717
4.7k
Q751C
1
Q751B
1
Q751A
181712
R7710
2R220
R7711
2R1.8
R7746
100
Q796
KTC4075Y-RTK
R7882
10k
R7883
4.7k
10k
R7702
SHORT
P712
4P_2.5mm_1.5A_Beige
1
RV
2
3
RH
4
CONV_RST
CONVER
YOKE
P711
1
GV
2
3
GH
4
P710
1
BV
2
3
BH
4
1-A1
RH
1-A1
RV
1-A1
GH
1-A1
GV
1-A1
BH
1-A1
BV
CONVER
YOKE
CONVER
YOKE
51H94/57H94
CONVER IF AUDIO (CONVER OUT)
SHEET-2/4
(7/58)
Page 12
BLK GND
WHT SELECT
HY01
OPEN
VIDEO OUT
NC
32V
SIF OUT
SCL
A
A
OPEN
SCL1
SDA1
32VNC1F
10 11
C105
1000p
1.0V(p-p)(H)
MPX OUT
SDA
AFT
32.0
CY105
OPEN
GJ108
LY105
SHORT
LY103
OPEN
D101
MTZJ33C
QY160
CY160
OPEN
H002
MVUS53
GND
NC
IF IN
9.00 2~4 5.0 04.6 4.65.0 0
C107
16V220
GR02
OPEN
OPEN
RY160
OPEN
+9V
VIDEO OUT
SW1
RESET
SW2
+5V
RF AGC
C109
25V0.1
C108
10V220
L103
TRF4470AT
GJ101
TP12
1P
GR103
SHORT
GJ102
SHORT
SHORT
L105
OPEN
V_TV
AFT1
TVGND
TVGND
V_TV
RESET_IMA
1-C3
1-A3
1-A3
AFT1
1-C3
OPEN
GJ107
SHORT
ADR SEL(IF)
TV-R
+5V
OPEN
GJ103
L104
OPEN
R_TV
GND
R_TV
1-B3
V_TV2
TV2G
Q172
OPEN
R173
GR175
OPEN
OPEN
AFT2
R174
OPEN
ADR SEL(S)
PIP IN
R IN
TV-L
OPEN
GJ104
L_TV
SHORT
GJ170
L_TV
1-B3
L IN
GND
SDA
SCL
SHORT
GJ105
GJ106
OPEN
SCL1
SDA1
GND
GND
L_AV
R_AV
1-B3
1-B3
V_TV2
A_TV2
W OUT
TV2G
AFT2
PIP OUT
GND_A
1-A3
1-A3
1-A3
1-C3
L-OUT
R-OUT
+9V
GND
272625242322212019181716151413121110987654321
9.0
+
C110
16V100u
L_APRO
R_APRO
GND_A
4-C2
4-C2
NC
5.0
+
CY102
DY102
OPEN
GND
1-C3
1-C3
4-C2
TUNER32V
PV35
1P
GND
SCL1
SCL1
SDA1
SDA1
5V2
5V2
9V1
9V1
1-C4
R152
OPEN
Q151
OPEN
GJ150
SHORT
R155
OPEN
Q154
OPEN
GJ151
SHORT
P514
1P
YEL +9V
1-C4
P105
SELECT Analog12GND
SELECT Digital3+9V
4
OPEN
LY101
OPEN
ENV56DF3G3F
H001
AGC
ADR
Vt
1 3 5 7
2~4
5.0 4.8 4.8 32.05.0
+ ++ ++
C101
50V3.3
G101
TEM2121M
SCL1
R151
OPEN
Q152
OPEN
Q153
OPEN
R154
OPEN
VT
87 10 119 15 1716141312654321
4.8 4.8
2~4
LY102
SDA
NC
SCL
5V
NC
8642
9
C102
D102
10V220
OPEN
C103
C106
OPEN
50V4.7
L101
68u
G102
TEM2121M
SDA1
R150
100
R153
1/6P100
IF OUT
RF AGC
NC(SW2)
NC(SW1)
NC5VNC
51H94/57H94
CONVER IF AUDIO (IF)
SHEET-3/4
(8/58)
Page 13
AN7580
C661
L-VARI
GND
L_APRO
3-E6
4-C8
GND_A
3-E6
R_APRO
A_MUTE
1-B3
1-C3
4-C8
L_VARI
GND_A
1-B3
R_VARI
5V2
3-D3
Q661
KTC2875B\\2SC3326B
R676
100k
R-VARI
R677
100k
Q662
KTC2875B\\
2SC3326B
R665
R667
22K
50V4.7
++
R661
1k
22K
C666
R671
50V4.7
1k
Q664
RN2404
R675
OPEN
+
C667
Q663
BA4558
R674
4.7k
16V10
R662 R663
33k 8.2k
6.3 6.3 6.2 0
1
-
+
12.7
8
C665
50V0.01
12V
243
+
-
765
6.3 6.3 6.2
R672
33k
C662
50V10
L_APRO
R666
47k
REF
R668
47k
C604
R602
50V4.7
C603
R601
50V4.7
8.2k
++
R697
1R220
C683
25V100
1SS355-TE17\\MA111
D611
1SS355-TE17\\MA111
R693
CHIP-JP
D613
MUTE_A
8.2k
D615
R604
1K
R603
1K
R681
2.2k
R687
10k
C602
B680p
R684
22K
C601
B680p
R683
22K
+
R682
C682
47K
50V2.2
Q612
KTA2014Y\\2SA1586-Y\\2SA1576AT106
+
R688
220k
C612
16V220
Q682
KTC2875B\\2SC3326B
Q681
KTC2875B\\2SC3326B
D612
1SS355-TE17\\MA111
R612
2.2k
D616
1SS355-TE17\\MA111
C663
R673
50V10
8.2k
R_APRO
+ +
R698
10k
R699
10k
D628
MA8120-M\\MA8120-H\\MA8120-L
1SS355-TE17\\MA111
D614
+
1SS355-TE17\\MA111
MUTE_E
+
C684
25V47
Q601
Standby
OUT-1(-)
GND-1
OUT-1(+)
Vcc
24 7610912118531
16.2 7.8 0 7.7 5.2 0 0 0 0 7.7 0 7.8
C681
B50V0.01
C605
50V4.7
C606
50V4.7
++
+
C607
25V100
Q614
RN1406
KTC4075Y\\2SC4116Y\\2SC4081
R611
R613
22k
R614
10k
D617
1SS355-TE17\\MA111
5V2
Pre GND
IN-1
IN-2
R626 R627
22k
22k
D609
1SS355-TE17\\
MA111
R610
27k
R609
56k
C608
50V10
+
R615
100k
Q613
10k
R616
8.2k
MUTE
5V=MUTE-ON
Q601C
1
GREASE
Q601B
1
SCREW
OUT-2(+)
OUT-2(-)
GND-2
Q601A
HEAT SINK (NEW)
P106
PLUG 4P
R_SPK(-)
10V
11V_A
1
R_SPK(+)
2
3
4
GND_A
18V
A_VCC
L_SPK(-)
L_SPK(+)
to SPEAKER
4-C2
1-A6
1-B3
1-D6
1-B3
1-B3
1-B3
D601
1SS355-TE17\\MA111
D602
1SS355-TE17\\MA111
D603
1SS355-TE17\\MA111
D604
1SS355-TE17\\MA111
C680
35V2200
+
D605
1SS355-TE17\\MA111
D606
D607
1SS355-TE17\\MA111
CHIP-JPGR601
GR602 OPEN
1SS355-TE17\\MA111
GR602
CHIP-JP
GR601
OPEN
R_SPK
L_SPK
D608
1SS355-TE17\\MA111
H94H84
OPEN
CHIP-JP
SP_MUTE
MUTE_A
MUTE_E
51H94/57H94
CONVER IF AUDIO (SOUND)
SHEET-4/4
(9/58)
Page 14

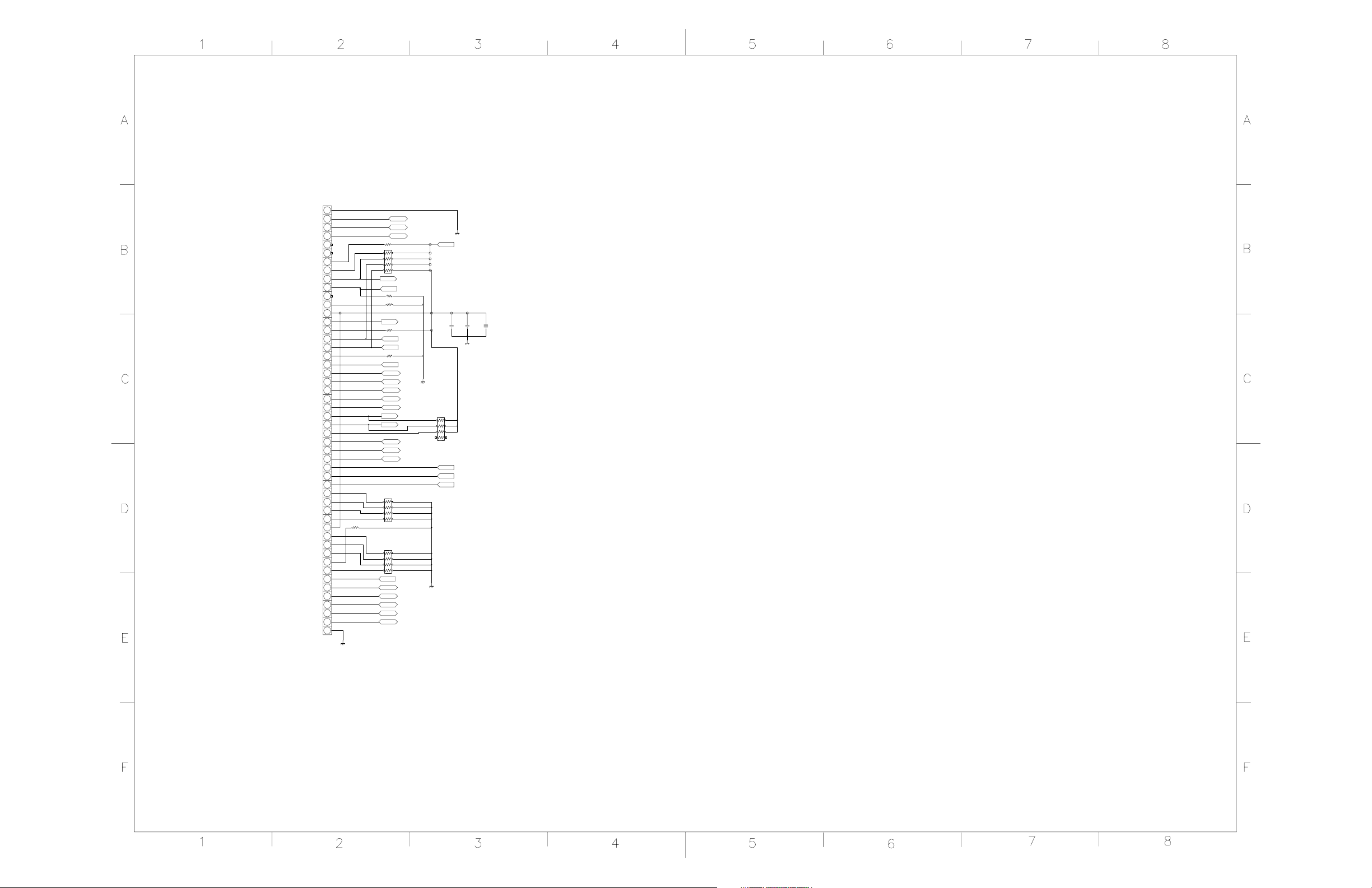

IRBL_OUT
IRBL_SW
SC_E1
S_SW_E1
SC_E2
S_SW_E2
L_CS1
R_CS1
L_CS2
R_CS2
V_MONI
L_MONI
R_MONI
L_HDMI1
R_HDMI1
L_HDMI2
R_HDMI2
L_VARI
R_VARI
BB71
SOCKET B-B 46P TAIKO
23903159
V_BS
L_BS
R_BS
GND
GND
5V1
9V2
Y_E1
V_E1
L_E1
R_E1
GND
Y_E2
V_E2
L_E2
R_E2
GND
Y_1
PB_1
PR_1
GND
Y_2
PB_2
PR_2
GND
GND
GND
IRBL_OUT
IRBL_SW
SC_E1
S_SW_E1
SC_E2
S_SW_E2
L_CS1
R_CS1
L_CS2
R_CS2
V_MONI
L_MONI
R_MONI
L_HDMI1
R_HDMI1
L_HDMI2
R_HDMI2
L_VARI
R_VARI
V_BS
L_BS
R_BS
024:8C
019:7C
5V1
9V2
Y_E1
V_E1
L_E1
R_E1
Y_E2
V_E2
L_E2
R_E2
Y_1
PB_1
PR_1
Y_2
PB_2
PR_2
003:2D
003:2D
005:4D
005:4D
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
LA18
LA17
LA15
RS76
RS77
RC01
RC02
RC03
RC04
RC05
RC06
RC07
RC08
100
100
FILTEM2121M
FILTEM2121M
FILTEM2130AM
100
100
100
100
100
100
100
100
6.3V 2.2u
CS34
6.3V 2.2u
CS35
CC02CC01
B1000pB1000p
CC04CC03
B1000pB1000p
CC06CC05
B1000pB1000p
CC08CC07
B1000pB1000p
51H94/57H94
CONNECTION (HS AV)
(10/58)
Page 15
POWER/DEF
P915A
GREEN
P916A
TO
TO
SIGNAL
9P_2.5mm_1.5A_Beige
GND_DEF
GND_DEF
GND_DEF
9P_2.5mm_1.5A_Beige
4P_2.5mm_1.5A_Beige
TO
+210V
HEATER
HEATER
HV_DET
+120V
+210V
HEATER
+120V
NC
NC
NC
Vref
9V
GND
NC
+9V 4
B-OUT
GND 2
SVM 1
P917
9
8
7
6
5
4
3
2
1
9
8
7
6
5
4
3
2
1
P916B
P918
D936
1S1834
C926
100
R958
1/6P15
L911
22u
3
GJ903
OPEN
R7201
OPEN
+
C7201
OPEN
Q7201
OPEN
R7202
OPEN
C7202
OPEN
C7204
OPEN
R7203
OPEN
R900
1RF1.2
R900Z
2RF2.2
L7201
OPEN
R7204
OPEN
R7205
OPEN
R7211
OPEN
CRT-D SVM/B
Q7202
OPEN
R7207
OPEN
R7206
OPEN
R7210
OPEN
+
C7203
OPEN
210
R951
+
7W 2.7k
C925
250V22
B903
CRT HOLDER
2
FOCUS
V903A
CRT SOCKET
R9607
B16V1.0u
L925
R920
1/6P2.2k
Q921
2SC3942
C924
0.01
11.0
+
C922
16V100
R9609
R9608
1.2k
1.2k
100
Q973
KTA1504Y
C954
3.2
Q921A
D921
1SS133
Q921C
1
GREASE
R924
1
Q921B
KETSU
SCREW
C953
KETSU
A
L927
2.2
R921
1/6P330
R925
R929
27
27
1/6P2.2k
L924
HEAT SINK
Q924
6.8u
2SC3790E
D926
1SS244
G924
1SS133
G925
1SS133
R988
12u
2SA1480E
G921
KETSU
10.3
D945
1SS133
D944
1SS133
C9200
KETSU
R9620
KETSU
D927
1SS244
R953
R930
1/6P56
1/6P2.2k
HEAT SINK
68
R923
1/2R 100
1.5u
L923
D928
1SS244
D929
1SS244
Q925A
R9028
1/2R100
G954
1/6P56
GJ18
0.6
Q925
1
Q925B
SCREW
Q922
2SC3950E
2.5
C923
470P B
R926
R928
270
1
R7227
OPEN
C7214
R7208
OPEN
R7209
OPEN
Q7204
OPEN
OPEN
Q7208
R7217
OPEN
Q7203
OPEN
R7213
C7205
OPEN
OPEN
R7212
OPEN
Q7205
OPEN
R7214
OPEN
R7215
R7216
OPEN
OPEN
R7219
OPEN
R7221
OPEN
R7218
OPEN
OPEN
Q7206
OPEN
R7220
R7223
OPEN
OPEN
R7222
R7225
OPEN
OPEN
Q7207
OPEN
Q7209
OPEN
+
C7207
OPEN
+
C7206
OPEN
D7201
OPEN
R7240
OPEN
OPEN
R7224
OPEN
R7226
OPEN
R7241
OPEN
D7202
OPEN
R7235
OPEN
R7229
OPEN
R7228
OPEN
Q721
OPEN
C7208
R7230
OPEN
R7234
OPEN
R7231
OPEN
Q722
OPEN
C7209
OPEN
R7232
R7233
OPEN
OPEN
R7237
OPEN
+
C7210
OPEN
R7236
OPEN
Q721A
1
Q721B
L7202
OPEN
L7204
OPEN
L7203
OPEN
Q722B
1
Q722A
R7238
OPEN
+
C7211
OPEN
V902
C921
1000
GND
GJ21
OPEN
R7239
C7212
OPEN
OPEN
+
C7213
OPEN
P903
PLUG 3P
3P_5mm
3
2
C936
10000
1
P905
1P
P910
1P
4321
NC
FROM
GND
CR BLOOK
HV_DET
GND
P920
4P_5mm
P704
OPEN
1
2
3
1
2
51H94/57H94
CRT-D SVM (B)
SHEET-1/2
(11/58)
Page 16
GREEN
P915B
TO
9P_2.5mm_1.5A_Beige
TO
SIGNAL
+210V
NC
HEATER
GND_DEF
Vref
9V
GND
NC
+120V
4P_2.5mm_1.5A_Beige
R-OUT
GND
SVM
D967
1S1834
C907
100
R938
1/6P15
P915A
9
8
7
6
5
4
3
2
1
P913
4
3
2
1
CRT-D SVM/R
R9501
210
Q901
R9504
1.2k
Q913
KTA1504Y
2SC3942
D901
+
C902
1SS133
16V100
C903
0.01
R904
KETSU
C933
KETSU
11.0
R9503
1.2k
100
C934
B16V1.0u
3.2
R905
27
R931
+
C906
7W 2.7k
250V22
B901
V901A
CRT SOCKET
CRT HOLDER
R991
L905
HEAT SINK
1/6P2.2k
Q904
6.8u
2SC3790E
D906
1SS244
2
D907
G904
1SS133
G905
1SS133
R968
L904
2SA1480E
12u
G901
KETSU
10.3
D941
1SS133
D940
1SS133
C967
KETSU
R995
KESTU
1SS244
R933
R992
1/6P56
1/6P2.2k
G934
1/6P56
GJ16
0.6
Q905
1
Q905B
SCREW
Q902
2SC3950E
2.5
C904
470P B
R906
R908
270
R903
1/2R 100
L902
1.5u
D908
1SS244
D909
1SS244
Q905A
HEAT SINK
R9085
1/2R100
56
1/6P2.2k
Q901A
Q901C
1
GREASE
Q901B
1
SCREW
A
L907
2.2
R901
1/6P330
R909
27
V902
C901
1000
FOCUS
GND
P906
3P_5mm
PLUG 3P
3
C930
10000
2
1
P908
1P
P907
1P
BLUE
P916B
RED
P915A
TO
TO
SIGNAL
1
GJ19
OPEN
GJ901
OPEN
R7001
L7001
OPEN
OPEN
+
C7001
OPEN
R7002
OPEN
Q7001
OPEN
C7014
OPEN
R7003
OPEN
Q7002
OPEN
C7002
OPEN
R7004
OPEN
R7005
OPEN
R7010
OPEN
R7011
OPEN
R7008
OPEN
Q7003
OPEN
R7007
OPEN
R7006
OPEN
R7012
OPEN
R7009
OPEN
+
C7003
OPEN
C7004
Q7004
OPEN
OPEN
R7017
OPEN
R7013
C7005
OPEN
OPEN
R7019
OPEN
Q7005
OPEN
R7014
OPEN
R7016
R7015
OPEN
OPEN
R7021
OPEN
R7018
OPEN
R7027
OPEN
Q7008
OPEN
Q7006
OPEN
R7020
R7023
OPEN
OPEN
R7022
R7025
OPEN
OPEN
Q7007
OPEN
Q7009
OPEN
+
C7007
OPEN
+
C7006
OPEN
D7001
OPEN
OPEN
R7040
OPEN
R7024
OPEN
R7026
OPEN
R7041
OPEN
R7032
OPEN
D7002
OPEN
R7035
OPEN
R7029
OPEN
R7028
Q701
OPEN
C7008
OPEN
R7030
OPEN
R7034
OPEN
R7031
OPEN
C7009
OPEN
R7033
OPEN
R7037
OPEN
+
C7010
OPEN
R7036
OPEN
Q701A
Q711B
1
L7002
OPEN
L7004
OPEN
L7003
OPEN
Q702
OPEN
Q712B
1
Q702A
R7038
OPEN
+
C7011
OPEN
R7039
C7012
OPEN
OPEN
+
C7013
OPEN
P703
OPEN
1
2
3
9P_2.5mm_1.5A_Beige
GND_DEF
HEATER
GND_DEF
9P_2.5mm_1.5A_Beige
3P_2.5mm_1.5A_Beige
TO
+210V
HEATER
+120V
+210V
+120V
GND
GND
Vref
G-OUT
P916A
9
NC
8
7
6
Vref
5
9V
4
3
NC
2
1
9
8
NC
7
6
5
4
9V
3
2
NC
1
P915B
P919
D913
1S1834
C917
100
1/6P15
R945
3
2
GND
1
SVM
CRT-D SVM/G
D962
MA8062-M
210
Q911
2SC3942
C913
R967
1.2k
Q962
KTA1504Y
0.01
D912
+
C912
1SS133
16V100
R914
KETSU
C943
KETSU
3.2
R919
27
11.0
+
C961
1.5k
R971
16V100
Q961
KTC3875Y
R965
R963
2.2k
R961
100
10
D961
KETSU
+
3.3k
R964
1.8k
R962
C962
7L16V10u
R970
1.2k
R987
100
R969
C944
1.2k
1.2k
R966
B16V1.0u
R944
+
7W 2.7k
C915
250V22
B902
R948
1/6P2.2k
Q911A
Q911C
1
GREASE
1
Q911B
SCREW
A
L917
2.2
R911
1/6P330
R915
27
L916
HEAT SINK
1/6P2.2k
Q914
L915
6.8u
2SC3790E
D916
1SS244
D917
G914
1SS133
G915
1SS133
R978
12u
2SA1480E
G911
KETSU
10.3
D943
1SS133
D942
1SS133
C9100
KETSU
R9507
KETSU
1SS244
R943
R950
1/6P56
1/6P2.2k
Q915A
HEAT SINK
R9086
1/2R100
R913
1/2R 100
1.5u
L913
D918
1SS244
D919
1SS244
G944
1/6P56
GJ17
0.6
Q915
1
Q915B
SCREW
Q912
2SC3950E
2.5
C914
470P B
R916
R918
270
56
CRT HOLDER
4
FOCUS
V902A
CRT SOCKET
V902
C911
1000
SOCKET
P901
3P_5mm
GND
PLUG 3P
3
C935
10000
2
1
P909
1P
P911
1P
3
0.6
GJ20
GJ911
JP
R7101
L7101
OPEN
10u
+
C7101
50V47u
Q7101
KTC3875Y
R7102
680
C7104
33p
R7103
1k
Q7102
KTC3875Y
C7102
0.01
R7104
1k
R7105
1/8W220
R7110
27k
R7111
33k
R7106
1/8W220
R7108
Q7103
2SC3437Y-L
R7107
100
+
C7103
50V4.7u
Q7104
3.3k
2SC1815-GR
R7113
750
Q7105
KTC3875Y
R7112
150
R7114
680
R7109
33k
R7115
1/8W470
R7116
1/8W470
120
C7114
0.1uF
R7117
100
C7105
0.1uF
R7119
1/8W10
R7121
1/8W10
R7118
100
R7120
1/8W10
R7122
1/8W10
Q7106
KTC3875Y
Q7107
KTA1504Y
R7127
1/2R330
Q7108
KTC3875Y
R7123
1/8W10
R7125
1/8W10
Q7109
KTA1504Y
+
C7107
160V47u
+
C7106
50V47u
D7101
1SS133
R7140
22
500V4700p
R7124
1/8W10
R7126
1/8W10
500V4700p
R7141
22
D7102
1SS133
R7135
1R10
R7129
1.2k
R7128
750
Q711
2SA1930
118.3
C7108
R7130
68k
R7134
1k
R7131
68k
Q712
2SC5171
C7109
1.7
R7133
R7132
1.2k
750
R7137
+
C7110
16V47u
R7136
1/2R2.2
119
Q711A
1
Q711B
D751
60
1SS244
L7102
TEM2011
L7104
HC5-035
L7103
TEM2011
60
1.0
1R10
C7112
OPEN
D752
1SS244
Q712B
1
Q712A
R7138
1R2.2
+
16V47u
+
C7113
160V10u
C7111
P705
3P_2.5mm_S_SMK
1
R7139
2
2R220
3
P703A
3P_2.5mm_S_SMK
3
TO SVM COIL(B)
2
1
SVM CONNECTOR
51H94/57H94
CRT-D SVM (R, G)
SHEET-2/2
TO SVM COIL(G)
P705A
3P_2.5mm_S_SMK
321
P704A
3P_2.5mm_S_SMK
1
2
TO SVM COIL(R)
3
21
3
P706
3P_2.5mm_S_SMK
1
2
3
4
(12/58)
Page 17
TO HYPER/SIGNAL
H_OUT
H_OUT_GND
ABL_SW
GND
H_CONV
POWER
BLK_UP
H_PHA_COM
GND
SDA1
SCL1
V_STOP_BLK
VP_Q510
10P_2.5mm_1.5A_Beige
+4.5V
GND
+5V-1
GND
GND
H.Vcc
+9V-1
GND
+11V
BB21
11V
H_CONV
AFC
V_DF1
V_BLK
-21V
-16V2
16V2
21V
32V
11V
TGND
8P 2.5PJ-P
+11V
8
7
GND
6
CONV_ABL
5
GND
4
H_CONV
AFC
3
V_DF
2
V_BLK
1
BB11
8P 2.5PJ-P
8
CONVER-21V
7
GND
6
-16V
5
GND
4
+16V
3
PROTECT
2
GND
1
CONVER+21V
P880A
8P_2.5mm_1.5A_Beige
TUNER32V
8
Audio Vcc
7
Audio Vcc
6
Audio Vcc
5
Audio GND
4
Audio GND
3
Audio GND
2
+11V
1
P805B
1P
TUNER GND
TO CONVER
TO IF/AUDIO
3-B7
2-C1
PF01A
16FE-BT-VK-N
1
2
3
AFC
4
ABL
5
6
7
ACP
8
9
10
11
12
13
14
15
16
P831A
1
2
3
4
+7V
5
6
7
8
9
10
H_OUT
ABL_SW
AFC
ABL
H_CONV
ACP
POWER
H_PHA_COM
SDA1
SCL1
V_STOP_BLK
VP_Q510
4.5V
5V1
7V
HVCC
9V1
11V
3-A7
3-E7
3-A7
2-D1
2-C1
3-B7
2-E1
2-C1
2-D1
2-C1
2-E1
3-E7
3-E7
2-B1
2-B8
2-B8
2-C1
2-A1
Lock 2P_11.88mm_S
POWER CORD
CMC042P(23372209)
or VM0284(23372184)
DEF/POWER
2-B8
(H)
2-D8
H_RET
2-C8
V_NF
V_OUT2
4213
5
6
342
(V)
TDY707AS(R)
215463
1
L464
2-D8
3-F1
3-F1
AC_N
AC_L1
12
P800
P801
3-E1
AC_L2
243
1
NC
NC
AC_L2
TO SUB POWER
3-D1
AC_N2
P802
4P_5mm
AC_N2
3-C7
2-D8
GND
DF_V
213
NC
DF_V
TO FOCUS PACK
GND
P405
B03B-DVS-L
H_DY
P403 P401
6P_5mm_5A 6P_5mm_5A
2-B8
V_OUT1
2
P402
6P_5mm_5A
1
342
L463
TDY707AS(R)
(V)
(H)
2-B8
V_OUT
3-C7
GND
GND
35641
342
(V)
(H)
1
L462
TDY707AS(R)
P810
1P
3-C7
120V
+120V
2143
NC
2-C8
HV_DET
HV_DET
GND_DEF
TO CRT DRIVE
GND_DEF
CONV_ABL
2-E1
2-D1
2-C1
2-B1
3-B7
2-B7
2-B7
3-C7
PROTECT
3-B7
3-C7
3-C7
AVCC
3-C7
AGND
3-B7
3-F2
2-C8
2-C8
220V
HEATER
98765
P404
9P_2.5mm_1.5A_Beige
NC
220V
HEATER
HEATER
TO SVM
51H94/57H94
DEF POWER (CONNECTION)
SHEET-1/3
(13/58)
Page 18
GR30
igger
MEM1
CH1/2
MEM2
GND
5ms/div
5V/div
DEF/CONVER
(DEF)
igger
igger
MEM1
CH1/2
MEM2
10us/div
5V/div
DEF/CONVER
GND
(DEF)
MEM1
CH1/2
MEM2
GND
10us/div
H_DRIVE
1V/div
DEF/CONVER
(DEF)
(DEF)
DEF/CONVER
200V/div
MEM2
igger
CH1/2
MEM1
50V/div
10us/div
GND
GND
10us/div
(DEF)
DEF/CONVER
MEM1
igger
CH1/2
MEM2
5ms/div
200V/div
GND
MEM1
igger
CH1/2
DEF/CONVER
MEM2
(DEF)
uto
:500
:Simple
:500
uto
:Simple
Length
Length
Sampling
CH1
CH2
W2
W1
igger
ype
oint
Mode
igger
15.0
1k
1k
5V/div
20ksps
Nor
mal
1V/div
5ms/div
5ms/div
3.0
ype
Mode
oint
Length
CH1/2:1k
Length
CH1/2:1k
:64%
:Rise
:CH1
Source
Edge
el
Record
:-22%
:CH1
:Rise
el
Source
Edge
Record
:Simple
uto
:500
Length
Length
Sampling
W1
CH2
CH1
W2
Nor
mal
10Msps
1k
1V/div
10us/div
5V/div
1k
10us/div
3.0
10.0
Length
Length
Sampling
Mar
er
Mar
er
CH1
W1
CH2
W2
igger
0.0us
0.0us
0.0us
3.04
0.00
3.04
ype
Mode
oint
1k
1k
Nor
mal
10Msps
10us/div
1V/div
10us/div
2V/div
3.0
3.0
Length
CH1/2:1k
:-34%
:CH1
:Rise
el
Source
Edge
Record
Record
3.0
CH2
oint
Mode
ype
1V/div
Nor
mal
1k
1k
10us/div
10us/div
10Msps
Sampling
Length
Length
W2
W1
igger
:Rise
:500
Edge
Source
uto
:Simple
:CH1
:-22%
50V/div
CH1
100
3.0
CH2
igger
Length
CH1/2:1k
Length
Length
10us/div
Nor
mal
10Msps
1V/div
10us/div
W2
Sampling
W1
1k
1k
:Rise
:500
oint
Edge
:Simple
ype
Mode:A:A
utoLeLe
el
Source
:CH1
:-10%
Length
Record
CH1/2:1k
200V/div
CH1
400
CH2
3.0
Length
Length
Sampling
W2
W1
1V/div
5ms/div
Nor
mal
5ms/div
20ksps
1k
1k
oint
:500
Edge
uto
:Simple
igger
Mode
ype
Source
el
:Rise
CH1/2:1k
Length
Record
:CH1
:-10%
CH1
400
200V/div
OPEN
1-B2
VP_Q510
1-B2
H_PHA_COM
1-B8
V_BLK
1-B2
V_STOP_BLK
1-B8
V_DF1
1-B2
ABL
1-B2
ABL_SW
1-B8
CONV_ABL
1-D2
9V1
1-B8
AFC
3-C7
X-RAY
D450
1N4004A
3-C7
120V
Q4430
D4430
HVCC
H_OUT
1N4004A
C4430
16V10
+
1-D2
1-B2
2SC2236-Y
10.2 14.1
10.9
D4431
MA8110-L
1/6P1k
R4431
1/2R15
R4430
1
1-B8
H_CONV
51H94/57H94
DEF POWER (DEF)
SHEET-2/3
H_PHA_COM
Q798
OPEN
R7932
OPEN
R7930
R7931
SHORT
R368
OPEN
TA75902P(J)
R343
1k
+
C340
16V47
1SS355-TE17
0.6
R363
B25V0.047
D491
R415
10k
Q306
1k
Q410
C362
1/6P10k
R246
1/6P4.7k
KTC4075Y
R361
100k
R369
R360
5.6k
1357642
14 101213 11
R341
18k
R350
12k
1/6P470k
C221
63V0.10
Q409
R499
1k
KTC4075Y
L310
100u
+
C318
+
C310
25V100
OPEN
GR31
6.8k
R365
47k
R362
R314
47k
12k
C311
R312
C361
0.1uF
3.9k
R349
16.1 1.4
C309
B1000p
B25V0.01
16V10
C330
R348
EW_DRIVE
47k
R342
OPEN
Q341
OPEN
R347
OPEN
+
C327
0.1uF
R338
15k
7.2
89
9.12.2
D301
D303
MA8075-H
MTZJ15C
R315
680
1k
R313
HV_DET_OUT
330
R477
R345
SHORT
D308
OPEN
R466
43k
R364
R366
330
1/6P2.2k
D365
MA8075-H
R367
3.9k
GR32
0
0
SHORT
RD11ESAB1
C483
47p
R483
D327
R467
220
C463
B6800p
R325
4.7k
D309
OPEN
R322
100
R475
1/6P100
R484
OPEN
R321
4.7k
C316
R330
1/4R10KF
R331
1/4R10KF
OPEN
50V1.0
+
C315
10V1000
R480
RD11ESAB1
47k
D333
RD11ESAB1
10k
R482
C302
M
+
D334
C481
0.33
25V8200P
C314
63V0.047
C482
B3300p
Q302
TA1317AN
4.9
VRef
+
CENT DAC
3.6
EHT
42378691112 10 5 1
VDrive
BLK OUT
VDCRef
C312
R491
2.2k
CENT OUT
V NF
8.8
V DF OUT
Vcc
EW PWM
ANA GND
H DF OUT
EW fb
DIG GND
EW Filter
FBP in
B301
R481
1/6P10k
C301
63V1.0
M
AGC
C303
63V1.0
M
V RAMP
2313 17 1815 16 21 2219 2014 24
C308
M
50V0.022u
T.C
R306
V in
LVP
SCL
SDA
8.2k
1/6P100
R302
D378
OPEN
R379
OPEN
R311
1/6P56k
R340
1/6P10k
R307
100
R308
100
D337
MA8056-M
D336
MA8056-M
V_STOP_BLK
1SS355-TE17
Q305
KTA2014Y
C320
50V100
+
C321
50V100
+
R378
10k
D370
Q372
KTC4075Y
C323
R336
0.047
1k
Q301A
R334
1k
M
KTA2014Y
R335
1k
C324
63V1.0
D302
FR105-FL
7
Q371
R375
15k
R376
33k
R337
1/2W 1R2J
TP-V
TP-G
C371
SC570ALFE2
1P
1P
0.1uF
D304
R374
100k
R373
82k
100V2200p
M
C325
0.22
P1N
P1N
-16.3
C328
Q370
KTC4075Y
2467531
M
TEM2011AA
C331
OPEN
D305
1N4004A-FL
C332
50V100
+
L304
M
R355
1/6P10k
+
C338
16V10u
R371
82k
+
C370
2.2u
R372
3.3k
16.2
C334
C333
100V0.047u
R305
1R1.0
1/6P1k
Q301
LA7833S
L305
TEM2014
D306
L302
TLN3299D
1N4004A-FL
8
R380
D371
OPEN
OPEN
R381
OPEN
V_OUT
R390
1R560
1-B8
-16V2
1-C8
16V2
L303
TLN3299D
3-B7
16V1
-16V1
R392 R391
1R560 1R560
3-B7
V_OUT
V_OUT1
V_OUT2
SCL1
SDA1
1-B2
1-B2
1-D6
B470p
R346
1R390
R344
1R150
R370
V_NF
R249
Source
LeLevel
Edge
Source
LeLevel
Edge
Source
Level
Edge
HV_DET
220V
HEATER
MEM1
:CH1
:-34%
:Rise
MEM1
:CH1
:64%
:Rise
:CH1Trigger
-68%
:Rise
1-D4
1-D4
1-D4
MEM2
DEF/CONVER
(DEF)
1
H_DRIVE
1V/div
10us/div
GND
Length
Record
CH1/2:1k
MEM2
DEF/CONVER
(DEF)
3
5V/div
5ms/div
GND
Length
Record
CH1/2:1k
DEF/CONVER
(Vertical)
GND
8
2V/div
5ms/div
Length
Record
CH1/2:1k
M
R498
10k
25V1000
MA8100-M
C491
16V10
C450
2SC2482
R245
1/6P4.7k
D492
+
+
KTC4075Y
KTA2014Y
2
R440
10k
R439
10k
R513
R241
C432
1/6P220k
D426
63V0.10
C467
M
50V0.033u
R471
M
C515
L401
56u
R405
1/6P100
D404
ERC06-15L
PP_630V5.6n_J
R409
3R22
G
1/6P100
1/6P10k
1SS133
C468
PP_630V6.8n_J
10k
R446
R449
1/6P1.5k
SD
R515
D505
63V0.10
C444
1800VH3600p
L406
R410
3R22
Q425
FET 2SK2920
M
C405
C443
C464
250V3.3u
TLN3351AD
L408
TEM2014
R447
1R47k
1800VH4700p
6
4
TLN3534AH
C449
500V220p
D425
EU2A
R247
D6
D5
D4
D3
D2
D1
T400
TLN2220AH
Trigger
Type
Mode
Point
TFB3094AD
D7
R427
100
CH1/2
:Simple
uto
:500
2kV1500p
Source
vel
Edge
R423
1/2S1k
C415
MEM1
:CH1
:-10%
:Rise
B1000p
1/6P1k
HV
Eo
81
C422
MEM2
Record
Z401
SG99B3EN
R434
1/2P270K
Q400
2SC4686A
400
200V/div
3.0
1V/div
5ms/div
1k
5ms/div
1k
Nor
mal
20ksps
C445
200V47n
R442
OPEN
L442
OPEN
0.6
GJ42
0.6
GJ43
D412
Length
PR-1H
6
GND
DEF/CONVER
200V/div
5ms/div
R431
2R1k
D413
PR-1H
(DEF)
Trigger
CH1
10.0
V
5V/div
CH2
V
3.0
1V/div
W1
10us/div
Length
1k
W2
10us/div
Length
1k
Sampling
Nor
mal
10Msps
Trigger
Type
Mode
Point
Trigger MEM1CH1/2 MEM2 MEM1Trigger CH1/2 MEM2
20 V
CH1
10V/div
CH2
3.0 V
1V/div
W1
5ms/div
Length
1k
5ms/div
W2
Length
1k
Sampling
Normal
20ksps
Type
Mode
Point
R432
1/2P270K
R433R428
1/2P270K1P220k
R426
1/6P100
M
C420
63V0.10
Trigger
V
VCH2
Trigger
Type
Mode
Point
C426
2kV2200p
6
MEM1
CH1/2
MEM2
:Simple
Source
Record
:CH1
:A:Auto
LeLevel
CH1/2:1k
:-10%
:500
Edge
:Rise
P499
1P
R425
1/2P100K
R424
1/2P100K
R435
1/6P3.3k
DEF/CONVER
CH1
(DEF)
W1
Length
W2
200V/div
Length
Sampling
10us/div
GND
Length
CH1/2:1k
1/2S1k
3-C7
GND
1-C5
H_DY
1-C5
H_RET
Trigger
CH1/2
V
3.0
CH1
2V/div
CH2
V
3.0
MEM1
CH1/2
MEM2
DEF/CONVER
2
GND
:Simple
Length
:CH1
Source
Record
:Auto
CH1/2:1k
:-22%
LeLevel
:500
:Rise
Edge
DEF/CONVER
7
GND
:SimpleTrigger
Length
Source :CH1
Record
:Auto
:-34%
Level
CH1/2:1k
:Rise
Edge
:500
1V/div
W1
10us/div
Length
1k
W2
10us/div
1k
Length
Sampling
Nor
mal
10Msps
1
Mar
ker
0.0us
T
V
V
3.04
Mar
ker
2
0.0us
T
V
3.04
V
T
0.0us
V
0.00
V
CH1
(DEF)
CH2
W1
Length
W2
5V/div
Length
Sampling
10us/div
(Vertical)
CH2
W1
Length
W2
10V/div
Length
Sampling
5ms/div
:Simple
Trigger
Type
:A:Auto
Mode
:500
Point
Trigger
CH1/2
V15.0
5V/div
V
3.0
1V/div
5ms/div
1k
5ms/div
1k
Nor
mal
20ksps
:Simple
Trigger
Type
:A:Auto
Mode
:500
Point
-8.0 VCH1
2V/div
V
3.0
1V/div
5ms/div
1k
5ms/div
1k
Normal
20ksps
:Simple
Type
:Auto
Mode
:500
Point
1-D3
DF_V
R429
R420
1/6P10k
1SS133
Q420
2SC2482
D420
D421
FR105-FL
R421
1/6P22k
R422
22k
R910
1R0.56
T461
10
9
4
7
6
R407
1
2
3
1/2R10
250V33
+
C446
R444
1R0.39
L441
TLN2222AH
R441
RSF14A3D330
+
205
C448
160V33u
2R15k
FR105-FL
R412
L402
GJ406
OPEN
D406
R443
1/2R1
D415
FR105-FL
C417
250V1.5u
C425
400V0.27u
C423
400V0.30u
D414
FR105-FL
C412
200V0.12u
R411
2R2.2
5
119
2
3
3
L407
TEM2014
Trigger
VCH1
100
50V/div
3.0
VCH2
1V/div
+
C460
200V22u
4
10us/div
W1
1k
Length
10us/div
W2
1k
Length
Sampling
Nor
mal
10Msps
Trigger
MEM2
CH1/2
MEM1
DEF/CONVER
CH1
400
V
200V/div
(DEF)
3.0
CH2
V
Type
:Simple
Mode
Point
:500
4 5
GND
Record
Source
:CH1
Length
LeLevelel:A:Auto
:-22%
CH1/2:1k
:Rise
Edge
1V/div
10us/div
W1
Length
1k
10us/div
W2
50V/div
Length
1k
Sampling
10us/div
Nor
mal
10Msps
Trigger
R244
1/6P120k
Q241
R248
OPEN
1/6P27k_G
D401
AG01
R496
Q408
10k
R413
R492
1k
R493
390
D411
Q411
KTC4075Y
R417
1/6P2.2k
T401
TLN1080AH
2
1
2SK2962
R494
470
10
R497
1P
1P
R
X
TE481TE482
2SC5859
43
Q404A
6
C401
500V3300p
Q402
C402
R403
500V390p
1R100
L490
33
+
C490
16V47
R436
1/6P47k
D418
MTZJ33C
R418
10k
R419
R437
10k
22k
R490
1/2R330
KTA2014Y
NP
33k
C497
R495
16V100
D490
MA8062-M
R416
2R150
R414
1/4RF27
C416
100V22u
+
Q406
1/6P100
Q405
C419
330p
D419
1SS355
MA8180-M
R438
1k
R242
1/6P18kG
R240
1/6P15kG
C440
1800VH1000p
TEM2011AA
FR105-FL
FMQ-3GU
D461
L403
1/6P5.6k
5
R448
R469
100
MA8180-M
1/6P 18kG
D402
R243
R406
1R6.8k
R404
1.8k
Q404
Q428
KTC4075Y
(14/58)
Page 19
3
D892
T865
OPEN
5
4
3
Q801
1
Q801C
1
LIVE AREA
D801
D5SB60
1
D801B
C802
OPEN
T802
OPEN
GJ02
GJ01
SHORT
SHORT
1-D3
AC_N2
1-D3
AC_L2
T801
TRF3209AH
C801
AC275V0.47u
D899
TNR10V431K352
F801A
1
F801
125V8.0A
F801B
1
AC_L1
1-D2
C805
250V4700pF
+-
D801A
C809A
C810A
GJ04
GJ03
SHORT
SHORT
AA01
3.5mm GAP
R899
1/2P3.9M
AC_N
1-D3
TGND
1-D8
Q801B
CONT
GND
VIN
Q801A
1
323 21 8
L861
TEM2011AA
F860
AC125V 4.0A
+
C809
1
200V1000u
C860
10000
+
C810
1
200V1000u
4
2
MTZJ9.1A
D878
5
3
D879
MTZJ27C
M
C869
C866
200V2.2
63V1.0
R864
1/2R1k
R860
2R47k
STR-Z4479
1
VB
OUT
COM
RC
0C
DRIVCC
VCC
DT
CD
CSS
R867
+
R866
R872
OPEN
1/6P22k
1/6P4.7k
8
6
7
D876
M
MTZJ36C
C876
63V0.47
10
11
9
C879
1000
MTZJ27C
D873
C873
63V0.22
R874
1/6P15
+
C868
or35V47
50V47
D840
OPEN
R873
M
M
C867
50V4700p
R868
1/2R47
C862
2kV470p
R865
1/2R39
R870
C874
1/2R150
2kV220p
D864
FR105-FL
+
C840
OPEN
14
15
1312
D862
FR105-FL
R862
1/2R6.8
C863
63V0.22
C871
2kV680p
C877
2kV820p
TEM2011AA
F840
OPEN
M
D875
MTZJ9.1C
L862
TEM2011AA
C870
800V0.1u
R871
1W 680J
L864
R810
RW923H1R8K
D848
1SS355-TE17
2
R840
OPEN
1/2R10
R842
1/2P56k
R843
1/2P56k
578
C843
OPEN
OPEN
M
C842
OPEN
3412
Q840
T862
TPW3549AS
4
5
2
1
Q862
PS2581L(D)
6.6 15.8
41
0
C811
250V2200pF
C812
250V2200pF
SR82
G5PA-1-M
SR81
DLS5D1-0 M 0.25W
Q841
PS2581L(D)
23
T840
OPEN
3
1.0 5.2
41
Q842
OPEN
04.2
23
23
2
17
F892
OPEN
15
D891A
D891B
L886
TEM2011AA
L887
TEM2011AA
D881
1SS355-TE17
YG801C04RF119
F851
125V4.0A
F852
125V4.0A
1
D891
F850
125V3.0A
TEM2011AA
TEM2011AA
L880
TEM2011AA
L881
TEM2011AA
13
12
11
9
7
10
6
8
16
14
14.8
D894
1SS355-TE17
0.1
Q894
KTC4075Y
0
D845
1SS355-TE17
KTC4075Y
0.1
Q843
R818
RM73B1H471JD
0.8
R819
0
10k
41
5
R844
10k
D843
61
54
R841
OPEN
OPEN
L841
OPEN
+
C845
OPEN
D841
OPEN
D842
OPEN
OPEN
L892
6
7
8
9
10
OPEN
D892A
D892B
1
D893
OPEN
+
D893A
D893B
1
L893
OPEN
4
R854
1/2R1k
RL2/LF-C1
R883
R885
D851
RL2/LF-C1
D884
D885
D4SBS4
1
5.1
2.4
F891
125V4A
L854
TEM2011AA
L850
TEM2011AA
D851A
D851B
1
+
D883
C884
160V330u
F885
125V5A
D885A
+
C885
35V1000
D885B
C888
63V0.22
R881
R845
1/6P1k
3.0
L840
OPEN
+
C846
OPEN
D846
OPEN
D847
OPEN
L891
TEM2011AA
1/2R15
L851
D4SBL20U
L852
C880
2kV330p
C881
2kV330p
1/6P470
D895
MA8062-M
R893
4.7k
0.7
R894
10k
Q844
KTC4075Y
+
C841
OPEN
L895
OPEN
+
C892
OPEN
C893
OPEN
L896
OPEN
C891
+
16V1000
TLN3499AH
D854
FR105-FL
D852
RL2Z LF-C1
D853
RL2Z LF-C1
+
C850
35V560
+
C851
35V560
C898
0.1uF
D880
MTZJ4.3B
14.4 116
BC
Q881
M
G
SE116N
0
1k
D844
MA8056-M
1-D2
7V
1-C2
4.5V
1-D8
L894
+
C854
25V47
+
C852
25V470
+
C853
25V470
F470
TLN3299D
TLN3462AH
L885
L888
AC125V 2.0A
C499
16V22
R470
1R0.47
R101
OPEN
Conect to P810
R488
1/2R150
119.8
R474
1/2P39k
+
R487
C496
1/2R270
63V0.47
M
119.4
Q470
0
2SA1320
D470
R472
MA8120-L
100
R478
C473
1k
0.1uF
R473
22k
R849
100
Q473
KTA2014Y
5.1
0
0
R476
470
5.10
Q471
KTC4075Y
R485
R486
4.7k
3.0
Q472
KTC4075Y
0
R489
1k
680
+
C849
16V100
11V
16V1
-16V1
21V
-21V
120V
32V
GND
X-RAY
AVCC
AGND
PROTECT
POWER
5V1
ACP
2-B7
2-C7
1-C8
1-B8
2-D1
1-C8
2-D8
2-D1
1-C7
1-C7
1-A2
1-C2
1-C2
1-C2
C814
OPEN
51H94/57H94
DEF POWER (POWER)
SHEET-3/3
(15/58)
Page 20

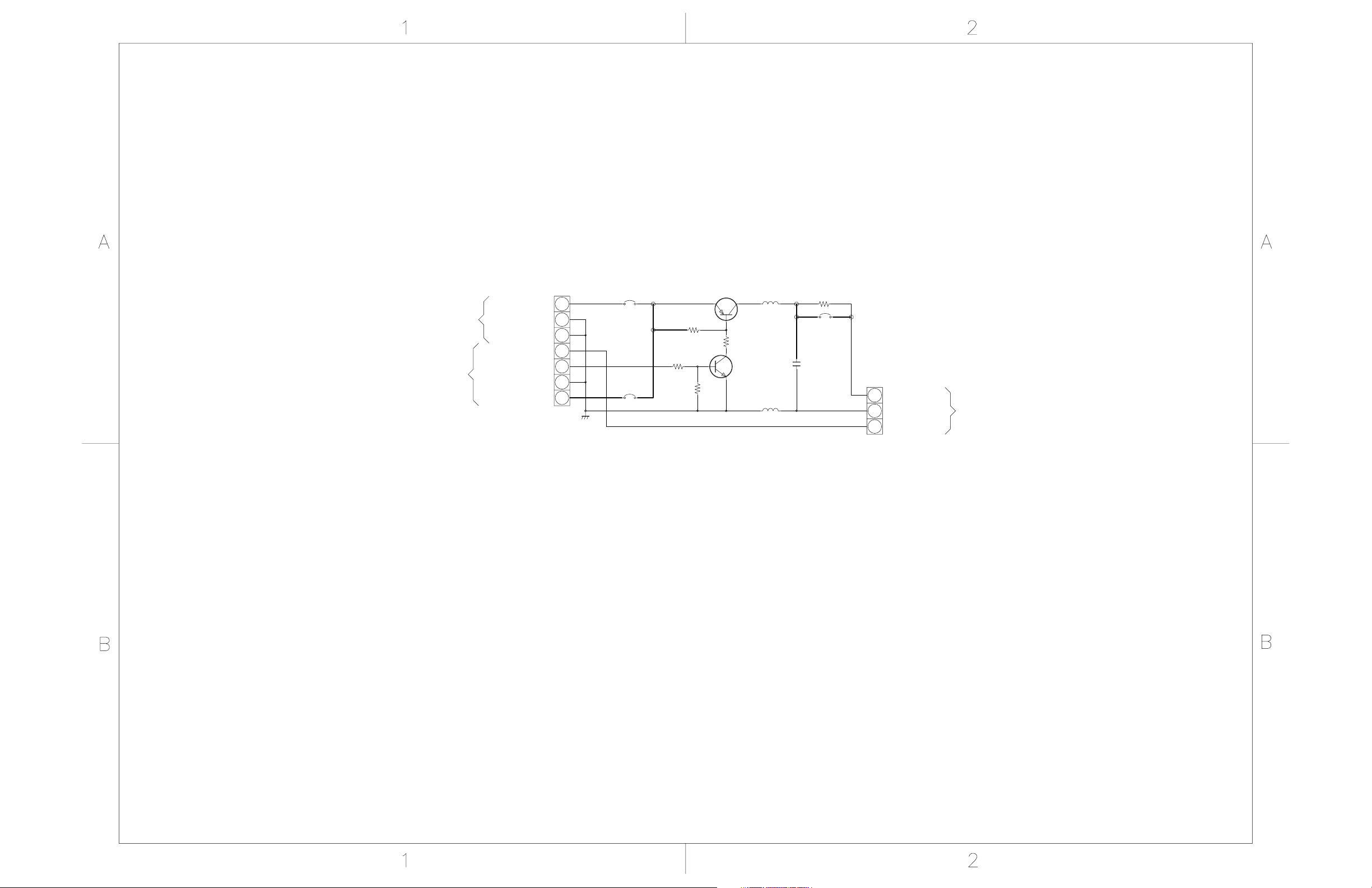

From SUB POWER
From SIGNAL
7P_2.5mm_1.5A_Beige
+10V(Sub)
GND
GND
FLOK
FCTR
GND
+11V(Main)
PF01
GJ01
SHORT
QF01
2SA1020-Y
LF01
100
RF05
1W 680J
1
RF04
1/6P4.7k
1/6P10k
1/6P10k
RF03
RF01
RF02
1/6P1.2k
QF02
KTC3198Y
LF02
100
+
CF01
16V330u
GJ03
OPEN
PF02
3P_2.5mm_1.5A_Beige
1 FAN Vcc
FAN GND
To FA N
2
3
4
5
6
GJ02
OPEN
7
32FAN STOP
51H94/57H94
FAN CONTROL
(16/58)
Page 21

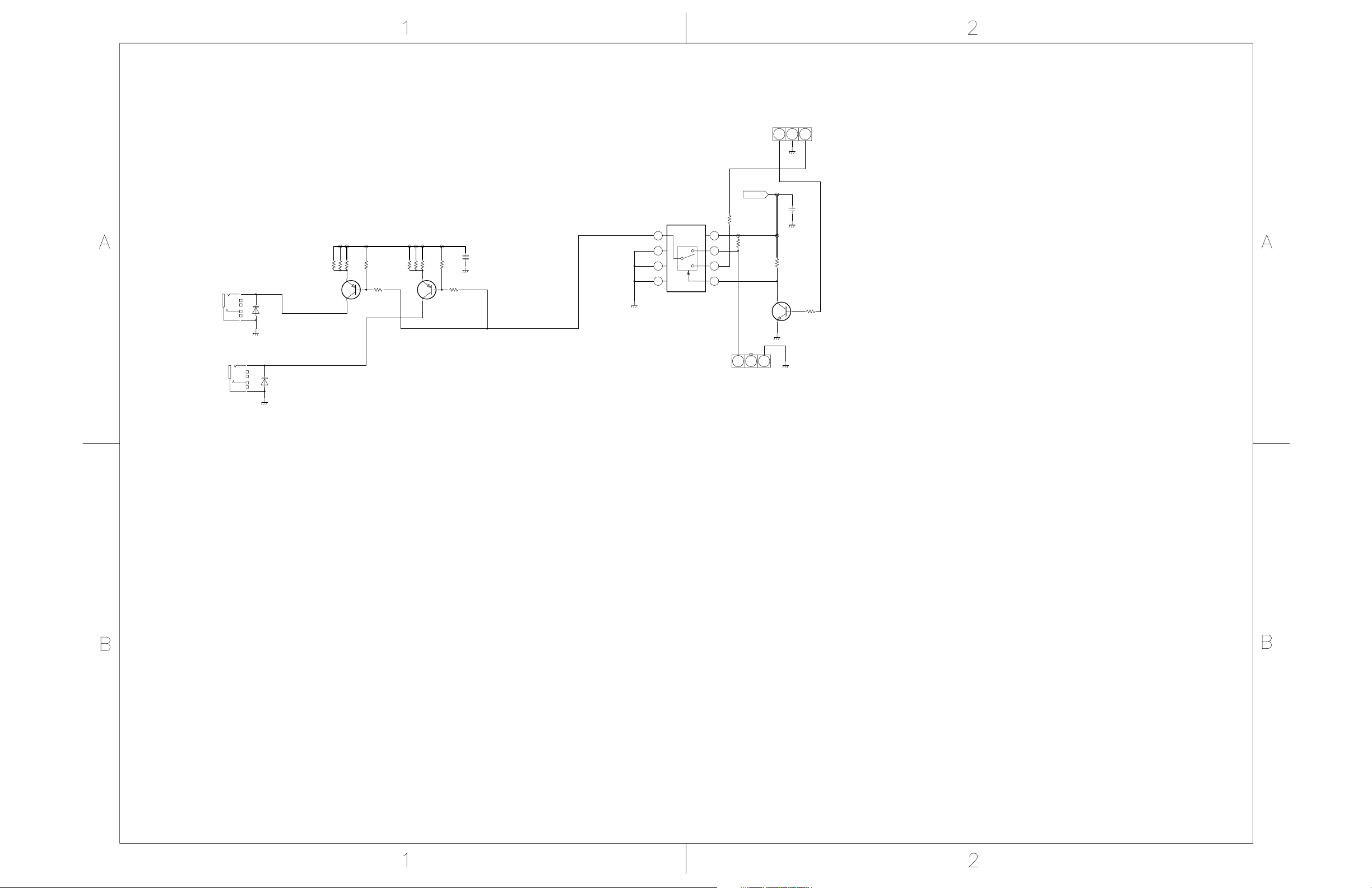

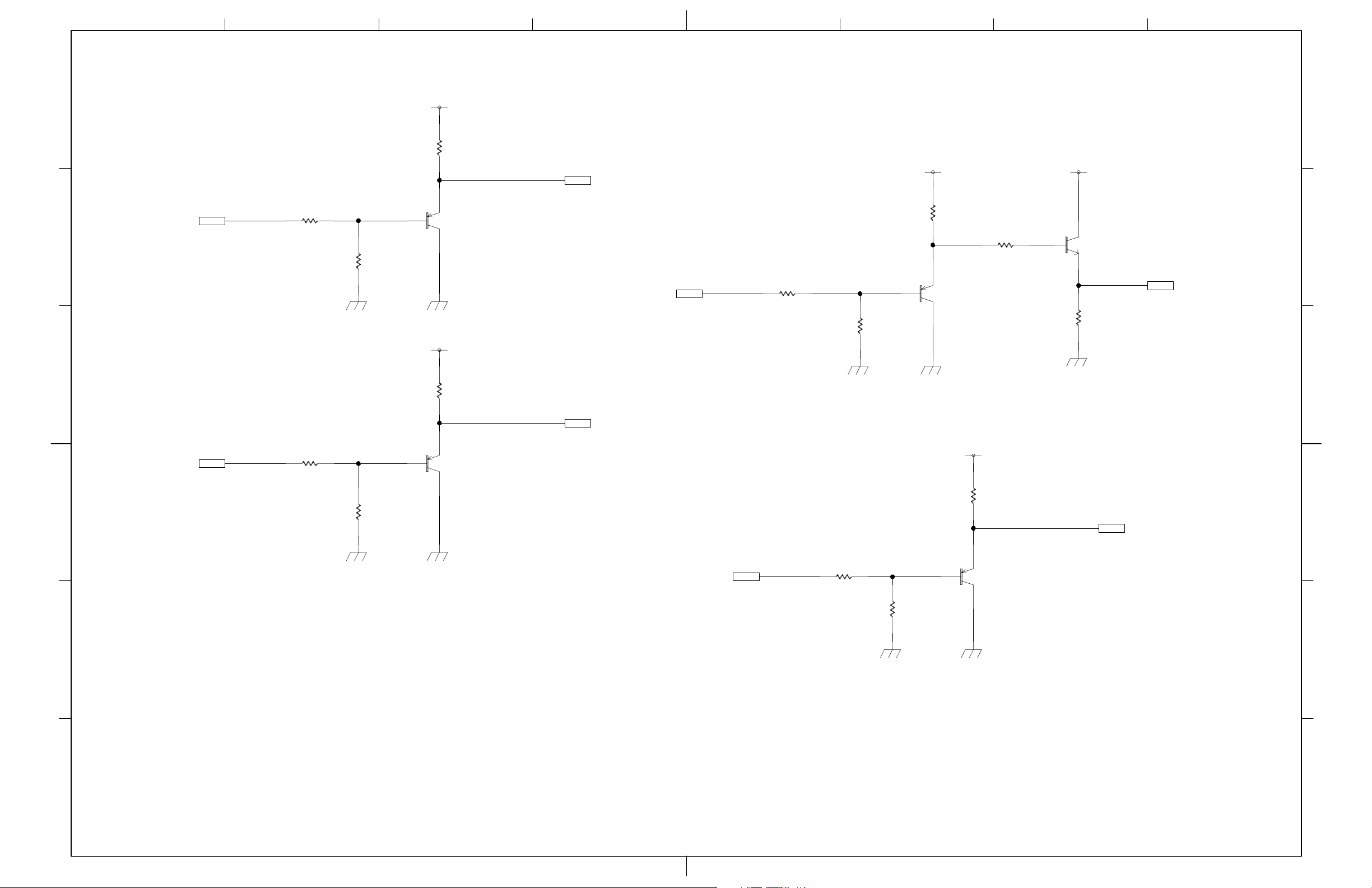

IR OUT
JACK
PB501
PB502
JACK
DB504
1SS400TE61
DB501
1SS400TE61
RB565
RB564
100 1/16W
100 1/16W
RB563
100 1/16W
QB508
2SA562TM-Y
RB562
RB561
100
PB502
3P
3
21
5V1
CB505
10k
QB507
2SC4081-Q\2SC4116Y
0.1
RB560
10k
QB506
TC4W53F(T12L
RB507
100 1/16W
+
CB504
16V10u
100k
RB508
100 1/16W
RB506
100 1/16W
QB502
2SA562TM-Y
RB504
RB505
100
100k
1423
RB567
100
8657
RB558
100k
RB559
NC
PB503
3P
132
51H94/57H94
IR BLA OUT
(17/58)
Page 22

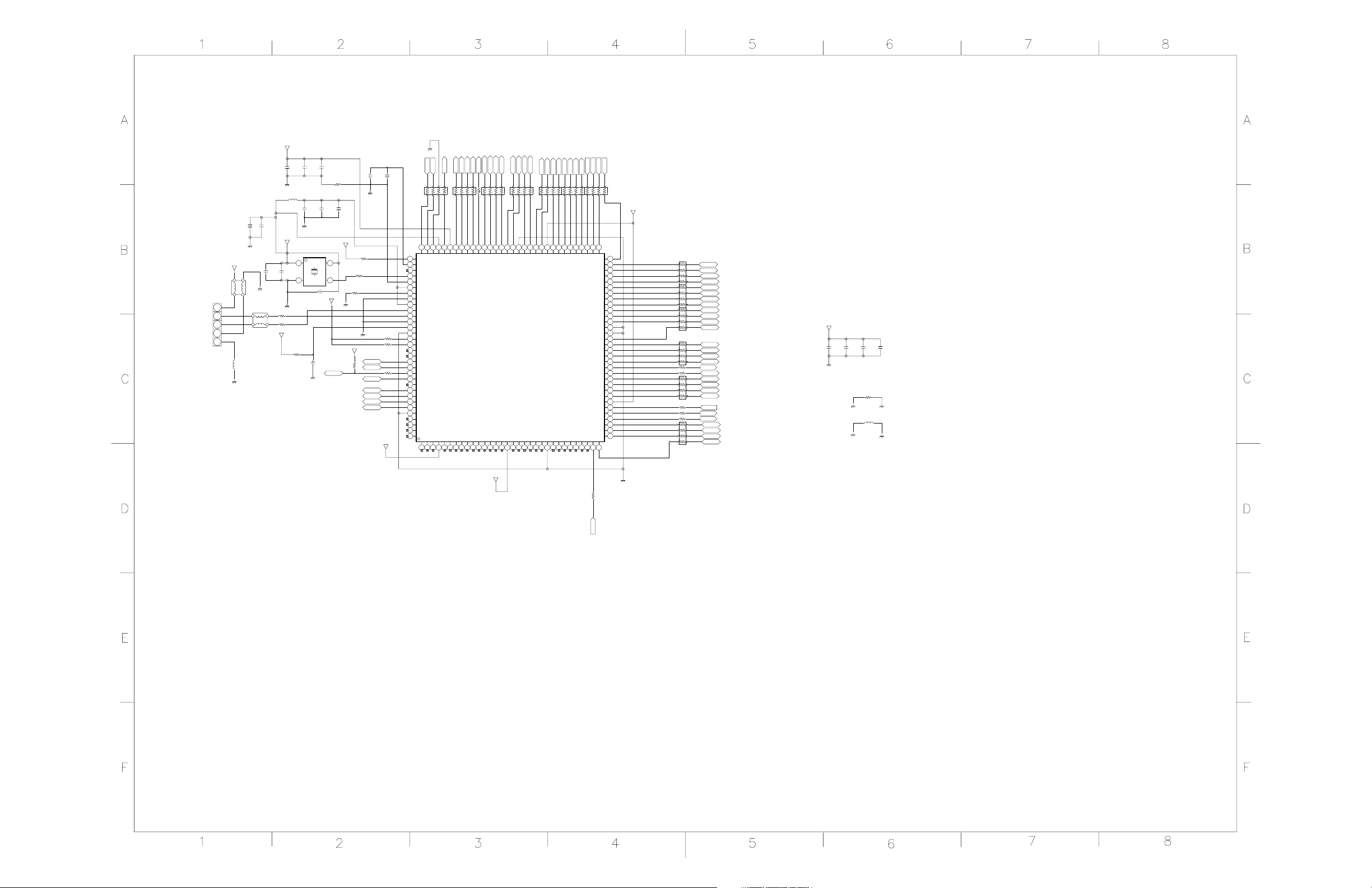

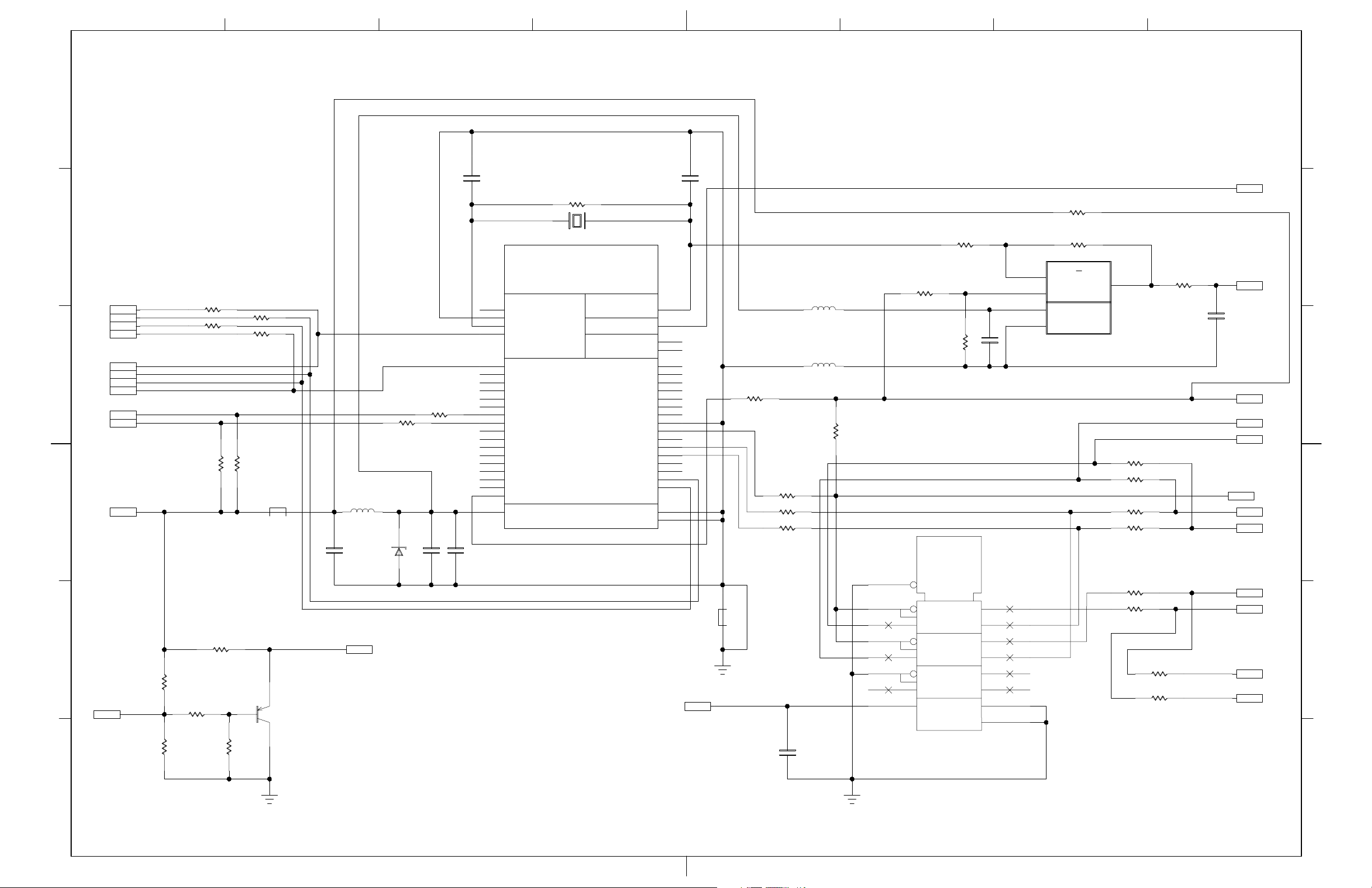

+1.8V
+
CC36
10uF16V
LC02
+
CC31
CC30
10uF16V
0.1uF
+3.3V
+5V
LC03
ACM2012-201-2P-T
1
2
3
4
5
PC01
B5B-EH
LC05
LC04
ACM2012-201-2P-T
CC42
CC41
0.01uF
0.1uF
RC09
27
RC10
27
+3.3V
CC02CC01
0.1uF0.1uF
RC13
0
+
CC07
CC06CC05
10u16V
0.1uF0.1uF
+3.3V
XC01
DS0751SV
12
VDD
CONT
Out
34
GND
put
RC50
12K
+3.3V
0.1uF
CC26
SD_CD
+3.3V
560k
RC61
RC01
22K
CC12
10V1u
3-D2
+
CC03
0.1uF
10uF16V
10K
RC51
RC54
22
RC52
10K
RC53
10K
GPIO3
4-E2
GPIO4
4-E3
RC62
10K
GPIO6
4-E3
GPIO8
4-C1
GPIO9
4-C2
GPIO10
4-B1
GPIO11
4-B2
+3.3V
3-E3
3-B3
3-B3
3-C3
SM_CE
SM_RB
CC04
SM_CD
ZC03
22
SM_nCD
97
ATEST
VREG
VDDP
XTAL2
XTAL1
VSSP
VDDA(REF)
RBIAS
VSSA(REF)
VDDA
USB+
USB-
VSSA
nRESET
VSSCORE
nTEST0
nTEST1
GPIO1
GPIO2
GPIO3
GPIO4
GPIO5
GPIO6/ROMEN
GPIO7
GPIO8
GPIO9
GPIO10
GPIO11
VSSIO
GPIO12
GPIO13
GPIO14
GPIO15
SM_nCE
SM_nB/R
SM_nWPS
MA3
VDDIO
MA2
MA1
MA0
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
3-B3
3-C3
3-C3
3-C3
3-D3
3-D3
SM_RE
SM_WE
SM_WP
SM_ALE
SM_CLE
SM_D7
ZC04
22
22
ZC02
RC02
SM_D7
SM_nWP
SM_nWE
SM_nRE
SM_CLE
SM_ALE
VDDCORE
MA10
MA9
MA8
MA7
MA6
MA5
MA4
3-D3
SM_D4
SM_D5
SM_D6
SM_D3
ZC01
22
22
81 798089 889396 9495 9092 91 8286 8587 8384 66 656970 67687678 77 717475 7273
SM_D3
SM_D2
SM_D4
SM_D6
SM_D5
QC01
USB97C223
MA14
VDDCORE
MA13
MA12
MA11
1715 16 18116714325 108 9 13 1412 22 26 30 323127 292823 252419 2120
SM_D2
VSSIO
MA15
3-C3
SM_D1
SM_D1
MD0
SM_D0
ZC13
SM_D0
MD1
2-B2
2-E2
CF_SA0
MD4
2-C2
CF_CS1
CF_nCS1
MD5
CF_CS0
ZC12
CF_nCS0
MD6
2-C2
CF_IOW
CF_RESET
22
CF_nIOW
CF_nRESET
nMRD
MD7
2-C2
CF_IOR
CF_nIOR
nMWR
2-B2
2-C2
2-C2
2-C2
CF_IRQ
CF_CD1
CF_CD2
CF_IORDY
ZC11
22
+3.3V
ZC10
64
CF_IRQ
CF_nCD2
CF_nCD1
63
CF_IORDY
CF_D15
62
CF_D14
61
CF_D13
60
CF_D12
59
CF_D11
58
CF_D10
CF_D9
57
56
CF_D8
55
CF_D7
54
CF_D6
53
CF_D5
52
VSSCORE
51
VSSIO
50
CF_D4
49
CF_D3
48
CF_D2
47
CF_D1
46
CF_D0
45
SD_CLK
44
SD_CMD
SD_DAT3
43
42
SD_DAT2
41
SD_DAT1
40
SD_DAT0
39
VDDIO
SD_nWP
38
37
MS_BS
36
MS_SCLK
35
MS_D0
34
MS_D1
MS_D2
33
MS_INS
nMCE
MS_D3
22
ZC09
22
ZC08
ZC07
RC03
22
22
RC04
22
ZC05
RC05
22
RC06
22
22
RC07
ZC06
2-C2
CF_D15
CF_D14
2-C2
CF_D13
CF_D12
2-C2
CF_D11
CF_D10
2-B2
CF_D9
CF_D8
2-E2
CF_D7
CF_D6
2-E2
CF_D5
CF_D4
22
22
2-E2
CF_D3
CF_D2
2-D2
CF_D1
CF_D0
3-D3
SD_CLK
3-B3
SD_CMD
3-B3
SD_D3
SD_D2
3-D3
SD_D1
SD_D0
3-E3
SD_WP
3-D3
MS_BS
3-C3
MS_SCLK
MS_D0
3-C3
MS_D1
MS_D2
3-C3
MS_D3
+3.3V
+
CC10
CC09CC08
CC11
10uF16V
0.1uF0.1uF0.1uF
RC14
0
LC06
2-D3
2-D3
2-D3
CF_SA1
CF_SA2
CF_SA0
22
VDDIO
CF_SA2
CF_SA1
VSSIO
MD3
MD2
+1.8V
22
RC08
MS_INS
3-C3
51H94/57H94
MULTI CARD (1/4)
SHEET-1/4
(18/58)
Page 23

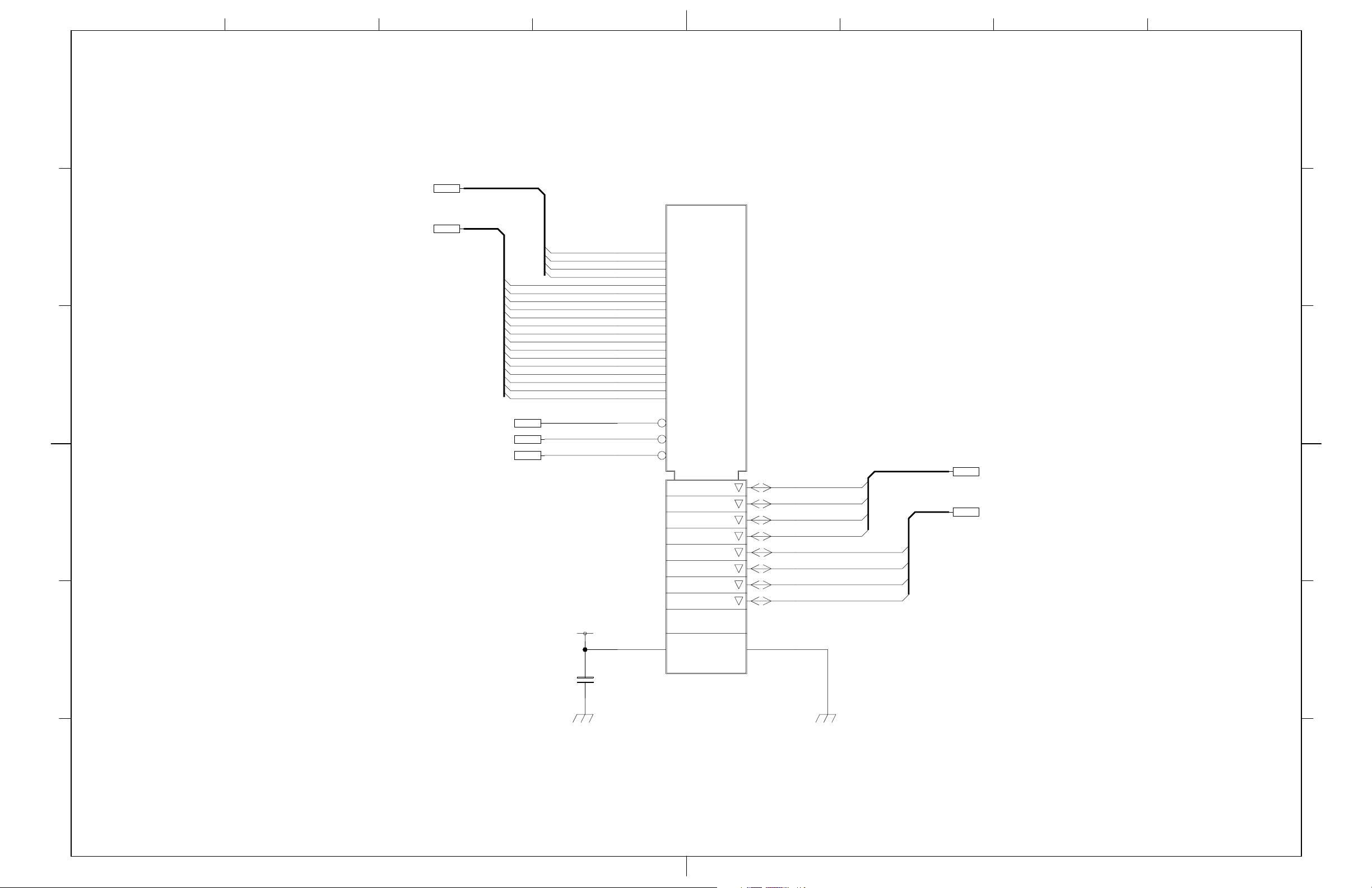

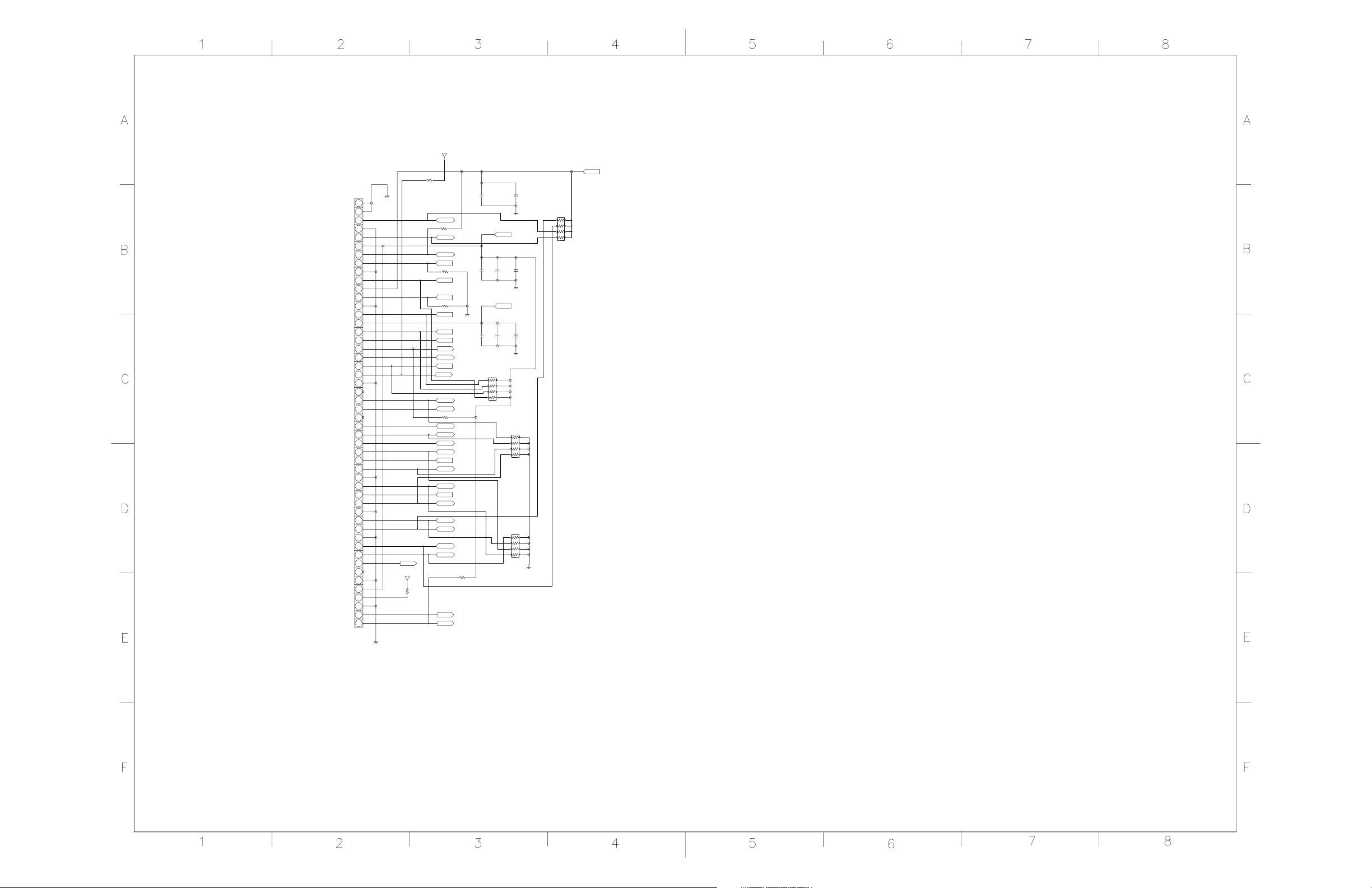

31-5620-050-719-871+
50
49
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
PC02
31-5620-050-719-871+
1-B5
CF_D10
1-B5
CF_D9
1-B5
CF_D8
RC15
0
10K
ZC14
24019404Q
1-A4
CF_IORDY
1-A4
CF_RESET
10K
RC16
24011103R
RC17
0
1-A4
CF_IRQ
RC18
0
1-A4
CF_IOW
1-A4
CF_IOR
RC19
0
1-A4
CF_CS1
1-B5
CF_D15
1-B5
CF_D14
1-B5
CF_D13
1-B5
CF_D12
1-B5
CF_D11
1-A4
CF_CD1
1-A4
CF_CD2
1-C5
CF_D2
1-C5
CF_D1
1-C5
CF_D0
ZC16
22
RC20
24019479Q
0
ZC18
22
24019479Q
1-A4
CF_CS0
1-B5
CF_D7
1-C5
CF_D6
1-C5
CF_D5
1-C5
CF_D4
CF_D3
ZC15
24019404Q
CF_+3.3V
CF_SA0
CF_SA1
CF_SA2
10K
4-C3
CC13
0.1uF 0.1uF
1-A4
1-A3
1-A3
CC15
+
CC14
10u16V
51H94/57H94
MULTI CARD (2/4)
SHEET-2/4
(19/58)
Page 24
+3.3V
PF1710-0
32
29
27
21
19
16
13
12
10
PF1710-0
RC21
24011103R
10K
50
49
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
31
30
28
26
25
24
23
22
20
18
17
15
14
11
9
8
7
6
5
4
3
2
1
PC03
SD_CD
+3.3V
RC27
SD_D2
100K
RC22
24011104R
SD_D3
SD_CMD
1-A3
SM_CLE
10K
RC23
24011103R
1-A3
SM_CE
1-A3
SM_ALE
10K
RC25
24011103R
1-A3
SM_RE
1-A3
SM_WE
1-C5
MS_SCLK
1-A3
SM_RB
MS_D3
1-A3
SM_WP
1-D4
MS_INS
SM_D0
MS_D2
RC60
MS_D0
SM_D1
MS_D1
SM_D7
MS_BS
SM_D2
SM_D6
SD_CLK
SM_D3
SM_D5
SD_D0
SD_D1
SM_D4
1-C2
1K
SD_WP
SM_CD
ZC17
1-A3
10K
1-A3
1-A3
1-C5
1-A3
1-A3
1-C5
1-A3
1-A3
1-A3
10K
RC26
24011103R
1-C5
1-A3
CC16
0.1uF
CC18
0.1uF
CC33
0.1uF
24019404Q
SM_+3.3V
CC35
0.1uF
MS_+3.3V
CC19
0.1uF
10K
ZC21
ZC19
24019404Q
24019404Q
+
CC17
10u16V
+
CC32
16V10
10\U+00AA\U+256016V
CC20
+
10u16V
10K
10K
ZC20
4-(81.5,201)
4-(86.5,161)
SD_+3.3V
10K
24019404Q
4-(139,202)
51H94/57H94
MULTI CARD (3/4)
SHEET-3/4
(20/58)
Page 25

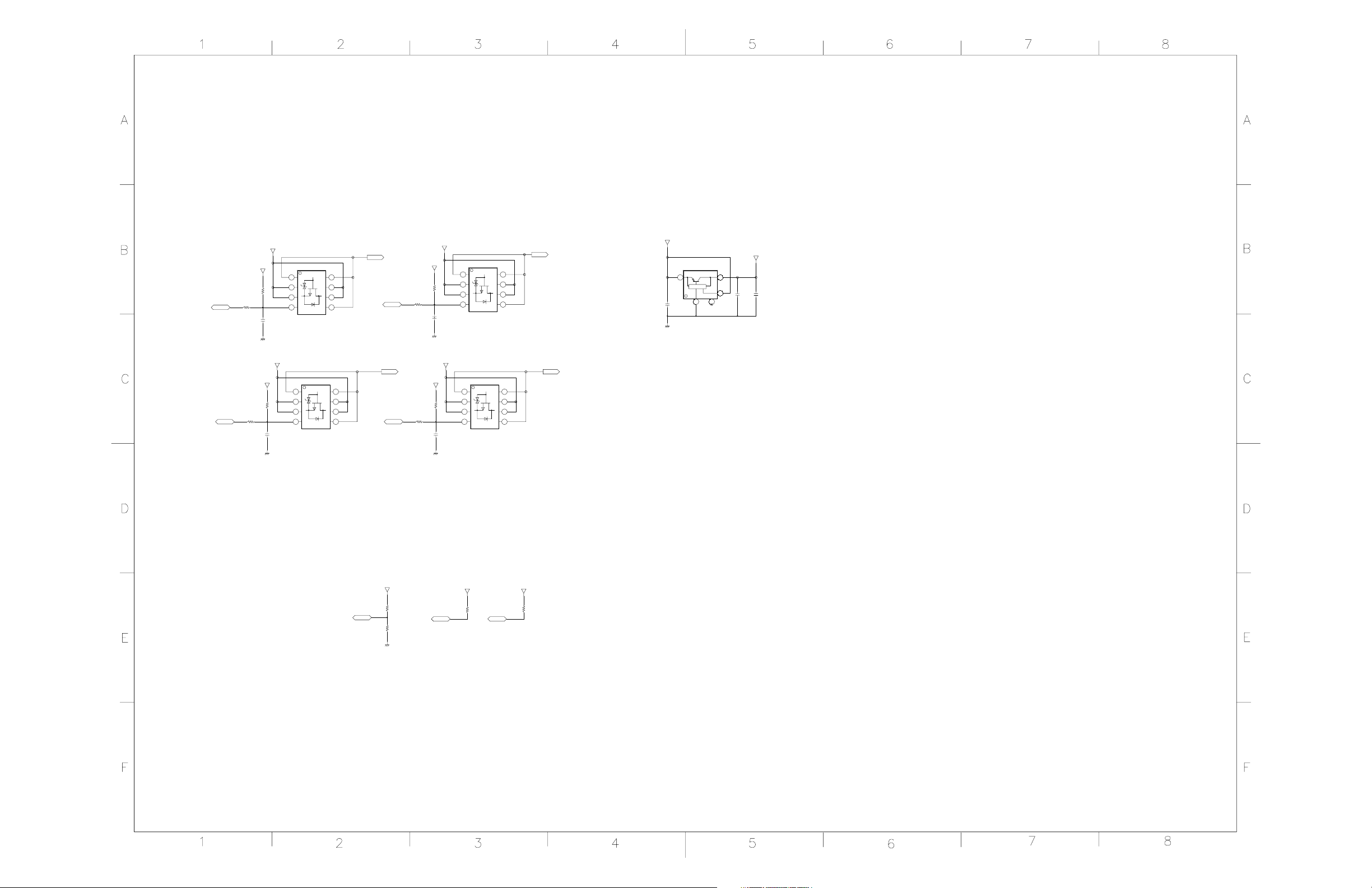

GPIO10
+3.3V
+3.3V
10K
RC33
330
RC32
CC22
10V1u
QC02
UPA1813
uPA1813
G
S
D
4321
GDSS
5678
DSSD
SM_+3.3V
3-(126,209)
GPIO11
+3.3V
+3.3V
10K
RC35
330
RC34
CC40
10V1u
QC05
UPA1813
uPA1813
G
S
D
4321
GDSS
DSSD
SD_+3.3V
5678
3-(157,231)
+5V
Vin
1 3
CC34
0.1uF
QC08
PQ033EZ01ZP
GND
+3.3V
Vout
ON
/OFF
2
NC
4
5
+
CC27
CC28
0.1uF
16V47uF
GPIO8
+3.3V+3.3V
+3.3V
10K
RC37
330
RC36
CC24
10V1u
QC03
UPA1813
uPA1813
G
S
D
4321
GDSS
5678
DSSD
GPIO9
+5V
1K
GPIO3
1M
RC41 RC40
+3.3V
10K
RC39
330
RC38
CC25
10V1u
GPIO6
QC04
uPA1813
UPA1813
G
S
D
4321
GDSS
+3.3V
10K
RC49
GPIO4
5678
DSSD
+3.3V
100K
24011104R
RC58
2-B33-(126,184)
CF_+3.3VMS_+3.3V
51H94/57H94
MULTI CARD (4/4)
SHEET-4/4
(21/58)
Page 26

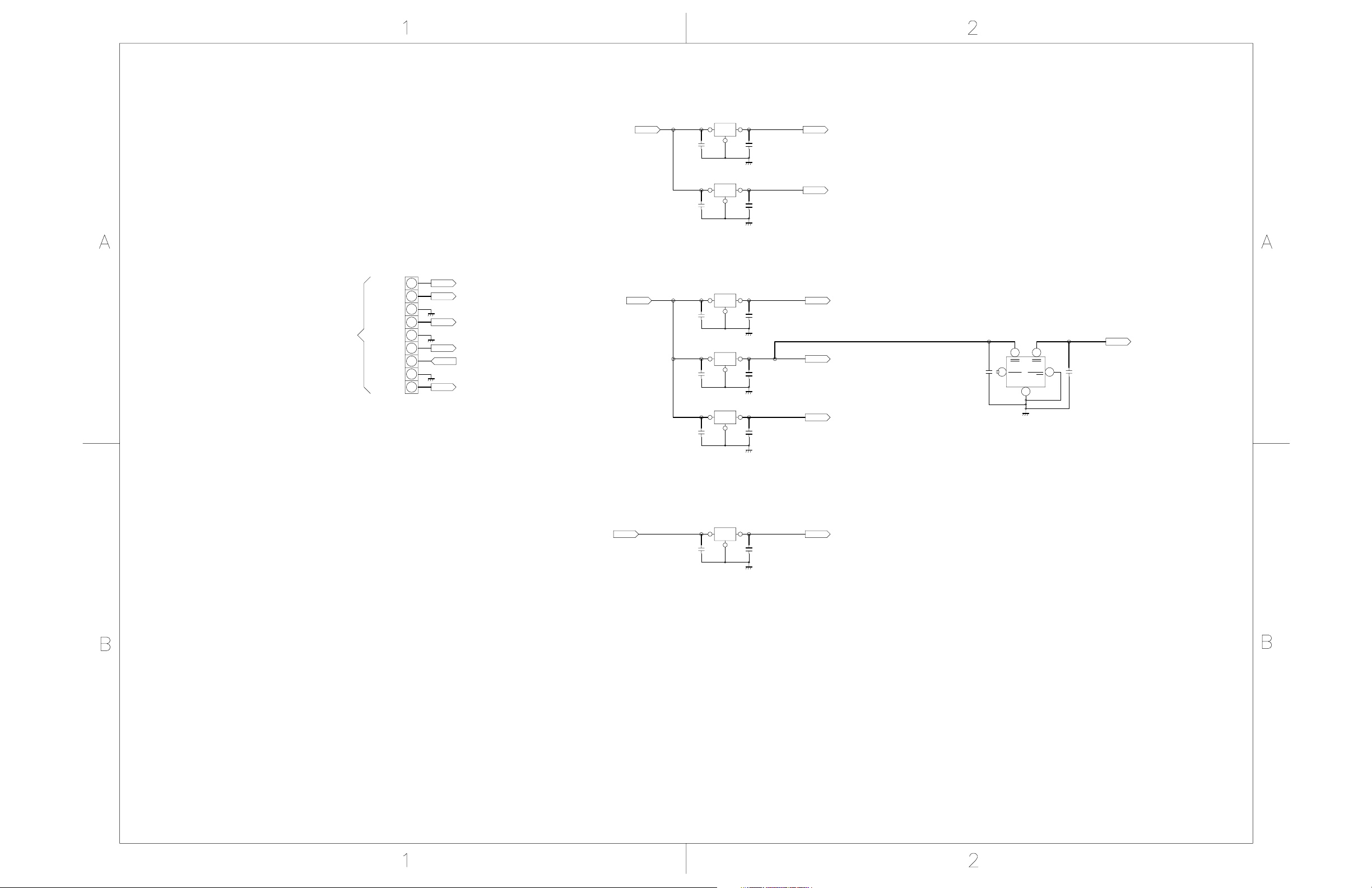

FROM DEF/POWER
+4.5V
+5V-1
GND
+7V
GND
H.Vcc
+9V-1
GND
+11V
P831B
Q830
9VREG.TO-252
3
1-A1 1-A1
11V
9P
1
2
4.5V
5V1
1-B2
1-A1
7V
3
1-A2
7V
4
5
HVCC
6
7
9V1
1-A2
8
1-A2
11V
9
1
2
+
C830
0.1uF
Q831
9VREG.TO-252
1
C832
0.1uF
Q832
5VREG.TO-252
1
C834
0.1uF
Q833
5VREG.TO-252
1
C836
0.1uF
Q834
5VREG.TO-252
1
C838
0.1uF
C831
CE24W1C100MA
3
2
+
C833
CE24W1C100MA
3
2
+
C835
CE24W1C100MA
3
2
+
C837
CE24W1C100MA
3
2
+
C839
CE24W1C100MA
9V1
for IF, DEF
9V2
for CRT-D, HDMI, HYPER, A/V, BEP, CD
5V2
for IF, HDMI(Analog)
5V3
for QV02, I/O Exp, COMB, CD
5V4
for HDMI(Digital), QX401
QV80
R1170H201A
54
CE
CV80
0.1uF
VDD VOU T
3
VDDNCVOUT
NC CE
1
GND
2
2V_QV02
for QV02
CV81
0.1uF
1-A1
4.5V
Q835
3.3VREG.TO-252
3
1
2
+
C829
0.1uF
C828
CE24W1C100MA
3.3V2
for HDMI(Digital)
51H94/57H94
REGULATOR (HYPER SIGNAL)
(22/58)
Page 27

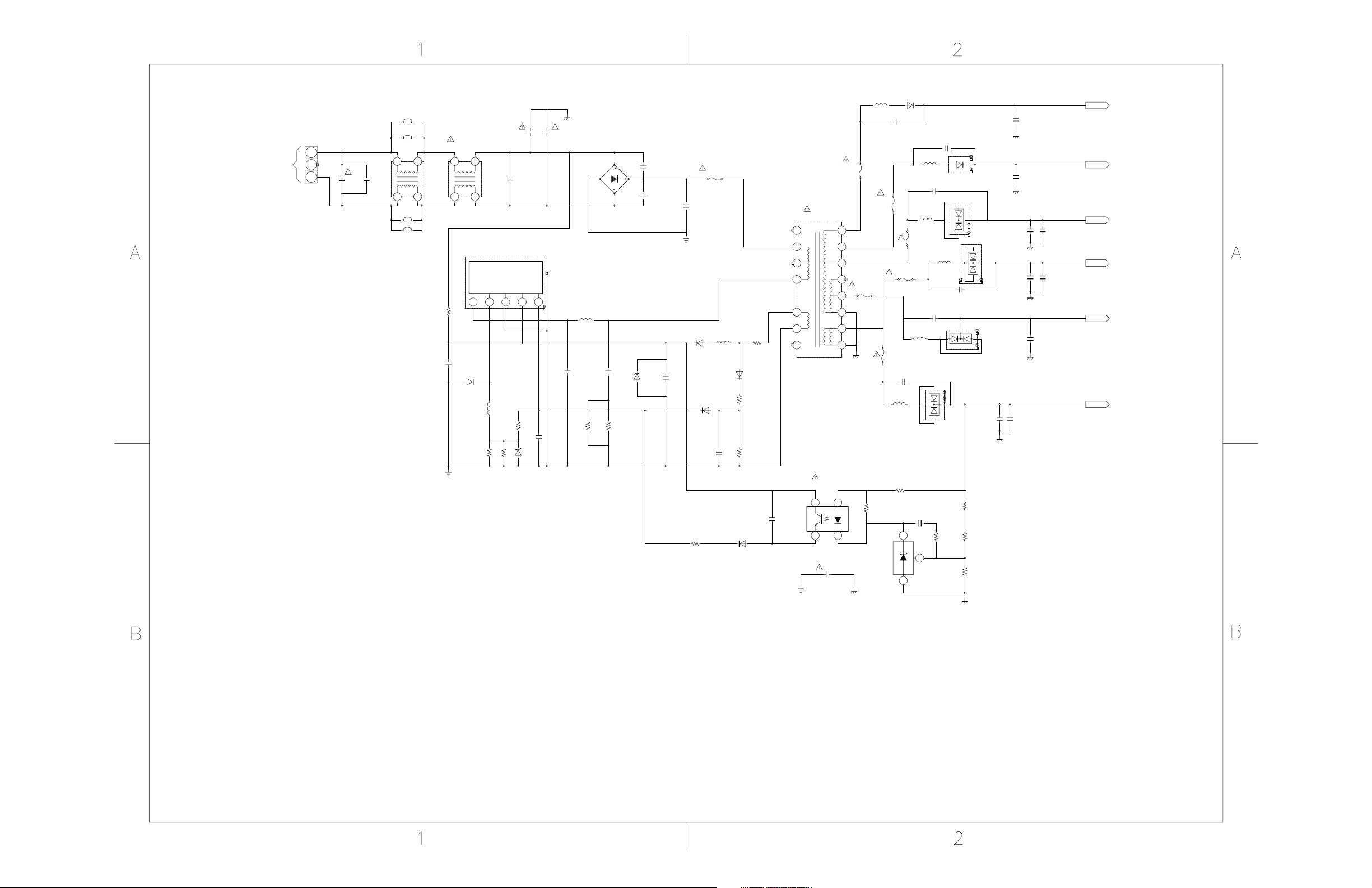

From DEF/POWER
PE01
PLUG 3P_5mm
1
3
CE01
AC275V0.22u
CE01Z
SHORT
SHORT
TE02
OPEN
SHORT
SHORT
DE72
LE72
RL2Z LF-C1
TEM2011
GE04
GE03
TE01
TRF3228AQ
GE01
GE02
QE01
STR-G6653
DE18
AK04
13542
LE13
TEM2011
RE11
1R0.56
1W 223J
B1000p
RE10
CE16
1R0.56
AC250V470P
CE02
OPEN
CE07
CE08
AC250V470P
QE01A
HEAT SINK
D3SB60
DE01
CE04
250V4700pF
CE05
250V4700pF
+
CE10
200V560u
FE01
125V_2A
FE72
125V_1A
TE60
TPW3547AS
1
2
3
4
16
15
14
13
12
QE01B
LE11
TEM2011
DE15
FR105-FL
LE12
1SS133
M
RE18
1/2R100
DE13
RE17
1/6P1.5k
RE16
1/6P6.8k
TEM2011
CE15
2KV330pF
RE13
1/2R680
M
CE14
M470
DE10
RE12
MTZJ5.6B
CE13
1500V1500p
2R33
RE14
2R33
RE15
+
DE19
CE12
25V100
MTZJ27B
DE12
1SS133
CE11
50V3300p
6
7
8
QE05
PS2581L(D)
11
10
9
41
M
CE17
63V0.10
1/6P1k
RE22
DE14
1SS133
CE09
AC250V470P
23
FE76
125V_5A
RE48
1/6P2.2k
125V_4A
NJM431L
CE72
500V330
FE75
FE74
125V_5A
FE77
125V_5A
CE71
500V330
LE71
TEM2011
RE40
1/6P470
QE40
TEM2011
LE73
TEM2011
FE73
125V_5A
LE76
TEM2011
DE71
YG801C04RF119
CE43
63V0.10
LE75
500V330
500V330
M
CE75
500V330
DE75A
HEAT SINK
DE75B
DE75
CE73
FML-G12S
DE73
YG801C04RF119
DE73A
HEAT SINK
DE73B
LE74
TEM2011
DE74B
CE76
RE43
1/6P1k
CE74
500V330
DE76
YG801C04RF119
DE71A
HEAT SINK
DE71B
HEAT SINK
16V1500u
RE45
820
RE44
6.8K
RE46
6.8K
DE74
YG801C04RF119
DE74A
DE76A
HEAT SINK
DE76B
CE81
+
CE82
100V47
+
CE85
16V2200u
++
CE83
16V1000u
++
CE84
10V1000 10V1000
+
CE86
6.3V3300u
++
CE80
16V1500u
CE88
16V1000u
CE87
40V
10V
6.5V
4V
2.5V
5V
2-B1
2-A1
2-A1
2-A1
2-B1
2-A1
51H94/57H94
SUB POWER (1/2)
SHEET-1/2
(23/58)
Page 28

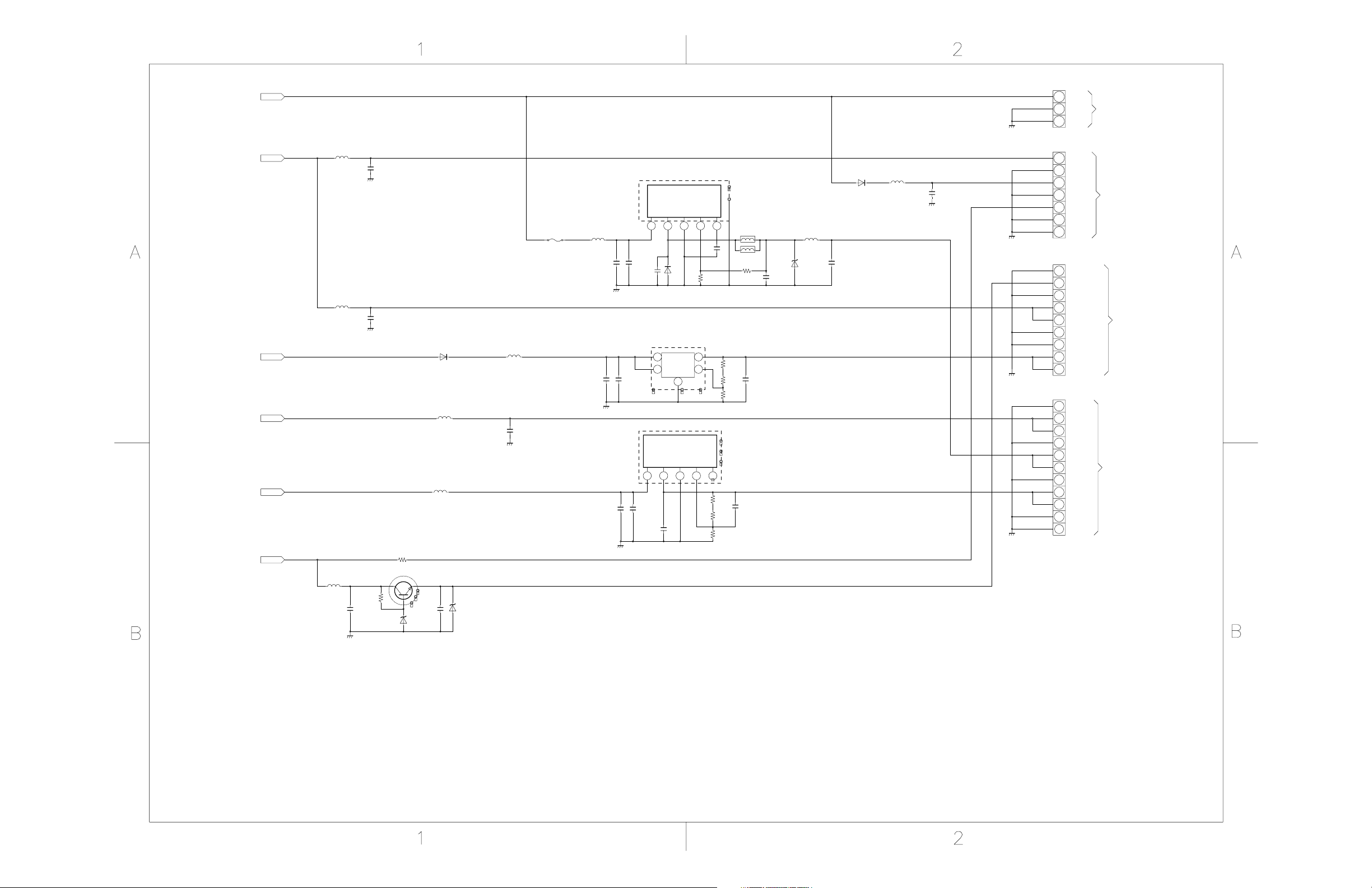

1-A2
1-A2
1-A2
1-A2
1-A2
1-A2
10V
6.5V
4V
5V
2.5V
40V
TLN3499AH
LE50
33u
100V10
1
+10V
To FAN CONTROL2 GND
3 GND
PE55A
LE56
10
+
CE58
16V100
FE79
125V 1.5A
LE55
+
CE57
16V100
DE61
RU4Z LF-L1
LE57
TLN3441AH
LE60
TLN3499AH
RE60
1W 332J
QE54
2SC3852
RE55
1/6P22k
CE50
MTZJ20B
QE54A
QE54B
QE54C
++
DE55
CE79
MTZJ27B
DE54
50V22
LE58
TLN3499AH
+
CE61
10V1000
LE51
33
M
+
CE52
CE51
63V0.1
CE53
M
+ +
CE64
63V0.33
QE53
PQ5EV3
13542
M
+
CE66
CE67
16V47
63V0.33
16V47
16V1000u
CE63
13542
220
QE52C
CE68
10V220
1
2
DE52
RK44
BA00JC5WT-V5
Vcc
CTL
GND
+
SI-8033SS
QE52
3
QE52B
QE50
QE50B
QE50A
LE53
TLN3503AH
M
CE54
63V0.1
RE50
470
4
OUT
5
C
QE52A
LE53Z
OPEN
+
CE55
RE51
15
25V820
RE82
SHORT
CE65
RE81
16V47
56K
RE80
33K
QE53A
QE53B
QE53C
RE52
56
+
CE69
50V3.3
RE53
120
RE54
390
TLN3481AH
DE79
MTZJ4.7B
LE54
DE60
FR105-FL
+
CE56
10V220
LE59
33
+
CE59
16V330
3P_2.5mm_1.5A_Beige
7P_2.5mm_1.5A
9P_2.5mm_1.5A_Beige
11P_2.5mm_1.5A_Beige
1
+6.5V
2
GND
3
+10V
4
PE50A
GND
5
+32V
6
GND
7
GND
To SIGNAL
F_GND
+19V12
F_GND
43+6.5V
+6.5V5To DB
F_GND6
F_GND7
POD+3.3V8
POD+3.3V9
PE05
F_GND
1
+5V
2
+5V
3
4
F_GND
5
+3.3V
6
+3.3V
To D B
F_GND
+1.7V78
+1.7V9
F_GND
10
F_GND
11
PE06
51H94/57H94
SUB POWER (2/2)
SHEET-2/2
(24/58)
Page 29
87654321
A
V_BS
L_BS
R_BS
GND
B
C
D
IRBL_OUT
IRBL_SW
GND
5V1
9V1
Y_E1
SC_E1
S_SW_E1
V_E1
L_E1
R_E1
GND
Y_E2
SC_E2
S_SW_E2
V_E2
L_E2
R-E2
GND
Y_1
PB_1
PR_1
L_CS1
R_CS1
GND
Y_2
PB_2
PR_2
L_CS2
R_CS2
GND
V_MONI
L_MONI
R_MONI
GND
L_HDMI1
R-HDMI1
L_HDMI2
R_HDMI2
GND
L_VARI
R_VARI
PB71
[CN46]
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
12
21
100(J)RC01
2
1
RC03
RC05
RC07
100(J)
2
1
100(J)
21
100(J)
BLM11A102SPTLA27
LA28
LA26
RC02
21
100(J)RS74
21
100(J)RS75
12
BLM11A102SPT
12
BLM11A102SPT
2
1
100(J)
1
2
100(J)RC04
1
2
100(J)RC06
1
2
100(J)RC08
1
2
1
2
4.7uF(K)6.3VCS31
4.7uF(K)6.3VCS32
V_BS
L_BS
R_BS
IRBL_OUT
IRBL_SW
5V1
9V2
Y_E1
SC_E1
S_SW_E1
V_E1
L_E1
R_E1
Y_E2
SC_E2
S_SW_E2
V_E2
L_E2
R_E2
Y_1
PB_1
PR_1
L_CS1
R_CS1
Y_2
PB_2
PR_2
L_CS2
R_CS2
V_MONI
L_MONI
R_MONI
L_HDMI1
R_HDMI1
L_HDMI2
R_HDMI2
GND_A
L_VARI
R_VARI
031:1B;034:7C
004:2B;034:4C
004:2D;034:4C
016:8C
011:8C
018:8E
004:7D;018:8E
031:1C
031:1D
032:1A
031:1B
004:2B
004:2C
031:1D
031:1D
032:1A
031:1C
004:2B
004:2C
032:1B
032:1C
032:1C
004:2B
004:2C
032:1B
032:1C
032:1D
004:2B
004:2C
032:1B
002:2D
002:2D
004:2B
004:2C
004:2B
004:2D
003:4D
003:4D
003:4D
A
B
C
D
2
2
1000pF(K)
1000pF(K)
1
CC01
E
GND
CC02
GND
2
2
1000pF(K)
1
CC03
2
1000pF(K)
1000pF(K)
1
1
CC05
CC04
2
1000pF(K)
1000pF(K)
1
1
CC06
CC07
F
2
2
1000pF(K)
1
1
CC08
E
F
51H94/57H94
HYPER SIGNAL (BACK AV SOCKET)
SHEET-1/34
SH.NO.
1
(25/58)
Page 30

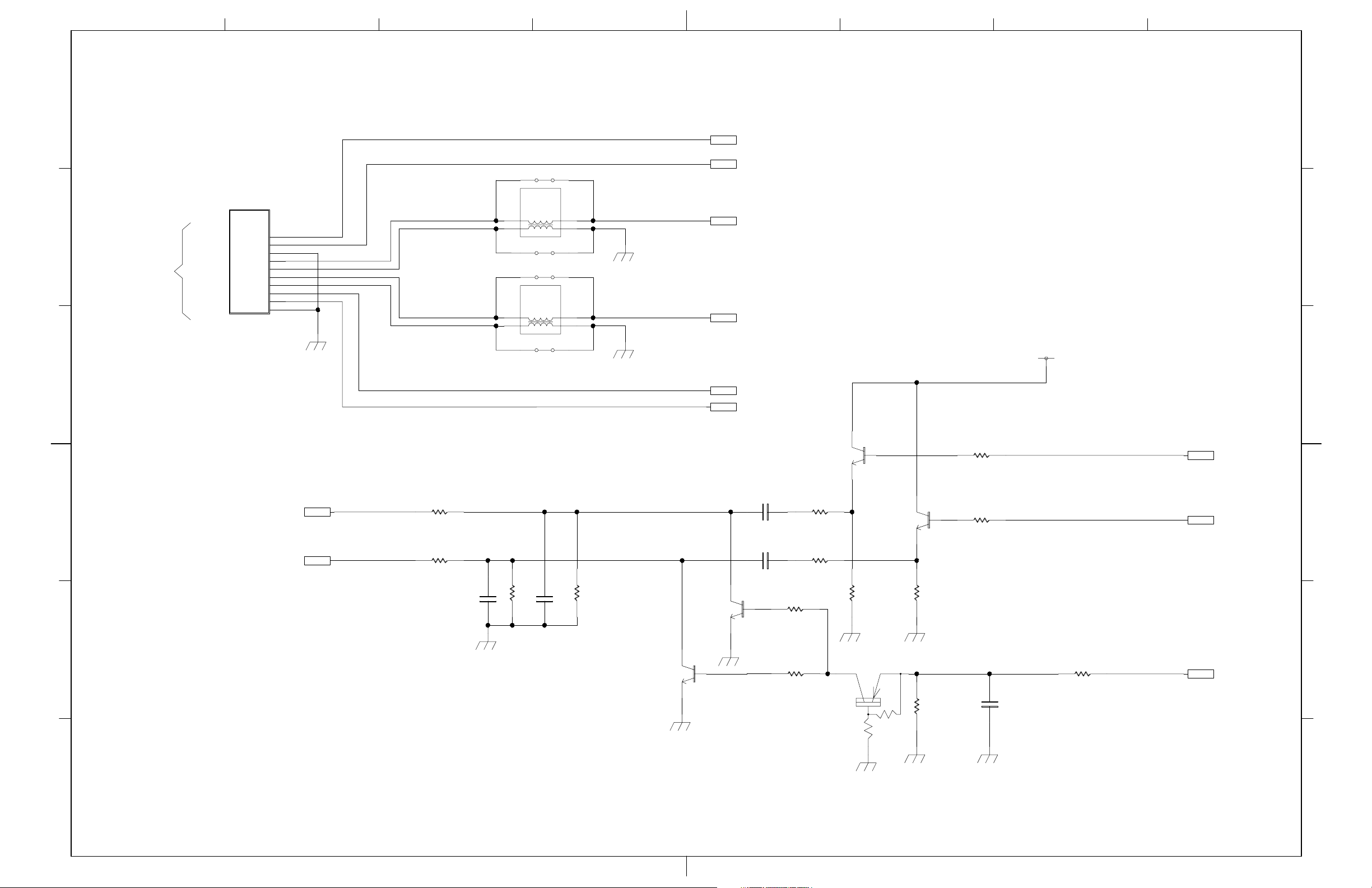

87654321
A
SW_E3
C_E3
Y_E3
V_E3
1608
[FL09B]
1608
1608
[FL09B]
1608
0(X)
0(X)
0(X)
0(X)GJ86
21
LV03
KETSU
4
3
21
LV02
KETSU
GND
GND
21
4
3
21
GJ89
PB60
B10B-EH-F1A-K
[CN10]
B
EXT-3
(to FRONT)
S-SW
GND
GND
GND
GND
C
Y
V
L
R
1
2
3
4
5
6
7
8
9
10
1
2
GJ88
GJ87
1
2
032:1A
031:1E
031:1D
031:1C
9V2
C
L_E3
R_E3
004:2B
004:2C
A
B
C
C
2SC4081 T106Q
CS25
GND
C
E
10uF(M)
16V
1
CS26
10uF(M)
16V
1
B
QS08
2SC3326-B
2
+
[CP]
2
+
[CP]
RS34
22k(J)
RS33
22k(J)
RC09
D
001:7D
001:7D
L_MONI
R_MONI
E
220(J)
RC10
220(J)
21
21
CC12
1000pF(K)
2
1
GND
RS31
100k(J)
1
2
1000pF(K)
2
1
CC11
1
RS32
100k(J)
2
QS07
2SC3326-B
C
B
E
GND
QS03
RS30
1k(J)
RS29
1k(J)
21
21
QS09
DTC144EUA
B
E
21
21
RS37
2.2k(J)
21
GND
C
[TRPD]
B
C
B
QS04
E
2SC4081 T106Q
RS38
2.2k(J)
21
GND
E
RS40
100k(J)
21
RS35
100(J)
RS36
100(J)
2
1
21
21
CS27
470nF(K)
16V
RS39
v
L_OUT2
R_OUT2
004:7A
004:7B
D
E
21
A_MUTE
003:4D
GND
GND
F
GND
F
51H94/57H94
HYPER SIGNAL (AV1)
SHEET-2/34
SH.NO.
2
(26/58)
Page 31
87654321
A
9V2
2
21
GND
21
RV60
2.2k(J)
B
E
[TRP]
QV06
2SA1576AT106Q
C
GND
B
PF03B
29FE-BT-VK-N
[CN29]
V_TV
TUNER GND
TVGND
TUNER GND
RESET_IMA
NC
C
to IF/AUDIO Board
D
GND
TGV2
R_TV
NC
MAIN_AFT
GND
L_TV
NC
GND
MUTE_A
R_AV
A_MUTE
GND
EXT_MUTE
L_AV
SP_MUTE
GND
R_VARI
SCL1
10V
SDA1
L_VARI
GND_A
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
RESET_IMA
R_TV
MAIN_AFT
L_TV
MUTE_A
R_DB
A_MUTE
EXT_MUTE
L_DB
SP_MUTE
R_VARI
SCL1
10V
SDA1
L_VARI
GND_A
032:8D
1000pF(K)
004:2C
010:1A
004:2A
012:7F
034:4C
002:8E
011:8C
034:4C
011:8C
001:7D
004:2D;007:1C;011:2D;018:4E;020:6C;029:6E;032:1D;033:1F;034:7F
019:2E;019:7B
004:2D;007:1C;011:2D;018:4E;020:6D;029:6F;032:1D;033:1F;034:7D
001:7D
001:7D
2
CC18
1
GND
RV41
100(J)
21
RV61
KETSU
CV07
0.1uF(Z)
[ZD]
1
GND
V_TV
CA
DV06
KETSU
031:1C
A
B
C
D
to MICRO COM
GND
E
F
E
F
51H94/57H94
HYPER SIGNAL (AV2)
SHEET-3/34
SH.NO.
3
(27/58)
Page 32
1
8765432
A
CS05
CS07
CS09
CS11
CS13
CS15
CS17
CS19
CS06
CS08
CS10
CS12
CS14
CS16
CS18
RS23
100(J)
RS24
100(J)
CS01
2.2uF(K)
2
2
2
2
2
2
2
2
2
CS02
2.2uF(K)
2
2
2
2
2
2
2
2
2
CS20
2.2uF(K)
2
2
1
2.2uF(K)
1
2.2uF(K)
1
2.2uF(K)
1
2.2uF(K)
1
2.2uF(K)
1
2.2uF(K)
1
2.2uF(K)
1
2.2uF(K)
1
1
2.2uF(K)
1
2.2uF(K)
1
2.2uF(K)
1
2.2uF(K)
1
2.2uF(K)
1
2.2uF(K)
1
2.2uF(K)
1
1
33
35
1
3
5
7
9
11
13
15
17
34
36
2
4
6
8
10
12
14
16
18
19
23
22
21
20
GND
RS01
RS07
RS09
RS11
RS13
RS15
RS17
RS19
RS08
RS10
RS12
RS14
RS16
RS18
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
5.6K(J)
RS05
5.6K(J)
RS02
5.6K(J)
RS06
5.6K(J)
RS20
5.6K(J)
1
1
5.6K(J)
1
5.6K(J)
1
5.6K(J)
1
5.6K(J)
1
5.6K(J)
1
5.6K(J)
1
5.6K(J)
1
1
1
5.6K(J)
1
5.6K(J)
1
5.6K(J)
1
5.6K(J)
1
5.6K(J)
1
5.6K(J)
1
1
003:4C
001:7C
001:7C
002:5C
001:7C
B
C
001:7D
001:7D
001:7D
001:7B;034:4C
003:4C
001:7C
001:7C
002:5C
001:7C
001:7D
001:7D
001:7D
001:7B;034:4C
L_TV
L_E1
L_E2
L_E3
L_CS1
L_CS2
L_HDMI1
L_HDMI2
L_BS
R_TV
R_E1
R_E2
R_E3
R_CS1
R_CS2
R_HDMI1
R_HDMI2
R_BS
D
003:4D;007:1C;011:2D;018:4E;020:6C;029:6E;032:1D;033:1F;034:7F
003:4D;007:1C;011:2D;018:4E;020:6D;029:6F;032:1D;033:1F;034:7D
SCL1
SDA1
1
1
L1
L2
L3
L4
L5
L6
L7
L8
L9
L10
L11
R1
R2
R3
R4
R5
R6
R7
R8
R9
R10
R11
BIAS
SCL
SDA
ADR
MUTE
[MM1631AJ]
QS01
Lout1
Lout2
Lout3
Rout1
Rout2
Rout3
VCC
VCC
GND
CS21
4.7uF(K)
6.3V
30
28
26
29
27
25
31
32
24
GND
2
CS29
2
CS22
2
CS30
2
CS23
47uF(M)
16V
4.7uF(K)
4.7uF(K)
4.7uF(K)
2
1
GND
1
1
6.3V
1
6.3V
1
6.3V
[CP]
+
100(J)
1
1
1
1
QS02
2SC4081
RS21
RS41
100(J)
RS22
100(J)
RS42
100(J)
2
2
2
2
2
C
B
E
RS25
6.8k(J)
1
L_SIG
L_OUT2
L_OUT3
R_SIG
R_OUT2
R_OUT3
9V2
034:4C
002:8D
034:4C
034:4C
002:8D
034:4B
001:7B;018:8E
E
GND
2
1
RS26
1.8k(J)
2
RS27
1.8k(J)
1
2
[CP]
+
CS24
22uF(M)
16V
1
F
GND
A
B
C
D
E
F
51H94/57H94
HYPER SIGNAL (AUDIO SWITCH)
SHEET-4/34
SH.NO.
4
(28/58)
Page 33

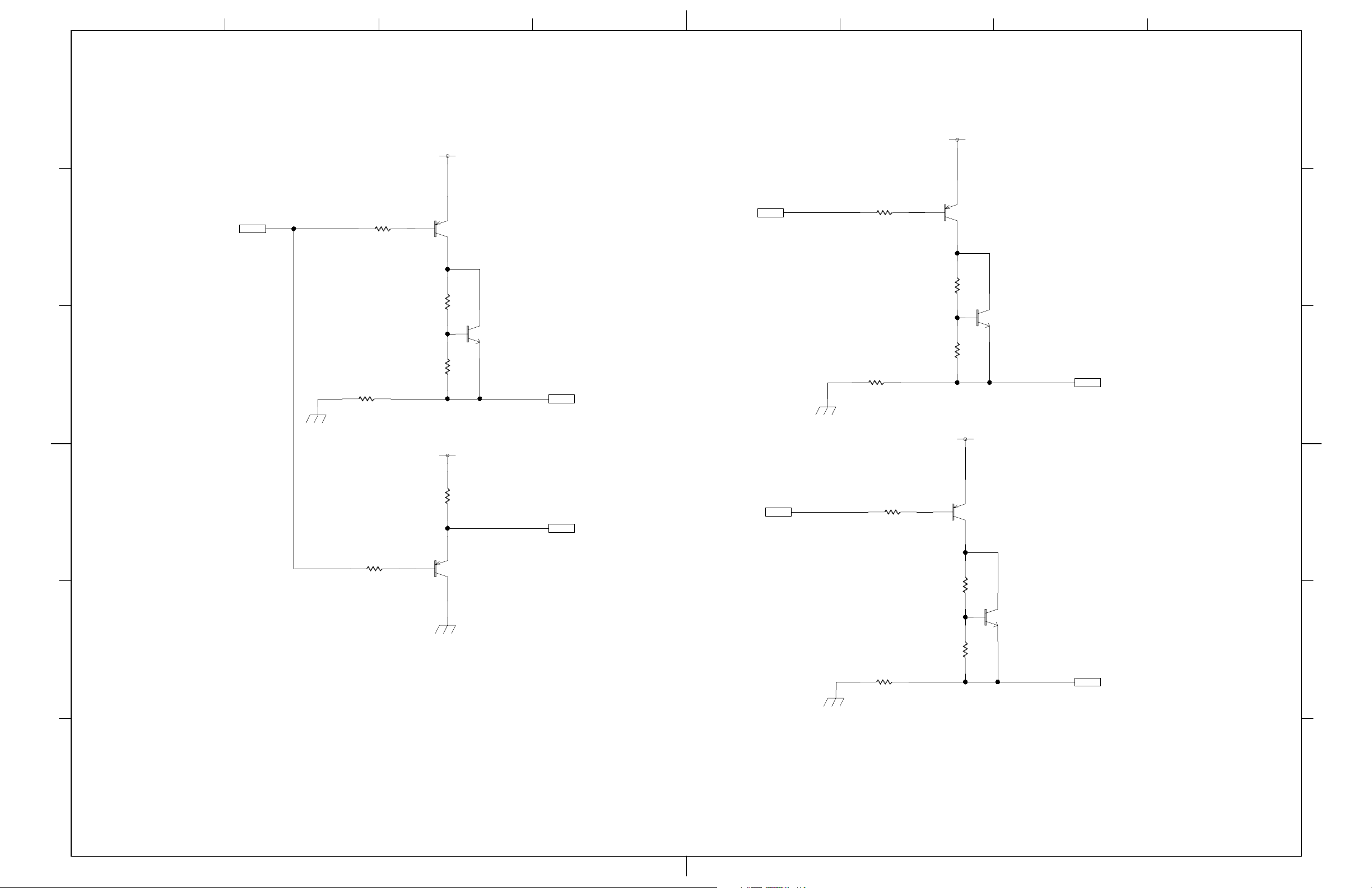

87654321
A
9V2
9V2
C
C
RV023
B
031:8B;033:1B
Y_2_2
C
GND
100(J)
RV013
470(J)
B
21
RV001
470(J)
RV002
470(J)
21
[TRP]
QV003
2SA1576AT106Q
E
21
C
B
21
E
9V1
QV009
2SC4081 T106Q
Y_SIG
031:8B
030:4B
PR_2_2
GND
RV010
100(J)
RV009
470(J)
B
21
RV003
470(J)
RV004
470(J)
21
[TRP]
QV001
2SA1576AT106Q
E
21
C
B
21
E
9V2
QV010
2SC4081 T106Q
Pr_SIG
030:4B
A
B
C
21
RV024
2.2k(J)
D
RV025
100
V_AV_MC
E
[TRP]
21
B
QV008
2SA1576AT106Q
C
GND
014:1D;017:1B
031:8B
PB_2_2
RV012
100(J)
21
E
RV011
470(J)
21
GND
F
B
RV005
470(J)
RV006
470(J)
C
[TRP]
QV002
2SA1576AT106Q
E
21
C
B
21
E
QV011
2SC4081 T106Q
Pb_SIG
D
E
030:4B
F
51H94/57H94
HYPER SIGNAL (AV3)
SHEET-5/34
SH.NO.
5
(29/58)
Page 34
87654321
R4715
A
CA
21
R7866
470(J)
C513
10nF(K)
50V
1
1
CR15
0.1uF(Z)
R520
0(X)
21
1
1
2
1
1
2
1
1
2
1
C5090
2
2
100uF
1
1
CR16
0.1uF(Z)
B
024:1C;024:1D
C
008:1F
008:3B
008:3C
008:3D
CONV_YS
C531
0.1uF(Z)
C537
0.1uF(Z)
C536
0.1uF(Z)
C530
KETSU
IK_IN
R_OUT
G_OUT
B_OUT
C539
2.2uF(K)
C538
2.2uF(K)
C535
2.2uF(K)
GND
D
013:4E
013:3C
007:1B;007:1D
R_OSD
G_OSD
GND
9V_RGB
16V
kei-8
[ZD]
GND
5
+
2
D533
MAZ81000H
2
2
2
2
4
2
[CP]
9V1
GJ110
0(X)
21
1608
3
L503
12
MMZ1608S121CT
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20 61
GND
Ys2
(ANALOG_OSD)
Ys3
(ANALOG_RGB)
NC
R_S/H
NC
G_S/H
B_S/H
IK_IN
NC
RGB_GND
NC
2.5
R_OUT
2.5
G_OUT
2.5
B_OUT
NC
RGB_Vcc
NC
ANALOG_OSD_R_IN
ANALOG_OSD_G_IN
NC Cb2/Pb2_IN
[U1360]
1/2
Q510
(ANALOG_OSD)
DARK_AREA_
LIGHT_AREA_
Ys1
YM/P-MUTE/
BLK
ABCL_IN
VSM_OUT
NC
Y/C_Vcc
APL_FILTER
NC
NC
DET_FILTER
BPH_FILTER
NC
Y1_IN
Cb1/Pb1_IN
Cr1/Pr1_IN
Y/C_GND
DET_FILTER
Y2_IN
NC
80
79
78
77
76
75
74
73
72
71
70
69
68
67
66
65
64
5.0
63
62
5.0
GND
E
100(J)
21
R2104
4.7k(J)
C563
1608
2
1005
R569
220K
C544
1
0.1uF(Z)
C565
1608
2
C533
0.1uF(Z)
21
CA
D540
[ZD]
M8100-H
GND
R225
100
21
1608
1
2
16V
+
[CP]
C5030
16V
100uF
kei-8
1
2
C5020
10nF(K)
2
+
[CP]
1
[TP]
TP_B
1
C206
22uF(M)
+
[CP]
2
1
1uF10V
1uF10V
1
2
C205
2.2uF(K)
16V
1
21
2
1
2
C543
0.1uF(Z)
1
1
1
1
1
C532
0.1uF(Z)
2
C564
2.2uF(K)
C545
0.1uF(Z)
CC26
47pF(J)
CC25
47pF(J)
1
2
2
2
2
GND
BEP_YS
R245
100k(J)
[SBD]
D512
KETSU
CA
UDZS TE-17 10B
[TP]
TP_Y
1
030:5E
D502
1SS355-TE17
AC
21
2
1
C520
330nF(K)
[ZD]
D513
KETSU
CA
MAZ80330L
12
L501
MMZ1608S121CT
[TP]
TP_G
1
GND
VSM_OUT
YM_OSD
21
R513
10k(J)
1
C515
2
9V1
ABL
008:1E
011:5A
018:4D
1
Y_SCAL
GND
CB_SCAL
GND
G-HYPER(#1)
030:4C
G-HYPER(#2)
006:8E
G-HYPER(#3)
030:4A
G-HYPER(#4)
006:8E
2
1 2
3
4 5
GND
A
B
C
D
E
F
F
51H94/57H94
HYPER SIGNAL (6/34)
SHEET-6/34
SH.NO.
6
(30/58)
Page 35

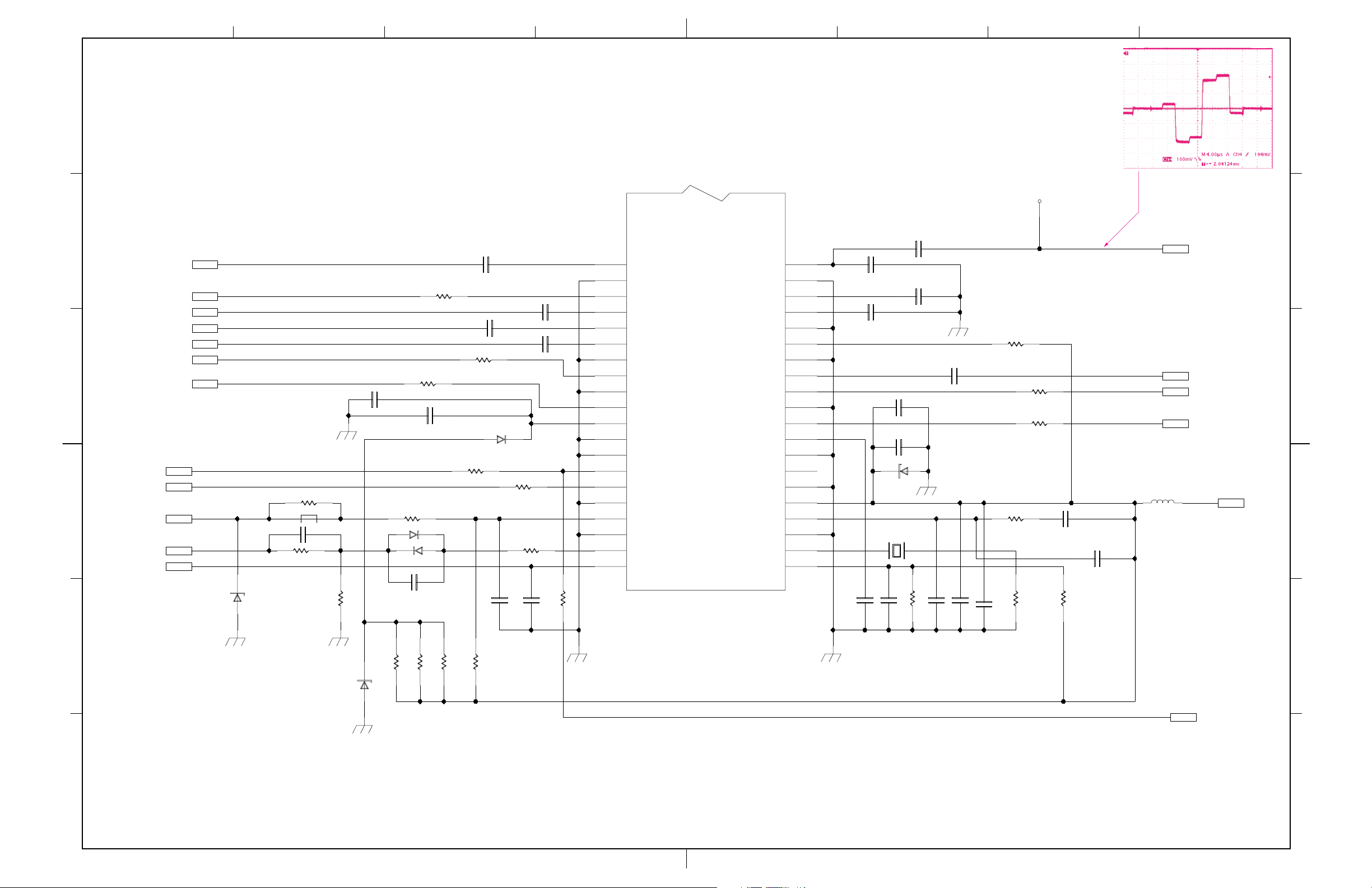

87654321
A
B
013:3B
006:1E;007:1D
009:4B
009:4C
009:7D
003:4D;004:2D;011:2D;018:4E;020:6D;029:6F;032:1D;033:1F;034:7D
C
003:4D;004:2D;011:2D;018:4E;020:6C;029:6E;032:1D;033:1F;034:7F
006:1E;007:1B
013:5E;018:4E;025:1C
D
018:4D
013:5D;018:4D
018:4E
MAZ81000M
E
B_OSD
9V_RGB
OSD_R
OSD_G
OSD_B
SDA1
SCL1
9V_RGB
VP_Q510
H_OUT
AFC
H_PHA_COM
D4605
CA
[ZD]
GND
GND
R4414
0(X)
21
12
L4010 KETSU
1
2
1000pF(K)
C4602
R4605
330(J)
21
R4606
KETSU
GND
D520
MAZ80270L
A
[TP]
TP_R
R4406
10k(J)
R4401
4.7k(J)
21
R555
100(J)
R554
100(J)
R4403
470(J)
1
CR_SCAL
21
53
C4031
KETSU
VD_DB
HD_DB
12
2
L4401
NLV25T-101J-PF
21
21
1
21
2
C4403
1uF(K)
1
R4405
1k(J)
21
G-HYPER(#5)
030:4D
G-HYPER(#6)
009:7B
013:5E;034:7C
013:5D;034:7C
HVCC
019:4B
B
C
D
E
[U1360]
2/2
CR17
0.1uF(Z)
1
2
R531
10k(J)
21
CR13
0.1uF(Z)
2
1
C548
100uF
16V
1
+
21
CA
R4714
[ZD]
2
[CP]
R4411
100(J)
AC
D4606
1SS355-TE17
1
C4603
470pF(J)
21
R4713
560(J) 1/16W
560(J) 1/16W
R5030
100(J)
1
C547
10nF(K)
50V
21
1SS355-TE17
D4604
AC
2
21
R561
180(J) 1/2W
21
2
R532
10k(J)
21
R4409
21
R5020
100(J)
AC
D4703
1SS355-TE17
21
R4412
100(J)
1
2
C4010
21
KETSU
4.7k(J)
2
2
R4407
220(J)
1
2
C4406
10nF(K)
CR12
0.1uF(Z)
CR14
0.1uF(Z)
21
21
21
22
23
24
1
25
26
1
27
28
29
30
31
32
33
34
35
36
37
38
39
40 41
21
R533
100(J)
GND
ANALOG_
OSD_B_IN
NC
DAC2
(ACB_PULSE)
ANALOG_R_IN
ANALOG_G_IN
ANALOG_B_IN
I2L_GND
SDA
NC
SCL
I2L_VDD
NC
NC
DAC1
(SYNC_OUT)
VP_OUT
NC
H-OUT
DEF/DAC_GND
FBP_IN
H_CURVE_
CORRECTION
Q510
Cr2/Pr2_IN
NC
COLOUR_
LIMITER
VSM_FILTER
NC
H-FREQ_SW1
NC
SYNC_IN
VD_IN
NC
HD_IN
SCP_IN
NC
CP_OUT
NC
DEF/DAC_Vcc
AFC_FILTER
NC
HVC0
H-FREQ_SW2
5.0
60
59
58
57
56
55
54
53
52
51
50
49
48
47
46
45
44
43
42
GND
2
CC27
2
C4412
0.1uF(Z)
CSBLA503KECZF30-B0
1
C558
10nF(K)
2
2
0.1uF(Z)
C534
0.1uF(Z)
2
1
C5080
1uF(K)
2
1
100nF(K)
1
2
C4420
KETSU
C4407
KETSU
1
2
CA
[ZD]
X4402
[X]
C4405
1
1
2
21
C4404
10nF(K)
R4413
560(J)
1
1
GND
C505
25V
1
D4401
MAZ81000M
GND
1
2
C4402
10nF(K)
1
2
220uF(M)
2
2
1
C4401
16V
[CP]
+
ABL_SW
GND
F
018:4D
F
51H94/57H94
HYPER SIGNAL (7/34)
SHEET-7/34
SH.NO.
7
(31/58)
Page 36

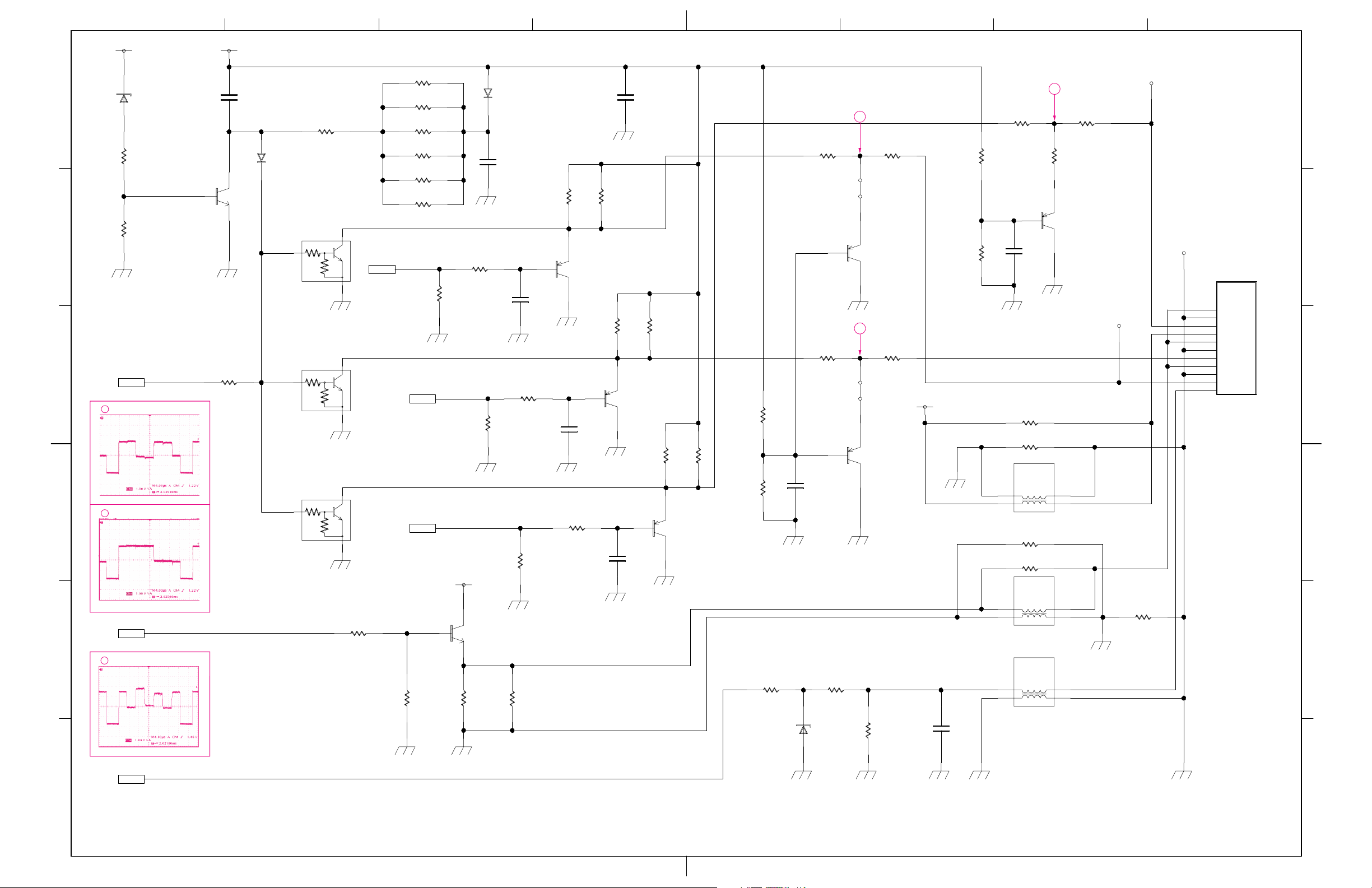

11V
87654321
9V1
TP46R
1P
1
[TP]
VM
KETSU
TP46B
1P
GJ44
[TP]
1
TPG2
1P
[TP]
1
P101
B11B-EH-F1A
1
2
3
4
5
6
7
8
9
10
11
[CN11]
SVM
GND
B-OUT
+11V
SVM
GND
G-OUT
SVM
GND
R-OUT
IK
A
B
C
D
21
E
GND1
F
21
R2022
KETSU
R541
R542
R543
R544
R545
R546
R_OUT
R2110
006:1D
006:1D
21
GND
10k
1.8k(J)
1.8k(J)
1.8k(J)
1.8k(J)
1.8k(J)
1.8k(J)
2
1
GND
G_OUT
B_OUT
B
R2060
470(J)
21
21
21
21
21
21
1005
9V1
C
E
GND
CA
A
B
C
018:4E
1
D
E
2
006:8B
3
006:1C
[ZD]
21
21
GND
D531
MAZ80820L
R537
4.7k(J)
R538
10k(J)
V_STOP_BLK
VSM_OUT
IK_IN
2SC4081 T106Q
B
Q523
2
1
C
E
GND
R549
1k(J)
[CP]
+
C540
16V
0.1uF(Z)
21
AC
D536
1SS355-TE17
B
DTC143ZUA T106
B
DTC143ZUA T106
B
R539
33(J)
21
Q524
DTC143ZUA T106
C
E
GND
Q525
C
E
GND
Q526
C
E
GND
R2020
100(J)
006:1C
F
AC
D532
1SS355-TE17
2
+
kei-8
1
GND
R2105
100(J)
21
C2102
47pF(J)
2
R2111
10k
1005
1
GND
R2112
Q201
2SC2412K T147Q
21
R2061
470(J)
[CP]
C541
16V
100uF
10k
2
1
GND
R2106
100(J)
21
GND
21
B
C2103
47pF(J)
1005
R2149
1k(J)
2.5
GND
21
21
3.2
E
[TRP]
Q2104
2SA1037KT146Q
C
2
1
GND
R2107
100(J)
47pF(J)
R2150
2.5
B
C2104
1k(J)
21
21
R2155
3.2
1K(J)
E
C
GND
1
GND
2
C2110
0.1uF(Z)
1
GND
21
21
[TRP]
Q2105
2SA1037KT146Q
2.5
B
2
R2156
1K(J)
21
1k(J)
R2151
3.2
E
[TRP]
Q2106
2SA1037KT146Q
C
GND
1K(J)
R2157
3
R5103
10(J)
B
R5105
0(X)
21
1
R5104
47(J)
21
E
[TRP]
Q2108
2SA1037KT146Q
C
GND
R5109
27(J)
21
21
R5101
56K(J)
R5102
56K(J)
B
21
2
C2201
1
0.1uF(Z)
GND
21
21
R5111
68(J)
E
[TRP]
Q2109
2SA1037KT146Q
C
GND
R5110
27(J)
21
2
R5106
10(J)
21
C572
0.1uF(Z)
CA
R5108
B
R558
KETSU
1005
0(X)
R559
KETSU
21
R571
47K(J)
21
21
2
R572
56K(J)
GJ111
KETSU
1608
KETSU
D530
1
GND
21
[ZD]
GND
R5107
47(J)
21
E
[TRP]
Q2107
2SA1037KT146Q
C
GND
21
KETSU
21
GND
21
C555
11V
2
1
GND
GND
1608
KETSU
1
2
ACM2012-361-2P-T000
KETSU
KETSU
1
2
ACM2012-361-2P-T000
1
2
ACM2012-361-2P-T000
GND
GJ36
GJ37
KETSU
[FL09B]
L511
GJ38
GJ39
[FL09B]
L510
[FL09B]
L513
21
21
4
3
21
21
4
3
GND1
4
3
51H94/57H94
HYPER SIGNAL (8/34)
SHEET-8/34
SH.NO.
8
(32/58)
Page 37
87654321
B
B
5V2
RR56
1k(J)
21
E
[TRP]
QR16
2SA1576AT106Q
C
GND
5V2
RR54
1k(J)
21
E
[TRP]
QR15
2SA1576AT106Q
OSD_R
OSD_G
007:1C
007:1C
024:1A
ACSY
R521
2.2k(J)
5V2
R523
1k(J)
5V2
R527
100(J)
21
21
E
[TRP]
21
R522
KETSU
21
GND
B
Q530
2SA1576AT106Q
C
GND
9V1
C
Q531
B
2SC4081 T106Q
E
R528
1k(J)
21
GND
53
007:8C
A
RR63
024:1C
CONV_R
2.2k(J)
21
B
RR57
470(J)
21
GND
C
RR62
024:1C
CONV_G
2.2k(J)
21
A
B
C
B
RR52
1k(J)
21
E
[TRP]
QR14
2SA1576AT106Q
C
GNDGND
OSD_B
D
007:1C
E
F
C
D
RR55
470(J)
21
GND
GND
024:1C
CONV_B
RR61
2.2k(J)
21
RR53
470(J)
21
E
F
51H94/57H94
HYPER SIGNAL (9/34)
SHEET-9/34
SH.NO.
9
(33/58)
Page 38

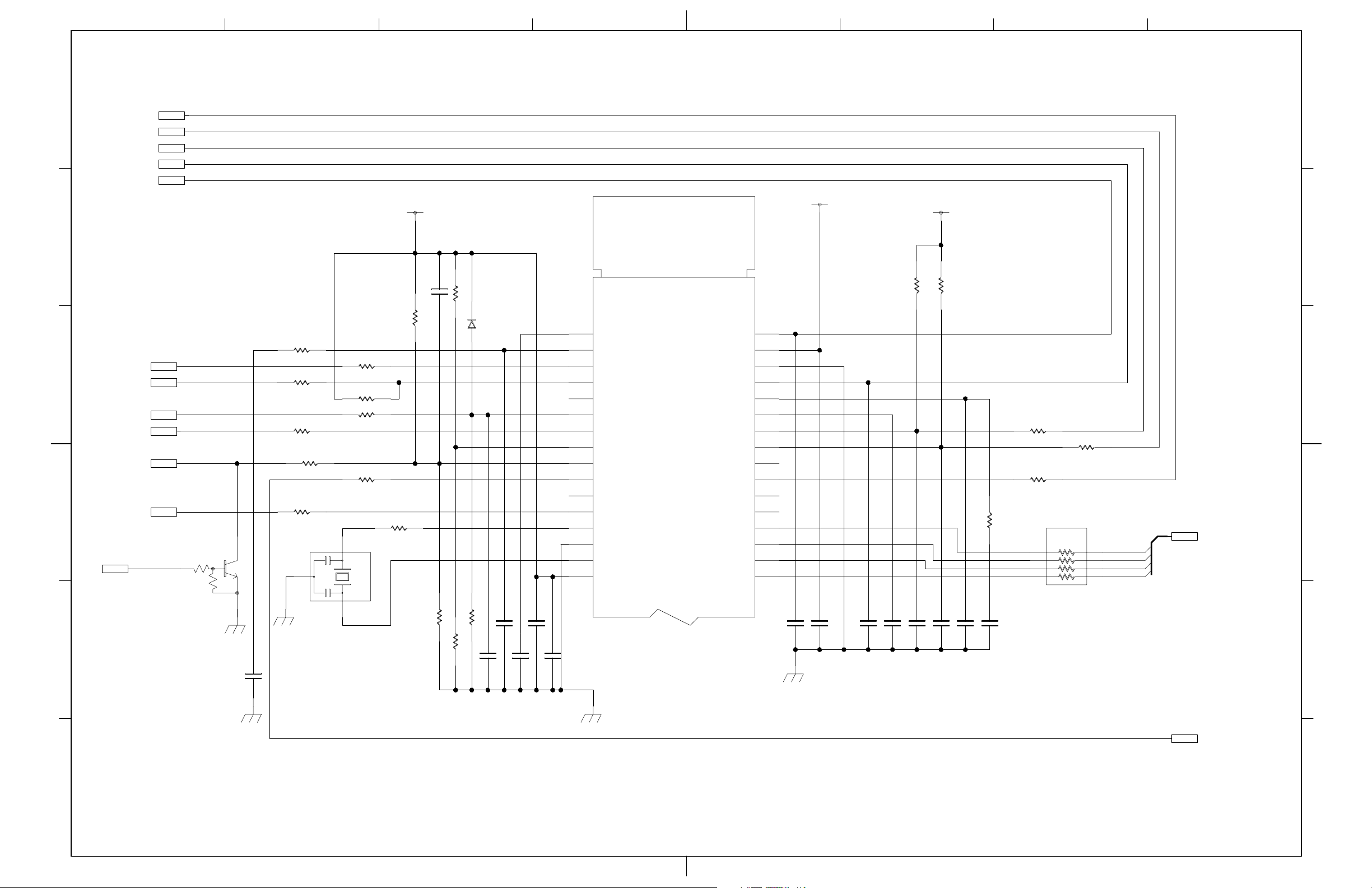

87654321
A
B
C
011:5E;018:4B
D
014:4C;016:1C
011:5E;011:6B;034:4D
E
003:4C
018:8B
018:8B
014:7E
014:3E
016:8E
016:7F
018:4D
014:3B
TV_BOOT_SW
MAIN_AFT
KEY1
KEY2
CVIN2
CVIN1
RXD2
TXD2
ACP
TB0IN
BOOT
RESET_2
[TRNC]
DTC144EUA T106
QA03
B
2.2uF(K)
GND
CA28
A
2
1
GND
5V1
2
1
CA13
0.1uF(Z)
2
1
CA06
330pF(J)
RA117
33K(J)
2
1
CA03
1000pF
3.3V
CA14
0.1uF(Z)
2
RA05
RA09
10k(J)
RA100
1k(J)
21
21
1k(J)
RA03
21
RA04
1k(J)
1k(J)
RA07
RA55
100(J)
RA12
1k(J)
C
E
CSTCE10M0G52-R0
2
(GND)
GND
1
2
21
21
XA01
RA81
RA88
21
21
10k(J)
21
33K(J)
21
RA64
100(J)
RA13
0(X)
[XCMA]
13
1
21
21
RA89
KETSU
RA06
KETSU
1k(J)
21
DA02
1SS355-TE17
AC
CA29
2
68k(J)
RA101
21
21
1
2
21
1
CA42
0.01uF
1000pF(K)
220pF(J)
2
1
CA19
1
VHOLD1 CVIN1
2
HLF1
3
P94/DA1/SCL3/RxD2
4
P93/DA0/SDA3/TxD2
5
P92/TB2IN/DIGR0
6
P91/TB1IN
7
P90/TB0IN
8
BYTE
9
CNVSS
10
P87/XCIN/DIGG0
11
P86/XCOUT/DIGB0
12
RESET
13
XOUT
14
VSS
15
XIN
16 85
VCCI
2
CA10
0.1uF(Z)
1
2
CA11
0.1uF(Z)
1
M306V7FGFP
[U306V7FG]
1/3
QA01
VCCE
TVSETB
CVIN2
HLF2
VHOLD2
P102/AN0
P103/AN1
P104/AN2
P105/AN3/DIGB2
P106/AN4/DIGG2
P107/AN5/DIGR2
P00/D0
P01/D1
P02/D2
P03/D3
100
99
98
97
96
95
94
93
92
91
90
89
88
87
86
CA18
330p
3.3V
RA116
33K(J)
21
21
2
2
2
1
1
1
CA41
0.01uF
CA40
0.01uF
CA04
220pF(J)
2
1
21
RA24
1k(J)
CA05
2.2uF(K)
RA94
1k(J)
21
21
RA93
21
[RMX4A]
ZA07
1k(J)
81
72
5
D[0]
D[1]
D[2]
D[3]
RA91
1k(J)
36
4
D[0-3]
B
C
D
015:6D
E
GND
F
GND
CONV_WP
024:1D
F
51H94/57H94
HYPER SIGNAL (MICON1)
SHEET-10/34
SH.NO.
10
(34/58)
Page 39

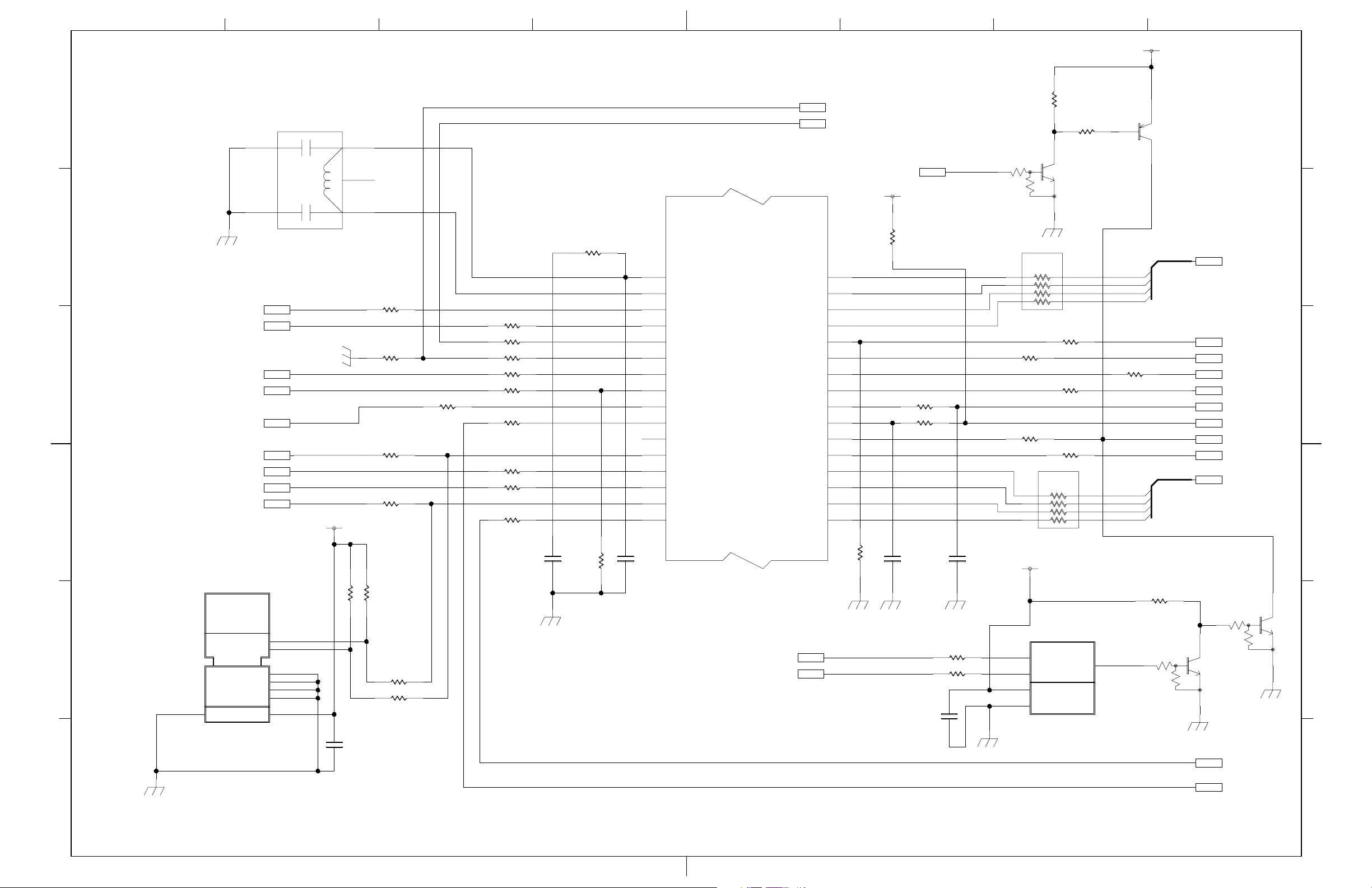

87654321
3.3V
21
C
RA204
33K(J)
RA205
33K(J)
21
A
5
NOT MOUNT
LB02
TRF1197D
YM_OSD
YS_OSD
1
2
006:8B
030:8E
010:1D;011:5E;034:4D
3.3V
DTC144EUA T106
TV_BOOT_SW
[TRNC]
QA204
B
E
[TRP]
B
QA205
2SA1576AT106Q
C
A
B
GND
034:4E
017:7B
C
025:3C;025:3D;029:3A
003:4D;004:2D;007:1C;018:4E;020:6C;029:6E;032:1D;033:1F;034:7F
003:4D;004:2D;007:1C;018:4E;020:6D;029:6F;032:1D;033:1F;034:7D
017:8D
017:6D
018:3C
018:3C
D
EEPROM
[MSEE8K8]
QA02
SDA
E
4
[GND] [VCC]
AT24C64AN-10SI-2.7
SCL
WP
34
RA08
1k(J)
21
17
OSC1/OSCHLF
RA019
HDMI_VD
MAIN_SYNC_DET
RA95
3.3K(J)
5V1
2
1
GND
CA15
10nF(K)
MAIN_SYNC
CONV_RST
SUB_SYNC
SCL0
SCL1
SDA1
SDA0
5
6
A0
A1
A2
1
2
3
7
8
100(J)
21
RA96
1k(J)
21
RA509
100(J)
RA02
100(J)
21
21
RA01
100(J)
21
21
RA90
3.3K(J)
RA42
100(J)
21
21
RA28
100(J)
RA20 1k(J)
21
RA26
100(J)
RA32
470(J)
100(J)RA113
1k(J)RA115
1k(J)RA121
10k(J)RA19
100(J)RA29
100(J)RA30
CA08
0.015uF
21
21
21
21
21
21
21
21
21
RA10
27K(J)
21
2
1
GND
18
OSC2
19
P83/INT1
20
P82/INT0
21
OUT1
22
OUT2
23
P77/HC1
24
P76/TA3OUT
25
P75/HC0
26
P74/TA2OUT
27
P73/CTS2,RTS2
28
P72/SCL2/CLK2
29
P71/SCL1/RxD2
30
P70/SDA1/TxD2
31
P67/SDA2
32 69
R/DIGR1 P23/A3
2
CA09
2pF
1
M306V7FGFP
[U306V7FG]
2/3
QA01
010:1D;018:4B
010:1D;011:6B;034:4D
P04/D4
P05/D5
P06/D6
P07/D7
P10/D8
P11/D9
P12/D10
P13/D11
P14/D12
P15/D13
P16/D14
P17/D15
P20/A0
P21/A1
P22/A2
84
83
82
81
80
79
78
77
76
75
74
73
72
71
70
RA71
68K(J)
GND
BOOT
TV_BOOT_SW
21
1005
RA303
10k
36
4
RA302
100
21
1005
1005
21
RA301
1k(J)
21
2
1608
1
GND
CA301
1uF
10V
CA201
0.1uF(Z)
2
1608
1
GND
RA202
100(J)
RA203
100(J)
1
2
CA302
1uF
10V
21
21
GND
1
2
5
3
E
GND
[RMX4A]
ZA06
1005
RA79
1k(J)
1005
RA102
1k(J)
[RMX4A]
36
4
3.3V
TC7S86F(TE85R)
[Vcc]
[Vss]
21
21
RA103
ZA05
68(J)
[7S86]
QA201
RA80
27K
1005
RA83
1k(J)
1005
1005
1k(J)
81
72
5
21
21
21
81
72
5
D[4]
D[5]
D[6]
D[7]
CONV_BUS_OFF
1005
RA75
1k(J)
A[0]
A[1]
A[2]
A[3]
DTC144EUA T106
4
EXT_MUTE
IRBL_SW
21
SP_MUTE
HC_RST
DB_ONOFF
RA201
10k(J)
[TRNC]
QA202
B
R_OSD_2
D[4-7]
FCTR
FLOK
A[0-3]
21
DTC144EUA T106
B
C
E
GND
015:6D
024:1F
003:4D
001:7B
003:4D
018:8D
018:8D
034:4D
034:4D
015:3B
[TRNC]
QA203
013:2E
B
C
D
C
E
E
GND
F
GND
RMT_OUT_2
013:5B
F
51H94/57H94
HYPER SIGNAL (MICON2)
SHEET-11/34
SH.NO.
11
(35/58)
Page 40

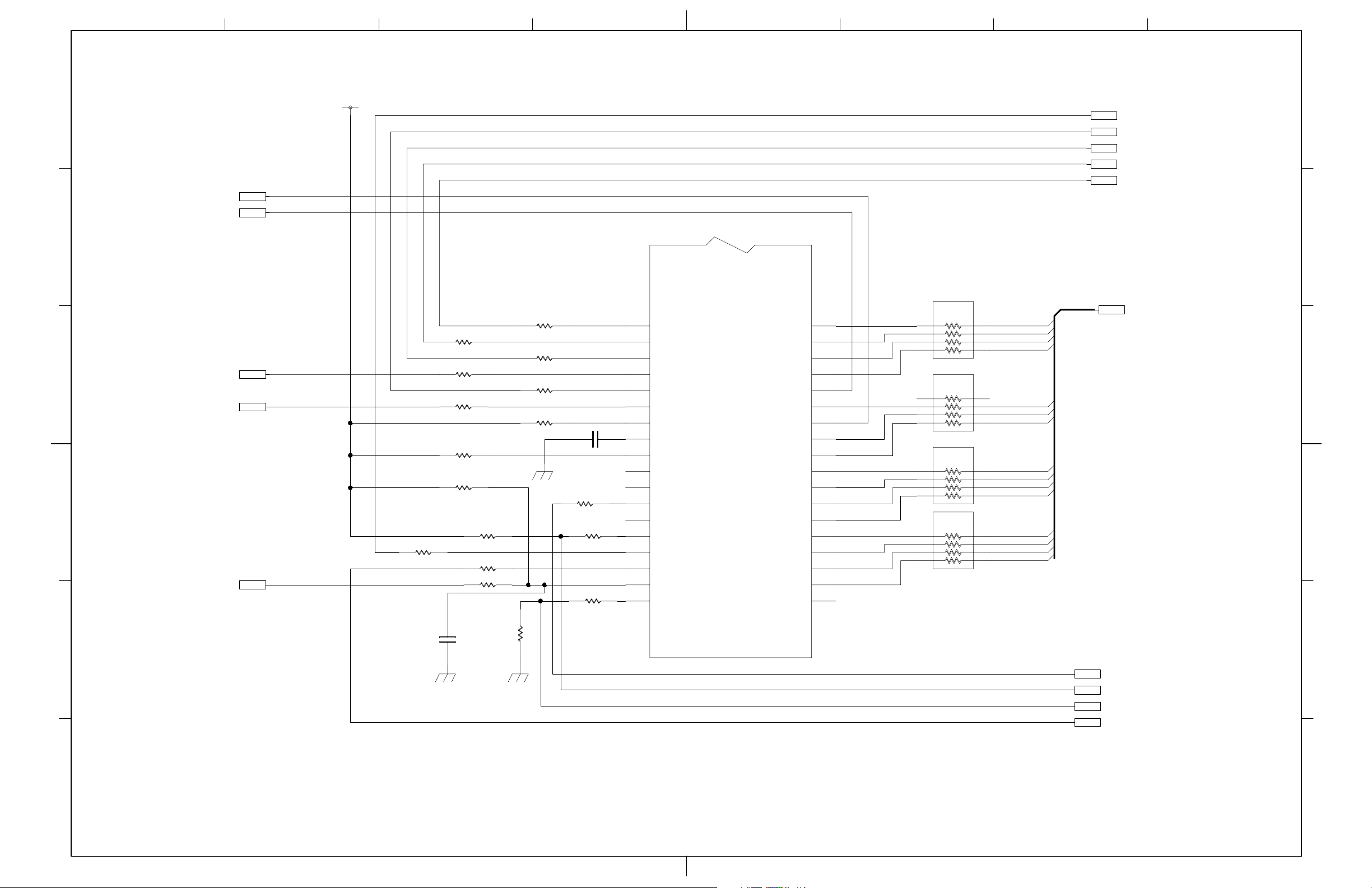

87654321
A
013:7D
013:7E
HSYNC_1
VSYNC
3.3V
LED_2
LED
DBRXD_HSTXD
B_OSD_2
G_OSD_2
018:7B
018:7A
018:2A;034:4C
013:2B
013:2D
B
M306V7FGFP
[U306V7FG]
3/3
OE
WE
CE
MUTE_A
A[4-18]
015:3B
015:4D
015:4C
015:4C
003:4D
81
72
5
81
72
5
81
72
5
81
72
5
68(J)
68(J)
68(J)
68(J)
A[4]
A[5]
A[6]
A[7]
A[8]
A[9]
A[10]
A[11]
A[12]
A[13]
A[14]
A[15]
A[16]
A[17]
A[18]
RA33
470(J)
21
RA34
21
470(J)
21
2
1
GND
RA036
330(J)
RA99
1k(J)
RA41
1k(J)
RA67
10k(J)
21
21
21
21
RA200
3.3k(J)
RA48
470(J)
RA49
1k(J)
RA50
47k(J)
C
018:4B;034:4C
034:4C
DBTXD_HSRXD
HEAD
D
RA40
1k(J)
018:4D
E
POWER
CA100
0.01uF
21
21
21
GND
RA35
21
330(J)
RA37
21
1k(J)
RA39
21
1k(J)
GND
21
1
1005
NotMount
RA513
68(J)
RA514
68(J)
RA515
68(J)
33
G/DIGG1 P24/A4
34
B/DIGB1
35
P63/TxD0
36
P62/RxD0
37
P61/CLK0
38
P60/CTS0/RTS0
39
P57/RDY/CLKOUT
2
40
CA101
21
21
21
P56/ALE
41
P55/HOLD
42
P54/HLDA
43
P53/BCLK
44
P52/RD
45
P51/WRH/BHE
46
P50/WRL/WR
47
P47/CS3
48
P46/CS2
49
P45/CS1
50 51
P44/CS0
QA01
P25/A5
P26/A6
P27/A7
VSYNC
P30/A8
HSYNC
P31/A9
P32/A10
P33/A11
P34/A12
P35/A13
P36/A14
P37/A15
P40/A16
P41/A17
P42/A18
P43/A19
68
67
66
65
64
63
62
61
60
59
58
57
56
55
54
53
52
[RMX4A]
ZA04
36
4
[RMX4A]
ZA03
36
4
[RMX4A]
ZA02
36
4
[RMX4A]
ZA01
36
4
A
B
C
D
E
F
F
51H94/57H94
HYPER SIGNAL (MICON3)
SHEET-12/34
SH.NO.
12
(36/58)
Page 41

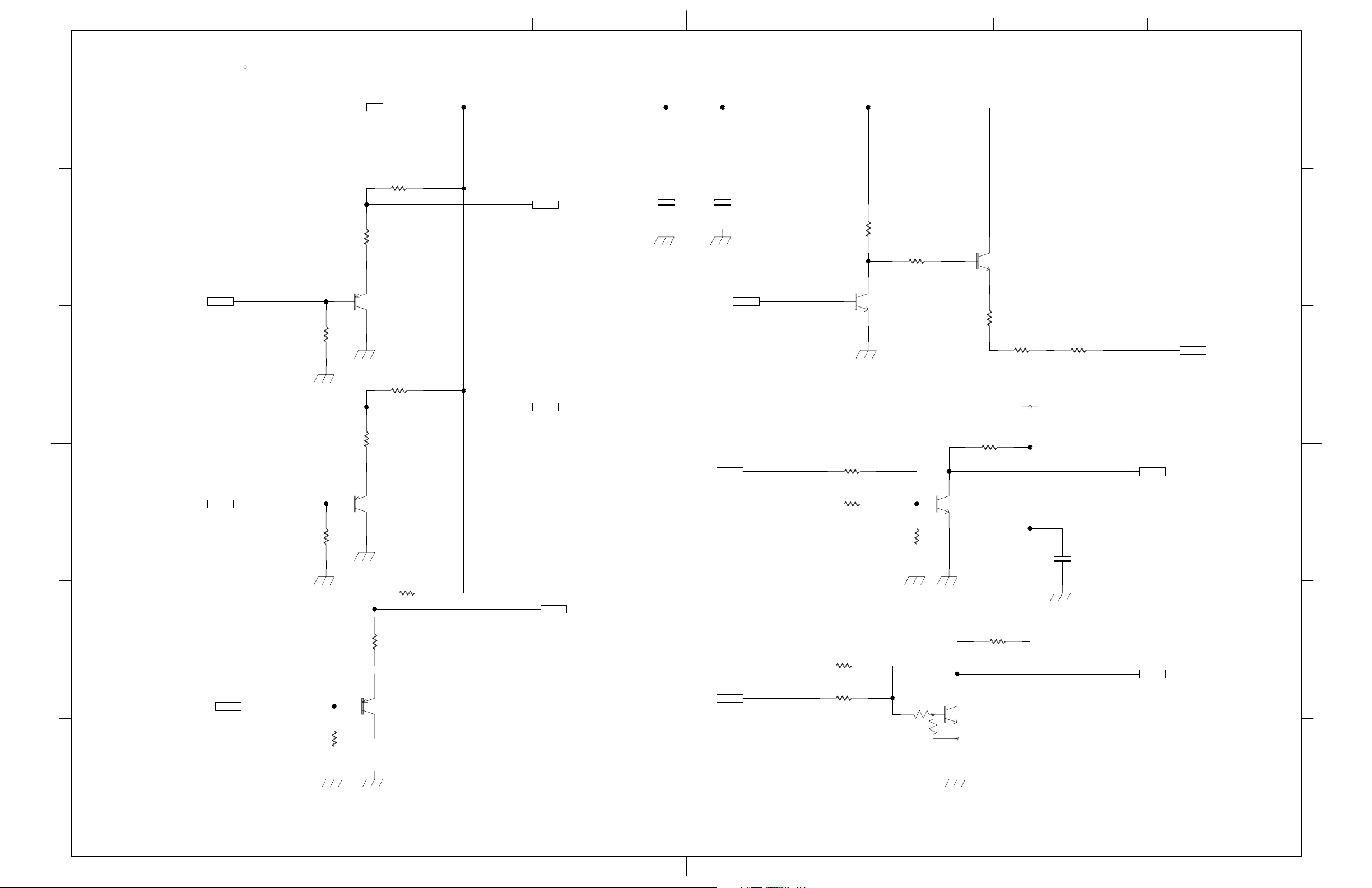

87654321
5V2
LA06
21
GND
21
GND
MPZ1608S221AT
12
RA54
21
RA17
0(X)
E
[TRP]
RA53
0(X)
RA52
B
0(X)
QA06
2SA1576AT106Q
C
GND
21
E
[TRP]
QA05
2SA1576AT106Q
C
GND
21
E
[TRP]
QA07
2SA1576AT106Q
C
RA51
B
B
21
1k(J)
1k(J)
RA18
1k(J)
21
B_OSD
21
G_OSD
21
R_OSD
007:1B
006:1D
006:1D
0.1uF(Z)
2
CA20
1
GND
007:8C;034:7C
007:1D;018:4D
007:1D;018:4E;025:1C
007:8C;034:7C
GND
011:8F
2
CA16
1uF(Z)
10V
1
RMT_OUT_2
HD_DB
AFC
VP_Q510
VD_DB
KETSU
10k(J)
RA43
33K(J)
B
RA22
22k(J)
RA87
KETSU
RA38
RA23
21
C
QA09
2SC4081 T106Q
E
GND
21
21
21
21
RA86
22k(J)
B
RA47
100(J)
21
GND
[TRNC]
C
B
RA16
33(J)
QA10
2SC4081 T106Q
E
21
RA85
3.3K(J)
RA114
10k(J)
RA15
33(J)
21
RA14
33(J)
21
3.3V
2
1
GND
21
CA24
0.1uF(Z)
16V
21
HSYNC_1
VSYNC
RMT_OUT
018:8C
012:2B
012:2B
21
C
QA08
B
2SC4667-O
E
GND
C
QA17
DTC144EUA T106
E
A
B
012:7A
B_OSD_2
RA44
1k(J)
C
012:7B
G_OSD_2
D
RA45
1k(J)
E
011:8F
R_OSD_2
RA46
1k(J)
A
B
C
D
E
F
GND
GND
GND
51H94/57H94
F
HYPER SIGNAL (MICON4)
SHEET-13/34
SH.NO.
13
(37/58)
Page 42

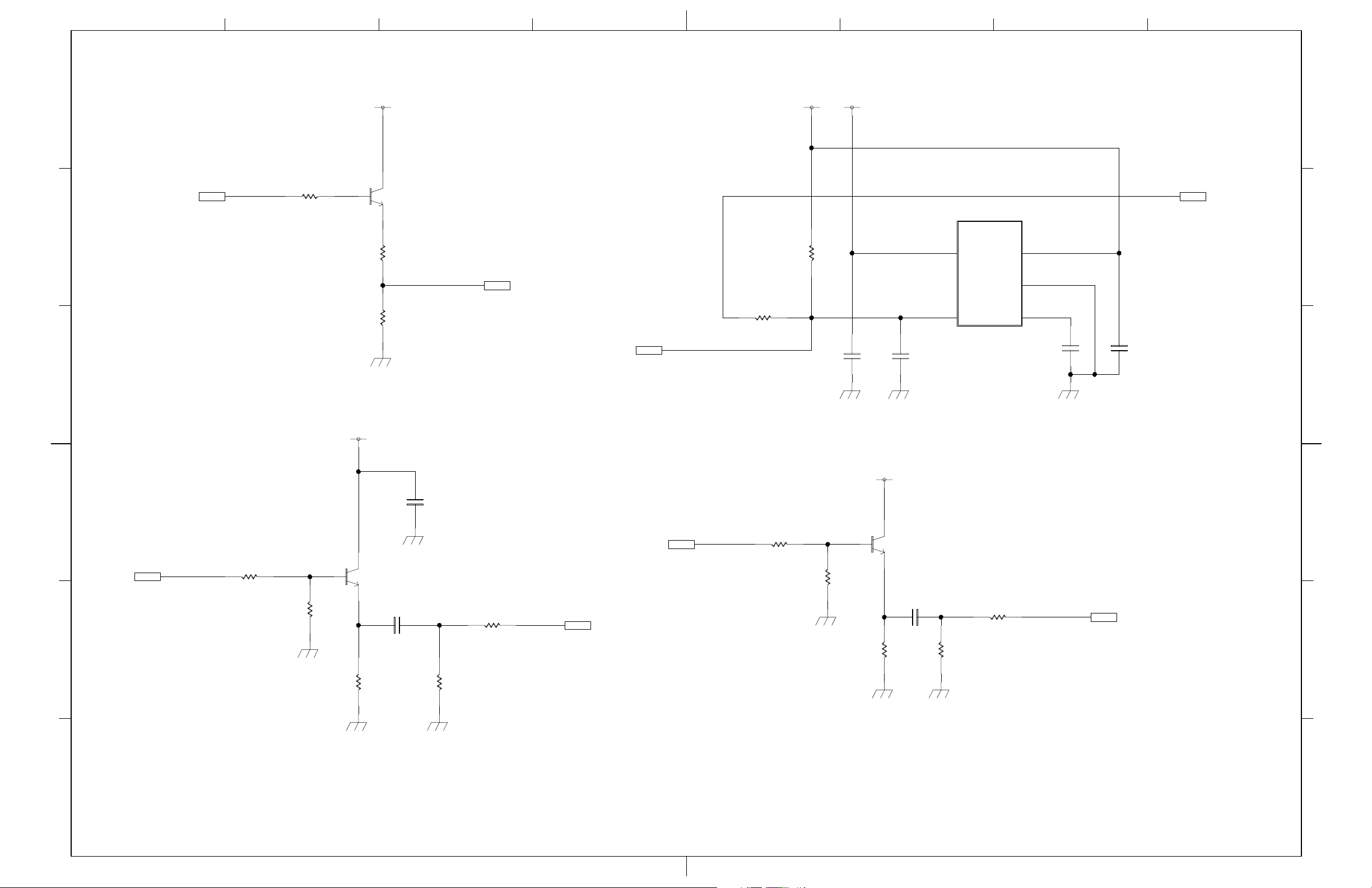

87654321
3.3V
RA21
1k(J)
21
CA02
0.1uF(Z)
5V1
GND
A
RESET
NJM2804UI-3342
QA29
Cd
1
2
3
CA01
0.1uF(Z)
GND
2
1
2
CA22
100uF
16V
1
5
VIN
4
VOR
GND
2
1
CA45
0.1uF(Z)
2
1
VOUT
GND
018:4B
B
C
B
5V1
C
QA12
2SC4081 T106Q
E
A
RA61
018:8C
IR_IN
100(J)
21
B
RA69
1k(J)
21
RA63
3.3K(J)
21
C
GND
TB0IN
010:1C
010:1D;016:1C
RESET_2
RA11
100(J)
21
D
E
005:4D;017:1B
V_AV_MC
RA56
1k(J)
21
RA57
6.8k(J)
GND
5V2
5V2
2
CA36
0.1uF(Z)
1
RA31
017:1D;031:8E
010:1B
CA17
0.1uF(Z)
2
GND
RA60
1
21
RA59
1M(J)
GND
470(J)
21
CVIN1
C
QA11
B
21
2SC4081 T106Q
E
21
RA58
2.2k(J)
GND
V_SUB_MC
1k(J)
21
21
RA36
6.8k(J)
GND
B
C
QA30
2SC4081 T106Q
E
CA07
0.1uF(Z)
2
21
RA27
2.2k(J)
GND
1
GND
RA65
470(J)
21
21
RA25
1M(J)
CVIN2
010:1A
D
E
F
F
51H94/57H94
HYPER SIGNAL (MICON5)
SHEET-14/34
SH.NO.
14
(38/58)
Page 43
87654321
A
011:8D
012:7C
A[0-3]
A[4-18]
QA04A
IC SOCKET 32P
[]
B
A[0]
A[1]
A[2]
A[4]
A[5]
A[6]
A[7]
A[8]
A[9]
A[10]
A[11]
A[12]
A[13]
A[14]
012:7E
012:7E
012:7E
A[15]
A[16]
A[17]
A[18]
C
A[3]
CE
WE
OE
D
12
11
10
9
8
7
6
5
27
26
23
25
4
28
29
3
2
30
1
22
31
24
A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
A14
A15
A16
A17
A18
CE#
WE#
DE#
D0
D1
D2
D3
D4
D5
D6
D7
D[0-3]
13
14
15
17
18
19
20
21
D[0]
D[1]
D[2]
D[3]
D[4-7]
D[4]
D[5]
D[6]
D[7]
010:8D
011:8B
A
B
C
D
3.3V
CA34
0.1uF(Z)
32
E
2
1
GND
[VCC] [GND]
F
16
GND
E
F
51H94/57H94
HYPER SIGNAL (MICON6)
SHEET-15/34
SH.NO.
15
(39/58)
Page 44

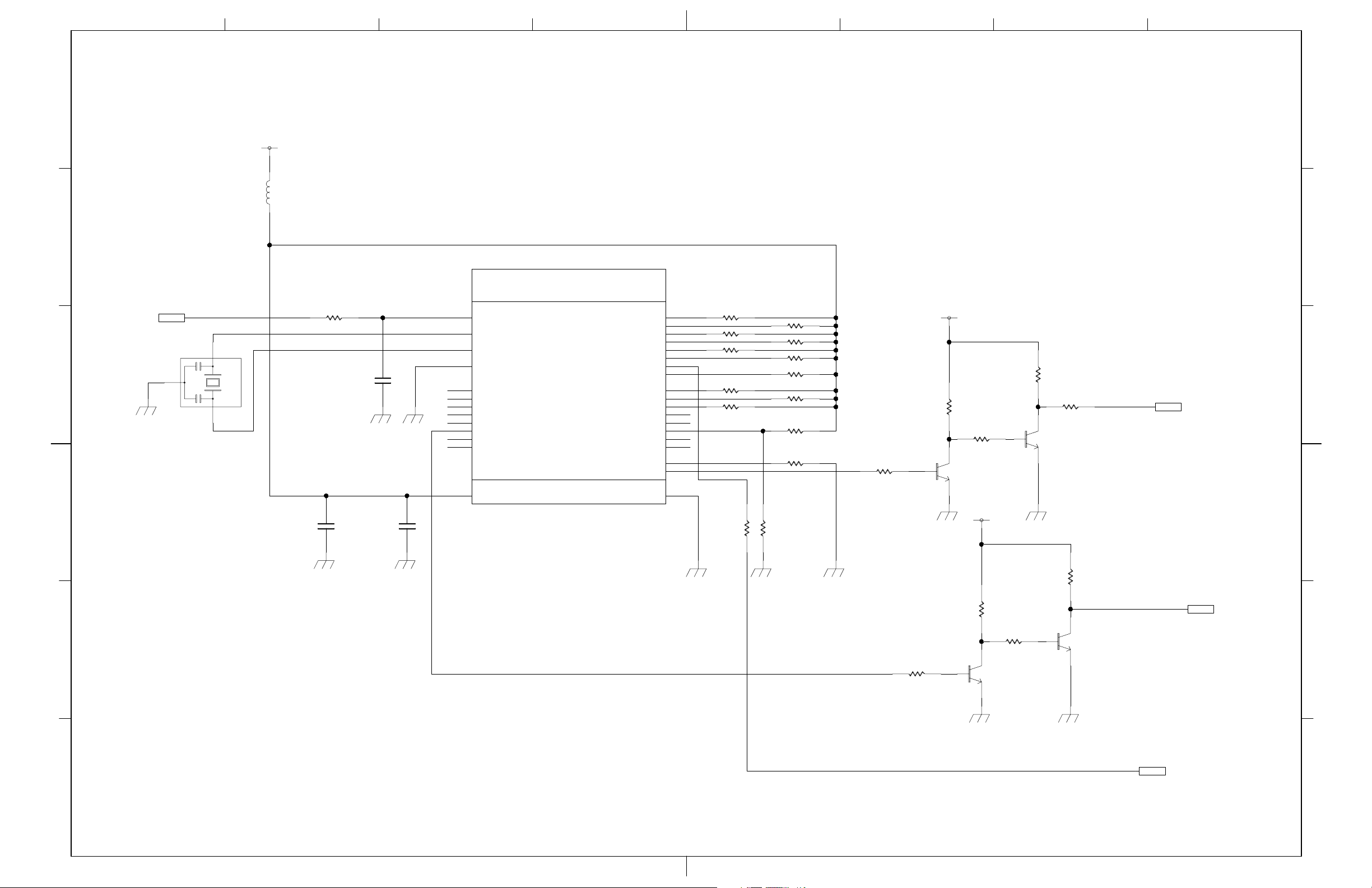

87654321
A
3.3V
LB19
BLM11A102SPT
12
B
QB501
S3C80F732 SOP
[US3C8]
RB503
CB501
2
1
GND
3.3k(J)
21
CB503
0.1uF(K)
2
1
GND
CB502
2.2uF(K)
6.3V
2
1
GND
GND
7
RESET
2
XIN
3
XOUT
4
TEST
9
P1.0
10
P1.1
11
P1.2
12
P1.3
13
P1.4
14
P1.5
15
P1.6
16
P1.7
P3.0/T0PWM/T0CAP/T1CAP/SDAT
32
VDD VSS
P3.1/REM/T0CK/SCLK
P0.0/INT0
P0.1/INT1
P0.2/INT2
P0.3/INT3
P0.4/INT4
P0.5/INT4
P0.6/INT4
P0.7/INT4
P2.0/INT5
P2.1/INT6
P2.2/INT7
P2.3/INT8
P2.4/INT9
P2.5/INT9
P2.6/INT9
P2.7/INT9
17
18
19
20
21
22
23
24
25
26
27
28
29
5
6
8
30
31
1
XB501
(GND)
RESET_2
13
[XCMA]
2
010:1D;014:4C
CSTCE8M00G55-R0
C
GND
D
0.1uF(K)
E
RB524
4.7k(J)
RB522
4.7k(J)
RB520
4.7k(J)
RB528
4.7k(J)
RB516
4.7k(J)
RB518
4.7k(J)
RB523
GND GNDGND
21
RB527
KETSU
4.7k(J)
RB517
4.7k(J)
RB529
4.7k(J)
RB526
10k(J)
RB502
3.3K(J)
21
RB521
21
4.7k(J)
21
RB519
21
21
21
21
4.7k(J)
RB554
100(J)
21
RB562
1k(J)
21
21
21
21
21
21
RB555
10k(J)
B
21
5V1
21
C
QB504
2SC4081 T106Q
E
GND
RB558
10k(J)
B
RB556
100(J)
5V1
21
C
QB507
2SC4081 T106Q
E
RB557
10k(J)
21
RB561
100(J)
B
21
C
QB505
2SC4081 T106Q
E
GND
RB559
10k(J)
21
B
RB40
100(J)
21
C
QB506
2SC4081 T106Q
E
IRBL_OUT
21
RXD2
001:7B
010:1C
A
B
C
D
E
GND
F
GND
TXD2
010:1C
F
51H94/57H94
HYPER SIGNAL (MICON7)
SHEET-16/34
SH.NO.
16
(40/58)
Page 45
87654321
A
5V2
AC
CA39
10uF
6.3V
21
1
2
RA72
3k(J)
RA062
47k(J)
RA62
47k(J)
21
1
CA25
0.1uF(Z)
2
GND
DA41
1SS355-TE17
RA97
10k(J)
B
21
C
E
2
16V
+
1
GND
CA26
100uF
B
005:4D;014:1D
V_AV_MC
[CP]
2
1
GND
CA27
0.1uF(Z)
CA35
1uF(K)
10V
1
1
CA31
1nF(K)
2
RA98
2
330(J)
21
RA74
270k(J)
21
B
RA77
12K(J)
E
[TRP]
QA13
2SA1576AT106Q
C
21
RA78
3.9k(J)
CA38
560pF(K)
21
2
1
21
RA73
10k(J)
2SC4081
1
2
QA16
CA33
1.2nF(K)
3.3V
21
RA061
5.6K(J)
MAIN_SYNC_DET
C
QA14
B
2SC4081 T106Q
E
21
5V2
011:2C
C
GND
GND
GND
GND
GND
GND
GND
RA118
100(J)
C
B
QA20
2SC4081 T106Q
E
21
A
B
C
GND
3.3V
21
RB52
5.6K(J)
SUB_SYNC
C
QB48
B
2SC4081 T106Q
E
21
011:2C
RA119
1.8k(J)
RA120
3.3K(J)
21
MAIN_SYNC
21
GND
011:2C
D
E
GND
5V2
AC
CB49
10uF
6.3V
GND
21
1
2
RB49
3k(J)
RB50
47k(J)
RB51
47k(J)
21
D
2
[CP]
+
CB46
1nF(K)
014:5D;031:8E
V_SUB_MC
2
CB45
1uF(K)
10V
1
RB43
330(J)
E
21
RB44
270k(J)
1
21
GND
B
12K(J)
RB45
E
[TRP]
QB46
2SA1576AT106Q
C
21
GND
RB46
3.9k(J)
CB47
560pF(K)
21
2
1
21
RB47
10k(J)
GND
1
2
2SC4081
CB48
1.2nF(K)
RB48
10k(J)
QB47
B
C
E
GND
21
DA25
1SS355-TE17
F
F
51H94/57H94
HYPER SIGNAL (MICON8)
SHEET-17/34
SH.NO.
17
(41/58)
Page 46

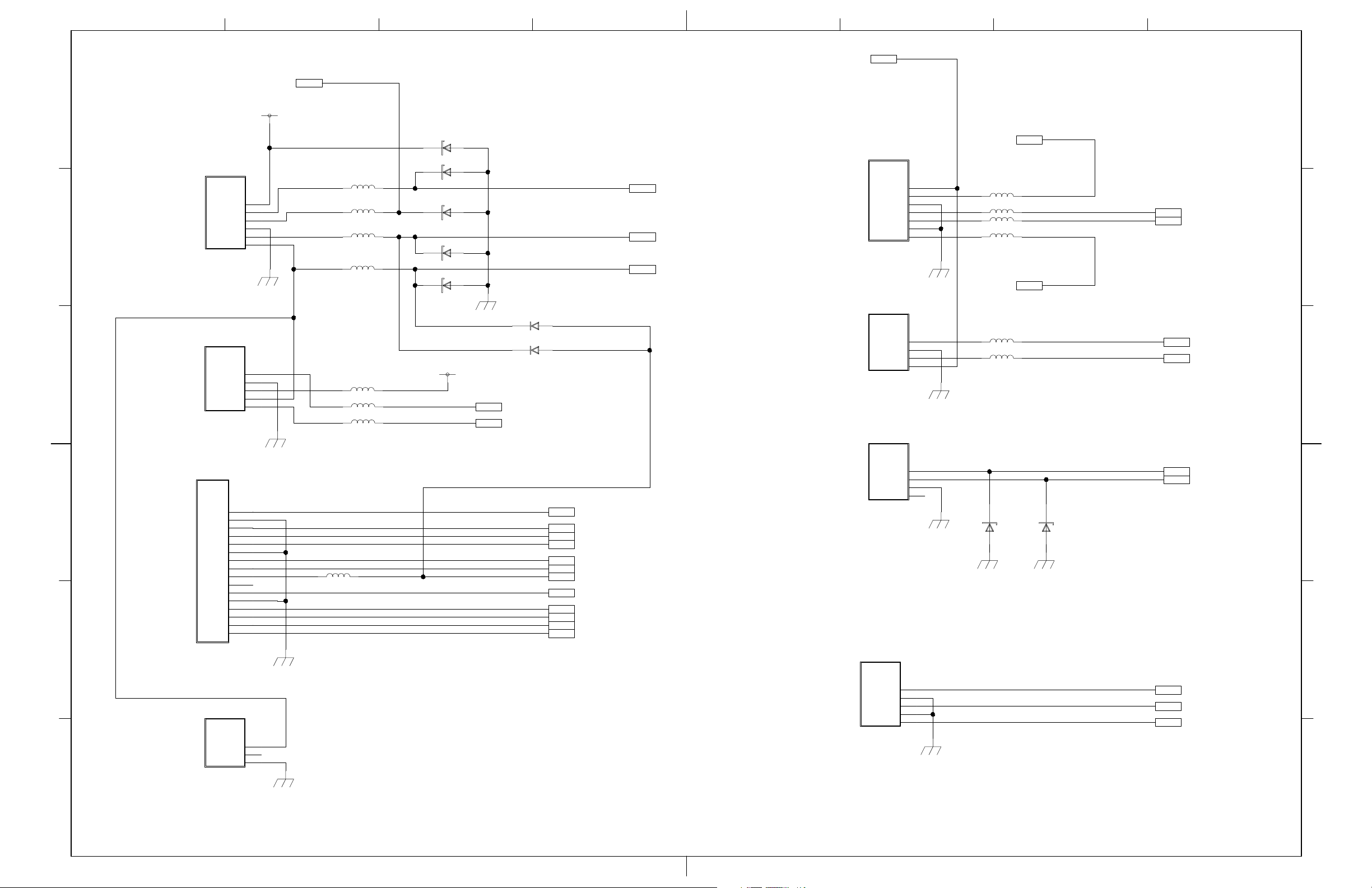

5V1
87654321
012:7A;034:4C
A
PA02
GDM220000175
(For RS232C)
GND
B
C
RESET
SCL0
GND
RESET
SDA0
5V
RxD
TxD
B6B-EH-F1A
GDM220000110
[CN5]
5V
B5B-EH-F1A-K
[CN16]
PF01B
[CN6]
PB14
D
E
16FE-BT-VK-N
[CN3]
P701A
5V1
1
2
3
4
5
6
GND
1
2
3
4
5
GND
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
GND
1
2
3
DBRXD_HSTXD
LA08
BLM11A102SPT
12
LA07
BLM11A102SPT
12
12
LA14
BLM11A102SPT
12
LA16
BLM11A102SPT
LA05
BLM11A102SPT
12
LA10
12
BLM11A102SPT
12
LA11
BLM11A102SPT
12
LA09
BLM11A102SPT
[ZD]
CA
CA
[ZD]
CA
[ZD]
CA
[ZD]
CA
[ZD]
GND
5V1
SCL0
SDA0
DA03
UDZS TE-17 5.6B
DA04
MA8062-L
DA05
MA8062-L
DA06
MA8062-L
DA07
MA8062-L
DA08
1SS355-TE17
011:2D
011:2D
H_OUT
ABL_SW
AFC
ABL
H_CONV
ACP
POWER
H_PHA_COM
SDA1
SCL1
V_STOP_BLK
VP_Q510
DBTXD_HSRXD
DA01
1SS355-TE17
AC
AC
012:2C;034:4C
BOOT
RESET
007:1D
007:8F
007:1D;013:5D
006:8B
025:1B
010:1C
012:2E
007:1D
003:4D;004:2D;007:1C;011:2D;020:6D;029:6F;032:1D;033:1F;034:7D
003:4D;004:2D;007:1C;011:2D;020:6C;029:6E;032:1D;033:1F;034:7F
008:1C
007:1D;013:5E;025:1C
010:1D;011:5E
014:8B
TO CONTROL
KEY GAISHUU GND
5V1
LED
KEY GND
KEY B
KEY A
LED_2BOOTSTRAP
PA03A
[CN7]
B7B-EH-F1A
PA06
[CN4]
B4B-EH-F1A
PA07
[CN4]
B4B-EH-F1A-K
P882A
GDM220000110
[CN5]
B5B-EH-F1A
A
012:7A
1
2
3
4
5
6
7
GND
1
2
3
4
GND
1
2
3
4
GND
LA04
BLM11A102SPT
12
12
12
12
LA15
BLM11A102SPT
012:7A
LA01
BLM11A102SPT
12
12
LA03
BLM11A102SPT
CA
[ZD]
DA50
UDZSTE-175.6B
LED
LA13
BLM11A102SPT
LA12
BLM11A102SPT
LED_2
CA
[ZD]
DA51
UDZSTE-175.6B
GNDGND
KEY2
KEY1
RMT_OUT
IR_IN
FLOK
FCTR
010:1A
010:1A
013:8C
014:2B
011:8C
011:8C
B
C
D
E
1
2
3
4
5
GND
5V1
9V2
32V
001:7B
001:7B;004:7D
022:2B
F
GND
51H94/57H94
F
HYPER SIGNAL (MICON9)
SHEET-18/34
SH.NO.
18
(42/58)
Page 47

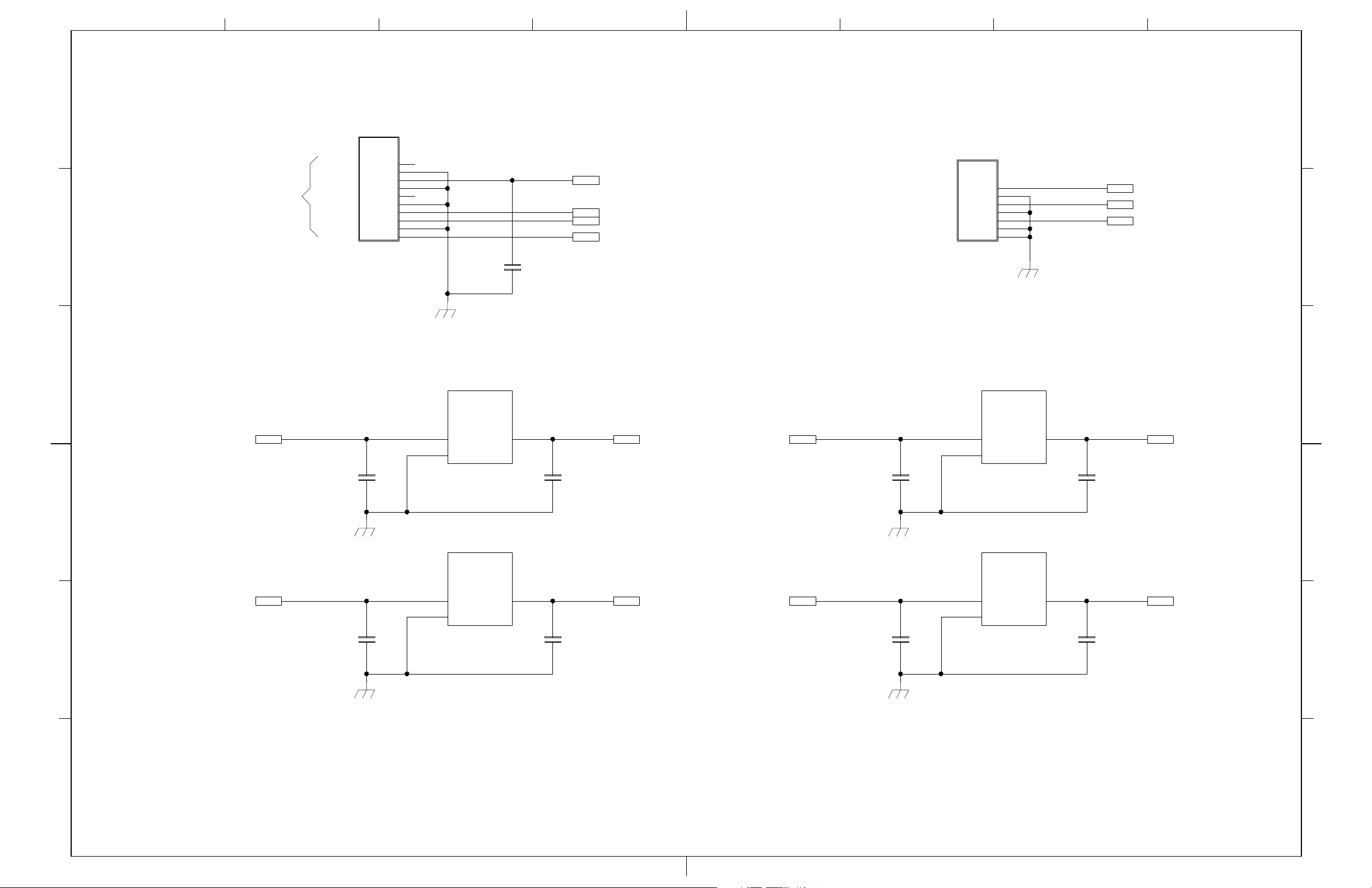

87654321
A
B10B-EH-F1A
[CN10]
+4.5V
GND
+5V_1
FROM DEF/POWER
B
GND
+7V
GND
H.Vcc
+9V_1
GND
+11V
P831B
C
11V
2
C830
0.1uF(Z)
1
1
2
3
4
5
6
7
8
9
10
2
+
1
GND
BA90BCOFP
UREG
[L2925]
Q830
10.6
1
0
2
[GND]
OUTIN
[CP]
CA23
KETSU
9.0
3
HVCC
2
+
1
[CP]
C831
100uF
16V
5V1
007:8D
9V1
11V
9V1
6.5V
C836
0.1uF(Z)
2
1
PE50B
G36220127104
[CN7]
B7B-EH-F1A
6.7
1
0
2
[GND]
1
2
3
4
5
6
7
GND
Q833
BA50BCOFP
UREG
[L2925]
6.5V
10V 003:4D;019:2E
32V
5.0
OUTIN
3
2
[CP]
+
C837
100uF
16V
1
5V1
A
B
C
D
0
[GND]
Q832
BA50BCOFP
UREG
[L2925]
5.0
OUTIN
3
2
[CP]
+
C835
100uF
16V
1
5V2
GND
003:4D;019:7B
E
10V
C832
0.1uF(Z)
2
1
1
2
10.6
0
[GND]
BA90BCOFP
UREG
[L2925]
Q831
OUTIN
9.0
3
2
[CP]
+
C833
100uF
16V
1
9V2
11V
C834
0.1uF(Z)
GND
2
1
GNDGND
6.7
1
2
F
D
E
F
51H94/57H94
HYPER SIGNAL (REGULATOR)
SHEET-19/34
SH.NO.
19
(43/58)
Page 48
87654321
A
QB44
Not Mount
LTC1694-1
B
016:5C;020:4E;021:1E;021:7D;044:4E
C
D
5V1
GND
21
RB90
3.9k(J)
21
RB91
47k(J)
CB90
10nF(K)
QB92
2SC4081
1
2
GND
B
RB98
1k(J)
C
E
GND
21
RB92
270(J)
[TRP]
QB93
2SA1576A
B
RB93
270(J)
1
21
RB94
2.2k(J)
21
E
2SA1576A
C
21
RB95
2.2k(J)
[TRP]
QB94
E
B
C
GND
21
21
RB96
27K(J)
21
RB97
27K(J)
1
CB44
NOT MOUNT
GND
003:4D;004:2D;007:1C;011:2D;018:4E;029:6E;032:1D;033:1F;034:7F
2
2
3
SCL1
VOUT
GND
NC
SMBUS1
SMBUS2
5
4
A
B
C
D
[TRP]
QB96
GND
E
B
003:4D;004:2D;007:1C;011:2D;018:4E;029:6F;032:1D;033:1F;034:7D
C
SDA1
E
F
E
[TRP]
B
QB95
2SA1576A
C
2SA1576A
E
F
51H94/57H94
HYPER SIGNAL (MAICON9)
SHEET-20/34
SH.NO.
20
(44/58)
Page 49

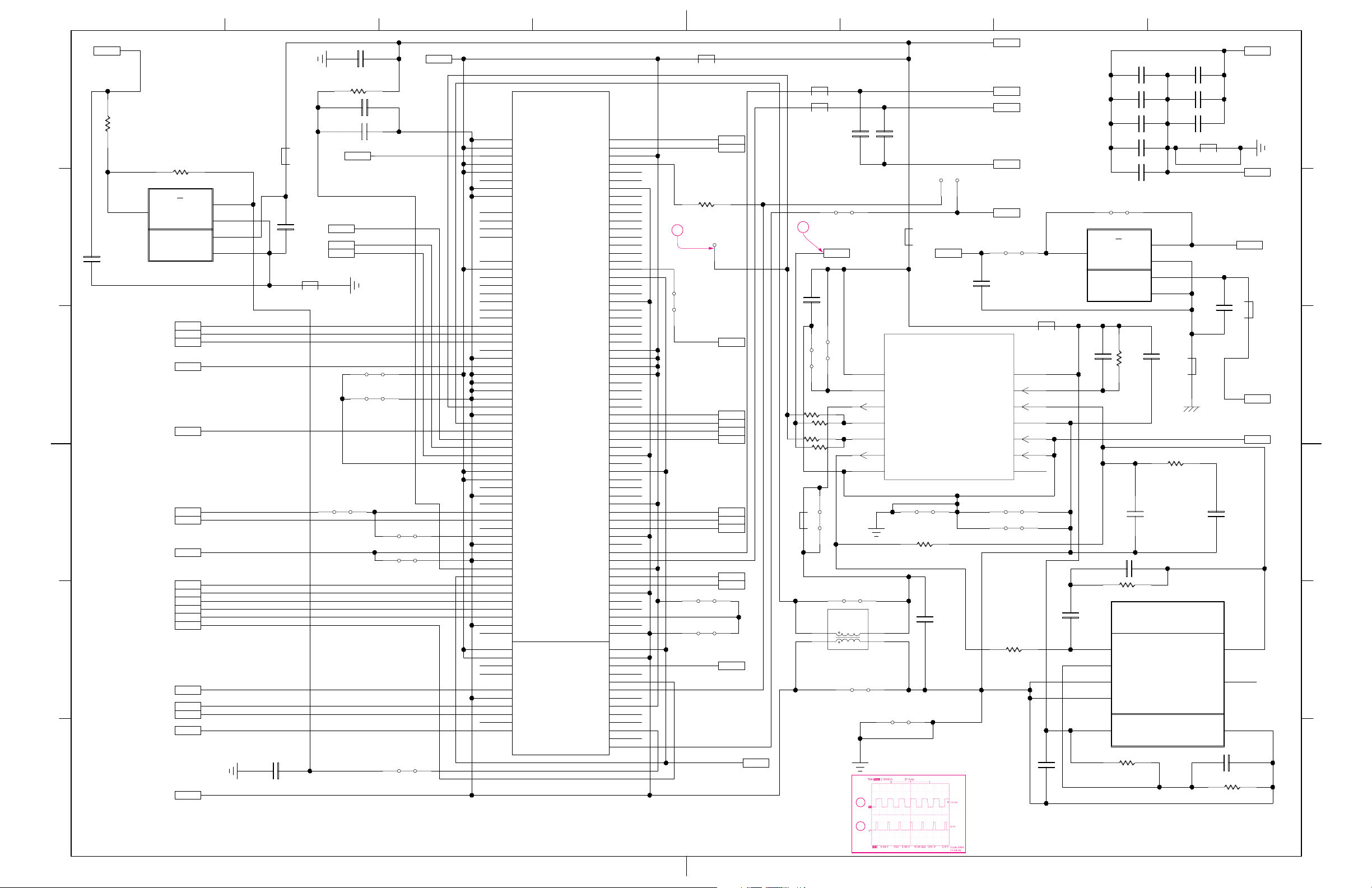

87654321
[TP]
1
HD-INB
025:7B
[L2932]
QH005
21
21
CH053
7pF(F)
+5V_D
BCK-OUT
WCK-OUT
DGND
[TP]
TPUFO1
1
UFO1
2
1
VCO_VDD
VCO_GND
VCO_INHIBIT
PFD_INHIBIT
GJH85 NOT MOUNT
NOT MOUNT
022:1B
022:1B
021:1E
RH017
0(X)
CH028
NOT MOUNT
12
BIAS
VCOIN
NC
GJH86
NOT MOUNT
CH067
KETSU
NOT MOUNT
RH067
KETSU
NOT MOUNT
CH071
KETSU
21
LH062
120ohm
14
13
12
11
10
9
21
21
21
1
2
0.1uF(Z)
0.1uF(Z)
0.1uF(Z)
0.1uF(Z)
0.1uF(Z)
4
2
1
CH001
CH006
CH007
CH008
CH009
TC7S32FU(TE85L)
CH250
0.1uF(K)
CH070
KETSU
NOT MOUNT
+
[CP]
2
3
6
5
8
2
1
2
1
2
1
2
1
2
1
RH011
NOT MOUNT
QH010
>
2
1
1
A-INPUT AOUTPUT
A+INPUT
B-INPUT
B+INPUT
[V+] [V-]
RH068
KETSU
NOT MOUNT
021:1F;021:6A;021:8C;025:8B;025:8C;028:8E
21
[7S32]
[Vcc]
[Vss]
21
RH051
2.2k(J)
021:1F;021:6A;021:8B;025:8B;025:8C;028:8E
1
2
1
2
5
3
2
1005
6.3V
CH052
1
ANAGND
RH061
120(J)
CH062
100nF(K)
2
RH066
21
KETSU
NOT MOUNT
OP-AMP
[L4580]
QH006
NOT MOUNT
21
51H94/57H94
HYPER SIGNAL (DIGITAL-CONVER1)
SHEET-21/34
+5V_q001
2
2
2
12
120ohm
1uF
21
BOUTPUT
CH004
1
0.1uF(Z)
CH005
1
0.1uF(Z)
CH247
1
0.1uF(Z)
LH002
DGND
HD-INA
2
CH029
0.1uF(Z)
1
12
LH071
120ohm
023:1A;025:8B;027:5A
DGND
1
CH061
1uF(K)
2
CH068
KETSU
1
NOT MOUNT
RH069
KETSU
NOT MOUNT
12
+5V_A
1
7
4
2
21
SH.NO.
025:6B
LH070
120ohm
21
A
DGND
B
C
D
E
F
ADCKVD
A
B
2
RH012
KETSU
1
QH011
KETSU
4
2
CH026
KETSU
1
RH010
NOT MOUNT
21
>
[7S32]
[Vcc]
[Vss]
024:8C
024:8C
024:8C
024:8D
R
G
B
COE
1
2
5
3
LH072
KETSU
12
2
CH027
KETSU
1
12
026:1C
026:1C
026:1C
LH073
KETSU
DGND
CH002
100uF
C
024:8C
D
021:5C;025:8C
026:1E
026:8B
026:1C;026:8E
026:1C;026:8E
026:8C
026:8C
028:8A
028:8A
YSM
VD-IN
NSCV
X_OUT
SCLUsub
SDAUsub
SCLM_q001
SDAM_q001
SCLE0
SDAE0
GJH97
NOT MOUNT
E
022:5A
026:8C
021:6B
022:1A
F
021:6A;021:8B;021:8C;025:8B;025:8C;028:8E
UF02
BSSW
UFO1
GH-OUT
DGND
DGND
CH025
NOT MOUNT
2
1
[CP]
+
1
2
RH009
10k(J)
21
2
1
CH010
NOT MOUNT
2
1
+
CH003
[CP]
028:3C
21
GJH03
0(X)
21
GJH04
NOT MOUNT
21
10uF(M)
new_WPTN
new_STO
new_SBO
new_SLO
DGND
GJH07
0(X)
RH013
NOT MOUNT
RH025
KETSU
21
21
21
+5V_q001
30
32
38
5
6
2
3
143
67
63
122
65
4
7
9
10
11
12
13
14
15
16
17
19
20
21
22
23
24
25
26
27
28
31
33
34
35
39
40
41
43
44
45
46
48
49
50
51
52
53
54
56
57
58
59
60
61
64
66
8
42
84
141
1
37
55
73
109
127
TC223CC20EF
SCH
VDDS
WPTN
MUTN
DAP
THPA
VSS(DGND)
TM2
WP1
IVO1
DFA1
SCLE1
TBO
DIP
TB1
TB2
TB3
TB4
TB5
TB6
R
G
B
TB7
VSS(DGND)
YS
RIN
GIN
BIN
YSIN
EXHR
VSS(DGND)
EXCP
YSM
STO
SBO
SLO
PDF
TC1
VDDS
NC
VSS(DGND)
NC
VD
NSCV
NSH
IVO2
VSS(DGND)
OSI
VSS(DGND)
RSTN
VDD(3.3V)
SCLU
SDAU
SCLM
SDAM
SCLE0
VSS(DGND)
SDAE1
VDDS
THD
TB15
TWCK
UFO2
VSS(DGND)
I2CS
UFO1
TBV
GH
[G223C]
QH001
WP2
WPT
VDDS
IVI1
VFIL
HFIL
VSS
TB8
TB9
TB10
TB11
TB12
TB13
TB14
TB16
TB17
IVI2
VDD(3.3V)
TB19
TB20
VSS(DGND)
TB21
TB22
TB23
TB24
TB25
DCTH
DCTL
MODN
TSTN
TRH
TRV
TGH
TGV
STI
SBI
SLI
SRI
DFA5
VSS(DGND)
TADCK
VDD(3.3V)
DFA4
DFA3
DFA2
VDDS
RH
RV
GV
VSS(DGND)
DCK
BCK
WCK
VDDS
BH
BV
VSS(DGND)
VPA
HPA
INM
TBCK
TM1
VDD(3.3V)
VSS(DGND)
SRO
FIXF
SDAE0
UFO0
TB18
VDDS
NDT
TBH
ADCK
DFA0
NOV
100
101
102
103
104
105
106
107
110
111
112
113
115
116
117
118
119
120
121
124
125
126
128
129
130
131
132
133
134
135
136
137
138
139
140
142
108
114
123
144
LH001
12
120ohm
RH860
100(J)
TPEXHR
1
0(X)
VD-IN
021:1D;025:8C
new_SLI
RH-OUT
RV-OUT
GV-OUT
BH-OUT
BV-OUT
GJH05
0(X)
GJH06
new_VDD3
028:3C
028:3A
21
[TP]
027:8B
027:7A
027:8E
027:8C
022:1A
022:1B
022:1B
022:1B
022:1B
026:1C
028:8D
68
69
70
71
74
75
76
77
78
79
80
81
82
83
85
86
87
88
91
92
93
94
95
96
97
98
18
29
36
47
62
72
89
90
99
new_WP2
new_WPT
1
21
GJH98
new_STI
new_SBI
new_SRI
21
21
NOT MOUNT
new_SRO
LH009
300ohm
12
12
LH010
300ohm
CH101
7pF(F)
21
RH722
2
HD-IN
RH052
KETSU
KETSU
LH800
300ohm
12
0(X)
025:8B
2
CH051
0.1uF(Z)
1
21
21
RH053
0(X)
RH070
RH073
NOT MOUNT
21
21
0(X)
RH071
RH072
21
21
RH800
1
23
0(X)
21
NOT MOUNT
GJH84
NOT MOUNT
[L2D]
ZH051
ZBYS5101-2PT
GJH80
NOT MOUNT
21
DGND
1
1
2
2
CH102
7pF(F)
LH985
120ohm
1
LOGIC_VDD
2
SELECT
3
VCO_OUT
4
FIN-A
5
FIN-B
6
PFD_OUT
78
LOGIC_GND
DGND
21
4
LH061
KETSU
1
2
TPUFO0
12
TLC2932IPW
TLC2932
GJH87
0(X)
RH062
220(J)
1
2
21
1608
(45/58)
Page 50

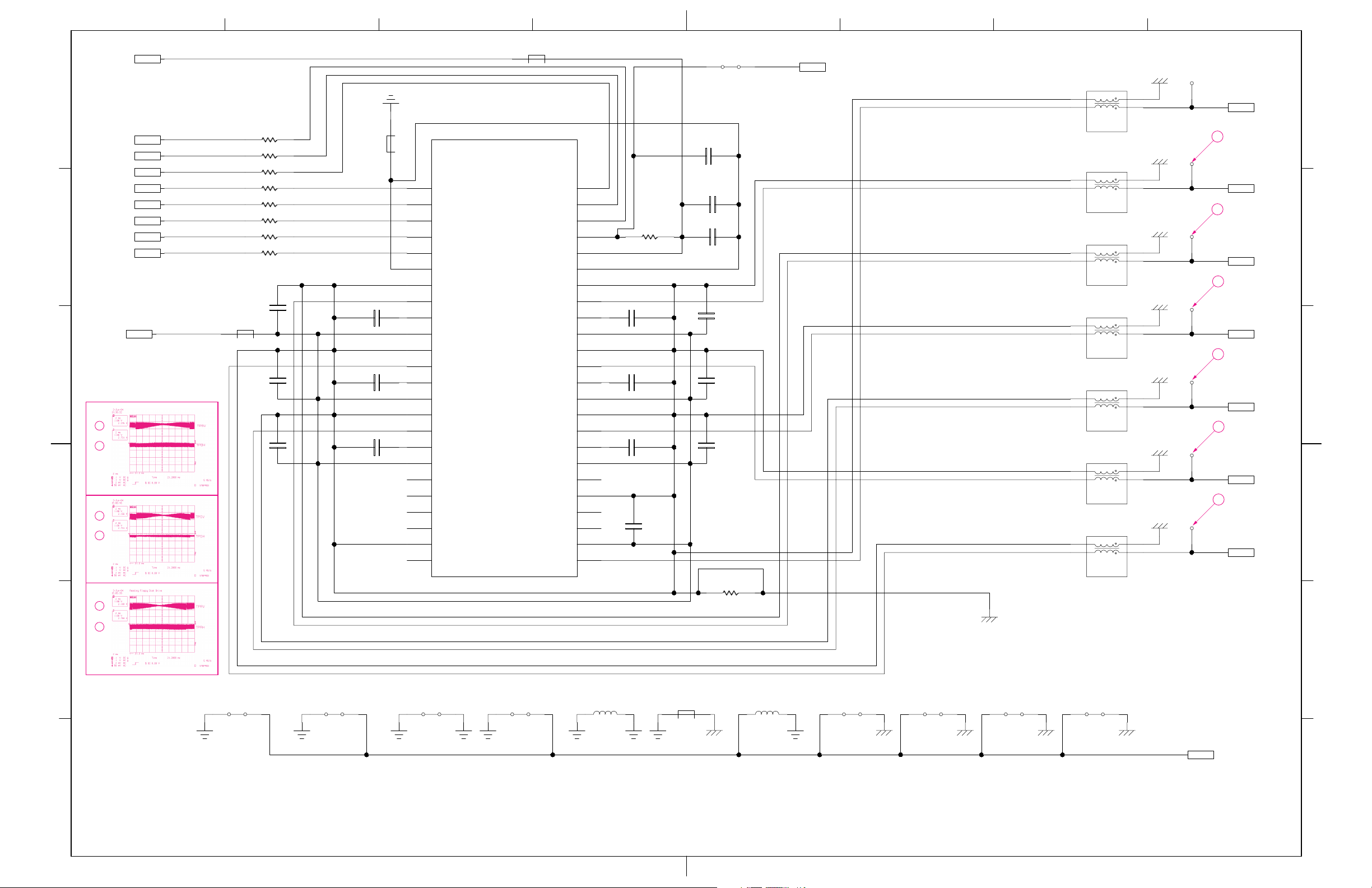

+5V_D
021:6A;024:7F;026:1D;026:5E;028:3C;028:7C;028:8A
A
021:5D
021:1F
021:5D
021:5D
021:5D
021:5E
B
021:6A
021:6A
025:8A
RH-OUT
GH-OUT
BH-OUT
RV-OUT
GV-OUT
BV-OUT
BCK-OUT
WCK-OUT
+5V_B
C
1
2
D
3
4
5
RH506
100(J)
21
RH507
100(J)
CH515
0.1uF(Z)
100(J)
21
100(J)
21
100(J)
21
100(J)
21
100(J)
21
100(J)
21
21
2
1
2
1
2
1
RH505
RH504
RH503
RH502
RH501
RH508
CH514
0.1uF(Z)
LH980
120ohm
12
CH516
0.1uF(Z)
LH984
120ohm
CH504
47uF
CH506
47uF
CH505
47uF
DGND
12
2
3
4
5
6
7
8
1
2
9
[CP]
+
10
11
12
1
2
13
[CP]
+
14
15
16
1
2
17
[CP]
+
18
19
20
21
22
23
24
DIN3
DIN2
DIN1
BCLK
WCLK
DGND
GND4
OUT4
REF4
VDD4
GND6
OUT6
REF6
VDD6
GND5
OUT5
REF5
VDD5
NC
NC
NC
NC
GNDC1
NC
LH983
120ohm
12
CD0031AM
[L0031]
QH501
CD0031AM
DIN4
DIN5
DIN6
MUTEB
DVDD
DGND
GND1
OUT1
REF1
VDD1
GND3
OUT3
REF3
VDD3
GND2
OUT2
REF2
VDD2
NC
GNDC2
NC
NC
VDDC
OUTC
87654321
RH512
NOT MOUNT
CH507
0.1uF(K)
1
2
481
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
2
2
2
[CP]
+
[CP]
+
[CP]
+
2
1
RH509
470k(J)
CH501
47uF
1
CH503
47uF
1
CH502
47uF
1
CH518
0.1uF(Z)
CH517
0.1uF(Z)
2
1
[CP]
21
+
2
CH707
47uF
2
CH511
0.1uF(Z)
1
2
CH513
0.1uF(Z)
1
2
CH512
0.1uF(Z)
1
RH510
NOT MOUNT
1
UF02
21
ZBYS5101-2PT
4
ZH500
[L2D]
ANAGND
23
1
1
[TP]
TPOUTC
OUTC
023:1A
A
1
ZBYS5101-2PT
4
ZH162
[L2D]
ZBYS5101-2PT
4
ZH161
[L2D]
ZBYS5101-2PT
4
ZH142
[L2D]
ZBYS5101-2PT
4
ZH141
[L2D]
ZBYS5101-2PT
4
ZH122
[L2D]
ZBYS5101-2PT
4
ZH121
[L2D]
21
ANAGND
23
1
ANAGND
23
1
ANAGND
23
1
ANAGND
23
1
ANAGND
23
1
ANAGND
23
1
1
1
1
1
1
1
[TP]
TPBV
[TP]
TPBH
[TP]
TPGV
[TP]
TPGH
[TP]
TPRV
[TP]
TPRH
BV
2
BH
GV
GH
RV
RH
023:1A
B
023:1A
3
023:1A
4
C
023:1A
5
023:1A
6
D
023:1A
6
E
DGND
RH994
NOT MOUNT
RH997
21
NOT MOUNT
21
RH991
NOT MOUNT
RH996
DGNDDGNDDGNDDGND
NOT MOUNT
21
21
LH981
KETSU
12
DGND
LH982
KETSU
12
DGNDDGND
ANAGND
LH124
KETSU
12
DGND
GJ90
KETSU
1608
GJ91
21
GND GND
KETSU
1608
F
ANAGND
E
GJ92
21
KETSU
1608
21
GND
GJ93
KETSU
1608
21
GND
UKI
023:3F
F
51H94/57H94
HYPER SIGNAL (DIGITAL-CONVER2)
SHEET-22/34
SH.NO.
22
(46/58)
Page 51

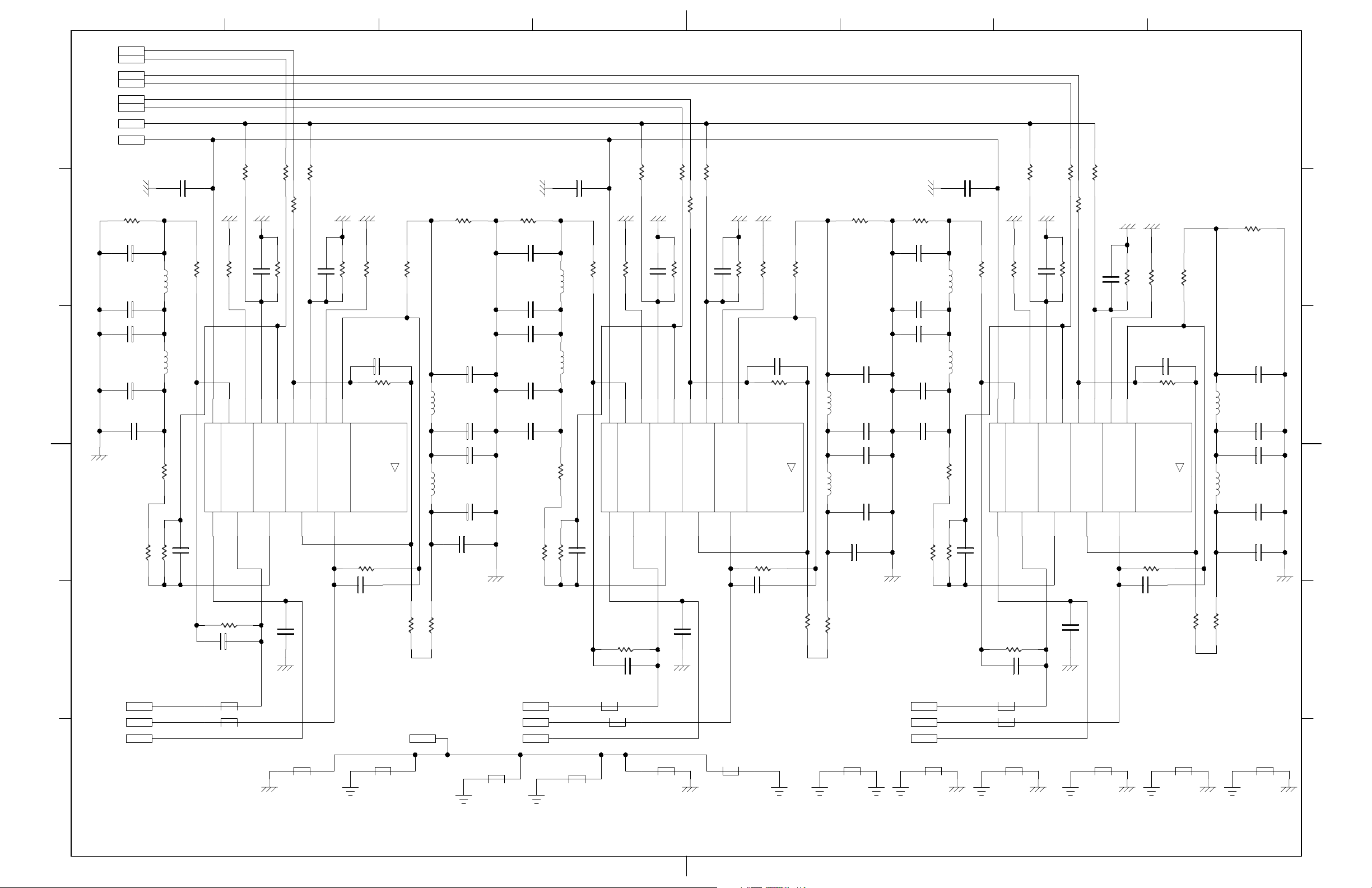

87654321
RH629
910(J)
1
CH627
180pF(J)
CH993
KETSU
1
1
CH624
820pF(J)
CH622
2.2nF(J)
1
CH625
KETSU
2
GJH72
0(X)
BV
BH
RV
RH
GV
GH
OUTC
+5V_A
CH539
0.1uF(Z)
1
ANAGND
21
2
12
LH622
470uH(J)
2
2
12
LH621
1000uH(J)
2
1
RH621
910(J)
21
2
1
21
21
CH621
RH623
10pF(D)
10K(F)
BHout
BVout
-5V_A
21
10K(F)
RH624
2
ANAGND
8.2k(J)RH626
RH628
10K(F)
21
21
4
13
V+ V-
D-IN
D_OUT
11
RH627
68K(F)
1
CH626
5pF(C)
GJH73
1kohm
12
12
GJH63
1kohm
ANAGND
10nF(K)
CH623
12
C+IN
D+IN
14
21
2
ANAGND
1
2
RH622
21
10
C-IN
C_OUT
ANAGND
21
21
10K(F)
21
RH522
10K(F)
6
B-IN
B_OUT
CH639
0.1uF(Z)
LH987
KETSU
10K(F)
CH523
5
B+IN
7
RH524
ANAGND
1
10nF(K)
2
A+IN
A_OUT
3
A-IN
1
10K(F)
RH625
9
8
2
1
12
ANAGND
8.2k(J)
RH526
RH525
10K(F)
21
21
CH521
10pF(D)
1
RH523
10K(F)
2
[L2060]
QH520
NJM2060V
RH527
68K(F)
1
2
CH526
5pF(C)
GJH62
022:8F
12
LH986
KETSU
RH528
21
2
21
21
0(X)
21
RH529
910(J)
21
10K(F)
CH527
180pF(J)
1
12
LH522
470uH(J)
CH995
KETSU
1
1
12
CH524
820pF(J)
LH521
1000uH(J)
1
CH522
2.2nF(J)
1
2
CH525
KETSU
ANAGND
RH521
910(J)
21
UKI
12
LH995
KETSU
DGND
2
2
2
2
025:8E
025:8E
RH649
910(J)
1
CH647
180pF(J)
CH991
KETSU
1
1
CH644
820pF(J)
CH642
2.2nF(J)
1
CH645
KETSU
2
RH641
910(J)
GJH75
DGND
CH559
0.1uF(Z)
1
ANAGND
21
2
12
LH642
470uH(J)
2
2
12
LH641
1000uH(J)
2
1
21
2
0(X)
21
RH643
GHout
GVout
-5V_A
023:1F;023:6F;025:8B
12
CH641
1
21
10K(F)
LH993
KETSU
21
10K(F)
RH644
2
ANAGND
8.2k(J)RH646
RH648
10K(F)
21
21
4
13
V+ V-
D-IN
D_OUT
11
10pF(D)
RH647
68K(F)
1
CH646
1kohm
GJH66
12
5pF(C)
12
1kohm
GJH76
RH642
ANAGND ANAGND
1
2
CH643 10nF(K)
12
10
C-IN
C+IN
D+IN
C_OUT
14
21
2
ANAGND
12
LH988
KETSU
21
21
10K(F)
21
RH542
10K(F)
RH645
6
B-IN
B_OUT
RH544
10K(F)
5
B+IN
7
CH659
0.1uF(Z)
ANAGND
1
2
CH543 10nF(K)
3
A+IN
A_OUT
LH990
KETSU
A-IN
1
10K(F)
21
9
8
2
1
ANAGND
ANAGND
10K(F)
RH545
21
21
CH541
10pF(D)
2
RH543
10K(F)
2
QH540
NJM2060V
RH547
68K(F)
1
CH546
5pF(C)
12
DGND
RH548
10K(F)
8.2k(J)
RH546
21
1
21
470uH(J)
[L2060]
1000uH(J)
21
2
0(X)
GJH65
21
DGND
21
RH549
910(J)
CH547
180pF(J)
1
12
CH994
LH542
KETSU
1
1
12
CH544
820pF(J)
LH541
1
CH542
2.2nF(J)
1
2
CH545
KETSU
ANAGND
910(J)
RH541
21
025:8D
025:8E
023:1F;023:4F;025:8B
LH991
KETSU
12
DGND
ANAGND
RH669
910(J)
1
CH667
180pF(J)
CH990
KETSU
1
1
CH664
820pF(J)
2
1
CH662
2.2nF(J)
1
2
CH665
KETSU
2
RH661
910(J)
2
0(X)
GJH78
LH997
KETSU
12
DGND
CH579
0.1uF(Z)
1
2
21
2
12
RH668
LH662
2
2
12
LH661
2
2
21
2
1
21
21
10K(F)
RH663
RHout
RVout
-5V_A
ANAGND
10K(F)
21
470uH(J)
1000uH(J)
4
V+ V-
11
CH661
10pF(D)
RH667
68K(F)
1
GJH79
1kohm
GJH69
LH992
KETSU
12
DGND
21
10K(F)
RH664
ANAGND
8.2k(J)RH666
21
13
D+IN
D-IN
D_OUT
14
21
2
CH666
5pF(C)
12
12
1kohm
ANAGND
21
10K(F)
RH662
1
2
21
CH663 10nF(K)
9
12
10
C-IN
C+IN
C_OUT
8
1
2
ANAGND
DGND
21
10K(F)
RH564
21
10K(F)
RH562
10K(F)
RH665
5
6
B+IN
B-IN
B_OUT
7
CH679
0.1uF(Z)
LH996
KETSU
12
ANAGND
ANAGND
1
10K(F)
RH565
2
21
CH563 10nF(K)
3
2
A-IN
A+IN
A_OUT
1
RH567
68K(F)
1
CH566
5pF(C)
ANAGND
DGND
8.2k(J)
RH566
21
CH561
10pF(D)
2
RH563
10K(F)
QH560
NJM2060V
2
12
10K(F)
RH568
21
1
21
[L2060]
21
GJH68
0(X)
21
LH989
KETSU
ANAGND
21
RH569
910(J)
CH567
180pF(J)
1
2
12
LH562
CH992
470uH(J)
KETSU
1
2
1
2
12
CH564
820pF(J)
LH561
1000uH(J)
1
2
CH562
2.2nF(J)
1
2
CH565
KETSU
ANAGND
RH561
910(J)
21
LH994
KETSU
12
DGNDDGND
ANAGND
A
B
C
D
E
F
022:8B
022:8B
022:8D
022:8D
022:8C
A
022:8C
022:8A
B
C
ANAGND
D
E
025:8E
025:8D
023:4F;023:6F;025:8B
F
51H94/57H94
HYPER SIGNAL (DIGITAL-CONVER3)
SHEET-23/34
SH.NO.
23
(47/58)
Page 52

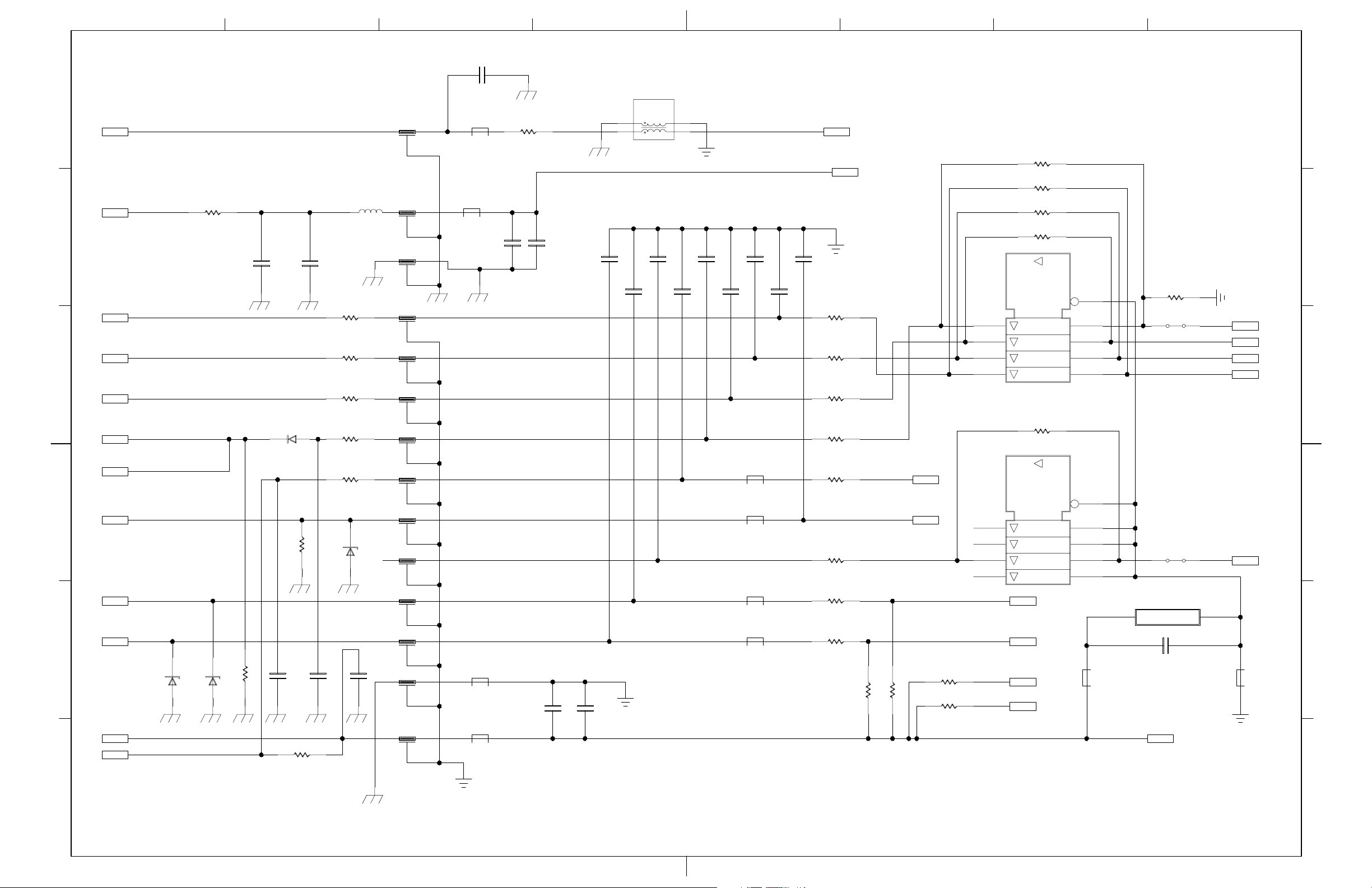

CH410
KETSU
1
87654321
2
A
B
C
D
E
F
009:5B
029:6E;029:8B
009:2B
009:2D
009:5D
006:1B;024:1D
006:1B;024:1C
010:8F
029:5C
029:6D
025:1B;029:3A
011:8C
ACSY
RH355
+12V_TF
CONV_R
CONV_G
CONV_B
CONV_YS
CONV_YS
CONV_WP
SCL2
SDA2
[ZD]
DH006
UDZS TE-17 6.2B
GND GND GND GND GND
CONVER+5V
CONV_BUS_OFF
0(X)
21
CH352
KETSU
CA
[ZD]
DH005
UDZS TE-17 6.2B
CA
RH059
KETSU
21
CH328
1
0.1uF(Z)
2
GNDGND
DH010
1SS355-TE17
1SS355
RH063
KETSU
GND
1
10nF(K)
2
CH060
RH020
33K(J)
21
AC
1
2
1005
KETSU
CH048
RH055
100(J)
RH056
100(J)
RH057
100(J)
RH058
100(J)
RH060
1k(J)
[ZD]
GND
1
2
21
[FL07A]
ZH712
22pF
13
[FL07A]
LH306
0(X)
12
CA
1
2
CH030
0.1uF(Z)
GND
ZH714
1000pF
13
[FL07A]
ZH713
1000pF
13
GND
13
21
[FL07A]
ZH704
0
13
21
[FL07A]
ZH703
0
13
21
[FL07A]
ZH700
0
13
21
[FL07A]
ZH705
0
13
21
[FL07A]
ZH706
0
13
[FL07A]
ZH707
0
13
DH007
[FL07A]
UDZSTE-175.6B
ZH708
KETSU
13
[FL07A]
ZH701
0
13
[FL07A]
ZH709
0
13
[FL07A]
ZH710
1000pF
13
[FL07A]
ZH711
1000pF
GND
GND
2
12
ANAGND ANAGND
2
2
2
2
2
2
2
2
2
2
2
2
2
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
LH411
120ohm
12
LH302
60ohm
CH331
100nF(Z)
LH012
60ohm
12
LH003
60ohm
12
DGND
ANAGND
RH450
2
1
100
2
+
1
220uF(M)
[CP]
21
[CP]
CH321
47uF
16V
CH011
+
2
1
ANAGND
CH031
0.1uF(Z)
1
2
[L2D]
ZH408
1
23
ZBYS5101-2PT
33pF(J)
33pF(J)
CH017
CH018
2
1
2
1
DGND
CH019
2
1
KETSU
2
1
4
100pF(J)
CH014
DGND
CH041
2
1
100pF(J)
ACSY_1
100pF(J)
100pF(J)
CH042
2
1
2
1
LH065
120ohm
12
LH704
120ohm
12
LH063
120ohm
12
LH064
120ohm
12
CH043
CH044
2
1
100pF(J)
+12V_A
100pF(J)
CH045
2
1
DGND
RH044
100(J)
RH043
100(J)
RH042
100(J)
RH041
100(J)
RH008
220(J)
RH007
KETSU
RH005
220(J)
RH004
220(J)
026:2E
027:1A
21
21
21
21
21
CONV_WP_1
21
21
21
21
RH002
KETSU
I2CS
026:8D;028:3A
21
RH003
KETSU
028:3D
RH212
47k(J)
RH211
47k(J)
18
16
14
12
9
7
5
3
21
21
SCLM
SDAM
SCLU
026:8E;028:3A
SDAU
026:8E;028:3A
RH018
KETSU
21
RH014
KETSU
21
RH015
KETSU
21
RH016
KETSU
21
SN74HC244A
[HC244]
QH004
[0]
[1]
[2]
[3]
RH705
KETSU
SN74HC244A
[HC244]
QH004
[0]
[1]
[2]
[3]
026:8D
026:8D
EN
21
EN
1
2
4
6
8
19
11
13
15
17
20 10
LH126
120ohm
12
+5V_D
021:6A;022:1A;026:1D;026:5E;028:3C;028:7C;028:8A
RH723
KETSU
RH721
0(X)
RH704
KETSU
[HC244]
QH004
SN74HC244A
[VSS][VCC]
2
CH040
0.1uF(Z)
21
YSM
21
COE
21
1
51H94/57H94
HYPER SIGNAL (DIGITAL-CONVER4)
SHEET-24/34
DGND
021:1C
B
G
R
021:1C
021:1C
021:1C
021:1C
LH125
120ohm
12
DGND
SH.NO.
24
(48/58)
A
B
C
D
E
F
Page 53

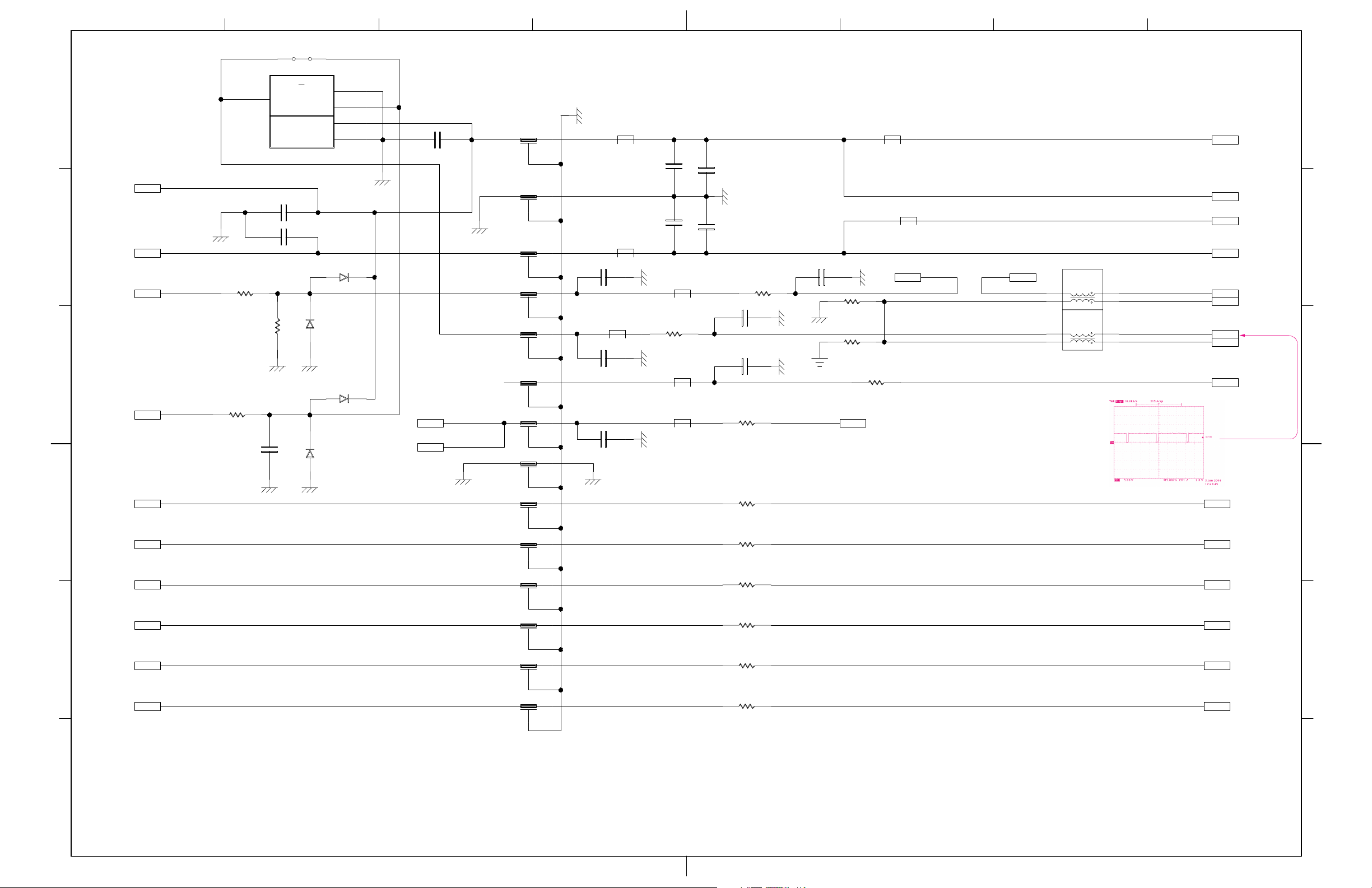

RH001
KETSU
87654321
21
A
B
C
D
E
024:1F;029:3A
029:3B
018:4D
007:1D;013:5E;018:4E
029:3B
029:3B
029:3B
029:3B
029:3B
029:3B
CONVER+5V
CONVER-5V
H_CONV
VP_Q510
B_V
R_H
R_V
G_H
G_V
B_H
GND
4
RH034
4.7k(J)
RH030
15K(J)
CH037
330pF(J)
TC7S32FU(TE85L)
CH032
100nF(Z)
2
2
CH033
0.1uF(Z)
21
21
RH035
4.7k(J)
21
1
2
>
[7S32]
QH002
[Vcc]
[Vss]
1
1
AC
1SS355-TE17
DH013
1SS355
1SS355-TE17
AC
GNDGND
1SS355-TE17
AC
DH015
1SS355-TE17
AC
GNDGND
DH012
1SS355
DH014
1SS355
1
2
5
3
GND
011:2C;025:3D;029:3A
011:2C;025:3C;029:3A
2
CH036
100nF(Z)
1
GND
CONV_RST
CONV_RST
GND
[FL07A]
ZH720
1000pF
13
GND
2
[FL07A]
ZH721
1000pF
13
GND
2
[FL07A]
ZH722
1000pF
13
GND
2
13
[FL07A]
[FL07A]
[FL07A]
KETSU
[FL07A]
ZH723
1000pF
[FL07A]
ZH728
[FL07A]
ZH729
[FL07A]
ZH730
[FL07A]
ZH731
[FL07A]
ZH732
[FL07A]
ZH733
GND
2
ZH724
22pF
13
GND
2
ZH725
22pF
13
GND
2
ZH726
13
GND
[FL07A]
2
ZH727
0
13
GND
2
13
GND
2
0
13
GND
2
0
13
GND
2
0
13
GND
2
0
13
GND
2
0
13
GND
2
0
LH004
ANAGND
60ohm
12
0.1uF(Z)
LH005
60ohm
12
1
2
CH801
KETSU
LH066
120ohm
12
1
2
CH066
KETSU
1
2
CH793
KETSU
ANAGND
CH034
CH035
0.1uF(Z)
1
2
1
2
LH067
120ohm
ANAGND
12
GJH12
1k(J)
LH708
ANAGND
KETSU
12
LH794
120ohm
12
ANAGND
A
LH122
120ohm
12
2
[CP]
+
CH012
100uF
1
+
[CP]
CH013
100uF
ANAGND
2
2
RH796
100(J)
RH781
100(J)
RH782
100(J)
RH783
100(J)
RH770
100(J)
RH771
100(J)
RH784
100(J)
GJH90
1k(J)
CH416
KETSU
1
CH415
KETSU
1
21
21
21
21
21
21
21
CH802
KETSU
1
21
ANAGND
ANAGND
DGND
ANAGND
CONV_RESET
2
GJH94
KETSU
GJH95
0(X)
2
1
21
LH123
60ohm
12
ANAGND
21
21
RH424
KETSU
21
026:8B
021:8B
HD-INA
HD-INB
021:6B
ZBYS5101-2PT
ZH002
4
ZH001
4
ZBYS5101-2PT
[L2D]
[L2D]
1
23
021:1F;021:6A;021:8B;021:8C;025:8C;028:8E
1
23
021:1F;021:6A;021:8B;021:8C;025:8B;028:8E
+5V_B
+5V_A
-5V_B
-5V_A
HD-IN
DGND
VD-IN
DGND
ADCKVD
BVout
RHout
RVout
GHout
GVout
BHout
022:1C
021:8C;023:1A;027:5A
027:1A
023:1F;023:4F;023:6F
021:5B
021:1D;021:5C
021:1A
023:1F
023:6E
023:6F
023:4E
023:4F
023:1E
B
C
D
E
F
51H94/57H94
HYPER SIGNAL (DIGITAL-CONVER5)
SHEET-25/34
SH.NO.
25
F
(49/58)
Page 54
87654321
A
B
C
D
E
021:2B
021:2B
021:2B
021:5E
027:8A
027:7A
027:8D
027:8D
021:1E;026:8E
021:1E;026:8E
021:1D
NSCV
new_STO
new_SBO
new_SLO
new_SRO
TOP
BOTTOM
LEFT
RIGHT
SCLUsub
SDAUsub
+5V_D
RH428
4.7k(J)
21
RH427
2.2k(J)
21
RH413
10k(J)
RH420
3.3K(J)
RH440
100(J)
RH442
100(J)
RH422
1k(J)
RH421
680(J)
A
2
CH401
22pF(J)
1
RH441
100(J)
21
21
21
21
RH412
10k(J)
21
21
B
21
21
21
RH443
100(J)
LH405
120ohm
12
CH409
ACSY_1
E
[TRP]
QH406
2SA1576AT106Q
2SA1576A
C
LH401
10uH(J)
12
2
UDZS TE-17 5.6B
10nF(K)
1
[ZD]
DH401
RH402
024:5A
100(J)
CA
21
2
1
CH408
10uF(M)
RH401
100(J)
[CP]
+
2
1
21
CH407
10nF(K)
24
26
27
41
44
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
39
OSC1
TEST
XIN
PWM0
PWM3
PWM4
PWM5
PWM6
PWM7
PWM8
PWM9/SCL1
S01/SDA1
SCK1/AIN0
AIN1
AIN2
AIN3
AIN4/Y/BLIN
AIN5/BIN
GIN/CSOUT
RIN
P57
VDD
RH429
1
XH401
8.00MHz
[U8700]
QH401
TMPA8700CHF
1M(J)
[X]
21
2
XOUT
RESET
N.C.
N.C.
Y/BL
HD
VD
OSC2
INT5/STOP
INT3/RXIN
INT4/TC3
SCL0
SDA0
VIN1/CSIN
TC4/VIN0
PWM1
PWM2
VVSS
VSS
R
G
B
CH402
22pF(J)
2
4
21
21
21
21
21
21
RH410
KETSU
RH409
KETSU
CONV_RESET
RH432
0(X)
21
SCLM_q001
SDAM_q001
I2CS
SCLUsub
21
SDAUsub
21
X_OUT
2
CH420
KETSU
1
BSSW
024:6D;028:3A
SCLM
SDAM
SCLU
SDAU
50V
021:1E;026:1C
021:1E;026:1C
1
RH433
100
21
RH434
100
LH412
28
29
17
38
18
19
20
21
22
23
25
30
31
32
33
34
36
37
42
43
35
40
RH404
100(J)
21
LH404
120ohm
12
DGND
+5V_D
CH414
0.1uF(Z)
RH431
100(J)
RH407
100(J)
RH408
100(J)
1
0(X)
12
LH413
0(X)
12
21
21
21
2
21
RH411
KETSU
6
14
10
15
9
4
16
21
RH435
KETSU
MUXDMUX
[EC4053]
QH404
INH
A
COM
B
COM
C
COM
VCC
SN74LV4053A
21
GND
GND
CH421
0.1uF(Z)
0
1
0
1
0
1
1
2
5
3
2
1
1211
13
2
1
5
3
7
8
RH430
4.7k(J)
21
RH425
KETSU
21
>
[7S32]
QH407
[Vcc]
[Vss]
TC7S32FU(TE85L)
RH418
KETSU
RH419
KETSU
RH414
100(J)
RH416
100(J)
RH415
100(J)
RH417
100(J)
025:5C
021:1D
021:1E
021:1E
021:1E
024:7E
024:7E
024:7E;028:3A
024:7E;028:3A
B
C
D
E
F
DGND
DGND
51H94/57H94
HYPER SIGNAL (DIGITAL-CONVER6)
SHEET-26/34
SH.NO.
26
F
(50/58)
Page 55

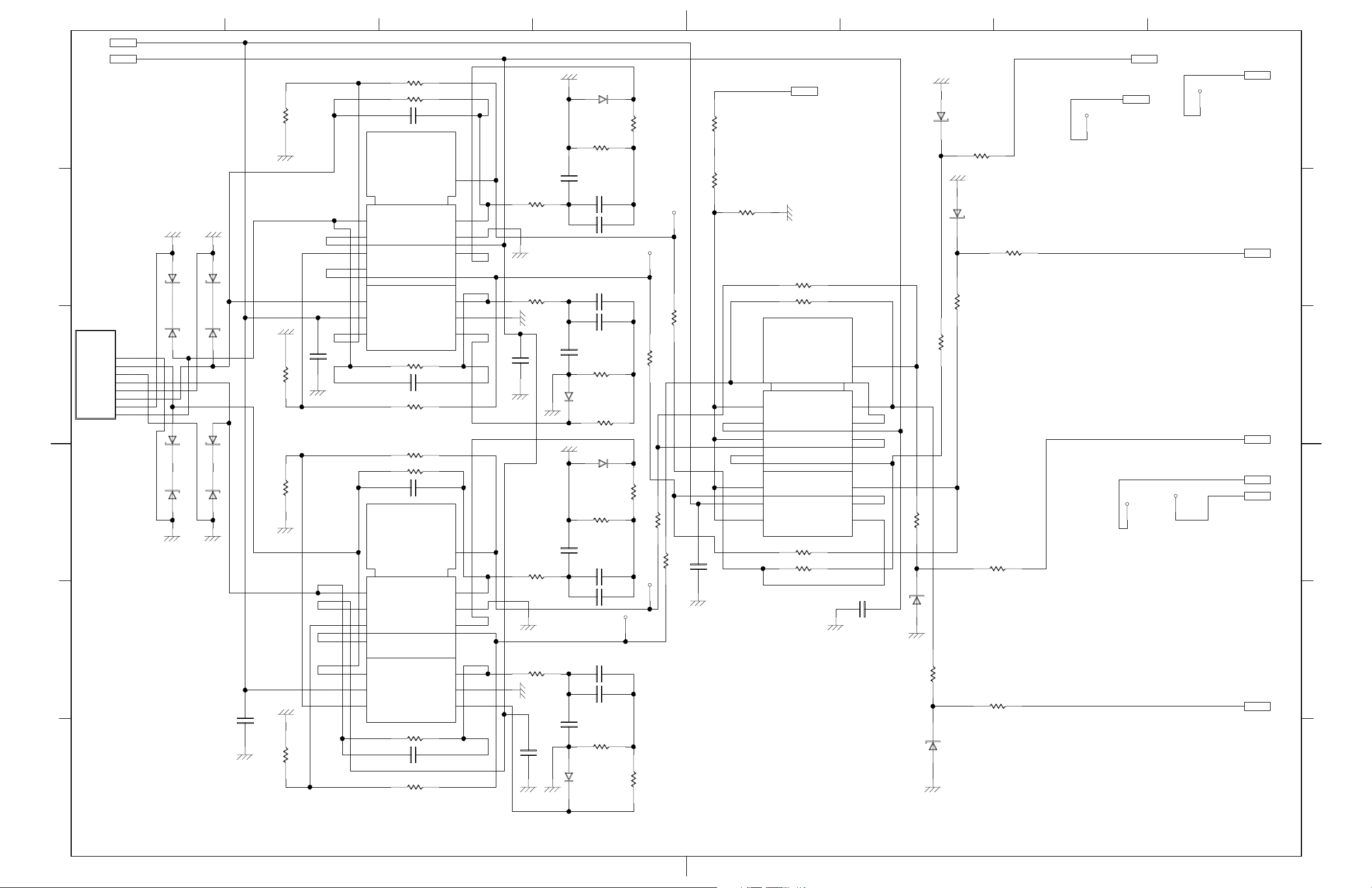

87654321
+12V_A
-5V_B
RH303
15K(J)
21
680k(J)
VOUT1
VOUT2
VOUT3
VSAG
[GND1]
[GND2]
[GND3]
RH307
CH307
VOUT1
VOUT2
VOUT3
VSAG
RH301
CH301
2
VIDEO AMP
[L2580]
QH305
NJM2580M
POWER_SAVE
2
RH304
15K(J)
RH309
20k(J)
2
VIDEO AMP
[L2580]
QH306
NJM2580M
POWER_SAVE
21
4.7nF(K)
1
VIN1
VIN2
VIN3
[V+1]
[V+2]
[V+3]
680k(J)RH306
21
4.7nF(K)CH304
1
21
21
4.7nF(K)
21
680k(J)
1
VIN1
VIN2
VIN3
7
1
3
5
ANAGND
14
12
10
2
0.1uF(Z)
CH303
1
ANAGND
7
1
3
5
ANAGND
UDZS TE-17 5.6B
UDZS TE-17 5.6B
21
ANAGND
ANAGND
21
1k(J)
RH305
21
1k(J)
RH308
ANAGND
1k(J)
RH302
ANAGND
2
1
13
11
9
8
2
4
6
0.1uF(Z)
CH302
13
11
9
8
A
B
ANAGND ANAGND
[ZD]
DH302
ZENNER
UDZS TE-17 5.6B
CA
CA
[CN8]
PH004
RT_P
RT_M
C
LT_P
LT_M
BM_P
BM_M
TP_P
TP_M
D
[ZD]
DH301
ZENNER
1
2
3
4
5
6
7
8
[ZD]
DH307
ZENNER
[ZD]
ZENNER
DH308
ANAGND ANAGND
[ZD]
UDZS TE-17 5.6B
CA
CA
UDZS TE-17 5.6B
UDZS TE-17 5.6B
UDZS TE-17 5.6B
[ZD]
DH304
ZENNER
CA
CA
DH303
ZENNER
DH305
[ZD]
ZENNER
CA
CA
DH306
ZENNER
[ZD]
UDZS TE-17 5.6B
E
14
12
10
CH309
0.1uF(Z)
ANAGND
CH308
0.1uF(Z)
2
1
ANAGND
ANAGND
21
1k(J)
RH311
2
4
6
[GND1]
[GND2]
[GND3]
RH312
2
4.7nF(K)
F
CH310
RH310
20k(J)
[V+1]
[V+2]
[V+3]
21
680k(J)
1
21
KETSU
RH344
1k(J)
RH343
1k(J)
ANAGND
RH346
1k(J)
RH345
1k(J)
ANAGND
2
1
ANAGND
CH324
21
21
CH323
ANAGND
ANAGND
21
21
CH325
ANAGND
1SS355
1SS355-TE17
AC
RH313
470k(J)
2
CH305
100nF(K)
1
2
2
CH315
KETSU
CH306
100nF(K)
2
1
CH316
2
KETSU
RH314
KETSU
1
470k(J)
AC
DH310
1SS355-TE17
1SS355
DH311
AC
1SS355
1SS355-TE17
RH315
470k(J)
2
CH326
100nF(K)
CH311
KETSU
1
2
CH317
2
2
2
2
RH316
KETSU
470k(J)
1
AC
DH312
1SS355
DH309
21
1
1
1
2
21
RH337
21
0(X)
21
1
KETSU
1
1
CH312
100nF(K)
1
1
CH318
KETSU
21
1SS355-TE17
2
0(X)
RH336
1
TPBM1
1
TPTP1
[TP]
1
RH322
1k(J)
RH324
21
21
0(X)
RH338
21
1k(J)
RH320
21
TPRT1
[TP]
TPLT1
21
RH339
0(X)
RH318
[TP]
1
21
10k(J)
RH347
21
82K(J)
RH326
[TP]
1k(J)
21
2
1k(J)
CH313
1
0.1uF(Z)
ANAGND
RH325
82K(J)
13
11
9
8
2
4
6
+5V_A
21
VOUT1
VOUT2
VOUT3
VSAG
[GND1]
[GND2]
[GND3]
ANAGND
RH319
100k(J)
RH317
100k(J)
VIDEO AMP
[L2580]
QH307
NJM2580M
POWER_SAVE
RH323
100k(J)
RH321
100k(J)
21
21
VIN1
VIN2
VIN3
[V+1]
[V+2]
[V+3]
21
21
ANAGND
ANAGND
[ZD]
DH315
ZENNER
UDZS TE-17 4.7B
CA
RH332
10k(J)
21
ANAGND
[ZD]
DH316
ZENNER
UDZS TE-17 4.7B
CA
21
RH334
10k(J)
21
1.5k(J)
RH333
21
1.5k(J)
RH331
7
1
3
5
14
2
21
ANAGND
ANAGND
1.5k(J)
RH327
CA
[ZD]
DH313
ZENNER
UDZS TE-17 4.7B
21
1.5k(J)
RH329
CA
[ZD]
DH314
ZENNER
UDZS TE-17 4.7B
21
RH328
10k(J)
RH330
10k(J)
21
51H94/57H94
12
10
1
CH314
0.1uF(Z)
BOTTOM
[TP]
TPBM2
1
new_SBI
021:5C
026:1C
[TP]
TPRT2
1
1
[TP]
TPLT2
1
[TP]
TPTP2
new_STI
new_SRI
RIGHT
new_SLI
TOP
026:1C
A
B
021:5C
C
021:5C
026:1C
LEFT
026:1C
D
E
021:5C
F
HYPER SIGNAL (DIGITAL-CONVER7)
SHEET-27/34
SH.NO.
27
(51/58)
Page 56

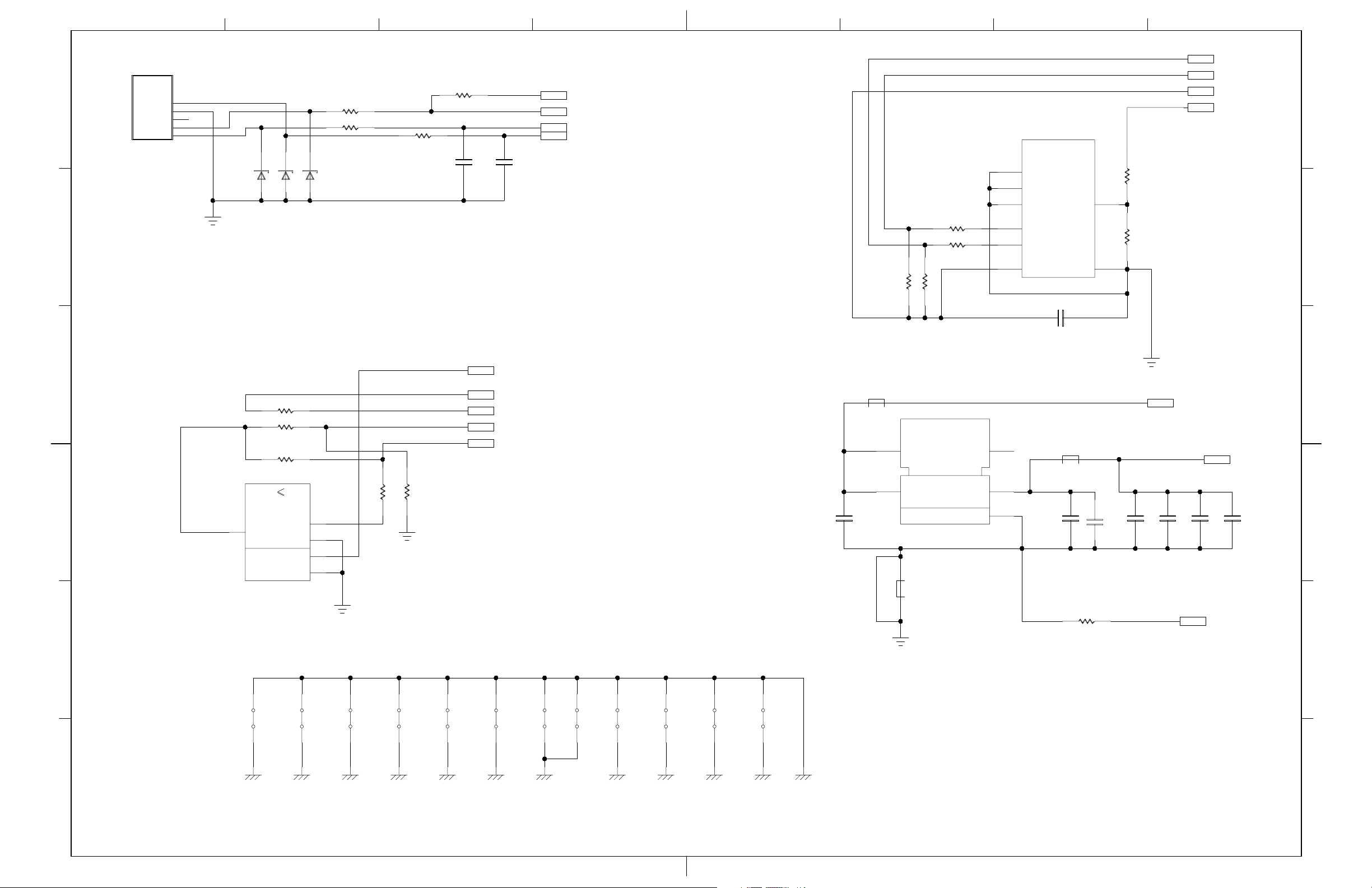

87654321
SCLE0
[CN5]
A
PH005
B
1
2
3
4
5
SCLU
DGND
NC
I2CS
SDAU
DGND
[ZD]
ZENNER
DH003
CA
CA
UDZS TE-17 6.2B
[ZD]
DH002
ZENNER
UDZS TE-17 6.2B
RH208
220(J)
RH210
1k(J)
CA
[ZD]
DH001
ZENNER
UDZS TE-17 6.2B
21
21
RH209
1k(J)
C
RH850
0(X)
21
21
RH854
0(X)
21
RH851
KETSU
1
[CL1G032]
D
4
QH810
Y
SN74AHCT1G32DCKR
A
B
[Vcc]
[Vss]
1
2
5
3
DGND
21
1k(J)
RH853
RH855
KETSU
21
DGND
RH852
21
CH016
33pF(J)
+5V_D
WP_CONT
new_WP2
new_WPTN
CONV_WP_1
0(X)
new_WPT
21
I2CS
SDAU
SCLU
1
2
1
CH015
33pF(J)
2
021:6A;022:1A;024:7F;026:1D;026:5E;028:7C;028:8A
028:8A
021:5A
021:2A
024:6D
021:5A
024:6D;026:8D
024:7E;026:8E
024:7E;026:8E
CH702
2.2uF(K)
AT24C16A
EEPROM
[MSEE2K8B]
1
2
3
RH868
0(X)
RH867
21
21
RH202
4.7k(J)
RH201
4.7k(J)
LH701
120ohm
12
3
STBY
15
VIN
1
2
LH707
120ohm
12
0(X)
QH570
UREG
[BH33FB1WG]
21
21
NC
VOUT
[GND]
5
6
8
4
2
QH173
A0
A1
A2
SDA
SCL
VCC GND
2
CH241
0.1uF(Z)
LH702
120ohm
12
CH703
2.2uF
WP
1
1
2
KETSU
GJH89
KETSU
2
+
1
CH701
[CP]
21
7
4
1608
1608
+5V_D
CH021
0.1uF
SDAE0
+5V_D
WP_CONT
RH842
0(X)
21
RH843
KETSU
21
DGND
new_VDD3
1
1
2
2
CH022
CH023
0.1uF
DGND
0.1uF
021:1E
021:1E
028:3C
A
B
C
021:5F
1
1
CH020
0.1uF
2
2
D
E
0(X)
GJ913
21
1608
21
0(X)
1608
GJ902
F
GND_SH2 GND_SH1 GND_SH4 GND_SH5 GND_SH6 GND_SH7 GND_SH8 GND
0(X)
GJ901
21
1608
GND_JUMPER FOR SHIELD CASE
0(X)
GJ904
21
1608
0(X)
GJ905
21
1608
0(X)
GJ906
0(X)
GJ908
21
1608
0(X)
GJ912
21
1608
21
0(X)
GJ909
GND_SH9
1608
GJ911
GND_SH11GND_SH13 GND_SH12
0(X)
21
1608
21
1608
0(X)
GJ907
21
21
0(X)
1608
1608
GJ910
DGND
E
F
51H94/57H94
HYPER SIGNAL (DIGITAL-CONVER8)
SHEET-28/34
SH.NO.
28
(52/58)
Page 57

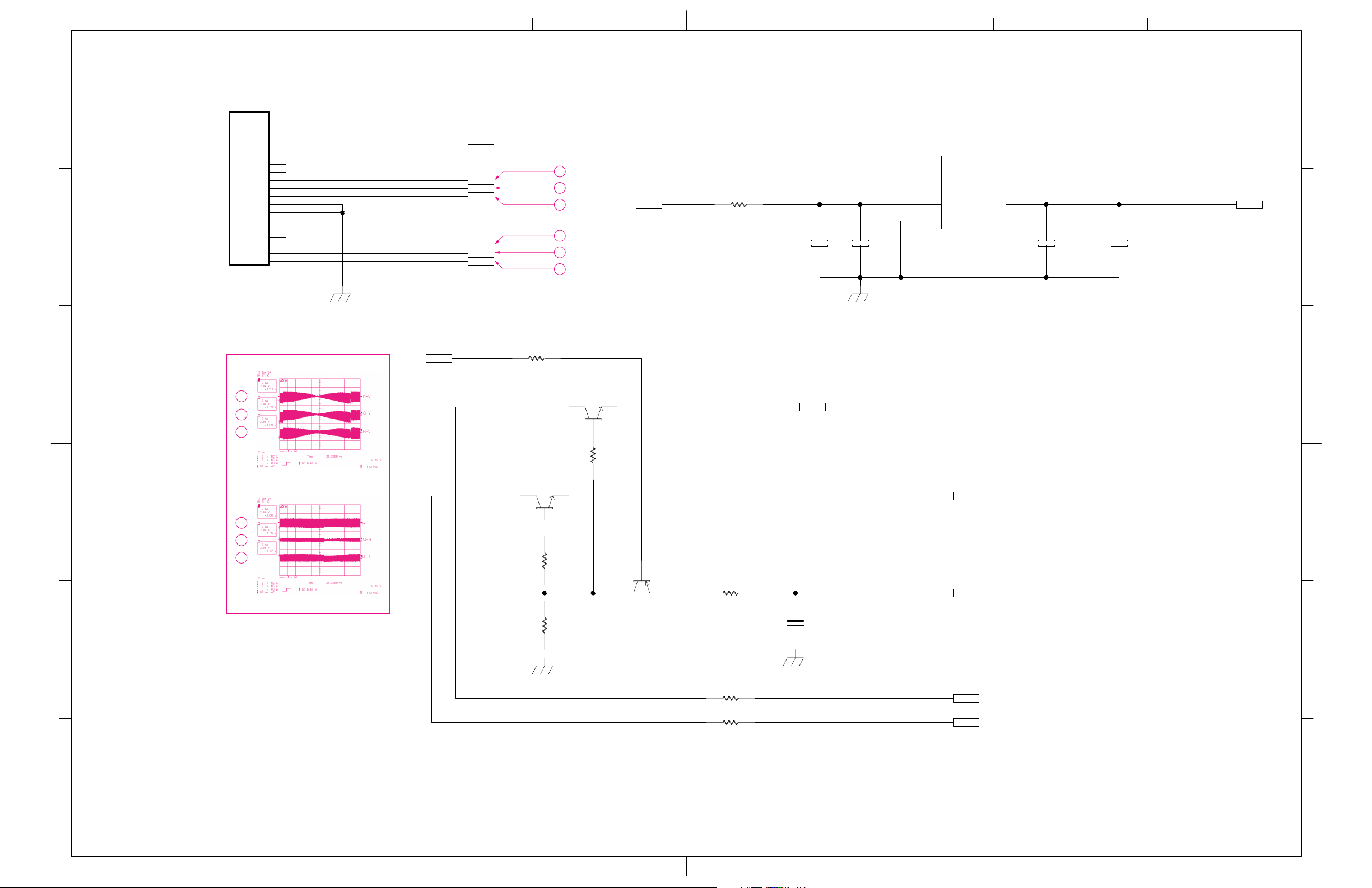

87654321
A
[CN16]
CONV_RST
CONVER+5V
CONVER+16V
B
NC
NC
GV
BV
RH
GND
GND
CONVER-5V
NC
NC
BH
GH
RV
16R-1.5FJN-S
PH001
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
GND
CONV_RST
CONVER+5V
CONVER+16V
G_V
B_V
R_H
CONVER-5V
B_H
G_H
R_V
CONVER+5V
011:2C;025:3C;025:3D
024:1F;025:1B
029:4B
025:1E
025:1D
025:1D
10
11
12
025:1B
RH368
0(X)
13
14
15
21
025:1E
025:1E
025:1E
CONVER+16V
RH361
0(X)
QH361
NJM78M12DLIA
UREG
[L2925]
21
CH366
0.1uF
25V
2
1608
1
2
1
GND
CH362
330nF(Z)
13
2
[GND]
OUTIN
1005
1
2
CH365
0.1uF(Z)
16V
2
[CP]
+
CH363
47uF
16V
1
+12V_TF
C
15
10
11
QH363
2SC3326-B(TE85R)
C
D
12
B
QH362
2SC3326-B(TE85R)
C
B
RH367
12K(J)
21
E
E
SCL2
024:1E
SDA2
024:1E
A
B
C
D
14
13
E
RH366
12K(J)
RH365
5.6k(J)
21
21
C
2SA1576AT106Q
QH364
[TRP]
B
RH364
E
2K(J)
21
2
CH364
0.1uF(Z)
1
+12V_TF
024:1B;029:8B
E
GND
RH363
0(X)
RH362
0(X)
21
21
F
GND
SCL1
SDA1
003:4D;004:2D;007:1C;011:2D;018:4E;020:6C;032:1D;033:1F;034:7F
003:4D;004:2D;007:1C;011:2D;018:4E;020:6D;032:1D;033:1F;034:7D
F
51H94/57H94
HYPER SIGNAL (CONVER-REG)
SHEET-29/34
SH.NO.
29
(53/58)
Page 58

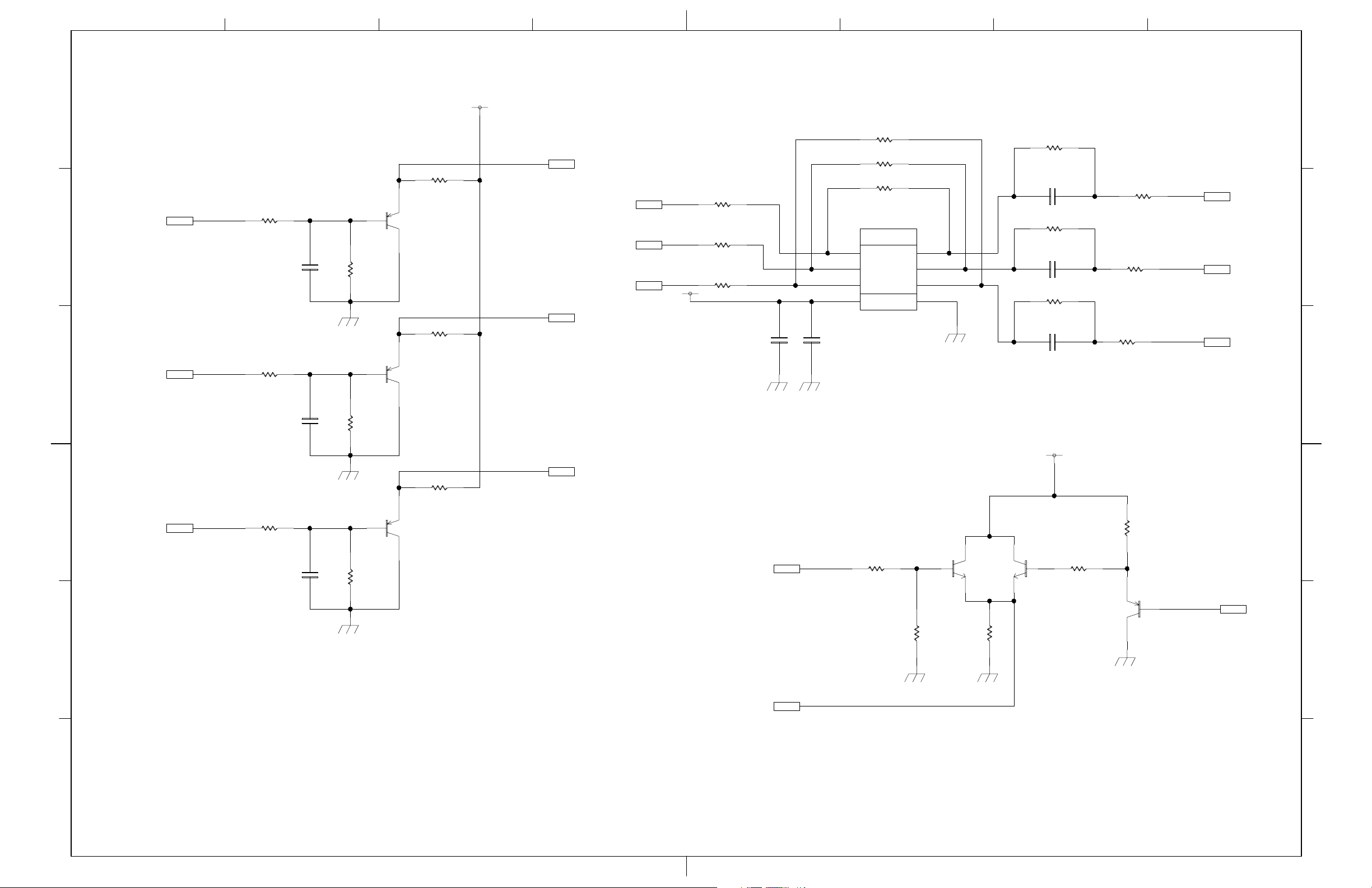

87654321
A
R560
E
R564
034:7C
PB_DB
100(J)
21
B
2
C575
10pF(D)
1
R566
C
034:7C
Y_DB
D
034:7C
PR_DB
100(J)
R568
100(J)
C573
10pF(D)
C574
10pF(D)
21
2
1
21
2
1
GND
GND
GND
21
R575
KETSU
21
R573
KETSU
21
R574
KETSU
B
C
E
B
C
E
B
C
1k(J)
[TRP]
Q520
2SA1576AT106Q
R565
1k(J)
[TRP]
Q521
2SA1576AT106Q
R567
1k(J)
[TRP]
Q522
2SA1576AT106Q
E
9V1
GJ30
0(X)
21
GJ31
IN1
IN2
IN3
0(X)
GJ32
0(X)
QV04
BA7623F
R210
1k(J)
OUT1
OUT2
OUT3
GNDVCC
21
R212
2.2k(J)
21
21
8
7
6
GND
Q210
2SC4081
21
C
B
E
R211
1k(J)
21
CB_SCAL
21
Y_SCAL
21
CR_SCAL
21
006:8E
006:8E
007:8B
005:4C
005:7E
005:7C
Y_SIG
Pb_SIG
Pr_SIG
5V2
RV42
100(J)
RV43
100(J)
RV44
100(J)
21
21
21
CV28
KETSU
034:7C
2
3
4
51
2
2
1005
1
kei-5
1
GNDGND
YS_DB
+
[CP]
CV29
KETSU
6.3V
C
E
GJ33
0(X)
CV25
KETSU
[CP]
+
2
GJ34
0(X)
CV26
KETSU
[CP]
+
2
GJ35
0(X)
CV27
[CP]
KETSU
+
2
5V2
Q211
2SC4081
B
21
1
21
1
21
1
21
R213
100(J)
2SA1576AT106Q
[TRP]
Q212
RV45
100(J)
RV46
100(J)
21
RV47
100(J)
21
R214
1k(J)
21
E
B
C
Y_SIGD
21
Pb_SIGD
Pr_SIGD
YS_OSD
034:7B
034:7B
034:7B
011:5A
A
B
C
D
E
GND
GND
006:7A
BEP_YS
F
GND
F
51H94/57H94
HYPER SIGNAL (30/34)
SHEET-30/34
SH.NO.
30
(54/58)
Page 59
87654321
A
CV46
RV02
RV05
100(J)
CV01
1uF(K)
10V
1
CV05
1
CV14
1
RV147
100(J)
CV03
1
CV11
1
CV08
1
CV04
1uF(K)
10V
1
CV13
1
RV19
100(J)
2.2k(J)
21
RV04
KETSU
2
2
2
1uF(K)
2
2
2
2
10V
1uF(K)
2
21
21
B
21
GND
DV01
AC
DV09
AC
DV15
AC
21
DV03
AC
DV10
AC
DV02
AC
DV05
AC
DV11
AC
DV19
AC
9V2_1
032:8F
V_BS
001:7B;034:7C
0.1uF(K)
B
RV01
001:7B
001:7C
002:5C
V_E1
V_E2
V_E3
C
003:7B
001:7B
001:7C
002:5B
V_TV
Y_E1
Y_E2
Y_E3
100(J)
RV08
100(J)
RV15
100(J)
CV02
1
RV03
100(J)
RV11
100(J)
RV17
100(J)
1uF(K)
CV10
25V
10V
1
2
21
21
21
2
21
21
21
10V 1uF(K)
10V
10V 1uF(K)
10V 1uF(K)
10V 1uF(K)
D
RV06
001:7B
001:7C
002:5A
SC_E1
SC_E2
C_E3
100(J)
RV12
100(J)
1
CV15
1uF(K)
10V
21
21
2
E
1uF(K)
10V
1
E
[TRP]
QV80
2SA1576AT106Q
C
KETSU
KETSU
KETSU
KETSU
KETSU
KETSU
KETSU
KETSU
KETSU
2
RV146
100(J)
21
65
71
77
3
9
15
17
19
67
73
79
5
11
69
75
1
7
13
V1
V2
V3
V4
V5
V6
V7
V8
Y1
Y2
Y3
Y4
Y5
C1
C2
C3
C4
C5
[MM1631XJ]
1/2
QV02
CYout1/
Yout1/Vout1
CYout2/
Yout2/Vout2
PBout1/Cout1
PBout2/Cout2
PRout1
PRout2
Vin
Vout
L11
L12
L13
L21
L22
L23
L31
L32
L33
SW1
SW2
SW3
Y_2_2
PB_2_2
PR_2_2
63
61
60
56
59
55
58
54
20
26
32
22
28
34
24
30
36
38
40
42
RV70
100(J)
RV74
100(J)
RV71
KETSU
RV75
KETSU
21
GND
21
21
GND
9V2
C
B
E
21
RV73
2.2k(J)
B
21
QV70
2SC4667-O(TE85R)
RV79
100(J)
RV80
100(J)
9V2
C
QV71
E
2SC4667-O(TE85R)
21
RV76
2.2k(J)
CV17
KETSU
RV018
21
21
2
1
GND
100(J)
GJ40
0(X)
21
GJ41
0(X)
21
BA7623F
IN1
2
IN2
3
5V1
1
21
2
+
IN3
4
51
[CP]
CV16
KETSU
6.3V
9V2
E
B
OUT1
OUT2
OUT3
GNDVCC
QV05
KETSU
21
RV016
2.2k(J)
[TRP]
QV03
2SA1576AT106Q
8
7
6
GND
V_SUB_MC
GJ42
[CP]
+
2
[CP]
+
2
CV18
KETSU
GJ43
0(X)
0(X)
CV19
KETSU
1
1
21
RV77
RV78
21
014:5D;017:1D
0(X)
0(X)
005:2B;033:1B
005:5D
005:5B
V_AV_SUB
21
034:7B
C_AV_SUB
21
034:7B
A
B
C
D
E
GND
F
C
GND
F
51H94/57H94
HYPER SIGNAL (31/34)
SHEET-31/34
SH.NO.
31
(55/58)
Page 60

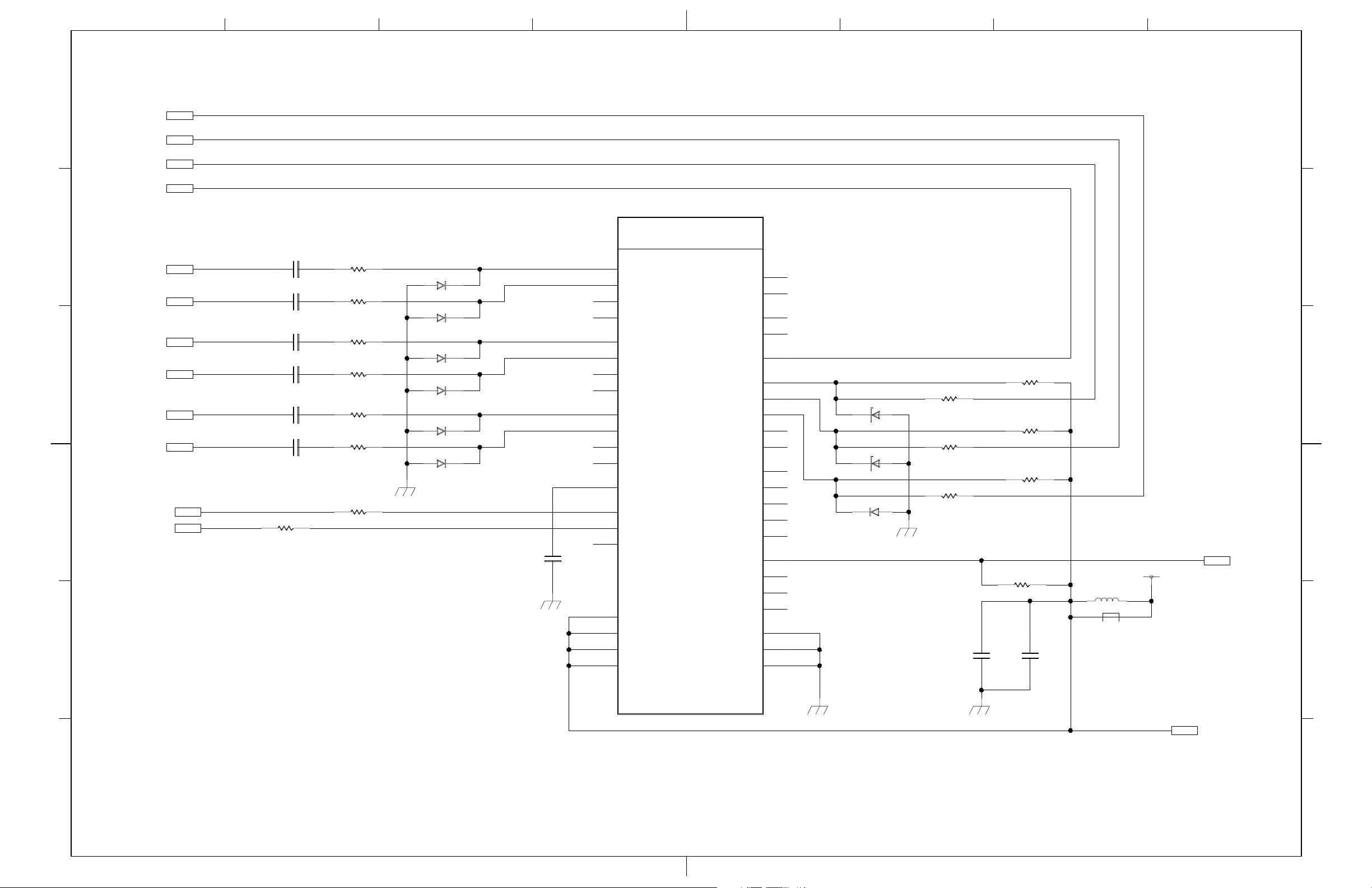

87654321
A
002:5A
001:7C
001:7B
001:7D
SW_E3
S_SW_E2
S_SW_E1
V_MONI
B
001:7C
001:7C
001:7C
C
003:4D;004:2D;007:1C;011:2D;018:4E;020:6C;029:6E;033:1F;034:7F
001:7D
001:7C
001:7D
D
003:4D;004:2D;007:1C;011:2D;018:4E;020:6D;029:6F;033:1F;034:7D
Y_1
Y_2
PB_1
PB_2
PR_1
PR_2
SCL1
SDA1
E
CV245
1uF(K)
10V
CV250
1uF(K)
10V
CV246
1uF(K)
10V
CV251
1uF(K)
10V
CV247
1uF(K)
10V
CV249
1uF(K)
1
1
1
1
1
1
RV10
100(J)
10V
A
[MM1631XJ_2]
2/2
RV323
100(J)
2
2
2
2
2
2
21
RV346
100(J)
RV324
100(J)
RV347
100(J)
RV325
100(J)
RV348
100(J)
RV09
100(J)
21
21
21
21
21
21
21
DV241
AC
KETSU
DV256
AC
KETSU
DV242
AC
KETSU
DV257
AC
KETSU
DV243
AC
KETSU
DV258
AC
KETSU
GND
CV32
22uF(M)
16V
1
GND
2
+
21
CY1
27
CY2
33
CY3
39
CY4
23
PB1
29
PB2
35
PB3
41
PB4
25
PR1
31
PR2
37
PR3
43
PR4
16
BIAS
46
SCL
45
SDA
14
[CP]
ADR
8
VCC
47
VCC
57
VCC
53 62
VCC
QV02
Yout3
Vout3
Cout3
DCout
Vout4
S-1
S-2
S-3
S-4
S-5
S2-1
S2-2
S2-3
S2-4
S2-5
O1
O2
O3
O4
GND
GND
GND
52
51
50
49
48
RV32
100k(J)
70
76
2
6
12
68
74
80
4
10
64
66
72
78
18
44
[ZD]
DV07
MA80680M
CA
[ZD]
DV14
MA80680M
CA
AC
DV21
KETSU
21
RV07
5.6K(J)
21
RV14
5.6K(J)
21
RV21
5.6K(J)
GND
CV70
16V
100uF
kei-8
21
RV33
100k(J)
21
RV34
100k(J)
21
RV35
22k(J)
2
[CP]
+
1
RESET_IMA
9V2
21
2
CV71
0.1uF(Z)
1
LV501
22uH
12
12
LV502
KETSU
003:4C
B
C
D
E
GND
F
GND
9V2_1
031:1A
F
51H94/57H94
HYPER SIGNAL (32/34)
SHEET-32/34
SH.NO.
32
(56/58)
Page 61

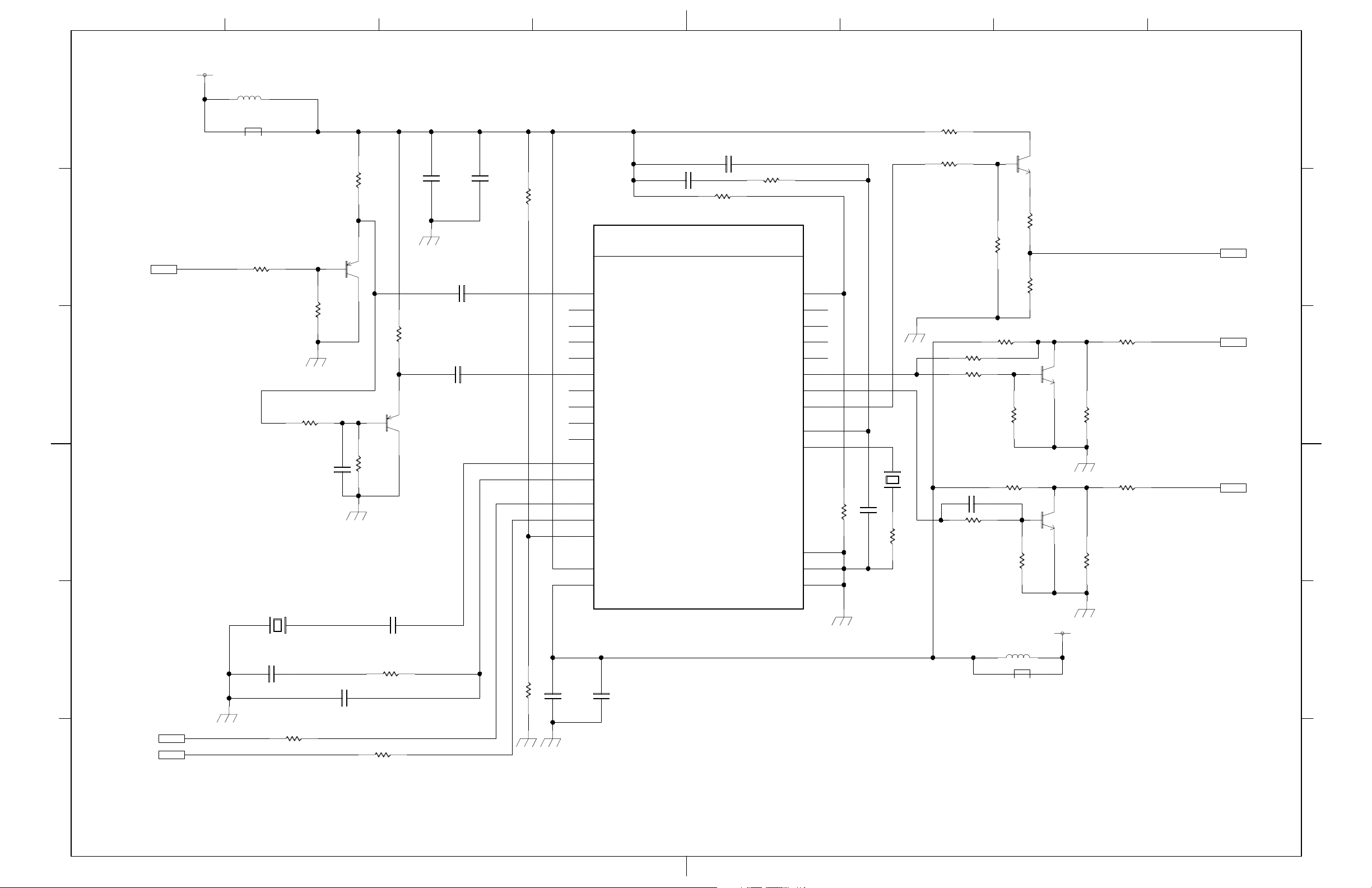

9V1
L522
22uH
A
L523
KETSU
B
005:2B;031:8B
Y_2_2
C
D
E
003:4D;004:2D;007:1C;
011:2D;018:4E;020:6D;
029:6F;032:1D;034:7D
003:4D;004:2D;007:1C;011:2D;018:4E;020:6C;029:6E;032:1D;034:7F
SDA1
SCL1
GND
R517
2.2k(J)
1
0.22uF(Z)
1
12
12
X501
3.58 xtal
C511
21
R516
100(J)
R518
2.2k(J)
R534
100(J)
2
[X]
2
4.7k(J)
[TRP]
Q511
2SA1576A
B
21
GND
21
C529
KETSU
1
2.2nF(K)
21
R507
21
E
C
B
21
2
R547
KETSU
1
GND
2
C504
R514
100(J)
E
C
C501
12pF(J)
1
R501
30K(J)
21
R548
1k(J)
[TRP]
Q516
2SA1576A
2
21
21
CR509
16V
100uF
2
+
kei-8
1
GND
[CP]
C524
0.1uF(Z)
2
C512
0.1uF(Z)
1
87654321
A
R581
0(X)
C510
10nF(K)
2
R570
1
R500
21
3.3K(J)
SYNC OUT
Cb/Pb/B OUT
Cr/Pr/R OUT
Y OUT
fsc OUT
VD OUT
HD OUT
AFC FILTER
HVCO
DIGITAL GND
GND1
GND2
23
22
24
26
15
17
10
18
11
3
8
9
2
R585
10k(J)
1
21
GND
KETSU
C518
[X]
2
C508
0.1uF
1
1
2
R503
10k(J)
21
30
29
28
2
4
6
5
7
16
19
21
20
13
14
12
1
25 27
21
100
2
1005
1005
1
GND
C502
R502
GND
D-SYNC1/
Y3/G IN
Cb/Pb/B IN
Cr/Pr/R IN
Y1/SYNC1 IN
Y2/SYNC2 IN
D-SYNC2 IN
VD IN
HD IN MONITOR OUT
C1 IN
C2 IN
3.58 Xtal
APC FILTER
SDA
SCL
ADDRESS
VCC1(9V)
VCC2(5V)
[CP]
2
+
C542
16V
kei-8
0.1uF
100uF
1
C517
0.1uF(K)
1
2
21
KETSU
[TA1383FG]
Q501
21
R578
100(J)
GND
R577
10k(J)
1
X500
2
CSBLA503KECZF30-B0
R562
470(J)
21
2
R504
10k(J)
21
R579
KETSU
R584
C582
100pF(J)
21
KETSU
21
R576
12K(J)
1
21
C
Q517
B
2SC4081 T106Q
E
21
21
R506
L520
22uH
L521
KETSU
R582
470(J)
21
R580
1.5K(J)
21
C
B
QS10
E
21
C
B
21
Q502
E
5V2
21
R583
2.2k(J)
2.2k(J)
R509
12K(J)
12
12
R505
100(J)
21
2SC4081 T106Q
RY575
3.3K(J)
21
RY576
3.3K(J)
R508
100(J)
GND
2SC4667-O(TE85R)
GND
B
CLP_AD
21
VD_SIG
034:7C
034:7B
C
21
HD_SIG
034:7B
D
E
F
F
51H94/57H94
HYPER SIGNAL (33/34)
SHEET-33/34
SH.NO.
33
(57/58)
Page 62

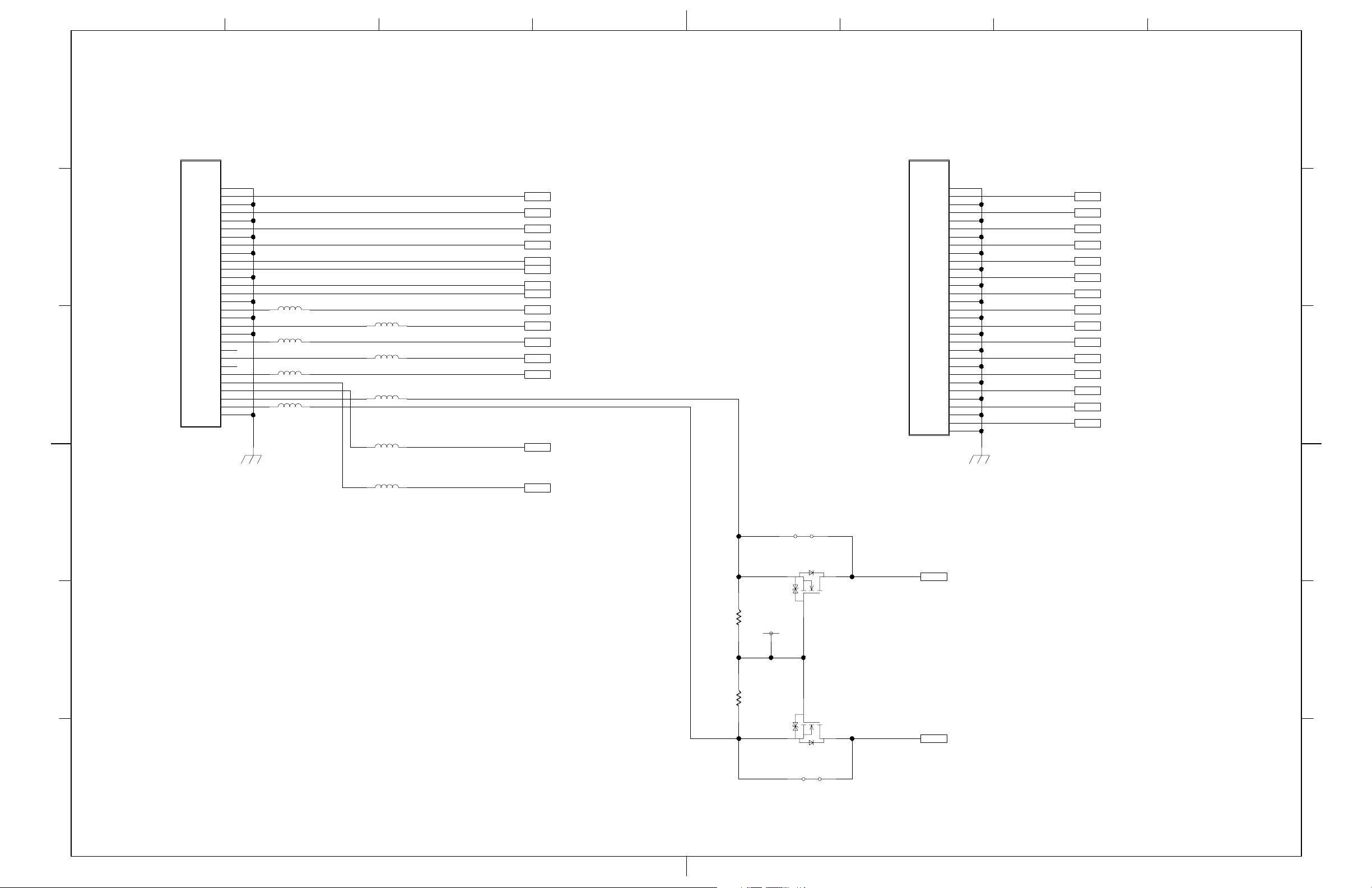

87654321
A
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
Y_DB
GND
V_BS
GND
PJ900B
[CN31]
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
GND
V_AV_SUB
C_AV_SUB
Pr_SIGD
Pb_SIGD
Y_SIGD
VD_SIG
HD_SIG
CLP_AD
V_BS
YS_DB
HD_DB
VD_DB
PR_DB
PB_DB
Y_DB
031:8C
031:8C
030:8C
030:8B
030:8B
033:8C
033:8D
033:8B
001:7B;031:1B
030:5D
007:8C;013:5D
007:8C;013:5E
030:1D
030:1B
030:1C
PJ901B
[CN29]
GND
R_MPEG
GND
L_MPEG
GND
R_SIG
B
C
GND
L_SIG
GND
L_BS
R_BS
GND
R_DB
L_DB
GND
HEAD
GND
TXD
GND
RXD
TV_BOOT_SW
DB_ONOFF
BEPMRST
DB_RST
NC
I2CDATABEP
I2CCLOCKBEP
NC
GND
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
12
BLM11A102SPT
12
BLM11A221SPT
LA101
12
BLM11A102SPT
12
BLM11A102SPT
GND
LA21
LA20
LA24
LA19
12
BLM11A221SPT
LA25
12
BLM11A102SPT
LA23
12
BLM11A102SPT
LA100
12
BLM11A102SPT
LA29
12
BLM11A102SPT
R_OUT3
L_OUT3
R_SIG
L_SIG
L_BS
R_BS
R_DB
L_DB
HEAD
DBTXD_HSRXD
DBRXD_HSTXD
DB_ONOFF
HC_RST
TV_BOOT_SW
HDMI_VD
004:7B
004:7B
004:7B
004:7A
001:7B;004:2B
001:7B;004:2D
003:4D
003:4D
012:2C
012:2C;018:4B
012:7A;018:2A
011:8D
011:8C
010:1D;011:5E;011:6B
011:2C
YV_SIG
SC_SIG
PR_SIG
PB_SIG
Y_SIG
VD_SIG
HD_SIG
CP_SIG
YS_DB
HD_DB
VD_DB
PR_DB
PB_DB
A
B
C
D
21
RA206
10K
1005
3.3V
RA208
0(X)
1608
S
21
[MFNG]
QA206
G
RK7002 T116
D
SDA1
003:4D;004:2D;007:1C;011:2D;018:4E;020:6D;029:6F;032:1D;033:1F
E
21
RA207
10K
1005
F
S
G
1608
RA209
0(X)
[MFNG]
QA207
RK7002 T116
D
21
SCL1
003:4D;004:2D;007:1C;011:2D;018:4E;020:6C;029:6E;032:1D;033:1F
51H94/57H94
D
E
F
HYPER SIGNAL (34/34)
SHEET-34/34
SH.NO.
34
(58/58)
Page 63
TOSHIBA CORPORATION
1-1, SHIBAURA 1-CHOME, MINATO-KU, TOKYO 105-8001, JAPAN
Loading...
