SERVICE MANUAL
Projection Television
43CJH9UR
43JH9UE
43JH9UT
FILE NO. 040-200412
Sep. 2004 (YC/X)
– 2 –
TABLE OF CONTENTS
CHAPTER 1 GENERAL ADJUSTMENTS
SAFETY INSTRUCTIONS ..............................................................................................................................................3
CRT ASSEMBLY REPLACEMENT AND MOUNTING ....................................................................................................4
PICTURE TUBE COMPONENTS ADJUSTMENT..........................................................................................................6
SERVICE POSITION ......................................................................................................................................................9
SERVICE MODE ......................................................................................................................................................... 10
DESIGN MODE ........................................................................................................................................................... 13
ELECTRICAL ADJUSTMENT ..................................................................................................................................... 14
CIRCUIT CHECKS ...................................................................................................................................................... 26
CHAPTER 2 SPECIFIC INFORMATIONS
SETTING & ADJUSTING DATA ................................................................................................................................... 27
LOCATION OF CONTROLS ........................................................................................................................................ 28
MECHANICAL DISASSEMBLY ................................................................................................................................... 30
CHASSIS AND CABINET REPLACEMENT PARTS LIST ........................................................................................... 31

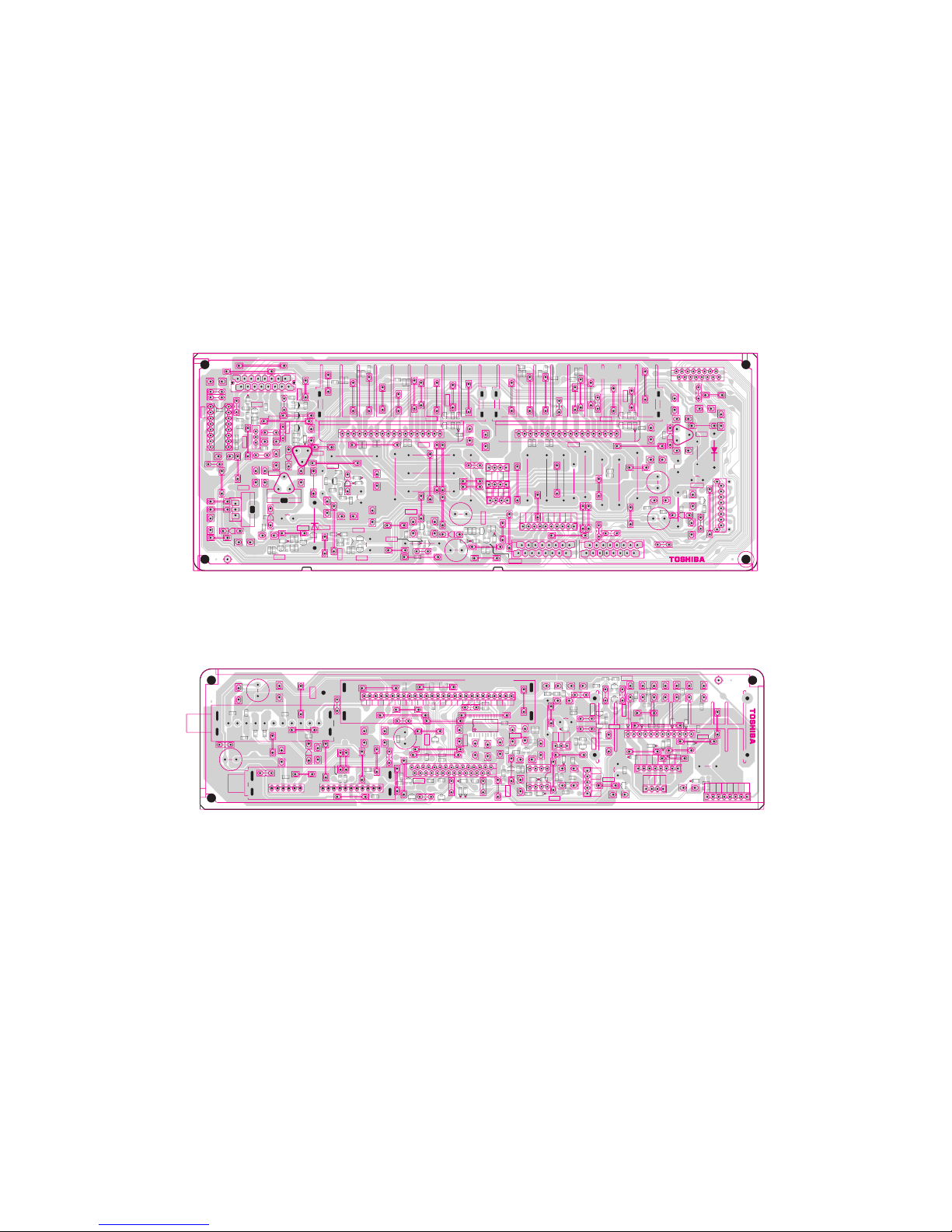

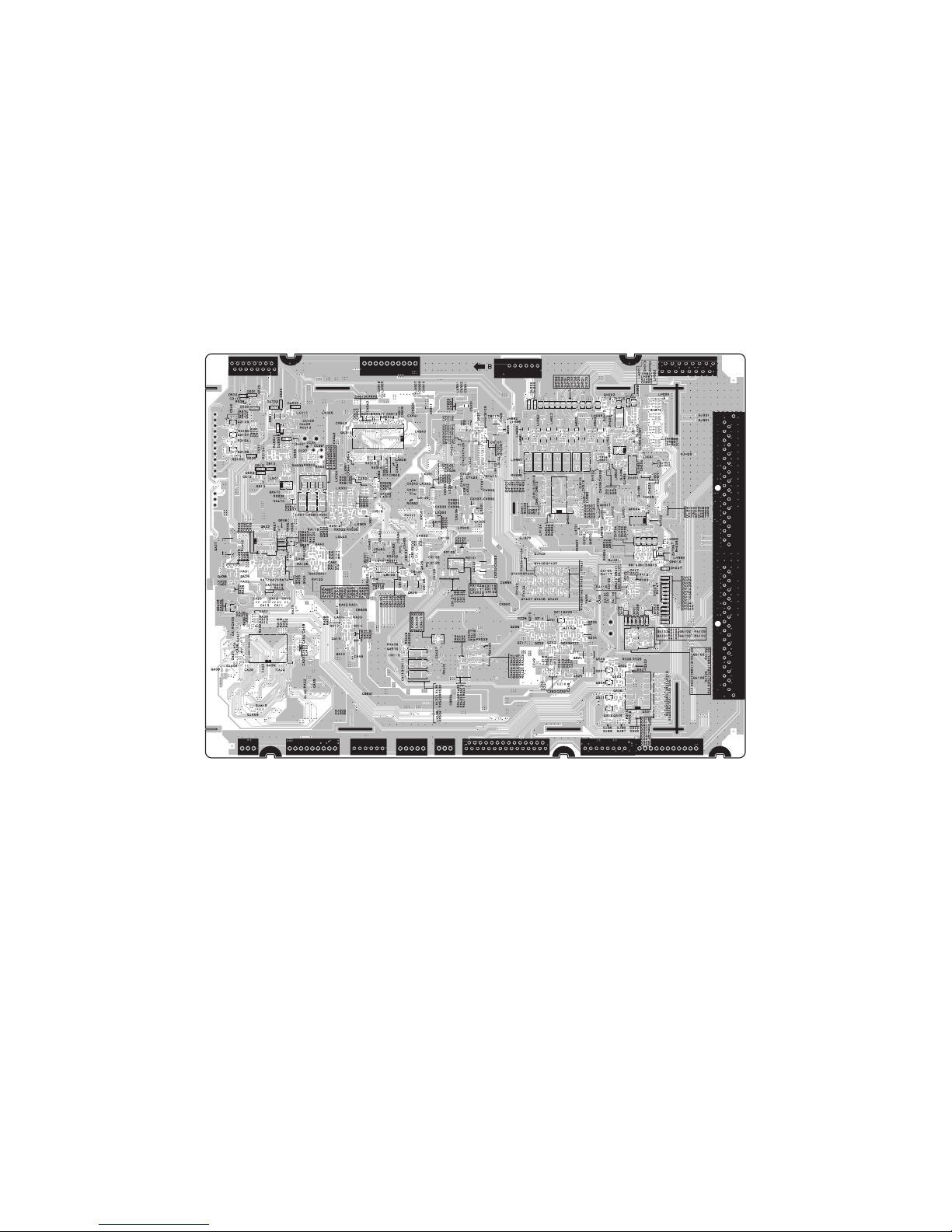

PC BOARDS TOP AND BOTTOM VIEWS .................................................................................................................. 43
TERMINAL VIEW OF TRANSISTORS ........................................................................................................................ 59
SPECIFICATIONS .................................................................................................................................................... END
APPENDIX:
CIRCUIT DIAGRAM

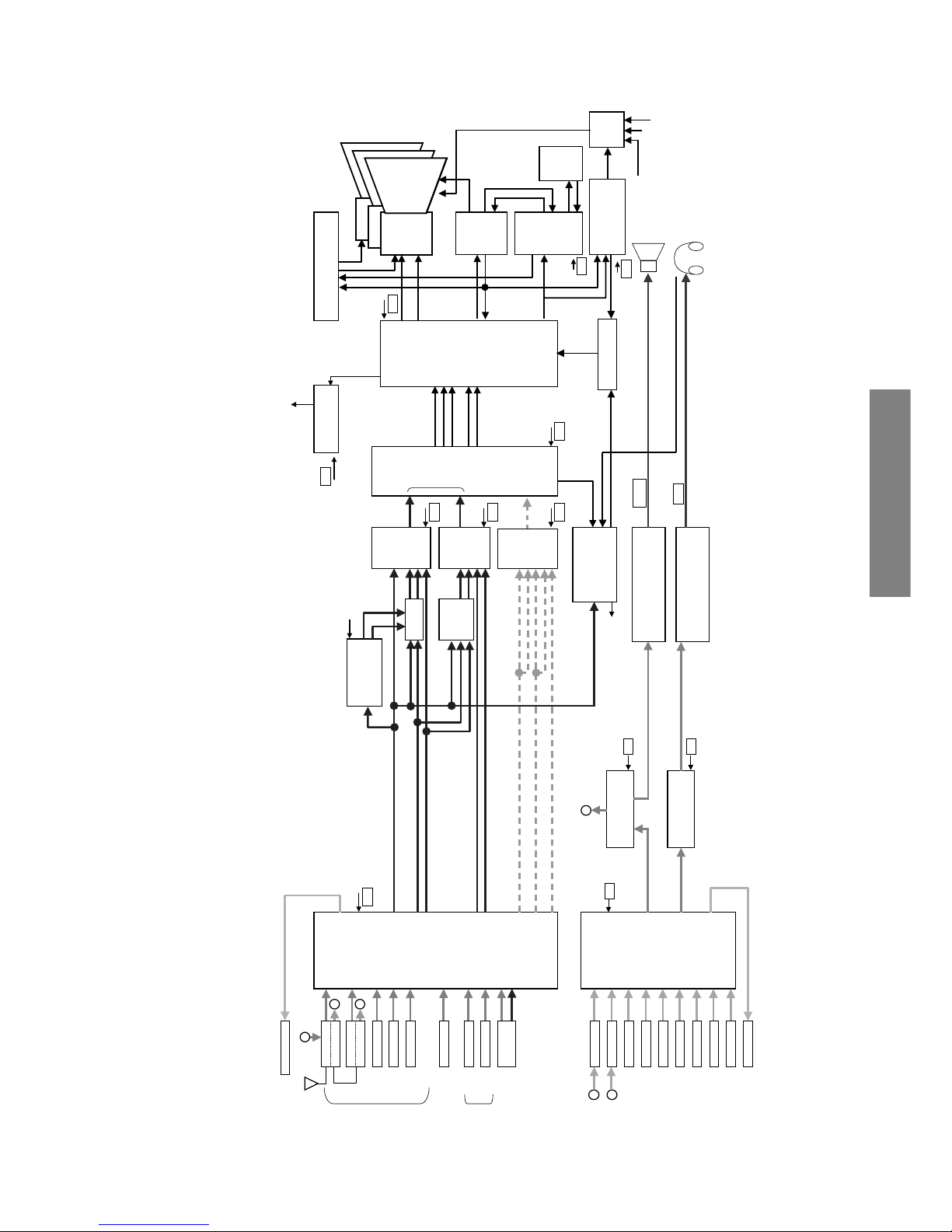

CIRCUIT BLOCK DIAGRAM ....................................................................................................................................... 63
– 3 –
GENERAL ADJUSTMENTS
SPECIFIC INFORMATIONS
CHAPTER 1 GENERAL ADJUSTMENTS
SAFETY INSTRUCTIONS
WARNING: BEFORE SERVICING THIS CHASSIS, READ THE “X-RAY RADIATION PRECAUTION”, “SAFETY PRECAU-
TION” AND “PRODUCT SAFETY NOTICE” INSTRUCTIONS BELOW.
X-RAY RADIATION PRECAUTION
1. Excessive high voltage can produce potentially hazardous
X-RAY RADIATION. To avoid such hazards, the high voltage must not be above the specified limit. The nominal value
of the high voltage of this receiver is (B) kV at zero beam
current (minimum brightness) under a (C) V AC power source.
The high voltage must not, under any circumstances, exceed (B) kV.
Refer to table-1 for high voltage (B) & AC voltage (C).
(See SETTING & ADJUSTING DATA on page 31)
Each time a receiver requires servicing, the high voltage
should be checked following the HIGH VOLTAGE CHECK
procedure in this manual. It is recommended that the reading of the high voltage be recorded as a part of the service
record. It is important to use an accurate and reliable high
voltage meter.
2. The only source of X-RAY RADIATION in this TV receiver
is the picture tube. For continued X-RAY RADIATION protection, the replacement tube must be exactly the same
type tube as specified in the parts list.
3. Some part in this receiver have special safety-related characteristics for X-RAY RADIATION protection. For continued safety, parts replacement should be undertaken only
after referring to the PRODUCT SAFETY NOTICE below.
SAFETY PRECAUTION
WARNING : Service should not be attempted by anyone unfamiliar with the necessary precautions on this receiver. The following
are the necessary precautions to be observed before servicing this chassis.
1. An isolation transformer should be connected in the power line between the receiver and the AC line before any service is
performed on the receiver.
2. Always discharge the picture tube anode to the CRT conductive coating before handling the picture tube. The picture tube
is highly evacuated and if broken, glass fragments will be violently expelled. Use shatter proof goggles and keep picture tube
away from the unprotected body while handling.
3. When replacing a chassis in the cabinet, always be certain that all the protective devices are put back in place, such as; nonmetallic control knobs, insulating covers, shields, isolation resistor-capacitor network etc.
PRODUCT SAFETY NOTICE
Many electrical and mechanical parts in this chassis have special safety-related characteristics. These characteristics are
often passed unnoticed by a visual inspection and the protection afforded by them cannot necessarily be obtained by using
replacement components rated for higher voltage, wattage, etc. Replacement parts which have these special safety characteristics are identified in this manual and its supplements; electrical components having such features are identified by
the international hazard symbols on the schematic diagram and the parts list.
Before replacing any of these components, read the parts list in this manual carefully. The use of substitute replacement
parts which do not have the same safety characteristics as specified in the parts list may create shock, fire, X-ray
radiation or other hazards.
– 4 –
GENERAL ADJUSTMENTS
SPECIFIC INFORMATIONS
CRT ASSEMBLY REPLACEMENT AND MOUNTING
CAUTION : DO NOT LOOSEN THE HEX HEAD BOLTS WITH SPRINGS (12 PCS), BECAUSE THOSE ARE FOR
SEALING OF CRT COOLANT.
Lens and Neck Components View
4 Screws
CRT Anode Cap Assembly
S.V.M. Coil
CRT DRIVE Board
Lens Assembly
CRT Assembly
Deflection Yoke and Conver Yoke
CRT Mounting
4 Screws
Attention Serviceman
The Hex Head
Bolts with
Springs. (see
sketch) used on
CRT assembly,
are “NOT”
Adjustment Screws
DO NOT LOOSEN-FLUID
LEAKAGE WILL OCCUR.
8 o'clock
4 o'clock
RGB
– 5 –
GENERAL ADJUSTMENTS
SPECIFIC INFORMATIONS
SERVICING PRECAUTIONS
■ Check the point of anode lead in a straight
line, if it is winding, please revise it.
Anode lead holder
■ Do not use a magnetized screw driver for screws
of Deflection Yoke and Velocity Modulation Coil to
avoid magnetization of electron gun.
Magnetization of electron gun will degrade basic
function and result in unbalance of right and left
shift of user static convergence, and result in no
variable quantity.
■ When replacing the anode cap assembly (CRT) or
anode lead assembly (F.B.T.), remove the anode
lead holder from old one and attach the holder
again to new anode lead.
Screw for
D.Y
Screw for SVM coi
Silicon
(On shaded area)
TSE3843W #23960136
2 ~ 5 mm
15 ~ 25 mm
Anode Cap
TO REMOVE CRT (Same procedure for R, G, B)
1. Remove CRT DRIVE Board, S. V. M. COIL and
DEF. YOKE from CRT.
2. Remove Lens Assembly.
3. Detach CRT Anode Cap from CRT.
4. Remove CRT Assembly from CRT Mounting.
CRT REPLACEMENT (Same procedure for R, G, B)
Reverse the removal procedures except the followings.
1. Anode Cable should be replaced with new one.
See "SERVICING PRECAUTIONS" shown below.
2. Install silicon (T461B) to the CRT, replace the Anode
cable and put enough silicon again on around the Anode Cap as illustrated.
CAUTION: Align the Anode cable as illustrated on page
4.
ADJUSTING PROCEDURE IN REPLACING CRT
1. R.G.B. CUTOFF (SCREEN VR) ADJUSTMENT (page 6.)
2. R.G.B. FOCUS ADJUSTMENT (page 6.)
3. PICTURE TILT ADJUSTMENT (page 7.)
4. USER CONVERGENCE CENTER CHECK
(Refer to owner's manual.)
5. CENTERING ADJUSTMENT (page 7.)
6. CONVERGENCE ADJUSTMENT (page 21.)
7.
WHITE BALANCE ADJUSTMENT (page 14.)
Adjustments are complete.
GENERAL ADJUSTMENTS
– 6 –
WARNING: BEFORE SERVICING THIS CHASSIS, READ THE “X-RAY RADIATION PRECAUTION”, “SAFETY PRECAUTION” AND “PRODUCT SAFETY NOTICE” ON PAGE 3 OF THIS MANUAL.
PICTURE TUBE COMPONENTS ADJUSTMENT
ADJUSTING PROCEDURE IN REPLACING CRT
DESCRIPTION OF NECK COMPONENTS
1 Deflection yoke and convergence yoke.
The position on the neck is required most front (CRT funnel side) and the screw is fastened after rotating yoke adjusting picture tilt.
2 Centering magnet
After adjusting picture tilt, picture position is finally fixed
by this magnet.
In order to get maximum margin of user convergence control for center of screen, this magnet have to be used for
center convergence adjustment.
PREPARATION
Operate the receiver for at least 5 minutes.
R, G, B CUTOFF (SCREEN VR) ADJUSTMENT
1. Adjust before replace the screen assembly.
2. Set user control to reset position.
(
CONTRAST → Max
BRIGHTNESS, COLOR, TINT → Center.
)
3. Call up the adjustment mode display, then select the item
RCUT.
4. Adjust the data of items RCUT, GCUT, and BCUT to “40H”.
5. Press the
button on Remote. (Y-MUTE : ON)
6. Gradually rotate R, G and B screen volume of FOCUS
PAC clockwise or counterclockwise until the raster appears
slightly on the CRT through the each lens, and leave them.
(Lookin to the lens in order to check the raster.)
7. Press the
button on Remote. (Return to Normal Pic-
ture)
User convergence center chec
k
Lens focus
Electrical focus
Cutoff
Centering (PAL)
Convergence adjustment
(PAL/NTSC)
Yoke horizontal
End
Sub bright adjustment
White balance
S.V.M. COIL
2
1
RGB FOCUS ADJUSTMENT
1. Call-up the adjustment mode (see page 10)
2. Press
button on the remote controller in order to display the internally-generated cross-hatch (See TEST SIGNAL SELECTION on page 11.)
3. Expose only RED by covering the GREEN and BLUE
lenses with caps.
4. Loosen the RED lens fixing screws (refer to Fig. a), and
adjust the RED lens focus to obtain the sharpest point
while observing the middle and peripheral sections of the
screen.
Fig. a
5. Use the focus VR of “R” of the focus pack in order to adjust
the electric focus in the middle and peripheral sections of
the screen to its sharpest level.
6. Check the RED focus of the whole screen and if necessary repeat steps 4 and 5.
7. Fix the RED lens by tightening its fixing screws.
8. Expose only GREEN by covering the RED and BLUE
lenses with caps.
9. Display the internally-generated cross-hatch signal.
10. Adjust the GREEN lens focus on the left border of the
screen to its sharpest level, then check the focus on the
right border, and if it is at its sharpest level, fix it in that
position by tightening the lens screws.
(1) If the horizontal line toward the right border is red-flared,
turn the lens screw slightly right in order to balance it
with the left border. (After adjustment, the left border
tends to be slightly green-flared, and the right border
tends to be slightly red-flared.)
(2) If the horizontal line toward the right border is green-
flared, turn the lens screw slightly left in order to balance it with the left border. (After adjustment, the left
border tends to be slightly red-flared, and the right border tends to be slightly green-flared.)
Note: The aim of the above-described adjustment proce-
dure for the Green lens focus is to obtain the best
lens focus after 2 - 3 hours of warming up taking
into account the focus drift; it applies if the warming up time before the adjustment is less than 30
minutes. (The horizontal line in the screen middle
section tends to be slightly red-flared.)
– 7 –
GENERAL ADJUSTMENTS
SPECIFIC INFORMATIONS
In case of warming up of more than 2 hours under a condition
that the large anode current is running through the projection
tube so that for example the all-white pattern appears, adjust
to obtain the sharpest focus while observing the whole screen
like in the RED case.
11. Press a button on the remote controller in order to display
the internally-generated black cross-hatch. (See TEST
SIGNAL SELECTION on page 11.)
12. Use the focus VR of “G” of the focus pack in order to ad-
just the electric focus in the middle section of the screen
to its sharpest level.
Note: Normally the most clearly visible point of the scanning
line is the sharpest point of the Green focus, however as
the characteristics vary depending on the projection tube,
the sharpest focus points of the vertical and horizontal
lines may not match each other, thus when you turn the
focus VR, if the picture tends to be tremendously unstable
(rolls horizontally or vertically), adjust the balance of the
vertical and horizontal lines to its best position.
13. Check the GREEN focus of the whole screen and if
necessary repeat steps 10 and 11.
14. Fix the GREEN lens by tightening up its fixing screws.
15. Expose only BLUE by covering the RED and GREEN
lenses with caps.
16. Press a button on the remote controller in order to display
the internally-generated cross-hatch (See TEST SIGNAL
SELECTION on page 11.)
17. Loosen the BLUE lens fixing screws (refer to Fig. a), and
adjust the BLUE lens focus while observing the middle
and peripheral screen sections.
18. Press a button on the remote controller in order to display
the internally-generated black cross-hatch (See TEST SIGNAL SELECTION on page 11.)
19. Use the focus VR of “B” of the focus pack in order to adjust
the focus in the middle section of the screen to its sharpest
level.
(The point of the Blue focus becomes sharpest when the
brightness level of BLUE is lowest, the cross-hatch is
clearly visible.)
TILT ADJUSTMENT
Rotate R, G, B deflection yoke so that picture becomes horizon, then fasten screw.
CENTERING ADJUSTMENT
1. Stretch a thread between two center of screen edge (top
and bottom, left and right).
2. Select the adjustment mode. (See page 10.)
3. Press a button on the Remote Control to display the black
cross-hatch.
4. Adjust G centering magnet so that the cross-hatch pattern center comes to screen center.
5. Perform HEIGHT adjustment . (See page 14.)
6. Perform WIDTH adjustment. (See page 14.)
7. Check whole quality of green line.
8. Adjust R, B centering magnet so that the cross-hatch pattern center comes to screen center.
Note: Keep in mind that only the BLUE electric focus is ad-
justed with the black cross-hatch.
20. Check the BLUE focus of the whole screen and if necessary repeat steps 17 and 19.
21. Fix the BLUE lens by tightening its fixing screws.
GENERAL ADJUSTMENTS
– 8 –
LOCATION OF SCREEN AND FOCUS VR’S
To remove the Speaker grille and Front panel.
REPLACEMENT OF HIGH VOLTAGE CABLE
FOCUS VR’s
SCREEN VR’s
RG
B
Front grill
ANODE LEAD
RUBBER BOOT
LEAD HOLDER
Fig. a
Z450 TPA5011AH
1. When replacing Anode Lead or Anode Cap with new
one, remove Lead Holder from old lead as shown in figure below, and put it on new lead. Do not throw away
Lead Holder.
NOTE : THE LEAD HOLDER IS ATTACHED TO
TPA5011AH (Z450), BUT IS NOT ATTACHED
TO ANODE LEAD AND ANODE CAP. RUBBER
BOOT IS ATTACHED TO ANODE LEAD AND
ANODE CAP.
2. Detaching Lead Holder
RUBBER BOOT
OLD
ANODE LEAD
or
ANODE CAP
LOCK
LEAD HOLDER
Cut here rubber boot
and lead together to
detach Lead Holder.
Fi
g
. b
GENERAL ADJUSTMENTS
– 9 –
WARNING: BEFORE SERVICING THIS CHASSIS, READ THE “X-RAY RADIATION PRECAUTION”, “SAFETY PRECAUTION” AND “PRODUCT SAFETY NOTICE” ON PAGE 3 OF THIS MANUAL.
SERVICE POSITION
In order to assure the performance, processed wires shall be replaced after the repair work.
Work procedures are as follows:
1. Remove the back board.
2. Remove lead wires.
3. Draw out the chassis.
4. Rest the chassis against the back cabinet, chassis as shown bellow.
After repair work finished, replace it in the opposite procedure.
– 10 –
GENERAL ADJUSTMENTS
SPECIFIC INFORMATIONS
SERVICE MODE
1. ENTERING TO SERVICE MODE
S
(Service mode display)
Item
Data
or Sound Mute
3) While pressing the o button,
press MENU button on TV set.
2) Press o button again to
keep pressing.
2. DISPLAYING THE ADJUSTMENT MENU
1) Press MENU button on TV.
3. KEY FUNCTION IN THE SERVICE MODE
The following key entry during display of adjustment menu provides special functions.
Screen adjustment mode ON/OFF: -/-- button (on Remote)
Test signal selection : a button (on Remote)
Selection of the adjustment items : Channel s/t (on TV or Remote)
Change of the data value : Volume ; +/– (on TV or Remote)
Adjustment menu mode ON/OFF : MENU button (on TV)
Initialization of the memory (QA02) : CALL + Channel button on TV (s)
Reset the count of operating protect
circuit to “00”: CALL + Channel button on TV (t)
“RCUT” selection : 1 button
“GCUT” selection : 2 button
“BCUT” selection : 3 button
“SCNT” selection : 4 button
“COLP” selection : 5 button
“TNTC” selection : 6 button
Convergence adj : YELLOW button
Self diagnostic display ON/OFF : 9 button
1) Press o button once on
Remote Control.
Adjustment mode
Press
Press
Service mode
Item
Data
S
Color thickness correction
note: Displayed differently as shown below, de-
pending on the setting of the receiving color
system.
COLP (PAL)
COLC (NTSC)
COLS (SECAM)
CAUTION : Never try to perform initialization unless you have changed the memory IC.
– 11 –
GENERAL ADJUSTMENTS
SPECIFIC INFORMATIONS
4. SELECTING THE ADJUSTING ITEMS
1)Every pressing of CHANNEL s button in the service mode changes the adjustment items in the order of table-2.
(t button for reverse order)
Refer to table-2 for preset data of adjustment mode.
(See SETTING & ADJUSTING DATA on page 27)
5. ADJUSTING THE DATA
1) Pressing of VOLUME ; +/– button will change the value of data in the range from 00H to FFH. The variable range
depends on the adjusting item.
6. EXIT FROM SERVICE MODE
1) Pressing POWER button to turn off the TV once.
■ INITIALIZATION OF MEMORY DATA OF QA02
After replacing QA02, the following initialization is required.
1. Enter the service mode, then select any register item.
2. Press and hold the CALL button on the Remote, then press the CHANNEL s button on the TV. The initialization of QA02 has
been complated.
3. Check the picture carefully. If necessary, adjust any adjustment item above.
Perform “Auto tune” on the owner’s manual.
CAUTION: Never attempt to initialize the data unless QA02 has been replaced.
7. TEST SIGNAL SELECTION
1) Every pressing of a button on the Remote Control changes the built-in test patterns on screen as described below
in SERVICE MODE.
Signals Picture
• All White
Signal off
ALL White
GENERAL ADJUSTMENTS
– 12 –
8. SELF DIAGNOSTIC FUNCTION
1) Press “9” button on Remote Control during display of adjustment menu in the service mode.
The diagnosis will begin to check if interface among IC’s are executed properly.
2) During diagnosis, the following displays are shown.
Firmware:
Version information of microprocessor
In case of file name : JH9_PJ and Version : 1.00 indicates[JH9_PJ_100].
Time: Total hour of turn the TV on. (Unit : H)
Power : Operation number of protecting circuit ----"00" is normal.
When indication is other than "00", overcurrent apt to flow, and circuit parts may
possibly be damaged.
BusCont : --- "OK" is normal.
When type name of semiconductor indicates.
1
2
3
4
5
1
2
3
4
5
6
6
1)
2)
BLOCK
3)
UV : TV reception mode
C1)
V1 :
VIDEO 1 input mode (
C2)
V2 : VIDEO 2 input mode (
V3 : VIDEO 3 input mode (
V4 : VIDEO 4 input mode (
V5 : VIDEO 5 input mode (
Model name (7 digit)
– 13 –
GENERAL ADJUSTMENTS
DESIGN MODE
1. ENTERING TO DESIGN MODE
S D
Press
(Design mode)
Press
2) While pressing CALL button on Remote
and press MENU button on TV.
1) Select the Service mode.
When QA02 is initialized, item “OPT3" of DESIGN MODE is set to the data of the representative model of this chassis family.
Therefore, because ON-SCREEN specification remains in the state of the representative of model. This model is required to
reset the data of item “OPT3".
2. SELECTING THE ADJUSTING ITEMS
Every pressing of CHANNEL t button in the design mode changes the adjustment items in the order of table-3.
(s button for reverse order)
Refer to table-3 for data of design mode.
(See SETTING & ADJUSTING DATA on page 27)
3. ADJUSTING THE DATA
Pressing of VOLUME s or t button will change the value of data.
Version information of
microprocessor
Main tuner information
Sub tuner information
Selectable picture information
Position information
Signal information
Screen size information
Sound system information
Scan mode information
q
w
e
r
t
y
u
i
o
q
rt yu io
we
3) The following displays
are shown on the screen
– 14 –
GENERAL ADJUSTMENTS
ITEM ADJUSTMENT PROCEDURE
1. Call up the adjustment mode display, then select the item WID.
2. Press the VOLUME t button to get the picture so the left
or right edges of raster begins to lack.
3. Press the VOLUME s button to advance the data by 11
steps.
Note : Check the horizontal picture position is correct.
WIDTH
(WID)
(Picture size wide)
1. Call up the adjustment mode display, then select the item HIT.
2. Press the VOLUME t button to get the picture so the top or bottom of
raster begins to lack.
3. Press the VOLUME s button to advance the data by 9 steps.
Note : Check the vertical picture position is correct.
Black and White pattern
High light area
Adjust "RDRV" or "BDRV" to be white.
Low light area
Fine adjust "RCUT", "GCUT" or "BCUT" to be black.
1. Set user control to reset position.
(
CONTRAST → Max
BRIGHTNESS, COLOR, TINT → Center.
)
2. Call up the adjustment mode display, then select the item RCUT.
3. Adjust the data of items RCUT, GCUT, and BCUT to "40H".
4. Press the -/-- (
) button on Remote. (Y-MUTE : ON)
5. Gradually rotate R, G and B screen volume of FOCUS PAC clockwise or counterclockwise until the raster appears slightly on the CRT through the each lens,
and leave them.
(Lookin to the lens in order to check the raster.)
6. Press the -/-- (
) button on Remote. (Return to Normal Picture)
7. Press the a button on Remote, and select the Black and White pattern.
8. Adjust the data of items RCUT, GCUT and BCUT for proper white-balanced
picture in low light area.
9. Adjust the data of items RDRV and BDRV for proper white-balanced picture in
high light area.
10. Check the white balance in both low and high light areas.
If necessary, perform again steps from 8 to 9.
ELECTRICAL ADJUSTMENT
HEIGHT
(HIT)
(Picture size wide)
WHITE BALANCE
(RCUT)
(GCUT)
(BCUT)
(RDRV)
(BDRV)
* There is not in the built-in test patterns.
It needs to prepare the pattern generator.
GENERAL ADJUSTMENTS
– 15 –
1)
Item Name
Sub-contrast
main screen
SCNT TP-YMain screen
sub-contr (J2CH)ast
adjustment
mode
Sub-br
(J2ch)
ight signal 0.7V (p-p)Adjust amplitude from the pedestal level up to the white peak.
1)
2)
3)
Sub-contrast
sub screen
PCNT TP-YSub screen
sub-contrast
adjustment
mode
Sub-bright signal 0VSet the device to the DoubleWindow mode.
Get both Main/Sub screen to receive the same image (Sub-
bright signal).
Adjust the sub screen so that it has the same amplitude as the
main screen.
(J2ch)
1)
2)
Sub-brightnessBRTC Screen
adjustment
Dynamic mode Sub-bright signal 4±1.5 lines
Point that
starts lighting
Adjust the black collapsed lines of the sub-bright signals.
Be sure to make this adjustment after adjusting W/B and SCNT.
1)
2)
3)
4)
Screen1Screen1
adjustment
CRT tubular
screen
Factory screen
adjusting mode
Darken the environment as much as possible.
Set to factory-set screen adjusting MODE (Y mute,
DRV=40H, CUT=80H, ).
Directly observe the surface of Cathode Ray Tube and adjust the
screen VR to the point that starts lighting.
Make above-mentioned adjustments for each tube of G, R, and B.
Setting
User control
Input signal Measuring point
Adjusting
standards
Adjusting method
1)
2)
3)
FocusFocus
adjustment
Screen
adjustment
Dyanmic mode Retma signal
Dotcross all
white sinal
(Non-interlace)
Adjust to the best position by repeating electrical focus and
optical focus adjustments.
Use the tools and shade the CRT except the axes under
adjustment.
Make above-mentioned adjustments for each tube of G, R,
and B. For details, refer to the adjusting method introduced in
the body text.
Screen
adjustment
4 lines
Screen2Screen2
adjustment
Dynamic mode
Sub-bright
signal
NTSC or PAL
1) Be sure to make this adjustment after adjusting Focus
adjustment.
2) Ajust the black collapsed lines of the sub-bright signals using
the screen VR.
3) Using the tools and shade the CRT except the axes under
adjustment.
4) Make above-mentioned adjustments for each tube of G,
R and B. 4 lines
GENERAL ADJUSTMENTS
– 16 –
Item Name
The dummy
screen cross
and Phillips
pattern cross
gap is
within ±5mm
1)
2)
Vertical
amplitude
adjustment
HIT
VLIN
Screen
adjustment
Set: eastwardly
Dyanmic mode
100Hz scan
100Hz scan
Phillips Pattern
(PAL)
Shorten the vertical amplitude by HIT data until the upper and
lower flags appear on the screen.
Subsequently, lengthen the vertical amplitude by HIT data until
either upper or lower flag end is aligned with the screen end.
1)
Screen
position
adjustment
Screen
adjustment
Set: eastwardly
Dynamic mode Phillips Pattern
(PAL)
Adjust the centering magnet so that the sceen position is at the
center of the cross-shape on the dummy screen.
Setting
User control
Input signal Measuring point
Adjusting
standards
Adjusting method
1) After roughly the geen centering magnet alignment, adjust the
DY so that Phillips pattern cross is as close as possible to the
dummy screen cross.
2) Adjust the red and blue in the same manner as green.
DY tilt
adjustment
Screen
adjustment
Set: eastwardly
Screen
adjustment
Set: eastwardly
Dynamic mode
100Hz scan
Dynamic mode
100Hz scan
Phillips Pattern
(PAL)
Phillips Pattern
(PAL)
Color gap at
the screen
center is
within ±3mm
1) Adjust the vertical and horizontal screen position with the
centering magnet bso that the dummy screen cross coincides
with the Phillips pattern cross.
2) Make above-mentioned adjustments for each tube of G,
R and B.
(Caution) Do not move the HPOS and VPOS data.
Centering
magnet
adjustment
1)
Bright part
W/B
RDRV
BDRV
Screen
adjustment
Dynamic mode
Raster signals with
no colour burst
11500k+
0.0075duV
Adjust the color temperature of the bright part (103cd/m
2
).
1)
Dark part
W/B
RCUT
BCUT
Screen
adjustment
Dynamic mode
Raster signals with
no colour burst
11500k+
0.0105duV
Adjust the color temperature of the dark part (17cd/m
2
).
100Hz scan
1)
Vertical
midpont voltage
adjustment
Between TP-V
and TP-GND
Dynamic mode Phillips Pattern
(PAL)
Connect a digital voltmeter between TP-V and TP-GND, and
adjust it to 0±10mV by VPOS data.
– 17 –
0th
1st
2nd
3rd
4th
4th
3rd
2nd
1st
0th
Left flag edge
Left
Fig. a
Right
Right flag edge
WID (horizontal amplitude adjustment)
Attention point···Left/Right flag
Adjust the WID data so that the number of
the register marks will come to 7 in total.
Adjustment direction: Eastwardly
GENERAL ADJUSTMENTS
1)
2)
Horizontal
amplitude
adjustment
WID Screen
adjustment
Set: eastwardly
Dynamic mode
100Hz scan
Phillips Pattern
(PAL)
(Refer to Fig.
a.)
7±1 flags
Lower the WID data in the beginning, and shorten the amplitude
horizontally until the left and right flags appear completely.
Lengthen the horizontal amplitude by WID data so that the
number of register marks will come to 7 in total (each 3.5 flags
at the left and right sides).
Convergence
pattern horizontal
phase adjustment
STRP Screen
adjustment
Set: eastwardly
Dynamic mode
100Hz scan
Phillips Pattern
(PAL)
Adjust the center of the Phillips pattern to the center of the
Convergence pattern.
(Adjust only the horizontal phase)
Convergence
pattern vertical
phase adjustment
PSTP Screen
adjustment
Set: eastwardly
Dynamic mode
D-HYP scan
Retma Pattern
(NTSC)
Adjust the center of the Retma pattern to the center of the
Convergence pattern.
(Adjust only the horizontal phase)
Item Name
Setting
User control
Input signal Measuring point
Adjusting
standards
Adjusting method
– 18 –
Green Alignment/Astigmatic Adjustments
Adjustment items Adjustment methods
Alignment Adjustment Procedures (Make this adjustment by using a lens cap. This adjustment should be made
after adjusting the electric focus and lens focus rough and making a Centering Adjustment.)
1. Set the G monochrome by a lens cap.
2. Cancel the magnetic fields of bipolar, tetrapolar, hexapolar magnets.
3. Receive the image of dot pattern which is generated by the signal generator.
(White dot, Black background)
4. Turn the focus VR slightly left from the just focus point.
5. Adjust the bipolar magnet so that the dark brightness point is center of the light
bright area.
6. Make a just focus adjustment.
7. Receivethe image of Philips pattern, and re-adjust the centering.
8. Repeat the above items 4 to 7. Re-adjust those items if necessary.
Light area (flare)
Dark point
Astigmatic Adjustment Procedures (Make this adjustment by using a lens cap.)
1. Set G monochrome by a lens cap.
2. Input the dot pattern (white dot and black backgroud).
3. Turn the Focus VR slightly right from the just focus point.
4. Adjust the tetrapolar magnet so that the fuzzy dot is a perfect circle.
5. Check and confirm that the shapes of flare are almost the same circle even if turing
the VR focus right and left.
6. Make a just focus adjustment.
7. Affix the magnet with adhesives.
Make adjustment so that the dot is a perfect circle.
GENERAL ADJUSTMENTS
– 19 –
Adjustment items Adjustment methods
Focus adjustment (Conditions)
- User adjustment: Dynamic mode
- To be performed after centering magnet adjustment.
- Signal: Lens focus: R ..... Dotcross (PAL)
G ..... Dotcross (PAL)
B ..... Dotcross (PAL)
Electric focus:
R ..... Dotcross (PAL)
G ..... Dotcross (PAL)
B ..... Dotcross (PAL)
(Adjustment)
1. Common item
1) Make coarse adjustments in advance on the lens focus and electrical focus of
each R, G, and B tube.
2. G adjustment
1) Set to the G monochrome by lens cap.
2) Receive the image of crosshatch.
3) Adjust the G electric focus.
Adjust the G electric focus by the focus volume of focus block (Z410) so that the
screen center will come to optimum focus. (Although the G electric focus is to be
adjusted to allow the scanning lines in the center of the screen to be seen most
clealy, if G alignment and astigmatism are inferior with the appearance of vertical and horizontal flares in the center of and around the screen and if the lines
become thicker, adjust to the best point observing the entire screen.)
4) Adjust the G lens focus.
Keep an eye on the center of the crosshatch pattern and adjust so that the
screen center will become clear.
As a rough guide to decrease unevenness, adjust so that red flares on both
sides of the crosshatch line will come to 1mm in thickness.
5) Repeat 3, 4, and attempt to further improve the focus quality.
Focus Adjustment (1/2)
GENERAL ADJUSTMENTS
– 20 –
Adjustment items Adjustment methods
Focus adjustment 3. R adjustment
1) Set to the R monochrome by lens cap.
2) Receive the image of the crosshatched pattern.
3) Adjust the R electric focus.
Adjust by focus volume of the focus block (Z410) so that the screen center will
come to optimum focus.
4) Adjust the R lens focus.
Adjust so that the screen center will become the best.
5) Repeat 3, 4, and attempt to further improve the focus quality.
4. B adjustment
1) Set to the B monochrome by lens cap.
2) Receive the image of the crosshatch pattern.
3) Adjust the B electric focus.
Adjust the B electric focus by using the focus
VR on the focus block (Z410) so that the scanning line is the most distinct at the
point of 2/3L left side from the screen center.
At this time, the focus volume should be adjusted by turning the focus VR slightly
right after finding the best focus point, then turning left and stopping at the best
focus point.
4) Adjust the B lens focus.
Pay attention to the vicinity of the screen center of the crosshatch.
First of all, make coarse adjustments of the lens, and move the lens adjusting
screw to the right at the point being considered as the best focus. Then, the lines
of the border become clear. Check and confirm under the circumstance that a
flare appears. On the contrary, if the lens adjusting screw is moved to the left
from the situation, the flare will disappear, and at this point you will find a point
from which the borderline itself begins to go out of focus. Adjust to the very point
where the focus begins to go out.
2/3L
L
Focus Adjustment (2/2)
GENERAL ADJUSTMENTS
– 21 –
DIMENSIONS
1) VERTICAL
1. Finished picture size: Phillips pattern Horizontal 3.5 lines each, Vertical 3.5 lines
MODEL a, a' b, b' c, c' d, d'
43inch 55.0 164.5 274.0 310.5
2) HORIZONTAL
MODEL A, A' B, B' C, C' D, D'
43inch 73.3 219.9 366.5 434.0
REMARKS
SCREEN SIZE 43INCH : 874 × 655
(mm)
V SPAN
36.5
H SPAN
73.3
DIMENTIONS
1) VERTICAL
2) HORIZONTAL
REMARKS
Convergence Pattern Dimensions
NET GEOMETRY
1. PAL 100Hz, D-HYP 4:3 mode
2. 576P Input 16:9 mode
MODEL a, a' b, b' c, c' d, d'
43inch 41.3 154.3 205.5 232.9
V SPAN
27.4
MODEL a, a' b, b' c, c' d, d'
43inch 73.3 219.9 366.5 434.0
V SPAN
73.3
GENERAL ADJUSTMENTS
– 22 –
DIMENSIONS
1) VERTICAL
MODEL a, a' b, b' c, c'
43inch 120.6 241.2 281.4
V SPAN
40.2
2) HORIZONTAL
MODEL A, A' B, B' C, C'
43inch 70.9 212.7 354.5
D, D'
425.4
Finished quality: HORIZONTAL C+D=9.6 lines (4.8 lines each), VERTICAL A+B=8.4 lines (4.2 lines each)
REMARKS
H SPAN
70.9
DIMENSIONS
1) VERTICAL
MODEL a, a' b, b' c, c'
43inch 90.3 180.6 210.7
V SPAN
30.1
2) HORIZONTAL
MODEL A, A' B, B' C, C'
43inch 70.9 212.7 354.5
D, D'
425.4
REMARKS
H SPAN
70.9
3. NTSC D-HYP scan
4. 1080i/60Hz input 16:9 mode
When 1080i/60Hz is input, only 16:9 mode is
available for this model.
GENERAL ADJUSTMENTS
– 23 –
DIMENTIONS
1) VERTICAL
MODEL a, a' b, b' c, c' V SPAN
43inch 90.3 180.6 210.7 30.1
2) HORIZONTAL
MODEL A, A' B, B' C, C' D, D'
43inch 73.3 219.9 366.5 434.0
REMARKS
H SPAN
73.3
5. 1080i/50Hz input 16:9 mode
GENERAL ADJUSTMENTS
– 24 –
1080i/60, 1080i/50 Finished picture size
1) Amplitude when LEADER LT446 used
Adjusting
scale for the
horizontal
amplitude 1
Adjusting
scale for the
horizontal
amplitude 2
1.1080i/50Hz,1080i/60Hz horizontal amplitnde
Adjusting scale for the horizontal amplitude 1
Adjusting scale for the horizontal amplitude 2
10
15
Align the 11th left registe
r
mark to the screen edge.
10
15
Align the 12th right register
mark to the screen edge.
GENERAL ADJUSTMENTS
– 25 –
Horizontal amplitude
Align the edges of the wedge
marks on both left and right to
the screen edges.
When monoscope pattern is used, the amplitude is 1080i/60Hz
GENERAL ADJUSTMENTS
– 26 –
CIRCUIT CHECKS
HIGH VOLTAGE CHECK
CAUTION: There is no HIGH VOLTAGE ADJUSTMENT on this chassis. Checking should be done following the steps below.
1. Connect an accurate high voltage meter to the anode of the picture tube.
2. Turn on the receiver. Set the BRIGHTNESS and CONTRAST to minimum (zero beam current).
3. High voltage must be measured below (B) kV.
Refer to table-1 for high voltage (B).
(See SETTING & ADJUSTING DATA on page 27)
4. Vary the BRIGHTNESS to both extremes to be sure the high voltage does not exceed the limit under any conditions.
CAUTION:
When the following parts fail, check the High Voltage after replacing.
ANODE VOLTAGE MEASURING METHOD
CAUTION: Take extra precaution when measuring this high voltage. High voltages are also present in surrounding circuit
boards (CRT DRIVE assembly, DEFLECTION assembly, and POWER SUPPLY assembly).
1. Disconnect the FBT anode cable as outlined below. Measure high voltage at the point where the cable enters the FBT.
2. Holding the rubber cover firmly, turn it counterclockwise and check that the lock has been disengaged. (See Fig. b on page
8.)
3. Determine the extent of the rubber cover before disconnecting the cable.
4. Pull straight up the anode cable to disconnect.
5. When reconnecting the cable, proceed in the reverse order.
After reconnecting, tug on the cable to check that it is secure.
Location
No.
Name
Name
T461Z
C443
C444
C467
C468
Flyback Trans.
Capacitor
Capacitor
Capacitor
Capacitor
TFB3094YZ
4700pF, ±3%
4700pF, ±3%
10000pF, ±3%
8200pF, ±3%
GENERAL ADJUSTMENTS
– 27 –
CHAPTER 2 SPECIFIC INFORMATIONS
SETTING & ADJUSTING DATA
[SAFETY INSTRUCTIONS]
Ta bl e- 1
[SERVICE MODE]
ADJUSTING ITEMS AND DATAS IN THE SERVICE MODE:
Ta bl e- 2
[DESIGN MODE]
ADJUSTING ITEMS AND DATAS IN THE DESIGN MODE:
Ta bl e- 3
43"
HIGH VOLTAGE AT IH MAX: (A) 32.1 kV
HIGH VOLTAGE at ZERO BEAM:
(B) 34.3 kV
AC VOLTAGE
(C) 220~240 V
Item Name of adjustment Preset Data Remarks
43CJH9UR
43JH9UE/43JH9UET
OPT0
OPT1
OPT2
OPT3
OPT4
OPT5
OPTION 0
OPTION 1
OPTION 2
OPTION 3
OPTION 4
OPTION 5
FEH
00H
90H
00H
00H
00H
9EH
←
←
←
←
←
←
←
←
←
←
←
SPECIFIC INFORMATIONS
RCUT
GCUT
BCUT
GDRV/RDRV
BDRV
CNTX
BRTC
COLC
TNTC
SCNT
R CUTOFF
G CUTOFF
B CUTOFF
R DRIVE
B DRIVE
CONTRAST MAX
BRIGHTNESS CENT
SUB COLOR CENT FOR NTSC/PAL
SUB TINT FOR TV
SUB CONTRAST FOR TV
Item
Adjustment
Reference
data
80H
80H
80H
40H
40H
7FH
80H
00H
00H
40H
←
←
←
←
←
←
←
←
←
22H
HPOS
VPOS
VSC
VPS
VCP
WID
PARA
CNR
TRAP
HCP
VFC
50Hz H-POSITION
V-POSITION
V-S CORRECTION
V-SHIFT
V-COMPENSATION
PICTURE WIDTH
E-W PARABOLA
E-W CORNER
TRAPEZIUM
H-COMPENSATION
V-F CORRECTION
4CH
81H
2EH
40H
06H
38H
21H
17H
48H
00H
05H
43"
Reference
data
←
←
←
←
05H
←
←
←
←
←
←
43"
HIT
VLIN
HEIGHT
V-LINEARITY
5BH
11H
←
←
Item
Adjustment
– 28 –
LOCATION OF CONTROLS
Front
Back
SPECIFIC INFORMATIONS
AUDIO MENU
OK
L/MONO R
VIDEOS-VIDEO
– ; + Volume – +
Menu < >
aInput source selection
OK
c Channel position ts
Menu
MENU
r
On-timer indicator
7 POWER
indicator
a (3) Video 3 input
terminals
Headphone jack (ø3.5 mm)
f
-7 POWER switch
Behind the door
Push UP
to close
Memory card slots
Press to open
the door
FIXED AUDIO output terminalsa (1) Video 1 input terminals
Antenna input
a (C2) COMPONENT VIDEO INPUT terminals
MONITOR output terminals
a (C1) COMPONENT VIDEO INPUT terminals
a (2) Video 2 input terminals
a RGB/PC terminals
– 29 –
Remote Control
SPECIFIC INFORMATIONS
DVD
MENU
CH
CH
SEARCH
PIC SIZE
STILL
2
1
3
5
4
6
8
7
9
VCR
TV
DVD
0
STROBE
OK
F
CALL
MENU
EXIT
TEXT/TV
Number buttons (0-9)
Sound mute
Input source selection
(a1 – a3, aC1, aC2, BM, PC)
EXIT
Selectable sound
Power on/Standby
(For Toshiba TV/VCR/DVD only)
Device switch
TV: To control TV
VCR: To control VCR
DVD: To control DVD
OK
Bass boost on/off
When in VCR or DVD mode:
(For Toshiba VCR/DVD only)
c to EJECT
to REWIND
S to PLAY
to FAST FORWARD
J to PAUSE
to SKIP-REWIND
R to STOP
to SKIP-FORWARD
Picture size selection
•
CH (channel position) st
• Menu
MENU
Selectable picture
1 or 2 digit channel selection
F
• i Index/Initail
• CALL
• Teletext
• BRIDGE MEDIA
(Four colored buttons: Red,
Green, Yellow, Blue)
• Volume
– +
• Menu <
>
When in TV mode:
TEXT/TV TEXT/TV selection
mI/II
Stereo/Bilingual selection
STROBE Multi-Window strobe
SEARCH Multi-Window search
Double-Window on/off
STILL Picture STILL
n
< >
Double-Window picture/sound
selection
Press the CALL button to display
the following on-screen information:
• Channel position number or
video input mode selected
•
m
(stereo),
I/II
(bilingual)
or Mono sound status
• Station label (if set)
– 30 –
K601
A401
4
SCREWS
4
SCREWS
9
SCREWS
2
SCREWS
4
SCREWS
K502
A283
K501
Labels
A201
A282
A282
A402
A172
A171
(CASTER)
A101
A204
A203
6 SCREWS
4 SCREWS
16 SCREWS
4
SCREWS
MECHANICAL DISASSEMBLY
SPECIFIC INFORMATIONS
WARNING: BEFORE SERVICING THIS CHASSIS, READ THE "X-RAY RADIATION PRECAUTION", "SAFETY PRECAUTION" AND "PRODUCT SAFETY NOTICE" ON PAGE 3 OF THIS MANUAL.
CAUTION: The international hazard symbols " " in the schematic diagram and the parts list designate components
which have special characteristics important for safety and should be replaced only with types identical to those in the
original circuit or specified in the parts list. The mounting position of replacements is to be identical with originals.
Before replacing any of these components, read carefully the PRODUCT SAFETY NOTICE. Do not degrade the safety
of the receiver through improper servicing.
NOTICE:
The part number must be used when ordering parts, in order to assist in processing, be sure to include the
Model number and Description.
The PC board assembly with
*
mark is no longer available after the end of the production.
Capacitors ............. CD : Ceramic Disk PF : Plastic Film EL : Electrolytic
Resistors ............... CF : Carbon Film CC : Carbon Composition MF : Metal Film
OMF : Oxide Metal Film VR : Variable Resistor FR : Fusible Resistor
(All CD and PF capacitors are
±5%, 50V and all resistors, ±5%, 1/6W unless otherwise noted.)
– 31 –
Location Parts No. Description
No.
Location Parts No. Description
No.
Model : 43CJH9UR/43JH9UE/43JH9UT
CHASSIS AND CABINET REPLACEMENT PARTS LIST
#1 : [43CJH9UR]
#2 : [43JH9UE]
#3 : [43JH9UT]
CAPACITORS
C101 24797339 ELECTROLYTIO CE04G, 50V 3.3UF M
C102 24793221 ELECTROLYTIC, 10V 220UF M
C103 24109103 CERAMIC CHIP, 50V B 0.01UF K
C104 24109103 CERAMIC CHIP, 50V B 0.01UF K
C105 24109102 CERAMIC CHIP, 50V B 1000PF K
C106 24797479 ELECTROLYTIC, 50V 4.7UF M
C107 24794221 ELECTROIYTIC, 16V 220UF M
C108 24793221 ELECTROLYTIC, 10V 220UF M
C109 24100104 CERAMIC CHIP, 25V F 0.1UF Z
C110 24794101 ELECTROLYTIC, 16V 100UF M
C221 24503041 PLASTIC FILM , 63V 0.1UF J
C301 24503053 PLASTIC FILM, 63V 1UF J
C302 24669010 ELECTROLYTIC, 50V 1UF M 3A
C303 24503053 PLASTIC FILM, 63V 1UF J
C308 24567223 PLASTIC FILM, 50V 0.022UF J
C309 24109332 CERAMIC CHIP, 50V B 3300PF K
C310 24073053 ELECTROLYTIC, 25V 100UF M 3A
C311 24109103 CERAMIC CHIP, 50V B 0.01UF K
C312 24109332 CERAMIC CHIP, 50V B 3300PF K
C314 24503037 PLASTIC FILM, 63V 0.047UF J
C315 24073020 ELECTROLYTIC, 10V 1000UF M 3A
C320 24669101 ELECTROLYTIC, 50V 100UF M 3A
C321 24669101 ELECTROLYTIC, 50V 100UF M 3A
C323 24109473 CERAMIC CHIP, 25V B 0.047UF K
C324 24503053 PLASTIC FILM, 63V 1UF J
C325 24082057 PLASTIC FILM, 100V 0.22UF J
C327 24092730 CERAMIC CHIP, 16V B 0.1UF K
C328 24082256 PLASTIC FILM, 100V 2200PF J
C330 24085946 ELECTROLYTIC, NONPOLAR, 16V 10UF M 3A
C332 24669101 ELECTROLYTIC, 50V 100UF M 3A
C333 24082272 PLASTIC FILM, 100V 0.047UF J
C334 24109471 CERAMIC CHIP, 50V B 470PF K
C338 24073036 ELECTROLYTIC, 16V 33UF M 3A
C340 24073037 ELECTROLYTIC, 16V 47UF M 3A
C361 24092730 CERAMIC CHIP, 16V B 0.1UF K
C370 24669229 ELECTROLYTIC, 50V 2.2UF M 3A
C371 24092730 CERAMIC CHIP, 16V B 0.1UF K
C401 24214332 CERAMIC DISC, 500V B 3300PF K
C402 24214391 CERAMIC DISC, 500V B 390PF K
C405 24503041 PLASTIC FILM , 63V 0.1UF J
C412 24503190 PLASTIC FILM, 400V 0.12UF J
C415 24092484 CERAMIC DISC, 2KV B 1500PF K
C416 24676220 ELECTROLYTIC, 100V 22UF M 3A
C417 24503334 PLASTIC FILM, 250V 1.5UF J
C419 24105331 CERAMIC CHIP, 50V CH 330PF J
C420 24503041 PLASTIC FILM , 63V 0.1UF J
C422 24109102 CERAMIC CHIP, 50V B 1000PF K
C423 24503252 PLASTIC FILM, 400V 0.3UF J
C425 24503142 PLASTIC FILM, 400V 0.27UF J
C426 24211222 CERAMIC DISC, 2KV B 2200PFK
C432 24567333 PLASTIC FILM, 50V 33000PF J
C443 24503099 PLASTIC FILM, 1800VH 4700PF H
C444 24503099 PLASTIC FILM, 1800VH 4700PF H
C445 24828473 PLASTIC FILM, 200V 0.047UF J
C446 24073120 ELECTRPLYTIC, 250V 33UF, 250YXF33M
C448 24073118 ELECTROLYTIC, 160V 33UF M
C449 24214221 CERAMIC DISC, 500V B 220PF K
C450 24073057 ELECTROLYTIC, 25V 1000UF M 3A
C460 24678220 ELECTROLYTIC, 200V 22UF M
C464 24503343 PLASTIC FILM, 100V 3.3UF K
C465 24109153 CERAMIC CHIP, 50V B 0.015UF K
C467 24503253 PLASTIC FILM, 1250VH 0.01UF H
C468 24503267 PLASTIC FILM CF92 T 1250VH 8200PF H
C470 24503343 PLASTIC FILM, 100V 3.3UF K
C473 24092730 CERAMIC CHIP, 16V B 0.1UF K
C481 24092784 CERAMIC CHIP, 10V B 0.33UF K
C482 24109822 CERAMIC CHIP, 50V B 8200PF K
C483 24353470 CERAMIC DISC, 50V CH 47PF J
C491 24666100 ELECTROLYTIC, 10V 10UF M 3A
C496 24503049 PLASTIC FILM, 63V 0.47UF J
C497 24085946 ELECTROLYTIC, NONPOLAR, 16V 10UF M 3A
C499 24669220 ELECTROLYTIC, 50V 22UF M 3A
C516 24539334 PLASTIC FILM, 50V 0.33UF J
C601 24073083 ELECTROLYTIC CE04P 50V 3.3UF M 3A
C602 24073083 ELECTROLYTIC CE04P 50V 3.3UF M 3A
C603 24591122 PLASTIC FILM, 50V 1200PF J
C604 24591122 PLASTIC FILM, 50V 1200PF J
C605 24073086 ELECTROLYTIC, 50V 10UF M 3A
C606 24073086 ELECTROLYTIC, 50V 10UF M 3A
C607 24073053 ELECTROLYTIC, 25V 100UF M 3A
C608 24073086 ELECTROLYTIC, 50V 10UF M 3A
C618 24073080 ELECTROLYTIC, 50V 0.47UF M 3A
C619 24073056 ELECTROLYTIC, 25V 470UF M 3A
C651 24797229 ELECTROLYTIC, 50V 2.2UF M
C652 24797229 ELECTROLYTIC, 50V 2.2UF M
C653 24797229 ELECTROLYTIC, 50V 2.2UF M
C654 24797229 ELECTROLYTIC, 50V 2.2UF M
– 32 –
Location Parts No. Description
No.
Location Parts No. Description
No.
C655 24109102 CERAMIC CHIP, 50V B 1000PF K
C656 24109102 CERAMIC CHIP, 50V B 1000PF K
C659 24794101 ELECTROLYTIC, 16V 100UF M
C660 24794101 ELECTROLYTIC, 16V 100UF M
C661 24073042 ELECTROLYTIC, 16V 1000UF M 3A
C662 24797229 ELECTROLYTIC, 50V 2.2UF M
C663 24797229 ELECTROLYTIC, 50V 2.2UF M
C664 24797229 ELECTROLYTIC, 50V 2.2UF M
C665 24797220 ELECTROLYTIC, 50V 22UF M
C666 24794101 ELECTROLYTIC, 16V 100UF M
C667 24109103 CERAMIC CHIP, 50V B 0.01UF K
C680 24073073 ELECTROLYTIC, 35V 2200UF M 3A
C681 24109103 CERAMIC CHIP, 50V B 0.01UF K
C690 24109223 CERAMIC CHIP, 25V B 0.022UF K
C691 24109223 CERAMIC CHIP, 25V B 0.022UF K
C801 24503004 PLASTIC FILM, AC275V 0.47UF M
C803 24503002 PLASTIC FILM, AC275V 0.22UF M
C805 24092281 CERAMIC DISC, AC250V E 4700PF
C806 24092281 CERAMIC DISC, AC250V E 4700PF
C809 #2 24086068
ELECTROLYTIC CE692Q 250V 820UF M 3D 43JH9UE/UT
#3 24086068
ELECTROLYTIC CE692Q 250V 820UF M 3D 43JH9UE/UT
C810 #1 24086934 ELECTROLYTIC, 450V 560UF M 35F 43CJH9UR
#2 24086068
ELECTROLYTIC CE692Q 250V 820UF M 3D 43JH9UE/UT
#3 24086068
ELECTROLYTIC CE692Q 250V 820UF M 3D 43JH9UE/UT
C811 24092565 CERAMIC DISC, AC250V B 470PF K
C812 24092565 CERAMIC DISC, AC250V B 470PF K
C814 24092565 CERAMIC DISC, AC250V B 470PF K
C820 24073169 ELECTROLYTIC CE04P 25V 470UF M 3A
C821 24503041 PLASTIC FILM , 63V 0.1UF J
C822 24214221 CERAMIC DISC, 500V B 220PF K
C823 #1 24503041 PLASTIC FILM , 63V 0.1UF J 43CJH9UR
#2 24503041
PLASTIC FILM , 63V 0.1UF J 43JH9UE/UT @M053Z
#2 24073098
ELECTROLYTIC, 450V 4.7UF M 3A 43JH9UE/UT @U801
#3 24503041
PLASTIC FILM , 63V 0.1UF J 43JH9UE/UT @M053Z
#3 24073098
ELECTROLYTIC, 450V 4.7UF M 3A 43JH9UE/UT @U801
C824 #1 24073142
ELECTROLYTIC CE04P 10V 1200UF M 3A 43CJH9UR
#2 24073142
ELECTROLYTIC CE04P 10V 1200UF M 3A 43JH9UE/UT @M053Z
#2 24073084
ELECTROLYTIC, 50V 4.7UF M 3A 43JH9UE/UT @U801
#3 24073142
ELECTROLYTIC CE04P 10V 1200UF M 3A 43JH9UE/UT @M053Z
#3 24073084
ELECTROLYTIC, 50V 4.7UF M 3A 43JH9UE/UT @U801
C825 #2 24503037 PLASTIC FILM, 63V 0.047UF J
#3 24503037 PLASTIC FILM, 63V 0.047UF J 43JH9UE/UT
C826 #2 24082081 PLASTIC FILM, 630V 0.033UF
#3 24082081 PLASTIC FILM, 630V 0.033UF 43JH9UE/UT
C827 #2 24073034 ELECTROLYTIC, 16V 10UF M 3A
#3 24073034 ELECTROLYTIC, 16V 10UF M 3A 43JH9UE/UT
C828 #1 24073052 ELECTROLYTIC, 25V 47UF M 3A 43CJH9UR
#2 24073052
ELECTROLYTIC, 25V 47UF M 3A 43JH9UE/UT @M052Z
#2 24503041
PLASTIC FILM , 63V 0.1UF J 43JH9UE/UT @U801
#3 24073052
ELECTROLYTIC, 25V 47UF M 3A 43JH9UE/UT @M052Z
#3 24503041
PLASTIC FILM , 63V 0.1UF J 43JH9UE/UT @U801
C829 24073052 ELECTROLYTIC, 25V 47UF M 3A
C840 24073098 ELECTROLYTIC, 450V 4.7UF M 3A
C841 24073043 ELECTROLYTIC, 16V 2200UF M 3A
C842 24503041 PLASTIC FILM , 63V 0.1UF J
C843 24092469 CERAMIC DISC, 2KV B 100PF K
C844 24669479 ELECTROLYTIC, 50V 4.7UF M 3A
C845 24766229 ELECTROLYTIC, 50V 2.2UF M
C845A #1 23960136 ADHESIVE, SILICONE, TSE3843-W
C846 24073038 ELECTROLYTIC, 16V 100UF M 3A
C847 #1 24082882 PLASTIC FILM, 800V 0.018UF J
C848 #1 24503231 PLASTIC FILM, 1250VH 1200PF H
C849 #1 24820103 PLASTIC FILM, 630V 0.01UF J
C850 24073171 ELECTROLYTIC, 25V 820UF M 3A
C851 24073171 ELECTROLYTIC, 25V 820UF M 3A
C852 24073202 ELECTROLYTIC, 50V 220UF M 3A
C853 24073198 ELECTROLYTIC, 50V 100UF M 3A
C854 24669470 ELECTROLYTIC, 50V 47UF M 3A
C860 24214103 CERAMIC DISC, 500V B 0.01UF K
C862 24092475 CERAMIC DISC, 2KV B 270PF K
C863 24503045 PLASTIC FILM, 63V 0.22UF J
C866 24503053 PLASTIC FILM, 63V 1UF J
C867 24591472 PLASTIC FILM, 50V 4700PF J
C868 24073089 ELECTROLYTIC, 50V 47UF M 3A
C869 24678229 ELECTROLYTIC, 200V 2.2UF M 3A
C870 24503355 PLASTIC FILM, 800V 0.1UF J
C871 24092480 CERAMIC DISC, 2KV B 680PF K
C873 24503045 PLASTIC FILM, 63V 0.22UF J
C874 24092474 CERAMIC DISC, 2KV B 220PF K
C876 24503049 PLASTIC FILM, 63V 0.47UF J
C877 24092481 CERAMIC DISC, 2KV B 820PF K
C879 24214102 CERAMIC DISC, 500V B 1000PF K
C880 24092476 CERAMIC DISC, 2KV B 330PF K
C881 24092476 CERAMIC DISC, 2KV B 330PF K
C884 24073215 ELECTROLYTEC, 160V 220UF M
C885 24073189 ELECTROLYTIC, 35V 1000UF M 3A
C888 24503045 PLASTIC FILM, 63V 0.22UF J
C891 24073155 ELECTROLYTIC, 16V 1000UF M 3A
C892 24073155 ELECTROLYTIC, 16V 1000UF M 3A
C893 24073142 ELECTROLYTIC CE04P 10V 1200UF M 3A
C895 24073041 ELECTROLYTIC, 16V 470UF M 3A
C898 24503041 PLASTIC FILM , 63V 0.1UF J
C899 24092567 CERAMIC DISC, AC250V E 1000PF M
C901 24211102 CERAMIC DISC, 2KV B 1000PF K
C902 24794101 ELECTROLYTIC, 16V 100UF M
C903 24232103 CERAMIC DISC, 50V F 0.01UF Z
C904 24108221 CERAMIC CHIP, 50V SL 220PF J
C906 24679220 ELECTROLYTIC, 250V 22UF M 3A
C907 24214101 CERAMIC DISC, 500V B 100PF K
C911 24211102 CERAMIC DISC, 2KV B 1000PF K
C912 24794101 ELECTROLYTIC, 16V 100UF M
C913 24232103 CERAMIC DISC, 50V F 0.01UF Z
C914 24108221 CERAMIC CHIP, 50V SL 220PF J
C915 24679220 ELECTROLYTIC, 250V 22UF M 3A
C917 24214101 CERAMIC DISC, 500V B 100PF K
C921 24211102 CERAMIC DISC, 2KV B 1000PF K
C922 24794101 ELECTROLYTIC, 16V 100UF M
C923 24108221 CERAMIC CHIP, 50V SL 220PF J
C924 24232103 CERAMIC DISC, 50V F 0.01UF Z
C925 24679220 ELECTROLYTIC, 250V 22UF M 3A
C926 24214101 CERAMIC DISC, 500V B 100PF K
C930 24214103 CERAMIC DISC, 500V B 0.01UF K
C935 24214103 CERAMIC DISC, 500V B 0.01UF K
C936 24214103 CERAMIC DISC, 500V B 0.01UF K
C961 24763101 ELECTROLYTIC, 16V 100UF M
C962 24203100 ELECTORLYTIC, 16V 10UF M 7L 3A
C967 24109471 CERAMIC CHIP, 50V B 470PF K
C4430 24073034 ELECTROLYTIC, 16V 10UF M 3A
C7001 24797470 ELECTROLYTIC, 50V 47UF M
C7002 24109103 CERAMIC CHIP, 50V B 0.01UF K
C7003 24206479 ELECTROLYTIC, 50V 4.7UF M 7L 3A
C7004 24092730 CERAMIC CHIP, 16V B 0.1UF K
C7005 24092730 CERAMIC CHIP, 16V B 0.1UF K
C7006 24797470 ELECTROLYTIC, 50V 47UF M
C7007 24790470 ELECTROLYTIC, 160V 47UF M
C7008 24214472 CERAMIC DISC, 500V B 4700PF K
C7009 24214472 CERAMIC DISC, 500V B 4700PF K
C7010 24666470 ELECTORLYTIC, 16V 47UF M 3A
C7011 24666470 ELECTORLYTIC, 16V 47UF M 3A
C7012 24435560 CERAMIC DISC, 500V SL 56PF J
C7013 24790100 ELECTROLYTIC, 160V 10UF M
C7101 24797470 ELECTROLYTIC, 50V 47UF M
C7102 24109103 CERAMIC CHIP, 50V B 0.01UF K
C7103 24206479 ELECTROLYTIC, 50V 4.7UF M 7L 3A
C7104 24092730 CERAMIC CHIP, 16V B 0.1UF K
C7105 24092730 CERAMIC CHIP, 16V B 0.1UF K
C7106 24797470 ELECTROLYTIC, 50V 47UF M
C7107 24790470 ELECTROLYTIC, 160V 47UF M
C7108 24214472 CERAMIC DISC, 500V B 4700PF K
C7109 24214472 CERAMIC DISC, 500V B 4700PF K
C7110 24666470 ELECTORLYTIC, 16V 47UF M 3A
C7111 24666470 ELECTORLYTIC, 16V 47UF M 3A
C7112 24435560 CERAMIC DISC, 500V SL 56PF J
C7113 24790100 ELECTROLYTIC, 160V 10UF M
C7201 24797470 ELECTROLYTIC, 50V 47UF M
C7202 24109103 CERAMIC CHIP, 50V B 0.01UF K
C7203 24206479 ELECTROLYTIC, 50V 4.7UF M 7L 3A
C7204 24092730 CERAMIC CHIP, 16V B 0.1UF K
C7205 24092730 CERAMIC CHIP, 16V B 0.1UF K
C7206 24797470 ELECTROLYTIC, 50V 47UF M
C7207 24790470 ELECTROLYTIC, 160V 47UF M
C7208 24214472 CERAMIC DISC, 500V B 4700PF K
Location Parts No. Description
No.
Location Parts No. Description
No.
– 33 –
C7209 24214472 CERAMIC DISC, 500V B 4700PF K
C7210 24666470 ELECTORLYTIC, 16V 47UF M 3A
C7211 24666470 ELECTORLYTIC, 16V 47UF M 3A
C7212 24435560 CERAMIC DISC, 500V SL 56PF J
C7213 24790100 ELECTROLYTIC, 160V 10UF M
C7701 24503047 PLASTIC FILM, 63V 0.33UF J
C7704 24073053 ELECTROLYTIC, 25V 100UF M 3A
C7705 24073037 ELECTROLYTIC, 16V 47UF M 3A
C7706 24503047 PLASTIC FILM, 63V 0.33UF J
C7722 24105331 CERAMIC CHIP, 50V CH 330PF J
C7724 24073090 ELECTROLYTIC, 50V 100UF M 3A
C7725 24073090 ELECTROLYTIC, 50V 100UF M 3A
C7727 24105331 CERAMIC CHIP, 50V CH 330PF J
C7730 24105331 CERAMIC CHIP, 50V CH 330PF J
C7733 24105331 CERAMIC CHIP, 50V CH 330PF J
C7735 24073090 ELECTROLYTIC, 50V 100UF M 3A
C7736 24073090 ELECTROLYTIC, 50V 100UF M 3A
C7738 24105331 CERAMIC CHIP, 50V CH 330PF J
C7741 24105331 CERAMIC CHIP, 50V CH 330PF J
C7750 24073015 ELECTROLYTIC, 10V 47UF M 3A
C7751 24073087 ELECTROLYTIC, 50V 22UF M 3A
C7752 24073087 ELECTROLYTIC, 50V 22UF M 3A
C7753 24073093 ELECTROLYTIC, 50V 470UF M 3A
C7761 24073015 ELECTROLYTIC, 10V 47UF M 3A
C7762 24073015 ELECTROLYTIC, 10V 47UF M 3A
C7765 24667220 ELECTROLYTIC, 25V 22UF M 3A
C7766 24667221 ELECTROLYTIC, 25V 220UF M 3A
C7780 24105471 CERAMIC CHIP, 50V CH 470PF J
C7783 24105471 CERAMIC CHIP, 50V CH 470PF J
C7784 24667220 ELECTROLYTIC, 25V 22UF M 3A
C7785 24092730 CERAMIC CHIP, 16V B 0.1UF K
C7786 24092730 CERAMIC CHIP, 16V B 0.1UF K
C7788 24105101 CERAMIC CHIP, 50V CH 100PF J
C7789 24591472 PLASTIC FILM, 50V 4700PF J
C7791 24073056 ELECTROLYTIC, 25V 470UF M 3A
C7792 24591472 PLASTIC FILM, 50V 4700PF J
C7793 24503041 PLASTIC FILM , 63V 0.1UF J
C7794 24503041 PLASTIC FILM , 63V 0.1UF J
C7795 24591332 PLASTIC FILM, 50V 3300PF J
C7796 24073091 ELECTROLYTIC, 50V 220UF M 3A
C7797 24073094 ELECTROLYTIC, 50V 1000UF M 3A
C7798 24073091 ELECTROLYTIC, 50V 220UF M 3A
C7800 24666220 ELECTROLYTIC, 16V 22UF M 3A
C7810 24092511 CERAMIC CHIP, 50V CH 470PF B
C7811 24105471 CERAMIC CHIP, 50V CH 470PF J
C7813 24667101 ELECTROLYTIC, 25V 100UF M 3A
C7817 24591102 PLASTIC FILM, 50V 1000PF J
C7818 24591102 PLASTIC FILM, 50V 1000PF J
C7819 24591102 PLASTIC FILM, 50V 1000PF J
C7820 24591102 PLASTIC FILM, 50V 1000PF J
C7822 24503053 PLASTIC FILM, 63V 1UF J
C8851 24503047 PLASTIC FILM, 63V 0.33UF J
C8852 24073150 ELECTROLYTIC CE04P 16V 56UF M 3A
C8853 24073038 ELECTROLYTIC, 16V 100UF M 3A
C8854 24503047 PLASTIC FILM, 63V 0.33UF J
C8855 24073150 ELECTROLYTIC CE04P 16V 56UF M 3A
C9100 24109471 CERAMIC CHIP, 50V B 470PF K
C9200 24109471 CERAMIC CHIP, 50V B 470PF K
CB01 24794470 ELECTROLYTIC, 16V 47UF M
CB21 24100103 CERAMIC CHIP, 50V F 0.01UF Z
CB22 24100103 CERAMIC CHIP, 50V F 0.01UF Z
CB23 24100103 CERAMIC CHIP, 50V F 0.01UF Z
CB24 24100103 CERAMIC CHIP, 50V F 0.01UF Z
CB26 24100103 CERAMIC CHIP, 50V F 0.01UF Z
CB27 24100103 CERAMIC CHIP, 50V F 0.01UF Z
CB28 24100103 CERAMIC CHIP, 50V F 0.01UF Z
CB29 24100103 CERAMIC CHIP, 50V F 0.01UF Z
CB30 24100103 CERAMIC CHIP, 50V F 0.01UF Z
CC01 24109102 CERAMIC CHIP, 50V B 1000PF K
CC02 24109102 CERAMIC CHIP, 50V B 1000PF K
CC03 24109102 CERAMIC CHIP, 50V B 1000PF K
CC04 24109102 CERAMIC CHIP, 50V B 1000PF K
CC05 24109102 CERAMIC CHIP, 50V B 1000PF K
CC06 24109102 CERAMIC CHIP, 50V B 1000PF K
CC07 24109102 CERAMIC CHIP, 50V B 1000PF K
CC08 24109102 CERAMIC CHIP, 50V B 1000PF K
CC09 24109102 CERAMIC CHIP, 50V B 1000PF K
CC10 24109102 CERAMIC CHIP, 50V B 1000PF K
CC11 24109102 CERAMIC CHIP, 50V B 1000PF K
CC12 24109102 CERAMIC CHIP, 50V B 1000PF K
CC13 24109102 CERAMIC CHIP, 50V B 1000PF K
CC14 24109102 CERAMIC CHIP, 50V B 1000PF K
CC47 24109332 CERAMIC CHIP, 50V B 3300PF K
CC48 24109332 CERAMIC CHIP, 50V B 3300PF K
CC51 24109103 CERAMIC CHIP, 50V B 0.01UF K
CC52 24109103 CERAMIC CHIP, 50V B 0.01UF K
CG01 24109152 CERAMIC CHIP, 50V B 1500PF K
CG02 24109152 CERAMIC CHIP, 50V B 1500PF K
CG03 24109152 CERAMIC CHIP, 50V B 1500PF K
CG04 24109152 CERAMIC CHIP, 50V B 1500PF K
CG05 24073063 ELECTROLYTIC CE04P 35V 4.7UF M 3A
CG06 24073063 ELECTROLYTIC CE04P 35V 4.7UF M 3A
CG07 24073063 ELECTROLYTIC CE04P 35V 4.7UF M 3A
CG08 24073016 ELECTROLYTIC CE04P 10V 100UF M 3A
CG09 24073016 ELECTROLYTIC CE04P 10V 100UF M 3A
CG10 24073090 ELECTROLYTIC, 50V 100UF M 3A
CG11 24669101 ELECTROLYTIC, 50V 100UF M 3A
CG12 24073034 ELECTROLYTIC, 16V 10UF M 3A
CG13 24669101 ELECTROLYTIC, 50V 100UF M 3A
CG14 24109102 CERAMIC CHIP, 50V B 1000PF K
CG16 24214102 CERAMIC DISC, 500V B 1000PF K
CG17 24214102 CERAMIC DISC, 500V B 1000PF K
CG102 24214102 CERAMIC DISC, 500V B 1000PF K
CG103 24214102 CERAMIC DISC, 500V B 1000PF K
CV27 24762471 ELECTROLYTIC, 04G 10V 470UF M
CV29 24763101 ELECTROLYTIC, 16V 100UF M
CV30 24109103 CERAMIC CHIP, 50V B 0.01UF K
CY102 24793101 ELECTROLYTIC, 10V 100UF M
CY103 24109103 CERAMIC CHIP, 50V B 0.01UF K
CY105 24109102 CERAMIC CHIP, 50V B 1000PF K
R513 #1 24539334 PLASTIC FILM, 50V 0.33UF J
RESISTORS
R101 24382223 OXIDE METAL FILM, 1W 22K OHM J
R170 24011101 CHIP, METAL FILM, 1/20W 100 OHM J
R171 24011183 CHIP, 1/20W 18K OHM J
R172 24011273 CHIP, 1/20W 27K OHM J
R241 24367273 CARBON FILM, 1/6W 27K OHM G
R242 24367183 CARBON FILM, 1/6W 18K OHM G
R243 24367183 CARBON FILM, 1/6W 18K OHM G
R244 24366823 CARBON FILM, 1/6W 82K OHM J
R245 24366472 CARBON FILM, 1/6W 4.7K OHM J
R246 24366472 CARBON FILM, 1/6W 4.7K OHM J
R247 24366102 CARBON FILM, 1/6W 1K OHM J
R264 24872750 CHIP, 1/16W 75 OHM J
R265 24872750 CHIP, 1/16W 75 OHM J
R266 24872750 CHIP, 1/16W 75 OHM J
R286 24872750 CHIP, 1/16W 75 OHM J
R287 24872750 CHIP, 1/16W 75 OHM J
R288 24872750 CHIP, 1/16W 75 OHM J
R302 24366101 CARBON FILM, 1/6W 100 OHM J
R305 24322109 OXIDE METAL FILM, 1W 1 OHM J
R306 24011123 CHIP, METAL FILM, 1/20W 12K OHM J
R307 24011101 CHIP, METAL FILM, 1/20W 100 OHM J
R308 24011101 CHIP, METAL FILM, 1/20W 100 OHM J
R311 24366563 CARBON FILM, 1/6W 56K OHM J
R312 24011123 CHIP, METAL FILM, 1/20W 12K OHM J
R313 24011102 CHIP, METAL FILM, 1/20W 1K OHM J
R314 24011473 CHIP, 1/20W 47K OHM J
R315 24011681 CHIP, METAL FILM, 1/20W 680 OHM J
R321 24011472 CHIP, 1/20W 4.7K OHM J
R322 24011101 CHIP, METAL FILM, 1/20W 100 OHM J
R325 24011472 CHIP, 1/20W 4.7K OHM J
R330 24000633 METAL FILM, 1/4W 10K OHM F
R331 24000633 METAL FILM, 1/4W 10K OHM F
R334 24011102 CHIP, METAL FILM, 1/20W 1K OHM J
R335 24011102 CHIP, METAL FILM, 1/20W 1K OHM J
R336 24011102 CHIP, METAL FILM, 1/20W 1K OHM J
R337 24321129 OXIDE METAL FILM, 1/2W 1.2 OHM J
R338 24011153 CHIP, METAL FILM, 1/2OW 15K OHM J
R340 24366332 CARBON FILM, 1/6W 3.3K OHM J
R341 24011273 CHIP, 1/20W 27K OHM J
– 34 –
Location Parts No. Description
No.
Location Parts No. Description
No.
R343 24011102 CHIP, METAL FILM, 1/20W 1K OHM J
R344 24382151 OXIDE METAL FILM, 1W 150 OHM J
R345 24000445 CHIP JUMPER, 1608TYPE
R346 24382391 OXIDE METAL FILM, 1W 390 OHM J
R348 24011223 CHIP, 1/20W 22K OHM J
R349 24011472 CHIP, 1/20W 4.7K OHM J
R350 24011103 CHIP, METAL FILM, 1/20W 10K OHM J
R355 24011223 CHIP, 1/20W 22K OHM J
R360 24011682 CHIP, METAL FILM, 1/20W 6.8K OHM J
R362 24011104 CHIP, METAL FILM, 1/20W 100K OHM J
R363 24011103 CHIP, METAL FILM, 1/20W 10K OHM J
R364 24011331 CHIP, 1/20W 330 OHM J
R365 24011562 CHIP, 1/20W 5.6K OHM J
R366 24366222 CARBON FILM, 1/6W 2.2K OHM J
R367 24011392 CHIP, 1/20W 3.9K OHM J
R368 24366101 CARBON FILM, 1/6W 100 OHM J
R369 24366103 CARBON FILM, 1/6W 10K OHM J
R370 24366102 CARBON FILM, 1/6W 1K OHM J
R371 24011823 CHIP, 1/20W 82K OHM J
R372 24011332 CHIP, 1/20W 3.3K OHM J
R373 24011823 CHIP, 1/20W 82K OHM J
R374 24011104 CHIP, METAL FILM, 1/20W 100K OHM J
R375 24011153 CHIP, METAL FILM, 1/2OW 15K OHM J
R376 24011333 CHIP, METAL FILM, 1/20W 33K OHM J
R378 24011103 CHIP, METAL FILM, 1/20W 10K OHM J
R380 24011103 CHIP, METAL FILM, 1/20W 10K OHM J
R381 24011472 CHIP, 1/20W 4.7K OHM J
R390 24382561 OXIDE METAL FILM, 1W 560 OHM J
R391 24382561 OXIDE METAL FILM, 1W 560 OHM J
R392 24382561 OXIDE METAL FILM, 1W 560 OHM J
R403 24553101 OXIDE METAL FILM, 1W 100 OHM J
R404 24011272 CHIP, 1/20W 2.7K OHM J
R405 24366101 CARBON FILM, 1/6W 100 OHM J
R406 24382682 OXIDE METAL FILM, 1W 6.8K OHM J
R407 24381100 OXIDE METAL FILM, 1/2W 10 OHM J
R409 24555220 OXIDE METAL FILM, 3W 22 OHM J
R410 24555220 OXIDE METAL FILM, 3W 22 OHM J
R411 24323229 OXIDE METAL FILM, 2W 2.2 OHM J
R412 24383153 OXIDE METAL FILM, 2W 15K OHM J
R413 24366101 CARBON FILM, 1/6W 100 OHM J
R414 24019259 FUSIBLE, 1/4W 27 OHM G
R415 24011102 CHIP, METAL FILM, 1/20W 1K OHM J
R416 24383121 OXIDE METAL FILM, 1/2W 120 OHM J
R417 24366222 CARBON FILM, 1/6W 2.2K OHM J
R418 24011103 CHIP, METAL FILM, 1/20W 10K OHM J
R419 24011103 CHIP, METAL FILM, 1/20W 10K OHM J
R420 24366103 CARBON FILM, 1/6W 10K OHM J
R421 24366223 CARBON FILM, 1/6W 22K OHM J
R422 24011223 CHIP, 1/20W 22K OHM J
R423 24942102 CARBON COMPOSITION, 1/2W 1K OHM J
R424 24376104 CARBON FILM, 1/2W 10OK OHM J
R425 24376104 CARBON FILM, 1/2W 10OK OHM J
R426 24011101 CHIP, METAL FILM, 1/20W 100 OHM J
R427 24366101 CARBON FILM, 1/6W 100 OHM J
R428 24377224 CARBON FILM, 1W 220K OHM J
R429 24942102 CARBON COMPOSITION, 1/2W 1K OHM J
R431 24383102 OXIDE METAL FILM, 2W 1K OHM J
R432 24376274 CARBON FILM, 1/2W 270K OHM J
R433 24376274 CARBON FILM, 1/2W 270K OHM J
R434 24376274 CARBON FILM, 1/2W 270K OHM J
R435 24011332 CHIP, 1/20W 3.3K OHM J
R436 24366473 CARBON FILM, 1/6W 47K OHM J
R437 24011223 CHIP, 1/20W 22K OHM J
R438 24011102 CHIP, METAL FILM, 1/20W 1K OHM J
R439 24011103 CHIP, METAL FILM, 1/20W 10K OHM J
R440 24011103 CHIP, METAL FILM, 1/20W 10K OHM J
R441 24533331 FUSIBLE, 2W 330 OHM J
R443 24310109 OXIDE METAL FILM, 1/2W 1 OHM J
R444 24322398 OXIDE METAL FILM, 1W 0.39 OHM J
R446 24011103 CHIP, METAL FILM, 1/20W 10K OHM J
R447 24382473 OXIDE METAL FILM, 1W 47K OHM J
R448 24366682 CARBON FILM, 1/6W 6.8K OHM J
R449 24366152 CARBON FILM, 1/6W 1.5K OHM J
R466 24366393 CARBON FILM, 1/6W 39K OHM J
R467 24011183 CHIP, 1/20W 18K OHM J
R469 24011101 CHIP, METAL FILM, 1/20W 100 OHM J
R470 24322478 OXIDE METAL FILM, 1W 0.47 OHM J
R471 24366224 CARBON FILM, 1/6W 220K OHM J
R472 24011101 CHIP, METAL FILM, 1/20W 100 OHM J
R473 24011223 CHIP, 1/20W 22K OHM J
R474 24376393 CARBON FILM, 1/2W 39K OHM J
R475 24366101 CARBON FILM, 1/6W 100 OHM J
R476 24011471 CHIP, 1/20W 470 OHM J
R477 24998331 CHIP, 1/16W 330 OHM D
R478 24011102 CHIP, METAL FILM, 1/20W 1K OHM J
R480 24011473 CHIP, 1/20W 47K OHM J
R481 24366103 CARBON FILM, 1/6W 10K OHM J
R482 24011472 CHIP, 1/20W 4.7K OHM J
R483 24000445 CHIP JUMPER, 1608TYPE
R485 24011681 CHIP, METAL FILM, 1/20W 680 OHM J
R486 24011472 CHIP, 1/20W 4.7K OHM J
R487 24552221 OXIDE METAL FILM, 1/2W 220 OHM J
R488 24552151 OXIDE METAL FILM, 1/2W 150 OHM J
R489 24011102 CHIP, METAL FILM, 1/20W 1K OHM J
R490 24552331 OXIDE METAL FILM, 1/2W 330 OHM J
R491 24011222 CHIP, METAL FILM, 1/20W 2.2K OHM J
R492 24998102 CHIP, 1/16W 1K OHM
R493 24998391 CHIP, 1/16W 390 OHM
R494 24998471 CHIP, 1/16W 470 OHM
R495 24011333 CHIP, METAL FILM, 1/20W 33K OHM J
R496 24011103 CHIP, METAL FILM, 1/20W 10K OHM J
R497 24011100 CHIP, METAL FILM, 1/20W 10 OHM J
R498 24011103 CHIP, METAL FILM, 1/20W 10K OHM J
R499 24011102 CHIP, METAL FILM, 1/20W 1K OHM J
R515 24366103 CARBON FILM, 1/6W 10K OHM J
R601 24011332 CHIP, 1/20W 3.3K OHM J
R602 24011332 CHIP, 1/20W 3.3K OHM J
R603 24011332 CHIP, 1/20W 3.3K OHM J
R604 24011332 CHIP, 1/20W 3.3K OHM J
R607 24366223 CARBON FILM, 1/6W 22K OHM J
R608 24011223 CHIP, 1/20W 22K OHM J
R609 24011563 CHIP, 1/20W 56K OHM J
R610 24011223 CHIP, 1/20W 22K OHM J
R611 24011104 CHIP, METAL FILM, 1/20W 100K OHM J
R612 24011103 CHIP, METAL FILM, 1/20W 10K OHM J
R613 24366223 CARBON FILM, 1/6W 22K OHM J
R614 24366103 CARBON FILM, 1/6W 10K OHM J
R615 24011104 CHIP, METAL FILM, 1/20W 100K OHM J
R616 24011822 CHIP, 1/20W 8.2K OHM J
R617 24011222 CHIP, METAL FILM, 1/20W 2.2K OHM J
R618 24011103 CHIP, METAL FILM, 1/20W 10K OHM J
R619 24011224 CHIP, METAL FILM, 1/20W 220K OHM J
R626 24011223 CHIP, 1/20W 22K OHM J
R627 24011223 CHIP, 1/20W 22K OHM J
R628 24366822 CARBON FILM, 1/6W 8.2K OHM J
R651 24011473 CHIP, 1/20W 47K OHM J
R652 24011473 CHIP, 1/20W 47K OHM J
R653 24011122 CHIP, METAL FILM, 1/20W 1.2K OHM J
R654 24011122 CHIP, METAL FILM, 1/20W 1.2K OHM J
R655 24011223 CHIP, 1/20W 22K OHM J
R656 24011223 CHIP, 1/20W 22K OHM J
R659 24011103 CHIP, METAL FILM, 1/20W 10K OHM J
R660 24011103 CHIP, METAL FILM, 1/20W 10K OHM J
R661 24011103 CHIP, METAL FILM, 1/20W 10K OHM J
R662 24011473 CHIP, 1/20W 47K OHM J
R663 24553470 OXIDE METAL FILM, 1W 47 OHM J
R664 24011103 CHIP, METAL FILM, 1/20W 10K OHM J
R665 24011103 CHIP, METAL FILM, 1/20W 10K OHM J
R666 24366682 CARBON FILM, 1/6W 6.8K OHM J
R667 24011392 CHIP, 1/20W 3.9K OHM J
R668 24011101 CHIP, METAL FILM, 1/20W 100 OHM J
R669 24011101 CHIP, METAL FILM, 1/20W 100 OHM J
R690 24552470 OXIDE METAL FILM, 1/2W 47 OHM J @M021Z
24011331 CHIP, 1/20W 330 OHM J @M062Z
R691 24552470 OXIDE METAL FILM, 1/2W 47 OHM J @M021Z
24011331 CHIP, 1/20W 330 OHM J @M062Z
R801 24009954 METAL FILN, 1/2W 2.2M OHM J
R810 24007061 CERAMIC COVERED, 2W 1.8 OHM K
R811 24510479 CERAMIC COVERED, 5W 4.7 OHM J
R818 24011332 CHIP, 1/20W 3.3K OHM J
R819 24011103 CHIP, METAL FILM, 1/20W 10K OHM J
R820 #2 24988059 METAL FILM 2W 4.7 J 43JH9UE/UT
Location Parts No. Description
No.
Location Parts No. Description
No.
– 35 –
#3 24988059 METAL FILM 2W 4.7 J 43JH9UE/UT
R821 #2 24321479
OXIDE METAL FILM, 1/2W 4.7 OHM J 43JH9UE/UT
#3 24321479
OXIDE METAL FILM, 1/2W 4.7 OHM J 43JH9UE/UT
R822 #2 24382124
OXIDE METAL FILM, 1W 120K OHM J 43JH9UE/UT
#3 24382124
OXIDE METAL FILM, 1W 120K OHM J 43JH9UE/UT
R823 #2 24011332 CHIP, 1/20W 3.3K OHM J 43JH9UE/UT
#3 24011332 CHIP, 1/20W 3.3K OHM J 43JH9UE/UT
R824 #2 24011102
CHIP, METAL FILM, 1/20W 1K OHM J 43JH9UE/UT
#3 24011102
CHIP, METAL FILM, 1/20W 1K OHM J 43JH9UE/UT
R825 #2 24383473
OXIDE METAL FILM, 2W 47K OHM J 43JH9UE/UT
#3 24383473
OXIDE METAL FILM, 2W 47K OHM J 43JH9UE/UT
R826 #2 24011332 CHIP, 1/20W 3.3K OHM J 43JH9UE/UT
#3 24011332 CHIP, 1/20W 3.3K OHM J 43JH9UE/UT
R827 #2 24011473 CHIP, 1/20W 47K OHM J 43JH9UE/UT
#3 24011473 CHIP, 1/20W 47K OHM J 43JH9UE/UT
R828 #2 24011153
CHIP, METAL FILM, 1/2OW 15K OHM J 43JH9UE/UT
#3 24011153
CHIP, METAL FILM, 1/2OW 15K OHM J 43JH9UE/UT
R829 #2 24366331 CARBON FILM, 1/6W 330 OHM J 43JH9UE/UT
#3 24366331 CARBON FILM, 1/6W 330 OHM J 43JH9UE/UT
R830 #2 24011331 CHIP, 1/20W 330 OHM J 43JH9UE/UT
#3 24011331 CHIP, 1/20W 330 OHM J 43JH9UE/UT
R834 24000147 METAL FILM, 1/4W 470 OHM F
R835 24000219 METAL FILM 1/4W 10 F
R840 24552562 OXIDE METAL FILM, 1/2W 5.6K OHM J
R841 24011102 CHIP, METAL FILM, 1/20W 1K OHM J
R842 #2 24383333
RESITOR, OXIDE METAL FILM, 2W 33K OHM J 43JH9UE/UT
#3 24383333
RESITOR, OXIDE METAL FILM, 2W 33K OHM J 43JH9UE/UT
R845 24011333 CHIP, METAL FILM, 1/20W 33K OHM J
R849 24011101 CHIP, METAL FILM, 1/20W 100 OHM J
R854 24381150 OXIDE METAL FILM, 1/2W 15 OHM J
R855 24011333 CHIP, METAL FILM, 1/20W 33K OHM J
R860 24383223 OXIDE METAL FILM, 2W 22K OHM J
R862 24321689 OXIDE METAL FILM, 1/2W 6.8 OHM J
R864 24366102 CARBON FILM, 1/6W 1K OHM J
R865 24552390 OXIDE METAL FILM, 1/2W 39 OHM J
R866 24366681 CARBON FILM, 1/6W 680 OHM J
R867 24366223 CARBON FILM, 1/6W 22K OHM J
R868 24552470 OXIDE METAL FILM, 1/2W 47 OHM J
R870 24552121 OXIDE METAL FILM, 1/2W 120 OHM J
R871 24382680 OXIDE METAL FILM, 1W 68 OHM J
R872 24377224 CARBON FILM, 1W 220K OHM J
R873 24552100 OXIDE METAL FILM, 1/2W 10 OHM J
R874 24366150 CARBON FILM, 1/6W 15 OHM J
R881 24011102 CHIP, METAL FILM, 1/20W 1K OHM J
R883 24381102 OXIDE METAL FILM, 1/2W 1K OHM J
R885 24366471 CARBON FILM, 1/6W 470 OHM J
R893 24011472 CHIP, 1/20W 4.7K OHM J
R894 24011103 CHIP, METAL FILM, 1/20W 10K OHM J
R899 24005014 METAL FILM, 1W 8.2M OHM J
R900 24000961 FUSIBLE, 2W 2.2 OHM J
R901 24366101 CARBON FILM, 1/6W 100 OHM J
R903 24942101 CARBON COMPOSITION GF 1/2W 100 J
R904 24366102 CARBON FILM, 1/6W 1K OHM J
R905 24872470 CHIP, 1/16W 47 OHM J
R906 24872271 CHIP, 1/16W 270 OHM J
R908 24872680 CHIP, 1/16W 68 OHM J
R909 24000824 CHIP JUMPER, 2125TYPE
R911 24366101 CARBON FILM, 1/6W 100 OHM J
R913 24942101 CARBON COMPOSITION GF 1/2W 100 J
R914 24366102 CARBON FILM, 1/6W 1K OHM J
R915 24872390 CHIP, 1/16W 39 OHM J
R916 24872271 CHIP, 1/16W 270 OHM J
R918 24872680 CHIP, 1/16W 68 OHM J
R919 24000824 CHIP JUMPER, 2125TYPE
R920 24366222 CARBON FILM, 1/6W 2.2K OHM J
R921 24366101 CARBON FILM, 1/6W 100 OHM J
R923 24942101 CARBON COMPOSITION GF 1/2W 100 J
R924 24366102 CARBON FILM, 1/6W 1K OHM J
R925 24872470 CHIP, 1/16W 47 OHM J
R926 24872271 CHIP, 1/16W 270 OHM J
R928 24872680 CHIP, 1/16W 68 OHM J
R929 24000824 CHIP JUMPER, 2125TYPE
R930 24366222 CARBON FILM, 1/6W 2.2K OHM J
R931 24568272 CERAMIC COVERED G 7W 2.7K J
R933 24366560 CARBON FILM, 1/6W 56 OHM J
R938 24366150 CARBON FILM, 1/6W 15 OHM J
R943 24366560 CARBON FILM, 1/6W 56 OHM J
R944 24568272 CERAMIC COVERED G 7W 2.7K J
R945 24366150 CARBON FILM, 1/6W 15 OHM J
R948 24366222 CARBON FILM, 1/6W 2.2K OHM J
R950 24366222 CARBON FILM, 1/6W 2.2K OHM J
R951 24568272 CERAMIC COVERED G 7W 2.7K J
R953 24366560 CARBON FILM, 1/6W 56 OHM J
R958 24366150 CARBON FILM, 1/6W 15 OHM J
R961 24872362 CHIP, METAL FILM, 1/16W 3.6K OHM J
R962 24872152 CHIP, 1/16W 1.5K OHM J
R963 24872100 CHIP, 1/16W 10 OHM J
R964 24872332 CHIP, 1/16W 3.3K OHM J
R965 24872101 CHIP, 1/16W 100 OHM J
R966 24872122 CHIP, 1/16W 1.2K OHM J
R967 24872122 CHIP, 1/16W 1.2K OHM J
R968 24366222 CARBON FILM, 1/6W 2.2K OHM J
R969 24872122 CHIP, 1/16W 1.2K OHM J
R970 24872122 CHIP, 1/16W 1.2K OHM J
R978 24366222 CARBON FILM, 1/6W 2.2K OHM J
R987 24872101 CHIP, 1/16W 100 OHM J
R988 24366222 CARBON FILM, 1/6W 2.2K OHM J
R991 24366222 CARBON FILM, 1/6W 2.2K OHM J
R992 24366222 CARBON FILM, 1/6W 2.2K OHM J
R995 24872330 CHIP, 1/16W 33 OHM J
R4430 24381150 OXIDE METAL FILM, 1/2W 15 OHM J
R4431 24366102 CARBON FILM, 1/6W 1K OHM J
R7002 24872101 CHIP, 1/16W 100 OHM J
R7003 24872102 CHIP, 1/16W 1K OHM J
R7004 24872101 CHIP, 1/16W 100 OHM J
R7005 24871221 CHIP, 1/8W 220 OHM J
R7006 24871221 CHIP, 1/8W 220 OHM J
R7007 24872101 CHIP, 1/16W 100 OHM J
R7008 24872681 CHIP, 1/16W 680 OHM J
R7009 24872333 CHIP, 1/16W 33K OHM J
R7010 24872273 CHIP, 1/16W 27K OHM J
R7011 24872333 CHIP, 1/16W 33K OHM J
R7012 24872121 CHIP, 1/16W 120 OHM J
R7013 24872821 CHIP, 1/16W 820 OHM J
R7014 24872681 CHIP, 1/16W 680 OHM J
R7015 24871471 CHIP, 1/8W 470 OHM J
R7016 24871471 CHIP, 1/8W 470 OHM J
R7017 24872102 CHIP, 1/16W 1K OHM J
R7018 24872102 CHIP, 1/16W 1K OHM J
R7019 24871100 CHIP, 1/8W 10 OHM J
R7020 24871100 CHIP, 1/8W 10 OHM J
R7021 24871100 CHIP, 1/8W 10 OHM J
R7022 24871100 CHIP, 1/8W 10 OHM J
R7023 24871100 CHIP, 1/8W 10 OHM J
R7024 24871100 CHIP, 1/8W 10 OHM J
R7025 24871100 CHIP, 1/8W 10 OHM J
R7026 24871100 CHIP, 1/8W 10 OHM J
R7027 24552331 OXIDE METAL FILM, 1/2W 330 OHM J
R7028 24872751 CHIP, 1/16W 750 OHM J
R7029 24366122 CARBON FILM, 1/6W 1.2K OHM J
R7030 24872683 CHIP, 1/16W 68K OHM J
R7031 24366683 CARBON FILM, 1/6W 68K OHM J
R7032 24872751 CHIP, 1/16W 750 OHM J
R7033 24872122 CHIP, 1/16W 1.2K OHM J
R7034 24872102 CHIP, 1/16W 1K OHM J
R7035 24553330 OXIDE METAL FILM, 1W 33 OHM J
R7036 24321229 OXIDE METAL FILM, 1/2W 2.2 OHM J
R7037 24553330 OXIDE METAL FILM, 1W 33 OHM J
R7038 24322229 OXIDE METAL FILM, 1W 2.2 OHM J
R7039 24554221 OXIDE METAL FILM, 2W 220 OHM J
R7040 24872270 CHIP, 1/16W 27 OHM J
R7041 24872270 CHIP, 1/16W 27 OHM J
R7102 24872101 CHIP, 1/16W 100 OHM J
R7103 24872102 CHIP, 1/16W 1K OHM J
R7104 24872101 CHIP, 1/16W 100 OHM J
R7105 24871221 CHIP, 1/8W 220 OHM J
R7106 24871221 CHIP, 1/8W 220 OHM J
R7107 24872101 CHIP, 1/16W 100 OHM J
R7108 24872681 CHIP, 1/16W 680 OHM J
R7109 24872333 CHIP, 1/16W 33K OHM J
R7110 24872273 CHIP, 1/16W 27K OHM J
R7111 24872333 CHIP, 1/16W 33K OHM J
– 36 –
Location Parts No. Description
No.
Location Parts No. Description
No.
R7112 24872121 CHIP, 1/16W 120 OHM J
R7113 24872821 CHIP, 1/16W 820 OHM J
R7114 24872681 CHIP, 1/16W 680 OHM J
R7115 24871471 CHIP, 1/8W 470 OHM J
R7116 24871471 CHIP, 1/8W 470 OHM J
R7117 24872102 CHIP, 1/16W 1K OHM J
R7118 24872102 CHIP, 1/16W 1K OHM J
R7119 24871100 CHIP, 1/8W 10 OHM J
R7120 24871100 CHIP, 1/8W 10 OHM J
R7121 24871100 CHIP, 1/8W 10 OHM J
R7122 24871100 CHIP, 1/8W 10 OHM J
R7123 24871100 CHIP, 1/8W 10 OHM J
R7124 24871100 CHIP, 1/8W 10 OHM J
R7125 24871100 CHIP, 1/8W 10 OHM J
R7126 24871100 CHIP, 1/8W 10 OHM J
R7127 24552331 OXIDE METAL FILM, 1/2W 330 OHM J
R7128 24872751 CHIP, 1/16W 750 OHM J
R7129 24366122 CARBON FILM, 1/6W 1.2K OHM J
R7130 24872683 CHIP, 1/16W 68K OHM J
R7131 24366683 CARBON FILM, 1/6W 68K OHM J
R7132 24872751 CHIP, 1/16W 750 OHM J
R7133 24872122 CHIP, 1/16W 1.2K OHM J
R7134 24872102 CHIP, 1/16W 1K OHM J
R7135 24553330 OXIDE METAL FILM, 1W 33 OHM J
R7136 24321229 OXIDE METAL FILM, 1/2W 2.2 OHM J
R7137 24553330 OXIDE METAL FILM, 1W 33 OHM J
R7138 24322229 OXIDE METAL FILM, 1W 2.2 OHM J
R7139 24554221 OXIDE METAL FILM, 2W 220 OHM J
R7140 24872270 CHIP, 1/16W 27 OHM J
R7141 24872270 CHIP, 1/16W 27 OHM J
R7202 24872101 CHIP, 1/16W 100 OHM J
R7203 24872102 CHIP, 1/16W 1K OHM J
R7204 24872101 CHIP, 1/16W 100 OHM J
R7205 24871221 CHIP, 1/8W 220 OHM J
R7206 24871221 CHIP, 1/8W 220 OHM J
R7207 24872101 CHIP, 1/16W 100 OHM J
R7208 24872681 CHIP, 1/16W 680 OHM J
R7209 24872333 CHIP, 1/16W 33K OHM J
R7210 24872273 CHIP, 1/16W 27K OHM J
R7211 24872333 CHIP, 1/16W 33K OHM J
R7212 24872121 CHIP, 1/16W 120 OHM J
R7213 24872821 CHIP, 1/16W 820 OHM J
R7214 24872681 CHIP, 1/16W 680 OHM J
R7215 24871471 CHIP, 1/8W 470 OHM J
R7216 24871471 CHIP, 1/8W 470 OHM J
R7217 24872102 CHIP, 1/16W 1K OHM J
R7218 24872102 CHIP, 1/16W 1K OHM J
R7219 24871100 CHIP, 1/8W 10 OHM J
R7220 24871100 CHIP, 1/8W 10 OHM J
R7221 24871100 CHIP, 1/8W 10 OHM J
R7222 24871100 CHIP, 1/8W 10 OHM J
R7223 24871100 CHIP, 1/8W 10 OHM J
R7224 24871100 CHIP, 1/8W 10 OHM J
R7225 24871100 CHIP, 1/8W 10 OHM J
R7226 24871100 CHIP, 1/8W 10 OHM J
R7227 24552331 OXIDE METAL FILM, 1/2W 330 OHM J
R7228 24872751 CHIP, 1/16W 750 OHM J
R7229 24366122 CARBON FILM, 1/6W 1.2K OHM J
R7230 24872683 CHIP, 1/16W 68K OHM J
R7231 24366683 CARBON FILM, 1/6W 68K OHM J
R7232 24872751 CHIP, 1/16W 750 OHM J
R7233 24872122 CHIP, 1/16W 1.2K OHM J
R7234 24872102 CHIP, 1/16W 1K OHM J
R7235 24553330 OXIDE METAL FILM, 1W 33 OHM J
R7236 24321229 OXIDE METAL FILM, 1/2W 2.2 OHM J
R7237 24553330 OXIDE METAL FILM, 1W 33 OHM J
R7238 24322229 OXIDE METAL FILM, 1W 2.2 OHM J
R7239 24554221 OXIDE METAL FILM, 2W 220 OHM J
R7240 24872270 CHIP, 1/16W 27 OHM J
R7241 24872270 CHIP, 1/16W 27 OHM J
R7701 24011392 CHIP, 1/20W 3.9K OHM J
R7702 24000445 CHIP JUMPER, 1608TYPE
R7707 24011472 CHIP, 1/20W 4.7K OHM J
R7708 24011472 CHIP, 1/20W 4.7K OHM J
R7710 24383221 OXIDE METAL FILM, 2W 220 OHM J
R7711 24339189 OXIDE METAL FILM, 2W 1.8 OHM J
R7712 24011472 CHIP, 1/20W 4.7K OHM J
R7713 24011472 CHIP, 1/20W 4.7K OHM J
R7715 24383221 OXIDE METAL FILM, 2W 220 OHM J
R7716 24339189 OXIDE METAL FILM, 2W 1.8 OHM J
R7717 24011472 CHIP, 1/20W 4.7K OHM J
R7718 24011472 CHIP, 1/20W 4.7K OHM J
R7720 24383221 OXIDE METAL FILM, 2W 220 OHM J
R7721 24339189 OXIDE METAL FILM, 2W 1.8 OHM J
R7722 24011472 CHIP, 1/20W 4.7K OHM J
R7723 24011472 CHIP, 1/20W 4.7K OHM J
R7725 24383221 OXIDE METAL FILM, 2W 220 OHM J
R7726 24339189 OXIDE METAL FILM, 2W 1.8 OHM J
R7727 24011472 CHIP, 1/20W 4.7K OHM J
R7728 24011472 CHIP, 1/20W 4.7K OHM J
R7730 24383221 OXIDE METAL FILM, 2W 220 OHM J
R7731 24339189 OXIDE METAL FILM, 2W 1.8 OHM J
R7732 24011472 CHIP, 1/20W 4.7K OHM J
R7733 24011472 CHIP, 1/20W 4.7K OHM J
R7735 24383221 OXIDE METAL FILM, 2W 220 OHM J
R7736 24339189 OXIDE METAL FILM, 2W 1.8 OHM J
R7743 24322338 OXIDE METAL FILM, 1W 0.33 OHM J
R7744 24322338 OXIDE METAL FILM, 1W 0.33 OHM J
R7745 24011101 CHIP, METAL FILM, 1/20W 100 OHM J
R7746 24011101 CHIP, METAL FILM, 1/20W 100 OHM J
R7747 24011221 CHIP, METAL FILM, 1/20W 220 OHM J
R7748 24011221 CHIP, METAL FILM, 1/20W 220 OHM J
R7749 24011102 CHIP, METAL FILM, 1/20W 1K OHM J
R7750 24011332 CHIP, 1/20W 3.3K OHM J
R7751 24011153 CHIP, METAL FILM, 1/2OW 15K OHM J
R7752 24366822 CARBON FILM, 1/6W 8.2K OHM J
R7753 24011101 CHIP, METAL FILM, 1/20W 100 OHM J
R7754 24011333 CHIP, METAL FILM, 1/20W 33K OHM J
R7755 24011153 CHIP, METAL FILM, 1/2OW 15K OHM J
R7756 24011153 CHIP, METAL FILM, 1/2OW 15K OHM J
R7757 24011681 CHIP, METAL FILM, 1/20W 680 OHM J
R7758 24011332 CHIP, 1/20W 3.3K OHM J
R7760 24011101 CHIP, METAL FILM, 1/20W 100 OHM J
R7761 24011122 CHIP, METAL FILM, 1/20W 1.2K OHM J
R7762 24011101 CHIP, METAL FILM, 1/20W 100 OHM J
R7763 24011122 CHIP, METAL FILM, 1/20W 1.2K OHM J
R7765 24011103 CHIP, METAL FILM, 1/20W 10K OHM J
R7766 24011103 CHIP, METAL FILM, 1/20W 10K OHM J
R7767 24011103 CHIP, METAL FILM, 1/20W 10K OHM J
R7768 24011103 CHIP, METAL FILM, 1/20W 10K OHM J
R7769 24011103 CHIP, METAL FILM, 1/20W 10K OHM J
R7770 24011123 CHIP, METAL FILM, 1/20W 12K OHM J
R7771 24011472 CHIP, 1/20W 4.7K OHM J
R7772 24011473 CHIP, 1/20W 47K OHM J
R7773 24011822 CHIP, 1/20W 8.2K OHM J
R7774 24011472 CHIP, 1/20W 4.7K OHM J
R7775 24011331 CHIP, 1/20W 330 OHM J
R7786 24366101 CARBON FILM, 1/6W 100 OHM J
R7788 24011221 CHIP, METAL FILM, 1/20W 220 OHM J
R7802 24383102 OXIDE METAL FILM, 2W 1K OHM J
R7836 24011103 CHIP, METAL FILM, 1/20W 10K OHM J
R7837 24011100 CHIP, METAL FILM, 1/20W 10 OHM J
R7841 24011220 CHIP, METAL FILM, 1/20W 22 OHM J
R7842 24011472 CHIP, 1/20W 4.7K OHM J
R7843 24552331 OXIDE METAL FILM, 1/2W 330 OHM J
R7844 24011472 CHIP, 1/20W 4.7K OHM J
R7845 24552331 OXIDE METAL FILM, 1/2W 330 OHM J
R7846 24011472 CHIP, 1/20W 4.7K OHM J
R7847 24011472 CHIP, 1/20W 4.7K OHM J
R7848 24011472 CHIP, 1/20W 4.7K OHM J
R7861 24011103 CHIP, METAL FILM, 1/20W 10K OHM J
R7862 24011472 CHIP, 1/20W 4.7K OHM J
R7868 24011822 CHIP, 1/20W 8.2K OHM J
R7872 24011103 CHIP, METAL FILM, 1/20W 10K OHM J
R7880 24366221 CARBON FILM, 1/6W 220 OHM J
R7881 24011472 CHIP, 1/20W 4.7K OHM J
R7882 24366103 CARBON FILM, 1/6W 10K OHM J
R7883 24366103 CARBON FILM, 1/6W 10K OHM J
R7884 24011123 CHIP, METAL FILM, 1/20W 12K OHM J
R7885 24011332 CHIP, 1/20W 3.3K OHM J
R7886 24011473 CHIP, 1/20W 47K OHM J
R7887 24011103 CHIP, METAL FILM, 1/20W 10K OHM J
Location Parts No. Description
No.
Location Parts No. Description
No.
– 37 –
R7890 24000445 CHIP JUMPER, 1608TYPE
R7891 24000445 CHIP JUMPER, 1608TYPE
R7892 24011472 CHIP, 1/20W 4.7K OHM J
R7893 24366472 CARBON FILM, 1/6W 4.7K OHM J
R7894 24011472 CHIP, 1/20W 4.7K OHM J
R7898 24011472 CHIP, 1/20W 4.7K OHM J
R7904 24000639 METAL FILM, 1/4W 22K OHM F
R7905 24000370 METAL FILM, 1/4W 3.3K OHM F
R7906 24011822 CHIP, 1/20W 8.2K OHM J
R7910 24000445 CHIP JUMPER, 1608TYPE
R7911 24000445 CHIP JUMPER, 1608TYPE
R7912 24000445 CHIP JUMPER, 1608TYPE
R7913 24000445 CHIP JUMPER, 1608TYPE
R7914 24381182 OXIDE METAL FILM, 1/2W 1.8K OHM J
R8851 24000637 METAL FILM, 1/4W 15K OHM F
R8852 24000245 METAL FILM, 1/4W 33K OHM F
R8853 24000358 METAL FILM, 1/4W 1K OHM F
R9028 24552101 OXIDE METAL FILM, 1/2W 100 OHM J
R9085 24552101 OXIDE METAL FILM, 1/2W 100 OHM J
R9086 24552101 OXIDE METAL FILM, 1/2W 100 OHM J
R9501 24872101 CHIP, 1/16W 100 OHM J
R9503 24872122 CHIP, 1/16W 1.2K OHM J
R9504 24872122 CHIP, 1/16W 1.2K OHM J
R9507 24872330 CHIP, 1/16W 33 OHM J
R9607 24872101 CHIP, 1/16W 100 OHM J
R9608 24872122 CHIP, 1/16W 1.2K OHM J
R9609 24872122 CHIP, 1/16W 1.2K OHM J
R9620 24872330 CHIP, 1/16W 33 OHM J
RA71 24011683 CHIP, METAL FILM, 1/20W 68K OHM J
RA72 24011223 CHIP, 1/20W 22K OHM J
RA73 24011103 CHIP, METAL FILM, 1/20W 10K OHM J
RA76 24011103 CHIP, METAL FILM, 1/20W 10K OHM J
RA77 24011223 CHIP, 1/20W 22K OHM J
RB02 24011271 CHIP, 1/20W 270 OHM J
RB08 24011221 CHIP, METAL FILM, 1/20W 220 OHM J
RB09 24366470 CARBON FILM, 1/6W 47 OHM J
RB10 24011102 CHIP, METAL FILM, 1/20W 1K OHM J
RB11 24011103 CHIP, METAL FILM, 1/20W 10K OHM J
RB12 24366471 CARBON FILM, 1/6W 470 OHM J
RB13 24011223 CHIP, 1/20W 22K OHM J
RB14 24011103 CHIP, METAL FILM, 1/20W 10K OHM J
RB20 24011222 CHIP, METAL FILM, 1/20W 2.2K OHM J
RB21 24011821 CHIP, 1/20W 820 OHM J
RB22 24011821 CHIP, 1/20W 820 OHM J
RB23 24011821 CHIP, 1/20W 820 OHM J
RB24 24011821 CHIP, 1/20W 820 OHM J
RB25 24011223 CHIP, 1/20W 22K OHM J
RB26 24011821 CHIP, 1/20W 820 OHM J
RB27 24011821 CHIP, 1/20W 820 OHM J
RB28 24011821 CHIP, 1/20W 820 OHM J
RB29 24011821 CHIP, 1/20W 820 OHM J
RB30 24011821 CHIP, 1/20W 820 OHM J
RB40 24011103 CHIP, METAL FILM, 1/20W 10K OHM J
RB41 24011472 CHIP, 1/20W 4.7K OHM J
RC01 24011102 CHIP, METAL FILM, 1/20W 1K OHM J
RC02 24011102 CHIP, METAL FILM, 1/20W 1K OHM J
RC03 24011102 CHIP, METAL FILM, 1/20W 1K OHM J
RC04 24011102 CHIP, METAL FILM, 1/20W 1K OHM J
RC05 24011102 CHIP, METAL FILM, 1/20W 1K OHM J
RC06 24011102 CHIP, METAL FILM, 1/20W 1K OHM J
RC07 24011102 CHIP, METAL FILM, 1/20W 1K OHM J
RC08 24011102 CHIP, METAL FILM, 1/20W 1K OHM J
RC09 24011102 CHIP, METAL FILM, 1/20W 1K OHM J
RC10 24011102 CHIP, METAL FILM, 1/20W 1K OHM J
RC11 24011102 CHIP, METAL FILM, 1/20W 1K OHM J
RC12 24011102 CHIP, METAL FILM, 1/20W 1K OHM J
RC13 24011102 CHIP, METAL FILM, 1/20W 1K OHM J
RC14 24011102 CHIP, METAL FILM, 1/20W 1K OHM J
RC60 24011681 CHIP, METAL FILM, 1/20W 680 OHM J
RC61 24011681 CHIP, METAL FILM, 1/20W 680 OHM J
RC98 24011104 CHIP, METAL FILM, 1/20W 100K OHM J
RG01 24366103 CARBON FILM, 1/6W 10K OHM J
RG02 24011392 CHIP, 1/20W 3.9K OHM J
RG03 24011472 CHIP, 1/20W 4.7K OHM J
RG04 24011472 CHIP, 1/20W 4.7K OHM J
RG05 24366103 CARBON FILM, 1/6W 10K OHM J
RG06 24011103 CHIP, METAL FILM, 1/20W 10K OHM J
RG07 24366103 CARBON FILM, 1/6W 10K OHM J
RG08 24366103 CARBON FILM, 1/6W 10K OHM J
RG09 24011102 CHIP, METAL FILM, 1/20W 1K OHM J
RG10 24366102 CARBON FILM, 1/6W 1K OHM J
RG11 24366103 CARBON FILM, 1/6W 10K OHM J
RG12 24011103 CHIP, METAL FILM, 1/20W 10K OHM J
RG13 24011103 CHIP, METAL FILM, 1/20W 10K OHM J
RG15 24366472 CARBON FILM, 1/6W 4.7K OHM J
RG16 24011103 CHIP, METAL FILM, 1/20W 10K OHM J
RG17 24011562 CHIP, 1/20W 5.6K OHM J
RG18 24011103 CHIP, METAL FILM, 1/20W 10K OHM J
RG19 24366103 CARBON FILM, 1/6W 10K OHM J
RG20 24366103 CARBON FILM, 1/6W 10K OHM J
RG28 24366472 CARBON FILM, 1/6W 4.7K OHM J
RG29 24011472 CHIP, 1/20W 4.7K OHM J
RG30 24011473 CHIP, 1/20W 47K OHM J
RG31 24011101 CHIP, METAL FILM, 1/20W 100 OHM J
RG32 24366472 CARBON FILM, 1/6W 4.7K OHM J
RG33 24011472 CHIP, 1/20W 4.7K OHM J
RG34 24011393 CHIP, 1/20W 39K OHM J
RG35 24366101 CARBON FILM, 1/6W 100 OHM J
RG42 24366101 CARBON FILM, 1/6W 100 OHM J
RG44 24366101 CARBON FILM, 1/6W 100 OHM J
RG45 24366223 CARBON FILM, 1/6W 22K OHM J
RG46 24011123 CHIP, METAL FILM, 1/20W 12K OHM J
RG47 24011332 CHIP, 1/20W 3.3K OHM J
RG48 24011332 CHIP, 1/20W 3.3K OHM J
RG49 24011332 CHIP, 1/20W 3.3K OHM J
RG50 24011472 CHIP, 1/20W 4.7K OHM J
RG51 24011103 CHIP, METAL FILM, 1/20W 10K OHM J
RG52 24552101 OXIDE METAL FILM, 1/2W 100 OHM J
RG53 24552102 OXIDE METAL FILM, 1/2W 1K OHM J
RG60 24011103 CHIP, METAL FILM, 1/20W 10K OHM J
RG61 24011103 CHIP, METAL FILM, 1/20W 10K OHM J
RG62 24366472 CARBON FILM, 1/6W 4.7K OHM J
RG63 24011101 CHIP, METAL FILM, 1/20W 100 OHM J
RG64 24011472 CHIP, 1/20W 4.7K OHM J
RG65 24011101 CHIP, METAL FILM, 1/20W 100 OHM J
RG66 24011222 CHIP, METAL FILM, 1/20W 2.2K OHM J
RG67 24366472 CARBON FILM, 1/6W 4.7K OHM J
RG103 24552101 OXIDE METAL FILM, 1/2W 100 OHM J
RG104 24552102 OXIDE METAL FILM, 1/2W 1K OHM J
RS96 24011104 CHIP, METAL FILM, 1/20W 100K OHM J
RS97 24011104 CHIP, METAL FILM, 1/20W 100K OHM J
RS99 24011104 CHIP, METAL FILM, 1/20W 100K OHM J
RV34 24872750 CHIP, 1/16W 75 OHM J
RV37 24872750 CHIP, 1/16W 75 OHM J
RV40 24872750 CHIP, 1/16W 75 OHM J
RV48 24872750 CHIP, 1/16W 75 OHM J
RV49 24872750 CHIP, 1/16W 75 OHM J
RV61 24011101 CHIP, METAL FILM, 1/20W 100 OHM J
RV85 24366471 CARBON FILM, 1/6W 470 OHM J
RV89 24366750 CARBON FILM, 1/6W 75 OHM J
RV225 24366750 CARBON FILM, 1/6W 75 OHM J
RV226 24366750 CARBON FILM, 1/6W 75 OHM J
RV227 24366750 CARBON FILM, 1/6W 75 OHM J
RY02 24011101 CHIP, METAL FILM, 1/20W 100 OHM J
RY04 24011103 CHIP, METAL FILM, 1/20W 10K OHM J
RY160 24011471 CHIP, 1/20W 470 OHM J
RY170 24011101 CHIP, METAL FILM, 1/20W 100 OHM J
RY171 24366183 CARBON FILM, 1/6W 18K OHM J
RY172 24011273 CHIP, 1/20W 27K OHM J
D899 24000656 VARISTOR, TNR15G471K
G934 24366560 CARBON FILM, 1/6W 56 OHM J
G944 24366560 CARBON FILM, 1/6W 56 OHM J
G954 24366560 CARBON FILM, 1/6W 56 OHM J
GJ03 24000445 CHIP JUMPER, 1608TYPE
GJ04 24000445 CHIP JUMPER, 1608TYPE
GJ05 24000445 CHIP JUMPER, 1608TYPE
GR31 24000445 CHIP JUMPER, 1608TYPE
GR32 24000445 CHIP JUMPER, 1608TYPE
GR102 24000445 CHIP JUMPER, 1608TYPE
GR103 24000445 CHIP JUMPER, 1608TYPE
GR611 24000445 CHIP JUMPER, 1608TYPE
GR690 24000445 CHIP JUMPER, 1608TYPE
– 38 –
Location Parts No. Description
No.
Location Parts No. Description
No.
GR691 24000445 CHIP JUMPER, 1608TYPE
GR901 24000445 CHIP JUMPER, 1608TYPE
GR903 24000445 CHIP JUMPER, 1608TYPE
GR911 24000445 CHIP JUMPER, 1608TYPE
GRG01 24000445 CHIP JUMPER, 1608TYPE
GRG02 24000445 CHIP JUMPER, 1608TYPE
GRG03 24000445 CHIP JUMPER, 1608TYPE
GRG04 24000445 CHIP JUMPER, 1608TYPE
COILS & TRANSFORMERS
L101 23248296 COIL, CHOKE, TLN3278GH
L102 23103828 INDUCTOR, BEAD, TEM2121M
L103 23103828 INDUCTOR, BEAD, TEM2121M
L302 23248073 COIL, CHOKE, TLN3299D
L303 23248073 COIL, CHOKE, TLN3299D
L304 23103145 FERRITE CHOKE, TEM2011AA
L305 23103248 FERRITR CHOKE, TEM2014AA
L310 23289846 COIL, PEAKING, TRF4101AT
L401 23289560 COIL, PEAKING, TRF4560AF
L402 23248345 COIL, CHOKE, TLN3534AH
L403 23103145 FERRITE CHOKE, TEM2011AA
L406 23248191 COIL, CHOKE, TLN3351AD
L407 23103248 FERRITR CHOKE, TEM2014AA
L408 23103248 FERRITR CHOKE, TEM2014AA
L441 23233116 COIL, LINIALITY, TLN2222AH
L462 23231390 DEFLECTION YOKE, TDY707RD
L463 23231390 DEFLECTION YOKE, TDY707RD
L464 23231390 DEFLECTION YOKE, TDY707RD
L472 23102461 VM COIL, 29.1VM5T3PLEAD MAG-1103
L473 23102530 COIL, CPM29.1VM5T, MAG-1130
L474 23102461 VM COIL, 29.1VM5T3PLEAD MAG-1103
L771 23103145 FERRITE CHOKE, TEM2011AA
L820 #2 23248087 COIL, CHOKE, TLN3312D 43JH9UE/UT
#3 23248087 COIL, CHOKE, TLN3312D 43JH9UE/UT
L830 23280019 COIL, PEAKING, TRF4330AZ
L831 23103941 COIL, CHOKE, TEM2011
L832 23248257 COIL, CHOKE, TLN3503AH
L833 23248320 COIL, CHOKE, TLN3441AH
L840 23280019 COIL, PEAKING, TRF4330AZ
L841 23103145 FERRITE CHOKE, TEM2011AA
L843 23248285 COIL, CHOKE, TLN3515AH
L844 23248285 COIL, CHOKE, TLN3515AH
L850 23103145 FERRITE CHOKE, TEM2011AA
L851 23103145 FERRITE CHOKE, TEM2011AA
L852 23103145 FERRITE CHOKE, TEM2011AA
L854 23103145 FERRITE CHOKE, TEM2011AA
L861 23103145 FERRITE CHOKE, TEM2011AA
L862 23103145 FERRITE CHOKE, TEM2011AA
L864 23103145 FERRITE CHOKE, TEM2011AA
L880 23103145 FERRITE CHOKE, TEM2011AA
L881 23103145 FERRITE CHOKE, TEM2011AA
L885 23248073 COIL, CHOKE, TLN3299D
L886 23103145 FERRITE CHOKE, TEM2011AA
L887 23103145 FERRITE CHOKE, TEM2011AA
L888 23248321 COIL, CHOKE, TLN3462AH
L891 23103145 FERRITE CHOKE, TEM2011AA
L892 23103145 FERRITE CHOKE, TEM2011AA
L893 23103145 FERRITE CHOKE, TEM2011AA
L894 23248292 COIL, CHOKE, TLN3499GH
L895 23248292 COIL, CHOKE, TLN3499GH
L896 23248292 COIL, CHOKE, TLN3499GH
L902 23289159 COIL, PEAKING, TRF41R5AF
L904 23289120 COIL, PEAKING, TRF4120AF
L905 23289689 COIL, PEAKING, TRF46R8AF
L913 23289159 COIL, PEAKING, TRF41R5AF
L915 23289689 COIL, PEAKING, TRF46R8AF
L916 23289120 COIL, PEAKING, TRF4120AF
L923 23289159 COIL, PEAKING, TRF41R5AF
L924 23289120 COIL, PEAKING, TRF4120AF
L925 23289689 COIL, PEAKING, TRF46R8AF
L7001 23289840 COIL, PEAKING, TRF4100AT
L7002 23103894 FERRITE BEAD CORE, TEM2011AW
L7003 23103894 FERRITE BEAD CORE, TEM2011AW
L7004 23261974 COIL, FERRITE BEAD, HC5-035
L7101 23289840 COIL, PEAKING, TRF4100AT
L7102 23103894 FERRITE BEAD CORE, TEM2011AW
L7103 23103894 FERRITE BEAD CORE, TEM2011AW
L7104 23261974 COIL, FERRITE BEAD, HC5-035
L7201 23289840 COIL, PEAKING, TRF4100AT
L7202 23103894 FERRITE BEAD CORE, TEM2011AW
L7203 23103894 FERRITE BEAD CORE, TEM2011AW
L7204 23261974 COIL, FERRITE BEAD, HC5-035
L7708 23103145 FERRITE CHOKE, TEM2011AA
L7709 23103145 FERRITE CHOKE, TEM2011AA
L7710 23248073 COIL, CHOKE, TLN3299D
L7711 23248073 COIL, CHOKE, TLN3299D
L7712 23248031 COIL, CHOKE, TLN3274D
L7713 23248031 COIL, CHOKE, TLN3274D
LG01 23103159
EMI FILTER, TEM2028AA, 7.5X6.4X8 60MMH 0.5A
LG02 23103159
EMI FILTER, TEM2028AA, 7.5X6.4X8 60MMH 0.5A
LV13 23289100 COIL, PEAKING, TRF4100AF
LV49 23103159
EMI FILTER, TEM2028AA, 7.5X6.4X8 60MMH 0.5A
LY101 23248296 COIL, CHOKE, TLN3278GH
LY102 23103828 INDUCTOR, BEAD, TEM2121M
LY103 23103828 INDUCTOR, BEAD, TEM2121M
T400 23224386 TRANSFORMER, FOCUS, TLN2220AH
T401 23224381 TRANSFORMER, HORIZ DRIVE, TLN1080GH
T461A 23192234 ANODE CAP ASSY, TCC5609FT
T461B 23960136 ADHESIVE, SILICONE, TSE3843-W
T461C 23192233 ANODE CAP ASSY, TCC5609ET
T461Z 23236935
TRANSFORMER, FLY-BACK SERVICE TFB3094YZ
T801 #1 23211783 COIL, LINE FILTER, TRF3234AR 43CJH9UR
#2 23211763
COIL, LINE FILTER 35X32H TRF3241AQ 43JH9UE/UT
#3 23211763
COIL, LINE FILTER 35X32H TRF3241AQ 43JH9UE/UT
T802 #1 23211781 COIL, LINE FILTER, TRF3229AR 43CJH9UR
#2 23211765 COIL, LF LH35V TRF3239AH 43JH9UE/UT
#3 23211765 COIL, LF LH35V TRF3239AH 43JH9UE/UT
T803 #2 23211776
COIL, LINE FILTER 37X44H 6.8MH TRF3197AH 43JH9UE/UT
#3 23211776
COIL, LINE FILTER 37X44H 6.8MH TRF3197AH 43JH9UE/UT
T840 23217650 TRANSFORMER, CONVERTER, TPW3541AH
T844 #1 23217673 TRANSFORMER, CHOKE, TPW2060AH
T845 #1 23217672 TRANSFORMER, CHOKE, TPW2059AL
T862 23217629 TRANSFORMER, CONVERTER TPW3531AS
T865 23224392 TRANSFORMER, PULSE TLN2229AH
GR908 23103894 FERRITE BEAD CORE, TEM2011AW
GR918 23103894 FERRITE BEAD CORE, TEM2011AW
GR928 23103894 FERRITE BEAD CORE, TEM2011AW
Z101 23103778 FERRITE CORE, TFE1008
Z801A 23103839 FERRITE CORE, TFE1012
Z805 23103840 FERRITE CORE, TFE1013
ZB11 23103914 FERRITE CORE, TFE1015AD
ZB13 23103778 FERRITE CORE, TFE1008
ZM02 23103840 FERRITE CORE, TFE1013
ZV15 23103840 FERRITE CORE, TFE1013
SEMICONDUCTORS
Q170 23314993 TRANSISTOR, 2SC4081 Q
Q241 23114756 TRANSISTOR, 2SC2482
Q301 23319787 IC, LA7833S
Q302 23000711 IC, TA1317AN
Q305 23314994 TRANSISTOR, 2SA1576A106
Q306 70119059 IC, OP AMP, TA75902P(J)
Q370 23314993 TRANSISTOR, 2SC4081 Q
Q371 23314994 TRANSISTOR, 2SA1576A106
Q372 23314993 TRANSISTOR, 2SC4081 Q
Q400 23205079 TRANSISTOR, 2SC4686A
Q402 23205166 TRANSISTOR, FET, 2SK2962
Q404 23205149 TRANSISTOR, 2SC5859(FA)
Q405 23205005 TRANSISTOR, KTA2014Y
Q406 23205006 TRANSISTOR, KTC4075Y
Q408 23205005 TRANSISTOR, KTA2014Y
Q409 23205006 TRANSISTOR, KTC4075Y
Q410 23205006 TRANSISTOR, KTC4075Y
Q411 23205006 TRANSISTOR, KTC4075Y
Q420 23114756 TRANSISTOR, 2SC2482
Q425 23205031 TRANSISTOR, FET, 2SK2920
Q428 23205014 TRANSISTOR, 2SC4667-O
Q470 23114541 TRANSISTOR, 2SA1320
Q471 23314993 TRANSISTOR, 2SC4081 Q
Q472 23314993 TRANSISTOR, 2SC4081 Q
Q473 23314994 TRANSISTOR, 2SA1576A106
Q601 23009603 IC, AN7580
Location Parts No. Description
No.
Location Parts No. Description
No.
– 39 –
Q610 23205005 TRANSISTOR, KTA2014Y
Q611 23205204 TRANSISTOR, KTC2875B-RTK
Q612 23205204 TRANSISTOR, KTC2875B-RTK
Q613 23205006 TRANSISTOR, KTC4075Y
Q614 23205236
TRANSISTOR, NPN R1=4.7K R2=47K KRC106S (SOT-23)
Q616 23205005 TRANSISTOR, KTA2014Y
Q620 23009699 IC, AUDIO SOUND CONTROLLER BD3869AF
Q651 23009942 IC, LA4525-E
Q652 23205204 TRANSISTOR, KTC2875B-RTK
Q653 23205204 TRANSISTOR, KTC2875B-RTK
Q701 23205075 TRANSISTOR, 2SA1930
Q702 23205076 TRANSISTOR, 2SC5171
Q711 23205075 TRANSISTOR, 2SA1930
Q712 23205076 TRANSISTOR, 2SC5171
Q721 23205075 TRANSISTOR, 2SA1930
Q722 23205076 TRANSISTOR, 2SC5171
Q751 23135048 IC, STK394-250A
Q752 23135048 IC, STK394-250A
Q765 23314993 TRANSISTOR, 2SC4081 Q
Q766 23314993 TRANSISTOR, 2SC4081 Q
Q767 23314993 TRANSISTOR, 2SC4081 Q
Q768 23314993 TRANSISTOR, 2SC4081 Q
Q769 23906164 IC, TA75S393F
Q776 23314993 TRANSISTOR, 2SC4081 Q
Q777 23314994 TRANSISTOR, 2SA1576A106
Q778 23314993 TRANSISTOR, 2SC4081 Q
Q779 23314993 TRANSISTOR, 2SC4081 Q
Q780 23314994 TRANSISTOR, 2SA1576A106
Q781 23314993 TRANSISTOR, 2SC4081 Q
Q782 23319894 IC, NJM79M05FA
Q783 23205271 TRANSISTOR, FET, 2SJ314-01L
Q784 23009188 IC, KIA7805API
Q785 70129444 IC, PST994D
Q792 23319666 IC, TC74HC123AP(NEW)
Q793 23205031 TRANSISTOR, FET, 2SK2920
Q794 23906164 IC, TA75S393F
Q795 23318537 IC, TC4S66F
Q796 23314993 TRANSISTOR, 2SC4081 Q
Q797 23318537 IC, TC4S66F
Q801 23135028 IC, STR-Z4479
Q820 #2 23135004 IC, STR83145A(LF501) 43JH9UE/UT
#3 23135004 IC, STR83145A(LF501) 43JH9UE/UT
Q821 #2 23314292 TRANSISTOR, 2SC4116-Y 43JH9UE/UT
#3 23314292 TRANSISTOR, 2SC4116-Y 43JH9UE/UT
Q822 #2 23205005 TRANSISTOR, KTA2014Y 43JH9UE/UT
#3 23205005 TRANSISTOR, KTA2014Y 43JH9UE/UT
Q829 23319889 IC, +12V 4% REG. IO=1A TO220FP NJM7812FA
Q836 23000546 IC, SI-8050SS
Q840 23135038 IC, MIP2900MPSCF
Q842 23009270 IC, PHOTO COUPLER, PS2581L1(D)
Q843 23314292 TRANSISTOR, 2SC4116-Y
Q844 23314292 TRANSISTOR, 2SC4116-Y
Q851 23009966 IC, +3.3V 2% REG. TO220FP-3 BA33BC0T
Q852 23009998 IC, ADJ REG. VO=1.5V-12.0V BA00JC5WT-V5
Q862 23009270 IC, PHOTO COUPLER, PS2581L1(D)
Q881 23319693 IC, SE116N, LF4
Q894 23314292 TRANSISTOR, 2SC4116-Y
Q901 23205159 TRANSISTOR, 2SC3942
Q902 23205165 TRANSISTOR, 2SC3950E
Q904 23205158 TRANSISTOR, 2SC3790E
Q905 23205156 TRANSISTOR, 2SA1480E
Q911 23205159 TRANSISTOR, 2SC3942
Q912 23205165 TRANSISTOR, 2SC3950E
Q913 23314163 TRANSISTOR, 2SA1162-Y
Q914 23205158 TRANSISTOR, 2SC3790E
Q915 23205156 TRANSISTOR, 2SA1480E
Q921 23205159 TRANSISTOR, 2SC3942
Q922 23205165 TRANSISTOR, 2SC3950E
Q924 23205158 TRANSISTOR, 2SC3790E
Q925 23205156 TRANSISTOR, 2SA1480E
Q961 23314475 TRANSISTOR, 2SC2712-Y
Q962 23314163 TRANSISTOR, 2SA1162-Y
Q973 23314163 TRANSISTOR, 2SA1162-Y
Q4430 23314164 TRANSISTOR, 2SC2236-Y(C))
Q7001 23314476 TRANSISTOR, 2SC2712-GR
Q7002 23314476 TRANSISTOR, 2SC2712-GR
Q7003 70114402 TRANSISTOR, 2SC3437-Y
Q7004 23114432 TRANSISTOR, 2SC1815-GR
Q7005 23314476 TRANSISTOR, 2SC2712-GR
Q7006 23314476 TRANSISTOR, 2SC2712-GR
Q7007 23314174 TRANSISTOR, 2SA1162-GR
Q7008 23314476 TRANSISTOR, 2SC2712-GR
Q7009 23314174 TRANSISTOR, 2SA1162-GR
Q7101 23314476 TRANSISTOR, 2SC2712-GR
Q7102 23314476 TRANSISTOR, 2SC2712-GR
Q7103 70114402 TRANSISTOR, 2SC3437-Y
Q7104 23114432 TRANSISTOR, 2SC1815-GR
Q7105 23314476 TRANSISTOR, 2SC2712-GR
Q7106 23314476 TRANSISTOR, 2SC2712-GR
Q7107 23314174 TRANSISTOR, 2SA1162-GR
Q7108 23314476 TRANSISTOR, 2SC2712-GR
Q7109 23314174 TRANSISTOR, 2SA1162-GR
Q7201 23314476 TRANSISTOR, 2SC2712-GR
Q7202 23314476 TRANSISTOR, 2SC2712-GR
Q7203 70114402 TRANSISTOR, 2SC3437-Y
Q7204 23114432 TRANSISTOR, 2SC1815-GR
Q7205 23314476 TRANSISTOR, 2SC2712-GR
Q7206 23314476 TRANSISTOR, 2SC2712-GR
Q7207 23314174 TRANSISTOR, 2SA1162-GR
Q7208 23314476 TRANSISTOR, 2SC2712-GR
Q7209 23314174 TRANSISTOR, 2SA1162-GR
Q7761 23314994 TRANSISTOR, 2SA1576A106
Q7762 23314993 TRANSISTOR, 2SC4081 Q
Q7763 23314993 TRANSISTOR, 2SC4081 Q
Q7764 23314994 TRANSISTOR, 2SA1576A106
QB01 23205054 TRANSISTOR, KTA1504Y
QB02 23205054 TRANSISTOR, KTA1504Y
QB03 23205057 TRANSISTOR, KTC3875Y
QB04 23205057 TRANSISTOR, KTC3875Y
QB05 23205057 TRANSISTOR, KTC3875Y
QG01 23319666 IC, TC74HC123AP(NEW)
QG02 23009791 IC, DUAL ANALOG MULTIPLIER CA0007BD
QG04 23314993 TRANSISTOR, 2SC4081 Q
QG05 23205014 TRANSISTOR, 2SC4667-O
QG06 23314994 TRANSISTOR, 2SA1576A106
QG07 23314993 TRANSISTOR, 2SC4081 Q
QG08 23319808 IC, M5218AP
QG10 23314993 TRANSISTOR, 2SC4081 Q
QG11 23314993 TRANSISTOR, 2SC4081 Q
QG12 23314993 TRANSISTOR, 2SC4081 Q
QV48 23314163 TRANSISTOR, 2SA1162-Y
QY10 23314994 TRANSISTOR, 2SA1576A106
QY160 23314993 TRANSISTOR, 2SC4081 Q
QY170 23314993 TRANSISTOR, 2SC4081 Q
D101 23316755 DIODE, ZENER, MTZJ33C
D301 23357165 DIODE, ZENER, UDZS7.5B
D302 23357366 DIODE, FR105-B5
D303 23118504 DIODE, ZENER, RD15ES B3
D304 23316794 DIODE, SC570A
D305 23357365 DIODE, 1N4004A-B5
D306 23357365 DIODE, 1N4004A-B5
D327 23118515 DIODE, ZENER, RD11ESA B1
D333 23118515 DIODE, ZENER, RD11ESA B1
D334 23118515 DIODE, ZENER, RD11ESA B1
D336 #1 23316571 DIODE, ZENER, MA8056-M
D337 #1 23316571 DIODE, ZENER, MA8056-M
D365 23357165 DIODE, ZENER, UDZS7.5B
D370 23316231 DIODE, 1SS355
D371 23118859 DIODE, 1SS133
D401 23118056 DIODE, AG01
D402 23357366 DIODE, FR105-B5
D404 23316254 DIODE, ERC06-15
D406 23115910 DIODE, S5295G
D411 23316610 DIODE, ZENER, MA8180-M
D412 23118707 DIODE, RP-1H
D413 23118707 DIODE, RP-1H
D414 23357366 DIODE, FR105-B5
D415 23357366 DIODE, FR105-B5
D418 23316755 DIODE, ZENER, MTZJ33C
D419 23316231 DIODE, 1SS355
D420 23118859 DIODE, 1SS133
D421 23357366 DIODE, FR105-B5
– 40 –
Location Parts No. Description
No.
Location Parts No. Description
No.
D425 23357366 DIODE, FR105-B5
D426 23316610 DIODE, ZENER, MA8180-M
D450 23357366 DIODE, FR105-B5
D461 23224366 DIODE, FMQ-3GU
D470 23316597 DIODE, ZENER, MA8120-M
D490 23316574 DIODE, ZENER, MA8062-M
D491 23316231 DIODE, 1SS355
D492 23316591 DIODE, ZENER, MA8100-M
D505 23118859 DIODE, 1SS133
D599 #1 23118859 DIODE, 1SS133
D601 23316231 DIODE, 1SS355
D602 23316231 DIODE, 1SS355
D603 23316231 DIODE, 1SS355
D604 23316231 DIODE, 1SS355
D605 23316231 DIODE, 1SS355
D606 23316231 DIODE, 1SS355
D607 23316231 DIODE, 1SS355
D608 23316231 DIODE, 1SS355
D609 23316231 DIODE, 1SS355
D611 23316231 DIODE, 1SS355
D612 23316231 DIODE, 1SS355
D613 23316231 DIODE, 1SS355
D614 23316231 DIODE, 1SS355
D651 23316231 DIODE, 1SS355
D652 23316231 DIODE, 1SS355
D653 23316231 DIODE, 1SS355
D654 23316231 DIODE, 1SS355
D655 23316591 DIODE, ZENER, MA8100-M
D776 23316231 DIODE, 1SS355
D777 23316231 DIODE, 1SS355
D801 23316393 DIODE, D5SB60, 4009 F05
D801A 23476068 HEAT SINK, ASSEM D801
D821 #2 23115338 DIODE, 1S1835 43JH9UE/UT
#3 23115338 DIODE, 1S1835 43JH9UE/UT
D822 #2 23115338 DIODE, 1S1835 43JH9UE/UT
#3 23115338 DIODE, 1S1835 43JH9UE/UT
D823 #2 23316577 DIODE, ZENER, MA8068-M 43JH9UE/UT
#3 23316577 DIODE, ZENER, MA8068-M 43JH9UE/UT
D824 #2 23316565
DIODE, ZENER 4.59-4.83 MA8047-M 43JH9UE/UT
#3 23316565
DIODE, ZENER 4.59-4.83 MA8047-M 43JH9UE/UT
D825 #2 23118933 THYRISTOR, SF5J42(N) 43JH9UE/UT
#3 23118933 THYRISTOR, SF5J42(N) 43JH9UE/UT
D830 23118213 DIODE, RK44,
D840 23357207 DIODE, LN1WBA60
D841 23316572 DIODE, ZENER, MA8056-H
D842 23316564 DIODE, ZENER 4.45-4.69 MA8047-L, TX
D843 #1 23118094 DIODE, EU2A 43CJH9UR
#2 23357372 DIODE, EU2JGF-41U2 43JH9UE/UT
#3 23357372 DIODE, EU2JGF-41U2 43JH9UE/UT
D845 23118041 DIODE, MA111
D846 #1 23118633 DIODE, ZENER, RD3.0ES B2 43CJH9UR
#2 23357250 DIODE, ZENER, DZ3.0 BS B 43JH9UE/UT
#3 23357250 DIODE, ZENER, DZ3.0 BS B 43JH9UE/UT
D847 #1 23118633 DIODE, ZENER, RD3.0ES B2 43CJH9UR
#2 23357250 DIODE, ZENER, DZ3.0 BS B 43JH9UE/UT
#3 23357250 DIODE, ZENER, DZ3.0 BS B 43JH9UE/UT
D848 23118623 DIODE, ZENER, RD10ES B1
D849 23118623 DIODE, ZENER, RD10ES B1
D850 #1 23357338 DIODE, YG226S8
D851 23357216 DIODE, D4SBL20U
D852 23316714 DIODE, RL2Z
D853 23316714 DIODE, RL2Z
D854 #1 23118094 DIODE, EU2A 43CJH9UR
#2 23357372 DIODE, EU2JGF-41U2 43JH9UE/UT
#3 23357372 DIODE, EU2JGF-41U2 43JH9UE/UT
D862 23118057 DIODE, AG01A
D864 23118060 DIODE, AL01Z
D873 23118615 DIODE, ZENER, RD27ES B3
D875 23118516 DIODE, ZENER, RD9.1ES B3
D876 23118603 DIODE, ZENER, RD36ESA B3
D878 23118518 DIODE, ZENER, RD9.1ES
D879 23118615 DIODE, ZENER, RD27ES B3
D880 23357257 DIODE, ZV=4.05-4.26 DZ4.3 BS A
D881 23118041 DIODE, MA111
D883 23357018 DIODE, RL2
D884 23357018 DIODE, RL2
D885 23357216 DIODE, D4SBL20U
D891 23357433
DIODE, VRRM=40V IO=5A TO-220F15 YG801C04R
D892 23357433
DIODE, VRRM=40V IO=5A TO-220F15 YG801C04R
D893 23357433
DIODE, VRRM=40V IO=5A TO-220F15 YG801C04R
D894 23357012 DIODE, 1SS244
D895 23316573 DIODE, ZENER, MA8062-L
D901 23118859 DIODE, 1SS133
D906 23357012 DIODE, 1SS244
D907 23357012 DIODE, 1SS244
D908 23357012 DIODE, 1SS244
D909 23357012 DIODE, 1SS244
D912 23118859 DIODE, 1SS133
D913 23115337 DIODE, 1S1834
D916 23357012 DIODE, 1SS244
D917 23357012 DIODE, 1SS244
D918 23357012 DIODE, 1SS244
D919 23357012 DIODE, 1SS244
D921 23118859 DIODE, 1SS133
D926 23357012 DIODE, 1SS244
D927 23357012 DIODE, 1SS244
D928 23357012 DIODE, 1SS244
D929 23357012 DIODE, 1SS244
D936 23115337 DIODE, 1S1834
D940 23118859 DIODE, 1SS133
D941 23118859 DIODE, 1SS133
D942 23118859 DIODE, 1SS133
D943 23118859 DIODE, 1SS133
D944 23118859 DIODE, 1SS133
D945 23118859 DIODE, 1SS133
D967 23115337 DIODE, 1S1834
D973 23357012 DIODE, 1SS244
D974 23357012 DIODE, 1SS244
D977 23357012 DIODE, 1SS244
D978 23357012 DIODE, 1SS244
D981 23357012 DIODE, 1SS244
D982 23357012 DIODE, 1SS244
D4430 23357365 DIODE, 1N4004A-B5
D4431 23316593 DIODE, ZENER, MA8110-L
D7001 23118859 DIODE, 1SS133
D7002 23118859 DIODE, 1SS133
D7101 23118859 DIODE, 1SS133
D7102 23118859 DIODE, 1SS133
D7201 23118859 DIODE, 1SS133
D7202 23118859 DIODE, 1SS133
D7730 23118538 DIODE, ZENER, RD6.2ESA B2
D7731 23118538 DIODE, ZENER, RD6.2ESA B2
D7733 23118499 DIODE, ZENER, RD18ESA B2
D7734 23118499 DIODE, ZENER, RD18ESA B2
D7760 23316231 DIODE, 1SS355
D7761 23118520 DIODE, ZENER, RD8.2ES B2
D7762 23118520 DIODE, ZENER, RD8.2ES B2
D7763 23316231 DIODE, 1SS355
D7764 23316231 DIODE, 1SS355
D7766 23316231 DIODE, 1SS355
D7790 23316231 DIODE, 1SS355
D7791 23316231 DIODE, 1SS355
D7792 23118859 DIODE, 1SS133
D7793 23357165 DIODE, ZENER, UDZS7.5B
D7794 23357165 DIODE, ZENER, UDZS7.5B
D7806 23316231 DIODE, 1SS355
D7808 23316714 DIODE, RL2Z
D7810 23316402 DIODE, RL4Z
DB01 23358493 DIODE, LED, SPR54MVWFLMN, RED-GRN
DB05 23358593 LED, LAMP BLUE LEADLESS SML012BCTT86
DB06 23358593 LED, LAMP BLUE LEADLESS SML012BCTT86
DB07 23358593 LED, LAMP BLUE LEADLESS SML012BCTT86
DB08 23358593 LED, LAMP BLUE LEADLESS SML012BCTT86
DB09 23358593 LED, LAMP BLUE LEADLESS SML012BCTT86
DB10 23358593 LED, LAMP BLUE LEADLESS SML012BCTT86
DB11 23358593 LED, LAMP BLUE LEADLESS SML012BCTT86
DB12 23358593 LED, LAMP BLUE LEADLESS SML012BCTT86
DB13 23358593 LED, LAMP BLUE LEADLESS SML012BCTT86
DB20 23118509 DIODE, ZENER, RD13ES B1
DB21 23118509 DIODE, ZENER, RD13ES B1
DB23 23118529 DIODE, ZENER, RD5.6ES B2
DB24 23316792 DIODE, SC215
Location Parts No. Description
No.
Location Parts No. Description
No.
– 41 –
DB25 23118859 DIODE, 1SS133
DG02 23118859 DIODE, 1SS133
DG04 23118859 DIODE, 1SS133
DG05 23118859 DIODE, 1SS133
DG07 23118859 DIODE, 1SS133
DG103 23118506 DIODE, ZENER, RD15ES B1
DG104 23316730 DIODE, ZENER VZ16.22-17.06 DO34 MTZ J 18A
DG105 23118506 DIODE, ZENER, RD15ES B1
DG106 23316730 DIODE, ZENER VZ16.22-17.06 DO34 MTZ J 18A
G904 23118859 DIODE, 1SS133
G905 23118859 DIODE, 1SS133
G914 23118859 DIODE, 1SS133
G915 23118859 DIODE, 1SS133
G924 23118859 DIODE, 1SS133
G925 23118859 DIODE, 1SS133
GR513 23118859 DIODE, 1SS133
KB01 23000852 IC, REMOCON RECEIVER, PIC-37043TE2
MISCELLANEOUS
B909 23960136 ADHESIVE, SILICONE, TSE3843-W
BB20A 23713014 CONNECTOR, BRIDGE PLUG 16P 1.5
BB20B 23713013 CONNECTOR, SOCKET, B-B 16P 1.5
BB22A 23713014 CONNECTOR, BRIDGE PLUG 16P 1.5
BB22B 23713013 CONNECTOR, SOCKET, B-B 16P 1.5
BB60A 23713014 CONNECTOR, BRIDGE PLUG 16P 1.5
BB70A 23368646 PLUG, B-B 2MM 56P TAIKO
BM01 23148148 MODULE, BRIDGE MEDIA MBMC04
D461B 70391355
SCREW, BIND HEAD TAP-TITE B, BITTB 3X8 SZN
D801B 70391355
SCREW, BIND HEAD TAP-TITE B, BITTB 3X8 SZN
D850B #1 70391355
SCREW, BIND HEAD TAP-TITE B, BITTB 3X8 SZN
D851B 70391355
SCREW, BIND HEAD TAP-TITE B, BITTB 3X8 SZN
D885B 70391355
SCREW, BIND HEAD TAP-TITE B, BITTB 3X8 SZN
D891B 70391355
SCREW, BIND HEAD TAP-TITE B, BITTB 3X8 SZN
D892B 70391355
SCREW, BIND HEAD TAP-TITE B, BITTB 3X8 SZN
D893B 70391355
SCREW, BIND HEAD TAP-TITE B, BITTB 3X8 SZN
E935 23710134 SCREW, PP4X0.7X8 SBN
E943 23710134 SCREW, PP4X0.7X8 SBN
E956 23710134 SCREW, PP4X0.7X8 SBN
F801 23144654 FUSE, CARTRIDGE 5X20 250V 5.0A
F801A 23165433 FUSE HOLDER, 5.2 SOC
F801B 23165433 FUSE HOLDER, 5.2 SOC
H002 23148046 IF MODULE, ASIA WOW MSP3410G MVCS52
M115 23502328 PHONO PLUG CABLE 2C-2V
MF01 23389216 CABLE, P1.25-16-80 S9599W010
MF03 23389215 CABLE, P1.25-29-80 S9599W010
N400 23960136 ADHESIVE, SILICONE, TSE3843-W
N722 23969684
TAPE, GLASS-CLOTH, W/ADHESIVE W=90 T=0.18
P404 23367069
CONNECTOR, PLUG, NP 2.5MM G JST-EH, B9B-EH-F1A
P661 23363607 JACK, HEAD PHONE, 3.5MM
P710 23368578
CONNECTOR, PLUG 4P, 2.5MM G JST-EH, B4B-EH-F1-TV4
P711 23368578
CONNECTOR, PLUG 4P, 2.5MM G JST-EH, B4B-EH-F1-TV4
P712 23368578
CONNECTOR, PLUG 4P, 2.5MM G JST-EH, B4B-EH-F1-TV4
P800 23368013 CONNECTOR, PLUG, 2P 11.88MM W VT-JST
P801 #1 23372052 POWER CORD, 250V2.5A 43CJH9UR
#2 23372208
POWER CORD, UK-HK-PSB 10A 250V MP5004A PSB 43JH9UE @E111
#3 23372199 POWER CORD, THAI 43JH9UT @E112
P831A 23367070 PLUG , NP 2.5MM G JST-EH B10B-EH-F1A
P835A 23368577
CONNECTOR, PLUG, 3P 2.5MM G JST-EH, B3B-EH-F1-TV4
P835B 23368577
CONNECTOR, PLUG, 3P 2.5MM G JST-EH, B3B-EH-F1-TV4
P880A 23367068
CONNECTOR, PLUG 8P, 2.5MM G JST-EH B8B-EH-F1-TV4
P880B 23367068
CONNECTOR, PLUG 8P, 2.5MM G JST-EH B8B-EH-F1-TV4
P913 23368578
CONNECTOR, PLUG 4P, 2.5MM G JST-EH, B4B-EH-F1-TV4
P915A 23367069
CONNECTOR, PLUG, NP 2.5MM G JST-EH, B9B-EH-F1A
P915B 23367069
CONNECTOR, PLUG, NP 2.5MM G JST-EH, B9B-EH-F1A
P916A 23367069
CONNECTOR, PLUG, NP 2.5MM G JST-EH, B9B-EH-F1A
P916B 23367069
CONNECTOR, PLUG, NP 2.5MM G JST-EH, B9B-EH-F1A
P917 23367070 PLUG , NP 2.5MM G JST-EH B10B-EH-F1A
P918 23368578
CONNECTOR, PLUG 4P, 2.5MM G JST-EH, B4B-EH-F1-TV4
P919 23368578
CONNECTOR, PLUG 4P, 2.5MM G JST-EH, B4B-EH-F1-TV4
PB31A 23368584
CONNECTOR, PLUG, 3P2.5MM W EH-JST S3B-EH
PB31B 23368584
CONNECTOR, PLUG, 3P2.5MM W EH-JST S3B-EH
PG01A 23368577
CONNECTOR, PLUG, 3P 2.5MM G JST-EH, B3B-EH-F1-TV4
PG01B 23368577
CONNECTOR, PLUG, 3P 2.5MM G JST-EH, B3B-EH-F1-TV4
PG02B 23368578
CONNECTOR, PLUG 4P, 2.5MM G JST-EH, B4B-EH-F1-TV4
PG20A 23367070 PLUG , NP 2.5MM G JST-EH B10B-EH-F1A
PG20B 23367070 PLUG , NP 2.5MM G JST-EH B10B-EH-F1A
PM01B 23368578
CONNECTOR, PLUG 4P, 2.5MM G JST-EH, B4B-EH-F1-TV4
PM05 23368579
CONNECTOR, PLUG 5P, 2.5MM G JST-EH, B5B-EH-F1-TV4
PM06 23368578
CONNECTOR, PLUG 4P, 2.5MM G JST-EH, B4B-EH-F1-TV4
PV01 23023084 JACK, PIN 1S6P SMK LAP5030-0108G
PV02 23023205 JACK, PIN 10P SMK KARI2
PV03 23023204 JACK, PIN 7P SMK KARI1
PV15B 23368587
CONNECTOR, PLUG, 8P 2.5MM W EH-JST, S8B-EH
PV202 23902967 CONNECTOR, 15P DSUB JST KES-15S-2A3F
Q301B 70391355
SCREW, BIND HEAD TAP-TITE B, BITTB 3X8 SZN
Q404B #2 70391355
SCREW, BIND HEAD TAP-TITE B, BITTB 3X8 SZN 43JH9UE/UT
#3 70391355
SCREW, BIND HEAD TAP-TITE B, BITTB 3X8 SZN 43JH9UE/UT
Q404D #1 70391355
SCREW, BIND HEAD TAP-TITE B, BITTB 3X8 SZN
Q701B 70391355
SCREW, BIND HEAD TAP-TITE B, BITTB 3X8 SZN
Q702B 70391355
SCREW, BIND HEAD TAP-TITE B, BITTB 3X8 SZN
Q711B 70391355
SCREW, BIND HEAD TAP-TITE B, BITTB 3X8 SZN
Q712B 70391355
SCREW, BIND HEAD TAP-TITE B, BITTB 3X8 SZN
Q721B 70391355
SCREW, BIND HEAD TAP-TITE B, BITTB 3X8 SZN
Q722B 70391355
SCREW, BIND HEAD TAP-TITE B, BITTB 3X8 SZN
Q820B #2 70391355
SCREW, BIND HEAD TAP-TITE B, BITTB 3X8 SZN 43JH9UE/UT
#3 70391355
SCREW, BIND HEAD TAP-TITE B, BITTB 3X8 SZN 43JH9UE/UT
Q829B 70391355
SCREW, BIND HEAD TAP-TITE B, BITTB 3X8 SZN
Q836B 70391355
SCREW, BIND HEAD TAP-TITE B, BITTB 3X8 SZN
Q851B 70391355
SCREW, BIND HEAD TAP-TITE B, BITTB 3X8 SZN
Q852B 70391355
SCREW, BIND HEAD TAP-TITE B, BITTB 3X8 SZN
S801 23344474 SWITCH, PB-3(2TN) CANAL
SA01 23145227 SWITCH, PUSH, 1C1P
SA02 23145227 SWITCH, PUSH, 1C1P
SA03 23145227 SWITCH, PUSH, 1C1P
SA04 23145227 SWITCH, PUSH, 1C1P
SA06 23145227 SWITCH, PUSH, 1C1P
SA07 23145227 SWITCH, PUSH, 1C1P
SR81 23146574 RELAY, DLS5D1-O(M) 0.15W
SR82 23146564 RELAY, DC12V, TV5, DG-3
V901A 23903180 SOCKET, ISHM62S-WE ICE
V901R 23078662 COUPLING/R
V902A 23903180 SOCKET, ISHM62S-WE ICE
V902G 23078663 COUPLING/G
V903A 23903180 SOCKET, ISHM62S-WE ICE
V903B 23078664 COUPLING/B
W661 23351203 SPEAKER, SPK1420AE, 100X100 16-OHM 10W
W662 23351203 SPEAKER, SPK1420AE, 100X100 16-OHM 10W
W663 23351260
SPEAKER, WF 160X160 16-OHM 15W SPK-1461AX
W664 23351260
SPEAKER, WF 160X160 16-OHM 15W SPK-1461AX
Y105 23436569 CASTER UKEZARA, 40W30E
Z401 23140203 SPARK GAP, 2.0-3.0KV C-010, AG20PC152F-L3N
Z410 23110842 FOCUS PACK, TPA6031
Z410A 23505177 CABLE, FOCUS
Z450 24083014 COMPOSITE PARTS, CR-BLOCK TPA5011AH
Z450A 23501755 ANODE CABLE, 400LD FBT-C
Z470 23144605
PROTECTOR, PRT SERIES, DC60V/AC90V 2000MA
Z831 23144603
PROTECTOR, PRT SERIES, DC60V/AC90V 1000MA
Z845 #1 23144603
PROTECTOR, PRT SERIES, DC60V/AC90V 1000MA
Z850 23144192 PROTECTOR, 20PSERIES 125V 3.15A
Z851 23144194 PROTECTOR, 20PSERIES 125V 4A
Z852 23144194 PROTECTOR, 20PSERIES 125V 4A
Z860 23144479 PROTECTOR, 125V 4.0A
Z885 23144195 PROTECTOR, 20PSERIES 125V 5A
Z891 23144194 PROTECTOR, 20PSERIES 125V 4A
Z892 23144194 PROTECTOR, 20PSERIES 125V 4A
ZG01 23140203 SPARK GAP, 2.0-3.0KV C-010, AG20PC152F-L3N
ZG102 23140203 SPARK GAP, 2.0-3.0KV C-010, AG20PC152F-L3N
PC BOARD ASSEMBLIES
*
M021Z 23763015 PWU FRT REG PD2015-1
*
M022Z 23763016 PWU PWR ING PD2015-2
*
M031Z 23762434 PWU CRTD/SVM-R PD1855-1
*
M032Z 23762435 PWU CRTD/SVM-G PD1855-2
*
M033Z 23762436 PWU CRTD/SVM-B PD1855-3
*
M051Z 23762662 PWU BACK AV PD1929-1
*
M052Z 23762663 PWU G1 MODU PD1929-2
*
M053Z 23762664 PWU DD CON PD1929-3
*
M061Z 23762660 PWU CONV OUT PD1928-1
*
M062Z 23762661 PWU IF/AUDIO PD1928-2
*
U801 #1 23763033 PWU PWR/DEF RUSSIAN PD2026, 43CJH9UR
*
#2 23762659 PWU POWER/DEF PD1930, 43JH9UE/UT
*
#3 23762659 PWU POWER/DEF PD1930, 43JH9UE/UT
– 42 –
Location Parts No. Description
No.
Location Parts No. Description
No.
*
U901 23148113 HYPER SIGNAL UD1828, S2004Q002
*
UA02 23707219 PWU FRONT,REG PD2015
*
UA03 23762426 PWU LED PD1858
*
UA04 23762427 PWU RMT PD1859
TUNER
H001 23321416 TUNER
HY01 23321498 TUNER, TIF ASIA IIC PH 5V ENG39A06GF
ACCESSORIES
A701 #1 23067851 CARTON, TOP CASE 43JH9UR
#2 23067849 CARTON, TOP CASE 43JH9UE
A701A #3 23067850 CARTON, TOP CASE 43JH9UT
A702 23946790 PACKING, TOP PACKING
A703 23845450 JOINT
A706 23943008 POLYETHYLENE BAG
K902 23306552 REMOCON HAND UNIT IR, CTV CT-90208
Y101C #2 23566492 OWNERS MANUAL, CS/CT 43JH9UE
Y101E #2 23566491 OWNERS MANUAL, ENGLISH @E111 43JH9UE
#3 23566491 OWNERS MANUAL, ENGLISH @E112 43JH9UT
Y101J #2 23566495 OWNERS MANUAL, INDONESIAN 43JH9UE
Y101R #1 23566494 OWNERS MANUAL, ENG/RUSS 43CJH9UR
Y101T #3 23566493 OWNERS MANUAL, THAI 43JH9UT
Y109 23943846 BAG, POLY
CABINET PARTS
A101 23429120 CABINET, WOOD CABINET
A113 23845554 WIRE CLIP
A151 23067464 CARTON, BOTTOM CASE
A152 23946789 PACKING, BOTTOM PAKCING
A153 23531107 PACKING, PROTECTIVE SHEET
A154 23946302 PACKING
A170 23429142 CABINET, WOOD CABINET PROPER
A171 23437809 CASTER
A172 23436768 HANDLE, HANDLE
A201 23532775 COVER, FRONT BEZEL ASSY
A202 23802362 BOX, MECH BOX ASSY
A203 23802369 BOX, CONTROL BOX ASSY
A204 23527361 GRILLE, SPK GRILLE ASSY(TSP)
A208 23428339 DOOR, DOOR ASSY(TSP)
A241 23445880 KNOB, BUTTON R ASSY
A242 23445881 KNOB, BUTTON L ASSY
A243 23445890 BUTTON, BUTTON POWER REAR(TSP)
A282 23077253 BRACKET, SCREEN
A283 23077254 BRACKET, SCREEN
A401 23532095 COVER, MIRROR COVER
A402 23429122 CABINET, VENTED BACK BOARD
A405 #1 23538606 NAME PLATE, MODEL NO. 43CJH9UR
#2 23538588 NAME PLATE, MODEL NO. 43JH9UE
A405A #3 23538597 NAME PLATE, MODEL NO. 43JH9UT
A430 23532092 COVER, MIRROR COVER
A431 23845800 WIRE HOLDER, NYLON66 D6.8
E966 23960136 ADHESIVE, SILICONE, TSE3843-W
E976 23960136 ADHESIVE, SILICONE, TSE3843-W
E986 23960136 ADHESIVE, SILICONE, TSE3843-W
K101 23405342 LENS, T-100LKAI
K102 23405342 LENS, T-100LKAI
K103 23405342 LENS, T-100LKAI
K501 23311046 SCREEN, 43KNA LENTICULAR SHEET
K502 23311053 SCREEN, 43KNS FRESNEL SHEET
K601 23405403 MIRROR, 43PC 860/580*600/75*3
– 43 – – 44 –
POWER/DEF BOARD PD2026 (43CJH9UR) (U801)
BOTTOM (FOIL) SIDE
23547586
12
1
13
CCP-3400S
B
12
16
12 14
15 17
1
7
24
14
8
1
7
8
35
4
610
7
13
119
5
1
8
4
BB21A
2
C370
R484
C314
D308
R371
C483
R325
R322
C463
R374
Q371
R332
C301
R378
GR31
R491
C465
R466
C318
C315
P831A
C338
R376
R370
C481
R355
R367
Q302
C312
R372
R475
TP-G
R373
GR32
Q330
R482
Q372
R483
R346
R375
D370
D334
L310
R330
B301
R364
TP-V P835B
C371
R481
C302
R480
D327
R331
C482
D365
D309
R321
C316
Q370
R366
R305
R467
1
+
+
+
+
+
6
4
3
1
32
1
2
8
D892A
D893
D893A
L886
L888
C893
L895
C898
Z885
C892
L887
L889
P880A
L894
T865
C885
D885A
C891
L892
L896
L893
1
4
87 5
+
6
3
2
+
+
+
T862
R855
D881
D854
R885
C874
L854
C854
Z892
C871
R864
D875
R883
D885
Q801
Q881
R881
R874
R870
R854
R871
R873
C862
C888
L864
D864
R868
R865
C863
Q862
41
G
B
C
14
+
3
2
15
D862
C867
C873
C868
R862
C879
Q801A
+
R494
BB20A
TE481
BB22A
Q405
162
2
16
16
R390
R307
C4430
D301
Q408
R306
R369
C491
C327
D304
R497
C334
R415
Q406
C303
D337
R496
R345
Q301
R416
D492
Q305
L442
R308
Q409
C497
C332
D336
C325
R492
TE482
Q301A
C309
C402
D302
C308
C333
R348
D305
C361
Q4430
R337
Q341
D4430
R360
R315
D306
R403
C331
L305
D491
C362
P402
R477
C320
R313
R499
R338
R4431
R349
C328
R365
R495
R343
P401
R335
R341
L304
R414
C363
D4431
R311
C340
Q306
R380
R361
R493
C310
C323
R4430
R413
R391
D303
C311
D371
R363
R442
R334
D333
R347
R302
C450
R498
R312
R350
R344
D450
Q402
D490
C416
C330
R362
R431
R381
R340
R342
R336
C401
C364
R314
D411
R368
D
15
S
+
+
1
15
E
3
134
4
5
5
4
+
+
+
+
+
+
5
6
1
1
3
6
6
B
15
1
G
D892 D891
D891A
R432
C321
P405
L302
R489
D852
T400
C844
C853
R101
L891
Q470
D412
C499
R434
R428
Q400
R470
C473
C851
L303
D851A
C852
R427
Z850
L850
R472
R849
R433
L851
R476
C422
SR82
R473
Q472
R426
R429
R485
C425
Q471
L885
R474
Q473
R
4
88
D853
R425
C496
R435
C850
R424
R893
C415
C324
D894
C426
Z470
R423
R478
D851
D470
D895
R486
Z401
Z891
R487
L852
D413
R845
C420
+
+
+
1
3
+
+
E
C
B
E
C
B
+
+
+
Z860
B801
D850
Q844
D880
D850A
SR81
R818
C884
D845
C899
Z852
R810
C880
L861
R894
L880
Q894
R819
C848
L862
D883
C877
Z851
C870
D884
Q843
C881
Z845
R899
L881
C810
1
2
1
+
+
D878
R867
D879
D873
T844
R866
C866
D876
C847
R872
R860
C860
C869
C876
+
D418
R245
R419
R418
R438
Q411
R417
R436
Q404A
Q241
R437
P499
R421
R515
R444
R243
C448
P403
D421
C440
R910
R513
C221
R247
R244
L401
R406
P404
C405
R405
C444
R420
R440
D505
R246
T461
R392
D402
R241
R248
D420
D419
C419
R422
C445
C443
Q410
R
447
R242
T401
Q404
R439
Q420
D401
R443
D406
R407
C515
C446
D404
R404
5
+
C
E
B
4
E
B
1
+
98
6
7
32
E
B
C845
D841
D842
R469
S
L406
R490
C467
D847
D426
D425
R411
D415
L441
D414
Q428
R471
L841
R410
Q425
D843
C841
R412
R409
L840
L408
L402
C417
D461
C470
D846
C423
R448
C464
R446
C846
C449
C468
C432
C814
R449
R441
C412
L403
D
G
+
+
+
R841
L407
Q842
D848
C811
R811
C460
P805B
T801
C840
T845
C812
C801
C849
Q840
Z831
L844
R801
C842
R840
P802
D849
C805
C843
D801
D899
C803
T840
T802
D840
L843
+
4
3
3
4
1
2
3
1
+
C806
P800
D801A
1
LIVE AREA
CAUTION
BLU
BRN
2
F801
T5A L/250V
R484
D308
R371
R325
R322
C463
R374
Q371
R332
R378
GR31
R491
C465
R376
C481
R355
R367
C312
R372
R373
GR32
Q330
R482
Q372
R483
R375
D370
R364
C371
R480
C482
D365
D309
R321
Q370
R467
R855
D881
R881
R307
D301
Q408
R306
C327
R497
C334
R415
Q406
D337
R496
R345
D492
Q305
R494
R308
Q409
D336
R492
C309
R348
C361
Q341
R360
R315
C331
D491
C362
R477
R313
R499
R338
R349
R365
R495
R343
R335
R341
C363
D4431
R380
R361
R493
C323
C311
R363
R334
R347
R498
R312
R350
D490
R362
Q405
R381
R336
R314
D411
R489
C473
R472
R849
R476
C422
R473
Q472
R426
R485
Q471
Q473
R435
R893
R478
D470
D895
R486 R845
Q844
R818
D845
R894
Q894
R819
Q843
R437
R440
R419
R418
R438
D419
C419
R422
Q411
Q410
R439
R404
R841
D841
D842
R469
D426
Q428
R446
– 45 – – 46 –
POWER/DEF BOARD PD1930 (43JH9UE/43JH9UT) (U801)
BOTTOM (FOIL) SIDE
23547681
12
13
1
24
CCP-3400S
B
12
16
12 14
15 17
1
7
14
8
1
7
8
35
4
610
7
13
119
5
1
8
4
BB21A
2
Q302
D327
R305
R475
D365
R372
R330
C371
GR32
C315
D308
B301
R373
C312
R346
R467
R332
C318
R481
R321
P831A
R374
R466
R367
R482
R376
C302
C338
R366
R322
R331
R325
C463
TP-V
D370
C483
C314
D334
C316
GR31
C301
R378
Q330
R364
C482
Q371
R491
R484
C465
P835B
D309
Q370
R480
R483
L310
R375
R370
R371
TP-G
D333
C481
R355
Q372
C370
+
8
1
+
+
+
+
6
4
3
1
32
1
2
+
C893
L887
L893
D885A
L886
D893
L892
P880A
Z885
C898
D885
C885
L894
D892A
C891
L888
D893A
L889
C892
T865
L895
L896
1
6
+
+
+
7
8
+
4523
C871
C854
Q862
C863
R864
R873
D875
R871
R868
Z892
D854
D881
R883
C874
R870
Q881
R865
C888
R874
Q801
C862
R881
R855
R854
L854
R885
D864
L864
14
G
C
B
+
1
3
2
+
4
Q801A
C868
C873
R862
C869 C867
D873
C879
D862
15
+
TE481
Q402
BB20A
BB22A
TE482
2
2
16
16 16
R313
R413
R338
R340
R306
R403
L304
C323
R492
R349
R341
R336
R416
R381
C334
R344
R361
R497
D305
R368
D306
R498
C330
R499
R391
C4430
R390
C363
R307
C328
C497
R493
R369
R4431
R342
C303
R302
R347
C332
R363
C340
C401
C362
D336
R495
Q341
Q409
C333
C310
R380
R315
C325
D490
R312
R442
R311
R431
C311
D302
R494
D491
C364
D337
R4430
D4430
L442
R496
P401
R350
D303
Q406
P402
C320
C309
C416
R365
R314
C491
D301
R362
Q405
R415
D450
R348
D411
R414
R337
C327
Q301A
R345
R343
Q301
C308
D4431
R335
R360
R477
C402
C450
D371
Q306
D492
Q4430
R308
Q305
R334
C361
D304
C331
L305
Q408
+
D
15
+
+
S
1
+
+
3
+
134
4
5
5
4
+
+
+
5
6
1
1
3
6
6
B
E
15
15
1
G
L850
R433
L302
R
4
8
8
C851
R428
L851
D892
C426
R485
C422
R424
C425
D853
R474
R426
C499
D891
Q470
R427
R429
R893
R472
C321
SR82
C473
D894
R473
Q471
R487
Z470
L891
Z401
C853
L852
D412
R845
R432
R489
D895
R101
C420
C496
L303
C415
D470
R486
D852
R425
Q400
Q472
C844
P405
R478
T400
R423
D851A
Q473
R435
R470
D851
Z891
C324
D413
C850
R476
L885
Z850
C852
D891A
R434
R849
+
1
3
+
+
+
E
+
+
E
C
B
C
B
+
+
C880
Q843
C884
T862
D880
C899
R894
Z860
C877
R899
L861
D821
C870
D884
SR81
R818
Q844
C803
C881
L881
Q894
D883
R810
C809
L862
Z851
L880
R819
R872
Z852
C810
B801
D845
R842
+
1
3
2
1
1
+
D878
R860
C860
C866
R866
D876
C876
R867
D879
C806
LIVE AREA
CAUTION
+
R436
P404
R419
R417
R438
R245
D418
Q241
R418
Q411
Q420
R407
R443
D420
R515
R437
Q404A
D421
R392
D505
T461
L401
D419
R
4
4
7
R405
D406
R246
C446
D404
C448
R910
C445
R404
R439
C440
C515
R242
R440
C444
C419
T401
R406
P499
R422
R421
R444
R420
Q404
C221
D401
C405
R244
D402
C443
R248
R247
R243
Q410
P403
R513
6
+
E
E
B
+
4
5
1
C
B
98
7
32
E
B
D842
D841
D426
L406
L403
C417
C423
R449
C449
C467
D847
C846
C464
R446
Q428
R471
R410
R448
C811
L840
C841
D843
R411
L408
L841
Q425
D461
R409
C412
R490
D846
R412
L441
C
4
6
8
L402
R441
D414
T840
D415
C470
C432
R469
G
S
D
+
+
D848
C814
L844
R840
+
431
2
R841
Q840
Q842
L407
C845
C842
D849
C843
R826
C823
R811
D825
R830
R822
C828
R829
R823
Q822
C826
R821
L820
T801
D899
R820
C812
Q821
D425
D801A
R828
Z831
C827
C460
L843
P802
R801
T802
C801
P805B
D823
D822
C840
R824
D824
D840
T803
R827
R825
4
3
+
+
+
+
D801
C824
P800
C825
C805
Q820A
Q820
+
1
BLU
BRN
2
R241
F801
T5A L/250V
D365
R372
C371
GR32 D308
R373
C312
R467
R332
R321
R374
R367
R482
R376
R322
R325
C463
D370
GR31
R378
Q330
R364
C482
Q371
R491
R484
C465
D309
Q370
R480
R483
R375
R371
C481
R355
Q372
D881
R881
R855
R313
R338
R306
C323
R492
R349
R341
R336
R381
C334
R361
R497
R498
R499
C363
R307
R493
R347
R363
C362
D336
R495
Q341
Q409
R380
R315
D490
R312
C311
R494
D491
D337
R496
R350
Q406
C309
R365
R314
D301
R362
Q405
R415
R348
D411
C327
R345
R343
D4431
R335
R360
R477
D492
R308
Q305
R334
C361
C331
Q408
R485
C422
R426
R893
R472
C473
R473
Q471
R845
R489
D895
D470
R486
Q472
R478
Q473
R435
R476
R849
Q843
R894
R818
Q844
Q894
R819
D845
R419
R437
D419
R438
R404
R439
R440
C419
R422
R418
Q411
Q410
D842
D841
D426
R446
Q428
R469
R841
R826
R830
R823
Q822
Q821
R828
D823
R824
D824
R827
HYPER SIGNAL BOARD UD1828 (U901)
TOP (COMPONENT) SIDE
– 47 – – 48 –
HYPER SIGNAL BOARD UD1828 (U901)
BOTTOM (FOIL) SIDE
– 49 – – 50 –
CONV OUT BOARD PD1928-1 (M061Z)
BOTTOM (FOIL) SIDE
– 51 – – 52 –
IF/AUDIO BOARD PD1928-2 (M062Z)
BOTTOM (FOIL) SIDE
23547632
+
8
9
1
16
5
18
15
10
+
+
+
+
+
+
+
+
+
+
+
15
18
10 5 1
1
+
RED
BLUE
+
+
GREEN
+
+
+
CCP-3400S
+
+
+
+
+
Q792
R7905
R7861
C7788
R7894
R7848
R7872
R7906
R7909
R7883
Q783A
D7793
C7701
R7701
Q7761
R7862
R7775
R7893
D7730
C7750
D7734
Q795
D776
R7907
R7841
R7788
C7810
Q780
R7891
C7761
C7815
R7886
R7890
R7732
R7773
R7702
D7809
C7796
R7769
C7817
BB60A
Q769
Q797
C7740
C7794
C7821
Q776
C7789
Q783
R7733
C7753
R7770
C7737
R7908
Q781
C7818
Q785
Q794
C7780
R7745
R7842
R7836
R7731
R7892
C7795
D7806
Q796
R7749
R7774
Q784
C7822
C7741
R7911
D7760
C7733
R7847
R7843
D7792
R7868
D7731
R7728
R7727
R7898
C7705
R7846
R7887
Q752
R7771
D7794
R7751
C7738
Q752A
Q777
C7783
R7882
D7810
R7885
Q784A
R7723
R7884
Q778
R7772
C7732
R7736
Q779
R7786
L7708
C7811
C7736
C7800
R7743
Q788
R7747
C7813
R7904
C7704
Q782
C7797
C7766
R7722
R7735
D777
G
S
D
R7766
D7791
R7762
R7708
C7722
R7715
R7761
L7711
C7726
R7910
R7760
C7786
D7790
R7768
R7721
D7761
L7712
Q766
D7764
R7837
R7726
R7717
R7707
P711
D7763
R7912
R7758
P710
D7766
R7711
L7710
R7753
C7730
R7914
C7785
R7710
R7718
R7720
R7725
R7755
Q768
R7765
C7725
Q751
R7730
C7729
C7735
P712
C7765
C7752
R7756
R7763
Q751A
BB20B
R7716
C7727
C7751
R7802
R7713
Q765
BB22B
R7767
Q767
C7721
PG20A
R7712
R7913
Q7763
43
4
3
2
1
12
3
4
123
4
10
9
7
6
5
2
8
1
C7820
R7844
C7784
R7750
C7792
R7845
Q793
PF01A
C7798
R7748
L7709
C7791
C7724
R7746
C7793
P270
R7744
L7713
Q7762
C7762
R7754
D7762
D7808
D7733
C7819
R7752
C7706
R7880
R7881
Q7764
R7757
R7861
C7788
R7894
R7848
R7872
R7906
R7909
D7793
R7701
Q7761
R7862
R7775
Q795
D776
R7907
R7841
R7788
C7810
Q780
R7891
R7886
R7890
R7732
R7773
R7702
D7809
R7769
Q769
Q797
C7740
C7821
Q776
R7733
R7770
C7737
R7908
Q781
Q794
C7780
R7745
R7842
R7836
R7892
D7806
Q796
R7749
R7774
C7741
R7911
D7760
C7733
R7847
R7868
R7728
R7727
R7898
R7846
R7887
R7771
D7794
R7751
C7738
Q777
C7783
R7885
R7723
R7884
Q778
R7772
C7732
Q779
R7881
C7811
Q788
R7747
R7722
D777
R7766
D7791
R7762
R7708
C7722
R7761
Q7764
C7726
R7910
R7760
R7757
C7786
D7790
R7768
Q766
D7764
R7837
R7717
R7707
D7763
R7912
R7758
D7766
R7753
C7730
C7785
R7718
R7755
Q768
R7765
C7729
R7756
R7763
C7727
R7713
Q765
R7767
Q767
C7721
R7712
R7913
Q7763
R7844
R7750
R7748
R7746
Q7762
R7754
23547632
14 13 12 11 10 9 8 7 6 5 4 3 2 1
Vt
SCL
ADR
+5VNCNCIF32V
SDA
NC
AGC
+
+
+
+
+
+
+
+
1
8
5
4
27 26 25 24 23 22 21 20 19 18 17 16 15
12
10918
1
+
+
+
+
+
+
+
+
3
1
1
34
2
+
+
+
+
+
+
3
2
1
+
+
+
1
+
+
+
CCP-3400S
8
7
6
5
4
3
2
1
+
+
876
RY04
C107
L102
L101
C106
P805A
C105
C102
RY170
C104
C103
RY160
QY160
C108
CY102
D101
GR104
RY02
H002
C101
RY03
CY105
LY10 1
LY103
L103
C109
CY160
L104
Q170
PF03A
HY01
GR101
GR103
CY103
GR102
LY102
R170
H001
GR105
QY10
R171
R657
C657
R667
R616
C691
C602
R691
R602
C110
R690
C618
R611
Q611
C690
GR690
C661
C601
GR691
R601
P881B
D612
C655
R613
R668
R628
R172
D652
R608
R665
D653
R656
Q651
GR612
C662
C660
R627
Q613
C664
R666
R615
R660
R653
C619
C620
C656
R663
C666
R659
R669
GR611
D603
Q614
C604
C652
D654
R658
C658
P603A
C663
D655
QY170
D613
R604
C665
P601A
R652
R651
R607
R626
R661
C654
R664
D651
Q616
C651
RY172
D604
D607
C659
C653
RY171
R619
C608
Q610
R612
R654
D608
Q620
Q653
C667
D611
R614
D609
Q652
R655
Q612
R662
5
4
3
2
1
D605
R618
R617
D601
D614
D606
C605
R609
D602
Q601A
C680
C607
C624
P880B
C681
R603
Q601
C603
P604A
R610
C606
RY04
L102
C105
RY170
C104
C103
RY160
QY160
GR104
RY02
RY03
CY105
LY103
L103
C109
CY160
Q170
GR101
GR103
CY103
GR102
LY102
R170
GR105
QY10
R171
R657
C657
R667
R616
C691 R691
R602
R690
R611
Q611
C690
GR690
GR691
R601
D612
C655
R668
R172
D652
R608
R665
D653
R656
GR612
R627
Q613
R615
R660
R653
C656
R659
R669
GR611
D603
Q614
D654
R658
C658
D655
QY170
D613
R604
R652
R651
R626
R661
R664
D651
Q616
RY172
D604
D607
R619
Q610
R612
R654
D608
Q620
Q653
C667
D611
D609
Q652
R655
Q612
R662
D605
R618
R617
D601
D614
D606
R609
D602
C681
R603
R610
– 53 – – 54 –
CRTD/SVM R BOARD PD1855-1 (M031Z)
BOTTOM (FOIL) SIDE
CRTD/SVM G BOARD PD1855-2 (M032Z)
BOTTOM (FOIL) SIDE
CRTD/SVM B BOARD PD1855-3 (M033Z)
BOTTOM (FOIL) SIDE
23547635
CCP-3400S
-
-
P908
DG103
+
ZG102
R7037
R7038
C7009
C7008
GR908
RG103
D909
D908s
R9085
P913
Q901
Q905
D906
DG104
R938
C930
PG01B
C907
D967
P915A
G901
R991
L905
G904
L904
R968
C903
Q902
C933
Q7008
R7040
R7041
C7011
R7032
P922
P921
C7002
R901
C902
L902
D941
P907
CG102
D901
R7006
Q901A
R904
RG104
R906
R7003
R7004
Q7002
R7011
R9504
Q904
B901
C906
R908
R909
D907
Q913
L7001
R905
R903
D940
Q7001
C967
C901
R933
R7005
L907
R7001
R9503
R931
R995
GR901
R9501
G905
V901A
C904
G934
R7010
R992
R7027
R7002
Q905A
1
4
3
2
CRT-D/R
K
E
C
G1
G2
E
B
B
2
H
H
1
C
C
+
B
E
B
E
4
3
+
C
9
8
7
6
5
3
2
1
-
R7036
C7006 C7003
Q7004
C7001
C7013
C7012
R7039
R7031
D972
D7002
D974
D971
R7029
D7001
R7034
Q702
R7033
R7022
Q7007
Q7006
Q702A
R7021
C
L7003
C7010
Q701
L7002
D973
R7035
R7028
Q701A
R7014
R7008
R7018
R7030
R7017
R7012
R7023
L7004
R7020
R7009
R7007
R7015
R7013
R7026
Q7003
R7016
C7007
R7019
R7024
C7004
P703
Q7009
Q7005
R7025
C7005
+
B
-
-
3
2
1
-
-
+
E
C
E
-
+
B
B
+
+
E
C
+
R7040
R7032
C7002
R7006
R906
R7003
R7004
Q7002
R7011
R9504
R908
R909
Q913
R905
Q7001
C967
R7005
R9503
R995
GR901
R9501
C904
R7010
R7002
R7034
R7033
R7022
Q7007
Q7006Q7008
R7021
R7041
R7028
R7014
R7008
R7018
R7030
R7017
R7012
R7023
R7020
R7009
R7007
R7015
R7013
R7026
Q7003
R7016
R7019
R7024
C7004
Q7009
Q7005
R7025
C7005
23547635
+
CCP-3400S
-
+
1
+
-
+
2
1
-
4
-
3
2
+
-
-
E
-
E
C
B
C
B
+
+
-
+
-
-
+
+
-
+
C
E
B
P916A
D916
GR918
P912
C7108
R7137
C7109
R7138
C7106
C911
C961
P919
Q915
R9086
D918
D919
C935
D913
C917
P915B
G911
G914
L916
R978
Q911
C913
L917
Q912
C943
D917
R943
R7105
R7140
R7106
R7132
P924
P923
R944
G915
L915
R967
R7127
R970
R7103
C9100
Q7102
C962
R964
R9507
R965
Q914
D912
D961
R963
L913
Q961
V902A
R7110
R969
R919
Q915A
R7111
Q962
R915
Q7101
C914
R918
L7101
Q911A
R916
R987
R962
C912
C7102
R7104
D943
R7102
R913
D942
R945
R948
R7101
G944
C915
R961
R950
R966
P909
R914
R911
GR911
B902
CRT-D/G
E
1
3
5
7
9
4
C
K
B
7
E
G2
H
G1
C
B
E
B
C
E
B
C
H
3
1
2
2
6
9
868
5
4
R7136
Q7104
C7113
C7101
C7112
R7139
D978
D7101
D975
R7129
R7131
D976
D7102
C7103
R7118
R7122
R7121
C7111
R7141
R7124
Q7107
R7133
Q712A
Q711
L7102
D977
R7135
C7110
R7128
L7104
L7103
P705
Q711A
R7117
R7107
Q7106
R7115
R7123
R7114
C7104
R7120
Q7103
R7119
Q7105
Q7109
R7108
Q712
R7113
C7107
R7109
R7116
R7134
R7112
C7105
Q7108
R7125
R7126
R7130
3
2
1
R7105
R7140
R7106
R7132
R967
R970
R7103
C9100
Q7102
R964
R9507
R965
R963
Q961
R7110
R969
R919
R7111
Q962
R915
Q7101
C914
R918
R916
R987
R962
C7102
R7104
R7102
R961
R966
GR911
R7118
R7122
R7121
R7141
R7124
Q7107
R7133
R7128
R7117
R7107
Q7106
R7115
R7123
R7114
C7104
R7120
Q7103
R7119
Q7105
Q7109
R7108
R7113
R7109
R7116
R7134
R7112
C7105
Q7108
R7125
R7126
R7130
23547635
-
CCP-3400S
-
+
2
43
1
+
E
C
B
+
-
+
-
-
-
-
+
-
+
E
+
C
B
+
+
B903
8
R929
R928
R925
C923
C9200
R9620
GR903
R7227
7
6
D945
L7201
R924
D921
G925
Q921A
R951
R900
P917
P905
PG02B
P910
C926
DG106
DG105
RG53
CG103
D927
R923
R953
Q924
L923
R930
Q925A
G954
R921
D944
P920
C921
R7201
V903A
C7202
R9607
R926
D936
G921
L924
L927
C936
Q7202
R7206
G924
R9609
Q925
L925
R9608
R7205
D926
R958
R7204
P918
Q7201
C925
D928
R7211
Q921
R7210
R7203
P916B
ZG01
R9028
C924
C922
Q922
Q973
D929
R7202
C953
R920
R988
5
75
2
9
1
1
3
1
2
G1
3
CRT-D/B
8
9
B
C
4
K
B
E
C
G2
CE
2
H
H
2
43
E
B
64
1
4
3 C7201
C7204
R7213
R7217
R7219
R7212
R7220
R7218
C7205
Q7205
Q7208
R7240
R7241
R7232
C7209
C7211
Q7207
R7222
D980
Q722A
R7233
R7237
D7202
C7208
RG52
R7229
R7228
D979
D982
Q721
L7204
D981
R7236
R7235
C7210
C7206
Q722
R7231
P704
C7212
L7203
P926
L7202
C7207
D7201
Q721A
P925
GR928
R7239
C7213
R7221
R7224
R7234
Q7203
Q7206
R7216
R7215
R7214
R7208
Q7204
R7207
R7209
R7223
Q7209
C7203
R7238
R7225
R7230
R7226
3
2
1
C
E
C
E
B
B
R929
R928
R925
C923
C9200
R9620
GR903
C7202
R9607
R926
Q7202
R7206
R9609
R9608
R7205
R7204
Q7201
R7211
R7210
R7203
Q973
R7202
C7204
R7213
R7217
R7219
R7212
R7220
R7218
C7205
Q7205
Q7208
R7240
R7241
R7232
Q7207
R7222
R7233
R7228
R7221
R7224
R7234
Q7203
Q7206
R7216
R7215
R7214
R7208
R7207
R7209
R7223
Q7209
R7225
R7230
R7226
LED BOARD PD1858 (UA03)
TOP (COMPONENT) SIDE
PD1799
23590031A
DB12
CB28
DB10
CB29
DB13
CB30
DB11
RB29RB30 RB28
CB27
RB20
DB05
CB21
QB02
RB27
CB22
RB22
DB08
PB30B
DB06
RB25
DB21
CB23
RB40
CB26
CB24
RB21
RB41
DB09
RB23
RB26
DB07
QB05
DB20
RB24
4321
DB12
CB28
DB10
CB29
DB13
CB30
DB11
RB29RB30 RB28
CB27
RB20
DB05
CB21
QB02
RB27
CB22
RB22
DB08
DB06
RB25
CB23
RB40
CB26CB24
RB21
RB41
DB09
RB23
RB26
DB07
QB05
RB24
23547638
DS-1107
PB30B
DB21DB20
4
3
21
LED BOARD PD1858 (UA03)
BOTTOM (FOIL) SIDE
RMT BOARD PD1859 (UA04)
BOTTOM (FOIL) SIDE
23547641
3
2
1
+
CCP-3400S
DB24
RB12
DB25
CB01
DB23
PB11C
RB09
KB01
– 55 – – 56 –
23547745
CH UP
CH DN
CC48
LC12
RC60
GJ03
CC50
RV48
RV49
GJ04
CV48
CC52
GJ02
CC47
P661
CC51
LV49
GJ01
LC13
CC49
R691
GJ05
RC61
PV40
4
321
8
7
6
2
SA06
RA77
R690
RA73
SA07
SA03SA04
RA71
PB31A
SA01
PB30A
RA72
SA02
RA76
8
9
7
6
5
4
321
VOL UP
321
1432
VIDEO
VOL DN
MENU
+
+
+
+
5
54
4
3
3
3
3
2
2
1
1
1
1
Q851
C8851
Q851A
R8851
R8853
Q852
C8850
C8852
C8854
C8853
PM05
R8852
PM06
C8855
L855
PV15B
Q852A
P601B
CCP-3400S
PB13B
CC48
RC60
GJ03
CC50
RV48
RV49
GJ04
CV48
CC52
GJ02
CC47
CC51
GJ01
CC49
GJ05
RC61
RA77
RA73 RA71RA72
RA76
FRT REG BOARD PD2015-1 (M021Z)
BOTTOM (FOIL) SIDE
PWR ING BOARD PD2015-2 (M022Z)
BOTTOM (FOIL) SIDE
23547745
RB10
RB13
QB04
QB01
RB02
RB14
RB08
QB03
RB11
PB31B
DB01A
DB01
RB10
RB13
QB04
2
3
1
QB01
R
RB02
RB14
RB08
G
CCP-3400S
QB03
RB11
BACK AV BOARD PD1929-1 (M051Z)
BOTTOM (FOIL) SIDE
23547634
11
15
5
1
6
10
G
Y
G
SW
C
G
Y
SW
C
G
G
CCP-3400S
RC09
RS96
CC13
RV85
RS99
CV27
CC10
CC12
CC11
RC11
RV61
RS97
RC10
CC14
QV48
RC13
CC09
RC98
RC12
RC14RV89
16
1514
10
12
1817
13
11
+
98
7
6
4
3
2
1
5
RV225
PV03
RV226
PV202
RV227
RC08
CC06
RC04
CV29
RC02
CC03
RV40
RC01
CC05
R265
CC02
LV13 CC07
CC08
RC06
BB70A
R266
R287
RC05
CC01
CC04
RV34
R288
RC03
CV30
RC07
56
54
53
52
51 55
49
4847
46
5044
43
42
41
45
403938
37
3635
343332
31
30
29
28
27
26
25
2423
2221
2019
+
RV222
R264
PV01
R286
RV221
RV224
PV201
RV223
RV37
PV02
RC09
RS96
CC13
RS99
CC10
CC12CC11
RC11
RV61
RS97
RC10
CC14
QV48
RC13
CC09
RC98
RC12
RC14
RC08
CC06
RC04
RC02
CC03 RV40
RC01
CC05
R265
CC02
CC07
CC08
RC06
R266
R287
RC05
CC01
CC04
RV34
R288
RC03
RV37
CV30
RC07
RV222
R264
R286
RV221
RV224
RV223
G1 MODU BOARD PD1929-2 (M052Z)
BOTTOM (FOIL) SIDE
23547634
5
4
8
1
8
7
14
1
9
8
1
16
1
2
3
LG02
PG01A
CG13
CG10
1
3
CG06
QG08
RG35
RG15
RG29
RG30
GRG03
RG28
RG31
RG42
DG04
RG33
CG17
GRG01
DG05
RG34
DG02
RG32
CG11
CG16
PG02A
CG07
GRG04
DG07
GRG02
LG01
RG44
RG20
2
4
CCP-3400S
+
+
+
+
+
RG01
CG12
1
+
RG61
10
6
QG04
RG02
RG46
QG02
RG17
CG05
RG07
CG03
RG60
RG63
CG01
RG49
RG08
C828
RG03
RG10
CG08
RG13
QG11
QG12
RG48
RG47
CG09
PG20B
RG18
RG06
RG51
RG62
QG05
Q829
RG19
RG11
QG06
RG05
CG04
RG12
Q829A
CG02
QG10
RG67
CG14
RG64
RG65
RG45
RG09
QG07
RG66
RG16
QG01
RG50
DG01
RG04
C829
7
5
4
3
2
+
+
+
+
+
RG29
RG30
GRG03
RG31
RG33
GRG01
RG34
GRG04
GRG02
RG61
QG04
RG02
RG46
RG17
CG03
RG60
RG63
CG01
RG49
RG03
RG13
QG11
QG12
RG48
RG47
RG18
RG06
RG51
QG05
QG06
CG04
RG12
CG02
QG10
CG14
RG64
RG65
RG09
QG07
RG66
RG16
RG50
RG04
– 57 – – 58 –
23547634
L830
2
R834
C823
C820
PM01B
C824
Q836
C822
P835A
L832
L833
L831
C825
Q832A
R835
C821
D830
+
1
3
21
3
4
+
+
CCP-3400S
DD CON BOARD PD1929-3 (M053Z)
BOTTOM (FOIL) SIDE
SPECIFIC INFORMATIONS
TERMINAL VIEW OF TRANSISTORS
– 59 –
– 60 –
MEMO
SPECIFIC INFORMATIONS
WARNING: BEFORE SERVICING THIS CHASSIS, READ THE "X-RAY RADIATION PRECAUTION", "SAFETY
PRECAUTION" AND "PRODUCT SAFETY NOTICE" ON THE MANUAL FOR THIS MODEL.
CAUTION: The international hazard symbols " " in the schematic diagram and the parts list designate components
which have special characteristics important for safety and should be replaced only with types identical to those in the
original circuit or specified in the parts list. The mounting position of replacements is to be identical with originals.
Before replacing any of these components, read carefully the PRODUCT SAFETY NOTICE on the MANUAL for this
model. Do not degrade the safety of the receiver through improper servicing.
NOTE:
1. RESISTOR Resistance is shown in ohm [K = 1.000, M = 1.000.000]. All resistors are 1/6W and 5% tolerance
carbon resistor, unless otherwise noted as the following marks.
1/2R = Metal or Metal oxide of 1/2 watt 1/2S = Carbon compsistion of 1/2 watt
1RF = Fuse resistor of 1 watt 10W = Cement of 10 watt
K =
±10% G = ±2% F = ±1%
2. CAPACITOR Unless otherwise noted in schematic, all capacitor values less than 1 are expressed in F, and
the values more than 1 in pF.
All capacitors are ceramic 50V, unless otherwise noted as the following marks.
Electolytic capacitor
Mylar capacitor
3. The parts indicated with "
" have special characteristics, and should be replaced with identical parts only.
4. Voltages read with DIGITAL MULTI-METER from point indicated to chassing ground, using a color bar signal with
all controls at normal, line voltage at 220 volts.
5. Waveforms are taken receiving color bar signal with enough sensitivity.
6. Voltage reading shown are nominal values and may vary ±20% except H.V.
SCHEMATIC DIAGRAM
– 61 –
MODEL : 43CJH9UR/43JH9UE/43JH9UT
SPECIFIC INFORMATIONS
– 62 –
SCHEMATIC DIAGRAM STRUCTURE:
– G1 Module Circuit ............................................................................................................................ 1/67
– BACK AV Circuit .............................................................................................................................. 2/67
– OVERALL CONNECTOR Circuit .....................................................................................................3/67
– CONNECTOR Circuit ...................................................................................................................... 4/67
– CONVER_IF_AUDIO Circuit CONVER-OUT [ SHEET-1/3 ] ........................................... 5/67
– TUNER (IF) [ SHEET-2/3 ] ........................................... 6/67
– AUDIO OUT [ SHEET-3/3 ] ........................................... 7/67
– CRT-D SVM (R,G) Circuit ................................................................................................................ 8/67
– CRT-D SVM (B) Circuit .................................................................................................................... 9/67
– FRONT CON/IN Circuit .................................................................................................................. 10/67
– POWER DEF Circuit (43CJH9UR) [ SHEET-1/3 ].................................... 11/67
– [ SHEET-2/3 ].................................... 12/67
– [ SHEET-3/3 ].................................... 13/67
– POWER DEF Circuit (43JH9UE/43JH9UT) [ SHEET-1/3 ] .................................... 14/67
– [ SHEET-2/3 ].................................... 15/67
– [ SHEET-3/3 ].................................... 16/67
– HYPER SIGNAL AV [ SHEET-1/51 ].................................. 17/67
– AV [ SHEET-2/51 ] .................................. 18/67
– AV [ SHEET-3/51 ] .................................. 19/67
– Function [ SHEET-4/51 ] .................................. 20/67
– AV [ SHEET-5/51 ] .................................. 21/67
– Function [ SHEET-6/51 ] .................................. 22/67
– Function [ SHEET-7/51 ] .................................. 23/67
– Function [ SHEET-8/51 ] .................................. 24/67
– CONNECTOR [ SHEET-9/51 ] .................................. 25/67
– REGULATOR [ SHEET-10/51 ] ................................ 26/67
– G-Hyper [ SHEET-11/51 ] ................................ 27/67
– G-Hyper [ SHEET-12/51 ] ................................ 28/67
– G-Hyper [ SHEET-13/51 ] ................................ 29/67
– AD-CONVERTER-A [ SHEET-14/51 ]................................ 30/67
– AD-CONVERTER-A [ SHEET-15/51 ]................................ 31/67
– GC-TC90A92A-1 [ SHEET-16/51 ]................................ 32/67
– GC-TC90A92A-2 [ SHEET-17/51 ]................................ 33/67
– GC-REG [ SHEET-18/51 ]................................ 34/67
– GNESIS-1 [ SHEET-19/51 ]................................ 35/67
– GNESIS-2 [ SHEET-20/51 ]................................ 36/67
– GNESIS-3 [ SHEET-21/51 ]................................ 37/67
– SDRAM [ SHEET-22/51 ]................................ 38/67
– GNESIS OUT [ SHEET-23/51 ]................................ 39/67
– GNESIS REG [ SHEET-24/51 ] ................................ 40/67
– CPU [ SHEET-25/51 ]................................ 41/67
– DIGITAL-CONVER [ SHEET-26/51 ] ................................ 42/67
– DIGITAL-CONVER [ SHEET-27/51 ] ................................ 43/67
– DIGITAL-CONVER [ SHEET-28/51 ] ................................ 44/67
– DIGITAL-CONVER [ SHEET-29/51 ] ................................ 45/67
– DIGITAL-CONVER [ SHEET-30/51 ] ................................ 46/67
– DIGITAL-CONVER [ SHEET-31/51 ] ................................ 47/67
– CONVER-REG [ SHEET-32/51 ]................................ 48/67
– Function [ SHEET-33/51 ] ................................ 49/67
– Function [ SHEET-34/51 ] ................................ 50/67
– Function [ SHEET-35/51 ] ................................ 51/67
– Function [ SHEET-36/51 ] ................................ 52/67
– Function [ SHEET-37/51 ] ................................ 53/67
– Function [ SHEET-38/51 ] ................................ 54/67
– Function [ SHEET-39/51 ] ................................ 55/67
– Function [ SHEET-40/51 ] ................................ 56/67
– M2 Micro [ SHEET-41/51 ]................................ 57/67
– M2 Micro [ SHEET-42/51 ]................................ 58/67
– M2 Micro [ SHEET-43/51 ]................................ 59/67
– M2 Micro [ SHEET-44/51 ]................................ 60/67
– M2 Micro [ SHEET-45/51 ]................................ 61/67
– M2 Micro [ SHEET-46/51 ]................................ 62/67
– M2 Micro [ SHEET-47/51 ]................................ 63/67
– M2 Micro [ SHEET-48/51 ]................................ 64/67
– M2 Micro [ SHEET-49/51 ]................................ 65/67
– M2 Micro [ SHEET-50/51 ]................................ 66/67
– CONNECTOR [ SHEET-51/51 ] ................................ 67/67
SPECIFIC INFORMATIONS
MONITOR OUT
Video-SW
TUNER(MAIN)
QV01: CXA2189Q
TN+IMA/TN+IA
TUNER(SUB)
3D-YCS
TIF uPD64084GG
480i/576i
E1: V/Y/C
E2: V
E3: V/Y/C Y/C-SW
480i BM Y/C SM5301AS
Y
Cb
480i/576i C1: Y/Cb/Cr CY/Pb/Pr 1 Cr
480p/576p
720p/1080i C2: Y/Cb/Cr CY/Pb/Pr 2
XGA PC: R/G/B CY/Pb/Pr 3
HD/VD
QS01: MM1631AJBE
Audio-SW
LR
A-Pro(Incl.withH002)
L/R_out1
A-Pro for HP
L/R_out2
BD3869AF
L/R_out3
Monitor_out
A
B
A
B
C
C
IIC
IIC
IIC
IIC
IIC
To DEF
BLK-IC
G1 MOD.
G1 GREEN NO CORRECTION
H/V/RESET
AFC
MCD I/P+SCALER
TC90101FG GENESIS BEP
V Q510: TA1360AFGYC
Cb/CrYA/D Pb
(1080i/720p/XGA)
Pr RH/RV/GH/GV/BH/BV
Y H DEF
Cb/Cr HD EH,Ef,Es
HD VDVDMCD
TC90101FG
V-DF
V EW
Y TA1317ANCCb E/W OUT V DEF
Cr E/W FB
VOUT
MICON+TEXT V FB
SDA6001:M2
CVBS HD/VD D.CONV CONV
HP-DET RGB-SW (NON-BUS) QH001:TC223CC20EF 6ch OUT
I2C RGB
R/G/B/YS
AUDIO OUTPUT AMP PUMP UP
from GENESIS
±16V
±32V
HP AMP
B
A
L/R
L/R
EH,Ef,E
IIC
IIC
IIC IIC
IIC
IIC
IIC
IIC
TV_Main: L/R
TV_Sub: L
E1: L/R
E2: L/R
E3: L/R
CS1: L/R
CS2: L/R
BM L/R
PC L/R
CRT-D
RGB OUT
VM
RGB OUT
VMout
HDRIVE
AFC
Vp
656
4:2:2
601
Vout 3
CV/Yout 1
C/Cb out 1
Crout 1
HD
VD
V/Yout2
C/Cb out 2
Crout 2
CIRCUIT BLOCK DIAGRAM
– 63 –
SPECIFIC INFORMATIONS
– 64 –
MEMO
SPECIFIC INFORMATIONS
SPECIFIC INFORMATIONS
– END –
Design and specifications are subject to change without notice.
MODEL
Rated voltage
Power consumption
(at ~ 220 V, 50 Hz)
Dimensions
(Width × Depth × Height )
Mass
Screen size (diagonal)
43CJH9UR 43JH9UE 43JH9UT
SPECIFICATIONS
~110 – 127, 220 – 240 V, 50/60 Hz~220 – 240 V, 50 Hz
240 W
2.0 watts at standby
0 watt at switch off
943 mm × 558 mm × 1,274 mm
61 kg
Type 43 (108 cm)
Channel
coverage
Special RF
signal
Television system
(Aerial input)
Color system Sound system
NTSC4.43
PAL 60Hz
5.5/6.0/6.5 MHz
5.5/6.0/6.5 MHz
UHF
21 – 69
21 – 69
13 – 57
21 – 69
21 – 69
14 – 69
13 – 62
CATV (Channels)
X ~ Z+2, S1 ~ S41
—
Z–1 ~ Z–38
X ~ Z+2, S1 ~ S41
X1 ~ X19
A–6 ~ A–1, A ~ W, AA ~ ZZ, AAA, BBB
M1 ~ M10, S1 ~ S41
(CCIR)
(UK)
(CHINA)
(CCIR)
(OIRT)
(US)
(JAPAN)
COMPONENT VIDEO INPUT
terminals (the signal format)
Color system
Audio power
480i, 480p, 576i, 576p, 720p (50/60Hz), 1080i (50/60Hz)
PAL/SECAM/NTSC4.43/NTSC3.58
20 W + 20 W (10% THD)
VHF
2– 12
—
1 – 12
2 – 12
1 – 12
2 – 13
1 – 12
System
PAL
PAL
PAL
SECAM
SECAM
NTSC
NTSC
B/G
I
D/K
B/G
D/K
M
M
( )
(These signal formats are converted to match the particular scanning system of the TV.)
TOSHIBA CORPORATION
1-1, SHIBAURA 1- CHOME, MINATO-KU, TOKYO 105-8001, JAPAN
Loading...
