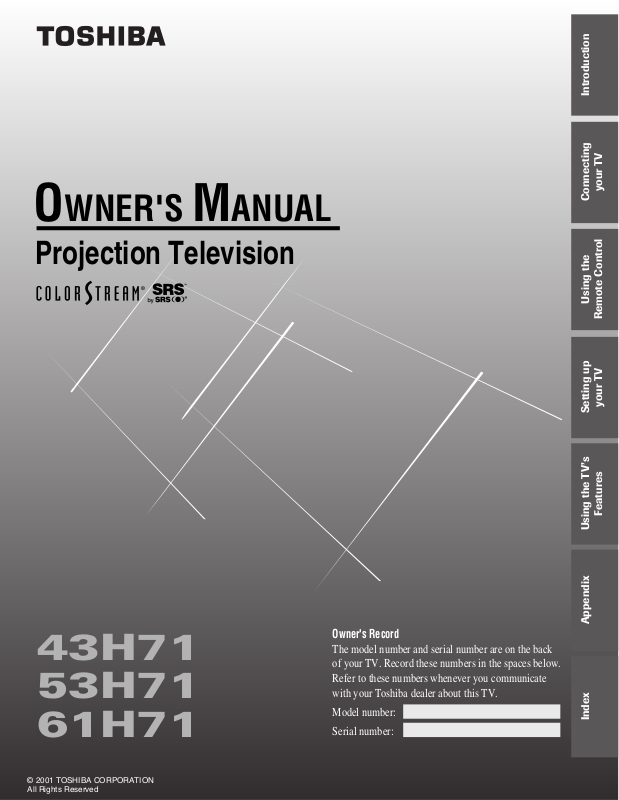

The model number and serial number are on the back
of your TV. Record these numbers in the spaces below.
Refer to these numbers whenever you communicate
with your Toshiba dealer about this TV.
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO
NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTUR E.
The lightning symbol in the triangle tells you that the
voltage inside this product may be strong enough to
cause an electric shock. DO NOT TRY TO SERVICE
THIS PRODUCT YOURSELF.
The exclamation mark in the triangle tells you that
important operating and maintenance instructions
follow this symbol.
CAUTION
TO PREVENT ELECTRIC SHOCK, DO NOT USE THIS
POLARIZED PLUG WITH AN EXTENSION CORD
RECEPTACLE OR OTHER OUTLET UNLESS THE
PRONGS CAN BE FULLY INSERTED INTO THE
OUTLET TO PREVENT ANY EXPOSURE OF THE
PRONGS ON THE POLARIZED PLUG.
ATTENTION
POUR PRÉVENIR LES CHOCS ÉLECTRIQUES NE PAS
UTILISER CETTE FICHE POLARISÉE AVEC UN
PROLONGATEUR, UNE PRISE DE COURANT OU UNE
AUTRE SORTIE DE COURANT, SAUF SI LES LAMES
PEUVENT ÊTRE INSÉRÉS À FOND SANS EN LAISSER
AUCUNE PARTIE À DÉCOUVERT.
NOTICE OF POSSIBILITY OF CRT BURN-IN
Avoid displaying stationary images on the TV screen for
extended periods of time. Stationary patterns generated
by letterbox/compression displays, picture-in-picture
(PIP) displays, computer displays, video games, stock
market reports, and so forth, can become permanently
engrained on the picture tube. This damage is not
protected by your warranty because it is the result of
misuse. If you use your TV to display still images, reduce
the brightness and contrast settings. Never leave a
letterbox/compression, PIP, computer, or video game
display unattended.
CAUTION
The plug has one prong wider
than the other and will fit only
one way into a standard electrical
outlet (120 volt AC, 60 Hz). If the
plug does not fit into the outlet,
try turning it around. If the plug
still does not fit, the outlet is
probably non-standard and must be replaced by a qualified
electrician. Do not tamper with the plug or try to force it into a
non-standard outlet.
2
wide prong
Note to CATV system installers in the USA
This reminder is provided to call the CATV system installer’s
attention to Article 820-40 of the NEC, which provides
guidelines for proper grounding, and, in particular, specifies that
the cable ground shall be connected to the grounding system of
the building, as close to the point of cable entry as practical.
Precautions
Installing your TV
• Place the TV on the floor or on a sturdy platform. The
mounting surface should be flat and steady. If you install the
TV on a soft floor, make sure that the floor is not damaged
by the weight of the TV.
• Place the TV far enough away from the walls to allow proper
ventilation. This will prevent the TV from overheating and
avoid possible damage to the TV. Avoid dusty areas too.
• Damage may occur if you leave the TV in direct sunlight or
near a heater. Avoid areas subject to extremely high
temperatures or humidity, and temperatures of 41˚F(5˚C) or
lower.
Using your TV
• Do not stand or climb on the TV.
• Do not put any heavy object on top of the TV.
• Do not place containers with liquids such as drinks or
cosmetics on the TV. If any foreign material or water leaks
into the TV, unplug the AC cord and contact your dealer.
• If the room temperature suddenly rises, condensation may
occur on the lenses resulting in picture distortion or color
fading. In such a case, simply wait a while (with the power
on) and the condensation will evaporate.
• Avoid displaying stationary images on your TV screen for
extended periods of time. Stationary patterns generated by a
PIP/double-window display, computer displays, video games,
stock market reports, etc., can become permanently
engrained on the picture tube. This damage is not protected
by your warranty because it is the result of misuse. If you wish
to use your TV to display still images, reduce brightness and
contrast settings. Never leave a PIP/double-window,
computer, or video game display unattended.
• Sit approximately 10-25 feet away from the TV. Sitting too
far to the left or right of the screen will cause the picture to
appear dull as will direct sunlight and room lights. Turn the
TV off to check for reflections on the screen. Then remove
the source of any reflections while viewing.
Cleaning your TV
• Clean the TV with a soft, dry cloth. Never use strong solvents
such as thinner or benzine which might damage the finish of
the cabinet. If the cabinet is very dirty, use a damp cloth to
wipe the cabinet clean, then finish with a dry cloth.
Use this TV set with the Toshiba stand listed
on page 48 only. Use with other stands may result in
Limited United States Warranty ..................................... 50
Index .......................................................................... 51
3
Introduction
Introduction
Welcome to Toshiba
Congratulations! You have purchased one of the finest projection TVs
on the market. The goal of this manual is to guide you through
setting up and operating your Toshiba TV as quickly as possible.
This manual applies to models 43H71, 53H71, and 61H71. Before
you start reading, check the model number by looking at the rear of
the TV.
your TV
Connecting
Instructions in this manual are based on using the remote control.
You can also use the controls on the TV front panel if they have the
same name as those on the remote control.
Please read all the safety and operating instructions carefully, and keep
the manual for future reference.
Exploring your new TV
You can operate the TV using the buttons on the front panel or
Using the
Remote Control
your TV
Setting up
Features
Using the TV’s
remote control. The back panel and front panel (behind the door)
provide all the terminal connections for connecting other equipment
to the TV (see “Connecting your TV” on page 5).
43H71
53H71
61H71
Remote control sensor
(Behind the screen panel)
Behind the door
VIDEO-3 IN
S-VIDEO
AUDIO
L/MONO R
VIDEO
Video/audio inputs
(Video 3)
MENU
Remote sensor
(Behind the screen panel)
VOL
MENU
Volume x •
Channel yz
Please Note
On some models, the SET UP
menu automatically appears onscreen the first time the TV is
turned on.
To change the menu settings, see
“Setting Up Your TV” on page 17.
To close the menu, either press
EXIT or turn off the TV.
POWER
RECALL
LIGHT
TV
CABLE
MUTE
VCR
yzx•
Power indicator
123
456
CH
VOL
TV/VIDEO
EXIT
CH
TOUCH FOCUS
EXIT
TOUCH FOCUS
TV/VIDEO
POWER
POWER
789
100
FAVORITE
FAV
S
T
R
O
B
E
STOP SOURCE
REC TV/VCR REW FF
STILL LOCATE SWAP
0
ADV/
PIP CH
MENU/
ENTER
ADV/
PIP CH
TV/VIDEO
CH RTN
ENT
PLAY PIP
P
TIMER
IC
CH
VOL
S
IZ
E
FAV
IT
X
E
Appendix
Index
4
Video/audio inputs
(Video 3)
MENU
MENU
yzx•
CH
VOLVOL
CH
Volume
x•
Channel
yz
EXIT TV/VIDEO
TV/
VIDEO
EXIT
Power indicator
TOUCH FOCUS
POWER
POWER
TOUCH FOCUS
CT-90087
Connecting your TV
ANTENNA
Coaxial Cable
VIDEO
Cable
Color Stream
Cable
If you have not connected electronic equipment before, or you have
been frustrated in the past, you may wish to read this section. (Cables
are not supplied.)
• A coaxial cable is the standard cable that comes in from your
antenna or cable converter box. Coaxial cables use “F”
connectors.
• Audio and video cables are usually color-coded according to use:
yellow for video and red and white for audio. The red audio cable
is for the stereo right channel, and the white audio cable is for
the stereo (or mono) left channel. On the rear panel of the TV,
the terminals are color-coded in the same manner as the cables.
• S-video cables provide better picture performance. S-video cables
can only be used with S-video compatible components.
• ColorStream
®
(component video) cables come in sets of three
and provide the best picture performance. ColorStream cables
can only be used with ColorStream–compatible components.
Connecting a VCR
This connection allows you to watch local channels and video
programs, play or record on the VCR while watching TV, and record
from one channel while watching another channel.
You will need:
• one coaxial cable
• one pair of audio cables (one single audio cable for a mono VCR)
• one video cable (one S-video cable for an S-VHS VCR)
From Cable Box or Antenna
Stereo VCR
VIDEO AUDIO
LR
TV
S-VIDEO
VIDEO
L/
MONO
AUDIO
R
VIDEO-1 VIDEO-2
IN
OUT
RL
Y
L
PB
PR
R
COLOR
STREAM
IN
AUDIO
AUDIO
OUT
OUT
VIDEO
L/
MONO
R
VAR
AUDIO
OUT to TV
AUDIO CENTER
CHANNEL IN
ONOFF
Y
PB
AUDIO
PR
COLOR
STREAM
HD 2HD 1
ININ
L
R
IN from ANT
CH 3
CH 4
ANT( 75
ANT-1
OUT
ANT-2
)
AUDIO
Cables
S-VIDEO
Cable
Caution:
Do not plug the TV in until you have finished
connecting all equipment.
Note:
If you have a mono VCR, connect L/Mono to
VCR Audio OUT using only one audio cable.
If you have an S-VHS VCR, use an S-video
cable (in the S-video jacks) instead of the
regular video cable.
Do not connect a regular video cable and an
S-video cable to Video-1 (or Video-2) at the
same time.
Introduction
your TV
Connecting
Using the
Remote Control
your TV
Setting up
Features
Using the TV’s
Appendix
Index
5
Connecting a cable converter box
This connection allows you to watch basic and premium cable
channels.
Introduction
To use the TV’s features, select ANT-1. To view premium channels,
select ANT-2, tune the TV to channel 3 or 4 (whichever channel is
vacant in your area), and use the converter box to change channels.
You will need:
TVFrom Cable
your TV
Connecting
Using the
Remote Control
Connecting a cable converter box and VCR
• one coaxial cable
S-VIDEO
VIDEO
L/
MONO
AUDIO
R
COLOR
STREAM
VIDEO-1 VIDEO-2
IN
RL
Y
L
P
B
P
R
R
AUDIO
AUDIO
OUT
OUT
VIDEO
L/
MONO
R
VAR
AUDIO
AUDIO CENTER
CHANNEL IN
ONOFF
Y
P
B
AUDIO
P
R
COLOR
STREAM
HD 2HD 1
ININ
Note:
When you use a converter box with your TV,
the remote control will not operate some
features, such as programming your favorite
channels, labeling channels, and locking
channels.
)
ANT( 75
ANT-1
OUT
ANT-2
L
R
INOUT
Cable converter box
your TV
Setting up
Features
Using the TV’s
Appendix
This connection allows you to watch and record basic and premium
cable channels, watch videotapes, and record one channel while
watching another channel. To use the TV’s features, select ANT-1.
To view premium channels or record with the VCR, select ANT-2,
tune the TV to channel 3 or 4 (whichever channel is vacant in your
area), and use the converter box to change channels.
You will need:
• two coaxial cables
• one pair of audio cables (one single audio cable for a mono VCR)
• one video cable (one S-video cable for an S-VHS VCR)
COLOR
STREAM
From Cable
RL
Y
L
PB
PR
R
AUDIO
AUDIO
AUDIO CENTER
OUT
VAR
AUDIO
VIDEO
L/
MONO
R
OUT
CHANNEL IN
ONOFF
Y
PB
PR
COLOR
STREAM
HD 2HD 1
ININ
AUDIO
)
ANT( 75
ANT-1
OUT
IN
ANT-2
L
R
OUT
Cable converter box
TV
S-VIDEO
VIDEO
L/
MONO
AUDIO
R
VIDEO-1 VIDEO-2
IN
Note:
If you have a mono VCR, connect L/Mono to
VCR Audio OUT using only one audio cable.
If you have an S-VHS VCR, use an S-video
cable (in the S-video jacks) instead of a
regular video cable. Do not connect a regular
video cable and an S-video cable to Video-1
(or Video-2) at the same time.
When you use a converter box with your TV,
the remote control will not operate some
features, such as programming your favorite
channels, labeling channels, and locking
channels.
Index
LR
VIDEO
OUT
LR
AUDIO
IN
OUT to TV
IN from ANT
CH 3
CH 4
Stereo VCR
6
Connecting a DVD player or satellite receiver
and a VCR
This connection allows you to watch DVD/satellite, VCR, and TV
programs, and record one TV channel while watching another
channel.
You will need:
• one coaxial cable
• two pairs of audio cables (one single and one pair of audio cables
for a mono VCR)
• one video cable (between the TV and VCR)
• one S-video cable (between the TV and DVD player/satellite
receiver)
Stereo VCR
VIDEO AUDIO
LR
ANT( 75
ANT-1
OUT
ANT-2
IN
OUT
)
From
Antenna
IN from ANT
CH 3
CH 4
TV
OUT to TV
S-VIDEO
VIDEO
L/
MONO
AUDIO
R
VIDEO-1 VIDEO-2
AUDIO CENTER
CHANNEL IN
ONOFF
OUT
VAR
RL
AUDIO
VIDEO
Y
L
P
B
P
R
R
COLOR
STREAM
IN
AUDIO
AUDIO
OUT
L/
MONO
Y
L
P
B
AUDIO
P
R
COLOR
STREAM
HD 2HD 1
R
ININ
R
Note:
For the highest possible picture quality from a
non-ColorStream DVD player/satellite
receiver, use an S-video cable between the
TV and DVD player/satellite receiver. (If your
DVD player or satellite receiver is
ColorStream-compatible, see page 8).
Do not connect both an S-video cable and a
regular video cable between the TV and DVD
player/satellite receiver at the same time.
Doing so will distort the picture.
Do not connect the DVD player/satellite
receiver and VCR to the same video channel
on the TV. (See the illustrations, which show
the DVD player/satellite receiver connected to
Video-1 on the TV and the VCR connected to
Video-2 on the TV.)
Caution:
The unauthorized recording of television
programs, videotapes, and other materials
may infringe upon the provisions of copyright
laws.
Introduction
your TV
Connecting
Using the
Remote Control
your TV
Setting up
From
Satellite
Dish
IN from ANT
S-VIDEO
S-VIDEO
VIDEO
OUTOUT
VIDEO
OUTOUT
DVD/Player
AUDIO
OUT
L
R
Satellite Receiver
AUDIO
OUT
L
R
Features
Using the TV’s
Appendix
Index
7
Connecting a DVD player with component
video and a VCR
This connection allows you to watch DVD, VCR, and TV programs,
Introduction
your TV
Connecting
Using the
Remote Control
and record DVD and TV programs. You can record from one source
while watching a program from another source.
Your TV has ColorStream (component video) inputs. Connecting
your TV to a component video-compatible DVD player (such as a
Toshiba DVD player with ColorStream
quality and realism.
You will need:
®
) can greatly enhance picture
• one coaxial cable
• three pairs of audio cables (two single and one pair of audio cables
for a mono VCR)
• two video cables
• one set of ColorStream (component video) cables (one S-video
cable for a non-ColorStream DVD player; see notes at right)
Stereo VCR
From antenna
IN from ANT
CH 3
CH 4
OUT to TV
VIDEO AUDIO
LR
IN
OUT
Note:
For the highest possible picture quality, use
ColorStream (component video) cables
between the TV and DVD player. You can
connect the ColorStream cables from the
DVD player to either ColorStream jack on the
TV (HD1 or HD2).
The ColorStream HD1 and HD2 jacks can be
used with Progressive (480p) and Interlace
(480i,1080i) scan systems.
If your DVD player is not ColorStreamcompatible, use the S-video connections
(both audio and video) instead of the
ColorStream connections. Do not connect
both S-video and ColorStream cables
between the TV and DVD player at the same
time.
To record from the DVD player, set the VCR
to Line IN. To monitor recording from the
DVD player, set the VCR to Line IN, and set
the TV to Video-1.
your TV
Setting up
Features
Using the TV’s
Appendix
TV
OUT
RL
Y
L
PB
PR
R
AUDIO AUDIO
VIDEO
OUT
OUT
VAR
AUDIO
VIDEO
L/
MONO
R
S-VIDEO
S-VIDEO
VIDEO
L/
MONO
AUDIO
R
VIDEO-1 VIDEO-2
IN
COMPONENT VIDEO
COLOR
STREAM
PRPBY
DVD player with component video
AUDIO CENTER
CHANNEL IN
ONOFF
Y
PB
AUDIO
PR
COLOR
STREAM
HD 2HD 1
ININ
AUDIO
OUT
L
L
R
R
)
ANT( 75
ANT-1
OUT
ANT-2
L
R
Caution:
The unauthorized recording of television
programs, videotapes, DVDs, and other
materials may infringe upon the provisions of
copyright laws.
Index
8
Connecting a DTV receiver/set-top box with
component video and a VCR
This connection allows you to watch DTV (digital TV broadcast),
VCR, and TV programs, and record DTV and TV programs. You can
record from one source while watching a program from another
source.
Your TV has ColorStream (component video) inputs. Connecting
your TV to a component video-compatible DTV receiver can greatly
enhance picture quality and realism.
You will need:
• one coaxial cable
• three pairs of audio cables (two single and one pair of audio
cables for a mono VCR)
• two video cables
• one set of ColorStream (component video) cables (one S-video
cable for a non-ColorStream DTV receiver; see notes at right)
Stereo VCR
From
antenna
IN from ANT OUT to TV
TV
S-VIDEO
VIDEO
L/
MONO
AUDIO
R
VIDEO-1 VIDEO-2
VIDEO AUDIO
IN
COLOR
STREAM
LR
RL
Y
L
PB
PR
R
AUDIO AUDIO
OUT
OUT
VIDEO
L/
MONO
R
VAR
AUDIO
IN
OUT
AUDIO CENTER
CHANNEL IN
ONOFF
Y
PB
PR
COLOR
STREAM
HD 2HD 1
ININ
AUDIO
CH 3
CH 4
)
ANT( 75
ANT-1
OUT
ANT-2
L
R
Note:
For the highest possible picture quality, use
ColorStream (component video) cables
between the TV and DTV receiver. You can
connect the ColorStream cables from the
DTV receiver to either ColorStream jack on
the TV (HD1 or HD2).
The ColorStream HD1 and HD2 jacks can be
used with Progressive (480p) and Interlace
(480i,1080i) scan systems.
If your DTV receiver is not ColorStreamcompatible, use the S-video connections
(both audio and video) instead of the
ColorStream connections. Do not connect
both S-video and ColorStream cables
between the TV and DTV receiver at the same
time.
To record from the DTV receiver, set the VCR
to Line IN. To monitor recording from the DTV
receiver, set the VCR to Line IN, and set the
TV to Video-1.
Caution:
The unauthorized recording of television
programs, videotapes, DVDs, and other
materials may infringe upon the provisions of
copyright laws.
Introduction
your TV
Connecting
Using the
Remote Control
your TV
Setting up
From DTV
antenna
Satelite IN
S-VIDEO
COMPONENT VIDEO
PRPBY
DTV receiver with component video
VIDEO
OUT
AUDIO
L
R
OUT
Features
L
R
Using the TV’s
Appendix
Index
9
Introduction
Connecting two VCRs
This connection allows you to record (dub/edit) from one VCR to
another VCR while watching a videotape. You can also record from
one TV channel while watching another TV channel.
You will need:
• one coaxial cable
• two pairs of audio cables (two single audio cables for mono
VCRs)
• two video cables (two S-video cables for S-VHS VCRs)
Caution:
The unauthorized recording of television
programs, videotapes, and other materials
may infringe upon the provisions of copyright
laws.
your TV
Connecting
Using the
Remote Control
your TV
Setting up
From Antenna
VCR1
IN from ANT OUT to TV
TV
S-VIDEO
VIDEO
L/
MONO
AUDIO
VCR2
CH 3
CH 4
R
VIDEO-1 VIDEO-2
IN
VIDEO AUDIO
LR
RL
Y
L
P
B
P
R
R
COLOR
STREAM
AUDIO
VIDEO AUDIO
LR
AUDIO
OUT
OUT
OUT
VIDEO
L/
MONO
IN
VAR
AUDIO
R
AUDIO CENTER
CHANNEL IN
ONOFF
Y
P
B
AUDIO
P
R
COLOR
STREAM
HD 2HD 1
ININ
IN
OUT
Note:
If you have S-VHS VCRs, use S-video cables
CH 3
CH 4
instead of regular video cables. Do not
connect both a regular video cable and an
S-video cable to Video-1 (or Video-2) at the
same time.
Do not connect the same VCR to the output
)
ANT( 75
ANT-1
OUT
ANT-2
L
R
and input jacks on the TV at the same time.
To dub or edit, VCR 2 must select Line IN,
and the TV must select Video-1.
The Video OUT jack does not output the
*
*
**
PIP picture.
The Audio OUT jacks can output the sound
**
of either the Main or PIP picture (see
“Selecting the Audio OUT sound” on page
45).
Features
Using the TV’s
Appendix
Index
10
Connecting a camcorder
This connection allows you to watch video materials recorded on a
camcorder.
You will need:
• one pair of audio cables
• one video cable (one S-video cable for an S-VHS camcorder)
Camcorder
VIDEO
AUDIO
OUT
L
R
VIDEO-3 IN
S-VIDEO
AUDIO
L/MONO R
VIDEO
Video-3 (front panel)
Caution:
If you have an S-VHS camcorder, use an
S-video cable instead of a regular video cable
for improved picture quality.
Connecting an audio system
This connection allows you to use an audio amplifier to adjust the
audio level. This also allows you to use external speakers.
To control the audio, turn on the TV and the stereo amplifier, and
turn off the built-in speakers (see “Turning off the built-in speakers”
on page 45).
You will need:
• one pair of audio cables
Note:
To hear sound when using an external audio amplifier, the
volume of both the TV and the amplifier must be set
above 0 (zero).
For example, if the volume of the TV is set to 0, you will
not be able to hear any sound, even if the volume of the
amplifier is at its highest level.
TV
S-VIDEO
VIDEO
L/
MONO
AUDIO
R
VIDEO-1 VIDEO-2
IN
Amplifier
LINE IN
LR
RL
Y
L
P
B
P
R
R
COLOR
STREAM
AUDIO
AUDIO
OUT
OUT
AUDIO CENTER
CHANNEL IN
ON OFF
VAR
AUDIO
VIDEO
L/
MONO
R
COLOR
STREAM
HD 2HD 1
Introduction
)
ANT( 75
ANT-1
OUT
Y
ANT-2
L
P
B
AUDIO
P
R
R
ININ
your TV
Connecting
Connecting an A/V receiver
This connection allows you to use an audio/video (A/V) receiver to
enhance your TV’s sound.
OUT
ANT( 75
ANT-1
OUT
ANT-2
®
surround sound, you can
From
Antenna
)
ONOFF
If you have a system with Dolby Pro Logic
add to the realism of the sound by using the TV’s internal speakers as
center channel speakers.
You will need:
• one pair of audio cables
• one single audio cable for the audio center channel
• one video cable
To A/V Receiver
Video
OUT
TV
Note:
Refer to the instructions provided with your A/V receiver
for details about your surround sound system.
When the Audio Center Channel ON/OFF switch is in
the ON position, the TV speakers will function only as
center channel speakers.
Adjust the volume for the center channel speakers
using the center level control on the A/V receiver.
To use the TV speakers as normal speakers, set the
Audio Center Channel ON/OFF switch to the OFF
position.
S-VIDEO
VIDEO
L/
MONO
AUDIO
R
VIDEO-1 VIDEO-2
IN
TV
IN
COLOR
STREAM
RL
Y
L
P
B
P
R
R
AUDIO
AUDIO
OUT
VIDEO
L/
MONO
OUT
AUDIO CENTER
CHANNEL IN
ON OFF
VAR
AUDIO
R
COLOR
STREAM
HD 2HD 1
Y
P
P
R
B
ININ
Center
L
AUDIO
R
Caution:
To avoid damaging the speakers, turn the TV
off before connecting or disconnecting the
Audio Center Channel audio cable.
Dolby Pro Logic* surround sound
system connection example
AudioVideo
VCR
Video
A/V receiver
Audio
Video
T V
Left
speaker
Surround
speaker L
_________
* Dolby Pro Logic is a registered trademark
of Dolby Laboratories Licensing
Corporation.
Audio
Audio
center
LDP/DVD
channel
Right
speaker
Surround
speaker R
Using the
Remote Control
your TV
Setting up
Features
Using the TV’s
Appendix
Index
11
Using the remote control
Introduction
Preparing the remote control for use
The remote control can operate the TV, most VCRs, and most cable
TV converters together, even if they are different brands. If you will be
using your TV with a Toshiba VCR or cable TV converter, your
remote control is already programmed and ready to use. If you own
different brands of VCRs and/or converters, you must first program
the remote control (see “Programming the remote control for use with
your TV
a non-Toshiba VCR or cable TV converter” on page 13).
Connecting
Installing the remote control batteries
To install the batteries:
Using the
Remote Control
your TV
Setting up
1. Slide the battery cover off the back of the remote control.
2. Install two “AA” size alkaline batteries. Match the + and - signs on
the batteries to the signs on the battery compartment.
Note:
The TV remote control may not operate
certain features on your VCR, cable TV
converter, or other electronic device.
Refer to the owner’s manuals for your other
devices to determine their available features.
If your TV’s remote control does not operate a
specific feature on a device, use the remote
control that came with the device.
Caution:
• Dispose of batteries in a designated
disposal area. Do not throw batteries into a
fire.
• Do not mix battery types or combine used
batteries with new ones.
• If the batteries are dead or if you will not
use the remote control for a long time,
remove the batteries to prevent battery acid
from leaking into the battery compartment.
Note:
• Battery life expectancy is about one year
with normal use.
Features
Using the TV’s
Appendix
Index
3. Slide the battery cover back on to the remote control until the
lock snaps.
Using the remote control with a Toshiba VCR
or cable TV converter
To control a Toshiba VCR:
Set the TV/CABLE/VCR switch to the VCR position. The
shaded buttons in the illustration at right will then control the
VCR. The unshaded buttons will operate the TV as usual.
If you own different brands of VCRs, program the remote control
to recognize your VCR brand (see “Programming the remote
control for use with a non-Toshiba VCR or cable TV converter”
on page 13).
To control a Toshiba cable TV converter:
Set the TV/CABLE/VCR switch to the CABLE position. The
shaded buttons shown in the top half of the illustration at right
will control the cable TV converter.
RECALL
LIGHT
TV
CABLE
VCR
FAV
TV/VIDEO
MUTE
123
456
789
CH RTN
0
100
ADV/
PIP CH
FAVORITE
MENU/
ENTER
STROBE
ADV/
PIP CH
STOP SOURCE
REC TV/VCR REW FF
STILL LOCATE SWAP
ENT
PIC SIZE
PLAY PIP
POWER
TIMER
CH
VOL
EXIT
TV/CABLE/VCR
POWER
Channel yz
Chanel
Numbers
Enter
FAV
PLAY
STOP
Fast Forward
Rewind
TV/VCR
Record
12
Programming the remote control for use with a
non-Toshiba VCR or cable TV converter
The TV remote control is pre-programmed to operate Toshiba VCRs
and cable TV converters.
To program the TV remote control to operate non-Toshiba VCRs or
cable converters:
1. Refer to the “VCR code table” or “Cable TV converter code
table” on pages 14–15 to find the corresponding code for your
VCR or cable TV converter brand.
If more than one code is listed, try each one separately until you
find the one that works.
2. If you are reprogramming the remote control to operate your:
• VCR, set the TV/CABLE/VCR switch on the remote control
to VCR.
• Cable converter, set the TV/CABLE/VCR switch on the
remote control to CABLE.
3. While holding down the RECALL button, press the Channel
Number buttons (0–9) to enter the three-digit code for your
VCR or converter.
4. Point the remote control at the VCR or converter and press
POWER to test the code.
If the VCR or converter responds, you have entered the correct
code.
If the VCR or converter does not respond to the remote control,
you may have entered the wrong code. Repeat steps 1–4 using
another code.
5. Reset the TV/CABLE/VCR switch to TV to control the TV.
For future reference, write down the codes you used:
POWER
RECALL
LIGHT
TV
CABLE
MUTE
VCR
123
456
789
100
FAVORITE
FAV
STROBE
STOP SOURCE
RECTV/VCRREWFF
Note:
• Each time you replace the batteries, you
STILLLOCATESWAP
0
ADV/
PIP CH
MENU/
ENTER
ADV/
PIP CH
TV/VIDEO
CH RTN
ENT
PLAY PIP
TIMER
CH
VOL
PIC SIZE
EXIT
RECALL
POWER
Channel yz
Channel
Number
Enter
FAV
must reprogram the remote control.
• Some newer VCRs are capable of working
on either of two remote codes. These VCRs
have a switch labeled “VCR1/VCR2.”
If your VCR has this kind of switch and
does not respond to any of the codes for
your VCR brand, set the switch to the other
position (VCR1 or VCR2) and reprogram
the remote control.
