42WL58T
Owner's Manual
56 pgs1.51 Mb0

Toshiba 42WL58A, 42WL58E, 42WL58T, 37WL58E, 37WL58T Owner's Manual

...
Download
LCD Color TV
OWNER'S MANUAL
Owner's Record
You will find the model number and serial number on the back of the TV. Record these numbers in the spaces provided below. Refer to them whenever you call upon your TOSHIBA dealer regarding this product.
Serial number:
42WL58A 42WL58E 42WL58T
Introduction
Getting started
Basic operation
Features
Equipment
connections
Reference section
2
Contents
Welcome to Toshiba
• Thank you for purchasing this Toshiba LCD Color Television. This manual will help you use the exciting features of your new TV.
• Instructions in this manual are based on using the remote control.
• You can also use the controls on the TV if they have the same name as those on the remote control.
• Please read all the safety and operating instructions carefully, and keep the manual for future reference.
Introduction
Important Safety Instructions ................................. 3
Installation ........................................................... 3
Use ....................................................................... 5
Service ................................................................. 6
Cleaning ............................................................. 7
Important information............................................. 7
Important information ....................................... 7
Getting started
Installation ................................................................ 8
Connecting an antenna ................................... 8
Exploring your new TV ............................................. 9
Installing the remote control batteries ............ 9
TV top, TV front .................................................... 9

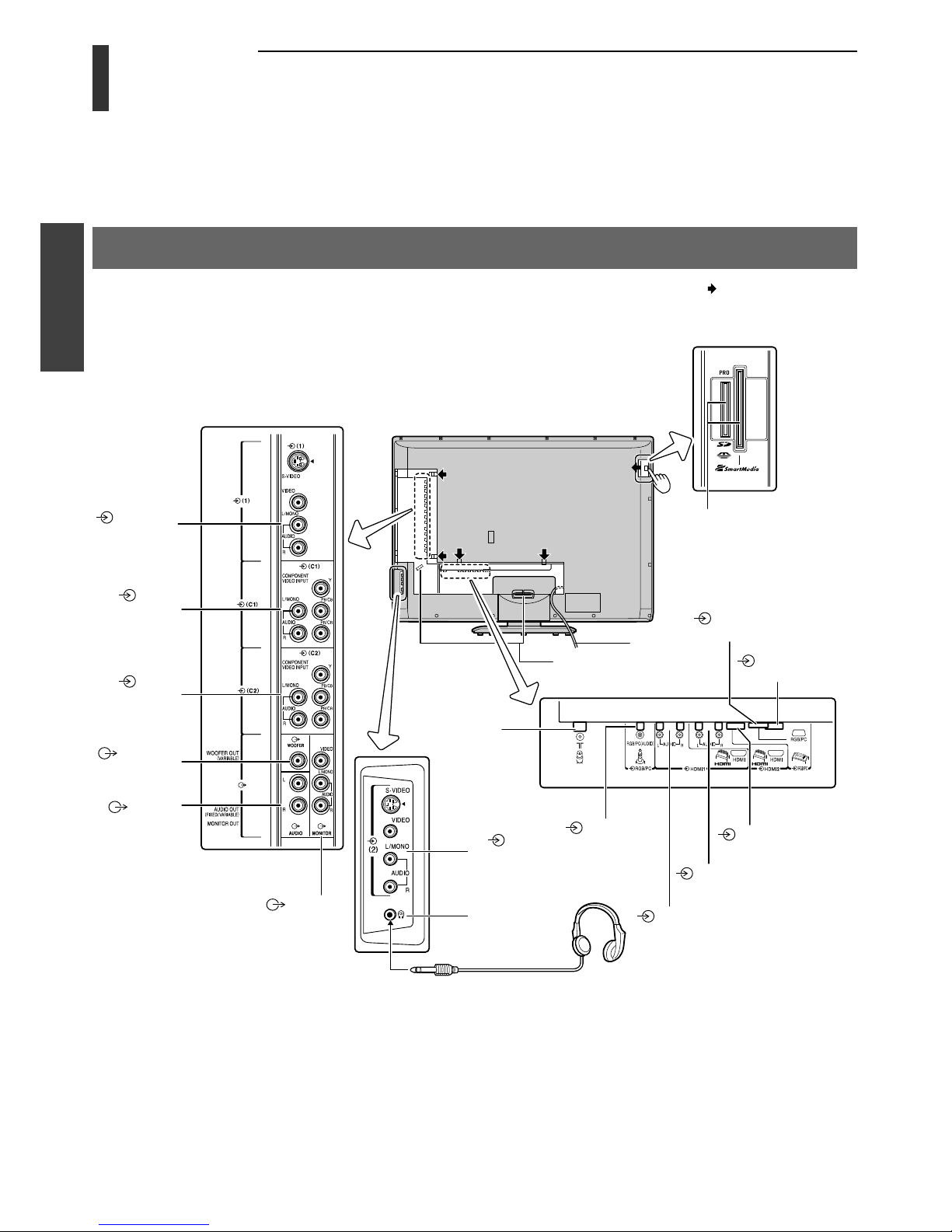

TV back ............................................................... 10
Learning about the remote control ......................11
Location of controls ...........................................11
Turning the TV on, Selecting a language .............. 12
Switching on the TV ........................................... 12
Switching off the TV............................................ 12
Selecting a language ....................................... 12
Learning about the menu system ......................... 13
Menu display chart ............................................13
Programming channel memory ............................14
System selection, Auto tuning ........................... 14
Manual tuning ....................................................14
Program sorting ..................................................16
Watching TV programs ........................................... 17
Volume, Sound mute, Changing program positions, Program return, On-screen
information ......................................................... 17
Basic operation

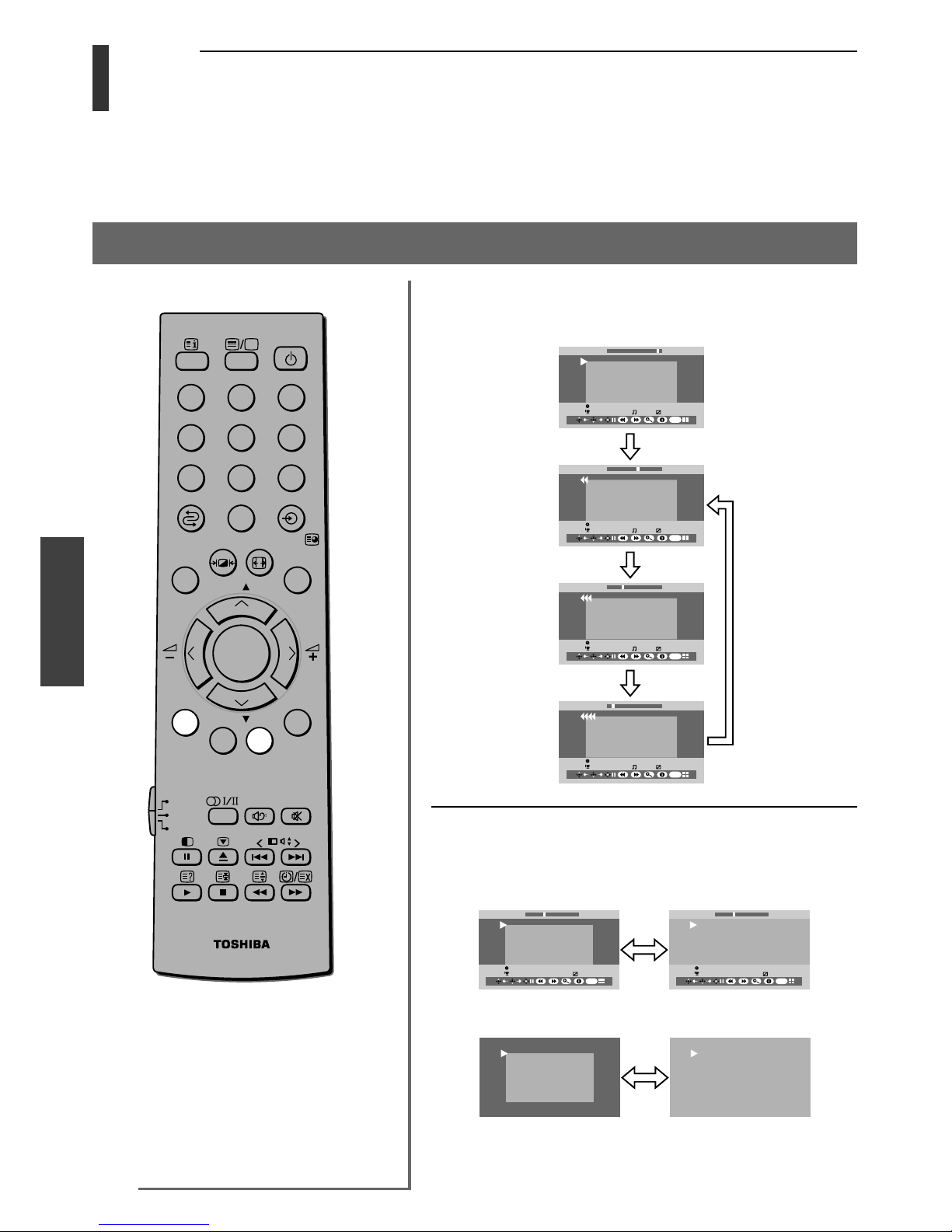

Viewing the wide-screen picture format .............18
Picture size selection .......................................... 18
Picture position, Reset ............................................. 19
Picture position adjustment .............................. 19
Reset (Picture position adjustment) .................19
Picture quality adjustment ..................................... 20
Picture quality adjustment ................................20
To activate the black stretch ........................... 21
To activate the MPEG NR (Noise Reduction) ...
21 To activate the DNR
(Digital Noise Reduction) ..................................21
To select the color temperature ...................... 22
To use the cinema mode .................................. 22
To use the picture still .........................................22
To adjust the color management .................... 23
To reset the base color adjustment ................. 23
Sound adjustment ...................................................24
MTS (Multi-channel TV Sound) setting.............. 24
Selecting the dual 1 or dual 2 mode ............... 24
Stereo/Bilingual selection .................................. 25
Sound quality adjustment .................................25
To select the audio output................................ 26
To select the HDMI audio mode ......................26
To use the WOW surround sound ...................... 27
To use the stable sound.....................................27
To activate/deactivate the speaker ...............27
Woofer internal/external mode, Bass boost,
Woofer system .................................................... 28
Features
Input selection ......................................................... 29
Input selection ....................................................29
Timer, Gray screen...................................................30
Timer .................................................................... 30
To activate gray screen .................................... 30
Side panel adjustment ...............................................
31
Side panel adjustment ...................................... 31
To use the auto format ......................................31
Teletext – Setting up ................................................ 32
Teletext mode .................................................... 32
About Teletext.......................................................... 33
Teletext general information ............................ 33
Teletext SW adjustment .....................................33
Teletext – FAST and LIST modes .............................. 34
Using FAST mode ................................................ 34
Using LIST mode .................................................. 34
Teletext – Control buttons.......................................35
Teletext buttons on the remote control........... 35
BRIDGE MEDIA using................................................ 36
To use the BRIDGE MEDIA.................................. 36
To use the BRIDGE MEDIA (still picture) ............ 37
To use the BRIDGE MEDIA (motion picture) .... 40
To use the BRIDGE MEDIA (information) .......... 43
Double-Window using............................................. 44
To display the double-window .........................44
To select the headphone mode...................... 45
To adjust the headphone volume
(Mode 2) ............................................................. 45
To use a headphone ......................................... 46
Equipment connections
Side connections ..................................................... 47
Connection example ........................................47
Back connections ................................................... 48
Connection example ........................................48
Connecting a computer ........................................49
To connect a computer.................................... 49
PC setting .................................................................50
To adjust a PC setting ........................................50
Connecting an HDMI and a DVI device ..............52
To connect an HDMI and a DVI device .......... 52
Reference section
Troubleshooting .......................................................53
Symptom and solution ...................................... 53
Broadcast system, Specifications .......................... 54
Broadcast transmission systems of each
country or region ............................................... 54
LCD color television ........................................... 54
3
Introduction
Getting started
Basic operation
Features
Equipment
connections
Reference section
• Be sure to observe the following instructions and precautions to ensure safe use of this TV.
• The exact power cord will vary according to the country or region.
Installation
Introduction
Important Safety Instructions
Always connect the power plug to an electrical outlet equipped with A model: 220-240V, AC 50Hz, E model: 220-240V, AC 50/60Hz and T model: 110-240V, AC 50/60Hz.
Never use the TV outside the specified voltage range. It may cause a fire or an electric shock.
WARNING ABOUT THREE-WIRE GROUNDING-TYPE PLUG: Never remove the earthing pin on the power plug. This system is equipped with a three pin earthing-type power plug. This plug will only fit an earthing-type power outlet. This is a safety feature. If you are unable to insert the plug into the outlet, contact an electrician to replace the wall outlet. Never defeat the purpose of the earthing plug.
Never insert or remove the power plug with wet hands.
This may cause electric shock.
Never place the TV in an unstabilized location such as on a shaky table, incline or location subject to vibration.
The TV may drop or fall down which may cause injury or damage.
Never block or cover the slots and openings in the cabinet.
• Never place the TV so that it is facing upward, or on its side.
• Never place the TV in a closet, bookshelf where the ventilation is poor.
• Never drape a newspaper, tablecloth or curtain on the TV.
• When installing the TV against a wall, always keep the TV at least 10 cm away from the wall.
• Never place the TV on a soft unstable surface, such as a carpet, or a cushion.
The inside of this TV will overheat if the ventilation holes are covered, blocked or sealed, which may result in a fire.
Never place the TV near a heater or in direct sunlight.
The surface of the cabinet or power cord may melt and result in fire or electric shock.
Check!
About the fuse
In a three pin earthing-type, the fuse fitted in this plug is approved by ASTA or BSI to BS1362. It should only be replaced by a correctly rated and approved type and the fuse cover must be refitted.
Ex. 220-240V AC, 50/60Hz
4
Introduction
Installation (continued)
Introduction
Important Safety Instructions
(continued)
Never place the TV in an area exposed to high humidity levels, such as in a bathroom or close to a humidifier.
This may cause a fire or an electric shock.
Never place the TV next to a stove where it will be exposed to oil, smoke, or steam, or in a location where there is a large quantity of dust.
This may cause a fire or electric shock.
Install the TV in a horizontal, stable location. Connect between two clips on the back of the TV and a wall, pillar, etc., with a sturdy tie and clip of supplied accessories (see page 55).
• Use as short a tie as possible to ensure the TV is stable.
• If the TV is not installed securely, it may lean or fall over and cause an injury.
Precautions for moving the TV
• When moving the TV, be sure to remove the power plug from the wall outlet and disconnect the antenna cable and audio/video cables, any steady ties. Fire or electric shock may result if the power cord is damaged.
• When carrying the TV, at least two people are needed. Be sure to carry it upright.
• Never carry the TV with the screen facing up or down.
Precautions for installing on outdoor antenna
An outside antenna system should not be located in the vicinity of overhead power lines, or other electric light or power circuits. If the antenna falls down or drops, it may cause injury or electric shock.
Clip
Side view Top view
Clip
Clip
Sturdy tie (as short as possible)
5
Introduction
Getting started
Basic operation
Features
Equipment
connections
Reference section
Use
Never place hot objects or open flame sources, such as lighted candles or nightlights, on or close to the TV.
High temperatures can melt plastic and lead to fires.
The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.
When liquids are spilled or small items are dropped inside the TV, this may cause a fire or an electric shock. If small objects drop inside the TV, turn off the TV and remove the power plug from the outlet immediately and contact a service technician.
Never insert objects (metal or paper) or pour water inside the TV through ventilation holes and other openings.
These items may cause a fire or an electric shock. If these objects are inserted inside the TV, turn off the TV and remove the power plug from the outlet immediately and contact a service technician. Be especially careful that children do not insert objects in the TV.
Clip
Never stand or climb on the TV.
Be especially careful in households with children to prevent them through climbing on top of the TV. It may move, fall over, break, become damaged or cause an injury.
When the TV will not be used for a long period of time, such as during vacation or travel, remove the power plug from the wall outlet for safety.
Never pull on the power cord when removing the plug from the wall outlet.
Always hold the plug firmly when removing it. If the power cord is yanked, the cord may become damaged and fire or electric shock may occur.
6
Introduction
Use (continued)
Introduction
Important Safety Instructions
(continued)
Never cut, break, modify, twist, bunch up or bent the cord or apply excessive force or tension to it.
Never place heavy objects on the cord or allow it to overheat as this may cause damage, fire or electric shock. Contact a service technician if the power cord is damaged.
If there is thunder or lightning, never touch the antenna cable or other connected cables.
You may suffer an electric shock.
Service
Never repair, modify or disassemble the TV by yourself.
If it may cause a fire or an electric shock. Consult a service technician for inspection and repairs.
When a malfunction occurs, or if smoke or an unusual odor comes from the TV, turn off the TV and remove the power plug from the outlet immediately.
Make sure that the smoke or smell has stopped, then contact a service technician. If the TV is still used in this condition, it may cause a fire or an electric shock.
If the TV is dropped or the cabinet is broken, turn off the TV and remove the power plug from the outlet immediately.
If the TV is still power used in this condition, it may cause a fire or an electric shock. If the cabinet is broken, be careful when handling the TV to prevent an injury. Contact a service technician for inspection and repair.
7
Introduction
Getting started
Basic operation
Features
Equipment
connections
Reference section
Service (continued)
Cleaning
Remove the power plug before cleaning.
Never use solvents such as benzine or thinner to clean the TV. – These solvents may distort the cabinet or damage its finish. – If rubber or vinyl products remain in contact with the TV for a long
time, a stain may result. If the cabinet becomes dirty, clean it with a soft, dry cloth. When cleaning the surface of the LCD display, wipe the panel surface gently with a soft, dry cloth.
When the TV reaches the end of its useful life, ask a qualified service technician to properly dispose of the TV.
Note: The lamp unit contains a small amount of mercury. Disposal of mercury may be regulated due to environmental considerations. Dispose of the used lamp unit by the approved method for your area. For disposal or recycling information, please contact your local authorities.
Introduction
Important Safety Instructions
(continued)
,
Important in formation
Periodically disconnect the power plug from the outlet and check it. If dust has collected on the power plug connectors, clean off the dust.
This dust may cause a fire due to reduced insulation on the plug.
Clean here
Important information
About LCD screen
• If you have the LCD screen facing to the sun, the LCD screen will be damaged. Be aware of locating the TV in the place such as window side or outside of the room.
• Never press the LCD screen strongly or scratch it, and never put anything on it. These actions will damage the LCD screen.
About cabinet
• Never spray volatile compounds such as insecticide on the cabinet. This may cause a discoloration or damage the cabinet.
Some pixels of the screen do not light up
• The LCD display panel is manufactured using an extremely high level of precision technology, however sometimes some pixels of the screen may be missing picture elements or have luminous spots. This is not a sign of a malfunction.
About Interference
• The LCD display may cause interference in image, sound, etc. of other electronic equipment that receives electromagnetic waves (e.g. AM radios and video equipment).
8
Getting started
Getting started
Important information
(continued)
,
Installation
Important information (continued)
About using under the low temperature places
•
If you use the TV in the room of 0°C or less, the picture brightness may vary until the
LCD
monitor warms up.
This is not a sign of a malfunction.
About afterimage
• If a still picture is displayed, an afterimage may remain on the screen, however it will disappear. This is not a sign of malfunction.
Exemptions
■ Toshiba is not liable for any damage caused by fires, natural disaster (such as thunder, earthquake, etc.), acts by third parties, accidents, owner's misuse, or uses in other improper conditions.
■ Toshiba is not liable for incidental damages (such as profit loss or interruption in business, modification or erasure of record data, etc.) caused by use or inability to use of product.
■ Toshiba is not liable for any damage caused by neglect of the instructions described in the owner's manual.
■ Toshiba is not liable for any damage caused by misuse or malfunction through simultaneous use of this product and the connected equipment.
Connecting an antenna
Optimum reception of color requires a good signal and will generally mean that an outdoor antenna must be used. The exact type and positioning of the antenna will depend upon your particular area. Your Toshiba dealer or service personnel can best advise you on which antenna to use in your area. Before connecting the antenna cable, turn off all main POWER switches. Before connecting the antenna cable, remove the back terminal cover (see page 10).
300 Ω twin-lead feeder
75 Ω coaxial cable
Antenna adaptor (not supplied)
Plug (not supplied)
75 Ω antenna terminal
75 Ω antenna terminal
TV back view
VHF and/or UHF antenna
9
Introduction
Getting started
Basic operation
Features
Equipment
connections
Reference section
Getting started
Exploring your new TV
• You can operate your TV using the buttons on the top of the panel or the remote control. The back and side of the panel provide the terminal connections to connect other equipment to your TV. See “Equipment connections” on pages 47-52.
Remote sensor
Power [12]
Power indicator (red) [12]
TV top view
Top view
Input source selection [29]
MENU [13]
Volume – + [17] Menu
[13]
Program position
[17]
Menu
[13]
TV front view
On-timer indicator (green) [30]
You can swivel the TV screen. Swivel angle: 15 degrees to
left and right.
/ Power switch
[12]
TV top, TV front
For the use of each control, see the pages in brackets.
Remove the battery cover. Insert two R03 (AAA) batteries matching the –/+ polarities of the battery to the –/+ marks inside the battery compartment.
Caution:
• Dispose of batteries in a designated disposal
area. Never throw batteries into a fire.
• Attention should be drawn to the environmental
aspects of battery disposal.
• Never mix battery types or combine used
batteries with new ones.
Effective range
Notes:
• If the remote control does not operate correctly, or if the operating range becomes reduced, replace both batteries with new ones.
• If the batteries are dead or if you will not use the remote control for a long time, remove the batteries to prevent battery acid from leaking into the battery compartment.
within 5 m
Installing the remote control batteries
10
Getting started
TV back
• Before connecting external equipment etc., remove the back terminal covers (squeeze tabs ( mark in the figure below) and pull covers).
Antenna input
[8]
(C1) COMPONENT VIDEO INPUT
terminals [48]
WOOFER
OUT terminal
[28, 48]
Right side view
TV back view
Cable holder*
* You can use the cable holder to hold antenna cable, video and audio cables etc.
When moving the TV, never hold this holder.
Headphone jack
(3.5 mm, stereo)
Back view
Power cord
Headphones [45]
(Not supplied)
Right side
view
(1) Video 1
input terminals
[48]
(C2) COMPONENT VIDEO INPUT
terminals [48]
AUDIO
OUT terminals
[48]
(Fixed/Variable)
MONITOR
OUT terminals
[48]
Getting started
Exploring your new TV
(continued)
Left side view
Card into the slot [36]
Squeeze tab and pull here to open the door.
RGB/PC
(AUDIO) input [49]
(2) Video 2 input terminals [47]
HDMI 2 AUDIO
input terminals [52]
HDMI 1
input terminal [52]
RGB/PC
input [49]
HDMI 2
input terminal [52]
HDMI 1 AUDIO
input terminals [52]
11
Introduction
Getting started
Basic operation
Features
Equipment
connections
Reference section
Location of controls
For the use of each control, see the pages in brackets.
Getting started
Learning about the remote control
CALL [15, 17]
Initial/index function for Teletext [35]
Teletext on/off [33
–
35]
To return to the previous program [17]
Picture mode selection [20]
MENU [13]
DVD MENU
• Menu
[13]
• Volume – + [17, 44]
When in VCR or DVD mode: (Only for Toshiba VCR/DVD players)
to EJECT to REWIND to PLAY to FAST FORWARD to PAUSE to SKIP-REWIND to STOP to SKIP-FORWARD
CT-90241
DVD
MENU
P
P
21 3
54 6
87 9
VCR
TV
DVD
0
OK
CALL
MENU EXIT
DVD
• Teletext control buttons [34] (Four colored buttons: Red, Green, Yellow, Blue)
• BRIDGE MEDIA [37-43]
When in Teletext mode:
? To reveal concealed text [35] v To hold a wanted page [35] ^
To enlarge teletext display size [35]
y/X
To select a page while viewing a normal picture [35]
When in TV mode:
y/X
To select the time display [35] Double-Window on/off [44] Picture STILL [22, 44]
n Double-Window
picture/
sound selection [44]
OK [13, 29]
Stereo/bilingual selection [25]
Mode switch TV : To control TV VCR : To control VCR DVD : To control DVD
Power on/Standby [12] (For Toshiba TV/VCR/DVD)
Number buttons (0-9) [17, 30]
• Input source selection [29] (
1, 2, C1, C2,
HDMI 1, HDMI 2, PC, BM)
• To access sub-pages when in teletext [33]
Picture size selection [18]
EXIT [13]
• Menu
[13]
• Program position
[17]
• Teletext
[34]
• P
[44]
• Bass boost on/off [28]
• External woofer on/off [28]
Sound mute [17]
Getting started
12
Getting started
Turning the TV on, Selecting a language
• Connect the power cord to a wall outlet.
Switching on the TV
Press the / POWER switch on the TV left side until it clicks.
The
Power ON indicator lights in red. Press the button on the remote control or on the TV top panel if no picture appears.
Switching off the TV
Press the button on the remote control or on the TV top panel to switch to the standby mode.
To switch the TV off, press the / POWER switch on the TV left side . Power indicator will be turned off.
Notes:
• This TV is not full disconnected from the main supply, as minute current is consumed even when the
/ POWER switch is turned off. When the TV will not be used for a long period of time, such as during vacation or travel, remove the power plug from the wall outlet.
• The TV will automatically turn itself off after approximately 15 minutes if it is tuned to a vacant channel or a station that completes its broadcast for the day. This function does not work in external input or Gray screen Off mode.
• If power is cut off while you are viewing the TV, the Last Mode Memory function turns on the TV automatically when power is applied again. If power is going to be off for a long time and you are going to be away from your TV, unplug the power cord to prevent the TV from tuning on in your absence.
Selecting a language
Choose from 9 different languages (English, Chinese (CS), Malay, Thai, Vietnamese, Russian, Arabic, Persian or French) for the on­screen display.
Press the MENU button, then press the or button to display the SET UP menu.
Press the or button to select Language.
Press the or button to select the desired language.
TV top view
Note:
If you watch black and white programs when the color system mode is set to Auto, color noise may appear on the screen. In this case select the appropriate Color system (For the system of each country or region, refer to pages 15 and 54).
DVD
MENU
P
P
21 3
54 6
87 9
0
OK
CALL
MENU EXIT
1
Mono
AV connection
Program sorting
Manual tuning
OK OK OK
Picture position
OK
Auto tuning
OK
Language
SET UP
MENU
Back Watch TV
EXIT
English
13
Introduction
Getting started
Basic operation
Features
Equipment
connections
Reference section
AV connection
Program sorting
Manual tuning
OK OK
Auto tuning
OK
Language
SET UP
MENU
Back Watch TV
EXIT
English
Color management
Picture settings
MENU
Back Watch TV
EXIT
Teletext SW
Teletext
FUNCTION
MENU
Back Watch TV
EXIT
1
FAST
On timer Position
On timer
Sleep timer
TIMER
MENU
Back Watch TV
EXIT
00:00 00:00
01
TIMER
MENU
Back Watch TV
EXIT
Sleep timer
00:00
On timer Position
On timer
00:00
01
FUNCTION
MENU
Back Watch TV
EXIT
AV connection
Program sorting
Manual tuning
OK OK
OK
OK
Picture position
OK
Auto tuning
OK
Language
SET UP
MENU
Back Watch TV
EXIT
English
Picture position
OK
MENU
Back Watch TV
EXIT
Picture settings
Contrast 100
OK
Base color adjustment
Cinema mode
OK
Off
On
Color management
Base color adjustment
Cinema mode
Off
On
Gray screen
Auto format
On On
Side panel
Teletext SW
Teletext
1
FAST
Gray screen
Auto format
On On
Side panel
1
1
Treble
Bass
Headphone level
Headphone
Dual
MTS
SOUND 1/ 2
MENU
Back Watch TV
EXIT
Auto
Dual 1
0
0
Balance
SOUND 2/ 2
0
Speaker
On
Dual
MTS
SOUND 1/ 2
MENU
Back Watch TV
EXIT
Auto
Dual 1
Color Temperature
MENU
Back Watch TV
EXIT
Normal
Picture settings
2/2
DNR
Auto
Black stretch
On
MPEG NR
Low
Tint
Color
Back light
MENU
Back Watch TV
EXIT
100
50
0 0
Sharpness
Contrast
100
Picture settings
1/2
Brightness
50
Mode1
Treble
Bass
Headphone level
Headphone
0
0
Mode1
Menu display chart
Getting started
Learning about the menu system
• We suggest you familiarize yourself with the display charts before using the menu system:
• Press the MENU button to display menu, then press the
or button to select main menu headings.
• Press the
or button to select an item.
• Press the
or button to select or adjust setting.
• Press the OK button to display the next menu.
FUNCTION menu
TIMER menu
SET UP menu
SOUND menu
PICTURE menu
Notes:
•
In the video input mode ( 1, 2, C1, C2, HDMI 1, HDMI 2), Auto tuning, Manual tuning and Program sorting are not available. Instead, Manual setting appears in the SET UP menu (see page 29).
• If you connect external equipment via component video source to external input, Color system selection in the Manual setting menu is not available.
• If you do not make a selection for a while, the menu display disappears automatically.
• If you want to close the menu display instantly, press the EXIT button except for the BRIDGE MEDIA function (see page 36).
• To return to the previous menu, press the MENU button except for the BRIDGE MEDIA function (see page 36).
• The
buttons function as the Program position
P
/ P buttons when there is no menu display on
the screen.
• The
buttons function as the Volume +/ –
buttons when there is no menu display on the screen.
• In the PC input mode, PC Setting appears in the SET UP menu (see page 29).
• In the 480i or 576i input signals mode, you can select the Cinema mode in the PICTURE menu (see page
22).
• When you use the color management function (see page 23), you can select the Base color adjustment in the PICTURE menu.
• When you use the double-window function (see page
45), you can select the Headphone level in the SOUND menu.
14
Getting started
Manual tuning
Press the MENU button, then press the
or button to display the SET UP menu. Press the
or button to select Manual tuning.
Press the OK button to display the Manual tuning menu. Press the
or button to select the program position you want to arrange.
Press the OK button to display the breakdown menu. Press the
or button to select an item, then press the or button to select the item as shown below and on the next page.
A. Program position selection B. Sound system (see page 54)
Getting started
Programming channel memory
• First, use the Auto tuning function to preset all the active channels in your area automatically. Then, arrange the preset channels with the Manual tuning function so that you can tune into only desired channels.
•
Use the Manual tuning operation if desired channels cannot be preset with the Auto tuning or if you would like to preset channels to specific position numbers one by one.

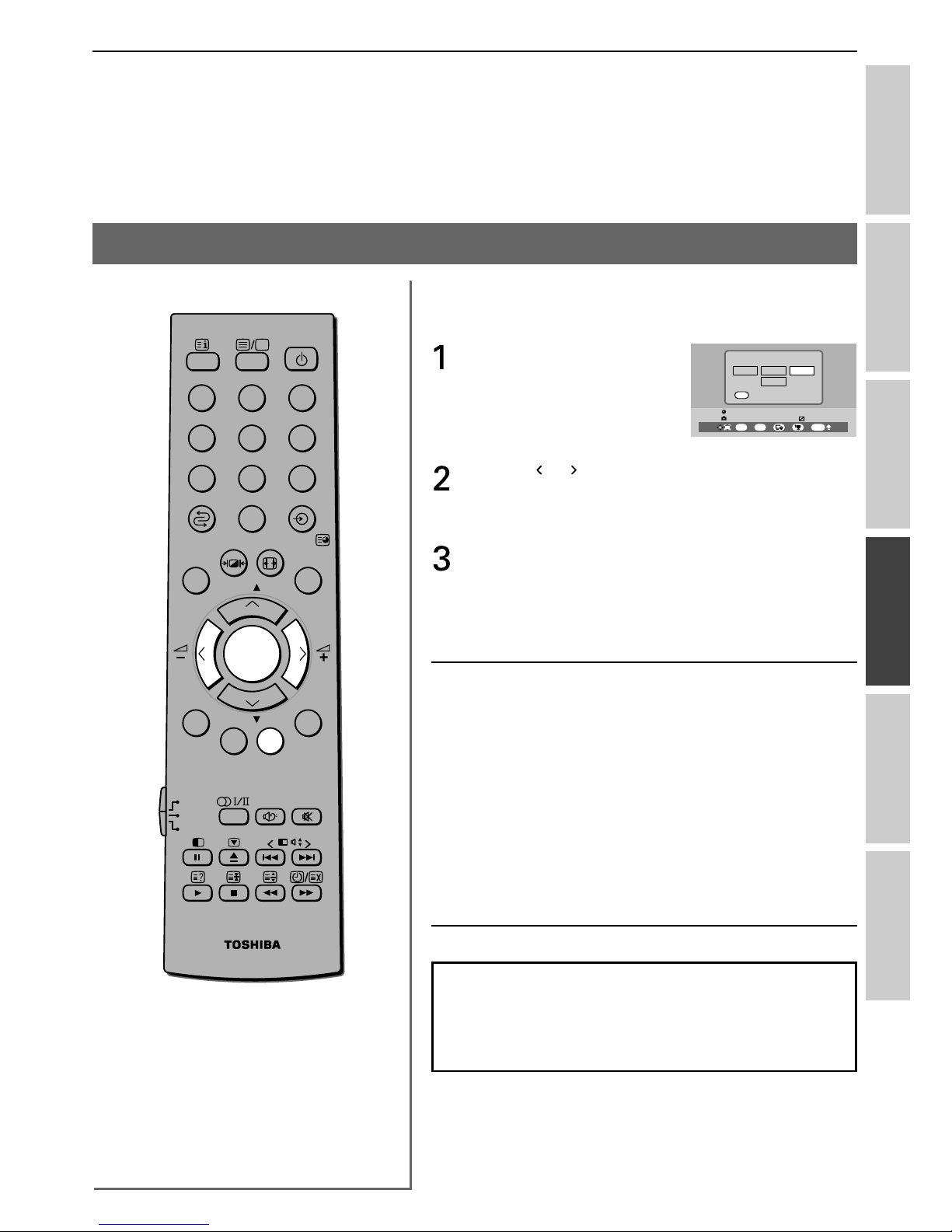

System selection, Auto tuning
Press the MENU button, then press the
or button to
display the SET UP menu.
Press the or button to select Auto tuning.
Press the OK button to display the Auto tuning menu.
Press the OK button to start the automatic search. The search will begin for all available stations. The slide bar will move along the line as the search progresses.
If you make a mistake, simply repeat steps 1-4 to start again from the beginning.
When the automatic search is complete, the TV will automatically return to the first program position.
Press the P or P button to view the programmed position.
5
4
3
2
1
MENU
Back Watch TV
EXIT
6
B/G
B/G
B/G
B/G
B/G
B/G
OK
Manual tuning
Prog. Sys. Label
Select
DVD
MENU
P
P
21 3
54 6
87 9
TV
DVD
0
OK
CALL
EXIT
VCR
MENU
AV connection
Program sorting
Manual tuning
OK OK OK
Picture position
OK
Auto tuning
OK
Language
SET UP
MENU
Back Watch TV
EXIT
English
MENU
Back Watch TV
EXIT
Auto tuning
EXIT for no change.
Press OK key to start.
!
Searching
Stop
Pos :2
Auto tuning
EXIT
AV connection
Program sorting
Manual tuning
OK OK OK
Picture position
OK
Auto tuning
OK
Language
SET UP
MENU
Back Watch TV
EXIT
English
MENU
Back Watch TV
EXIT
OK
Manual tuning
Store
1
B/G
Program
A
A
B
C
D
E
F
G
H
15
Introduction
Getting started
Basic operation
Features
Equipment
connections
Reference section
C. Color system (see page 54)
A : Automatic (factory setting), P : PAL, S : SECAM N4 : NTSC 4.43 (MHz), N3 : NTSC 3.58 (MHz) If the color of a certain channel is abnormal, the automatic color system selection (A) may have malfunctioned, or sound system selection is wrong. In such a case, select
another color and/or sound system (see page 54). D. Program position skip selection Press the
or button to turn the program position skip
option on “
” or off “ ”.
The program position will then be skipped when you
select channels with the P
or P button.
The “
” mark will appear beside a program position number when you use the Number button on the remote control.
E. Channel search operation Press the
button to search up the band or the button to search down the band. Press the
or button repeatedly until your desired channel is displayed. When a station/satellite is found, it will be displayed. NEVER PRESS ANY OTHER BUTTONS WHILE THE SET IS TUNING.
F. Auto Fine Tuning
Press the
or button to turn the Auto Fine Tuning option on “
” or off “0”. The Auto Fine Tuning function automatically corrects slight fluctuations when receiving signals. Manual Fine Tuning
While the Auto Fine Tuning turn off “0”, press the
or
button so that the better picture and sound are obtained.
G. ANT ATT (Antenna attenuator)
Press the
or button to turn the ANT ATT option on
“
” or off “ ”, when visual interference occurs, set the
ANT ATT to on.
H. Label
Station labels appear under the program position display each time you turn on the TV, select a channel, or press the CALL button.
To change or create station labels:
1) Press the
or button repeatedly to select a
character for the first space, then press the
button.
2) Repeat step 1) to enter the rest of the characters. If you
would like a blank space in the label name, you must choose a blank space from the list of characters.
Press the OK button to store your settings.
Manual tuning (continued)
*(blank space)
DVD
MENU
P
P
21 3
54 6
87 9
VCR
TV
DVD
0
OK
CALL
EXIT
MENU
16
Getting started
Ex.: To swap channel ABCD (Prog.1) for channel MNOP (Prog.4):
Press the MENU button, then press the
or button to display the SET UP menu. Press the
or button to
select Program sorting.
Press the OK button to display the Program sorting menu.
Press the or button to select the channel ABCD, then press the
button.
Press the button to select the new position “4”, then press the
button.
Press the button to select the channel MNOP, then press the
button.
Press the button to select the new position “1”, then press the
button.
Confirm new sorting list.
Getting started
Programming channel memory
(continued)
• This TV is capable of receiving a number of different channels depending upon where you live.
• Program sorting is an easy way of storing each channel on the program position of your choice.
Program sorting
AV connection
Program sorting
Manual tuning
OK
OK
OK
Picture position
OK
Auto tuning
OK
Language
SET UP
MENU
Back Watch TV
EXIT
English
5
4
3
2
1
MENU
Back Watch TV
EXIT
6
MNOP
IJKL
EFGH
ABCD
Program sorting
Prog. Label
Select
5
4
3
2
1
MENU
Back Watch TV
EXIT
6
MNOP
IJKL
EFGH
Program sorting
Prog. Label
Sort Store
ABCD
5
4
3
2
1
MENU
Back Watch TV
EXIT
6
IJKL
EFGH
ABCD
Program sorting
Prog. Label
Sort Store
MNOP
DVD
MENU
P
P
21 3
54 6
87 9
VCR
TV
DVD
0
OK
CALL
MENU
EXIT
5
4
3
2
1
MENU
Back Watch TV
EXIT
6
ABCD
IJKL
EFGH
MNOP
Program sorting
Prog. Label
Select
17
Introduction
Getting started
Basic operation
Features
Equipment
connections
Reference section
To alter the volume:
Press the + or – button to raise or lower the volume.
To mute the sound:
Press the button. The word Sound mute
appears on the
screen.
Press the button again to restore the sound.
To change program position:
Enter the desired program position number using the Number buttons on the remote control.
For program positions below 10, use 0 and the required number e.g., for program position 1.
You can also change the program position by using the P or
P
button.
The program position will be displayed on the screen with the Mono/Stereo/Dual audio status.
To switch between two program positions:
You can switch two program positions without entering actual position number each time.
Select the first program position you want to view.
Select the second program position with the Number buttons (0-9).
Press the button. The previous channel will be displayed.
Each time you press the
button, the TV will switch back and
forth between the two program positions.
To display the on-screen information:
Press the CALL button to display the following on-screen information. The information will disappear in 6 seconds.
• Program position or external input mode selected
• Program skip on/off information
• Label (if set)
• Mono/Stereo/Dual audio status
To erase the display instantly, press the CALL button again.
Getting started
Watching TV programs
Volume, Sound mute, Changing program positions, Program return, On-screen information
TV top view
Note:
The program position selection change between different format channels takes several seconds.
DVD
MENU
P
P
21 3
54 6
87 9
VCR
TV
DVD
0
OK
CALL
MENU
EXIT
Sound mute
Mono
1
MNOP
Volume 30
ABCD4
Stereo
EFGH2
Stereo
IJKL3
Dual
18
Basic operation
Basic operation
Viewing the wide-screen picture format
• This TV is capable of showing broadcasts in a number of formats. Depending on the type of broadcast being transmitted, you may select between Super live, Cinema, Subtitle, 14:9, Wide and 4:3.
Picture size selection
Press the button repeatedly to view the options available.
Super live
This setting will enlarge the 4:3 image to fit the screen by stretching the image vertically and horizontally, holding the correct proportions at the center of the image.
Cinema
When watching “letterbox format” films/video tapes, this setting will eliminate or reduce the black bars at the top and bottom of the screen by zooming in and selecting the image without distortion.
Subtitle
When subtitles are included on a letterbox format broadcast, this setting will raise the picture so that the most of text is displayed.
14:9
Use this setting when watching a 14:9 broadcast.
Wide
Use this setting when watching a wide-screen DVD, wide-screen video tape or a 16:9 broadcast (when available). Due to the range of wide-screen formats (16:9, 14:9, 20:9 etc.), you may see bars on the top and bottom of the screen.
4:3
Use this setting to view a true 4:3 broadcast.
Notes:
• Using the special functions to change
the size of the displayed image (e.g. changing the height/width ratio) for the purpose of public display or commercial gain may infringe on copyright laws.
• In the 720p/1080i input signals mode,
the picture size selection is wide only.
• If the aspect ratio of the selected format
is different from the one of the TV transmission or video program, it can cause a difference in vision. Change to the correct aspect ratio picture size.
• In the BRIDGE MEDIA (see page 29)
and PC mode (see page 29), the picture size selection is wide or 4:3 only.
Subtitle
DVD
MENU
P
P
21 3
54 6
87 9
0
OK
CALL
MENU
EXIT
Subtitle
19
Introduction
Getting started
Basic operation
Features
Equipment
connections
Reference section
Adjustment to the position of the picture may be made to suit your viewing preferences.
To adjust the picture position:
Press the MENU button, then press the
or button to
display the SET UP menu.
Press the or button to select Picture position.
Press the OK button to display the Picture position menu.
The menu will vary depending upon the widescreen format you have previously chosen.
Press the or button to select an item you want to adjust.
Press the or button to adjust the settings as required.
Reset (Picture position adjustment)
This function resets your picture position settings to the factory settings.
To reset the picture position:
Press the MENU button, then press the
or button to
display the SET UP menu.
Press the or button to select Picture position, then press the OK button.
Press the or button to select Reset, then press the OK button.
Basic operation
Picture position, Reset
Picture position adjustment
Notes:
• When the picture format is in Wide or
4:3 mode, only the Horizontal position can be adjusted.
• The picture position adjustment is not
available for 720p/1080i input signals.
DVD
MENU
P
P
21 3
54 6
87 9
VCR
TV
DVD
0
OK
CALL
MENU
EXIT
Program sorting
Manual tuning
OK OK
Picture position
AV connection
OK
OK
Auto tuning
OK
Language
SET UP
MENU
Back Watch TV
EXIT
English
Horizontal position 0
Reset
Horizontal position
MENU
Back Watch TV
EXIT
0
Picture position
Vertical position
0
OK
Program sorting
Manual tuning
OK OK
Picture position
AV connection
OK
OK
Auto tuning
OK
Language
SET UP
MENU
Back Watch TV
EXIT
English
Reset
Horizontal position
MENU
Back Watch TV
EXIT
0
Picture position
Vertical position
0
OK
20
Basic operation
Picture quality adjustment
Basic operation
Picture quality adjustment
To select the picture mode:
You can select the picture quality instantly among three preset modes and one user-set mode.
• Press the
button to select
the desired picture quality.
Dynamic, Standard, Mild and Memory (user-set) can be selected cyclically.
Note:
In the PC input mode (see page 29), this mode is not available.
To adjust the basic picture quality:
Press the MENU button, then press the
or button to
display the PICTURE menu.
Press the or button to select the Picture settings menu, then press the OK button.
Press the or button to select Contrast, Brightness, Color, Tint or Sharpness, then press the
or button to
adjust the level.
Notes:
• The Tint may only be adjusted on a tape
which has been recorded and played back on an NTSC VCR.
• In the PC input mode (see page 29),
Color, Tint and Sharpness modes are not available.
Mode Picture quality
Dynamic bright and dynamic picture Standard standard picture Mild soft picture Memory the picture quality you set
Selection Pressing
Back light darker lighter Contrast lower higher Brightness darker lighter Color paler deeper Tint reddish greenish Sharpness softer sharper
DVD
MENU
P
P
21 3
54 6
87 9
VCR
TV
DVD
0
OK
CALL
MENU
EXIT
Dynamic
Contrast 100
Tint
Color
Back light
MENU
Back Watch TV
EXIT
100
50
0 0
Sharpness
Contrast
100
Picture settings
1/2
Brightness
50
21
Introduction
Getting started
Basic operation
Features
Equipment
connections
Reference section
To activate the black stretch
This function increases the strength of dark areas of the picture which improves definition.
From the Picture settings menu, press the
or button to select Black stretch on the 2nd page.
Press the or button to select On or Off.
Note:
In the PC input mode (see page 29), this mode is not available.
To activate the MPEG NR (Noise Reduction)
If the receiving signal of MPEG is a mosquito (grained) noise depending on the compression and conversion, the noise may be reduced when using this function.
From the Picture settings menu, press the
or button to select MPEG NR on the 2nd page.
Press the or button to select Off, Low, Middle or High.
Note:
In the PC input mode (see page 29), this mode is not available.
To activate the DNR (Digital Noise Reduction)
If the receiving signal is weak and the picture is blurry, the picture may be improved when using this function.
From the Picture settings menu, press the
or button to select DNR on the 2nd page.
Press the or button to select Auto, Low, Middle, High or Off.
Note:
This function is available for 480i and 576i signals.
Color Temperature
Black stretch
MENU
Back Watch TV
EXIT
On
Normal
MPEG NR
High
Picture settings 2 /2
DNR
Auto
DNR
Auto
Color Temperature
Black stretch
MENU
Back Watch TV
EXIT
On
Normal
MPEG NR
Low
Picture settings
2/2
DNR
Auto
DVD
MENU
P
P
21 3
54 6
87 9
VCR
TV
DVD
0
OK
CALL
MENU
EXIT
Black stretch
On
Color Temperature
MENU
Back Watch TV
EXIT
Normal
Picture settings
2/2
DNR
Auto
Black stretch
On
MPEG NR
High
MPEG NR
High
22
Basic operation
To select the color temperature
Basic operation
Picture quality adjustment
(continued)
You can change the tone of the picture by selecting from three preset color temperatures: Cool, Normal or Warm.
Press the MENU button, then press the
or button to
display the PICTURE menu.
Press the or button to select the Picture settings menu, then press the OK button.
Press the or button to select Color Temperature on the 2nd page, then press the
or
button to select mode you prefer.
To use the cinema mode
A movie film’s picture runs at 24 frames a second, whereas movie software such as DVD, etc., that you enjoy watching on television at home runs at 30 (NTSC) or 25 (PAL) frames a second. To convert this signal to reproduce a smooth motion and picture quality, select the On mode.
Effective signal and setup conditions
• When the Video input mode is selected.
• When the input signal format is 480i and 576i signals.
Press the MENU button, then press the
or button to
display the PICTURE menu.
Press the or button to select Cinema mode, then press the
or button to select On
or Off.
To use the picture still
Press the button to freeze the picture. Even if an image is frozen on the TV screen, the pictures are running on the input source. Audio continues to be output as well. To return to a moving picture, press the
button again.
Cool : Lends a blue hue to the picture. Normal : Neutral Warm : Lends a red hue to the picture.
Notes:
• When a DVD movie with subtitle is playing back, the Cinema mode may not work correctly.
• If you use the picture still function except for the purpose of your private viewing and listening, it may infringe the copyright protected by the copyright laws.
• In the PC and BRIDGE MEDIA input modes (see page 29), the picture still function is not available.
DVD
MENU
P
P
54 6
87 9
VCR
TV
DVD
0
OK
MENU
EXIT
Color Temperature
Normal
MENU
Back Watch TV
EXIT
Picture settings 2/2
DNR
Auto
Black stretch
On
MPEG NR
Low
MENU
Back Watch TV
EXIT
OK
Picture settings
Off
Base color adjustment
Color management
Cinema mode
On
Cinema mode
On
(Moving) (Still)
Color Temperature
Normal
23
Introduction
Getting started
Basic operation
Features
Equipment
connections
Reference section
To adjust the color management
You can adjust the picture color quality by selecting from 6 base color adjustments : Red, Green, Blue, Yellow, Magenta, Cyan.
From the PICTURE menu, press the
or button to
select Color management.
Press the or button, then press the
or button to
select On.
Press the OK button, then press the
or button to select
Base color adjustment.
Press the OK button, then press the
or button to select an
item you want to adjust.
Press the button, then press the
or button to select
Hue or Saturation.
Press the or button to adjust the settings as required.
To reset the base color adjustment
The Reset function adjusts the base color adjustment to the factory settings.
From the Base color adjustment menu, press the
or button
to select Reset.
Press the OK button.
Notes:
• If you select color management Off mode, this mode is not available.
• In the PC input mode (see page 29), this mode is not available.
DVD
MENU
P
P
21 3
54 6
87 9
VCR
TV
DVD
0
OK
CALL
MENU
EXIT
MENU
Back Watch TV
EXIT
OK
Picture settings
Off
Base color adjustment
Color management
Cinema mode
On
Color management
On
MENU
Back Watch TV
EXIT
OK
Picture settings
On
Base color adjustment
Color management
On
Cinema mode
OK
On
Hue
MENU
Back Watch TV
EXIT
Red
Blue
Green
Yellow Magenta Cyan
Saturation
0
0
0 0 0 0
0
0
0 0 0 0
Reset
OK
Base color adjustment
Hue
MENU
Back Watch TV
EXIT
Red
Blue
Green
Yellow Magenta Cyan
Saturation
0
0
0 0 0 0
0
0
0 0 0 0
Reset
OK
Base color adjustment
Hue
Red
0
Saturation
0
24
Basic operation
Setting the MTS mode:
Auto mode
The MTS auto mode automatically recognize stereo/bilingual programs depending on the broadcast signal.
Press the MENU button, then press the
or button to
display the SOUND menu.
Press the or button to select MTS, then press the
or
button to select Auto or
Mono.
Mono mode
If you experience noise or poor reception of any stereo/bilingual program, set the MTS mode to Mono. Noise will be reduced and reception may improve.
Note:
If you experience noise with a particular program on whose channel reception is usually good, try setting MTS mode to Auto, then switch the
button to Mono (monaural) (see page 25).
Selecting the dual 1 or dual 2 mode
You can hear only dual 1 or dual 2 sound selected, whenever bilingual programs are received.
Press the MENU button, then press the or button to display the SOUND menu.
Press the
or
button to
select Dual, then press the
or
to select Dual 1 or Dual 2.
Notes:
• When the MTS setting is in Mono mode, the Dual menu is not selectable.
• The Dual menu setting status remains even if the TV is turned off.
MTS (Multi-channel TV Sound) setting
Basic operation
Sound adjustment
DVD
MENU
P
P
21 3
54 6
87 9
VCR
TV
DVD
0
OK
CALL
MENU
EXIT
Dual
MTS
SOUND 1/ 2
MENU
Back Watch TV
EXIT
Auto
Dual 1
Treble
Bass
Headphone level
Headphone
0
0
Mode1
Dual
MTS
SOUND 1/ 2
MENU
Back Watch TV
EXIT
Auto
Dual 1
Treble
Bass
Headphone level
Headphone
0
0
Mode1
25
Introduction
Getting started
Basic operation
Features
Equipment
connections
Reference section
Sound to be heard
Display
NICAM
German stereo/
bilingual broadcast
Dual 1 Sub I sound Main sound Dual 2 Sub II sound Sub sound
Mono Main sound —
Note:
These settings are not stored in the TV memory.
To select the stereo programs:
When a stereo program is received,
Stereo appears.
Press the button to select the stereo/monaural mode.
Stereo and Mono appear
cyclically on the screen.
To select the bilingual programs:
When a bilingual program is received,
Dual appears.
Press the button to select the sound to be heard. The sound differs according to the transmission system: NICAM or German stereo/bilingual broadcast.
Dual 1, Dual 2
and
Mono appear cyclically on the screen.
Stereo/Bilingual selection
Selection Pressing
Bass weaker stronger
Treble weaker stronger
Balance decreases the decreases the
right channel left channel
Sound quality adjustment
To adjust the sound quality:
Press the MENU button, then press the
or button to
display the SOUND menu.
Press the or button to select Bass, Treble or Balance.
Press the or button to adjust the level.
DVD
MENU
P
P
21 3
54 6
87 9
VCR
TV
DVD
0
OK
CALL
MENU
EXIT
ABCD10
Stereo
ABCD10
Dual
Dual 1
Stereo
Dual
MTS
SOUND 1/ 2
MENU
Back Watch TV
EXIT
Auto
Dual 1
Treble
Bass
Headphone level
Headphone
0
0
Mode1
Bass 0
26
Basic operation
Basic operation
Sound adjustment
(continued)
To select the audio output
With the audio output function “Variable”, you can use the TV’s remote controller to adjust the sound volume of the external audio system connected (see page 48).
To select the sound volume from AUDIO OUT terminals:
Press the MENU button, then press the or button to display the SET UP menu.
Press the or button to select AV connection, then press the OK button to display the AV connection menu.
Press the or button to select Audio output, then press the
or button to select
Variable or Fixed.
Note:
Make sure the volume control of your audio amplifier is set to a moderate listening level.
To select the HDMI audio mode
You can select sound of the HDMI and DVI device audio connected terminals (see page 52) from three modes : Auto, Digital and Analogue.
Press the MENU button,then press the or button to display the SET UP menu.
Press the or button to select AV connection, then press the OK button to display the AV connection menu.
Press the or button to select HDMI 1 Audio or HDMI 2 Audio, then press the
or button to select Auto, Digital or Analogue.
DVD
MENU
P
P
21 3
54 6
87 9
VCR
TV
DVD
0
OK
CALL
MENU
EXIT
Program sorting
Manual tuning
OK OK
Picture position
AV connection
OK
OK
Auto tuning
OK
Language
SET UP
MENU
Back Watch TV
EXIT
English
MENU
Back Watch TV
EXIT
HDMI1 Audio HDMI2 Audio
AV connection
Auto Auto
Woofer
Audio output
Internal
Variable
Program sorting
Manual tuning
OK OK
Picture position
AV connection
OK
OK
Auto tuning
OK
Language
SET UP
MENU
Back Watch TV
EXIT
English
MENU
Back Watch TV
EXIT
HDMI1 Audio
HDMI2 Audio
AV connection
Auto
Auto Woofer Audio output
Internal
Fixed
27
Introduction
Getting started
Basic operation
Features
Equipment
connections
Reference section
To use the WOW surround sound
Notes:
• If the broadcast is monaural, the SRS 3D effect does not work.
• WOW, SRS and
®
symbol are
trademarks of SRS Labs, Inc.
• WOW technology is incorporated under license from SRS Labs, Inc.
WOW is a special combination of SRS Labs audio technologies that creates a thrilling surround experience with deep, rich bass from stereo sound sources. Your TV’s audio will sound fuller, richer and wider.
Press the MENU button, then press the
or button to
display the SOUND menu.
Press the or button to select WOW on the 2nd page, then press the OK button.
Press the or button to select an item you want to adjust, then press the
or button to
adjust the settings as required.
•
SRS 3D: To turn On or Off the surround effect.
•
FOCUS: To turn On or Off the surround effect.
•
TruBass: To select your desired bass expansion level (Off, Low or High).
To use the stable sound
When the signal source is changed, the Stable sound function limits the high volume level to prevent extreme changes in volume. For example, this will prevent the sudden increase in volume that often happens when a TV program switches to a commercial.
From the SOUND menu, press the
or button to select
Stable sound on the 2nd page.
Press the or button to select On or Off.
To activate/deactivate the speaker
Use this function to turn the TV speakers off when you connect an audio system (see page 48).
From the SOUND menu, press the
or button to select
Speaker on the 2nd page.
Press the or button to select On or Off.
DVD
MENU
P
P
21 3
54 6
87 9
VCR
TV
DVD
0
OK
CALL
MENU
EXIT
MENU
Back Watch TV
EXIT
WOW
TruBass
High
SRS 3D
Off
FOCUS
On
MENU
Back Watch TV
EXIT
Balance
SOUND 2/ 2
0
WOW Stable sound
Off
Speaker
On
OK
MENU
Back Watch TV
EXIT
Balance
SOUND 2/ 2
0
WOW
Stable sound
Off
Speaker
On
OK
MENU
Back Watch TV
EXIT
Balance
SOUND 2/ 2
0
WOW
Stable sound
Off
Speaker
On
OK
28
Basic operation
To select the woofer internal/external mode:
Press the MENU button, then press the or button to display the SET UP menu.
Press the or button to select AV connection, then press the OK button to display the AV connection menu.
Press the or button to select Woofer, then press the or button to select Internal or External.
• Internal is to use the bass boost.
• External is to use an external woofer system.
To use the bass boost:
Select the woofer internal mode as shown above.
Press the button to display Bass boost level.
While the Bass boost display is on the screen, press the
or button to adjust the Bass boost level.
To turn off the Bass boost, press the
button to display Bass
boost Off.
To use an external woofer system:
Connect an external woofer to the “WOOFER OUT” output terminal located on the rear of the TV (see page 48).
Select woofer external mode from the AV connection menu.
Press the button to display External Woofer level, then press the
or button to adjust the External Woofer level.
To turn off the External Woofer, press the
button to display
External Woofer Off.
Woofer internal/external mode, Bass boost, Woofer system
Note:
The Bass Boost effect is active only when the sound outputs from the speaker or an external woofer system.
Basic operation
Sound adjustment
(continued)
Woofer system with amplifier
DVD
MENU
P
P
21 3
54 6
87 9
VCR
TV
DVD
0
OK
CALL
MENU
EXIT
MENU
Back Watch TV
EXIT
HDMI1 Audio HDMI2 Audio
AV connection
Auto Auto
Woofer
Audio output
External
Fixed
External Woofer 70
External Woofer Off
Bass boost 70
Bass boost Off
29
Introduction
Getting started
Basic operation
Features
Equipment
connections
Reference section
To select input source:
Press and hold the button or press the OK button on the remote control until the video input mode list appears on the screen, then press the
or button to select appropriate input source (or press the button on the TV top panel or the
button on the remote control repeatedly to select required input source directly).
Press the OK button.
1 ( (1), video 1 input), 2 ( (2), video 2 input), C1 ( (C1), COMPONENT VIDEO INPUT), C2 ( (C2), COMPONENT VIDEO INPUT),
HDMI 1 (
HDMI 1 input),
HDMI 2 (
HDMI 2 input),
PC (
RGB/PC, PC input),
BM (BRIDGE MEDIA Input)
Manual setting:
Press the MENU button, then press the
or button to
display the SET UP menu.
Press the or button to select Manual setting, then press the OK button.
Press the or button to select an item, then press the or button to select the item as shown below.
A. Color System
Confirm that color system is set to “A” (Auto). If not, select “A” with the
or button.
B. Video label
The video label allows you to label each input source for your TV.
To change or create video labels:
1) Press the
or button repeatedly to select a
character for the first space, then press the
button.
2) Repeat step 1) to enter the rest of the characters. If you would like a blank space in the label name, you must choose a blank space from the list of characters.
Press the OK button to store your settings.
Features
Input selection
Input selection
Note:
When the component video input, HDMI 1, HDMI 2, PC or BM input mode is selected, the MONITOR OUT output terminals (see page 48) output audio signal only.
TV top view
OK:
:
(Press and hold)
Ex. PC VGA mode
DVD
MENU
P
P
21 3
54 6
87 9
0
OK
CALL
MENU
EXIT
Manual setting
OK OK
Picture position
AV connection
OK
Language
SET UP
MENU
Back Watch TV
EXIT
English
PC VGA
2
3
4
5
0 BM PC HDMI2
1
1
1
2
C1
BM PC HDMI2
C2
HDMI1
MENU
Back Watch TV
EXIT
OK
Manual setting
Store
A
Color system:Auto
EXT1
AB
*(blank space)
30
Features
To select the timer menu:
Press the MENU button, then press the
or button to
display the TIMER menu.
Press the or button to select the required timer mode (Sleep timer (Turn off the TV) or On timer).
Press the Number buttons (0-9), or button to set the On or Off delay time, e.g. on in 30 minutes and On timer Position 3 selected.
Press the EXIT button to exit the menu. When setting the On timer, press the
or button to select the On timer Position and enter the program position number you want to watch. Set the Standby mode by pressing the
button on the
remote control or
Power button on the TV.
Note:
The time display will set by 10 minutes, up to 12 hours 50 minutes.
To activate gray screen
With the gray screen function On, the screen will automatically turn gray and the sound will be muted when no signal is being received.
Press the MENU button, then press the
or button to
display the FUNCTION menu.
Press the or button to select Gray screen.
Press the or button to select On or Off.
Note:
In the PC input mode (see page 29), the Gray screen is not available.
Features
Timer, Gray screen
Timer
The Timer is especially useful if you want the TV to turn itself on or off after a selected period of time. Activation of the Timer is indicated by the green “On-timer indicator”, on the front of the TV (see page 9).
DVD
MENU
P
P
21 3
54 6
87 9
VCR
TV
DVD
0
OK
CALL
MENU
EXIT
TIMER
MENU
Back Watch TV
EXIT
Sleep timer
00:00
On timer Position
On timer
00:30
03
Side panel
FUNCTION
MENU
Back Watch TV
EXIT
1
Gray screen
On
Teletext
FAST
Teletext SW
1
Auto format
On
TV top view
31
Introduction
Getting started
Basic operation
Features
Equipment
connections
Reference section
Features
Side panel adjustment
Side panel adjustment
You can adjust the brightness of side panel in 14:9 or 4:3 mode.
To adjust the side panel setting:
Press the MENU button, then press the
or button to
display the FUNCTION menu.
Press the or button to select Side panel.
Press the or button to adjust the settings as required.
To use the auto format
When the TV receives a true HDMI signal picture and the auto format is On, it will automatically be displayed in HDMI signal format, irrespective of the TV's previous setting.
From the FUNCTION menu, press the
or button to
select Auto format.
Press the or button to select On or Off.
DVD
MENU
P
P
21 3
54 6
87 9
VCR
TV
DVD
0
OK
CALL
MENU
EXIT
Side panel
FUNCTION
MENU
Back Watch TV
EXIT
1
Gray screen
On
Teletext
FAST
Teletext SW
1
Auto format
On
Side panel
1
Side panel
FUNCTION
MENU
Back Watch TV
EXIT
1
Gray screen
On
Teletext
LIST
Teletext SW
1
Auto format
On
32
Features
To select teletext mode:
Select a channel position with the desired teletext service.
Press the MENU button, then press the
or button to
select Teletext.
Press the or button to select Teletext.
Press the or button to select FAST or LIST mode.
Features
Teletext – Setting up
• This TV has a multi-page teletext memory, which takes a few moments to load and it offers two ways of viewing Teletext FAST and LIST which are explained on page 34.
Teletext mode
Note:
When you are watching the teletext program, SET UP menu and FUNCTION menu are not selectable.
DVD
MENU
P
P
21 3
54 6
87 9
VCR
TV
DVD
0
OK
CALL
MENU
EXIT
Side panel
FUNCTION
MENU
Back Watch TV
EXIT
1
Gray screen
On
Teletext
LIST
Teletext SW
1
Auto format
On
33
Introduction
Getting started
Basic operation
Features
Equipment
connections
Reference section
Features
About Teletext
Teletext general information
DVD
MENU
P
P
21 3
54 6
87 9
VCR
TV
DVD
0
OK
CALL
MENU
EXIT
button:
Pressing the button once will bring up the teletext screen. Press again to superimpose the teletext over a normal broadcast picture. Press again to return to normal TV mode. You need to return to normal viewing if you wish to change channels.
When you first press the
button to access the text service, the
first page you see will be the initial page.
In FAST mode, this displays the main subjects available and their relevant page numbers.
In LIST mode, you will see the page numbers currently stored on the each color button.
Sub-pages:
Once in this chosen page, if there are sub-pages they will automatically load into memory without changing the one you are reading. If there are many sub-pages, it will take a long time for them all to load and this will depend on the speed with which the broadcaster transmits them.
To access the sub-pages in memory, press the
( ) button,
then use the
and buttons to view them.
Teletext SW adjustment
If reception is weak, the picture may appear blurred, and text may not appear clearly on the screen. In this case, use this function to make text appear clearer.
Press the MENU button, then press the
or button to
display the FUNCTION menu.
Press the or button to select Teletext SW, then press the
or button to adjust 1, 2 or 3 modes.
Notes:
• This function may not be available in some cases.
• Only in the antenna input signal mode, this function is available.
Side panel
FUNCTION
MENU
Back Watch TV
EXIT
1
Gray screen
On
Teletext
LIST
Teletext SW
3
Auto format
On
Note:
If you press the
button while the picture mode is activated, this mode will be cancelled.
34
Features
Press the button to access teletext.
If FASTEXT is available, you will see 4 colored titles at the base of the TV screen. To access any given subject, simply press the relevant colored button on the remote control. If FASTEXT is not available, you can access any page simply by entering a 3-digit page number or pressing the corresponding colored button. For further information on your particular text system(s), see the broadcast teletext index page or consult your local Toshiba dealer.
Using LIST mode
Press the button to access teletext.
The four choices at the bottom of the screen are now number – 100, 200, 300 and 400, which have been programmed into the TV’s memory.
To view these pages, use the colored prompt buttons. e.g. press the Green button to view page 200.
If you want to change these stored pages, press the colored button for the color you want to change. e.g. Press the Green button and enter the 3-digit number.
This number will change in the top left of the screen and in the colored highlight.
Press the OK button to store your choice. The bars at the bottom of the screen will flash white.
You may view other pages by simply entering the 3-digit page number – but NEVER press the OK button or you will lose the favorite already stored.
Features
Teletext – FAST and LIST modes
Using FAST mode
There are two Modes: FAST will display FASTEXT, if available. LIST will display your four favorite pages. In either mode, as an alternative to the colored buttons, you can access a page by entering a 3-digit number, using the Number buttons on the remote control, or to advance to the next page, press the P
( ) button, to go back to the previous
page press the P
( ) button.
To change between FAST and LIST, see page 32.
Red
Green
Yellow
Blue
Red
Green
Yellow
Blue
DVD
MENU
P
P
21 3
54 6
87 9
VCR
TV
DVD
0
GY
B
R
OK
CALL
MENU
EXIT
100 Sport 14:57:55
SwimmingRacingBaseballFootball
100 TEXT M00 14:58:55
100 200 300 400
100 TEXT M00 14:58:59
100 250 300 400
35
Introduction
Getting started
Basic operation
Features
Equipment
connections
Reference section
Features
Teletext – Control buttons
• Below is an introduction to the teletext buttons on your remote control and their functions.
Teletext buttons on the remote control
To display a page of teletext:
Press the button to display teletext. Press again to superimpose the teletext over a normal broadcast picture. Press again to return to normal TV mode.
To display an index/initial page:
In FAST-mode
Press the button to access the index page. The one displayed is dependant on the broadcaster.
In LIST-mode
Press the button to return to the 100 page or initial page.
To reveal concealed text:
Some pages cover topics such as quizzes and jokes. To discover the solutions, press the
button.
To hold a wanted page:
This function is included as it is part of the broadcast teletext system but you will not need it as this TV allows you to control the display of sub-pages.
To enlarge the teletext display size:
Press the button once to enlarge the top half of the page, press again to enlarge the bottom half of the page. Press again to revert to the normal size.
To select a page while viewing a normal picture:
When in teletext mode, if a page selection is made and then the
button is pressed, a normal picture will be displayed. The TV will indicate when the page is present by displaying the title bar of the text page at the top of the screen. Press the
button to view
the page.
To select the time display:
If you press the button while watching a normal TV broadcast, you will see a time display from the broadcaster. It will remain on the screen for about 5 seconds.
Note:
If you press the
button while this mode is activated, this mode
will be cancelled.
Note:
It will not be possible to change program position while in Teletext mode, you will have to cancel the teletext first by pressing the button to return to a normal TV picture.
9:56 and 25 seconds p.m.
DVD
MENU
P
P
21 3
54 6
87 9
VCR
TV
DVD
0
OK
CALL
MENU
EXIT
21:56:25
36
Features
Features
BRIDGE MEDIA using
• The “BRIDGE MEDIA” function can be used to play back still or motion picture/sound memorized on “SD” Memory Cards, “Memory Stick” cards or “SmartMedia” cards by a digital still camera.
• The picture may not be reproduced properly depending on memory conditions. If the picture cannot be displayed on the screen, you will see an “X” mark on the screen. The edge of the picture may be hidden depending on the aspect ratio of the selected.
• If a full screen picture is displayed for more than 30 minutes, the screen saver will be activated (factory set). (The motion picture appears on the screen.) (see page 43)
To use the BRIDGE MEDIA
SmartMedia card
Slot for SmartMedia
TV left side view
Slot for SD or Memory Stick
SD Memory Card
Memory Stick card
To remove the memory card
• Push the SD Memory Card or Memory Stick card.
• Pull out the SmartMedia card.
Memory card format
• About Memory Stick: Magic Gate and high speed data transmission are not available on this TV.
Still picture format
Item Format
Memory Format
File Format
Compatibility
Extension
Number of Picture Elements
Number of files
Applicable maximum capacity
JPEG
Exif ver 2.2
DCF ver 1.0
JPG
H: 160
× 4096
V: 120
× 4096
65535
1GB
Motion picture format
Item Format
Memory Format
File Format
Extension
Number of Picture Elements and Frames Rate
Audio Format
Audio Sampling Frequency
Motion JPEG/MPEG-1
AVI/MOV (QuickTime)/MPEG-1
avi/mov/mpg
VGA 640 × 480
(0 < × 10 fps)
QVGA 320 × 240
(0 < ×
15 fps)
QQVGA 160 × 120
(0 < ×
20 fps)
CIF 352 × 288 (0 < × 8 fps)
PCM/MPEG-1 Audio
5 - 48 kHz
Motion JPEG
MPEG-1
Item Format
Memory Stick
Memory Stick
Memory Stick (magic gate/high speed data transmission)
Memory Stick (magic gate)
Memory Stick PRO
Memory Stick (with memory select)
SD Memory Card
SmartMedia
8/16/32/64/128/256/512 MB
16/32/64/128 MB
16/32/64/128 MB
32/64/128 MB
256/512 MB and 1GB
128 MB × 2
8/16/32/64/128 MB
•
is a trademark of Toshiba Corporation.
•
is a trademark of SD Card Association.
•
is a trademark of Sony Corporation.
OR
Notes:
• While the picture from the memory card is on the
screen, never turn off the TV.
• While the picture from the memory card is on the
screen, never take out the memory card.
37
Introduction
Getting started
Basic operation
Features
Equipment
connections
Reference section
• Pictures on the memory card newly inserted will appear on the screen.
• If you use this function for a purpose other than your private viewing or listening, it may infringe copyright laws.
• You can also select BRIDGE MEDIA by pressing the
button (see page 29).
• In the BRIDGE MEDIA mode, the Auto tuning, Manual tuning and Program sorting disappear automatically in the SET UP menu.
To use the BRIDGE MEDIA (still picture)
Notes:
• To exit the BRIDGE MEDIA, press the
button.
• To return to the previous menu, press
the EXIT button.
To select the full screen picture:
Insert the SD Memory Card or Memory Stick card into the slot. Insert the SmartMedia card into the slot.
The index menu appears on the screen, then press the
, , or button to select the screen pictures. If the memory card contains still pictures, the
mark
appears on the screen.
• To change to the MEMORY CARD menu, press the EXIT
button.
• To change to the motion picture, press the B button. If there
is no motion picture, you cannot change the mode.
Press the OK button. Press the
or button to select another full screen picture you want to see on the screen.
To use the slide show:
From the full screen picture, press the R button.
Press the Y button to display the Slideshow set up. Press the
, , or button to select 5 sec., 10 sec., 15 sec., 20 sec., 30 sec., or 60 sec.
Press the OK button, the Slide show will start.
To stop the slide show
Press the R or G button.
Notes:
• If you select “Slide” mode in the index menu, the Slideshow set up times may differ from the times you set in step 2.
• The MEMORY CARD menu variation.
Ex. SD and SmartMedia
Ex. SmartMedia and
Memory Stick
EXIT
1
/29
1280x960
1 / 3
MEMORY CARD
2004-07-01 00:00:00 am AUT_0242.JPG
5
/29
1280x960
2004-07-01 00:00:00 am AUT_0242.JPG
EXIT
EXIT
Slideshow set up
EXIT
5
/29
1280x960
2004-07-01 00:00:00 am
5 sec. 10 sec. 15 sec.
20 sec. 30 sec. 60 sec.
EXIT
5
/29
1280x960
2004-07-01 00:00:00 am AUT_0242.JPG
TV
MEMORY CARD
SD Memory CardSmartMedia
MEMORY STICK
10 10
TV
MEMORY CARD
SD Memory CardSD Memory CardSmartMedia
MEMORY STICK
10 10
DVD
MENU
P
P
21 3
54 6
87 9
VCR
TV
DVD
0
GY
BR
OK
CALL
MENU
EXIT
38
Features
Features
BRIDGE MEDIA using
(continued)
To use the BRIDGE MEDIA (still picture) (continued)
To use the zoom mode:
From the full screen picture, press the Y button to display the picture with a frame. Each time you press the Y button, the picture zooms as follows:
To select the picture position:
When in the × 2 zoom mode or × 4 zoom mode, you can select the picture position. Press the
, , or button to select the picture position.
Ex. × 2 zoom mode
× 4 × 2
EXITEXIT
EXITEXIT
11
/29
1280x960
2004-07-01 00:00:00 am AUT_0242.JPG
11
/29
1280x960
2004-07-01 00:00:00 am AUT_0242.JPG
11
/29
1280x960
2004-07-01 00:00:00 am AUT_0242.JPG
11
/29
1280x960
2004-07-01 00:00:00 am AUT_0242.JPG
x
4
x
2
DVD
MENU
P
P
21 3
54 6
87 9
VCR
TV
DVD
0
Y
OK
CALL
MENU
EXIT
x2
EXIT
EXIT
EXIT EXIT
EXIT
x2x2
x2
x2
11/29
1280x960
2004-07-01 00:00:00 am AUT_0242.JPG
11/29
1280x960
2004-07-01 00:00:00 am AUT_0242.JPG
11/29
1280x960
2004-07-01 00:00:00 am AUT_0242.JPG
11/29
1280x960
2004-07-01 00:00:00 am AUT_0242.JPG
11/29
1280x960
2004-07-01 00:00:00 am AUT_0242.JPG
39
Introduction
Getting started
Basic operation
Features
Equipment
connections
Reference section
To select the information format:
Each time you press the B button, the on-screen information will change as follows:
To select the rotation picture format:
Each time you press the G button, the picture rotates clockwise by 90°:
To use the BRIDGE MEDIA (still picture) (continued)
Note:
This function also operates in the index menu.
EXIT
EXIT
5
/29
1280x960
2004-07-01 00:00:00 am AUT_0242.JPG
DVD
MENU
P
P
21 3
54 6
87 9
VCR
TV
DVD
0
G
B
OK
CALL
MENU
EXIT
40
Features
Features
BRIDGE MEDIA using
(continued)
To use the BRIDGE MEDIA (motion picture)
To select the full screen motion picture and audio:
Insert the SD Memory Card or Memory Stick card into the slot. Insert the SmartMedia card into the slot.
The index menu appears on the screen, then press the
, , or button to select the screen pictures. If the memory card contains motion picture and audio, the
mark appears on the screen.
• To change to the MEMORY CARD menu, press the EXIT
button.
• To change to the still picture, press the B button. If there is
no still picture, you cannot change the mode.
Press the OK button, the full screen motion picture with frame and audio starts. Press the
or button to select another full screen motion picture you want to see on the screen.
Notes:
• Adjust the sound volume with the ; + or ; – button.
• The motion picture play back mark (
) is displayed for several
seconds.
To return to the index menu Press the EXIT button.
To freeze the picture and audio:
Each time you press the OK button to freeze, the on-screen picture and audio will change as follows:
DVD
MENU
P
P
21 3
54 6
87 9
VCR
TV
DVD
0
GY
BR
OK
CALL
MENU
EXIT
1 / 1
MEMORY CARD
EXIT
1
/1
640x480
2004-07-01 00:00:00 am VCLP0006.MOV
1
/1
640x480
2004-07-01 00:00:00 am VCLP0006.MOV
00:04:30
EXIT
(Moving) (Still)
41
Introduction
Getting started
Basic operation
Features
Equipment
connections
Reference section
To use the fast forward:
Each time you press the G button, the on-screen picture will change as follows:
To select the information format:
Each time you press the B button, the on-screen information will change as follows:
To use the BRIDGE MEDIA (motion picture) (continued)
1/1
640x480
2004-07-01 00:00:00 am VCLP0006.MOV
00:01:00
1/1
640x480
2004-07-01 00:00:00 am VCLP0006.MOV
00:03:00
1/1
640x480
2004-07-01 00:00:00 am VCLP0006.MOV
00:06:00
1/1
640x480
2004-07-01 00:00:00 am VCLP0006.MOV
00:10:00
EXIT
EXIT
EXIT
EXIT
00:04:30
1
/1
640x480
2004-07-01 00:00:00 am VCLP0006.MOV
EXIT
EXIT
DVD
MENU
P
P
21 3
54 6
87 9
VCR
TV
DVD
0
G
B
OK
CALL
MENU
EXIT
42
Features
Features
BRIDGE MEDIA using
(continued)
To use the BRIDGE MEDIA (motion picture) (continued)
To use the rewind:
Each time you press the R button, the on-screen picture will change as follows:
To turn off the frame:
Each time you press the Y button, the on-screen frame will change as follows:
Ex. Normal
Ex. No information
1
/1
640x480
2004-07-01 00:00:00 am VCLP0006.MOV
1
/1
640x480
2004-07-01 00:00:00 am VCLP0006.MOV
EXIT EXIT
00:04:30
00:04:30
1
/1
640x480
2004-07-01 00:00:00 am VCLP0006.MOV
00:10:00
1
/1
640x480
2004-07-01 00:00:00 am VCLP0006.MOV
00:06:00
1
/1
640x480
2004-07-01 00:00:00 am VCLP0006.MOV
00:03:00
1
/1
640x480
2004-07-01 00:00:00 am VCLP0006.MOV
00:01:00
EXIT
EXIT
EXIT
EXIT
DVD
MENU
P
P
21 3
54 6
87 9
VCR
TV
DVD
0
Y
OK
CALL
MENU
EXIT
R
43
Introduction
Getting started
Basic operation
Features
Equipment
connections
Reference section
To use the BRIDGE MEDIA (information)
To select the screen saver:
The screen saver function activates by default. A moving picture will appear on the screen.
From the index menu (still or motion picture), then press the Y button to display the ScreenSaver.
Press the or button to select 10 min., 20 min., 30 min., or OFF. (30 min: factory set)
Press the OK button to return. The screen will return to the index menu.
Note:
In the slide show or motion picture, the screen saver does not operate.
Alerts:
• NO IMAGE
No data to play back
• NO SD Memory Card
No insert card
• NO SmartMedia
No insert card
• NO MEMORY STICK
No insert card
• NO FILE
No recorded
• MEMORY STICK TYPE ERROR
No accept Memory Stick
• FILE ERROR
File broken or irregular file
• FILE ERROR
Not accept BM format
• FILE TYPE ERROR
No accept file format
• SD Memory Card ERROR
BM broken or inverse
• SmartMedia ERROR
BM broken or inverse
• MEMORY STICK ERROR
BM broken or inverse
To use the memory card:
Note that the operation is not guaranteed for all these memory cards shown in the table. Toshiba recommend that you back up the data on the memory card before use. (The data of the memory card may be lost by misuse or malfunction of the TV. Toshiba assume no liability for losses incurred by data lost through the use of this TV.)
DVD
MENU
P
P
21 3
54 6
87 9
VCR
TV
DVD
0
Y
OK
CALL
MENU
EXIT
EXIT
EXIT
ScreenSaver
1
/29
1280x960
2004-07-01 00:00:00 am AUT_0242.JPG
OFF
10 min. 20 min. 30 min.
44
Features
Features
Double-Window using
• The Double-Window function allows you to split the screen into a Main and Sub window and watch two programs at the same time. You can display the TV program or the video input on the Main and Sub window.
• When you watch one channel simultaneously in the Double-Window mode, differences in image quality between the Main picture and Sub-picture occurs.
Notes:
• Only 480i and 576i signals are available
for the sub-window sources. If the other signal is received, the message “
Signal not supported”will
be displayed on the screen.
• When you select the TV program of the
Sub-window, the sound is monaural only.
• In the PC or BM input mode (see page
29), this mode is not available.
• The still mode will be cancelled if it
receives a different input signal when changing program position, or video mode is selected, etc.
Select the TV program you want to watch.
Press the button to display the double-window.
Press the n or button to select a program position or video input source, or switch and adjust speaker sound for each window (A, B).
Press
n
P 89, a: available for A Speaker sound: A ; – +: available for A
: A
Press n
P 89, a: available for B Speaker sound: A ; – +: available for A
: B
Press n
P 89, a: available for B Speaker sound: B ; – +: available for B
: B
Press n
P 89, a: available for A Speaker sound: B ; – +: available for B
: A
To display the double-window
Stereo
4 ABCD
2 EFGH
AB
Main Picture Sub-Picture
DVD
MENU
P
P
87 9
VTR
TV
DVD
0
OK
MENU EXIT
4
Stereo
ABCD 2 EFGH
A B
Stereo
4 ABCD
2 EFGH
A B
Stereo
4 ABCD
2 EFGH
A B
4
Stereo
ABCD 2 EFGH
A B
Sub-window source
Main window source
45
Introduction
Getting started
Basic operation
Features
Equipment
connections
Reference section
You can select either Mode 1 or Mode 2.
Mode 1: Linked with the selected window Mode 2: Linked with another window
Press the MENU button, then press the
or button to
display the SOUND menu.
Press the or button to select Headphone, then press the
or button to select
Mode 1 or Mode 2.
To adjust the headphone volume (Mode 2)
From the SOUND menu, press the
or button to select Headphone. Press the
or button to
select Mode 2.
Press the or button to select Headphone level.
Press the or button to adjust the Headphone volume.
To select the headphone mode
DVD
MENU
P
P
21 3
54 6
87 9
VTR
TV
DVD
0
OK
CALL
MENU EXIT
Treble
Bass
Headphone level
Headphone
Dual
MTS
SOUND 1/ 2
MENU
Back Watch TV
EXIT
Auto
Dual 1
0
0
Mode1
Dual
MTS
SOUND 1/ 2
MENU
Back Watch TV
EXIT
Auto
Dual 1
Treble
Bass
Headphone level
Headphone
0
0
Mode1
Dual
MTS
SOUND 1/ 2
MENU
Back Watch TV
EXIT
Auto
Dual 1
Treble
Bass
Headphone level
Headphone
0
30
0
Mode2
Dual
MTS
SOUND 1/ 2
MENU
Back Watch TV
EXIT
Auto
Dual 1
Treble
Bass
Headphone level
Headphone
0
30
0
Mode2
Headphone level 30
46
Features
Headphone
mode
Speakers
Headphone
No sound
A (B) (; – + is available.)
Mode 1
Mode 2
A (or B) (; – + is available.)
B (or A) (Headphone level menu is available.)
A: Main window B: Sub-window
Mode 1
Mode 2
Headphone
mode
Speakers
Headphone
Sound comes out (; – + is available.)
Sound comes out (Headphone level menu is available.)
No sound
Sound comes out (; – + is available.)
Headphone sound is the same as speaker sound.
To use a headphone
Connect a headphone to the headphone jack on the right side of the TV.
When in a single window:
When in Double-Window:
TV right side view
Headphone jack
DVD
MENU
P
P
21 3
54 6
87 9
VTR
TV
DVD
0
OK
CALL
MENU EXIT
Features
Double-Window using
(continued)
47
Introduction
Getting started
Basic operation
Features
Equipment
connections
Reference section
Equipment connections
Side connections
• You can connect a wide variety of auxiliary equipment via the terminals located on the right side of the panel (2).
Connection example
Please always refer to the owner’s manual of the equipment to be connected for full details.
• To select the side inputs, press and hold the
button until the video input mode list appears on the screen, then
press the
or button to select 2 (see page 29), then press OK.
• Before connecting any external equipment, turn off all main power switches.
• Connect either the S-VIDEO input terminal or VIDEO input terminal, whichever terminal is used. Never connect to both of these terminals.
• If you connect mono sound equipment to
(2), connect the audio output of the equipment to the L/MONO jack
on the TV.
• You can enjoy Video Games with this TV. However shooting games, which shoots at a target on the TV screen with a light gun, may not work because of the LCD Color TV properties.
Video Games Camcorder with S-Video
TV back view
TV right side view
Camcorder
48
Equipment
connections
Equipment connections
Back connections
Connection example
Computer
DVD video player
(with component
video outputs)
DVI device
(see page 52)
Audio system
(see page 26, 27)
Woofer system with
amplifier (see page 28)
• Before connecting any external equipment, turn off all main power switches.
• Before connecting any external equipment, remove the back terminal cover (see page 10).
• The unauthorized recording of television programs, DVDs, video tapes and other materials may infringe upon the provisions of copyright laws.
• Connect either the S-VIDEO input terminal or VIDEO input terminal, whichever terminal is used. Never connect both of these terminals.
• There is a fixed/variable external audio output which enables the connection of a suitable audio system. The WOOFER OUT terminal allows an external active Woofer system to be connected.
• The COMPONENT VIDEO INPUT consists of three component video signals (Y, P
B/CB, PR/CR) and provides the
best picture performance. These terminals can only be used with the component video compatible equipment, e.g. DVD video player, etc.
• Additional equipment and cables shown are not supplied with this TV.
VCR
(S-Video or Normal )
TV back view
Set Top Box
HDMI device
(see page 52)
VCR (Recording)
TV right side view
49
Introduction
Getting started
Basic operation
Features
Equipment
connections
Reference section
Equipment connections
Connecting a computer
• Before connecting PC and audio cables, remove the back terminal covers (see page 10).
• An analog RGB (15 pin) computer cable can be connected.
To connect a computer
Connect a PC cable from the computer to the RGB/PC terminal on the back of the TV.
The following signals can be displayed:
• VGA: VESA 640 x 480 @ 60 Hz • SVGA: VESA 800 x 600 @ 60 Hz • XGA: VESA 1024 x 768 @ 60 Hz
However, these signal formats are converted to match the number of pixels of the LCD panel. Therefore, the TV may not display small text properly.
Notes:
• Some PC models cannot be connected to this TV.
• There is no need to use an adapter for computers with DOS/V compatible mini D-sub 15 pin terminal.
• A bar may appear in the upper, lower, right or left side of the screen, or parts of the picture may be obscured depending on some signals. This is not the malfunction.
• If the edges of the picture are stretched, readjust the picture position adjustments in the PC Setting menu.
• Depending on the specification of the PC you are playing the DVD-Video on, and the DVD’s title, some scenes may be skipped, or you may not be able to pause during multi-angle scenes.
Signal names for mini D-sub 15 pin connector
Conversion adapter
(if necessary)
RGB PC cable
Mini D-sub 15 pin
Computer
TV back view
Audio cable
for PC-to-TV connection
Pin assignment for RGB/PC terminal
Pin No. Signal name Pin No. Signal name
1R 9 NC 2 G 10 Ground 3B 11 NC 4 NC (not connected) 12 NC 5 NC 13 H-sync 6 Ground 14 V-sync 7 Ground 15 NC 8 Ground
11
15
610
15
50
Equipment
connections
Equipment connections
PC setting
• In the PC input mode, you cannot select the Color, Tint, Sharpness, Black stretch, MPEG NR and DNR in the
Picture setting menu and Cinema mode (see page 13).
• In the PC input mode, the Manual setting (see page 29) is not displayed.
First press and hold the
button until the video input mode list
appears on the screen, then press the
or and OK buttons in
order to select the PC input mode (see page 29).
To adjust the Picture size/position:
Press the MENU button, then press the
or button to
display the SET UP menu.
Press the or button to select PC Setting.
Press the OK button to display the PC Setting menu.
Press the or button to select an option you want to adjust. (Picture size/position menu: Horizontal position, Horizontal width, Vertical position and Vertical height)
Press the or button to adjust the settings as required.
To adjust a PC setting
DVD
MENU
P
P
21 3
54 6
87 9
VTR
TV
DVD
0
OK
CALL
MENU EXIT
Language
SET UP
MENU
Back Watch TV
EXIT
English
AV connection
OK OK
PC Setting
Vertical height
Vertical position
MENU
Back Watch TV
EXIT
0 0 0
Clock phase
Horizontal position
0
PC Setting
1/2
Horizontal width
0
0
Sampling clock
Horizontal position 0
51
Introduction
Getting started
Basic operation
Features
Equipment
connections
Reference section
Equipment connections
PC setting
(continued)
• If the clock phase, which synchronize the PC signal and LCD display, is not optimized, the picture will blur.
This function enables you to adjust clock phase and display a clear picture.
• If the sampling clock does not match with the dot clock frequency of the PC, blurred picture detail will occur, or
screen width will change, or drift patterns in vertical lines may be apparent. This function enables you to adjust it and optimize the picture.
• The Reset function adjusts the PC Setting to the factory settings.
To adjust a PC setting (continued)
First press and hold the button until the video input mode list appears on the screen, then press the
or and OK buttons in
order to select the PC input mode (see page 29).
To adjust the clock phase of the picture:
Press the MENU button, then press the
or button to display the SET UP menu. Press the
or button to select PC Setting.
Press the OK button, then press the
or button to select
Clock phase.
Press the or button to obtain a clear picture.
To adjust the sampling clock:
From the PC Setting menu, press the
or button to select Sampling clock.
Press the or button to optimize the picture.
To reset the PC setting:
From the PC Setting menu, press the
or button to select Reset on the 2nd page.
Press the OK button.
Note:
The optimum points of the clock phase and sampling clock adjustments may be incomprehensible according to the input signals.
Language
SET UP
MENU
Back Watch TV
EXIT
English
AV connection
OK OK
PC Setting
Vertical height
Vertical position
MENU
Back Watch TV
EXIT
0 0
0
Clock phase
Horizontal position
0
PC Setting
1/2
Horizontal width
0
0
Sampling clock
Clock phase 0
MENU
Back Watch TV
EXIT
Vertical height
Vertical position
0 0 0
Clock phase
Horizontal position
0
PC Setting
1/2
Horizontal width
0
Sampling clock
0
Sampling clock 0
DVD
MENU
P
P
21 3
54 6
87 9
VTR
TV
DVD
0
OK
CALL
MENU EXIT
MENU
Back Watch TV
EXIT
PC Setting 2/ 2
0
Reset
OK
52
Equipment
connections
Equipment connections
Connecting an HDMI and a DVI device
• This TV is not intended for connection to and should not be used with a PC.
• When turnning on your electronic components, turn on the TV first, and then the HDMI or DVI device.
• When turnning off your electronic components, turn off the HDMI and DVI device first, and then the TV.
• Before connecting an HDMI and a DVI device, remove the back terminal covers (see page 10).
• This model may not be compatible with features and/or specifications that may be added in the future.
To connect an HDMI and a DVI device
The HDMI input on your TV receives digital audio and uncompressed digital video from an HDMI device and uncompressed digital video from a DVI device. This input is designed to accept HDCP program material in digital from EIA/CEA-861/861B compliant consumer electronic devices (such as a set top box and DVD player with HDMI and DVI output). The HDMI input is designed for best performance with 1080i (50 Hz/60 Hz) high-definition video signals, but will also accept and display 480i, 480p, 576i, 576p and 720p (50 Hz) signals.
• HDMI: High-Definition Multimedia Interface
• DVI: Digital Video Interface
• HDCP: High-bandwidth Digital Content Protection
• EIA/CEA-861/861B compliance covers the transmission of uncompressed digital video with high-bandwidth digital content protection, which is being standardized for reception of high-definition video signals. Because this is an evolving technology, it is possible that some devices may not operate properly with the TV.
To connect an HDMI device:
One HDMI cable (type A connector)
For proper operation, it is recommended that you use a short HDMI cable. HDMI cable transfers both video and audio. Separate analog audio cables are not required. Some CDVs (video CDs) may not output digital audio signals. In that case, you may hear sound by connecting analog audio cables.
VIDEO AUDIO
LR
IN
OUT
HDMI OUT
TV back view
HDMI device
To connect a DVI device:
One HDMI (type A connector)-to-DVI adapter cable and audio cables
HDMI (type A connector)-to-DVI adapter cable
For proper operation, the length of an HDMI-to-DVI adapter cable should not exceed 3m. The recommended length is 2m.
Standard analog audio cables
An HDMI-to-DVI adapter cable transfers only video. Separate analog audio cables are required.
VIDEO AUDIO
LR
IN
OUT
DVI OUT
TV back view
DVI device
• HDMI, the HDMI logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing , LLC.
53
Introduction
Getting started
Basic operation
Features
Equipment
connections
Reference section
Reference section
Troubleshooting
• Before calling a service technician, please check the following table for a possible cause of the symptom and some solutions.
Symptom and solution
Symptom Solution
TV will not turn on • Make sure the power cord is plugged in, then press .
• The remote control batteries may be dead. Replace the batteries.
No picture, no sound • Check the antenna connections.
No sound, picture OK • The sound may be muted. Press +, – or .
• The station may have broadcast difficulties. Try another channel.
• Check that the Speaker function in SOUND menu is properly set.
Poor sound, picture OK • The station may have broadcast difficulties. Try another channel.
Poor picture, sound OK • Check the antenna connections.
• The station may have broadcast difficulties. Try another channel.
• Adjust the PICTURE menu.
Poor reception of broadcast channels • Check the antenna connections.
• The station may have broadcast difficulties. Try another channel.
• Make sure the Color system is properly set.
Teletext problems • Check the antenna connections.
Good performance of text depends on a good strong broadcast signal.
Multiple images • The station may have broadcast difficulties. Try another channel.
• Antenna reception may be poor. Use a high directional outdoor antenna.
• Check if the direction of the antenna has changed.
Poor color or no color • The station may have broadcast difficulties. Try another channel.
• Adjust the Tint and/or Color in the PICTURE menu.
The remote control does not operate • Remove all obstructions between the remote control and the remote
control sensor in the TV.
• The remote control batteries may be dead. Replace them with new ones.
• Check that the TV/VCR/DVD switch on the remote control is properly set.
Some pixels of the screen do not light up • The LCD display panel is manufactured using an extremely high
level of precision technology, however, sometimes some pixels of the screen may be missing picture elements or have luminous spots. This is not a sign of a malfunction.
• When you just buy and start to use this TV, a flickering may be caused in the screen. In this case, switch off the TV, then switch on it again to cure the condition.
• The cold cathode fluorescent lamp used for the back light on this TV has longevity. When the brightness of the screen comes down, or the flickers of the screen are caused, or some parts of the screen do not light up, it may reach the end of its life. Contact a service technician.
• If you switch the TV on at 0°C and under, wait until the display warms up.
The brightness of the screen comes down, or flickers of the screen are caused, or some parts of the screen do not light up.
The picture brightness varies when you switch the TV on.
54
Reference section
Broadcast transmission systems of each country or region
Area Country or Region
System
Color Sound
Bahrain, Kuwait, Israel, Oman, Qatar, United Arab Emirates, Yemen, etc. Indonesia, Malaysia, Singapore, Thailand, etc.
PAL B/G
China PAL D/K
Asia
China Hong Kong PAL I
M. E.
Iraq, Islamic Republic of Iran, Lebanon, Saudi Arabia, etc. SECAM B/G Russian Federation, etc. SECAM D/K Myanmar, etc. NTSC M
Oceania Australia, New Zealand, etc. PAL B/G
Africa Republic of South Africa, etc. PAL I
Argentina, Paraguay, Uruguay, etc. PAL N
South
Brazil PAL M
America
Chile, Colombia, etc. NTSC M
Note:
PAL, SECAM and NTSC 3.58 (MHz) are different color signal broadcast transmission systems applicable to different countries or region. NTSC 4.43 (MHz) is used in special VCRs to playback NTSC recorded video tapes through PAL television equipment.
Reference section
Broadcast system, Specifications
LCD color television
Model 42WL58A, 42WL58E, 42WL58T Power source 42WL58A : 220V - 240V AC, 50Hz
42WL58E : 220V - 240V AC, 50/60Hz
42WL58T : 110V - 240V AC, 50/60Hz Power consumption 245W, 0.5W (standby) Dimensions 1,044 mm (W) × 757 mm (H) × 352 mm (D) Mass (Weight) XXX kg Television system Channel coverage:
(Antenna input) PAL B/G (CCIR) VHF 2 - 12
UHF 21 - 69 CATV X - Z+2, S1 - S41
PAL I (UK) VHF -
UHF 21 - 69 CATV -
PAL D/K (CHINA) VHF 1 - 12
UHF 13 - 57 CATV Z1 - Z38
SECAM B/G (CCIR) VHF 2 - 12
UHF 21 - 69 CATV X - Z+2, S1 - S41
SECAM D/K (OIRT) VHF 1 - 12
UHF 21 - 69 CATV X1 - X19
NTSC M (US) VHF 2 - 13
UHF 14 - 69 CATV A6 - A1, A - W, AA - ZZ, AAA, BBB
NTSC M (JAPAN) VHF 1 - 12
UHF 13 - 62 CATV M1 - M10, S1 - S41
55
Introduction
Getting started
Basic operation
Features
Equipment
connections
Reference section
LCD color television (continued)
Special RF signal:
NTSC 4.43 color system 5.5/6.0/6.5 MHz sound system
PAL 60 Hz color system 5.5/6.0/6.5 MHz sound system
COMPONENT VIDEO INPUT 480i, 480p, 576i, 576p, 720p (50/60 Hz), 1080i (50/60 Hz) terminals (the signal format) (These signal formats are converted to match the number of pixels of the LCD
panel.)
Color system PAL, SECAM, NTSC 3.58/4.43
Aspect ratio 16 : 9
Visible size (diagonal) 106.7 cm
Number of pixels 1366 (H) dots × 768 (V) dots
Audio power 10 W + 10 W (10% THD)
Speakers Main : 60 × 120 mm 4 pcs.
Tweeter : 33mm (round) 2 pcs.
Input/Output terminals (1) Input 4 pin S-video
Phono jacks A/V
(2) Input 4 pin S-video
Phono jacks A/V
(C1) Input Component video Y, PB/CB, PR/C
R
Phono jacks A/V
(C2) Input Component video Y, PB/CB, PR/C
R
Phono jacks A/V MONITOR OUT Output Phono jacks A/V AUDIO OUT Output Phono jacks Audio L+R (Fixed/Variable) WOOFER OUT Output
Phono jack Bass Line out (Variable)
RGB/PC Input Mini D-sub 15 pin Analog RGB RGB/PC (AUDIO) Input 3.5 mm stereo mini jack HDMI 1 Input (type A) 19 pin A/V Digital HDMI 1 AUDIO Input Phono jacks Analog L+R HDMI 2 Input (type A) 19 pin A/V Digital HDMI 2 AUDIO Input Phono jacks Analog L+R
Headphone jack 3.5 mm (Diameter) stereo
Operating condition Temperature 0°C - 35°C
Humidity 20% - 80% (No moisture condensation)
Supplied accessories Owner’s manual (1), Remote control (1), Batteries (2),
Clip (1)
• Design and specifications are subject to change without notice.
• Never service or remodel the TV by yourself. It may expose you to a fire hazard or dangerous voltages.
This is used to fix the TV to a wall, pillar, etc. (see page 4).
YC/J
TOSHIBA CORPORATION
23566789
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
