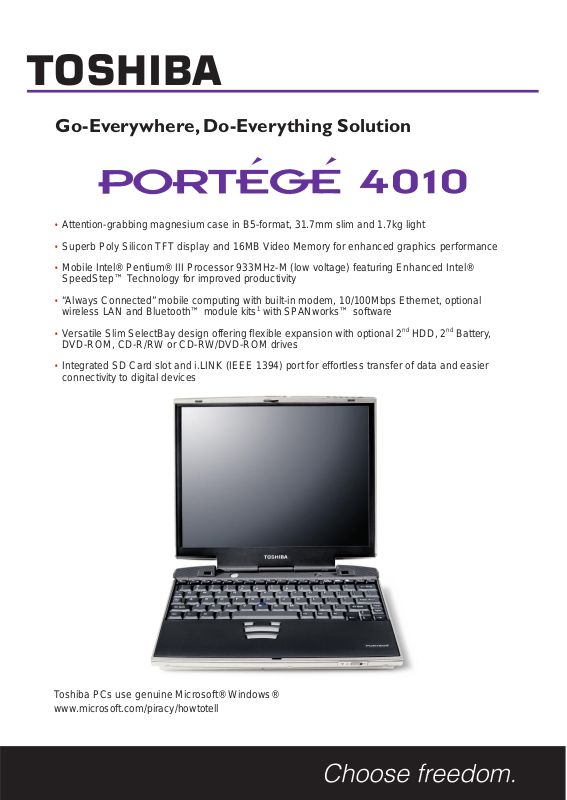

Go-Everywhere, Do-Everything Solution

• Attention-grabbing magnesium case in B5-format, 31.7mm slim and 1.7kg light

• Superb Poly Silicon TFT display and 16MB Video Memory for enhanced graphics performance

• Mobile Intel® Pentium® III Processor 933MHz-M (low voltage) featuring Enhanced Intel®

SpeedStep™ Technology for improved productivity

• “Always Connected” mobile computing with built-in modem, 10/100Mbps Ethernet, optional

wireless LAN and Bluetooth™ module kits

• Versatile Slim SelectBay design offering flexible expansion with optional 2

with SPANworks™ software

HDD, 2nd Battery,

DVD-ROM, CD-R/RW or CD-RW/DVD-ROM drives

• Integrated SD Card slot and i.LINK (IEEE 1394) port for effortless transfer of data and easier

connectivity to digital devices

Toshiba PCs use genuine Microsoft® Windows® www.microsoft.com/piracy/howtotell

Proof of Toshiba’s commitment to mobility, the new PORTEGE 4010 offers the ultimate solution for

´´

the power mobile user, packing stunning performance and the latest technologies into a breathtakingly compact chassis. Ultraportable in B5-format, featuring a robust and elegant magnesium case and equipped with the very latest features including a built-in SD Card slot, i.LINK (IEEE 1394) and support for Wi-Fi™ and Bluetooth™ Technology, the PORTEGE 4010 guarantees maximum impact

´´

whenever your journey takes you.

Toshiba PCs use genuine Microsoft® Windows® www.microsoft.com/piracy/howtotell

Versatile: use the SelectBay slot to swap CD, DVD, CD-R/RW and CD-RW/DVD drives, hard disks, battery pack and weight saver. Built-in SD Media slot enhances communications between portable digital devices.

Wireless connectivity becomes a reality with the built-in antenna and optional Wireless LAN Card

or/and Bluetooth™ Module Kit1, allowing

Kit users to access data anytime, anywhere without the need for cable.

Common docking support: The Advanced Port Replicator offers convenience one-touch docking solution for your office peripherals and is fully compatible with TECRA 9000/9100 and Satellite Pro 6000.

Hands-on security: an optional Fingerprint PC Card protects the PORTEGE 4010 at both BIOS and OS level, enhancing data security and simplifying access for authorized users without any need to remember numerous passwords.

´´

Product Number PP401L-024FD Processor Mobile Intel® Pentium® III Processor-M 933MHz (low voltage) featuring Enhanced Intel® SpeedStep™ Technology, 133MHz FSB

Memory 256MB PC133 SDRAM, expandable to 1024MB Mass Storage Hard Disk 30GB S.M.A.R.T., up to 70GB if optional 2nd HDD is installed

Cache 32KB Integrated, 512KB L2 Integrated

DVD-ROM Hot swappable 8X (max.) DVD-ROM drive (max. 24X when CD-ROM is accessed)

Diskette Drive Optional External USB 3.5”, 1.44MB diskette drive

Display Internal 12.1” Poly Silicon XGA TFT active matrix

External video modes Max. 16.7M colors at 640 x 480 resolution, 800 x 600 resolution, 1,024 x 768 resolution

16.7 million colors at 1,024 x 768 resolution

Max. 64K colors at 1,280 x 1,024 resolution, 1,600 x 1,200 resolution Graphics Controller Trident CyberALADDiN-T, 128-bit 2D/3D graphics accelerator, 4x AGP Bus, 16MB Video Memory (UMA) Integrated Communication Device International V.90 software modem (56Kbps data, 14.4Kbps fax) and 10/100Mbps Ethernet (Wake-On-LAN and Remote Boot supported)

Built-in antenna for Wi-Fi™ Wireless LAN (with optional Wireless LAN Card Kit1) and Bluetooth™ (with optional Bluetooth™ Module Kit1) connectivity Keyboard 84-key Ergonomic Keyboard, AccuPoint II integrated pointing device with Scroll buttons, Windows® Key, Application Key and hot key functions PC Card slots Type III x 1 or Type II x 2 (Card Bus supported) Expansion Ports RGB, USB x 2, Fast Infrared Port (4Mbps), SD Card slot, i.LINK (IEEE 1394), External Microphone, Headphone (stereo), RJ-11, RJ-45,

Sound ALi M1535, 16-bit stereo SoundBlaster Pro and Windows Sound System compatible, built-in stereo speakers, volume dial, internal Microphone

Power Supply Universal 100-240V AC adaptor for worldwide usage Battery Type/Life

Expansion Bus, DC-in

(monaural)

Exchangeable Lithium-Ion battery up to 4.0H of battery life, up to 7.9H with optional 2nd battery pack, up to 10.0H with optional 2nd battery pack in

SuperLongLife mode Security Cable Lock port, Power on Password, Supervisor Password, Keyboard Lock, Screen Blank

System Management Toshiba Hibernation and Resume, SM BIOS V2.3, ACPI power management Pre-installed OS Dual-linked with Microsoft® Windows® XP Professional and Microsoft® Windows® 2000 operating system

Bundled software & CD T oshiba Utilities, Microsoft® Internet Explorer, Microsoft® Media Player, InterVideo™ WinDVD, SPANworks2000 software suite, Toshiba Configuration

Dimensions (W x D x H)

Weight 1.7kg (w/ battery pack and weight saver)

Builder CD, Toshiba Management Console (available in Toshiba Configuration Builder CD)

270 x 248 x 31.7/34 mm (front/back)

1.9kg (w/ battery pack and DVD-ROM)

Warranty 3-year parts & labor, 1-year battery International Limited Warranty, Options PA3085U-1M12 PC133 128MB Memory Kit

Applicable to countries where official Type Approval is obtained.

1024MB is achieved by removing the standard 256MB Memory Kit and inserting two optional 512MB Memory Kits (2 memory slots are available).

The optional Slim Select Bay HDD Adaptor is necessary for inserting the optional 2nd HDD Kit into the Select Bay

Battery Life may vary depending on operating systems, applications, power management settings and features utilized.

Thickness may vary at certain points on the system. HDD calculation: 1GB=1 billion bytes

PA3086U-1M25 PC133 256MB Memory Kit PA3108U-1M51 PC133 512MB Memory Kit PA3176U-1BAS Lithium-Ion Rechargeable Battery Pack PA3096U-1BAS Slim SelectBay 2

PA3116U-1H30 2.5” Enhanced IDE 30GB 2 PA3133U-1H40 2.5” Enhanced IDE 40GB (5,400rpm) 2nd HDD Kit PA3090U-1ETC Slim SelectBay HDD Adaptor PA3087L-1DVD Slim SelectBay 8X DVD-ROM Drive Kit PA3088U-3CD1 Slim SelectBay 8X/8X/24X CD-R/RW Drive Kit PA3162L-1CD2 Slim SelectBay 8X/8X/8X/24X CDRW/DVD-ROM Drive Kit PA3080U-1ACA 45W Universal AC Adaptor PA3083U-1ACA 75W Universal AC Adaptor (compatible with TECRA 9000/9100 and Satellite Pro 6000) PA3082U-1PRP Advanced Port Replicator

PA3109U-1FDD USB FDD Kit

PA3189U-1MPC Wireless LAN Card Kit

PA3121U-3BTM Bluetooth™ Module Kit

PA3066U-1PCC Toshiba PC Card Fingerprint Reader

PA3079T-1PCC Toshiba 2GB Type II PC Card HDD

Interfaces: Serial (16550UART), Parallel (ECP), RGB, USB x 2, i.LINK (IEEE 1394), PS/2 Keyboard, PS/2 Mouse, Line-in, Line-out, RJ-45, Digital Video Interface (not supported on PORTEGE 4010), Cable Lock Port, DC-in

For more information, please refer to Toshiba Options & Accessories Guide

Battery Pack

HDD Kit

´´

TSP April 2002, TSP-MKG-PDT0028. The Intel Inside Logo and Pentium are registered trademark of Intel Corporation. Microsoft, Windows and the Microsoft logo are trademarks or registered trademarks of Microsoft Corporation. Bluetooth is a trademark owned

by Telefonaktiebolaget L M Ericsson, Sweden and licensed to Toshiba Corporation. All other products and names mentioned are the property of their respective owners. Design and specifications are subject to change without notice. Availability and configurations

may vary by country. Errors and omissions excepted.
