ADJUSTMENT

↓↓↓↓

↓↓↓↓

Стр. 1 из 21ADJUSTMENT [LCD Color Television] ASIA_EU

12.05.2015

file://C:\Documents and Settings\Alexsandr\Local Settings\Temp\Rar$EXa0.588\37Z

...

Service Mode

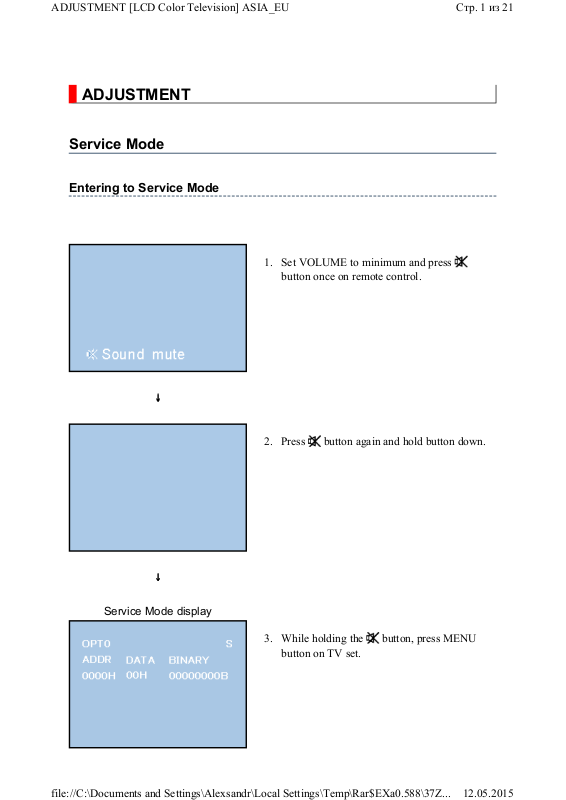

Entering to Service Mode

1. Set VOLUME to minimum and press
button once on remote control.

Service Mode display

2. Press button again and hold button down.

3. While holding the button, press MENU
button on TV set.

Стр. 2 из 21ADJUSTMENT [LCD Color Television] ASIA_EU

12.05.2015

file://C:\Documents and Settings\Alexsandr\Local Settings\Temp\Rar$EXa0.588\37Z

...

Displaying the Adjustment Menu

Press MENU button on TV.

Service Mode

Press

Adjustment Mode

↑↑↑↑ ↓↓↓↓

Press

Key Function in the Service Mode

The following key entry during display of adjustment menu provides special functions.

CAUTION: Never try to perform initialization unless you have changed the

memory IC.

button (on remote control)

Never adjust H.POS and V.POS except PAL/WIDE mode.

Test signal selection

Стр. 3 из 21ADJUSTMENT [LCD Color Television] ASIA_EU

12.05.2015

file://C:\Documents and Settings\Alexsandr\Local Settings\Temp\Rar$EXa0.588\37Z

...

Selection of the adjustment items CH (on TV or remote control)

Change of the data value Volume +/- (on TV or remote control)

Adjustment menu mode ON/OFF MENU button (on TV)

Initialization of the memory (QA02) CALL + CH button on TV

Reset the count of operating

protect circuit to "00"

Turn off I2C bus communication CALL + Volume + button on TV

"RCUT" selection 1 button

"GCUT" selection 2 button

"BCUT" selection 3 button

"CNTX" selection 4 button

"COLC" selection 5 button

"UVTT" selection 6 button

Automatic A/D Adjustment

(PC, Component, Composite (PAL, NTSC))

Self diagnostic display ON/OFF 9 button

CALL + CH button on TV

7 button

Selecting the Adjusting Item

Every pressing of CH button in the service mode changes the adjustment items in the
order of table below. ( button for reverse order)

SETTING & ADJUSTING DATA

[ SERVICE MODE ]

ADJUSTING ITEMS AND DATA IN THE SERVICE MODE:

Note:

The image system data of RCUT-BDRV is different by each image format.

The PAL value is indicated in the table.

Стр. 4 из 21ADJUSTMENT [LCD Color Television] ASIA_EU

12.05.2015

file://C:\Documents and Settings\Alexsandr\Local Settings\Temp\Rar$EXa0.588\37Z

...

Item Name of adjustment

RCUT R CUT OFF

GCUT G CUT OFF

BCUT B CUT OFF

RDRV R DRIVE

GDRV G DRIVE

BDRV B DRIVE

BRTC BRIGHTNESS CENTER

COLC COLOR CENTER

UVTT BASE BAND TINT

CNTX CONTRAST MAX

VOLUX MAX VOLUME LIMITED

PLLW0 PLL WAIT TIME

PLLW1 PLL WAIT TIME

PLLW2 PLL WAIT TIME

PLLW3 PLL WAIT TIME

PLLW4 PLL WAIT TIME

PLLW5 PLL WAIT TIME

OPT1 TV SET OPTION 1

OPT2 TV SET OPTION 2

OPT3 TV SET OPTION 3

OPT4 TV SET OPTION 4 (PANEL OPT DATA FOR VENDOR)

OPT5 TV SET OPTION 5 (PANEL OPT DATA FOR SIZE)

OPT6 TV SET OPTION 6 (HOTEL MODE)

OPT7 TV SET OPTION 7 (HOTEL MODE)

OPT8 TV SET OPTION 8 (HOTEL MODE)

TVOP TV SET OPTION

ID MODEL ID

BDWID BORDER WIDTH FOR EXACT SCAN

BDHIT BORDER HEIGHT FOR EXACT SCAN

FPLG MASK_ENABLE (SD/HD)

FPLG2 Channel LOGO Vector Clip SW (SD)

Стр. 5 из 21ADJUSTMENT [LCD Color Television] ASIA_EU

12.05.2015

file://C:\Documents and Settings\Alexsandr\Local Settings\Temp\Rar$EXa0.588\37Z

...

FPLG3 Channel LOGO Vector Clip SW (HD)

Factory preset data will be loaded after setting Model ID data.

(Refer to Initialization of Memory Data of QA02 and setting data of signal board.)

Adjusting the Data

Pressing of VOLUME +/- button will change the value of data in the range from 00H to
FFH. The variable range depends on the adjusting item.

I2C Bus Off

Turn off I2C communication between IC700 and IC400.

1) Press and hold the CALL button on the remote control, then press the Volume
+ button on the TV.

2) Display "BUS Off" OSD.

3) I2C communication turned off.

Note:

To return Bus on status, press and hold the CALL button on the remote control, then press
the Volume + button on the TV again. TV will be turned off and automatically turned
on, then status will be Bus On.

Setting TVOP

Enter to service mode and select menu of TVOP by pressing P or P during display of
adjustment menu. After selecting TVOP, press + or - to set I2C check function to

disable or enable as below.

TVOP FUNCTION DESCRIPTION 1 0 (Normal)

D5 (bit5) I2C check between IC700 and IC400. (WDT) Disable Enable

Стр. 6 из 21ADJUSTMENT [LCD Color Television] ASIA_EU

12.05.2015

file://C:\Documents and Settings\Alexsandr\Local Settings\Temp\Rar$EXa0.588\37Z

...

Setting Panel Option Data

Panel option data is subject to OP4 and OP5.
Enter to service mode and select menu of OPT4 or OPT5 by pressing P or P during

display of adjustment menu. After selecting OPT4 or OPT5, press + or - to set OPT4
or OPT5 value as table below.

Panel option data

Series Model name Panel vendor OPT4 value OPT5 value

Z3000 EU/UK Digital 37Z3030D LPL 0xC1 0x06

42Z3030D LPL 0xC1 0x07

47Z3030D LPL 0xC6 0x08

LPL 0xC1 0x0B

52Z3030D

SAMSUNG 0xC6 0x0B

57Z3030D SAMSUNG 0xC6 0x0D

40ZF355D SAMSUNG 0xC6 0x0F

46ZF355D SAMSUNG 0xC6 0x0A

52ZF355D SAMSUNG 0xC6 0x0B

OP4

Ex. OPT4 value 0x05 indicates that panel vendor is AUO AMVA.

OPT4

Panel

vendor

LPL - - - - 0 0 0 1

SHP - - - - 0 0 1 0

CMO - - - - 0 0 1 1

D7

(bit7)

D6

(bit6)

D5

(bit5)

D4

(bit4)

D3

(bit3)

D2

(bit2)

D1

(bit1)

D0

(bit0)

AUO PMVA - - - - 0 1 0 0

AUO AMVA - - - - 0 1 0 1

SAMSUNG - - - - 0 1 1 0

IPS - - - - 0 1 1 1

Panel

Стр. 7 из 21ADJUSTMENT [LCD Color Television] ASIA_EU

12.05.2015

file://C:\Documents and Settings\Alexsandr\Local Settings\Temp\Rar$EXa0.588\37Z

...

Resolution

Full HD 1 - - - - - - -

WXGA 0 - - - - - - -

Panel

100Hz

On - 1 - - - - - -

Off - 0 - - - - - -

OP5

Ex. OPT5 value 0x06 indicates that panel size is 37.

OPT5

Size 37 - - - - 0 1 1 0

42 - - - - 0 1 1 1

47 - - - - 1 0 0 0

52 - - - - 1 0 1 1

57 - - - - 1 1 0 1

D7

(bit7)

D6

(bit6)

D5

(bit5)

D4

(bit4)

D3

(bit3)

D2

(bit2)

D1

(bit1)

(bit0)

D0

Convert from Bit (Binary) to Hex

The table for converting from bit (D7-D0) to hex (0x**).

BIT (Binary)

High nibble

Low nibble

HEX

0

1

2

3

4

5

D7 D6 D5 D4

D3 D2 D1 D0

0 0 0 0

0 0 0

0 0

0 0

0

0

1

1

1

1 1

0 0

0

1

0

1

6

7

0

0

1 1

1 1 1

0

8 1

Стр. 8 из 21ADJUSTMENT [LCD Color Television] ASIA_EU

12.05.2015

file://C:\Documents and Settings\Alexsandr\Local Settings\Temp\Rar$EXa0.588\37Z

...

0 0 0

9 1

A 1

B 1

C 1 1

D 1 1

E 1 1 1

F 1 1 1 1

0 0

0

0

1

1 1

0 0

0

E.g. If Bit D7-0 = 0101 1010, Hex data is 0x5A.

Exit from Service Mode

Pressing POWER button to turn off the TV once.

1

0

1

0

Initialization of Memory Data of QA02 and Setting Data of Signal Unit

After replacing QA02 or signal board, the following initialization is required.

CAUTION: Never attempt to initialize the data unless QA02 has been

replaced.

Whenever using new signal board to the set, setting the Model ID data

according to Panel option data.

1) Enter the service mode.

2) Select menu of ID by pressing P or P during display of adjustment menu in the
service mode.

3) Change ID data into MODEL ID to initialize by pressing + or -, refer to table
below.

4) Press and hold the CALL button on the remote control, then press the CHANNEL

button on the TV.

Стр. 9 из 21ADJUSTMENT [LCD Color Television] ASIA_EU

12.05.2015

file://C:\Documents and Settings\Alexsandr\Local Settings\Temp\Rar$EXa0.588\37Z

...

5) Initialization progress dialog including model name and panel vendor is shown.

Progress status is "WRITING".

6) Progress status is changed "OK" and power cycle (automatically). Then QA02

initialization has been completed.

7) Enter the service mode and select version check mode. Confirm if model name and

model id set is correct. If not, repeat steps 1) to 6).

Note:

In case initialization by setting wrong MODEL ID is done, there is a possibility of

abnormal display.

8) Set I2C check function of TVOP to enable.

9) Check the picture carefully. If necessary, adjust any adjustment item above.

Perform "Auto tune" on the owner's manual.

MODEL ID (HEX) Model name Panel vendor

0x01 37Z3030D LPL

0x02 42Z3030D LPL

0x03 47Z3030D LPL

0x04 52Z3030D LPL

0x05 57Z3030D SAMSUNG

0x06 52Z3030D SAMSUNG

0x07 40ZF355D SAMSUNG

0x08 46ZF355D SAMSUNG

0x09 52ZF355D SAMSUNG

0x10

0x11

0x12

0x13

0x14

0x15

0x16

0x17

Стр. 10 из 21ADJUSTMENT [LCD Color Television] ASIA_EU

12.05.2015

file://C:\Documents and Settings\Alexsandr\Local Settings\Temp\Rar$EXa0.588\37Z

...

0x18

0x19

0x20

0x21

0x22

0x23

0x24

0x25

0x26

0x27

0x28

0x29

0x30

0x31

0x32

0x33

Initializing Data setting flowchart after replacing the Signal Unit

Стр. 11 из 21ADJUSTMENT [LCD Color Television] ASIA_EU

12.05.2015

file://C:\Documents and Settings\Alexsandr\Local Settings\Temp\Rar$EXa0.588\37Z

...

Test Signal Selection

Every pressing of button on the remote control changes the built-in test patterns on

Стр. 12 из 21ADJUSTMENT [LCD Color Television] ASIA_EU

12.05.2015

file://C:\Documents and Settings\Alexsandr\Local Settings\Temp\Rar$EXa0.588\37Z

...

screen as described below in Service Mode.

Picture Signal

Red raster

Green raster

Blue raster

All Black

All White

Self Diagnostic Function

1. Press "9" button on remote control during display of adjustment menu in the service

mode. The diagnosis will begin to check if interface among IC's is executed properly.

2. During diagnosis, the following displays are shown.

* Self check display and Item are subject to the models.

NG is abnormal (Red indication).

Стр. 13 из 21ADJUSTMENT [LCD Color Television] ASIA_EU

12.05.2015

file://C:\Documents and Settings\Alexsandr\Local Settings\Temp\Rar$EXa0.588\37Z

...

(1) Firmware :

Version information of microprocessor

Series name (AAAA) and market area (BB) and software program version (0000)

(2) Time : Total hour of turn the TV on. (Unit : H)

(3) BL_STATUS :

Counter for saving BackLight on error.

This value is counted till 99 (Decimal).

(4) Bus line : -- "OK" is normal

SCL-GND (Red indication) : SCL-GND short circuit

SDA-GND (Red indication) : SDA-GND short circuit

SCL-SDA (Red indication) : SCL-SDA short circuit

(5) Bus cont : --- "OK" is normal.

When the abnormal status is detected, type name of semiconductor is

indicated in red colour.

(6) Block

UV : TV reception mode

V1 - V9 : VIDEO 1-9 input mode

PC : PC mode

YUV : YUV mode

DTV : DTV mode

UV RF

V1

(SCART (FULL))

1

2

V2 (SCART (FULL))

Стр. 14 из 21ADJUSTMENT [LCD Color Television] ASIA_EU

12.05.2015

file://C:\Documents and Settings\Alexsandr\Local Settings\Temp\Rar$EXa0.588\37Z

...

V3

(Component/Composite/S)

V4 HDMI1

V5 HDMI2

V6 HDMI3

V7 --

V8 --

V9 --

PC PC

YUV --

DTV DTV (Digital Only)

3

Version Check Mode

1. Press "9" button twice on remote control during display of adjustment menu in the

service mode.

The version of main MPU will be checked.

2. During Version Check, the following displays are shown.

* Version check display and Item are subject to the models.

Стр. 15 из 21ADJUSTMENT [LCD Color Television] ASIA_EU

12.05.2015

file://C:\Documents and Settings\Alexsandr\Local Settings\Temp\Rar$EXa0.588\37Z

...

(1) MAIN MPU :

Version information of microprocessor

Series name and Code Program Version (4 figure number) and OSD Version (2 figure

number).

(2) EEPROM :

Version information of EEPROM : Display 1 byte data.

(3) SUB MPU :

Version information of SUB MPU : Display 1 byte data.

(4) OPTION :

Option information : Display six numbers of 1 byte data.

Left side means QF01 (for AV-LINK) micon software version.

Right side means QA01 (for CEC) micon software version. (Only CEC model)

(5) HDMI EDID :

EDID data check item. Display channel numbers depend on HDMI input numbers.

OK : EDID data is enable.

NG : EDID data is disable.

(6) SW Ver

Version information of DB software as Toshiba release. (Only digital model.)

(7) MW Ver

Left side is Application and UI version information of DB software. (Only digital

NTSC (60 Hz) SD signal (composite input).

Стр. 16 из 21ADJUSTMENT [LCD Color Television] ASIA_EU

12.05.2015

file://C:\Documents and Settings\Alexsandr\Local Settings\Temp\Rar$EXa0.588\37Z

...

model.)

Right side is Firmware (Driver) version information of DB software. (Only digital

model.)

(8) A/D Adjust

A/D adjustment item.

--MAIN : It's enable only in double Window model. A/D adjustment status of main

picture.

--SUB : It's enable only in double Window model. A/D adjustment status of sub

picture.

--COMP : Component input

--PC : PC input

--NTSC :

--PAL : PAL (50 Hz) SD signal (composite input).

--OK : A/D adjustment set correctly.

--NG : A/D adjustment set incorrect.

-- : A/D adjustment is not needed. Because its picture format isn't used.

(9) 100 Hz FPGA Software Version

It's enable only in 100 Hz drive panel model.

(10) Memory Data Version

Version information of EEPROM.

DRMA**** means model number of EEPROM.

REV** means version of EEPROM.

(11) CD number

CD information (ascii code). : Display 4 byte data.

(12) Model Name

Model name information (ascii code). : Display 7 byte data.

(13) LCD Panel Vendor information display

The following Panel Vender (DDD) and screen size (00) and resolution (EEE) are

displayed.

Example : AUO-32 (1080p) indicates that Vender is AUO and Screen Size is 32 inch

and Full HD panel.

Status Check Mode

1. Press "9" button thrice on remote control during display of adjustment menu in the

Стр. 17 из 21ADJUSTMENT [LCD Color Television] ASIA_EU

12.05.2015

file://C:\Documents and Settings\Alexsandr\Local Settings\Temp\Rar$EXa0.588\37Z

...

service mode.

The status of this model will be checked.

2. During Status Check, the following displays are shown.

* Status check display and Item are subject to the models.

(1) MAIN :

Main source information :

Display RF position number (0 - 99) on the main screen, or Input Source

(EXT1/2/3/HDMI etc.)

(2) MAIN FORMAT :

Display Video and PC format information

(3) MAIN PLL :

Main PLL information : Display 1 byte data at five.

(4) SUB :

Sub source information :

Display RF position number (0 - 99) on the Sub screen, or Input Source

(EXT1/2/3/HDMI etc.)

This item displays only Double window model.

(5) SUB FORMAT :

Display Video and PC format information

This item displays only Double window model.

(6) SUB PLL :

Sub PLL information : Display 1 byte data at five.

This item displays only Double window model.

(7) SCREEN SIZE :

Стр. 18 из 21ADJUSTMENT [LCD Color Television] ASIA_EU

12.05.2015

file://C:\Documents and Settings\Alexsandr\Local Settings\Temp\Rar$EXa0.588\37Z

...

Display the screen size as follows.

Exact Scan

Wide

Super Live 2

Cinema 2

4:3

Super Live 1

Cinema 1

Subtitle

14:9

Note:

Exact Scan is shown only for 1080p panel model with video input mode except pc.

(8) OTHER STATUS :

Other status information : Display three numbers of 2 byte data.

Setting Hotel Mode

Enter to service mode and select Hotel Mode menu by pressing P or P .
After selecting Hotel Mode, press + to enter details setting in Hotel Mode.

To select menu, press P or P and press OK to enter the adjustment menu of table bellow.
To move the cursor in the adjustment, press + or -.

1. By pressing P or P , OPT2 setting will change the value either 1 or 0 on selected
items as follows;

OP2

OPT2 FUNCTION DESCRIPTION 1 0 (Normal)

D7 (bit7) - (no use) - -

D6 (bit6) - (no use) - -

D5 (bit5) FRONT Key Disable Enable

D4 (bit4) All keys except input selector key Disable Enable

(Video/TV)

Стр. 19 из 21ADJUSTMENT [LCD Color Television] ASIA_EU

12.05.2015

file://C:\Documents and Settings\Alexsandr\Local Settings\Temp\Rar$EXa0.588\37Z

...

D3 (bit3) User remote control operation Disable

(Service mode and Supere

User mode may possible to

setting only)

D2 (bit2) Disable SET UP MENU except

language.

(tuning SETUP MENU)

D1 (bit1) Disable SETUP MENU Disable Enable

D0 (bit0) HOTEL Mode On (Enable the setting of D1

Disable

(Display the language only)

from to D7)

Enable

Enable

Off

(Normal)

VOLUX

Set VOLUX as following.

1) Set speaker volume to 100. (Any value is OK, but 100 is better to check sound level.)

2) Down value of VOLUX until finding suitable sound volume level.

VOLUX FUNCTION DESCRIPTION 1 0 (Normal)

D7 (bit7) ~

D0 (bit0)

Max Limiter of Volume Control 0x00 ~ 0x7F (Normal: 0x7C)

OP6

OPT6 FUNCTION DESCRIPTION 1 0 (Normal)

D7 (bit7) Enable mode that POS or VIDEO program

number will be appeared in forced when turn

ON the main power

D6 (bit6) ~

D0 (bit0)

POS or VIDEO program number 0 ~ 127 [decimal] (Normal: 0)

Enable Disable

POS number: 0 ~ 99

VIDEO number: 100 ~ 127

(DTV = 100, VIDEO = 101,

VIDEO = 102..)

100 is used as ATV when

DTV option is disable.

OP7

Стр. 20 из 21ADJUSTMENT [LCD Color Television] ASIA_EU

12.05.2015

file://C:\Documents and Settings\Alexsandr\Local Settings\Temp\Rar$EXa0.588\37Z

...

OPT7 FUNCTION DESCRIPTION 1 0 (Normal)

D7 (bit7) Enable mode that speaker volume will be set

in forced when turn ON the main power

D6 (bit6) ~

D0 (bit0)

Forced speaker volume 0 ~ 100 [decimal] (Normal: 0)

Enable Disable

Value above 100 is no effect.

OP8

OPT8 FUNCTION DESCRIPTION 1 0 (Normal)

D7 (bit7) ~

D3 (bit3)

D2 (bit2) Enable mode that picture mode will be set in

forced when turn ON the main power

D1 (bit1) ~

D0 (bit0)

Forced picture mode 0 [dec]: Dynamic (mode-1)

- (no use) - -

Enable

(Display the

language only)

(Normal)

1 [dec]: Standard (mode-2)

2 [dec]: Mild (mode-3)

3 [dec]: Memory (mode-M)

Disable

LED Indication

The Green and Red LEDs on the TV (at the bottom center of the TV) indicate the TV's

status, as described below.



Red ON (solid) and Green OFF = The TV power cord is plugged in.



Green ON (solid) and Red ON = The On timer is operating.

1 Green is OFF;

Red blinks continuously at 0.5-

second intervals.

LED Indication Condition Solution

Abnormal operation Turn OFF the TV and unplug

the power cord.

Plug the power cord in again

and turn ON the TV.

Стр. 21 из 21ADJUSTMENT [LCD Color Television] ASIA_EU

12.05.2015

file://C:\Documents and Settings\Alexsandr\Local Settings\Temp\Rar$EXa0.588\37Z

...

2 Green is OFF;

Red blinks continuously at 1-

second intervals.

Abnormal operation of

BUS line.

Turn OFF the TV and unplug

the power cord.

Plug the power cord in again

and turn ON the TV.

FUNCTION AND OPERATION

Стр. 1 из

1

12.05.2015

file://C:\Documents and Settings\Alexsandr\Local Settings\Temp\Rar$EXa0.120\37Z

...

The Remote Control

Simple at-a-glance reference of your remote control.

FUNCTION AND OPERATION

Стр. 1 из

2

12.05.2015

file://C:\Documents and Settings\Alexsandr\Local Settings\Temp\Rar$EXa0.715\37Z

...

Controls and Input Connections

A wide variety of external equipment can be connected to the input sockets on the side of the

television.

Whilst all the necessary adjustments and controls for the television are made using the remote

control, the buttons on the television may be used for some functions.

Switching On

Using the Remote Control

Using the Controls and Connections

Стр. 2 из

2

12.05.2015

file://C:\Documents and Settings\Alexsandr\Local Settings\Temp\Rar$EXa0.715\37Z

...

FUNCTION AND OPERATION

Стр. 1 из

2

12.05.2015

file://C:\Documents and Settings\Alexsandr\Local Settings\Temp\Rar$EXa0.076\37Z

...

Tuning Digital Television for the First Time

Before switching on the television put your decoder and media recorder to

are connected and ensure the aerial is connected. To set up the television use the buttons on

the remote control.

Standby

if they

Стр. 2 из

2

12.05.2015

file://C:\Documents and Settings\Alexsandr\Local Settings\Temp\Rar$EXa0.076\37Z

...

FUNCTION AND OPERATION

Стр. 1 из

3

12.05.2015

file://C:\Documents and Settings\Alexsandr\Local Settings\Temp\Rar$EXa0.498\37Z

...

Digital Auto Tuning

Note:

view them.

As new services are broadcast it will be necessary to re-tune the television in order to

Auto Tuning

Стр. 2 из

3

12.05.2015

file://C:\Documents and Settings\Alexsandr\Local Settings\Temp\Rar$EXa0.498\37Z

...

Analogue Switch-Off

Стр. 3 из

3

12.05.2015

file://C:\Documents and Settings\Alexsandr\Local Settings\Temp\Rar$EXa0.498\37Z

...

FUNCTION AND OPERATION

Стр. 1 из

3

12.05.2015

file://C:\Documents and Settings\Alexsandr\Local Settings\Temp\Rar$EXa0.769\37Z

...

Digital Programme Sorting, Manual Tuning

Note:

automatically be selected when the television is switched back on.

When the television is switched off the mode being viewed at the time will

Programme Sorting

Стр. 2 из

3

12.05.2015

file://C:\Documents and Settings\Alexsandr\Local Settings\Temp\Rar$EXa0.769\37Z

...

Manual Tuning

Стр. 3 из

3

12.05.2015

file://C:\Documents and Settings\Alexsandr\Local Settings\Temp\Rar$EXa0.769\37Z

...

FUNCTION AND OPERATION

Стр. 1 из

2

12.05.2015

file://C:\Documents and Settings\Alexsandr\Local Settings\Temp\Rar$EXa0.389\37Z

...

Tuning Analogue Mode for the First Time

The

Quick Setup

put the television into

feature will tune all

analogue

mode press the A/D button.

ATV

channels currently available in the area. To

Стр. 2 из

2

12.05.2015

file://C:\Documents and Settings\Alexsandr\Local Settings\Temp\Rar$EXa0.389\37Z

...

FUNCTION AND OPERATION

. For example: if the television

To allocate a programme position on the television for a decoder and media recorder: turn the

Стр. 1 из

4

12.05.2015

file://C:\Documents and Settings\Alexsandr\Local Settings\Temp\Rar$EXa0.509\37Z

...

Analogue Manual Tune

The television can be tuned-in manually using

Manual tuning

cannot be connected to a media recorder/decoder with a SCART lead or to tune-in a station

on another

System

.

Use and to move across the screen and select any of these Manual Tune options.

Programme : The number to be pressed on the remote control.

System : Specific to certain areas.

Colour system : Factory set to Auto, should only be changed if problems are

experienced, i.e. NTSC input from external source.

Programme skip :

Channel : The channel number on which a station is being broadcast.

means nothing has been stored or the facility to skip

the channel is ON.

Search : Search up and down for a signal.

Manual fine tuning : Only used if interference/weak signal is experienced.

Station :

Station identification. Use the or and or buttons to

enter up to seven characters.

decoder on, insert a pre-recorded film in the media recorder and press PLAY, then manually

tune.

Стр. 2 из

4

12.05.2015

file://C:\Documents and Settings\Alexsandr\Local Settings\Temp\Rar$EXa0.509\37Z

...

Стр. 3 из

4

12.05.2015

file://C:\Documents and Settings\Alexsandr\Local Settings\Temp\Rar$EXa0.509\37Z

...

Стр. 4 из

4

12.05.2015

file://C:\Documents and Settings\Alexsandr\Local Settings\Temp\Rar$EXa0.509\37Z

...

FUNCTION AND OPERATION

Стр. 1 из

2

12.05.2015

file://C:\Documents and Settings\Alexsandr\Local Settings\Temp\Rar$EXa0.142\37Z

...

Auto Tune

Using Auto Tuning

Стр. 2 из

2

12.05.2015

file://C:\Documents and Settings\Alexsandr\Local Settings\Temp\Rar$EXa0.142\37Z

...

SAFETY INSTRUCTION

should enter the mouth, rinse the mouth thoroughly with water. If the fluid should contact the

When attaching the LCD module to the LCD cover, position it appropriately and fasten

Стр. 1 из 4Handling the LCD Module

12.05.2015

file://C:\Documents and Settings\Alexsandr\Local Settings\Temp\Rar$EXa0.848\37Z

...

Handling the LCD Module

Safety Precaution

In the event that the screen is damaged or the liquid crystal (fluid) leaks, do not breathe in or

drink this fluid.

Also, never touch this fluid. Such actions could cause toxicity or skin irritation. If this fluid

skin or clothing, wipe off with alcohol, etc., and rinse thoroughly with water. If the fluid

should enter the eyes, immediately rinse the eyes thoroughly with running water.

Precautions for Handling the LCD Module

CAUTION: The metal edges of the LCD module are sharp, handle it with

care.

The LCD module can easily be damaged during disassembly or reassembly; therefore,

always observe the following precautions when handling the module.

1.

at the position where the display can be viewed most conveniently.

2. Carefully align the holes at all four corners of the LCD module with the corresponding

holes in the LCD cover and fasten with screws. Do not strongly push on the module

because any impact can adversely affect the performance. Also use caution when

handling the polarized screen because it can easily be damaged.

Стр. 2 из 4Handling the LCD Module

12.05.2015

file://C:\Documents and Settings\Alexsandr\Local Settings\Temp\Rar$EXa0.848\37Z

...

3. If the panel surface becomes soiled, wipe with cotton or a soft cloth. If this does not

remove the soiling, breathe on the surface and then wipe again.

If the panel surface is extremely solied, use a CRT cleaner as a cleaner. Wipe off the

panel surface by drop the cleaner on the cloth. Do not drop the cleaner on the panel.

Pay attention not to scratch the panel surface.

4. Leaving water or other fluids on the panel screen for an extended period of time can

result in discoloration or stripes. Immediately remove any type of fluid from the screen.

5. Glass is used in the panel, so do not drop or strike with hard objects. Such actions can

damage the panel.

6. CMOS-LSI circuitry is used in the LCD module, so avoid damage due to static

Стр. 3 из 4Handling the LCD Module

12.05.2015

file://C:\Documents and Settings\Alexsandr\Local Settings\Temp\Rar$EXa0.848\37Z

...

electricity. When handling the module, use a wrist ground or anchor ground.

7. Do not expose the LCD module to direct sunlight or strong ultraviolet rays for an

extended period of time.

8. Do not store the LCD module below the temperature conditions described in the

specifications. Failure to do so could result in freezing of the liquid crystal due to cold

air or loss of resilience or other damage.

9. Do not disassemble the LCD module. Such actions could result in improper operation.

Стр. 4 из 4Handling the LCD Module

12.05.2015

file://C:\Documents and Settings\Alexsandr\Local Settings\Temp\Rar$EXa0.848\37Z

...

10. When transporting the LCD module, do not use packing containing epoxy resin

(amine) or silicon resin (alcohol or oxim). The gas generated by these materials can

cause loss of polarity.

PANEL IDENTIFICATION

name, the identification marking will be shown at the last digit of the set serial number on the

Стр. 1 из

1

12.05.2015

file://C:\Documents and Settings\Alexsandr\Local Settings\Temp\Rar$EXa0.679\37Z

...

Panel Identification

If the several panels are alternatively used in the same model without amending the model

specification label on the back cover.

In servicing, do not alter the panel because several setting and parts are different.

Marking Panel Vendor Marking Panel Vendor Marking Panel Vendor

A AUO J

B

C CMO L LPL U

D

E

F

G

H IPS R

K SAMSUNG T

M

N

P

Q

S SHARP

V

W

X

Y

Z

With this alternative use, some of key parts may differ and their combinations are

indicated with the suffix marking on the location number in the part list

(Miscellaneous).

e.g.

Location No. Part No. Description

B001A

B001B

MZ01A

MZ01B

75007869 LCD Panel, 32" LPL

75007870 LCD Panel, 32" AUO

75006036 LDVS Cable

75007893 LDVS Cable

U03C

Key

U06A

Front-HDMI

U02A

LOW-B

U03A

AV-Terminal

U01A

POWER

U04A

SIGNAL

U05A DIGITAL

PCMCIA

Card

Slot

U03B

LED

SAFETY INSTRUCTION

Always keep tools, components of the product, etc away from the children, These items

Стр. 1 из

4

12.05.2015

file://C:\Documents and Settings\Alexsandr\Local Settings\Temp\Rar$EXa0.296\37Z

...

WARNING: BEFORE SERVICING THIS CHASSIS, READ THE "SAFETY

PRECAUTION" AND "PRODUCT SAFETY NOTICE" INSTRUCTIONS BELOW.

Safety Precaution

WARNING: SERVICING SHOULD NOT BE ATTEMPTED BY ANYONE

UNFAMILIAR WITH THE NECESSARY PRECAUTIONS ON THIS RECEIVER.

THE FOLLOWING ARE THE NECESSARY PRECAUTIONS TO BE OBSERVED

BEFORE SERVICING THIS CHASSIS.

1. An isolation transformer should be connected in the power line between the receiver

and the AC line before any service is performed on the receiver.

2. Always disconnect the power plug before any disassembling of the product. It may

result in electrical shock.

3. When replacing a chassis in the cabinet, always be certain that all the protective

devices are put back in place, such as nonmetallic control knobs, insulating covers,

shields, isolation resistor-capacitor network, etc.

4.

may cause injury to children.

5. Depending on the model, use an isolation transformer or wear suitable gloves when

servicing with the power on, and disconnect the power plug to avoid electrical shock

when replacing parts. In some cases, alternating current is also impressed in the

chassis, so electrical shock is possible if the chassis is contacted with the power on.

6. Always use the replacement parts specified for the particular model when making

repairs. The parts used in products require special safety characteristics such as

inflammability, voltage resistance, etc. therefore, use only replacement parts that have

NEVER remodel the product in any way. Remodeling can result in improper operation,

Стр. 2 из

4

12.05.2015

file://C:\Documents and Settings\Alexsandr\Local Settings\Temp\Rar$EXa0.296\37Z

...

these same characteristics. Use only the specified parts when the mark is indicated
in the circuit diagram or parts list.

7. Parts mounting and routing dressing of wirings should be the same as that used

originally. For safety purposes, insulating materials such as isolation tube or tape are

sometimes used and printed circuit boards are sometimes mounted floating. Also make

sure that wirings is routed and clamped to avoid parts that generate heat and which use

high voltage. Always follow the manufactured wiring routes / dressings.

8. Always ensure that all internal wirings are in accordance before re-assembling the

external casing after a repairing completed. Do not allow internal wiring to be pinched

by cabinets, panels, etc. Any error in reassembly or wiring can result in electrical

leakage, flame, etc., and may be hazardous.

9.

malfunction, or electrical leakage and flame, which may be hazardous.

10. Touch current check. (After completing the work, measure touch current to prevent an

electric shock.)



Plug the AC cord directly into the AC outlet. Do NOT use an isolation transformer

for this check.



Connect a measuring network for touch currents between each exposed metallic part

on the set and a good earth ground such as a water pipe.

Annex D

(normative)

Measuring network for TOUCH CURRENTS

Resistance values in orms (Ω).

V: Voltmeter or oscilloscope

Стр. 3 из

4

12.05.2015

file://C:\Documents and Settings\Alexsandr\Local Settings\Temp\Rar$EXa0.296\37Z

...

(r.m.s. or peak reading)

Input resistance : 1 MΩ
Input capacitance : 200 pF

Frequency range : 15 Hz to 1 MHz and d.c. respectively

Appropriate measures should be taken to obtain the correct value in case of non

Note:

sinusoidal waveforms.

The measuring instrument is calibrated by comparing the frequency factor of with the
solid line in figure F.2 of IEC 60990 at various frequencies. A calibration curve is
constructed showing the deviation of from the ideal curve as a function of frequency.

TOUCH CURRENT = /500 (peak value).



The potential at any point (TOUCH CURRENT) expressed as voltage and
does not exceed the following value:

The part or contact of a TERMINAL is not HAZARDOUS LIVE if:

a) The open-circuit voltage should not exceed 35 V (peak) a.c. or 60 V d.c. or, if a) is not

met.

b) The measurement of the TOUCH CURRENT shall be carried out in accordance with

IEC 60990, with the measuring network described in

The TOUCH CURRENT expressed as voltages and , does not exceed the
following values:

- for a.c. : = 35 V (peak) and = 0.35 V (peak);

- for d.c. : = 1.0 V

The limit values of = 0.35 V (peak) for a.c. and = 1.0 V for d.c. correspond to

Note:

the values 0.7 mA (peak) a.c. and 2.0 mA d.c.

Annex D

of this standard.

Product Safety Notice

Стр. 4 из

4

12.05.2015

file://C:\Documents and Settings\Alexsandr\Local Settings\Temp\Rar$EXa0.296\37Z

...

Many electrical and mechanical parts in this chassis have special safety-related

characteristics. These characteristics are often passed unnoticed by a visual inspection and

the protection afforded by them cannot necessarily be obtained by using replacement

components rated for higher voltage, wattage, etc. Replacement parts which have these

special safety characteristics are identified in this manual and its supplements; electrical

components having such features are identified by the international hazard symbols on the

schematic diagram and the parts list.

Before replacing any of these components, read the parts list in this manual carefully. The

use of substitute replacement parts which do not have the same safety characteristics as

specified in the parts list may create electrical shock, fire, or other hazards.

SPECIFICATION

Стр. 1 из

2

12.05.2015

file://C:\Documents and Settings\Alexsandr\Local Settings\Temp\Rar$EXa0.413\37Z

...

Стр. 2 из

2

12.05.2015

file://C:\Documents and Settings\Alexsandr\Local Settings\Temp\Rar$EXa0.413\37Z

...

S

I

F

Clock

8

forV1.3

forV1.3

+Low B

(EVEN1/2,ODD1/2

)

R/G/B

POWER BOARD

Digital BOARD

H801
Tuner
IF Amp

RF Input

IC801
COFDM
Demod

X801

20.48MHz

P820A POWER

PJ400
DVB-CI x 1 PJ 212

TS

IC401
CIMax-SP2L

3.3V2.5V 33 V 12V 6.0V

IC181
Reset

M_TVRESET

Serial port
for debug

RESET

X191
27MHz X-tal

Uart0

TS

IC302
Audio Amp

IC301
Audio DAC

IC100

Donau TC90403 FG

CLK(27MHz)

IC191
VCXO

CVBS

ITU-R656

I2C

IC201
64Kbit EEPROM

EBIF: External Bus Interface

MIF: DDR SDRAM Memory Interface

MIF

EBIF

P200B
Digital VIDEO OUT
UART

IC221
256Mbit
DDRSDRAM

IC281
64Mbit
Flash

P2１2B
Audio OUT
CVBS OUT

PJ142
SPDIF

RF

CVBS

R/G/B/FB1

EXT1

LR

(SCART)

TVOUT V

TVOUT L/R

SY/C R/G/B/FB2

LR

EXT2
(SCART)

TVOUT V

TVOUT L/R

CVBS/SY/C

EXT3

LR

(FRONT)

HDMI

Y/Pb/Pr

EXT3
(REAR)

LR

PC R/G/B/H/V

LRPC/HDMI

Woofer

A-OUT

LR

AV BOARD

E2P

Sound AMP

TIF

MSP

SW

HP_AMP

75ohm

Driver

75ohm

Driver

AV-SW

CVBS/SY/SC

RGB SW

R/G/B/H/V

AV-Link

MCU

CEC MCU

(standby )

FB1

FB2

Y/Pb/Pr

CVBS/
SY/SC

SCART

CVBS/Audio(LR)

SIGNAL
BOARD

SDA2/SCL2

SDA1/SCL1

• ITU656

Torino

HDMI

SW

E2P E2P

HDMI CN

HDMI CN

DDR

HDMI Rx

DDR

RGB 30bit

FLASH

• LVDS 10bit (1080p@60/50)
2PATH (EVEN,ODD)

SDA0/SCL0

E2P

256K

AMP

DAC

SPI-

EEPROM

32Kbit

Charis

DDR2

256Mbit

AC INPUT&

Power

DDR2

256Mbit

DDR2

256Mbit

• LVDS 10bit
(1080p@120/100)
4PATH

PANEL

SPEAKER

HEAD Phone

ILLUMINATION LED

SCHEMATIC DIAGRAM

Стр. 1 из

2

12.05.2015

file://C:\Documents and Settings\Alexsandr\Local Settings\Temp\Rar$EXa0.676\37Z

...

Precaution

WARNING: BEFORE SERVICING THIS CHASSIS, READ THE "X-RAY

RADIATION PRECAUTION" FOR DIRECT VIEW CTV ONLY, "SAFETY

PRECAUTION" AND "PRODUCT SAFETY NOTICE" OF THIS MANUAL.

CAUTION: The international hazard symbols " " in the schematic diagram
and the parts list designate components which have special characteristics

important for safety and should be replaced only with types identical to

those in the original circuit or specified in the parts list.

The mounting position of replacements is to be identical with originals.

Before replacing any of these components, read carefully the SAFETY

PRECAUTION and PRODUCT SAFETY NOTICE.

Do not degrade the safety of the receiver through improper servicing.

Note:

1. RESISTOR

Resistance is shown in ohm [K=1,000, M=1,000,000]. All resistors are 1/6 W and 5 %

tolerance carbon resistor, unless otherwise noted as the following marks.

1/2R : Metal or Metal oxide of 1/2 watt

1/2S : Carbon composition of 1/2 watt

1RF : Fuse resistor of 1 watt

10 W : Cement of 10 watt

K : ±10 %

G : ±2 %

F : ±1 %

2. CAPACITOR

Unless otherwise noted in schematic, all capacitor values less than 1 are expressed in

µF, and the values more than 1 in pF.

All capacitors are ceramic 50 V, unless otherwise noted as the following marks.

= Electrolytic capacitor

Стр. 2 из

2

12.05.2015

file://C:\Documents and Settings\Alexsandr\Local Settings\Temp\Rar$EXa0.676\37Z

...

= Mylar capacitor

3. The parts indicated with " " have special characteristics, and should be replaced with
identical parts only.

4. Voltages read with DIGITAL MULTI-METER from point indicated to chassis ground,

using a color bar signal with all controls at normal, line voltage at nominal AC volts.

5. Waveforms are taken receiving color bar signal with enough sensitivity.

6. Voltage reading shown are nominal values and may vary ±20 % except H.V.
