Toshiba 36SW9UA Schematic
FILE NO. 070-200323
SERVICE MANUAL
COLOUR TELEVISION
D3SS Chassis
36SW9UA
Dec., 2003
CHAPTER 1 GENERAL ADJUSTMENTS
SAFETY INSTRUCTIONS ........................................................................................................................................ 3
SET-UP ADJUSTMENT ............................................................................................................................................ 4
SERVICE MODE ...................................................................................................................................................... 6
DESIGN MODE ........................................................................................................................................................ 9
ELECTRICAL ADJUSTMENTS .............................................................................................................................. 10
CIRCUIT CHECK .................................................................................................................................................... 17
GENERAL ADJUSTMENTS
CHAPTER 2 SPECIFIC INFORMATIONS
SETTING & ADJUSTING DATA .............................................................................................................................. 18
LOCATION OF CONTROLS ................................................................................................................................... 19
PROGRAMMING CHANNEL MEMORY ................................................................................................................. 21
CHASSIS AND REPLACEMENT PARTS LIST ...................................................................................................... 23

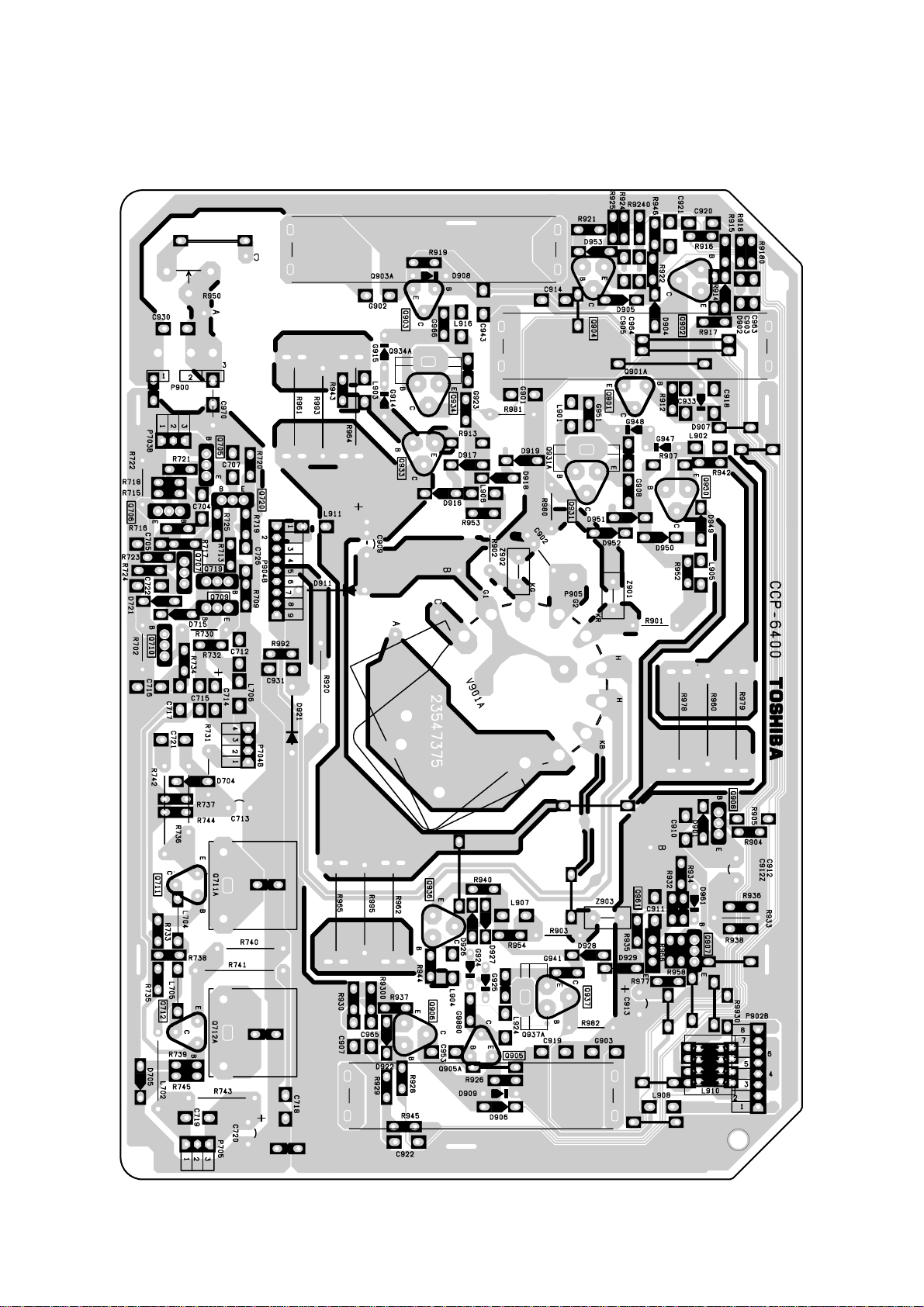

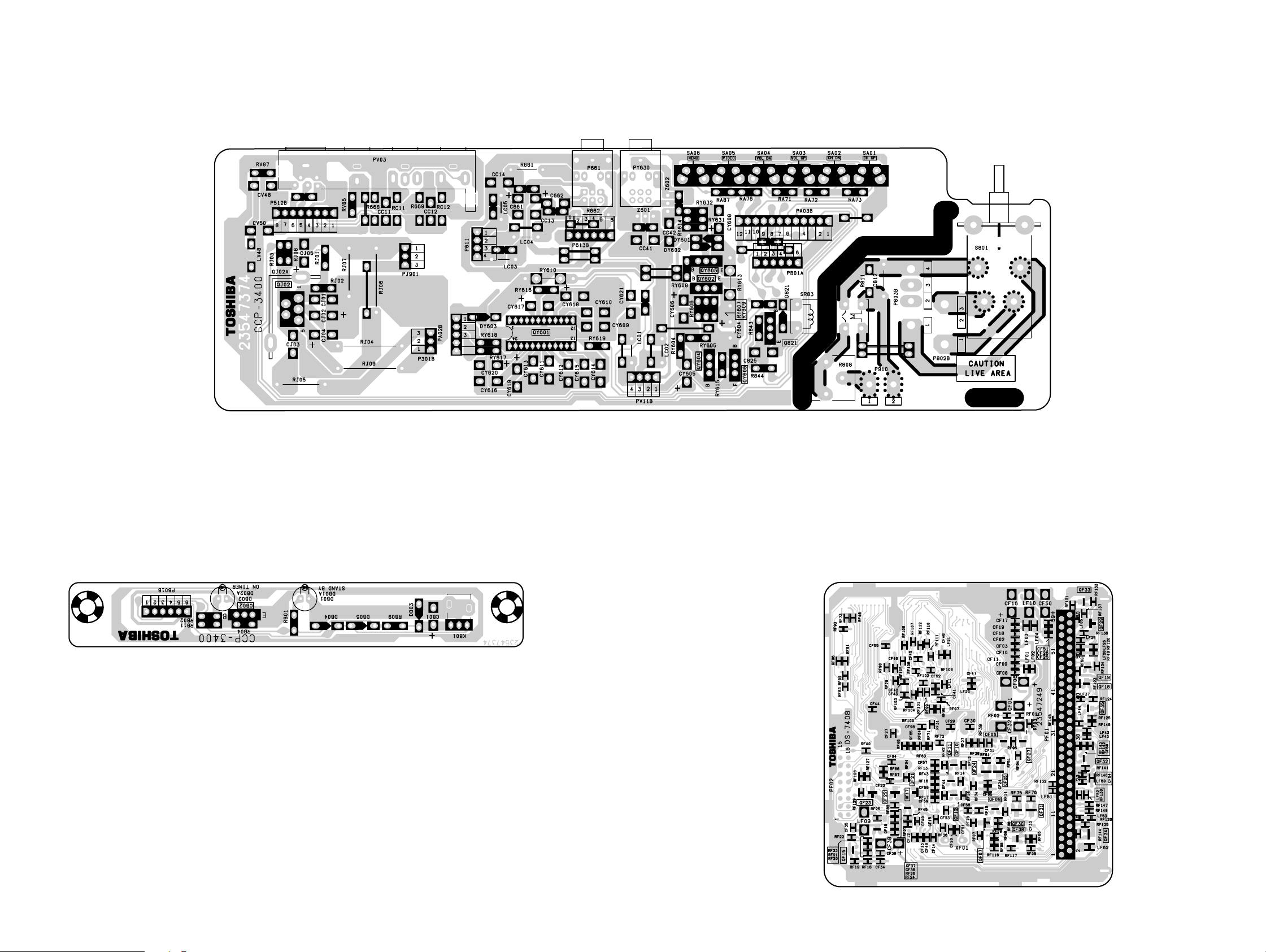

PC BOARDS BOTTOM VIEW................................................................................................................................. 39

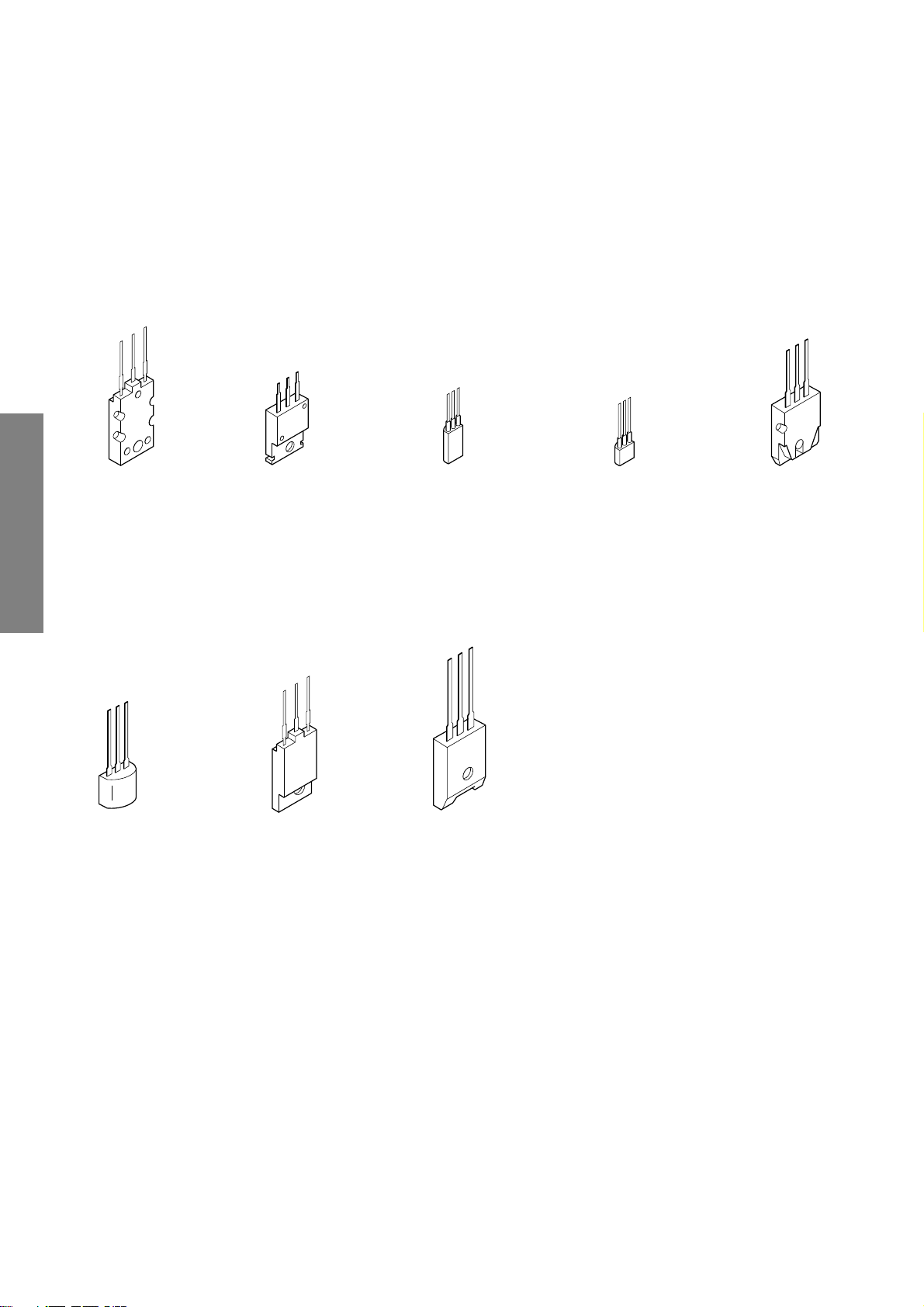

TERMINAL VIEW OF TRANSISTORS ................................................................................................................... 48

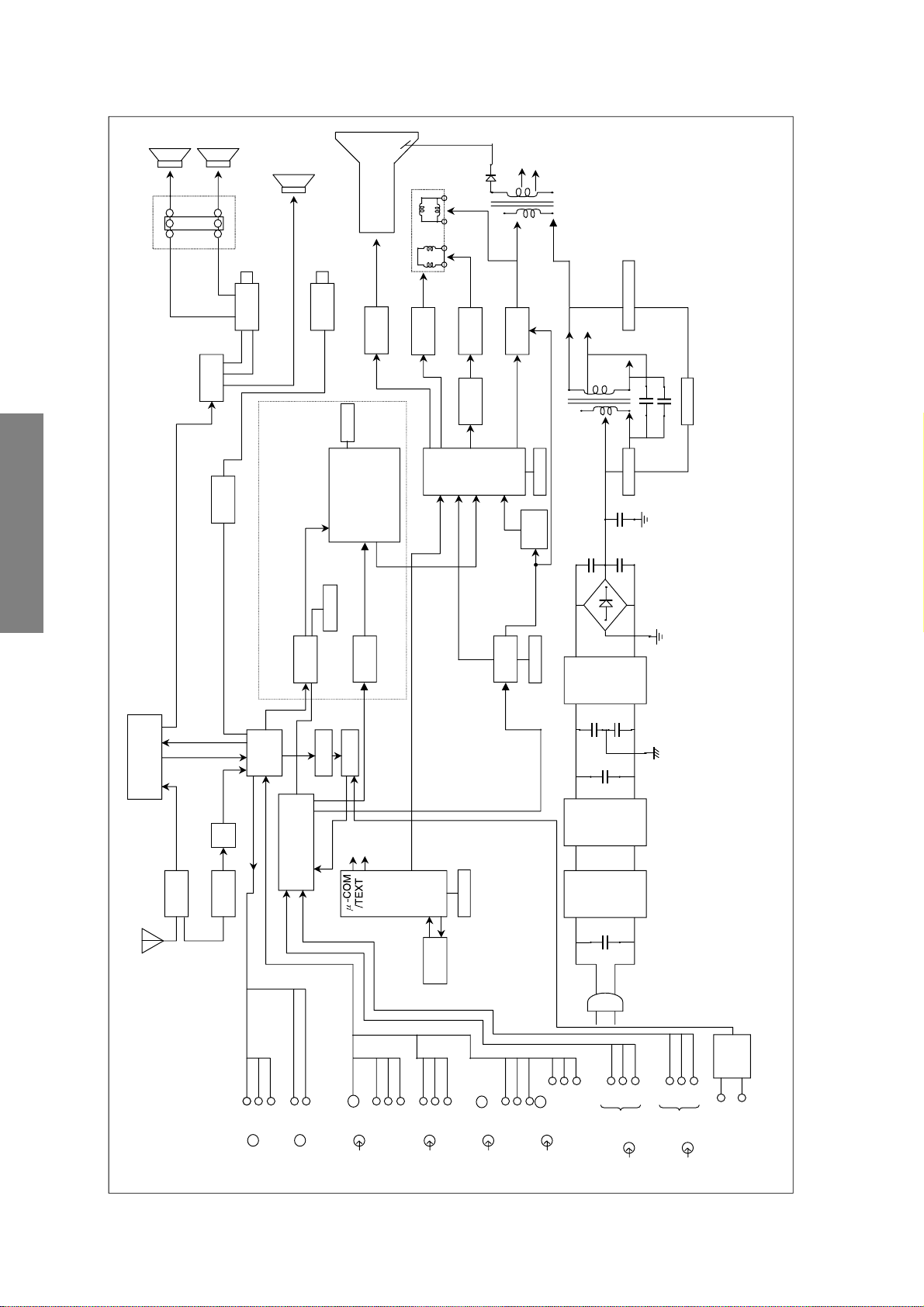

CIRCUIT BLOCK DIAGRAM .................................................................................................................................. 50
TABLE OF CONTENTS
SPECIFIC INFORMATIONS
SPECIFICATIONS .............................................................................................................................................. END
APPENDIX:
CIRCUIT DIAGRAM
– 2 –
CHAPTER 1 GENERAL ADJUSTMENTS
SAFETY INSTRUCTIONS
WARNING: BEFORE SERVICING THIS CHASSIS, READ THE “X-RAY RADIATION PRECAUTION”, “SAFETY PRECAU-
TION” AND “PRODUCT SAFETY NOTICE” INSTRUCTIONS BELOW.
X-RAY RADIATION PRECAUTION
1. Excessive high voltage can produce potentially hazardous
X-RAY RADIATION. To avoid such hazards, the high voltage must not be above the specified limit. The nominal value
of the high voltage of this receiver is (A) kV at zero beam
current (minimum brightness) under a (C) V AC power source.
The high voltage must not, under any circumstances, exceed (B) kV.
Refer to table-1 for high voltage (A), (B) & AC voltage (C).
(See SETTING & ADJUSTING DATA on page 18)
Each time a receiver requires servicing, the high voltage
should be checked following the HIGH VOLTAGE CHECK
procedure in this manual. It is recommended that the reading of the high voltage be recorded as a part of the service
record. It is important to use an accurate and reliable high
voltage meter.
SAFETY PRECAUTION
WARNING : Service should not be attempted by anyone unfamiliar with the necessary precautions on this receiver. The following
are the necessary precautions to be observed before servicing this chassis.
1. An isolation transformer should be connected in the power line between the receiver and the AC line before any service is
performed on the receiver.
2. Always discharge the picture tube anode to the CRT conductive coating before handling the picture tube. The picture tube
is highly evacuated and if broken, glass fragments will be violently expelled. Use shatter proof goggles and keep picture tube
away from the unprotected body while handling.
3. When replacing a chassis in the cabinet, always be certain that all the protective devices are put back in place, such as; nonmetallic control knobs, insulating covers, shields, isolation resistor-capacitor network etc.
2. The only source of X-RAY RADIATION in this TV receiver
is the picture tube. For continued X-RAY RADIATION protection, the replacement tube must be exactly the same
type tube as specified in the parts list.
3. Some part in this receiver have special safety-related characteristics for X-RAY RADIATION protection. For continued safety, parts replacement should be undertaken only
after referring to the PRODUCT SAFETY NOTICE below.
GENERAL ADJUSTMENTS
SPECIFIC INFORMATIONS
PRODUCT SAFETY NOTICE
Many electrical and mechanical parts in this chassis have special safety-related characteristics. These characteristics are
often passed unnoticed by a visual inspection and the protection afforded by them cannot necessarily be obtained by using
replacement components rated for higher voltage, wattage, etc. Replacement parts which have these special safety characteristics are identified in this manual and its supplements; electrical components having such features are identified by
the international hazard symbols on the schematic diagram and the parts list.
Before replacing any of these components, read the parts list in this manual carefully. The use of substitute replacement
parts which do not have the same safety characteristics as specified in the parts list may create shock, fire, X-ray
radiation or other hazards.
– 3 –
WARNING: BEFORE SERVICING THIS CHASSIS, READ THE “X-RAY RADIATION PRECAUTION”, “SAFETY PRECAU-
TION” AND “PRODUCT SAFETY NOTICE” ON PAGE 3 OF SERVICE MANUAL.
SET-UP ADJUSTMENT
■ The following adjustments should be made when a complete realignment is required or a new picture tube is installed.
Perform the adjustments in order as follows :
1. Color Purity
2. Convergence
3. White Balance
Note: The PURITY/CONVERGENCE MAGNET assembly and rubber wedges need mechanical positioning.
Refer to figure 1.
COLOR PURITY ADUSTMENT
GENERAL ADJUSTMENTS
(1) Let the screen face in the installing direction or toward the east (when it is to be moved), bring up the service mode
screen after demagnetizing (front, left, right, and top) with the degaussing coil, receive white signals by pressing the
[TV/VIDEO] button, and then the receiver should be operated for more than 40 minutes.
(2) Perform rough adjustment of the central convergence with the P/C magnet according to the adjustment item.
(3) Receive built-in green signals, loosen set screws on the deflection yoke, remove rubber wedges, and shift the deflec-
tion yoke to toward front.
(4) Move alternately the two 2-pole magnets of the P/C magnets so that the green raster can come to the center of the
screen.
Figure 1.
2-pole purity magnet
(27": Magnet is fixed with deflection yoke.)
SPECIFIC INFORMATIONS
Green Belt
6-pole convergence magnet
Main 4-pole convergence magnet
P/C magnet installing position A
MAG-1108 : 37 mm
A
Sub-4-pole convergence magnet
MAG-1113 : 39 mm
(5) Receive built-in red and blue signals, check that there is no inclination of the single color raster toward one side, and if
each color tilts to a great extent, make adjustment with the 2-pole magnet so that the 3 colors will come to the center
evenly.
(6) Receive the green raster, shift the deflection yoke from
a foremost position (hitting against the picture tube) to a
Shift deflection yoke
(7) Perform marking of each point
(6)
(8)
on the tape of picture tube
backward position horizontally, stop the deflection yoke
at a position where it begins to become a green raster,
and perform accurate marking on the picture tube.
(7) Shift the deflection yoke further backward, and perform
Picture tube
CRT-D board
accurate marking at a position where the green raster
begins to being luck.
(8) Fix the deflection yoke at a position 60% forward within
the range marked in items (6) and (7) above.
CONVERGENCE ADJUSTMENTS
100 60 0%
Fix the deflection yoke at a position 60% forward from a
point between (6) and (7)
P/C Mag
* Adjust the convergence magnet to get vest convergence in the the order to (1) ~ (5).
■ CENTER CONVERGENCE:
(1) Receive the white crosshatch or dot pattern from the service signal generator.
(2) Use the 2 pieces of main 4-pole magnets of P/C magnets, change the open angle, and align the red and blue vertical
lines on the screen center.
(3) Freeze the open angle of the main 4-pole magnets, turn them simultaneously, and align the horizontal lines.
(4) Take the same steps for items (2) and (3) above and align red/blue with green on the screen center using two 6-pole
magnets.
– 4 –
(5)Adjust the sub-4-pole magnets only in case there is any deviation of Xv bow-shaped convergence. (To be usually set at
the initial position)
Align both sides with the sub-4-pole magnets and minimize the deviation of blue and red with the main 4-pole magnets.
blue
blue
red
red
Main 4-pole magnet
■ CIRCUMFERENCE CONVERGENCE:
Perform correction in the following manner.
*
blue
green
red
A
B
blue
green
red
C
(Parts code:23 948 274) TC-S
D
E
F
S
N
Blue color or blue mark
Bonded surface
red/blue
red/blue
green
green
6-pole magnet
• Adjust coils and minimize deviation
(The 27” unit has coils underneath it)
(Insertion position of correction
piece)
D
E
F
*Insert the correction piece between the
picture tube and the deflection yoke.
A
B
C
Xv bow-shaped deviation of convergence
blue
red
Sub-4-pole magnet
A
blue
B
green
red
C
(Parts code:23 948 464)
N
S
Bonded surface
Transparent
GENERAL ADJUSTMENTS
D
E
SPECIFIC INFORMATIONS
F
Adjust (YHC) and minimize the deviation of YH.
green
Red
blue
green
blue
Red
blue
Red
Adjust (YV) and minimize the deviation of YV.
Red
green
blue
blue
green
Red
Red
blue
green
GH
green
blue
red
green
blue
red
green
Red
green blue
green
green
Red
blue
Red
Red
green
blue
blue
YV YHC
Perform correction by insert-
GH
ing the correction piece into
the clearance of terminal
board coils of the deflection
yoke.
Note:
Perform insertion by turning
the metal side to the terminal
board side of the deflection
yoke.
– 5 –
1. ENTERING TO SERVICE MODE
1) Press o button once on
Remote Control.
SERVICE MODE
2) Press o button again to
keep pressing.
3) While pressing the o button,
press MENU button on TV set.
Sound Mute
GENERAL ADJUSTMENTS
2. DISPLAYING THE ADJUSTMENT MENU
1) Press MENU button on TV.
Service mode
S
3. KEY FUNCTION IN THE SERVICE MODE
The following key entry during display of adjustment menu provides special functions.
SPECIFIC INFORMATIONS
A single horizontal line ON/OFF: - / - - button (on Remote) or a button (on TV)
Selection of the adjustment items : Channel s/t (on TV or Remote)
Change of the data value : Volume ; +/– (on TV or Remote)
Adjustment menu mode ON/OFF : MENU button (on TV)
Initialization of the memory (QA02) : CALL + Channel button on TV (s)
Reset the count of operating protect
circuit to “00”: CALL + Channel button on TV (t)
“RCUT” selection : 1 button
“GCUT” selection : 2 button
“BCUT” selection : 3 button
“CNTX” (or “SCNT”) selection : 4 button
“COLC” selection : 5 button
“TNTC” selection : 6 button
Self diagnostic display ON/OFF : 9 button
Press
Press
Adjustment mode
Item
Data
Item
Data
(Service mode display)
S
Color thickness correction
note: Displayed differently as shown below, de-
pending on the setting of the receiving color
system.
CAUTION : Never try to perform initialization unless you have changed the memory IC.
– 6 –
4. SELECTING THE ADJUSTING ITEMS
1)Every pressing of CHANNEL s button in the service mode changes the adjustment items in the order of table-2.
(t button for reverse order)
Refer to table-2 for preset data of adjustment mode.
(See SETTING & ADJUSTING DATA on page 18)
5. ADJUSTING THE DATA
1) Pressing of VOLUME ; +/– button will change the value of data in the range from 00H to FFH. The variable range
depends on the adjusting item.
6. EXIT FROM SERVICE MODE
1) Pressing POWER button to turn off the TV once.
■ INITIALIZATION OF MEMORY DATA OF QA02
After replacing QA02, the following initialization is required.
1. Enter the service mode, then select any register item.
2. Press and hold the CALL button on the Remote, then press the CHANNEL s button on the TV. The initialization of QA02 has
been complated.
3. Check the picture carefully. If necessary, adjust any adjustment item above.
Perform “Auto search Memory” on the owner’s manual.
CAUTION: Never attempt to initialize the data unless QA02 has been replaced.
GENERAL ADJUSTMENTS
SPECIFIC INFORMATIONS
– 7 –
8. SELF DIAGNOSTIC FUNCTION
1) Press “9” button on Remote Control during display of adjustment menu in the service mode.
The diagnosis will begin to check if interface among IC’s are executed properly.
2) During diagnosis, the following displays are shown.
Indicated color of mode now selected : Green and Red
Self Check
23xxxxxx
TIME
POWER
BUS CONT
BLOCK
: 326400
: 000
: OK
: UV V1 V2 V3 V4
Indicated color of other modes : White
Green : Normal
Red : The microprocessor operates to provide judgement
of no video signal. The red color is still indicated
though the signal is input, failure may exist in input
signal line including QV01.
GENERAL ADJUSTMENTS
Part number of microprocessor (QA01)
Total hour of turn the TV on.
Operation number of protecting circuit ----“00” is nor-
mal.
When indication is other than “00”, overcurrent apts to
flow, and circuit parts may possibly be damaged.
BUS CONT ----“OK” is normal.
When indication shows “Q uuu NG”, the device with
the number may possibly be damaged.
BLOCK
UV : TV reception mode
V1 : VIDEO 1 input mode (a1)
V2 : VIDEO 2 input mode (a2)
SPECIFIC INFORMATIONS
V3 : VIDEO 3 input mode (a3)
V4 : VIDEO 4 input mode (a4)
– 8 –
1. ENTERING TO DESIGN MODE
1) Select the Service mode.
DESIGN MODE
2) While pressing o(or CALL) button on
Remote and press MENU button on TV.
3) Press MENU button on TV.
DS
Press
Press
Item
Data
(Adjustment mode)(Design mode)
D
When QA02 is initialized, items “OPT0”, “OPT1”, “OPT2” and “OPT3” of DESIGN MODE are set to the data of the representative
model of this chassis family.
Therefore, because ON-SCREEN specification remains in the state of the representative of model. This model is required to
reset the data of items “OPT0”, “OPT1”, “OPT2” and “OPT3”.
2. SELECTING THE ADJUSTING ITEMS
Every pressing of CHANNEL t button in the design mode changes the adjustment items in the order of table-3.
(s button for reverse order)
Refer to table-3 for data of design mode.
(See SETTING & ADJUSTING DATA on page 18)
3. ADJUSTING THE DATA
Pressing of VOLUME s or t button will change the value of data.
GENERAL ADJUSTMENTS
SPECIFIC INFORMATIONS
– 9 –
ELECTRICAL ADJUSTMENTS
ITEM ADJUSTMENT PROCEDURE
FOCUS VR ADJ
SUB-BRIGHTNESS
(BRTC)
GENERAL ADJUSTMENTS
SPECIFIC INFORMATIONS
Note: Constrict the picture height
until the vertical retrace line
appears adjusting the item
HIT (HEIGHT).
HORIZONTAL POSITION
ADJUSTMENT (HPOS)
VERTICAL POSITION
ADJUSTMENT (VPOS)
1. Enter the service mode, then select any register item.
2. Press the TV/VIDEO button on the Remote until the black cross-bar pattern appears on the screen.
3. Adjust the FOCUS control (on T461) for well defined scanning lines on the picture
screen.
1. Set CONTRAST to minimum, and
BRIGHTNESS to center by adjusting user
controls.
2. Set the TV in service mode to get Black
cross-bar of inside pattern.
3. Select BRTC (brightness correction), and
adjust the ; – /+ button to reduce the
value so that white portion of inside pattern slightly light.
4. Adjust ; – /+ button to increase the data
value of BRTC, and set it just before the
difference between the belt of vertical retrace and the border of black portion of
inside pattern is visible.
After that, return vertical height and contrast.
1. Set the TV in service mode, and get
black cross-bar signal with VIDEO
button on remote hand unit.
2. Select either HPOS (Horizontal picture phase) or VPOS (Vertical picture
phase) with CHANNEL s, t buttons,
and adjust horizontal or vertical picture position in the center of screen
with VOLUME ; – /+ buttons.
Belt of vertical retrace
VERTICAL AMPLITUDE
ADJUSTMENT (HIT)
1. Set the TV in service mode, and get
black cross-hatch signal with VIDEO
button on remote hand unit.
2. Select HIT (Vertical amplitude) with
CHANNEL s, t buttons, and adjust
vertical amplitude with VOLUME
; – /+ buttons so that vertical am-
plitude lacks a little.
3. Adjust vertical amplitude with VOLUME ; – /+ buttons so that the first
bar on cross-hatch signal touches
edge of screen.
The first
– 10 –
ITEM ADJUSTMENT PROCEDURE
WIDTH
(WID)
E-W PARABOLA
(PARA)
WHITE BALANCE
ADJUSTMENT
CUTOFF ADJUSTMENT
•
(RCUT)
(GCUT)
(BCUT)
DRIVE ADJUSTMENT
•
(GDRV)
(BDRV)
1. Call up the adjustment mode display, then select the item WID.
2. Press the ; – /+ button to get the picture so the left and rightedges of raster
begins to lack.
3. Press the ; – /+ button to advance the data by 7 steps.
Note : Check the horizontal picture position is correct.
1. Call up the adjustment mode display, then select the item PARA.
2. Press the a button on Remote until the cross-hatch pattern appears on the screen.
3. Press the ; – /+ button to make vertical lines straight as shown below.
1. Set Contrast to 40, and brightness to +20 by picture control.
2. Receive the Black and White pattern.
3. Select RCUT, GCUT and BCUT with CHANNEL s, t buttons, to set individual
values to Initial reference data, and to set GDRV and BDRV to Initial reference
data with VOLUME ; – /+ buttons.
4. Press -/- - button on the remote control and rotate Screen VR to get one slight
horizontal line on screen.
Note: Every pressing of -/- - button provides Horizontal line picture and Normal
picture alternately.
5. Press -/- - button to release horizontal line picture, and select the two other colors
which did not light in the above step with CHANNEL s, t buttons. Then tap VOL-
UME ; – /+ buttons so that three colors slightly light in the same level.
GENERAL ADJUSTMENTS
SPECIFIC INFORMATIONS
X To correct white balance in light area,
select GDRV and BDRV with CHANNEL
s, t buttons to adjust.
X To correct white balance in dark area,
perform fine adjustment of RCUT, GCUT
and BCUT.
Light area check
(to show white)
Dark area check
(to show black)
– 11 –
V/C system adjustment
No.
1
ADJUSTING ITEMS
AND POINTS
Cutoff adjustment and
white balance adjustment
RCUT
GCUT
BCUT
GDRV
BDRV
Screen VR
GENERAL ADJUSTMENTS
Sub contrast adjustment
2
(SCNT)
Sub brightness adjust-
3
ment
(BRTC)
Sub color adjustment
SPECIFIC INFORMATIONS
4
NTSC
(COLC)
ADJUSTMENT PROCEDURE
1) Setting to horizontal alignment, turn the screen VR to
stop where the brightness lines are slightly luminous.
(Adjustment shall be made so that they look almost
white.)
2) Cancel horizontal alignment.
3) Varying R, G and B CUTOFF, make white balance
adjustment in the dark area.
4) Adjusting G and B DRIVE, make white balance adjustment in the bright area.
5) Repeat procedures 3) and 4) if necessary.
Adjustable value:
Bright area: 11500K+0.0075uV
(103cd/m
2
)
Dark area: 10500K+0.0105uV
(17cd/m2)
1) Select SCNT in the sub data adjustment mode.
2) With TP-Y, set the amplitude from pedestal level to
white peak to 0.70±0.03 V (0-p).
1) Select BRTC in the sub data adjustment mode.
Adjust the number of black solid lines to 5±1.5.
1) Select COLC in the sub data adjustment mode.
2) With TP-PB, set the level of color bar to 0.36±0.02 V
(p-p).
REMARKS
No outside lighting shall be
allowed.
Measurement shall be
performed at the center of
CRT.
Receiver shall be in the
standard state.
Total white signal
Varying the level of input
signal, adjust the
brightness.
J-2ch sub brightness signal
DYNAMIC
J-2ch sub brightness signal
DYNAMIC
J-2ch sub brightness signal
DYNAMIC
– 12 –
V/C system adjustment (Chassis adjusment)
No.
ADJUSTING ITEMS
AND POINTS
Sub color adjustment
5
SECAM
(COLS)
DW sub screen contrast
6
adjustment
(PCNT)
DW sub screen color ad-
7
justment
(PCOLC)
DW sub screen color ad-
8
justment
(PCOLS)
ADJUSTMENT PROCEDURE
1) Select COLS in the sub data adjustment mode.
2) With TP-PB, set the level of color bar to 0.54±0.05
V(p-p).
1) Select PCNT in the sub data adjustment mode.
2) With TP-Y, make adjustment so that the amplitude of
sub screen (right image) coincides with that of main
screen (left image).
1) Select PCOLC in the sub data adjustment mode.
2) With TP-PB, make adjustment so that the amplitude
of sub screen (right image) coincides with that of main
screen (left image).
1) Select PCOLS in the sub data adjustment mode.
2) With TP-PB, make adjustment so that the amplitude
of sub screen (right image) coincides with that of main
screen (left image).
REMARKS
E-2ch
SECAM color bar signal
DYNAMIC
J-2ch for both main and sub
screens
Sub brightness signal
DYNAMIC
J-2ch for both main and sub
screens
Sub brightness signal
DYNAMIC
E-2ch for both main and
sub screens
SECAM color bar signal
DYNAMIC
GENERAL ADJUSTMENTS
SPECIFIC INFORMATIONS
Circuit adjustment (deflection system adjustment procedure)
No.
1
2
3
ADJUSTING ITEMS
AND POINTS
Focus adjustment (1)
Focus VR
Main: T461
Sub: R950
Focus adjustment (2)
R950
Focus adjustment (3)
ADJUSTMENT PROCEDURE
Conditions: E-12ch, Screen size: WIDE, Image mode:
DYNAMIC
Adjustment: After presetting R950 sub VR to the center
of VR, adjust the screen center to the best
focus quality with T461 focus VR.
Conditions: E-12ch, Screen size: WIDE, Image mode:
DYNAMIC
Adjustment: With sub focus VR (R950) on CRT drive
board, set the position so as to minimize
vertical fly-back lines at corners.
Repeating the above focus adjustment procedures (1)
and (2), adjustment so as to obtain the best focus on the
entire screen.
– 13 –
Horizontal adjustment * Deflection adjustment shall be made from PAL/100 Hz/WIDE mode.
2
20
0
5
5
ADJUSTING ITEMS
AND POINTS
Hori-
zontal
For PAL/100 Hz/WIDE
Horizontal amplitude
(WID)
Side pin distortion
(PARA)
Trapezoidal distortion
(TRAP)
Corner distortion
(CNR)
Upper corner distortion
(TCNR)
Lower corner distortion
GENERAL ADJUSTMENTS
(BCNR)
CENT distortion
(CPAR)
Parallelogrammatic
distortion (CSAW)
Horizontal phase
(HPOS)
Note 1:
POW/DEF board: P451/
M450
Horizontal screen
positional switch
CENT
ADJUSTMENT PROCEDURE
<Adjustment condition>
Horizontal adjusment shall be made using E-12CH Philips pattern and DYNAMIC image mode.
<Adjustment procedure>
1) Using WID data, reduce the horizontal amplitude until a part of it is dropped out.
2) Using WID data, adjust the horizontal amplitude so that horizontal raster inevitably
contacts with CPT mask.
3) Using the following (Note 1) horizontal screen positional switch, adjust the horizontal raster position to the center position.
4) Using the horizontal amplitude
(WID) and horizontal phase
(HPOS), adjust the horizontal
amplitude so that the right and
left flags are just blinded.
SPECIFIC INFORMATIONS
Right side Left side
Screen position shall be
switched by inserting a
plug into the above pin.
Horizontal adjustment
ADJUSTING ITEMS
Hori-
zontal
For NTSC WIDE
Upper corner distortion
Lower corner distortion
AND POINTS
Horizontal phase
(NHPO)
Horizontal amplitude
(NWID)
Side pin distortion
(NPAR)
Trapezoidal distortion
(NTRA)
Corner distortion
(NCNR)
CENT distortion
(NCPAR)
Parallelogrammatic
distortion (NCSAW)
(NTCNR)
(NBCNR)
The adjustment shall be made so that the right and left flags are just blinded.
5) Using PARA, TRAP, CNR and CPAR (or TCNR, BCNR or CSAW if necessary),
adjust the screen distortion.
6) If necessary, make the horizontal amplitude adjustment again.
7) Check the side pin distortion in 4:3 mode.
(If necessary, the adjustment shall be made, checking the quality of 4:3 side panel.)
ADJUSTMENT PROCEDURE
* NTSC adjustment shall be made after PAL adjustment.
1) With domestic 13ch, WIDE
mode and DYNAMIC, adjust the
right and left bars to the fifth
center for horizontal phase
(NHPO) and horizontal amplitude (NWID).
0
25
31
25
0
3
1
30
30
35
325
20
575 300
35
30
30
525 LINE
35
45
30
30
50
1
3
Right and left bars shall be adjusted
to the fifth center.
25
30
30
35
31
35
30
30
25
2
2) With domestic 11ch, NPAR, NTRA, NCNR and NCPAR (or NTCNR, NBCNR or
NCSAW if necessary), adjust the screen distortion.
3) If necessary, make horizontal amplitude adjustment again.
4) Check the side pin distortion in 4:3 mode.
(If necessary, the adjustment shall be made, checking the quality of 4:3 side panel.)
– 14 –
Vertical adjustment
2
20
0
5
5
Verti-
cal
ADJUSTING ITEMS
AND POINTS
For PAL WIDE
Vertical amplitude
(HIT)
Vertical screen position
(TCNR)
Vertical linearity
(VLIN)
For NTSC WIDE
Vertical amplitude
(NHIT)
Vertical screen position
(NVPO)
ADJUSTMENT PROCEDURE
1) With E-12ch, WIDE mode, DYNAMIC and 100 Hz, adjust the vertical screen position (VPOS) and amplitude (HIT) as shown in the following figure:
Flags shall just be blinded.
Flags shall just be blinded.
2) With vertical linearity (VLIN), control the upper and lower balances to be optimal.
* NTSC adjustment shall be made after the PAL adjustment.
With domestic 13ch, WIDE mode and DYNAMIC, adjust the vertical screen position
(NVPO) and amplitude (NHIT) as shown in the following figure:
The circle of lion shall contact
with mask.
GENERAL ADJUSTMENTS
SPECIFIC INFORMATIONS
3
1
0
3
5
3
325
30
30
20
575 300
35
30
525 LINE
25
30
30
35
35
45
50
31
35
30
30
1
3
25
2
0
0
25
25
30
31
30
The twelve center shall be adjusted to the mask.
– 15 –
Geomagnetic compensation (chassis adjustment)
ADJUSTING ITEMS
AND POINTS
1
Output voltage control
(GMF)
Horizontal adjustment * DQF adjustment shall be made in PAL WIDE mode.
ADJUSTING ITEMS
GENERAL ADJUSTMENTS
Hori-
zontal
AND POINTS
DQF output voltage
adjustment
ADJUSTMENT PROCEDURE
Conditions: User control for geomagnetic compensation: 0
Geomagnetic compensation coil: Unconnected
Perform voltage measurement at both ends of RJ06 and adjust the voltage to the following adjustable value with GMF of data adjustment mode:
0 ± 5V
ADJUSTMENT PROCEDURE
Measure the terminal voltage waveform of test pin (DF terminal) with 100:1 probe and
adjust the terminal voltage using L451 (horizontal amplitude coil: TLN2110AD).
Vp-p
SPECIFIC INFORMATIONS
1H
Adjust the above waveform by turning the core of L451 so as to obtain the following
voltage:
36": 1350 Vp-p
Note: Because the vertical cycle parabolic waveform is also of superposition, the
above voltage value shall be measured on the waveform.
Adopted signal: PAL E-12ch
– 16 –
CIRCUIT CHECK
HIGH VOLTAGE CHECK
CAUTION: There is no HIGH VOLTAGE ADJUSTMENT on this chassis. Checking should be done following the steps below.
1. Connect an accurate high voltage meter to the second anode of the picture tube.
2. Turn on the receiver. Set the BRIGHTNESS and CONTRAST controls to minimum (zero beam current).
3. High voltage must be measured below (B) kV.
Refer to table-1 for high voltage (B).
(See SETTING & ADJUSTING DATA on page 18)
4. Vary the BRIGHTNESS control to both extremes to be sure the high voltage does not exceed the limit under any conditions.
GENERAL ADJUSTMENTS
SPECIFIC INFORMATIONS
– 17 –
CHAPTER 2 SPECIFIC INFORMATIONS
SETTING & ADJUSTING DATA
SAFETY INSTRUCTIONS
HIGH VOLTAGE AT ZERO BEAM: (A) 30.5 kV
MAX HIGH VOLTAGE:
AC VOLTAGE
GENERAL ADJUSTMENTS
SERVICE MODE
ADJUSTING ITEMS AND DATAS IN THE SERVICE MODE:
36"
(B) 33.5 kV
(C) 220~240 V
Table-1
Item Name of adjustment
RCUT
GCUT
BCUT
GDRV
BDRV
CNTX
SPECIFIC INFORMATIONS
BRTC
COLC
TNTC
COLP
COLS
SCNT
VOLS
FVOL
NVOL
NICL
NICH
IDL
IDH
HPOS
VPOS
HIT
VLIN
R CUTOFF (B/W)
G CUTOFF (B/W)
B CUTOFF (B/W)
G DRIVE
B DRIVE
SUB CONTRAST MAX (4:3 MODE)
SUB BRIGHT CEN
SUB COLOR CEN NTSC
SUB TINT CEN
SUB COLOR CEN PAL
SUB COLOR CEN SECAM
SUB CONTRAST
MSP DEM VOLS
MSP DEM FVOL
MSP DEM NVOL
MSP DEM NICL
MSP DEM NICH
MSP DEM IDL
MSP DEM IDH
576i 100Hz
V-POSITION
HEIGHT
V-LINEARITY
Preset
40H
40H
40H
40H
40H
7FH
80H
00H
7AH
03H
FCH
4AH
75H
15H
3CH
03H
0AH
90H
A0H
35H
80H
34H
12H
Data
←
←
←
←
←
←
←
←
←
←
←
←
←
←
←
←
←
←
←
←
←
←
←
Item Name of adjustment
VPS
WID
PARA
CNR
TRAP
CPAR
TCNR
BCNR
CSAW
NHPO
NVPO
NHIT
NVLI
NVPS
NWID
NPAR
NCNR
NTRA
NCPAR
NTCNR
NBCNR
NCSAW
GMF
Table-2
V-SHIFT
PICTURE WIDTH
E-W PARABOLA
E-W CORNER
TRAPEZIUM
CENT PARABOLA
EW TOP CORNER
EW BOTTOM CORNER
CENTER SAW
NTSC H-POSITION
NTSC V-POSITION
NTSC HEIGHT
NTSC V-LINEARITY
NTSC V-SHIFT
NTSC PICTURE WIDTH
NTSC E-W PARABOLA
NTSC E-W CORNER
NTSC TRAPEZIUM
NTSC CENT PARABOLA
NTSC TOP CORNER
NTSC BOTTOM CORNER
NTSC CNETER SAW
GEOMAGNETIC
Preset
40H
49H
0DH
14H
3DH
08H
14H
12H
08H
0FH
82H
32H
14H
40H
4FH
0EH
14H
3AH
08H
15H
12H
08H
00H
Data
←
←
←
←
←
←
←
←
←
←
←
←
←
←
←
←
←
←
←
←
←
←
←
DESIGN MODE
ADJUSTING ITEMS AND DATAS IN THE DESIGN MODE:
Item Name of adjustment Preset Data Data Remarks
OPT0
OPT1
OPT2
OPT3
OPT4
OPT5
OPTION 0
OPTION 1
OPTION 2
OPTION 3
OPTION 4
OPTION 5
34H
80H
00H
00H
00H
00H
Table-3
– 18 –
B4H
00H
←
←
←
←
Front
LOCATION OF CONTROLS
On-timer indicator
Press here to open the door.
Behind the door
(3)
POWER indicator
Remote sensor
a Input source selection
ENTER
MENU
GENERAL ADJUSTMENTS
I POWER switch
Behind the door
Card into the slot
Back
Push and take out.
S-VIDEO
a (3) Video 3 input
terminals
When you are seeing the picture
please don't take out memory card.
VIDEO
L/MONO R
AUDIO
ENTER
c Channel position t s
Headphones jacks
(ø3.5 mm)
L Main sound
MENU
–;+ Volume – +
Menu
Menu < >
l PIP sub-sound
Headphones jacks
L : For private listening, connect headphones. The sound from the
speakers will be cut off automatically.
To adjust the volume, press the – ; + buttons.
: Use this jack when listening to the sound of the Sub-picture (Picture-
l
in-Picture) and Sub-window. To adjust the volume, press the – ; +
buttons.
(1)(
)(
2
)
4
(
MONITOR
)
(
FIXED
)
SPECIFIC INFORMATIONS
S-VIDEO
VIDEO
L/MONO
AUDIO
R
a (1) Video 1 input terminals
a (2) Video 2 input/COMPONENT VIDEO INPUT (HD) terminals
a (4) Video 4 input/COMPONENT VIDEO INPUT (HD) terminals
– 19 –
COMPONENT
VIDEO INPUT
(HD)
Y
P
B/
C
B/
P
R/
C
R/
COMPONENT
VIDEO INPUT
(HD)
Y
P
B/
C
B/
P
R/
C
R/
AUDIO
L
R
MONITOR output
terminals
Antenna input
FIXED AUDIO output
terminals
Remote Control
CALL
index, initial
GENERAL ADJUSTMENTS
1 or 2 digit channel selection
Selectable picture
SPECIFIC INFORMATIONS
• Volume – +
• Menu < >
• CH (channel position) st
• Menu
Picture size selection
Device switch
TV: To control TV
VCR: To control VCR
DVD: To control DVD
MENU
F
F CALL
Power on/Standby
(For Toshiba TV/VCR/DVD only)
21 3
Number buttons (0-9)
54 6
87 9
0
MENU EXIT
DVD
MENU
TV
VCR
DVD
TEXT/TV
CH
ENTER
CH
PIC SIZE
/PIP
STILL
Input source selection
(a1 – a4)
Selectable sound
EXIT
(On screen display menu/BRIDGE
MEDIA Feature only)
ENTER
BRIDGE MEDIA
Teletext buttons
• Colored buttons
• F + v, ?, ^, y/ X
Double-Window/PIP sound selection
Sound mute
Picture STILL
When in VCR or DVD mode:
(For Toshiba VCR/DVD only)
c to EJECT
to REWIND
S to PLAY
to FAST FORWARD
J to PAUSE
to SKIP-REWIND
R to STOP
to SKIP-FORWARD
/PIP
SEARCH
– 20 –
STROBE
SOURCE
/PIP CH
When in TV mode:
TEXT/TV selection
mI/II Stereo/Bilingual selection
/PIP • PIP on/off
• Double-Window on/off
STILL PIP STILL
/PIPCH 89 • PIP channel selection
• Double-Window channel
selection
STROBE Multi-Window strobe
SEARCH Multi-Window search
F +
r
F + SOURCE • PIP Source selection
PIP locate
• Double-Window source
selection
PROGRAMMING CHANNEL MEMORY
• First, use the Auto tuning feature to preset all the active channels in your area automatically. Then, arrange the preset
channels with the Manual tuning feature so that you can tune into only desired channels.
• Use the Channel search operation if desired channels cannot be preset with the Auto tuning or if you would like to preset
channels to specific position numbers one by one.
• DO NOT PRESS ANY OTHER BUTTONS WHILE THE SET IS TUNING.
To preset channels (Auto tuning, Manual tuning)
Auto tuning
Select the first program position number you want to
1
start the Auto tuning with the CH st button or the
Number buttons.
Press the MENU button, then press the < or > button
to display the SET UP menu.
2
Press the or button to select Auto tuning.
3
Press and hold the ENTER button for a several sec-
4
onds to start the automatic search. The search will begin for all available stations. Bullet will move along the
line as the search progresses. DO NOT PRESS ANY
BUTTONS WHILE THE AUTOMATIC SEARCH IS IN
PROGRESS.
If you make a mistake, simply repeat steps 4 to start
again from the beginning.
When the automatic search is complete, the TV will
5
automatically return to the first program position.
Press the CH s or CH t button to view the programmed
position.
6
Manual tuning
Press the MENU button, then press the < or > button
1
to display the SET UP menu. Press the or button to select Manual tuning.
Press the ENTER button to display the Manual tuning
2
menu. Press the or button to select the program position you want to arrange.
Press the ENTER button to display the breakdown
3
menu.
Press the < or > button to select an item, then press
the or button to adjust the item as shown below.
Manual tuning
Programme
1
B/G
A
Store
A
MENU
B
C
EXIT
Back Watch TV
D
F
E
G
GENERAL ADJUSTMENTS
SPECIFIC INFORMATIONS
H
– 21 –
Manual tuning (Continued)
GENERAL ADJUSTMENTS
A. Program position selection
B. Sound system
C. Color system
A : Automatic
P : PAL
S : SECAM
N4 : NTSC4.43
N3 : NTSC3.58
If the color of a certain channel is abnormal, the
automatic color system selection (AUTO) may have
malfunctioned, or sound system selection is wrong.
In such a case, select another color and/or sound
system.
SPECIFIC INFORMATIONS
D. Program position skip selection
Press the
position skip option on “
The program position will then be skipped when
you select channels will the Ch8 or CH9 button.
” mark will appear beside a program position
“
number when you use the number button on the
remote control.
E. Channel search operation
Press the button to search up the band or the
button to search down the band.
Press the
desired channel is displayed.
When a station/satellite is found, it will be
displayed.
F. Auto Fine Tuning
Press the
Tuning option On “
The Auto Fine Tuning feature automatically corrects
slight fluctuations when receiving signals.
Manual Fine Tuning
While the Auto Fine Tuning turn Off “0”, press the
or button until the best possible picture and
sound are obtained.
G. ANT ATT (Antenna attenuator)
Press the
option On “
occurs, set the ANT ATT to On.
or button to turn the program
or button repeatedly until your
or button to turn the Auto Fine
or button to turn the ANT ATT
” or Off “ ” when visual interference
” or off “ ”.
” or Off “0”.
H. Station label
Station labels appear under the program position
display each time you turn on the TV, select a
channel, or press the CALL button.
To change or create station labels:
1) Press the
a character for the first space, then press the
button.
2) Repeat step 1 to enter the rest of the
characters. If you would like a blank space in
the label name, you must choose an empty
space from the list of characters.
Press the ENTER button to store your settings.
or button repeatedly to select
>
– 22 –
CHASSIS AND CABINET REPLACEMENT PARTS LIST
WARNING: BEFORE SERVICING THIS CHASSIS, READ THE “X-RAY RADIATION PRECAUTION”, “SAFETY PRE-
CAUTION” AND “PRODUCT SAFETY NOTICE” ON PAGE 3 OF THIS MANUAL.
CAUTION: The international hazard symbols “ ” in the schematic diagram and the parts list designate components
which have special characteristics important for safety and should be replaced only with types identical to those in the
original circuit or specified in the parts list. The mounting position of replacements is to be identical with originals.
Before replacing any of these components, read carefully the PRODUCT SAFETY NOTICE. Do not degrade the
safety of the receiver through improper servicing.
NOTICE:
•
The part number must be used when ordering parts, in order to assist in processing, be sure to include the Model
number and Description.
•
The PC board assembly with * mark is no longer available after the end of the production.
Model : 36SW9UA
Capacitors ............. CD : Ceramic Disk PF : Plastic Film EL : Electrolytic
Resistors ............... CF : Carbon Film CC : Carbon Composition MF : Metal Film
OMF : Oxide Metal Film VR : Variable Resistor FR : Fusible Resistor
(All CD and PF capacitors are ±5%, 50V and all resistors, ±5%, 1/6W unless otherwise noted.)
Location
Parts No. Description
No.
CAPACITORS
C101 24796479 ELECTROLYTIC, 35V 4.7UF M
C102 24793221 ELECTROLYTIC, 10V 220UF M
C105 24109102 CERAMIC CHIP, 50V B 1000PF K
C106 24797100 ELECTROLYTIC, 50V 10UF M
C107 24794221 ELECTROIYTIC, 16V 220UF M
C108 24793221 ELECTROLYTIC, 10V 220UF M
C109 24109103 CERAMIC CHIP, 50V B 0.01UF K
C115 24109103 CERAMIC CHIP, 50V B 0.01UF K
C121 24794101 ELECTROLYTIC, 16V 100UF M
C190 24109103 CERAMIC CHIP, 50V B 0.01UF K
C205 24797229 ELECTROLYTIC, 50V 2.2UF M
C206 24794220 ELECTROLYTIC, 16V 22UF M
C303 24214471 CERAMIC DISC, 500V B 470PF K
C307 24082275 PLASTIC FILM CQ922 M 100V 82000PF J
C308 24668221 ELECTROLYTIC, 35V 220UF M 3A
C309 24212101 CERAMIC DISC, 50V B 100PF K
C310 24667102 ELECTROLYTIC, 25V 1000UF M 3A
C311 24214152 CERAMIC DISC, 500V B 1500PF K
C313 24082057 PLASTIC FILM, 100V 0.22UF J
C320 24667221 ELECTROLYTIC, 25V 220UF M 3A
C321 24503051 PLASTIC FILM, 63V 0.68UF J
C322 24617915 ELECTROLYTIC, 50V 1UF K 3A LI
C323 24503049 PLASTIC FILM, 63V 0.47UF J
C325 24590223 PLASTIC FILM, 50V 0.022UF J
C326 24797010 ELECTROLYTIC, 50V 1UF M
C327 24794471 ELECTROLYTIC, 16V 470UF M
C331 24667102 ELECTROLYTIC, 25V 1000UF M 3A
C332 24503038 PLASTIC FILM, 63V 0.056UF J
C333 24212332 CERAMIC DISC, 50V B 3300PF K
C362 24591222 PLASTIC FILM, 50V 2200PF J
C370 24794100 ELECTROLYTIC, 16V 10UF M
C392 24085981 ELEC. NONPOLAR CE04J 16V 10UF
C393 24232103 CERAMIC DISC, 50V F 0.01UF Z
C396 24503065 PLASTIC FILM, 1800VH 1800PF H
C413 24214392 CERAMIC DISC, 500V B 3900PF K
C416 24676330 ELECTROLYTIC, 100V 33UF M 3A
C417 24214391 CERAMIC DISC, 500V B 390PF K
C418 24667221 ELECTROLYTIC, 25V 220UF M 3A
C419 24212102 CERAMIC DISC, 50V B 1000PF K
C420 24666101 ELECTROLYTIC, 16V 100UF M 3A
M 11L NP
Location
Parts No. Description
No.
C421 24539104 PLASTIC FILM, 50V 0.1UF J
C428 24503191 PLASTIC FILM, 400V 0.13UF J
C432 24073057 ELECTROLYTIC, 25V 1000UF M 3A
C433 24232103 CERAMIC DISC, 50V F 0.01UF Z
C433 24503059 PLASTIC FILM, 1800VH 1000PF H
C434 24820123 PLASTIC FILM, 630V 0.012UF J
C436 24503041 PLASTIC FILM, 63V 0.1UF J
C439 24503459 PLASTIC FILM, 400V 0.068UF J
C442 24503190 PLASTIC FILM, 400V 0.12UF J
C443 24503345 PLASTIC FILM, 1800VH 3000PF H
C444 24503196 PLASTIC FILM CF92 T 1800VH 5600PF H
C445 24095804 PLASTIC FILM, 400V 0.056UF J
C446 24073120 ELECTRPLYTIC, 250V 33UF, 250YXF33M
C448 24640908 ELECTROLYTIC, 160V 33UF M 3A LI
C449 24667471 ELECTROLYTIC, 25V 470UF M 3A
C450 24092341 CERAMIC DISC, 2KV R 470PF K
C451 24092341 CERAMIC DISC, 2KV R 470PF K
C452 24503193 PLASTIC FILM, 1500VH 1000PF H
C453 24503068 PLASTIC FILM CF92 T 1800VH 2400PF H
C461 24820123 PLASTIC FILM, 630V 0.012UF J
C462 24214471 CERAMIC DISC, 500V B 470PF K
C464 24503149 PLASTIC FILM, 250V 3.3UF
C465 24590183 PLASTIC FILM, 50V 0.018UF J
C466 24679220 ELECTROLYTIC, 250V 22UF M 3A
C467 24820123 PLASTIC FILM, 630V 0.012UF J
C468 24503040 PLASTIC FILM, 63V 0.082UF J
C469 24591821 PLASTIC FILM, 50V 820PF J
C470 24794101 ELECTROLYTIC, 16V 100UF M
C471 24766479 ELECTROLYTIC, 50V 4.7UF M
C472 24539474 PLASTIC FILM, 50V 0.47UF J
C473 24073081 ELECTROLYTIC, 50V 1.OUF M 3A
C477 24794220 ELECTROLYTIC, 16V 22UF M
C482 24109122 CERAMIC CHIP, 50V B 1200PF K
C486 24539104 PLASTIC FILM, 50V 0.1UF J
C513 24109103 CERAMIC CHIP, 50V B 0.01UF K
C520 24503047 PLASTIC FILM, 63V 0.33UF J
C530 24206010 ELECTROLYTIC, 50V 1.0UF M 7L 3A
C531 24100104 CERAMIC CHIP, 25V F 0.1UF Z
C532 24100104 CERAMIC CHIP, 25V F 0.1UF Z
C533 24100104 CERAMIC CHIP, 25V F 0.1UF Z
C534 24100104 CERAMIC CHIP, 25V F 0.1UF Z
C536 24100104 CERAMIC CHIP, 25V F 0.1UF Z
SPECIFIC INFORMATIONS
– 23 –
Location
INFORMATIONS
SPECIFIC
SPECIFIC INFORMATIONS
* C801 24503507 PLASTIC FILM, AC275V 0.22UF K
* C802 24503507 PLASTIC FILM, AC275V 0.22UF K
Parts No. Description
No.
C537 24100104 CERAMIC CHIP, 25V F 0.1UF Z
C543 24100104 CERAMIC CHIP, 25V F 0.1UF Z
C544 24100104 CERAMIC CHIP, 25V F 0.1UF Z
C545 24100104 CERAMIC CHIP, 25V F 0.1UF Z
C547 24109103 CERAMIC CHIP, 50V B 0.01UF K
C548 24763101 ELECTROLYTIC, 16V 100UF M
C551 24100104 CERAMIC CHIP, 25V F 0.1UF Z
C552 24100104 CERAMIC CHIP, 25V F 0.1UF Z
C553 24100104 CERAMIC CHIP, 25V F 0.1UF Z
C555 24105471 CERAMIC CHIP, 50V CH 470PF J
C558 24109103 CERAMIC CHIP, 50V B 0.01UF K
C563 24797478 ELECTROLYTIC, 50V 0.47UF M
C564 24797229 ELECTROLYTIC, 50V 2.2UF M
C565 24797478 ELECTROLYTIC, 50V 0.47UF M
C575 24092730 CERAMIC CHIP, 16V B 0.1UF K
C582 24761332 ELECTROLYTIC CE04G 6.3V 3300UF M
C601 24591102 PLASTIC FILM, 50V 1000PF J
C602 24591102 PLASTIC FILM, 50V 1000PF J
C603 24073084 ELECTROLYTIC, 50V 4.7UF M 3A
C604 24073084 ELECTROLYTIC, 50V 4.7UF M 3A
C605 24073052 ELECTROLYTIC, 25V 47UF M 3A
C606 24073052 ELECTROLYTIC, 25V 47UF M 3A
C607 24503042 PLASTIC FILM, 63V 0.12UF J
C608 24503042 PLASTIC FILM, 63V 0.12UF J
C609 24073094 ELECTROLYTIC, 50V 1000UF M 3A
C610 24073094 ELECTROLYTIC, 50V 1000UF M 3A
C611 24073053 ELECTROLYTIC, 25V 100UF M 3A
C612 24073084 ELECTROLYTIC, 50V 4.7UF M 3A
C613 24794471 ELECTROLYTIC, 16V 470UF M
C614 24797010 ELECTROLYTIC, 50V 1UF M
C615 24073094 ELECTROLYTIC, 50V 1000UF M 3A
C616 24503042 PLASTIC FILM, 63V 0.12UF J
C620 24073084 ELECTROLYTIC, 50V 4.7UF M 3A
C621 24539104 PLASTIC FILM, 50V 0.1UF J
C623 24797100 ELECTROLYTIC, 50V 10UF M
C626 24073094 ELECTROLYTIC, 50V 1000UF M 3A
C627 24797010 ELECTROLYTIC, 50V 1UF M
C628 24794470 ELECTROLYTIC, 16V 47UF M
C630 24073052 ELECTROLYTIC, 25V 47UF M 3A
C631 24073086 ELECTROLYTIC, 50V 10UF M 3A
C632 24073053 ELECTROLYTIC, 25V 100UF M 3A
C655 24797101 ELECTROLYTIC, 50V 100UF M
C656 24591563 PLASTIC FILM, 50V 0.056UF J
C657 24797100 ELECTROLYTIC, 50V 10UF M
C658 24797470 ELECTROLYTIC, 50V 47UF M
C680 24073094 ELECTROLYTIC, 50V 1000UF M 3A
C681 24797010 ELECTROLYTIC, 50V 1UF M
C704 24591822 PLASTIC FILM, 50V 8200PF J
C705 24232103 CERAMIC DISC, 50V F 0.01UF Z
C707 24794470 ELECTROLYTIC, 16V 47UF M
C712 24666470 ELECTORLYTIC, 16V 47UF M 3A
C713 24709100 ELECTROLYTIC, 200V 10UF M
C714 24436101 CERAMIC DISC, 50V SL 100PF J
C715 24214472 CERAMIC DISC, 500V B 4700PF K
C716 24436101 CERAMIC DISC, 50V SL 100PF J
C717 24214472 CERAMIC DISC, 500V B 4700PF K
C718 24766470 ELECTROLYTIC, 50V 47UF M
C719 24435560 CERAMIC DISC, 500V SL 56PF J
C720 24709100 ELECTROLYTIC, 200V 10UF M
C721 24797470 ELECTROLYTIC, 50V 47UF M
C726 24212102 CERAMIC DISC, 50V B 1000PF K
C805 24092281 CERAMIC DISC, AC250V E 4700PF
C806 24092281 CERAMIC DISC, AC250V E 4700PF
C807 24539474 PLASTIC FILM, 50V 0.47UF J
C808 24668101 ELECTROLYTIC, 35V 100UF M 3A
Location
* C813 24092563 CERAMIC DISC, AC250V B 220PF K
* C814 24092563 CERAMIC DISC, AC250V B 220PF K
* C815 24092567 CERAMIC DISC, AC250V E 1000PF M
* C874 24503506 PLASTIC FILM, AC275V 0.1UF K
* C875 24092563 CERAMIC DISC, AC250V B 220PF K
* C876 24092563 CERAMIC DISC, AC250V B 220PF K
Parts No. Description
No.
C809 24539104 PLASTIC FILM, 50V 0.1UF J
C810 24073106 400V680UF LLQ2G681MHSET
C811 24092567 CERAMIC DISC, AC250V E 1000PF M
C816 24794470 ELECTROLYTIC, 16V 47UF M
C817 24092339 CERAMIC DISC, 2KV 330PF K
C818 24095931 PLASTIC FILM, 1250VH 2200PF J
C819 24676220 ELECTROLYTIC, 100V 22UF M 3A
C821 24214471 CERAMIC DISC, 500V B 470PF K
C823 24214471 CERAMIC DISC, 500V B 470PF K
C825 24539104 PLASTIC FILM, 50V 0.1UF J
C829 24212271 CERAMIC DISC, 50V B 270PF K
C831 24665470 ELECTROLYTIC, 10V 47UF M 3A
C832 24665470 ELECTROLYTIC, 10V 47UF M 3A
C833 24669229 ELECTROLYTIC, 50V 2.2UF M 3A
C834 24669100 ELECTROLYTIC, 50V 10UF M 3A
C835 24666470 ELECTORLYTIC, 16V 47UF M 3A
C838 24617040 ELECTROLYTIC, 25V 1000UF M 3D
C839 24665222 ELECTROLYTIC CE04Q 10V 2200UF M 3A
C840 24668221 ELECTROLYTIC, 35V 220UF M 3A
C842 24539104 PLASTIC FILM, 50V 0.1UF J
C844 24539104 PLASTIC FILM, 50V 0.1UF J
C847 24214331 CERAMIC DISC, 500V B 330PF K
C848 24668102 ELECTROLYTIC, 35V 1000UF M 3A
C851 24617023 ELECTROLYTIC, 16V 330UF M
C852 24665102 ELECTROLYTIC, 10V 1000UF M 3A
C853 24591563 PLASTIC FILM, 50V 0.056UF J
C855 24214222 CERAMIC DISC, 500V B 2200PF K
C856 24212102 CERAMIC DISC, 50V B 1000PF K
C858 24666470 ELECTORLYTIC, 16V 47UF M 3A
C859 24591103 PLASTIC FILM, 50V 0.01UF J
C861 24591104 PLASTIC FILM, 50V 0.1UF J
C863 24669222 ELECTROLYTIC, 50V 2200UF M 3A
C865 24669222 ELECTROLYTIC, 50V 2200UF M 3A
C866 24214331 CERAMIC DISC, 500V B 330PF K
C867 24214331 CERAMIC DISC, 500V B 330PF K
C868 24092281 CERAMIC DISC, AC250V E 4700PF
C869 24086937 ELECTROLYTIC, 450V 120UF M 22D
C870 24092281 CERAMIC DISC, AC250V E 4700PF
C871 24668470 ELECTROLYTIC, 35V 47UF M 3A
C872 24095939 PLASTIC FILM, 1250VH 1000PF J
C873 24212122 CERAMIC DISC, 50V B 1200PF K
C877 24212221 CERAMIC DISC, 50V B 220PF K
C878 24092339 CERAMIC DISC, 2KV 330PF K
C880 24212101 CERAMIC DISC, 50V B 100PF K
C884 24086916 ELECTROLYTIC, 160V 330UF M 3D
C887 24214471 CERAMIC DISC, 500V B 470PF K
C891 24667472 ELECTROLYTIC, 25V 4700UF M 3A
C892 24214471 CERAMIC DISC, 500V B 470PF K
C893 24092337 CERAMIC DISC, 2KV 220PF K
C894 24668471 ELECTROLYTIC, 35V 470UF M 3A
C895 24668102 ELECTROLYTIC, 35V 1000UF M 3A
C896 24214471 CERAMIC DISC, 500V B 470PF K
C897 24667222 ELECTROLYTIC, 25V 2200UF M 3A
C898 24667222 ELECTROLYTIC, 25V 2200UF M 3A
C899 24214471 CERAMIC DISC, 500V B 470PF K
C902 24092349 CERAMIC DISC, 2KV R 2200PF K
C903 24436221 CERAMIC DISC, 50V SL 220PF J
C905 24436221 CERAMIC DISC, 50V SL 220PF J
C907 24436221 CERAMIC DISC, 50V SL 220PF J
C909 24679330 ELECTROLYTIC, 250V 33UF M 3A
C911 24203100 ELECTORLYTIC, 16V 10UF M 7L 3A
– 24 –
Location
Parts No. Description
No.
C913 24763102 ELECTROLYTIC, 16V 1000UF M
C914 24092398 CERAMIC DISC, 25V 0.1UF Z, 24092398A
C918 24092398 CERAMIC DISC, 25V 0.1UF Z, 24092398A
C919 24092398 CERAMIC DISC, 25V 0.1UF Z, 24092398A
C920 24436391 CERAMIC DISC, 50V SL 390PF J
C921 24436391 CERAMIC DISC, 50V SL 390PF J
C922 24436221 CERAMIC DISC, 50V SL 220PF J
C931 24214101 CERAMIC DISC, 500V B 100PF K
C963 24436561 CERAMIC DISC, 50V SL 560PF J
C964 24436331 CERAMIC DISC, 50V SL 330PF J
C965 24436331 CERAMIC DISC, 50V SL 330PF J
C970 24214103 CERAMIC DISC, 500V B 0.01UF K
C2102 24105180 CERAMIC CHIP, 50V CH 18PF J
C2103 24105180 CERAMIC CHIP, 50V CH 18PF J
C2104 24105180 CERAMIC CHIP, 50V CH 18PF J
C2105 24100104 CERAMIC CHIP, 25V F 0.1UF Z
C2110 24100104 CERAMIC CHIP, 25V F 0.1UF Z
C3100 24667102 ELECTROLYTIC, 25V 1000UF M 3A
C4000 24590102 PLASTIC FILM, 50V 1000PF J
C4202 24794101 ELECTROLYTIC, 16V 100UF M
C4401 24763221 ELECTROLYTIC, 16V 220UF M
C4402 24109103 CERAMIC CHIP, 50V B 0.01UF K
C4403 24797010 ELECTROLYTIC, 50V 1UF M
C4404 24109103 CERAMIC CHIP, 50V B 0.01UF K
C4405 24100104 CERAMIC CHIP, 25V F 0.1UF Z
C4406 24109103 CERAMIC CHIP, 50V B 0.01UF K
C4410 24109122 CERAMIC CHIP, 50V B 1200PF K
C4411 24100104 CERAMIC CHIP, 25V F 0.1UF Z
C4412 24100104 CERAMIC CHIP, 25V F 0.1UF Z
C4413 24794331 ELECTROLYTIC, 16V 330UF M
C4414 24109103 CERAMIC CHIP, 50V B 0.01UF K
C4415 24109103 CERAMIC CHIP, 50V B 0.01UF K
C4416 24797010 ELECTROLYTIC, 50V 1UF M
C4422 24085988 ELECTROLYTIC, NONPOLAR, 50V
C4427 24092538 CERAMIC CHIP, 10V F 1UF Z
C4460 24092734 CERAMIC CHIP, 16V F 0.22UF Z
C4461 24092734 CERAMIC CHIP, 16V F 0.22UF Z
C4466 24436100 CERAMIC DISC, 50V SL 10PF C
C4690 24591103 PLASTIC FILM, 50V 0.01UF J
C4691 24590822 PLASTIC FILM, 50V 8200PF J
C5020 24109103 CERAMIC CHIP, 50V B 0.01UF K
C5030 24763101 ELECTROLYTIC, 16V 100UF M
C5080 24206010 ELECTROLYTIC, 50V 1.0UF M 7L 3A
C5090 24763101 ELECTROLYTIC, 16V 100UF M
CA68 24794100 ELECTROLYTIC, 16V 10UF M
CA69 24100103 CERAMIC CHIP, 50V F 0.01UF Z
CA95 24100103 CERAMIC CHIP, 50V F 0.01UF Z
CA98 24794220 ELECTROLYTIC, 16V 22UF M
CB01 24744470 ELECTROLYTIC, 16V 47UF M
CB34 24100104 CERAMIC CHIP, 25V F 0.1UF Z
CB35 24100104 CERAMIC CHIP, 25V F 0.1UF Z
CB36 24794101 ELECTROLYTIC, 16V 100UF M
CB37 24100104 CERAMIC CHIP, 25V F 0.1UF Z
CB38 24794101 ELECTROLYTIC, 16V 100UF M
CB39 24100104 CERAMIC CHIP, 25V F 0.1UF Z
CB40 24092538 CERAMIC CHIP, 10V F 1UF Z
CB41 24109222 CERAMIC CHIP, 50V B 2200PF K
CB42 24105561 CERAMIC CHIP, 50V CH 560PF J
CB43 24109332 CERAMIC CHIP, 50V B 3300PF K
CB44 24206100 ELECTROLYTIC, 50V 10UF M 7L 3A
CB45 24109222 CERAMIC CHIP, 50V B 2200PF K
CB46 24105561 CERAMIC CHIP, 50V CH 560PF J
CB47 24109332 CERAMIC CHIP, 50V B 3300PF K
NI TOOITSU
NI TOOITSU
NI TOOITSU
1.0UF M 7L
Location
Parts No. Description
No.
CB90 24100103 CERAMIC CHIP, 50V F 0.01UF Z
CC01 24109102 CERAMIC CHIP, 50V B 1000PF K
CC02 24109102 CERAMIC CHIP, 50V B 1000PF K
CC03 24109102 CERAMIC CHIP, 50V B 1000PF K
CC04 24109102 CERAMIC CHIP, 50V B 1000PF K
CC05 24109102 CERAMIC CHIP, 50V B 1000PF K
CC06 24109102 CERAMIC CHIP, 50V B 1000PF K
CC07 24109102 CERAMIC CHIP, 50V B 1000PF K
CC08 24109102 CERAMIC CHIP, 50V B 1000PF K
CC09 24109102 CERAMIC CHIP, 50V B 1000PF K
CC10 24109102 CERAMIC CHIP, 50V B 1000PF K
CC11 24212102 CERAMIC DISC, 50V B 1000PF K
CC12 24212102 CERAMIC DISC, 50V B 1000PF K
CC13 24105330 CERAMIC CHIP, 50V CH 33PF J
CC13 24232103 CERAMIC DISC, 50V F 0.01UF Z
CC14 24232103 CERAMIC DISC, 50V F 0.01UF Z
CC15 24105330 CERAMIC CHIP, 50V CH 33PF J
CC15 24232103 CERAMIC DISC, 50V F 0.01UF Z
CC16 24590103 PLASTIC FILM, 50V 0.01UF J
CC28 24109103 CERAMIC CHIP, 50V B 0.01UF K
CC30 24214102 CERAMIC DISC, 500V B 1000PF K
CF01 24203101 ELECTROLYTIC, 16V 100UF M 7L 3A
CF02 24100104 CERAMIC CHIP, 25V F 0.1UF Z
CF03 24100104 CERAMIC CHIP, 25V F 0.1UF Z
CF04 24100104 CERAMIC CHIP, 25V F 0.1UF Z
CF05 24100104 CERAMIC CHIP, 25V F 0.1UF Z
CF06 24201101 ELECTROLYTIC, 6.3V 100UF M 7L 3A
CF08 24092538 CERAMIC CHIP, 10V F 1UF Z
CF09 24109102 CERAMIC CHIP, 50V B 1000PF K
CF10 24092538 CERAMIC CHIP, 10V F 1UF Z
CF11 24109102 CERAMIC CHIP, 50V B 1000PF K
CF12 24100104 CERAMIC CHIP, 25V F 0.1UF Z
CF13 24100104 CERAMIC CHIP, 25V F 0.1UF Z
CF14 24100104 CERAMIC CHIP, 25V F 0.1UF Z
CF15 24100104 CERAMIC CHIP, 25V F 0.1UF Z
CF16 24201101 ELECTROLYTIC, 6.3V 100UF M 7L 3A
CF17 24100104 CERAMIC CHIP, 25V F 0.1UF Z
CF18 24092538 CERAMIC CHIP, 10V F 1UF Z
CF19 24109102 CERAMIC CHIP, 50V B 1000PF K
CF20 24105220 CERAMIC CHIP, 50V CH 22PF J
CF21 24105220 CERAMIC CHIP, 50V CH 22PF J
CF22 24100104 CERAMIC CHIP, 25V F 0.1UF Z
CF23 24100104 CERAMIC CHIP, 25V F 0.1UF Z
CF24 24100104 CERAMIC CHIP, 25V F 0.1UF Z
CF25 24092538 CERAMIC CHIP, 10V F 1UF Z
CF26 24109102 CERAMIC CHIP, 50V B 1000PF K
CF27 24100104 CERAMIC CHIP, 25V F 0.1UF Z
CF28 24100104 CERAMIC CHIP, 25V F 0.1UF Z
CF29 24100104 CERAMIC CHIP, 25V F 0.1UF Z
CF30 24100104 CERAMIC CHIP, 25V F 0.1UF Z
CF31 24100104 CERAMIC CHIP, 25V F 0.1UF Z
CF32 24203100 ELECTORLYTIC, 16V 10UF M 7L 3A
CF33 24105330 CERAMIC CHIP, 50V CH 33PF J
CF34 24092538 CERAMIC CHIP, 10V F 1UF Z
CF37 24105680 CERAMIC CHIP, 50V CH 68PF J
CF38 24203100 ELECTORLYTIC, 16V 10UF M 7L 3A
CF39 24109103 CERAMIC CHIP, 50V B 0.01UF K
CF40 24100104 CERAMIC CHIP, 25V F 0.1UF Z
CF41 24100104 CERAMIC CHIP, 25V F 0.1UF Z
CF42 24100104 CERAMIC CHIP, 25V F 0.1UF Z
CF43 24100104 CERAMIC CHIP, 25V F 0.1UF Z
CF44 24100104 CERAMIC CHIP, 25V F 0.1UF Z
CF45 24100104 CERAMIC CHIP, 25V F 0.1UF Z
CF46 24100104 CERAMIC CHIP, 25V F 0.1UF Z
CF48 24100104 CERAMIC CHIP, 25V F 0.1UF Z
CF49 24000445 CHIP JUMPER, 1608TYPE
CF50 24203100 ELECTORLYTIC, 16V 10UF M 7L 3A
SPECIFIC INFORMATIONS
– 25 –
Location
SPECIFIC INFORMATIONS
Parts No. Description
No.
CF51 24109102 CERAMIC CHIP, 50V B 1000PF K
CF52 24100104 CERAMIC CHIP, 25V F 0.1UF Z
CF55 24100104 CERAMIC CHIP, 25V F 0.1UF Z
CJ01 24539104 PLASTIC FILM, 50V 0.1UF J
CJ02 24666470 ELECTORLYTIC, 16V 47UF M 3A
CJ03 24539104 PLASTIC FILM, 50V 0.1UF J
CJ04 24666470 ELECTORLYTIC, 16V 47UF M 3A
CJ05 24794101 ELECTROLYTIC, 16V 100UF M
CR12 24100104 CERAMIC CHIP, 25V F 0.1UF Z
CR13 24100104 CERAMIC CHIP, 25V F 0.1UF Z
CR14 24100104 CERAMIC CHIP, 25V F 0.1UF Z
CR15 24100104 CERAMIC CHIP, 25V F 0.1UF Z
CR16 24100104 CERAMIC CHIP, 25V F 0.1UF Z
CR17 24100104 CERAMIC CHIP, 25V F 0.1UF Z
CS01 24797229 ELECTROLYTIC, 50V 2.2UF M
CS02 24797229 ELECTROLYTIC, 50V 2.2UF M
CS03 24797229 ELECTROLYTIC, 50V 2.2UF M
CS04 24797229 ELECTROLYTIC, 50V 2.2UF M
CS05 24797229 ELECTROLYTIC, 50V 2.2UF M
CS06 24797229 ELECTROLYTIC, 50V 2.2UF M
CS07 24797229 ELECTROLYTIC, 50V 2.2UF M
CS08 24797229 ELECTROLYTIC, 50V 2.2UF M
CS09 24797229 ELECTROLYTIC, 50V 2.2UF M
CS10 24797229 ELECTROLYTIC, 50V 2.2UF M
CS13 24794100 ELECTROLYTIC, 16V 10UF M
CS14 24794100 ELECTROLYTIC, 16V 10UF M
CS18 24794100 ELECTROLYTIC, 16V 10UF M
CS19 24794100 ELECTROLYTIC, 16V 10UF M
CS20 24797478 ELECTROLYTIC, 50V 0.47UF M
CS24 24797229 ELECTROLYTIC, 50V 2.2UF M
CV02 24092731 CERAMIC CHIP, 16V B 1UF K
CV03 24092731 CERAMIC CHIP, 16V B 1UF K
CV04 24100104 CERAMIC CHIP, 25V F 0.1UF Z
CV06 24092731 CERAMIC CHIP, 16V B 1UF K
CV07 24100104 CERAMIC CHIP, 25V F 0.1UF Z
CV08 24794101 ELECTROLYTIC, 16V 100UF M
CV09 24092731 CERAMIC CHIP, 16V B 1UF K
CV10 24794100 ELECTROLYTIC, 16V 10UF M
CV11 24092731 CERAMIC CHIP, 16V B 1UF K
CV12 24100104 CERAMIC CHIP, 25V F 0.1UF Z
CV14 24092538 CERAMIC CHIP, 10V F 1UF Z
CV15 24092538 CERAMIC CHIP, 10V F 1UF Z
CV16 24109103 CERAMIC CHIP, 50V B 0.01UF K
CV17 24109103 CERAMIC CHIP, 50V B 0.01UF K
CV23 24794101 ELECTROLYTIC, 16V 100UF M
CV24 24100104 CERAMIC CHIP, 25V F 0.1UF Z
CV25 24100104 CERAMIC CHIP, 25V F 0.1UF Z
CV26 24100104 CERAMIC CHIP, 25V F 0.1UF Z
CV27 24100104 CERAMIC CHIP, 25V F 0.1UF Z
CV28 24100104 CERAMIC CHIP, 25V F 0.1UF Z
CV29 24100104 CERAMIC CHIP, 25V F 0.1UF Z
CV30 24100104 CERAMIC CHIP, 25V F 0.1UF Z
CV31 24100104 CERAMIC CHIP, 25V F 0.1UF Z
CV32 24794101 ELECTROLYTIC, 16V 100UF M
CV33 24794101 ELECTROLYTIC, 16V 100UF M
CV35 24073054 ELECTROLYTIC CE04P 25V 220UF M 3A
CV38 24212102 CERAMIC DISC, 50V B 1000PF K
CV44 24100104 CERAMIC CHIP, 25V F 0.1UF Z
CV45 24092731 CERAMIC CHIP, 16V B 1UF K
CV46 24092731 CERAMIC CHIP, 16V B 1UF K
CV48 24109103 CERAMIC CHIP, 50V B 0.01UF K
CV48 24212102 CERAMIC DISC, 50V B 1000PF K
CV49 24092731 CERAMIC CHIP, 16V B 1UF K
CV50 24092731 CERAMIC CHIP, 16V B 1UF K
CV50 24232103 CERAMIC DISC, 50V F 0.01UF Z
CV51 24092731 CERAMIC CHIP, 16V B 1UF K
CV52 24092731 CERAMIC CHIP, 16V B 1UF K
Location
Parts No. Description
No.
CV53 24092731 CERAMIC CHIP, 16V B 1UF K
CV54 24092731 CERAMIC CHIP, 16V B 1UF K
CV55 24092731 CERAMIC CHIP, 16V B 1UF K
CV56 24092731 CERAMIC CHIP, 16V B 1UF K
CV57 24092731 CERAMIC CHIP, 16V B 1UF K
CV58 24100104 CERAMIC CHIP, 25V F 0.1UF Z
CV64 24794471 ELECTROLYTIC, 16V 470UF M
CV65 24794101 ELECTROLYTIC, 16V 100UF M
CV66 24100104 CERAMIC CHIP, 25V F 0.1UF Z
CX01 24762471 ELECTROLYTIC, 10V 470UF M
CY01 24100104 CERAMIC CHIP, 25V F 0.1UF Z
CY02 24794101 ELECTROLYTIC, 16V 100UF M
CY03 24100104 CERAMIC CHIP, 25V F 0.1UF Z
CY04 24109103 CERAMIC CHIP, 50V B 0.01UF K
CY05 24092730 CERAMIC CHIP, 16V B 0.1UF K
CY06 24100104 CERAMIC CHIP, 25V F 0.1UF Z
CY07 24109103 CERAMIC CHIP, 50V B 0.01UF K
CY11 24105101 CERAMIC CHIP, 50V CH 100PF J
CY17 24206478 ELECTROLYTIC, 50V 0.47UF M 7L 3A
CY25 24092730 CERAMIC CHIP, 16V B 0.1UF K
CY26 24109103 CERAMIC CHIP, 50V B 0.01UF K
CY42 24092730 CERAMIC CHIP, 16V B 0.1UF K
CY43 24794101 ELECTROLYTIC, 16V 100UF M
CY44 24109103 CERAMIC CHIP, 50V B 0.01UF K
CY45 24794101 ELECTROLYTIC, 16V 100UF M
CY46 24109103 CERAMIC CHIP, 50V B 0.01UF K
CY50 24797479 ELECTROLYTIC, 50V 4.7UF M
CY54 24794101 ELECTROLYTIC, 16V 100UF M
CY55 24109103 CERAMIC CHIP, 50V B 0.01UF K
CY57 24092730 CERAMIC CHIP, 16V B 0.1UF K
CY58 24092730 CERAMIC CHIP, 16V B 0.1UF K
CY60 24105100 CERAMIC CHIP, 50V CH 10PF D
CY61 24092730 CERAMIC CHIP, 16V B 0.1UF K
CY62 24092730 CERAMIC CHIP, 16V B 0.1UF K
CY65 24092733 CERAMIC CHIP, 50V B 0.022UF K
CY66 24797229 ELECTROLYTIC, 50V 2.2UF M
CY103 24109103 CERAMIC CHIP, 50V B 0.01UF K
CY104 24793101 ELECTROLYTIC, 10V 100UF M
CY109 24109103 CERAMIC CHIP, 50V B 0.01UF K
CY110 24109103 CERAMIC CHIP, 50V B 0.01UF K
CY111 24796479 ELECTROLYTIC, 35V 4.7UF M
CY112 24794101 ELECTROLYTIC, 16V 100UF M
CY117 24109102 CERAMIC CHIP, 50V B 1000PF K
CY604 24794102 ELECTROLYTIC, 16V 1000UF M
CY605 24797479 ELECTROLYTIC, 50V 4.7UF M
CY606 24797479 ELECTROLYTIC, 50V 4.7UF M
CY608 24794101 ELECTROLYTIC, 16V 100UF M
CY609 24590822 PLASTIC FILM, 50V 8200PF J
CY610 24590273 PLASTIC FILM, 50V 0.027UF J
CY614 24590822 PLASTIC FILM, 50V 8200PF J
CY615 24590273 PLASTIC FILM, 50V 0.027UF J
CY616 24590333 PLASTIC FILM, 50V 0.033UF J
CY617 24797100 ELECTROLYTIC, 50V 10UF M
CY618 24797479 ELECTROLYTIC, 50V 4.7UF M
CY619 24797100 ELECTROLYTIC, 50V 10UF M
CY620 24797478 ELECTROLYTIC, 50V 0.47UF M
CY621 24085981 ELEC. NONPOLAR CE04J 16V 10UF
M 11L NP
RESISTORS
R101 24011101 CHIP, METAL FILM, 1/20W 100 OHM J
R101 24382153 OXIDE METAL FILM, 1W 15K OHM J
R102 24011183 CHIP, METAL FILM, 1/20W 18K OHM J
R103 24011273 CHIP, METAL FILM, 1/20W 27K OHM J
R217 24366103 CARBON FILM, 1/6W 10K OHM J
R218 24366183 CARBON FILM, 1/6W 18K OHM J
R219 24366273 CARBON FILM, 1/6W 27K OHM J
– 26 –
Location
Parts No. Description
No.
R227 24366333 CARBON FILM, 1/6W 33K OHM J
R228 24366103 CARBON FILM, 1/6W 10K OHM J
R231 24366103 CARBON FILM, 1/6W 10K OHM J
R232 24366103 CARBON FILM, 1/6W 10K OHM J
R245 24011104 CHIP, METAL FILM, 1/20W 100K OHM J
R261 24011103 CHIP, METAL FILM, 1/20W 10K OHM J
R262 24011103 CHIP, METAL FILM, 1/20W 10K OHM J
R263 24011221 CHIP, METAL FILM, 1/20W 220 OHM J
R299 24366103 CARBON FILM, 1/6W 10K OHM J
R303 24321109 OXIDE METAL FILM, 1/2W 1 OHM J
R305 24322109 OXIDE METAL FILM, 1W 1 OHM J
R309 24383271 OXIDE METAL FILM, 2W 270 OHM J
R315 24366274 CARBON FILM, 1/6W 270K OHM J
R316 24366823 CARBON FILM, 1/6W 82K OHM J
R318 24366101 CARBON FILM, 1/6W 100 OHM J
R319 24366101 CARBON FILM, 1/6W 100 OHM J
R320 24366101 CARBON FILM, 1/6W 100 OHM J
R321 24366224 CARBON FILM, 1/6W 220K OHM J
R322 24366274 CARBON FILM, 1/6W 270K OHM J
R324 24366394 CARBON FILM, 1/6W 390K OHM J
R326 24366102 CARBON FILM, 1/6W 1K OHM J
R327 24338159 OXIDE METAL FILM, 1W 1.5 OHM J
R328 24338159 OXIDE METAL FILM, 1W 1.5 OHM J
R329 24366123 CARBON FILM, 1/6W 12K OHM J
R330 24552103 OXIDE METAL FILM, 1/2W 10K OHM J
R331 24366823 CARBON FILM, 1/6W 82K OHM J
R332 24366102 CARBON FILM, 1/6W 1K OHM J
R334 24552103 OXIDE METAL FILM, 1/2W 10K OHM J
R343 24366103 CARBON FILM, 1/6W 10K OHM J
R365 24366331 CARBON FILM, 1/6W 330 OHM J
R366 24366911 CARBON FILM, 1/6W 910 OHM J
R367 24366242 CARBON FILM, 1/6W 2.4K OHM J
R370 24366103 CARBON FILM, 1/6W 10K OHM J
R371 24366103 CARBON FILM, 1/6W 10K OHM J
R372 24366103 CARBON FILM, 1/6W 10K OHM J
R373 24366102 CARBON FILM, 1/6W 1K OHM J
R376 24366101 CARBON FILM, 1/6W 100 OHM J
R377 24366220 CARBON FILM, 1/6W 22 OHM J
R379 24382103 OXIDE METAL FILM, 1W 10K OHM J
R380 24946226 CARBON CONPOSITI0N, 1/2W 22M OHM K
R381 24366822 CARBON FILM, 1/6W 8.2K OHM J
R385 24366104 CARBON FILM, 1/6W 100K OHM J
R386 24366223 CARBON FILM, 1/6W 22K OHM J
R387 24366222 CARBON FILM, 1/6W 2.2K OHM J
R388 24366392 CARBON FILM, 1/6W 3.9K OHM J
R405 24553682 OXIDE METAL FILM, 1W 6.8K OHM J
R411 24366101 CARBON FILM, 1/6W 100 OHM J
R412 24323228 OXIDE METAL FILM, 2W 0.22 OHM J
R415 24383271 OXIDE METAL FILM, 2W 270 OHM J
R416 24381563 OXIDE METAL FILM, 1/2W 56K OHM J
R416 24383680 OXIDE METAL FILM, 2W 68 OHM J
R418 24366182 CARBON FILM, 1/6W 1.8K OHM J
R424 24366271 CARBON FILM, 1/6W 270 OHM J
R425 24552331 OXIDE METAL FILM, 1/2W 330 OHM J
R426 24366182 CARBON FILM, 1/6W 1.8K OHM J
R426 24552561 OXIDE METAL FILM, 1/2W 560 OHM J
R427 24003924 METAL FILM, 1/4W 3.3K OHM J
R428 24366561 CARBON FILM, 1/6W 560 OHM J
R429 24553100 OXIDE METAL FILM, 1W 10 OHM J
R431 24366103 CARBON FILM, 1/6W 10K OHM J
R432 24366473 CARBON FILM, 1/6W 47K OHM J
R433 24366101 CARBON FILM, 1/6W 100 OHM J
R433 24366681 CARBON FILM, 1/6W 680 OHM J
R434 24366472 CARBON FILM, 1/6W 4.7K OHM J
R435 24366184 CARBON FILM, 1/6W 18OK OHM J
R438 24366101 CARBON FILM, 1/6W 100 OHM J
R441 24383561 OXIDE METAL FILM, 2W 560 OHM J
Location
Parts No. Description
No.
R442 24011333 CHIP, METAL FILM, 1/20W 33K OHM J
R443 24011563 CHIP, METAL FILM, 1/20W 56K OHM J
R444 24011563 CHIP, METAL FILM, 1/20W 56K OHM J
R445 24011563 CHIP, METAL FILM, 1/20W 56K OHM J
R447 24382473 OXIDE METAL FILM, 1W 47K OHM J
R448 24321338 OXIDE METAL FILM, 1/2W 0.33 OHM J
R460 24366103 CARBON FILM, 1/6W 10K OHM J
R461 24366102 CARBON FILM, 1/6W 1K OHM J
R462 24366562 CARBON FILM, 1/6W 5.6K OHM J
R463 24366473 CARBON FILM, 1/6W 47K OHM J
R464 24366101 CARBON FILM, 1/6W 100 OHM J
R466 24383220 OXIDE METAL FILM, 2W 22 OHM J
R467 24383220 OXIDE METAL FILM, 2W 22 OHM J
R469 24366823 CARBON FILM, 1/6W 82K OHM J
R470 24339518 OXIDE METAL FILM, 2W 0.51 OHM J
R471 24531271 FUSIBLE, 1/2W 270 OHM J
R472 24366101 CARBON FILM, 1/6W 100 OHM J
R472 24381270 OXIDE METAL FILM, 1/2W 27 OHM J
R473 24366183 CARBON FILM, 1/6W 18K OHM J
R474 24376393 CARBON FILM, 1/2W 39K OHM J
R475 24366912 CARBON FILM, 1/6W 9.1K OHM J
R476 24366471 CARBON FILM, 1/6W 470 OHM J
R477 24366102 CARBON FILM, 1/6W 1K OHM J
R478 24338109 OXIDE METAL FILM, 1W 1 OHM J
R479 24531181 FUSIBLE, 1/2W 180 OHM J
R480 24366103 CARBON FILM, 1/6W 10K OHM J
R483 24011223 CHIP, METAL FILM, 1/20W 22K OHM J
R484 24011103 CHIP, METAL FILM, 1/20W 10K OHM J
R485 24011103 CHIP, METAL FILM, 1/20W 10K OHM J
R486 24011103 CHIP, METAL FILM, 1/20W 10K OHM J
R487 24011474 CHIP, METAL FILM, 1/20W 470K OHM J
R488 24011154 CHIP, METAL FILM, 1/20W 150K OHM J
R489 24366563 CARBON FILM, 1/6W 56K OHM J
R490 24366101 CARBON FILM, 1/6W 100 OHM J
R491 24366101 CARBON FILM, 1/6W 100 OHM J
R492 24366122 CARBON FILM, 1/6W 1.2K OHM J
R492 24366472 CARBON FILM, 1/6W 4.7K OHM J
R493 24366123 CARBON FILM, 1/6W 12K OHM J
R494 24327224 METAL FILM, 1/4W 220K OHM F
R496 24382104 OXIDE METAL FILM, 1W 100K OHM J
R499 24366682 CARBON FILM, 1/6W 6.8K OHM J
R513 24011103 CHIP, METAL FILM, 1/20W 10K OHM J
R543 24011102 CHIP, METAL FILM, 1/20W 1K OHM J
R548 24011102 CHIP, METAL FILM, 1/20W 1K OHM J
R553 24011102 CHIP, METAL FILM, 1/20W 1K OHM J
R554 24011101 CHIP, METAL FILM, 1/20W 100 OHM J
R555 24011101 CHIP, METAL FILM, 1/20W 100 OHM J
R558 24011101 CHIP, METAL FILM, 1/20W 100 OHM J
R561 24552181 OXIDE METAL FILM, 1/2W 180 OHM J
R569 24011224 CHIP, METAL FILM, 1/20W 220K OHM J
R571 24011101 CHIP, METAL FILM, 1/20W 100 OHM J
R572 24011222 CHIP, METAL FILM, 1/20W 2.2K OHM J
R573 24011101 CHIP, METAL FILM, 1/20W 100 OHM J
R574 24011222 CHIP, METAL FILM, 1/20W 2.2K OHM J
R575 24011101 CHIP, METAL FILM, 1/20W 100 OHM J
R576 24011222 CHIP, METAL FILM, 1/20W 2.2K OHM J
R577 24011330 CHIP, METAL FILM, 1/20W 33 OHM J
R578 24011330 CHIP, METAL FILM, 1/20W 33 OHM J
R579 24011330 CHIP, METAL FILM, 1/20W 33 OHM J
R601 24011222 CHIP, METAL FILM, 1/20W 2.2K OHM J
R602 24011222 CHIP, METAL FILM, 1/20W 2.2K OHM J
R603 24011472 CHIP, METAL FILM, 1/20W 4.7K OHM J
R604 24011472 CHIP, METAL FILM, 1/20W 4.7K OHM J
R609 24366229 CARBON FILM, 1/6W 2.2 OHM J
R610 24011103 CHIP, METAL FILM, 1/20W 10K OHM J
R611 24011103 CHIP, METAL FILM, 1/20W 10K OHM J
R612 24011103 CHIP, METAL FILM, 1/20W 10K OHM J
SPECIFIC INFORMATIONS
– 27 –
Location
SPECIFIC INFORMATIONS
* R801 24004716 METAL GLAZE, 1/2W 2R2M J
* R808 24019503 THERMISTOR, PTC, AC290V 4.5 OHM M
Parts No. Description
No.
R615 24366229 CARBON FILM, 1/6W 2.2 OHM J
R618 24366229 CARBON FILM, 1/6W 2.2 OHM J
R619 24011122 CHIP, METAL FILM, 1/20W 1.2K OHM J
R620 24011102 CHIP, METAL FILM, 1/20W 1K OHM J
R621 24011273 CHIP, METAL FILM, 1/20W 27K OHM J
R624 24011104 CHIP, METAL FILM, 1/20W 100K OHM J
R625 24011223 CHIP, METAL FILM, 1/20W 22K OHM J
R626 24011224 CHIP, METAL FILM, 1/20W 220K OHM J
R660 24011333 CHIP, METAL FILM, 1/20W 33K OHM J
R661 24011103 CHIP, METAL FILM, 1/20W 10K OHM J
R661 24552271 OXIDE METAL FILM, 1/2W 270 OHM J
R662 24011103 CHIP, METAL FILM, 1/20W 10K OHM J
R662 24552271 OXIDE METAL FILM, 1/2W 270 OHM J
R663 24011332 CHIP, METAL FILM, 1/20W 3.3K OHM J
R664 24011273 CHIP, METAL FILM, 1/20W 27K OHM J
R666 24366561 CARBON FILM, 1/6W 560 OHM J
R667 24000445 CHIP JUMPER, 1608TYPE
R668 24366223 CARBON FILM, 1/6W 22K OHM J
R668 24011102 CHIP, METAL FILM, 1/20W 1K OHM J
R669 24366223 CARBON FILM, 1/6W 22K OHM J
R669 24011102 CHIP, METAL FILM, 1/20W 1K OHM J
R670 24011104 CHIP, METAL FILM, 1/20W 100K OHM J
R671 24011102 CHIP, METAL FILM, 1/20W 1K OHM J
R680 24011104 CHIP, METAL FILM, 1/20W 100K OHM J
R681 24011472 CHIP, METAL FILM, 1/20W 4.7K OHM J
R683 24011223 CHIP, METAL FILM, 1/20W 22K OHM J
R684 24011223 CHIP, METAL FILM, 1/20W 22K OHM J
R702 24552221 OXIDE METAL FILM, 1/2W 220 OHM J
R709 24366563 CARBON FILM, 1/6W 56K OHM J
R713 24366393 CARBON FILM, 1/6W 39K OHM J
R715 24366273 CARBON FILM, 1/6W 27K OHM J
R716 24366273 CARBON FILM, 1/6W 27K OHM J
R717 24366333 CARBON FILM, 1/6W 33K OHM J
R718 24366222 CARBON FILM, 1/6W 2.2K OHM J
R719 24366101 CARBON FILM, 1/6W 100 OHM J
R720 24366102 CARBON FILM, 1/6W 1K OHM J
R721 24366101 CARBON FILM, 1/6W 100 OHM J
R722 24552471 OXIDE METAL FILM, 1/2W 470 OHM J
R723 24366101 CARBON FILM, 1/6W 100 OHM J
R724 24366151 CARBON FILM, 1/6W 150 OHM J
R725 24366182 CARBON FILM, 1/6W 1.8K OHM J
R730 24552100 OXIDE METAL FILM, 1/2W 10 OHM J
R731 24552331 OXIDE METAL FILM, 1/2W 330 OHM J
R732 24366330 CARBON FILM, 1/6W 33 OHM J
R733 24366683 CARBON FILM, 1/6W 68K OHM J
R734 24366330 CARBON FILM, 1/6W 33 OHM J
R735 24366683 CARBON FILM, 1/6W 68K OHM J
R736 24553470 OXIDE METAL FILM, 1W 47 OHM J
R737 24366681 CARBON FILM, 1/6W 680 OHM J
R738 24366102 CARBON FILM, 1/6W 1K OHM J
R739 24366681 CARBON FILM, 1/6W 680 OHM J
R740 24553470 OXIDE METAL FILM, 1W 47 OHM J
R741 24322229 OXIDE METAL FILM, 1W 2.2 OHM J
R742 24322229 OXIDE METAL FILM, 1W 2.2 OHM J
R743 24554181 OXIDE METAL FILM, 2W 180 OHM J
R744 24366122 CARBON FILM, 1/6W 1.2K OHM J
R745 24366122 CARBON FILM, 1/6W 1.2K OHM J
R803 24553683 OXIDE METAL FILM, 1W 68K OHM J
R805 24552101 OXIDE METAL FILM, 1/2W 100 OHM J
R806 24381223 OXIDE METAL FILM, 1/2W 22K OHM J
R808 24366104 CARBON FILM, 1/6W 100K OHM J
R811 24366225 CARBON FILM, 1/6W 2.2M OHM J
R812 24568479 CERAMIC COVERED, 7W 4.7 OHM J
R813 24007061 CERAMIC COVERED, 2W 1.8 OHM K
R814 24366152 CARBON FILM, 1/6W 1.5K OHM J
Location
* R899 24004718 METAL GLAZE, 1/2W 8R2M J
Parts No. Description
No.
R815 24552102 OXIDE METAL FILM, 1/2W 1K OHM J
R818 24019460 METAL PLATE, 2W 0.1 OHM J
R819 24310829 OXIDE METAL FILM, 1/2W 8.2 OHM J
R821 24366101 CARBON FILM, 1/6W 100 OHM J
R822 24552103 OXIDE METAL FILM, 1/2W 10K OHM J
R823 24381123 OXIDE METAL FILM, 1/2W 12K OHM J
R824 24569689 CERAMIC COVERED, 10W 6.8 OHM J
R827 24366472 CARBON FILM, 1/6W 4.7K OHM J
R828 24366222 CARBON FILM, 1/6W 2.2K OHM J
R829 24321338 OXIDE METAL FILM, 1/2W 0.33 OHM J
R830 24366471 CARBON FILM, 1/6W 470 OHM J
R831 24366471 CARBON FILM, 1/6W 470 OHM J
R832 24366472 CARBON FILM, 1/6W 4.7K OHM J
R833 24366222 CARBON FILM, 1/6W 2.2K OHM J
R842 24552392 OXIDE METAL FILM, 1/2W 3.9K OHM J
R843 24366103 CARBON FILM, 1/6W 10K OHM J
R843 24366331 CARBON FILM, 1/6W 330 OHM J
R844 24366102 CARBON FILM, 1/6W 1K OHM J
R844 24366332 CARBON FILM, 1/6W 3.3K OHM J
R845 24366472 CARBON FILM, 1/6W 4.7K OHM J
R848 24366472 CARBON FILM, 1/6W 4.7K OHM J
R851 24366101 CARBON FILM, 1/6W 100 OHM J
R852 24366102 CARBON FILM, 1/6W 1K OHM J
R853 24366103 CARBON FILM, 1/6W 10K OHM J
R854 24366472 CARBON FILM, 1/6W 4.7K OHM J
R855 24366472 CARBON FILM, 1/6W 4.7K OHM J
R857 24366472 CARBON FILM, 1/6W 4.7K OHM J
R858 24366472 CARBON FILM, 1/6W 4.7K OHM J
R860 24366102 CARBON FILM, 1/6W 1K OHM J
R861 24367273 CARBON FILM, 1/6W 27K OHM G
R862 24367562 CARBON FILM, 1/6W 5.6K OHM G
R863 24366224 CARBON FILM, 1/6W 220K OHM J
R864 24381820 OXIDE METAL FILM, 1/2W 82 OHM J
R865 24552102 OXIDE METAL FILM, 1/2W 1K OHM J
R866 24366102 CARBON FILM, 1/6W 1K OHM J
R869 24322228 OXIDE METAL FILM, 1W 0.22 OHM J
R871 24552331 OXIDE METAL FILM, 1/2W 330 OHM J
R872 24382683 OXIDE METAL FILM, 1W 68K OHM J
R873 24568229 CERAMIC COVERED, 7W 2.2 OHM J
R875 24366332 CARBON FILM, 1/6W 3.3K OHM J
R876 24366562 CARBON FILM, 1/6W 5.6K OHM J
R877 24366682 CARBON FILM, 1/6W 6.8K OHM J
R878 24366822 CARBON FILM, 1/6W 8.2K OHM J
R880 24552471 OXIDE METAL FILM, 1/2W 470 OHM J
R881 24552561 OXIDE METAL FILM, 1/2W 560 OHM J
R895 24366333 CARBON FILM, 1/6W 33K OHM J
R896 24366562 CARBON FILM, 1/6W 5.6K OHM J
R897 24366683 CARBON FILM, 1/6W 68K OHM J
R901 24552101 OXIDE METAL FILM, 1/2W 100 OHM J
R902 24552101 OXIDE METAL FILM, 1/2W 100 OHM J
R903 24552101 OXIDE METAL FILM, 1/2W 100 OHM J
R907 24366560 CARBON FILM, 1/6W 56 OHM J
R913 24366560 CARBON FILM, 1/6W 56 OHM J
R914 24366471 CARBON FILM, 1/6W 470 OHM J
R915 24366100 CARBON FILM, 1/6W 10 OHM J
R916 24366330 CARBON FILM, 1/6W 33 OHM J
R917 24366271 CARBON FILM, 1/6W 270 OHM J
R918 24366330 CARBON FILM, 1/6W 33 OHM J
R920 24000884 FUSIBLE, 1W 3 OHM J
R921 24366471 CARBON FILM, 1/6W 470 OHM J
R922 24366100 CARBON FILM, 1/6W 10 OHM J
R924 24366330 CARBON FILM, 1/6W 33 OHM J
R925 24366271 CARBON FILM, 1/6W 270 OHM J
R928 24366471 CARBON FILM, 1/6W 470 OHM J
R929 24366100 CARBON FILM, 1/6W 10 OHM J
R930 24366330 CARBON FILM, 1/6W 33 OHM J
– 28 –
Location
Parts No. Description
No.
R932 24366332 CARBON FILM, 1/6W 3.3K OHM J
R934 24366471 CARBON FILM, 1/6W 470 OHM J
R935 24366122 CARBON FILM, 1/6W 1.2K OHM J
R937 24366271 CARBON FILM, 1/6W 270 OHM J
R940 24366560 CARBON FILM, 1/6W 56 OHM J
R942 24366222 CARBON FILM, 1/6W 2.2K OHM J
R943 24366222 CARBON FILM, 1/6W 2.2K OHM J
R944 24366222 CARBON FILM, 1/6W 2.2K OHM J
R945 24366330 CARBON FILM, 1/6W 33 OHM J
R946 24366330 CARBON FILM, 1/6W 33 OHM J
R950 24060356 VARIABLE, METAL 16B 0.6W 20M OHM M
R952 24366222 CARBON FILM, 1/6W 2.2K OHM J
R953 24366222 CARBON FILM, 1/6W 2.2K OHM J
R954 24366222 CARBON FILM, 1/6W 2.2K OHM J
R958 24366101 CARBON FILM, 1/6W 100 OHM J
R961 24568472 CERAMIC COVERED, 7W 4.7K OHM J
R962 24568472 CERAMIC COVERED, 7W 4.7K OHM J
R964 24568472 CERAMIC COVERED, 7W 4.7K OHM J
R965 24568472 CERAMIC COVERED, 7W 4.7K OHM J
R966 24366331 CARBON FILM, 1/6W 330 OHM J
R977 24366681 CARBON FILM, 1/6W 680 OHM J
R978 24568472 CERAMIC COVERED, 7W 4.7K OHM J
R979 24568472 CERAMIC COVERED, 7W 4.7K OHM J
R980 24552102 OXIDE METAL FILM, 1/2W 1K OHM J
R981 24552102 OXIDE METAL FILM, 1/2W 1K OHM J
R982 24552102 OXIDE METAL FILM, 1/2W 1K OHM J
R992 24366150 CARBON FILM, 1/6W 15 OHM J
R2020 24011101 CHIP, METAL FILM, 1/20W 100 OHM J
R2060 24366221 CARBON FILM, 1/6W 220 OHM J
R2104 24011472 CHIP, METAL FILM, 1/20W 4.7K OHM J
R2105 24011101 CHIP, METAL FILM, 1/20W 100 OHM J
R2106 24011101 CHIP, METAL FILM, 1/20W 100 OHM J
R2107 24011101 CHIP, METAL FILM, 1/20W 100 OHM J
R2149 24871681 CHIP, 1/8W 680 OHM J
R2150 24871681 CHIP, 1/8W 680 OHM J
R2151 24871681 CHIP, 1/8W 680 OHM J
R2155 24871102 CHIP, METAL FILM, 1/8W 1K OHM J
R2156 24871102 CHIP, METAL FILM, 1/8W 1K OHM J
R2157 24871102 CHIP, METAL FILM, 1/8W 1K OHM J
R2158 24011472 CHIP, METAL FILM, 1/20W 4.7K OHM J
R2159 24011562 CHIP, METAL FILM, 1/20W 5.6K OHM J
R4111 24019259 FUSIBLE, 1/4W 27 OHM G
R4203 24011511 CHIP, METAL FILM, 1/20W 510 OHM J
R4204 24011152 CHIP, METAL FILM, 1/20W 1.5K OHM J
R4207 24011103 CHIP, METAL FILM, 1/20W 10K OHM J
R4209 24011222 CHIP, METAL FILM, 1/20W 2.2K OHM J
R4310 24366183 CARBON FILM, 1/6W 18K OHM J
R4401 24011472 CHIP, METAL FILM, 1/20W 4.7K OHM J
R4403 24011471 CHIP, METAL FILM, 1/20W 470 OHM J
R4405 24011102 CHIP, METAL FILM, 1/20W 1K OHM J
R4407 24011103 CHIP, METAL FILM, 1/20W 10K OHM J
R4408 24011361 CHIP, METAL FILM, 1/20W 360 OHM J
R4409 24011472 CHIP, METAL FILM, 1/20W 4.7K OHM J
R4410 24366823 CARBON FILM, 1/6W 82K OHM J
R4411 24011101 CHIP, METAL FILM, 1/20W 100 OHM J
R4412 24011101 CHIP, METAL FILM, 1/20W 100 OHM J
R4430 24011622 CHIP, METAL FILM, 1/20W 6.2K OHM J
R4461 24011102 CHIP, METAL FILM, 1/20W 1K OHM J
R4466 24011102 CHIP, METAL FILM, 1/20W 1K OHM J
R4467 24011332 CHIP, METAL FILM, 1/20W 3.3K OHM J
R4471 24011223 CHIP, METAL FILM, 1/20W 22K OHM J
R4472 24011223 CHIP, METAL FILM, 1/20W 22K OHM J
R4473 24011101 CHIP, METAL FILM, 1/20W 100 OHM J
R4474 24011101 CHIP, METAL FILM, 1/20W 100 OHM J
R4500 24383820 OXIDE FILM, 2W 82. J
R4501 24383820 OXIDE FILM, 2W 82. J
R4560 24011102 CHIP, METAL FILM, 1/20W 1K OHM J
Location
Parts No. Description
No.
R4562 24011133 CHIP, METAL FILM, 1/20W 13K OHM J
R4563 24011752 CHIP, METAL FILM, 1/20W 7.5K OHM J
R4690 24366103 CARBON FILM, 1/6W 10K OHM J
R4691 24366242 CARBON FILM, 1/6W 2.4K OHM J
R4692 24366471 CARBON FILM, 1/6W 470 OHM J
R4693 24552331 OXIDE METAL FILM, 1/2W 330 OHM J
R4700 24366274 CARBON FILM, 1/6W 270K OHM J
R4701 24366474 CARBON FILM, 1/6W 470K OHM J
R4703 24366473 CARBON FILM, 1/6W 47K OHM J
R4799 24366103 CARBON FILM, 1/6W 10K OHM J
R4820 24011103 CHIP, METAL FILM, 1/20W 10K OHM J
R4860 24011622 CHIP, METAL FILM, 1/20W 6.2K OHM J
R4900 24011274 CHIP, METAL FILM, 1/20W 270K OHM J
R5020 24011101 CHIP, METAL FILM, 1/20W 100 OHM J
R5030 24011101 CHIP, METAL FILM, 1/20W 100 OHM J
R9180 24366470 CARBON FILM, 1/6W 47 OHM J
R9240 24366470 CARBON FILM, 1/6W 47 OHM J
R9300 24366470 CARBON FILM, 1/6W 47 OHM J
R9930 24366101 CARBON FILM, 1/6W 100 OHM J
RA191 24011101 CHIP, METAL FILM, 1/20W 100 OHM J
RA192 24011101 CHIP, METAL FILM, 1/20W 100 OHM J
RA195 24011101 CHIP, METAL FILM, 1/20W 100 OHM J
RA33 24011102 CHIP, METAL FILM, 1/20W 1K OHM J
RA71 24366683 CARBON FILM, 1/6W 68K OHM J
RA72 24366223 CARBON FILM, 1/6W 22K OHM J
RA73 24366103 CARBON FILM, 1/6W 10K OHM J
RA76 24366103 CARBON FILM, 1/6W 10K OHM J
RA83 24011103 CHIP, METAL FILM, 1/20W 10K OHM J
RA86 24011103 CHIP, METAL FILM, 1/20W 10K OHM J
RA87 24366223 CARBON FILM, 1/6W 22K OHM J
RA88 24011472 CHIP, METAL FILM, 1/20W 4.7K OHM J
RA98 24011101 CHIP, METAL FILM, 1/20W 100 OHM J
RA99 24011101 CHIP, METAL FILM, 1/20W 100 OHM J
RB01 24366271 CARBON FILM, 1/6W 270 OHM J
RB02 24366221 CARBON FILM, 1/6W 220 OHM J
RB04 24366223 CARBON FILM, 1/6W 22K OHM J
RB09 24366470 CARBON FILM, 1/6W 47 OHM J
RB11 24366103 CARBON FILM, 1/6W 10K OHM J
RB20 24366103 CARBON FILM, 1/6W 10K OHM J
RB21 24366104 CARBON FILM, 1/6W 100K OHM J
RB30 24011222 CHIP, METAL FILM, 1/20W 2.2K OHM J
RB31 24011222 CHIP, METAL FILM, 1/20W 2.2K OHM J
RB32 24011105 CHIP, METAL FILM, 1/20W 1M OHM J
RB33 24011123 CHIP, METAL FILM, 1/20W 12K OHM J
RB34 24011392 CHIP, METAL FILM, 1/20W 3.9K OHM J
RB35 24011392 CHIP, METAL FILM, 1/20W 3.9K OHM J
RB36 24011222 CHIP, METAL FILM, 1/20W 2.2K OHM J
RB37 24011331 CHIP, METAL FILM, 1/20W 330 OHM J
RB38 24011105 CHIP, METAL FILM, 1/20W 1M OHM J
RB39 24011123 CHIP, METAL FILM, 1/20W 12K OHM J
RB40 24011392 CHIP, METAL FILM, 1/20W 3.9K OHM J
RB41 24011392 CHIP, METAL FILM, 1/20W 3.9K OHM J
RB42 24011103 CHIP, METAL FILM, 1/20W 10K OHM J
RB43 24011101 CHIP, METAL FILM, 1/20W 100 OHM J
RB45 24011222 CHIP, METAL FILM, 1/20W 2.2K OHM J
RB46 24011103 CHIP, METAL FILM, 1/20W 10K OHM J
RB49 24011331 CHIP, METAL FILM, 1/20W 330 OHM J
RB79 24011392 CHIP, METAL FILM, 1/20W 3.9K OHM J
RB80 24011392 CHIP, METAL FILM, 1/20W 3.9K OHM J
RB81 24011122 CHIP, METAL FILM, 1/20W 1.2K OHM J
RB82 24011123 CHIP, METAL FILM, 1/20W 12K OHM J
RB83 24011123 CHIP, METAL FILM, 1/20W 12K OHM J
RB90 24011392 CHIP, METAL FILM, 1/20W 3.9K OHM J
RB91 24011473 CHIP, METAL FILM, 1/20W 47K OHM J
RB92 24011271 CHIP, METAL FILM, 1/20W 270 OHM J
RB93 24011271 CHIP, METAL FILM, 1/20W 270 OHM J
RB94 24011222 CHIP, METAL FILM, 1/20W 2.2K OHM J
SPECIFIC INFORMATIONS
– 29 –
Location
SPECIFIC INFORMATIONS
Parts No. Description
No.
RB95 24011222 CHIP, METAL FILM, 1/20W 2.2K OHM J
RB96 24011273 CHIP, METAL FILM, 1/20W 27K OHM J
RB97 24011273 CHIP, METAL FILM, 1/20W 27K OHM J
RB98 24011102 CHIP, METAL FILM, 1/20W 1K OHM J
RC01 24011102 CHIP, METAL FILM, 1/20W 1K OHM J
RC02 24011102 CHIP, METAL FILM, 1/20W 1K OHM J
RC03 24011102 CHIP, METAL FILM, 1/20W 1K OHM J
RC04 24011102 CHIP, METAL FILM, 1/20W 1K OHM J
RC05 24011102 CHIP, METAL FILM, 1/20W 1K OHM J
RC06 24011102 CHIP, METAL FILM, 1/20W 1K OHM J
RC07 24011102 CHIP, METAL FILM, 1/20W 1K OHM J
RC08 24011102 CHIP, METAL FILM, 1/20W 1K OHM J
RC09 24011102 CHIP, METAL FILM, 1/20W 1K OHM J
RC10 24011102 CHIP, METAL FILM, 1/20W 1K OHM J
RC11 24366102 CARBON FILM, 1/6W 1K OHM J
RC12 24366102 CARBON FILM, 1/6W 1K OHM J
RF01 24011103 CHIP, METAL FILM, 1/20W 10K OHM J
RF02 24011102 CHIP, METAL FILM, 1/20W 1K OHM J
RF03 24011101 CHIP, METAL FILM, 1/20W 100 OHM J
RF04 24011103 CHIP, METAL FILM, 1/20W 10K OHM J
RF05 24011473 CHIP, METAL FILM, 1/20W 47K OHM J
RF06 24011473 CHIP, METAL FILM, 1/20W 47K OHM J
RF07 24011103 CHIP, METAL FILM, 1/20W 10K OHM J
RF08 24011223 CHIP, METAL FILM, 1/20W 22K OHM J
RF09 24011223 CHIP, METAL FILM, 1/20W 22K OHM J
RF10 24011101 CHIP, METAL FILM, 1/20W 100 OHM J
RF11 24011102 CHIP, METAL FILM, 1/20W 1K OHM J
RF12 24011471 CHIP, METAL FILM, 1/20W 470 OHM J
RF13 24011392 CHIP, METAL FILM, 1/20W 3.9K OHM J
RF14 24011471 CHIP, METAL FILM, 1/20W 470 OHM J
RF15 24011392 CHIP, METAL FILM, 1/20W 3.9K OHM J
RF16 24011471 CHIP, METAL FILM, 1/20W 470 OHM J
RF17 24011392 CHIP, METAL FILM, 1/20W 3.9K OHM J
RF18 24011222 CHIP, METAL FILM, 1/20W 2.2K OHM J
RF19 24011273 CHIP, METAL FILM, 1/20W 27K OHM J
RF20 24011683 CHIP, METAL FILM, 1/20W 68K OHM J
RF21 24011102 CHIP, METAL FILM, 1/20W 1K OHM J
RF22 24011471 CHIP, METAL FILM, 1/20W 470 OHM J
RF23 24011101 CHIP, METAL FILM, 1/20W 100 OHM J
RF24 24011391 CHIP, METAL FILM, 1/20W 390 OHM J
RF25 24011471 CHIP, METAL FILM, 1/20W 470 OHM J
RF26 24011331 CHIP, METAL FILM, 1/20W 330 OHM J
RF27 24011471 CHIP, METAL FILM, 1/20W 470 OHM J
RF28 24019398 CHIP BLOCK, 1/16W P-8 33 OHM J
RF29 24019398 CHIP BLOCK, 1/16W P-8 33 OHM J
RF30 24019398 CHIP BLOCK, 1/16W P-8 33 OHM J
RF31 24011101 CHIP, METAL FILM, 1/20W 100 OHM J
RF32 24019398 CHIP BLOCK, 1/16W P-8 33 OHM J
RF33 24019398 CHIP BLOCK, 1/16W P-8 33 OHM J
RF34 24019398 CHIP BLOCK, 1/16W P-8 33 OHM J
RF35 24019398 CHIP BLOCK, 1/16W P-8 33 OHM J
RF36 24011101 CHIP, METAL FILM, 1/20W 100 OHM J
RF37 24011330 CHIP, METAL FILM, 1/20W 33 OHM J
RF38 24011330 CHIP, METAL FILM, 1/20W 33 OHM J
RF39 24011330 CHIP, METAL FILM, 1/20W 33 OHM J
RF40 24011472 CHIP, METAL FILM, 1/20W 4.7K OHM J
RF42 24011682 CHIP, METAL FILM, 1/20W 6.8K OHM J
RF43 24011682 CHIP, METAL FILM, 1/20W 6.8K OHM J
RF44 24011682 CHIP, METAL FILM, 1/20W 6.8K OHM J
RF46 24011224 CHIP, METAL FILM, 1/20W 220K OHM J
RF48 24000445 CHIP JUMPER, 1608TYPE
RF49 24011103 CHIP, METAL FILM, 1/20W 10K OHM J
RF50 24011473 CHIP, METAL FILM, 1/20W 47K OHM J
RF51 24011103 CHIP, METAL FILM, 1/20W 10K OHM J
RF54 24011102 CHIP, METAL FILM, 1/20W 1K OHM J
RF55 24011102 CHIP, METAL FILM, 1/20W 1K OHM J
RF57 24011102 CHIP, METAL FILM, 1/20W 1K OHM J
Location
Parts No. Description
No.
RF58 24011102 CHIP, METAL FILM, 1/20W 1K OHM J
RF59 24011102 CHIP, METAL FILM, 1/20W 1K OHM J
RF60 24011102 CHIP, METAL FILM, 1/20W 1K OHM J
RF62 24011102 CHIP, METAL FILM, 1/20W 1K OHM J
RF63 24011224 CHIP, METAL FILM, 1/20W 220K OHM J
RF64 24011224 CHIP, METAL FILM, 1/20W 220K OHM J
RF65 24011224 CHIP, METAL FILM, 1/20W 220K OHM J
RF68 24011103 CHIP, METAL FILM, 1/20W 10K OHM J
RF69 24011103 CHIP, METAL FILM, 1/20W 10K OHM J
RF70 24011103 CHIP, METAL FILM, 1/20W 10K OHM J
RF74 24011103 CHIP, METAL FILM, 1/20W 10K OHM J
RF75 24011103 CHIP, METAL FILM, 1/20W 10K OHM J
RF76 24011103 CHIP, METAL FILM, 1/20W 10K OHM J
RF77 24011102 CHIP, METAL FILM, 1/20W 1K OHM J
RF78 24011332 CHIP, METAL FILM, 1/20W 3.3K OHM J
RF79 24019398 CHIP BLOCK, 1/16W P-8 33 OHM J
RF80 24019398 CHIP BLOCK, 1/16W P-8 33 OHM J
RF81 24011103 CHIP, METAL FILM, 1/20W 10K OHM J
RF82 24011103 CHIP, METAL FILM, 1/20W 10K OHM J
RF84 24000445 CHIP JUMPER, 1608TYPE
RF87 24011473 CHIP, METAL FILM, 1/20W 47K OHM J
RF88 24011222 CHIP, METAL FILM, 1/20W 2.2K OHM J
RF89 24011102 CHIP, METAL FILM, 1/20W 1K OHM J
RF93 24000445 CHIP JUMPER, 1608TYPE
RF94 24011103 CHIP, METAL FILM, 1/20W 10K OHM J
RF95 24011103 CHIP, METAL FILM, 1/20W 10K OHM J
RF97 24011330 CHIP, METAL FILM, 1/20W 33 OHM J
RF98 24011330 CHIP, METAL FILM, 1/20W 33 OHM J
RF99 24011330 CHIP, METAL FILM, 1/20W 33 OHM J
RF100 24011330 CHIP, METAL FILM, 1/20W 33 OHM J
RF101 24011330 CHIP, METAL FILM, 1/20W 33 OHM J
RF102 24011330 CHIP, METAL FILM, 1/20W 33 OHM J
RF103 24011330 CHIP, METAL FILM, 1/20W 33 OHM J
RF104 24011330 CHIP, METAL FILM, 1/20W 33 OHM J
RF105 24011330 CHIP, METAL FILM, 1/20W 33 OHM J
RF106 24011330 CHIP, METAL FILM, 1/20W 33 OHM J
RF107 24011330 CHIP, METAL FILM, 1/20W 33 OHM J
RF108 24011330 CHIP, METAL FILM, 1/20W 33 OHM J
RF109 24011330 CHIP, METAL FILM, 1/20W 33 OHM J
RF110 24011330 CHIP, METAL FILM, 1/20W 33 OHM J
RF111 24011330 CHIP, METAL FILM, 1/20W 33 OHM J
RF112 24011330 CHIP, METAL FILM, 1/20W 33 OHM J
RF114 24011102 CHIP, METAL FILM, 1/20W 1K OHM J
RF116 24011101 CHIP, METAL FILM, 1/20W 100 OHM J
RF117 24011101 CHIP, METAL FILM, 1/20W 100 OHM J
RF118 24011103 CHIP, METAL FILM, 1/20W 10K OHM J
RF119 24011102 CHIP, METAL FILM, 1/20W 1K OHM J
RF120 24011103 CHIP, METAL FILM, 1/20W 10K OHM J
RF121 24011473 CHIP, METAL FILM, 1/20W 47K OHM J
RF122 24011103 CHIP, METAL FILM, 1/20W 10K OHM J
RF123 24011333 CHIP, METAL FILM, 1/20W 33K OHM J
RF124 24011682 CHIP, METAL FILM, 1/20W 6.8K OHM J
RF125 24011224 CHIP, METAL FILM, 1/20W 220K OHM J
RF129 24011102 CHIP, METAL FILM, 1/20W 1K OHM J
RF130 24011333 CHIP, METAL FILM, 1/20W 33K OHM J
RF132 24011333 CHIP, METAL FILM, 1/20W 33K OHM J
RF133 24011103 CHIP, METAL FILM, 1/20W 10K OHM J
RF134 24011103 CHIP, METAL FILM, 1/20W 10K OHM J
RF138 24011102 CHIP, METAL FILM, 1/20W 1K OHM J
RF147 24011102 CHIP, METAL FILM, 1/20W 1K OHM J
RJ01 24000633 METAL FILM, 1/4W 10K OHM F
RJ02 24000359 METAL FILM, 1/4W 1.1K OHM F
RJ03 24366512 CARBON FILM, 1/6W 5.1K OHM J
RJ05 24310159 OXIDE METAL FILM, 1/2W 1.5 OHM J
RJ06 24382471 OXIDE METAL FILM, 1W 470 OHM J
RJ07 24310109 OXIDE METAL FILM, 1/2W 1 OHM J
RJ08 24366102 CARBON FILM, 1/6W 1K OHM J
– 30 –
Loading...
