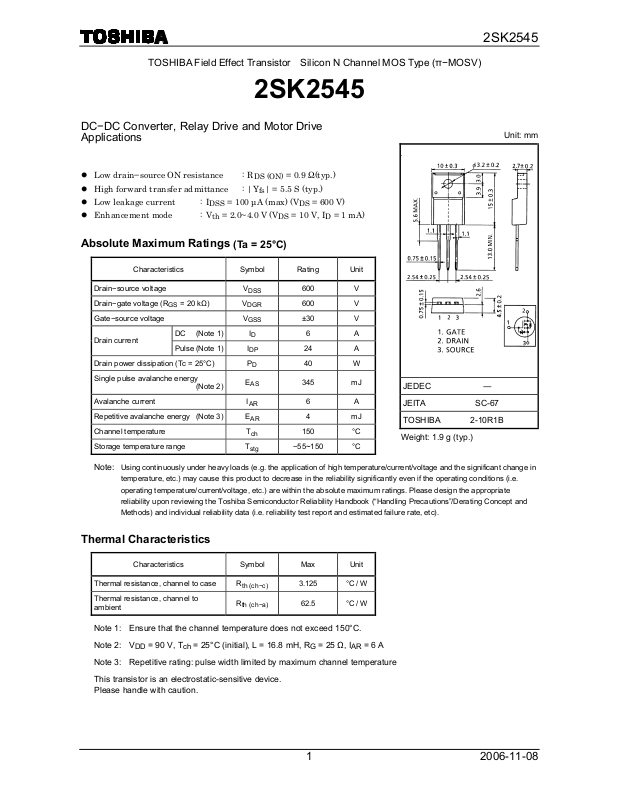

TOSHIBA Field Effect Transistor Silicon N Channel MOS Type (π−MOSV)
2SK2545
2SK2545
DC−DC Converter, Relay Drive and Motor Drive
Applications
z Low drain−source ON resistance : R
z High forward transfer admittance : |Y
z Low leakage current : I
z Enhancement mode : V
= 100 µA (max) (VDS = 600 V)
DSS
= 2.0~4.0 V (VDS = 10 V, ID = 1 mA)
th
Absolute Maximum Ratings
Characteristics Symbol Rating Unit
Drain−source voltage V
Drain−gate voltage (RGS = 20 kΩ) V
Gate−source voltage V
Drain current
Drain power dissipation (Tc = 25°C) PD 40 W
Single pulse avalanche energy
(Note 2)
Avalanche current IAR 6 A
Repetitive avalanche energy (Note 3) EAR 4 mJ
Channel temperature Tch 150 °C
Storage temperature range T
DC (Note 1) ID 6 A
Pulse (Note 1) I
(Ta = 25°C)
DSS
DGR
GSS
DP
E
AS
stg
= 0.9 Ω(typ.)
DS (ON)
| = 5.5 S (typ.)
fs
600 V
600 V
±30 V
24 A
345 mJ
−55~150 °C
Unit: mm
JEDEC ―
JEITA SC-67
TOSHIBA 2-10R1B
Weight: 1.9 g (typ.)
Note: Using continuously under heavy loads (e.g. the application of high temperature/current/voltage and the significant change in
temperature, etc.) may cause this product to decrease in the reliability significantly even if the operating conditions (i.e.
operating temperature/current/voltage, etc.) are within the absolute maximum ratings. Please design the appropriate
reliability upon reviewing the Toshiba Semiconductor Reliability Handbook (“Handling Precautions”/Derating Concept and
Methods) and individual reliability data (i.e. reliability test report and estimated failure rate, etc).
Thermal Characteristics
Characteristics Symbol Max Unit
Thermal resistance, channel to case R
Thermal resistance, channel to
ambient
R
Note 1: Ensure that the channel temperature does not exceed 150°C.
Note 2: VDD = 90 V, Tch = 25°C (initial), L = 16.8 mH, RG = 25 Ω, IAR = 6 A
Note 3: Repetitive rating: pulse width limited by maximum channel temperature
This transistor is an electrostatic-sensitive device.
Please handle with caution.
3.125 °C / W
th (ch−c)
62.5 °C / W
th (ch−a)
1
2006-11-08
2SK2545
Electrical Characteristics
Characteristics Symbol Test Condition Min Typ. Max Unit
Gate leakage current I
Gate−source breakdown voltage V
Drain cut−off current I
Drain−source breakdown voltage V
Gate threshold voltage Vth VDS = 10 V, ID = 1 mA 2.0 — 4.0 V
Drain−source ON resistance R
Forward transfer admittance |Yfs| VDS = 10 V, ID = 3 A 2.0 5.5 — S
Input capacitance C
Reverse transfer capacitance C
Output capacitance C
Rise time tr — 25 —
Turn−on time ton — 45 —
Switching time
Fall time tf — 40 —
Turn−off time t
(Ta = 25°C)
GSS
(BR) GSS
DSS
(BR) DSS
DS (ON)
— 1300 —
iss
— 130 —
rss
oss
— 150 —
off
VGS = ±25 V, VDS = 0 V — — ±10 µA
IG = ±10 µA, VGS = 0 V ±30 — — V
VDS = 600 V, VDS = 0 V — — 100 µA
ID = 10 mA, VGS = 0 V 600 — — V
VGS = 10 V, ID = 3 A — 0.9 1.25 Ω
= 10 V, VGS = 0 V, f = 1 MHz
V
DS
— 400 —
pF
ns
Total gate charge (Gate−source
plus gate−drain)
Gate−source charge Qgs — 18 —
Gate−drain (“miller”) charge Qgd
— 30 —
Q
g
≈ 400 V, VGS = 10 V, ID = 6 A
V
DD
— 12 —
nC
Source−Drain Ratings and Characteristics
Characteristics Symbol Test Condition Min Typ. Max Unit
Continuous drain reverse current
(Note 1)
Pulse drain reverse current
(Note 1)
Forward voltage (diode) V
Reverse recovery time trr — 1000 — ns
Reverse recovery charge Qrr
— — — 6 A
I
DR
— — — 24 A
I
DRP
IDR = 6 A, VGS = 0 V — — −1.7 V
DSF
= 6 A, VGS = 0 V, dI
I
DR
(Ta = 25°C)
/ dt = 100 A / µs
DR
— 7.0 — µC
Marking
K2545
Part No. (or abbreviation code)
Lot No.
A line indicates
lead (Pb)-free package or
lead (Pb)-free finish.
2
2006-11-08
2SK2545
3
2006-11-08
2SK2545
4
2006-11-08
2SK2545
VDSS
−
⎞
⎟
V
DD
⎠
RG = 25 Ω
V
= 90 V, L = 16.8 mH
DD
1
E
AS
IL
2
5
B
⎛
2
⋅⋅⋅=
⎜
B
VDSS
⎝
2006-11-08
2SK2545
