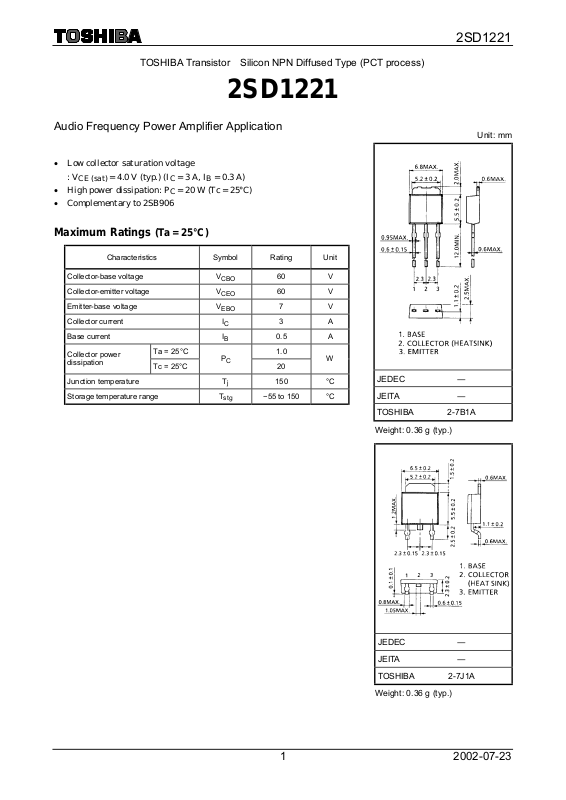

TOSHIBA Transistor Silicon NPN Diffused Type (PCT process)
2SD1221
2SD1221
Audio Frequency Power Amplifier Application
• Low collector saturation voltage
: V
CE (sat)
• High power dissipation: PC = 20 W (Tc = 25°C)
• Complementary to 2SB906
Maximum Ratings
Collector-base voltage V
Collector-emitter voltage V
Emitter-base voltage V
Collector current IC 3 A
Base current IB 0.5 A
Collector power
dissipation
Junction temperature Tj 150 °C
Storage temperature range T
= 4.0 V (typ.) (IC = 3 A, IB = 0.3 A)
(Ta = 25°C)
Characteristics Symbol Rating Unit
Ta = 25°C 1.0
Tc = 25°C
60 V
CBO
60 V
CEO
7 V
EBO
P
C
−55 to 150 °C
stg
20
W
Unit: mm
JEDEC ―
JEITA ―
TOSHIBA 2-7B1A
Weight: 0.36 g (typ.)
JEDEC ―
JEITA ―
TOSHIBA 2-7J1A
Weight: 0.36 g (typ.)
1
2002-07-23
Page 2
2SD1221
Electrical Characteristics
Characteristics Symbol Test Condition Min Typ. Max Unit
Collector cut-off current I
Emitter cut-off current I
Collector-emitter breakdown voltage V
DC current gain
Collector-emitter saturation voltage V
Base-emitter voltage VBE VCE = 5 V, IC = 0.5 A ― 0.7 1.0 V
Transition frequency fT VCE = 5 V, IC = 0.5 A ― 3.0 ― MHz
Collector output capacitance Cob VCB = 10 V, IE = 0, f = 1 MHz ― 70 ― pF
Turn-on time ton ― 0.8 ―
Switching time
Storage time t
Fall time t
(Ta = 25°C)
(BR) CEO
h
h
CE (sat)
VCB = 60 V, IE = 0 ― ― 100 µA
CBO
VEB = 7 V, IC = 0 ― ― 100 µA
EBO
IC = 50 mA, IB = 0 60 ― ― V
FE (1)
FE (2)
stg
f
V
= 5 V, IC = 0.5 A 60 ― 300
(Note)
― 1.5 ―
CE
VCE = 5 V, IC = 3 A 20 ― ―
IC = 3 A, IB = 0.3 A ― 0.4 1.0 V
20 µs
INPUT
B1
I
= −IB2 = 0.2 A, DUTY CYCLE ≤ 1%
I
B1
IB2
IB1
I
B2
OUTPUT
VCC = 30 V
15 Ω
― 0.8 ―
µs
Note: hFE classification O: 60 to 120, Y: 100 to 200, GR: 150 to 300
Marking
D1221
Product No.
Lot No.
hFE Classification
Explanation of Lot No.
Month of manufacture: January to December are denoted by letters A to L respectively.
Year of manufacture: last decimal digit of the year of manufacture
2
2002-07-23
Page 3
2SD1221
(
3.0
90
(A)
C
2.0
1.0
Collector current I
– VCE
I
C
80
70
60
50
40
IB = 10 mA
30
20
Common emitter
Tc = 25°C
3.0
(A)
2.0
C
1.0
Collector current I
Tc = 100°C
– VBE
I
C
25
Common emitter
VCE = 5 V
−25
0
0
2 4 6 8
Collector-emitter voltage VCE (V)
0
0
0
0.4 0.8 1.2 1.6
Base-emitter voltage VBE (V)
500
300
FE
DC current gain h
100
Tc = 100°C
25
−25
50
30
– IC
h
FE
Common emitter
VCE = 5 V
0.5
0.3
(V)
0.1
CE (sat)
V
0.05
1
Common emitter
IC/IB = 10
10
0.03 0.1 0.3 1 3
Collector current IC (A)
Collector-emitter saturation voltage
0.02
0.03 0.1 0.3 1 3
Collector current IC (A)
V
CE (sat)
Tc = 100°C
– I
C
25
−25
– Ta
P
24
(1)
20
(W)
C
16
12
8
4
Collector power dissipation P
(2)
(3)
0
0
25 50 75 100 125 150 175
Ambient temperature Ta (°C)
C
(1) Tc = Ta infinite heat sink
(2) Ceramic substrate
50 × 50 × 0.8 mm
(3) No heat sink
10
IC max (pulsed)*
5
IC max (continuous)
3
(A)
C
1
0.5
*: Single nonrepetitive pulse
Collector current I
0.3
Tc = 25°C
Curves must be derated linearly with
increase in temperature.
0.1
Safe Operating Area
DC operation
Tc = 25°C)
Collector-emitter voltage VCE (V)
1 ms*
10 ms*
100 ms*
V
max
CEO
30 100 3 10 1
3
2002-07-23
