SERVICE MANUAL

COLOUR TELEVISION

14N21NS

PRINTED IN UK. 2002 C

SERVICING NOTICES ON CHECKING

As for the places which need special attentions,
they are indicated with the labels or seals on the
cabinet, chassis and parts. Make sure to keep the
indications and notices in the operation manual.

2. AVOID AN ELECTRIC SHOCK

There is a high voltage part inside. Avoid an
electric shock while the electric current is
flowing.

3. USE THE DESIGNATED PARTS

The parts in this equipment have the specific
characters of incombustibility and withstand
voltage for safety. Therefore, the part which is
replaced should be used the part which has
the same character.
Especially as to the important parts for safety
which is indicated in the circuit diagram or the
table of parts as a mark, the designated
parts must be used.

4. PUT PARTS AND WIRES IN THE
ORIGINAL POSITION AFTER
ASSEMBLING OR WIRING

There are parts which use the insulation
material such as a tube or tape for safety, or
which are assembled in the condition that
these do not contact with the printed board.
The inside wiring is designed not to get closer
to the pyrogenic parts and high voltage parts.
Therefore, put these parts in the original
positions.

5. TAKE CARE TO DEAL WITH THE
CATHODE-RAY TUBE

In the condition that an explosion-proof cathode­ray tube is set in this equipment, safety is
secured against implosion. However, when
removing it or serving from backward, it is
dangerous to give a shock. Take enough care to
deal with it.

6. AVOID AN X-RAY1. KEEP THE NOTICES

Safety is secured against an X-ray by consider­ing about the cathode-ray tube and the high
voltage peripheral circuit, etc.
Therefore, when repairing the high voltage pe­ripheral circuit, use the designated parts and
make sure not modify the circuit.
Repairing except indicates causes rising of high
voltage, and it emits an X-ray from the cathode­ray tube.

PERFORM A SAFETY CHECK AFTER

7.
SERVICING

Confirm that the screws, parts and wiring which
were removed in order to service are put in the
original positions, or whether there are the
portions which are deteriorated around the
serviced places serviced or not. Check the
insulation between the antenna terminal or
external metal and the AC cord plug blades.
And be sure the safety of that.

(INSULATION CHECK PROCEDURE)

1.

Unplug the plug from the AC outlet.

2.

Remove the antenna terminal on TV and turn
on the TV.

3.

Insulation resistance between the cord plug
terminals and the eternal exposure metal
[Note 2] should be more than 1M ohm by
using the 500V insulation resistance meter
[Note 1].

4.

If the insulation resistance is less than 1M
ohm, the inspection repair should be
required.

[Note 1]

If you have not the 500V insulation
resistance meter, use a Tester.

[Note 2]

External exposure metal: Antenna terminal

Earphone jack

HOW TO ORDER PARTS

Please include the following informations when you order parts. (Particularly the VERSION LETTER.)

1. MODEL NUMBER and VERSION LETTER
The MODEL NUMBER can be found on the back of each product and the VERSION LETTER can be

found at the end of the SERIAL NUMBER.

2. PART NO. and DESCRIPTION
You can find it in your SERVICE MANUAL.

IMPORTANT

Inferior silicon grease can damage IC's and transistors.
When replacing an IC's or transistors, use only specified silicon grease (YG6260M).
Remove all old silicon before applying new silicon.

A1-1

CONTENTS

SERVICING NOTICES ON CHECKING......................................................................................................

HOW TO ORDER PARTS ...........................................................................................................................

IMPORTANT................................................................................................................................................

CONTENTS .................................................................................................................................................

GENERAL SPECIFICATIONS ....................................................................................................................

DISASSEMBLY INSTRUCTIONS

1.REMOVAL OF ANODE CAP ..............................................................................................................

2.REMOVAL AND INSTALLATION OF FLAT PACKAGE IC ...............................................................

SERVICE MODE LIST.................................................................................................................................

CONFIRMATION OF HOURS USED ..........................................................................................................

WHEN REPLACING EEPROM( MEMORY) IC ...........................................................................................

ELECTRICAL ADJUSTMENTS ..................................................................................................................

BLOCK DIAGRAM ......................................................................................................................................

PRINTED CIRCUIT BOARDS

MAIN/CRT...............................................................................................................................................

SCHEMATIC DIAGRAMS

MICON/TUNER.......................................................................................................................................

CHROMA/SIF/VIF/21PIN........................................................................................................................

POWER ..................................................................................................................................................

DEFLECTION/CRT.................................................................................................................................

SOUND AMP ..........................................................................................................................................

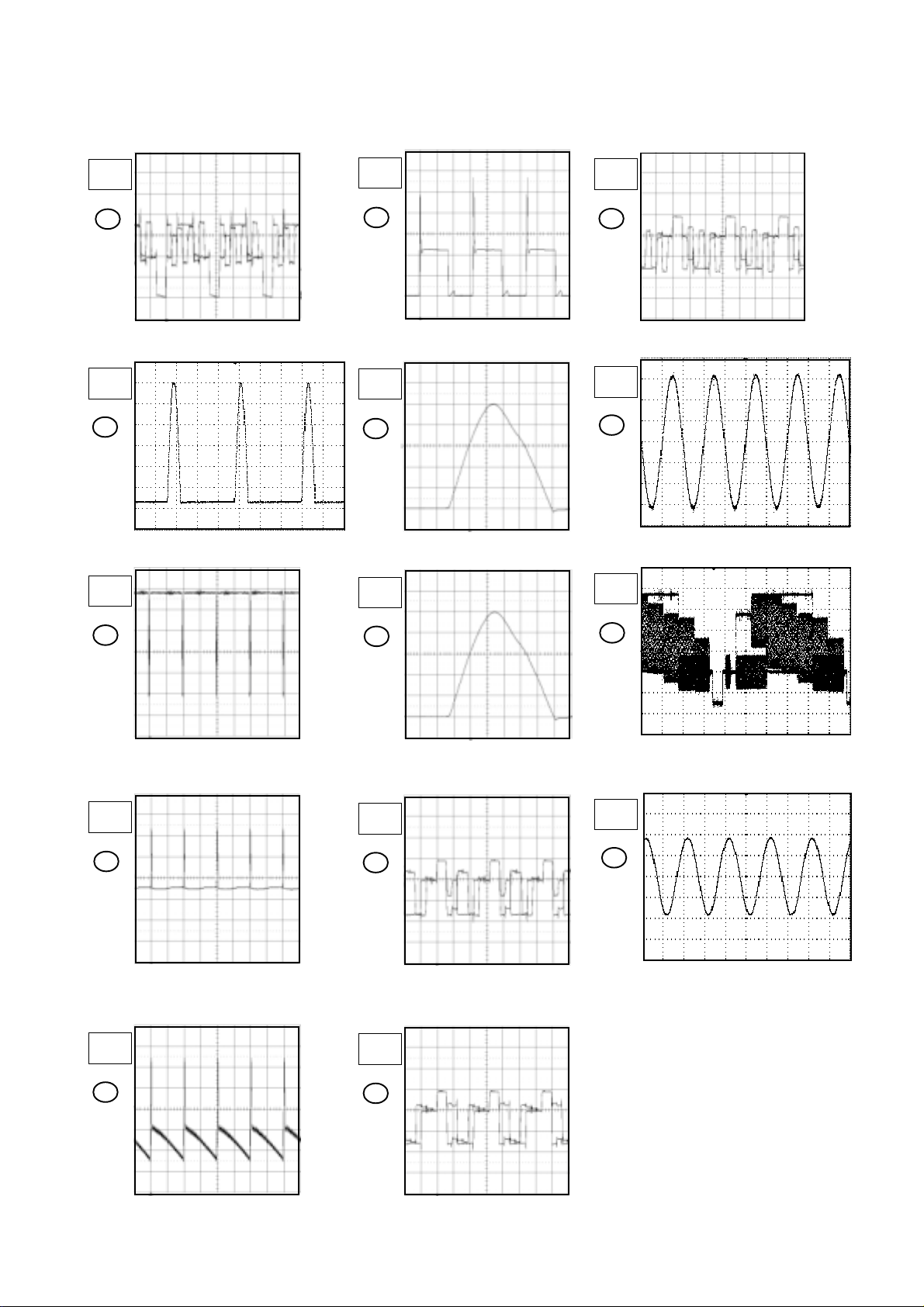

WAVEFORMS .............................................................................................................................................

MECHANICAL EXPLODED VIEW ..............................................................................................................

MECHANICAL REPLACEMENT PARTS LIST ..........................................................................................

ELECTRICAL REPLACEMENT PARTS LIST ............................................................................................

A1-1
A1-1
A1-1
A2-1
A3-1~A3-5

B1-1
B2-1, B2-2
C-1
C-1
C-2
D-1~D-5
E-1, E-2

F-1~F-4
G-1, G-2

G-3, G-4
G-5, G-6
G-7, G-8
G-9, G-10
H-1, H-2
I-1
J1-1
J2-1~ J2-4

A2-1

GENERAL SPECIFICATIONS

G-1 TV CRT CRT Size / Visual Size 14 inch / 335.4mmV

G-2 Tuning Broadcasting System CCIR System B/G

G-3 Power Power Source AC 230V-240V AC 50Hz

G-4 Regulation Safety CE(EN60065:98)

G-5 Temperature Operation +5oC ~ +40oC

G-6 Operating Humidity Less then 80% RH

System CRT Type Normal

Color System PAL
Speaker 1 Speaker

Sound Output MAX

DDR SECAM No
NTSC3.58(AV)+NTSC4.43 Yes
PAL60Hz Yes

System Tuner and System 1Tuner

Receive CH Destination Ohers

Intermediate B/G
Frequency Picture(FP) 38.9 MHz

Preset CH 100
Stereo/Dual TV Sound
Tuner Sound Muting Yes

Power Consumption at AC

Protector Power Fuse Yes

Deflection 90 degree
Magnetic Field BV/BH +0.45G/0.18G

Position Bottom
Size
Impedance 8 ohm

10%(Typical) 0.8 W

Tuning System F-Synth
Input Impedance VHF/UHF 75 ohm

CH Coverage S11 - S41, E21 - E69

Sound(FS) 33.4 MHz
FP-FS 5.5 MHz

DC

Stand by (at AC) 3 W at AC 230 V 50 Hz
Per Year -- kWh/Year

Radiation CE
X-Radiation -

Storage -20oC ~ +60oC

1.5 x3.0 Inch

E2 - E4, X - Z+2, S1 - S10, E5 - E12,

44 W at AC 230 V 50 Hz

1.0 W

No

A3-1

GENERAL SPECIFICATIONS

G-7 On Screen Menu Yes

G-8 OSD Language English French Spanish

G-9 Clock and Sleep Timer Max Time - Min

Display Menu Type Character

Picture Yes

Contrast Yes
Brightness Yes
Colour Yes
Tint (NTSC Only) Yes
Sharpness Yes

Audio No

Bass No
Treble No
Balance No
BBE On/Off No
Stable Sound On/Off No

CH Tuning Yes

Matual Yes
Auto Yes

CH Allocation Yes
Language Yes
Clock Set No
On/OffTimer Set Yes
On Timer Set No
Pin Code Registration No
Panel Lock Yes
Nicam Auto Off No
AV Colour System Yes
Sound System No
Auto 4:3 Default No
AV2 Output No

Output Source No

Source No
Control Level Yes

Volume Yes

Brightness Yes

Contrast Yes

Colour Yes

Tint (NTSC Only) Yes

Sharpness Yes

Tuning Yes

Bass No

Treble No

Balance No

Back Light No
Nicam ST No
Tone 1/2 (A/B) No
Surround On/Off No
Pin Code No
AV Yes
Skip No
Channel Yes
Hotel Lock No
Sleep Timer No
Wide Mode No
Sound Mute Yes

Germany Italian
Polski Turkey Sweden
Netherland Portgal
Norway Finland Denmark
Czech Slovak Hungarian
Russian Greek

Timer Step - Min

Clock No
On Timer Program( On Tim) Yes
Off Timer Program( 0ff Tim) Yes
Wake Up Timer No
Timer Back-up (at Power Off Mode) more than -- Min Sec

A3-2

GENERAL SPECIFICATIONS

G-10 Remote Unit RK-EY (CT-835)

G-11 Features Auto Degauss Yes

Control Glow in Dark Remocon No

Format NEC
Custom Code 40-BF h
Power Source Voltage(D.C) 3V

UM size x pcs UM-4 x 2 pcs

Total Keys 32 Keys
Keys Power Yes

1 Yes

2 Yes

3 Yes

4 Yes

5 Yes

6 Yes

7 Yes

8 Yes

9 Yes

0 Yes

Volume Up / + Yes

Volume Down / - Yes

Previous Yes

Select Picture Yes

Menu Yes

OK(Enter) Yes

EXIT No

Audio Select No

Sleep Timer No

Mute Yes

T'TEXT Keys TEXT / MIX / TV Yes

CH Up / Page Up Yes

CH Down / Page Down Yes

Red Yes

Green Yes

Yellow Yes

Cyan Yes

TEXT F/T/B Yes

Reveal Yes

TIMED PAGE(SUB PAGE) Yes

CALL / TEXT INDEX Yes

INPUT SELECT Yes

TEXT HOLD Yes

TIME / TXCL Yes

Auto Shut Off Yes
Canal+ No
CATV No
Anti-theft(Back Up 30 Min.) No
Memory(Last CH) Yes
Memory(Last Volume) Yes
BBE No
Auto Search Yes
CH Allocation Yes
Just Clock Function No
Game Position No
CH Label No
VM Circuit No
Full OSD No
Unitext No
Fastext Yes
Top Text No
Premiere No
Comb Filter No

Lines
Auto CH Memory No
Stable Sound No
Auto Set Up No
FBT Leak Test Protect Yes
Power ON Memory Yes
Previous (Quick View) Yes
Panel Lock Yes
Double Focus & Dynamic Focus No
Wss Signal Wide Change No
Virtual Dolby Surround No
Hotel Lock No

A3-3

GENERAL SPECIFICATIONS

G-12 Accessories Owner's Manual Language Swedish, Norwegian, Danish,

w/Guarantee Card
Remote Control Unit Yes
Rod Antenna Yes

Poles 2Pole

Terminal D-type
Loop Antenna

Terminal ­U/V Mixer
DC Car Cord (Center+)
Guarantee Card
Warning Sheet
Circuit Diagram
Antenna Change Plug
Service Facility List
Important Safeguard Yes (Owner's Manual In)
Dew/AHC Caution Sheet
AC Plug Adapter
Quick Set-up Sheet Yes
Battery Yes

UM size x pcs UM-4 x 2 pcs

OEM Brand No
AC Cord
AV Cord (2Pin-1Pin)
Registration Card
PTB Sheet
300 ohm to 75 ohm Antenna Adapter

G-13 Interface Switch Front Power (Tact Sw) No

System Select No

Main Power SW Yes

Sub Power No

Channel Up Yes

Channel Down Yes

Volume Up Yes

Volume Down Yes

Rear AC/DC No

TV/CATV Selector No

Degauss No

Main Power SW No
Indicator Power No

Stand-by No

Stand-by/ON , On Timer Yes(Red , Green)

Stand-by/ON No

On Timer No
Terminals Front Video Input

Audio Input

Other Terminal

Rear Video Input(Rear1)

Video Input(Rear2)

Audio Input(Rear1)

Audio Input(Rear2)

Video Output

Audio Output

Euro Scart(21Pin) No

S-INPUT

Euro Scart(21Pin) Yes ( x1 )

RGB-INPUT Yes ( x1 )

Component Input

Diversity No

Ext Speaker No

DC Jack 12V(Center +) No

VHF/UHF Antenna Input

AC Outlet No

G-14 Set Size Approx. W x D x H (mm) 362 x 360 x 373
G-15 Weight Net (Approx.) 9.5 kg

Gross (Approx.) 11.5kg

Finnish, Turkish

No

No

No
No
No
No
No
No
No

No
No

No
No
No
No
No

Yes
Yes
EAR Phone

No
No
No
No
No
No

No

D Type

( --- lbs)
( ---lbs)

A3-4

GENERAL SPECIFICATIONS

C

dges / 6 Surfaces

G-16 Carton Master Carton

Gift Box Yes

Drop Test

Container Stuffing 866

Content ----

Material --

Dimensions W x D x H(mm) -- x -- x --

Description of Origin Yes

Material Double/Brown

Dimensions W x D x H(mm)

Design As per Buyer's

Description of Origin Yes

Height (cm) 62

440 x 408 x 380

No
Sets
/--

Natural Dropping At 1

E

Sets/40' container

orner / 3

A3-5

DISASSEMBLY INSTRUCTIONS

1. REMOVAL OF ANODE CAP

Read the following NOTED items before starting work.
*

After turning the power off there might still be a potential
voltage that is very dangerous. When removing the
Anode Cap, make sure to discharge the Anode Cap's
potential voltage.

*

Do not use pliers to loosen or tighten the Anode Cap
terminal, this may cause the spring to be damaged.

REMOVAL

1. Follow the steps as follows to discharge the Anode Cap.

(Refer to Fig. 1-1.)

Connect one end of an Alligator Clip to the metal part of a
flat-blade screwdriver and the other end to ground.
While holding the plastic part of the insulated Screwdriver,
touch the support of the Anode with the tip of the
Screwdriver.
A cracking noise will be heard as the voltage is discharged.

GND on the CRT

3. After one side is removed, pull in the opposite direction to
remove the other.

NOTE

Take care not to damage the Rubber Cap.

INSTALLATION

1. Clean the spot where the cap was located with a small
amount of alcohol. (Refer to Fig. 1-3.)

Location of Anode Cap

Fig. 1-3

NOTE

Confirm that there is no dirt, dust, etc. at the spot where
the cap was located.

2.3.Arrange the wire of the Anode Cap and make sure the
wire is not twisted.
Turn over the Rubber Cap. (Refer to Fig. 1-4.)

Screwdriver

Alligator Clip

GND on the CRT

Flip up the sides of the Rubber Cap in the direction of the

2.
arrow and remove one side of the support.

(Refer to Fig. 1-2.)

Rubber Cap

CRT

Support

Support

CRT

Fig. 1-1

Fig. 1-2

Fig. 1-4

4. Insert one end of the Anode Support into the anode button,
then the other as shown in Fig. 1-5.

Support

CRT

5.6.Confirm that the Support is securely connected.
Put on the Rubber Cap without moving any parts.

Fig. 1-5

B1-1

DISASSEMBLY INSTRUCTIONS

2.

REMOVAL AND INSTALLATION OF
FLAT PACKAGE IC

REMOVAL

Put the Masking Tape (cotton tape) around the Flat

1.
Package IC to protect other parts from any damage.

(Refer to Fig. 2-1.)
NOTE

Masking is carried out on all the parts located within
10 mm distance from IC leads.

When IC starts moving back and forth easily after

3.
desoldering completely, pickup the corner of the IC using
a tweezers and remove the IC by moving with the IC
desoldering machine. (Refer to Fig. 2-3.)

NOTE

Some ICs on the PCB are affixed with glue, so be
careful not to break or damage the foil of each IC
leads or solder lands under the IC when removing it.

Blower type IC
desoldering
machine

Masking Tape
(Cotton Tape)

Heat the IC leads using a blower type IC desoldering

2.

IC

machine. (Refer to Fig. 2-2.)

NOTE

Do not add the rotating and the back and forth
directions force on the IC, until IC can move back and
forth easily after desoldering the IC leads completely.

Blower type IC
desoldering machine

Fig. 2-1

Tweezers

IC

Peel off the Masking Tape.4.
Absorb the solder left on the pattern using the Braided

5.
Shield Wire. (Refer to Fig. 2-4.)

NOTE

Do not move the Braided Shield Wire in the vertical
direction towards the IC pattern.

Fig. 2-3

Braided Shield Wire

Soldering Iron

IC

Fig. 2-2

IC pattern

Fig. 2-4

B2-1

DISASSEMBLY INSTRUCTIONS

INSTALLATION

Take care of the polarity of new IC and then install the

1.
new IC fitting on the printed circuit pattern. Then solder
each lead on the diagonal positions of IC temporarily.

(Refer to Fig. 2-5.)

Soldering Iron

Solder temporarily

Supply the solder from the upper position of IC leads

2.

Solder temporarily

sliding to the lower position of the IC leads.
(Refer to Fig. 2-6.)

Fig. 2-5

When bridge-soldering between terminals and/or the

4.
soldering amount are not enough, resolder using a Thin­tip Soldering Iron. (Refer to Fig. 2-8.)

Thin-tip Soldering Iron

IC

Fig. 2-8

Finally, confirm the soldering status on four sides of the

5.
IC using a magnifying glass.
Confirm that no abnormality is found on the soldering
position and installation position of the parts around the
IC. If some abnormality is found, correct by resoldering.

NOTE

When the IC leads are bent during soldering and/or
repairing, do not repair the bending of leads. If the
bending of leads are repaired, the pattern may be
damaged. So, be always sure to replace the IC in this
case.

Soldering IronSolder

IC

Absorb the solder left on the lead using the Braided

3.

Supply soldering
from upper position
to lower position

Shield Wire. (Refer to Fig. 2-7.)

NOTE

Do not absorb the solder to excess.

Soldering Iron

IC

Braided Shield Wire

Fig. 2-6

Fig. 2-7

B2-2

SERVICE MODE LIST

This unit provided with the following SERVICE MODES so you can repair, examine and adjust easily.
To enter the Service Mode, press both set key and remote control key for more than 2 seconds.

Set Key

VOL. (-) MIN 0

VOL. (-) MIN 1

VOL. (-) MIN

VOL. (-) MIN

VOL. (-) MIN

Remocon Key Operations

Reset the user setting items (PICTURE, VOLUME and LANGUAGE) to the initial state
for delivery.

Initialization of the factory.
NOTE:

POWER ON total hours is displayed on the screen.

6

8

9

Refer to the "CONFIRMATION OF HOURS USED".
Can be checked of the INITIAL DATA of MEMORY IC.

Refer to the "WHEN REPLACING EEPROM (MEMORY) IC".
Writing of EEPROM initial data.

NOTE: Do not use this for the normal servicing.
Display of the Adjustment MENU on the screen.

Refer to the "ELECTRICAL ADJUSTMENT" (On-Screen Display Adjustment).

Do not use this for the normal servicing.
If you set a factory initialization, the memories are reset such as the
channel setting, and the POWER ON total hours.

CONFIRMATION OF HOURS USED

POWER ON total hours can be checked on the screen. Total hours are displayed in 16 system of notation.

NOTE: If you set a factory initialization, the total hours is reset to "0".

1.

Set the VOLUME to minimum.

2.

Press both VOL. DOWN button on the set and Channel
button (6) on the remote control for more than 2 seconds.

3.

After the confirmation of using hours, turn off the power.

ADDRESS DATA

INIT 01 00
CRT ON 0010

FIG. 1

Initial setting content of MEMORY IC.
POWER ON total hours.

= (16 x 16 x 16 x thousands digit value)
+ (16 x 16 x hundreds digit value)
+ (16 x tens digit value)
+ (ones digit value)

C-1

WHEN REPLACING EEPROM (MEMORY) IC

If a service repair is undertaken where it has been required to change the MEMORY IC, the following steps should be taken to
ensure correct data settings while making reference to TABLE 1.

Note: No need setting for the position of the mark @ due to the adjustment value.

INI

+0 +1 +2 +3 +4 +5 +6 +7 +8 +9 +A +B +C +D +E +F

00 27 01 03 30 06 14

--- 00 00 00 00 41 80 48 00 23
10 80 80 80 3C 40 @ @ 9F10 00 @ 80 00 44 @ @
@@@C000@20@0020 @ 18 @ 00 @ @ 0F

00 @ @ 07 00 00 00 00 0030 @ 000000000000
7F 5F 4F 3F 39 34 2F 2D 2B40 6F 29 27 25 23 21 20
1F 1D 1C 1B 1A 19 18 17 1650 1E 15 14 13 13 12 12
11 10 10 0F 0F 0E 0E 0D 0D60 11 0C 0C 0B 0B 0A 0A
09 08 08 07 07 06 05 04 0470 09 03 03 03 02 02 02
22 CD CF D2 D6 D9 96 98 9C80 23 9D 55 56 58 5A 5C

5D --- --- --- --- --- --- --- ---90 5E --- --- --- --- --- ---

Table 1

Enter DATA SET mode by setting VOLUME to minimum.

1.
Press both VOL. DOWN button on the set and Channel button (6) on the remote control for more than 2 seconds.

2.
ADDRESS and DATA should appear as FIG 1.

ADDRESS DATA

INIT 01 00
CRT ON 0010

Fig. 1

3.

ADDRESS is now selected and should "blink". Using the VOL. +/- button on the remote, step through the ADDRESS until
required ADDRESS to be changed is reached.

4.

Press OK to select DATA. When DATA is selected, it will "blink".

5.

Again, step through the DATA using VOL. +/- button until required DATA value has been selected.

6.

Pressing OK will take you back to ADDRESS for further selection if necessary.

7.

Repeat steps 3 to 6 until all data has been checked.

8.

When satisfied correct DATA has been entered, turn POWER off (return to STANDBY MODE) to finish DATA input.

The unit will now have the correct DATA for the new MEMORY IC.

C-2

ELECTRICAL ADJUSTMENTS

1. ADJUSTMENT PROCEDURE

Read and perform these adjustments when repairing the
circuits or replacing electrical parts or PCB assemblies.

CAUTION

•

Use an isolation transformer when performing any
service on this chassis.

•

Before removing the anode cap, discharge electricity
because it contains high voltage.

•

When removing a PCB or related component, after
unfastening or changing a wire, be sure to put the wire
back in its original position.

•

When you exchange IC and Transistor for a heat sink,
apply the silicon grease on the contact section of the
heat sink. Before applying new silicon grease, remove all
the old silicon grease. (Old grease may cause damages
to the IC and Transistor).

Prepare the following measurement tools for electrical
adjustments.

1. Oscilloscope

2. Digital Voltmeter

3. Pattern Generator

On-Screen Display Adjustment

1. In the condition of NO indication on the screen.

Press the VOL. DOWN button on the set and the
Channel button (9) on the remote control for more than
2 seconds to appear the adjustment mode on the
screen as shown in Fig. 1-1.

2. BASIC ADJUSTMENTS

2-1: CONSTANT VOLTAGE

Place the set with Aging Test for more than 5 minutes.

1.
Connect the digital voltmeter to TP501.

2.
Set condition is AV MODE without signal.

3.
Adjust the VR501 until the DC voltage is 135 ± 0.5V.

4.

2-2: VCO

1.

Place the set with Aging Test for more than 10 minutes.

2.

Connect the oscillator (38.9MHz) to TP001.

3.

Activate the adjustment mode display of Fig. 1-1 and
press the channel button (13) on the remote control to
select "VCO COARSE".

4.

Press the VOL. +/- button on the remote control until
the "OK" appear on the screen. If the "OK" is not
displayed, select the "+" side on the changed from "+"
to "-".

5.

Press the Page UP button once to set to "VCO FINE"
mode.

6.

Press the VOL. +/- button on the remote control to
select the 5 step down point from the upper limit on the
"OK".
(Example: In case of the "OK" range 30~41, select 36.)

2-3: AGC VOLTAGE

1.

Place the set with Aging Test for more than 15 minutes.

2.

Receive the VHF HIGH (63dB).

3.

Connect the digital voltmeter to pin 5 of CP101.

4.

Activate the adjustment mode display of Fig. 1-1 and
press the channel button (01) on the remote control to
select "RF AGC".

5.

Press the VOL. +/- button on the remote control until the
digital voltmeter is 2.6 ± 0.05V.

35 H POSI OSD
36 V POSI OSD
37 H POSI TEXT
38 V POSI TEXT
39 H POSI 60
00 CUT OFF

9- EXT

117
117

57
57

45

VCO Status ­MMM

Fig. 1-1

2.3.Use the Channel button (0-9) or Channel UP/DOWN
button on the remote control to select the options
shown in Fig. 1-2.
Press the MENU button on the remote control to end
the adjustments.

FUNCTION

NO.

CUT OFF

00

RF AGC

01

AGC GAIN

02

R DRIVE

03

R CUTOFF

04

G DRIVE

05

G CUTOFF

06

B DRIVE

07

H POSI (50)

08

V POSI (50)

09

V POSI (60)

10

V SIZE (50)

11

V SIZE (60)

12

VCO COARSE

13

VCO FINE

14

VCO COARSE L1

15

VCO FINE L1

16

BRIGHT CENT

17

BRIGHT MAX

18

BRIGHT MIN

19

NO.

FUNCTION

20

TINT

21

SHARP

22

CONTRAST CENT

23

CONTRAST MAX

24

CONTRAST MIN

25

COLOR CENT

26

COLOR MAX

27

COLOR MIN

28

M R CUT OFF

29

M G CUT OFF

30

M B CUT OFF

31

CVBS OUT

32

APR THRESHOLD

33

BELL FILTER

34

BANDPASS

35

H POSI OSD

36

V POSI OSD

37

H POSI TEXT

38

V POSI TEXT

39

H POSI (60)

Fig. 1-2

2-4: CUT OFF

1.

Set condition is AV MODE without signal.

2.

Using the remote control, set the brightness and
contrast to normal position.

3.

Place the set with Aging Test for more than 15 minutes.

4.

Activate the adjustment mode display of Fig. 1-1 and
press the channel button (00) on the remote control to
select "CUT OFF".

5.

Adjust the Screen Volume until a dim raster is obtained.

2-5: WHITE BALANCE
NOTE: Adjust after performing CUT OFF adjustment.

1.

Place the set with Aging Test for more than 15 minutes.

2.

Receive the gray scale pattern from the Pattern
Generator.

3.

Using the remote control, set the brightness and
contrast to normal position.

4.

Activate the adjustment mode display of Fig. 1-1 and
press the channel button (03) on the remote control to
select "R DRIVE".

5.

Press the Page UP/DOWN button on the remote control
to select the "R DRIVE", "G DRIVE", "M R CUTOFF" or
"M G CUTOFF".

6.

Adjust the VOL. +/- button on the remote control to
whiten the R DRIVE, G DRIVE, M R CUT OFF, and M G
CUT OFF at each step tone sections equally.

7.

Perform the above adjustments 5 and 6 until the white
color is looked like a white.

D-1

ELECTRICAL ADJUSTMENTS

2-6: FOCUS

Receive an 70dB monoscope pattern.

1.

Turn the Focus Volume fully counterclockwise once.

2.

Adjust the Focus Volume until picture is distinct.

3.

2-7: HORIZONTAL POSITION

1.

Receive the monoscope pattern from the Pattern
Generator.

2.

Using the remote control, set the brightness and
contrast to normal position.

3.

Activate the adjustment mode display of Fig. 1-1 and
press the channel button (08) on the remote control to
select "H POSI (50)".

4.

Press the VOL. +/- button on the remote control until
the SHIFT quantity of the OVER SCAN on right and left
becomes minimum.

5.

Receive the monoscope pattern of NTSC. (Audio Video
Input)

6.

Using the remote control, set the brightness and
contrast to normal position.

7.

Activate the adjustment mode display of Fig. 1-1 and
press the channel button (39) on the remote control to
select "H POSI (60)".

8.

Press the VOL. +/- button on the remote control until
the SHIFT quantity of the OVER SCAN on right and left
becomes minimum.

2-8: VERTICAL POSITION, VERTICAL LINEARITY

1.

Receive the monoscope pattern from the pattern
Generator.

2.

Using the remote control, set the brightness and
contrast to normal position.

3.

Adjust the VR401 until the horizontal line becomes fit to
the notch of the shadow mask.

4.

Adjust the VR420 until the SHIFT quantity of the OVER
SCAN on upside and downside becomes minimum.

2-9: VERTICAL SIZE

Receive the monoscope pattern from the Pattern

1.

Generator.
Using the remote control, set the brightness and

2.

contrast to normal position.
Activate the adjustment mode display of Fig. 1-1 and

3.

press the channel button (11) on the remote control to
select "V SIZE (50)".
Adjust by using the VOL. +/- button on the remote

4.

control until the SHIFT quantity of the OVER SCAN on
upside and downside becomes 8 ± 2%.
Receive a broadcast and check if the picture is normal.

5.

Receive the monoscope pattern of NTSC. (Audio Video

6.

Input)
Using the remote control, set the brightness and

7.

contrast to normal position.
Activate the adjustment mode display of Fig. 1-1 and

8.

press the channel button (12) on the remote control to
select "V SIZE (60)".
Adjust by using the VOL. +/- button on the remote

9.

control until the SHIFT quantity of the OVER SCAN on
upside and downside becomes 10 ± 2%.
Receive a broadcast and check if the picture is normal.

10.

2-10: BRIGHT CENT

1.

Receive the PAL black pattern*. (RF Input)

2.

Using the remote control, set the brightness and
contrast to normal position.

3.

Place the set with Aging Test for more than 15 minutes.

4.

Activate the adjustment mode display of Fig. 1-1 and
press the channel button (17) on the remote control to
select "BRIGHT CENT".

5.

Press the VOL. +/- button on the remote control until
the screen begin to shine.

6

Receive the PAL black pattern*. (Audio Video Input)

7.

Set to the AV mode. Then perform the above
adjustments 2~5.

*The Black Pattern means the whole black raster signal.

Select the "RASTER" of the pattern generator, set to
the OFF position for each R, G and B.

2-11: CONTRAST CENT

1.

Activate the adjustment mode display of Fig. 1-1 and
press the channel button (22) on the remote control to
select "CONTRAST CENT".

2.

Press the VOL. +/- button on the remote control until
the contrast step No. becomes "27".

3.

Receive a broadcast and check if the picture is normal.

4.

Set to the AV mode.

5.

Activate the adjustment mode display of Fig. 1-1 and
press the channel button (22) on the remote control to
select "CONTRAST CENT".

6.

Press the VOL. +/- button on the remote control until
the contrast step No. becomes "29".

7.

Receive a broadcast and check if the picture is normal.

2-12: COLOR CENT

1.

Receive the PAL color bar pattern. (RF Input)

2.

Using the remote control, set the brightness, contrast
and color to normal position.

3.

Connect the oscilloscope to TP022.

4.

Activate the adjustment mode display of Fig. 1-1 and
press the channel button (25) on the remote control to
select "COLOR CENT".

5.

Adjust the VOLTS RANGE VARIABLE knob of the
oscilloscope until the range between white 100% and
0% is set to 5 scales on the screen of the oscilloscope.

6.

Press the VOL. +/- button on the remote control until
the red color level is adjusted to 100 ± 10% of the
white level. (Refer to Fig. 2-1)

7.

Receive the PAL color bar pattern. (Audio Video Input)

8.

Set to the AV mode. Then perform the above
adjustments 2~6.

100%

D-2

Fig. 2-1

ELECTRICAL ADJUSTMENTS

2-13: TINT

1.

Receive the PAL color bar pattern. (Audio Video Input)

2.

Using the remote control, set the brightness and
contrast to normal position.

3.

Connect the oscilloscope to TP023.

4.

Activate the adjustment mode display of Fig. 1-1 and
press the channel button (20) on the remote control to
select "TINT".

5.

Press the VOL. +/- button on the remote control until
the section "A" becomes a straight line. (Refer to Fig.

2-2)

"A"

Fig. 2-2

2-14: Confirmation of Fixed Value (Step No.)

Please check if the fixed values of the each adjustment
items are set correctly referring below.

NO.

FUNCTION

02

AGC GAIN

04

R CUTOFF

06

G CUTOFF

07

B DRIVE

09

V POSI (50)

10

V POSI (60)

18

BRIGHT MAX

19

BRIGHT MIN

20

TINT

21

SHARP

23

CONTRAST MAX

24

CONTRAST MIN

26

COLOR MAX

27

COLOR MIN

30

M B CUT OFF

31

CVBS OUT

32

APR THRESHOLD

33

BELL FILTER

34

BANDPASS

35

H POSI OSD

36

V POSI OSD

37

H POSI TEXT

38

V POSI TEXT

RF

00
00
00
45
15
00
30
10
30
03
45
10
45
10

127

31
00
00
00

135

57

130

57

AV

---

---

---

---

---

--­30
10

ADJ.

07
45
10
45
10

---

---

---

---

---

---

---

---

---

D-3

ELECTRICAL ADJUSTMENTS

3.

PURITY AND CONVERGENCE
ADJUSTMENTS

NOTE

Turn the unit on and let it warm up for at least 30

1.

minutes before performing the following adjustments.
Place the CRT surface facing east or west to reduce the

2.

terrestrial magnetism.
Turn ON the unit and demagnetize with a Degauss Coil.

3.

3-1: STATIC CONVERGENCE (ROUGH ADJUSTMENT)

Tighten the screw for the magnet. Refer to the adjusted

1.

CRT for the position. (Refer to Fig. 3-1)
If the deflection yoke and magnet are in one body,
untighten the screw for the body.
Receive the green raster pattern from the color bar

2.

generator.
Slide the deflection yoke until it touches the funnel

3.

side of the CRT.
Adjust center of screen to green, with red and blue on the

4.

sides, using the pair of purity magnets.
Switch the color bar generator from the green raster

5.

pattern to the crosshatch pattern.
Combine red and blue of the 3 color crosshatch pattern

6.

on the center of the screen by adjusting the pair of
4 pole magnets.
Combine red/blue (magenta) and green by adjusting the

7.

pair of 6 pole magnets.
Adjust the crosshatch pattern to change to white

8.

by repeating steps 6 and 7.

3-2: PURITY
NOTE

Adjust after performing adjustments in section 3-1.

1.

Receive the green raster pattern from color bar
generator.

2.

Adjust the pair of purity magnets to center the
color on the screen.
Adjust the pair of purity magnets so the color at the
ends are equally wide.

3.

Move the deflection yoke backward (to neck side)
slowly, and stop it at the position when the whole
screen is green.

4.

Confirm red and blue colors.

5.

Adjust the slant of the deflection yoke while watching the
screen, then tighten the fixing screw.

DEFLECTION YOKE
DEFLECTION YOKE SCREW
MAGNET SCREW

3-3: STATIC CONVERGENCE
NOTE

Adjust after performing adjustments in section 3-2.

1.

Receive the crosshatch pattern from the color bar
generator.

2.

Combine red and blue of the 3 color crosshatch pattern
on the center of the screen by adjusting the pair of
4 pole magnets.

3.

Combine red/blue (magenta) and green by adjusting the
pair of 6 pole magnets.

3-4: DYNAMIC CONVERGENCE
NOTE

Adjust after performing adjustments in section 3-3.

1.2.Adjust the differences around the screen by moving
the deflection yoke upward/downward and right/left.

(Refer to Fig. 3-2-a)

Insert three wedges between the deflection yoke and
CRT funnel to fix the deflection yoke.

(Refer to Fig. 3-2-b)

R G B

R
G
B

UPWARD/DOWNWARD SLANT RIGHT/LEFT SLANT

WEDGE

WEDGE POSITION

R
G
B

Fig. 3-2-a

WEDGE

WEDGE

Fig. 3-2-b

R G B

Fig. 3-1

6 POLE MAGNETS
4 POLE MAGNETS

PURITY MAGNETS

D-4

ELECTRICAL ADJUSTMENTS

4. ELECTRICAL ADJUSTMENT PARTS LOCATION GUIDE (WIRING CONNECTION)

CD801

R807

J801

TP023

R803

TP022

CRT PCB

CP801

CP802B

CD802

CRT

AC IN

CD501

FB401

CP502

CP501

CRT

VR501

CRT

TP501

CP802A

CP401

R503

J701

SPEAKER

VR401

VR420

CP1001

CP101

PH001

TU001

TP001

J1001

J702 J703

MAIN PCB

D-5

VOL UP

BLOCK DIAGRAM

AT+5V

D105

ON TIMER

STAND BY

AT+5V

OS101

Q102

Q103

LED SW

LED SW

1

X101

4MHz

MAIN W/T.TEXT
IC101 OECF004A

40

ON_TIMER

AVDD1

37
27

AVDD2

AVDD3

21

57

REMORT

50

OSC_OUT

51

OSC_IN

KEY_IN

SDA
SCL 14

OSD-B

OSD-G

OSD-R

CVBS2
CVBS1

AV1

56

13

10
11
29
30

VOL DOWN

CH UP

CH DOWN

5

SDA
SCL

6

9

7

MEMORY
IC199 S-24C04BDP-LA

X602

3.579545MHz

P.CON+5V
P.CON+8V

I2C

P.CON+5V

X601

4.433619MHz

TU001

SCL

SDA BPL AGC

54

CHROMA
IC201 STV2246C

OSD-B

34

OSD-G

35

OSD-R

36

CVBSOUT1

29
39

XTAL2
XTAL140

12

VCC_IF

VCC_D53
VCC1

45
17

VCC2

11

FM_OUT

7 1

G_EXT/Y_EXT

B_EXT/U_EXT
R_EXT/V_EXT

IF
11

768

PIFIN1

VERT 47

SCL

RF_AGC_OUT

SDA

H_OUT

B.OUT
G.OUT

R.OUT

Y/CVBS_IN3

PIFIN2

51
52
48
30
31

32

27
26

25
22

I2C

V-DRIVE
IC401 TDA8714A

POWER OUTPUT

3

TRIGGER INPUT

Q402

H.DRIVE

Q401

H.OUTPUT

Q803

BULE OUT

Q802

GREEN OUT

Q801

RED OUT

Vs

10

P.CON+25V

1

FB401

1

J801

3

9

7

F

8

F

S

DY

HV

2

3

+B
P.CON+25V

CRT
V801

SOUND AMPIC
IC1001
AN7511

SOUND+B

AUDIO_OUT55

INT_CVBS_OUT

14

EXT_AUDIO_IN

2
3
1

8

2

5

Vcc

+

6

SPEAKER
SP1001

J1001

R OUT
L OUT

R IN

L IN

J701

1

3

2
6

19
20

7
11
15

AUDIO_SW
IC703 NJM2233

1

Vin1

CVBSIN2

VIDEO OUT

VIDEO IN

21-B IN
21-G IN

21-R IN

SW TRANS

T501

12
15
16

13
20

FRONT VIDEO

J702

3

1

2

FRONT AUDIO

2

7

Vout

SW

3

Vin2

Q501

5
9

SOUND+B
+B
P.CON+8V
AT+5V

P.CON+5V

D

POWER
SW TR

3
2

J703

1

E-1

E-2

PRINTED CIRCUIT BOARDS

MAIN/CRT (INSERTED PARTS)

SOLDER SIDE

C448

CP101

R647

W094

PH001

R421

429

D410

R

J701

C006

C435

C401

R122

R121

C403

W093

L703

R703

D405

D709

L702

TU001

C003_1

R004

D604

CP802A

R706

R707

W803

R003

R445

R410

R621

C443

C634

CP401

VR401

C629

D001

C002

R402

W100

W098

L001

VR420

W097

TP001

Q401

TP502

C418

R403
R409

R422

R213

CF303

W082

C437

R416

C422

W099

HS401

C617_1

FB401

T401

C440

C423

C410

R417

C417

TP402
TP401

R447

R407

W092

W087

W086

W084

W091

W829

L401

R002

L601

R427

R411

W085

C632

Q402

0

3

W835

C610

R446

R518

D406

R

5

D407

W810

CF205

C611

R605

HS501

C446

R521

R506

L203

C209

VR501

R516

C531

Q504

C412_1

D516

C408

CF202_3

D602

D603

C501

D523

W090

Q501

W836

IC401

R001

R535

R408

C414

C217

C613

R527

B502

C520

C515

R405

W070

R522

D513

C522

D403

W837

R404

L202

W077

C216

X601

R501

C524

C506

R526

W080

W069

D524

W066

C526

T501

D511

W079

B501

W827

W065

W060

W076

C220

L204

B504

D510

W075

CF201

L207

X602

4

42

W056

W074

IC201

C517

R

R509

W063

W055

W073

C602

C604

C210

C503

TH501

W064

W067

C

5

02

W052

R514

C521_1

W062

W081

W078

W072

D608

CP502

RY501

D505

W053

HS502

D509

C519

C508

W071

D607

D501

IC502

D611

Q505

W061

C631

IC503

W059

W050

R619

W068

D606

C509

C514

D512

W058

W049

D610D609

C518

R511

D506

W021

W825

W057

W047

R620

W017

W016

R510

D507

W020

R528

D515

W046

W036

L501_1

W817

Q511

C525

W048

R517

R525

W033

W861

R536

W054

R502

W027

W037

W822

W815

D519

C115

W034

D525

W040

D517

CP1001

D508

L101

IC501

C542

W039

W035

C1001

C121

R807_1

R805_1

R803_1

W029

D104

W038

W032

W833

Q801

C505

IC504

Q507

W018

W042

R131

R133

R802

W028

W019

W041

W031

CC001

TP022

R512
R532

W022

W030

TP023

TP024

W024

W043

Q802

CP501

SW501

C528

W044

R107

IC199

FH501

F501

FH502

D502

W026

W008

W051

D518

D514

R125

X101

R804

W806

W009

W007

W006

C529

Q803

D521

D102

W834

W001

W820

W013

D528

W814

R741

D108

W012

C122

W005

R1009

J801

R806

C1007

C131

W010

W004

W821

W818

R1005

L714

W819

W003

C1002

W014

OS101

W002

B1001

C744

C

D105_1

R1010

L102

C711

CP801_1

9

81

J1001

SW102

SW107

SW106

C1003_1

C1005_1

W011

IC1001

C745

R740

SW104

R712

C803

W015

J702

R710

J703

C740

CP802B

F-1

F-2

C806
R816
C804
R813

C746

IC703

C704

R809

C805

CUT

Q102

R135

R811

R815

R145

R104

Q103

C1004

R814

R1003

R1004

R108

R139

C104

R1002

C111

C112

C105

C135

R110

C102

C103

R109

R113

C116

33

R116

R146

C113

C106

R111

R117

C114

R142

17

49

R114

R617

C108

R115

IC101

C109

R112

1

R128

R615

R105

C110

R124
R123

R120

R143

R140

C120

R106

R134
R138

R141

IC102

R144

PRINTED CIRCUIT BOARDS

MAIN/CRT (CHIP MOUNTED PARTS)

SOLDER SIDE

C119

Q508

Q512

R614

R508

Q506

R541

Q509

C530

R515

Q604

R524

Q605

R601

Q602

R623

Q510

R618

R613

R616

R630

C623

R612

C622

R507

R629

C607

R628

R622

C608

Q601

R636

C620

R625

C619

R219

C618

R611

C603

R610

R217

Q202

C630

C221

R203

C615

C201

R608

C616

R204

C207

C215

Q204

R639

C614

R640

R208

R646

C624

R218

R638

C205

R645

C625

C202

C212

C601

C213

Q201

C609

C218

R205

R201

R643

R607

C612

R202

R606

R602

C203

R406

R412

C413

R504

R214
R215

C204

Q603

C605

R419

R006

R420

C001

R702

R719

R708

R644

R005C004C005

R221

R709

R713

R714 R715

C701

C703

F-3

R102

C1006

C1009

R519

R513

C513

R523

R530

R531

C541

R533

C543

R534

CUT

R641

C532

F-4

8

G-1

G-2

7

6

5

4

3

2

ABC D E F GH

ACCESSORY

BT001

R03(AB)2PXGPI

BT002

R03(AB)2PXGPI

TM101
RC-FK010

FROM/TO SOUND AMP

A_MUTE RF_AGC

AV1

POWER

FROM/TO
CHROMA/SIF/VIF/21PIN

H_CONT

PROTECT

CVBS_TXT

HD

FOR_VCR

V_OUT

ANT001

T4-216BP-BK

CH UP

SW106

R104

820

SW107

CH DOWN

SKHVBED010

R108

1.2K

SKHVBED010

R133

100 1/4W

R139

390

SW102

VOL UP

R107

R102

2.2K

SKHVBED010

100 1/4W

SW104

VOL DOWN

SKHVBED010

R117

270

5.6K

R110

C104

0.0047 B

R109

2.2K

W820

C113

22P CH

C116

0.0047 B

C105

0.1 B

C135

68P CH

C103

0.0022 B

22P CH

R113

C106

C112

0.47 B

5.6K
R111

15K

C111

82P CH

R145

R142

3.6

4.8

SCL

JTRSTO

270

R135

150
LED SW
KRC111SRTK
Q102

100

R143

100

2

SDA

OSD_R

OSD_FB

17 NC
32 NC 48 GND

H_SYNC

AVDD1

PXFM

6

C131

D108

1016V KA

1K

D102

W821

R116

0

LED SW

4.8
KRA102SRTK

Q103

4.8

4.8

4.7K

R114

R115

4.7K

1

NC

0 3.0 3.0 1.2 1.2 1.2 1.2 0 0 04.8 4.800

16

0

NC

171819

VDD

JTDONC

0

NC

NC

0

WSCF

0

VPP

20212223242526272829

4.8
AVDD3

4.8

TEST0

1.6

MCFM

4.8

NC

JTCK

2.2

TXCF

0.2

NC

CVBSO

4.8
AVDD2

4.8

NC

JTMS

0.7
CVBS2

2.1
CVBS1

303132

0

AGND

0

NC

GND

33 34 35 36 37 38 39440 41 42 43 44 45 46 47 48

C102

W818

0.1 B

R128

MICON/TUNER SCHEMATIC DIAGRAM

3

C108

RESET
IC102 R3111N311A/C

123

1SS133

OSD_G

V_SYNC

10K

1SS133

MTZJ5.1B

D105_1

LTL-1BEFJ

G

R

OSD_B

MICON
IC101
OECF005A

ON_TIMER LED

4.8 4.802.53.04.81.900NC0

W806

R124

0

PROTECT

64 VDD

STANDBY LED

5

10K

789

AV1

POWER

R123

6

R112

10K

AV2

(NICAM)

0NCNC

47K

10K

R146

5

A MUTE

H_CONT

SECAM_VL_H

(EXT MUTE)

(MAIN PCB)

OS101 RPM7138-H5

10K

10K

R140

R138

R134

4.8
2

3

(ATS)

I2C_OFF

TU/RGB

SCART1

SCART2

PO.6

PO.7

RESET

REMORT

KEY_IN

POWER FAIL

P4.6

DEGAUSS

EMERGENCY

OSC_IN

OSC_OUT

(NTSC_3.58)

(VOLUME)

000NCNCNC00NC

10K

1101112131415

VDD

GND

VoutB+GND
123

W814 W819

4

60 61 62 63 64

50 51 52 53 54 55 56 57 58 59

49

4.8

0

0

0
0

NC

4.8
NC

4.8

4.8

4.8

4.8
0

NC

0

4.8

2.2

2.2

4.8

C122

1016V

KA

R125

68 1/4W

R141

4.7K

R120

10K

R144

C109

22P CH

X101 4MHz

100CT4R013

22P CH

C114

0.1 B
C115

22006.3V YK

10K

NC

RESET

4.9 4.9

D104

R106

C120
1B
R105

10K

VCC

C110

0.47

00

NCNC

45

NC

GND

0

B
10K

R131

4.7K 1/4W

L101

10uH 0305

L102

10uH 0305

TU001 TUWRF4EG-778F2

VCO

TP001

14 15

0

C121

IF
11

D001

10

MTZJ33B

C001

1006.3V YK

R001

R002

C119

30.7

8

9

L001

0.022 B

18K 1/2W

18K 1/2W

0.1 B

IC199 S-24C04BDP-LAMEMORY

5

6

7

4.0

4.9

R003

270 1/4W

4706.3V YK

C002

10uH 0305

4.8 0 4.804.8

VCC

MODE

E0

E1

1234

000

3.8

R004

2

3

4

SCL

E2

270 1/4W

C004

1

12 13

NCNCNCNCNC

2.2

PH001

003P-2100

R005

47P CH

R006

R122

75 1/4W

100K

15K

150V KA

C006

C003_1

100P CH

CC001

R121

100 1/4W

47P CH

C005

5678

VSS SDA

AGC

ADRES

SCL

SDA

V.S

BPL

BTL

FROM/TO
CHROMA/SIF/VIF/21PIN

IF
SCL

SDA
VIDEO_OUT

FROM/TO
CHROMA/SIF/VIF/21PIN

OSD_FB
OSD_R
OSD_G

OSD_B
TU/RGB

FROM/TO POWER

GND
P.CON+5V

+B
P.FAIL

EMERGENCY
POWER

DEGAUSS
AT+5V_AVDD
AT+5V_DVDD

CP101

06JQ-ST

1

GND

2

I2C SCL

3

I2C SDA

4

I2C OFF

5

RF AGC

VIDEO OUT

6

8

7

6

5

4

3

2

NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME

OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE

NOTE:THE DC VOLTAGE AT EACH PART WAS MEASURED

WITH THE DIGITAL TESTER WHEN THE COLOR BROADCAST
WAS RECEIVED IN GOOD CONDITION AND PICTURE IS NORMAL.

CAUTION: DIGITAL TRANSISTOR

1

CAUTION: DIGITAL TRANSISTOR

PCB010
TNB537

1

ABC D E F GH

8

G-3

G-4

7

6

5

4

FRONT_VIDEO_IN

3

2

ABC D E F GH

CHROMA/SIF/VIF/21PIN SCHEMATIC DIAGRAM

(MAIN PCB)

5.0

3.9

SIF BUFFER

R213

220 1/2W

330

1uH

R215

6.8K

L203

R202

C203

0.01 B

7.0

11

CF205

10K 1/4W
C631

3350V YK

C204

0.0022 B

MKT40.4MA110P

5.1

0

0.4

1016V KA

R605

C632

R601

4.7K

W835

W829

FROM/TO POWER

P.CON+8V

GND

P.CON+5V

FROM/TO SOUND AMP

AUDIO_OUT

SW_AUDIO_IN

SCART_AUDIO

FROM/TO MICON/TUNER

TU/RGB

IF
RF_AGC ABCL
H_CONT

SDA
SCL

HD

PROTECT

CF303

MKT41.5MA110P

C617_1

22 16V KA

R619

VIF PRE.AMP
Q201

1.5

KTC3881S-RTK

0.8

R214

82

2.2K

R201

C212

0.001 B

1016V KA

C209

C218

2.7 2.8 4.8 3.1 2.7 2.5 2.5

1 101112131415161718192 20 21 22 23 24 25 26 27 28

CHROMA

IC201 STV2246C

H.CONT
Q603
2SC2412K

C605

220 1/4W

8.3
PROTECT

Q602

0

2SC2412K

0

FM_CAP SIFIN1

3

4

SIFIN2

AUDIO_OUT

1B

VREF_IF

AGCSIFCAP

(5V)

VCC_D

GND_D

04.2

10uH

L601

0.1 B

C609

C610

R602
100

8.3

PROTECT

Q604

KRA102SRTK

8.3
0

CF202_3
TSF5330U

12345

C213

1B

R205

560

0.022 B

5

6789

PIFIN1

C601

100

270 1/4W

47P CH

R620

PIFIN2

SLPF

SCL

50515253545556

R607

47P CH

C625

C611

D602

AGCPIF_CAP

SDA

0305

10016V YK

R606

OUTOUTGININ

C207

0.33 B

C205

0.001 B

C202

R218

150

0.001 B

4.5 2.0 1.7

IFPLL

2.2K

12

1SS133

R647

R643

H_OUT

470

R638

R646

17

GND_IF

VERT

2.2K

8.2K

C624

R639

22K

C612

3.350V KA

1SS133

RF_AGC_OUT

LBF/SSC

R645

0.0015 B

D603

560 1/2W

0.01 B

5.6K

R644

C217

FM_OUT

BCL/SAF

R640

2.7K

L202

4716V YK

(5V) VCC_IF

(8V)
VCC1

27K

R208

1K

W822

R204

3.3uH 0305

C215

C614

R641

0.1 B

INT_CVBS_OUT

NC

444546474849

NC

1B

C613

22K

Q204
2SC2412K

3.2

L204

10uH

330

CF201

2250V YK

C216

EXT_AUDIO_IN

GND1

000 4.4

47010V YK

4716V KANP

C634

C629

R217

1K

1K

R219

VCO COIL

TPS5.5MB-TF21

L207

3700005

6

1234

NC

C201

3P CH

C616

PIF_LC2

CLPF

R608

0.0047 B

C615

VCC2
(8V)

XTAL1

40414243

47K

X601

1B

PIF_LC1

X1/VAMP/CHR_OUT

1016V KA

2.9

C221

0.1 B

C210

13

X602

4.433619MHz

11E1-EIC

7.9

2.28

8

R203

C220

47010V YK

150V KA

CVBSIN1

XTAL2

C630

3.579545MHz

D604

BUFFER
Q202
2SC2412K

1K

GND2

XTAL3

0.1 B

R610

C602

R617

7

R625

CVBSIN2

OSD_BK

1.2K

R611

150V KA

1K

S101X

W838

75

C603

C618

3.3K

R616

1F

BS

OSD_R

0.1 B

R612

1.5K

C604

Y/CVBS_IN3

OSD_G

C619

3.3K

R613

R615

150V KA

0.1 B

1.5K

10

NCNCNCNC

C620

R614

CHR

OSD_B

3.3K

0.1 B

1.5K

S101Y

C607

R636

R622

1.7 3.4 3.6 3.4 03.22.83.204.17.83.93.82.43.84.93.60

APR

ICATH

9

1F

330K

C608

R628

47K

D606

0

C622

0.1 B

B_EXT/U_EXT

G_EXT/Y_EXT

G.OUT

R.OUT

270

R629

D607

MTZJ6.8B

0

0

C623

0.1 B

30313233343536373839

270

R630

MTZJ6.8B

BUFFER

2SC2412K

RGB SW
Q601
2SC2412K

0.1 B

BLK_EXT

R_EXT/V_EXT

B.OUT

CVBSOUT

29

2.61.71.74.54.84.24.10.22.22.42.85.07.85.44.62.05.25.05.04.94.51.5

270

161514

D608

MTZJ6.8B

Q605

4.6

10K

R618

1K

R623

4.0

8.3

D609

D610

1SS133

1SS133

D611

1SS133

R719

100K

R706

1K 1/4W

R707

1K 1/4W

R708

1K

R621

L703

R702

3.3K

560 1/4W

10uH

L702
10uH

D709

MTZJ5.1B

C703

470P CH

C701

R714

75

R703

10K 1/4W

R715

R713

75

75

R221

75

R709

75

FROM/TO DEFLECTION/CRT

B.OUT
G.OUT
R.OUT
H_OUT
VAMP

V_OUT
AFC

FROM/TO MICON/TUNER

V_OUT
VIDEO_OUT
CVBS_TXT

OSD_B
OSD_G
OSD_R
OSD_FB
FOR_VCR

470P B

21PIN
J701

0350_9982_05

1

5

7

9

NC

11

NC

13

15

17

19

21 3

8

7

6

220

4

6

8

10

12

14

16

18

5

4

3

2

1

NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME

OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE

NOTE:THE DC VOLTAGE AT EACH PART WAS MEASURED

WITH THE DIGITAL TESTER WHEN THE COLOR BROADCAST
WAS RECEIVED IN GOOD CONDITION AND PICTURE IS NORMAL.

CAUTION: DIGITAL TRANSISTOR

PCB010
TMB537

1

ABC D E F GH

ABC D E F GH

G-5

G-6

8

7

L503

8R140018

(028R140027)

6

5

AC230V_50Hz

CD501_1

06655827

BLUE

BROWN

4

3

CAUTION: DIGITAL TRANSISTOR

2

21

21

CP502
A1561WV2-2P

1
2

BLUE
BROWN

12

F501

T4A_L_250V

FH501
EYF-52BC

CP501
A3963WV2-3PD

TH501

B59104-J80-A10
(J104-A80-A10)

SW501

SDKVA30100

56

NC NC

123

FH502

EYF-52BC

CAUTION: DIGITAL TRANSISTOR

POWER SCHEMATIC DIAGRAM

(MAIN PCB)

8

C509

470P500V B

D505

SB290S

D506

1SS133

RY501

ALKS321

(LK1aF-12V)

12

C505

0.1275V PHE840

4

(0.1uF)

L501_1

0R7A223F24Y

34

0.22275V PHE840

C518

(0.22uF)

C528

0.001250V KX

C529

(1000pF)

R502

470P250V KX

3

1.5M 1/2W

(470pF)

12

4

C501

RELAY SW

Q505

KTC3203_Y

2200P250V KX

(1000pF)

763WAA0170

C502

C503

0.0012KV B

HS501

POWER CONTROL

NC

0.1

0.7

0.0

0.0012KV B

2

1

4

D501

3

GBL06L-6177

R533
470

8.8 11.5 270

180

56

DRIVER

CTRL

DEM Isense

IC501TEA1507P/N1

1K

R531

C541

0.022 B

R528

10K 1/4W

R501

5.6 5W

R522

4.7 1/4W

R534

56K

C543

0.33 B

NC

78

HVS

DRAIN

VCC

GND

1234

17.501.10

C542

C526

10

11

12

13

14

15

16

17

18

0

0

0

0

0

0

0

0

0

R512

NC

NC

W834

R532

1K 1/4W

R513

D528

B504

W5RH3.5X5X1.0

W827

FEED BACK
SWITCHING

Q507

KTC3198

560

MTZJ5.6B

T501
81290974

R509

0.22 1W

82400V USR

B501

C532

D508

W817

G

220P B

R527

47 1/2W

B502

D

S

R511

R530

680K

W4BRH3.5X6X1

POWER

Q501
2SK2647-01MR
W5RH3.5X5X1.0

D523

11E1-EIC

0.33 1W
D524

11E1-EIC

D507

1SS133

R510

820K 1/4W

C524

1000P2KV R

W836

R535

1K 1/4W

R536

220K 1/4W

1N4937

R523

1K

4725V YK

270

270

400

NC

0

0

8

7

6

5

3

2

1

12.33

34

0.32
FEED BACK

IC504

LTV-817M-VB

9.07
1

2

470 1/4W

8.05

D516

SB290S

C520

470P500V B

RU2AM-EIC

D511

1N4937

MTZJ3.6B

7.7

6.2

5.6

C519

C517

0.0012KV R

D510

D513

SB290S

100 1/4W

C522

D502

C521_1

R526

D518

1SS133

C513

100016V

100016V MHE

0.01 B

R519

YK

100

C515

220160V YXF

R517

5.6 2W

100016V YK

C506

VR501

R514

R516

R518

470

R506

EMERGENCY
Q504

0

2SA1624

134.8

135.0

YK

100V

R507

10

2.2K

56K 1/2W

D519

1SS133

330

1/4W

2.2K

+-1%

+B ADJ.

D514

D525

MTZJ12B

D521

1SS133

C531

2250V MHE

R521

68K 1/4W

R503

1.2 2W

763WAA0186

1SS133

22K1/4W

R504

5.6K

IC503 KIA78R09API

OUT

22016V YK

C525

R508

10K

GND

6.008.0

C508

EMERGENCY

Q509
KRC111SRTK

0

0.1 B

KRC111SRTK

EMERGENCY

GND

5.008.011.2

4.9

4.2

OUT

D509

11E1-EIC

10010V YK

P.CON SW

Q510

KRC103SRTK

C530

R541

27K

Q508

IN

1234

IC502 KIA7806API

IN

123

HS502

6.8

0

SW

11E1-EIC

P.FAIL

Q506

2SA1037AK

4.9

P.CON SW

Q511

KTA1281_Y

5.1

R515

10K

R524

0

0

4.9

D517

W825

5.0

4.4

560

0.1

4.7

0

EMERGENCY
Q512
KRA102SRTK

D512

C514

4.9

SB10-03A3

1016V KA

4.9

W861
W833

TP502

D515

R525

1K 1/4W

0

FROM/TO SOUND AMP

SOUND+B
P.CON+8V
SOUND_GND
GND

FROM/TO DEFLECTION/CRT

GND
P.CON+8V

+B_135V
H.DRV+B

FROM/TO
CHROMA/SIF/VIF/21PIN

P.CON+8V
P.CON+5V
GND

FROM/TO MICON/TUNER

+B
GND

P.FAIL

AT+5V_AVDD
P.CON+5V
DEGAUSS

AT+5V_DVDD
POWER
EMERGENCY

SB10-03A3

7

6

5

4

3

2

1

DANGEREUSES AN POINT DE VUE SECURITE
N’UTILISER QUE CELLS DECRITES
DANS LA NOMENCLATURE DES PIECES

ETANTLES PIECES REPAREES PAR UNATTENTION:

CRITICAL FOR SAFETY,USE ONES
DESCRIBED IN PARTS LIST ONLY

ARESINCE THESE PARTS MARKED BYCAUTION:

NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME

OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE

NOTE:THE DC VOLTAGE AT EACH PART WAS MEASURED

WITH THE DIGITAL TESTER WHEN THE COLOR BROADCAST
WAS RECEIVED IN GOOD CONDITION AND PICTURE IS NORMAL.

PCB010
TMB537

1

ABC D E F GH

ABC D E F GH

G-7

G-8

8

7

6

5

4

3

FROM/TO
CHROMA/SIF/VIF/21PIN

G.OUT
R.OUT
B.OUT

V_OUT

VAMP
ABCL

H_OUT

AFC

FROM/TO POWER

H.DRV+B

GND

P.CON+8V

+B_135V

R424

180 1W

D406

1SS133

R411

820 1/4W

390 2W

R422

H.DRIVE

2SC1627_Y

Q402

0.3

18

R404

330K M+-1%

27.0

0

DEFLECTION/CRT SCHEMATIC DIAGRAM

IC401 TDA8174AV-DRIVE

POWER OUTPUT

OUTPUT STAGE Vs

TRIGGER INPUT

R408

R405

1K 1/4W

T401

ETH09K14BZ

34
2
1

6

HEIGHT ADJ.

1101123456789

14.5 23.0 5.0 6.4 4.4 12.0 12.0 4.4 25.0 1.70.0

21

MKT

0.01100V

C440

2250V MHE

C446

1/2W

R446

470

Vref. DECOUP.

+-1%

M

390K

1016V KA

C408

R406

6.8K

HS401

763WSAA013

22

GND

R427

RAMP GENERATOR

C412_1

0.047 MMTV

R417

130

0

100 1/4W

R412

BUFFER OUTPUT

INVERTING INPUT

8.2K

R419

W810

1.2K

3.3K +-1%

H.OUTPUT
Q401
2SD2499

0

C401

220P B

V_LIN.

23

VR420

C417

Vs

R420

470

1050V YK

FB. GENERATOR

10035V YK

C414

10K

C418

R407

D405

AU02A-EIC

C423

R447

L401

C443

1.2 1/2W

C413

220025V MHE

2.2250V MHE

68 1/2W

4.7mH

0.00821.25KV

0.082 B

0909

MPP

C422

R416

C437

C410

D410

47035V YK

19

MKT

0.22

100V

2.2 1/2W

PMS

0.39250V

AU02A-EIC

11E1-EIC

R410

D403

680 1/2W

(MAIN PCB)

1

GND

2
3

G.OUT

4

R.OUT

5

B.OUT

NC

NC

FROM/TO CRT

CP802A

B2013H02-10P

47035V YK

C403

R402

680 1/2W

20

R409

680 1/2W

2.2K

VR401

V_POSI

R403

680 1/2W

R429

1W

4.7

FB401
3214034F

130

COL

1

0

E180

6

135

B+

2

0

AFC

NC

9

HEA

0

TER

10

0

GND

8

0

E12

NC

4

0

E27

3

0

GND

8

0

E8

NC

5

HV

F

S

0

GND

11

0

ABL

7

C448

10

250V YK

NC

HEATER

GND

180V

NC

6
7
8
9

10

5
4
3
2
1

CP401

A1561WV2-A5P

1
2
3
4
5
6
7
8
9

10

CD801

SM1573-001

V801
A34AGT13X98(L)

(CPJ370BVBK1U-TC)

9

10

R

8

G

6

B

11

SCREEN

GND

CUT OFFCUT OFF

G.OUT
R.OUT
B.OUT

NC

HEATER

GND
ICATHICATH
180V

FROM/TO DEFLECTION
CP802B

B2013H02-10P

CP801_1

003P-2100

1

175

FOCUSFOCUS

NC

NC

1250V YK

C803

W815

R814

1/4W

2.7K

R816

1.2K

270

R809

1/4W

2.7K

6.4

0

5

0

6

7

HPS3200-010501

1.2K

GREEN OUT

Q802

KTC3207

98.4100.6 2.7 2.7 2.7

270

R813

4

8

R805_1

96.4

3

9

99.6

J801

C805

TP024

15K 2W

0

1

F

1

RED OUT
KTC3207

R803_1

C819

0.0012KV B

Q801

3.2

C804

470P B

TP022

R802

15K 2W

101.6

R811

1.2K
BLUE OUT

3.2

R815

470P B

262524

R804

2.7K 1/4W

R807_1

KTC3207

270

Q803

15K 2W

95.4

TP023

C806

3.2

680P B

R806

8

7

6

5

4

3

2

1

D407

1SS133

R445

180K

1/4W

47K 1/4W

PCB010
TMB537

DANGEREUSES AN POINT DE VUE SECURITE
N’UTILISER QUE CELLS DECRITES
DANS LA NOMENCLATURE DES PIECES

CRITICAL FOR SAFETY,USE ONES
DESCRIBED IN PARTS LIST ONLY

NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME

OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE

TP401

NC

TP402

NC

C435

0.1100V MKT

R421

PCB110
TCB396

ETANTLES PIECES REPAREES PAR UNATTENTION:

ARESINCE THESE PARTS MARKED BYCAUTION:

NOTE:THE DC VOLTAGE AT EACH PART WAS MEASURED

WITH THE DIGITAL TESTER WHEN THE COLOR BROADCAST
WAS RECEIVED IN GOOD CONDITION AND PICTURE IS NORMAL.

NOTE:THE RESISTOR MARKED F IS FUSE RESISTOR.

THE ALUMI ELECTROLYTIC CAPACITOR MARKED NP
IS NON POLAR ONE.

2

1

ABC D E F GH

ABC D E F GH

G-9

G-10

SOUND AMP SCHEMATIC DIAGRAM

8

(MAIN PCB)

J703

HTJ-032-05AW

R712

820 1/4W

7

L714

10uH 0305

C746

10010V KA

C711

0.01 B

28

R710

75 1/4W

C704

0.001 B

23

HNC

23

HNC

J702

HTJ-032-05AY

E

1

E

1

8

7

C740

1016V KA

R740

220 1/4W

6

5

FROM/TO

4

3

CHROMA/SIF/VIF/21PIN

SW_AUDIO_IN

FRONT_VIDEO_IN

SCART_AUDIO

AUDIO_OUT

FROM/TO POWER

SOUND+B

P.CON+8V

SOUND_GND

GND

27

04.4 8.3 0

GND

V.OUT

Vin1

AUDIO SW(MONO)

SW1

IC703 NJM2233BM-T1

1234

5.1 0 5.1 0

1016V KANP

C744

R741

1K 1/4W

C745

Vcc

Vin2

1016V KANP

NC

5678

NC

NC

NC

5678

+-

0

1016V KA

R1002

47016V YK

C1002

C1001

12K

C1003_1

2216V KANP

R1004

150K

R1003

100K

R1005

68K 1/4W

R1009

47K 1/4W

C1005_1

150V KA

1234

0.35.1 3.9

C1004

3.43.58.2 0

820P B

SOUND AMP

IC1001 AN7511

C1006

470P B

C1007

1016V KA

B1001

W5RH3.5X5X1.0

R1010

33 1/2W

29

C1009

0.0047 B

CP1001

A2502WV2-2P

HEADPHONE_JACK
MSJ-035-12A_PC

1
2

2
3
1

J1001

1
2

SP1001

SPEAKER

SA08A05BWB

W/WIRE

6

5

4

3

FROM/TO MICON/TUNER

AV1

A_MUTE

POWER

2

PCB010
TMB537

1

NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME

OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE

NOTE:THE DC VOLTAGE AT EACH PART WAS MEASURED

WITH THE DIGITAL TESTER WHEN THE COLOR BROADCAST
WAS RECEIVED IN GOOD CONDITION AND PICTURE IS NORMAL.

DANGEREUSES AN POINT DE VUE SECURITE
N’UTILISER QUE CELLS DECRITES
DANS LA NOMENCLATURE DES PIECES

ETANTLES PIECES REPAREES PAR UNATTENTION:

CRITICAL FOR SAFETY,USE ONES
DESCRIBED IN PARTS LIST ONLY

ARESINCE THESE PARTS MARKED BYCAUTION:

2

1

ABC D E F GH

MICON/TUNER

WAVEFORMS

0.2ms

1.00V

1

0.2ms

1.00V

2

0.5µs

1.00V

3

20µs

1.00V

6

CHROMA/SIF/VIF/21PIN

2ms

0.50V

7

20µs

1.00V

8

500µs
50mV

11

20µs
200mV

12

100ns
20mV

13

0.5µs

1.00V

4

10ms

1.00V

5

20µs

20us

0.50V

1.00V

14

9

20us

1.00V

10

The following waveforms were measured at the point of the corresponding

NOTH:

balloon number in the schematic diagram.

H-1

20µs

1.00V

15

WAVEFORMS

20µs

1.00V

16

20µs

5.00V

17

DEFLECTION/CRT

10ms

1.00V

20µs

10.0V

21

20µs

5.00V

22

2us
200V

20µs
50V

26

SOUND AMP

500us
100mV

27

10us
200mV

18

10ms

10.0V

19

10ms

10.0V

23

20µs
50V

24

20µs
50V

28

500us
500mV

29

20

25

The following waveforms were measured at the point of the corresponding

NOTH:

balloon number in the schematic diagram.

H-2

MECHANICAL EXPLODED VIEW

114

201

201

201

202

112

202

202

204

202

110

202

PCB110
(CRT PCB)

115

106

107

201

109

108

113

203

206

207
205

104

111

103

206

PCB010
(MAIN PCB)

102

105

101

I-1

MECHANICAL REPLACEMENT PARTS LIST

REF. NO. PART NO. DESCRIPTION

101 A3L804M720 CABINET,FRONT ASSY
102 752WSA0216 SHIELD,CASE
103 752WSA0272 SHIELD,AUDIO
104 752WSA0286 SHIELD,IC
105 701UPJ0305 CABINET,FRONT
106 713UPA0020 GUIDE,REMOCON
107 713UPA0021 GLASS,LED
108 735UPA0097 BUTTON,BASE
109 735UPB0013 BUTTON,FRAME

110 702UPA0239 CABINET,BACK
111 761WPAA060 HOLDER,PCB
112 7225490087 SHEET,RATING
113 735UPB0014 BUTTON,POWER
114 741WUA0020 SPRING,EARTH
115 899HV3T001 HOLDER,ANODE WIRE

201 8121J50B54 SCREW,TAPPING(B0) GW20 5x28
202 8117540A64 SCREW,TAPPING(B0) TRUSS 4x16
203 8110630A04 SCREW,TAP TITE(P) BRAZIER 3x10
204 8110630804 SCREW,TAP TITE(P) BRAZIER 3x8
205 8107630804 SCREW,TAP TITE(S) BRAZIER 3x8
206 8109I30804 SCREW,TAP TITE(B) WH7 3x8
207 8109630802 SCREW,TAP TITE(B) BRAZIER 3x8

--- A3L804N975 INSTRUCTION BOOK KIT

--- JB5XDA00 POLYBAG,INSTRUCTION(RED CAUTION)

--- J3L80401 INSTRUCTION BOOK(SWE)

--- J3L80407 QUICK SET-UP SHEET(SWE)

--- J3L80410 INSTRUCTION BOOK(NOR)

--- J3L80411 INSTRUCTION BOOK(DAN)

--- J3L80451 INSTRUCTION BOOK(FIN)

--- J3L80461 INSTRUCTION BOOK(TUR)

--- J3L80470 QUICK SET-UP SHEET(NOR)

--- J3L80471 QUICK SET-UP SHEET(DAN)

--- J3L80473 QUICK SET-UP SHEET(FIN)

--- J3L80474 QUICK SET-UP SHEET(TUR)

--- 7230007526 SHEET,BAR CODE

--- 791WHA0090 LAMIFILM,BAG

--- 792UHA0165 PACKAGE,TOP

--- 792UHA0166 PACKAGE,BOTTOM

--- 793UCD1178 GIFT BOX

J1-1

ELECTRICAL REPLACEMENT PARTS LIST

REF. NO. PART NO. DESCRIPTION REF. NO. PART NO. DESCRIPTION

RESISTORS RESISTORS

R001 R002T2183J RC 18K OHM 1/2W ! R501 R5X2CD5R6J R,CEMENT 5.6 OHM 5W
R002 R002T2183J RC 18K OHM 1/2W R502 R002T2155J RC 1.5M OHM 1/2W
R003 R002T4271J RC 270 OHM 1/4W R503 R3X18A1R2J R,METAL OXIDE 1.2 OHM 2W
R004 R002T4271J RC 270 OHM 1/4W R504 R801R7562J RC 5.6K OHM 1/10W
R005 R801R7104J RC 100K OHM 1/10W R506 R002T4223J RC 22K OHM 1/4W
R006 R801R7153J RC 15K OHM 1/10W R507 R801R7222J RC 2.2K OHM 1/10W
R102 R801R7222J RC 2.2K OHM 1/10W R508 R801R7103J RC 10K OHM 1/10W
R104 R801R7821J RC 820 OHM 1/10W R509 R63581R22J R,FUSE 0.22 OHM 1W
R105 R801R7103J RC 10K OHM 1/10W R510 R002T4824J RC 820K OHM 1/4W
R106 R801R7103J RC 10K OHM 1/10W R511 R002T2470J RC 47 OHM 1/2W
R107 R002T4101J RC 100 OHM 1/4W R512 R002T4471J RC 470 OHM 1/4W
R108 R801R7122J RC 1.2K OHM 1/10W R513 R801R7561J RC 560 OHM 1/10W
R109 R801R7222J RC 2.2K OHM 1/10W R514 R002T2563J RC 56K OHM 1/2W
R110 R801R7562J RC 5.6K OHM 1/10W R515 R801R7103J RC 10K OHM 1/10W
R111 R801R7153J RC 15K OHM 1/10W R516 R002T4331J RC 330 OHM 1/4W
R112 R801R7473J RC 47K OHM 1/10W R517 R3X18A5R6J R,METAL OXIDE 5.6 OHM 2W
R113 R801R7562J RC 5.6K OHM 1/10W R518 R4X5T6222F R,METAL 2.2K OHM 1/6W
R114 R801R7472J RC 4.7K OHM 1/10W R519 R801R7101J RC 100 OHM 1/10W
R115 R801R7472J RC 4.7K OHM 1/10W R521 R002T4683J RC 68K OHM 1/4W
R116 R801R7103J RC 10K OHM 1/10W R522 R002T44R7J RC 4.7 OHM 1/4W
R117 R801R7271J RC 270 OHM 1/10W R523 R801R7102J RC 1K OHM 1/10W
R120 R801R7103J RC 10K OHM 1/10W R524 R801R7561J RC 560 OHM 1/10W
R121 R002T4101J RC 100 OHM 1/4W R525 R002T4102J RC 1K OHM 1/4W
R122 R002T4750J RC 75 OHM 1/4W R526 R002T4101J RC 100 OHM 1/4W
R123 R801R7103J RC 10K OHM 1/10W R527 R3X181R33J R,METAL OXIDE 0.33 OHM 1W
R124 R801R7103J RC 10K OHM 1/10W R528 R002T4103J RC 10K OHM 1/4W
R125 R002T4680J RC 68 OHM 1/4W R530 R801R7684J RC 680K OHM 1/10W
R128 R801R7102J RC 1K OHM 1/10W R531 R801R7102J RC 1K OHM 1/10W
R131 R002T4472J RC 4.7K OHM 1/4W R532 R002T4102J RC 1K OHM 1/4W
R133 R002T4101J RC 100 OHM 1/4W R533 R801R7471J RC 470 OHM 1/10W
R134 R801R7103J RC 10K OHM 1/10W R534 R801R7563J RC 56K OHM 1/10W
R135 R801R7151J RC 150 OHM 1/10W R535 R002T4102J RC 1K OHM 1/4W
R138 R801R7103J RC 10K OHM 1/10W R536 R002T4224J RC 220K OHM 1/4W
R139 R801R7391J RC 390 OHM 1/10W R541 R801R7273J RC 27K OHM 1/10W
R140 R801R7103J RC 10K OHM 1/10W R601 R801R7472J RC 4.7K OHM 1/10W
R141 R801R7472J RC 4.7K OHM 1/10W R602 R801R7101J RC 100 OHM 1/10W
R142 R801R7101J RC 100 OHM 1/10W R605 R002T4221J RC 220 OHM 1/4W
R143 R801R7101J RC 100 OHM 1/10W R606 R801R7101J RC 100 OHM 1/10W
R144 R801R7103J RC 10K OHM 1/10W R607 R801R7223J RC 22K OHM 1/10W
R145 R801R7271J RC 270 OHM 1/10W R608 R801R7473J RC 47K OHM 1/10W
R146 R801R7103J RC 10K OHM 1/10W R610 R801R7122J RC 1.2K OHM 1/10W
R201 R801R7820J RC 82 OHM 1/10W R611 R801R7332J RC 3.3K OHM 1/10W
R202 R801R7331J RC 330 OHM 1/10W R612 R801R7332J RC 3.3K OHM 1/10W
R203 R801R7102J RC 1K OHM 1/10W R613 R801R7332J RC 3.3K OHM 1/10W
R204 R801R7331J RC 330 OHM 1/10W R614 R801R7152J RC 1.5K OHM 1/10W
R205 R801R7561J RC 560 OHM 1/10W R615 R801R7152J RC 1.5K OHM 1/10W
R208 R801R7102J RC 1K OHM 1/10W R616 R801R7152J RC 1.5K OHM 1/10W
R213 R002T2221J RC 220 OHM 1/2W R617 R801R7102J RC 1K OHM 1/10W
R214 R801R7222J RC 2.2K OHM 1/10W R618 R801R7103J RC 10K OHM 1/10W
R215 R801R7682J RC 6.8K OHM 1/10W R619 R002T4103J RC 10K OHM 1/4W
R217 R801R7102J RC 1K OHM 1/10W R620 R002T4271J RC 270 OHM 1/4W
R218 R801R7151J RC 150 OHM 1/10W R621 R002T4561J RC 560 OHM 1/4W
R219 R801R7102J RC 1K OHM 1/10W R622 R801R7334J RC 330K OHM 1/10W
R221 R801R7750J RC 75 OHM 1/10W R623 R801R7102J RC 1K OHM 1/10W
R402 R002T2681J RC 680 OHM 1/2W R625 R801R7750J RC 75 OHM 1/10W
R403 R002T2681J RC 680 OHM 1/2W R628 R801R7271J RC 270 OHM 1/10W
R404 R4X5T6334F R,METAL 330K OHM 1/6W R629 R801R7271J RC 270 OHM 1/10W
R405 R4X5T6394F R,METAL 390K OHM 1/6W R630 R801R7271J RC 270 OHM 1/10W
R406 R801R7682J RC 6.8K OHM 1/10W R636 R801R7473J RC 47K OHM 1/10W
R407 R002T21R2J RC 1.2 OHM 1/2W R638 R801R7222J RC 2.2K OHM 1/10W
R408 R002T4102J RC 1K OHM 1/4W R639 R801R7562J RC 5.6K OHM 1/10W
R409 R002T2681J RC 680 OHM 1/2W R640 R801R7273J RC 27K OHM 1/10W
R410 R002T2681J RC 680 OHM 1/2W R641 R801R7223J RC 22K OHM 1/10W
R411 R3X28A391J R.METAL OXIDE 390 OHM 2W R643 R801R7471J RC 470 OHM 1/10W
R412 R801R7822J RC 8.2K OHM 1/10W R644 R801R7272J RC 2.7K OHM 1/10W
R416 R002T22R2J RC 2.2 OHM 1/2W R645 R801R7222J RC 2.2K OHM 1/10W
R417 R4X5T6332F R,METAL 3.3K OHM 1/6W R646 R801R7822J RC 8.2K OHM 1/10W
R419 R801R7122J RC 1.2K OHM 1/10W R647 R002T2561J RC 560 OHM 1/2W
R420 R801R7103J RC 10K OHM 1/10W R702 R801R7332J RC 3.3K OHM 1/10W
R421 R002T4473J RC 47K OHM 1/4W R703 R002T4103J RC 10K OHM 1/4W
R422 R002T4821J RC 820 OHM 1/4W R706 R002T4102J RC 1K OHM 1/4W
R424 R3X181181J R,METAL OXIDE 180 OHM 1W R707 R002T4102J RC 1K OHM 1/4W
R427 R002T4101J RC 100 OHM 1/4W R708 R801R7102J RC 1K OHM 1/10W
R429 R655814R7J R,FUSE 4.7 OHM 1W R709 R801R7750J RC 75 OHM 1/10W
R445 R002T4184J RC 180K OHM 1/4W R710 R002T4750J RC 75 OHM 1/4W
R446 R002T2471J RC 470 OHM 1/2W R712 R002T4821J RC 820 OHM 1/4W
R447 R635U2680J R,FUSE 68 OHM 1/2W R713 R801R7750J RC 75 OHM 1/10W

J2-1

ELECTRICAL REPLACEMENT PARTS LIST

REF. NO. PART NO. DESCRIPTION REF. NO. PART NO. DESCRIPTION

RESISTORS CAPACITORS

R714 R801R7750J RC 75 OHM 1/10W C435 P235W1104J CMP 0.1 UF 100V MKT
R715 R801R7750J RC 75 OHM 1/10W C437 P4J7F3394J CMPP 0.39 UF 250V PMS
R719 R801R7104J RC 100K OHM 1/10W C440 P235W1103J CMP 0.01 UF 100V MKT
R740 R002T4221J RC 220 OHM 1/4W C443 P4N8FJ822H CMPP 0.0082UF 1.25KV
R741 R002T4102J RC 1K OHM 1/4W C446 E5EZU5220M CE 22 UF 50V
R802 R002T4272J RC 2.7K OHM 1/4W C448 E02LTD100M CE 10 UF 250V
R803 R3X18A153J R,METAL OXIDE 15K OHM 2W C501 CD39E0MH3M CC 0.0022UF 250V
R804 R002T4272J RC 2.7K OHM 1/4W C502 C0JBB0713K CC 0.001 UF 2KV B
R805 R3X18A153J R,METAL OXIDE 15K OHM 2W C503 C0JBB0713K CC 0.001 UF 2KV B
R806 R002T4272J RC 2.7K OHM 1/4W ! C505 P2472B104M CMP 0.1 UF 275V PHE840
R807 R3X18A153J R,METAL OXIDE 15K OHM 2W C506 E02LU8100M CE 10 UF 100V
R809 R801R7122J RC 1.2K OHM 1/10W C508 E02LU1101M CE 100 UF 10V
R811 R801R7122J RC 1.2K OHM 1/10W C509 C0JTB05Q2K CC 470 PF 500V B
R813 R801R7271J RC 270 OHM 1/10W C513 CS0RB0414K CC 0.01 UF 50V B
R814 R801R7122J RC 1.2K OHM 1/10W C514 E50HU2100M CE 10 UF 16V
R815 R801R7271J RC 270 OHM 1/10W C515 E02LT2102M CE 1000 UF 16V
R816 R801R7271J RC 270 OHM 1/10W C517 C03L0R713K CC 0.001 UF 2KV R
R1002 R801R7123J RC 12K OHM 1/10W ! C518 P2472B224M CMP 0.22UF 275V PHE840
R1003 R801R7104J RC 100K OHM 1/10W C519 E02LT2102M CE 1000 UF 16V
R1004 R801R7154J RC 150K OHM 1/10W C520 C0J0B05Q2K CC 470 PF 500V B
R1005 R002T4683J RC 68K OHM 1/4W C521 E62NFB221M CE 220 UF 160V
R1009 R002T4473J RC 47K OHM 1/4W C522 E5EZT2102M CE 1000 UF 16V
R1010 R002T2330J RC 33 OHM 1/2W C524 C03L0R713K CC 0.001 UF 2KV R

CAPACITORS

C001 CS0RB04H4K CC 0.022 UF 50V B C526 E52D0H820M CE 82 UF 400V
C002 E02LU0471M CE 470 UF 6.3V C528 CD39B0MQ2K CC 470 PF 250V
C003 E50HU5010M CE 1 UF 50V ! C529 CD39E0M13M CC 0.001 UF 250V
C004 CS0RCH4Q1J CC 47 PF 50V CH C530 CS0RB0315K CC 0.1 UF 25V B
C005 CS0RCH4Q1J CC 47 PF 50V CH C531 E5EZU5220M CE 22 UF 50V
C006 C0JTCH412J CC 100 PF 50V CH C532 CS0RB04H2K CC 220 PF 50V B
C102 CS0RB0315K CC 0.1 UF 25V B C541 CS0RB04H4K CC 0.022 UF 50V B
C103 CS0RCH4H1J CC 22 PF 50V CH C542 E02LU3470M CE 47 UF 25V
C104 CS0RB04Q3K CC 0.0047UF 50V B C543 CS0RB02L5K CC 0.33 UF 16V B
C105 CS0RB0315K CC 0.1 UF 25V B C601 CS0RCH4Q1J CC 47 PF 50V CH
C106 CS0RB04H3K CC 0.0022UF 50V B C602 E50HU5010M CE 1 UF 50V
C108 CS0RCH4H1J CC 22 PF 50V CH C603 CS0RF0316Z CC 1 UF 25V F
C109 CS0RCH4H1J CC 22 PF 50V CH C604 E50HU5010M CE 1 UF 50V
C110 CS0RB02Q5K CC 0.47 UF 16V B C605 CS0RB0216K CC 1 UF 16V B
C111 CS0RCH4W1J CC 82 PF 50V CH C607 CS0RF0316Z CC 1 UF 25V F
C112 CS0RB02Q5K CC 0.47 UF 16V B C608 CS0RB0315K CC 0.1 UF 25V B
C113 CS0RCH4H1J CC 22 PF 50V CH C609 CS0RB0315K CC 0.1 UF 25V B
C114 CS0RB0315K CC 0.1 UF 25V B C610 E02LU2101M CE 100 UF 16V
C115 E02LF0222M CE 2200 UF 6.3V C611 E50HU53R3M CE 3.3 UF 50V
C116 CS0RB04Q3K CC 0.0047UF 50V B C612 CS0RB04E3K CC 0.0015UF 50V B
C119 CS0RB0315K CC 0.1 UF 25V B C613 E02LU1471M CE 470 UF 10V
C120 CS0RB0216K CC 1 UF 16V B C614 CS0RB0216K CC 1 UF 16V B
C121 E02LU0101M CE 100 UF 6.3V C615 CS0RB0216K CC 1 UF 16V B
C122 E50HU2100M CE 10 UF 16V C616 CS0RB04Q3K CC 0.0047UF 50V B
C131 E50HU2100M CE 10 UF 16V C617 E50HU2220M CE 22 UF 16 V
C135 CS0RCH4U1J CC 68 PF 50V CH C618 CS0RB0315K CC 0.1 UF 25V B
C201 CS0RCH430C CC 3 PF 50V CH C619 CS0RB0315K CC 0.1 UF 25V B
C202 CS0RB0413K CC 0.001 UF 50V B C620 CS0RB0315K CC 0.1 UF 25V B
C203 CS0RB0414K CC 0.01 UF 50V B C622 CS0RB0315K CC 0.1 UF 25V B
C204 CS0RB04H3K CC 0.0022UF 50V B C623 CS0RB0315K CC 0.1 UF 25V B
C205 CS0RB0413K CC 0.001 UF 50V B C624 CS0RB0414K CC 0.01 UF 50V B
C207 CS0RB02L5K CC 0.33 UF 16V B C625 CS0RCH4Q1J CC 47 PF 50V CH
C209 E50HU2100M CE 10 UF 16V C629 E50HU2100M CE 10 UF 16V
C210 E50HU5010M CE 1 UF 50V C630 CS0RB0315K CC 0.1 UF 25V B
C212 CS0RB0413K CC 0.001 UF 50V B C631 E02LU5330M CE 33 UF 50V
C213 CS0RB0216K CC 1 UF 16V B C632 E50HU2100M CE 10 UF 16V
C215 CS0RB0315K CC 0.1 UF 25V B C634 E00NU2470M CE 47 UF 16 V
C216 E02LU5220M CE 22 UF 50V C701 CS0RB04Q2K CC 470 PF 50V B
C217 E02LU2470M CE 47 UF 16V C703 CS0RCH4Q2J CC 470 PF 50V CH
C218 CS0RB04H4K CC 0.022 UF 50V B C704 CS0RB0413K CC 0.001 UF 50V B
C220 E02LU1471M CE 470 UF 10V C711 E50HU1101M CE 100 UF 10 V
C221 CS0RB0315K CC 0.1 UF 25V B C740 E50HU2100M CE 10 UF 16V
C401 CHGTB04H2K CC 220 PF 50V B C744 E00NU2100M CE 10 UF 16 V
C403 E02LT4471M CE 470 UF 35V C745 E00NU2100M CE 10 UF 16 V
C408 E50HU2100M CE 10 UF 16V C746 CS0RB0414K CC 0.01 UF 50V B
C410 E02LT4471M CE 470 UF 35V C803 E02LTD010M CE 1 UF 250V
C412 P232T0473J CMPL 0.047 UF 50V MMTV C804 CS0RB04Q2K CC 470 PF 50V B
C413 CS0RB04W4K CC 0.082 UF 50V B C805 CS0RB04Q2K CC 470 PF 50V B
C414 E02LU4101M CE 100 UF 35V C806 CS0RB04U2K CC 680 PF 50V B
C417 E02LU5100M CE 10 UF 50V C819 C0JBB0713K CC 0.001 UF 2KV B
C418 E5EZF3222M CE 2200 UF 25V C1001 E02LT2471M CE 470 UF 16V
C422 P235W1224J CMP 0.22 UF 100V MKT C1002 E50HU2100M CE 10 UF 16V
C423 E5EZTD2R2M CE 2.2 UF 250V C1003 E00NU2220M CE 22 UF 16 V

C525 E02LU2221M CE 220 UF 16V

J2-2

ELECTRICAL REPLACEMENT PARTS LIST

REF. NO. PART NO. DESCRIPTION REF. NO. PART NO. DESCRIPTION

CAPACITORS TRANSISTORS

C1004 CS0RB04W2K CC 820 PF 50V B Q511 TAAT01281Y TRANSISTOR,SILICON KTA1281_Y
C1005 E50HU5010M CE 1 UF 50V Q512 TPAAB05001 COMPOUND TRANSISTOR KRA102SRTK
C1006 CS0RB04Q2K CC 470 PF 50V B Q601 T8YJ2412K0 TRANSISTOR,SILICON 2SC2412KT146 R,S
C1007 E50HU2100M CE 10 UF 16V Q602 T8YJ2412K0 TRANSISTOR,SILICON 2SC2412KT146 R,S
C1009 CS0RB04Q3K CC 0.0047UF 50V B Q603 T8YJ2412K0 TRANSISTOR,SILICON 2SC2412KT146 R,S

DIODES

D001 D97U03301B DIODE,ZENER MTZJ33B T-77 Q605 T8YJ2412K0 TRANSISTOR,SILICON 2SC2412KT146 R,S
D102 D97U05R11B DIODE,ZENER MTZJ5.1B T-77 Q801 TCAT032070 TRANSISTOR,SILICON KTC3207-AT
D104 D1VT001330 DIODE,SILICON 1SS133T-77 Q802 TCAT032070 TRANSISTOR,SILICON KTC3207-AT
D105 0021E9Q010 LED LTL-1BEFJ Q803 TCAT032070 TRANSISTOR,SILICON KTC3207-AT
D108 D1VT001330 DIODE,SILICON 1SS133T-77
D403 D2WT011E10 DIODE,SILICON 11E1-EIC L001 02167F100J COIL 10 UH
D405 D2WTAU02A0 DIODE,SILICON AU02A-EIC L101 02167F100J COIL 10 UH
D406 D1VT001330 DIODE,SILICON 1SS133T-77 L102 02167F100J COIL 10 UH
D407 D1VT001330 DIODE,SILICON 1SS133T-77 L202 02167F3R3J COIL 3.3 UH
D410 D2WTAU02A0 DIODE,SILICON AU02A-EIC L203 021LA61R0M COIL 1 UH
D501 D4LZBL06L0 DIODE GBL06L-6177 L204 021LA6100K COIL 10 UH

! D502 D97U03R61B DIODE,ZENER MTZJ3.6B T-77 L207 033700005R COIL,VIDEO IFT 3700005

D505 D2WXB290S0 DIODE,SILICON SB290S L401 021679472K COIL 4.7 MH
D506 D1VT001330 DIODE,SILICON 1SS133T-77 ! L501 029T000094 COIL,LINE FILTER 0R7A223F24Y
D507 D1VT001330 DIODE,SILICON 1SS133T-77 ! L503 028R140018 COIL,DEGAUSS 8R140018
D508 D2WXN49370 DIODE,SILICON 1N4937 L601 02167F100J COIL 10 UH
D509 D2WT011E10 DIODE,SILICON 11E1-EIC L702 021LA6100K COIL 10 UH
D510 D2WXRU2AM0 DIODE,SILICON RU2AM-EIC L703 021LA6100K COIL 10 UH
D511 D2WXN49370 DIODE,SILICON 1N4937 L714 02167F100J COIL 10 UH
D512 D23U1003A3 DIODE,SCHOTTKY SB10-03A3 T401 045009003J TRANS,HORIZONTAL DRIVE ETH09K14BZ
D513 D2WXB290S0 DIODE,SILICON SB290S ! T501 0481290974 TRANSFORMER,SWITCHING 81290974
D514 D1VT001330 DIODE,SILICON 1SS133T-77
D515 D23U1003A3 DIODE,SCHOTTKY SB10-03A3 J701 063G100042 SOCKET,21PIN 0350_9982_05
D516 D2WXB290S0 DIODE,SILICON SB290S J702 060G421016 RCA JACK HTJ-032-05AY
D517 D2WT011E10 DIODE,SILICON 11E1-EIC J703 060G421017 RCA JACK HTJ-032-05AW
D518 D1VT001330 DIODE,SILICON 1SS133T-77 J801 066X120014 SOCKET,CATHODE RAY TUBE HPS3200-010501
D519 D1VT001330 DIODE,SILICON 1SS133T-77 J1001 060J121014 JACK,RCA,3.5 MSJ-035-12A_PC
D521 D1VT001330 DIODE,SILICON 1SS133T-77
D523 D2WT011E10 DIODE,SILICON 11E1-EIC SW102 0504201T31 SWITCH,TACT SKHVBED010
D524 D2WT011E10 DIODE,SILICON 11E1-EIC SW104 0504201T31 SWITCH,TACT SKHVBED010
D525 D97U01201B DIODE,ZENER MTZJ12B T-77 SW106 0504201T31 SWITCH,TACT SKHVBED010
D528 D97U05R61B DIODE,ZENER MTZJ5.6B T-77 SW107 0504201T31 SWITCH,TACT SKHVBED010
D602 D1VT001330 DIODE,SILICON 1SS133T-77 ! SW501 0530205016 SWITCH SDKVA30100
D603 D1VT001330 DIODE,SILICON 1SS133T-77
D604 D2WT011E10 DIODE,SILICON 11E1-EIC VR401 V1163H3BTC VOLUME,SEMI FIXED EVNCYAA03BE3
D606 D97U06R81B DIODE,ZENER MTZJ6.8B T-77 VR420 V1163Q2BTC VOLUME,SEMI FIXED EVNCYAA03BQ2
D607 D97U06R81B DIODE,ZENER MTZJ6.8B T-77 VR501 V1163Q2BTC VOLUME,SEMI FIXED EVNCYAA03BQ2
D608 D97U06R81B DIODE,ZENER MTZJ6.8B T-77
D609 D1VT001330 DIODE,SILICON 1SS133T-77 PCB010 A3L804M010K PCB ASS'Y TMB537A
D610 D1VT001330 DIODE,SILICON 1SS133T-77 PCB110 A3L804M110K PCB ASS'Y TCB396A
D611 D1VT001330 DIODE,SILICON 1SS133T-77
D709 D97U05R11B DIODE,ZENER MTZJ5.1B T-77 ANT001 125C108028 ANTENNA ROD T4-216BP-BK

ICS

IC101 I5PF0F005A IC OECF005A B502 024HT03553 CORE,BEADS W5RH3.5X5X1.0
IC102 IC7J0311A0 IC R3111N311A/C-TR B504 024HT03553 CORE,BEADS W5RH3.5X5X1.0
IC199 A3L802N015 IC S-24C04BDP-LA B1001 024HT03553 CORE,BEADS W5RH3.5X5X1.0
IC201 I0WDE246C0 IC STV2246C BT001 1412004013 BATTERY,MANGAN R03(AB)2PXGPI
IC401 I0WTD81740 IC TDA8174A BT002 1412004013 BATTERY,MANGAN R03(AB)2PXGPI
IC501 I0WD015070 IC TEA1507P/N1 ! CD501 1206655827 CORD AC BUSH 6655827
IC502 I1KA97806A IC KIA7806API CD801 1278140030 BRAIDED WIRE SM1573-001
IC503 I1KA98R09A IC KIA78R09API CD802 WHL6032038 FLAT CABLE AWM2468 AWG26 10C BLACK 320MM
IC504 0002E00610 PHOTO COUPLER LTV-817M-VB CF201 1012T5R503 FILTER,CERAMIC TRAP TPS5.5MB-TF21
IC703 I0QF022330 IC NJM2233BM-T1 CF202 1029238R93 FILTER,SAW TSF5330U
IC1001 I01DP75110 IC AN7511 CF205 1012T04001 FILTER,CERAMIC TRAP MKT40.4MA110P-TF

TRANSISTORS

Q102 TNAAJ05003 COMPOUND TRANSISTOR KRC111SRTK CP101 069X160379 CONNECTOR PCB SIDE 06JQ-ST
Q103 TPAAB05001 COMPOUND TRANSISTOR KRA102SRTK CP401 069S450089 CONNECTOR PCB SIDE A1561WV2-A5P
Q201 T8AA03881S TRANSISTOR,SILICON KTC3881S-RTK CP501 069S320419 CONNECTOR PCB SIDE A3963WV2-3PD
Q202 T8YJ2412K0 TRANSISTOR,SILICON 2SC2412KT146 R,S CP502 069S420110 CONNECTOR PCB SIDE A1561WV2-2P
Q204 T8YJ2412K0 TRANSISTOR,SILICON 2SC2412KT146 R,S CP801 069W01001A CONNECTOR PCB SIDE 003P-2100

! Q401 TDUF024990 TRANSISTOR,SILICON 2SD2499 CP1001 069S120419 CONNECTOR PCB SIDE A2502WV2-2P

Q402 TC5T01627Y TRANSISTOR,SILICON 2SC1627_Y(TPE2) CP802A 067U010049 WIRE HOLDER B2013H02-10P

! Q501 T410K26470 FET 2SK2647-01MR CP802B 067U010049 WIRE HOLDER B2013H02-10P

Q504 TA3T016240 TRANSISTOR,SILICON 2SA1624-AA CUS011 800WFAA008 CUSHION C
Q505 TCAT032034 TRANSISTOR,SILICON KTC3203_Y-AT EL001 124116281A EYE LET XRY16X28BD
Q506 T6YJ1037K0 TRANSISTOR,SILICON 2SA1037AKT146R,S EL002 124120301A EYE LET XRY20X30BD
Q507 TCATC31980 TRANSISTOR,SILICON KTC3198-AT(Y,GR) ! F501 080NT04003 FUSE 50T040HCC
Q508 TNAAJ05003 COMPOUND TRANSISTOR KRC111SRTK FB401 043214034F TRANSFORMER,FLYBACK 3214034F
Q509 TNAAJ05003 COMPOUND TRANSISTOR KRC111SRTK FH501 06710T0006 HOLDER,FUSE EYF-52BC
Q510 TNAAC05002 COMPOUND TRANSISTOR KRC103SRTK FH502 06710T0006 HOLDER,FUSE EYF-52BC

Q604 TPAAB05001 COMPOUND TRANSISTOR KRA102SRTK

COILS & TRANSFORMERS

JACKS

SWITCHES

VARIABLE RESISTORS

P.C.BOARD ASSEMBLIES

MISCELLANEOUS

B501 024HT03564 CORE,BEADS W4BRH3.5X6X1

CF303 1012T04101 FILTER,CERAMIC TRAP MKT41.5MA110P

J2-3

ELECTRICAL REPLACEMENT PARTS LIST

.

REF. NO. PART NO. DESCRIPTION

MISCELLANEOUS

OS101 0773071001 REMOTE RECEIVER RPM7138-H5
PH001 069D01001A CONNECTOR PCB SIDE 003P-2100 or

RY501 0560V20115 RELAY ALKS321
SP1001 070C732003 SPEAKER SA08A05BWB
TH501 D8E0J80A10 DEGAUSS ELEMENT B59104-J80-A10
TM101 076N0FK010 TRANSMITTER RC-FK010
TU001 0145517006 TUNER,VHF-UHF TUWRF4EG-778F2

! V801 098P1404B2 CRT W/DY A34AGT13X98(L)

X101 100CT4R013 CRYSTAL HC-49/U-S
X601 100CT4R408 CRYSTAL HC-49/U
X602 100CT3R509 CRYSTAL HC-49/U

RESISTOR

CAPACITORS

069W01001A CONNECTOR PCB SIDE 003P-2100

RC................... CARBON RESISTOR

CC................... CERAMIC CAPACITOR

CE................... ALUMI ELECTROLYTIC CAPACITOR

CP................... POLYESTER CAPACITOR

CPP.................. POLYPROPYLENE CAPACITOR

CPL.................. PLASTIC CAPACITOR

CMP..................

CMPL................ METAL PLASTIC CAPACITOR

CMPP................ METAL POLYPROPYLENE CAPACITOR

METAL POLYESTER CAPACITOR

J2-4
