Toshiba 14DLV75 User Manual

DIGITAL VIDEO
Introduction
2
*

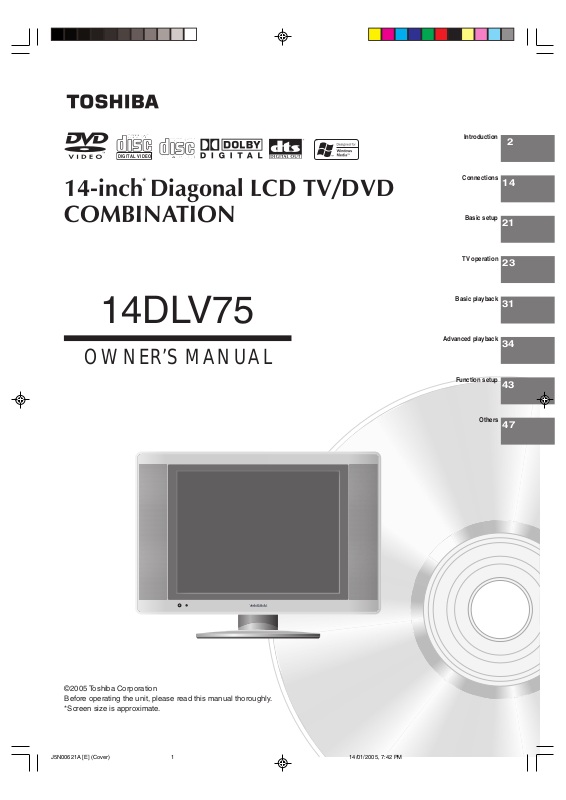

14-inch Diagonal LCD TV/DVD COMBINATION
14DLV75
OWNER’S MANUAL
Connections
Basic setup
TV operation
Basic playback
Function setup
Others
14
21
23
31
34
43
47
©2005 Toshiba Corporation Before operating the unit, please read this manual thoroughly. *Screen size is approximate.
J5N00621A [E] (Cover) 14/01/2005, 7:42 PM1
Introduction
IMPORTANT SAFEGUARDS
The lightning flash with arrowhead symbol, within an equilateral
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN
OR MOISTURE.
CAUTION : TO PREVENT ELECTRIC SHOCK DO NOT USE THIS POLARIZED PLUG WITH AN
EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE.
FCC NOTICE :
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the distance between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompa­nying the appliance.
CAUTION: Changes or modifications not expressly approved by the party responsible for compliance with
the FCC (Federal Communications Commission) Rules could void the user's authority to operate this equipment.
WARNING: Handling the cord on this product or cords associated with accessories sold with this product will
expose you to lead, a chemical known to the State of California to cause birth defects or other reproductive harm.
CAUTION:
THIS DIGITAL VIDEO PLAYER EMPLOYS A LASER SYSTEM.
Wash hands after handling.
Location of the required Marking
The rating sheet and the safety caution are on the rear of the unit.
TO ENSURE PROPER USE OF THIS PRODUCT, PLEASE READ THIS OWNER'S MANUAL CAREFULLY AND RETAIN FOR FUTURE REFERENCE. SHOULD THE UNIT REQUIRE MAINTENANCE, CONTACT AN AUTHORIZED SERVICE LOCATION.
USE OF CONTROLS, ADJUSTMENTS OR THE PERFORM­ANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPO­SURE.
TO PREVENT DIRECT EXPOSURE TO LASER BEAM, DO NOT TRY TO OPEN THE ENCLOSURE. VISIBLE LASER RADIA­TION MAY BE PRESENT WHEN THE ENCLOSURE IS OPENED. DO NOT STARE INTO BEAM.
CERTIFICATION: COMPLIES WITH FDA RADIATION PERFORMANCE STANDARDS, 21 CFR SUBCHAPTER J.
2
J5N00621A [E] (P02-05) 14/01/2005, 7:43 PM2
IMPORTANT SAFEGUARDS
1. READ INSTRUCTIONS
All the safety and operating instructions should be read before the unit is operated.
2. RETAIN INSTRUCTIONS
The safety and operating instructions should be retained for future reference.
3. HEED WARNINGS
All warnings on the unit and in the operating instructions should be adhered to.
4. FOLLOW INSTRUCTIONS
All operating and use instructions should be followed.
5. CLEANING
Unplug this unit from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a soft dry cloth for cleaning the exterior cabinet only.
6. ATTACHMENTS
The manufacturer of this unit does not make any recommendations for attachments, as they may cause hazards.
7. WATER AND MOISTURE
Do not use this unit near water. For example, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool.
8. ACCESSORIES
Do not place this unit on an unstable cart, stand, tripod, bracket, or table. The unit may fall, causing serious injury, and serious damage to the unit.
8A. An appliance and cart combination should be moved with care. Quick stops,
excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.
9. VENTILATION
Slots and openings in the cabinet back or bottom are provided for ventilation, and to ensure reliable operation of the unit, and to protect it from overheating. These openings must not be blocked or covered. The openings should never be blocked by placing the unit on a bed, sofa, rug, or other similar surface. This unit should never be placed near or over a radiator or heat source. This unit should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instructions have been adhered to.
10. POWER SOURCE
This unit should be operated only from the type of power source indicated on the rating plate. If you are not sure of the type of power supply to your home, consult your appliance dealer or local power company.
11. GROUNDING OR POLARIZATION
This unit is equipped with a polarized alternating-current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert fully into the outlet, try reversing the plug. Do not defeat the safety purpose of the grounding-type plug.
12. POWER-CORD PROTECTION
Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the appliance.
PORTABLE CART WARNING
(symbol provided by RETAC)
S3126A
the plug
Introduction
J5N00621A [E] (P02-05) 14/01/2005, 7:43 PM3
3
Introduction
IMPORTANT SAFEGUARDS
13. LIGHTNING
To protect your unit from a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the unit due to lightning and power line surges. However, if there is thunder or lightning now, do not touch the unit and any connected cable. This will for you not to receive the electric shock by the serge of thunder.
14. POWER LINES
An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall onto or against such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits, as contact with them might be fatal.
15. OVERLOADING
Do not overload wall outlets and extension cords, as this can result in a risk of fire or electric shock.
16. OBJECT AND LIQUID ENTRY
Do not push objects through any openings in this unit, as they may touch dangerous voltage points or short out parts that could result in fire or electric shock. Never spill or spray any type of liquid into the unit.
17. OUTDOOR ANTENNA GROUNDING
If an outside antenna or cable system is connected to the unit, be sure the antenna or cable system is grounded to provide some protection against voltage surges and built-up static charges, Section 810 of the National Electrical Code (NEC), ANSI/NFPA 70, provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes, and require­ments for the grounding electrode.
EXAMPLE OF ANTENNA GROUNDING AS PER THE
NATIONAL ELECTRICAL CODE
(continued)
ANTENNA LEAD IN WIRE
GROUND CLAMP
ANTENNA DISCHARGE UNIT (NEC SECTION 810-20)
ELECTRIC SERVICE
EQUIPMENT
NEC-NATIONAL ELECTRICAL CODE
S2898A
18. SERVICING
Do not attempt to service this unit yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel. For example: a. When the power-supply cord or plug is damaged. b. If liquid has been spilled, or objects have fallen into the unit. c. If the unit has been exposed to rain or water. d. If the unit does not operate normally by following the operating instructions. Adjust only those
controls that are covered by the operating instructions, as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the
unit to its normal operation. e. If the unit has been dropped or the cabinet has been damaged. f. When the unit exhibits a distinct change in performance, this indicates a need for service.
GROUNDING CONDUCTORS (NEC SECTION 810-21)
GROUND CLAMPS
POWER SERVICE GROUNDING ELECTRODE SYSTEM (NEC ART 250, PART H)
4
J5N00621A [E] (P02-05) 14/01/2005, 7:43 PM4
19. REPLACEMENT PARTS
When replacement parts are required, be sure the service technician uses replacement parts specified by the manufacturer or those that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards.
20. SAFETY CHECK
Upon completion of any service or repairs to this unit, ask the service technician to perform safety checks to determine that the unit is in proper operating condition.
21. HEAT
The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.
22. DISC SLOT
Keep your fingers well clear of the disc slot as it is closing. It may cause serious personal injury.
23. CONNECTING
When you connect the product to other equipment, turn off the power and unplug all of the equipment from the wall outlet. Failure to do so may cause a product damage. Read the owner's manual of the other equipment carefully and follow the instructions when making any connections.
24. HEADPHONES
When you use the headphones, keep the volume at a moderate level. If you use the headphones continu­ously with high volume sound, it may cause hearing damage.
25. LASER BEAM
Do not look into the opening of the disc slot or ventilation opening of the product to see the source of the laser beam. It may cause sight damage.
26. DISC
Do not use a cracked, deformed, or repaired disc. These discs are easily broken and may cause serious personal injury and product malfunction.
27. LCD
Do not press hard or jolt the LCD panel. It may cause the LCD panel glass to break and injury may occur. Should the LCD panel be broken and liquid leaks out, do not inhale or swallow it. Doing so may cause poisoning. If you have got it into your mouth, wash it out and consult your doctor. If your hands or clothes have touched it, wipe them with alcohol and a cleaning cloth and then wash them well.
28. NOTE TO CABLE TV SYSTEM INSTALLER
This reminder is provided to call the Cable TV system installer’s attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be con­nected to the grounding system of the building, as close to the point of cable entry as practical.
Introduction
ON DISPOSAL
This product contains mercury. Disposal of mercury may be regulated due to environmental considerations. For disposal or recycling information, please contact your local authorities or the Electronic Industrial Alliance : www.eiae.org.
J5N00621A [E] (P02-05) 14/01/2005, 7:43 PM5
5
Introduction
Precautions
Notes on handling
Do not shock the LCD panel. It may cause unit damage and malfunction.
When shipping the unit, the original shipping carton and packing materials come in handy. For maximum protection, repack the unit as it was originally packed at the factory.
Do not use volatile liquids, such as insect spray, near the unit. Do not leave rubber or plastic products to contact the unit for prolonged period. They will leave marks on the finish.
The top and rear panels of the unit may become warm after a long period of use. This is not a malfunction.
When the unit is not in use, be sure to remove the disc and turn off the power.
If you do not use the unit for a long period, the unit may not function properly in the future. Turn on and use the unit occasionally.
Notes on locating
Place the unit on a level surface. Do not use it on a shaky or unstable surface such as a wobbling table or inclined stand. The loaded disc may become dis­aligned and damage the unit.
When you place this unit near a TV, radio, or VCR, the playback picture may become poor and the sound may be distorted. In this case, place the unit away from the TV, radio, or VCR.
To avoid damage to this product, never place or store the unit in direct sunlight; hot, humid areas; or areas subject to excessive dust or vibration.
Notes on moisture condensation
Moisture condensation damages the unit. Please read the following carefully.
Moisture condensation occurs, for example, when you pour a cold drink into a glass on a warm day. Drops of water form on the outside of the glass. In the same way, moisture may condense on the optical pick-up lens inside this unit, one of the most crucial internal parts of the unit.
f
o
m
e
o
l
p
i
s
m
a
x
E
n
o
c
Moisture condensation occurs during the following cases.
When you bring the unit directly from a cold place to a warm place.
When you use the unit in a room where you just turned on the heater, or a place where the cold wind from the air conditioner directly hits the unit.
In summer, when you use the unit in a hot and humid place just after you move the unit from an air conditioned room. When you use the unit in a humid place.
t
u
r
e
s
n
a
e
t
i
d
o
n
!
Optical pick-up
lens
Notes on cleaning
Use a soft, dry cloth for cleaning.
Do not use any type of solvent, such as thinner and
benzine, as they may damage the surface of the unit. If you use a chemical saturated cloth to clean the unit, follow that product’s instructions.
Notes on LCD
The color LCD is manufactured using extremely high precision technology, but even so may include certain pixels that do not operate properly (that do not light, that remain lit constantly, etc.). We do our best to keep the number of these defective pixels to a minimum, but please understand that they cannot be completely eliminated even with the most advanced manufacturing technologies available today. The fluorescent tube which illuminates the panel from the inside will deteriorate with use. When the LCD becomes dim, flickers, or does not illuminate, contact your dealer for replacement. The brightness of the LCD monitor differs slightly depending on the viewing angles. Adjust the angle to obtain the best viewing. (The recommended angle is 90 degrees to the monitor.)
6
Do not use the unit when moisture condensation may occur.
If you use the unit in such a situation, it may damage discs and internal parts. Remove the disc, connect the power cord of the unit to the wall outlet, turn on the unit, and leave it for two or three hours. After two or three hours, the unit will have warmed up and evaporated any moisture. Keep the unit connected to the wall outlet and moisture condensation will seldom occur.
Wait!
Wall outlet
J5N00621A [E] (P06-07) 14/01/2005, 7:43 PM6
Notes on discs
On handling discs
Do not touch the playback side of the disc. For example, handle the disc so that it is shown in figure below.
DO
Playback side
Do not attach paper or tape to discs.
DO NOT
On cleaning discs
Fingerprints and dust on the disc cause picture and sound deterioration. Wipe the disc from the center outwards with a soft cloth. Always keep the disc clean.
DO
DO NOT
Structure of disc contents
Normally, DVD video discs are divided into titles, and the titles are sub-divided into chapters. Video CDs and Audio CDs are divided into tracks.
DVD video disc
DVD video disc
Title 1 Title 2
Chapter 1 Chapter 2 Chapter 1 Chapter 2 Chapter 3
Video CD/Audio CD
Video CD/Audio CD
Track 1 Track 2 Track 3 Track 4 Track 5
Each title, chapter or track is assigned a number, which is called title number”, “chapter number or “track number respectively. There may be discs that do not have these numbers.
Notes on copyright
Introduction
Do not use any type of solvent such as thinner, benzine, commercially available cleaners or antistatic spray for vinyl LPs. It may damage the disc.
On storing discs
Do not store discs in a place subject to direct sunlight or near heat sources. Do not store discs in places subject to moisture and dust such as a bathroom or near a humidifier. Store discs vertically in a case. Stacking or placing objects on discs outside of their case may cause warping.
The unauthorized recording, use, distribution, or revision of copyrighted materials including, without limitation, television programs, videotapes, and DVDs, is prohibited under the Copyright Laws of the United States and other countries, and may subject you to civil and criminal liability.
This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.
J5N00621A [E] (P06-07) 14/01/2005, 7:43 PM7
7
Introduction
Notes on discs (continued)
About this owner’s manual
This owner’s manual explains the basic instructions of this unit. Some DVD video discs are produced in a manner that allows specific or limited operation during playback. As such, the unit may not respond to all operating commands. This is not a defect in the unit. Refer to instruction notes of discs.
” may appear on the TV screen during operation.
“ A “
” means that the operation is not permitted by the unit or the disc. For example, sometimes it is unable to stop the playback of copyright message of the disc when the STOP () button is pressed. Alternatively, the “
” may
also indicate that the feature is not available for the disc.
Notes on region numbers
The region number of this unit is 1. If region numbers, which stand for their playable area, are printed on your
ALL
1
or
DVD video disc and you do not find
, disc playback will not be allowed by the player. (In this case, the unit will display a message on-screen.) Some DVDs that have no region code label may still be subject to area restrictions and therefore not playable.
On Video CDs
This DVD supports Video CDs equipped with the PBC (Version 2.0) function. (PBC is the abbreviation of Playback Control.) You can enjoy two playback variations depending on types of discs.
Video CD not equipped with PBC function
(Version 1.1)
Sound and movie can be played on this DVD in the same way as an audio CD.
Video CD equipped with PBC function
(Version 2.0)
In addition to operation of a Video CD not equipped with the PBC function, you can enjoy playback of interactive software with search function by using the menu displayed on the TV screen (Menu Playback). Some of the functions described in this owner’s manual may not work with some discs.
Playable discs
This unit can play the following discs.
Disc Mark
DVD video discs
Video CDs
Audio CDs
The following discs are also available.
Some of these discs may be incompatible.
DIGITAL VIDEO
DVD-R/RW discs of DVD video format CD-R/CD-RW discs of CD-DA, Video CD, MP3, WMA or JPEG format Kodak Picture CD and FUJICOLOR CD format
Contents
Audio
Video
(moving
pictures)
Audio
Video
(moving
pictures)
Audio
Disc Size
12 cm
+
8 cm
12 cm
+
8 cm
12 cm
8 cm
(CD
single)
When you play an 8 cm disc, you need the adapter
(not supplied).
You cannot play discs other than those listed above.
You cannot play discs of DVD-RAM, DVD-ROM, Photo
CD, etc., or non standardized discs even if they may be labeled as above.
Some CD-R/RWs cannot be played back depending
on the recording conditions.
This unit uses the NTSC color system, and cannot
play DVD video discs recorded in any other color system (PAL, SECAM, etc.).
Maximum
playback time
Approx. 4 hours
(single sided disc)
Approx. 8 hours
(double sided disc)
Approx. 80 minutes
(single sided disc)
Approx. 160 minutes
(double sided disc)
Approx. 74 minutes
Approx. 20 minutes
Approx. 74 minutes
Approx. 20 minutes
8
J5N00621A [E] (P08-13) 15/01/2005, 10:50 AM8
Because of problems and errors that can occur during the creation of DVD software and/or the manufacture of DVD discs, Toshiba cannot guarantee that the DVD player contained in the unit will play every feature of every DVD bearing the DVD logo. As one of the creators of DVD technology, Toshiba DVD players are manufactured using the highest standards of quality, and as a result, such incompatibilities are rare. If you happen to experience any difficulty playing a DVD in this unit, please feel free to call our Call Center (see page 53).
Contents
Introduction
IMPORTANT SAFEGUARDS............................ 2
Precautions ....................................................... 6
Notes on discs................................................... 7
Contents ............................................................9
Identification of controls .................................. 10
Connections
Antenna connections....................................... 14
Cable TV connections ..................................... 15
Connecting to optional equipment................... 16
Power source .................................................. 20
Basic setup
Setting the language .......................................21
To memorize channels .................................... 22
TV operation
TV operation.................................................... 23
Closed captions............................................... 25
Setting the V-Chip ........................................... 26
Picture control adjustment............................... 28
Adjusting the picture preference ..................... 28
Selecting the color temperature ...................... 29
Sound control adjustment ............................... 30
Stereo and Second Audio Program (SAP) ...... 30
Basic playback
Playing a disc ..................................................31
Introduction
Advanced playback
Zooming ......................................................... 34
Locating desired scene .................................. 34
Repeat playback ............................................ 35
A-B Repeat playback ..................................... 35
Program playback .......................................... 36
Random playback .......................................... 36
Changing angles ............................................ 37
Title selection ................................................. 37
DVD menu...................................................... 37
Changing soundtrack language ..................... 38
Subtitles ......................................................... 38
Karaoke playback........................................... 39
Disc status...................................................... 39
To turn off the PBC ........................................ 39
MP3/WMA/JPEG CD operation ..................... 40
Function setup
Customizing the function settings .................. 43
Temporary disabling of rating level
by DVD disc ................................................... 46
Others
Language code list ......................................... 47
Troubleshooting ............................................. 48
Reception disturbances.................................. 50
Specifications ................................................. 51
Limited United States Warranty ..................... 52
J5N00621A [E] (P08-13) 14/01/2005, 7:43 PM9
9
Introduction
Identification of controls
See the page in for details.
Top
Front
POWER button
VOLUME ( ) buttons
CHANNEL (4/3) buttons
PLAY ( ) button
21
23
EJECT ( ) button
SKIP ( / ) buttons
STOP( ) button
22
31
32
33
31
10
J5N00621A [E] (P08-13) 14/01/2005, 7:43 PM10
POWER indicator
Remote sensor
Side
Introduction
Adjusting the angle of the base
PHONES jack
VIDEO IN/AUDIO IN (L/R) (LINE 2 IN) jacks
Rear
Left Side Right Side
Disc slot
Approx. 15
Approx. 5
You can adjust the angle of the TV-screen for 5° forward or for 15° backward from vertical angle. Hold the base of the TV while adjusting the angle.
COAXIAL DIGITAL AUDIO OUT jack
J5N00621A [E] (P08-13) 14/01/2005, 7:43 PM11
Antenna jack
DC input jack
COMPONENT VIDEO IN
B/CB
(Y, P
S-VIDEO (LINE 1 IN) jack
VIDEO IN/AUDIO IN (L/R) (LINE 1 IN) jacks
, PR/CR) jacks
11
Introduction
Identification of controls (continued)
Remote control
The instructions in this manual describe the function on the remote control. See the page in for details.
EJECT button
TV/DVD button
Direct channel selection
-
buttons (0
9)
23
Numbered buttons (0
RECALL button
JUMP button
INPUT SELECT button
PLAY MODE button
GAME button
TOP MENU button
MENU button
SETUP button
PLAY button
STOP button
SKIP buttons
REV button
FWD button
SLOW buttons
32
31
26
-
9)
24
34
16
35
16
37
POWER button
SLEEP button
CH RTN button
ZOOM button
MUTE button
VOL +/– buttons
CANCEL button
*DVD MENU button
Direction buttons
21
43
31
31
33
33
33
33
CH +/– buttons
ENTER button
RETURN button
PAUSE button
CLOSED CAPTION button REPEAT A-B button
21
24
24
34
24
23
26
37
( / / / )
22
21
43
32
35
21
25
ANGLE button
AUDIO button
*DVD MENU button
Use the DVD MENU button to display the menu included on many DVD video discs. To operate a menu, follow the
instructions in DVD menu.
12
J5N00621A [E] (P08-13) 14/01/2005, 7:43 PM12
37
30
37
SUBTITLE button
38
Inserting batteries
Open the battery compartment
1
cover in the direction of the arrow.
Install two R03/AAA batteries
23
(supplied), paying attention to the polarity indicated in the battery compartment.
Replace the compartment cover.
Operation
Aim the remote control at the remote sensor and press control buttons to operate.
Operate the remote control within 30° angle on either side of the remote sensor, up to a distance of approx. 5
meters.
Introduction
Approx. 5 meters
Caution:
Never throw batteries into a fire.
Notes:
Be sure to use AAA size batteries.
Dispose of batteries in a designated disposal area.
Attention should be drawn to the environmental aspects of battery disposal.
Do not mix different battery types or combine used batteries with new ones.
If the remote control does not operate correctly, or if the operating range becomes reduced, replace both
batteries with new ones.
If the batteries are dead or if you will not be using the remote control for a long time, remove the batteries to prevent battery acid from leaking into the battery compartment.
J5N00621A [E] (P08-13) 14/01/2005, 7:43 PM13
13
Connections
Antenna connections
If you are using an indoor or outdoor antenna, follow the instructions below that correspond to your antenna system. If you are using a cable TV service (CABLE), see page 15 for Cable TV connections.
Combination VHF/UHF antenna (Single 75 ohm cable or 300 ohm twin-lead wire)
Antenna
jack
Antenna
jack
Connect the 75 ohm cable from the combination VHF/UHF antenna to the antenna jack on the back of the TV/DVD.
If your combination VHF/UHF antenna has a 300
75 ohm coaxial cable (not supplied)
300-75 ohm matching transformer (supplied)
ohm twin-lead wire, use the 300-75 ohm matching transformer.
Combination VHF/UHF antenna (Separate VHF and UHF 300 ohm twin-lead wires)
Antenna
jack
Combiner (not supplied)
300-75 ohm matching transformer (supplied)
Connect the UHF 300 ohm twin-lead wire to the combiner (not supplied). Connect the VHF 300 ohm twin-lead wire to the 300-75 ohm matching transformer. Attach the transformer to the combiner, then attach the combiner to the antenna jack on the back of the TV/DVD.
UHF 300 ohm twin-lead wire (not supplied)
Separate VHF/UHF antennas (75 ohm VHF cable and 300 ohm UHF twin-lead wires)
Antenna
jack
Combiner (not supplied)
UHF 300 ohm twin-lead wire (not supplied)
14
J5N00621A [E] (P14-25) 14/01/2005, 7:43 PM14
VHF 300 ohm twin-lead wire (not supplied)
Connect the VHF 75 ohm cable and UHF 300 ohm twin-lead wire to the combiner (not supplied). Attach the combiner to the antenna jack on the back of the TV/DVD.
VHF 75 ohm (not supplied)
Cable TV connections
This TV/DVD has an extended tuning range and can tune most cable channels without using a Cable TV converter box. Some cable companies offer premium pay channels in which the signal is scrambled. Descrambling these signals for normal viewing requires the use of a descrambler device which is generally provided by the cable company.
For subscribers to basic cable TV service
75 ohm coaxial cable
Antenna
jack
For basic cable service not requiring a converter/descrambler box, connect the Cable TV 75 ohm coaxial cable directly to the Antenna jack on the back of the TV/DVD.
For subscribers to scrambled cable TV service
If you subscribe to a cable TV service which requires the use of a converter/descrambler box, connect the incoming 75 ohm coaxial cable to the converter/descrambler box. Using another 75 ohm coaxial cable, connect the output jack of the converter/descrambler box to the antenna jack on the TV/DVD. Follow the connections shown below. Set the TV/DVD to the output channel of the converter/descrambler box (usually channel 3 or 4) and use the converter/descrambler box to select channels.
Incoming 75 ohm Cable TV
Converter/
descrambler
75 ohm cable to TV/DVD
Antenna
jack
Connections
For subscribers to unscrambled basic cable TV service with scrambled premium channels
If you subscribe to a cable TV service in which basic channels are unscrambled and premium channels require the use of a converter/descrambler box, you may wish to use a signal splitter and an A/B Switch box (available from the cable company or an electronics supply store). Follow the connections shown below. With the switch in the “B” position, you can directly tune any nonscrambled channels on your TV/DVD. With the switch in the “A” position, tune your TV/DVD to the output of the converter/descrambler box (usually channel 3 or 4) and use the converter/ descrambler box to tune scrambled channels.
Converter/
Incoming 75 ohm Cable TV
J5N00621A [E] (P14-25) 14/01/2005, 7:43 PM15
Splitter
descrambler
A/B switch
75 ohm cable
A
to TV/DVD
B
Antenna
jack
15
Connections
The unauthorized recording, use, distibution,
Connecting to optional equipment
You can enjoy VCR, camcorder or TV game with connection to external input.
or revision of television programs, videotapes, DVDs, and other materials is prohibited under the Copyright Laws of the United States and other countries, and may subject you to civil and criminal liability.
Using the audio/video inputs
Press INPUT SELECT repeatedly to select the desired mode.
“LINE1”, “LINE2”, “GAME”, “COMPONENT” or TV channel will display on the screen for 4 seconds.
TV Channel LINE 1
(Rear lower left)
GAME (LINE 2 IN)COMPONENT
Note: In the DVD mode this key will not operate.
LINE 2
(Left side)
LINE 1
Connecting to a VCR
To playback from the VCR, connect the VCR to the TV/DVD as shown. Select the “LINE2” by pressing INPUT SELECT repeatedly.
: Signal flow
To Audio/Video OUT
VCR
(red)
(white)
(yellow)
Left side (LINE 2 IN)
The LINE 1 IN terminals can be used in the same way.
Audio/Video cable (not supplied)
Note: Picture might be muted for some VCR playback. This is not a malfunction of this unit.
To AUDIO(L/R)/VIDEO IN
Connecting to a camcorder
To playback from the camcorder, connect the camcorder to the TV/DVD as shown. Select the “LINE2” by pressing INPUT SELECT repeatedly.
: Signal flow
Camcorder
To Audio/Video OUT
Audio/Video cable (not supplied)
(red)
(white)
(yellow)
Left side (LINE 2 IN)
To AUDIO(L/R)/VIDEO IN
Connecting to a TV Game
You can enjoy playing a TV game on the screen by adjusting to suitable brightness for your eyes.
1. Connect a TV Game to the TV/DVD.
2. Select the “GAME” by pressing INPUT SELECT repeatedly or simply press GAME.
The GAME mode screen appears.
This TV/DVD has the GAME mode function (see page 24).
: Signal flow
To Audio/Video OUT
(red)
(white)
(yellow)
Left side (LINE 2 IN)
The LINE 1 IN terminals can be used in the same way.
Only the LINE 2 IN terminals can be used with the GAME mode.
Audio/Video cable (not supplied)
Notes:
You can also change the TV screen to the desired mode by pressing the CH +/ buttons.
The TV/DVD can also be used as a display device for many video games. However, due to the wide variety of different types of signal
generated by these devices and subsequent hook-up variations required, they have not all been included in the suggested connection diagrams. You'll need to consult each component's Owner's Manual for additional information.
Interactive video games that involve shooting a gun type of joystick at on-screen target may not work on this TV/DVD.
To AUDIO(L/R)/VIDEO IN
16
J5N00621A [E] (P14-25) 14/01/2005, 7:43 PM16
The unauthorized recording, use, distibution,
INPUT SELECT
GAME
or revision of television programs, videotapes, DVDs, and other materials is prohibited under the Copyright Laws of the United States and other countries, and may subject you to civil and criminal liability.
Connecting to an optional equipment with S-video output
If you connect a VCR with an S-VIDEO cable to the S-VIDEO IN jack on the rear lower left of the TV/DVD, you must also connect the audio cables to the AUDIO IN jacks on the rear lower left of the TV/DVD (LINE 1 IN). The S-VIDEO cable only carries the video signal. The audio signal is separate. Select the “LINE1” by pressing INPUT SELECT repeatedly.
Ex. VCR with S-Video
: Signal flow
(playback)
Rear lower left of the TV
Connections
To AUDIO (L/R) IN
To S-VIDEO OUT
Note: When the S-VIDEO cable and the standard video cable are connected at the same time, the S-video cable takes precedence.
Connecting an optional equipment with ColorStream
Your TV/DVD is capable of using ColorStream® (component video). Connecting your TV/DVD to a component video compatible DVD player, such as a Toshiba DVD player with ColorStream
To Audio (L/R) OUT
Audio cable (not supplied)
S-Video cable (not supplied)
®
(Component video) output
®
To S-VIDEO IN
can greatly enhance picture
quality and performance.
Ex. DVD player with Component video
Rear lower left of the TV
: Signal flow
To Component Video OUT
To AUDIO (L/R) IN To COMPONENT
To Audio OUT
Audio cable (not supplied)
Component video cable (not supplied)
(Y, P
B
/CB, PR/CR) IN
Selecting Component input mode
Press INPUT SELECT repeatedly to select COMPONENT mode.
COMPONENT
When using the Component video cable, an Audio cable must be connected to AUDIO IN (L/R) (LINE 1 IN) jacks.
The ColorStream® inputs on this unit are for use with devices that output 480i interlaced signals and 480p progressive signals. This unit will not accept or display 720p progressive scan signals or 1080i interlaced high-definition signals. If you connect a high­definition set-top receiver, 720p progressive scan DVD player, or other similar device to the unit’s ColorStream® inputs, YOU MUST SWITCH THE DEVICES OUTPUT TO 480i INTERLACED OR 480p PROGRESSIVE MODE FIRST. Failure to do this will cause a poor or no picture to display.
Notes:
Refer to the owners manual of the connected equipment as well.
When you connect the unit to other equipment, be sure to turn off the power and unplug all of the equipment from the wall outlet
before making any connections.
If you place the unit near a tuner or radio, the radio broadcast sound might be distorted. In this case, place the unit away from the
tuner and radio.
J5N00621A [E] (P14-25) 14/01/2005, 7:43 PM17
17
Loading...
+ 37 hidden pages
