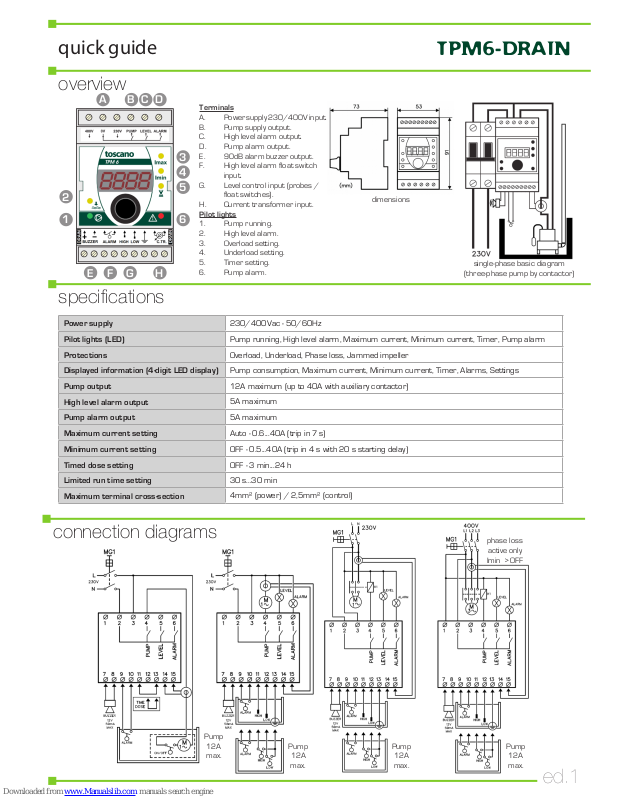

ed.1
TPM6-DRAIN
quick guide
overview
Power supply
230/400Vac - 50/60Hz
Pilot lights (LED) Pump running, High level alarm, Maximum current, Minimum current, Timer, Pump alarm
Protections Overload, Underload, Phase loss, Jammed impeller
Displayed information (4-digit LED display) Pump consumption, Maximum current, Minimum current, Timer, Alarms, Settings
Pump output
12A maximum (up to 40A with auxiliary contactor)
High level alarm output
5A maximum
Pump alarm output
5A maximum
Maximum current setting Auto - 0.6...40A (trip in 7 s)
Minimum current setting OFF - 0.5...40A (trip in 4 s with 20 s starting delay)
Timed dose setting OFF - 3 min...24 h
Limited run time setting 30 s...30 min
Maximum terminal cross-section
4mm² (power) / 2,5mm² (control)
specifications

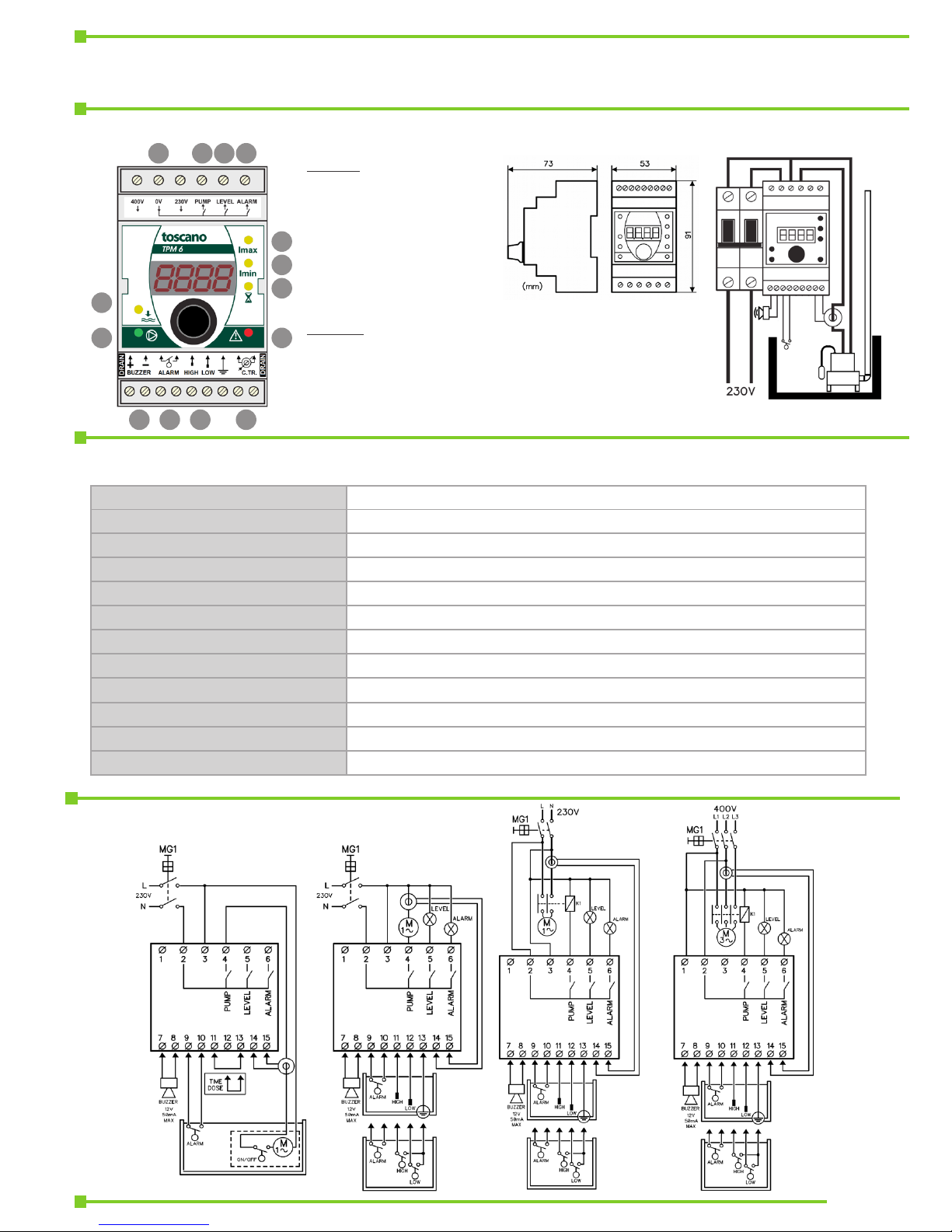

connection diagrams
A B C D
4
2
1
3
E F G
5
6
Terminals
A. Power supply 230/400V input.
B. Pump supply output.
C. High level alarm output.
D. Pump alarm output.
E. 90dB alarm buzzer output.
F. High level alarm float switch
input.
G. Level control input (probes /
float switches).
H. Current transformer input.
Pilot lights
1. Pump running.
2. High level alarm.
3. Overload setting.
4. Underload setting.
5. Timer setting.
6. Pump alarm.
H
Pump
12A
max.
dimensions
single-phase basic diagram
(three-phase pump by contactor)
phase loss
active only
Imin > OFF
Pump
12A
max.
Pump
12A
max.
Pump
12A
max.
ed.1

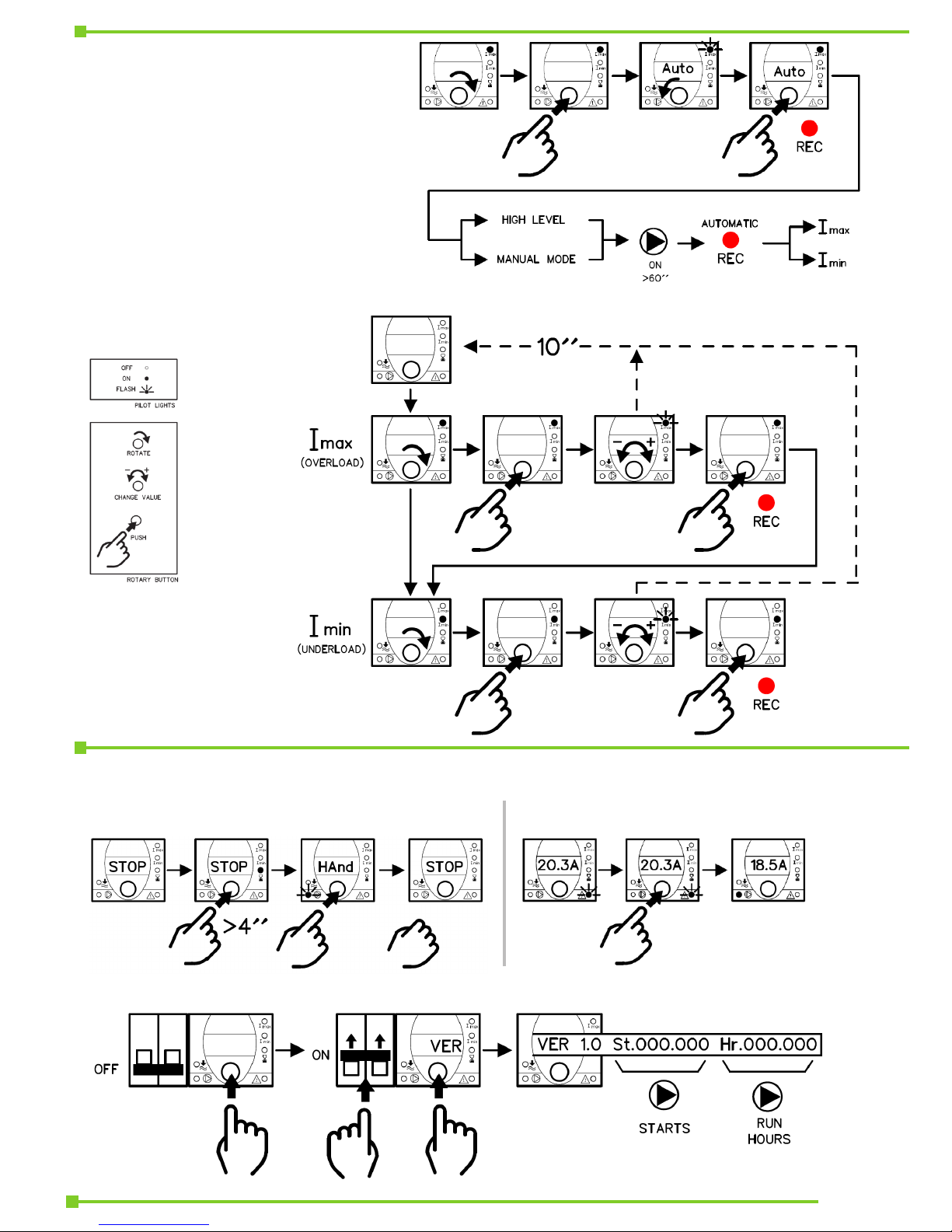

current set-up
operator control
option A: automatic current set-up
status
option B: manual current set-up
manual mode reset (alarms, dose timer and run timer)
ed.1

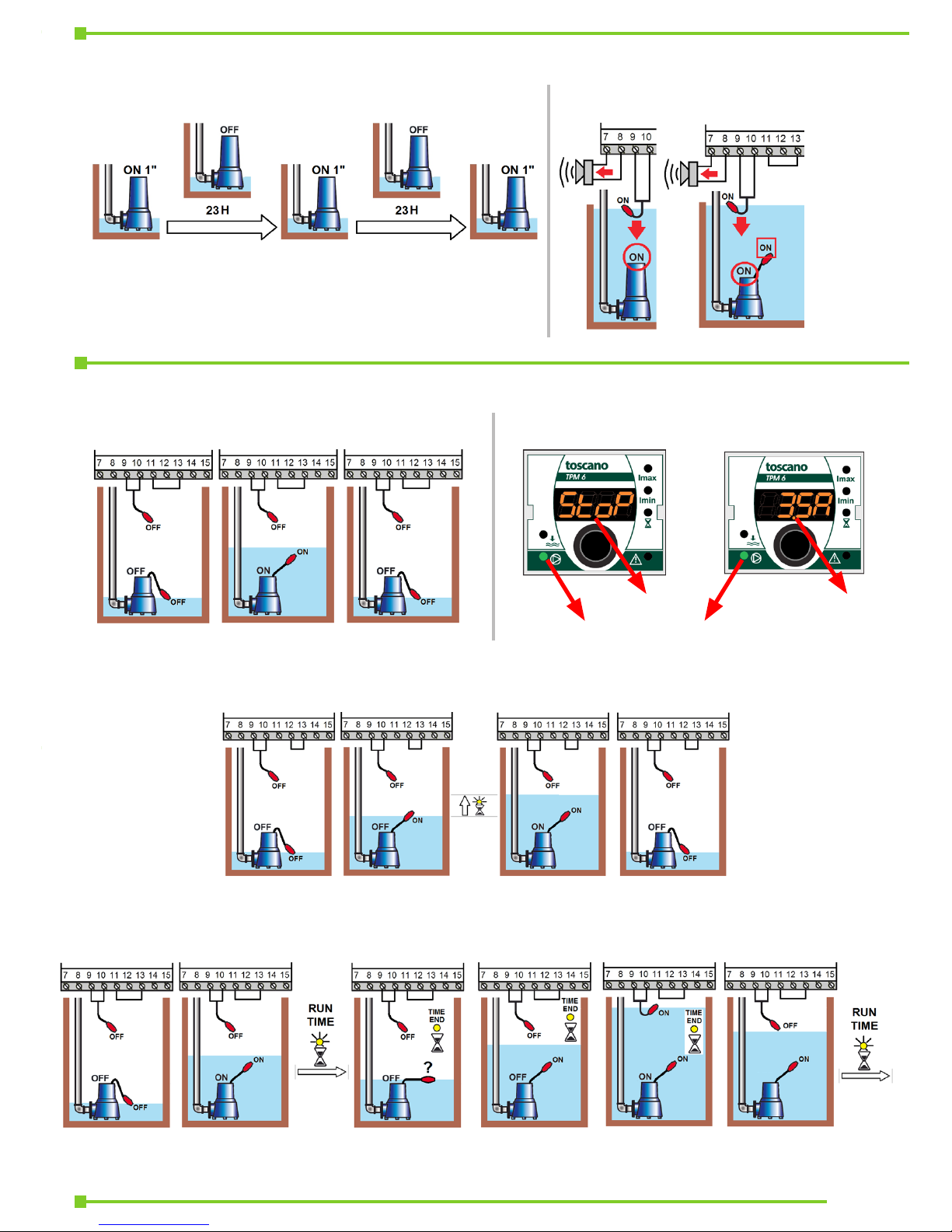

additional protections
level control - 230V pump with built-in float
built-in jammed impeller protection
High level alarm float switch
timed dose (Imin = OFF / = d3’...d24h)
limited run time (Imin = OFF / = r30”...r30’)
basic control (Imin = OFF / = OFF)
pump pilot with built-in float
pump OFF
pump ON
energized pump wiring
TIMED
DOSE
ON
ed.1

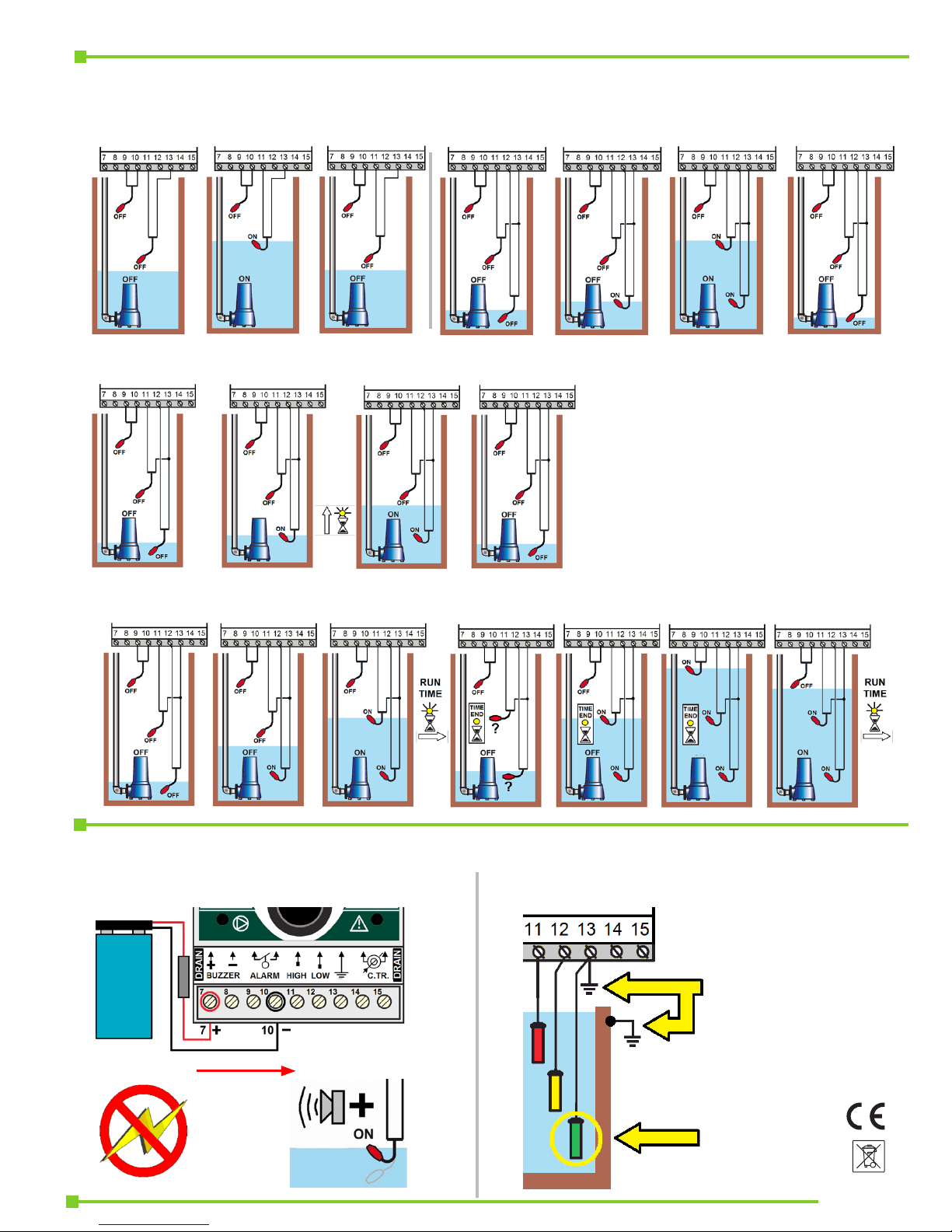

level control - multiple float switches
extras
timed dose ( = d3’...d24h)
basic control ( = OFF)
limited run time ( = r30”...r30’)
optional battery charger conductive probes
supply OFF alarm level
TIMED
DOSE
OFF
OFF
PE connection
PE connection
or
