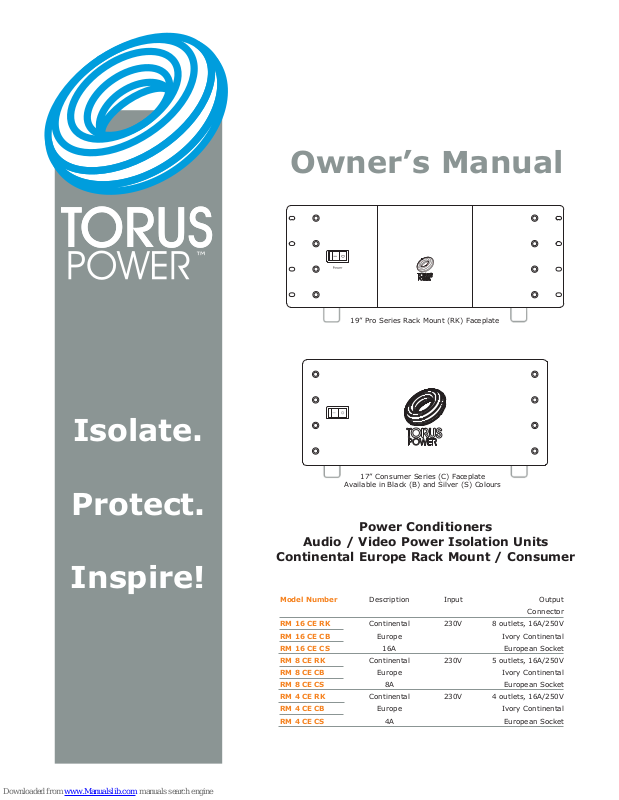

Page 1
Isolate.
Owner’s Manual
™
19” Pro Series Rack Mount (RK) Faceplate
Protect.
Inspire!
17” Consumer Series (C) Faceplate
Available in Black (B) and Silver (S) Colours
Power Conditioners
Audio / Video Power Isolation Units
Continental Europe Rack Mount / Consumer
Model Number
RM 16 CE RK
RM 16 CE CB
RM 16 CE CS
RM8CERK
RM8CECB
RM8CECS
RM4CERK
RM4CECB
RM4CECS
Description
Continental
Europe
16A
Continental
Europe
8A
Continental
Europe
4A
Input
230V
230V
230V
8 outlets, 16A/250V
Ivory Continental
European Socket
5 outlets, 16A/250V
Ivory Continental
European Socket
4 outlets, 16A/250V
Ivory Continental
European Socket
Output
Connector
Page 2
Important Safety Instructions
CAUTION!
To reduce the risk of electric shock and fire, do not remove the cover of this device. There
are no user serviceable parts inside. Please refer all servicing to licensed service technicians.
CAUTION!
The international symbol of a lightning bolt inside a triangle is intended to alert the user to
uninsulated “dangerous voltage” within the device’s enclosure. The international symbol of an
exclamation point inside a triangle is intended to alert the user to the presence of important
operating, maintenance and servicing information in the manual accompanying the device.
CAUTION!
CAUTION!
To prevent electrical shock, match wide blade of plug to wide slot, fully insert.
To reduce the risk of electrical shock, do not expose this equipment to rain or moisture.
1. Read Instructions—All safety and operating instructions
should be read before operating the device.
2. Retain Instructions—The safety and operating
instructions should be retained for future reference.
3. Heed Warnings—All warnings on the device and in the
operating instructions should be adhered to.
4. Follow Instructions—All operating and safety instructions
should be followed.
5. Water & Moisture—The device should never be used in,
on or near water for risk of fatal shock.
6. Ventilation—The device should always be located in such
a way that it maintains proper ventilation. It should never
be placed in a built-in installation or anywhere that may
impede the flow of air through its ventilation slots.
7. Heat—Never locate the device near heat sources such as
radiators, floor registers, stoves or other heat-generating
devices.
8. Power Cord Protection—Power cables should be routed
so they are not likely to be stepped on or crushed by items
placed on them or against them. Special attention should
be paid to areas where the plug enters a socket or fused
strip and where the cord exits the device.
9. Periods Of Non-Use—The device should be unplugged
when not being used for extended periods.
10. Dangerous Entry—Care should be taken that no foreign
objects or liquids fall or are spilled inside the device.
11. Damage Requiring Service—The device should be
serviced by licensed technicians when:
• The plug or power supply cord has been damaged.
• Objects have fallen or liquid has spilled inside the device.
• The device has been exposed to moisture.
• The device does not appear to be operating properly or
exhibits a marked change in performance.
• The device has been dropped or the enclosure becomes
damaged.
12. Service—The device should always be serviced by
licensed technicians. Only replacement parts specified by
the manufacturer should be used. The use of unauthorized
substitutions may result in fire, shock, or other hazards.
13. Do not position the equipment so that it is difficult to
operate the disconnecting device (power cord).
14. If the equipment is used in a manner not specified by
the manufacturer, the protection provided by the
equipment may be impaired.
15. It is recommended that component power switch
remains in the “off” position when connecting or
disconnecting equipment from a Torus Power unit.
16. Some units can be very heavy, please use
CAUTION
safe practices when lifting.
™
Owner’s Manual Audio / Video Power Isolation Units Continental Europe 4A, 8A, 16A 04/12Power Conditioners Rack Mount / Consumer
³18 kg (39.7 lb)
³32 kg (70.5 lb) ³55 kg (121.2 lb)
www.TorusPower.com
REV.04/26/2012
Page 3
Description
Torus Power PIUs (Power Isolation Units) combine the best
surge suppression with unique toroidal transformer
technologies from PLITRON to provide the ultimate in AC
power conditioning and protection for sensitive audio and
video equipment applications.
PIUs use ZeroSurge patented series-mode surge removal
filters to absorb dangerous voltage surges and safely dissipate
them without using failure-prone MOVs (metal oxide
varistors). Also, unlike MOV-based protection, voltage surges
are not shunted to ground.
â
Shipping Carton & Packing Material
Please keep the original shipping box and all packing material.
This will ensure the PIU is protected in future transport.
In the unlikely event you have a problem and must return it for
service you must use the proper packing material.
Ship the PIU only in the original packing material, as the unit is
not insurable by carriers otherwise.
Isolation is combined with proven proprietary technologies
from PLITRON in the over-sized toroidal transformer. NBT
works as a low pass filter using the controlled leakage
inductance and capacitances within the transformer to cancel
common mode and differential mode noise. LoNo technology
has been used for years by high-end audio companies who
demand silent transformers. Imin technology reduces inrush
currents. UST provides additional common mode filtering
using a highly efficient faraday screen.
Low-impedance output with balanced high-power primary
input provides the most unconstrained, yet protected, energy
source available to your equipment.
Placement & Ventilation
Torus Power PIUs are extremely efficient devices, however,
they are also very high-power devices, and must be
adequately cooled.
PIUs have ventilation slots on the base, side panels and the
cover. Maintain at least 2.5cm distance from each of these
surfaces to anything else. Should your installation conditions
be constricted, additional forced air-cooling may be
necessary.
Warranty
Torus Power products are warranted to be free from
manufacturing defects for five years from the original date of
sale. This includes parts, labour and return shipping to the
first registered owner and all subsequent registered owners.
Warranty coverage is extended to applicable products
registered or having proof-of-purchase (sales invoice, etc.).
Do not install the PIU directly above heat-generating
equipment.
Maintain at least 15cm behind the PIU for adequate wiring
space.
In the event of a defect or malfunction, Torus Power will
remedy the problem by repair or replacement, as we deem
necessary, to restore the product to full performance.
This warranty is considered void if the defect, malfunction or
failure of the product or any component part was caused by
damage (not resulting from a defect or malfunction) or abuse
while in the possession of the customer. Failure to fully comply
with Torus Power operating instructions, voids the warranty.
™
Owner’s Manual Audio / Video Power Isolation Units Continental Europe 4A, 8A, 16A 04/12Power Conditioners Rack Mount / Consumer
www.TorusPower.com
REV.04/26/2012
Page 4
Front Panel Layout
Continental Europe 16A
19” Pro Series Rack Mount Faceplate
Model Number RM 16 CE RK
Input Power Switch / Circuit Breaker
Continental Europe 8A
19” Pro Series Rack Mount Faceplate
Model Number RM 8 CE RK
Continental Europe 4A
19” Pro Series Rack Mount Faceplate
Model Number RM 4 CE RK
Continental Europe 16A
17” Consumer Series Faceplate
Model Numbers RM 16 CE CB
and RM 16 CE CS
Continental Europe 8A
17” Consumer Series Faceplate
Model Numbers RM 8 CE CB
andRM8CECS
Continental Europe 4A
17” Consumer Series Faceplate
Model Numbers RM 4 CE CB
andRM4CECS
Circuit Protection
The front panel power switch is also
a circuit breaker.
When the breaker trips, the switch
returns to its “off” position.
Electrical Specifications
Model Number
RM 16 CE RK
RM 16 CE CB
RM 16 CE CS
RM 8 CE RK
RM 8 CE CB
RM 8 CE CS
RM 4 CE RK
RM 4 CE CB
RM 4 CE CS
™
Input Voltage
Nominal
VAC230
Range +/- 10% voltage
47-53Hz
230VAC
Range +/- 10% voltage
47-53Hz
230VAC
Range +/- 10% voltage
47-53Hz
Owner’s Manual Audio / Video Power Isolation Units Continental Europe 4A, 8A, 16A 04/12Power Conditioners Rack Mount / Consumer
Thermal Protection
Torus PIUs will shut-down if internal
unit temperature reaches excessive
levels.
Input
Current
Limiting
16A Circuit Breaker
Front Panel
8A Circuit Breaker
Front Panel
4A Circuit Breaker
Front Panel
Load Current Capability
½ cycle
160A
80A
80A
1 second
96A
48A
20A
10 seconds
32A
16A
10A
www.TorusPower.com
Input Current
Rating
16A
8A
4A
REV.04/26/2012
Page 5

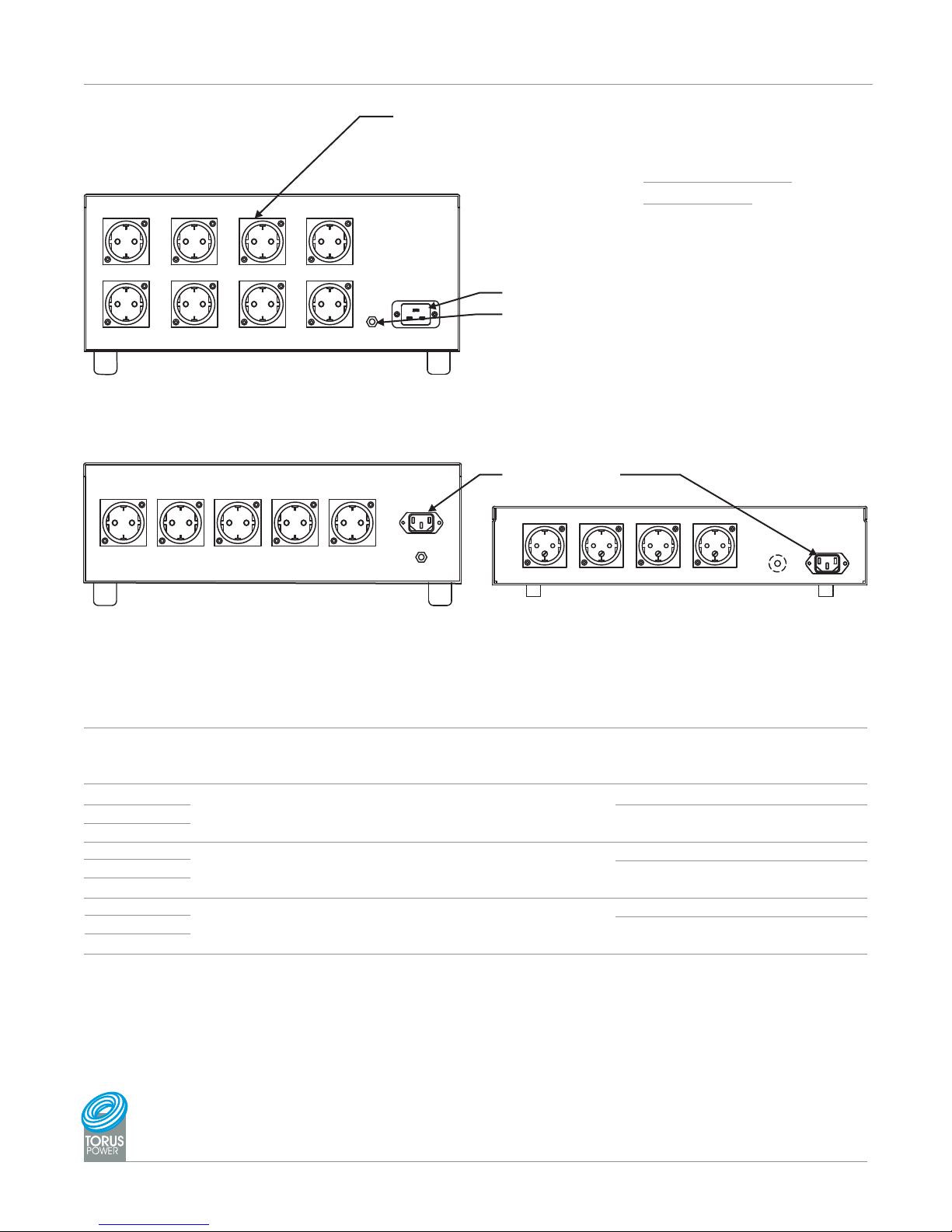

Rear Panel Layout
Continental Europe 16A
Model Numbers RM 16 CE RK,
RM 16 CE CB and RM 16 CE CS
16A/250V
Ivory Continental
European Socket
Output Circuit
Protection
The eight 16A outlets are protected
by the input circuit breaker on the
front panel.
IEC320-C20 Inlet
Ground Stud
IEC320-C14 Inlet
Continental Europe 8A
Model Numbers RM 8 CE RK,
RM 8 CE CB and RM 8 CE CS
Mechanical Specifications
Model Number
RM 16 CE RK
RM 16 CE CB
RM 16 CE CS
RM 8 CE RK
RM 8 CE CB
RM 8 CE CS
RM 4 CE RK
RM 4 CE CB
RM 4 CE CS
Input (Inlet)
Connector
(Rear Panel)
IEC320-C20
IEC320-C14
IEC320-C14
Output
Connector
(Rear Panel)
8 outlets 16A/250V
5 outlets 16A/250V
4 outlets 16A/250V
,
Ivory Continental
European Socket
,
Ivory Continental
European Socket
,
Ivory Continental
European Socket
Continental Europe 4A
Model Numbers RM 4 CE RK,
RM 4 CE CB and RM 4 CE CS
Weight
55 kg
54 kg
34 kg
33 kg
19 kg
18 kg
Height includes removable rubber mounting feet.
Size, mm
(wxdxh)
483 x 519 x 203
432 x 502 x 206
483 x 426 x 159
432 x 402 x 162
483 x 286 x 102
432 x 268 x 105
™
Owner’s Manual Audio / Video Power Isolation Units Continental Europe 4A, 8A, 16A 04/12Power Conditioners Rack Mount / Consumer
www.TorusPower.com
REV.04/26/2012
Page 6
Torus Power products are
marketed worldwide through
Plitron Manufacturing Inc.
For sales contact:
[email protected]
Phone: 416-667-9914
Toll free: 1-800-754-8766
Fax: 416-667-8928
Technical inquiries:
[email protected]
Phone: 416-667-9914
04/12
REV.04/26/2012
™
www.TorusPower.com
Torus Power
#8 601 Magnetic Drive
Toronto, ON M3J 3J2
Canada
416-667-9914
Specifications subject to change without notice.
© Torus Power 2012
