L-PC SERIES
User Manual
2 pgs914.59 Kb0

Torrey L-PC SERIES User Manual

Download

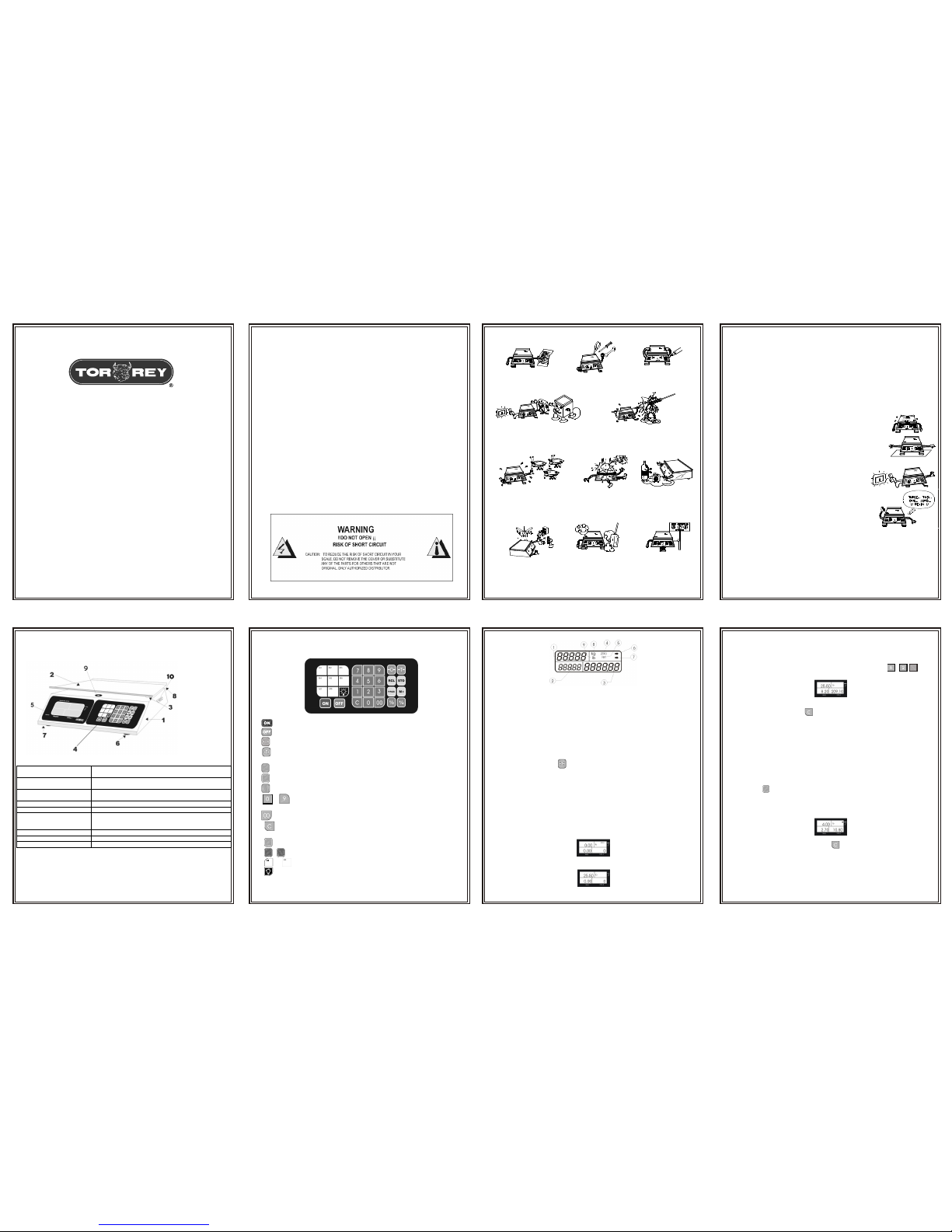

Page 1
-1-
-2- -3-
-4- -5- -6-
-7-
I N D E X
I M P O R T A N T W A R N I N G S
1.- In case you have a problem 2.- Do not open the scale on 3.-”Never” press the keyboard with the scale, first read the your own. your warranty will with objects such as pencils, the warranty conditions. be canceled. pens,knives,etc.
4.- use a 220 v ac outlet exclusive for the scale 5.- “never” wash the scale using a flow of water .this avoiding overload or voltage variations. can damage the electronic components. for more information read “maintenance and cleaning” section.
6.- protect the scale from insects 7.- do not drop or hit the scale 8.- do not use solvents or (mainly from roaches) they can seriously with the product to be weighted detergents for cleaning damage the electronic components. Use because as time goes by it will only use a damp rag. solid products against roaches. damage the weight sensor.
9.- do not place fans or heaters 10.- do not place the scale where 11.- only authorized and qualified directed towards the scale. there is a lot of moisture and/or personnel should check and dust. repair your scale.
I N T R O D U C T I O N
DEAR CUSTOMER:
We appreciate that you have chosen this product and we assure that you will get the maximum satisfaction of the new acquisition for your bussines. The scale has been designed to give you a great deal saving time and money, avoiding losses by human mistakes of interpretation and calculation, offering you more fluency and security in your commercial tasks. To make your equipment a long lasting investment, we suggest to read carefully this manual and make sure to keep it at hand for later consultations. In this manual we indicate the necessary steps to benefit and prolong your appliances availability.
INSTRUCTIONS FOR INSTALLATION
1.- Unpack the scale and check the conditions of the product. If it is damaged report it inmediately to your authorized distributor.
2.- Place the scale where there is not any movement or vibration, make sure it is leveled adequately checking that the four leveling bases are supporting the scale over the surface were it has been placed and if the level bubble (under the plate) is centered, to adjust, tighten or loosen the leveling bases until the bubble is in the center of the circle.
3.- Connect the AC/DC power supply (if you use it) to 220 V A.C. outlet.
4.- Turn the scale on after the countdown sequence your scale will display zeroes and will be ready to use.
IMPORTANT NOTE: If your scale displays "HELP" after you followed the previous steps and after the initial countdown, it means that it was handled roughly and/or got hit during the shipment, wich cause irreversible damage in its operation. Call your authorized distributor. Is possible that the scale displays “HELP“ when you turn it on with weight on the plate, when this happens, remove the weight and turn the scale off and then turn it on
KEYBOARD
1) Key used to turn on the scale.
2) When this key is pressed the appliance turns off.
3) 0 This key is used to start with zero on the weight.
4) This key is used to eliminate any containers weight that you d o not wish to consider during a transaction (for example: boxes, bags, bottles, etc).
5)
STO
It is used to store prices in a memory location of the scale.
6)
RCL
It is used to load a PLU price from memory.
7) M+ Key used to add prices up.
8) ,..., Numerical section: it is useful to enter data into the scale such as price per pound or kilogram.
9) Enter two zeroes.
10) Key used to clear wrong data that has been entered with the keyboard. It is also used to eliminate the "FIXED PRICE" function.
11)
P-PACK
It enables the function "FIXED PRICE".
12) ½ , ¼ Keys used to multiply the unit price under 1/2 o 1/4 lb or kg mode.
13) , ..., PLU's direct access keys.
14) Key used to turn on/off the backlight.
GENERAL VIEW FINDER ( LCD DISPLAY )
.- UPPER-LEFT indicator: shows the products weight in POUNDS or KILOGR AMS when this happens, the symbol lb or kg appears in the alphanumeric ("MODE") indicator . .- PRICE indicator: shows the price per POUND or KILOGRAM of the product. This price can have up to 5 digits. .- ALPHANUMERIC ( "MODE" ) indicator: this can show the following readings: lb. / kg. When a product is being weighed on the scale. NEG. When there is a negative weight. TOT. When you want to see the "total sale". .- Total amount to pay indicator (" TOTAL "): shows the partial or total sale during a commercial transaction. .- ZERO indicator: this reference to ZERO indicates that the scale is ready to start weighing products. The indicators disappear when a weight is placed on the scale. .- NET indicator: indicates that the TARE function has been activated. This indicator
disappears when you press the key.
.- FIXED PRICE indicator: when it is activated, it indicates that the price per POUND or KILOGRAM that is shown in the indicator will not be cleared automatically when the product is
removed from the scale (it is fixed). .- LOW BATTERY indicator: when the battery energy is too low, this indicator turns on to tell you that it is necessary to recharge it. .- AC/DC POWER SUPPLY indicator: it means that the scale was connected to the AC/DC power supply.
OPERATIONS DESCRIPTION.
HOW TO WEIGHT A PRODUCT At the end of this countdown sequence, zeroes will appear in the view finder, indicating that the scale is ready to use.
If not, see section reference to zero. Then place the product to be weighed on the plate and you will see the weight in the corresponding indicator.
HOW TO ENTER PRICES
The product price per pound or kilogram is entered pressing the numbers of the keyboard to indicate the desired value. This value will appear in the "PRICE" indicator and the total amount to pay will be calculated automatically being shown in the "TOTAL" indicator. For example, if the
product price per pound in the previous examples is $8.20, just press 0 and the following display will appear:
HOW TO CLEAR WRONG PRICES When a mistaken price is entered, you can clear it in two ways:
a) Manually: Simply press the clear key and enter the correct price. b) Automatically: The price is automatically cleared removing the product from the plate, except if it's not enabled the fixed price function.
FIXED PRICE FUNCTION When it is necessary to constantly be weighing the same kind of product, one does not change its price, you can use the "FIXED PRICE" function. It is used to keep the price "FIXED" in the "PRICE" indicator avoiding it to be automatically cleared when the weight is removed from th e scale. To fix a price, follow these steps:
1.- Place the product on the plate.
2.- Enter the product price per pound or kilogram.
3.- Press
P-PACK
. After these steps, a small arrow will light up in the upper right corner of the "TOTAL" indicator, pointing to the label "P-PACK" (fixed price). As an example, suppose that the product is ham, the weight is 4 pounds, and the price is $2.70 per pound after entering the fixed price, the view finder will look like this:
To clear the fixed price function, just press the key.
USE OF THE "TARE"
When you wish to weight a product in a container but you do not want to consider the containers weight during the operation, you can use the TARE function. To use this function follow this steps:
FABRICANTES DE BASCULAS TORREY
S.A. DE C.V.
ELECTRONIC SCALE
L-PC SERIES
USER’S MANUAL
REVISION:1.1
IMPORTANT:
BEFORE OPERATING THIS SCALE, PLEASE READ THIS MANUAL THROUGLY
NAME AND LOCATION OF IMPORTANT PARTS
1. CABINET: Manufactured in stainless steel and resistant to corrosion and strokes.
2. PLATE: Also manufactured in stainless steel with the border bent and rounded.
3. PLATE HOLDER: Manufactured in aluminum that provides resistance to corrosion.
4. LEVEL BUBBLE: Inserted in the cabinet. It is used to level the scale.
5. MEMBRANE KEYBOARD: It has multifunctions, with big and readable keys.
6. GENERAL VIEW FINDER: It shows the necessary information it has individual indicators upper left indicator, alphanumeric ("MODE") indicator, "PRICE" indicator, "TOTAL" indicator.
7. LEVELING BASES: They level the scale tightening or loosening them.
8. JACK: Connects the AC/DC power supply to the scale.
9.- CUSTOMER VIEW FINDER: Customer di splay.
USA

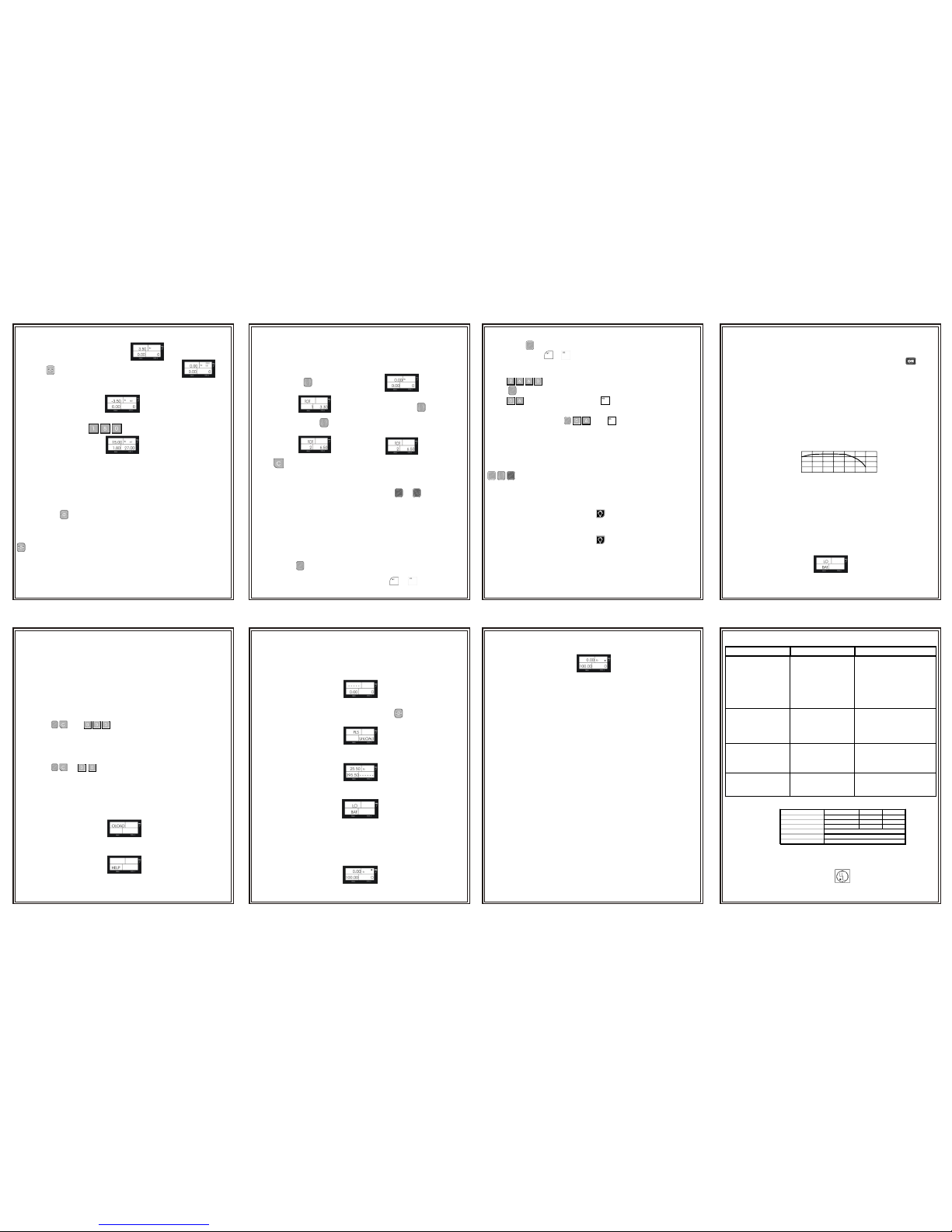

Page 2
-8-
-9-
-10-
-11-
-15--14--13--12-
1.- Place the empty container on the scale.
2.- Press the key. After some seconds the view finder will display:
3.- Remove the container and put the sugar inside it. When you remove the container, a negative number (weight of the container) appears in the UPPER-LEFT indicator.
4.- Place the container on the scale and put in the container sugar until you have 15 lb. Then
enter the price per pound press .
It is important to mention that this function is substractive from the scale maximum capacity. For example if you have a container that weights 7 lb, The scale will only be able to weight up to 33 lb of product to complete the maximum capacity.
HOW TO USE THE REFERENCE TO ZERO
This function has two uses: a) Permanent tare: when you wish to weigh some products over a same container several
times, you should use this function , and to eliminate it, just remove the container from the
plate and press key again. As in the tare function this function is also substractive from the scale capacity, for example: if you reference to 10 lb, the scale will only be able to weight
up to 30 lb. Due to voltage variance or some other factor, it is posibble that without having any weight over the plate, the view finder shows some weight, or that the zero flag it's not on, then press the key
and the scale will be referenced to zero turning the zero flag on.
HOW TO LOAD A MEMORY:
1) Press the key
RCL
and then the memory address (00-99) you wish to load or just press any of
the direct access keys , ..., . Example: If you wish to save $26.60 in the memory address 6, follow these steps:
1) Type .
2) Press
STO
.
3) Type or just press the direct access key .
With this sequence the price is saved in the memory address 06. If you wish to load the
memory of this example just type
RCL
or just , and in the "PRICE" indicator will be
displayed the price stored in memory, in this case will be $26.60
To change the price stored in a memory just type the new price and store it in the memory address you want to change following the procedure described above. These keys are very useful to avoid type the same price constantly. To use these memories we suggest to have at hand the product list that are saved in each memory address . To delete all the memories that are stored, turn the scale on and during the countdown type
RCL
M+ ½ and all the memories will be deleted to zero.
HOW TO TURN ON THE BACKLIGHT
This scale model has a backlight that helps you to see better the display information. It can be turned on in two ways:
1) Automatically: when an AC adaptor is connected to the scale.
2) Manually: It can be performed by pressing the key. And can be turned off in two ways:
1) Automatically: when the scale is powered only by battery and the battery is low the backlight
is turned off.
2) Manually: It can be performed by pressing the key.
Note: Using the backlight and only powering the scale with the battery, the charge of the battery will last less hours
POWER OFF TIMER FUNCTION
This function is permanently enabled when the scale is on, and only when you do not have the AC/DC power supply connected to the scale. When the scale is not use for a period of time greater then 15 minutes, it will automaticaly turn off and therefore all the information of the
transaction you were doing will be lost. To turn on the scale again, just press the key, and repeat your customers operations. The power off timer function permits you to save electricity and avoids constant battery recharges.
USE OF THE BATTERY
As mentioned before, the scale can operate with a 6 volt built in battery or with an AC/DC power supply. The battery is rechargeable using the AC/DC power supply.
BATTERY RECHARGE
To make this operation, just connect the AC/DC power supply to the scale for 10 HOURS making sure that the scale was turned off. When you recharge the battery for some hours, but the battery can not get enough charge to turn on the scale, then you must have to charge the battery, in this case contact to your authorized distributor.
LIFE TIME OF THE RECHARGEABLE BATTERY
40
80
100
200 400 600 800
1000 1200
% OF CAPACITY
AVAILABLE
CHARGE AND DISCHARGE CYCLES
SERVICE LIFE IN RELATION TO CHARGE/DISCHARGE CYCLES
The charging capacity of the rechargeable battery in this scale decreases according to the number of charge/discharge cycles, this causes that the service life is reduced to 1000 cycles. For these reason the warranty period for the battery is limited to six months after the purchase date of the scale.
LOW BATTERY INDICATOR
If the battery does not have enough energy to keep the scale operating a long time, a low battery message will appear flicking in the "PRICE" indicator "LO bAt". This is the first warning signal indicating that it is necessary to recharge the battery. Even with this signal, it is possible for the scale to keep on operating for a short period of time (30 minutes), but after a second warning signal appears "LO bAt" fix in the display, the scale stops itself and does not respond to the instructions until the battery be recharged or be connected to the AC main.
HOW TO ACCESS THE COUNTERS The scale is equipped with two important counters:The Calibration counter and the counter of times that configuration has been changed.This counters must be only accesed by oficial
office of weights and measures inspectors.
The calibration counter displays the number of times the scale has been “recalibrated” by a technician. The counter of times that the internal configuration has been changed displays the number of times that a technician has reconfigured the “internal function” in the scale. In both cases, the customer can only check the amount that is displayed, but can not make any changes.
To check the counter follow these instructions:
A) Calibration counter
1.- Turn on the scale
2. Press
STO
during the initial countdown, at the end of the
countdown the view finder will display:
B) Counter of times that the internal configuration has be en changed
1.- Turn on the scale
2. Press
STO
during the initial countdown, at the end of the countdown the view finder will display:
If any of the two cases, to get to the normal operation mode, just turn off the scale and turn it on again. Your scale leaves the factory like the examples.
OTHER IMPORTANT MESSAGES THAT APPEAR ON THE SCALE
This message indicates that a weight that exceeds the maximum capacity has been placed on the scale. To correct it simply, remove the over weight.
This message appears in two different situations:
a) When the scale is turned on with an excessive weight on the plate (near to the half capacity
of the scale). To correct this situation remove the weight on the scale, turn off the scale, and then turn it on again.
b) When the scale was handled roughly and/or got hitted during the shipment, wich caused
irreversible damages in its operation. In this case call your authorized distributor.
This message indicates a negative weight, this could happen if you lift or remove the scales
plate to correct this put the plate back in its place and press the key or turn the scale off and then turn it on again.
This message appears when: If we turn on the scale with a product on the plate, to eliminate this message simply remove the product that is on the scale, turn off the scale and then turn it on again.
This message indicates that the total was exceeded when the multiplication price per weight exceed 999999 then appear lines in the "TOTAL" indicator.
If this message appears in intervals on the display, indicates that the scale needs to be recharged. Even with this advise the scale can continue working during a time of 30 min. If it appears and after some seconds the scale turns off , it indicates that the scale is completely discharged. In this point the scale doesn't work and all of the operations performed at that time will be lost. To correct this problem connect the AC/DC adaptor for a period of time of 10 hrs. and keeping the scale off. In case of using the scale during this period, there's no problem to use it, only the recharge time will be higher.
This arrow indicates that the scale is working under the "FIXED PRICE" mode.
This arrow indicates that the scale AC adaptor is connected to the 120 VCA
MAINTENANCE AND CLEANING
-- Do not use a flow of water to clean your scale. Use a damp rag and clean each of these components daily: plate, cover, keyboard.
--To remove oil and greasy substances, use a dry and clean rag, rubbing the dirty area several times.
--Periodically check the jack (where the AC/DC power supply is inserted) to make sure it is in good condition. That is, there are no signs of strokes or detachments.
--Periodically check the AC/DC power supply to make sure the ends are in good condition and that the cable is not twisted or tangled.
--Regularly check the scale to assure it is correctly leveled with its four bases well supported.
--When you clean the scale make sure that there are not any papers, or any other kind of
material under the plate or under the plate-holder that could obstruct the adequate operation of your scale.
--Periodically place some type of insecticide on the scales base to avoid insects (specialy roaches) that can dirty the interior and alter its adequate operation.
--Do not use detergents nor corrosive liquids while cleaning.
--Do not expose your scale to temperatures below -10 ºC (14 ºF) or above 40 ºC (104 ºF).
TROUBLESHOOTING
Before you call for service to your authorized distributor because of a malfunction in your scale, we suggest you first check this manual again to avoid a misunderstanding of the operation and use of the functions. If everything is correct, then try to correct the problem according to the following list since a simple checkup or a small adjustment could eliminate it. If you do not find the problem, contact your authorized distributor.
PRICE ADD-UP
When you want to add some prices up follow these steps:
PRICE MULTIPLING FUNCTION
When you want to use the price per 1/4 or 1/2 lb or kg put the weight over
the plate and enter price per 1/4 or 1/2 . Then press ½ or ¼ key automatically appears the price per lb or kilogram. If the price does not exceed 999.99 It will be displayed on the unit price. If you want to use any of these keys again remove the commodity and follow the same procedure.
HOW TO SAVE MEMORIES
Your scale has 100 memories to store the prices of 100 products that are sold more frequently. The memories are numbered from 00 to 99.
To save a price in a memory location:
1) Type the price you wish to save.
2) Press
STO
key.
3)Type the memory address (00-99) in wich you wish to save the
price, or you also can press any of the direct access keys , ..., .
1.- Put the commodity over the plate with the unit price (for example a price of $2.20 and a weight of 1.50
lb) and press
M+
.
3.- Put another good with the unit
price and then press M+.
5.- To delete the sum total press
key when the sum total is
2.- Remove the commodity.
4.- When you press M+ with the total indicator in zeroes you will see the sum total accumulator without adding any price up.
Problem Possible cause Solution
It does not operate.
There is not electric current.
AC/DC Power supply cable has a false contact.
Low battery.
With a multimeter check if there is electric current in the outlets. Check that the AC/DC power supply terminals, if it is possible, check with another AC/DC power supply. Connect the AC/DC power supply if the scale operates, then recharge the battery.
The scale shows different weights when the same product is weighed several times.
Material under the plate holder is obstructing the correct movement.
Check that there are not materials under the plate holder. If there are, remove them and check the operation again.
If the message “PLS. UnLOAD” appears in the view finder.
The scale was turned on with a weight on the plate or without the plate.
Remove the weight or put back the plate in its place. Turn off the scale and then turn it on again.
The word "HELP" appears in the "PRICE" indicator.
The scale was turned on with a big weight on the plate
Remove the weight and turn off the scale and then turn it on again.
TECHNICAL SPECIFICATIONS
Model PC-40L & P C-40LT PC-20/20T PC-35/35T Max. Capacity 40 lb 20 kg 35 kg Min. Division 0.005 lb 0.005 kg 0.010 kg Max. Tare 9.95 lb 9.999 k g 35.00 kg Max. Price Range of operation temp. Range of storage temp
$999.99
14 to 104 ºF ( -10 to 40 ºC )
-4 to 122 ºF ( -20 to 50 ºC )
AC/DC POWER SUPPLY :
OUTPUT 9 Vd.c. 500 mA.
APPROVED BY
