Torrans double glider Assembly Instructions Manual

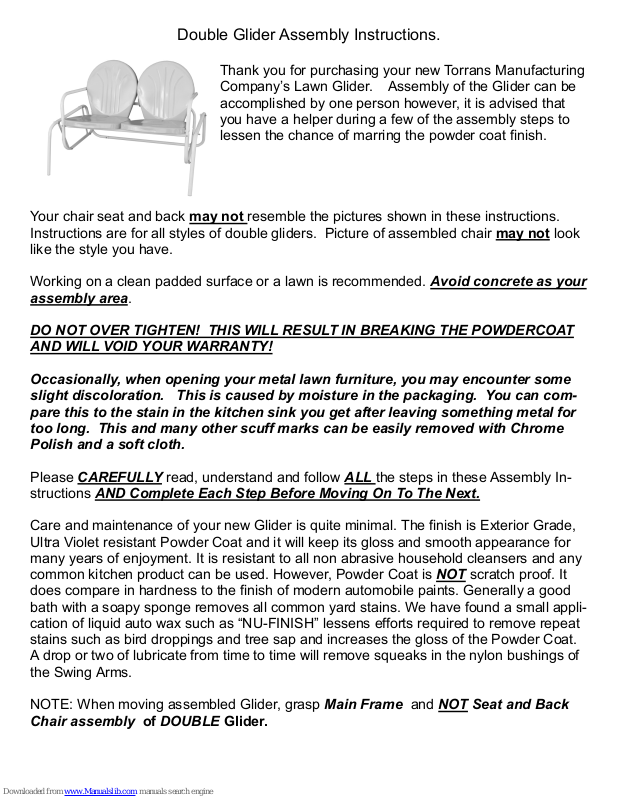

Double Glider Assembly Instructions.
Thank you for purchasing your new Torrans Manufacturing
Company’s Lawn Glider. Assembly of the Glider can be
accomplished by one person however, it is advised that
you have a helper during a few of the assembly steps to
lessen the chance of marring the powder coat finish.
Your chair seat and back may not resemble the pictures shown in these instructions.
Instructions are for all styles of double gliders. Picture of assembled chair may not look
like the style you have.
Working on a clean padded surface or a lawn is recommended. Avoid concrete as your
assembly area.
DO NOT OVER TIGHTEN! THIS WILL RESULT IN BREAKING THE POWDERCOAT
AND WILL VOID YOUR WARRANTY!
Occasionally, when opening your metal lawn furniture, you may encounter some
slight discoloration. This is caused by moisture in the packaging. You can compare this to the stain in the kitchen sink you get after leaving something metal for
too long. This and many other scuff marks can be easily removed with Chrome
Polish and a soft cloth.
Please CAREFULLY read, understand and follow ALL the steps in these Assembly In-
structions AND Complete Each Step Before Moving On To The Next.
Care and maintenance of your new Glider is quite minimal. The finish is Exterior Grade,
Ultra Violet resistant Powder Coat and it will keep its gloss and smooth appearance for
many years of enjoyment. It is resistant to all non abrasive household cleansers and any
common kitchen product can be used. However, Powder Coat is NOT scratch proof. It
does compare in hardness to the finish of modern automobile paints. Generally a good
bath with a soapy sponge removes all common yard stains. We have found a small application of liquid auto wax such as “NU-FINISH” lessens efforts required to remove repeat
stains such as bird droppings and tree sap and increases the gloss of the Powder Coat.
A drop or two of lubricate from time to time will remove squeaks in the nylon bushings of
the Swing Arms.
NOTE: When moving assembled Glider, grasp Main Frame and NOT Seat and Back
Chair assembly of DOUBLE Glider.
Double Glider Parts List
1 set of instructions with tools
2 side supports-

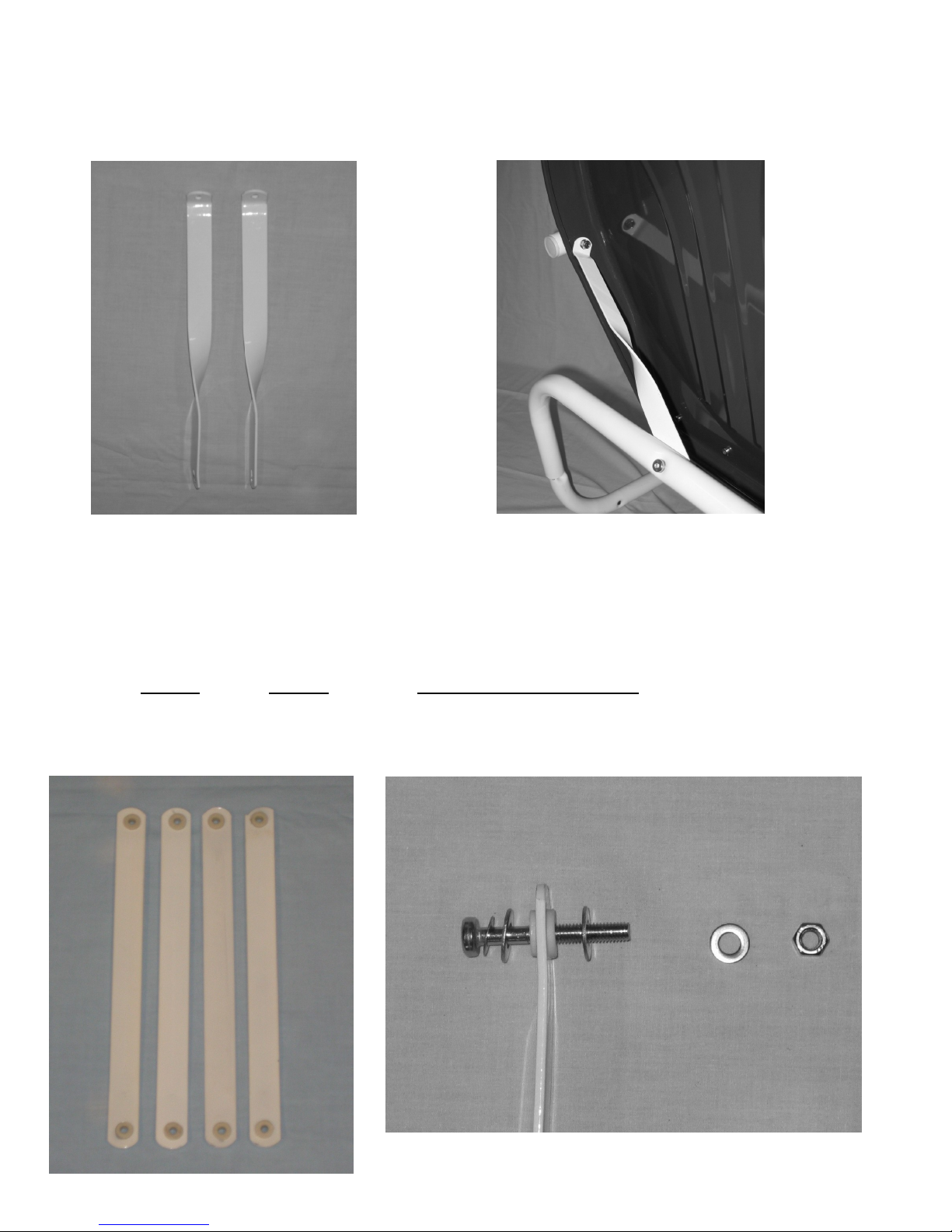

4 swing arms
1 center support
4 end caps 4 plastic spacers
DG-19 long screws
DG-10 short screws
DG-29 lock nuts SG-19 lock nuts
Main frame back crossmember
4 acorn nuts
16 large washers

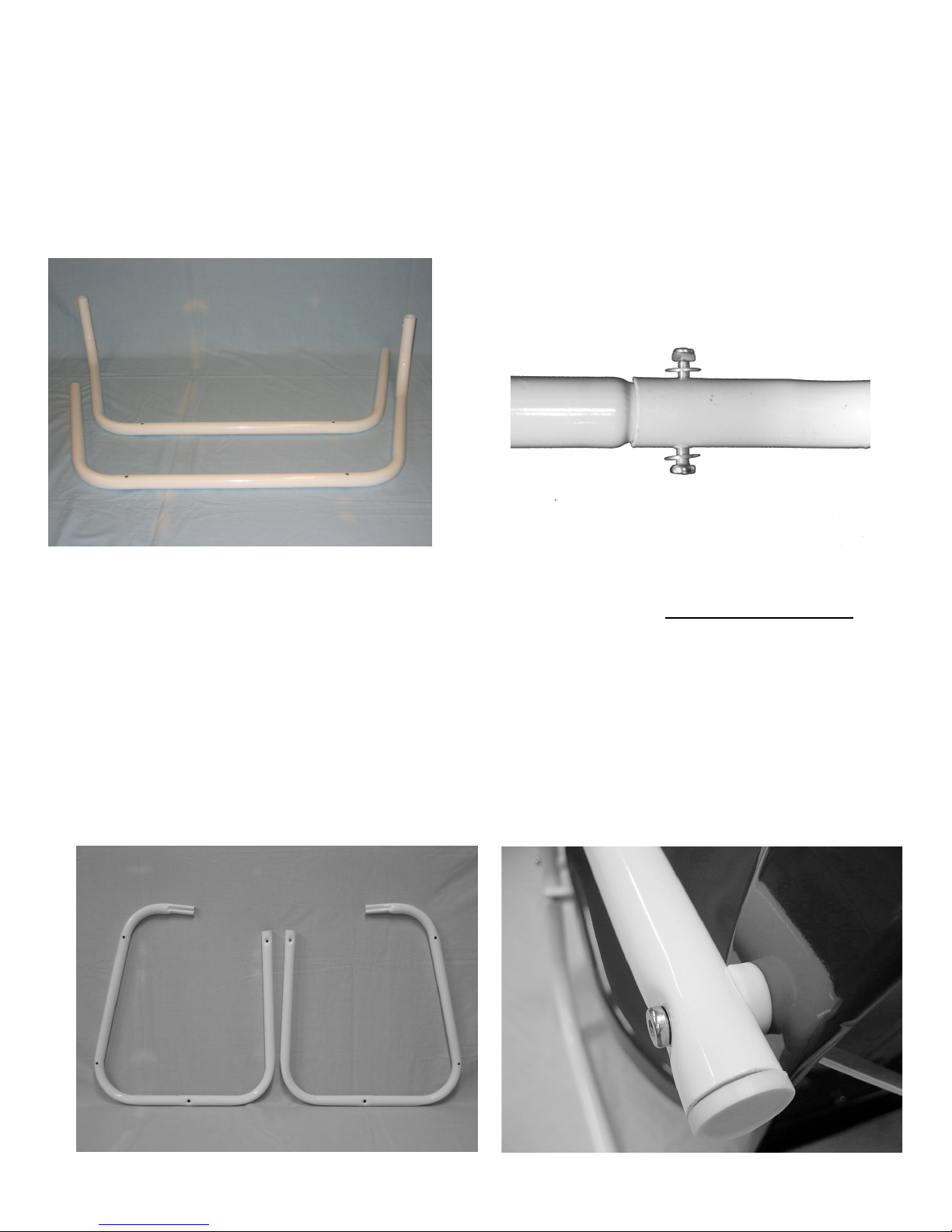

2 main frames
DG–58 small washers
Chair Back
2
Chair frame front crossmember
2 chair frame arms
Chair Seat
2

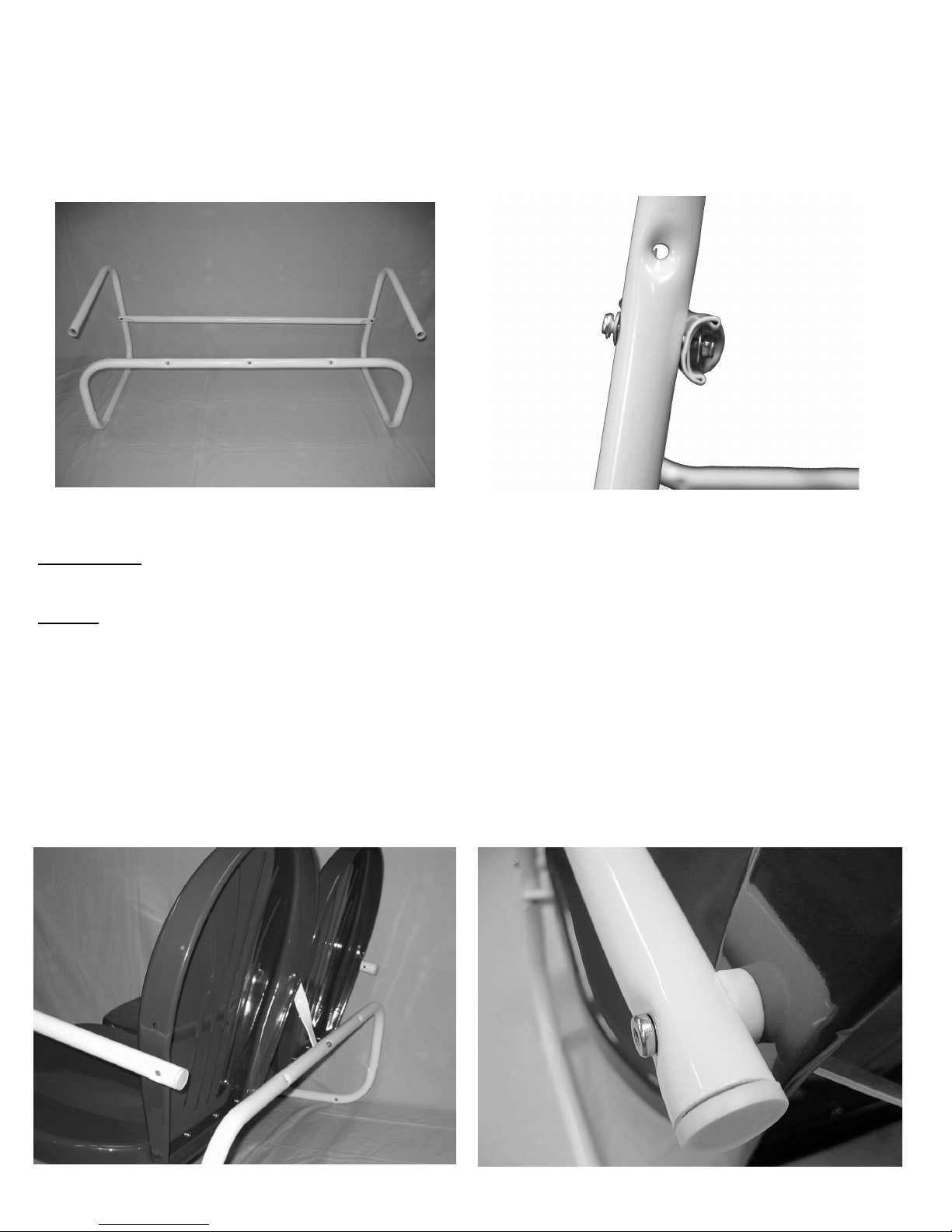

U-Shaped chair frame crossmember
Step 1.
Assemble Chair Seats and Backs with hardware as shown in Fig. 1. Place WASHER on SCREW and ensure
screw enters from REAR of CHAIR BACK as shown in Fig. 2. Set ALL screws, nuts and washers into place and
tighten.
Fig. 1 Fig. 2
AS VIEWED FROM CHAIR BACK
Step 2.

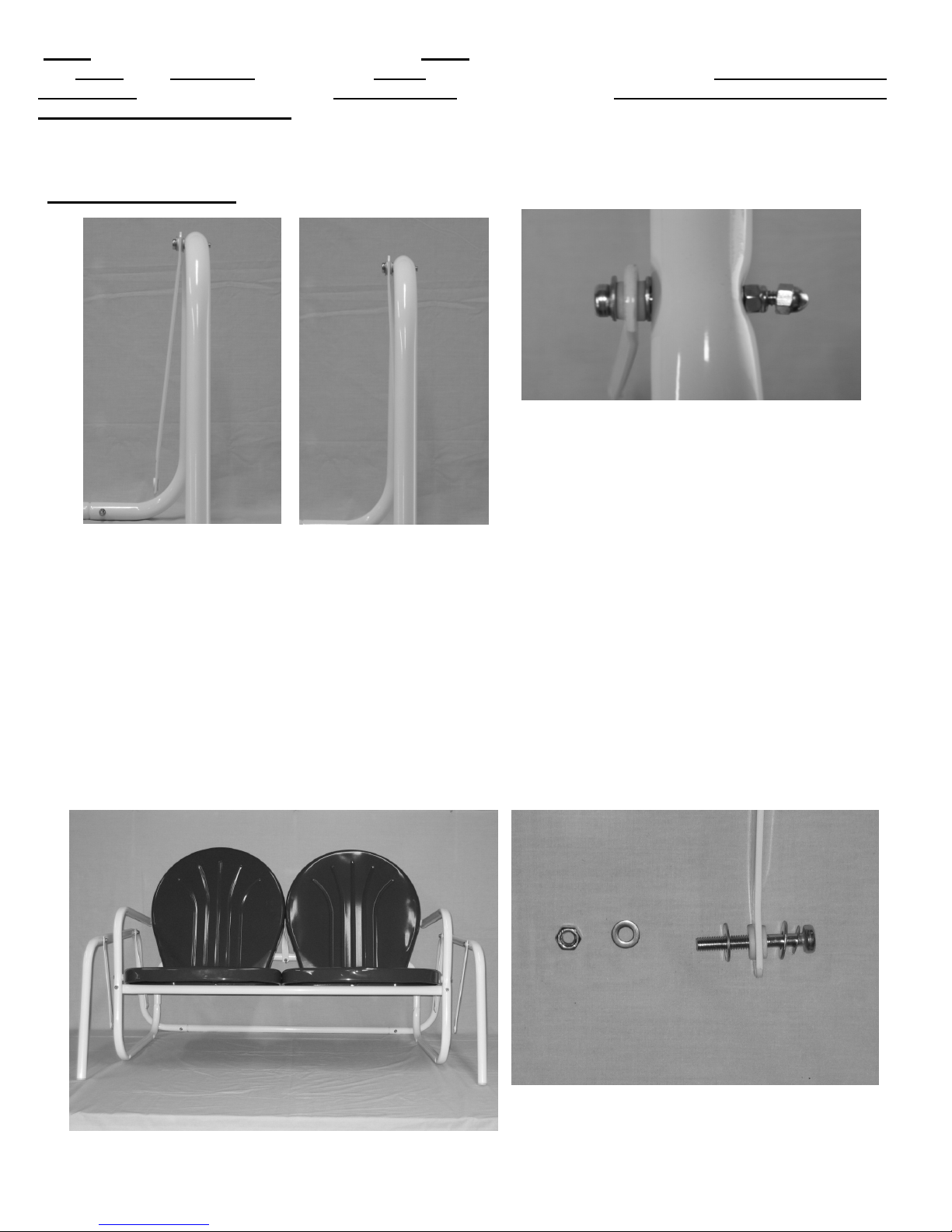

Place assembled Seats and Backs side by side on level surface as shown in Fig.3. Locate Center Support as
shown in Fig. 4. Using short screw with washer, secure Center Support and both Seat and Back assemblies
together as shown in Fig. 3 with washer and nut. DO NOT FULLY TIGHTEN.
Fig. 3 Fig. 4
Finish joining Seat and Back assemblies by placing short screw with washer through mounting holes ated on
underside at front of Chair Seats. Secure with washer and nut. TIGHTEN THIS SCREW ONLY. Set assembly
aside.
