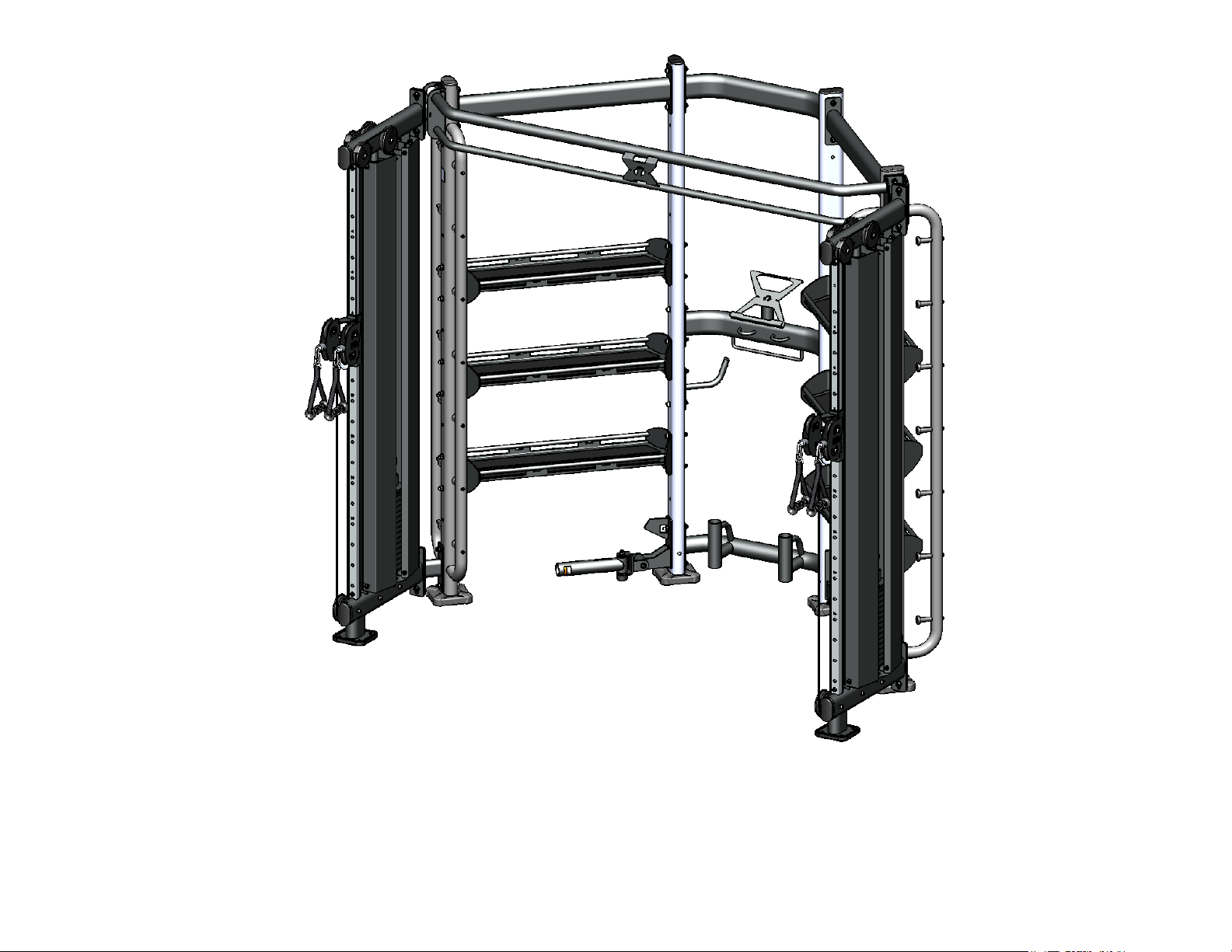

Page 1
X-LAB-EDGE
Assembly Guide
VERSION: XLE-X4
PART #: 5582901-A
Page 2

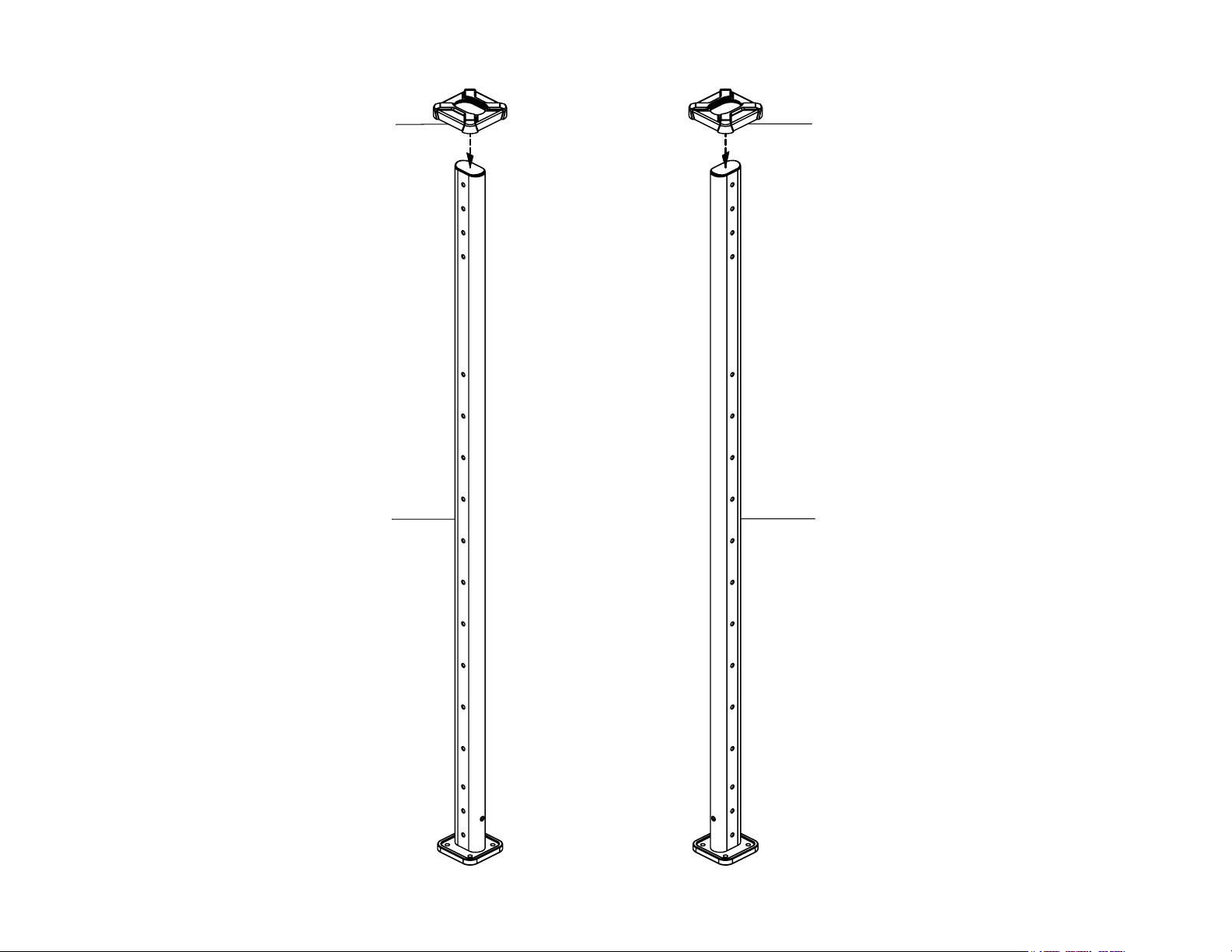

STEP 1
XLAB BOOT
XLAB-501
XLAB BOOT
XLAB-501
PAGE 2
Page 3

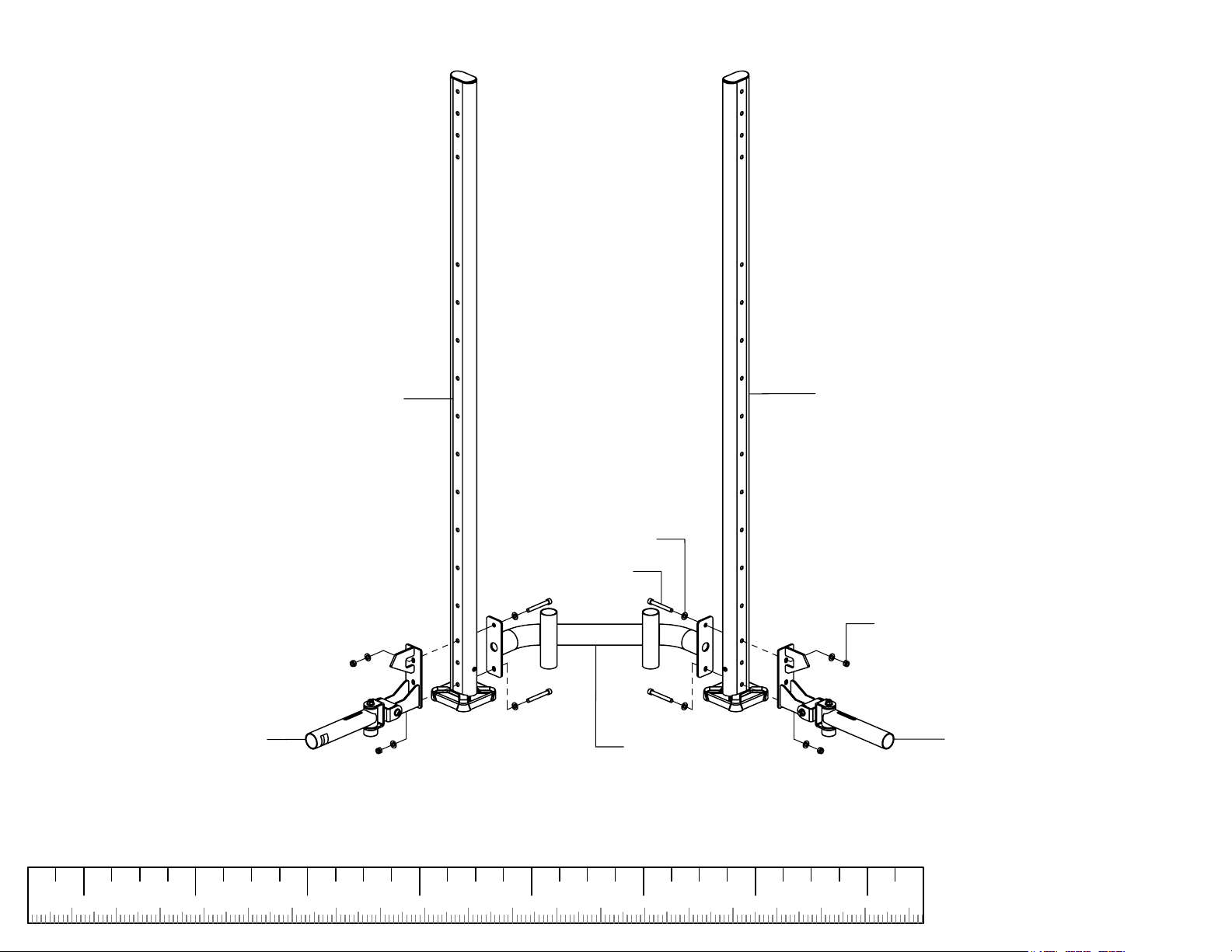

STEP 2
GRT-101
XLAB-501
1/2" FLAT WASHER (8)
1/2 X 4" BOLT (4)
BATTLE ROPE
CONNECTOR
XLAB-501
1/2" LOCK NUT (4)
GRT-101
LOOSELY
assemble bolt connections in this step.
1 2 4 5 7
50 1803190150 170160
130 14012090 110100403010 706020 80
6
200
PAGE 3
Page 4

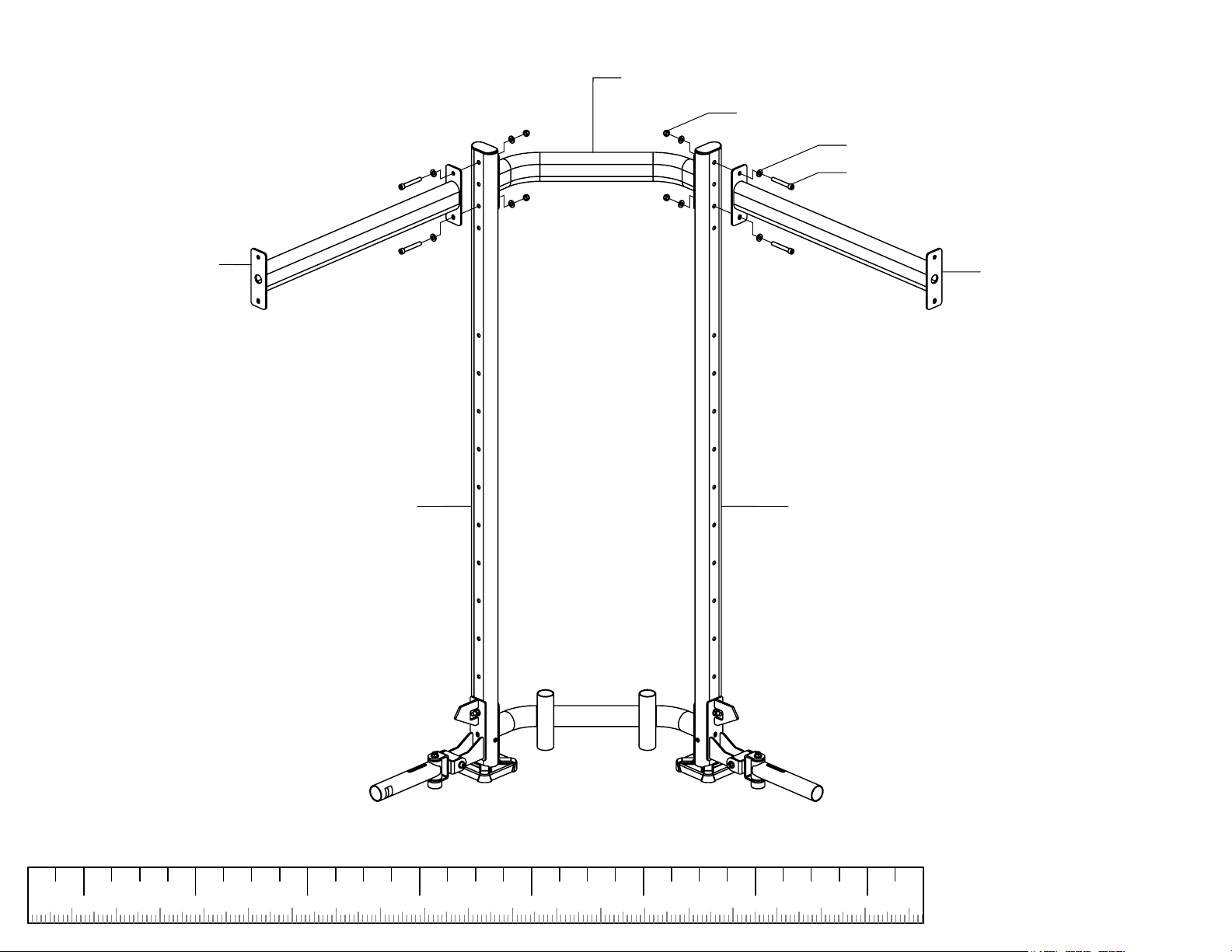

STEP 3
TOP CONNECTOR
1/2" LOCK NUT (4)
1/2" FLAT WASHER (8)
1/2 X 3-1/2" BOLT (4)
XLAB-401
XLAB-501
XLAB-401
XLAB-501
LOOSELY
assemble bolt connections in this step.
1 2 4 5 7
50 1803190150 170160
130 14012090 110100403010 706020 80
6
200
PAGE 4
Page 5

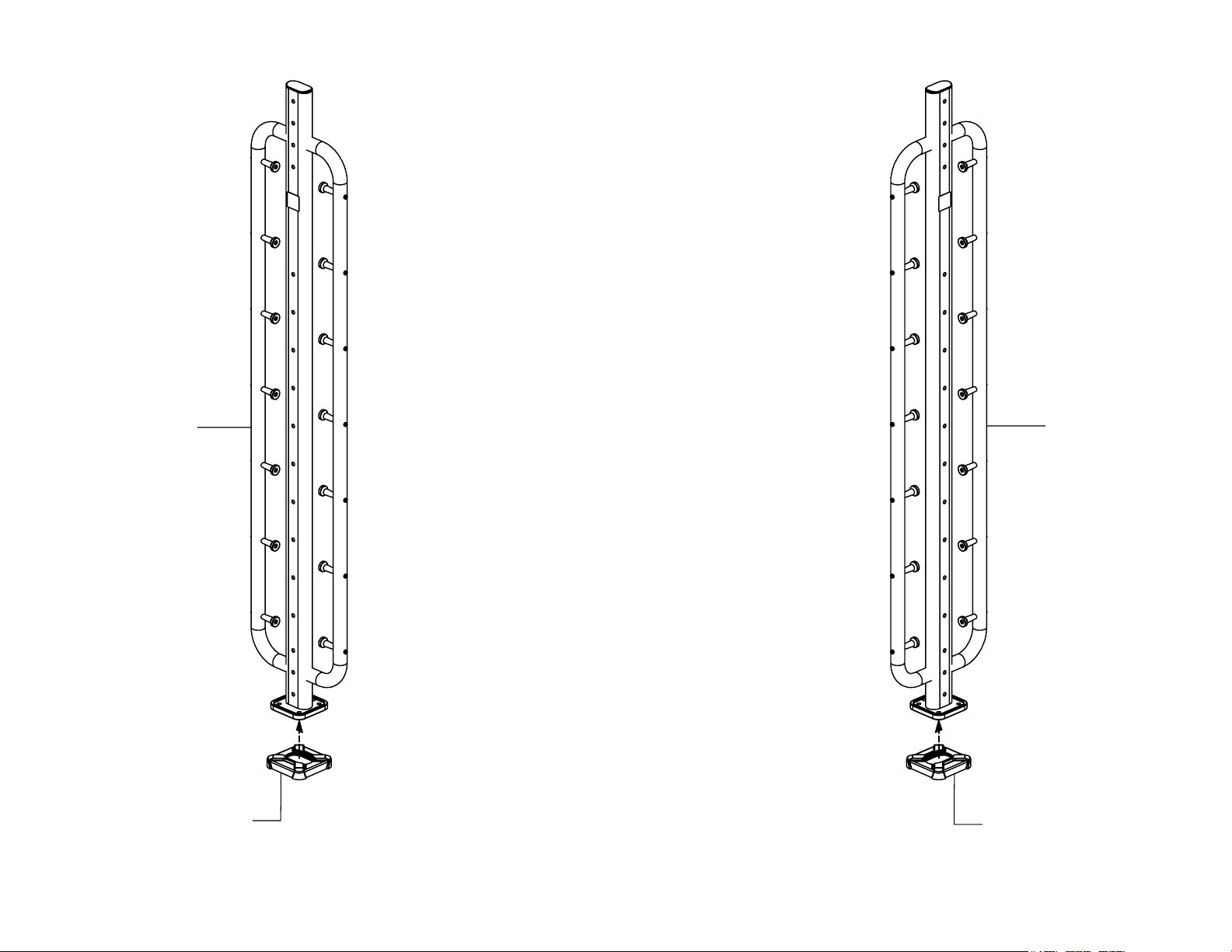

STEP 4
XLAB-301
XLAB-BOOT
XLAB-301
XLAB-BOOT
PAGE 5
Page 6
STEP 5
1/2" FLAT WASHER (4)
1/2" LOCK NUT (2)
ANGLE CONNECTOR
XLAB-301
XLAB-401
1/2 X 3-3/4" BOLT (2)
XLAB-401
1/2 X 3-3/4" BOLT (2)
1/2" FLAT WASHER (4)
1/2" LOCK NUT (2)
ANGLE CONNECTOR
SUSPENSION
CROSS
XLAB-301
LOOSELY
assemble bolt connections in this step.
1 2 4 5 7
50 1803190150 170160
130 14012090 110100403010 706020 80
6
200
PAGE 6
Page 7

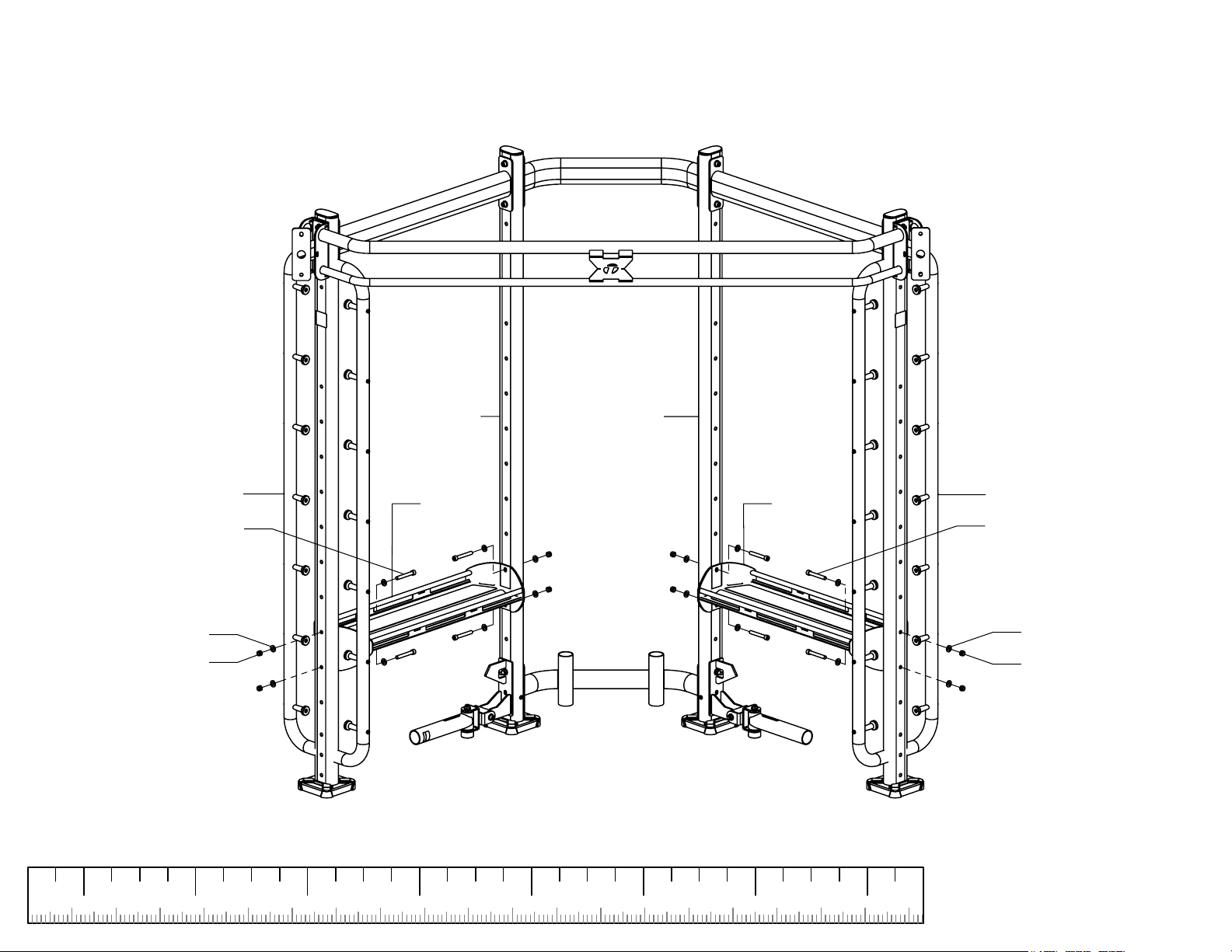

STEP 6
1/2 X 3-1/2" BOLT (4)
1/2" FLAT WASHER (8)
1/2" LOCK NUT (4)
LOOSELY
assemble bolt connections in this step.
XLAB-301
XLAB-501
XLAB-501
AT-101 AT-101
XLAB-301
1/2 X 3-1/2" BOLT (4)
1/2" FLAT WASHER (8)
1/2" LOCK NUT (4)
1 2 4 5 7
50 1803190150 170160
130 14012090 110100403010 706020 80
6
200
PAGE 7
Page 8

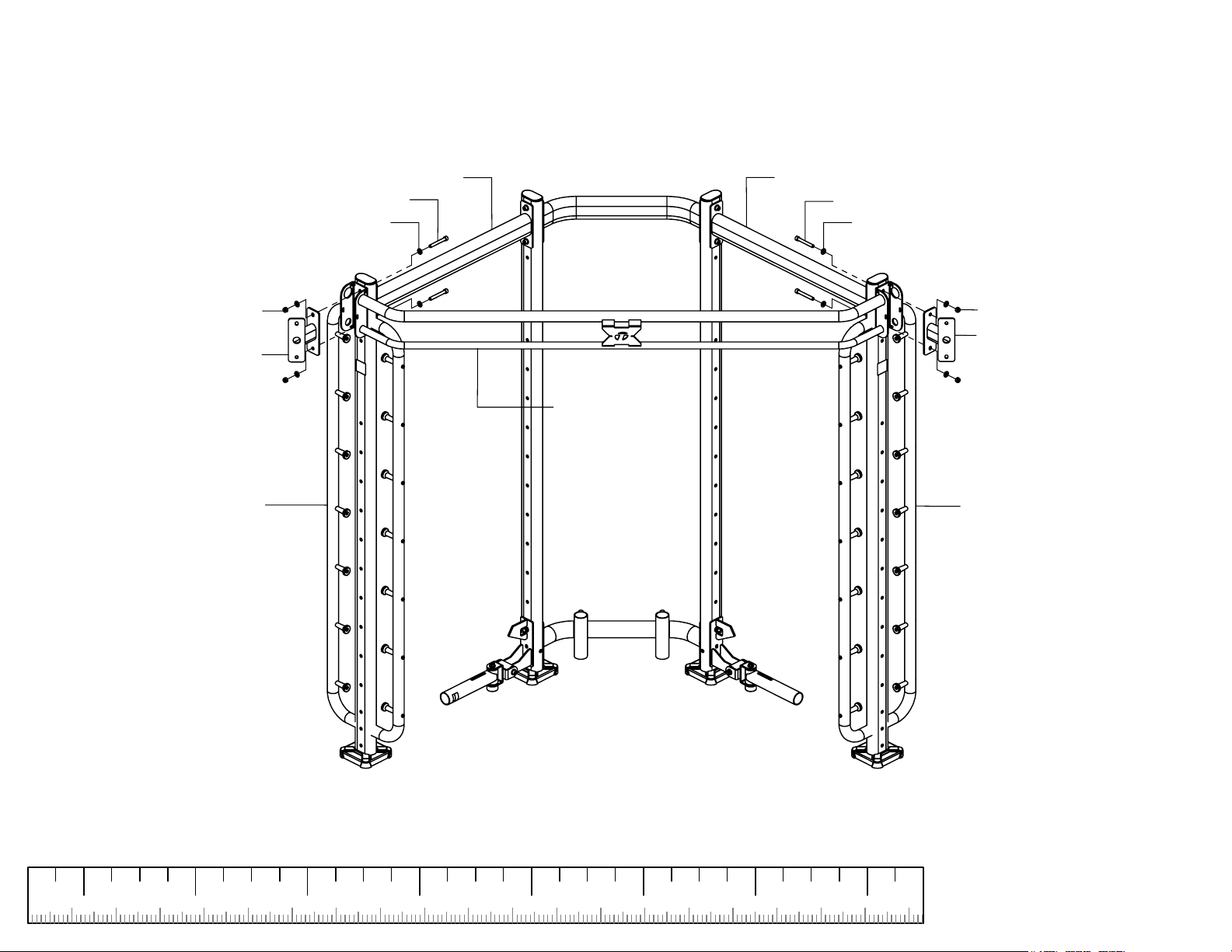

STEP 7
XLAB-301
1/2 X
3-1/2"
BOLT (2)
1/2" FLAT WASHER (12)
1/2" LOCK NUT (6)
1/2 X
3-3/4"
BOLT (2)
XLAB-501
1/2 X
3-1/4"
BOLT (1)
AT-101
MID
CONNECTOR
BATTLE ROPE
HANGER
BATTLE ROPE
HANGER
1/2 X
3-1/4"
BOLT (1)
1/2 X
3-1/4"
BOLT (1)
XLAB-501
1/2 X
BOLT (1)
3-1/4"
AT-101
1/2 X
3-1/2"
BOLT (2)
XLAB-301
1/2" FLAT WASHER (12)
1/2" LOCK NUT (6)
1/2 X
3-3/4"
BOLT (2)
LOOSELY assemble bolt connections in this step.
NOTE:
There are three different lenght bolts for this step. Follow diagram closely.
1 2 4 5 7
50 1803190150 170160
130 14012090 110100403010 706020 80
6
200
PAGE 8
Page 9

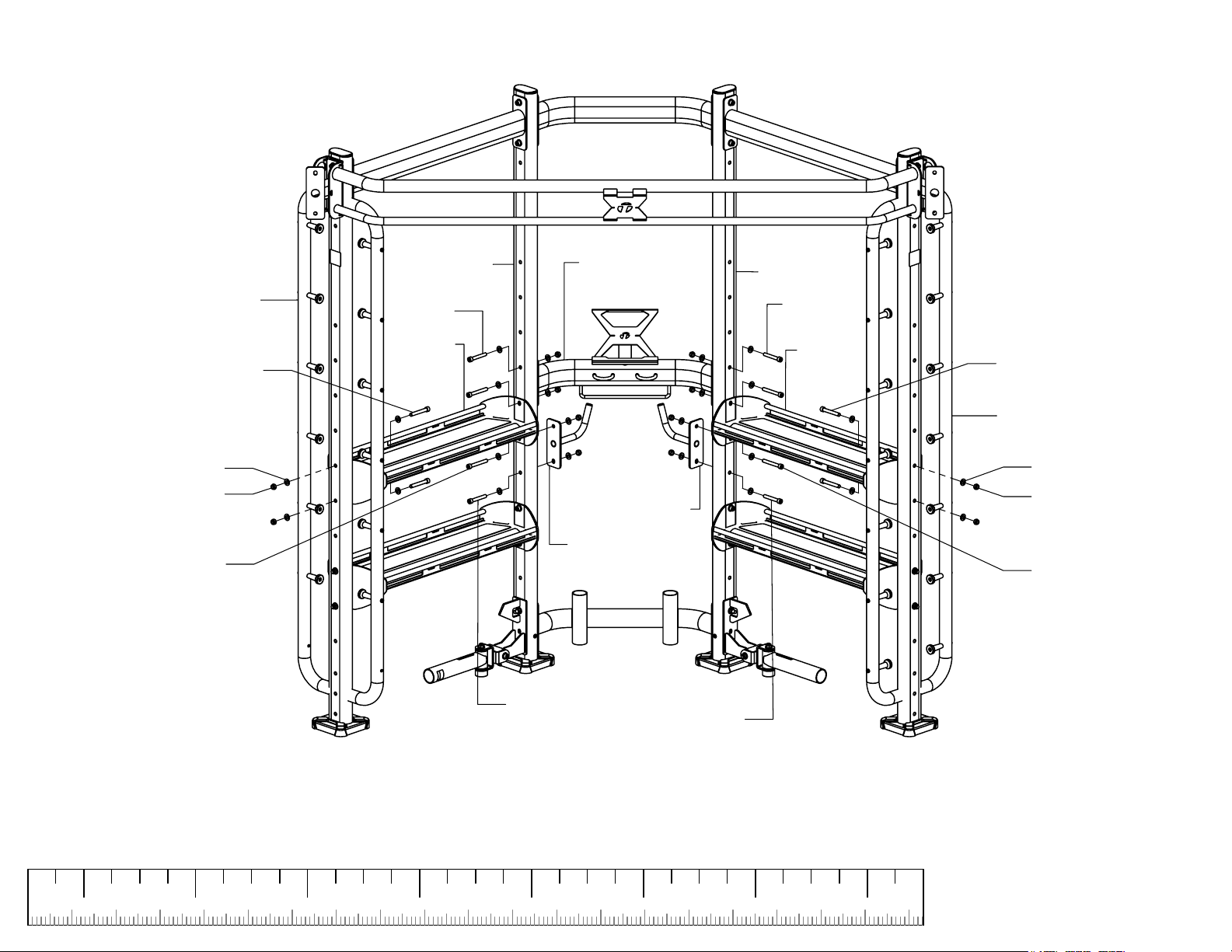

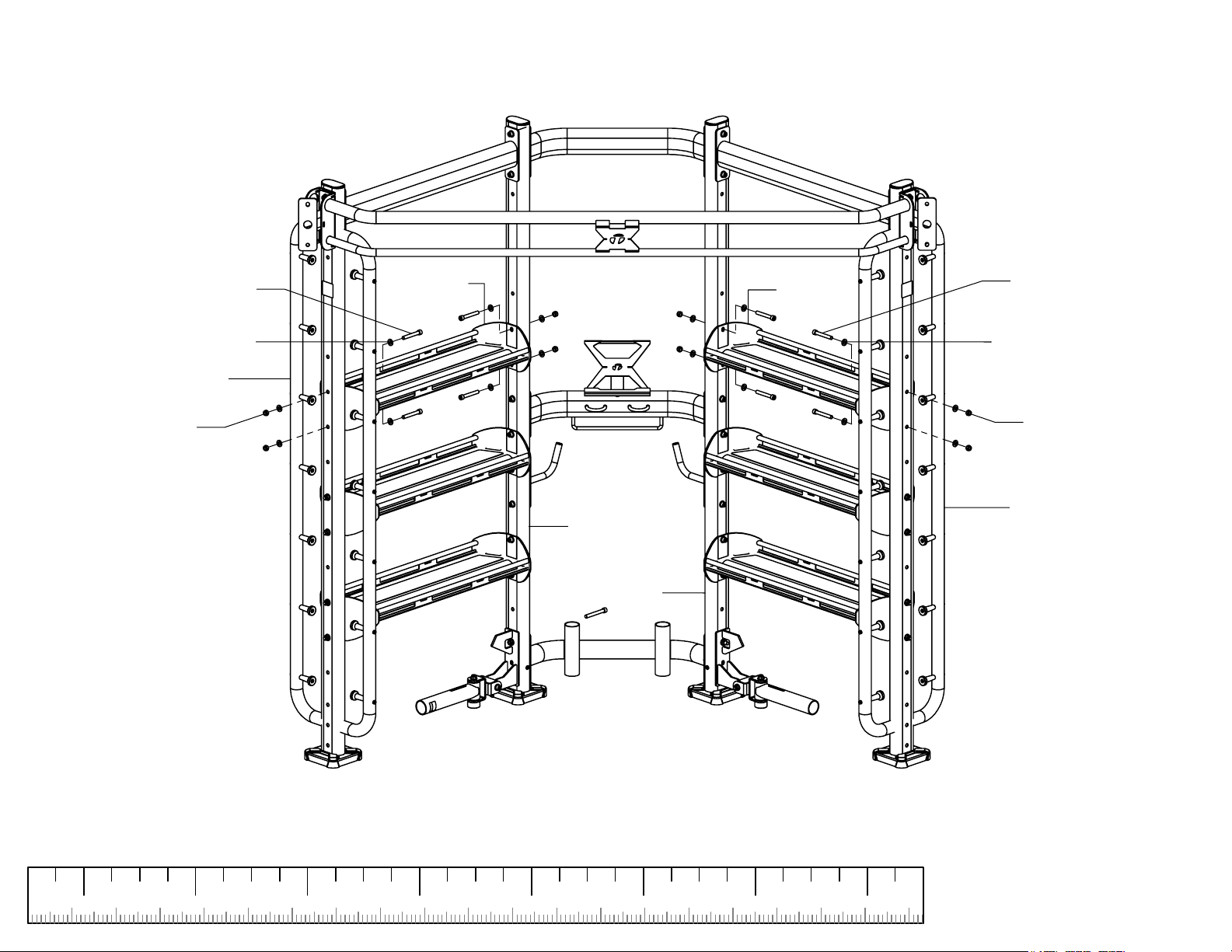

STEP 8
1/2 X 3-1/2" BOLT (4)
1/2" FLAT WASHER (8)
XLAB-301
1/2" LOCK NUT (4)
AT-101
XLAB-501
XLAB-501
AT-101
1/2 X 3-1/2" BOLT (4)
1/2" FLAT WASHER (8)
1/2" LOCK NUT (4)
XLAB-301
LOOSELY
assemble bolt connections in this step.
1 2 4 5 7
50 1803190150 170160
130 14012090 110100403010 706020 80
6
200
PAGE 9
Page 10

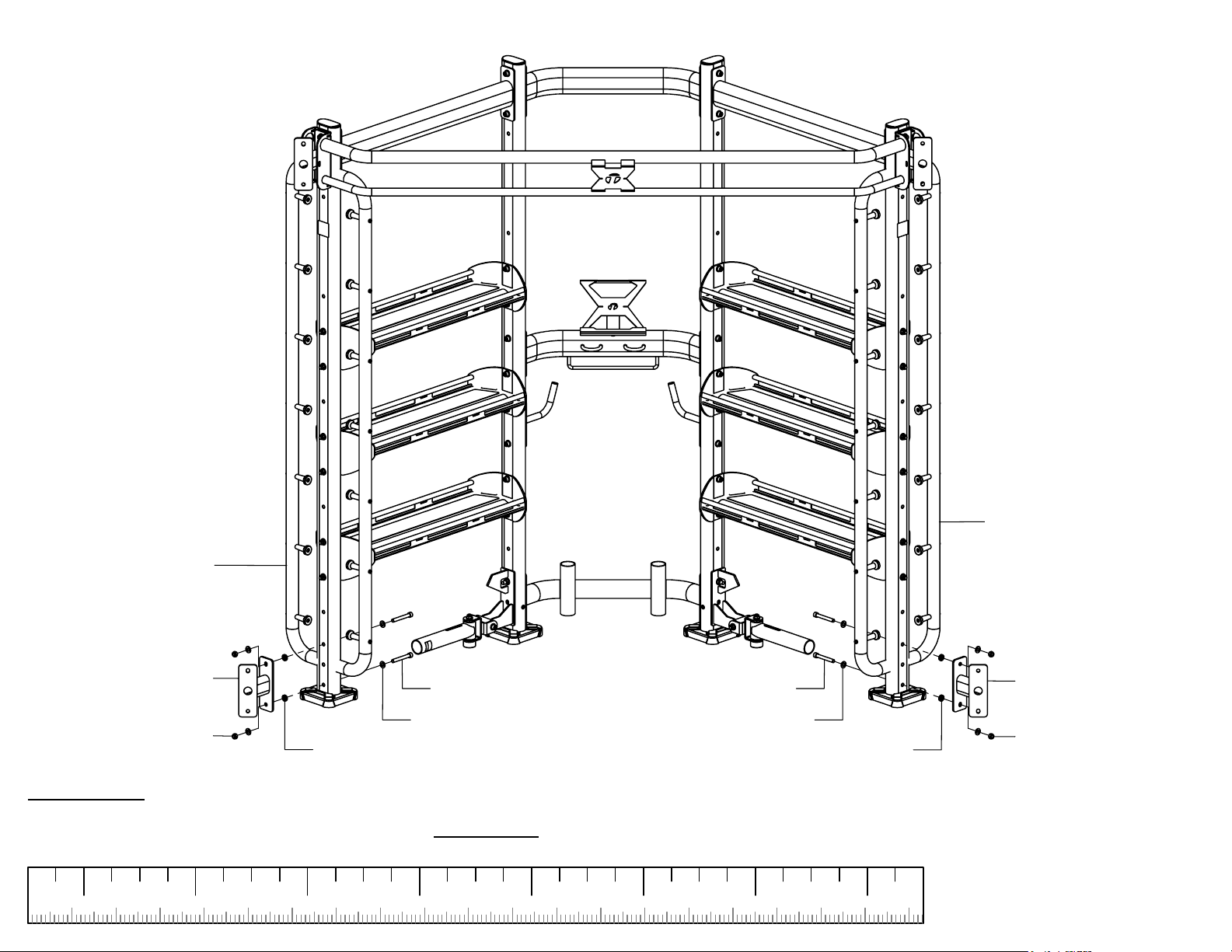

STEP 9
XLAB-301
ANGLE
CONNECTOR
1/2" LOCK NUT (2)
1/4" SPACER (2)
1/2 X 3-3/4" BOLT (2)
1/2" FLAT WASHER (4)
ATTENTION:
AFTER THIS STEP HAS BEEN COMPLETED,
SECURELY
TIGHTEN THE
BOLT CONNECTIONS IN THIS STEP AND ALL PREVIOUS STEPS.
1 2 4 5 7
50 1803190150 170160
130 14012090 110100403010 706020 80
1/2 X 3-3/4" BOLT (2)
1/2" FLAT WASHER (4)
6
XLAB-301
ANGLE
CONNECTOR
1/2" LOCK NUT (2)
1/4" SPACER (2)
200
PAGE 10
Page 11

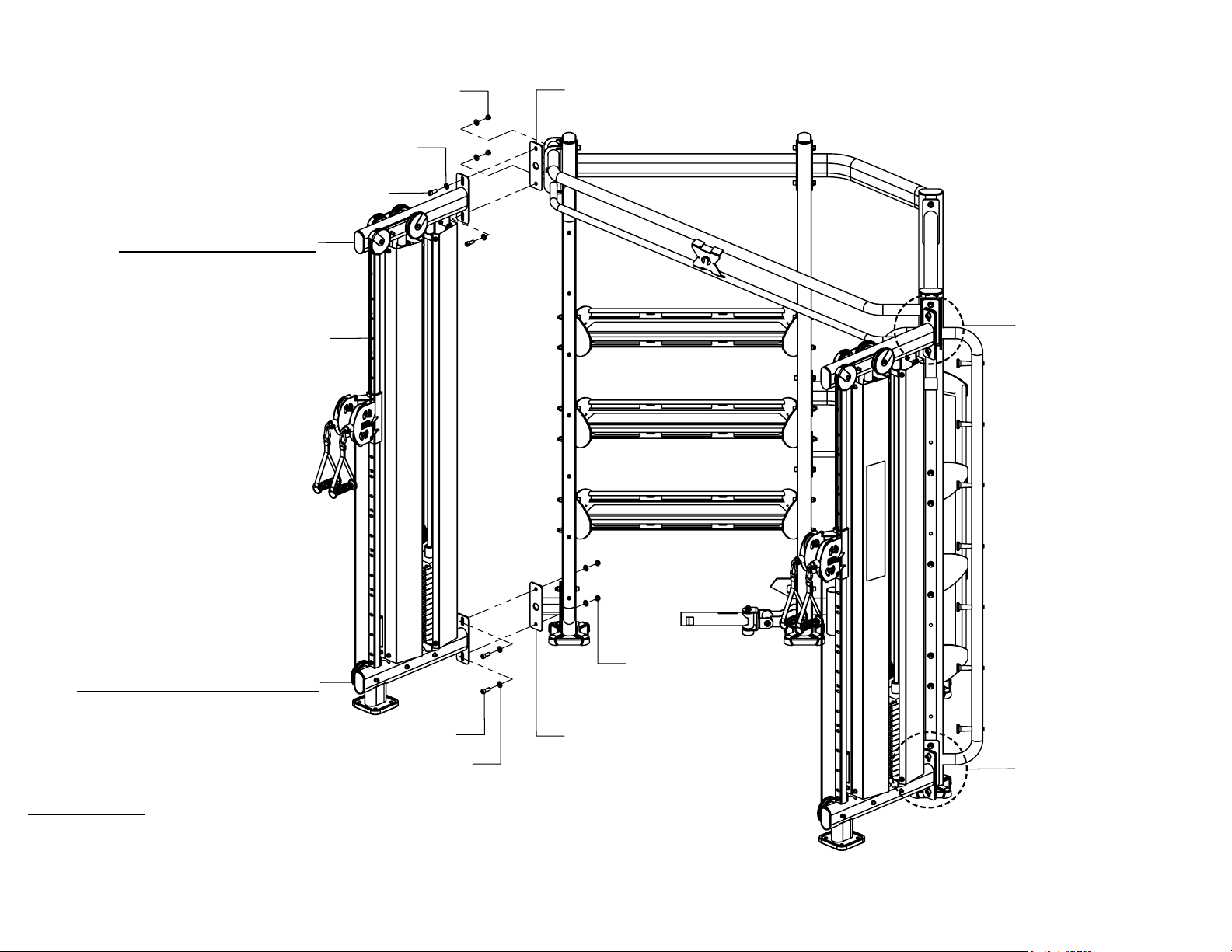

STEP 10: XCC-101 ASSEMBLY
1/2" FLAT WASHER (8)
1/2 X 1-1/4" BOLT (4)
XCC-101 TOP FRAME
XCC-101
1/2" LOCK NUT (4)
ANGLE
CONNECTOR
REPEAT STEP
ON THIS SIDE
1/2" LOCK NUT (4)
XCC-101 BOTTOM FRAME
1/2 X 1-1/4" BOLT (4)
1/2" FLAT WASHER (8)
ANGLE
CONNECTOR (2)
ATTENTION:
ASSEMBLE THE TOP AND BOTTOM FRAMES OF THE XCC-101 TO
THE ANGLE CONNECTORS AS SHOWN IN THIS STEP.
ASSEMBLE THE REST OF THE XCC-101 USING THE INSTRUCTIONS
INCLUDED WITH THAT PRODUCT.
REPEAT STEP
ON THIS SIDE
PAGE 11
Page 12

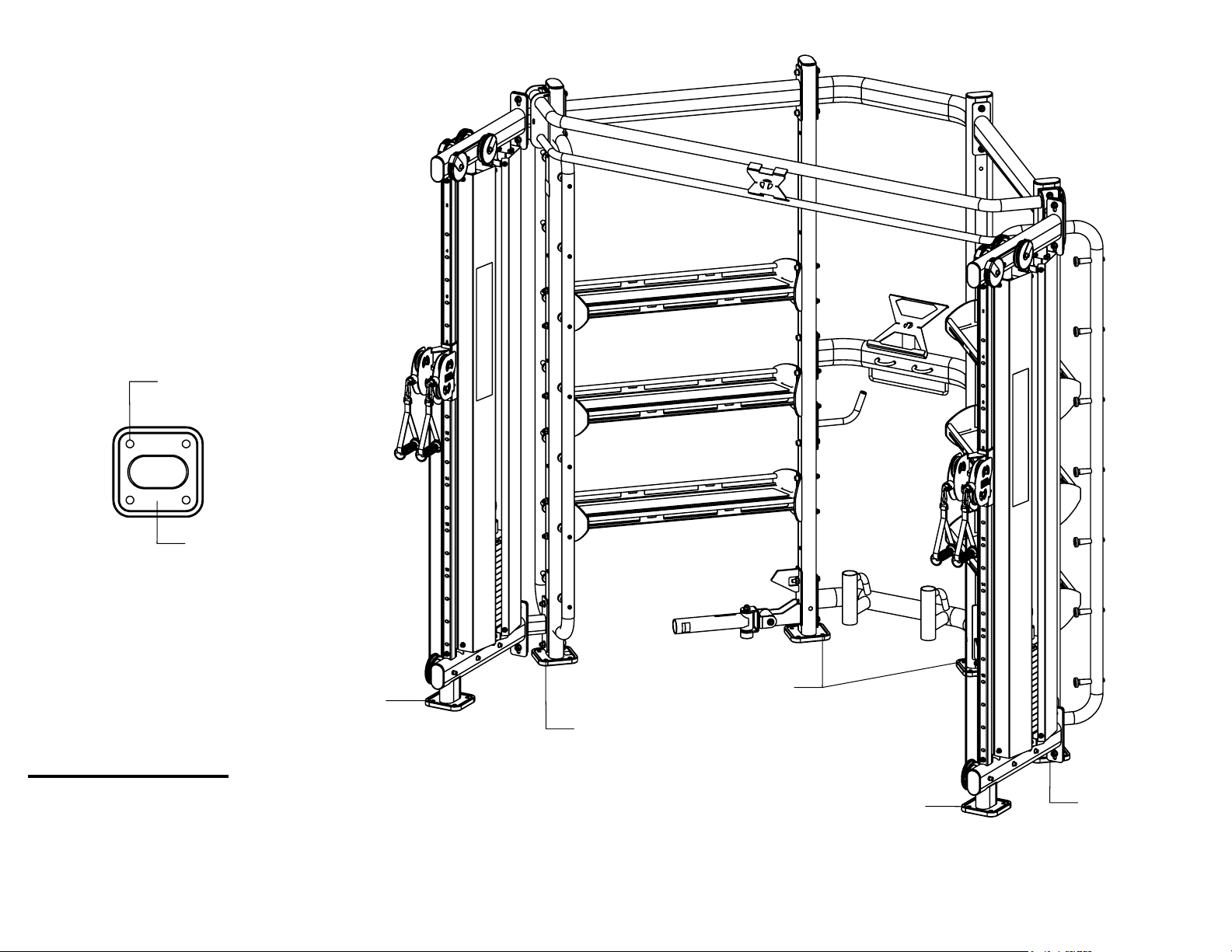

ANCHOR STEPS:
1) Position machine in desired location.
2) Trace around the four base plates and the
four holes in each base plate.
3) Move machine.
4) Drill anchor holes. Follow instructions on
anchor bolt packaging.
5) Vacuum dust out of each anchor hole.
5) Move machine back over anchor holes.
6) Anchor machine. Follow instruction on
anchor bolt packaging.
ANCHOR
HOLES (4)
BASE
PLATE
ANCHOR
HOLES (4)
WARNING!
ALL XLABS ARE REQUIRED TO BE ANCHORED TO THE
FLOOR TO PREVENT ROCKING OR TIPPING DURING USE.
For additional information on anchoring XLABS to the floor,
please visit our web site:
assembly-manuals/X-SERIES ANCHORING INSTRUCTIONS
www.torquefitness.com/product tools/
ANCHOR
HOLES (4)
ANCHOR
HOLES (4)
ANCHOR
HOLES (4)
ANCHOR
HOLES (4)
PAGE 12
