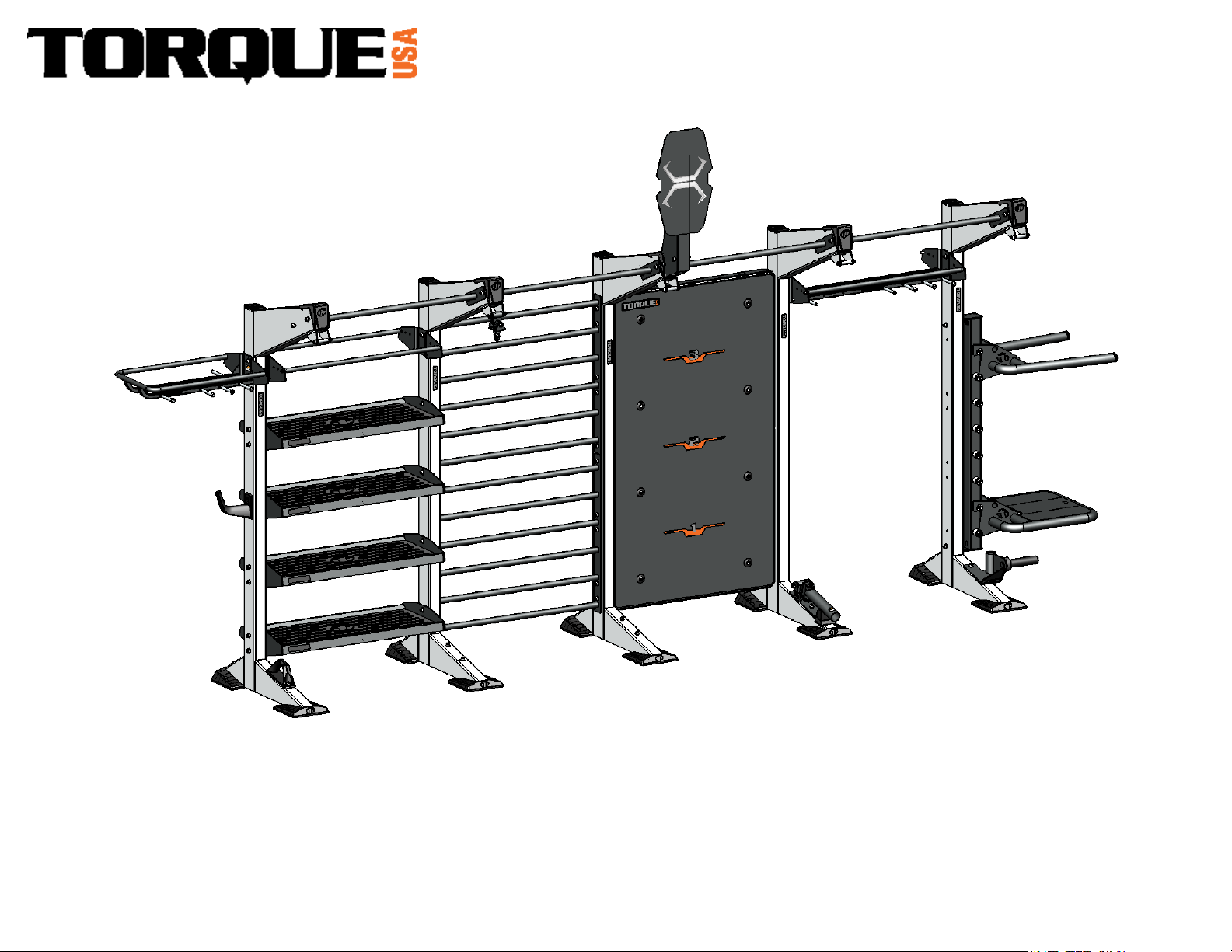

Page 1
X-CREATE WALL SPACE
Assembly Guide
PART # 5615201-B
Page 2
TABLE OF CONTENTS
ONE MODULE ASSEMBLY:
1.
MODULE ASSEMBLY
2.
8' UPRIGHT EXTENSION MODULE:
•
STORAGE MODULE:
•
STALL BAR MODULE:
•
BALL & HANGING STORAGE MODULE:
•
BALL TARGET WALL MODULE:
•
8' OLYMPIC LIFTING STATION MODULE:
•
ATTACHMENT ASSEMBLY
3.
BALL & HANGING STORAGE EXTENSION:
•
BATTLE ROPE ANCHOR:
•
HANGING STORAGE HOOK:
•
DOUBLE PLAY:
•
HORIZONTAL MOUNT GROUND ROTATIONAL TRAINER:
•
3-DIMENSIONAL SWIVEL:
•
BALL TARGET:
•
RESISTANCE BAND ANCHOR:
•
VERTICAL DUMBBELL RACK 4 PAIR:
•
ENDLESS ROPE DRUM (UPRIGHT):
•
ATTACHMENT ANCHOR:
•
DIP ATTACHMENT:
•
PLYO STEP:
•
ANCHORING:
4.

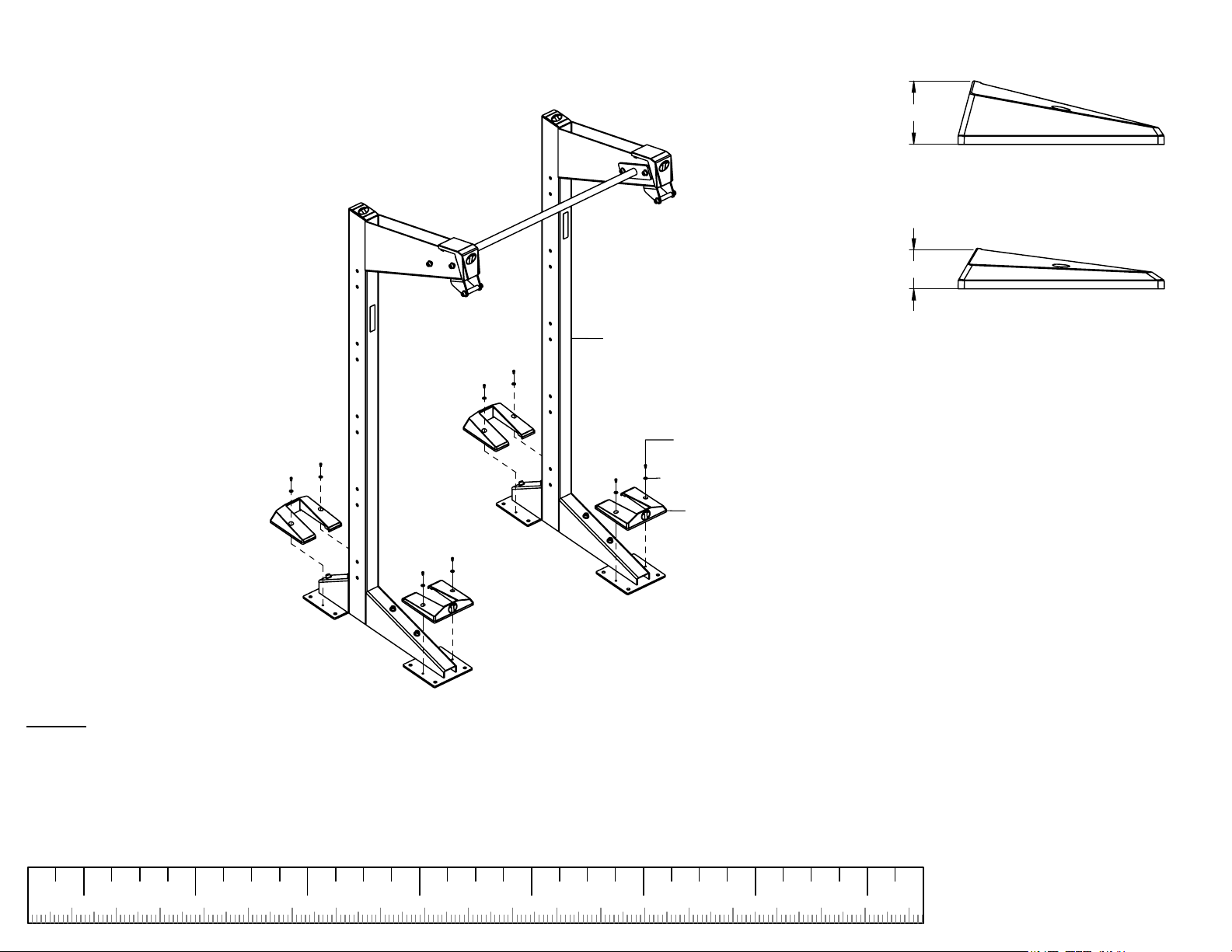

URETHANE BOOT:
5.
PAGE 31
PAGES 35-37
PAGE 44
PAGE 45
PAGE 46
PAGE 3
PAGES 8-11
PAGE 13
PAGE 29
PAGE 30
PAGES 33-34
PAGE 42
PAGE 43
PAGE 6
PAGE 20
PAGE 38
PAGE 39
PAGES 40-41
PAGES 15-18
PAGES 22-25
PAGE 28
PAGE 32
NOTE:
X-CREATE Wall Space Systems can be customized in countless ways. This
manualprovides instructions for assembling base units, module options and
attachment options. If you worked with Torque X-Team Design during the
purchasing process, please request a Bill of Material Drawing to reference your
exact set-up. For assistance, contact
(763) 754-7533; Toll free in USA (877) 867-7854.
NOTE:
When assembling any X-CREATE System that is longer than one module wide,
the hardware will shared between two side by side modules and pull-up bars.
It is recommended to keep all bolt connections loose until the base system and
all of the module stations have been assembled. Securely tighten all frame
connections at this time, and then proceed to the attachment options.
Attachment options can be securely tightened as they are assembled.
TOOLS FOR ASSEMBLY:
3/8" ALLEN WRENCH
•
5/16" ALLEN WRENCH
•
3/16" ALLEN WRENCH
•
3/4" WRENCH OR SOCKET
•
9/16" WRENCH OR SOCKET
•
1/2" WRENCH OR SOCKET
•
RUBBER MALLET
•
or call
WARNING!
ALL X-CREATE ARE REQUIRED TO BE ANCHORED TO THE
FLOOR TO PREVENT ROCKING OR TIPPING DURING USE.
2
Page 3

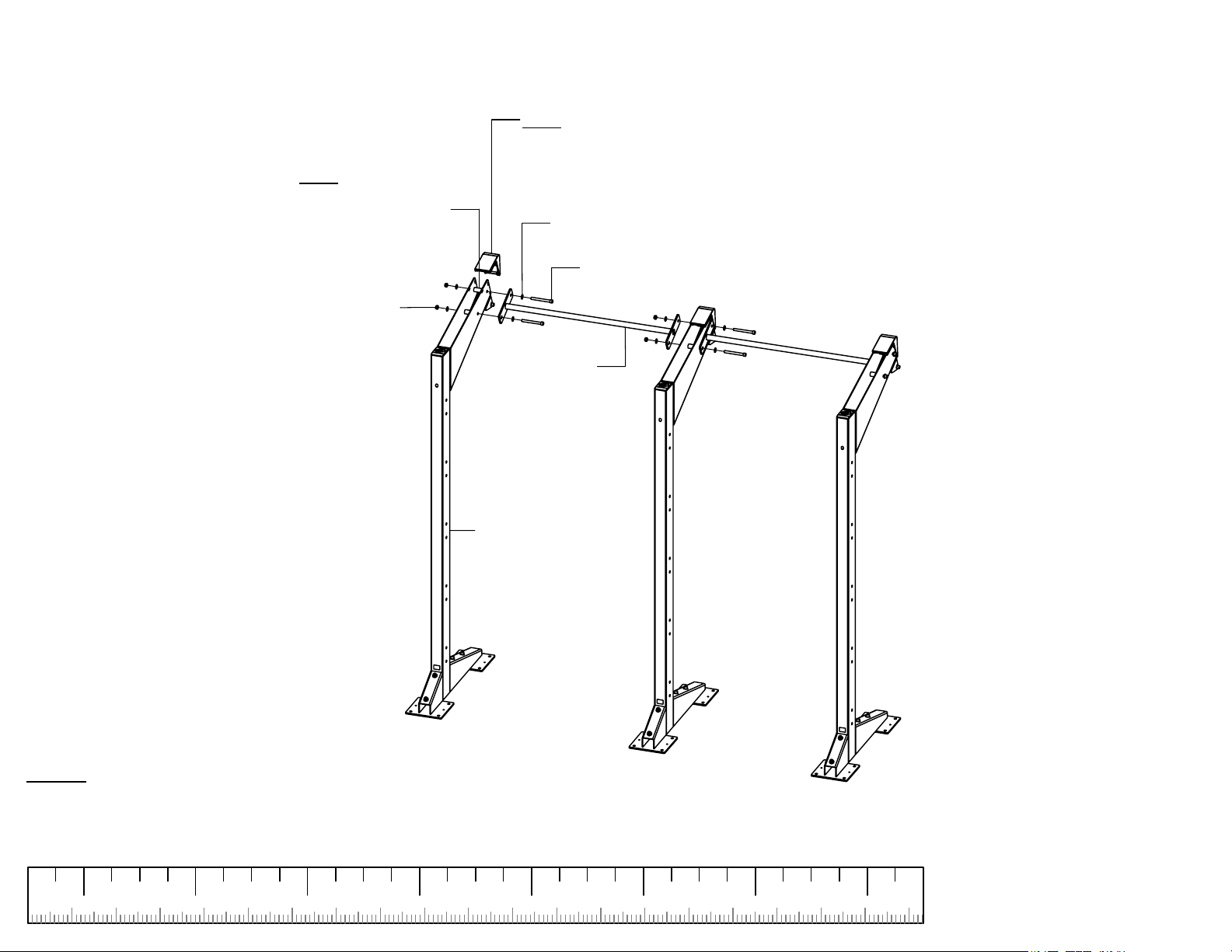

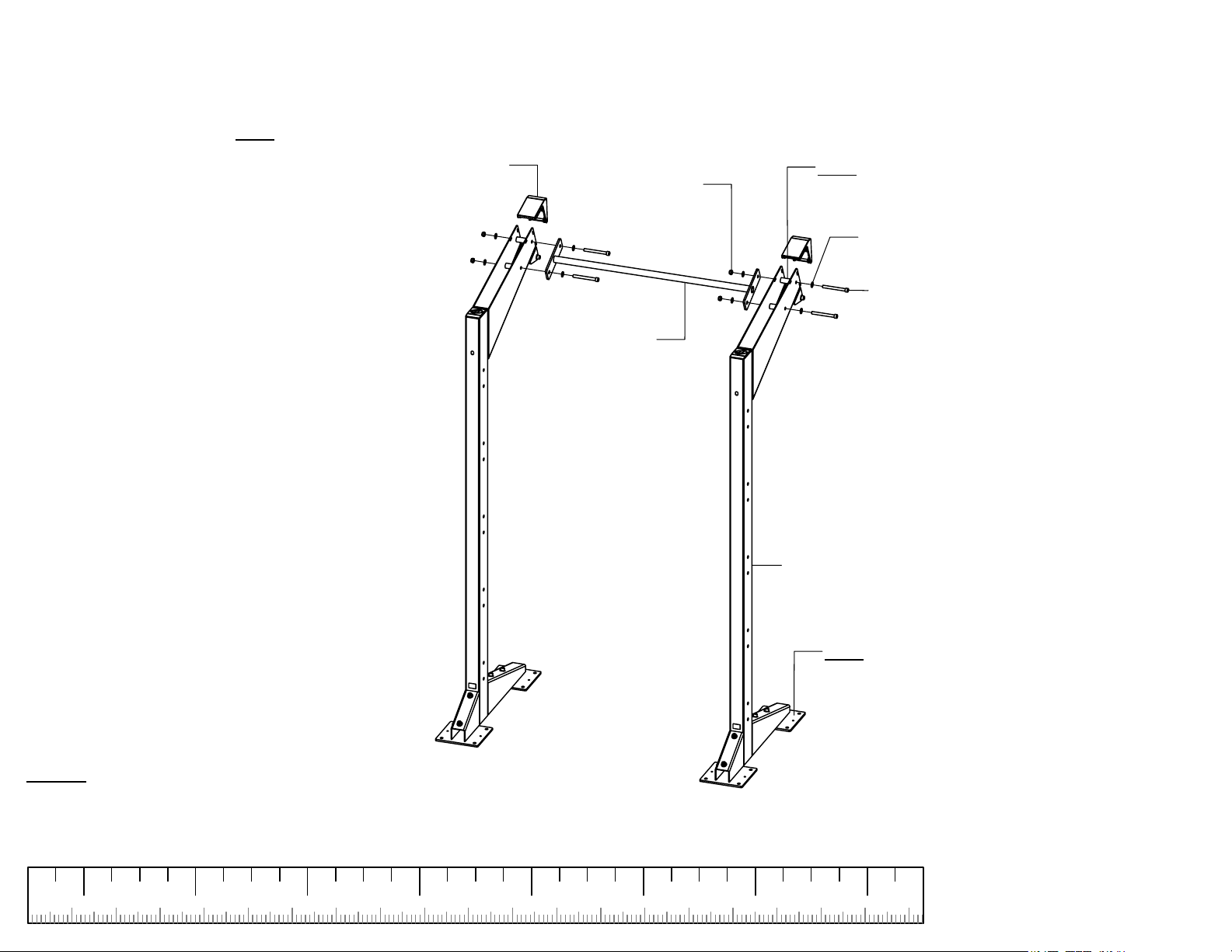

ONE MODULE
ASSEMBLY
NOTE:
REMOVE END CAPS PRIOR TO ASSEMBLY.
RE-ATTACH END CAPS AFTER ASSEMBLY (2)
1/2" LOCK NUT (4)
(PRE-INSTALLED)
XCREATE-4SX (2)
NOTE:
MAKE SURE TO USE PREINSTALLED SPACERS (4)
1/2" FLAT WASHER (8)
(PRE-INSTALLED)
1/2 X 4-3/4" BOLT (4)
(PRE-INSTALLED)
NOTE:
LOOSELY
assemble bolt connections in this step.
If more than one module will be assemble, refer to
1 2 4 5 7
50 1803190150 170160
PAGE 6
XCREATE-8U (2)
NOTE:
URETHANE BOOTS
WILL BE ASSEMBLED
IN THE LAST STEP
.
130 14012090 110100403010 706020 80
6
200
3
Page 4

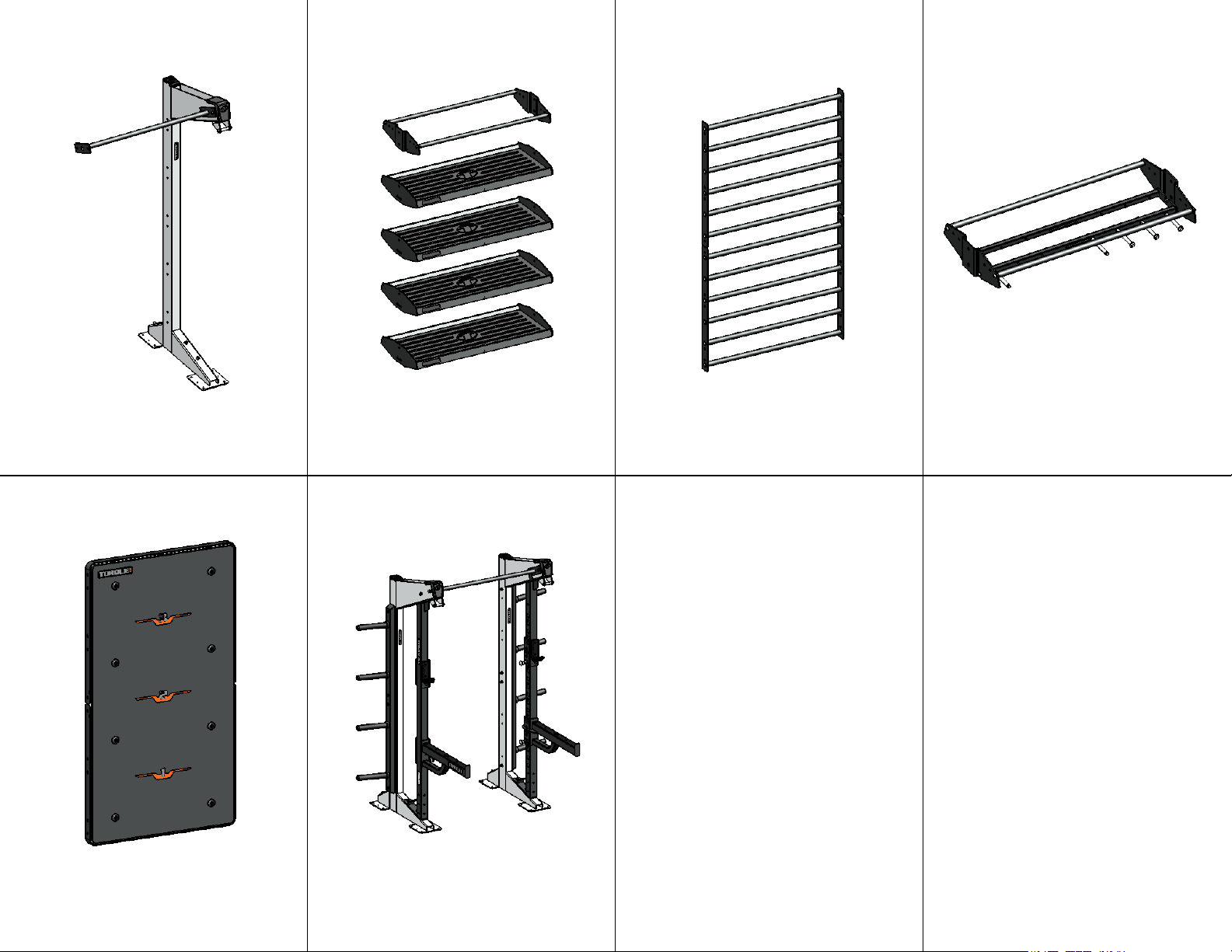

MODULES
8' UPRIGHT
EXTENSION MODULE
STORAGE MODULE
STALL BAR MODULE
BALL & HANGING
STORAGE MODULE
BALL TARGET WALL MODULE
8' OLYMPIC LIFTING
STATION MODULE
4
Page 5

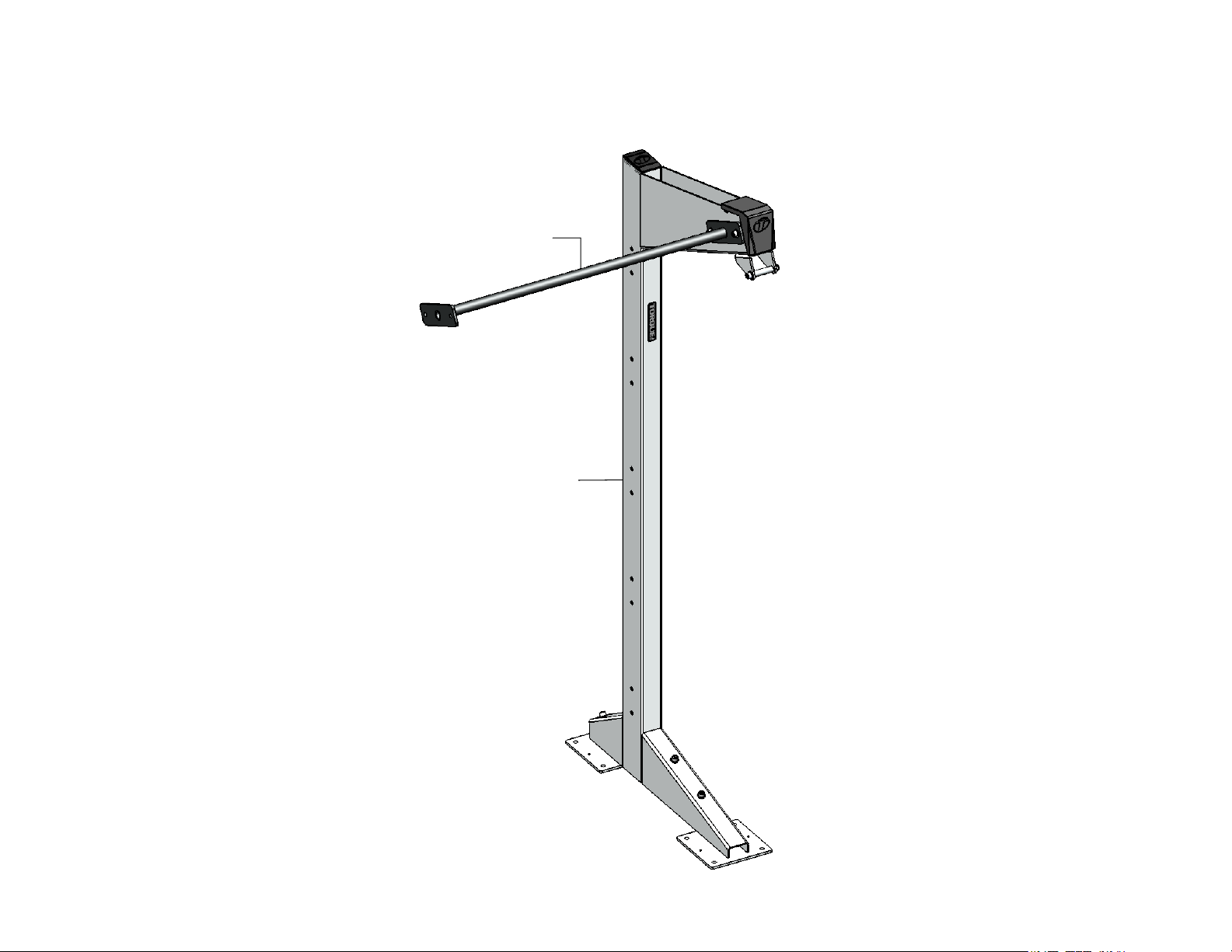

8' UPRIGHT EXTENSION MODULE
XCREATE-4SX (2X)
XCREATE-8U
5
Page 6
8' UPRIGHT EXTENSION MODULE
NOTE:
MAKE SURE TO USE PREINSTALLED SPACERS (4)
1/2" LOCK NUT (4)
PRE-INSTALLED
NOTE:
REMOVE END CAP
PRIOR TO ASSEMBLY.
RE-ATTACH END CAP
AFTER ASSEMBLY (2)
1/2" FLAT WASHER (8)
PRE-INSTALLED
1/2 X 4-3/4" BOLT (4)
PRE-INSTALLED
XCREATE-4SX
XCREATE-8U
NOTE:
LOOSELY
assemble bolt connections in this step.
Repeat this step for as many modules there are to assemble.
1 2 4 5 7
50 1803190150 170160
130 14012090 110100403010 706020 80
6
200
6

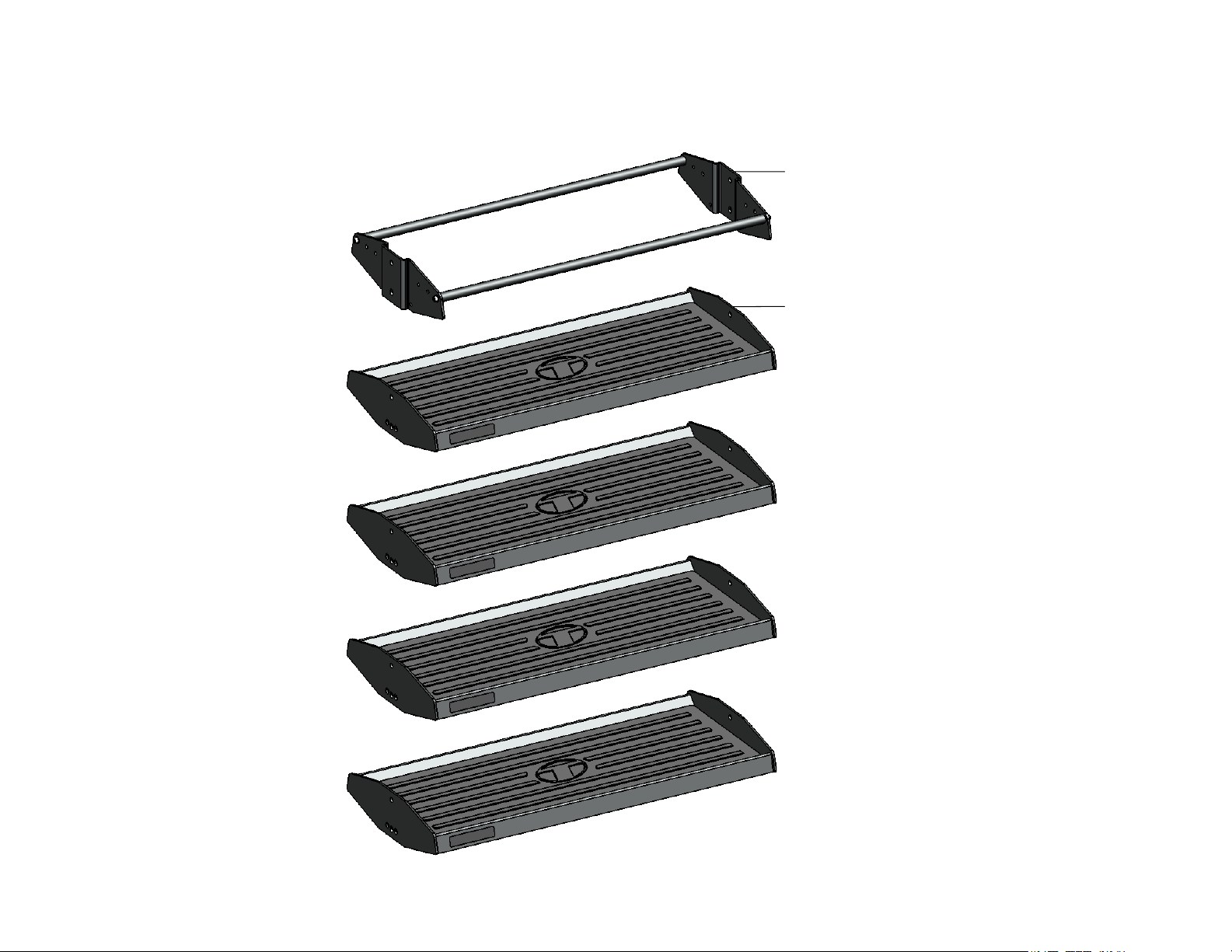

Page 7
STORAGE MODULE
XCREATE-4BS
XCREATE-4AT (4)
7

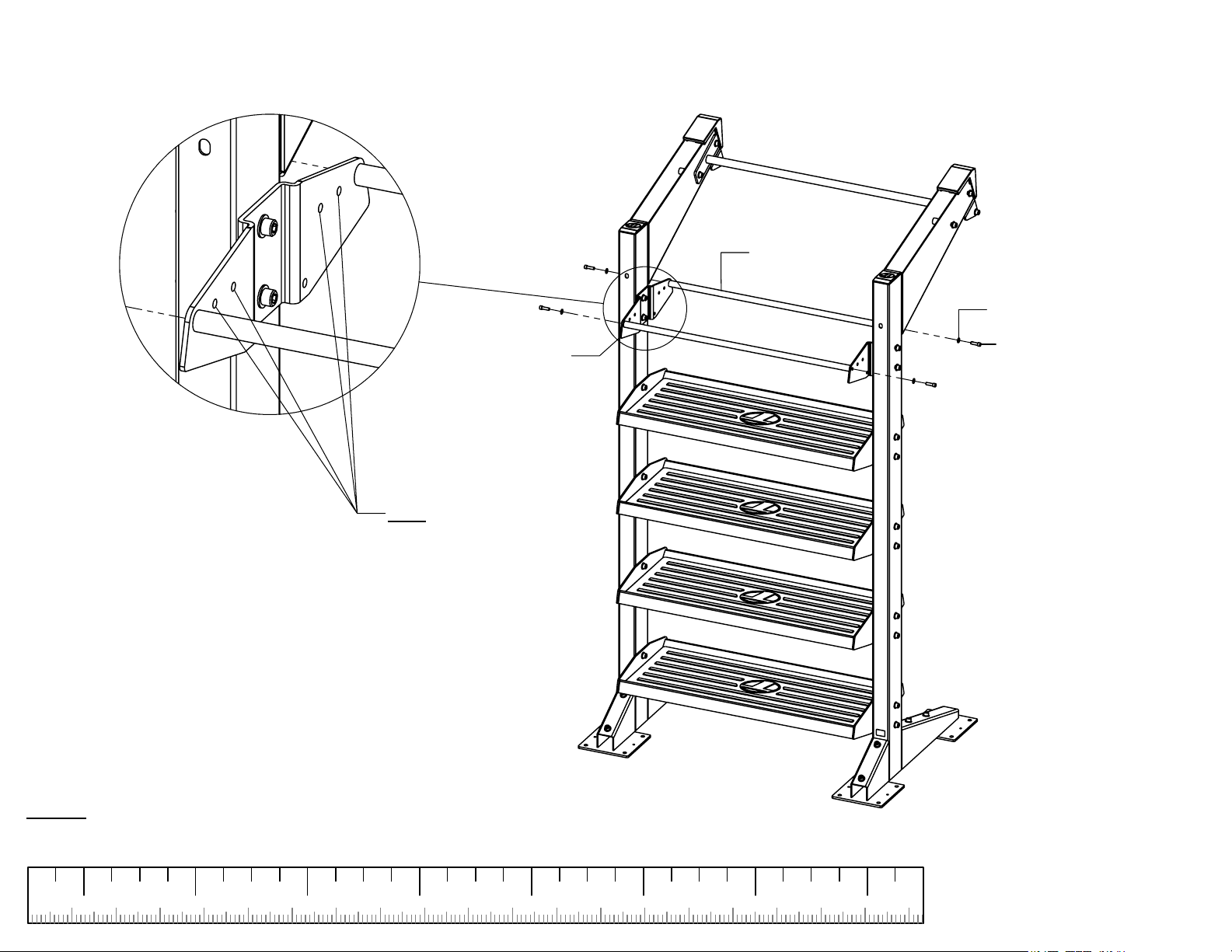

Page 8

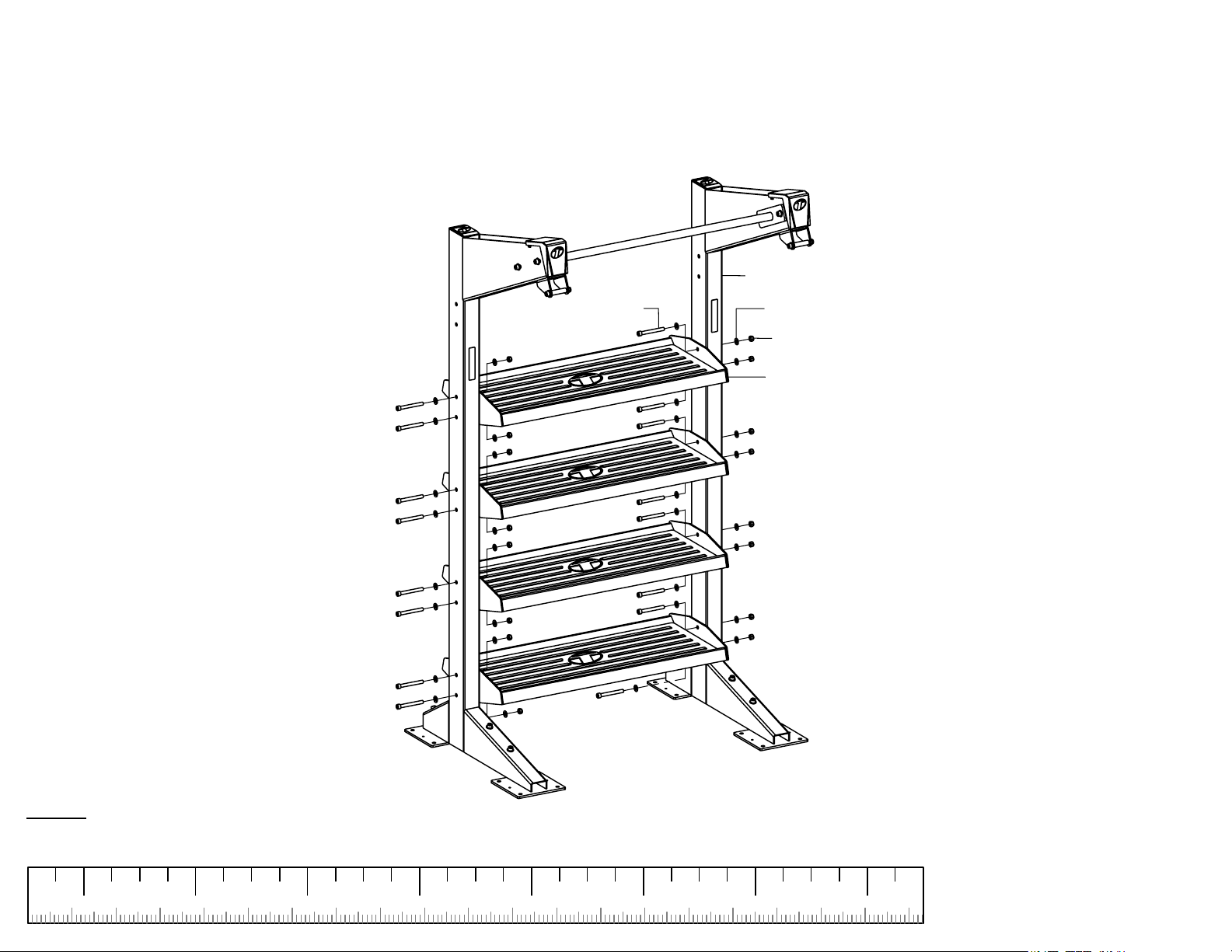

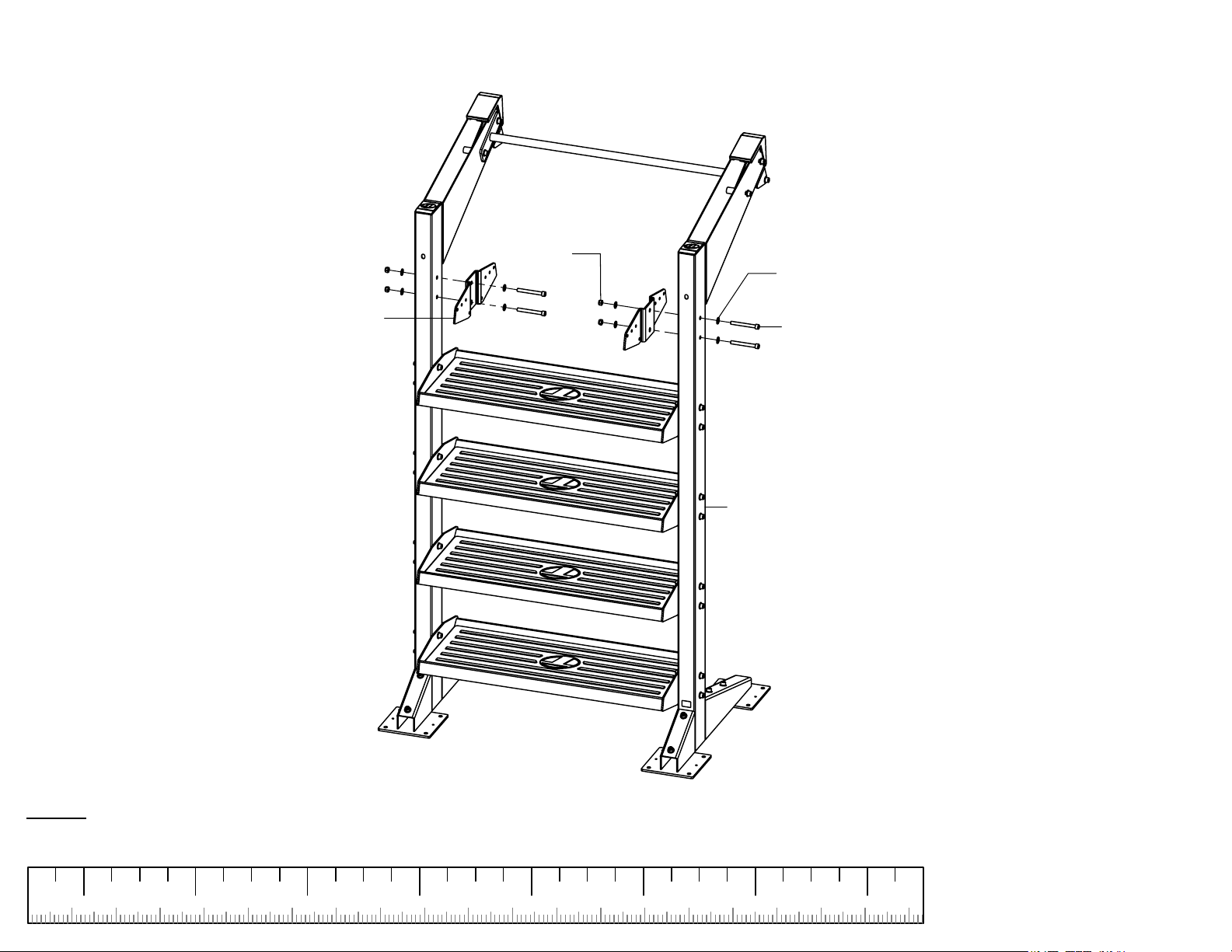

STORAGE MODULE
1/2 X 4-1/4"
BOLT (16)
XCREATE-8U (2)
1/2" FLAT WASHER (32)
1/2" LOCK NUT (16)
XCREATE-4AT (4)
NOTE:
LOOSELY
assemble bolt connections in this step.
1 2 4 5 7
50 1803190150 170160
130 14012090 110100403010 706020 80
6
200
8
Page 9
STORAGE MODULE
1/2" LOCK
NUT (4)
1/2" FLAT WASHER (8)
END BRACKET (2)
1/2 X 4-1/4" BOLT (4)
XCREATE-8U
NOTE:
LOOSELY
assemble bolt connections in this step.
1 2 4 5 7
50 1803190150 170160
130 14012090 110100403010 706020 80
6
200
9

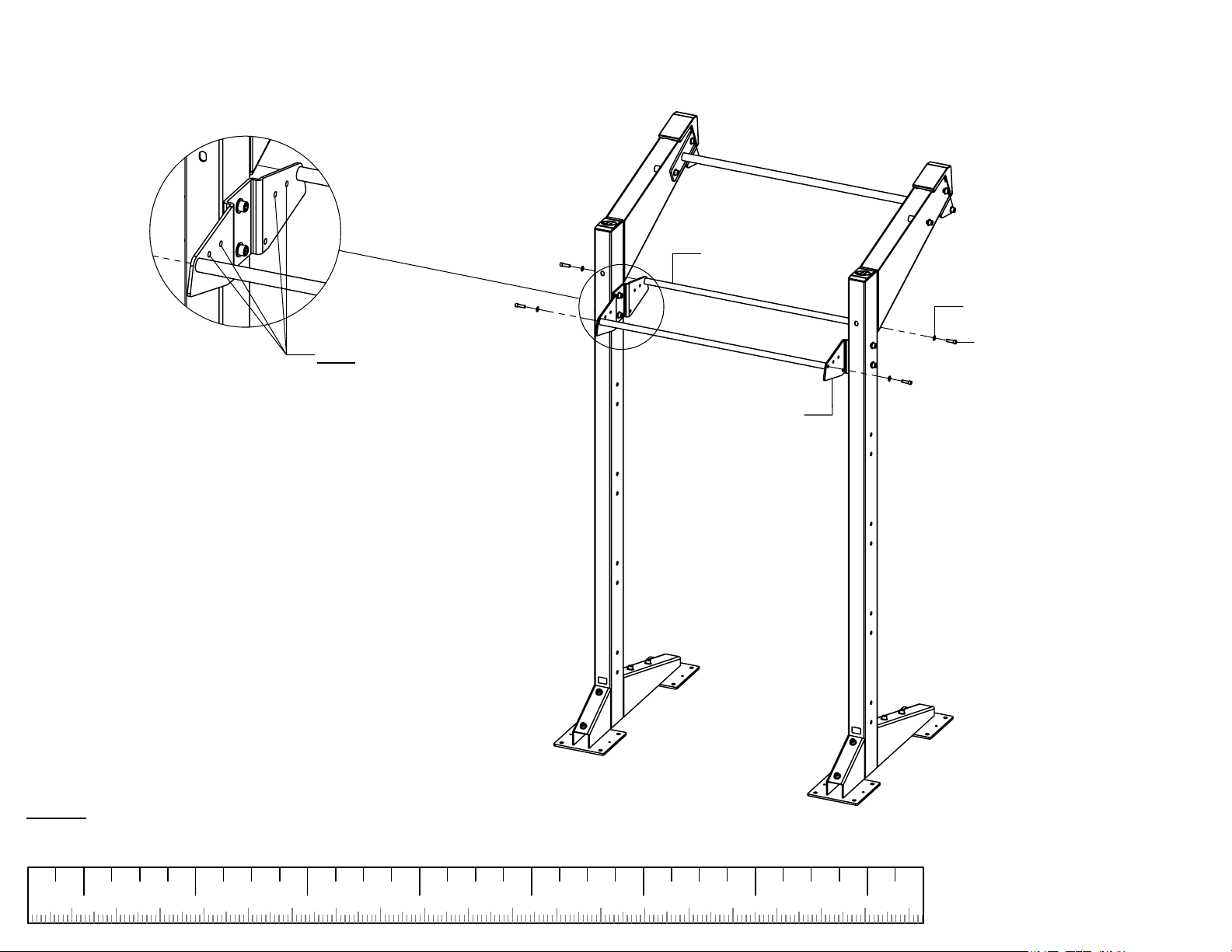

Page 10
STORAGE MODULE
RAIL (2)
3/8" FLAT WASHER (4)
END BRACKET (2)
NOTE:
RAILS ARE ASSEMBLED
FOR STABILITY BALL WIDTH.
RAILS CAN BE BOLTED TO
NARROWER HOLES FOR
SMALLER ACCESSORIES
3/8 X 1-1/4" BOLT (4)
NOTE:
If more modules will be assembled, do not tighten bolts at this time.
1 2 4 5 7
50 1803190150 170160
130 14012090 110100403010 706020 80
6
200
10
Page 11

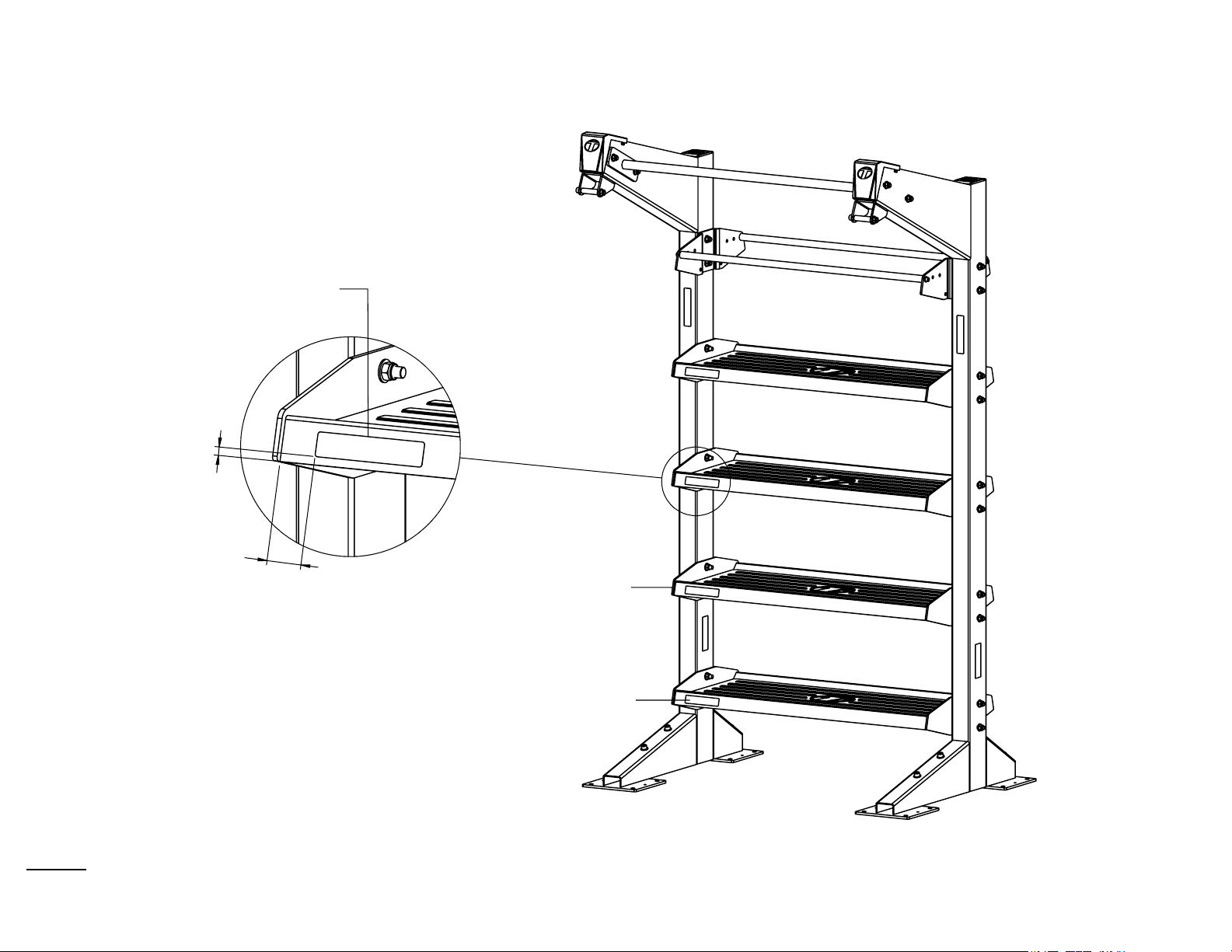

STORAGE MODULE
ATTACH DESIRED
LABEL TO EACH
ACCESSORY TRAY
3/8"
1-3/4"
XCREATE-4AT (4)
ACCESSORY LABEL
NOTE:
If you are a professional contractor installing this system for a facility,
leave these labels and instruction with manager or inquire what label
to attach to each accessory tray.
11
Page 12

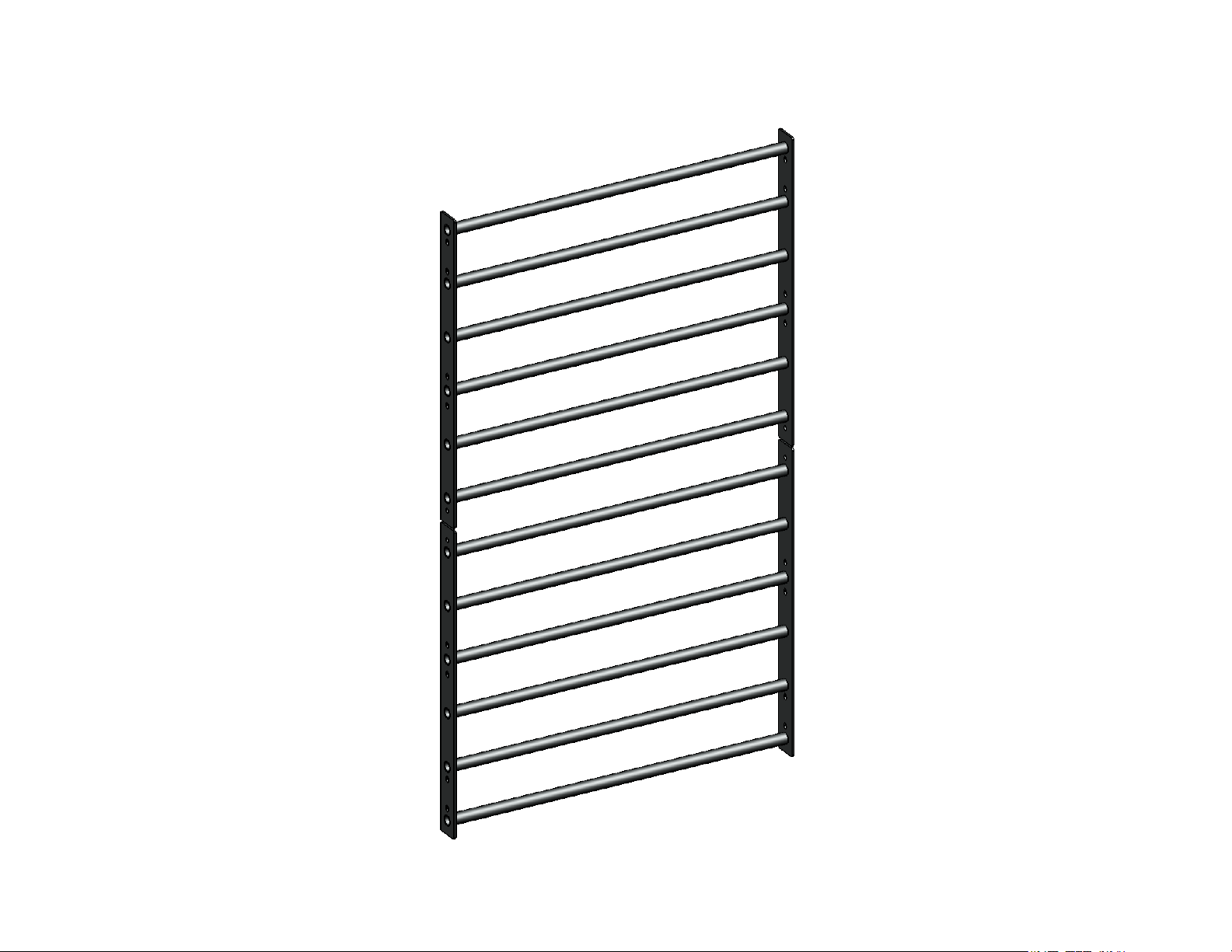

STALL BAR MODULE
12
Page 13

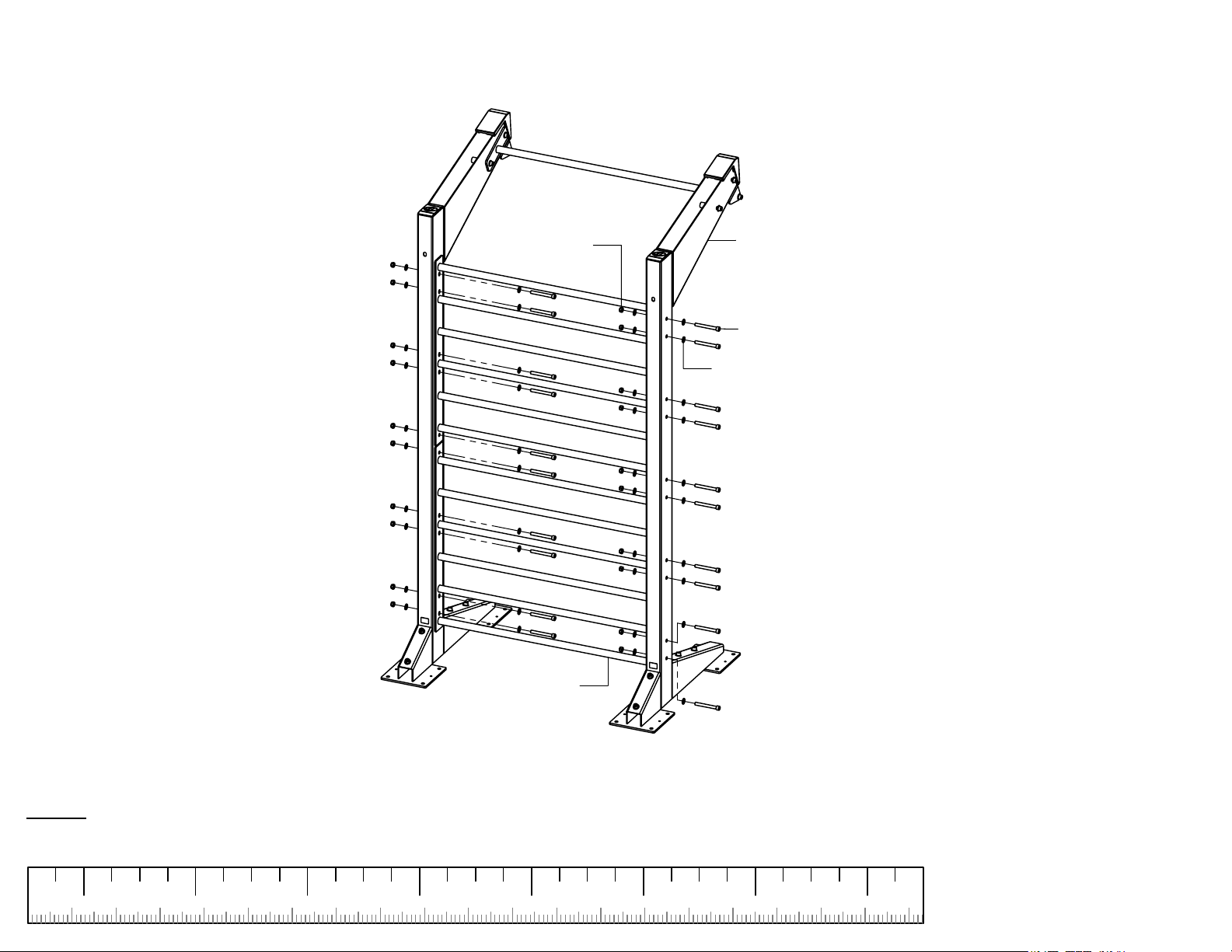

STALL BAR MODULE
1/2" LOCK NUT (20)
XCREATE-4SB (2)
XCREATE-8U (2)
1/2 X 4-1/4" BOLT (20)
1/2" FLAT WASHER (40)
NOTE:
If more modules will be assembled, do not tighten bolts at this time.
1 2 4 5 7
50 1803190150 170160
130 14012090 110100403010 706020 80
6
200
13
Page 14
BALL & HANGING STORAGE MODULE
14
Page 15

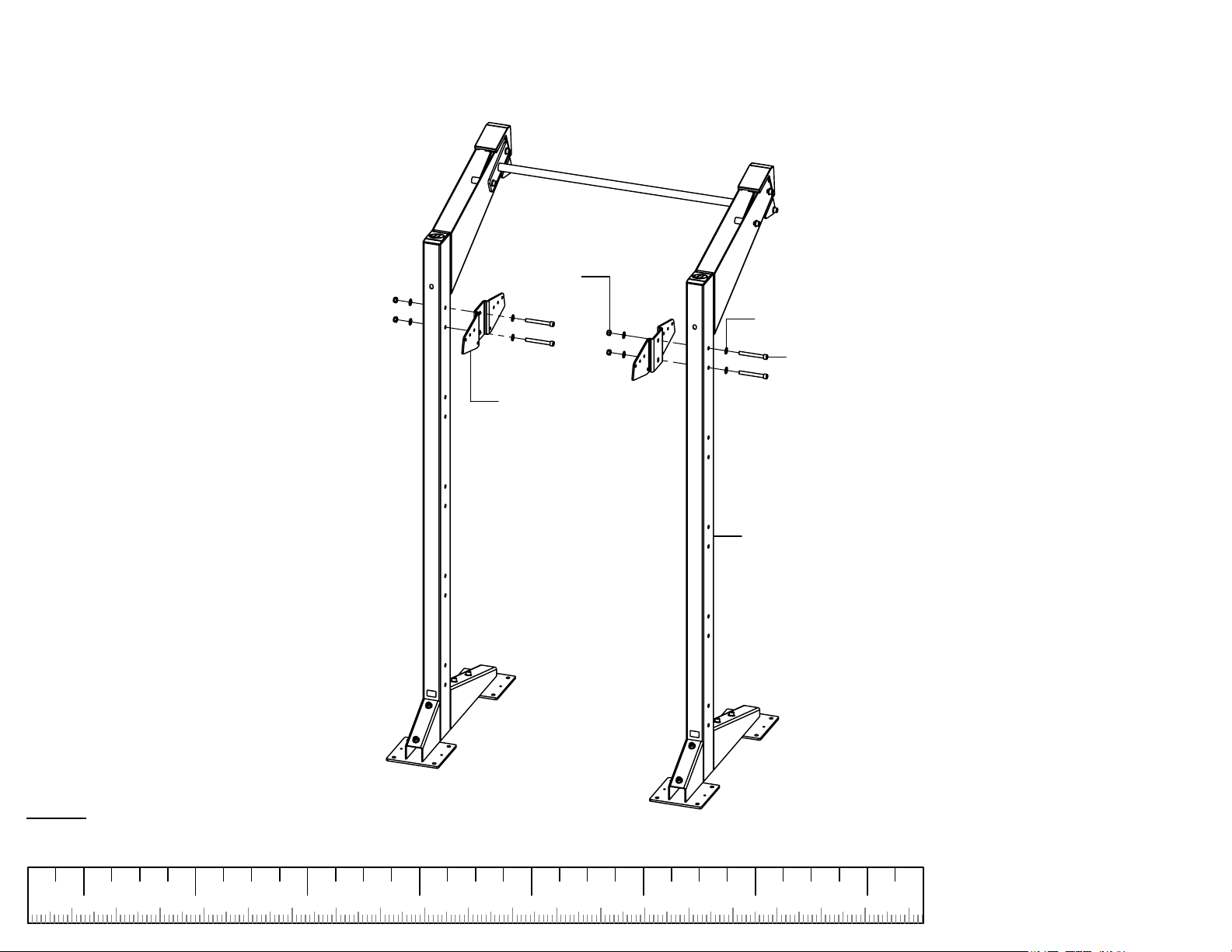

BALL & HANGING STORAGE MODULE
1/2" LOCK
NUT (4)
1/2" FLAT WASHER (8)
1/2 X 4-1/4" BOLT (4)
END BRACKET (2)
NOTE:
LOOSELY
XCREATE-8U (2)
assemble bolt connections in this step.
1 2 4 5 7
50 1803190150 170160
130 14012090 110100403010 706020 80
6
200
15
Page 16

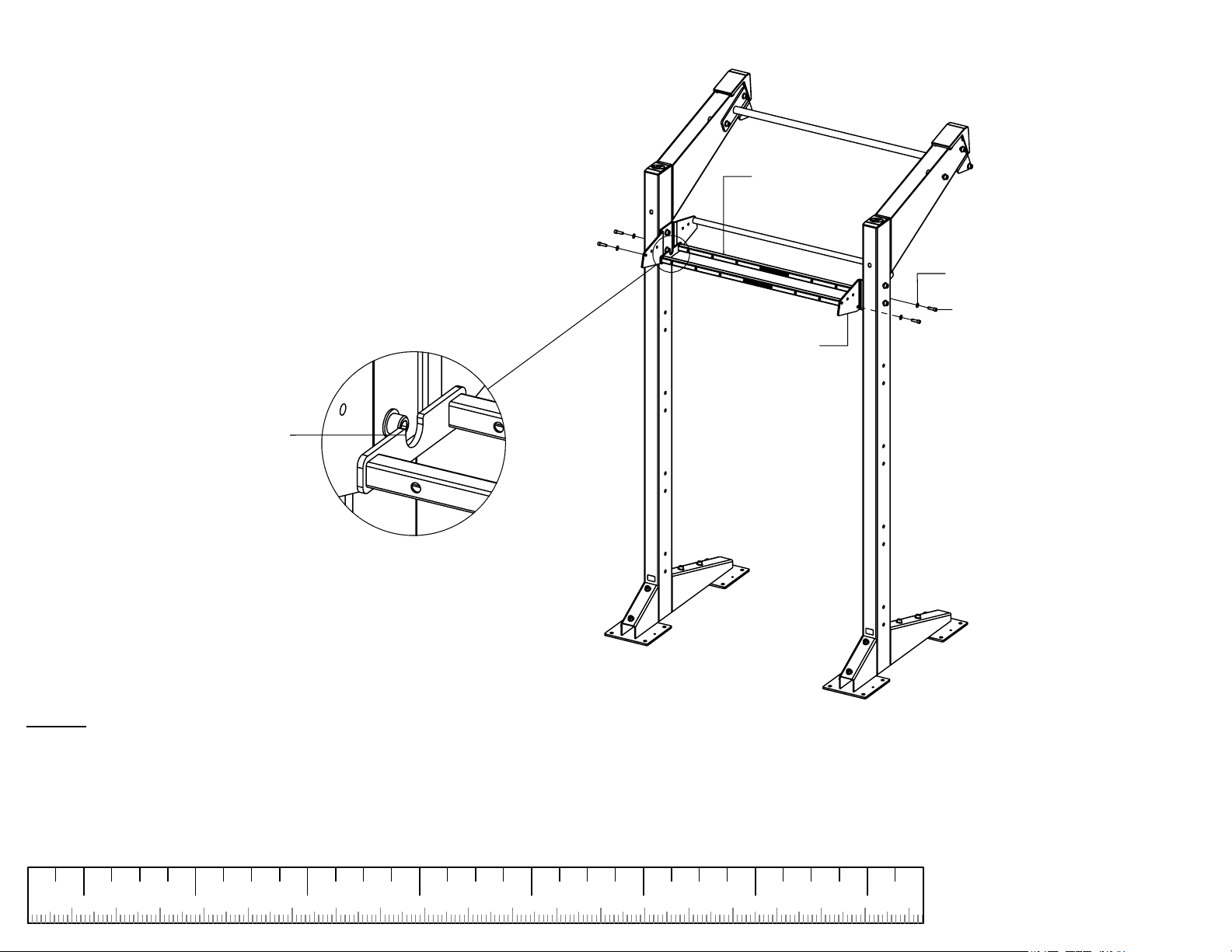

BALL & HANGING STORAGE MODULE
RAIL (2)
3/8" FLAT WASHER (4)
NOTE:
RAILS ARE ASSEMBLED
FOR STABILITY BALL WIDTH.
RAILS CAN BE BOLTED TO
NARROWER HOLES FOR
SMALLER ACCESSORIES
3/8 X 1-1/4" BOLT (4)
END BRACKET (2)
NOTE:
LOOSELY
assemble bolt connections in this step.
1 2 4 5 7
50 1803190150 170160
130 14012090 110100403010 706020 80
6
200
16
Page 17
BALL & HANGING STORAGE MODULE
NOTE SLOT
ORIENTATION
4' HANGING
STORAGE
3/8" FLAT WASHER (4)
3/8 X 1-1/4" BOLT (4)
END BRACKET (2)
NOTE:
After this step has been completed
SECURELY
tighten all bolt
connections made to this point.
If more modules will be assembled, do not tighten bolts at this time.
Some parts have been hidden for assembly clarity.
1 2 4 5 7
50 1803190150 170160
130 14012090 110100403010 706020 80
6
200
17
Page 18

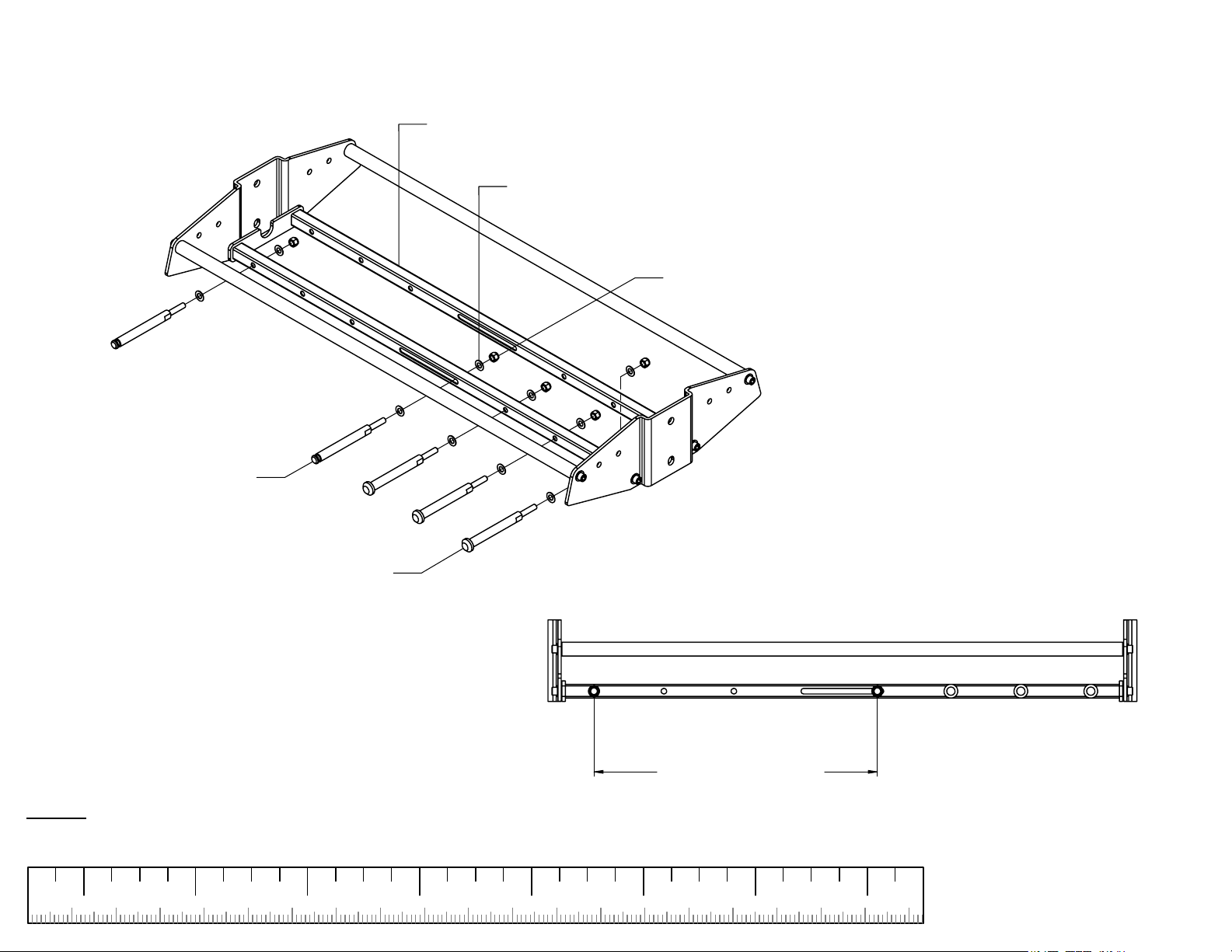

BALL & HANGING STORAGE MODULE
4' HANGING STORAGE
MAT STORAGE PIN (2)
3/8" FLAT WASHER (10)
3/8" LOCK NUT (5)
NOTE:
SECURELY
ACCESSORY HOLDER PIN (3)
BEFORE TIGHTENING NUT,
ADJUST MAT STORAGE
PIN TO DESIRED POSITION
tighten connections in this step.
1 2 4 5 7
50 1803190150 170160
130 14012090 110100403010 706020 80
6
200
18
Page 19

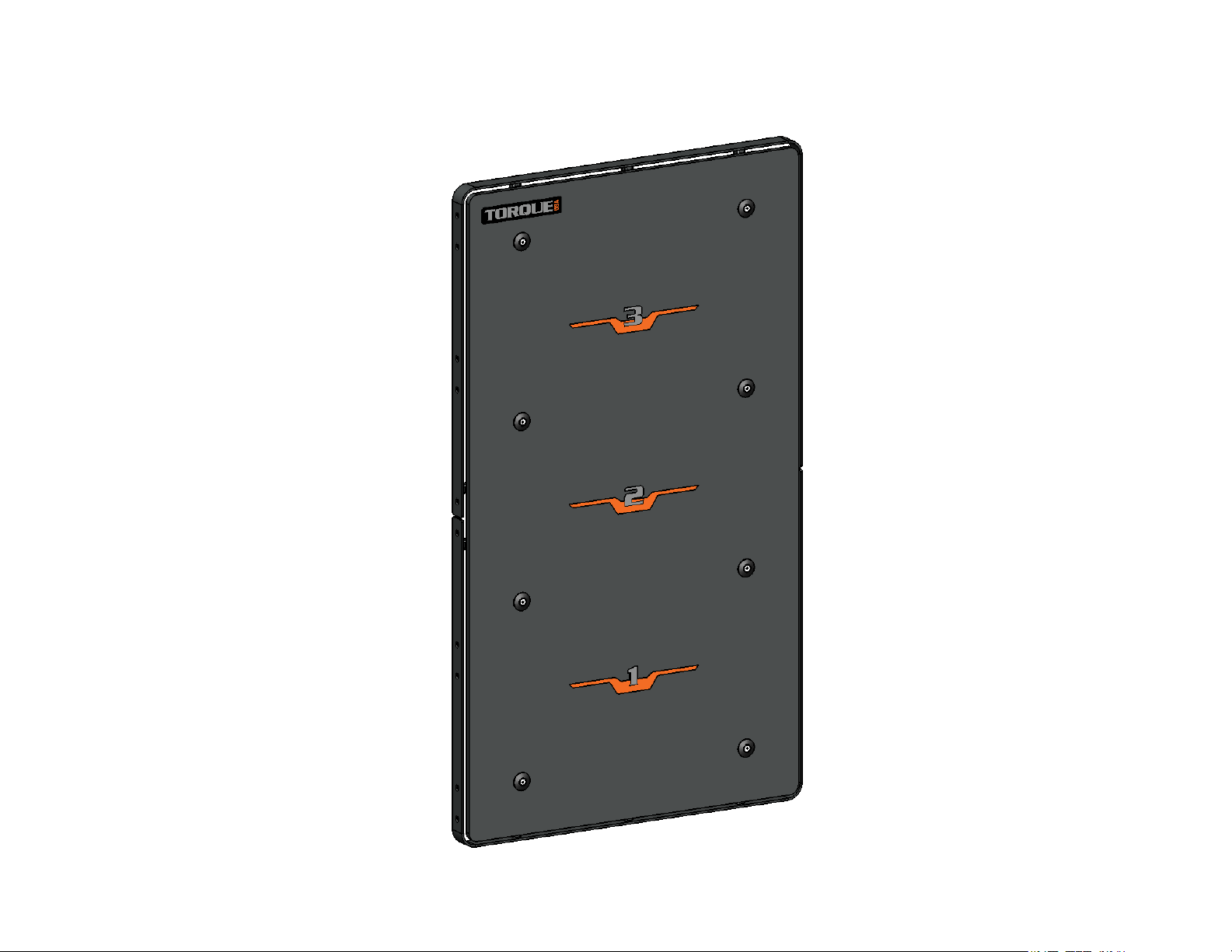

BALL TARGET WALL MODULE
19

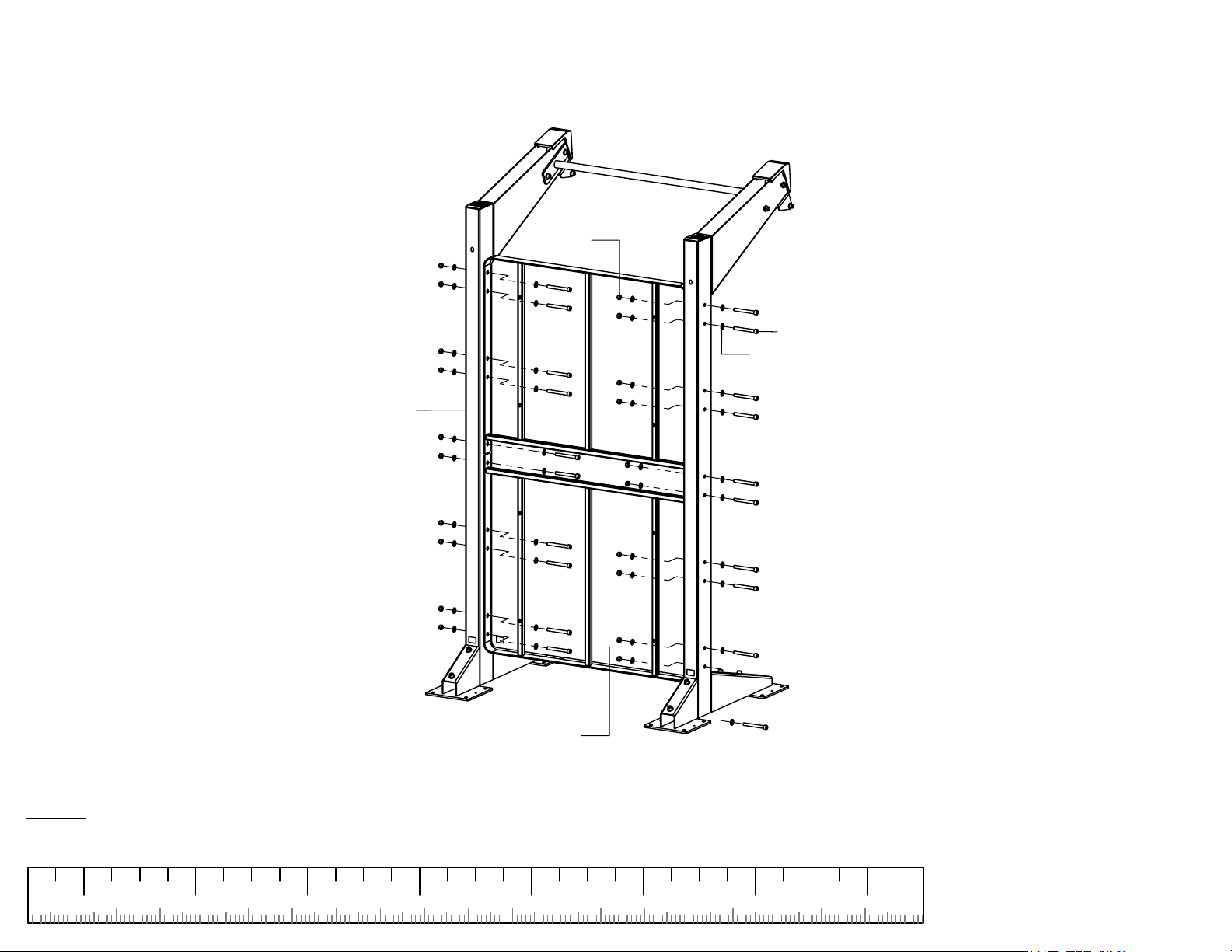

Page 20
BALL TARGET WALL MODULE
XCREATE-8U (2)
1/2" LOCK
NUT (20)
1/2 X 4-1/4" BOLT (20)
1/2" FLAT WASHER (40)
XCREATE-4BTW
NOTE:
If more modules will be assembled, do not tighten bolts at this time.
1 2 4 5 7
50 1803190150 170160
130 14012090 110100403010 706020 80
6
200
20
Page 21

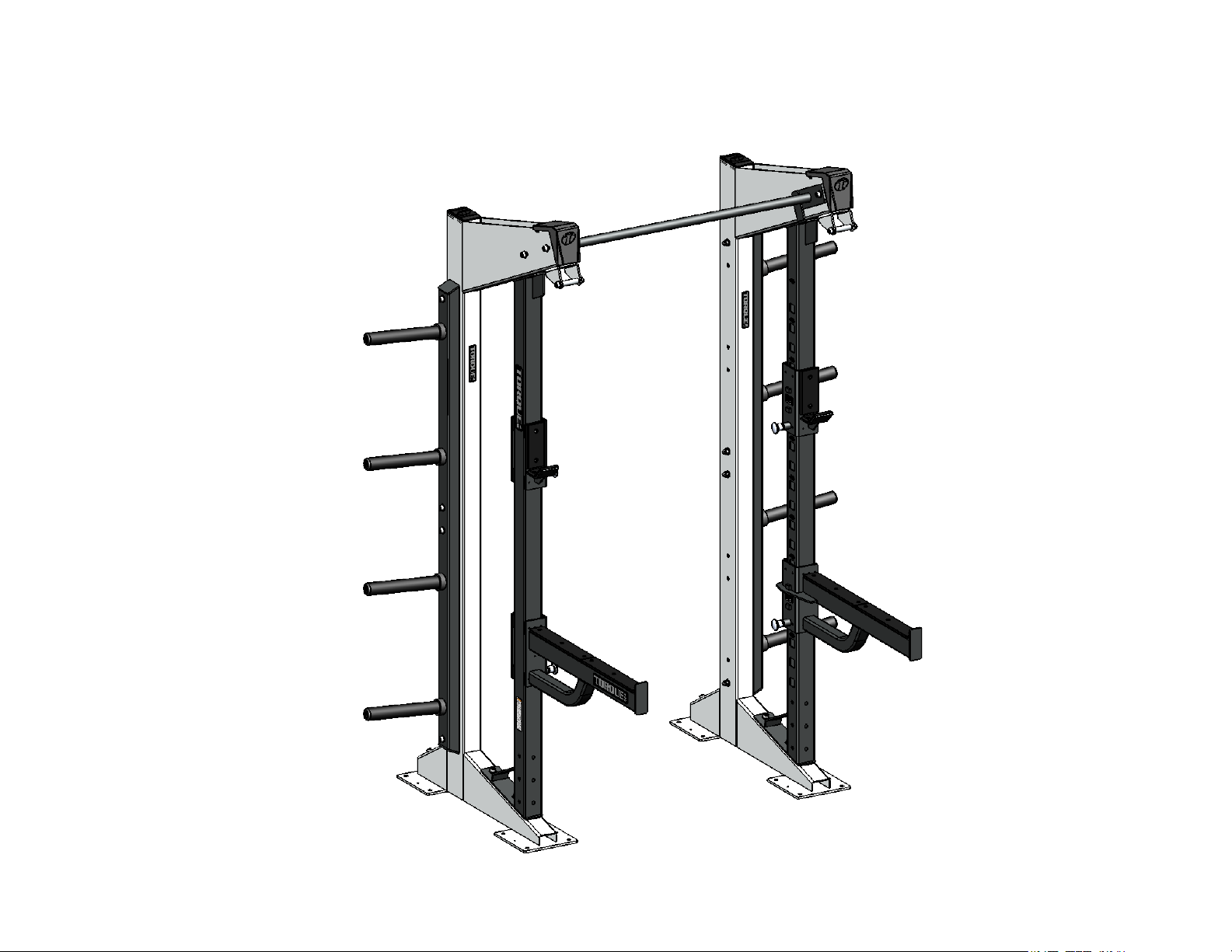

8' OLYMPIC LIFTING STATION MODULE
21
Page 22

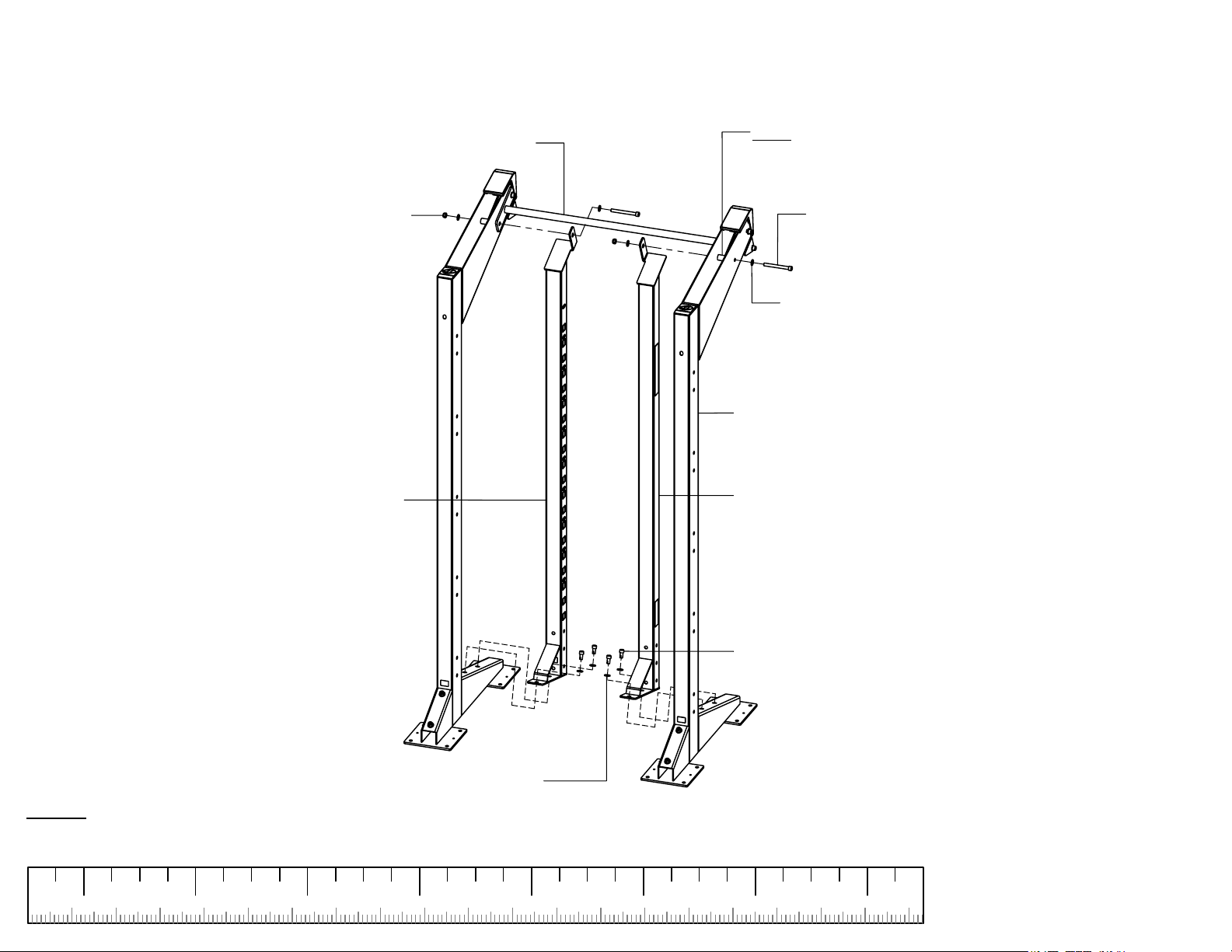

8' OLYMPIC LIFTING STATION MODULE
1/2" LOCK NUT (2)
PRE-INSTALLED
RIGHT UPRIGHT
XCREATE-4SX
NOTE:
MAKE SURE TO USE PREINSTALLED SPACER (2)
1/2 X 4-3/4" BOLT (2)
PRE-INSTALLED
1/2" FLAT WASHER (4)
PRE-INSTALLED
XCREATE-8U (2)
LEFT UPRIGHT
NOTE:
SECURELY
1/2 X 1" BOLT (4)
PRE-INSTALLED
1/2" FLAT WASHER (4)
PRE-INSTALLED
tighten bolt connections in this step.
1 2 4 5 7
50 1803190150 170160
130 14012090 110100403010 706020 80
6
200
22
Page 23

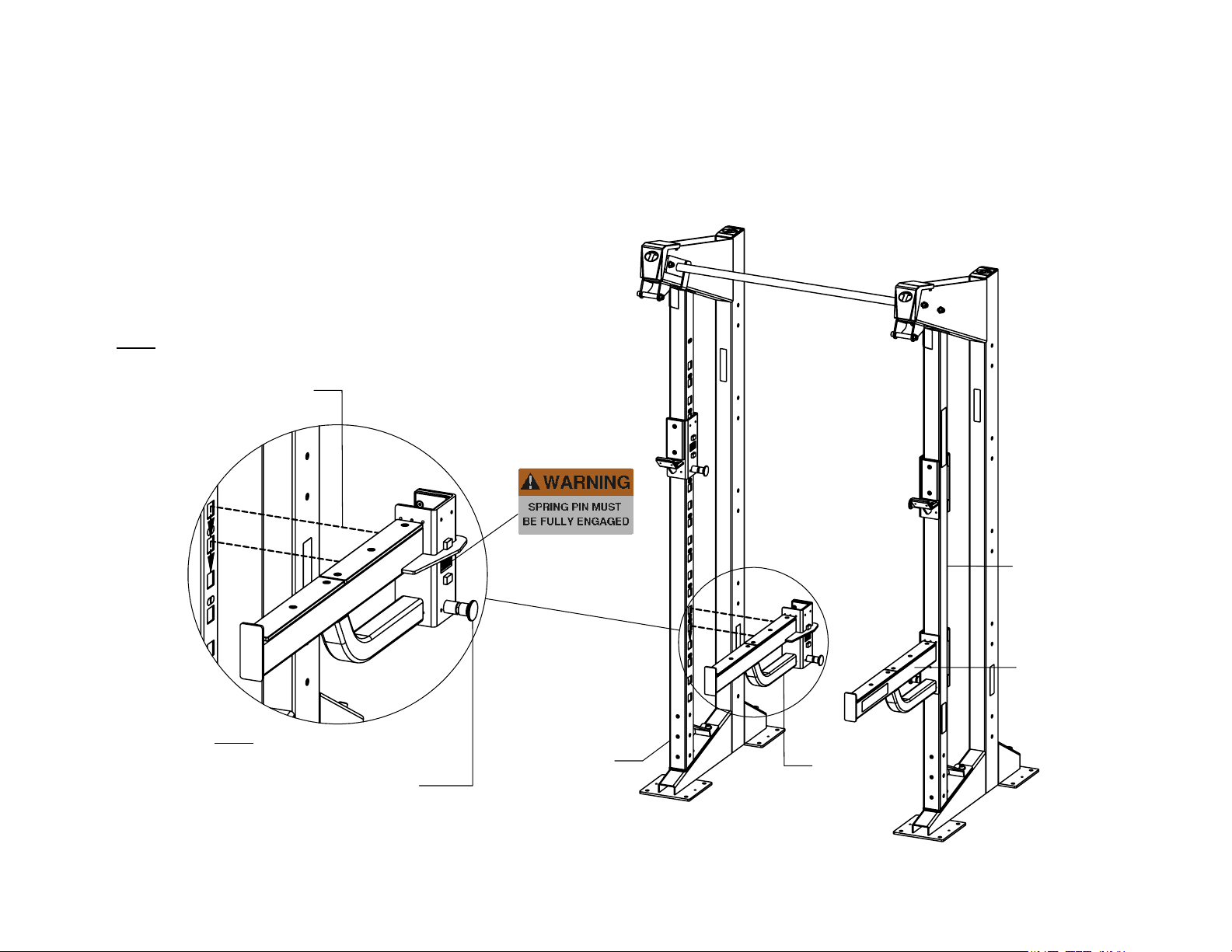

8' OLYMPIC LIFTING STATION MODULE
NOTE:
INSERT BAR SUPPORTS INTO
DESIRED SLOTS ON UPRIGHTS.
PUSH DOWN TO LOCK IN PLACE
RIGHT BAR SUPPORT
LEFT BAR
SUPPORT
NOTE:
TO REMOVE BAR SUPPORTS FROM
UPRIGHTS, PULL SPRING PIN OUT TO
UNLOCK. LIFT UP AND PULL OUT
RIGHT UPRIGHT
LEFT UPRIGHT
23

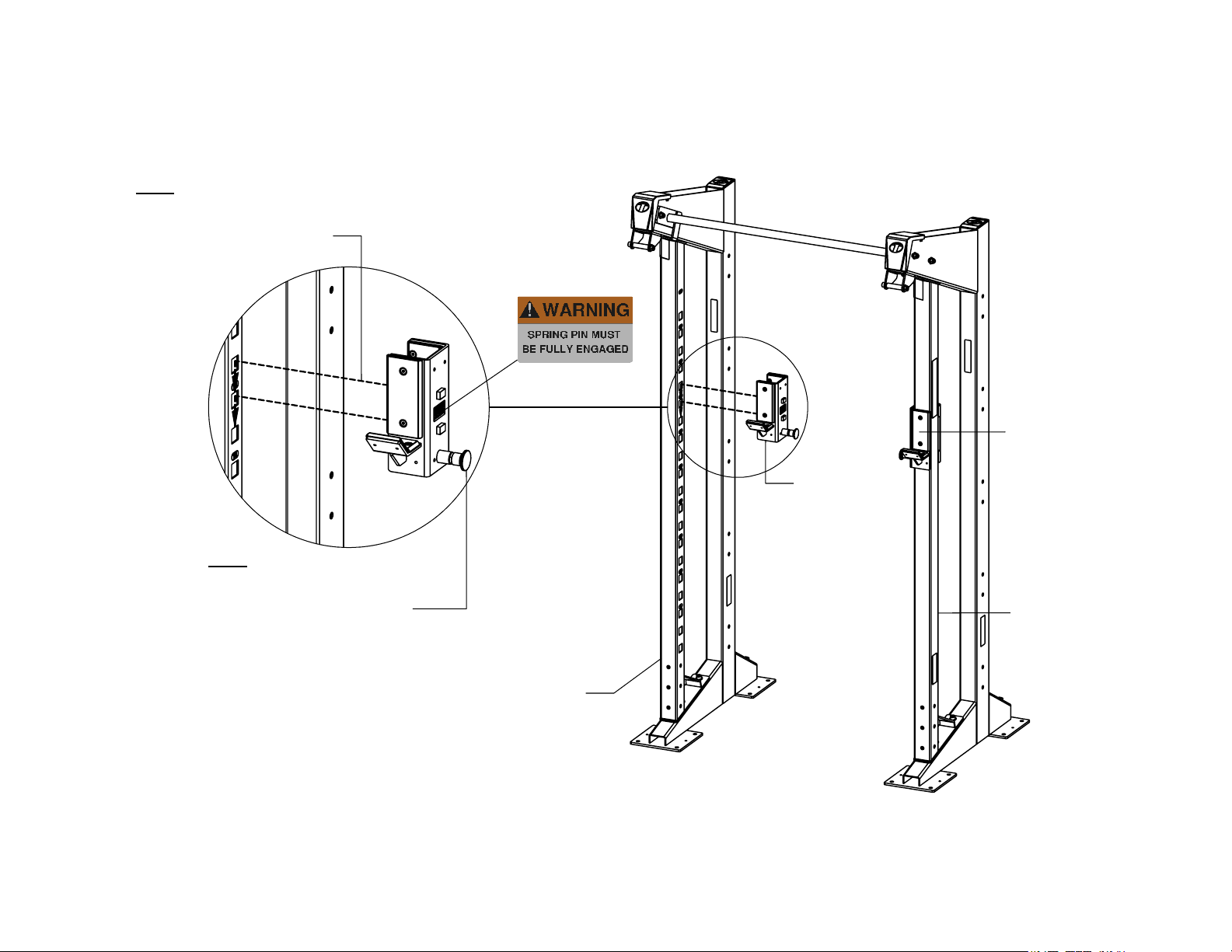

Page 24
8' OLYMPIC LIFTING STATION MODULE
NOTE:
INSERT BAR CATCHES INTO
DESIRED SLOTS ON UPRIGHTS.
PUSH DOWN TO LOCK IN PLACE
NOTE:
TO REMOVE BAR CATCHES FROM
UPRIGHTS, PULL SPRING PIN OUT TO
UNLOCK. LIFT UP AND PULL OUT
LEFT UPRIGHT
RIGHT UPRIGHT
RIGHT BAR CATCH
LEFT BAR
CATCH
24
Page 25

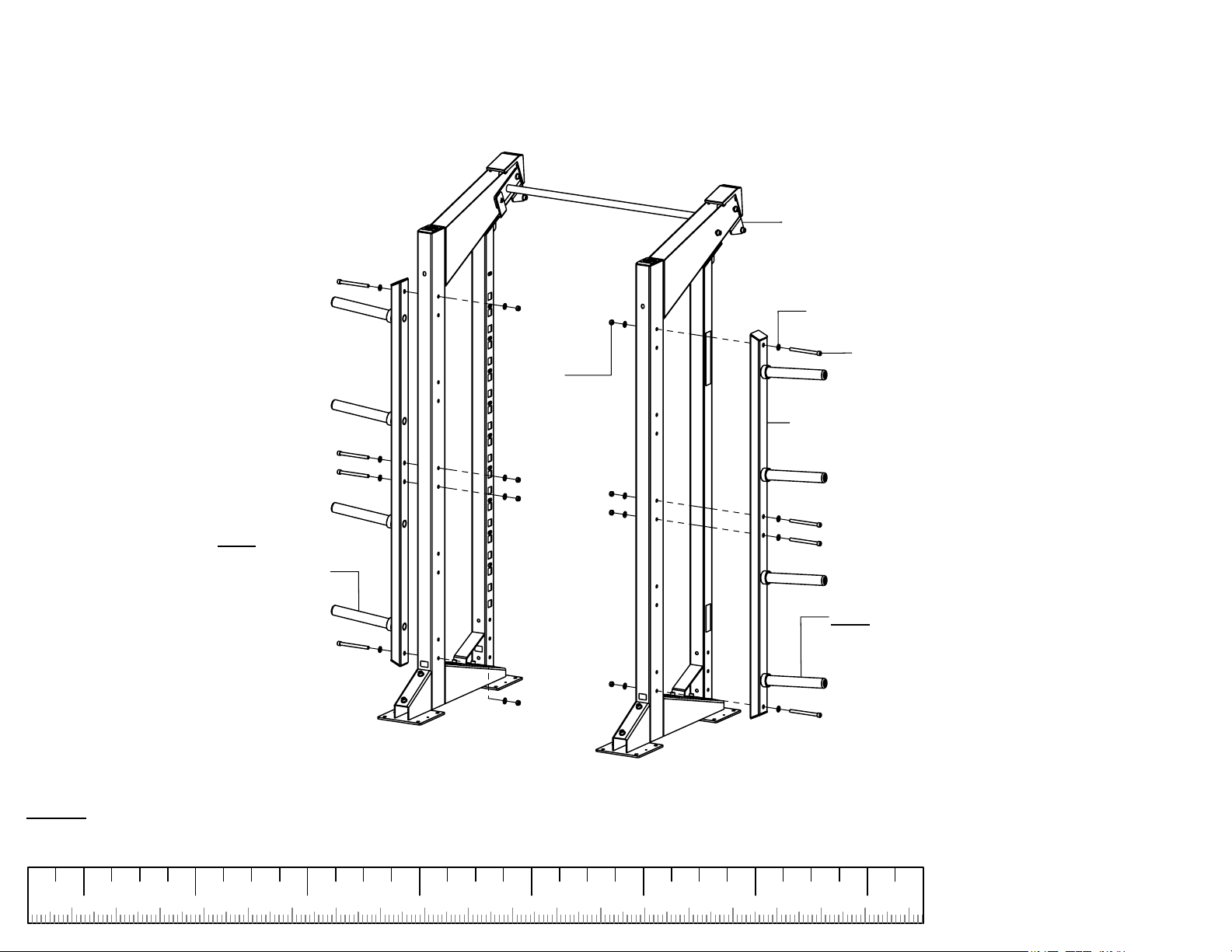

8' OLYMPIC LIFTING STATION MODULE
XCREATE-8U (2)
1/2" FLAT WASHER (16)
NOTE:
MAKE SURE WEIGHT
HORNS ANGLE UP
1/2" LOCK
NUT (8)
1/2 X 5-3/4" BOLT (8)
XCREATE-8UVWS (2)
NOTE:
MAKE SURE WEIGHT
HORNS ANGLE UP
NOTE:
SECURELY
tighten bolt connections in this step.
1 2 4 5 7
50 1803190150 170160
130 14012090 110100403010 706020 80
6
200
25
Page 26

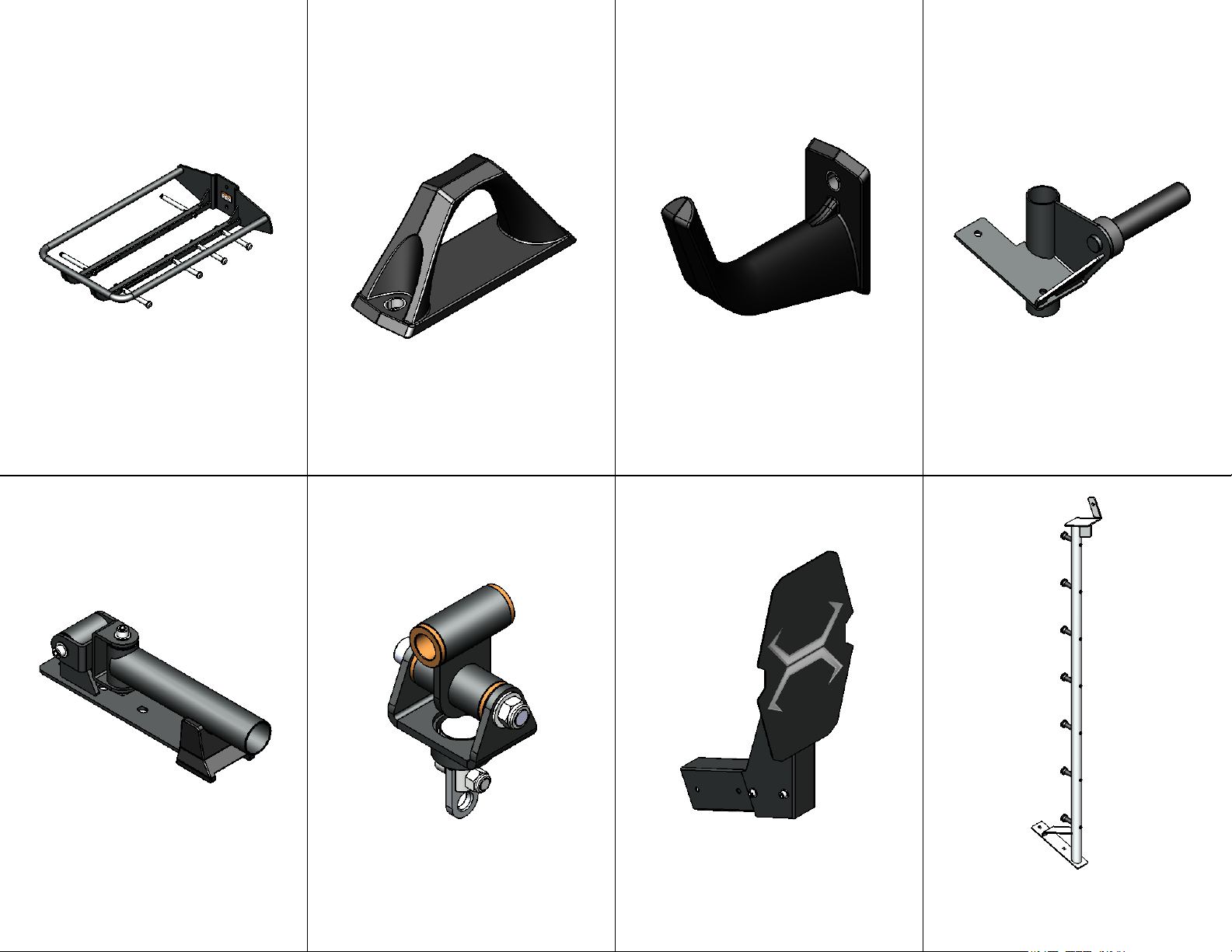

ATTACHMENTS
XCREATE-BHSE
BALL AND HANGING
STORAGE EXTENSION

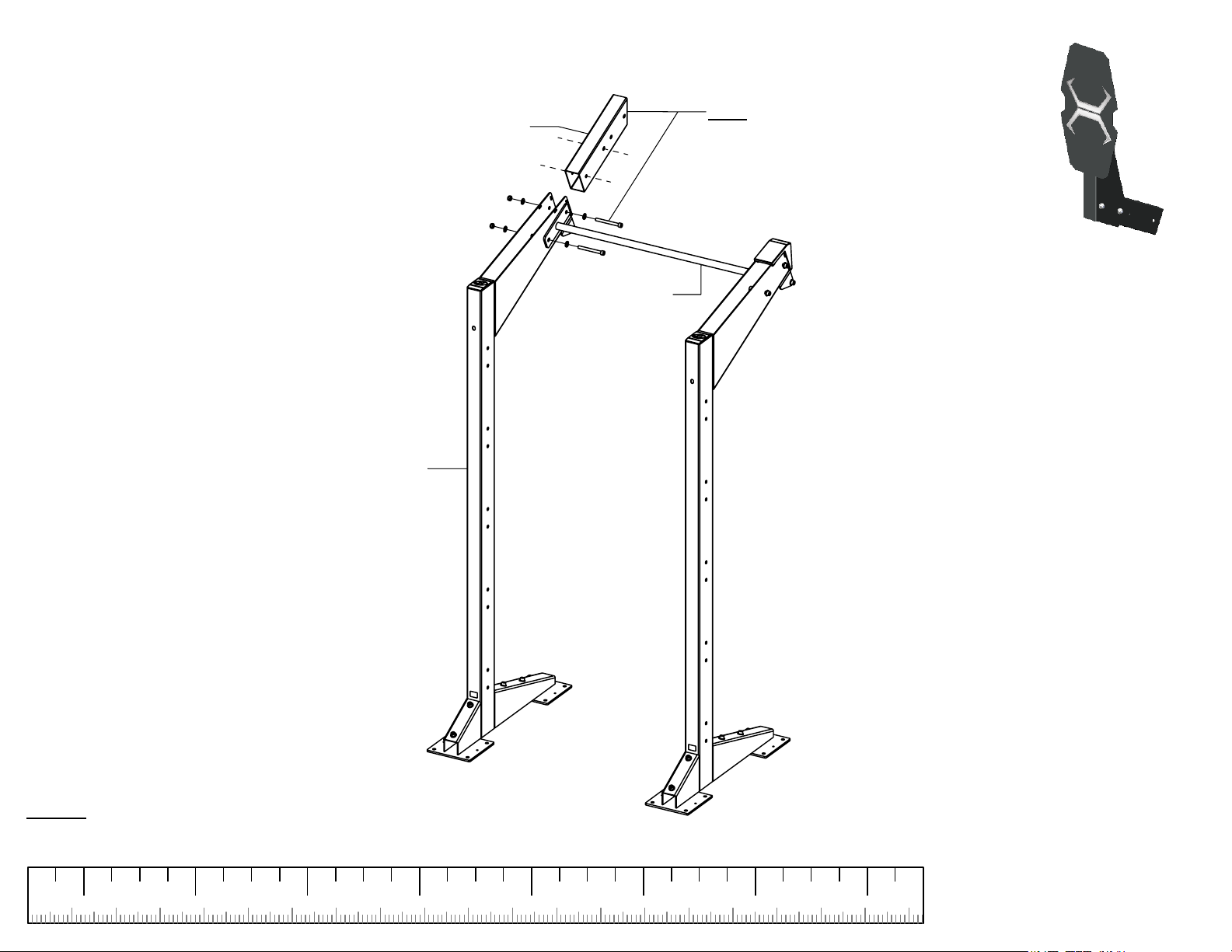

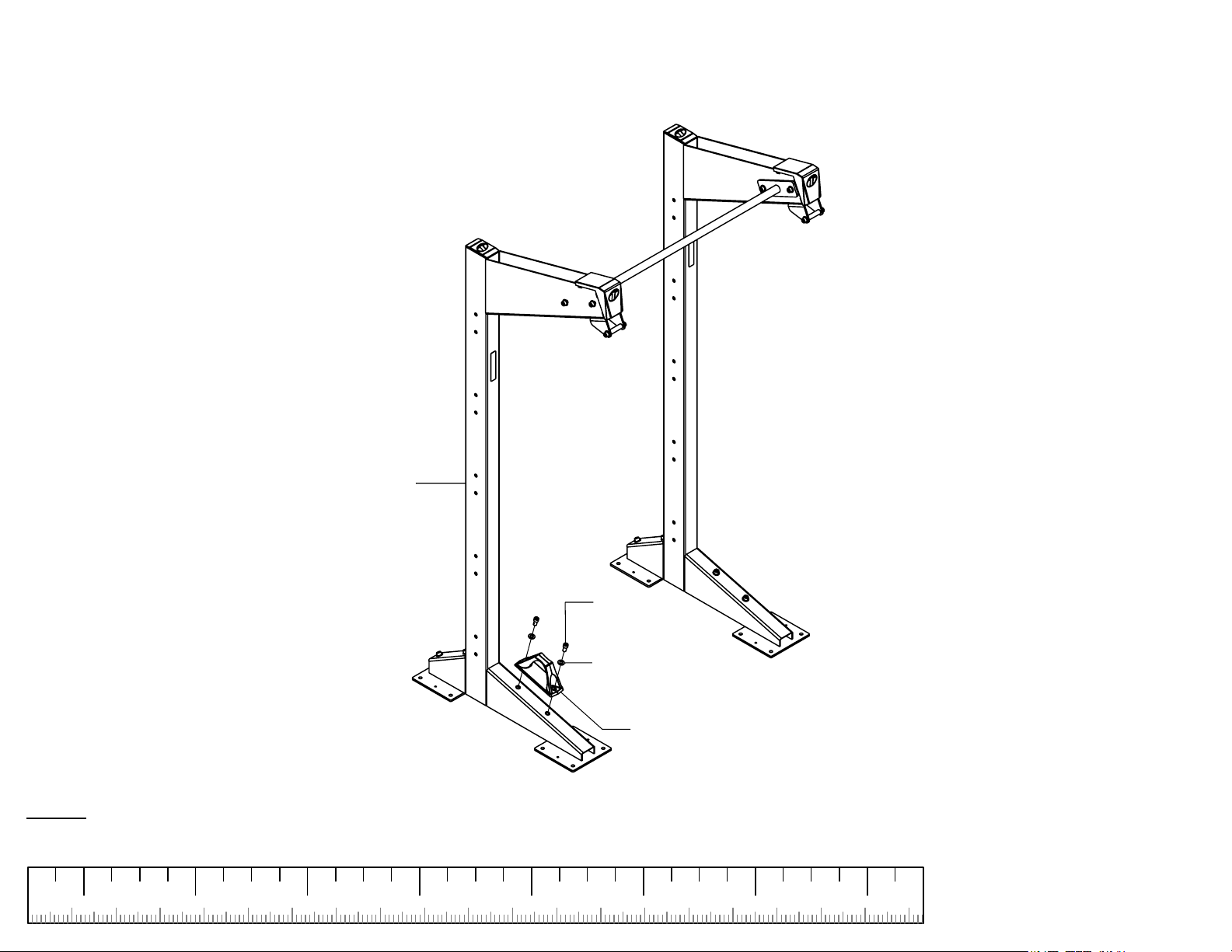

XRACK-BRA
BATTLE ROPE ANCHOR
XCREATE-HSH
HANGING STORAGE HOOK
26
XCREATE-DP
DOUBLE PLAY
XHMGRT
HORIZONTAL MOUNT
GROUND ROTATIONAL TRAINER
XCREATE-3DS
3 DIMENSIONAL SWIVEL

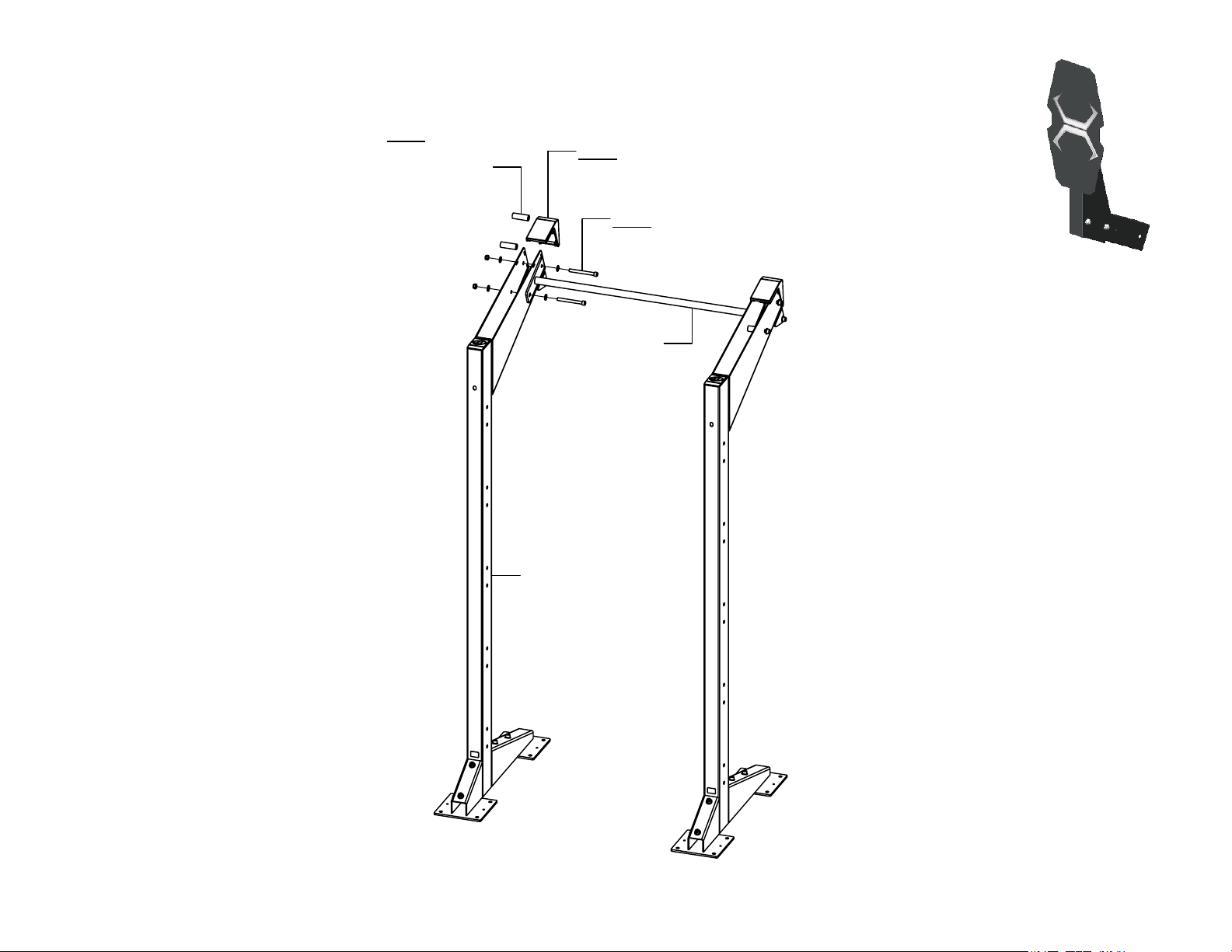

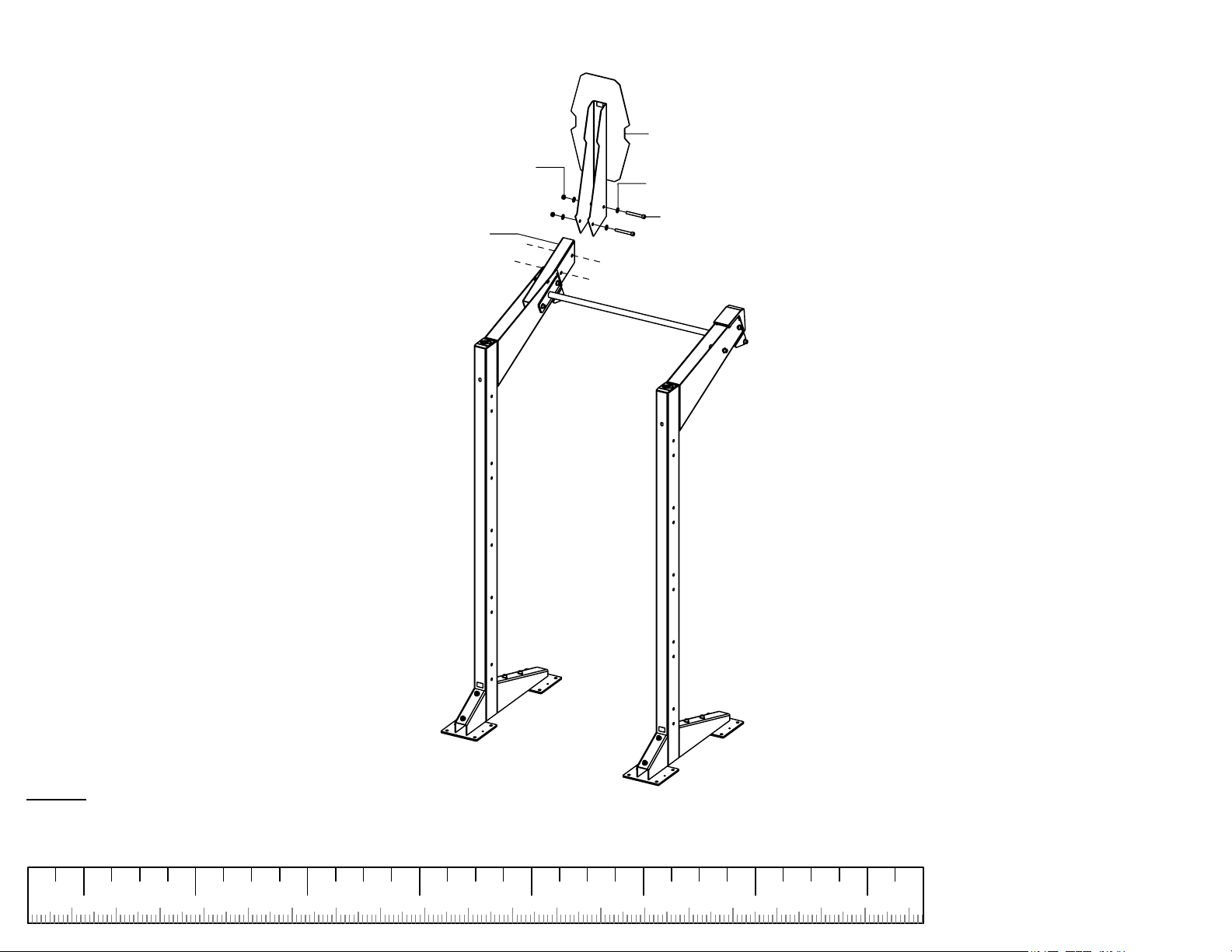

XCREATE-BT
BALL TARGET
XCREATE-RBA
RESISTANCE BAND ANCHOR

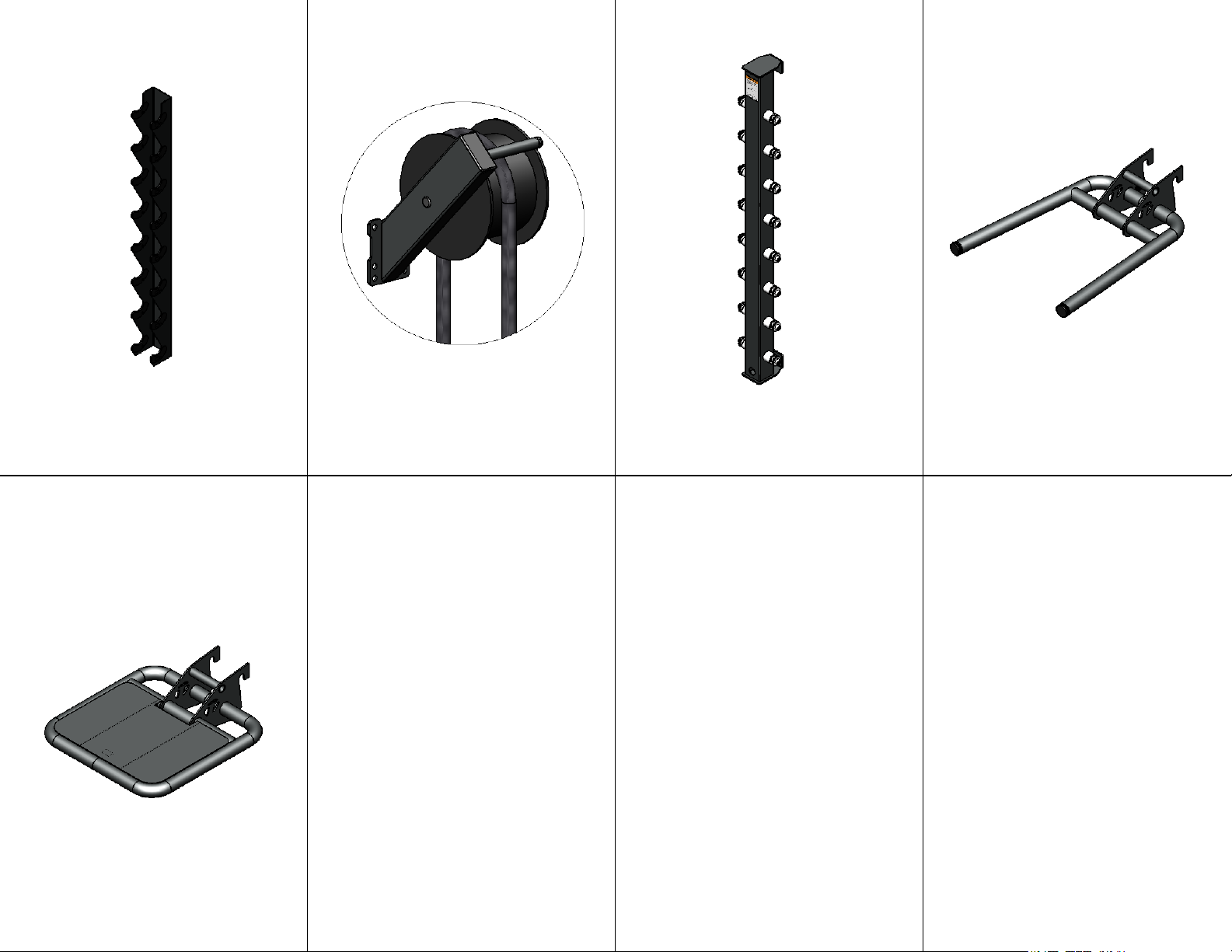

Page 27
ATTACHMENTS
XCREATE-VDS4
VERTICAL DUMBBELL
STORAGE - 4 PAIR
XERD
ENDLESS ROPE DRUM

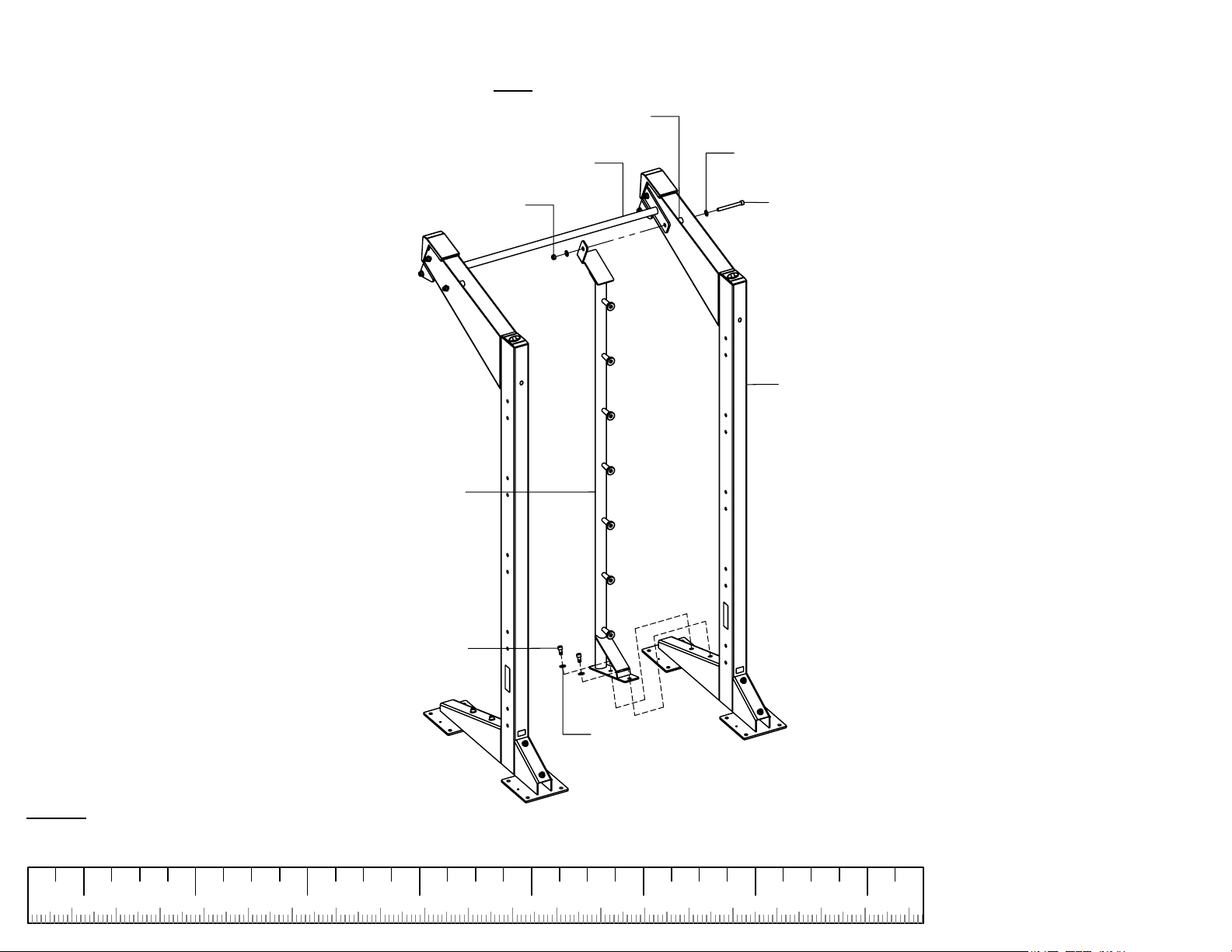

XLAB-AA
ATTACHMENT ANCHOR
XLAB-DA
DIP ATTACHMENT
XLAB-PS
PLYO STEP
27

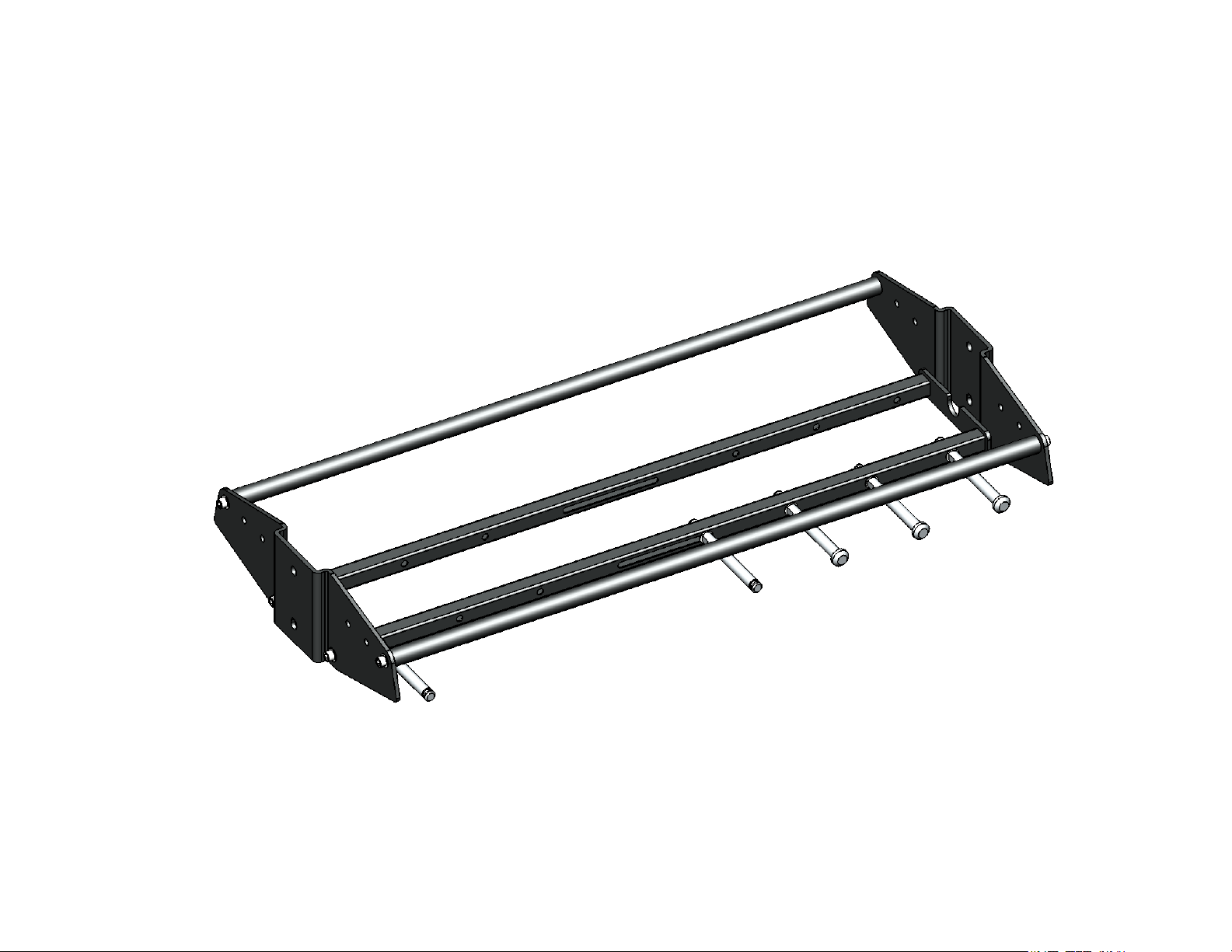

Page 28
XCREATE-BHSE
BALL & HANGING
STORAGE EXTENSION
1/2" LOCK NUT (2)
1/2" FLAT WASHER (4)
1/2 X 4-1/4" BOLT (2)
XCREATE-BHSE
XCREATE-8U
NOTE:
SECURELY
tighten bolt connections in this step.
1 2 4 5 7
50 1803190150 170160
130 14012090 110100403010 706020 80
6
200
28
Page 29
XRACK-BRA
BATTLE ROPE ANCHOR
XCREATE-8U
NOTE:
SECURELY
1/2 X 1" BOLT (2)
PRE-INSTALLED
1/2" FLAT WASHER (2)
PRE-INSTALLED
XRACK-BRA
tighten bolt connections in this step.
1 2 4 5 7
50 1803190150 170160
130 14012090 110100403010 706020 80
6
200
29

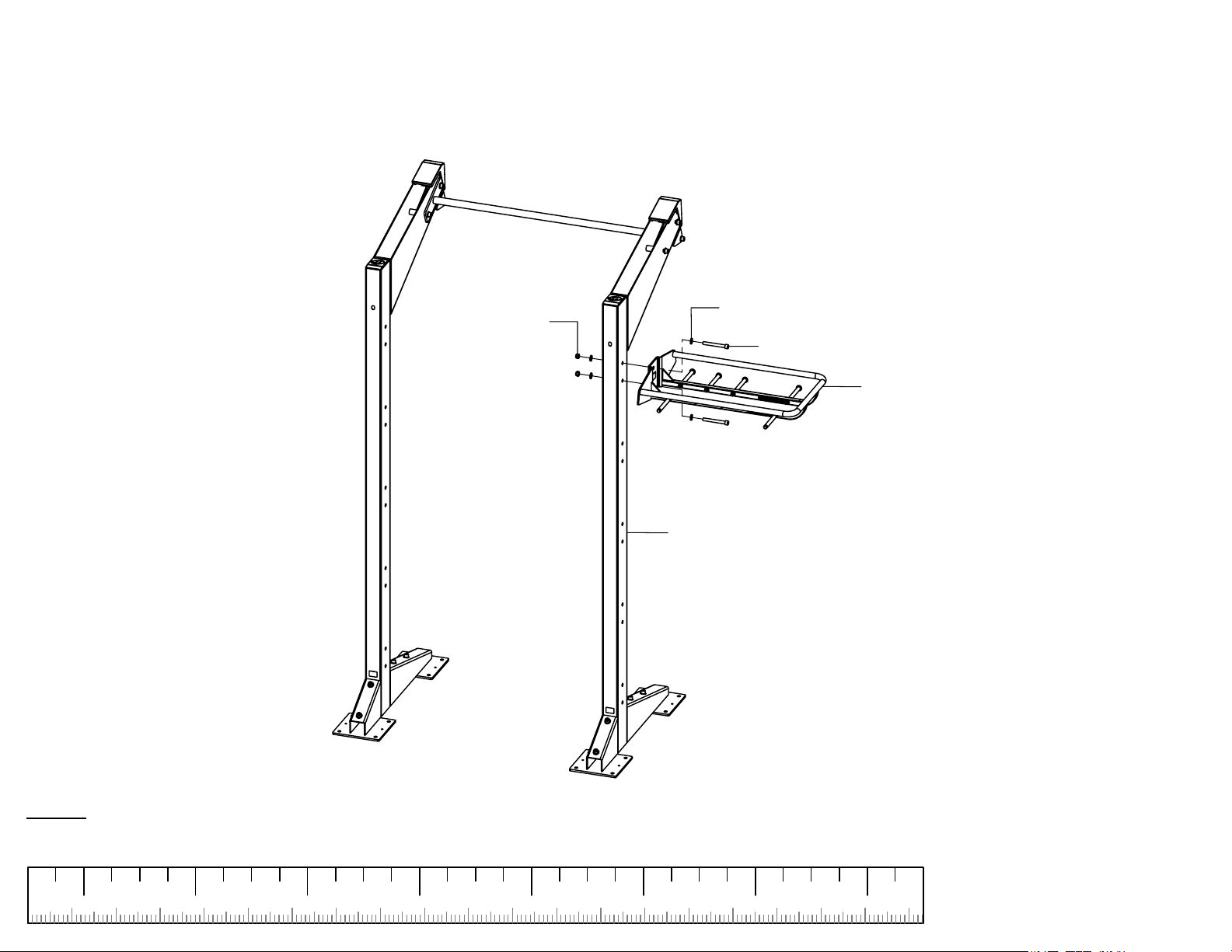

Page 30
XCREATE-HSH
HANGNING STORAGE HOOK
1/2" FLAT WASHER (4)
XCREATE-8U
1/2" LOCK
NUT (2)
NOTE:
SECURELY
1/2 X 4-1/4" BOLT (2)
XCREATE-HSH
tighten bolt connections in this step.
1 2 4 5 7
50 1803190150 170160
130 14012090 110100403010 706020 80
6
200
30
Page 31

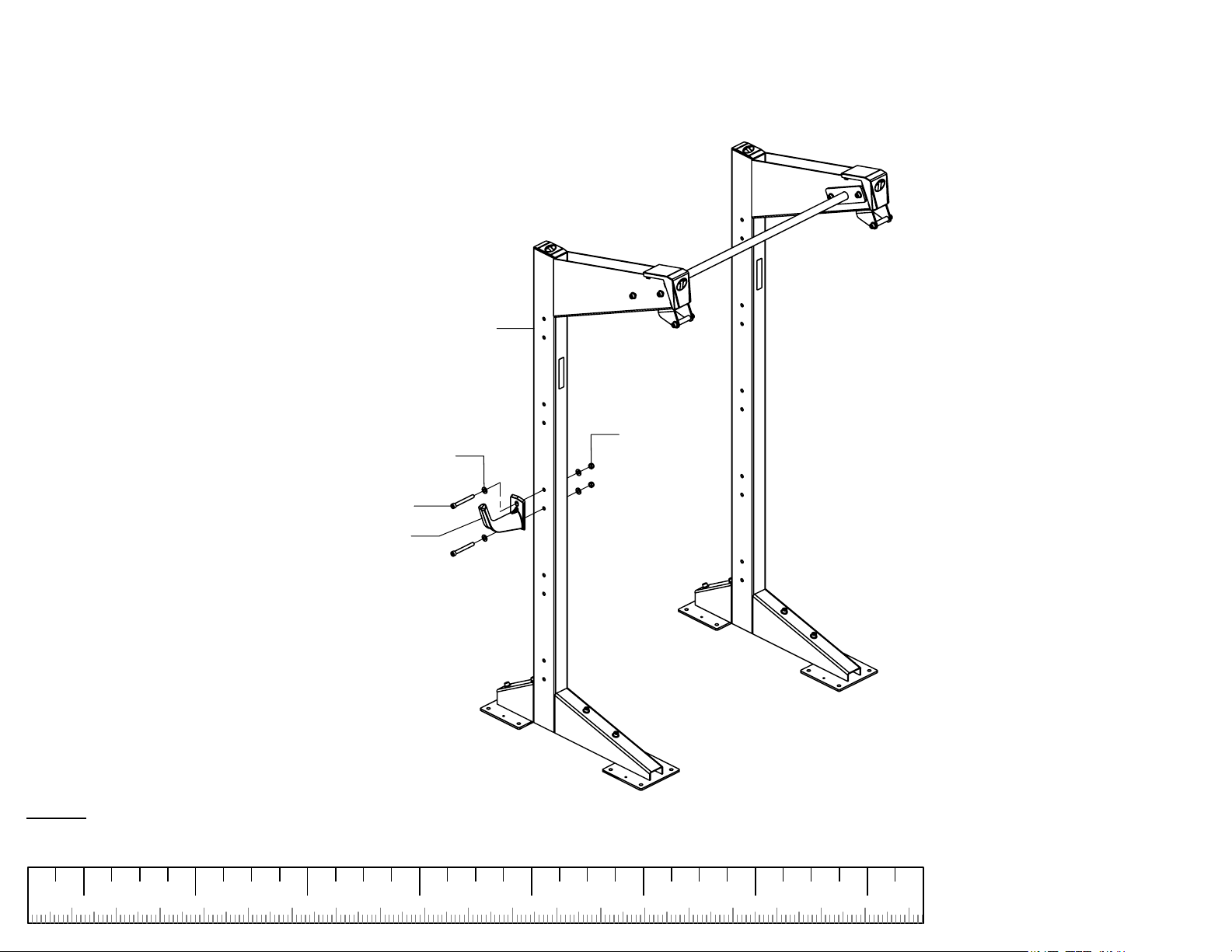

XCREATE-DP
DOUBLE PLAY (BAR & PLATE STORAGE)
XCREATE-8U
1/2 X 1" BOLT (2)
PRE-INSTALLED
NOTE:
SECURELY
1/2" FLAT WASHER (2)
PRE-INSTALLED
NOTE:
MAX WEIGHT PLATE: 25 LBS.
XCREATE-DP
tighten bolt connections in this step.
1 2 4 5 7
50 1803190150 170160
130 14012090 110100403010 706020 80
6
200
31
Page 32

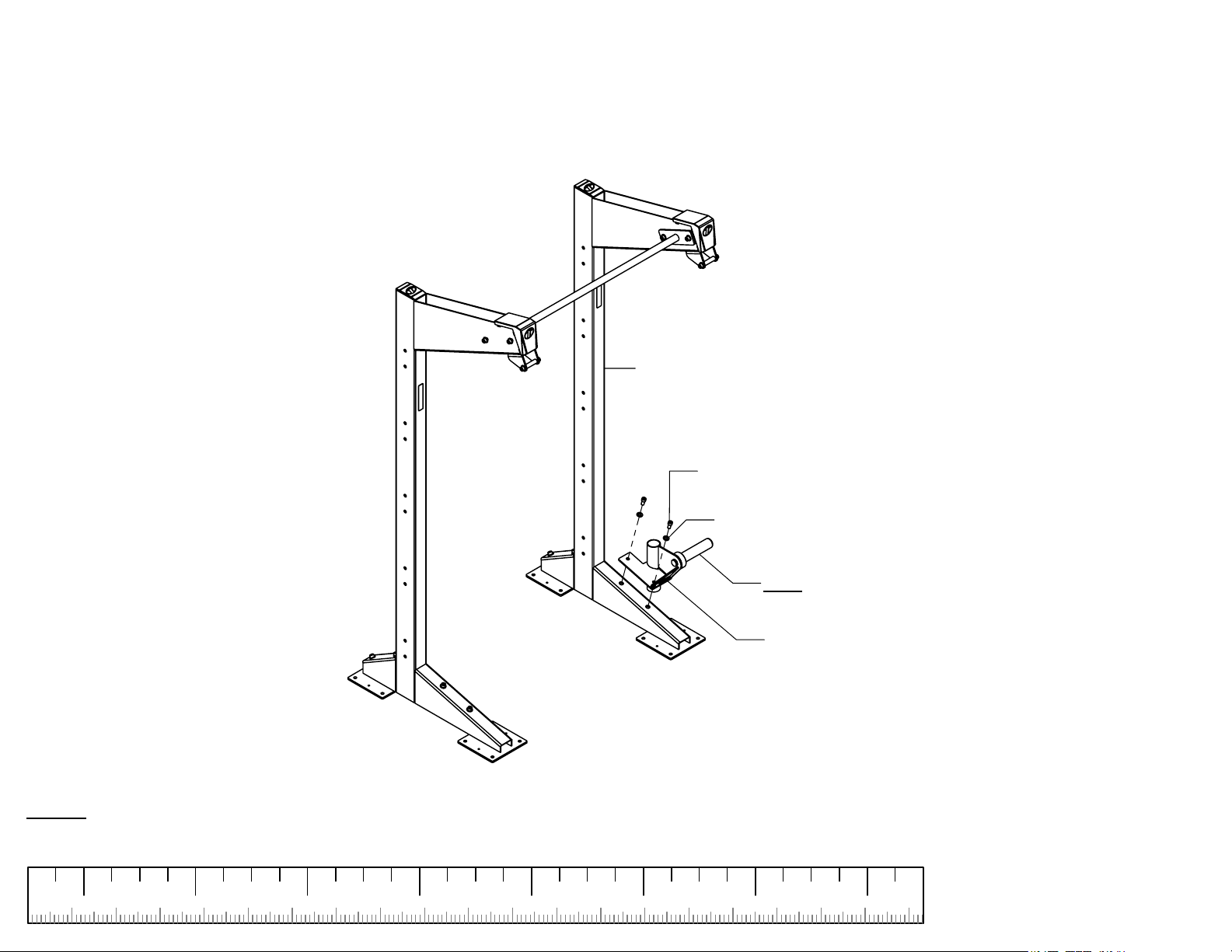

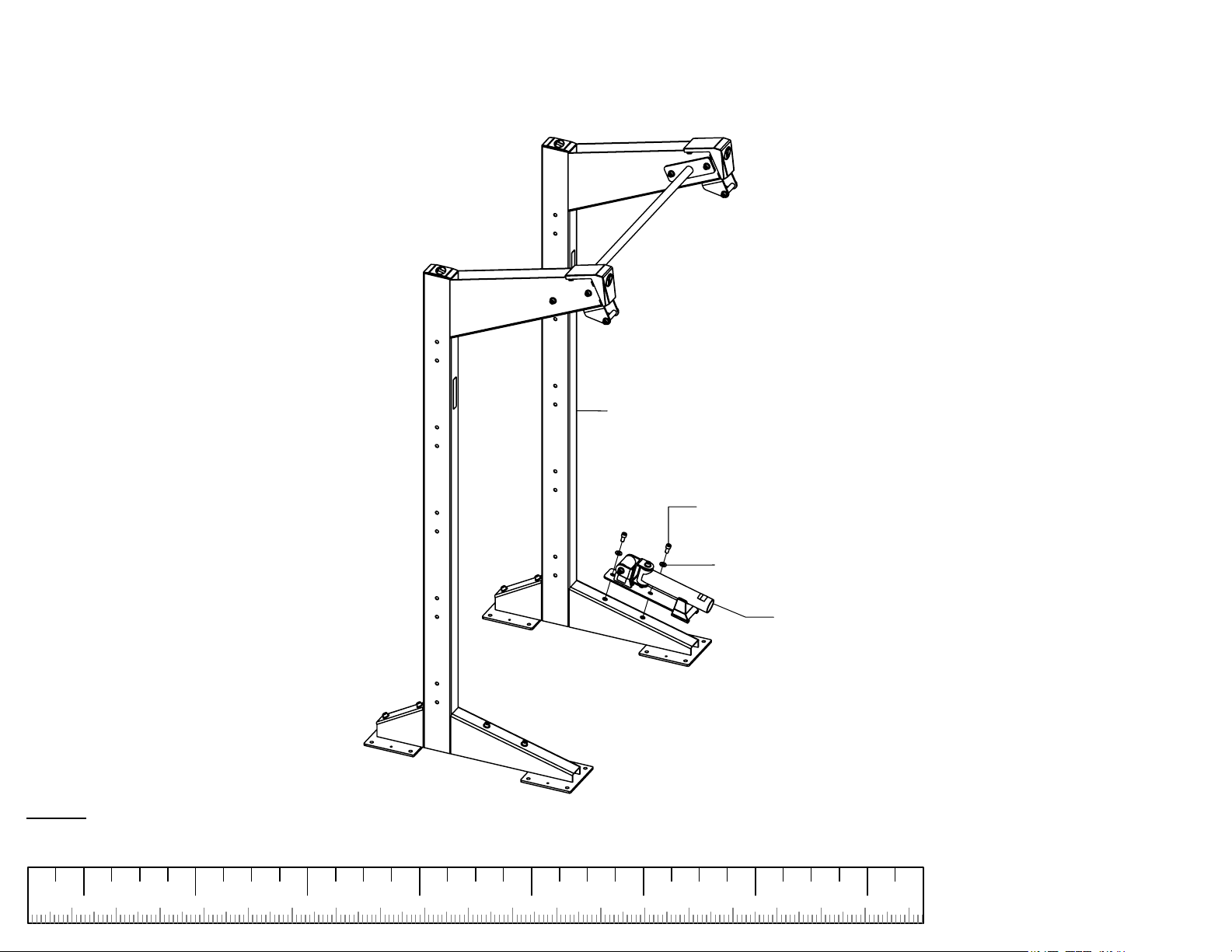

XHMGRT
HORIZONTAL MOUNT GROUND
ROTATIONAL TRAINER
XCREATE-8U
NOTE:
SECURELY
1/2 X 1" BOLT (2)
PRE-INSTALLED
1/2" FLAT WASHER (2)
PRE-INSTALLED
HMGRT
assemble bolt connections in this step.
1 2 4 5 7
50 1803190150 170160
130 14012090 110100403010 706020 80
6
200
32

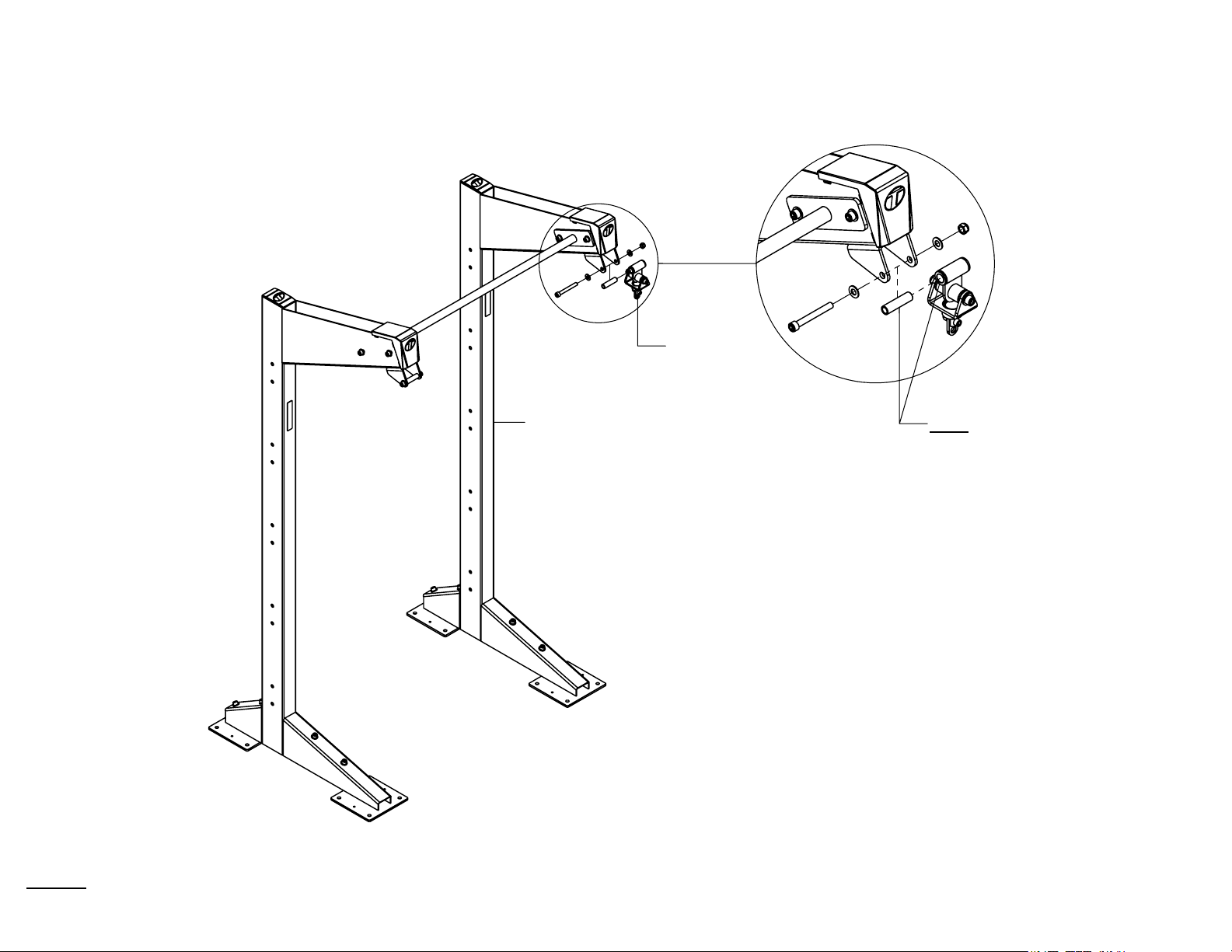

Page 33
XCREATE-3DS
3 DIMENSIONAL SWIVEL
XCREATE-8U
NOTE:
TEMPORARILY REMOVE BOLT,
SPACER, WASHERS AND NUT
33
Page 34
XCREATE-3DS
3-DIMENSIONAL SWIVEL
XCREATE-3DS
XCREATE-8U
NOTE:
INSERT SPACER INTO THE
3-DIMENSIONAL SWIVEL AND

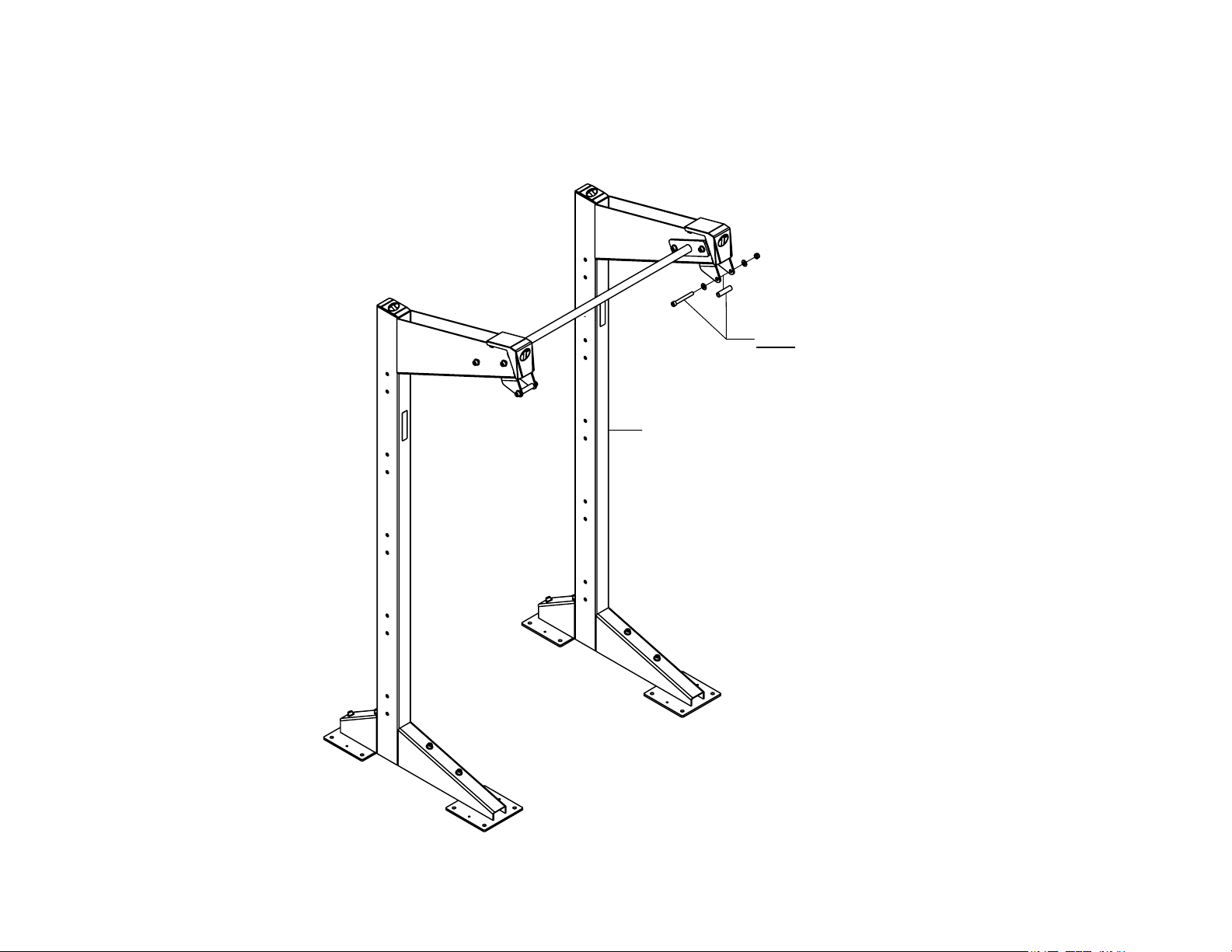

RE-ASSEMBLE TO UPRIGHT
USING HARDWARE FROM
PREVIOUS STEP
NOTE:
SECURELY
assemble bolt connections in this step.
34
Page 35
XCREATE-BT
BALL TARGET
NOTE:
REMOVE SPACERS
(2) AND DISCARD
NOTE:
REMOVE END CAP
AND DISCARD
NOTE:
TEMPORARILY REMOVE
BOLTS, WASHERS AND NUTS
XCREATE-4SX
XCREATE-8U
35
Page 36
XCREATE-BT
BALL TARGET
BALL TARGET EXTENSION
XCREATE-8U
NOTE:
ASSEMBLE BALL TARGET
EXTENSION TO UPRIGHT
USING BOLTS WASHERS AND
NUTS FROM PREVIOUS STEP
XCREATE-4SX
NOTE:
LOOSELY
assemble bolt connections in this step.
1 2 4 5 7
50 1803190150 170160
130 14012090 110100403010 706020 80
6
200
36
Page 37
XCREATE-BT
BALL TARGET
XCREATE-BT
1/2" LOCK NUT (2)
1/2" FLAT WASHER (4)
BALL TARGET
EXTENSION
1/2 X 4" BOLT (2)
NOTE:
After this step has been completed,
SECURELY
tighten all bolt connections from the last two steps.
1 2 4 5 7
50 1803190150 170160
130 14012090 110100403010 706020 80
6
200
37
Page 38
XCREATE-RBA
RESISTANCE BAND ANCHOR
NOTE:
MAKE SURE TO USE
PRE-INSTALLED SPACER
1/2" LOCK NUT
PRE-INSTALLED
XCREATE-RBA
XCREATE-4SX
1/2" FLAT WASHER (2)
PRE-INSTALLED
1/2 X 4-3/4" BOLT
PRE-INSTALLED
XCREATE-8U
NOTE:
SECURELY
1/2 X 1" BOLT (2)
PRE-INSTALLED
1/2 FLAT WASHER (2)
PRE-INSTALLED
tighten bolt connections in this step.
1 2 4 5 7
50 1803190150 170160
130 14012090 110100403010 706020 80
6
200
38
Page 39

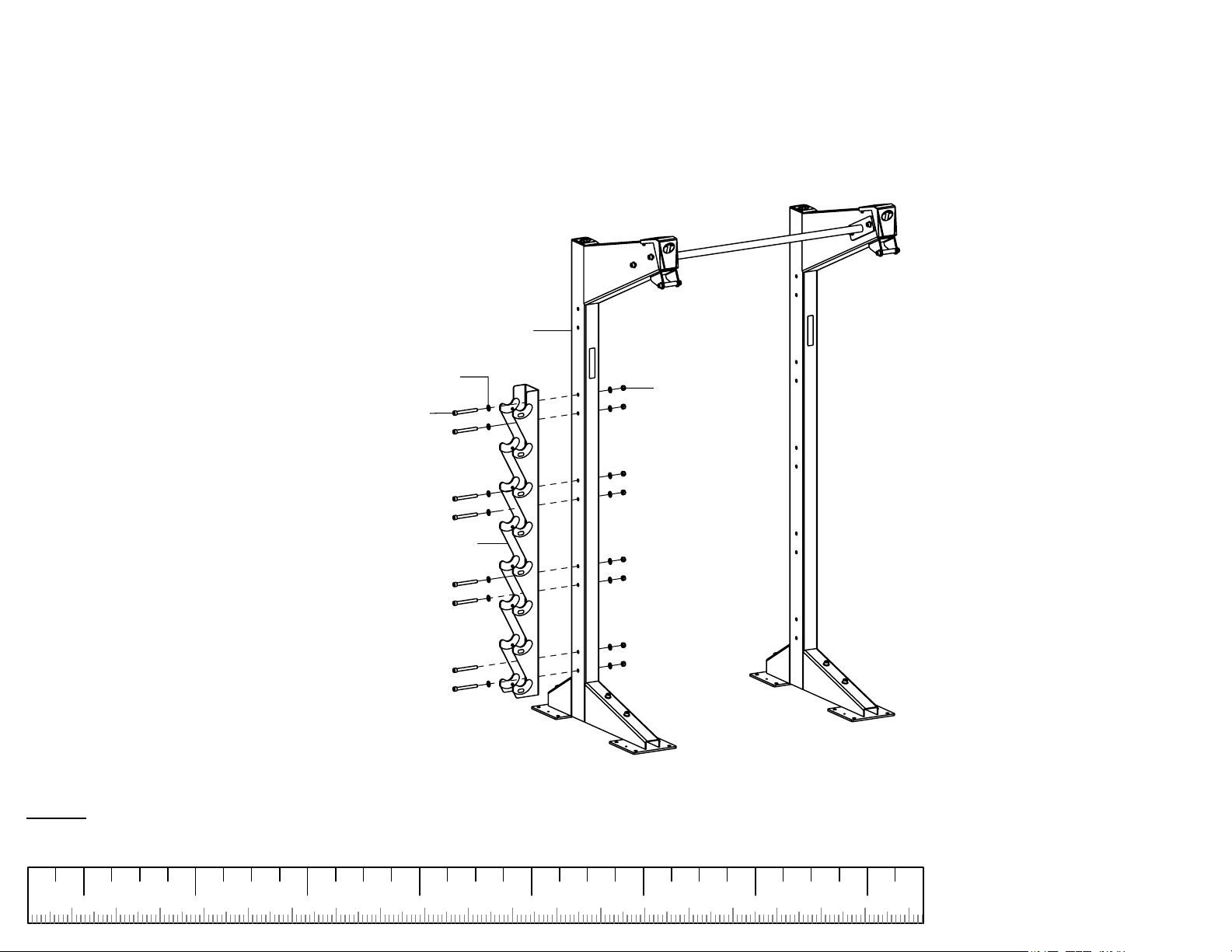

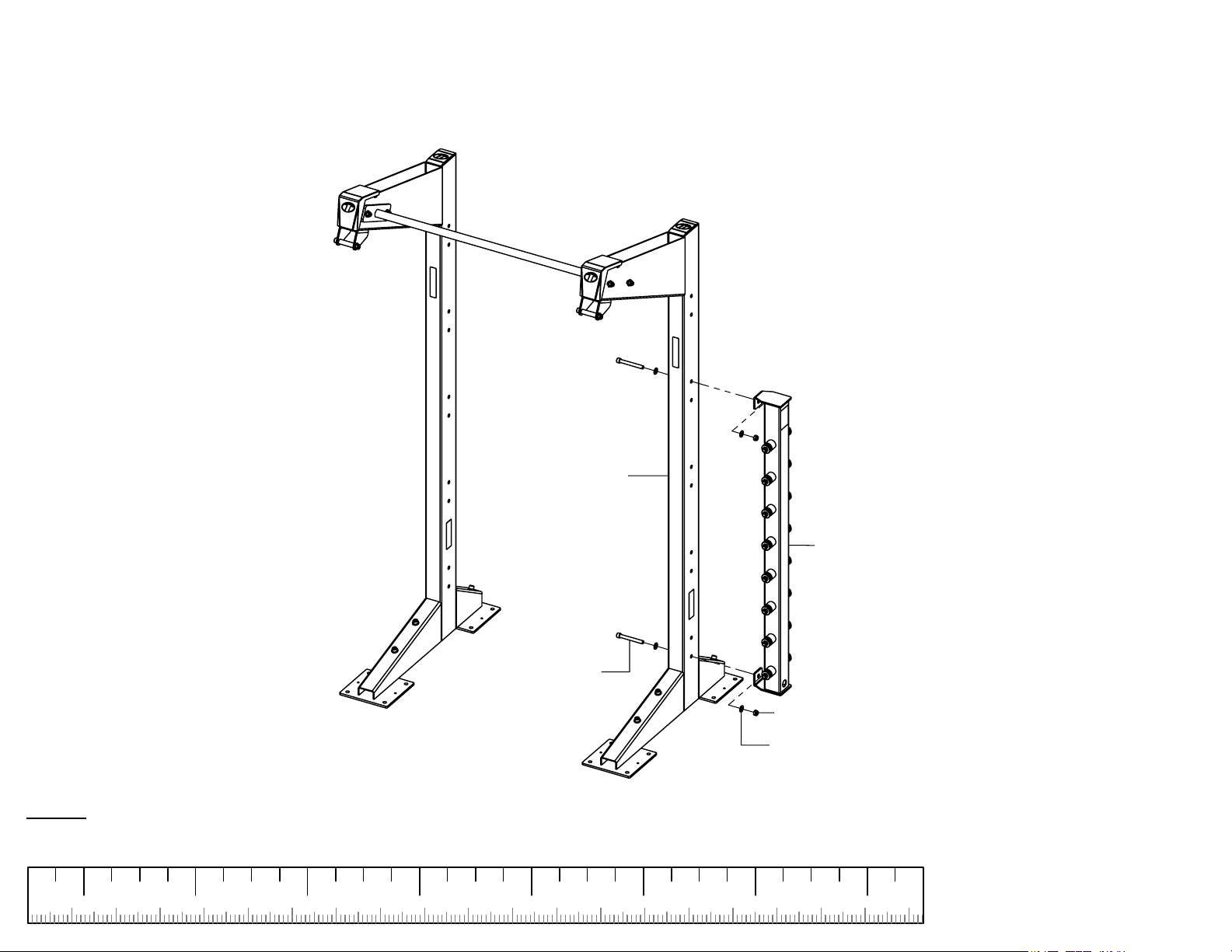

XCREATE-VDS4
VERTICAL DUMBBELL STORAGE - 4 PAIR
XCREATE-8U
NOTE:
1/2" FLAT WASHER (16)
1/2 X 4-1/4" BOLT (8)
XCREATE-VDS4
1/2" LOCK NUT (8)
SECURELY
tighten bolt connections in this step.
1 2 4 5 7
50 1803190150 170160
130 14012090 110100403010 706020 80
6
200
39
Page 40

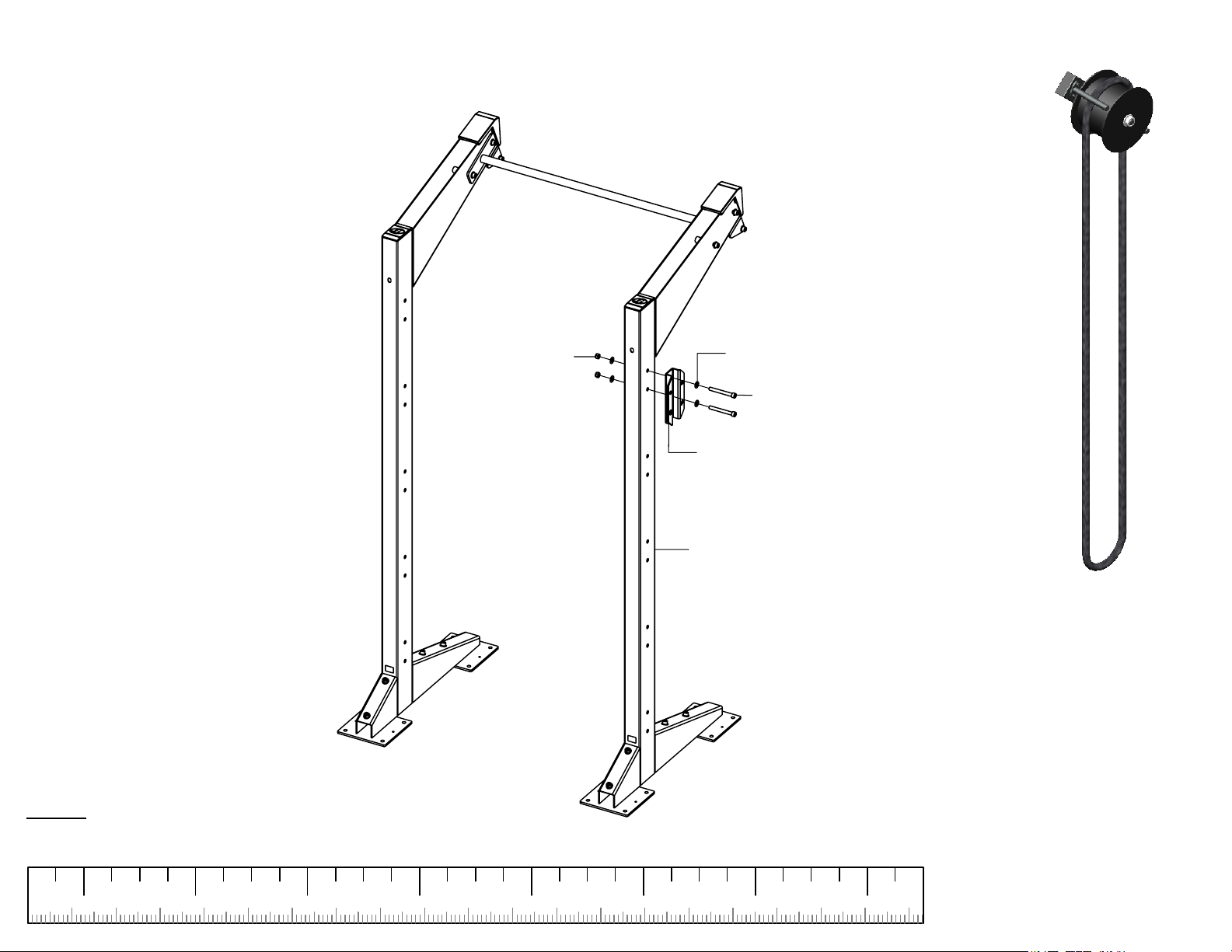

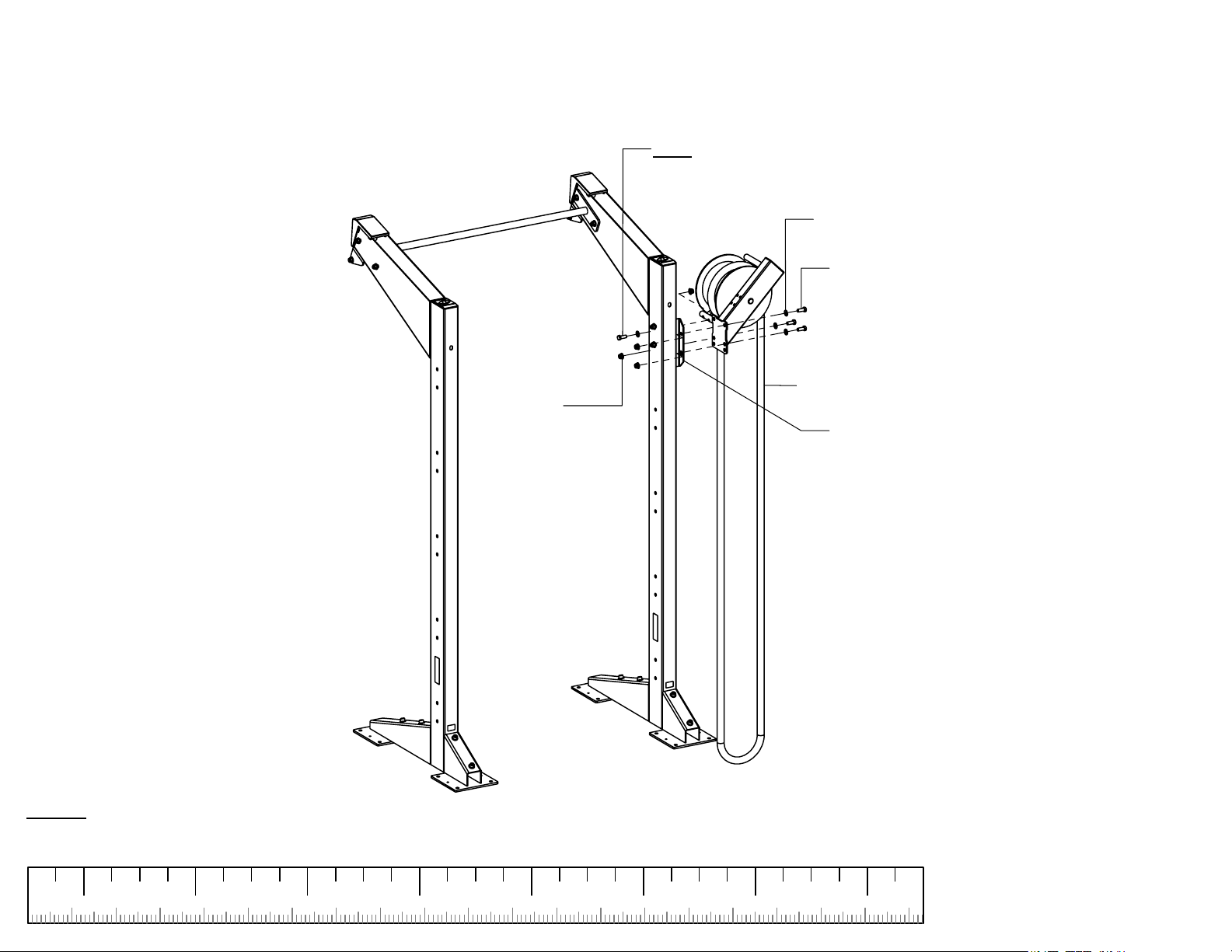

XERD
ENDLESS ROPE DRUM (VERTICAL MOUNT)
1/2" LOCK NUT (2)
1/2" FLAT WASHER (4)
1/2 X 4-1/4" BOLT (2)
CONNECTOR BRACKET
(VERTICAL)
XCREATE-8U
NOTE:
SECURELY
tighten bolt connections in this step.
1 2 4 5 7
50 1803190150 170160
130 14012090 110100403010 706020 80
6
200
40
Page 41
XERD
ENDLESS ROPE DRUM (VERTICAL MOUNT)
NOTE:
THIS BOLT MUST BE ASSEMBLED
FROM THIS DIRECTION
1/2" FLAT
WASHER (4)
1/2 X 1-1/4"
HEX BOLT (4)
NOTE:
1/2" FLANGE
NUT (4)
ENDLESS ROPE DRUM
CONNECTOR
BRACKET
(VERTICAL)
SECURELY
tighten bolt connections in this step.
1 2 4 5 7
50 1803190150 170160
130 14012090 110100403010 706020 80
6
200
41
Page 42
XLAB-AA
ATTACHMENT ANCHOR
XCREATE-8U
NOTE:
SECURELY
1/2 X 4-1/4" BOLT (2)
1/2" LOCK NUT (2)
1/2" FLAT WASHER (4)
tighten bolt connections in this step.
1 2 4 5 7
50 1803190150 170160
130 14012090 110100403010 706020 80
6
XLAB-AA
200
42
Page 43

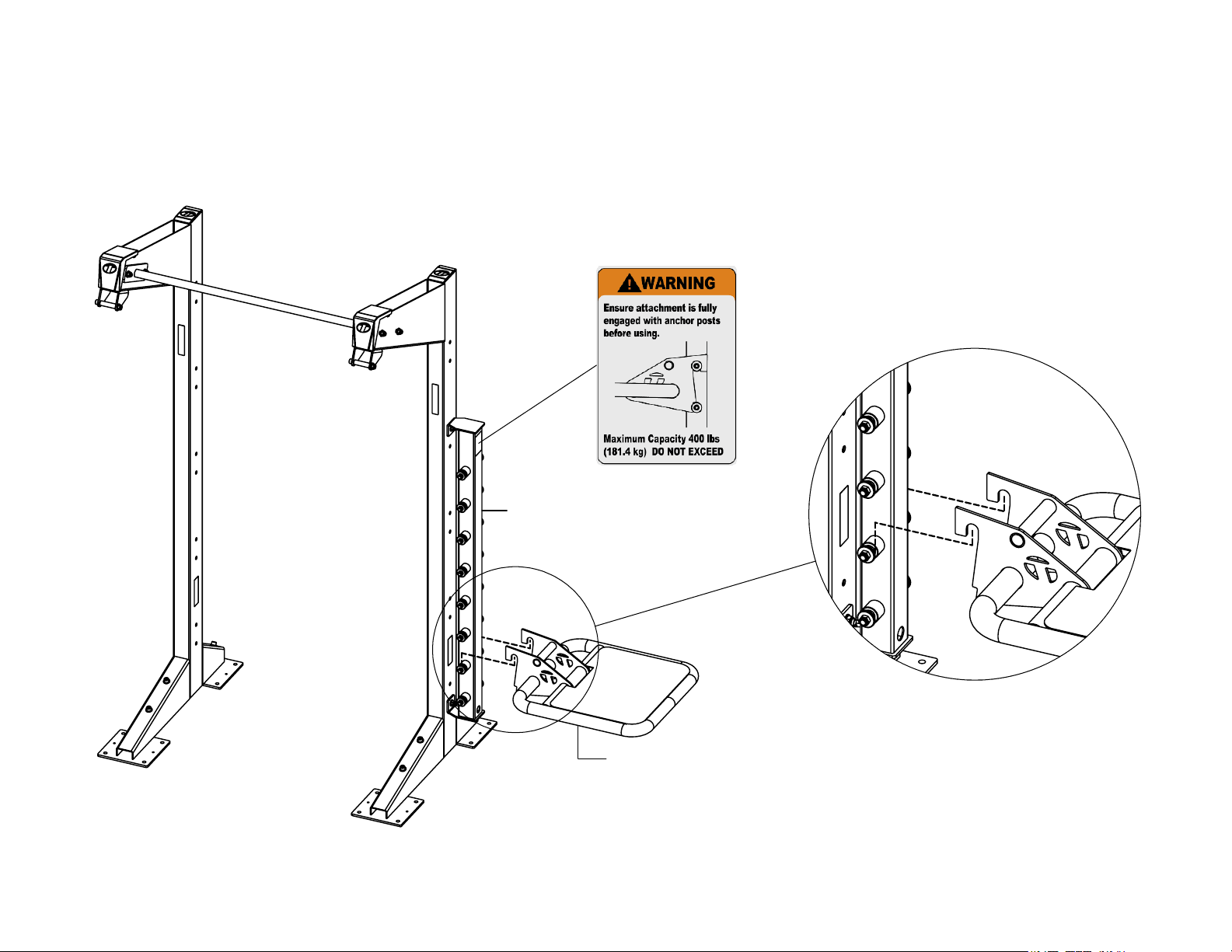

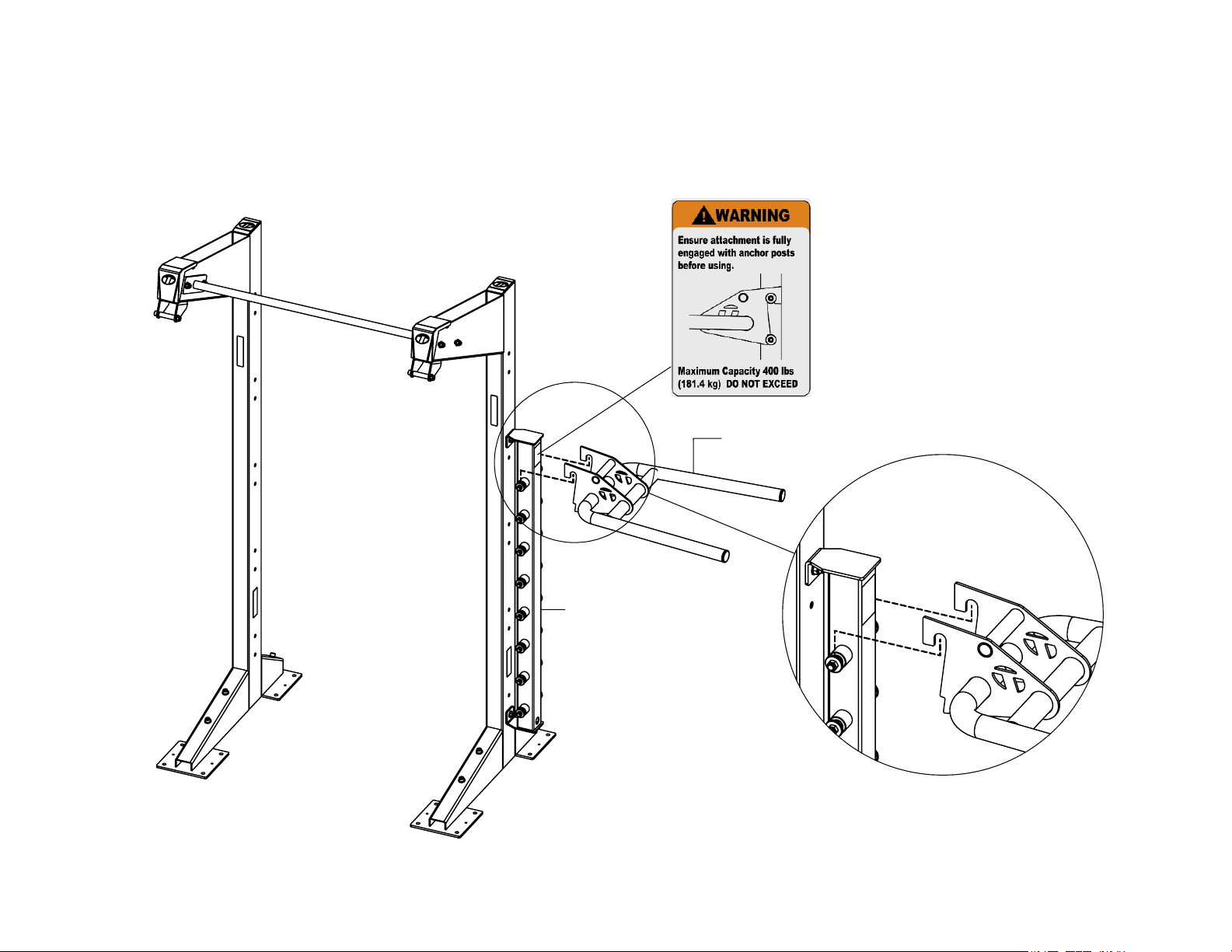

XLAB-DA
DIP ATTACHMENT
XLAB-DA
XLAB-AA
43
Page 44
XLAB-PS
PLYO STEP
XLAB-AA
XLAB-PS
44
Page 45

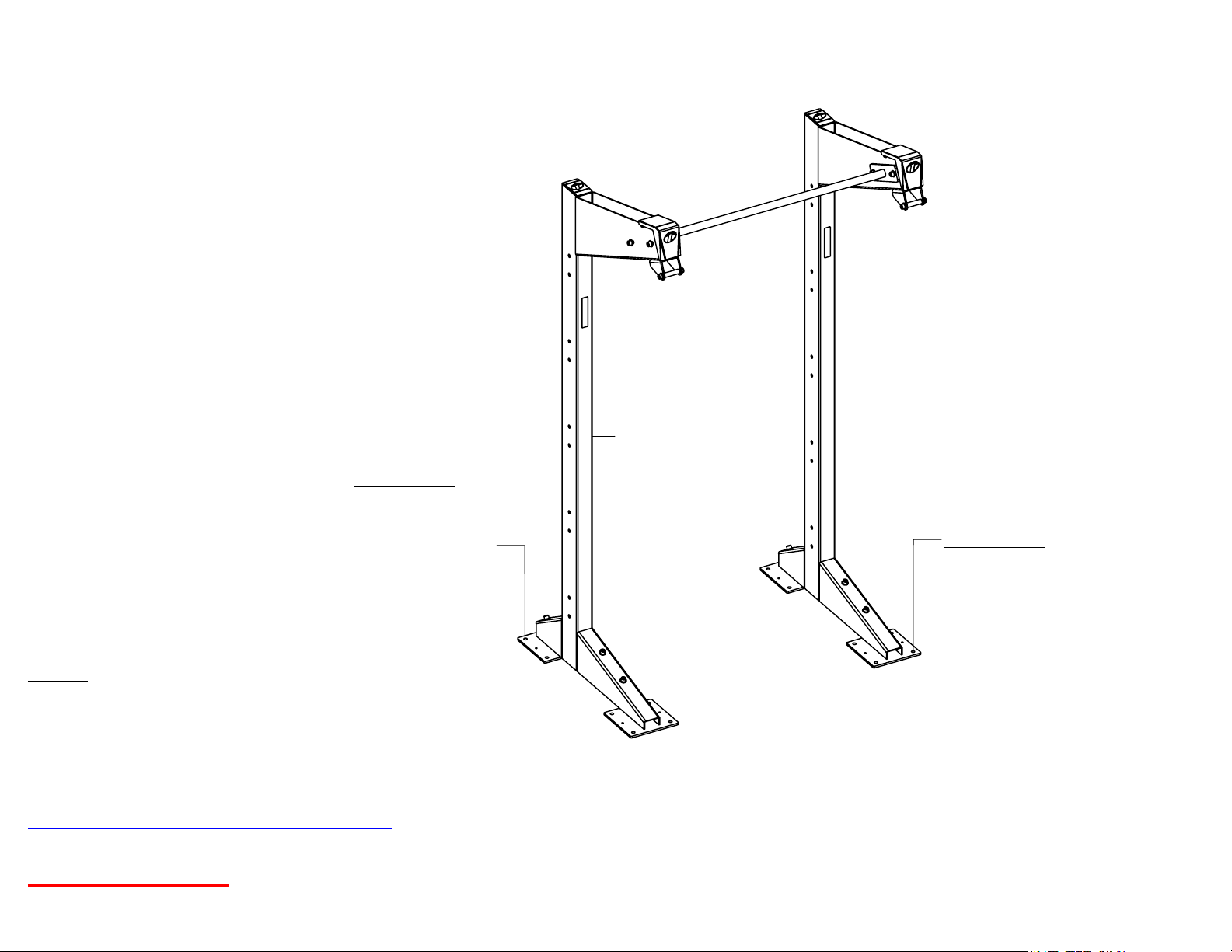

ANCHOR
ANCHOR HOLES
ALL UPRIGHTS ARE TO
BE ANCHORED TO THE
FLOOR. (MINIMUM TWO
ANCHORS PER PLATE)
XCREATE-8U
ANCHOR HOLES
ALL UPRIGHTS ARE TO
BE ANCHORED TO THE
FLOOR. (MINIMUM TWO
ANCHORS PER PLATE)
NOTE:
Make sure all bolts are
SECURELY
tighten.
Position system to desired location in the room.
Anchor system to the floor referencing X-CREATE
ANCHORING INSTRUCTIONS which can be downloaded at
www.torquefitness.com/assembly-manuals
WARNING!
ALL X-CREATE ARE REQUIRED TO BE ANCHORED TO THE
FLOOR TO PREVENT ROCKING OR TIPPING DURING USE.
45
Page 46
URETHANE BOOTS
2-3/4"
REAR BOOT
1-3/4"
FRONT BOOT
XCREATE-8U
1/4 X 3/8" BOLT
1/4" FLAT WASHER
NOTE:
The URETHANE BOOTS and hardware are packaged with the
upright boxes
SECURELY
tighten bolt connections in this step.
Repeat this step for every upright.
1 2 4 5 7
50 1803190150 170160
FRONT BOOT
130 14012090 110100403010 706020 80
6
200
46
Loading...
